Anacapa - Dume Details

PropertyValue
Rupture Count9,624
Ruptures w/ Nonzero Rates9,405
Magnitude Range[6.73, 8.00]
Length Range[22, 493] km
Total Rate3.9929152E-4 /yr
Multi-Fault Rate2.6848813E-4 /yr (67.24%)
Directly-Connected Faults12
All Co-Rupturing Faults84

Table Of Contents

Magnitude-Frequency Distribution

(top)

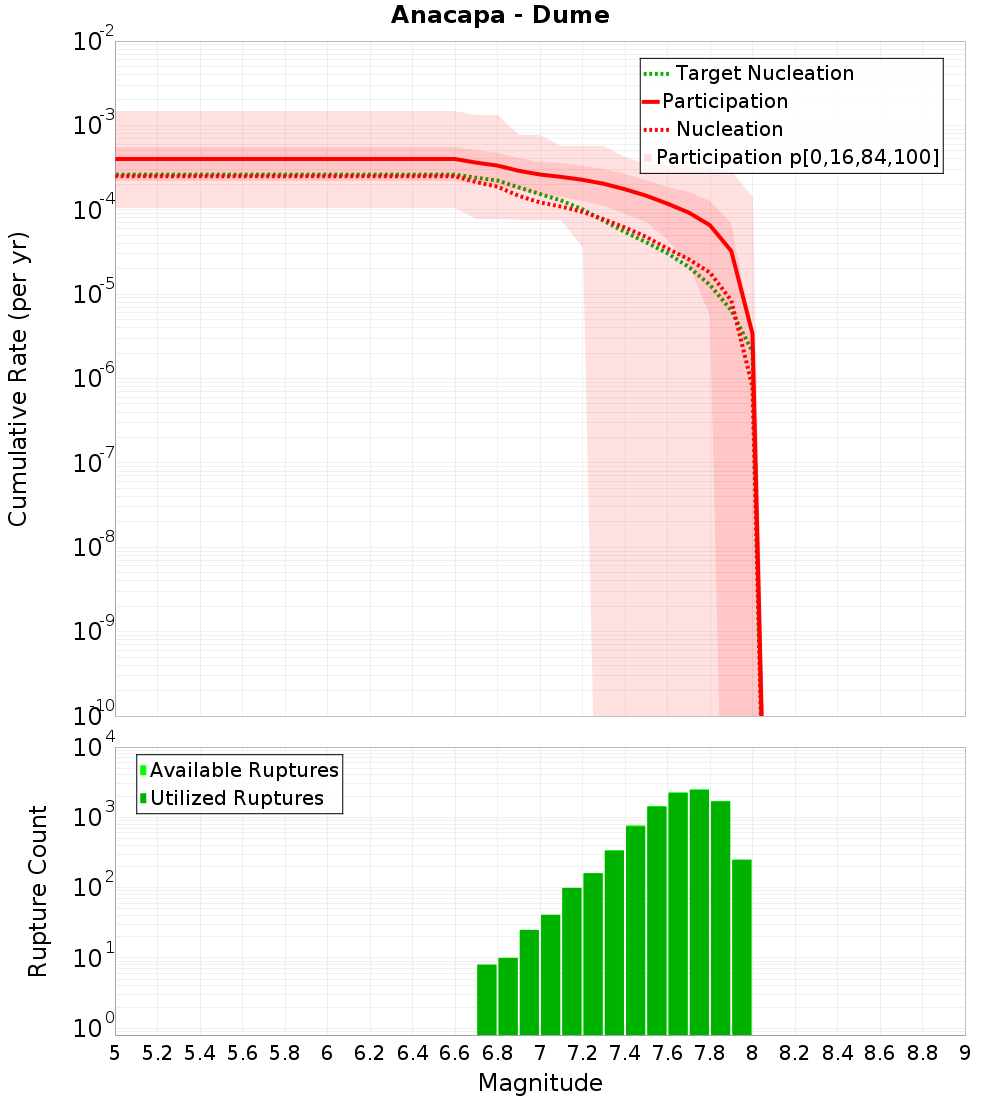

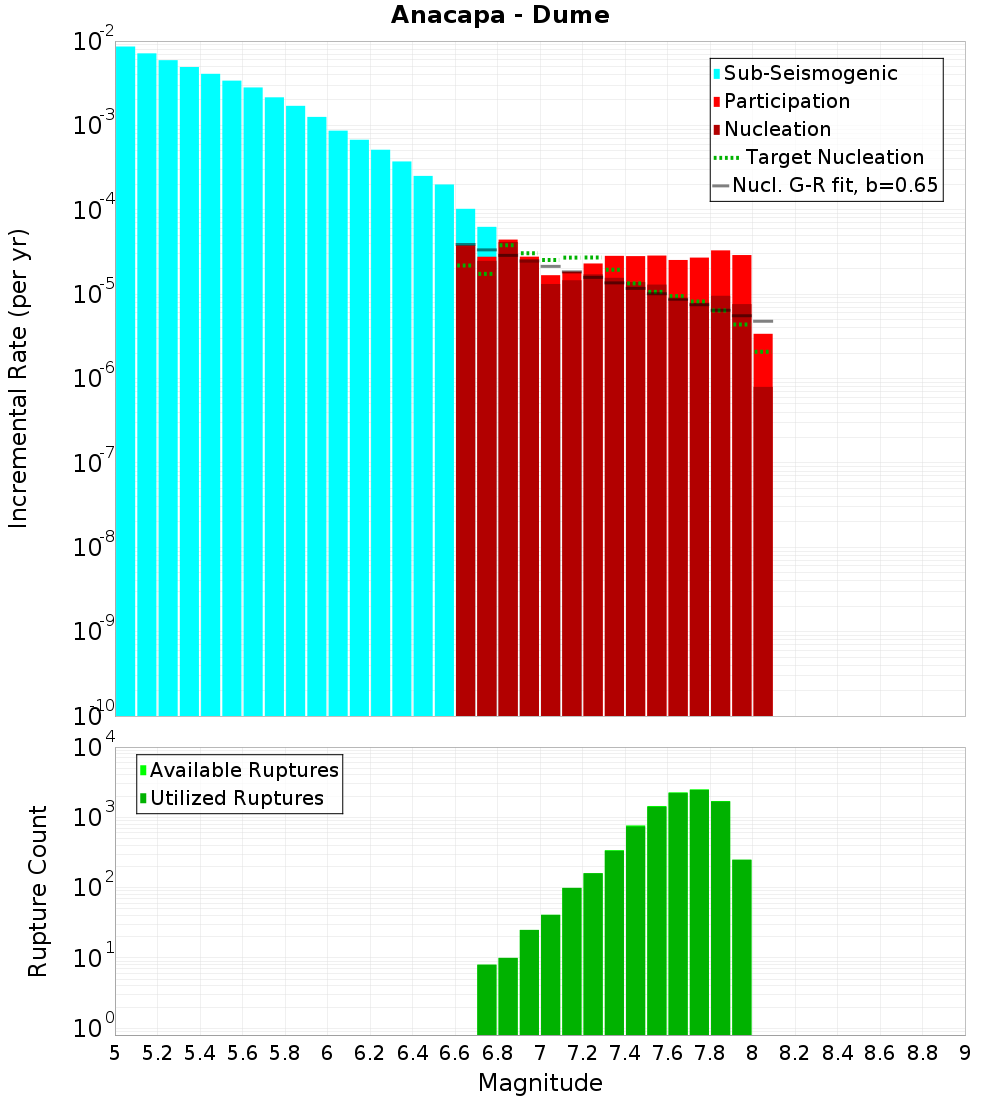

Fault magnitude-frequency distributions. The left plot shows incremental rates (rates within each magnitude bin), and the right plot shows cumulative rates (rates at or above the given magnitude).

The smaller bottom panel shows the distribution of available ruptures with a green histogram and is not rate-weighted. It only shows the raw count of ruptures of various magnitudes available in the rupture set.

IncrementalCumulative
Incremental PlotCumulative Plot

NOTE: This solution has a distribution of magnitudes and rates for each ruptures, and is likely a branch-averaged solution. That full distribution for each rupture is used to construct the MFDs above, but only mean magnitudes are used in the lower panel showing available and utilized magnitudes, and thus there may be bins with nonzero rates in the top panel where no mgnitudes are shown in the bottom. The magnitude rage at the top of this page also only considers mean magnitudes.

Cumulative Rates and Recurrence Intervals Table

(top)

MagnitudeParticipation RateRangeParticipation RI (yrs)Range
M≥6.63.9929152E-4[1.04E-4, 1.46E-3]2,504.44[683.01, 9,661.84]
M≥6.73.6151308E-4[7.81E-5, 1.33E-3]2,766.15[752.73, 12,801.11]
M≥6.83.3375618E-4[7.71E-5, 1.33E-3]2,996.2[752.73, 12,976.69]
M≥6.92.8944667E-4[7.56E-5, 7.60E-4]3,454.87[1,315.27, 13,231.49]
M≥72.616293E-4[7.55E-5, 7.60E-4]3,822.2[1,315.27, 13,240.95]
M≥7.12.448609E-4[7.55E-5, 5.64E-4]4,083.95[1,773.68, 13,240.95]
M≥7.22.2637469E-4[3.48E-5, 5.64E-4]4,417.46[1,773.68, 28,719.13]
M≥7.32.0328633E-4[6.17E-19, 5.64E-4]4,919.17[1,773.68, 1,621,691,786,699,740,930]
M≥7.41.7486082E-4[0.00E0, 4.26E-4]5,718.83[2,346.98, ∞]
M≥7.51.4662751E-4[0.00E0, 3.51E-4]6,820[2,852.09, ∞]
M≥7.61.17970165E-4[0.00E0, 3.38E-4]8,476.72[2,956.31, ∞]
M≥7.79.2565555E-5[0.00E0, 3.25E-4]10,803.15[3,076.92, ∞]
M≥7.86.545569E-5[0.00E0, 3.10E-4]15,277.51[3,220.82, ∞]
M≥7.93.2445063E-5[0.00E0, 2.94E-4]30,821.33[3,403.68, ∞]
M≥83.387771E-6[0.00E0, 1.37E-4]295,179.35[7,315.29, ∞]

Individual Branch Nucleation MFDs

(top)

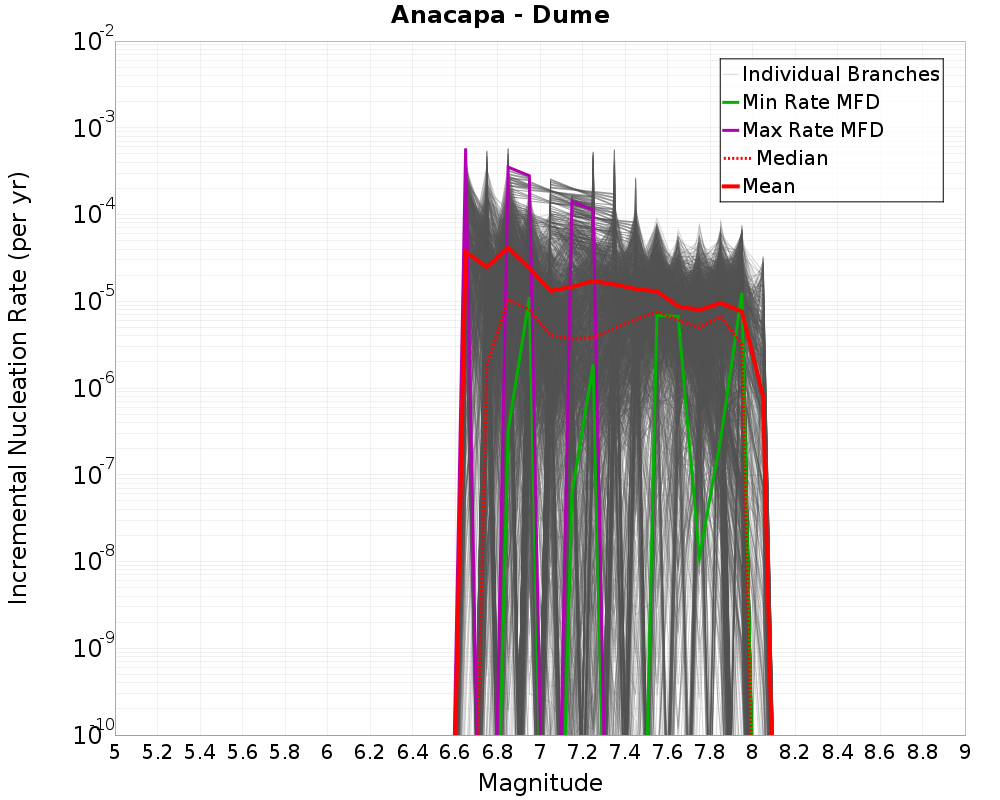

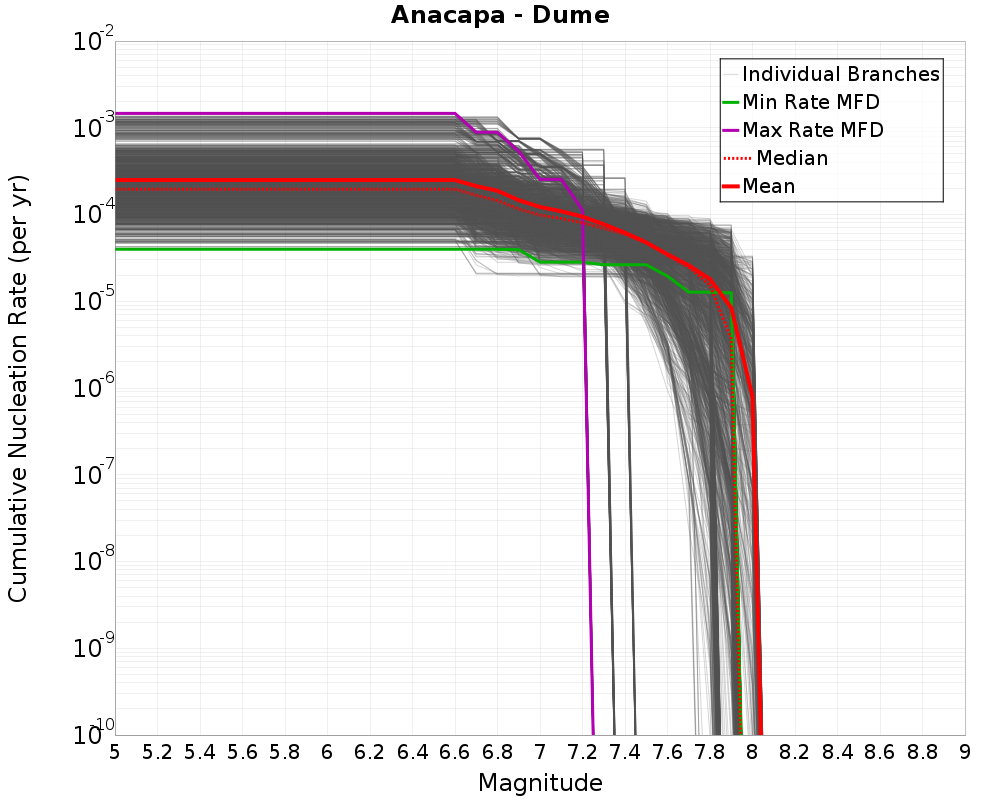

Individual nucleation MFDs across 2250 logic tree branches. The individual branches with the highest and lowest total rate are highlighted, as are the mean and median models.

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

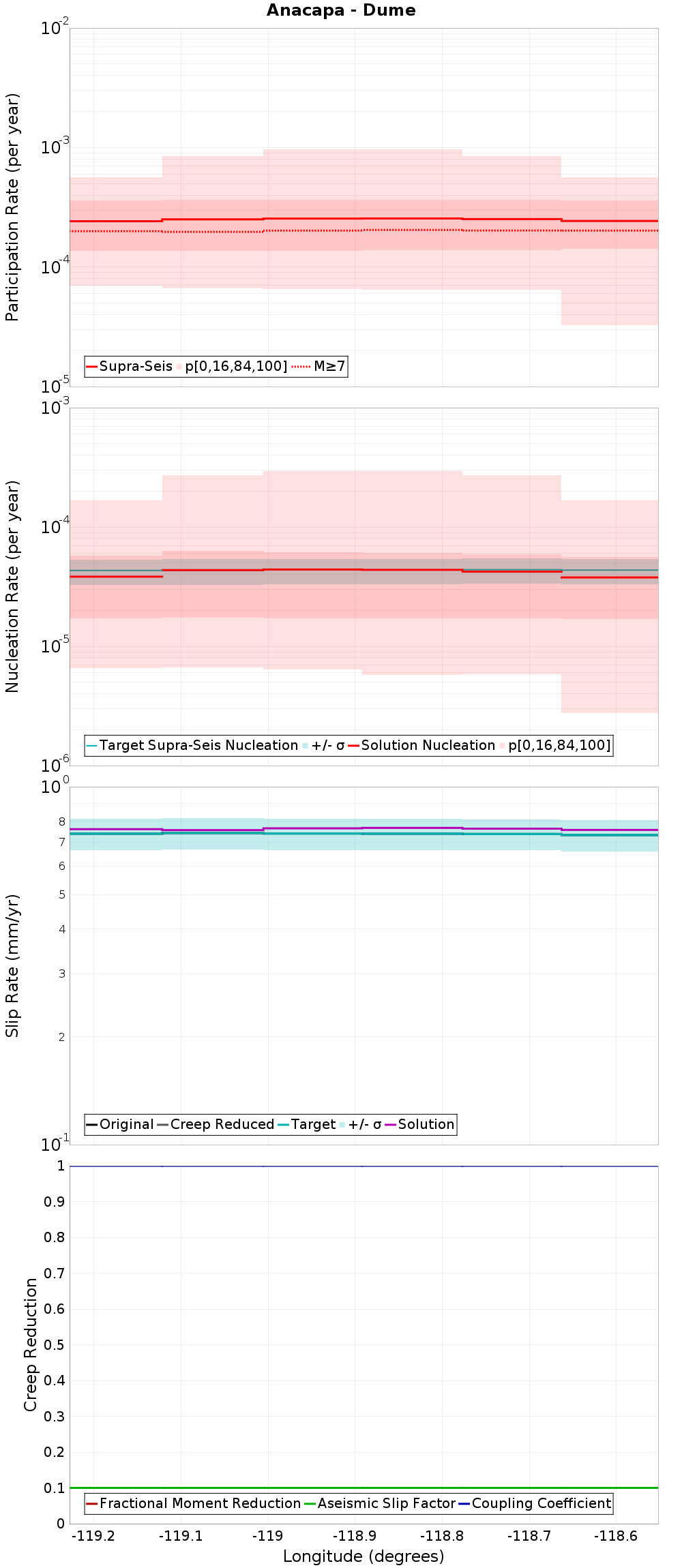

Along-strike plot

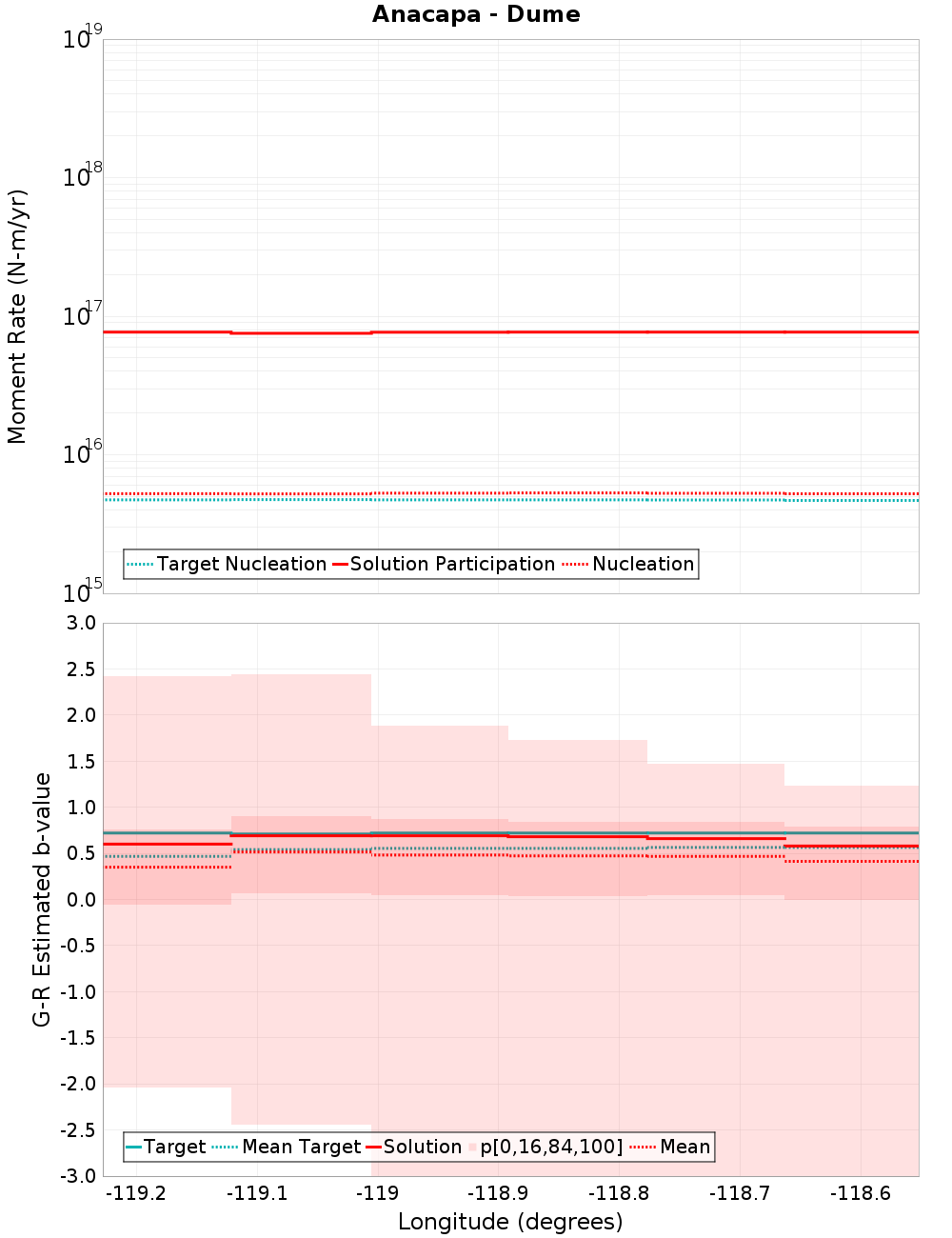

Moment-Rates and b-Values

(top)

Along-strike plot

Length Distributions

(top)

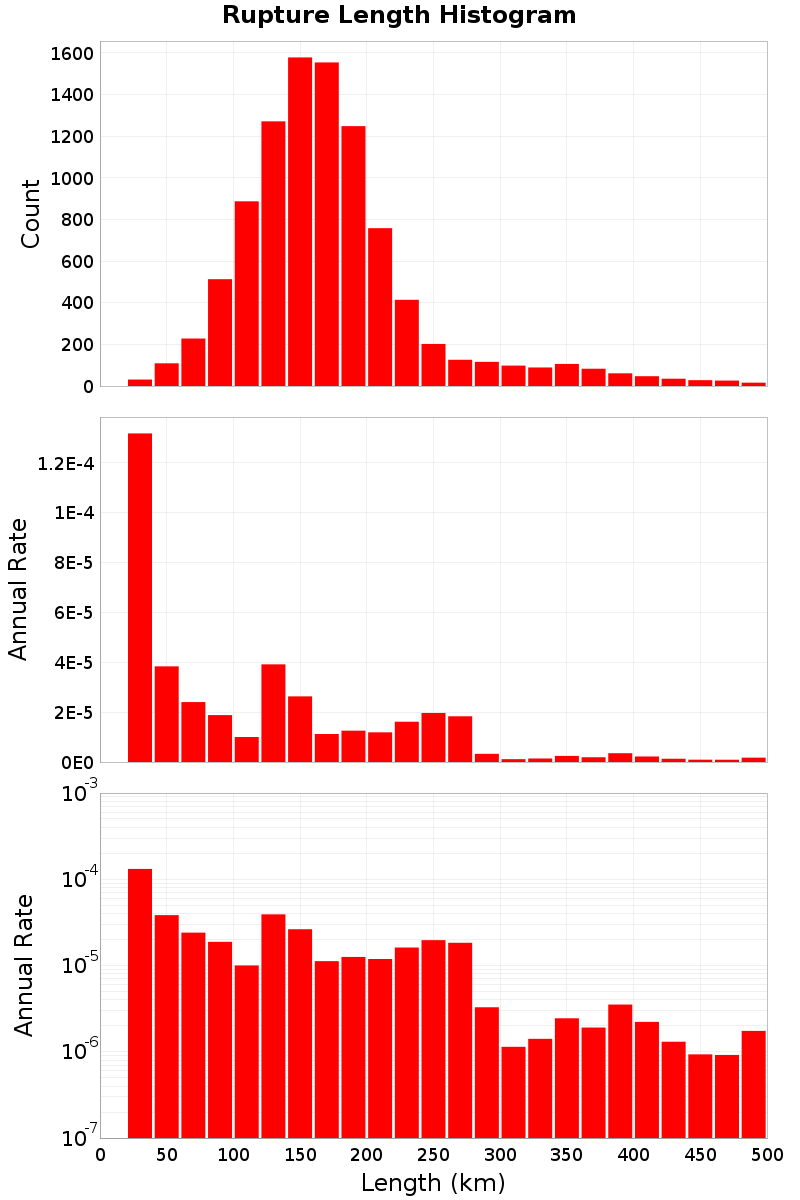

Fault rupture length distributions. The top panel shows the raw count of ruptures in which Anacapa - Dume participates in the rupture set as a function of rupture length. The bottom two panels show the rate-weighted distribution (i.e., the distribution of lengths in the solution). The middle panel is plotted with a linear scale, and the bottom paney a logarithmic scale.

Length Hist

Rupture Examples

(top)

The following table includes example ruptures, selected at various percentiles from the rate-weighted rupture length distribution. So, for example, the rupture with length closest to the median length (again, rate-weighted) is plotted in the first column ('p50 Example'). The longest participating rupture is plotted last ('p100 Example').

It is important to note that the rupture examples here may not be representative, and may have negligible rates. They are included for illustration purposes only.

p50 Example

p75 Example

p90 Example

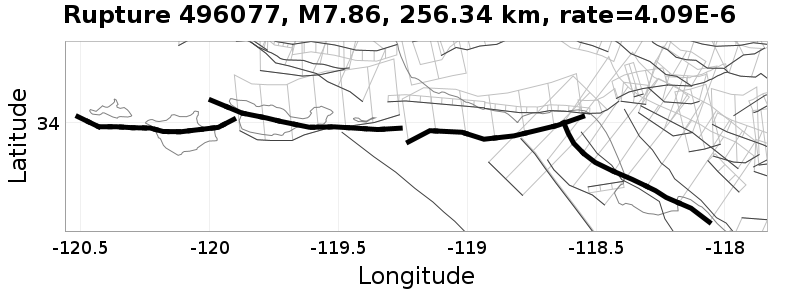

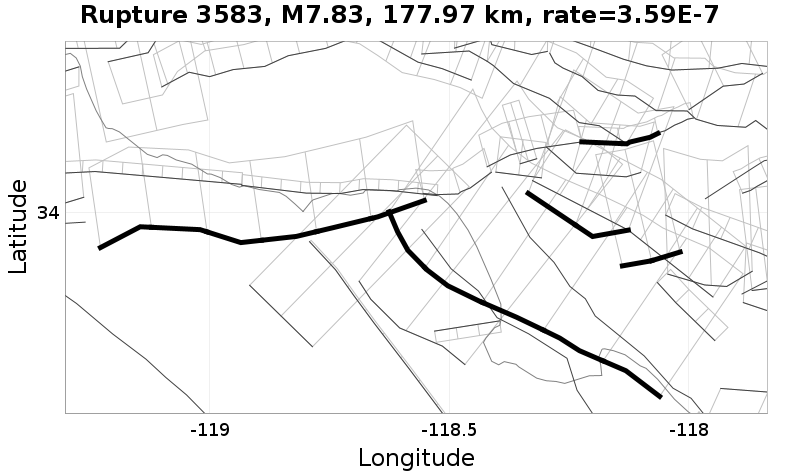

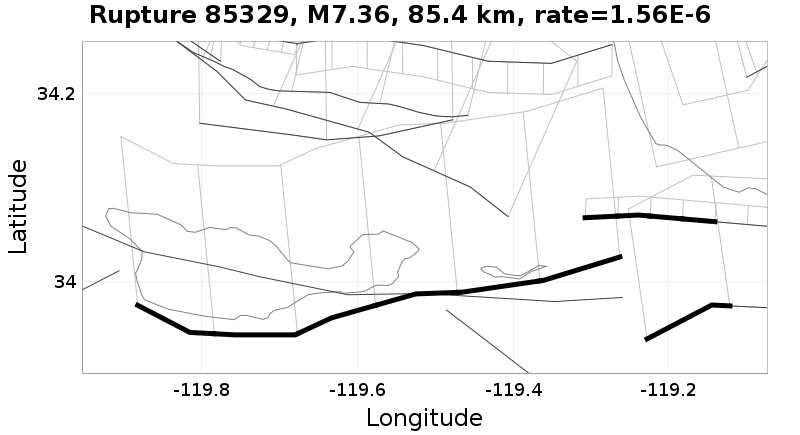

Rupture 85329Rupture 3583Rupture 496077

p97.5 Example

p99 Example

p100 Example

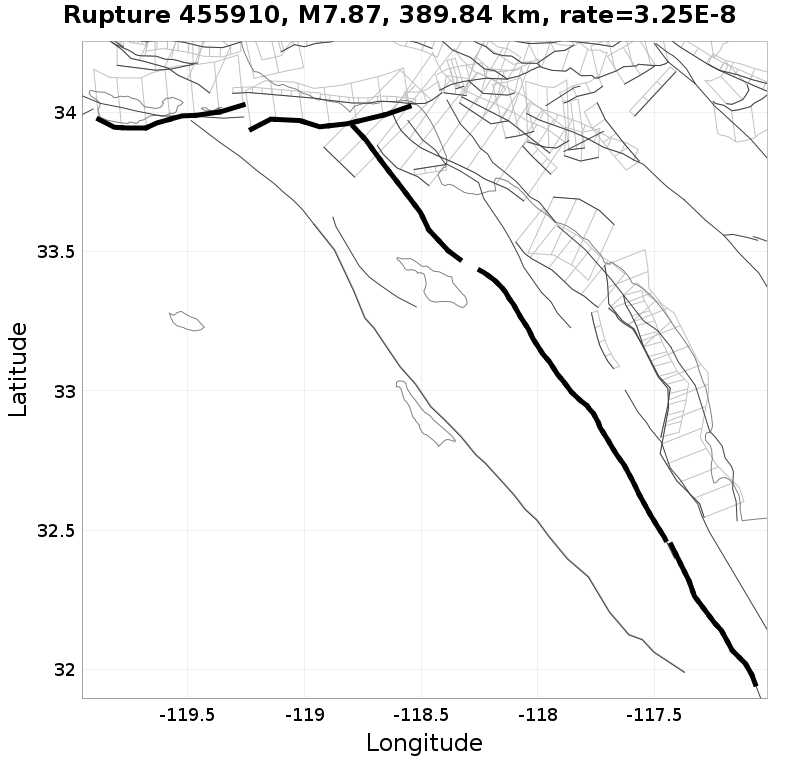

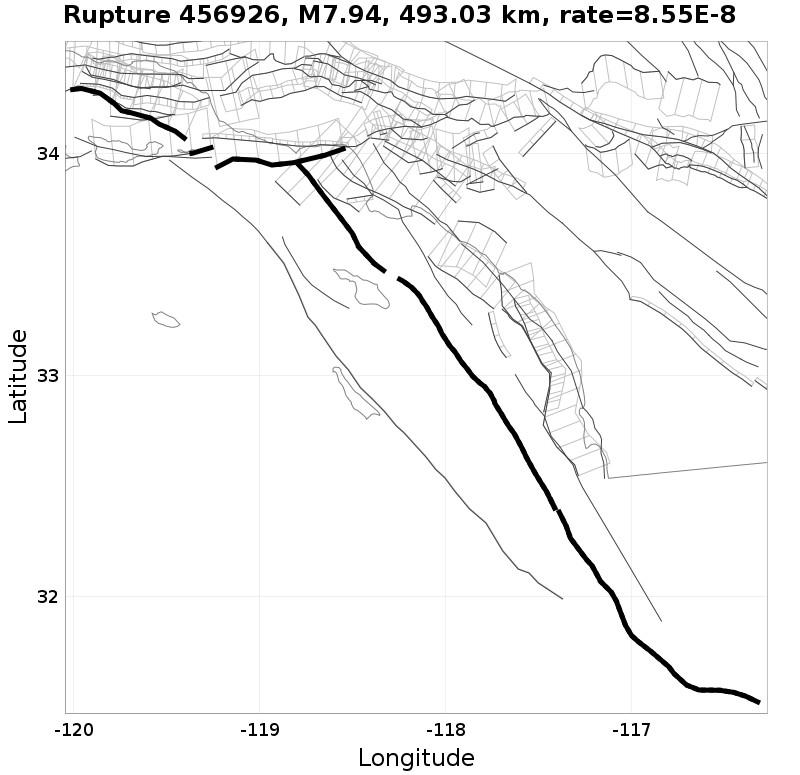

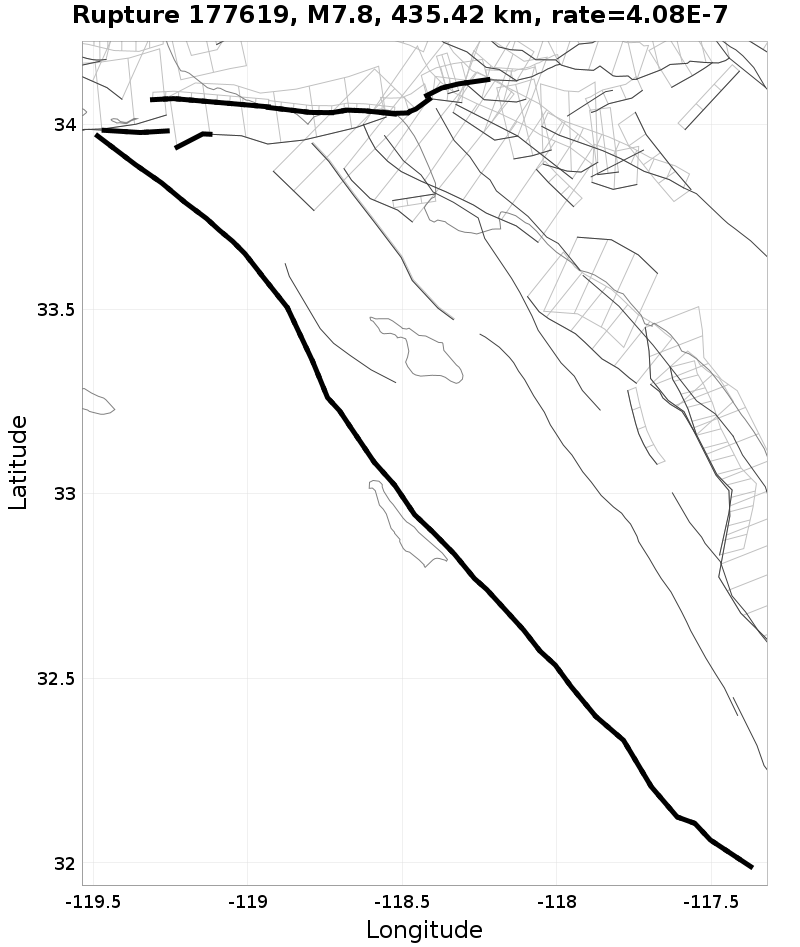

Rupture 455910Rupture 177619Rupture 456926

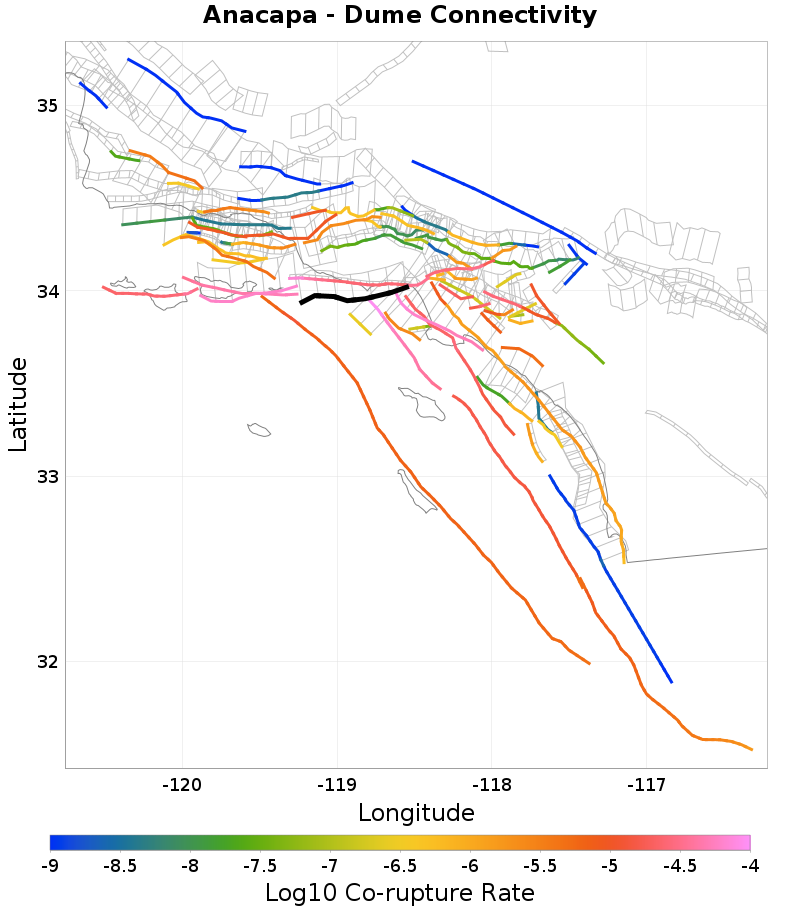

Connectivity

(top)

Map

Nearby Sections

(top)

Fault SectionFault Section
Malibu Coast, 0.19 km awaySan Pedro Escarpment, 4.52 km away
Santa Monica, 0.35 km awayPalos Verdes, 5.1 km away
Compton, 1.73 km awayNorthridge, 8.74 km away
San Pedro Basin, 1.78 km awayOak Ridge (onshore), 9.28 km away
Santa Monica Bay, 2.19 km awaySanta Cruz - San Clemente, 11.46 km away
Santa Cruz Island, 2.25 km awayHollywood, 12.54 km away
Sisar, 2.74 km awaySan Vicente, 14.47 km away
Malibu Coast (extension), 2.93 km awayChannel Islands (ramp), 14.77 km away
Channel Islands, 4.01 km away

Malibu Coast, 0.19 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.19 km
Min Rate-Weighted Dist0.19 km
Co-rupture Count1,077
Co-rupture Rate2.9777762E-5
Co-rupture Mag Range[6.78, 7.93]

Santa Monica, 0.35 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.35 km
Min Rate-Weighted Dist0.35 km
Co-rupture Count3,599
Co-rupture Rate3.3257103E-5
Co-rupture Mag Range[6.91, 7.98]

Compton, 1.73 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.73 km
Min Rate-Weighted Dist1.73 km
Co-rupture Count3,349
Co-rupture Rate7.312671E-5
Co-rupture Mag Range[7.02, 8.00]

San Pedro Basin, 1.78 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.78 km
Min Rate-Weighted Dist2.94 km
Co-rupture Count1,002
Co-rupture Rate9.108149E-5
Co-rupture Mag Range[6.78, 7.94]

Santa Monica Bay, 2.19 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.19 km
Min Rate-Weighted Dist2.19 km
Co-rupture Count52
Co-rupture Rate2.633132E-7
Co-rupture Mag Range[7.35, 7.73]

Santa Cruz Island, 2.25 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.25 km
Min Rate-Weighted Dist2.25 km
Co-rupture Count1,449
Co-rupture Rate5.1556628E-5
Co-rupture Mag Range[6.91, 7.94]

Sisar, 2.74 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.74 km
Min Rate-Weighted Dist2.74 km
Co-rupture Count332
Co-rupture Rate1.0338302E-5
Co-rupture Mag Range[7.26, 8.00]

Malibu Coast (extension), 2.93 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.93 km
Min Rate-Weighted Dist3.91 km
Co-rupture Count1,932
Co-rupture Rate6.942032E-5
Co-rupture Mag Range[6.73, 7.87]

Channel Islands, 4.01 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.01 km
Min Rate-Weighted Dist4.01 km
Co-rupture Count1,747
Co-rupture Rate6.934401E-5
Co-rupture Mag Range[7.27, 7.95]

San Pedro Escarpment, 4.52 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.52 km
Min Rate-Weighted Dist4.52 km
Co-rupture Count1,306
Co-rupture Rate2.6935577E-6
Co-rupture Mag Range[7.21, 7.97]

Palos Verdes, 5.1 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist5.1 km
Min Rate-Weighted Dist5.1 km
Co-rupture Count980
Co-rupture Rate2.7385282E-5
Co-rupture Mag Range[6.92, 7.95]

Northridge, 8.74 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count121
Co-rupture Rate7.7853923E-7
Co-rupture Mag Range[7.39, 7.98]

Oak Ridge (onshore), 9.28 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count27
Co-rupture Rate2.430367E-6
Co-rupture Mag Range[7.43, 7.88]

Santa Cruz - San Clemente, 11.46 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist11.46 km
Min Rate-Weighted Dist11.46 km
Co-rupture Count3,454
Co-rupture Rate1.2481325E-5
Co-rupture Mag Range[6.73, 7.93]

Hollywood, 12.54 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count2,623
Co-rupture Rate2.6173531E-5
Co-rupture Mag Range[7.06, 7.98]

San Vicente, 14.47 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count507
Co-rupture Rate8.1597966E-7
Co-rupture Mag Range[7.02, 7.84]

Channel Islands (ramp), 14.77 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count533
Co-rupture Rate4.772666E-6
Co-rupture Mag Range[7.28, 7.95]
