Compton Details

PropertyValue
Rupture Count7,365
Ruptures w/ Nonzero Rates7,236
Magnitude Range[6.80, 8.03]
Length Range[24, 419] km
Total Rate8.115994E-4 /yr
Multi-Fault Rate6.051919E-4 /yr (74.57%)
Directly-Connected Faults16
All Co-Rupturing Faults88

Table Of Contents

Magnitude-Frequency Distribution

(top)

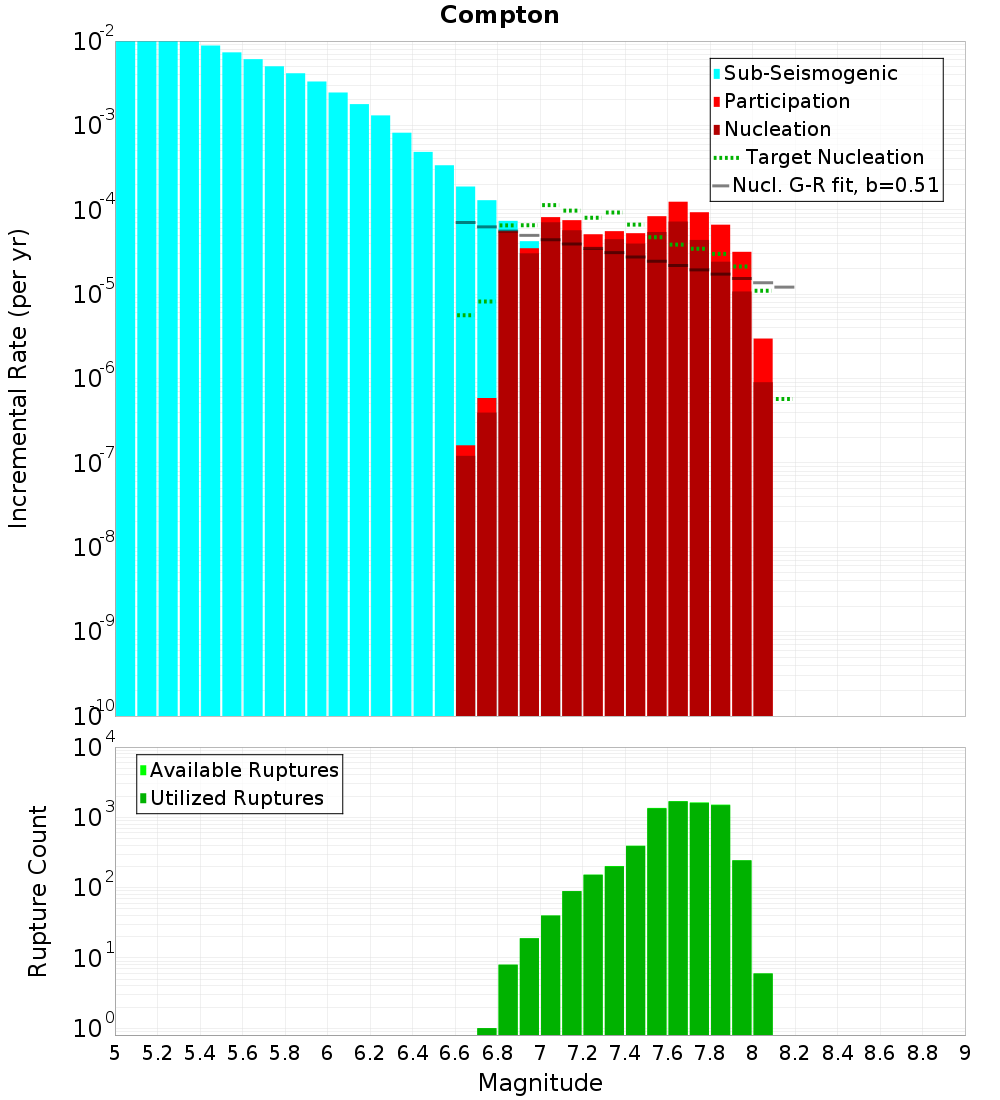

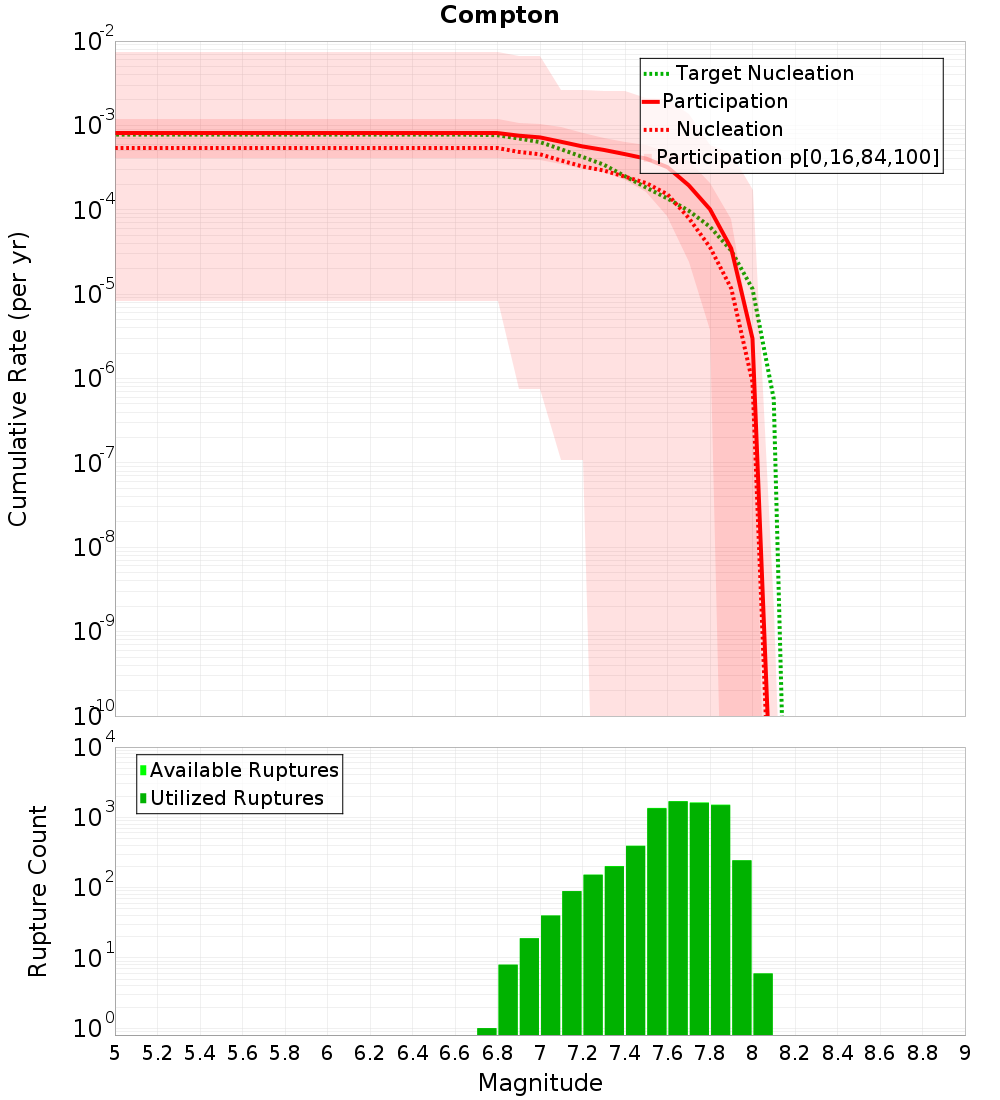

Fault magnitude-frequency distributions. The left plot shows incremental rates (rates within each magnitude bin), and the right plot shows cumulative rates (rates at or above the given magnitude).

The smaller bottom panel shows the distribution of available ruptures with a green histogram and is not rate-weighted. It only shows the raw count of ruptures of various magnitudes available in the rupture set.

IncrementalCumulative
Incremental PlotCumulative Plot

NOTE: This solution has a distribution of magnitudes and rates for each ruptures, and is likely a branch-averaged solution. That full distribution for each rupture is used to construct the MFDs above, but only mean magnitudes are used in the lower panel showing available and utilized magnitudes, and thus there may be bins with nonzero rates in the top panel where no mgnitudes are shown in the bottom. The magnitude rage at the top of this page also only considers mean magnitudes.

Cumulative Rates and Recurrence Intervals Table

(top)

MagnitudeParticipation RateRangeParticipation RI (yrs)Range
M≥6.68.115994E-4[8.40E-6, 7.43E-3]1,232.13[134.6, 119,033.45]
M≥6.78.1143784E-4[8.40E-6, 7.43E-3]1,232.38[134.6, 119,033.45]
M≥6.88.108505E-4[8.40E-6, 7.43E-3]1,233.27[134.6, 119,033.45]
M≥6.97.550823E-4[7.58E-7, 6.56E-3]1,324.36[152.41, 1,319,261.22]
M≥77.200774E-4[7.58E-7, 6.56E-3]1,388.74[152.41, 1,319,261.22]
M≥7.16.3829473E-4[1.10E-7, 2.65E-3]1,566.67[377.83, 9,132,420.08]
M≥7.25.63024E-4[1.10E-7, 2.65E-3]1,776.12[377.83, 9,132,420.08]
M≥7.35.117553E-4[1.95E-21, 2.54E-3]1,954.06[394.17, 513,999,072,965,403,540,000]
M≥7.44.5597964E-4[0.00E0, 2.54E-3]2,193.08[394.17, ∞]
M≥7.54.0320968E-4[0.00E0, 2.08E-3]2,480.1[480.13, ∞]
M≥7.63.1931742E-4[0.00E0, 2.04E-3]3,131.68[489.73, ∞]
M≥7.71.9475132E-4[0.00E0, 1.37E-3]5,134.75[730.92, ∞]
M≥7.81.01273734E-4[0.00E0, 5.79E-4]9,874.23[1,726.52, ∞]
M≥7.93.4722285E-5[0.00E0, 4.67E-4]28,799.95[2,140.8, ∞]
M≥82.9748403E-6[0.00E0, 1.70E-4]336,152.5[5,885.82, ∞]
M≥8.11.508892E-12[0.00E0, 1.77E-9]662,737,969,271.12[566,251,410.52, ∞]

Individual Branch Nucleation MFDs

(top)

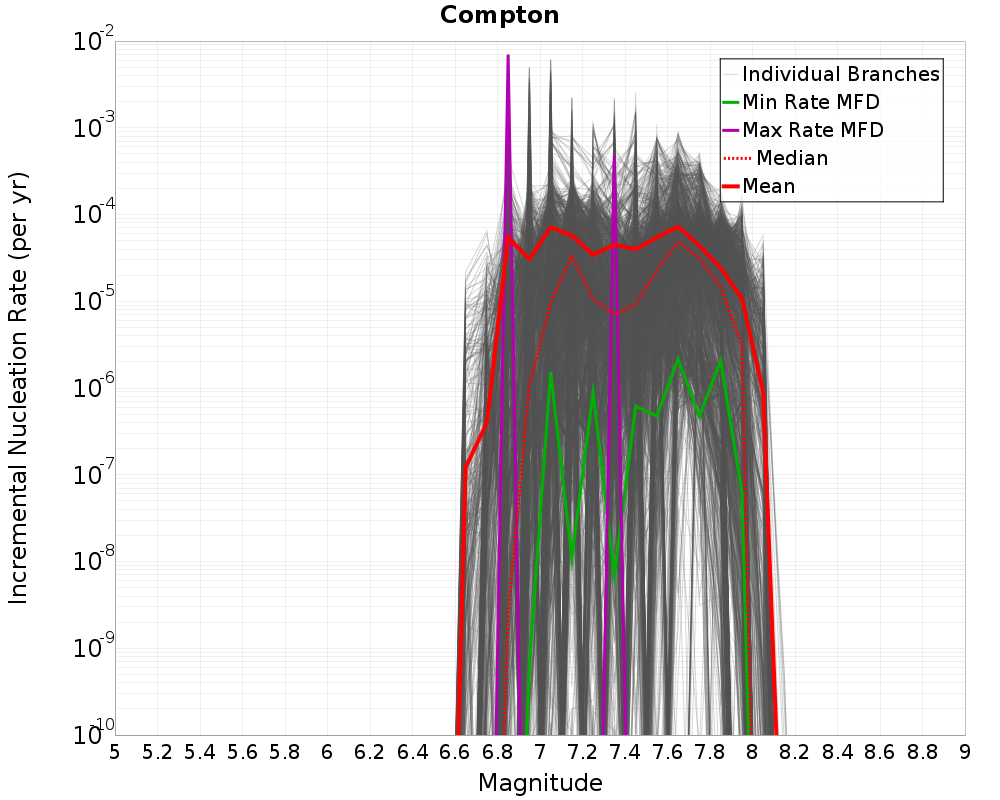

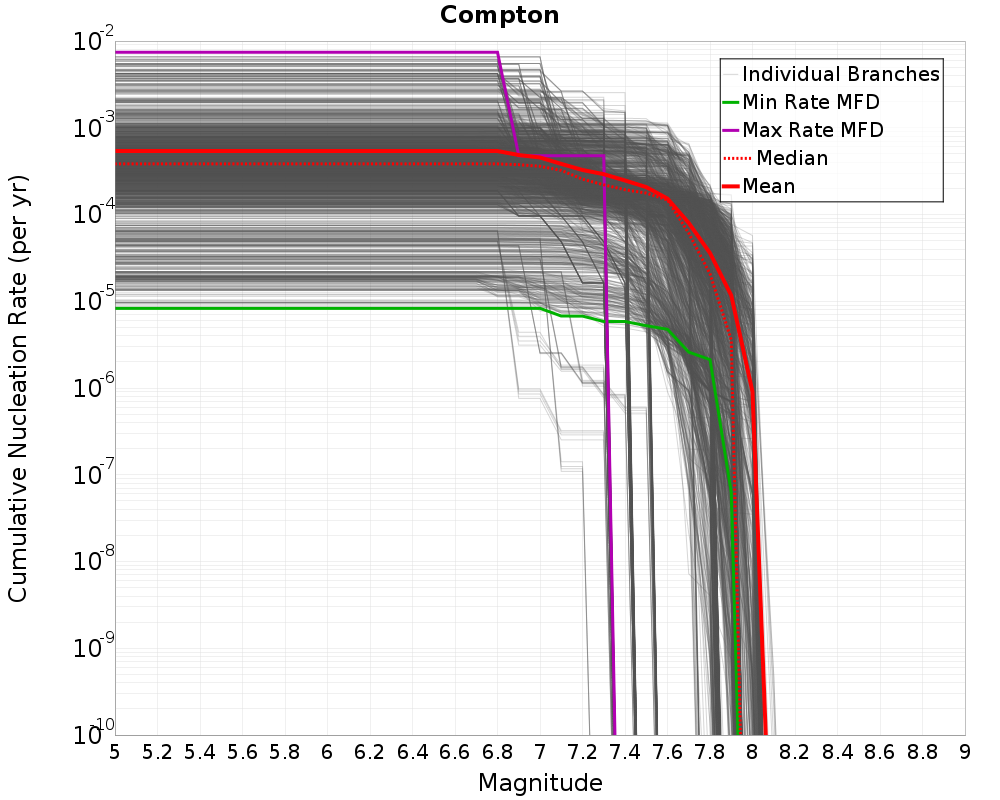

Individual nucleation MFDs across 2250 logic tree branches. The individual branches with the highest and lowest total rate are highlighted, as are the mean and median models.

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

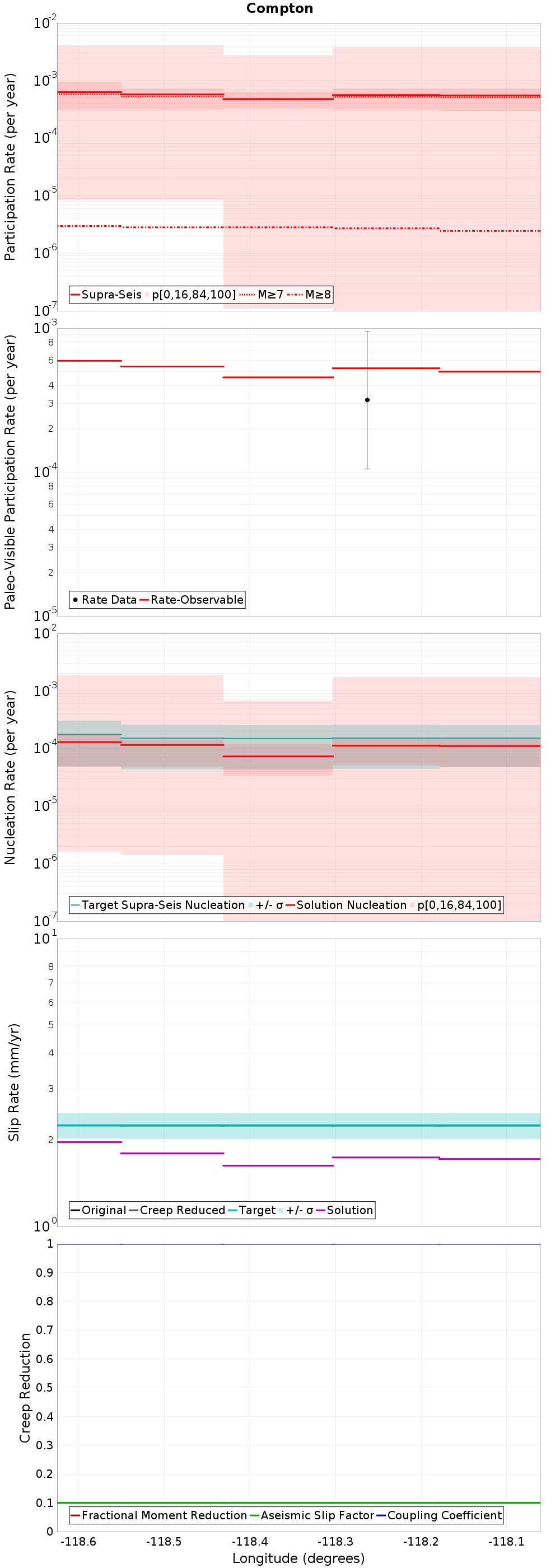

Along-strike plot

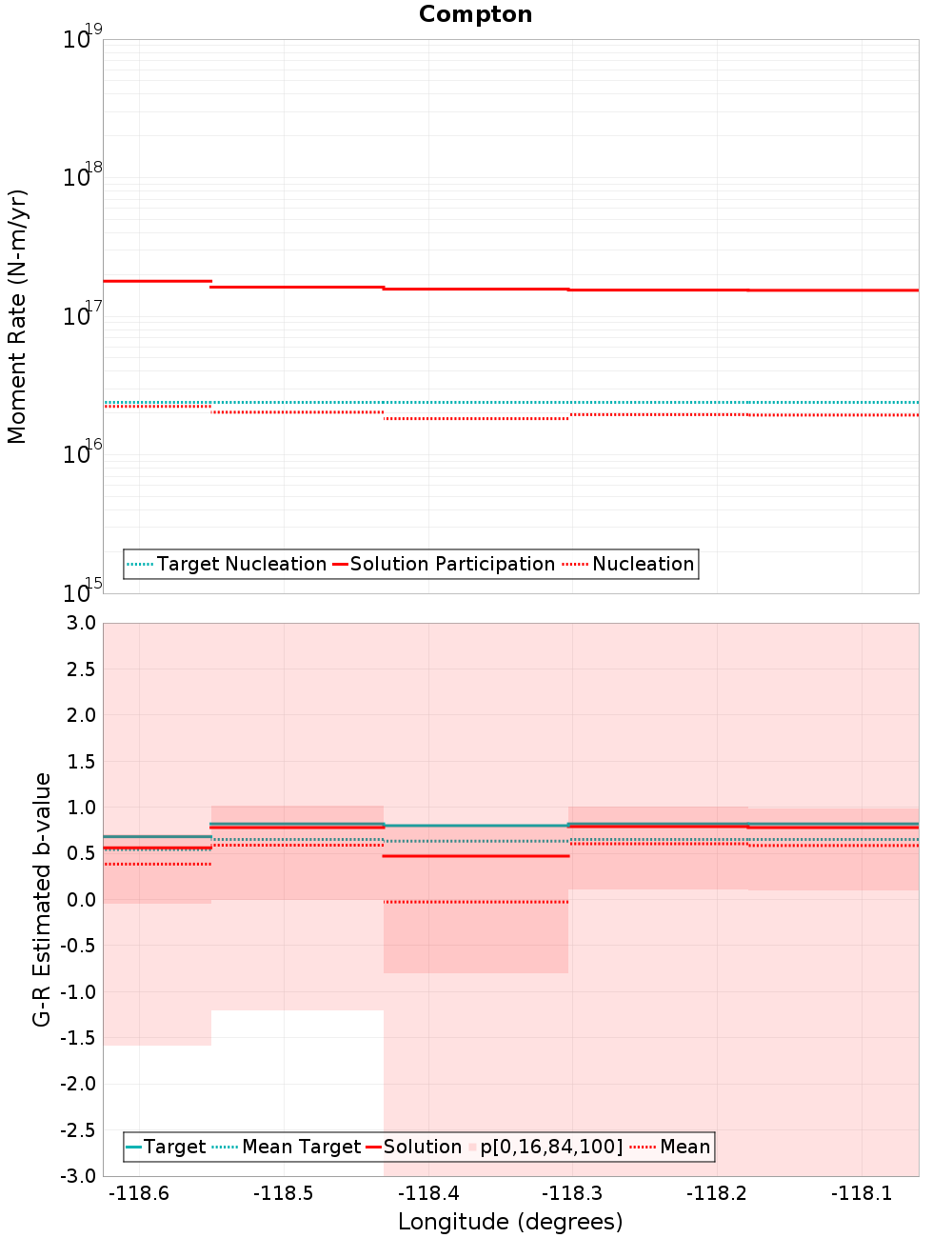

Moment-Rates and b-Values

(top)

Along-strike plot

Length Distributions

(top)

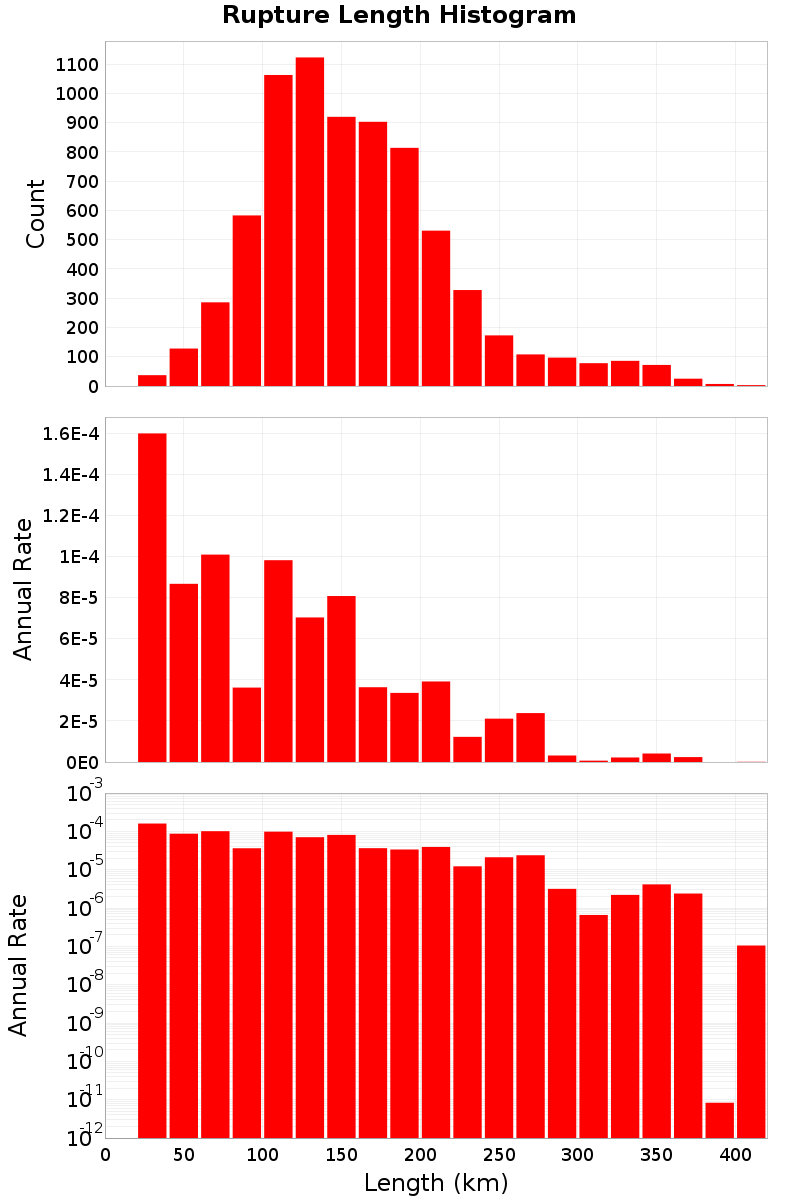

Fault rupture length distributions. The top panel shows the raw count of ruptures in which Compton participates in the rupture set as a function of rupture length. The bottom two panels show the rate-weighted distribution (i.e., the distribution of lengths in the solution). The middle panel is plotted with a linear scale, and the bottom paney a logarithmic scale.

Length Hist

Rupture Examples

(top)

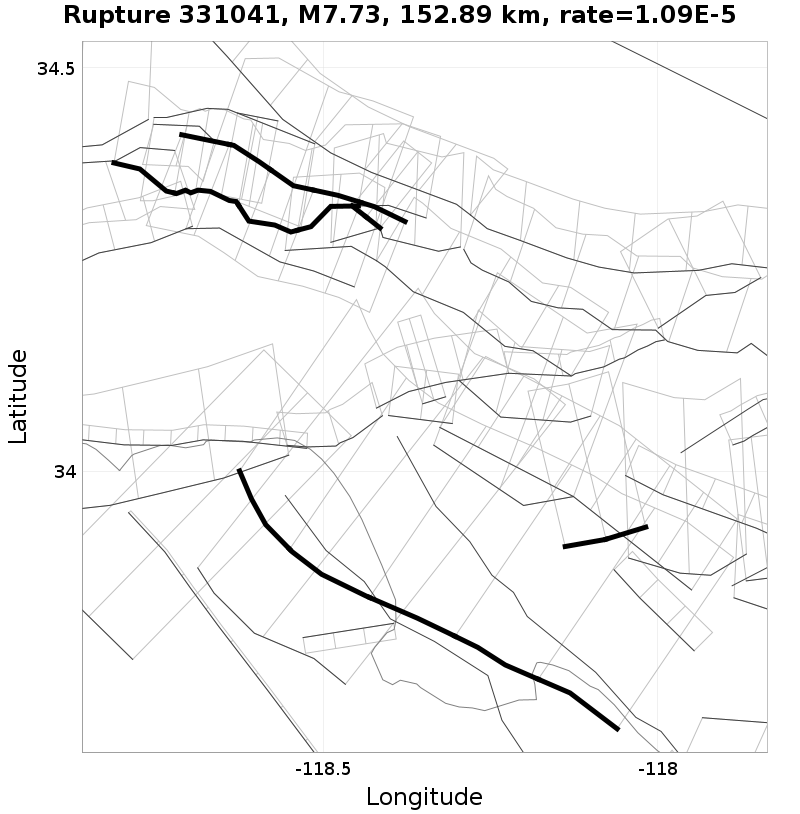

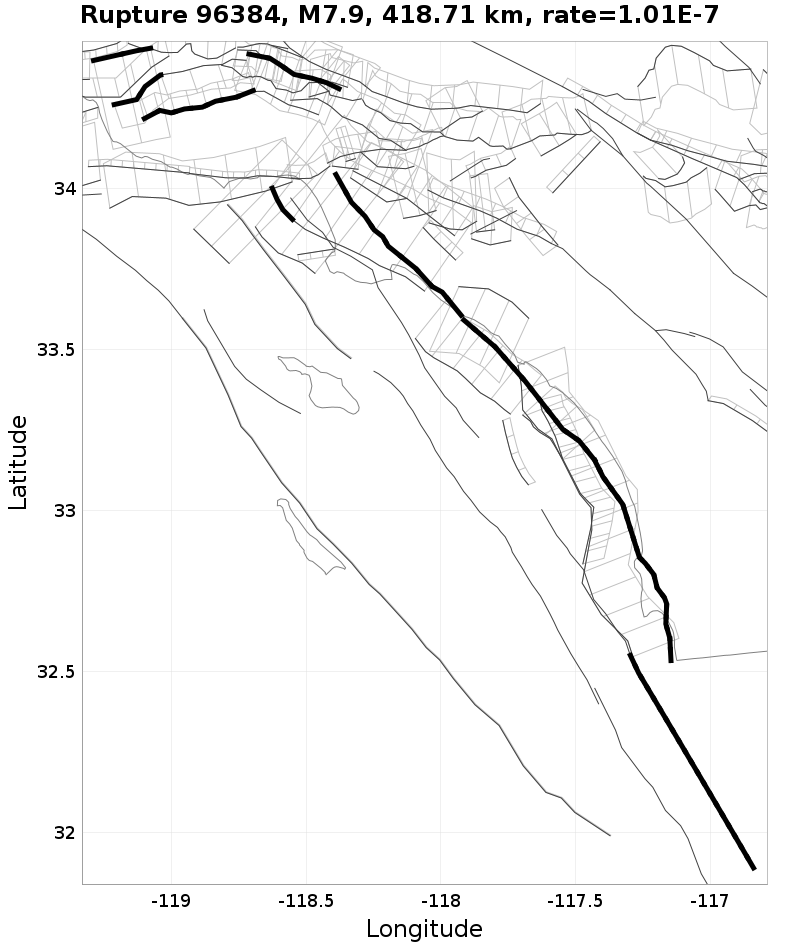

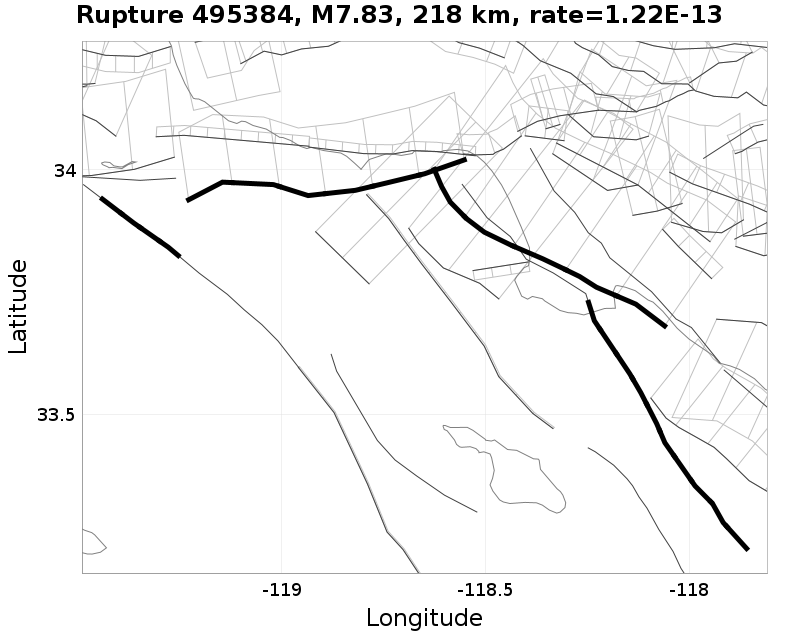

The following table includes example ruptures, selected at various percentiles from the rate-weighted rupture length distribution. So, for example, the rupture with length closest to the median length (again, rate-weighted) is plotted in the first column ('p50 Example'). The longest participating rupture is plotted last ('p100 Example').

It is important to note that the rupture examples here may not be representative, and may have negligible rates. They are included for illustration purposes only.

p50 Example

p75 Example

p90 Example

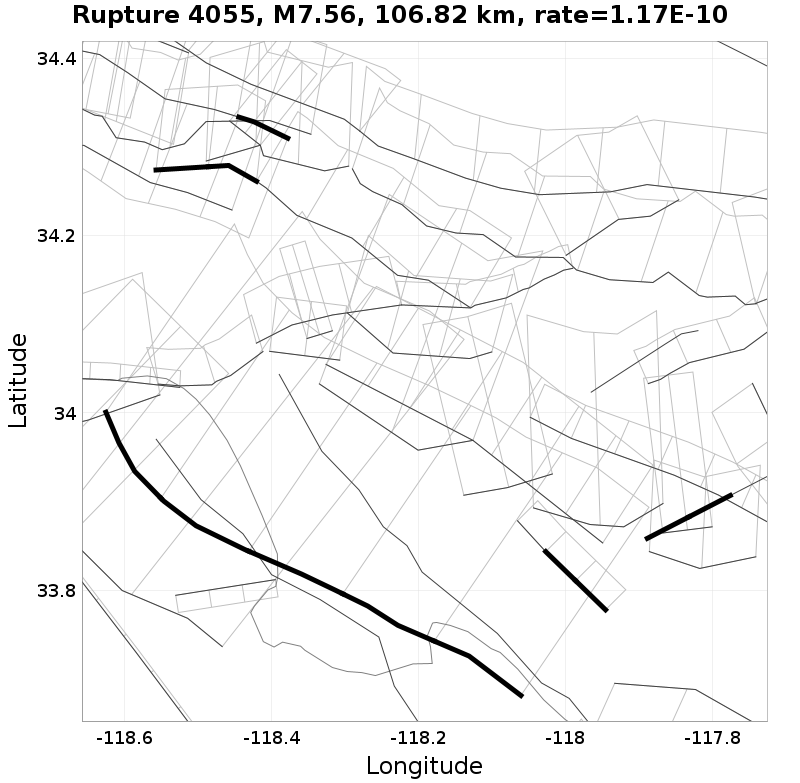

Rupture 4055Rupture 331041Rupture 495384

p97.5 Example

p99 Example

p100 Example

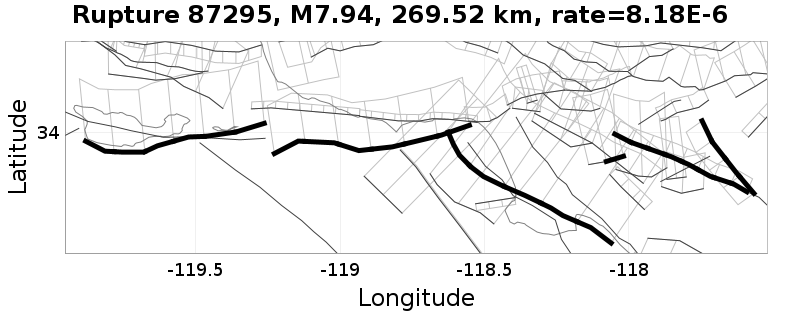

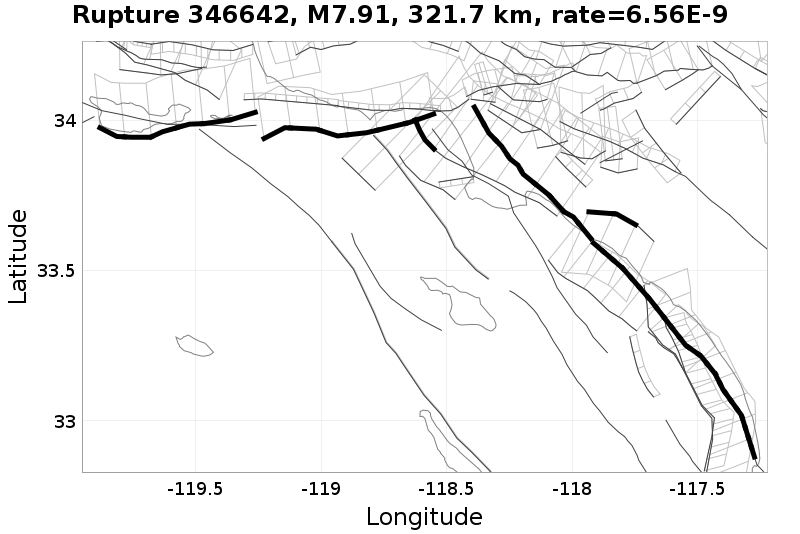

Rupture 87295Rupture 346642Rupture 96384

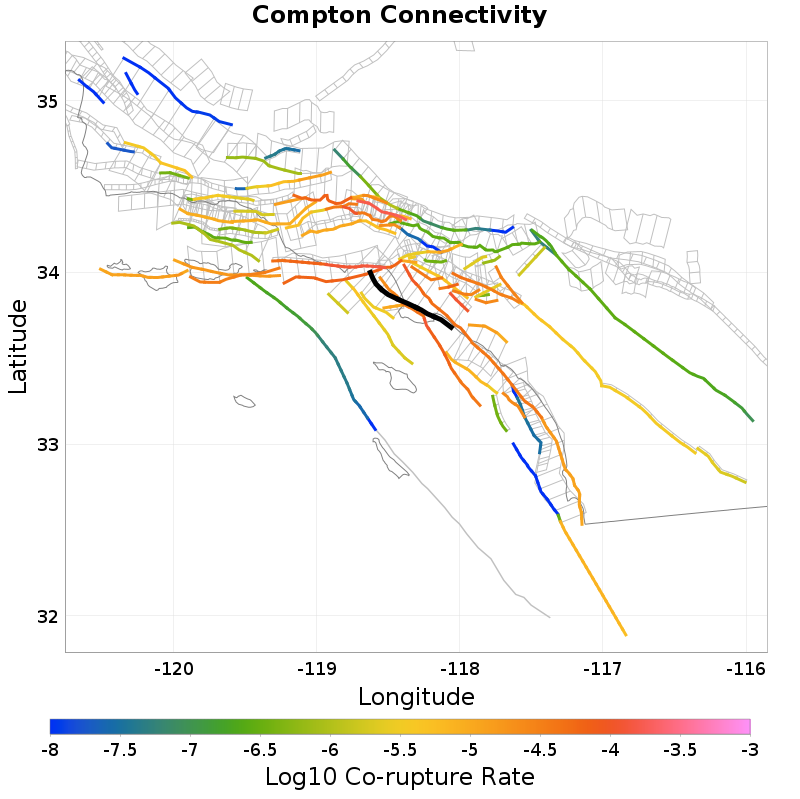

Connectivity

(top)

Map

Nearby Sections

(top)

Fault SectionFault SectionFault Section
Santa Monica, 0.08 km awayElysian Park (lower), 2.57 km awayElysian Park (upper), 9.58 km away
Anaheim, 0.11 km awayRedondo Canyon, 2.66 km awayRichfield, 9.61 km away
Palos Verdes, 0.13 km awayNorth Salt Lake, 3.72 km awaySan Joaquin Hills, 9.97 km away
Newport - Inglewood, 0.2 km awayPuente Hills (Santa Fe Springs), 4.35 km awayRaymond, 10.2 km away
San Vicente, 0.27 km awayPeralta Hills, 5.11 km awayChino, 12.48 km away
Hollywood, 0.31 km awaySanta Monica Bay, 6.1 km awayHolser, 12.92 km away
San Pedro Escarpment, 0.46 km awayWhittier, 7.36 km awaySan Pedro Basin, 13.4 km away
Malibu Coast, 0.51 km awayPuente Hills (Coyote Hills), 7.47 km awayMission Hills, 13.73 km away
Northridge, 0.77 km awayLausuen Knoll, 8.02 km awayVerdugo, 13.79 km away
Anacapa - Dume, 1.73 km awayPuente Hills (Los Angeles), 8.44 km awayNorthridge Hills, 14.2 km away
Yorba Linda, 2.27 km awayWalnut Creek, 8.45 km away

Santa Monica, 0.08 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.08 km
Min Rate-Weighted Dist0.08 km
Co-rupture Count1,266
Co-rupture Rate6.497283E-5
Co-rupture Mag Range[6.99, 8.01]

Anaheim, 0.11 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.11 km
Min Rate-Weighted Dist0.11 km
Co-rupture Count1,404
Co-rupture Rate1.1742794E-4
Co-rupture Mag Range[7.05, 8.02]

Palos Verdes, 0.13 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.13 km
Min Rate-Weighted Dist2.63 km
Co-rupture Count1,019
Co-rupture Rate1.1854479E-4
Co-rupture Mag Range[7.09, 7.95]

Newport - Inglewood, 0.2 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.2 km
Min Rate-Weighted Dist1.91 km
Co-rupture Count1,746
Co-rupture Rate9.847629E-5
Co-rupture Mag Range[6.93, 7.95]

San Vicente, 0.27 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.27 km
Min Rate-Weighted Dist0.27 km
Co-rupture Count146
Co-rupture Rate1.0830653E-5
Co-rupture Mag Range[7.03, 7.84]

Hollywood, 0.31 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.31 km
Min Rate-Weighted Dist3.5 km
Co-rupture Count255
Co-rupture Rate2.7282126E-6
Co-rupture Mag Range[7.10, 7.98]

San Pedro Escarpment, 0.46 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.46 km
Min Rate-Weighted Dist0.46 km
Co-rupture Count169
Co-rupture Rate3.0070064E-6
Co-rupture Mag Range[7.42, 8.01]

Malibu Coast, 0.51 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.51 km
Min Rate-Weighted Dist0.51 km
Co-rupture Count1,234
Co-rupture Rate1.5068293E-4
Co-rupture Mag Range[6.80, 7.94]

Northridge, 0.77 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.77 km
Min Rate-Weighted Dist0.77 km
Co-rupture Count1,985
Co-rupture Rate1.9158013E-4
Co-rupture Mag Range[7.09, 8.03]

Anacapa - Dume, 1.73 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.73 km
Min Rate-Weighted Dist1.73 km
Co-rupture Count3,344
Co-rupture Rate7.312671E-5
Co-rupture Mag Range[7.02, 8.00]

Yorba Linda, 2.27 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.27 km
Min Rate-Weighted Dist2.27 km
Co-rupture Count407
Co-rupture Rate2.5908134E-6
Co-rupture Mag Range[7.07, 7.93]

Elysian Park (lower), 2.57 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.57 km
Min Rate-Weighted Dist2.57 km
Co-rupture Count1,606
Co-rupture Rate6.927291E-6
Co-rupture Mag Range[7.07, 7.93]

Redondo Canyon, 2.66 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.66 km
Min Rate-Weighted Dist9.69 km
Co-rupture Count365
Co-rupture Rate1.0342545E-5
Co-rupture Mag Range[6.83, 7.91]

North Salt Lake, 3.72 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.72 km
Min Rate-Weighted Dist3.72 km
Co-rupture Count107
Co-rupture Rate3.1339146E-6
Co-rupture Mag Range[6.80, 7.74]

Puente Hills (Santa Fe Springs), 4.35 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.35 km
Min Rate-Weighted Dist5.23 km
Co-rupture Count952
Co-rupture Rate6.461847E-5
Co-rupture Mag Range[7.18, 7.98]

Peralta Hills, 5.11 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist5.11 km
Min Rate-Weighted Dist5.11 km
Co-rupture Count569
Co-rupture Rate2.8475528E-5
Co-rupture Mag Range[7.11, 7.94]

Santa Monica Bay, 6.1 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count66
Co-rupture Rate1.6706792E-6
Co-rupture Mag Range[7.25, 7.78]

Whittier, 7.36 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count314
Co-rupture Rate5.3755146E-5
Co-rupture Mag Range[7.18, 7.94]

Puente Hills (Coyote Hills), 7.47 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count532
Co-rupture Rate3.1871437E-5
Co-rupture Mag Range[7.36, 7.94]

Lausuen Knoll, 8.02 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count34
Co-rupture Rate7.5603352E-6
Co-rupture Mag Range[7.57, 7.93]

Puente Hills (Los Angeles), 8.44 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count506
Co-rupture Rate3.6991652E-5
Co-rupture Mag Range[7.36, 7.98]

Walnut Creek, 8.45 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count71
Co-rupture Rate2.16524E-6
Co-rupture Mag Range[7.31, 7.89]

Elysian Park (upper), 9.58 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count15
Co-rupture Rate3.4887475E-7
Co-rupture Mag Range[7.42, 7.79]

Richfield, 9.61 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count109
Co-rupture Rate4.1670347E-7
Co-rupture Mag Range[7.38, 7.91]

San Joaquin Hills, 9.97 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count249
Co-rupture Rate1.3688696E-5
Co-rupture Mag Range[7.53, 7.95]

Raymond, 10.2 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count105
Co-rupture Rate1.336894E-5
Co-rupture Mag Range[7.43, 7.86]

Chino, 12.48 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count340
Co-rupture Rate3.0530224E-5
Co-rupture Mag Range[7.21, 7.94]

Holser, 12.92 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count190
Co-rupture Rate2.4537838E-5
Co-rupture Mag Range[7.28, 7.88]

San Pedro Basin, 13.4 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count38
Co-rupture Rate4.5827924E-6
Co-rupture Mag Range[7.02, 7.93]

Mission Hills, 13.73 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count71
Co-rupture Rate2.2273562E-5
Co-rupture Mag Range[7.41, 7.73]

Verdugo, 13.79 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count45
Co-rupture Rate2.603967E-8
Co-rupture Mag Range[7.42, 7.75]

Northridge Hills, 14.2 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count58
Co-rupture Rate5.2647815E-6
Co-rupture Mag Range[7.51, 7.91]
