Mission Hills Details

PropertyValue
Rupture Count2,090
Ruptures w/ Nonzero Rates1,993
Magnitude Range[6.45, 8.30]
Length Range[13, 1,225] km
Total Rate7.761281E-4 /yr
Multi-Fault Rate5.6710775E-4 /yr (73.07%)
Directly-Connected Faults8
All Co-Rupturing Faults106

Table Of Contents

Magnitude-Frequency Distribution

(top)

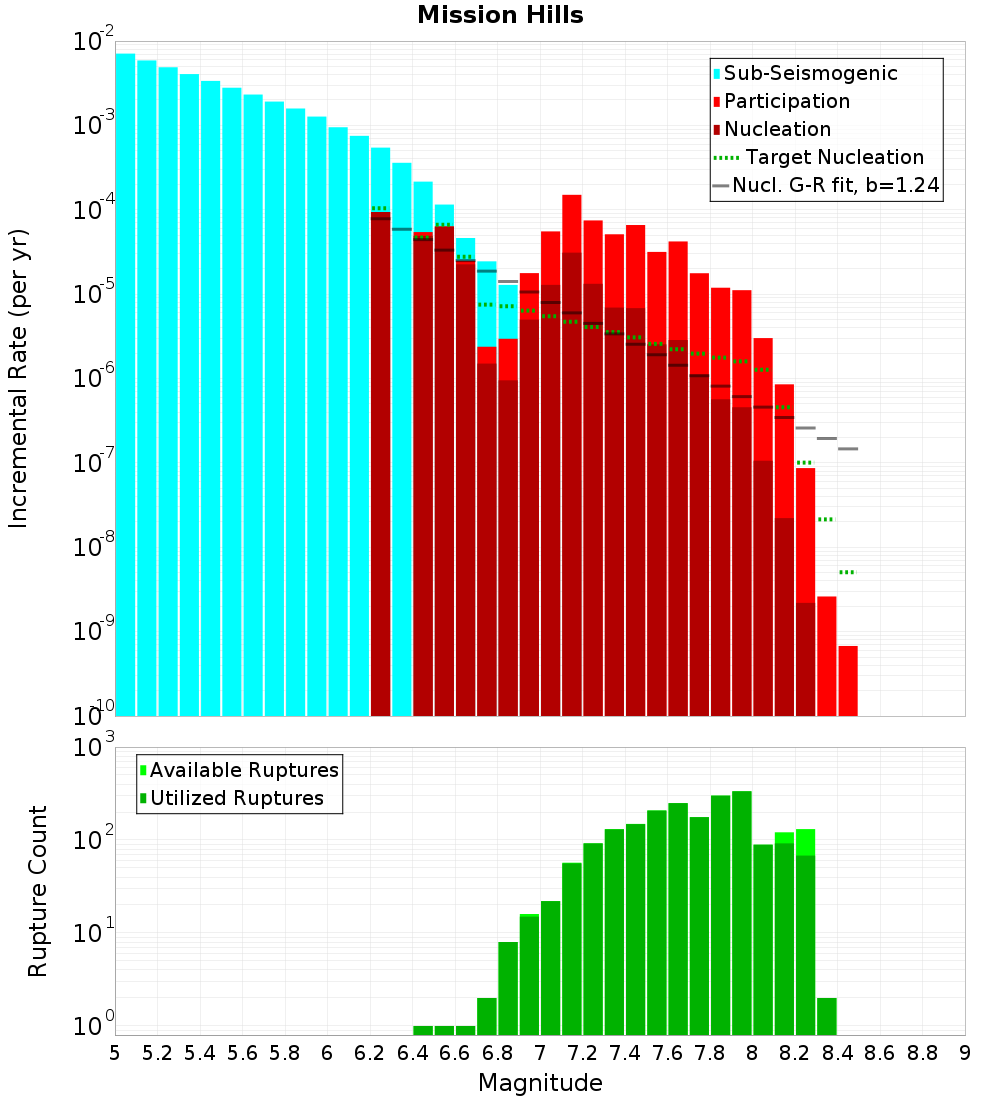

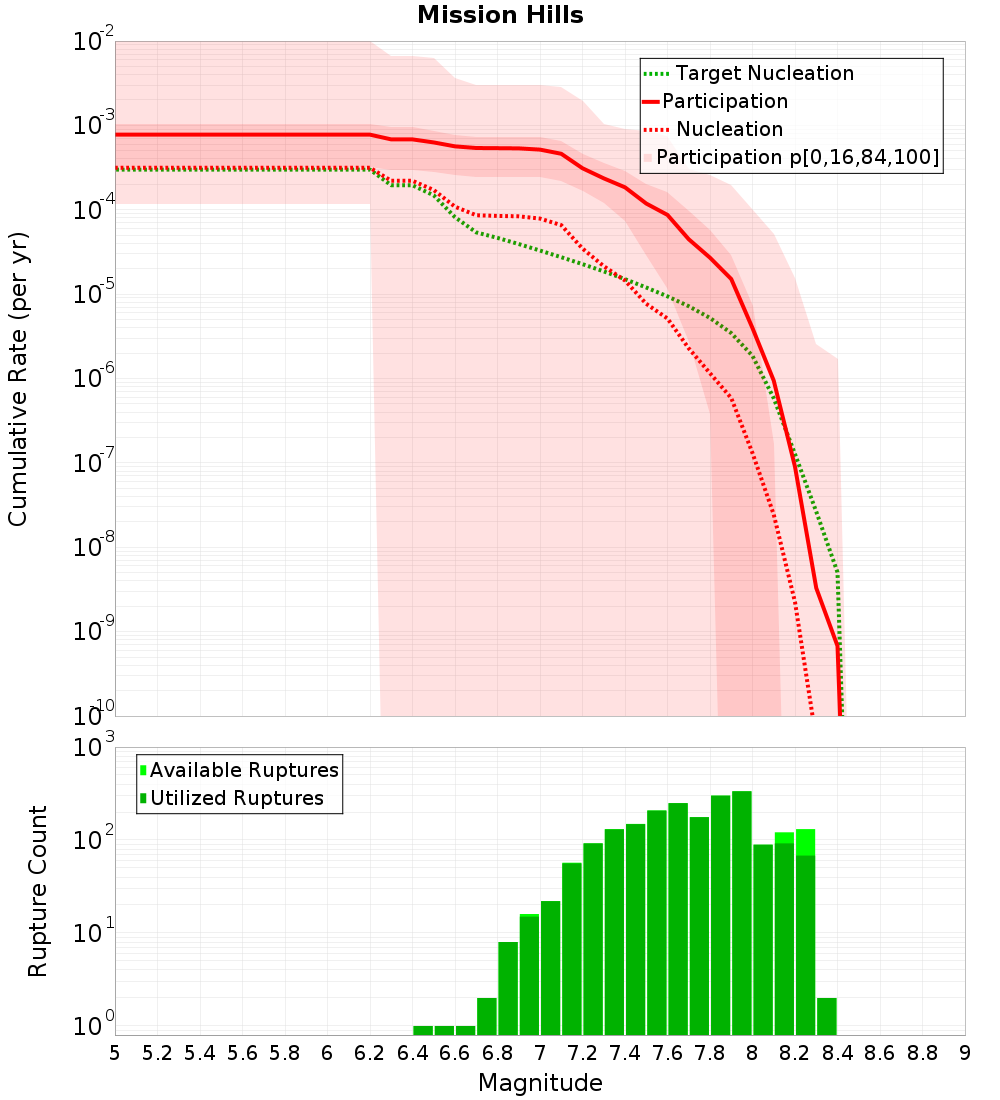

Fault magnitude-frequency distributions. The left plot shows incremental rates (rates within each magnitude bin), and the right plot shows cumulative rates (rates at or above the given magnitude).

The smaller bottom panel shows the distribution of available ruptures with a green histogram and is not rate-weighted. It only shows the raw count of ruptures of various magnitudes available in the rupture set.

IncrementalCumulative
Incremental PlotCumulative Plot

NOTE: This solution has a distribution of magnitudes and rates for each ruptures, and is likely a branch-averaged solution. That full distribution for each rupture is used to construct the MFDs above, but only mean magnitudes are used in the lower panel showing available and utilized magnitudes, and thus there may be bins with nonzero rates in the top panel where no mgnitudes are shown in the bottom. The magnitude rage at the top of this page also only considers mean magnitudes.

Cumulative Rates and Recurrence Intervals Table

(top)

MagnitudeParticipation RateRangeParticipation RI (yrs)Range
M≥6.27.761281E-4[1.18E-4, 9.91E-3]1,288.45[100.86, 8,504.27]
M≥6.36.8207126E-4[1.04E-18, 6.55E-3]1,466.12[152.65, 958,272,419,413,483,260]
M≥6.46.8207126E-4[0.00E0, 6.55E-3]1,466.12[152.65, ∞]
M≥6.56.277064E-4[0.00E0, 6.27E-3]1,593.1[159.54, ∞]
M≥6.65.639503E-4[0.00E0, 3.61E-3]1,773.21[276.86, ∞]
M≥6.75.3911266E-4[0.00E0, 3.04E-3]1,854.9[329, ∞]
M≥6.85.3673325E-4[0.00E0, 3.04E-3]1,863.12[329, ∞]
M≥6.95.337755E-4[0.00E0, 3.04E-3]1,873.45[329, ∞]
M≥75.160309E-4[0.00E0, 3.04E-3]1,937.87[329, ∞]
M≥7.14.6064047E-4[0.00E0, 2.82E-3]2,170.89[355.03, ∞]
M≥7.23.1031208E-4[0.00E0, 1.96E-3]3,222.56[510.5, ∞]
M≥7.32.3558595E-4[0.00E0, 1.05E-3]4,244.74[950.6, ∞]
M≥7.41.8437821E-4[0.00E0, 9.13E-4]5,423.63[1,095.11, ∞]
M≥7.51.18455086E-4[0.00E0, 8.63E-4]8,442.02[1,158.22, ∞]
M≥7.68.6805114E-5[0.00E0, 7.50E-4]11,520.06[1,333.88, ∞]
M≥7.74.469245E-5[0.00E0, 3.01E-4]22,375.14[3,318.63, ∞]
M≥7.82.7005319E-5[0.00E0, 2.57E-4]37,029.74[3,896.81, ∞]
M≥7.91.5093586E-5[0.00E0, 1.96E-4]66,253.31[5,094.24, ∞]
M≥83.9560573E-6[0.00E0, 9.90E-5]252,776.91[10,102.03, ∞]
M≥8.19.430561E-7[0.00E0, 5.11E-5]1,060,382.3[19,569.47, ∞]
M≥8.29.003586E-8[0.00E0, 1.57E-5]11,106,685.22[63,816.21, ∞]
M≥8.33.2858103E-9[0.00E0, 2.60E-6]304,338,938.96[385,059.68, ∞]
M≥8.46.7609385E-10[0.00E0, 1.70E-6]1,479,084,547.21[587,544.08, ∞]

Individual Branch Nucleation MFDs

(top)

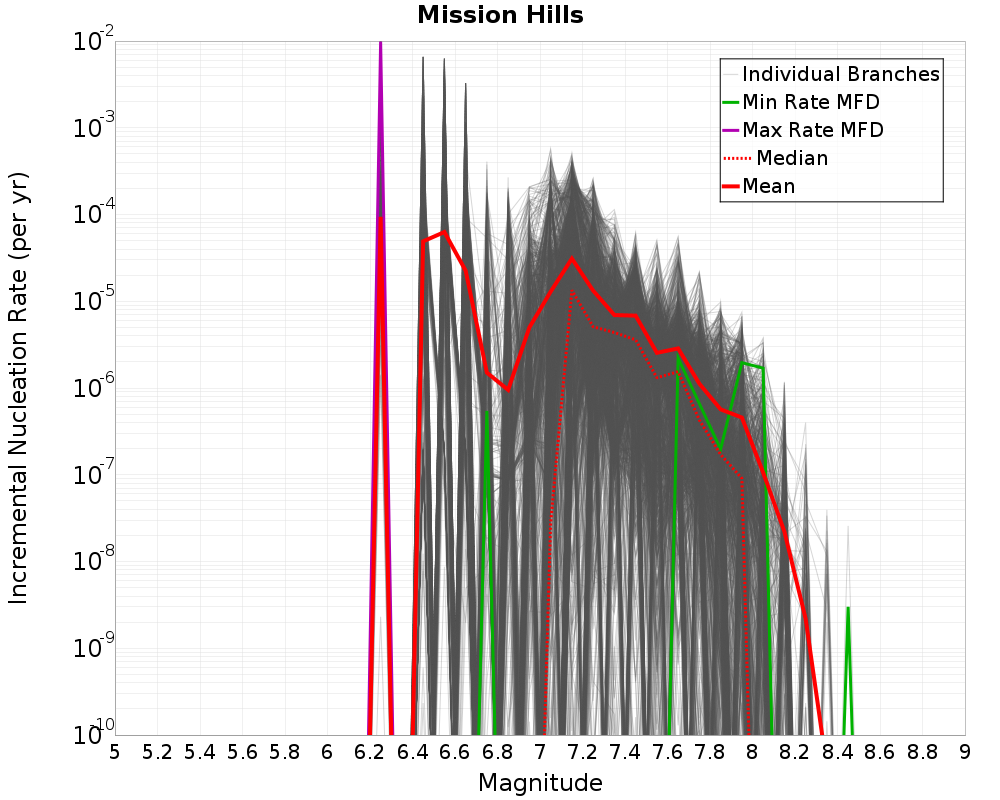

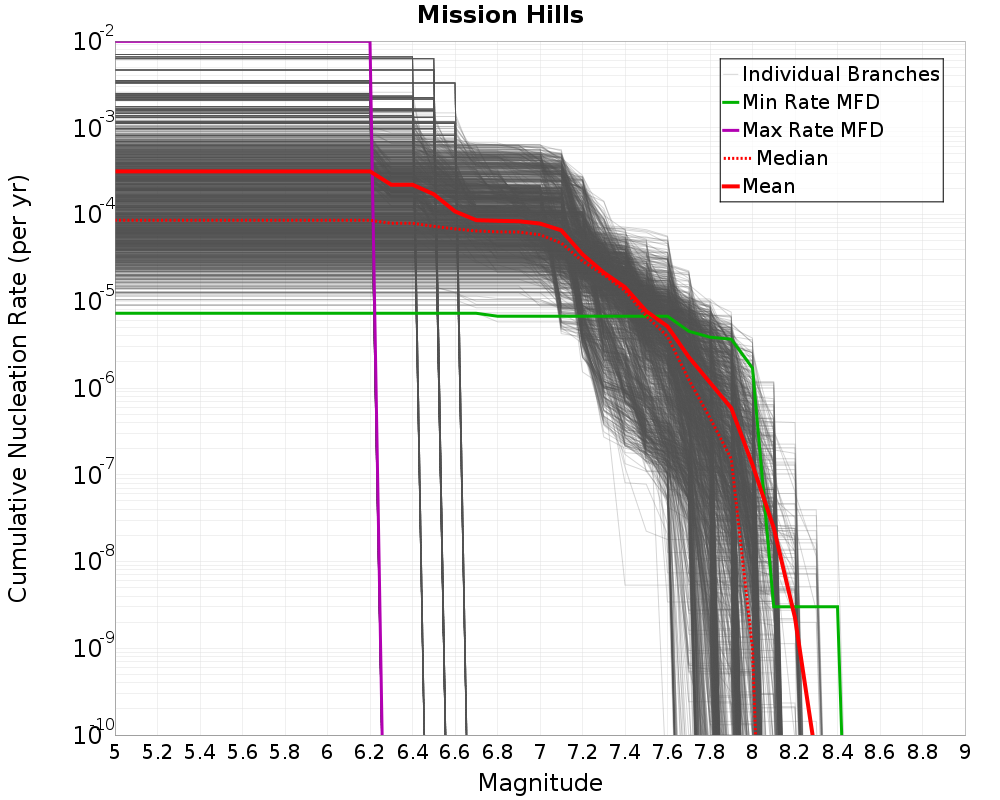

Individual nucleation MFDs across 2250 logic tree branches. The individual branches with the highest and lowest total rate are highlighted, as are the mean and median models.

IncrementalCumulative
Incremental PlotCumulative Plot

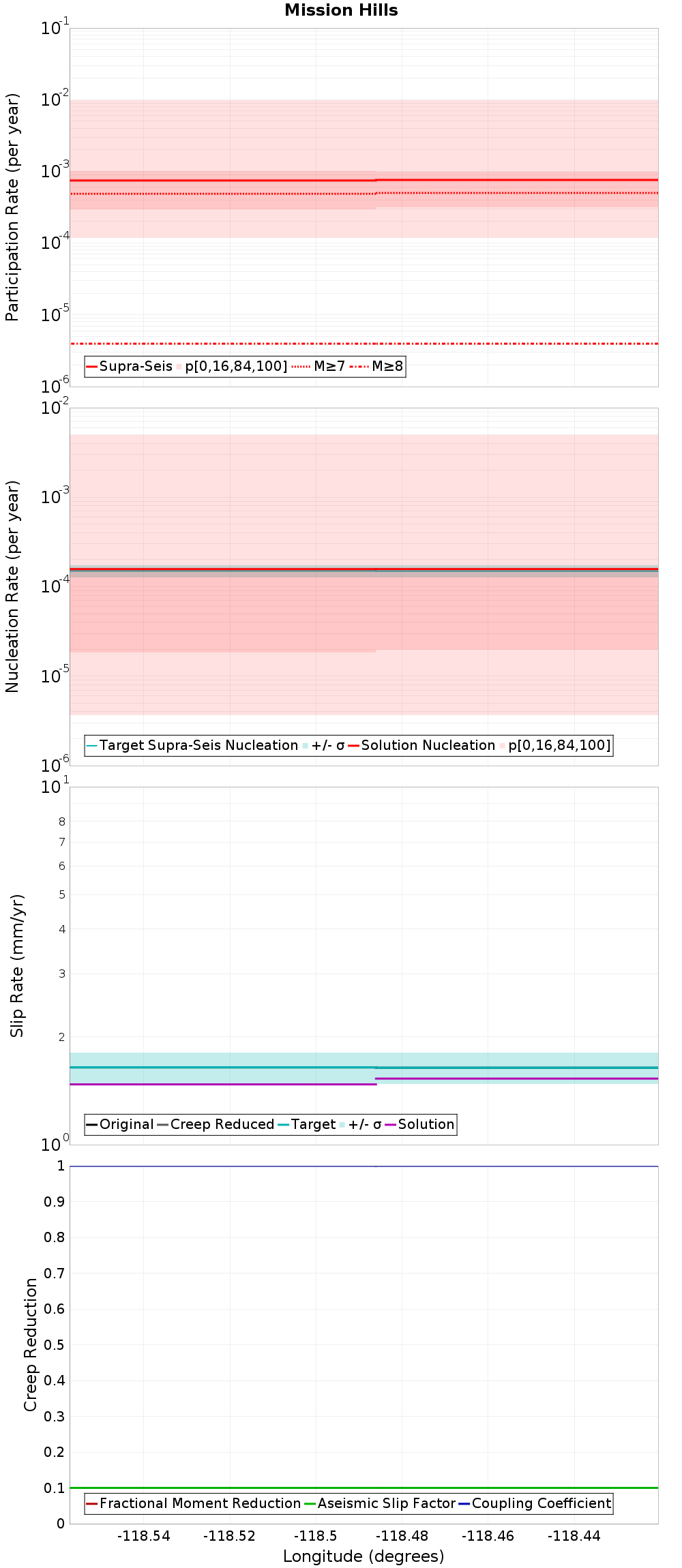

Along-Strike Values

(top)

Along-strike plot

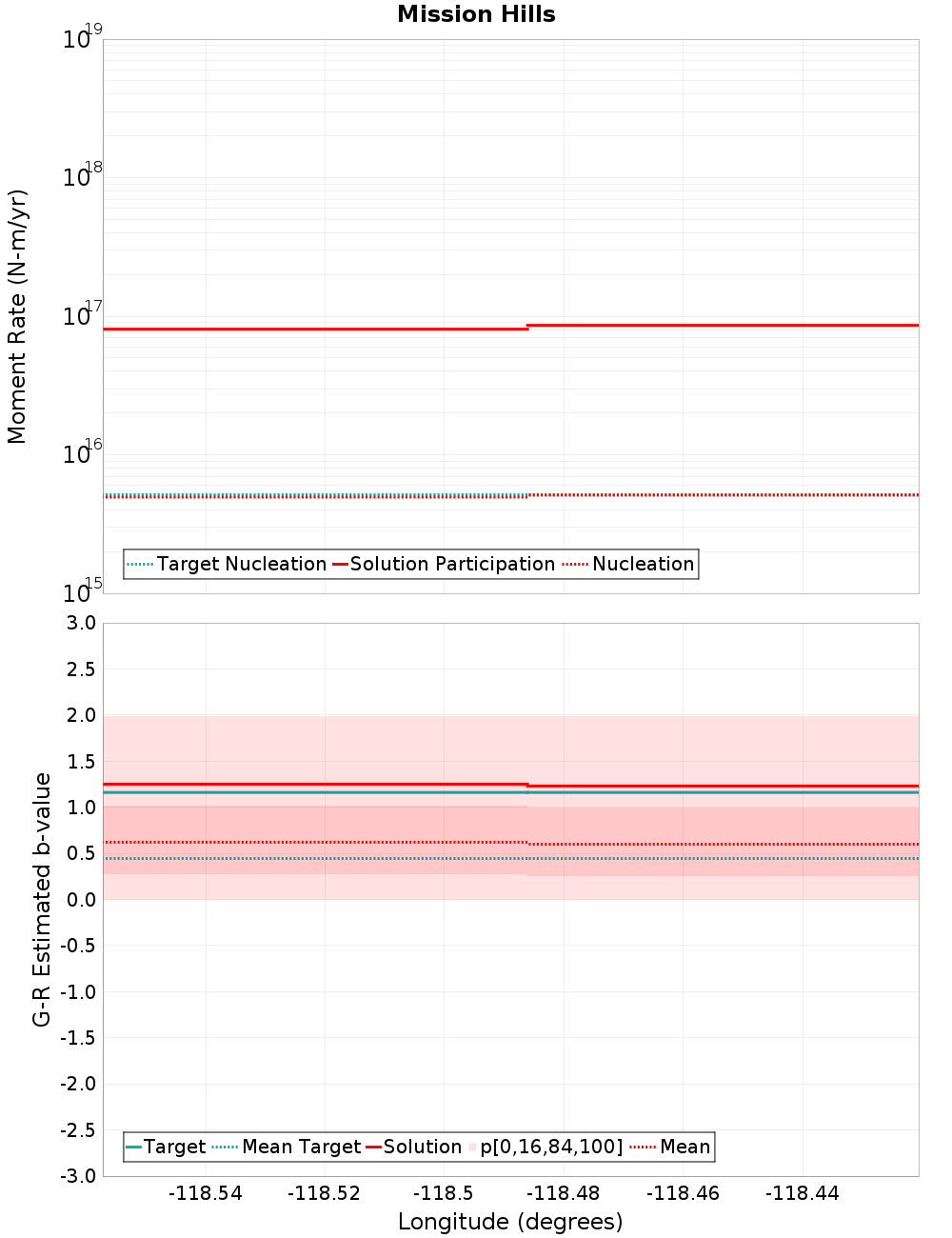

Moment-Rates and b-Values

(top)

Along-strike plot

Length Distributions

(top)

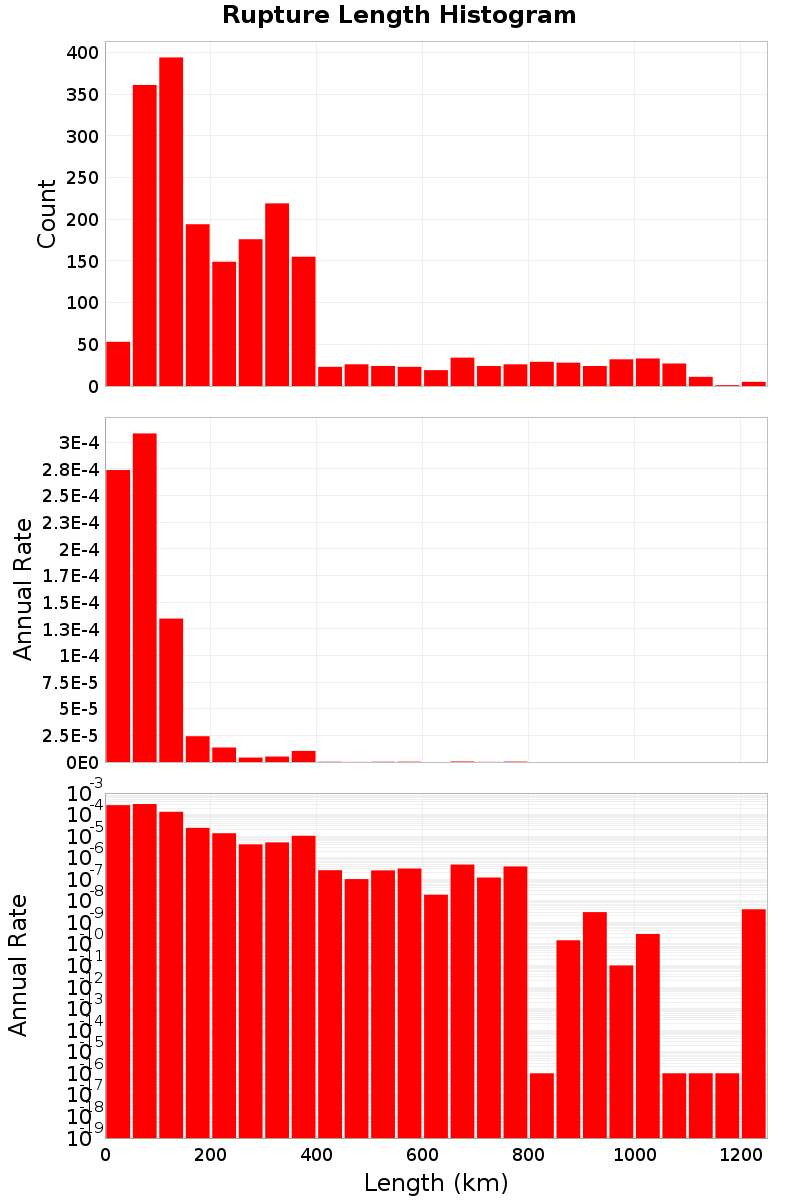

Fault rupture length distributions. The top panel shows the raw count of ruptures in which Mission Hills participates in the rupture set as a function of rupture length. The bottom two panels show the rate-weighted distribution (i.e., the distribution of lengths in the solution). The middle panel is plotted with a linear scale, and the bottom paney a logarithmic scale.

Length Hist

Rupture Examples

(top)

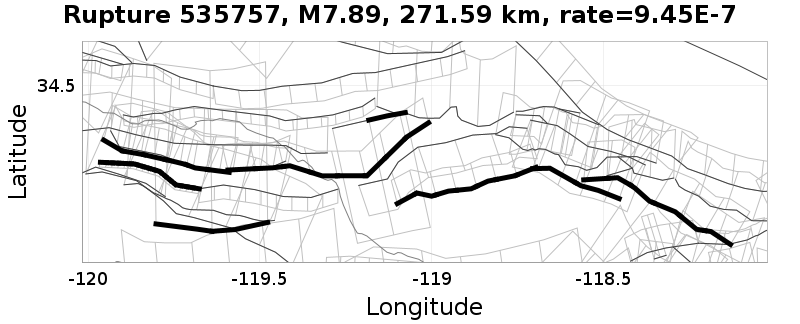

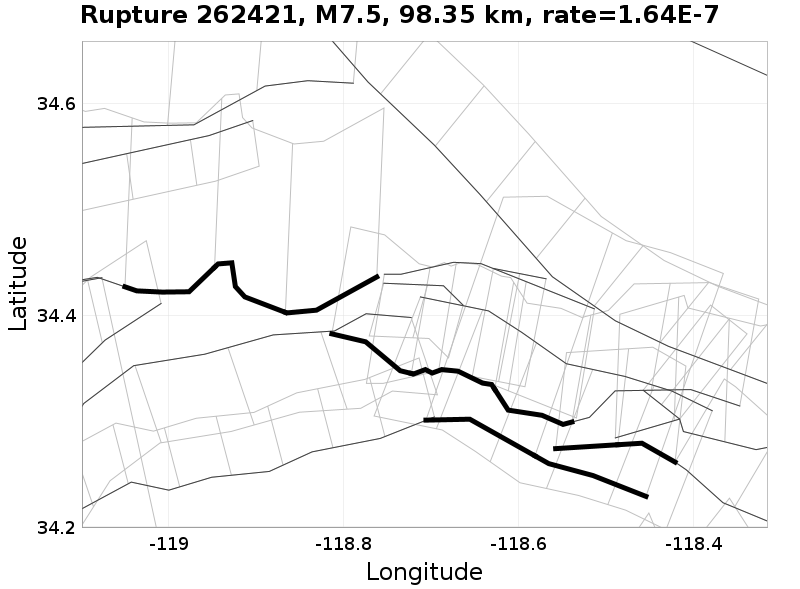

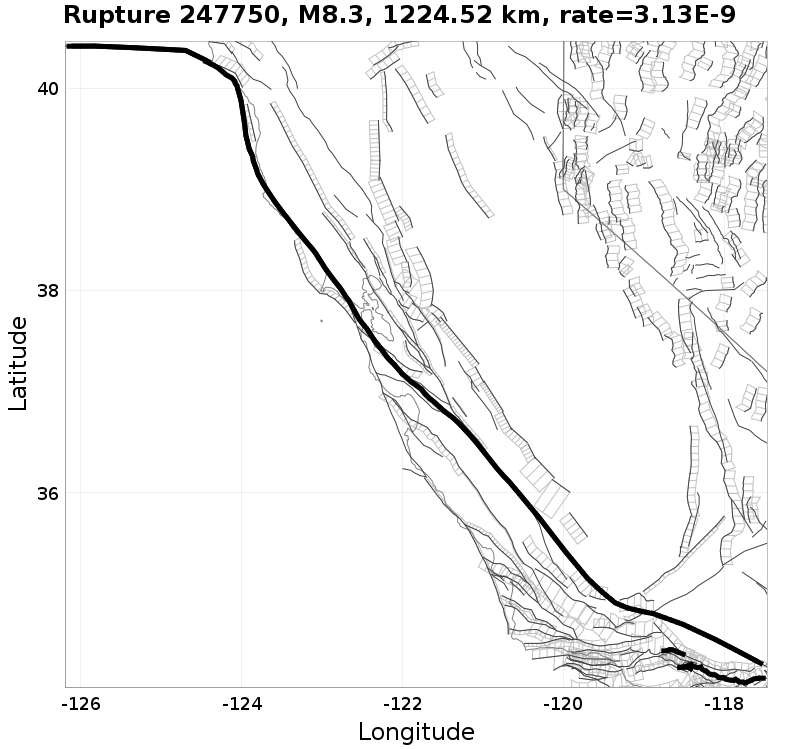

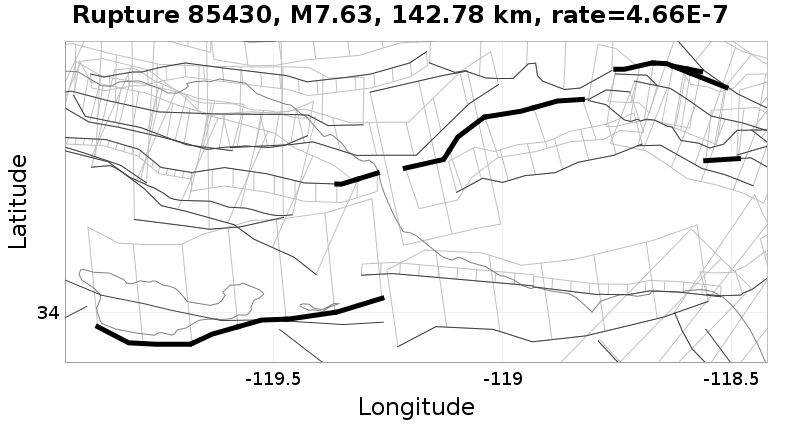

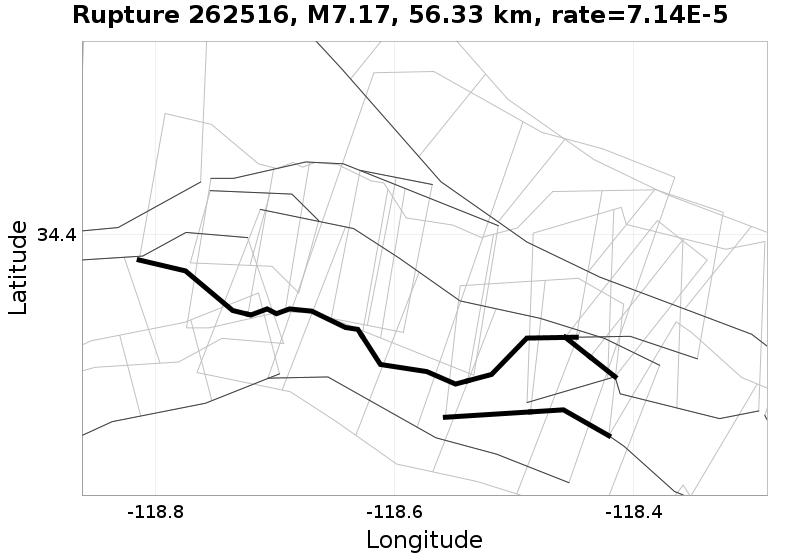

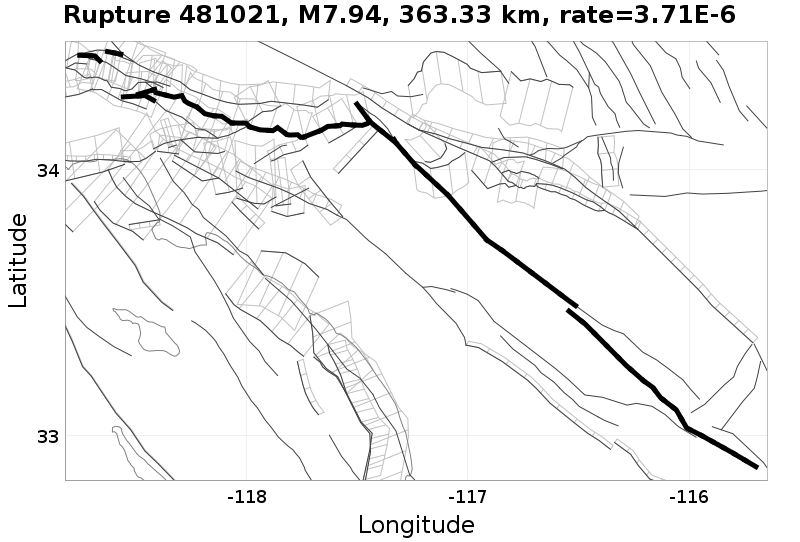

The following table includes example ruptures, selected at various percentiles from the rate-weighted rupture length distribution. So, for example, the rupture with length closest to the median length (again, rate-weighted) is plotted in the first column ('p50 Example'). The longest participating rupture is plotted last ('p100 Example').

It is important to note that the rupture examples here may not be representative, and may have negligible rates. They are included for illustration purposes only.

p50 Example

p75 Example

p90 Example
Rupture 262516Rupture 262421Rupture 85430

p97.5 Example

p99 Example

p100 Example

Rupture 535757Rupture 481021Rupture 247750

Connectivity

(top)

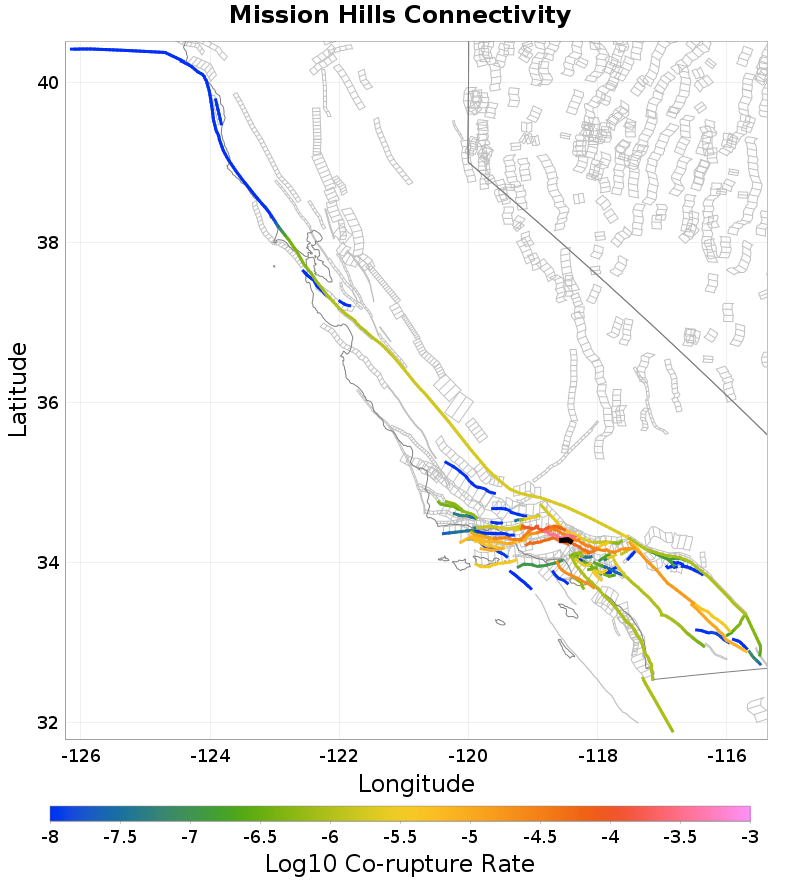

Map

Nearby Sections

(top)

Fault SectionFault Section
Verdugo, 0 km awaySan Gabriel, 7.62 km away
Northridge Hills, 0.14 km awaySierra Madre, 11.99 km away
Northridge, 0.16 km awayDel Valle, 12 km away
Holser, 0.35 km awaySan Gabriel (extension), 13 km away
Sierra Madre (San Fernando), 0.76 km awaySimi - Santa Rosa, 13.08 km away
Santa Susana, 2.04 km awaySan Pedro Escarpment, 13.24 km away
Santa Susana (east, connector), 3.55 km awayCompton, 13.73 km away
Holser - San Gabriel (connector), 3.71 km awayOak Ridge (onshore), 14.32 km away

Verdugo, 0 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0 km
Co-rupture Count703
Co-rupture Rate5.803013E-5
Co-rupture Mag Range[6.81, 7.99]

Northridge Hills, 0.14 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.14 km
Min Rate-Weighted Dist0.14 km
Co-rupture Count520
Co-rupture Rate5.590248E-5
Co-rupture Mag Range[7.08, 7.97]

Northridge, 0.16 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.16 km
Min Rate-Weighted Dist0.2 km
Co-rupture Count233
Co-rupture Rate5.554907E-5
Co-rupture Mag Range[6.75, 7.92]

Holser, 0.35 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.35 km
Min Rate-Weighted Dist0.35 km
Co-rupture Count603
Co-rupture Rate6.3987274E-5
Co-rupture Mag Range[6.85, 8.30]

Sierra Madre (San Fernando), 0.76 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.76 km
Min Rate-Weighted Dist0.76 km
Co-rupture Count1,051
Co-rupture Rate3.1109084E-5
Co-rupture Mag Range[6.76, 8.30]

Santa Susana, 2.04 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.04 km
Min Rate-Weighted Dist2.19 km
Co-rupture Count201
Co-rupture Rate3.817493E-4
Co-rupture Mag Range[6.96, 7.97]

Santa Susana (east, connector), 3.55 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.55 km
Min Rate-Weighted Dist3.55 km
Co-rupture Count21
Co-rupture Rate1.5744142E-4
Co-rupture Mag Range[6.60, 7.69]

Holser - San Gabriel (connector), 3.71 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.71 km
Min Rate-Weighted Dist3.71 km
Co-rupture Count456
Co-rupture Rate4.254232E-5
Co-rupture Mag Range[6.63, 8.29]

San Gabriel, 7.62 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count66
Co-rupture Rate6.5202207E-6
Co-rupture Mag Range[6.98, 7.99]

Sierra Madre, 11.99 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count1,316
Co-rupture Rate2.9112438E-5
Co-rupture Mag Range[6.93, 8.30]

Del Valle, 12 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count88
Co-rupture Rate3.353743E-5
Co-rupture Mag Range[6.98, 7.96]

San Gabriel (extension), 13 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count30
Co-rupture Rate2.1659275E-6
Co-rupture Mag Range[7.05, 7.99]

Simi - Santa Rosa, 13.08 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count358
Co-rupture Rate5.364974E-5
Co-rupture Mag Range[6.95, 7.90]

San Pedro Escarpment, 13.24 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count30
Co-rupture Rate9.566724E-9
Co-rupture Mag Range[7.45, 7.67]

Compton, 13.73 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count71
Co-rupture Rate2.2273562E-5
Co-rupture Mag Range[7.41, 7.73]

Oak Ridge (onshore), 14.32 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count83
Co-rupture Rate3.1243555E-5
Co-rupture Mag Range[7.11, 7.94]
