North Channel Details

PropertyValue
Rupture Count18,554
Ruptures w/ Nonzero Rates18,286
Magnitude Range[5.83, 8.21]
Length Range[7, 999] km
Total Rate8.7677396E-4 /yr
Multi-Fault Rate5.256179E-4 /yr (59.95%)
Directly-Connected Faults12
All Co-Rupturing Faults53

Table Of Contents

Magnitude-Frequency Distribution

(top)

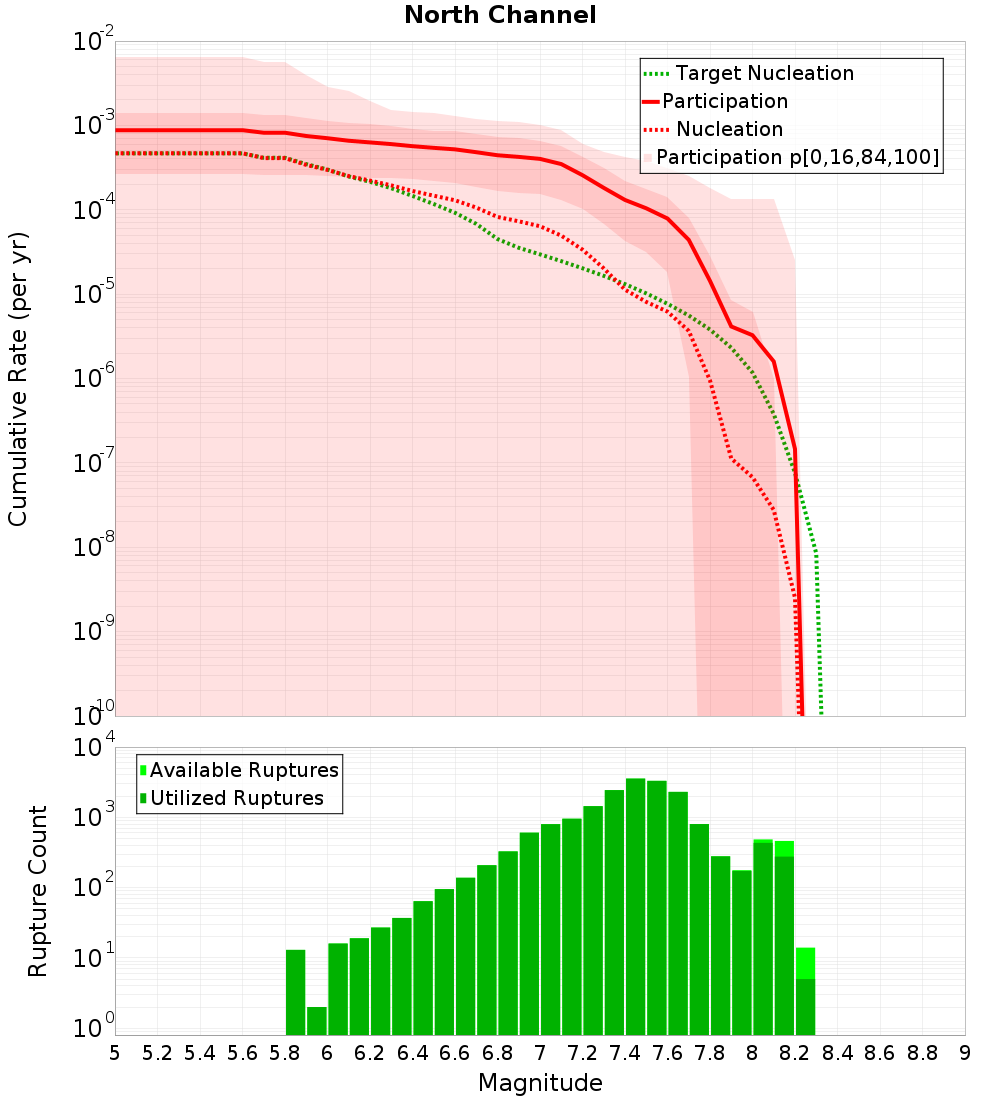

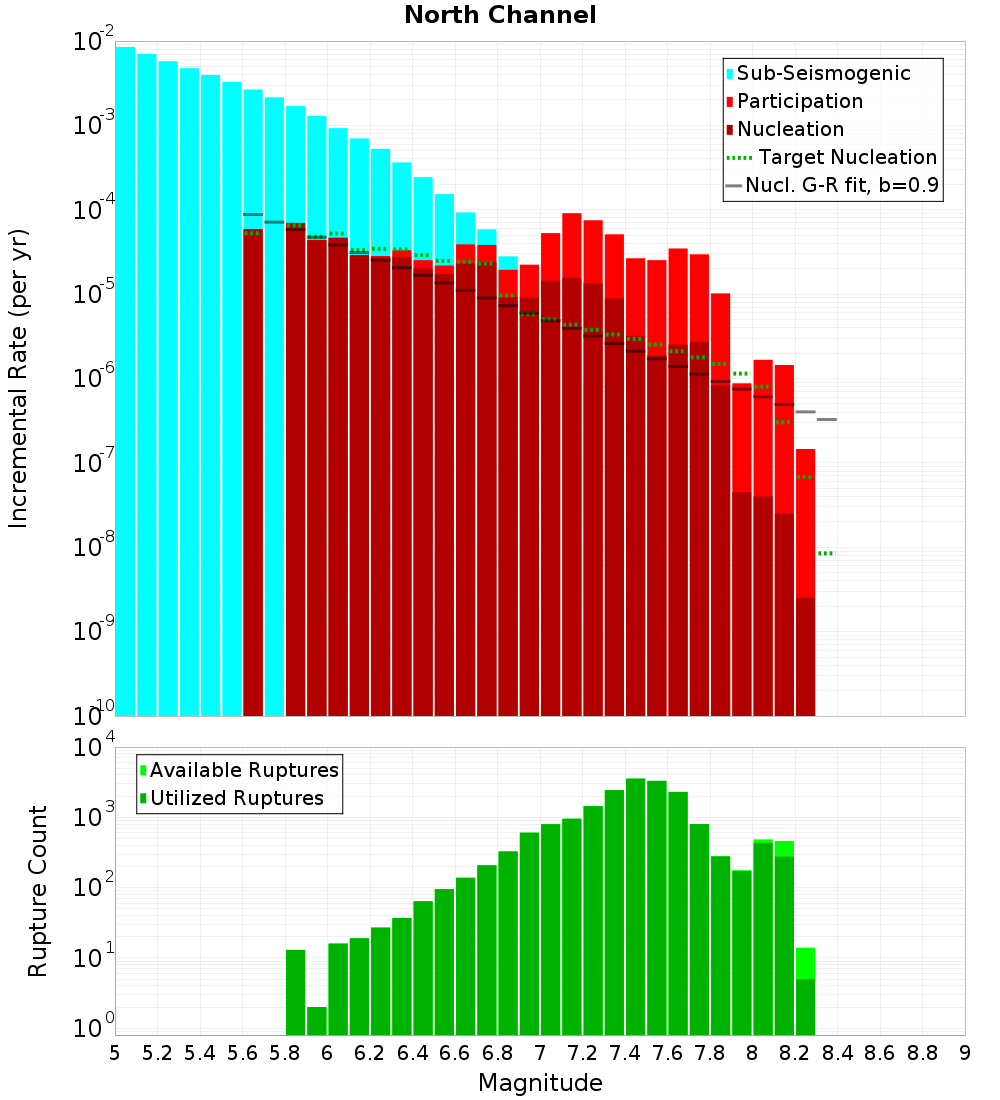

Fault magnitude-frequency distributions. The left plot shows incremental rates (rates within each magnitude bin), and the right plot shows cumulative rates (rates at or above the given magnitude).

The smaller bottom panel shows the distribution of available ruptures with a green histogram and is not rate-weighted. It only shows the raw count of ruptures of various magnitudes available in the rupture set.

IncrementalCumulative
Incremental PlotCumulative Plot

NOTE: This solution has a distribution of magnitudes and rates for each ruptures, and is likely a branch-averaged solution. That full distribution for each rupture is used to construct the MFDs above, but only mean magnitudes are used in the lower panel showing available and utilized magnitudes, and thus there may be bins with nonzero rates in the top panel where no mgnitudes are shown in the bottom. The magnitude rage at the top of this page also only considers mean magnitudes.

Cumulative Rates and Recurrence Intervals Table

(top)

MagnitudeParticipation RateRangeParticipation RI (yrs)Range
M≥5.68.7677396E-4[0.00E0, 6.40E-3]1,140.54[156.24, ∞]
M≥5.78.179854E-4[0.00E0, 5.64E-3]1,222.52[177.45, ∞]
M≥5.88.179854E-4[0.00E0, 5.64E-3]1,222.52[177.45, ∞]
M≥5.97.480919E-4[0.00E0, 3.99E-3]1,336.73[250.63, ∞]
M≥67.040915E-4[0.00E0, 2.82E-3]1,420.27[354.02, ∞]
M≥6.16.572996E-4[0.00E0, 2.55E-3]1,521.38[391.94, ∞]
M≥6.26.2812824E-4[0.00E0, 1.95E-3]1,592.03[512.16, ∞]
M≥6.35.9982436E-4[0.00E0, 1.52E-3]1,667.15[659.72, ∞]
M≥6.45.6677015E-4[0.00E0, 1.43E-3]1,764.38[701.54, ∞]
M≥6.55.415122E-4[0.00E0, 1.39E-3]1,846.68[718.27, ∞]
M≥6.65.196794E-4[0.00E0, 1.30E-3]1,924.26[772.02, ∞]
M≥6.74.8079054E-4[0.00E0, 1.18E-3]2,079.91[845.14, ∞]
M≥6.84.42492E-4[0.00E0, 1.12E-3]2,259.93[892.32, ∞]
M≥6.94.230643E-4[0.00E0, 1.09E-3]2,363.71[919.23, ∞]
M≥74.0071594E-4[0.00E0, 1.01E-3]2,495.53[994.77, ∞]
M≥7.13.4784953E-4[0.00E0, 8.78E-4]2,874.81[1,139.59, ∞]
M≥7.22.568324E-4[0.00E0, 6.07E-4]3,893.59[1,647.95, ∞]
M≥7.31.8179939E-4[0.00E0, 4.88E-4]5,500.57[2,047.86, ∞]
M≥7.41.3062452E-4[0.00E0, 4.27E-4]7,655.53[2,342.92, ∞]
M≥7.51.0401719E-4[0.00E0, 3.81E-4]9,613.8[2,625.98, ∞]
M≥7.67.872208E-5[0.00E0, 3.12E-4]12,702.92[3,206.4, ∞]
M≥7.74.397522E-5[0.00E0, 2.51E-4]22,740.08[3,980.41, ∞]
M≥7.81.4340077E-5[0.00E0, 1.81E-4]69,734.64[5,509.95, ∞]
M≥7.94.1355947E-6[0.00E0, 1.33E-4]241,803.2[7,490.64, ∞]
M≥83.258152E-6[0.00E0, 1.33E-4]306,922.45[7,490.64, ∞]
M≥8.11.5919732E-6[0.00E0, 1.33E-4]628,151.28[7,490.64, ∞]
M≥8.21.4605521E-7[0.00E0, 2.57E-5]6,846,725.58[38,925.65, ∞]
M≥8.33.4806225E-20[0.00E0, 1.52E-15]28,730,492,949,432,332,000[658,130,653,027,562.6, ∞]

Individual Branch Nucleation MFDs

(top)

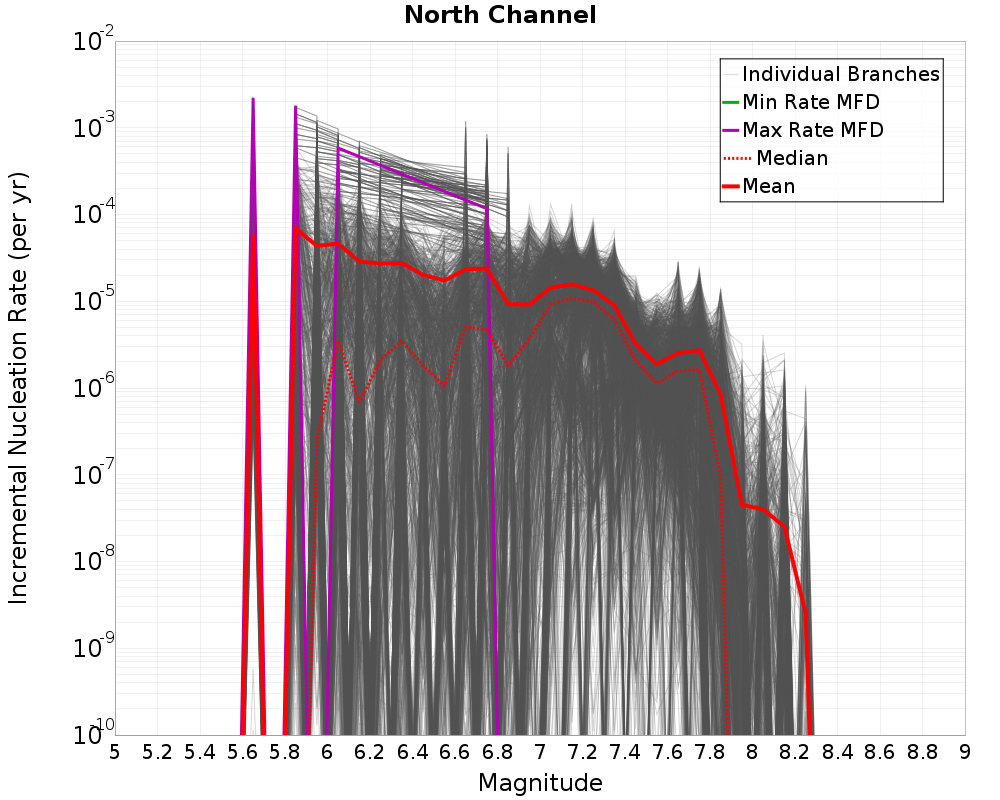

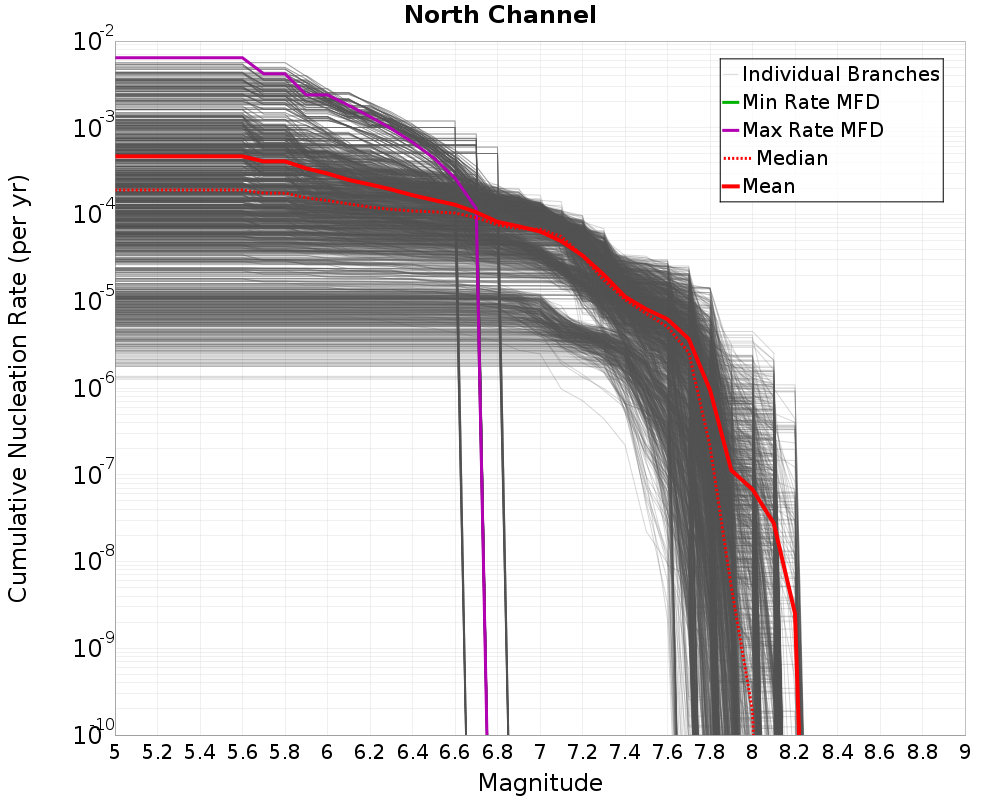

Individual nucleation MFDs across 2250 logic tree branches. The individual branches with the highest and lowest total rate are highlighted, as are the mean and median models.

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

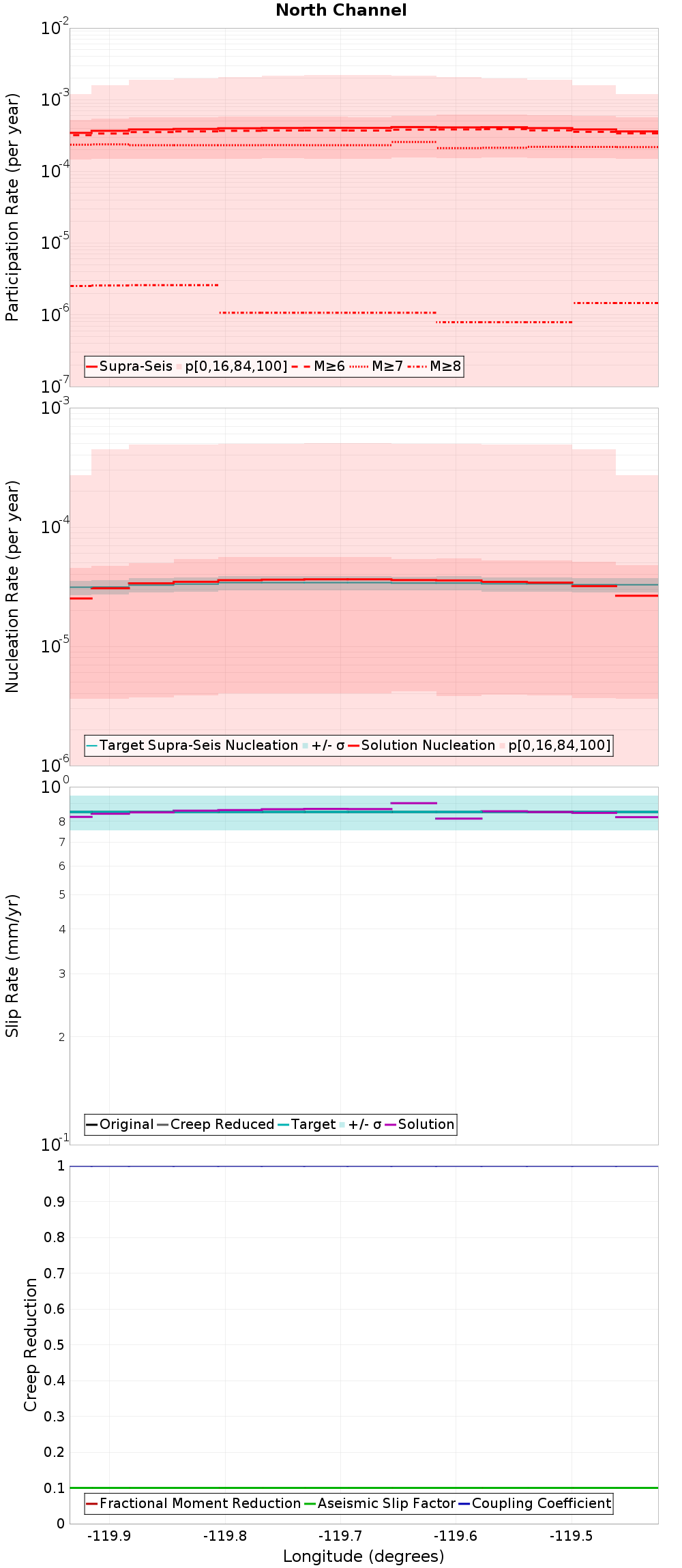

Along-strike plot

Moment-Rates and b-Values

(top)

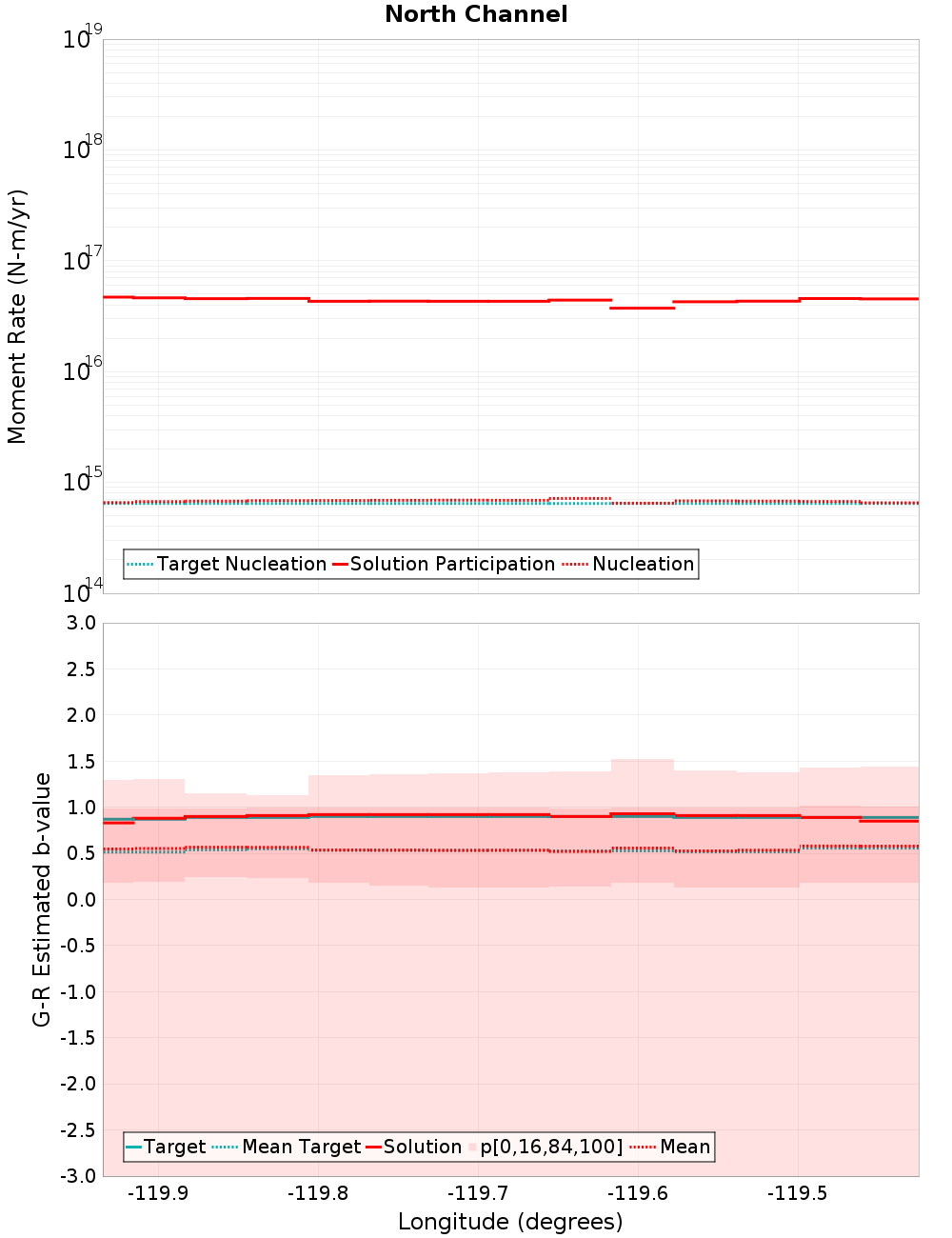

Along-strike plot

Length Distributions

(top)

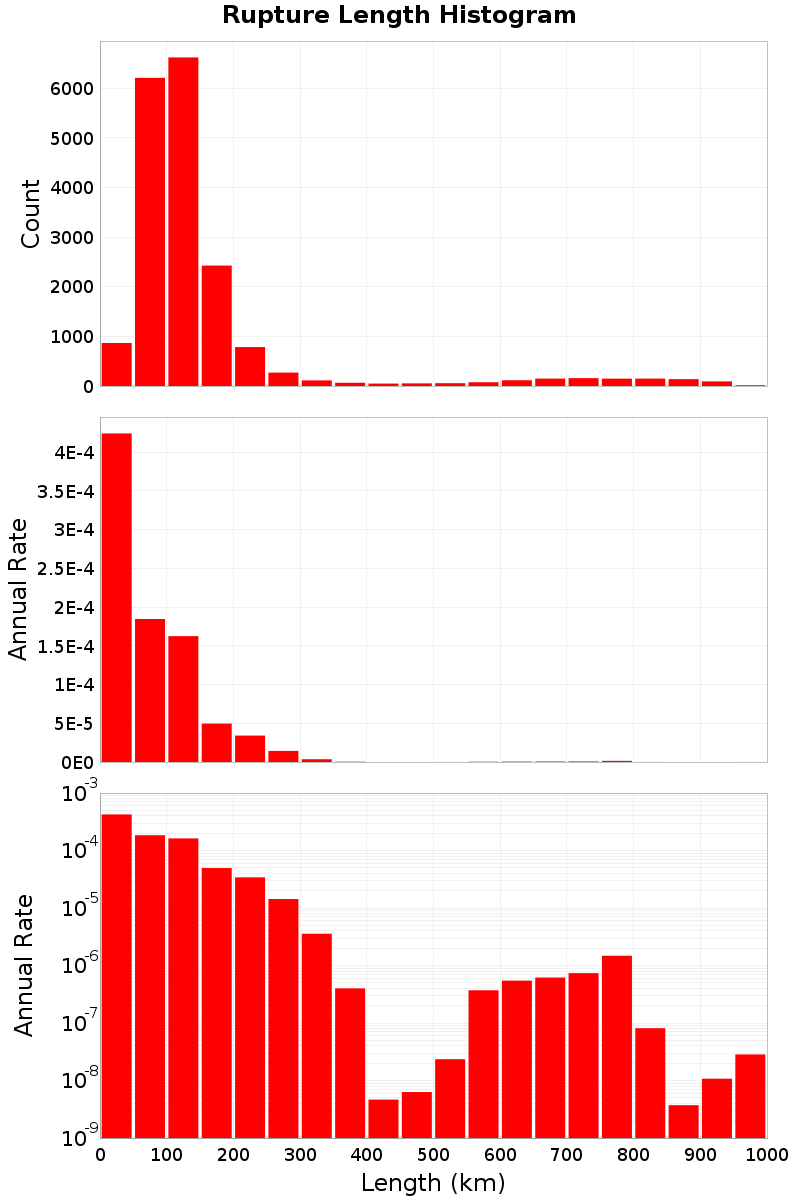

Fault rupture length distributions. The top panel shows the raw count of ruptures in which North Channel participates in the rupture set as a function of rupture length. The bottom two panels show the rate-weighted distribution (i.e., the distribution of lengths in the solution). The middle panel is plotted with a linear scale, and the bottom paney a logarithmic scale.

Length Hist

Rupture Examples

(top)

The following table includes example ruptures, selected at various percentiles from the rate-weighted rupture length distribution. So, for example, the rupture with length closest to the median length (again, rate-weighted) is plotted in the first column ('p50 Example'). The longest participating rupture is plotted last ('p100 Example').

It is important to note that the rupture examples here may not be representative, and may have negligible rates. They are included for illustration purposes only.

p50 Example

p75 Example

p90 Example

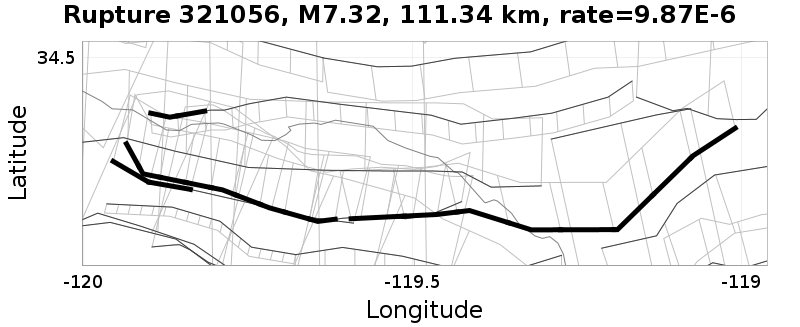

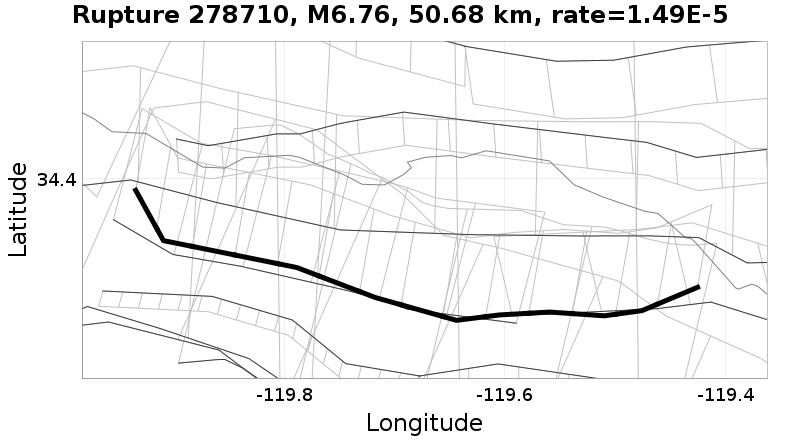

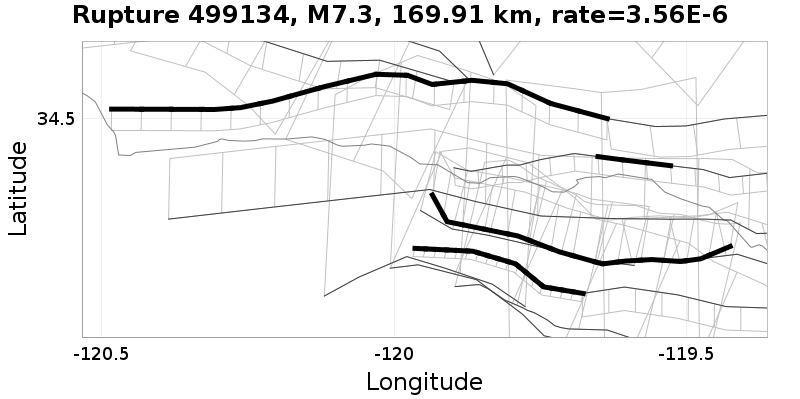

Rupture 278710Rupture 321056Rupture 499134

p97.5 Example

p99 Example

p100 Example

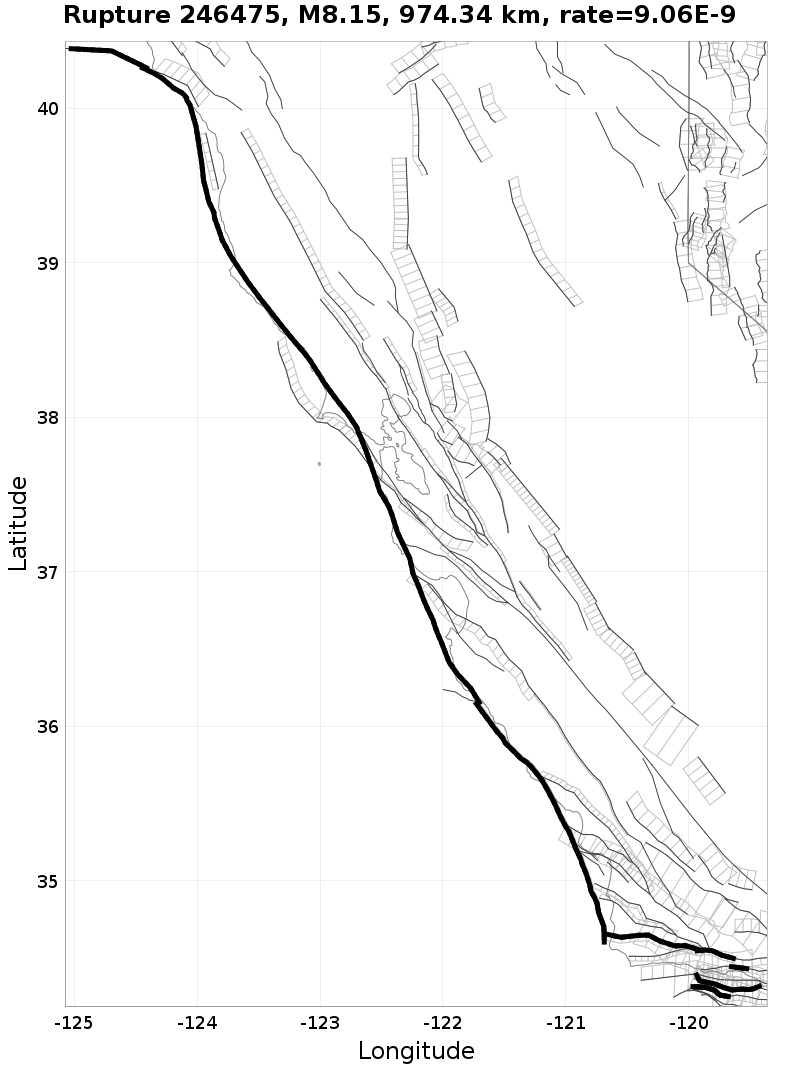

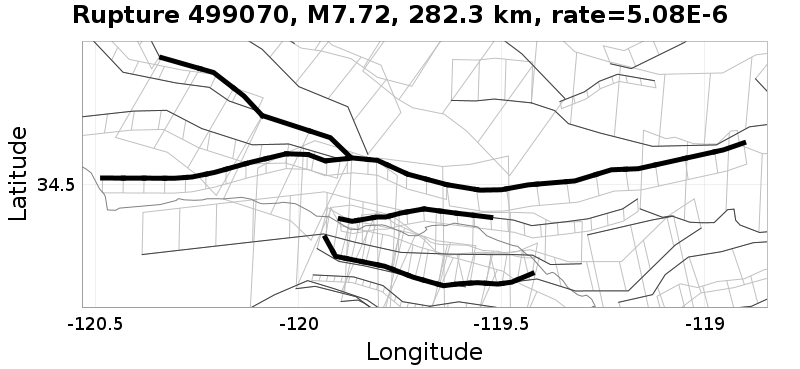

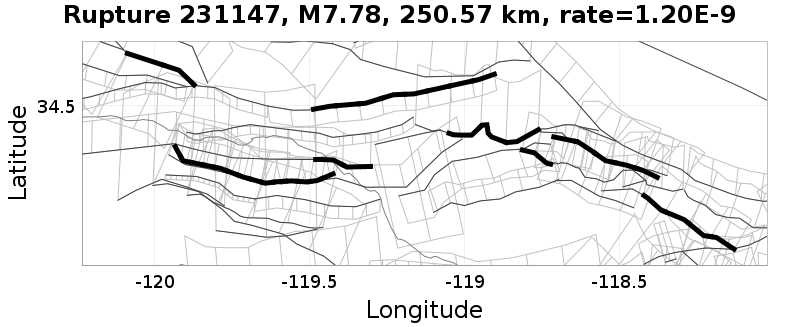

Rupture 231147Rupture 499070Rupture 246475

Connectivity

(top)

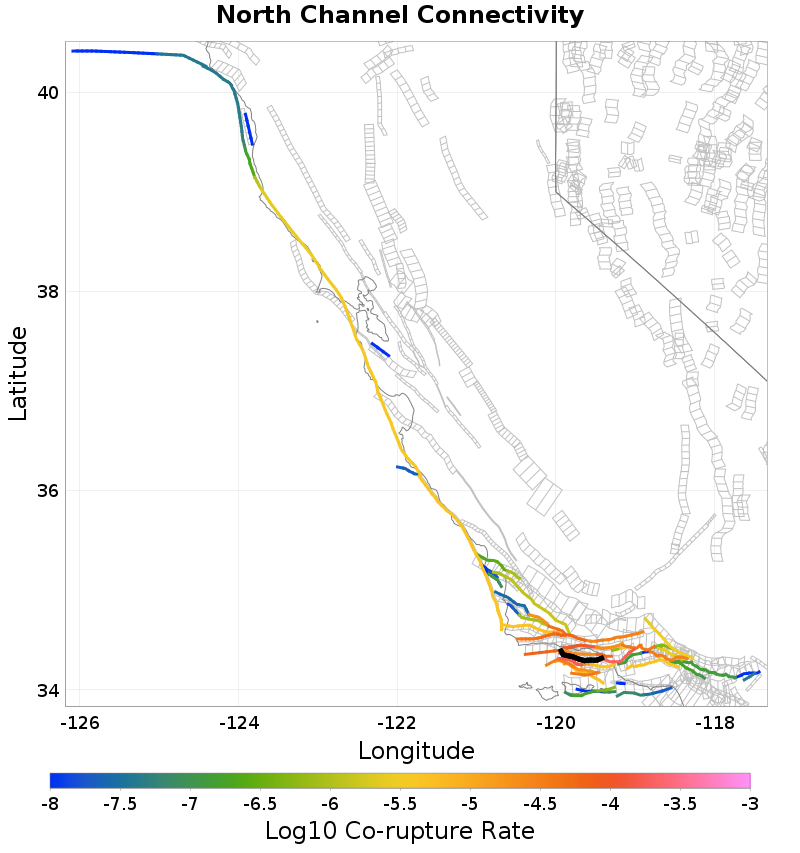

Map

Nearby Sections

(top)

Fault Section
Pitas Point, 0.14 km away
Red Mountain, 0.2 km away
Pitas Point (upper), 0.31 km away
Mission Ridge - Arroyo Parida - Santa Ana, 0.35 km away
Pitas Point (lower, west), 0.38 km away
Pitas Point (lower, Montalvo), 1.95 km away
Los Alamos (extension), 2.38 km away
Oak Ridge (offshore, extension), 3.92 km away
Oak Ridge (offshore), 4.21 km away
Channel Islands (ramp), 5.62 km away
Mid Channel, 5.9 km away
Santa Ynez (west), 8.39 km away
Santa Ynez River, 8.88 km away
Santa Ynez (east), 10.94 km away
Sisar, 12.23 km away

Pitas Point, 0.14 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.14 km
Min Rate-Weighted Dist1.28 km
Co-rupture Count2,530
Co-rupture Rate2.311158E-4
Co-rupture Mag Range[6.56, 8.17]

Red Mountain, 0.2 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.27 km
Min Rate-Weighted Dist0.32 km
Co-rupture Count4,815
Co-rupture Rate1.3440165E-4
Co-rupture Mag Range[6.63, 8.21]

Pitas Point (upper), 0.31 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.31 km
Min Rate-Weighted Dist0.95 km
Co-rupture Count4,331
Co-rupture Rate9.854703E-5
Co-rupture Mag Range[6.42, 7.91]

Mission Ridge - Arroyo Parida - Santa Ana, 0.35 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.35 km
Min Rate-Weighted Dist2.69 km
Co-rupture Count5,933
Co-rupture Rate1.599441E-4
Co-rupture Mag Range[6.18, 8.16]

Pitas Point (lower, west), 0.38 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.38 km
Min Rate-Weighted Dist0.38 km
Co-rupture Count1,589
Co-rupture Rate3.240041E-5
Co-rupture Mag Range[6.99, 8.21]

Pitas Point (lower, Montalvo), 1.95 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.95 km
Min Rate-Weighted Dist2.34 km
Co-rupture Count8,039
Co-rupture Rate3.7251382E-5
Co-rupture Mag Range[7.06, 8.21]

Los Alamos (extension), 2.38 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.38 km
Min Rate-Weighted Dist2.38 km
Co-rupture Count4,779
Co-rupture Rate4.7301684E-5
Co-rupture Mag Range[6.79, 7.92]

Oak Ridge (offshore, extension), 3.92 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.92 km
Min Rate-Weighted Dist4.15 km
Co-rupture Count3,790
Co-rupture Rate1.8419915E-4
Co-rupture Mag Range[5.93, 8.15]

Oak Ridge (offshore), 4.21 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.21 km
Min Rate-Weighted Dist5.28 km
Co-rupture Count725
Co-rupture Rate2.2375896E-5
Co-rupture Mag Range[6.22, 7.88]

Channel Islands (ramp), 5.62 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist5.62 km
Min Rate-Weighted Dist5.62 km
Co-rupture Count599
Co-rupture Rate6.0475454E-6
Co-rupture Mag Range[6.80, 7.92]

Mid Channel, 5.9 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist5.9 km
Min Rate-Weighted Dist6.88 km
Co-rupture Count213
Co-rupture Rate1.9304196E-5
Co-rupture Mag Range[6.84, 7.79]

Santa Ynez (west), 8.39 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist8.39 km
Min Rate-Weighted Dist8.39 km
Co-rupture Count9,196
Co-rupture Rate7.853083E-5
Co-rupture Mag Range[6.28, 8.21]

Santa Ynez River, 8.88 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count4,229
Co-rupture Rate1.3585218E-5
Co-rupture Mag Range[6.61, 8.21]

Santa Ynez (east), 10.94 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count3,557
Co-rupture Rate3.6342295E-5
Co-rupture Mag Range[6.62, 8.19]

Sisar, 12.23 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count980
Co-rupture Rate4.9341884E-6
Co-rupture Mag Range[7.13, 7.87]
