Pitas Point Details

PropertyValue
Rupture Count5,420
Ruptures w/ Nonzero Rates5,369
Magnitude Range[6.44, 8.24]
Length Range[15, 953] km
Total Rate0.004279115 /yr
Multi-Fault Rate0.0017738412 /yr (41.45%)
Directly-Connected Faults11
All Co-Rupturing Faults65

Table Of Contents

Magnitude-Frequency Distribution

(top)

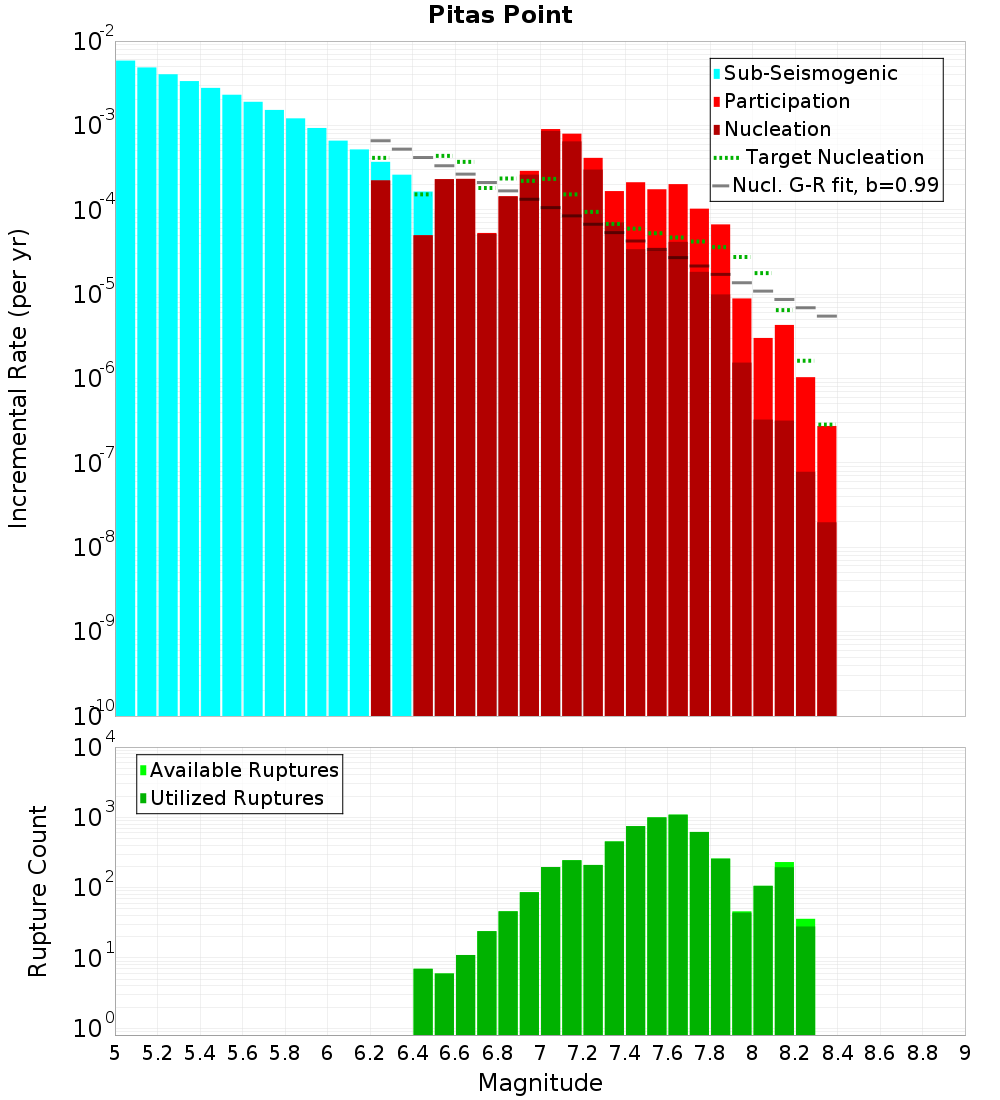

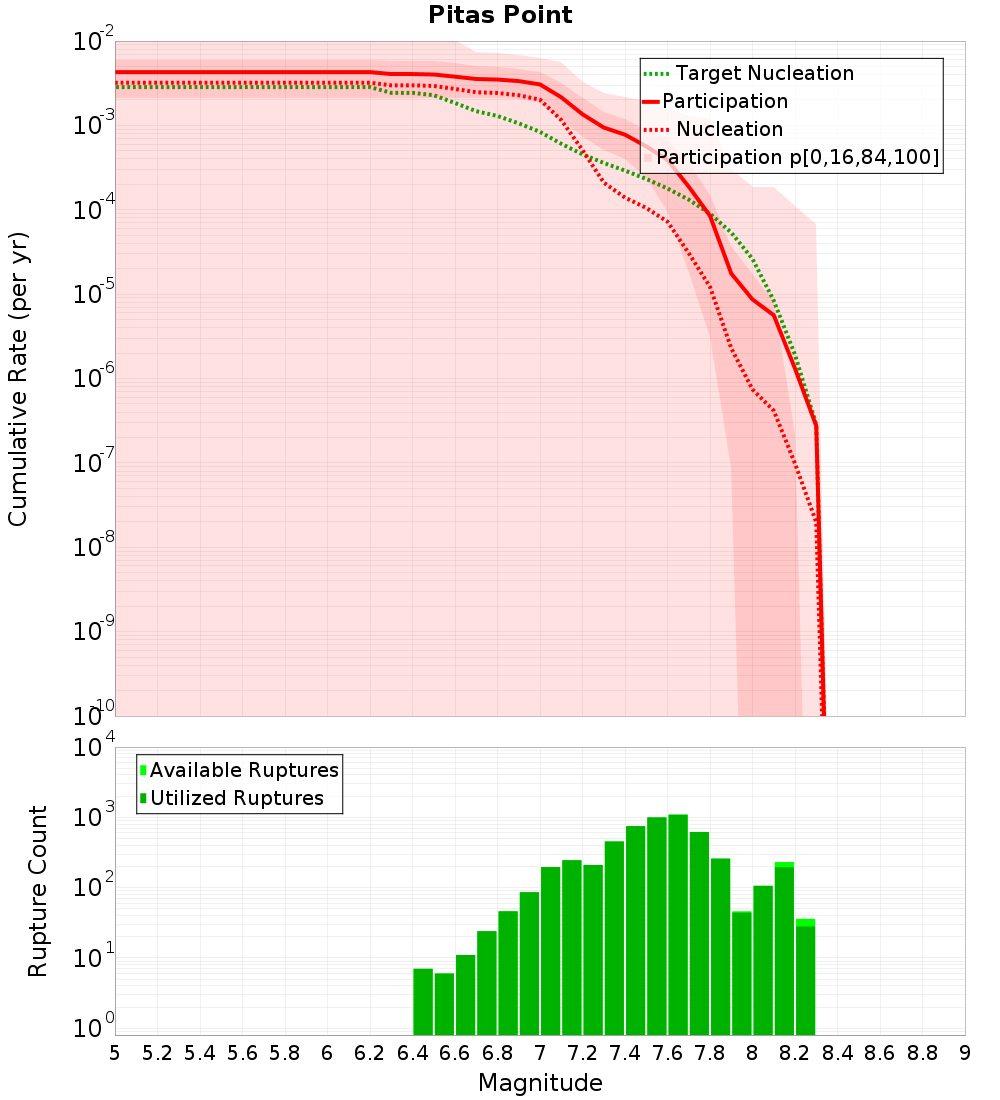

Fault magnitude-frequency distributions. The left plot shows incremental rates (rates within each magnitude bin), and the right plot shows cumulative rates (rates at or above the given magnitude).

The smaller bottom panel shows the distribution of available ruptures with a green histogram and is not rate-weighted. It only shows the raw count of ruptures of various magnitudes available in the rupture set.

IncrementalCumulative
Incremental PlotCumulative Plot

NOTE: This solution has a distribution of magnitudes and rates for each ruptures, and is likely a branch-averaged solution. That full distribution for each rupture is used to construct the MFDs above, but only mean magnitudes are used in the lower panel showing available and utilized magnitudes, and thus there may be bins with nonzero rates in the top panel where no mgnitudes are shown in the bottom. The magnitude rage at the top of this page also only considers mean magnitudes.

Cumulative Rates and Recurrence Intervals Table

(top)

MagnitudeParticipation RateRangeParticipation RI (yrs)Range
M≥6.20.004279115[0.00E0, 2.62E-2]233.69[38.21, ∞]
M≥6.30.0040568314[0.00E0, 1.71E-2]246.5[58.33, ∞]
M≥6.40.0040568314[0.00E0, 1.71E-2]246.5[58.33, ∞]
M≥6.50.00400704[0.00E0, 1.53E-2]249.56[65.22, ∞]
M≥6.60.0037767317[0.00E0, 1.03E-2]264.78[97.33, ∞]
M≥6.70.003544347[0.00E0, 7.49E-3]282.14[133.48, ∞]
M≥6.80.003491233[0.00E0, 7.27E-3]286.43[137.5, ∞]
M≥6.90.0033465654[0.00E0, 6.91E-3]298.81[144.67, ∞]
M≥70.0030572738[0.00E0, 6.24E-3]327.09[160.16, ∞]
M≥7.10.0021524231[0.00E0, 5.70E-3]464.59[175.52, ∞]
M≥7.20.0013547336[0.00E0, 3.24E-3]738.15[308.62, ∞]
M≥7.39.424394E-4[0.00E0, 2.45E-3]1,061.08[407.79, ∞]
M≥7.47.7593065E-4[0.00E0, 2.19E-3]1,288.77[456.53, ∞]
M≥7.55.640185E-4[0.00E0, 1.93E-3]1,772.99[517.69, ∞]
M≥7.63.8900226E-4[0.00E0, 1.61E-3]2,570.68[622.38, ∞]
M≥7.71.877141E-4[0.00E0, 1.28E-3]5,327.25[778.77, ∞]
M≥7.88.463342E-5[0.00E0, 1.22E-3]11,815.66[816.48, ∞]
M≥7.91.7547218E-5[0.00E0, 3.07E-4]56,989.09[3,261.25, ∞]
M≥88.651868E-6[0.00E0, 1.84E-4]115,581.99[5,420.05, ∞]
M≥8.15.6263366E-6[0.00E0, 1.84E-4]177,735.54[5,420.05, ∞]
M≥8.21.3110363E-6[0.00E0, 1.12E-4]762,755.43[8,944.54, ∞]
M≥8.32.7381242E-7[0.00E0, 6.82E-5]3,652,135.3[14,671.36, ∞]

Individual Branch Nucleation MFDs

(top)

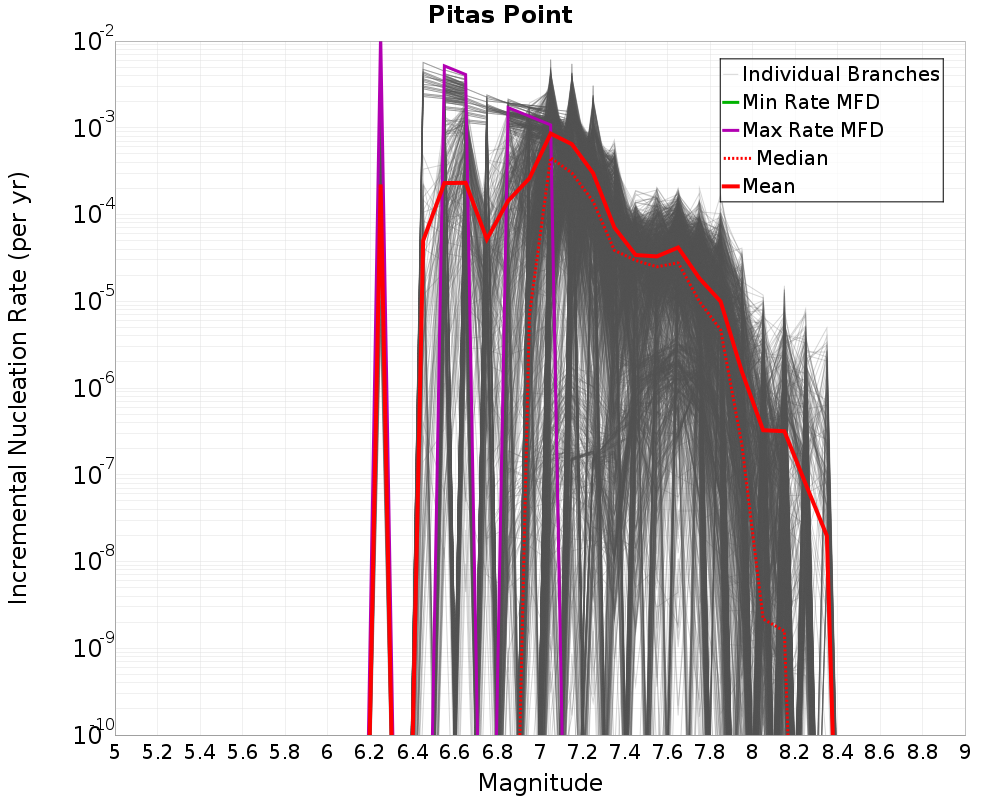

Individual nucleation MFDs across 2250 logic tree branches. The individual branches with the highest and lowest total rate are highlighted, as are the mean and median models.

IncrementalCumulative
Incremental PlotCumulative Plot

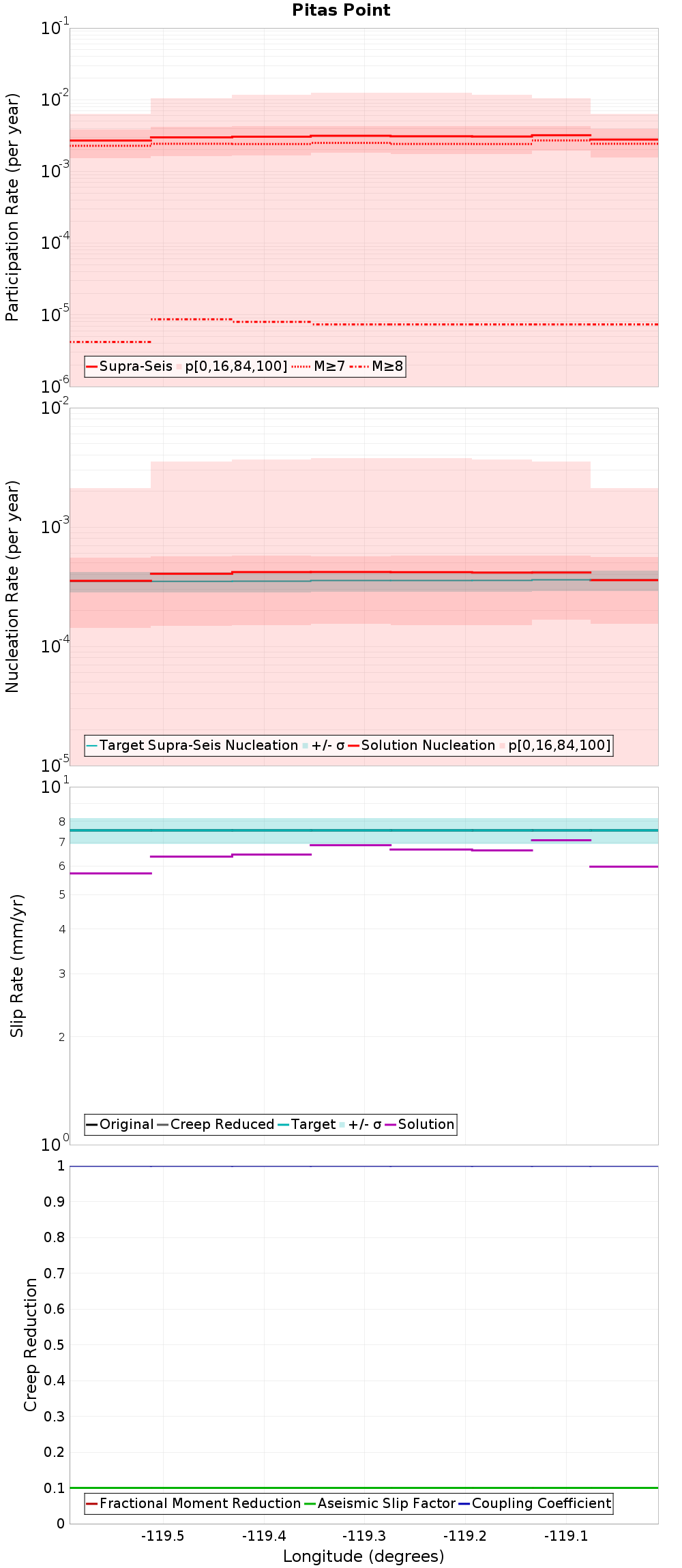

Along-Strike Values

(top)

Along-strike plot

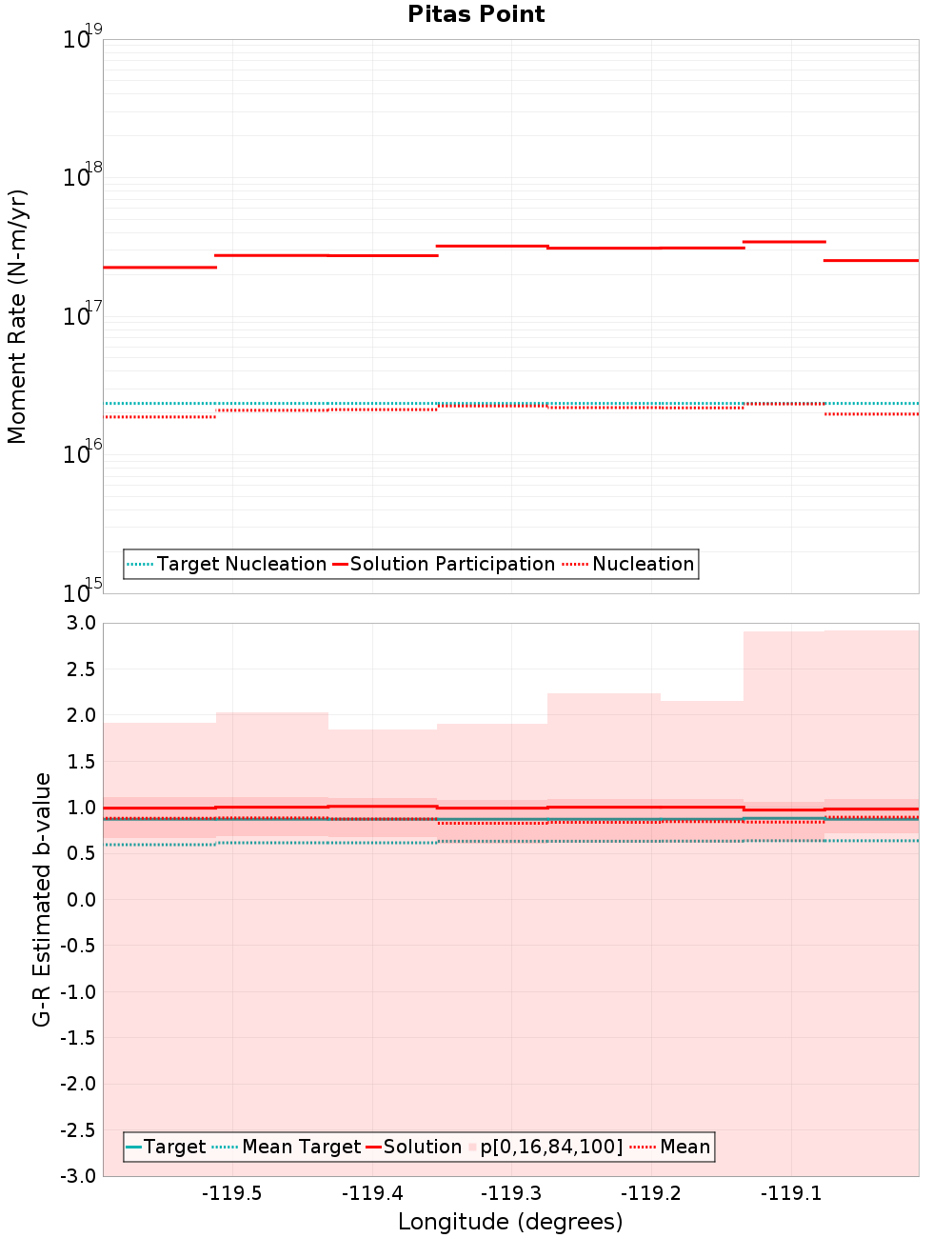

Moment-Rates and b-Values

(top)

Along-strike plot

Length Distributions

(top)

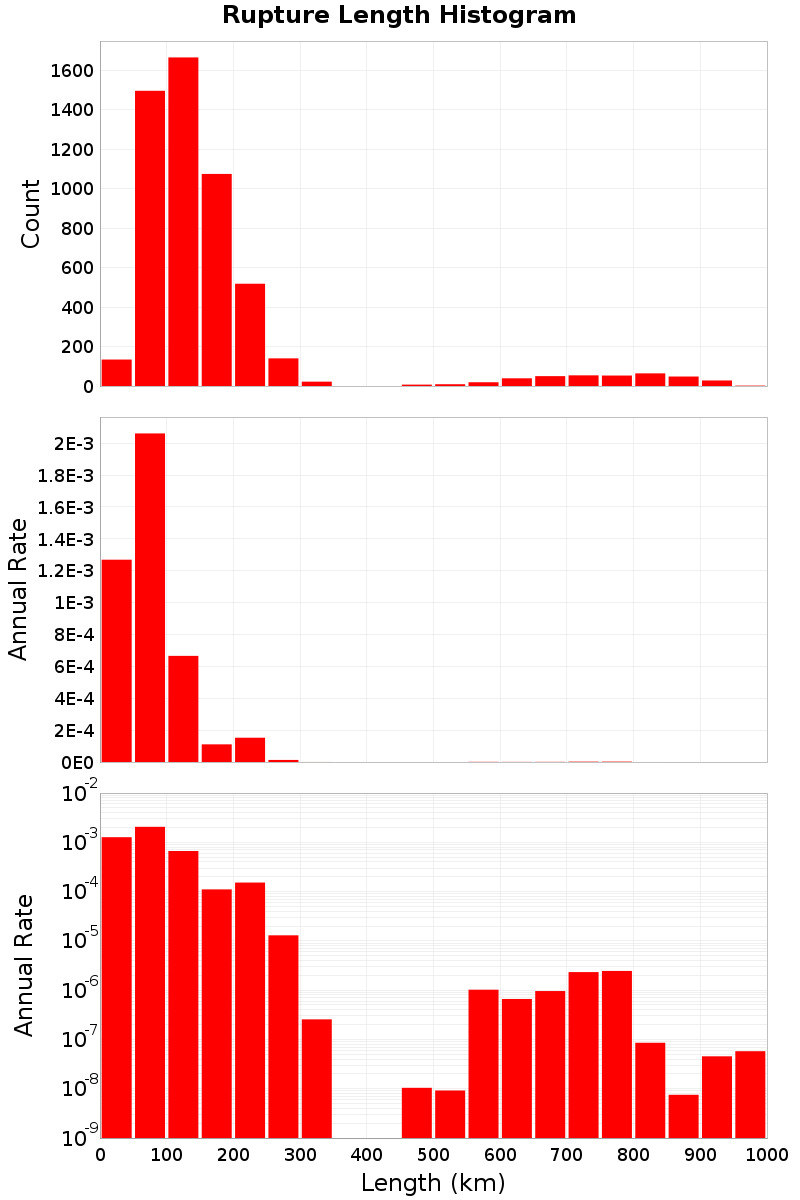

Fault rupture length distributions. The top panel shows the raw count of ruptures in which Pitas Point participates in the rupture set as a function of rupture length. The bottom two panels show the rate-weighted distribution (i.e., the distribution of lengths in the solution). The middle panel is plotted with a linear scale, and the bottom paney a logarithmic scale.

Length Hist

Rupture Examples

(top)

The following table includes example ruptures, selected at various percentiles from the rate-weighted rupture length distribution. So, for example, the rupture with length closest to the median length (again, rate-weighted) is plotted in the first column ('p50 Example'). The longest participating rupture is plotted last ('p100 Example').

It is important to note that the rupture examples here may not be representative, and may have negligible rates. They are included for illustration purposes only.

p50 Example

p75 Example

p90 Example

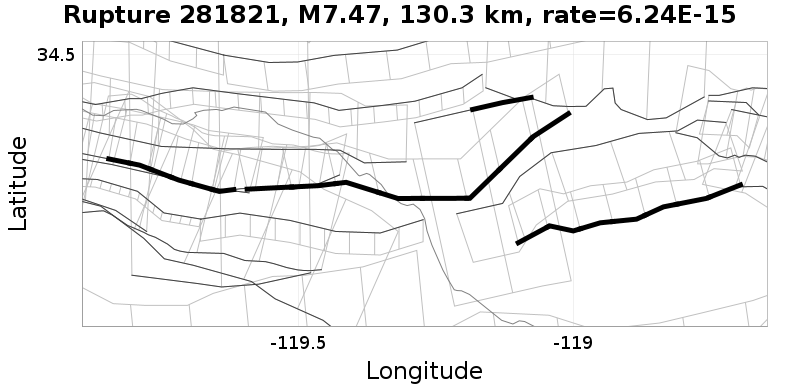

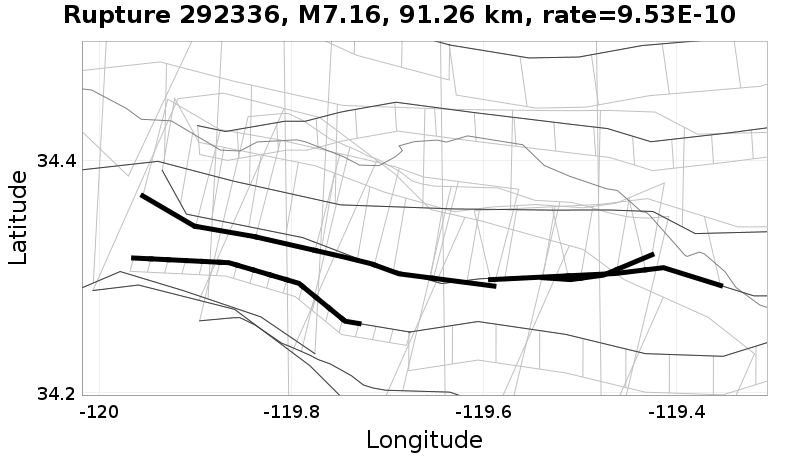

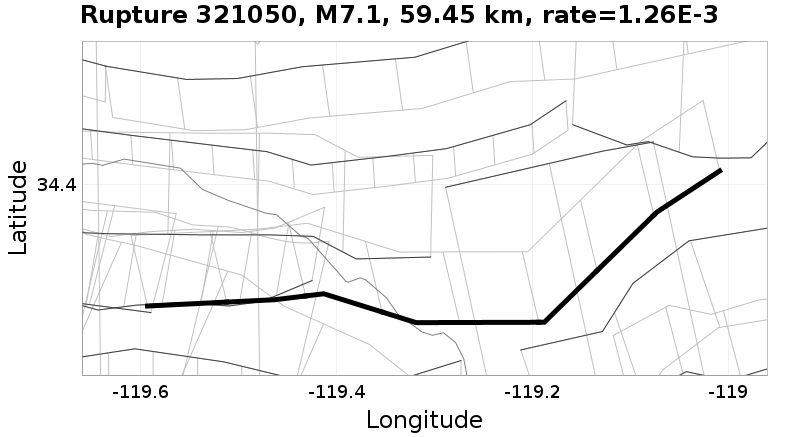

Rupture 321050Rupture 292336Rupture 281821

p97.5 Example

p99 Example

p100 Example

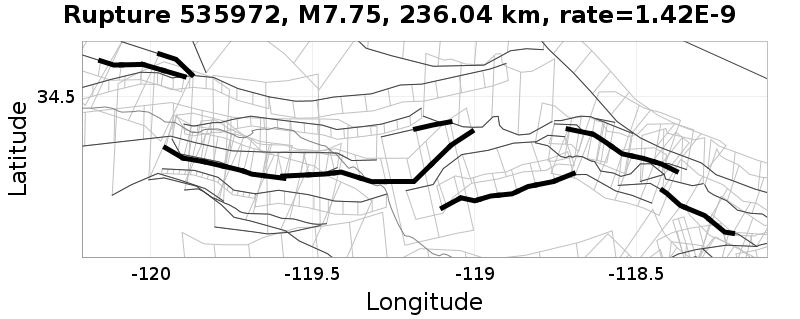

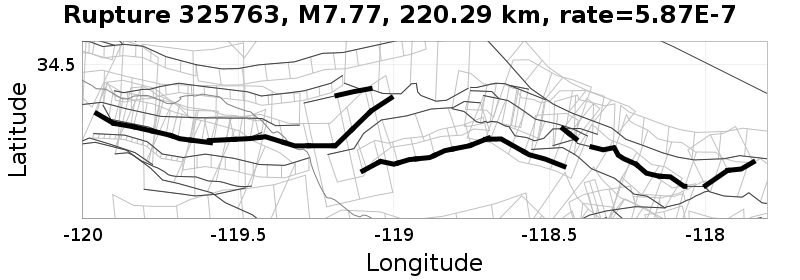

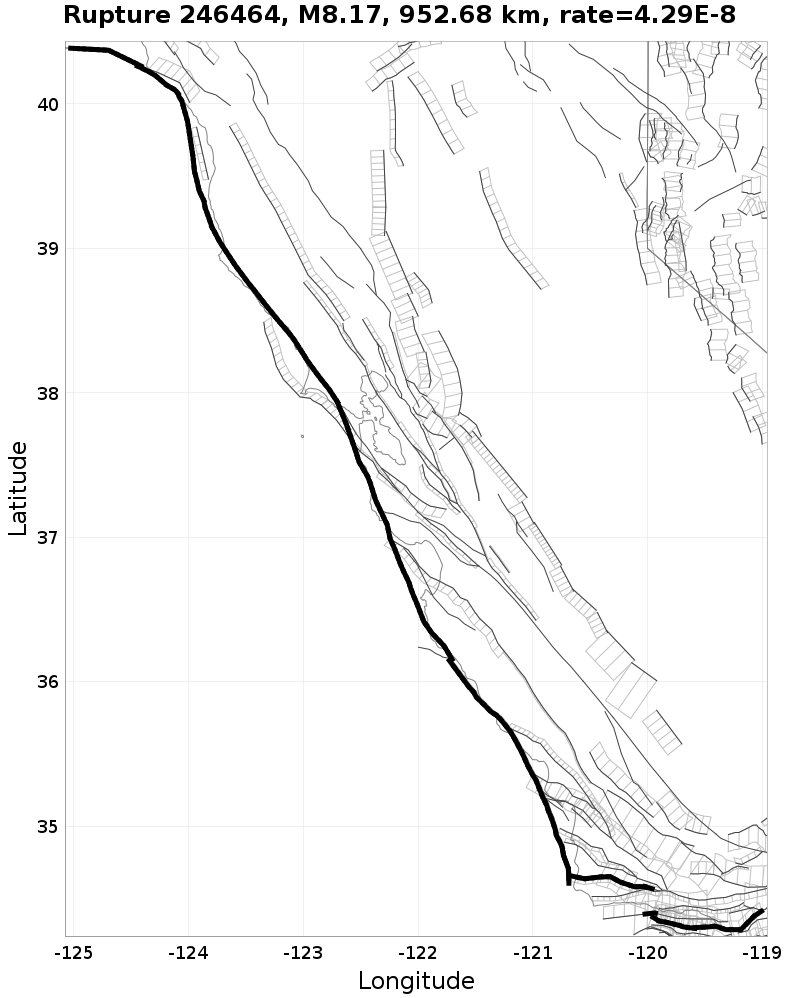

Rupture 325763Rupture 535972Rupture 246464

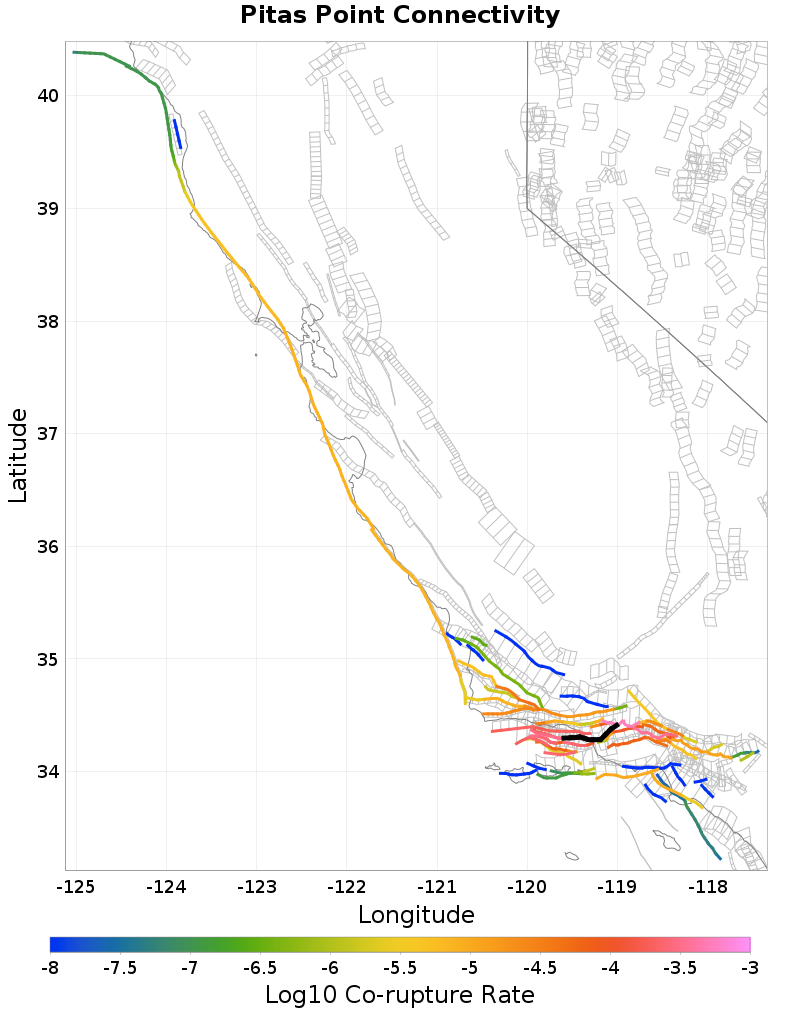

Connectivity

(top)

Map

Nearby Sections

(top)

Fault SectionFault Section
Sisar, 0.04 km awayOak Ridge (offshore), 3.73 km away
Pitas Point (upper), 0.14 km awayRed Mountain, 4.23 km away
North Channel, 0.14 km awaySanta Ynez (east), 4.87 km away
Mid Channel, 0.23 km awayMission Ridge - Arroyo Parida - Santa Ana, 5.65 km away
Pitas Point (lower, Montalvo), 0.28 km awayOak Ridge (offshore, extension), 9.24 km away
Channel Islands (ramp), 0.33 km awaySimi - Santa Rosa, 9.25 km away
San Cayetano, 1.63 km awayChannel Islands, 12.67 km away
Oak Ridge (onshore), 2.17 km awaySanta Ynez (west), 13.98 km away

Sisar, 0.04 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.04 km
Min Rate-Weighted Dist0.22 km
Co-rupture Count2,104
Co-rupture Rate9.181735E-5
Co-rupture Mag Range[7.02, 8.00]

Pitas Point (upper), 0.14 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.14 km
Min Rate-Weighted Dist0.14 km
Co-rupture Count1,525
Co-rupture Rate3.6991917E-4
Co-rupture Mag Range[6.68, 8.17]

North Channel, 0.14 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.14 km
Min Rate-Weighted Dist1.28 km
Co-rupture Count2,790
Co-rupture Rate2.317134E-4
Co-rupture Mag Range[6.56, 8.17]

Mid Channel, 0.23 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.23 km
Min Rate-Weighted Dist0.23 km
Co-rupture Count178
Co-rupture Rate6.459841E-5
Co-rupture Mag Range[7.08, 7.88]

Pitas Point (lower, Montalvo), 0.28 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.28 km
Min Rate-Weighted Dist0.28 km
Co-rupture Count1,638
Co-rupture Rate2.3919178E-4
Co-rupture Mag Range[7.29, 8.24]

Channel Islands (ramp), 0.33 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.33 km
Min Rate-Weighted Dist3.85 km
Co-rupture Count109
Co-rupture Rate2.7437732E-6
Co-rupture Mag Range[7.27, 7.83]

San Cayetano, 1.63 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.63 km
Min Rate-Weighted Dist3.57 km
Co-rupture Count229
Co-rupture Rate5.3472316E-4
Co-rupture Mag Range[7.11, 7.98]

Oak Ridge (onshore), 2.17 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.29 km
Min Rate-Weighted Dist3.91 km
Co-rupture Count52
Co-rupture Rate1.0288514E-4
Co-rupture Mag Range[6.91, 7.82]

Oak Ridge (offshore), 3.73 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.73 km
Min Rate-Weighted Dist4.17 km
Co-rupture Count442
Co-rupture Rate3.1966914E-4
Co-rupture Mag Range[6.59, 7.83]

Red Mountain, 4.23 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.23 km
Min Rate-Weighted Dist4.73 km
Co-rupture Count1,122
Co-rupture Rate2.5678545E-4
Co-rupture Mag Range[6.82, 8.17]

Santa Ynez (east), 4.87 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count175
Co-rupture Rate1.7103726E-5
Co-rupture Mag Range[7.30, 8.16]

Mission Ridge - Arroyo Parida - Santa Ana, 5.65 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count274
Co-rupture Rate4.5090506E-5
Co-rupture Mag Range[6.62, 7.94]

Oak Ridge (offshore, extension), 9.24 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count775
Co-rupture Rate3.2094985E-4
Co-rupture Mag Range[6.85, 7.89]

Simi - Santa Rosa, 9.25 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count1,433
Co-rupture Rate7.219394E-5
Co-rupture Mag Range[7.02, 7.95]

Channel Islands, 12.67 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist12.67 km
Min Rate-Weighted Dist12.67 km
Co-rupture Count95
Co-rupture Rate1.3687927E-6
Co-rupture Mag Range[7.25, 7.83]

Santa Ynez (west), 13.98 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count486
Co-rupture Rate4.5600384E-5
Co-rupture Mag Range[7.03, 8.16]
