Puente Hills (Coyote Hills) Details

PropertyValue
Rupture Count4,351
Ruptures w/ Nonzero Rates4,288
Magnitude Range[6.75, 8.00]
Length Range[17, 410] km
Total Rate4.0417362E-4 /yr
Multi-Fault Rate3.0913352E-4 /yr (76.49%)
Directly-Connected Faults10
All Co-Rupturing Faults79

Table Of Contents

Magnitude-Frequency Distribution

(top)

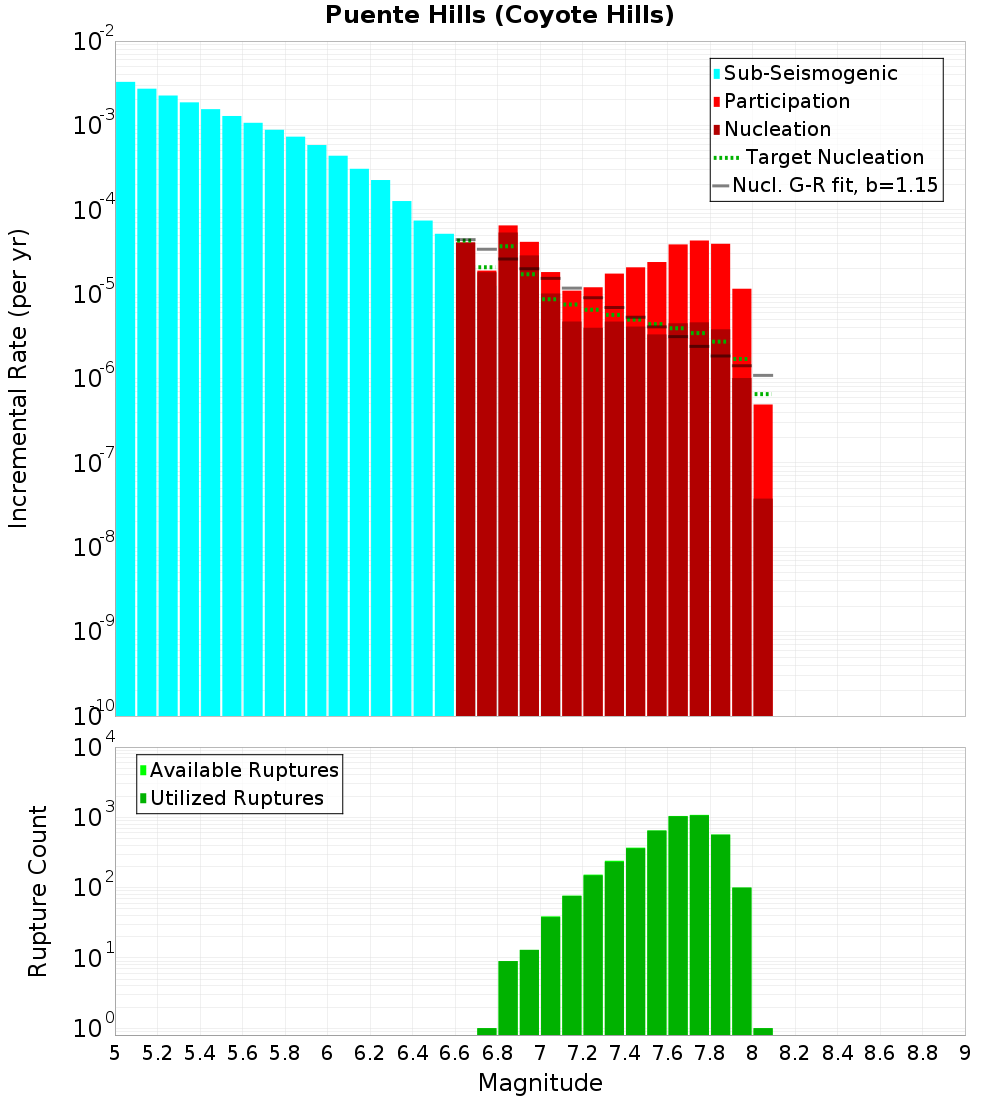

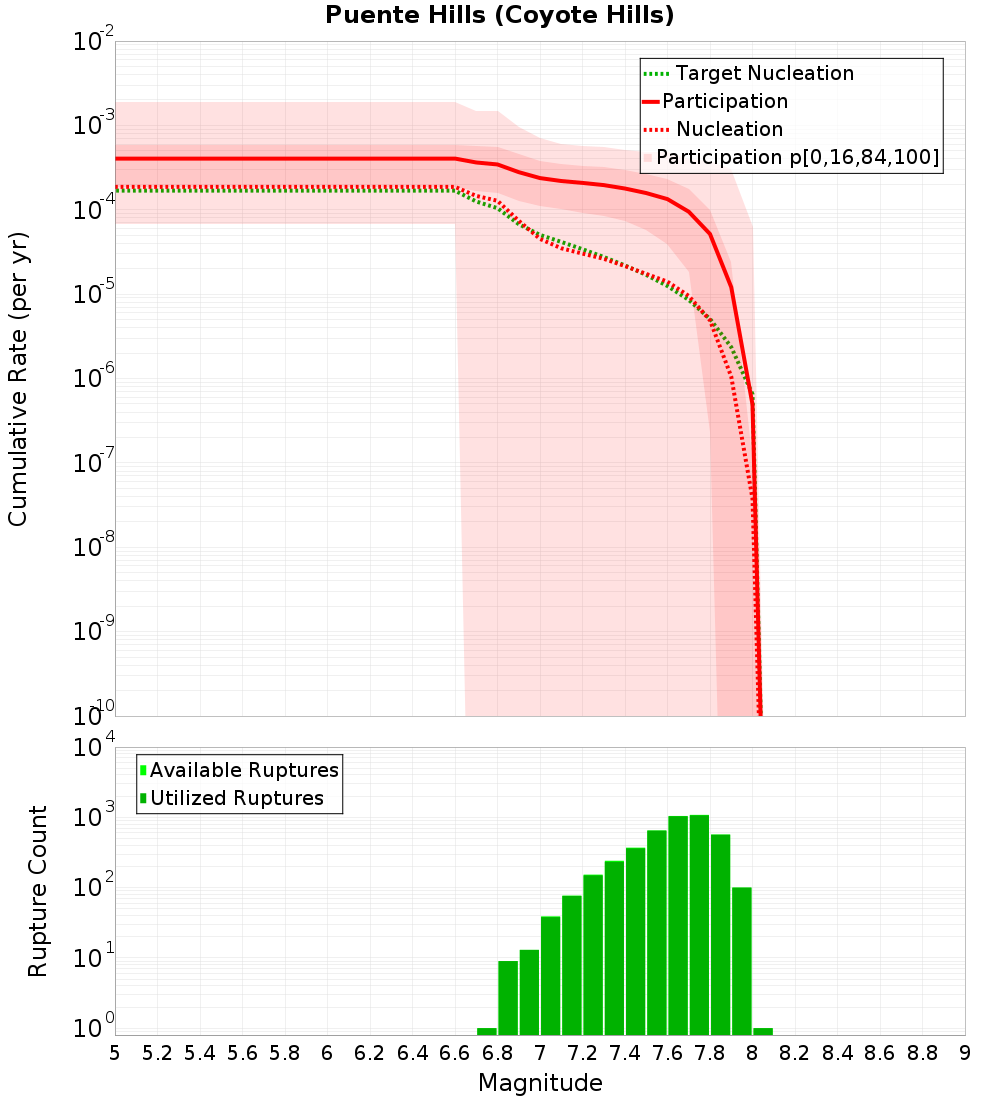

Fault magnitude-frequency distributions. The left plot shows incremental rates (rates within each magnitude bin), and the right plot shows cumulative rates (rates at or above the given magnitude).

The smaller bottom panel shows the distribution of available ruptures with a green histogram and is not rate-weighted. It only shows the raw count of ruptures of various magnitudes available in the rupture set.

IncrementalCumulative
Incremental PlotCumulative Plot

NOTE: This solution has a distribution of magnitudes and rates for each ruptures, and is likely a branch-averaged solution. That full distribution for each rupture is used to construct the MFDs above, but only mean magnitudes are used in the lower panel showing available and utilized magnitudes, and thus there may be bins with nonzero rates in the top panel where no mgnitudes are shown in the bottom. The magnitude rage at the top of this page also only considers mean magnitudes.

Cumulative Rates and Recurrence Intervals Table

(top)

MagnitudeParticipation RateRangeParticipation RI (yrs)Range
M≥6.64.0417362E-4[6.71E-5, 1.89E-3]2,474.18[530.5, 14,904.06]
M≥6.73.632527E-4[5.96E-19, 1.47E-3]2,752.9[680.27, 1,676,976,733,973,595,650]
M≥6.83.4424703E-4[0.00E0, 1.47E-3]2,904.89[680.27, ∞]
M≥6.92.7899074E-4[0.00E0, 9.51E-4]3,584.35[1,051.54, ∞]
M≥72.3731368E-4[0.00E0, 7.12E-4]4,213.83[1,404.83, ∞]
M≥7.12.1904637E-4[0.00E0, 5.97E-4]4,565.24[1,676.41, ∞]
M≥7.22.0804272E-4[0.00E0, 5.75E-4]4,806.71[1,737.79, ∞]
M≥7.31.9598106E-4[0.00E0, 5.49E-4]5,102.53[1,821.4, ∞]
M≥7.41.7846345E-4[0.00E0, 5.10E-4]5,603.39[1,962.7, ∞]
M≥7.51.5767093E-4[0.00E0, 4.85E-4]6,342.32[2,063.62, ∞]
M≥7.61.336506E-4[0.00E0, 4.79E-4]7,482.2[2,089.27, ∞]
M≥7.79.480275E-5[0.00E0, 4.02E-4]10,548.22[2,489.98, ∞]
M≥7.85.159413E-5[0.00E0, 3.81E-4]19,382.05[2,626.61, ∞]
M≥7.91.2080681E-5[0.00E0, 3.04E-4]82,776.79[3,287.88, ∞]
M≥84.9212326E-7[0.00E0, 6.22E-5]2,032,011.35[16,082.34, ∞]

Individual Branch Nucleation MFDs

(top)

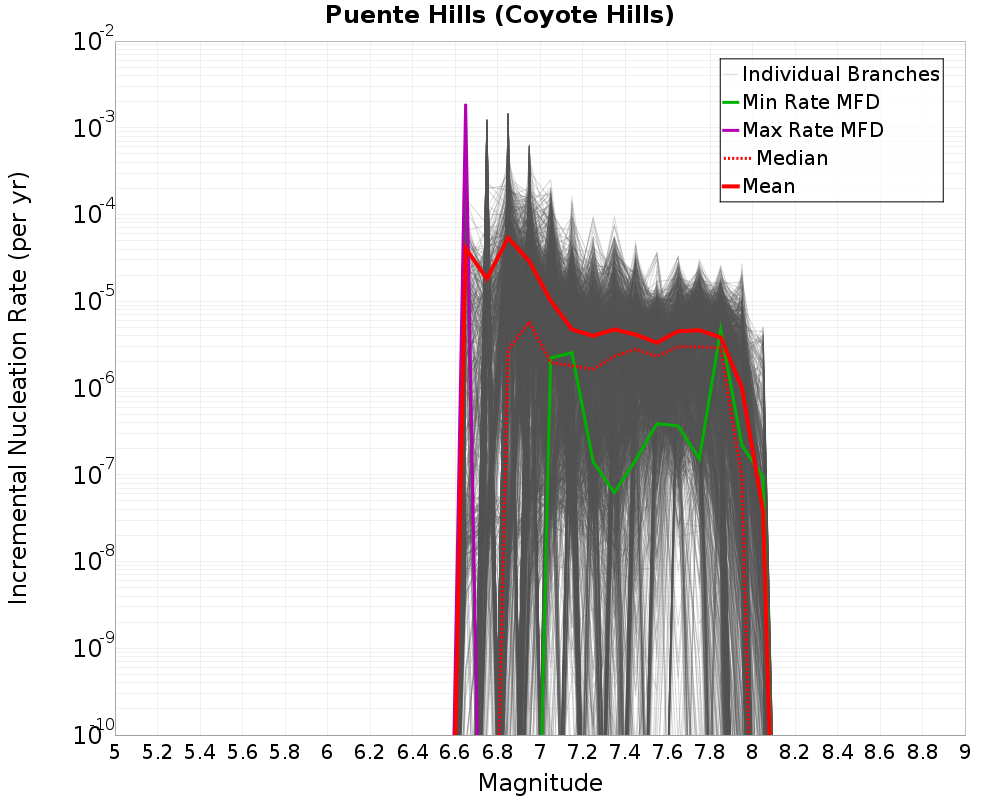

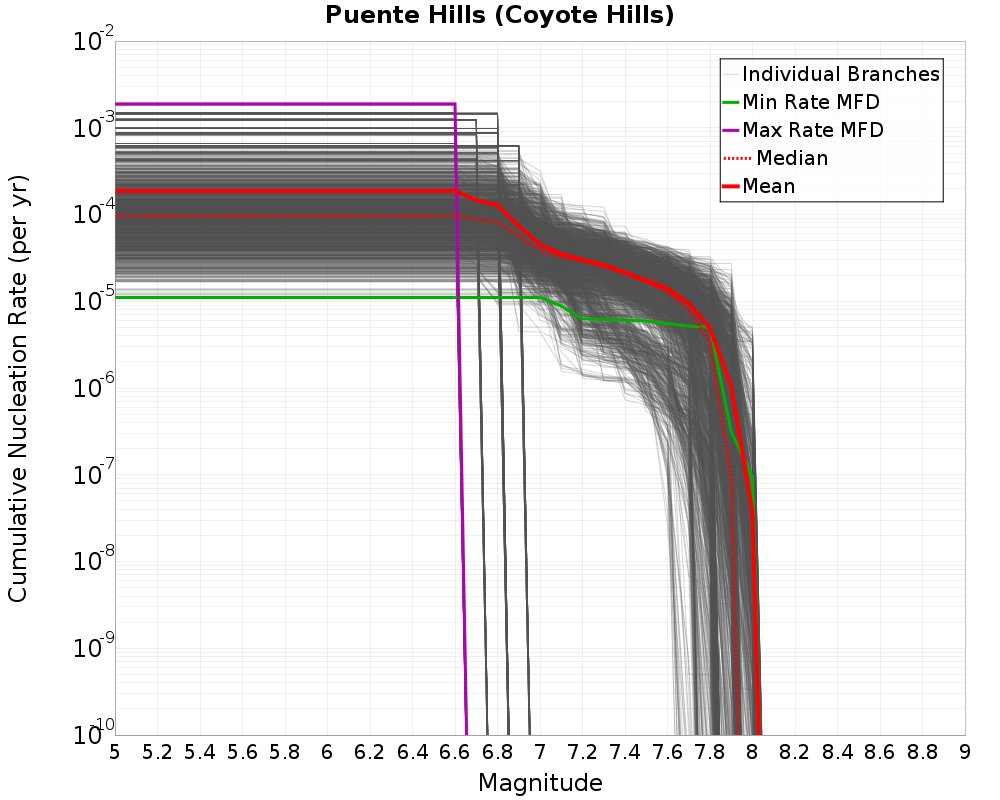

Individual nucleation MFDs across 2250 logic tree branches. The individual branches with the highest and lowest total rate are highlighted, as are the mean and median models.

IncrementalCumulative
Incremental PlotCumulative Plot

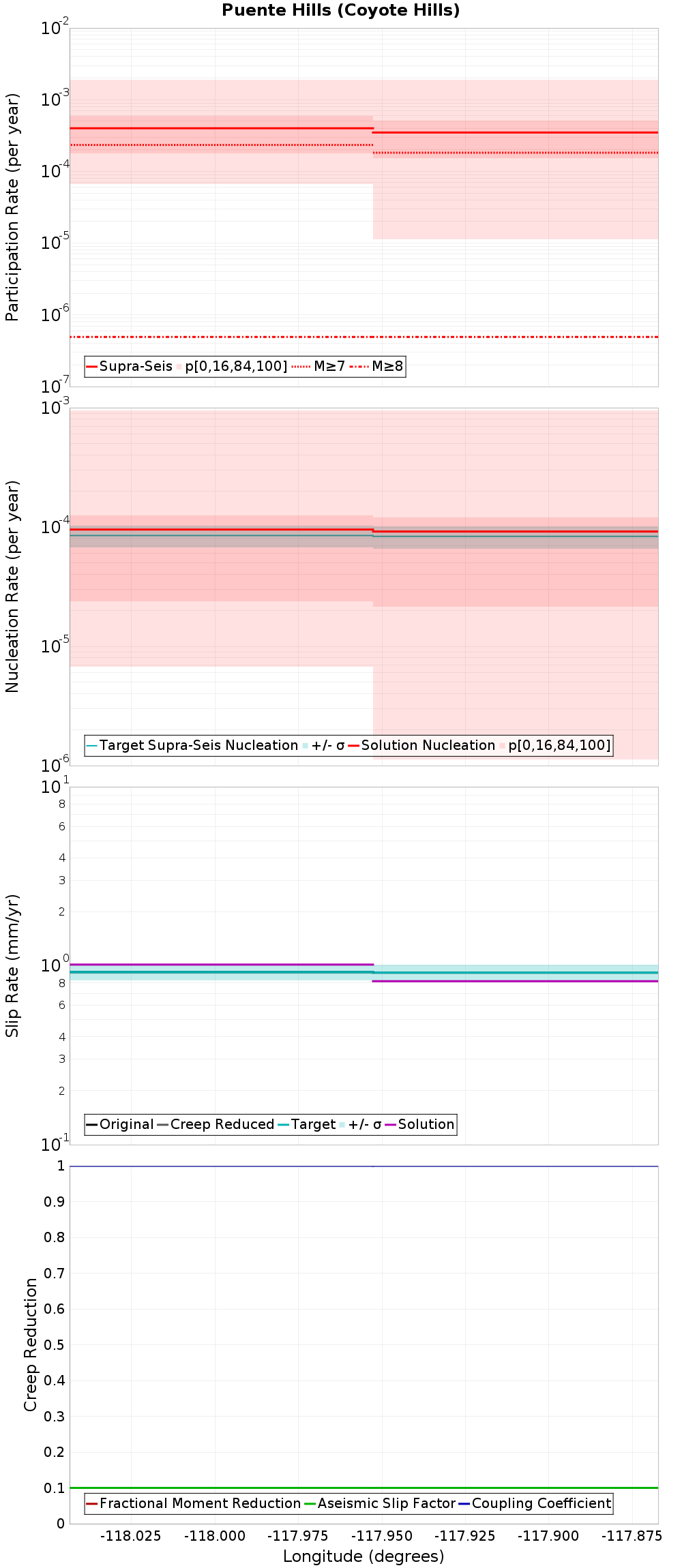

Along-Strike Values

(top)

Along-strike plot

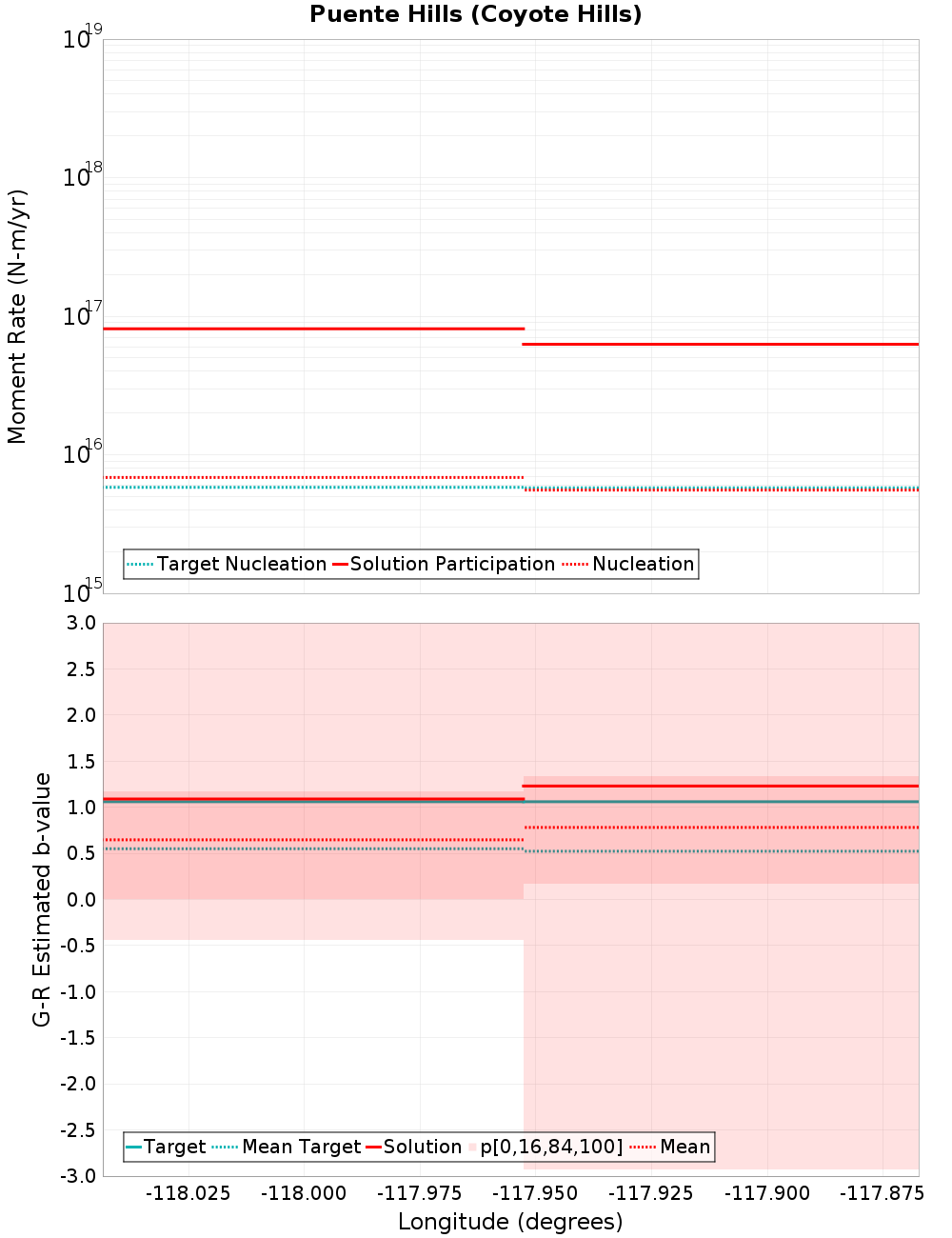

Moment-Rates and b-Values

(top)

Along-strike plot

Length Distributions

(top)

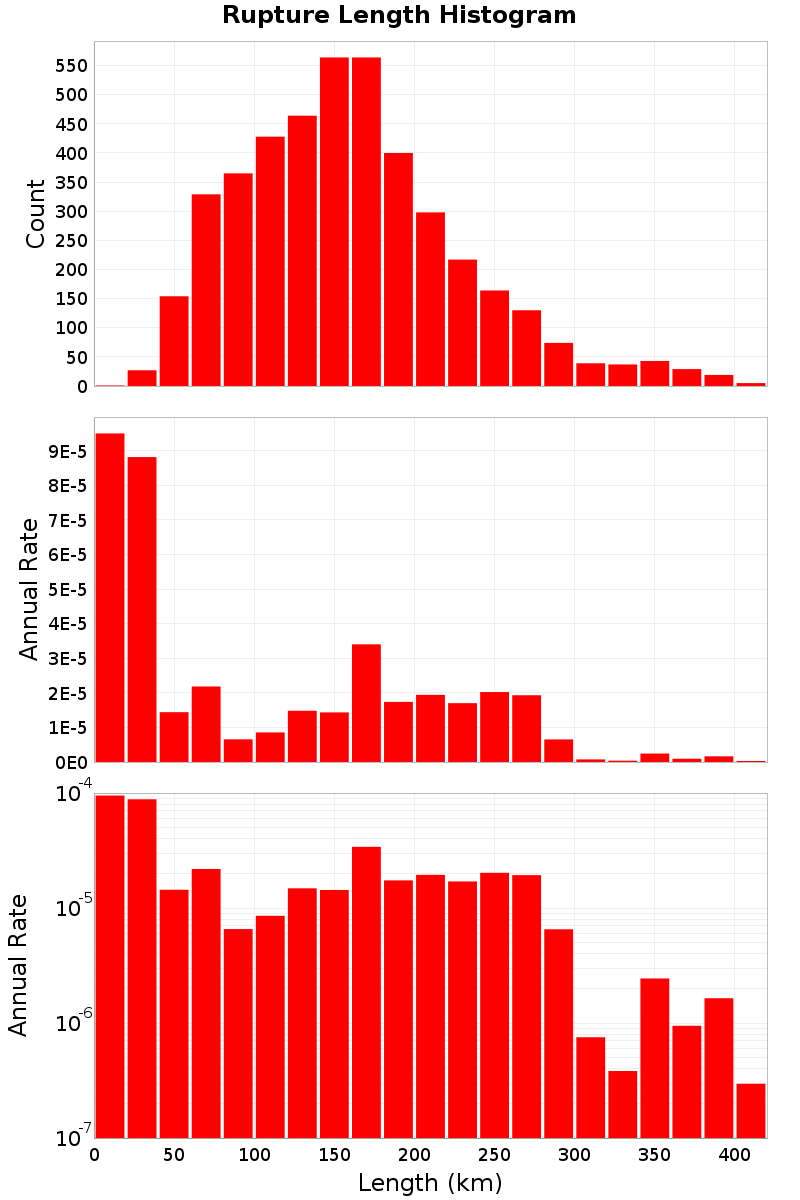

Fault rupture length distributions. The top panel shows the raw count of ruptures in which Puente Hills (Coyote Hills) participates in the rupture set as a function of rupture length. The bottom two panels show the rate-weighted distribution (i.e., the distribution of lengths in the solution). The middle panel is plotted with a linear scale, and the bottom paney a logarithmic scale.

Length Hist

Rupture Examples

(top)

The following table includes example ruptures, selected at various percentiles from the rate-weighted rupture length distribution. So, for example, the rupture with length closest to the median length (again, rate-weighted) is plotted in the first column ('p50 Example'). The longest participating rupture is plotted last ('p100 Example').

It is important to note that the rupture examples here may not be representative, and may have negligible rates. They are included for illustration purposes only.

p50 Example

p75 Example

p90 Example

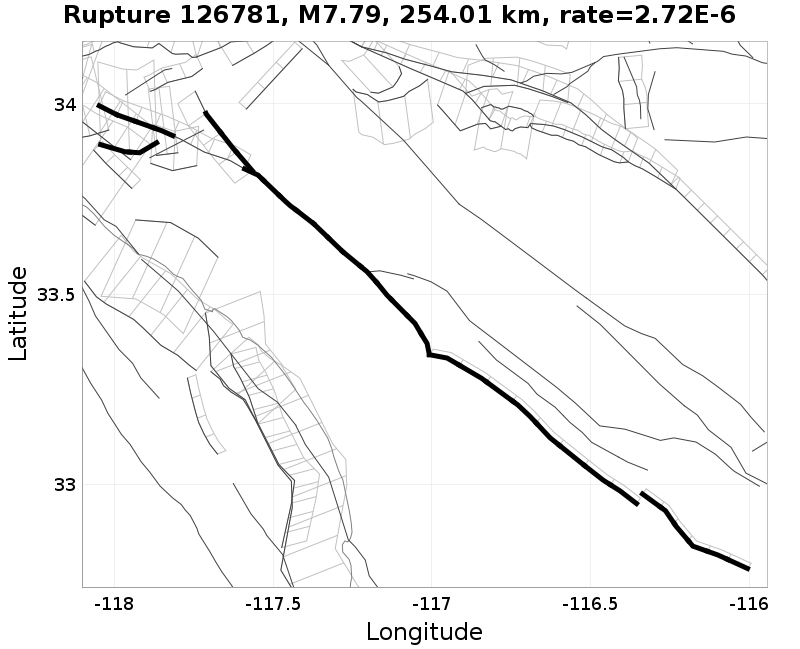

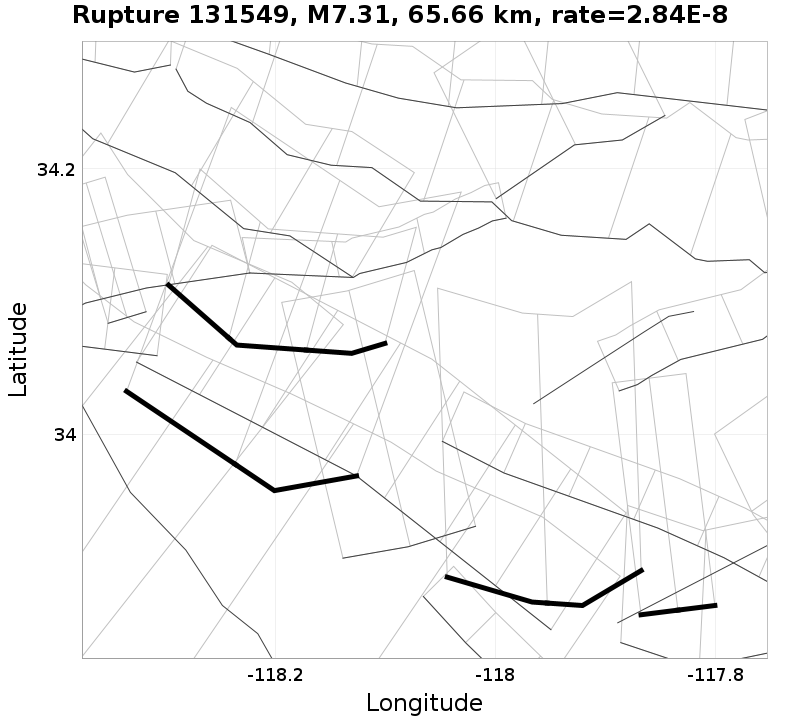

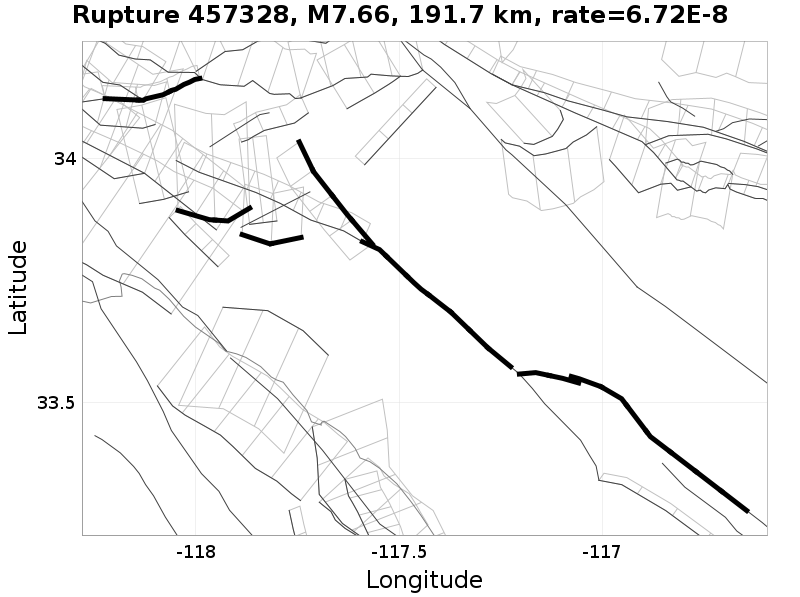

Rupture 131549Rupture 457328Rupture 126781

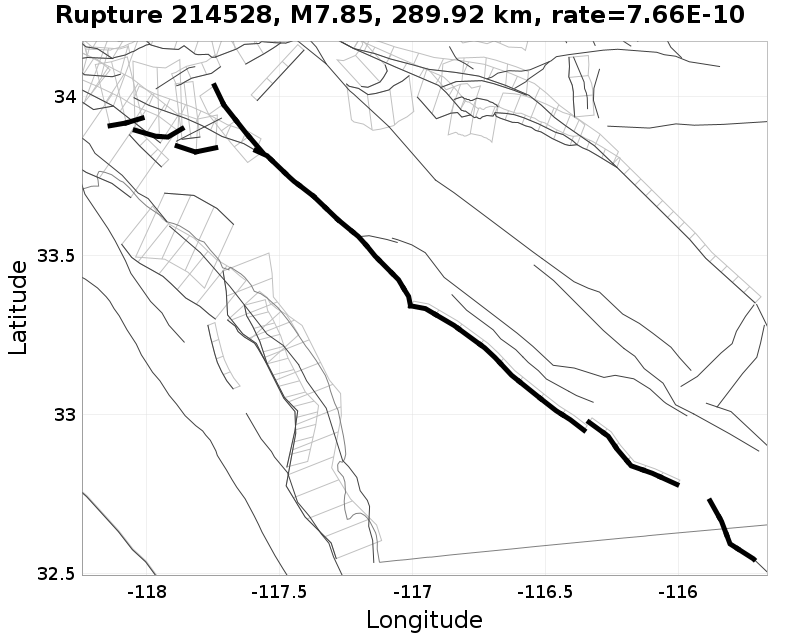

p97.5 Example

p99 Example

p100 Example

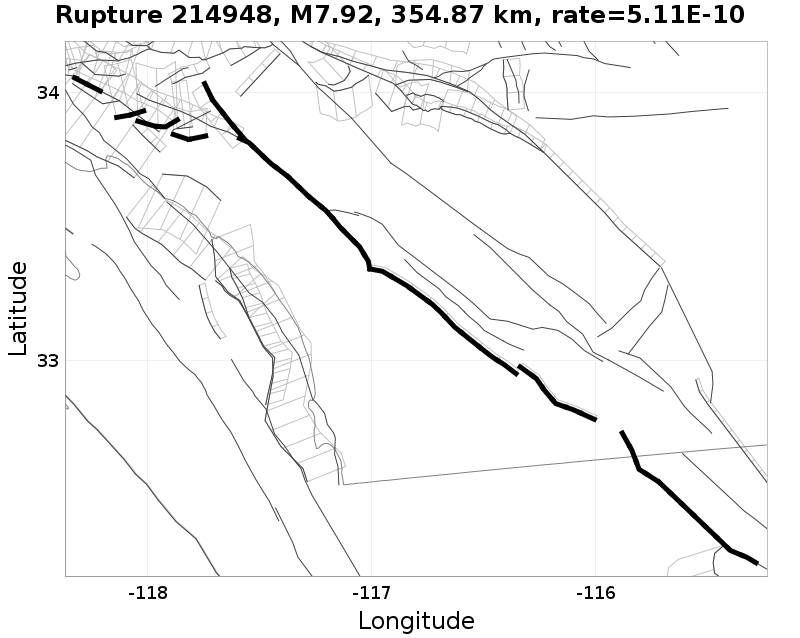

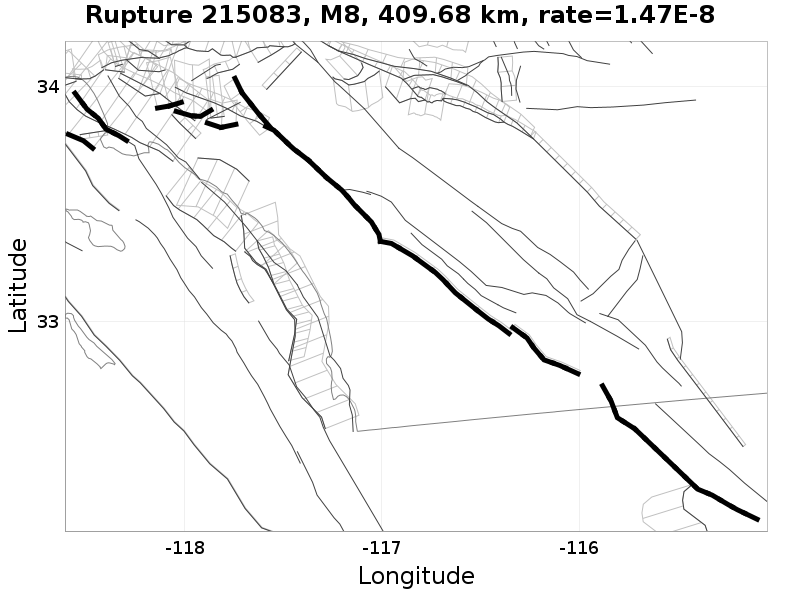

Rupture 214528Rupture 214948Rupture 215083

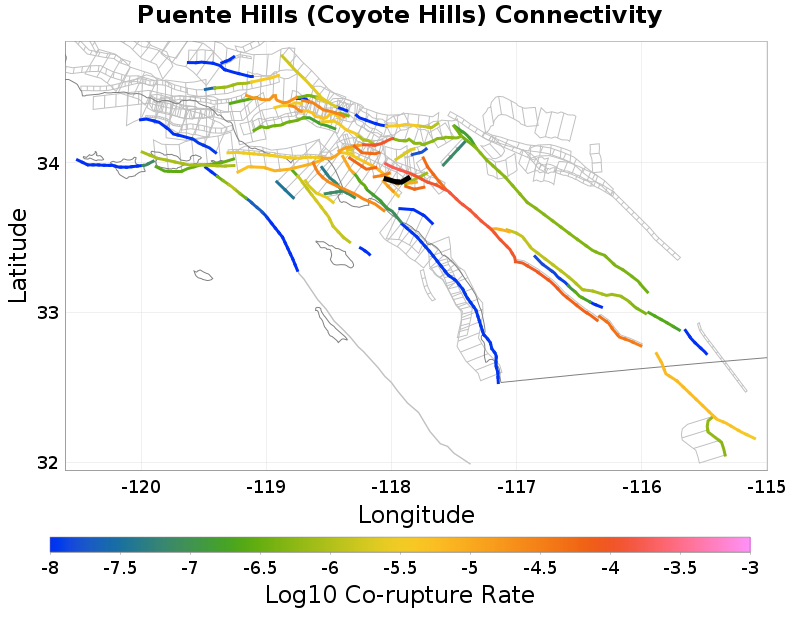

Connectivity

(top)

Map

Nearby Sections

(top)

Fault SectionFault Section
Walnut Creek, 0.24 km awayPuente Hills (Los Angeles), 3.52 km away
Whittier, 0.28 km awayElysian Park (upper), 4.4 km away
San Jose, 0.34 km awayRaymond, 5.74 km away
Puente Hills (Santa Fe Springs), 0.92 km awayCompton, 7.47 km away
Richfield, 1.35 km awayChino, 7.75 km away
Peralta Hills, 2.11 km awaySan Pedro Escarpment, 8.37 km away
Yorba Linda, 2.75 km awayVerdugo, 8.97 km away
Anaheim, 2.76 km awaySierra Madre, 11.43 km away
Elysian Park (lower), 2.79 km away

Walnut Creek, 0.24 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count167
Co-rupture Rate1.9741126E-6
Co-rupture Mag Range[7.03, 7.86]

Whittier, 0.28 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.28 km
Min Rate-Weighted Dist0.29 km
Co-rupture Count994
Co-rupture Rate1.8887184E-4
Co-rupture Mag Range[6.88, 7.98]

San Jose, 0.34 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate1.6489784E-8
Co-rupture Mag Range[7.52, 7.52]

Puente Hills (Santa Fe Springs), 0.92 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.92 km
Min Rate-Weighted Dist0.92 km
Co-rupture Count2,024
Co-rupture Rate3.0738436E-5
Co-rupture Mag Range[6.90, 8.00]

Richfield, 1.35 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.35 km
Min Rate-Weighted Dist1.35 km
Co-rupture Count819
Co-rupture Rate1.0093999E-5
Co-rupture Mag Range[6.81, 7.94]

Peralta Hills, 2.11 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.11 km
Min Rate-Weighted Dist2.11 km
Co-rupture Count1,445
Co-rupture Rate6.0131533E-5
Co-rupture Mag Range[6.95, 8.00]

Yorba Linda, 2.75 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count335
Co-rupture Rate7.733808E-7
Co-rupture Mag Range[7.42, 7.96]

Anaheim, 2.76 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.76 km
Min Rate-Weighted Dist3.32 km
Co-rupture Count597
Co-rupture Rate1.5924095E-5
Co-rupture Mag Range[6.86, 7.93]

Elysian Park (lower), 2.79 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.79 km
Min Rate-Weighted Dist3.86 km
Co-rupture Count617
Co-rupture Rate8.023846E-6
Co-rupture Mag Range[6.81, 7.98]

Puente Hills (Los Angeles), 3.52 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.52 km
Min Rate-Weighted Dist3.52 km
Co-rupture Count1,325
Co-rupture Rate5.9991125E-5
Co-rupture Mag Range[7.09, 7.94]

Elysian Park (upper), 4.4 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.4 km
Min Rate-Weighted Dist4.4 km
Co-rupture Count249
Co-rupture Rate5.6629608E-5
Co-rupture Mag Range[6.92, 7.92]

Raymond, 5.74 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist5.74 km
Min Rate-Weighted Dist5.74 km
Co-rupture Count962
Co-rupture Rate1.1188633E-4
Co-rupture Mag Range[6.94, 7.90]

Compton, 7.47 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count532
Co-rupture Rate3.1871437E-5
Co-rupture Mag Range[7.36, 7.94]

Chino, 7.75 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist7.75 km
Min Rate-Weighted Dist9.75 km
Co-rupture Count1,169
Co-rupture Rate5.7552723E-5
Co-rupture Mag Range[6.93, 8.00]

San Pedro Escarpment, 8.37 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count718
Co-rupture Rate2.5007876E-6
Co-rupture Mag Range[7.30, 8.00]

Verdugo, 8.97 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count137
Co-rupture Rate3.469285E-6
Co-rupture Mag Range[7.17, 7.74]

Sierra Madre, 11.43 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count42
Co-rupture Rate5.2180656E-7
Co-rupture Mag Range[7.71, 7.92]
