Puente Hills (Santa Fe Springs) Details

PropertyValue
Rupture Count4,786
Ruptures w/ Nonzero Rates4,684
Magnitude Range[6.54, 8.00]
Length Range[11, 410] km
Total Rate3.6663248E-4 /yr
Multi-Fault Rate2.6167475E-4 /yr (71.37%)
Directly-Connected Faults7
All Co-Rupturing Faults76

Table Of Contents

Magnitude-Frequency Distribution

(top)

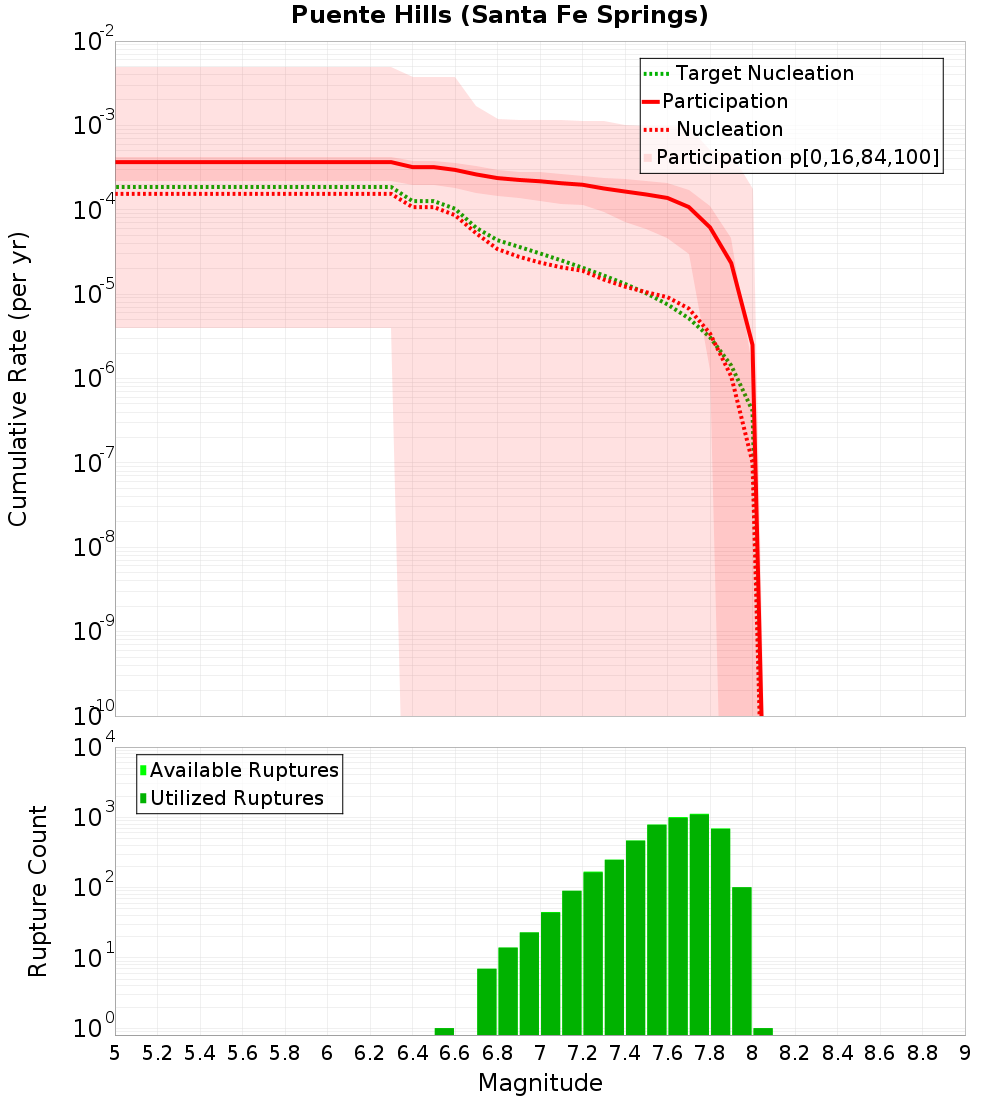

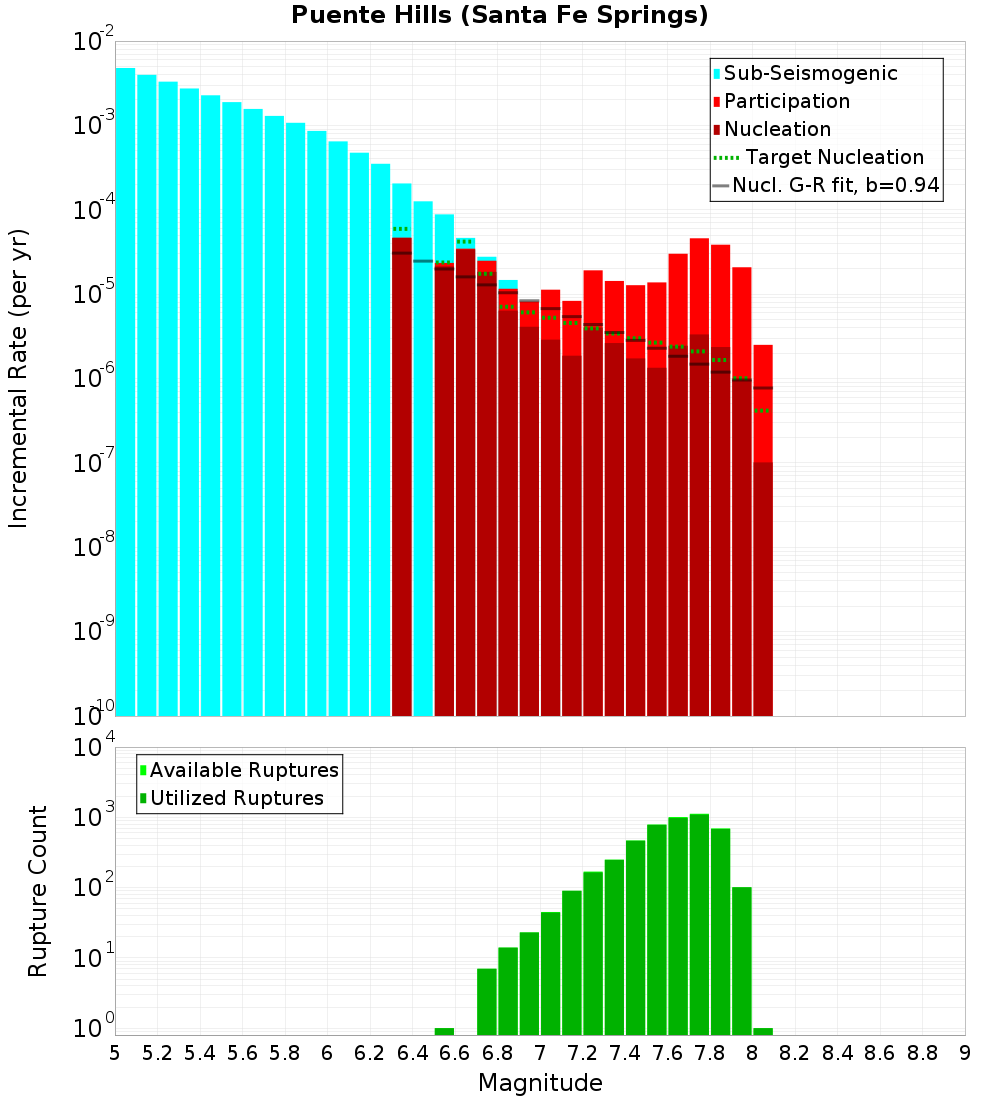

Fault magnitude-frequency distributions. The left plot shows incremental rates (rates within each magnitude bin), and the right plot shows cumulative rates (rates at or above the given magnitude).

The smaller bottom panel shows the distribution of available ruptures with a green histogram and is not rate-weighted. It only shows the raw count of ruptures of various magnitudes available in the rupture set.

IncrementalCumulative
Incremental PlotCumulative Plot

NOTE: This solution has a distribution of magnitudes and rates for each ruptures, and is likely a branch-averaged solution. That full distribution for each rupture is used to construct the MFDs above, but only mean magnitudes are used in the lower panel showing available and utilized magnitudes, and thus there may be bins with nonzero rates in the top panel where no mgnitudes are shown in the bottom. The magnitude rage at the top of this page also only considers mean magnitudes.

Cumulative Rates and Recurrence Intervals Table

(top)

MagnitudeParticipation RateRangeParticipation RI (yrs)Range
M≥6.33.6663248E-4[4.02E-6, 4.96E-3]2,727.53[201.65, 248,759.3]
M≥6.43.2010736E-4[3.56E-20, 3.75E-3]3,123.95[266.81, 28,109,324,302,795,506,000]
M≥6.53.2010736E-4[0.00E0, 3.75E-3]3,123.95[266.81, ∞]
M≥6.62.966761E-4[0.00E0, 3.75E-3]3,370.68[266.81, ∞]
M≥6.72.6208998E-4[0.00E0, 1.71E-3]3,815.48[583.43, ∞]
M≥6.82.372126E-4[0.00E0, 1.18E-3]4,215.63[850.17, ∞]
M≥6.92.2563564E-4[0.00E0, 1.16E-3]4,431.92[864.59, ∞]
M≥72.1749146E-4[0.00E0, 1.16E-3]4,597.88[864.92, ∞]
M≥7.12.0620052E-4[0.00E0, 1.15E-3]4,849.65[870.28, ∞]
M≥7.21.9787742E-4[0.00E0, 1.14E-3]5,053.63[876.47, ∞]
M≥7.31.7873454E-4[0.00E0, 1.12E-3]5,594.89[895.24, ∞]
M≥7.41.6440653E-4[0.00E0, 1.00E-3]6,082.48[999.44, ∞]
M≥7.51.5164341E-4[0.00E0, 9.85E-4]6,594.42[1,015.51, ∞]
M≥7.61.3787184E-4[0.00E0, 9.73E-4]7,253.11[1,027.63, ∞]
M≥7.71.0776449E-4[0.00E0, 9.69E-4]9,279.49[1,031.57, ∞]
M≥7.86.186274E-5[0.00E0, 5.13E-4]16,164.82[1,949.96, ∞]
M≥7.92.3321785E-5[0.00E0, 4.68E-4]42,878.36[2,135.02, ∞]
M≥82.5056568E-6[0.00E0, 1.75E-4]399,096.97[5,727.38, ∞]

Individual Branch Nucleation MFDs

(top)

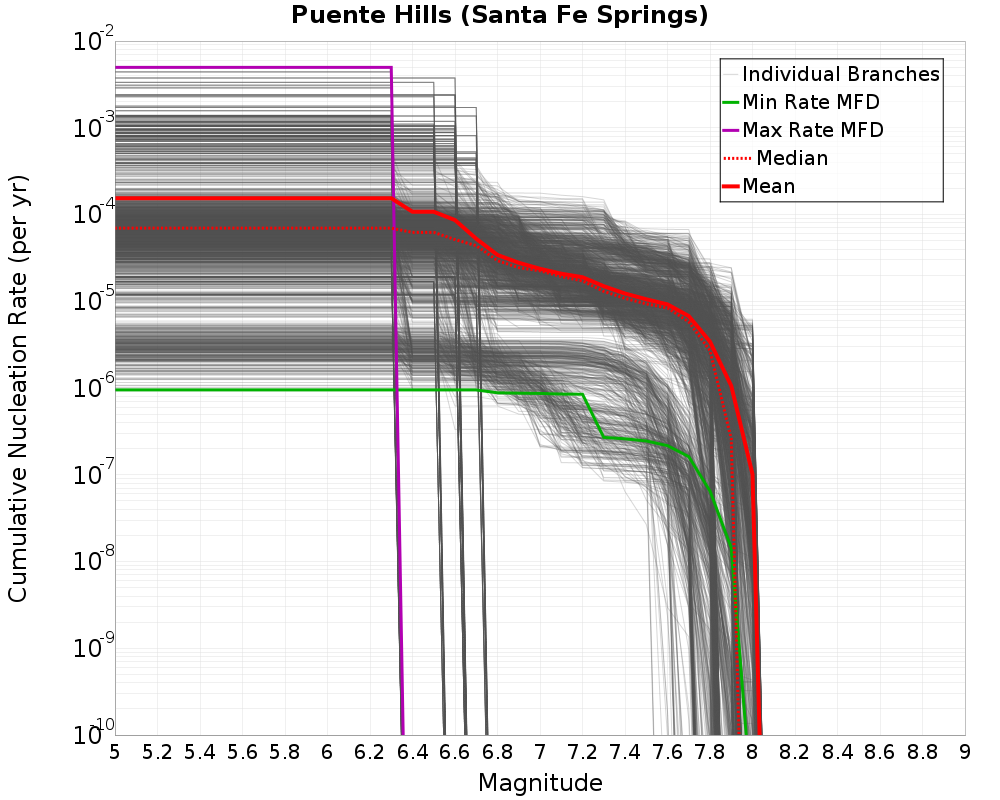

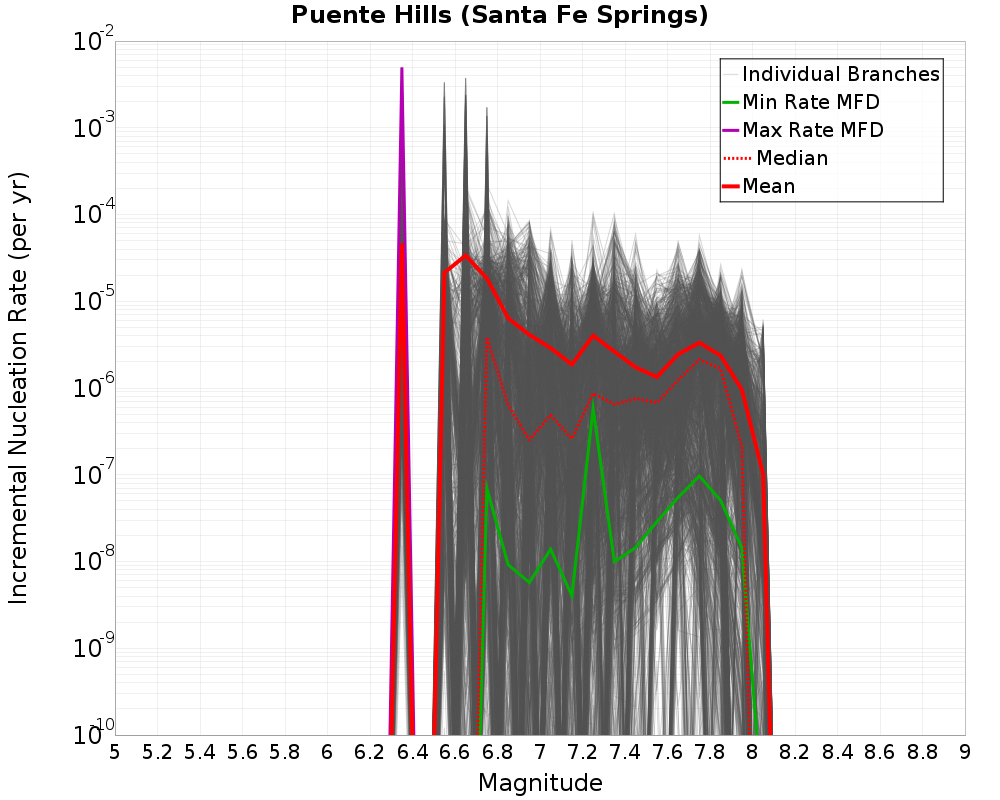

Individual nucleation MFDs across 2250 logic tree branches. The individual branches with the highest and lowest total rate are highlighted, as are the mean and median models.

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

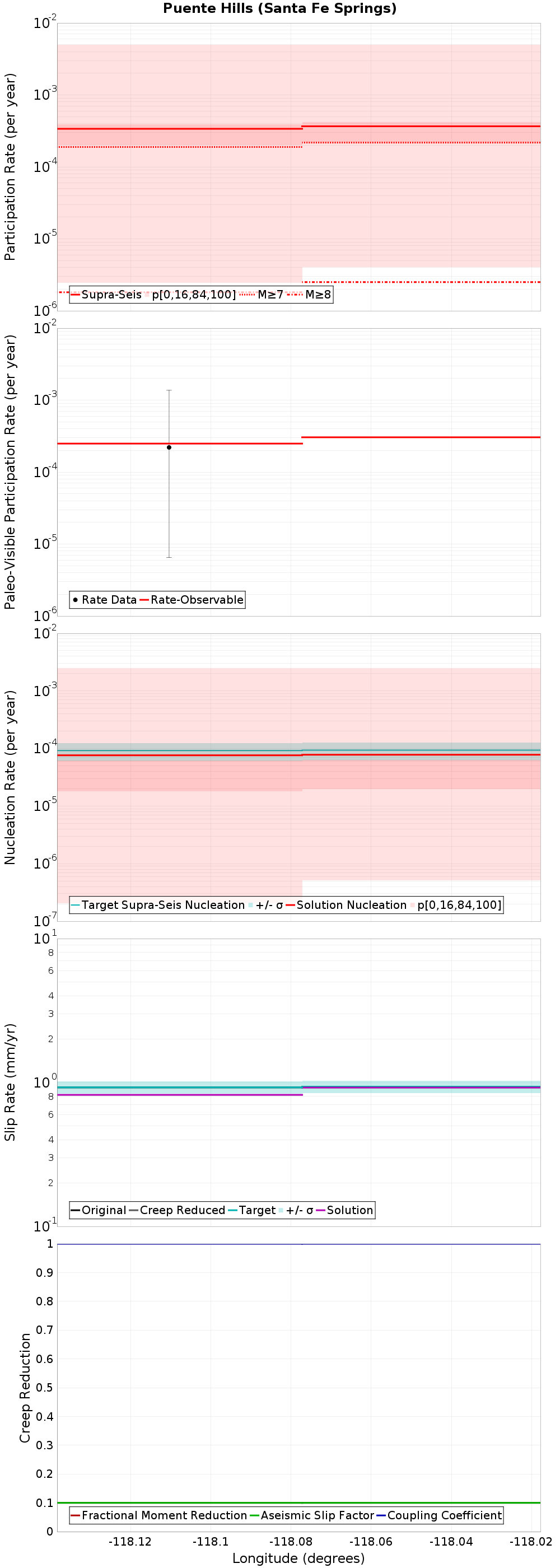

Along-strike plot

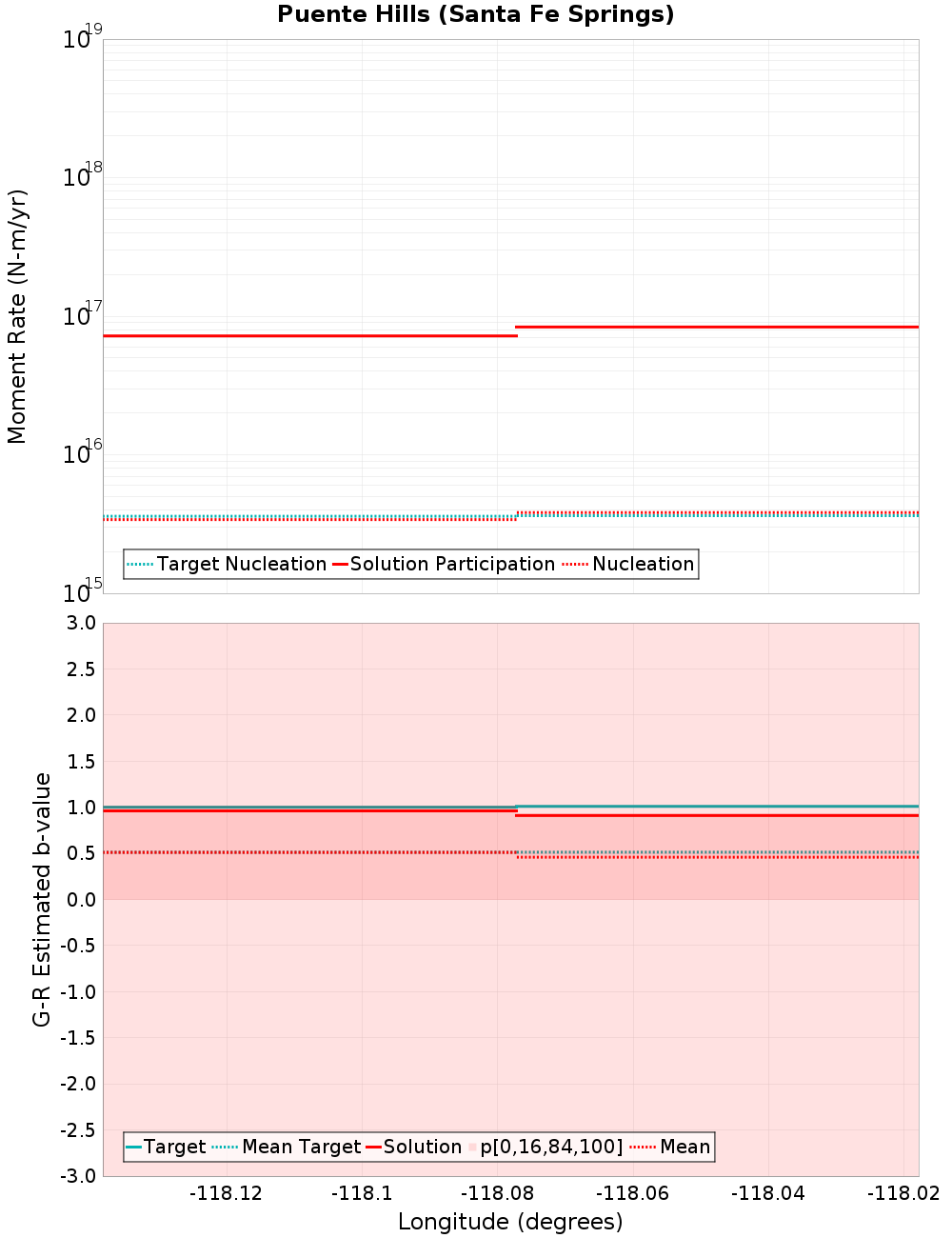

Moment-Rates and b-Values

(top)

Along-strike plot

Length Distributions

(top)

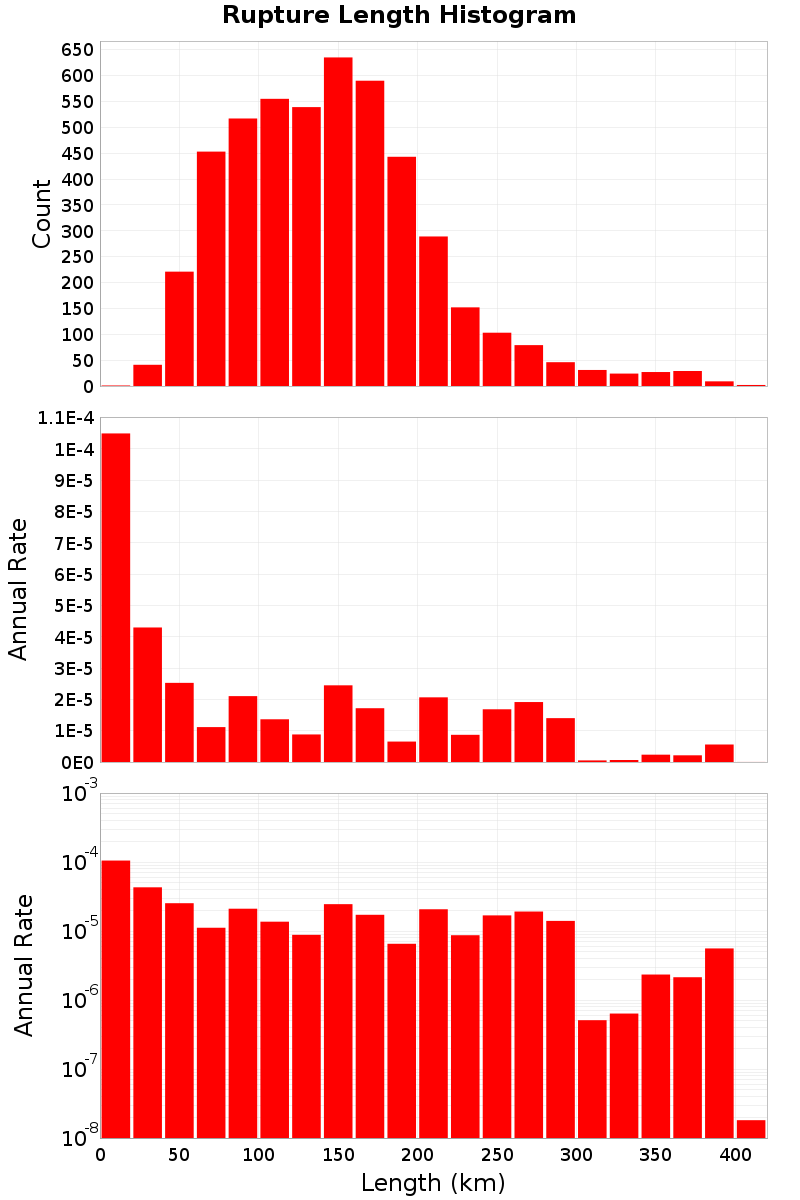

Fault rupture length distributions. The top panel shows the raw count of ruptures in which Puente Hills (Santa Fe Springs) participates in the rupture set as a function of rupture length. The bottom two panels show the rate-weighted distribution (i.e., the distribution of lengths in the solution). The middle panel is plotted with a linear scale, and the bottom paney a logarithmic scale.

Length Hist

Rupture Examples

(top)

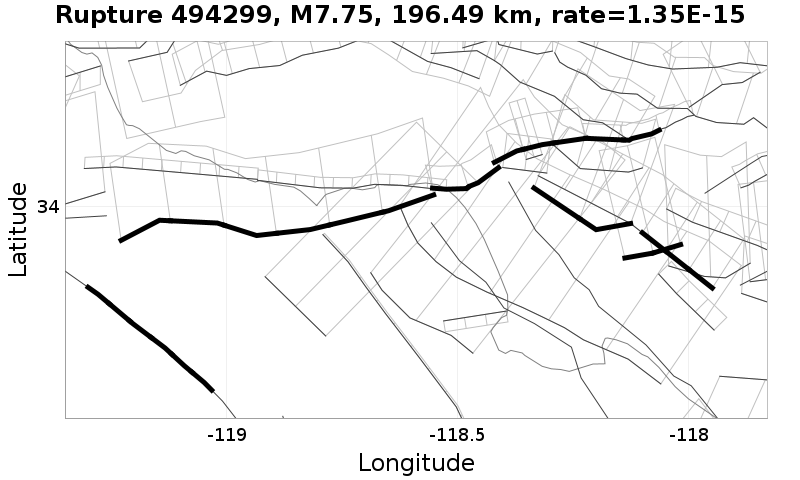

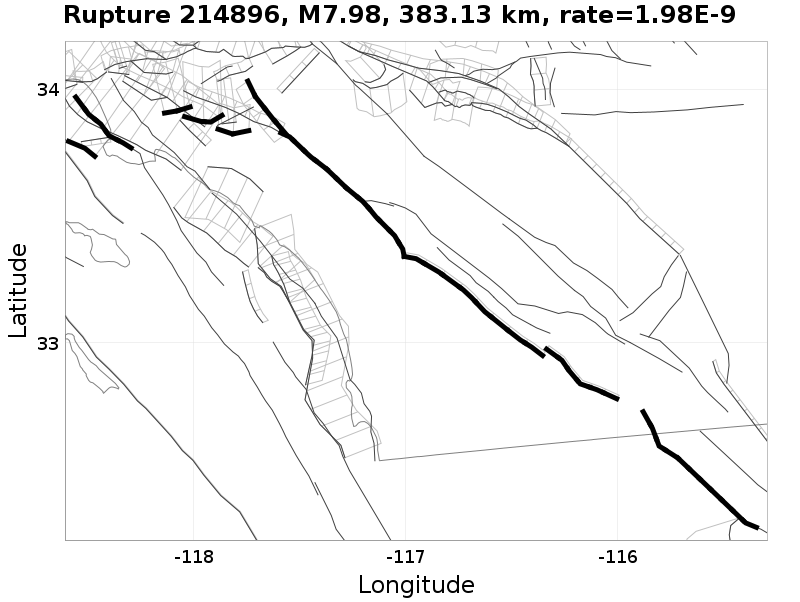

The following table includes example ruptures, selected at various percentiles from the rate-weighted rupture length distribution. So, for example, the rupture with length closest to the median length (again, rate-weighted) is plotted in the first column ('p50 Example'). The longest participating rupture is plotted last ('p100 Example').

It is important to note that the rupture examples here may not be representative, and may have negligible rates. They are included for illustration purposes only.

p50 Example

p75 Example

p90 Example

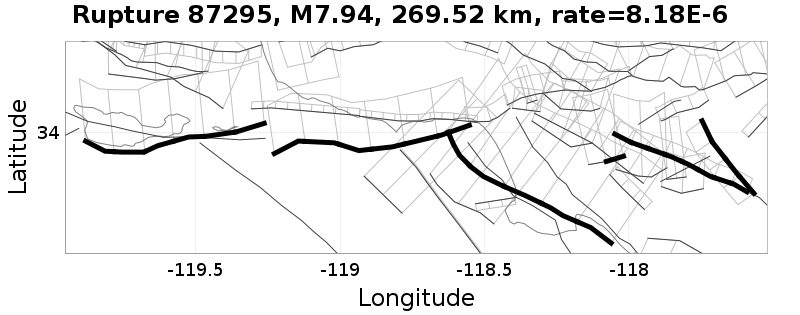

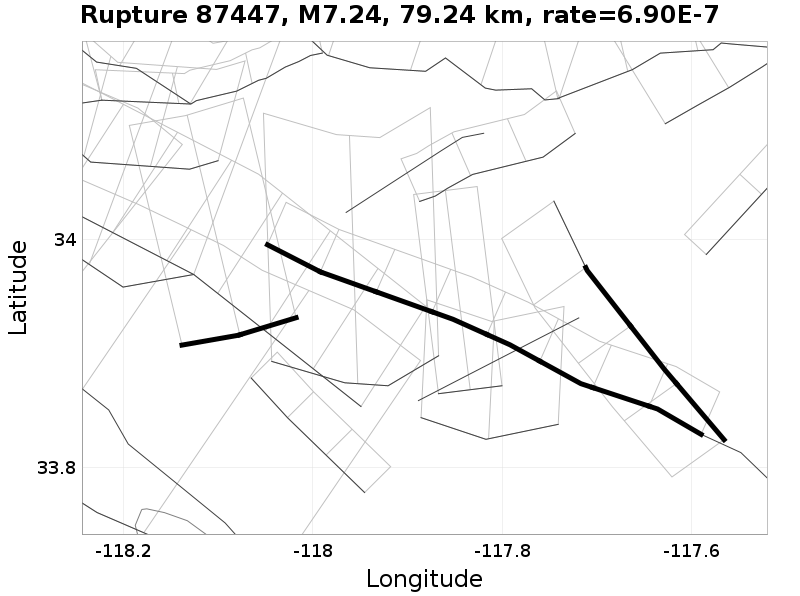

Rupture 87447Rupture 494299Rupture 87295

p97.5 Example

p99 Example

p100 Example

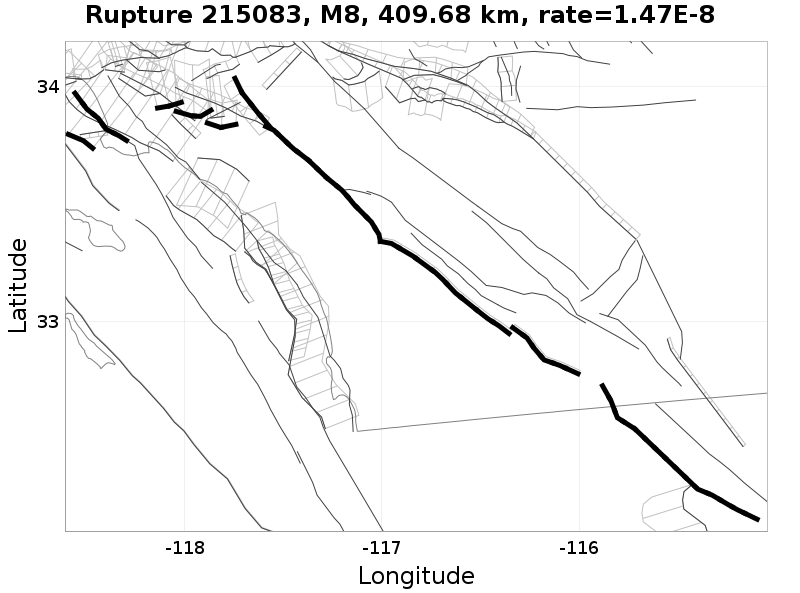

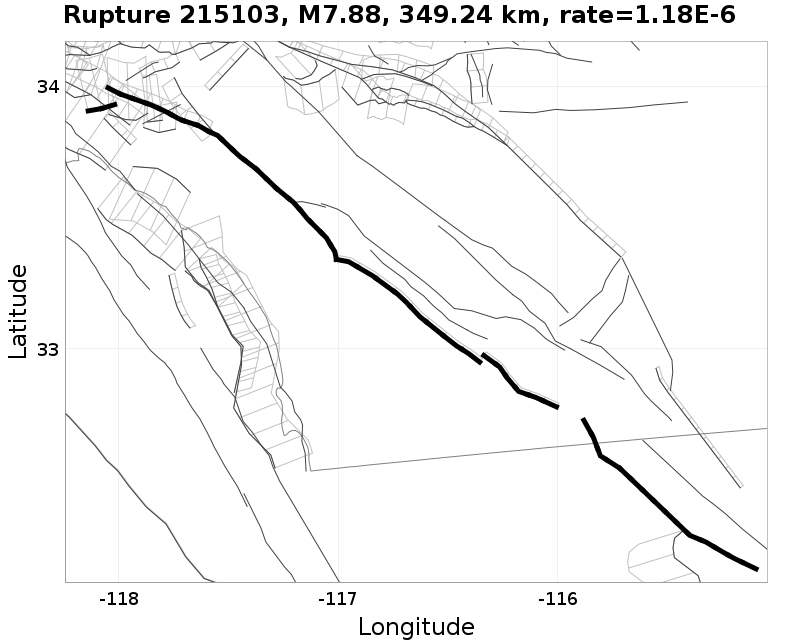

Rupture 215103Rupture 214896Rupture 215083

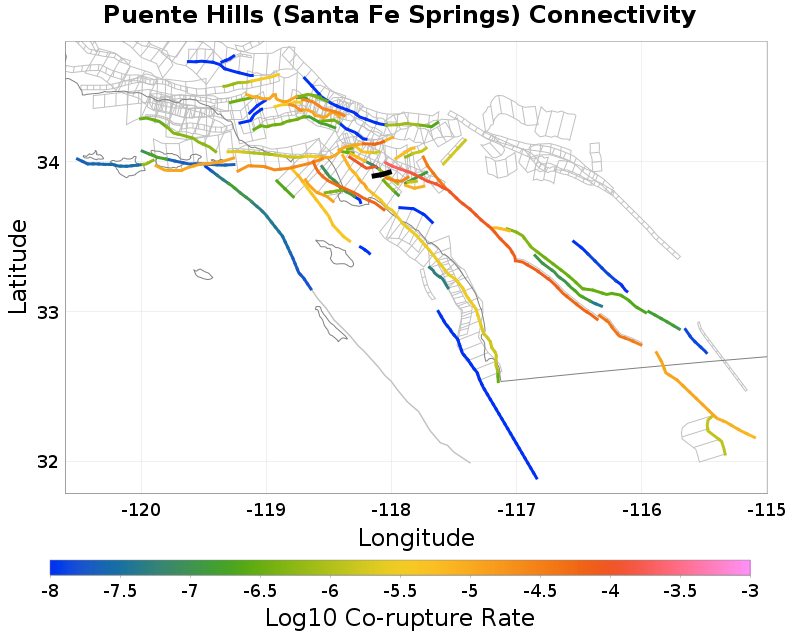

Connectivity

(top)

Map

Nearby Sections

(top)

Fault SectionFault Section
Elysian Park (lower), 0.21 km awayVerdugo, 7.37 km away
San Pedro Escarpment, 0.63 km awayHollywood, 8.25 km away
Whittier, 0.88 km awayNewport - Inglewood, 9.61 km away
Puente Hills (Coyote Hills), 0.92 km awaySan Vicente, 9.8 km away
Elysian Park (upper), 2.82 km awayRichfield, 13.47 km away
Puente Hills (Los Angeles), 2.97 km awaySierra Madre, 13.67 km away
Raymond, 3.72 km awayPeralta Hills, 13.75 km away
Compton, 4.35 km awaySan Jose, 13.87 km away
Anaheim, 4.47 km awayYorba Linda, 14.4 km away
Walnut Creek, 7.14 km awayClamshell - Sawpit, 14.45 km away

Elysian Park (lower), 0.21 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.21 km
Min Rate-Weighted Dist0.34 km
Co-rupture Count1,079
Co-rupture Rate7.183843E-6
Co-rupture Mag Range[6.73, 7.97]

San Pedro Escarpment, 0.63 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.63 km
Min Rate-Weighted Dist0.63 km
Co-rupture Count1,878
Co-rupture Rate1.3143549E-5
Co-rupture Mag Range[7.11, 8.00]

Whittier, 0.88 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.88 km
Min Rate-Weighted Dist0.88 km
Co-rupture Count1,660
Co-rupture Rate2.106712E-4
Co-rupture Mag Range[6.73, 7.99]

Puente Hills (Coyote Hills), 0.92 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.92 km
Min Rate-Weighted Dist0.92 km
Co-rupture Count2,024
Co-rupture Rate3.0738436E-5
Co-rupture Mag Range[6.90, 8.00]

Elysian Park (upper), 2.82 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count55
Co-rupture Rate4.818181E-6
Co-rupture Mag Range[7.07, 7.84]

Puente Hills (Los Angeles), 2.97 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.97 km
Min Rate-Weighted Dist3.06 km
Co-rupture Count1,286
Co-rupture Rate1.04052226E-4
Co-rupture Mag Range[6.90, 7.98]

Raymond, 3.72 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count571
Co-rupture Rate6.1731596E-5
Co-rupture Mag Range[7.07, 7.99]

Compton, 4.35 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.35 km
Min Rate-Weighted Dist5.23 km
Co-rupture Count964
Co-rupture Rate6.461849E-5
Co-rupture Mag Range[7.18, 7.98]

Anaheim, 4.47 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count117
Co-rupture Rate4.9893634E-7
Co-rupture Mag Range[6.90, 7.84]

Walnut Creek, 7.14 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count381
Co-rupture Rate5.8040923E-6
Co-rupture Mag Range[6.81, 7.89]

Verdugo, 7.37 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count12
Co-rupture Rate4.323318E-9
Co-rupture Mag Range[7.46, 7.66]

Hollywood, 8.25 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count1,187
Co-rupture Rate1.07729165E-5
Co-rupture Mag Range[6.90, 7.98]

Newport - Inglewood, 9.61 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist9.61 km
Min Rate-Weighted Dist9.61 km
Co-rupture Count515
Co-rupture Rate1.4410389E-5
Co-rupture Mag Range[6.80, 7.93]

San Vicente, 9.8 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count47
Co-rupture Rate3.2582415E-7
Co-rupture Mag Range[6.87, 7.76]

Richfield, 13.47 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count509
Co-rupture Rate1.299312E-6
Co-rupture Mag Range[6.78, 7.91]

Sierra Madre, 13.67 km away

(back to table)

NSHM23
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Peralta Hills, 13.75 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count623
Co-rupture Rate8.472921E-6
Co-rupture Mag Range[7.11, 8.00]

San Jose, 13.87 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate1.4110441E-6
Co-rupture Mag Range[7.52, 7.70]

Yorba Linda, 14.4 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count121
Co-rupture Rate1.5119751E-7
Co-rupture Mag Range[7.17, 7.89]

Clamshell - Sawpit, 14.45 km away

(back to table)

NSHM23
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
