Raymond Details

PropertyValue
Rupture Count3,357
Ruptures w/ Nonzero Rates3,306
Magnitude Range[6.46, 7.99]
Length Range[15, 447] km
Total Rate0.001283327 /yr
Multi-Fault Rate7.850369E-4 /yr (61.17%)
Directly-Connected Faults9
All Co-Rupturing Faults91

Table Of Contents

Magnitude-Frequency Distribution

(top)

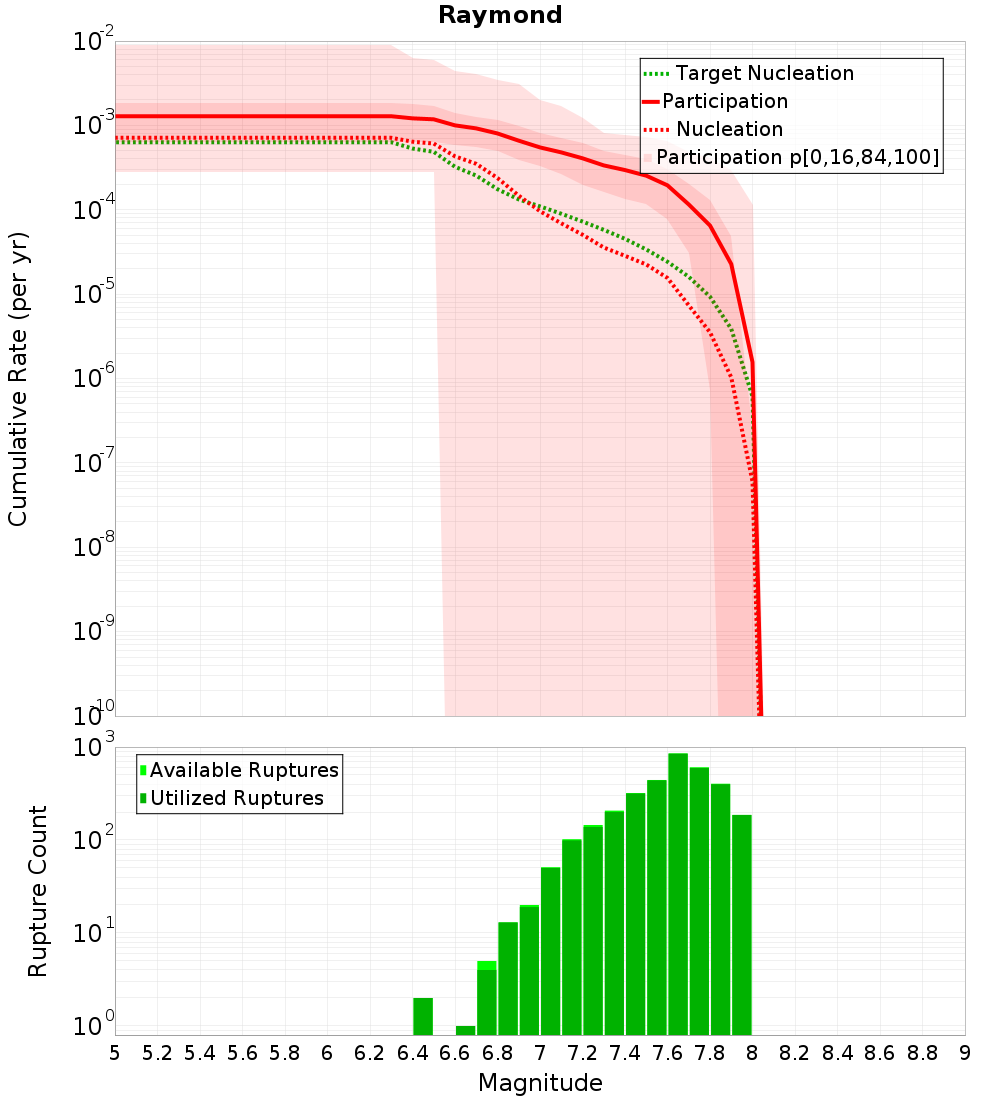

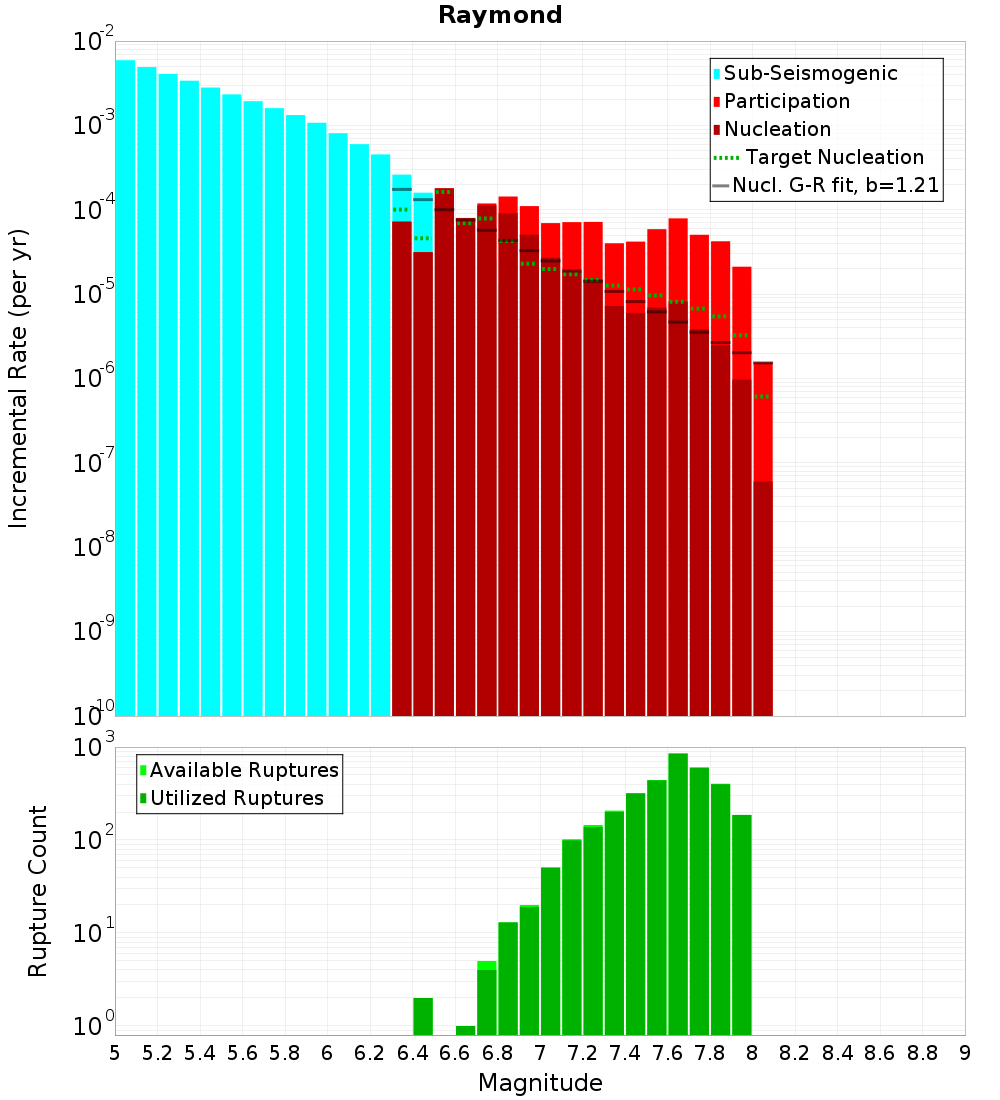

Fault magnitude-frequency distributions. The left plot shows incremental rates (rates within each magnitude bin), and the right plot shows cumulative rates (rates at or above the given magnitude).

The smaller bottom panel shows the distribution of available ruptures with a green histogram and is not rate-weighted. It only shows the raw count of ruptures of various magnitudes available in the rupture set.

IncrementalCumulative
Incremental PlotCumulative Plot

NOTE: This solution has a distribution of magnitudes and rates for each ruptures, and is likely a branch-averaged solution. That full distribution for each rupture is used to construct the MFDs above, but only mean magnitudes are used in the lower panel showing available and utilized magnitudes, and thus there may be bins with nonzero rates in the top panel where no mgnitudes are shown in the bottom. The magnitude rage at the top of this page also only considers mean magnitudes.

Cumulative Rates and Recurrence Intervals Table

(top)

MagnitudeParticipation RateRangeParticipation RI (yrs)Range
M≥6.30.001283327[2.81E-4, 8.85E-3]779.22[113.03, 3,560.03]
M≥6.40.0012110801[2.81E-4, 6.23E-3]825.71[160.41, 3,560.03]
M≥6.50.001179668[2.81E-4, 5.96E-3]847.7[167.9, 3,560.03]
M≥6.60.0010002765[2.49E-18, 4.44E-3]999.72[225.17, 401,016,175,515,425,020]
M≥6.79.208183E-4[0.00E0, 4.03E-3]1,085.99[248.32, ∞]
M≥6.88.0199866E-4[0.00E0, 3.43E-3]1,246.88[291.6, ∞]
M≥6.96.58459E-4[0.00E0, 3.10E-3]1,518.7[322.22, ∞]
M≥75.47996E-4[0.00E0, 2.00E-3]1,824.83[499.2, ∞]
M≥7.14.7853307E-4[0.00E0, 1.71E-3]2,089.72[583.31, ∞]
M≥7.24.0719772E-4[0.00E0, 1.21E-3]2,455.81[825.16, ∞]
M≥7.33.3542886E-4[0.00E0, 8.07E-4]2,981.26[1,239.89, ∞]
M≥7.42.9536462E-4[0.00E0, 7.63E-4]3,385.65[1,311.23, ∞]
M≥7.52.5342233E-4[0.00E0, 7.25E-4]3,945.98[1,379.84, ∞]
M≥7.61.945873E-4[0.00E0, 6.46E-4]5,139.08[1,548.87, ∞]
M≥7.71.15541676E-4[0.00E0, 4.84E-4]8,654.89[2,066.41, ∞]
M≥7.86.5015076E-5[0.00E0, 4.06E-4]15,381.05[2,466.09, ∞]
M≥7.92.2702923E-5[0.00E0, 2.98E-4]44,047.19[3,355.7, ∞]
M≥81.5614586E-6[0.00E0, 1.15E-4]640,426.86[8,726, ∞]

Individual Branch Nucleation MFDs

(top)

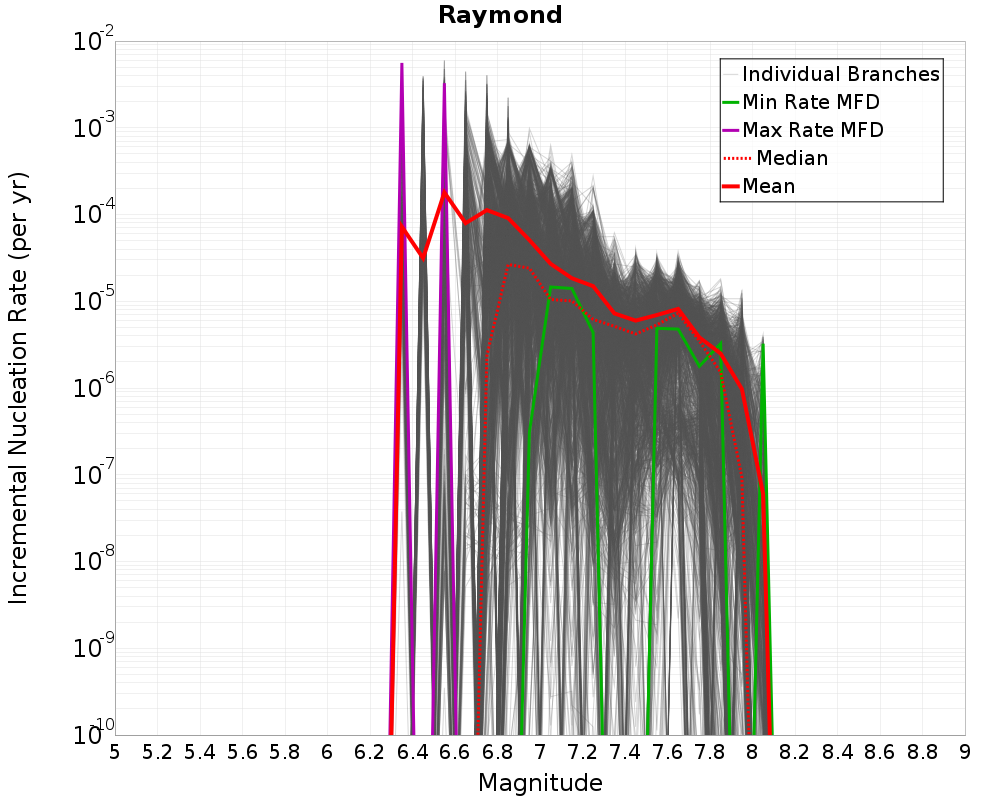

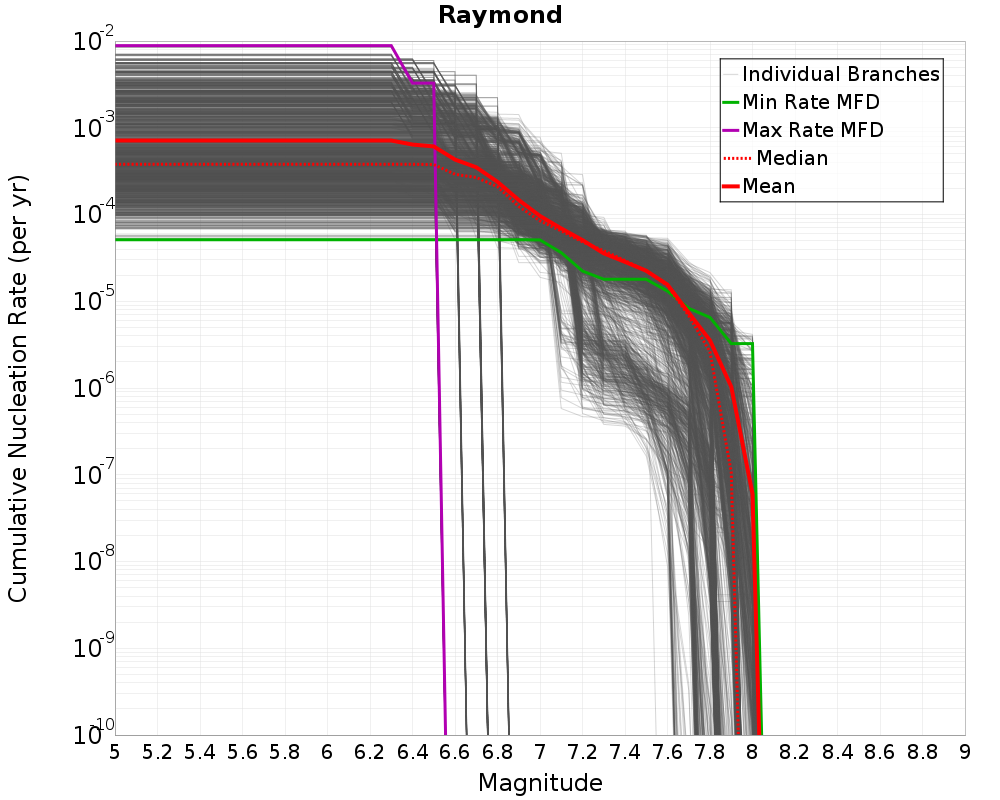

Individual nucleation MFDs across 2250 logic tree branches. The individual branches with the highest and lowest total rate are highlighted, as are the mean and median models.

IncrementalCumulative
Incremental PlotCumulative Plot

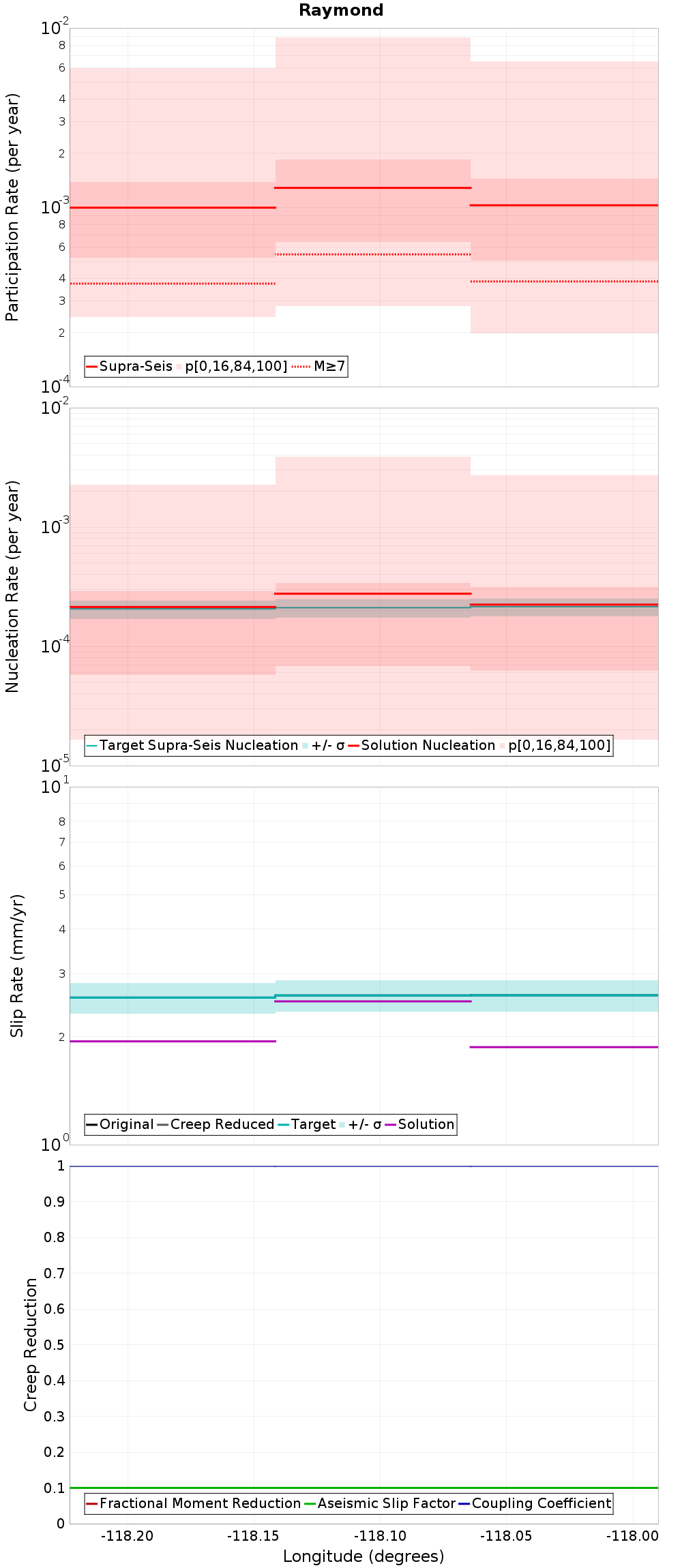

Along-Strike Values

(top)

Along-strike plot

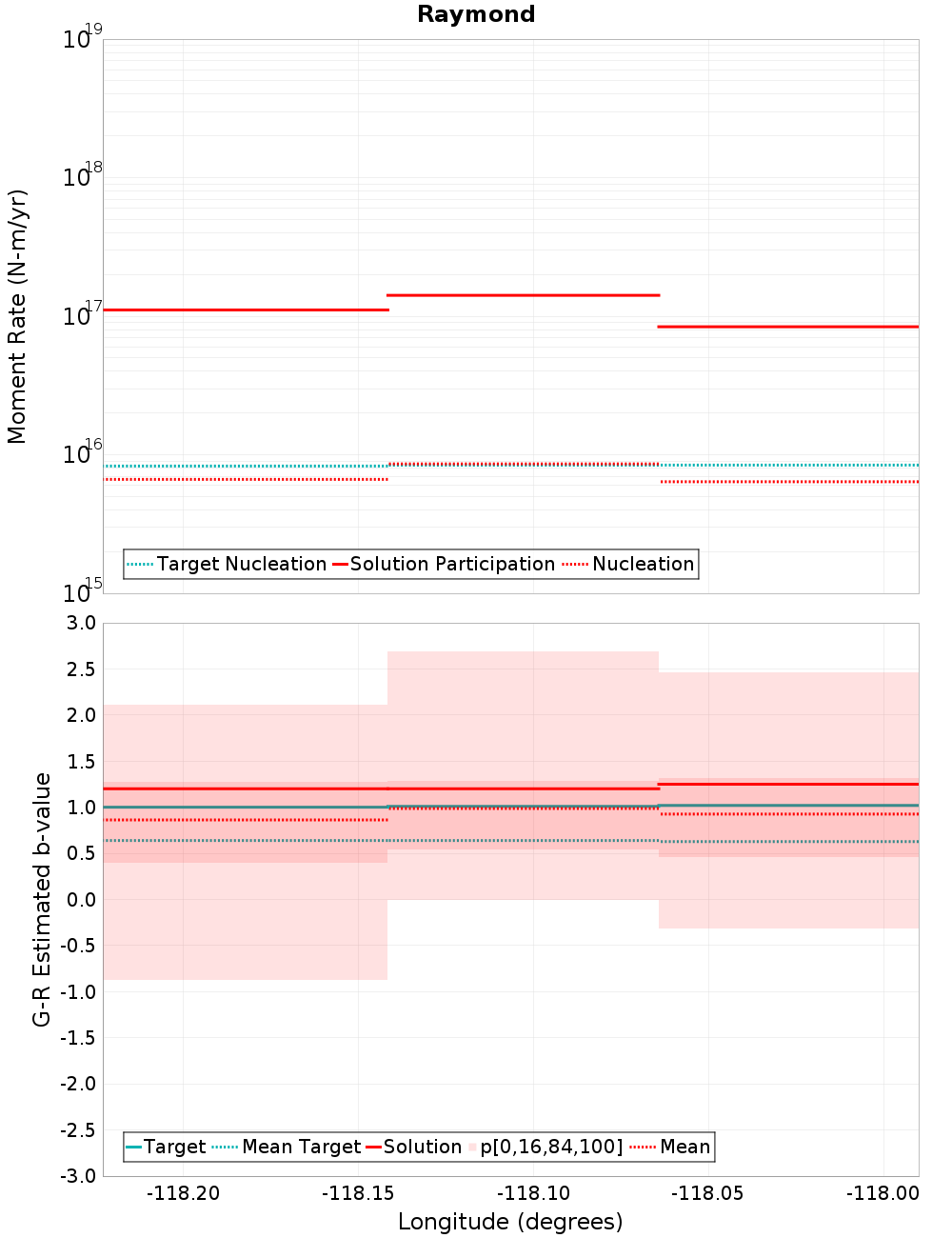

Moment-Rates and b-Values

(top)

Along-strike plot

Length Distributions

(top)

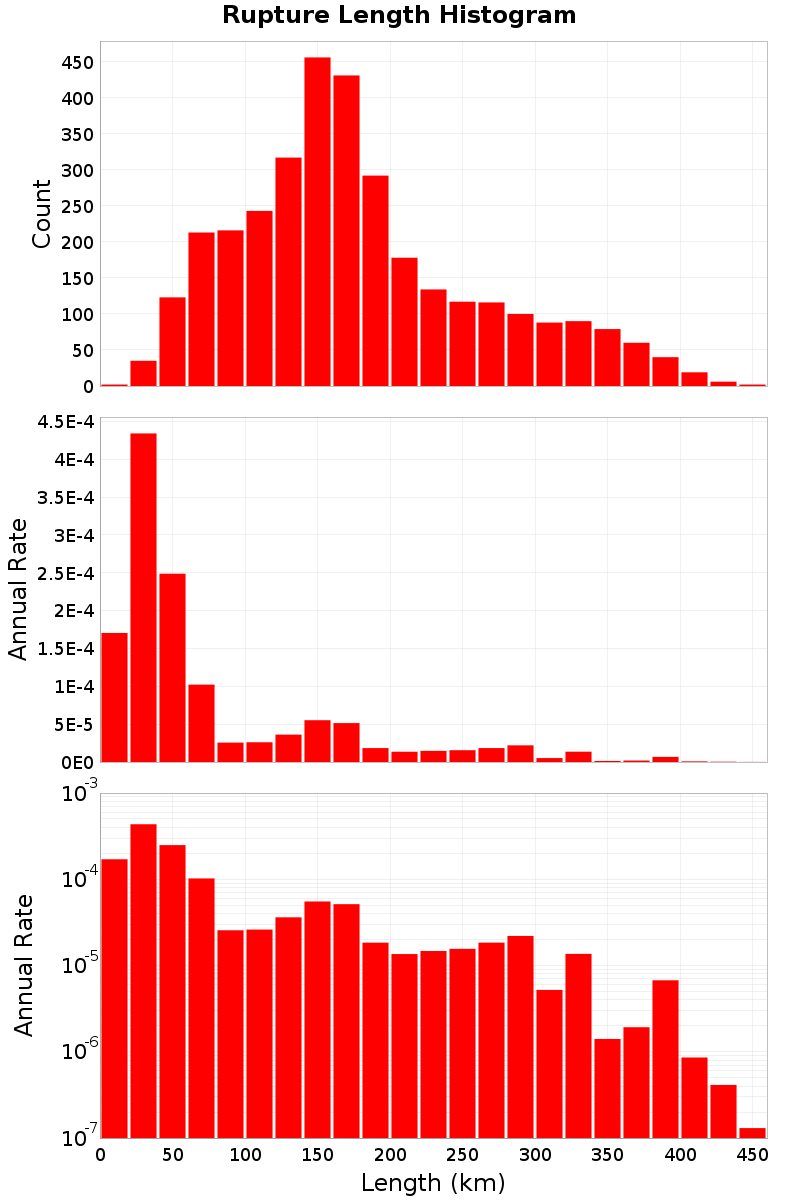

Fault rupture length distributions. The top panel shows the raw count of ruptures in which Raymond participates in the rupture set as a function of rupture length. The bottom two panels show the rate-weighted distribution (i.e., the distribution of lengths in the solution). The middle panel is plotted with a linear scale, and the bottom paney a logarithmic scale.

Length Hist

Rupture Examples

(top)

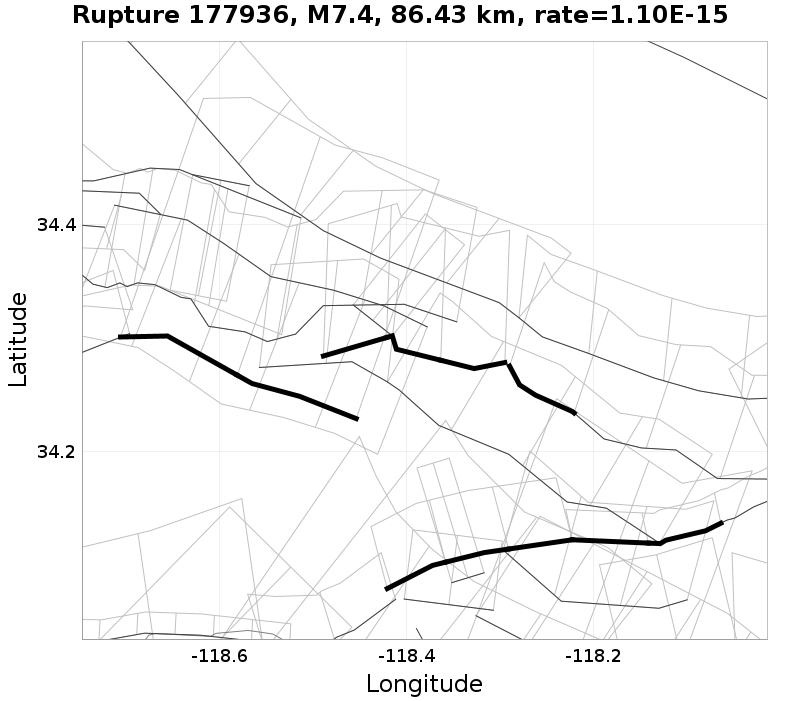

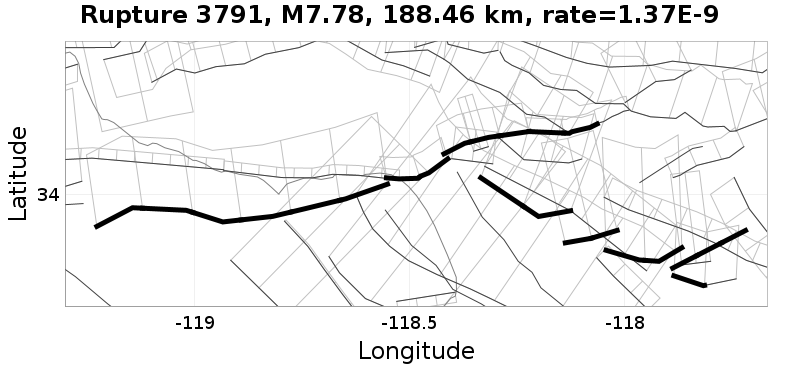

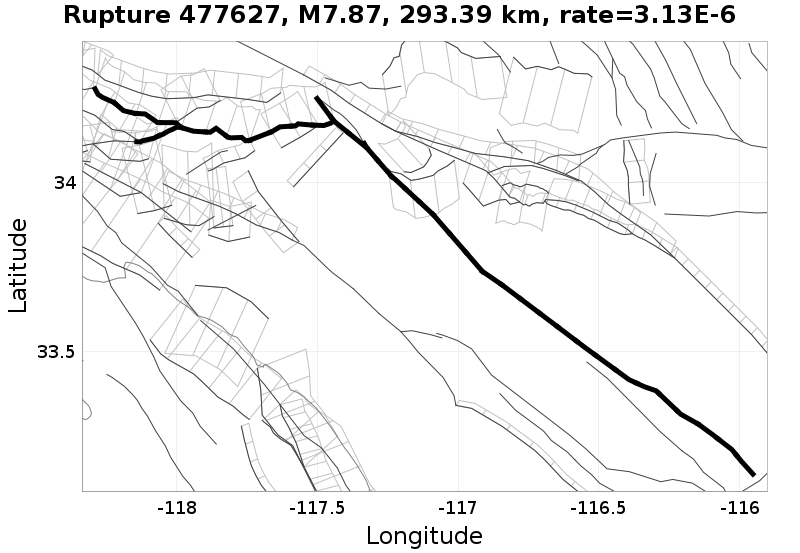

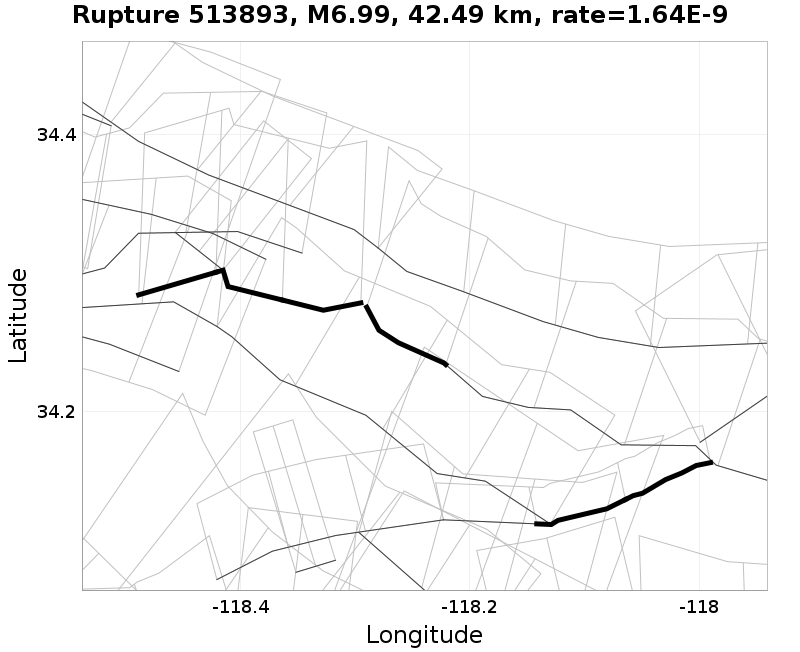

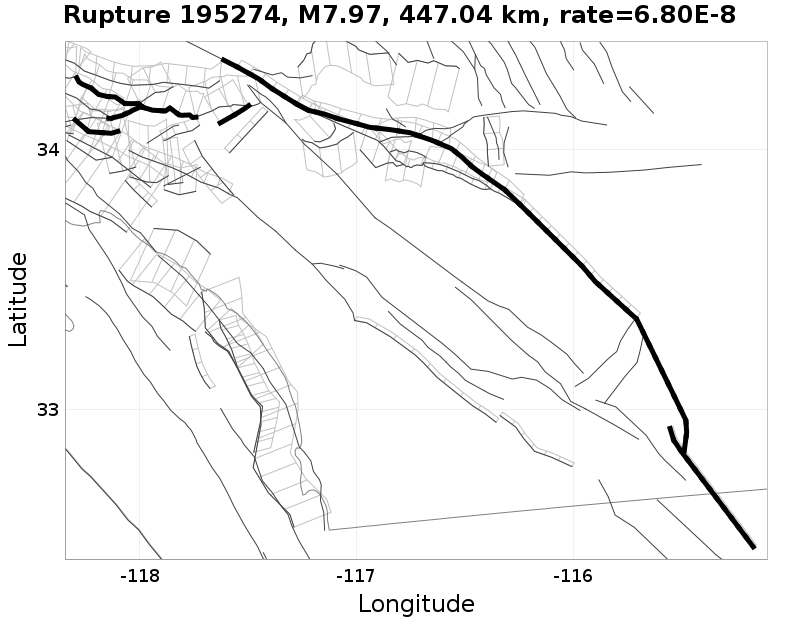

The following table includes example ruptures, selected at various percentiles from the rate-weighted rupture length distribution. So, for example, the rupture with length closest to the median length (again, rate-weighted) is plotted in the first column ('p50 Example'). The longest participating rupture is plotted last ('p100 Example').

It is important to note that the rupture examples here may not be representative, and may have negligible rates. They are included for illustration purposes only.

p50 Example

p75 Example

p90 Example
Rupture 513893Rupture 177936Rupture 3791

p97.5 Example

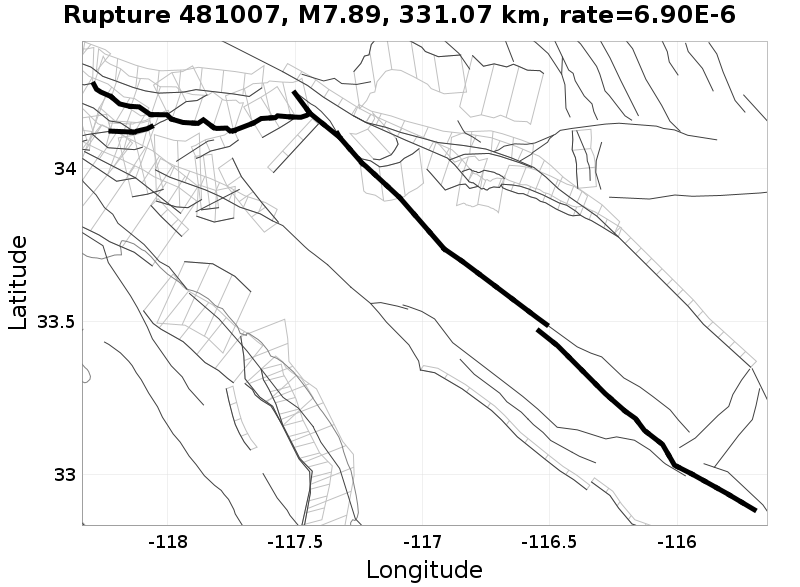

p99 Example

p100 Example

Rupture 477627Rupture 481007Rupture 195274

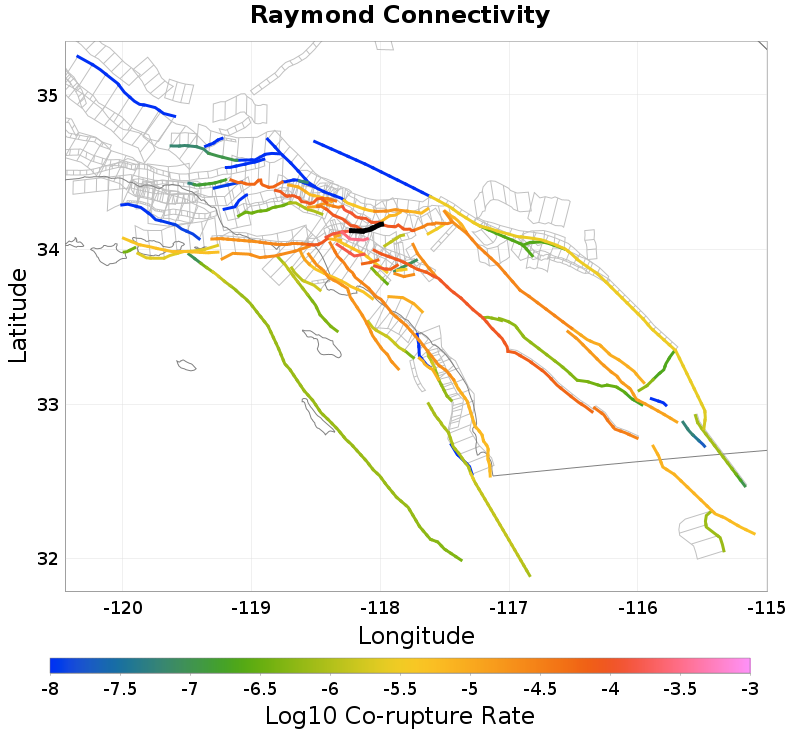

Connectivity

(top)

Map

Nearby Sections

(top)

Fault SectionFault Section
Hollywood, 0 km awayPuente Hills (Santa Fe Springs), 3.72 km away
Elysian Park (upper), 0.12 km awayPuente Hills (Coyote Hills), 5.74 km away
Puente Hills (Los Angeles), 0.13 km awaySan Vicente, 7.12 km away
Verdugo, 0.16 km awaySan Gabriel (extension), 9.24 km away
Sierra Madre, 0.33 km awayNorth Salt Lake, 9.27 km away
Elysian Park (lower), 1.6 km awayCompton, 10.2 km away
Clamshell - Sawpit, 1.82 km awayWhittier, 14 km away
San Pedro Escarpment, 1.92 km awayWalnut Creek, 14.28 km away

Hollywood, 0 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0 km
Co-rupture Count2,140
Co-rupture Rate1.339191E-4
Co-rupture Mag Range[6.72, 7.98]

Elysian Park (upper), 0.12 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.12 km
Min Rate-Weighted Dist0.12 km
Co-rupture Count360
Co-rupture Rate3.0519252E-4
Co-rupture Mag Range[6.71, 7.97]

Puente Hills (Los Angeles), 0.13 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.13 km
Min Rate-Weighted Dist0.22 km
Co-rupture Count823
Co-rupture Rate1.5279608E-4
Co-rupture Mag Range[7.03, 7.98]

Verdugo, 0.16 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.16 km
Min Rate-Weighted Dist0.16 km
Co-rupture Count349
Co-rupture Rate1.0318959E-4
Co-rupture Mag Range[6.82, 7.76]

Sierra Madre, 0.33 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.33 km
Min Rate-Weighted Dist4.29 km
Co-rupture Count753
Co-rupture Rate1.2522364E-4
Co-rupture Mag Range[6.83, 7.97]

Elysian Park (lower), 1.6 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.6 km
Min Rate-Weighted Dist5.09 km
Co-rupture Count240
Co-rupture Rate9.543062E-6
Co-rupture Mag Range[6.85, 7.84]

Clamshell - Sawpit, 1.82 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count20
Co-rupture Rate6.912446E-6
Co-rupture Mag Range[7.49, 7.78]

San Pedro Escarpment, 1.92 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.92 km
Min Rate-Weighted Dist3.46 km
Co-rupture Count85
Co-rupture Rate1.6103133E-6
Co-rupture Mag Range[7.24, 7.99]

Puente Hills (Santa Fe Springs), 3.72 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count571
Co-rupture Rate6.1731596E-5
Co-rupture Mag Range[7.07, 7.99]

Puente Hills (Coyote Hills), 5.74 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist5.74 km
Min Rate-Weighted Dist5.74 km
Co-rupture Count962
Co-rupture Rate1.1188633E-4
Co-rupture Mag Range[6.94, 7.90]

San Vicente, 7.12 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count139
Co-rupture Rate6.1947176E-6
Co-rupture Mag Range[6.80, 7.95]

San Gabriel (extension), 9.24 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist9.24 km
Min Rate-Weighted Dist9.24 km
Co-rupture Count597
Co-rupture Rate2.3208866E-5
Co-rupture Mag Range[6.81, 7.96]

North Salt Lake, 9.27 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count185
Co-rupture Rate1.136187E-5
Co-rupture Mag Range[6.71, 7.93]

Compton, 10.2 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count105
Co-rupture Rate1.336894E-5
Co-rupture Mag Range[7.43, 7.86]

Whittier, 14 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count203
Co-rupture Rate9.0317146E-5
Co-rupture Mag Range[7.26, 7.99]

Walnut Creek, 14.28 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count24
Co-rupture Rate1.2422687E-6
Co-rupture Mag Range[7.44, 7.82]
