Red Mountain Details

PropertyValue
Rupture Count8,948
Ruptures w/ Nonzero Rates8,785
Magnitude Range[6.54, 8.25]
Length Range[17, 1,123] km
Total Rate0.0011299981 /yr
Multi-Fault Rate6.270783E-4 /yr (55.49%)
Directly-Connected Faults15
All Co-Rupturing Faults73

Table Of Contents

Magnitude-Frequency Distribution

(top)

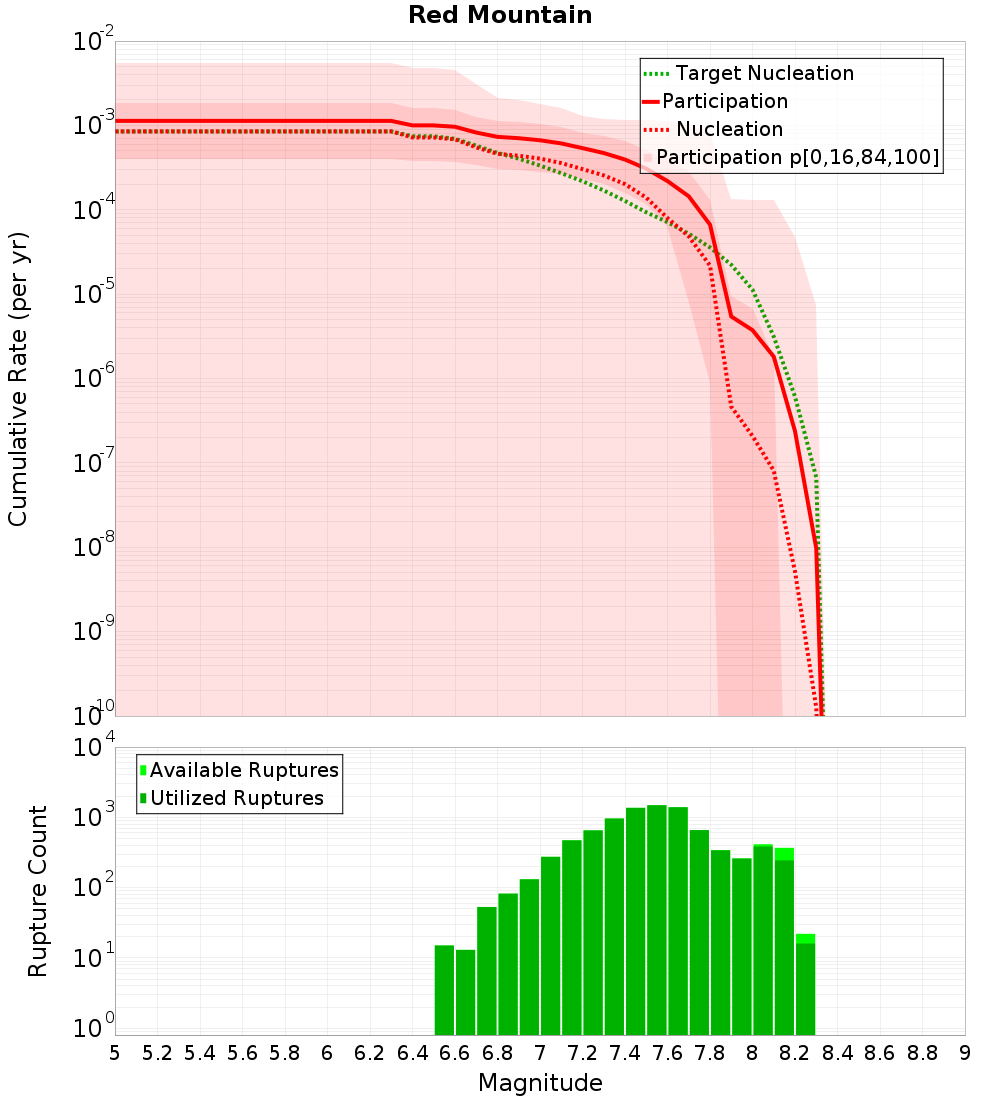

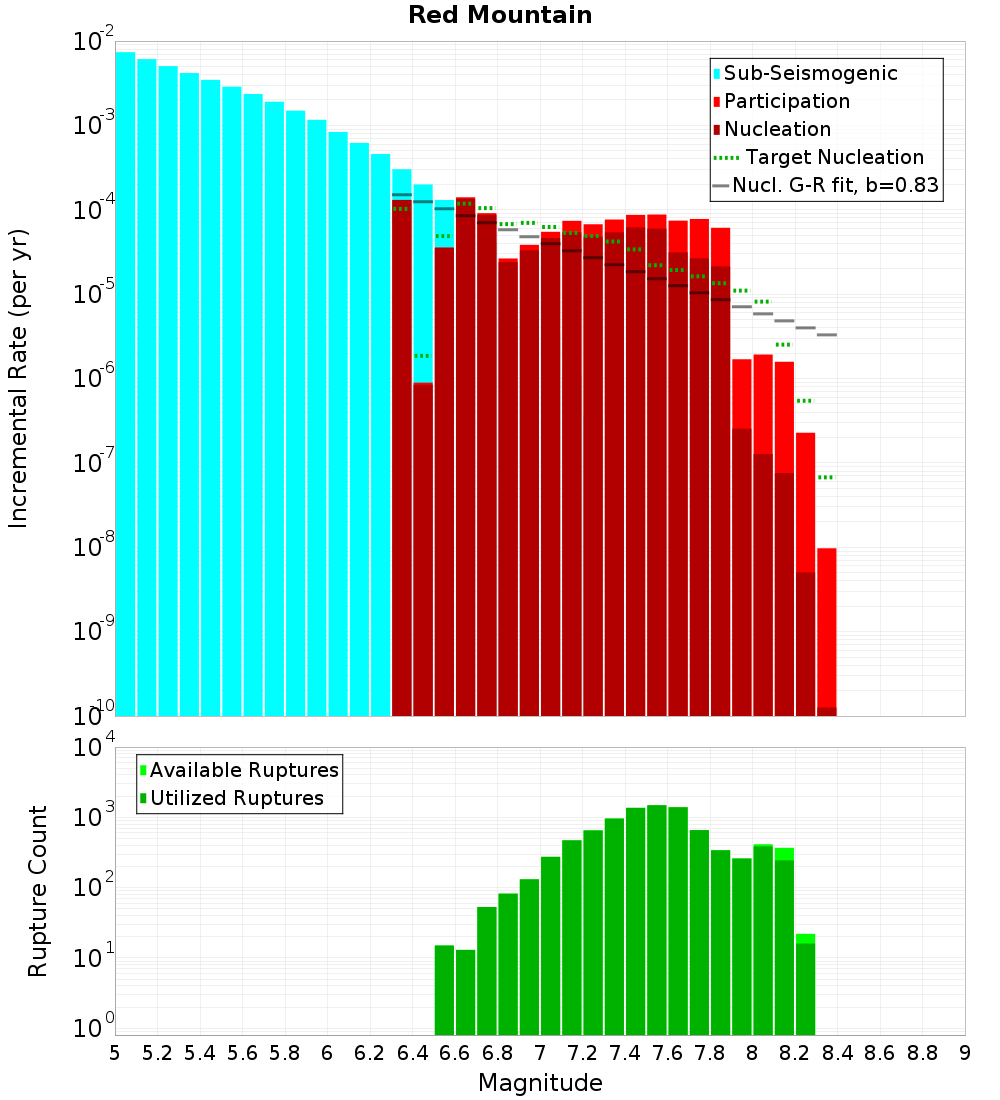

Fault magnitude-frequency distributions. The left plot shows incremental rates (rates within each magnitude bin), and the right plot shows cumulative rates (rates at or above the given magnitude).

The smaller bottom panel shows the distribution of available ruptures with a green histogram and is not rate-weighted. It only shows the raw count of ruptures of various magnitudes available in the rupture set.

IncrementalCumulative
Incremental PlotCumulative Plot

NOTE: This solution has a distribution of magnitudes and rates for each ruptures, and is likely a branch-averaged solution. That full distribution for each rupture is used to construct the MFDs above, but only mean magnitudes are used in the lower panel showing available and utilized magnitudes, and thus there may be bins with nonzero rates in the top panel where no mgnitudes are shown in the bottom. The magnitude rage at the top of this page also only considers mean magnitudes.

Cumulative Rates and Recurrence Intervals Table

(top)

MagnitudeParticipation RateRangeParticipation RI (yrs)Range
M≥6.30.0011299981[0.00E0, 5.50E-3]884.96[181.94, ∞]
M≥6.49.993167E-4[0.00E0, 4.83E-3]1,000.68[207.24, ∞]
M≥6.59.984239E-4[0.00E0, 4.83E-3]1,001.58[207.24, ∞]
M≥6.69.626414E-4[0.00E0, 4.53E-3]1,038.81[220.97, ∞]
M≥6.78.221106E-4[0.00E0, 3.10E-3]1,216.38[322.85, ∞]
M≥6.87.310029E-4[0.00E0, 2.12E-3]1,367.98[472.1, ∞]
M≥6.97.045368E-4[0.00E0, 1.99E-3]1,419.37[503.32, ∞]
M≥76.661029E-4[0.00E0, 1.79E-3]1,501.27[557.98, ∞]
M≥7.16.112977E-4[0.00E0, 1.60E-3]1,635.86[623.88, ∞]
M≥7.25.373395E-4[0.00E0, 1.28E-3]1,861.02[779.72, ∞]
M≥7.34.7003984E-4[0.00E0, 1.20E-3]2,127.48[835.67, ∞]
M≥7.43.9342945E-4[0.00E0, 1.15E-3]2,541.75[867.25, ∞]
M≥7.53.064596E-4[0.00E0, 1.15E-3]3,263.07[869.69, ∞]
M≥7.62.1869908E-4[0.00E0, 1.13E-3]4,572.49[882.18, ∞]
M≥7.71.4437895E-4[0.00E0, 1.03E-3]6,926.22[966.79, ∞]
M≥7.86.65934E-5[0.00E0, 8.02E-4]15,016.5[1,246.28, ∞]
M≥7.95.4329053E-6[0.00E0, 1.35E-4]184,063.58[7,402.76, ∞]
M≥83.7421428E-6[0.00E0, 1.32E-4]267,226.58[7,569.4, ∞]
M≥8.11.8174453E-6[0.00E0, 1.32E-4]550,222.9[7,575.76, ∞]
M≥8.22.3737168E-7[0.00E0, 4.74E-5]4,212,802.52[21,101.5, ∞]
M≥8.39.724029E-9[0.00E0, 7.45E-6]102,838,035.21[134,246.21, ∞]

Individual Branch Nucleation MFDs

(top)

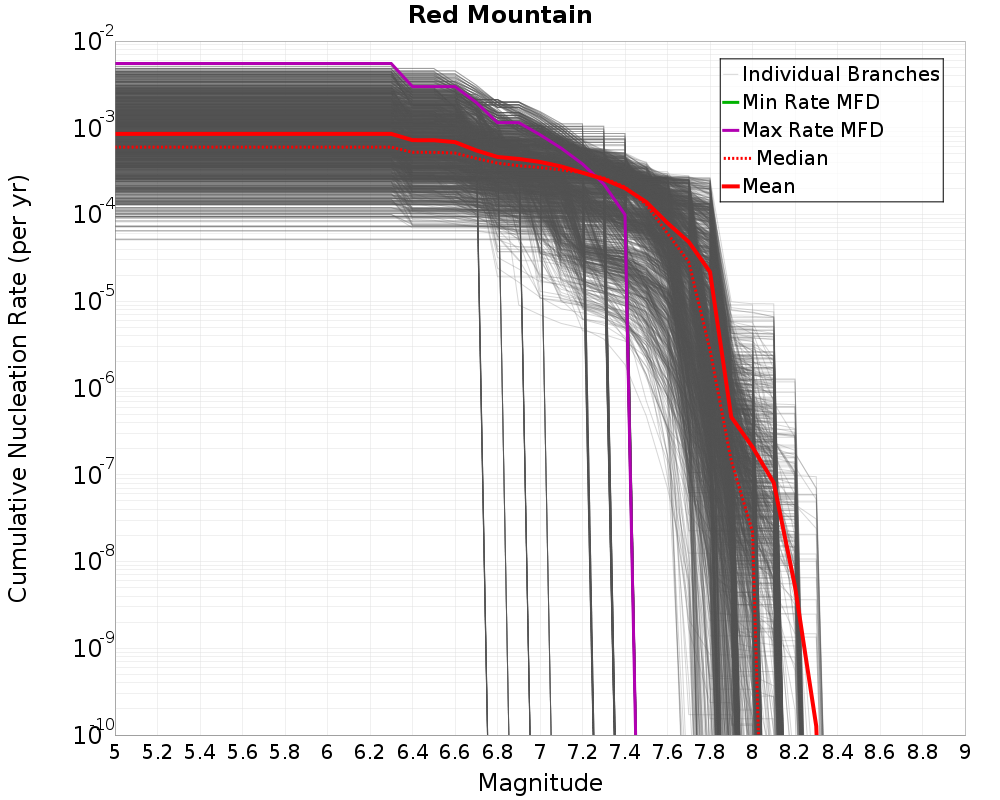

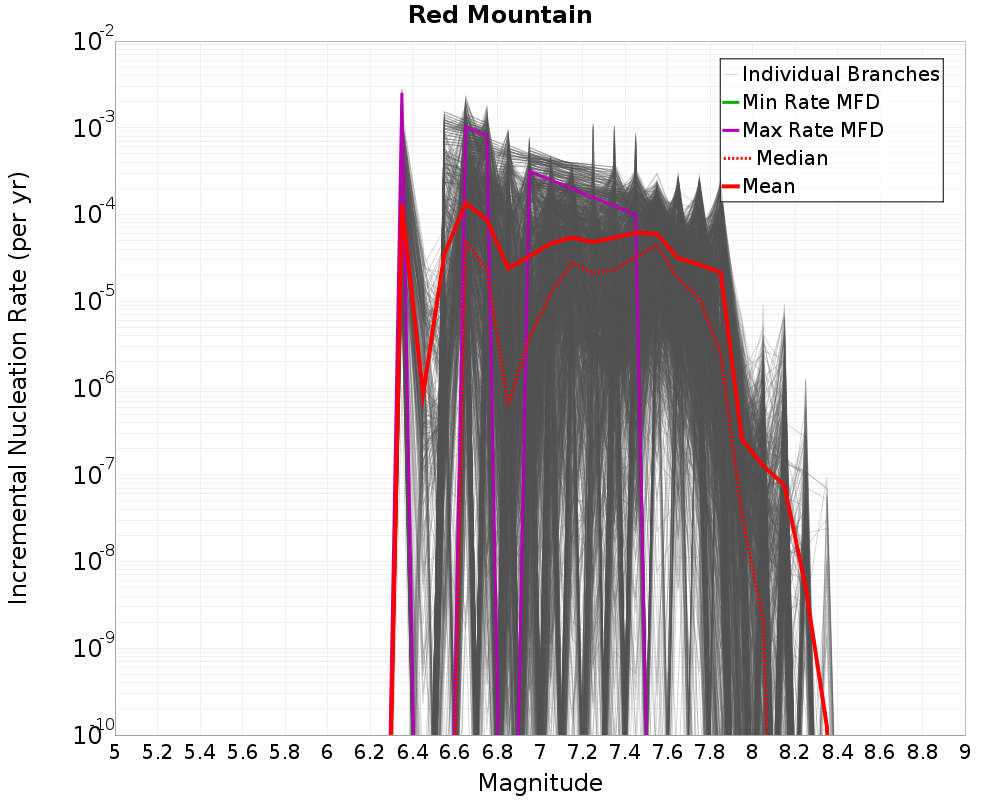

Individual nucleation MFDs across 2250 logic tree branches. The individual branches with the highest and lowest total rate are highlighted, as are the mean and median models.

IncrementalCumulative
Incremental PlotCumulative Plot

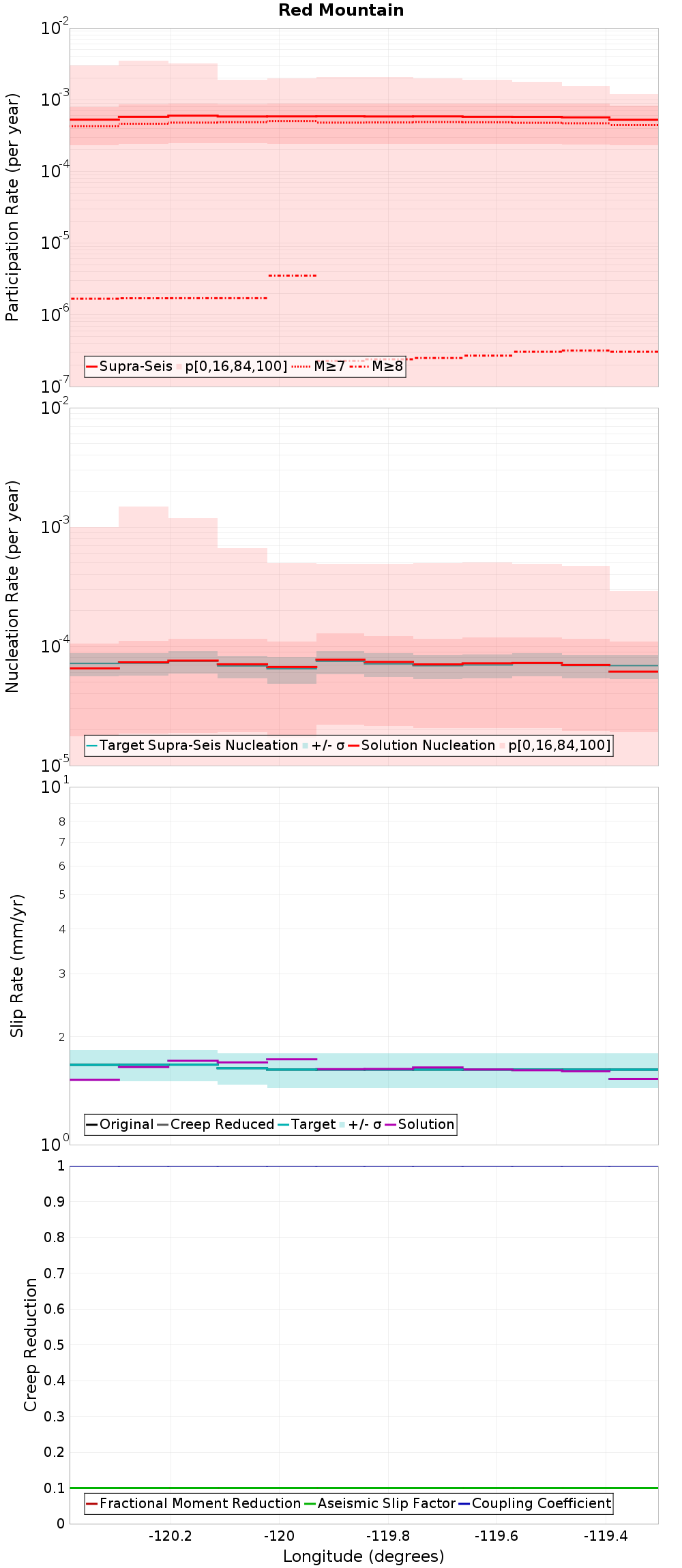

Along-Strike Values

(top)

Along-strike plot

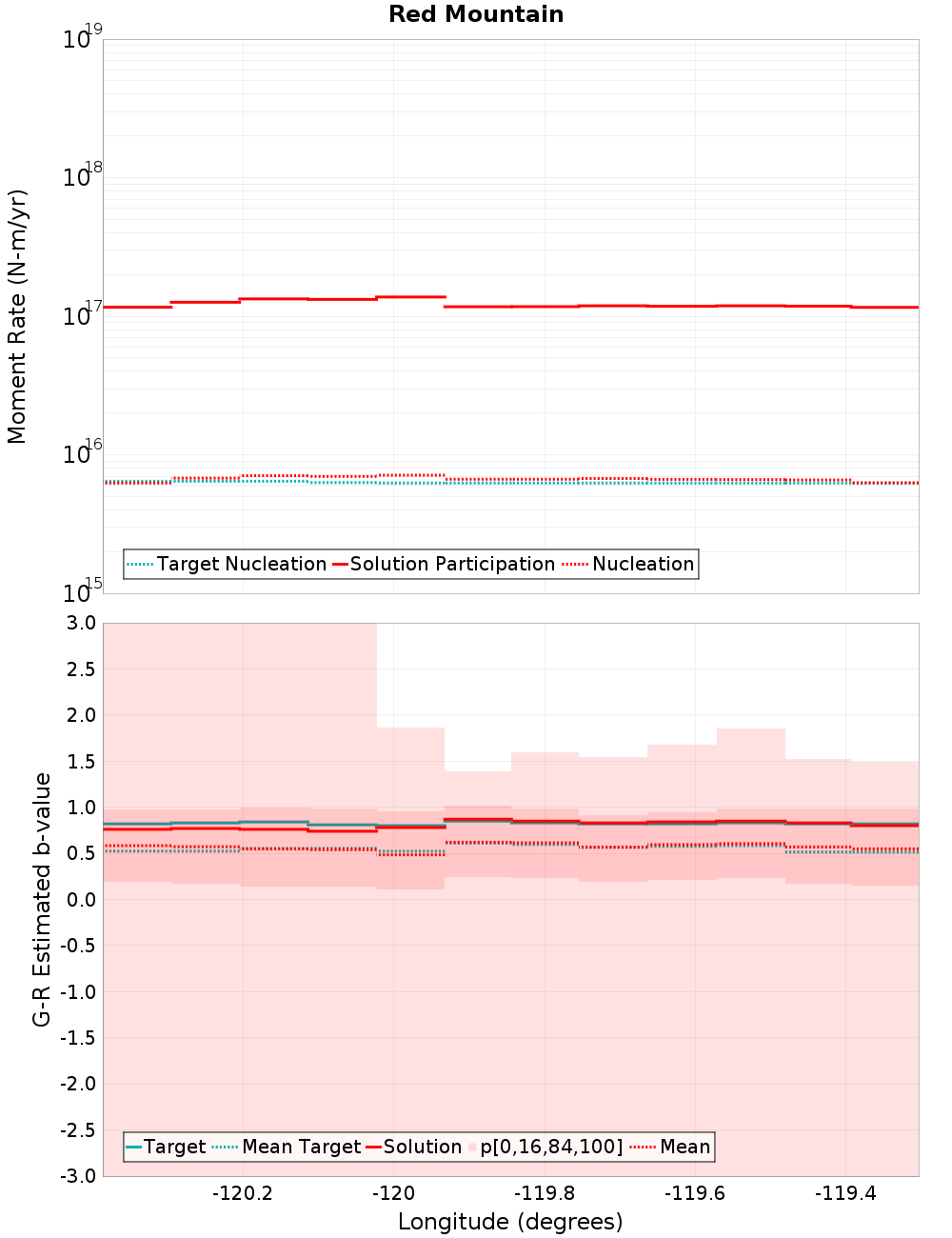

Moment-Rates and b-Values

(top)

Along-strike plot

Length Distributions

(top)

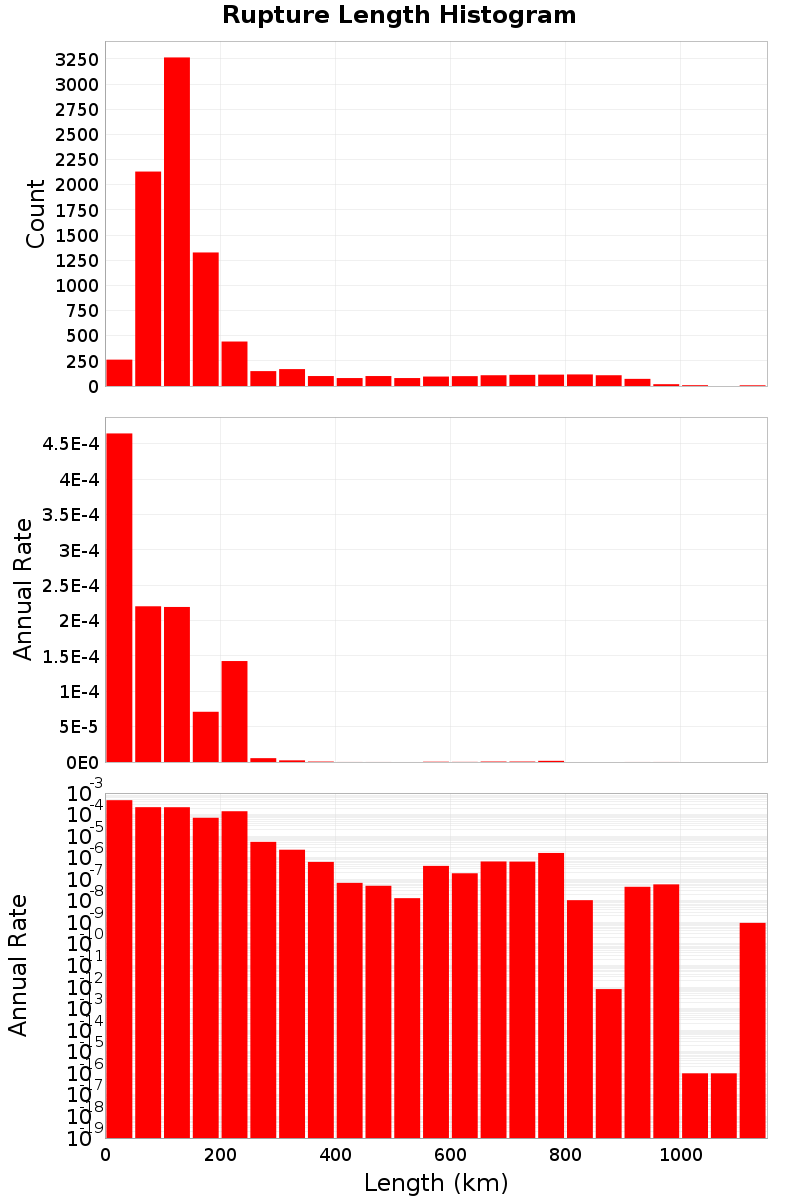

Fault rupture length distributions. The top panel shows the raw count of ruptures in which Red Mountain participates in the rupture set as a function of rupture length. The bottom two panels show the rate-weighted distribution (i.e., the distribution of lengths in the solution). The middle panel is plotted with a linear scale, and the bottom paney a logarithmic scale.

Length Hist

Rupture Examples

(top)

The following table includes example ruptures, selected at various percentiles from the rate-weighted rupture length distribution. So, for example, the rupture with length closest to the median length (again, rate-weighted) is plotted in the first column ('p50 Example'). The longest participating rupture is plotted last ('p100 Example').

It is important to note that the rupture examples here may not be representative, and may have negligible rates. They are included for illustration purposes only.

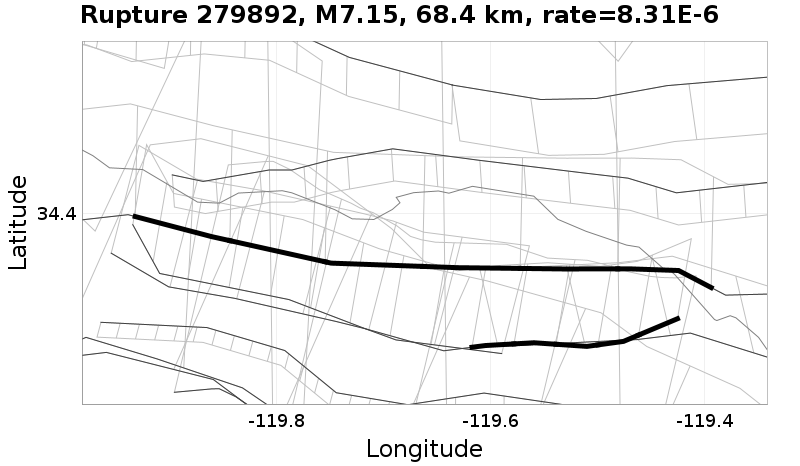

p50 Example

p75 Example

p90 Example

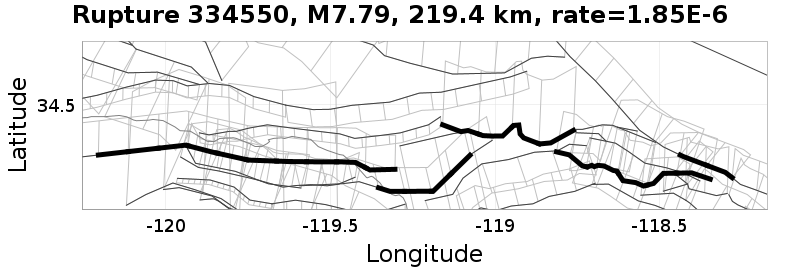

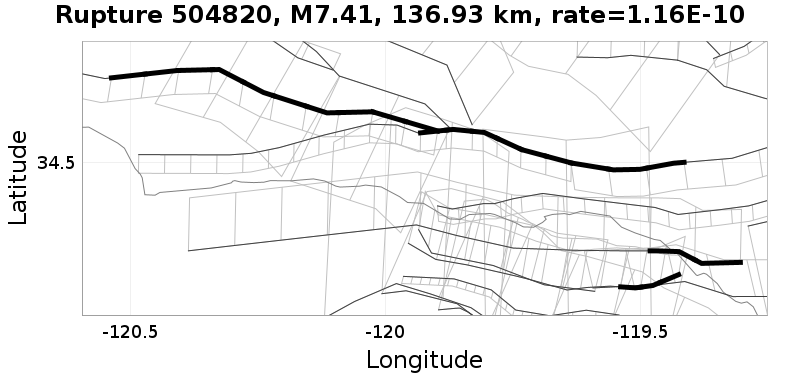

Rupture 279892Rupture 504820Rupture 334550

p97.5 Example

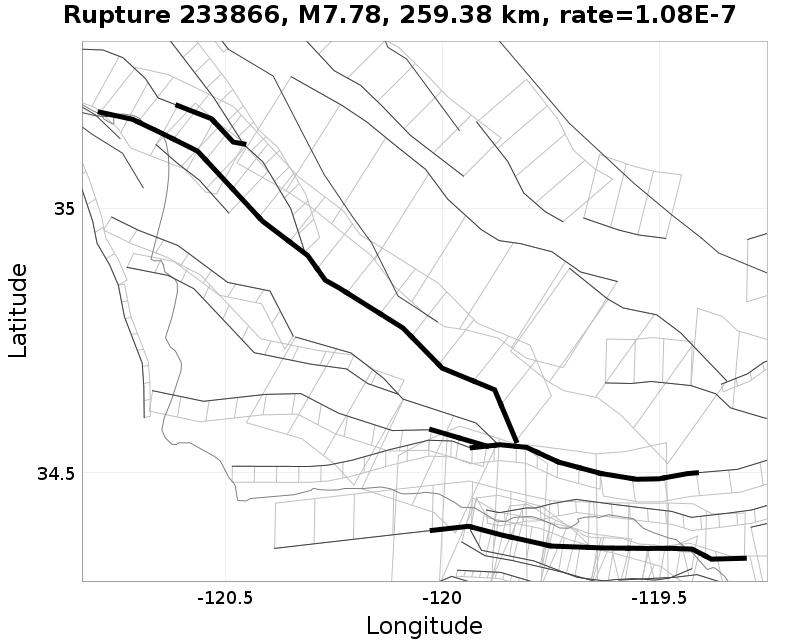

p99 Example

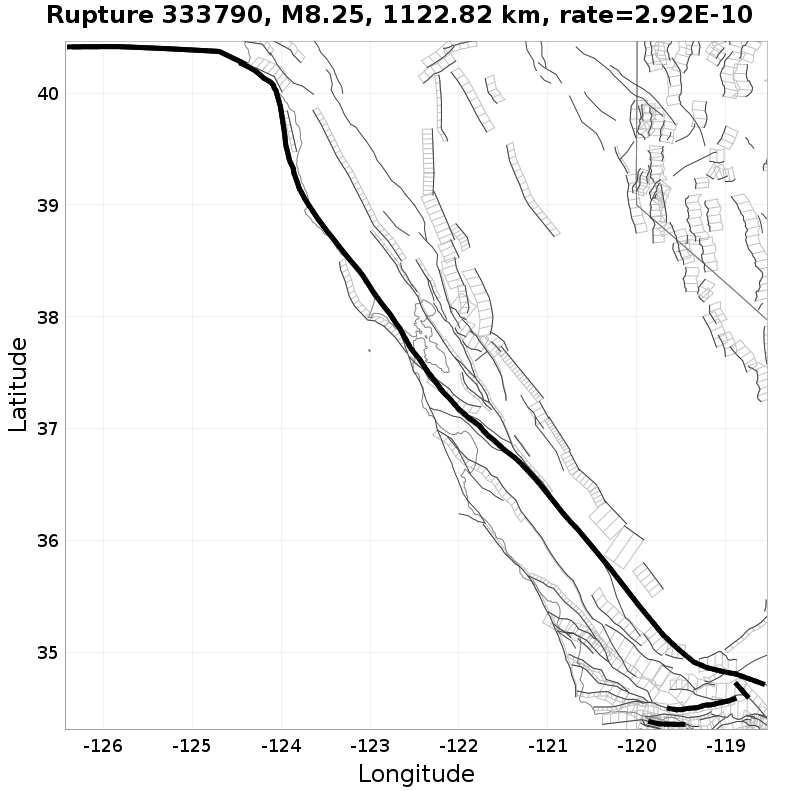

p100 Example

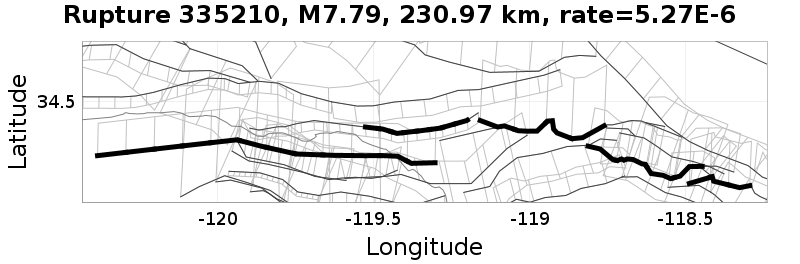

Rupture 335210Rupture 233866Rupture 333790

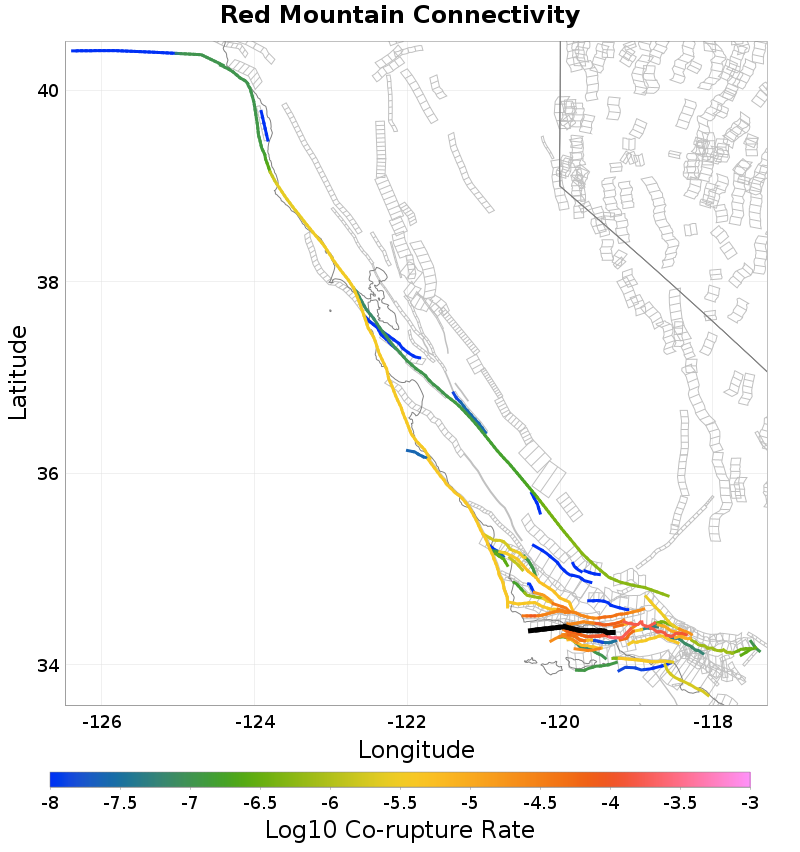

Connectivity

(top)

Map

Nearby Sections

(top)

Fault SectionFault Section
Pitas Point (lower, west), 0.04 km awaySisar, 2.4 km away
Pitas Point (lower, Montalvo), 0.12 km awayLos Alamos, 2.78 km away
Los Alamos (extension), 0.2 km awayPitas Point, 4.23 km away
North Channel, 0.2 km awaySanta Ynez River, 4.27 km away
Mission Ridge - Arroyo Parida - Santa Ana, 0.28 km awaySanta Ynez (west), 5.08 km away
Channel Islands (ramp), 0.57 km awayOak Ridge (offshore, extension), 7.72 km away
Pitas Point (upper), 0.67 km awayOzena, 8.31 km away
Mid Channel, 0.82 km awayOak Ridge (offshore), 10.1 km away
Santa Ynez (east), 0.87 km awayOak Ridge (onshore), 12.17 km away

Pitas Point (lower, west), 0.04 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.15 km
Min Rate-Weighted Dist1.04 km
Co-rupture Count671
Co-rupture Rate2.685464E-5
Co-rupture Mag Range[7.11, 7.89]

Pitas Point (lower, Montalvo), 0.12 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.12 km
Min Rate-Weighted Dist0.13 km
Co-rupture Count2,255
Co-rupture Rate2.819219E-5
Co-rupture Mag Range[7.30, 8.21]

Los Alamos (extension), 0.2 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.2 km
Min Rate-Weighted Dist0.71 km
Co-rupture Count2,010
Co-rupture Rate4.0633957E-5
Co-rupture Mag Range[6.96, 7.92]

North Channel, 0.2 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.27 km
Min Rate-Weighted Dist0.32 km
Co-rupture Count4,567
Co-rupture Rate1.3345855E-4
Co-rupture Mag Range[6.63, 8.21]

Mission Ridge - Arroyo Parida - Santa Ana, 0.28 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.28 km
Min Rate-Weighted Dist0.29 km
Co-rupture Count1,625
Co-rupture Rate1.1464264E-4
Co-rupture Mag Range[6.80, 8.24]

Channel Islands (ramp), 0.57 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.22 km
Min Rate-Weighted Dist2.22 km
Co-rupture Count141
Co-rupture Rate3.3916157E-7
Co-rupture Mag Range[7.13, 7.92]

Pitas Point (upper), 0.67 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.67 km
Min Rate-Weighted Dist0.81 km
Co-rupture Count1,794
Co-rupture Rate3.5858895E-5
Co-rupture Mag Range[6.74, 8.19]

Mid Channel, 0.82 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.64 km
Min Rate-Weighted Dist1.64 km
Co-rupture Count106
Co-rupture Rate6.0841826E-6
Co-rupture Mag Range[7.06, 7.62]

Santa Ynez (east), 0.87 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.87 km
Min Rate-Weighted Dist0.95 km
Co-rupture Count1,875
Co-rupture Rate5.392571E-5
Co-rupture Mag Range[6.79, 8.25]

Sisar, 2.4 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.4 km
Min Rate-Weighted Dist2.4 km
Co-rupture Count1,164
Co-rupture Rate5.819109E-5
Co-rupture Mag Range[7.09, 7.96]

Los Alamos, 2.78 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.78 km
Min Rate-Weighted Dist2.78 km
Co-rupture Count790
Co-rupture Rate1.529905E-5
Co-rupture Mag Range[7.04, 7.92]

Pitas Point, 4.23 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.23 km
Min Rate-Weighted Dist4.73 km
Co-rupture Count1,067
Co-rupture Rate2.5595143E-4
Co-rupture Mag Range[6.82, 8.17]

Santa Ynez River, 4.27 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.27 km
Min Rate-Weighted Dist4.44 km
Co-rupture Count2,606
Co-rupture Rate3.0166717E-5
Co-rupture Mag Range[6.66, 8.21]

Santa Ynez (west), 5.08 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist5.08 km
Min Rate-Weighted Dist5.74 km
Co-rupture Count2,505
Co-rupture Rate9.839087E-5
Co-rupture Mag Range[6.68, 8.21]

Oak Ridge (offshore, extension), 7.72 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist7.72 km
Min Rate-Weighted Dist8.49 km
Co-rupture Count1,007
Co-rupture Rate6.682925E-5
Co-rupture Mag Range[6.58, 7.89]

Ozena, 8.31 km away

(back to table)

NSHM23
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Oak Ridge (offshore), 10.1 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count57
Co-rupture Rate6.2549066E-6
Co-rupture Mag Range[7.38, 7.72]

Oak Ridge (onshore), 12.17 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count210
Co-rupture Rate5.437905E-5
Co-rupture Mag Range[7.26, 7.80]
