San Vicente Details

PropertyValue
Rupture Count1,123
Ruptures w/ Nonzero Rates1,122
Magnitude Range[6.25, 7.98]
Length Range[9, 409] km
Total Rate4.3802425E-5 /yr
Multi-Fault Rate2.9109575E-5 /yr (66.46%)
Directly-Connected Faults6
All Co-Rupturing Faults76

Table Of Contents

Magnitude-Frequency Distribution

(top)

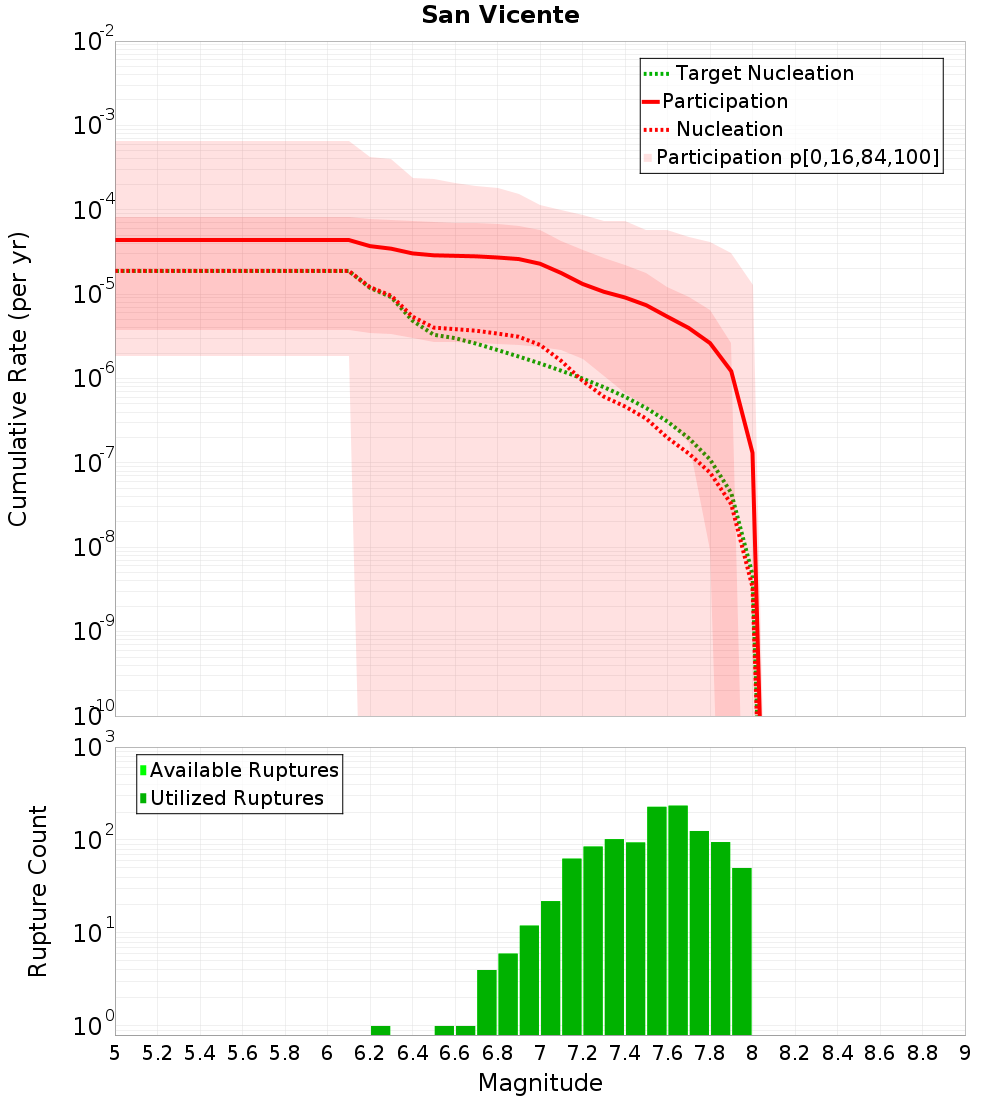

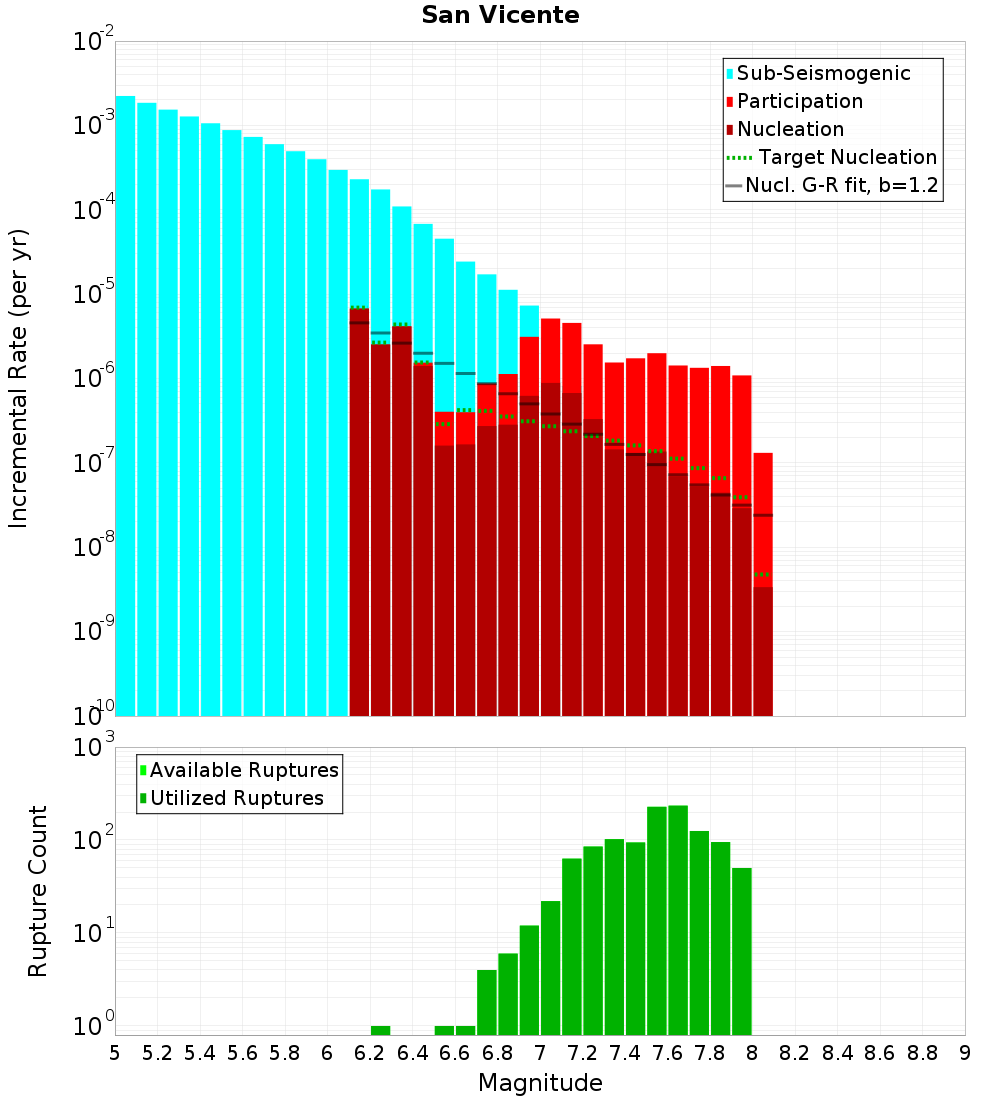

Fault magnitude-frequency distributions. The left plot shows incremental rates (rates within each magnitude bin), and the right plot shows cumulative rates (rates at or above the given magnitude).

The smaller bottom panel shows the distribution of available ruptures with a green histogram and is not rate-weighted. It only shows the raw count of ruptures of various magnitudes available in the rupture set.

IncrementalCumulative
Incremental PlotCumulative Plot

NOTE: This solution has a distribution of magnitudes and rates for each ruptures, and is likely a branch-averaged solution. That full distribution for each rupture is used to construct the MFDs above, but only mean magnitudes are used in the lower panel showing available and utilized magnitudes, and thus there may be bins with nonzero rates in the top panel where no mgnitudes are shown in the bottom. The magnitude rage at the top of this page also only considers mean magnitudes.

Cumulative Rates and Recurrence Intervals Table

(top)

MagnitudeParticipation RateRangeParticipation RI (yrs)Range
M≥6.14.3802425E-5[1.83E-6, 6.45E-4]22,829.79[1,549.91, 546,844.4]
M≥6.23.7062186E-5[1.63E-20, 4.26E-4]26,981.68[2,345.77, 61,329,434,842,462,930,000]
M≥6.33.453146E-5[0.00E0, 3.98E-4]28,959.1[2,511.93, ∞]
M≥6.43.0378946E-5[0.00E0, 2.36E-4]32,917.53[4,244.64, ∞]
M≥6.52.8837982E-5[0.00E0, 2.30E-4]34,676.49[4,348.35, ∞]
M≥6.62.8434291E-5[0.00E0, 2.07E-4]35,168.8[4,829.81, ∞]
M≥6.72.8035533E-5[0.00E0, 1.93E-4]35,669.02[5,191.83, ∞]
M≥6.82.7162121E-5[0.00E0, 1.80E-4]36,815.98[5,567.89, ∞]
M≥6.92.6031765E-5[0.00E0, 1.53E-4]38,414.61[6,535.1, ∞]
M≥72.2912478E-5[0.00E0, 1.13E-4]43,644.34[8,868.81, ∞]
M≥7.11.7773356E-5[0.00E0, 9.89E-5]56,263.99[10,106.29, ∞]
M≥7.21.3213238E-5[0.00E0, 8.57E-5]75,681.68[11,671.2, ∞]
M≥7.31.0671157E-5[0.00E0, 7.38E-5]93,710.55[13,542.98, ∞]
M≥7.49.123216E-6[0.00E0, 7.34E-5]109,610.47[13,623.98, ∞]
M≥7.57.3877973E-6[0.00E0, 5.79E-5]135,358.34[17,283.99, ∞]
M≥7.65.393571E-6[0.00E0, 5.79E-5]185,405.92[17,283.99, ∞]
M≥7.73.966697E-6[0.00E0, 4.70E-5]252,098.91[21,283.84, ∞]
M≥7.82.627515E-6[0.00E0, 4.18E-5]380,587.74[23,942.35, ∞]
M≥7.91.219788E-6[0.00E0, 3.05E-5]819,814.53[32,819.17, ∞]
M≥81.3148734E-7[0.00E0, 1.28E-5]7,605,295.12[77,881.62, ∞]

Individual Branch Nucleation MFDs

(top)

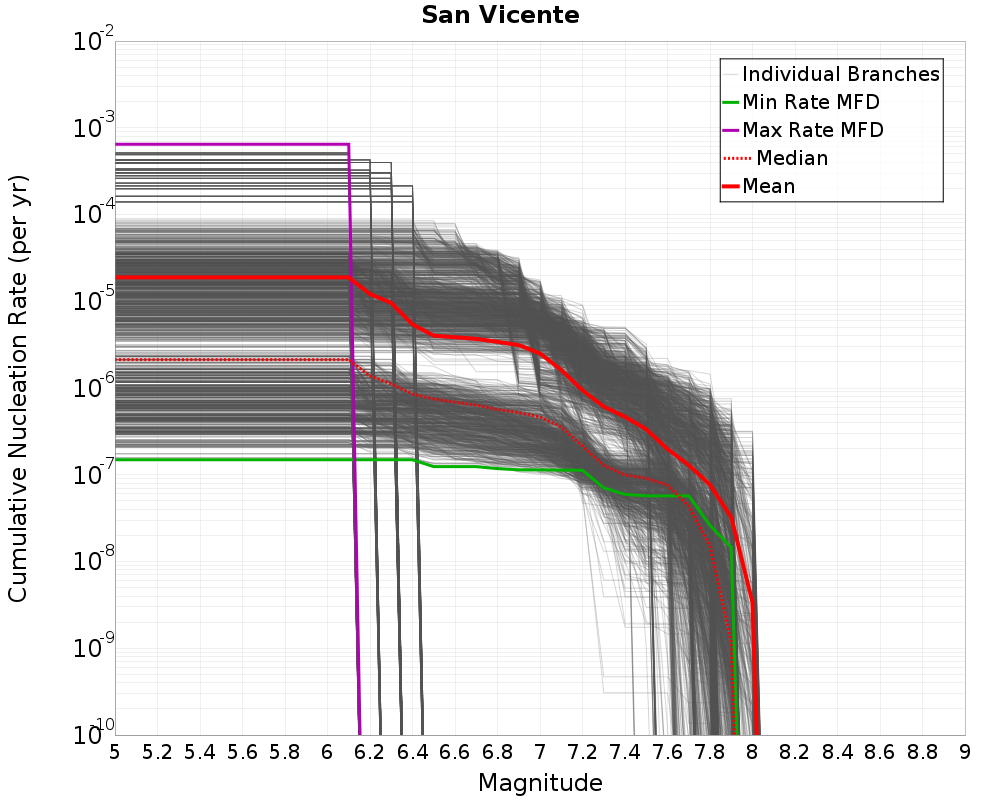

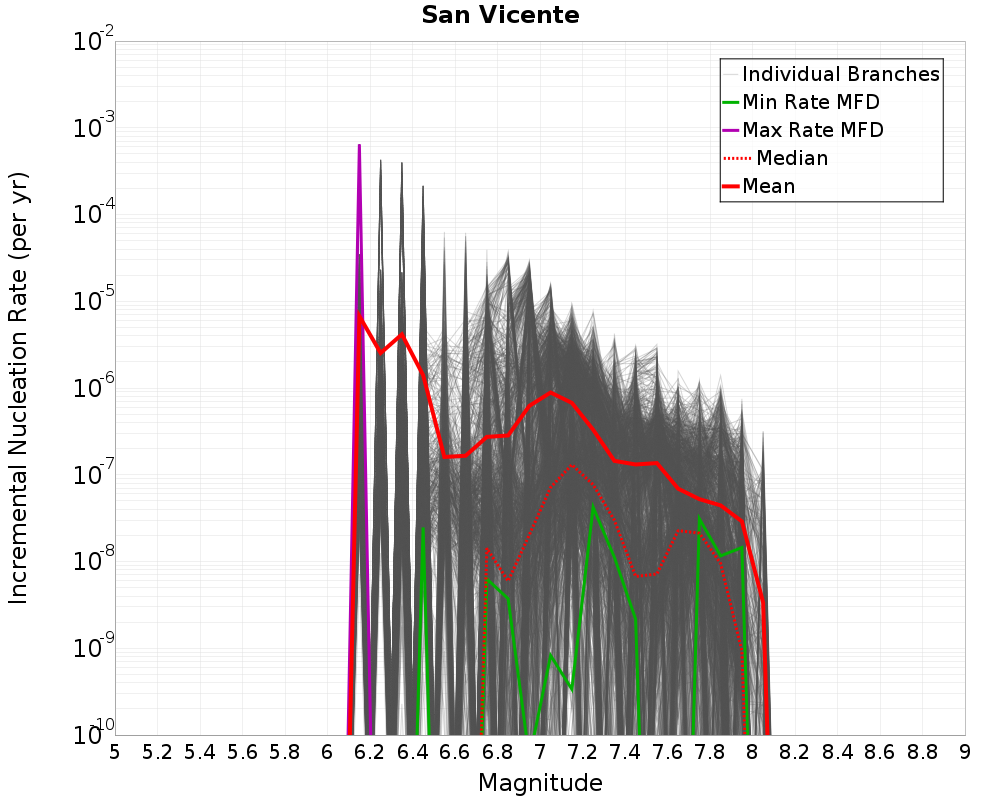

Individual nucleation MFDs across 2250 logic tree branches. The individual branches with the highest and lowest total rate are highlighted, as are the mean and median models.

IncrementalCumulative
Incremental PlotCumulative Plot

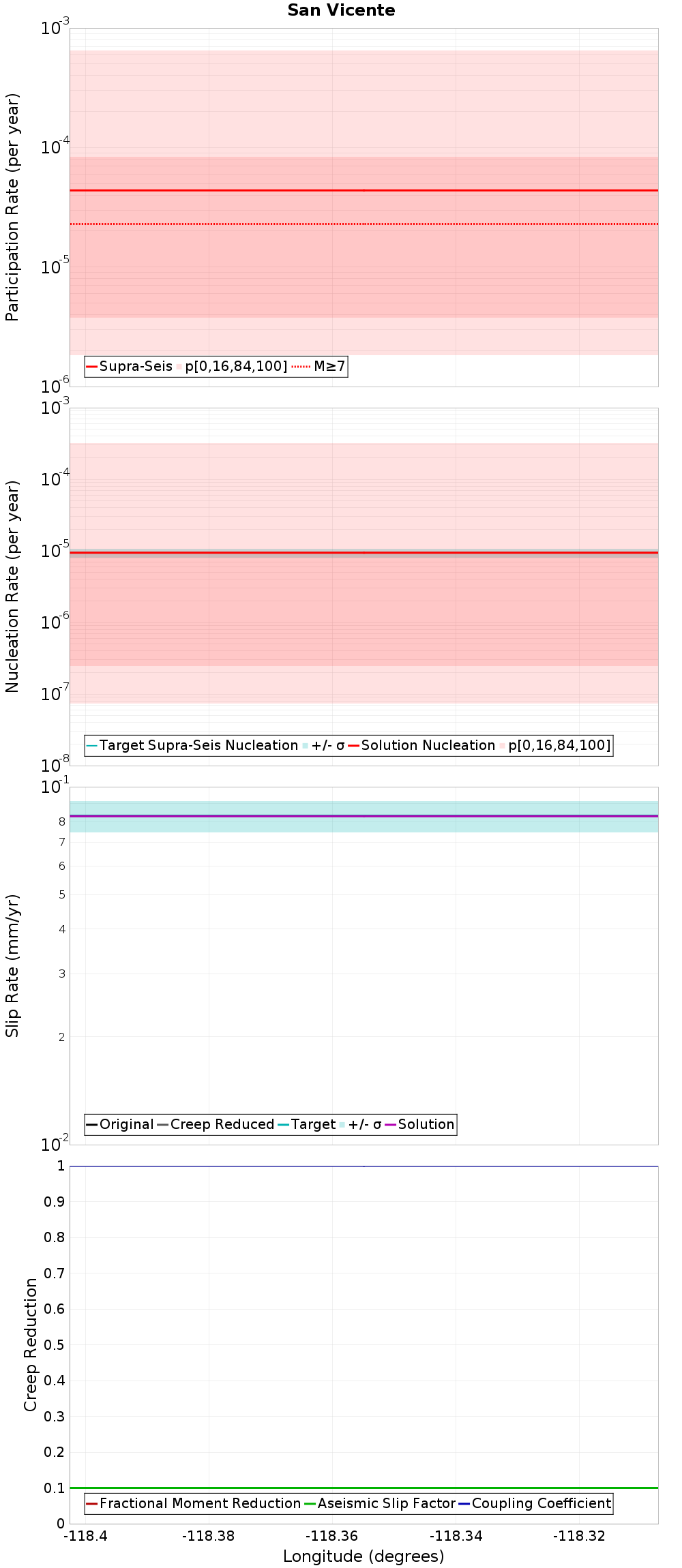

Along-Strike Values

(top)

Along-strike plot

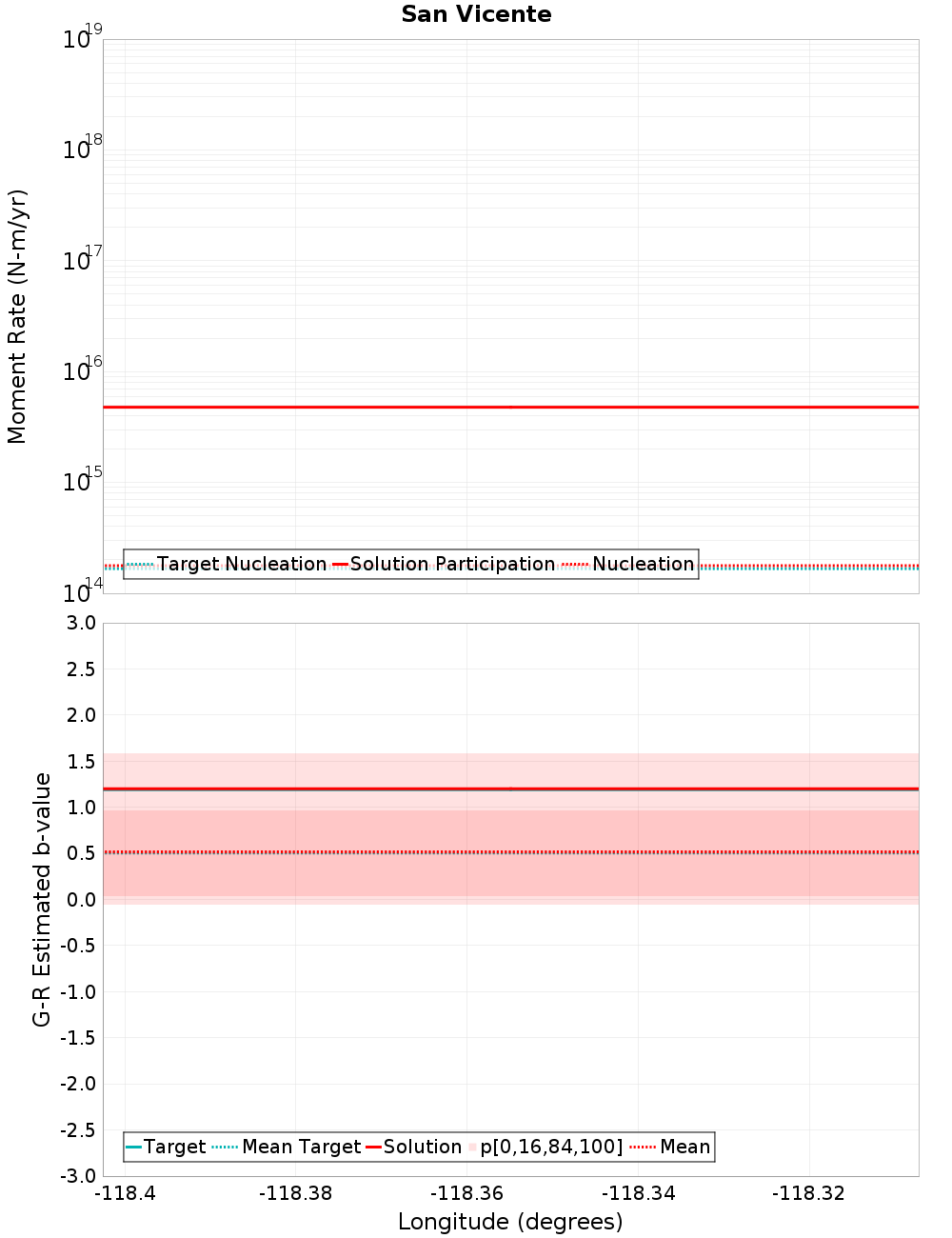

Moment-Rates and b-Values

(top)

Along-strike plot

Length Distributions

(top)

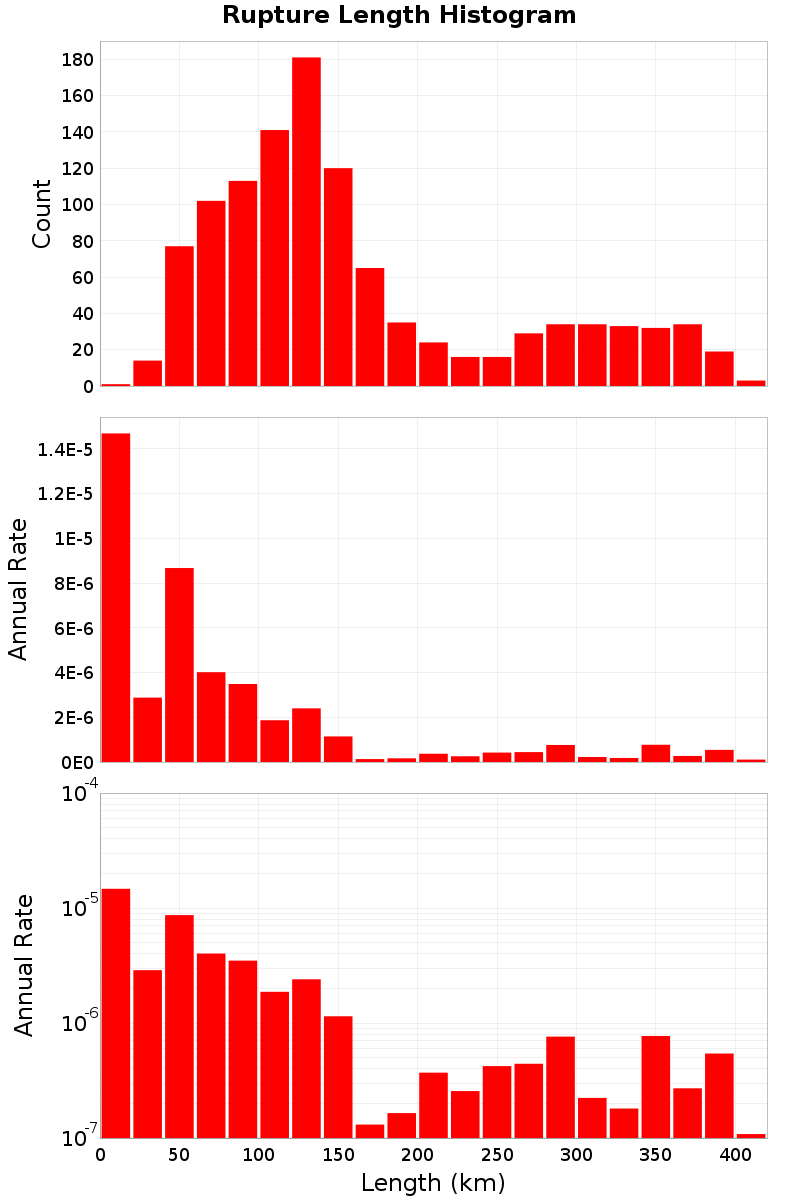

Fault rupture length distributions. The top panel shows the raw count of ruptures in which San Vicente participates in the rupture set as a function of rupture length. The bottom two panels show the rate-weighted distribution (i.e., the distribution of lengths in the solution). The middle panel is plotted with a linear scale, and the bottom paney a logarithmic scale.

Length Hist

Rupture Examples

(top)

The following table includes example ruptures, selected at various percentiles from the rate-weighted rupture length distribution. So, for example, the rupture with length closest to the median length (again, rate-weighted) is plotted in the first column ('p50 Example'). The longest participating rupture is plotted last ('p100 Example').

It is important to note that the rupture examples here may not be representative, and may have negligible rates. They are included for illustration purposes only.

p50 Example

p75 Example

p90 Example

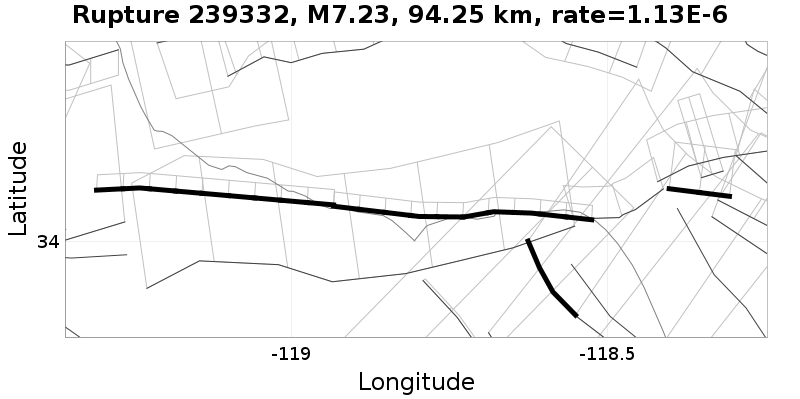

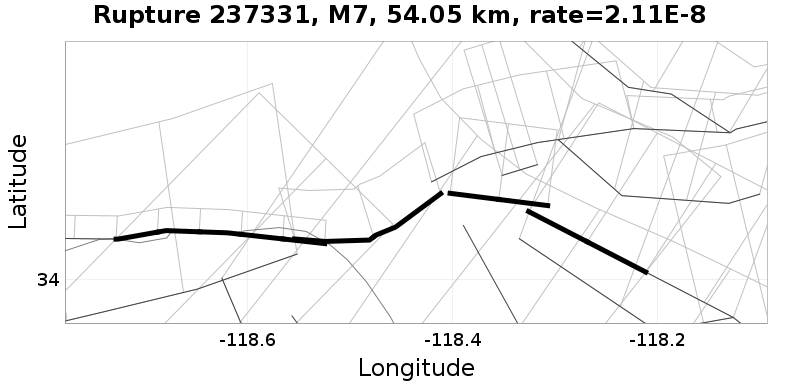

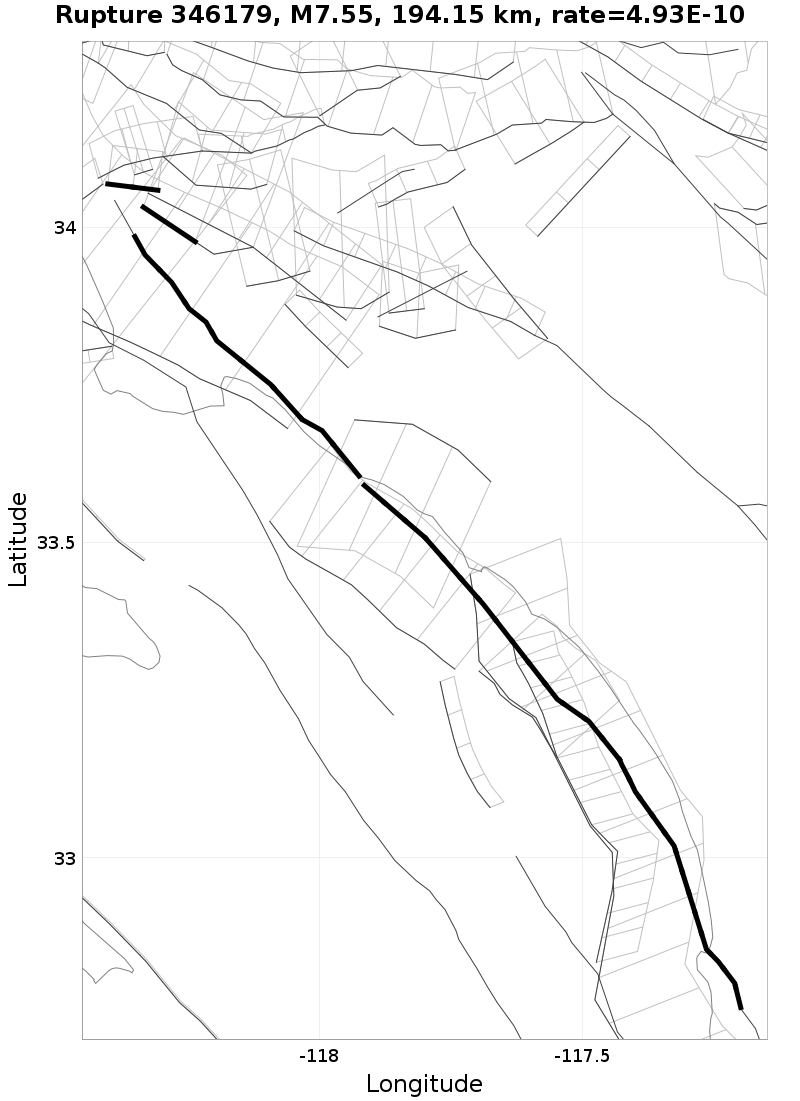

Rupture 237331Rupture 239332Rupture 346179

p97.5 Example

p99 Example

p100 Example

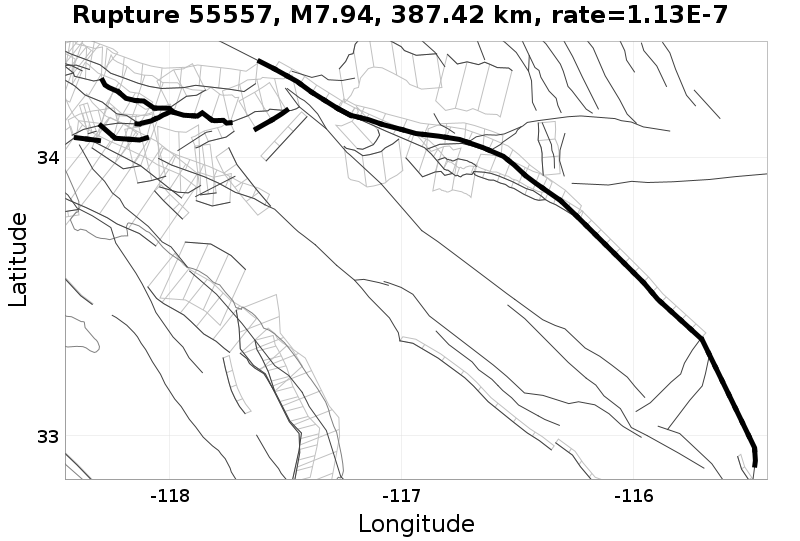

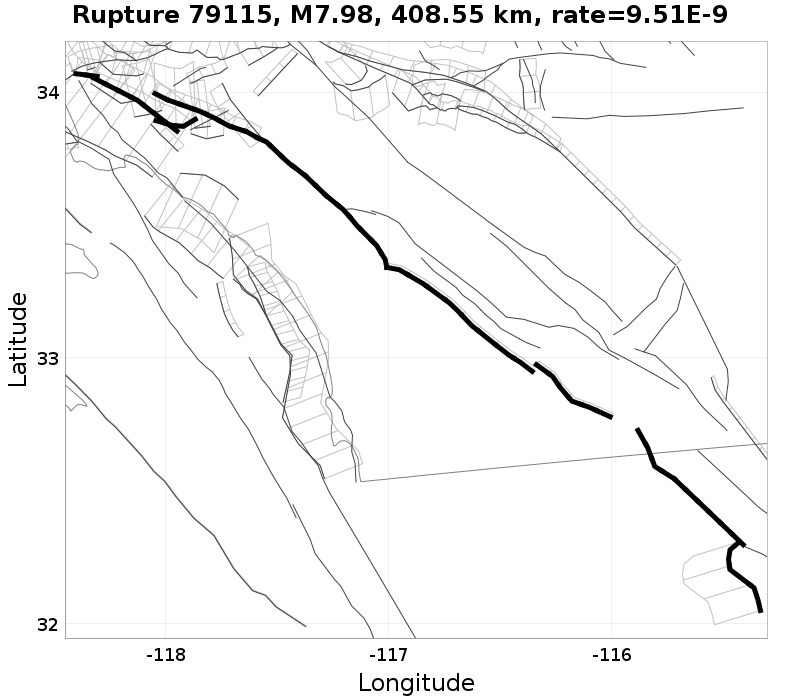

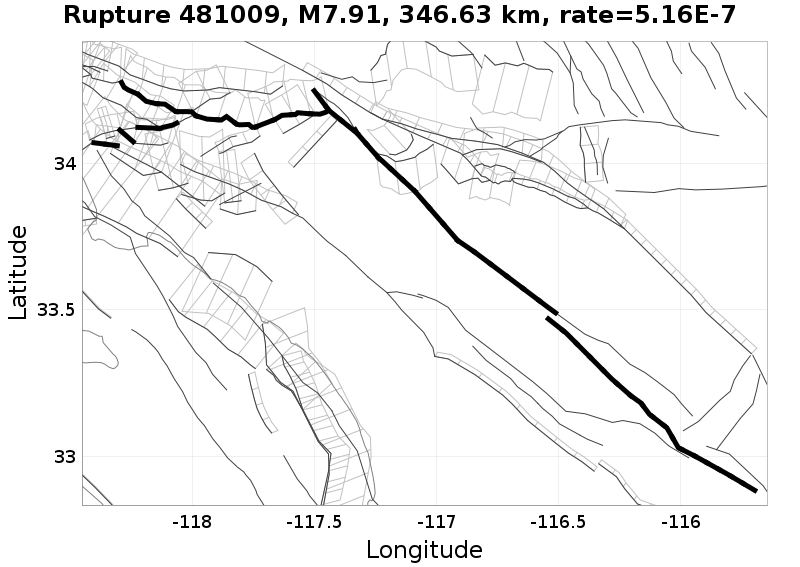

Rupture 481009Rupture 55557Rupture 79115

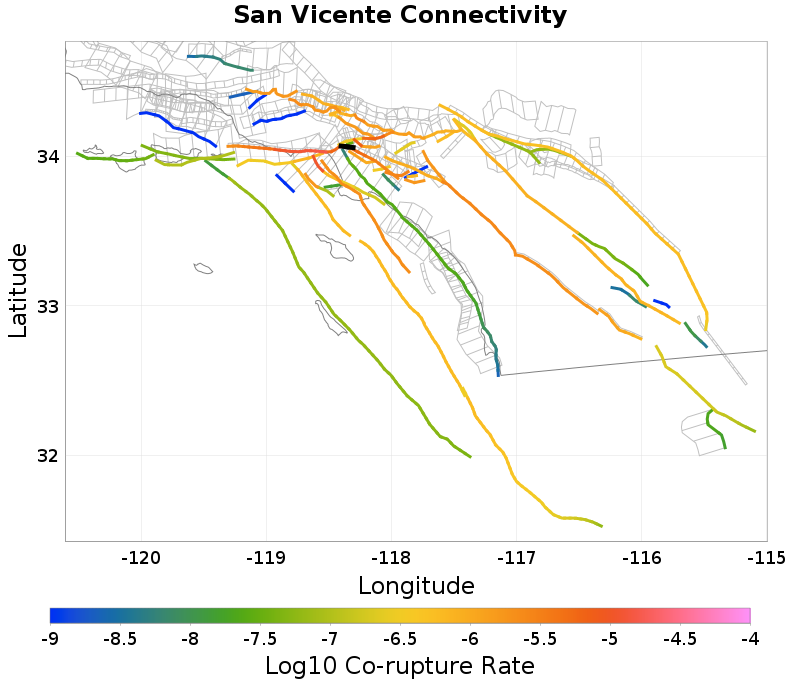

Connectivity

(top)

Map

Nearby Sections

(top)

Fault SectionFault Section
San Pedro Escarpment, 0.21 km awayElysian Park (upper), 4.3 km away
Compton, 0.27 km awayRaymond, 7.12 km away
Puente Hills (Los Angeles), 0.37 km awayNorthridge, 8.19 km away
Elysian Park (lower), 0.98 km awayPuente Hills (Santa Fe Springs), 9.8 km away
Santa Monica, 1.13 km awaySanta Monica Bay, 10.74 km away
Hollywood, 1.93 km awayMalibu Coast, 11.92 km away
North Salt Lake, 2.44 km awayVerdugo, 12.62 km away
Newport - Inglewood, 2.75 km awayAnacapa - Dume, 14.47 km away

San Pedro Escarpment, 0.21 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.21 km
Min Rate-Weighted Dist0.21 km
Co-rupture Count335
Co-rupture Rate1.7248591E-6
Co-rupture Mag Range[7.13, 7.82]

Compton, 0.27 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.27 km
Min Rate-Weighted Dist0.27 km
Co-rupture Count146
Co-rupture Rate1.0830653E-5
Co-rupture Mag Range[7.03, 7.84]

Puente Hills (Los Angeles), 0.37 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.37 km
Min Rate-Weighted Dist0.37 km
Co-rupture Count152
Co-rupture Rate1.2909434E-6
Co-rupture Mag Range[6.97, 7.86]

Elysian Park (lower), 0.98 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.98 km
Min Rate-Weighted Dist0.98 km
Co-rupture Count412
Co-rupture Rate5.2847345E-6
Co-rupture Mag Range[6.57, 7.98]

Santa Monica, 1.13 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.13 km
Min Rate-Weighted Dist1.13 km
Co-rupture Count392
Co-rupture Rate6.190954E-6
Co-rupture Mag Range[6.71, 7.73]

Hollywood, 1.93 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count114
Co-rupture Rate3.2811496E-7
Co-rupture Mag Range[6.89, 7.73]

North Salt Lake, 2.44 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate2.9436226E-8
Co-rupture Mag Range[7.18, 7.18]

Newport - Inglewood, 2.75 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count33
Co-rupture Rate2.9560136E-8
Co-rupture Mag Range[7.33, 7.75]

Elysian Park (upper), 4.3 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.3 km
Min Rate-Weighted Dist4.3 km
Co-rupture Count107
Co-rupture Rate6.9049397E-6
Co-rupture Mag Range[6.65, 7.95]

Raymond, 7.12 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count139
Co-rupture Rate6.1947176E-6
Co-rupture Mag Range[6.80, 7.95]

Northridge, 8.19 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count29
Co-rupture Rate8.446388E-7
Co-rupture Mag Range[7.20, 7.82]

Puente Hills (Santa Fe Springs), 9.8 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count47
Co-rupture Rate3.2582415E-7
Co-rupture Mag Range[6.87, 7.76]

Santa Monica Bay, 10.74 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate9.832915E-11
Co-rupture Mag Range[7.48, 7.48]

Malibu Coast, 11.92 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count252
Co-rupture Rate1.5338097E-5
Co-rupture Mag Range[6.79, 7.73]

Verdugo, 12.62 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count17
Co-rupture Rate1.541823E-6
Co-rupture Mag Range[7.20, 7.75]

Anacapa - Dume, 14.47 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count507
Co-rupture Rate8.1597966E-7
Co-rupture Mag Range[7.02, 7.84]
