Santa Ynez (east) Details

PropertyValue
Rupture Count13,954
Ruptures w/ Nonzero Rates13,203
Magnitude Range[6.37, 8.38]
Length Range[14, 1,385] km
Total Rate8.067649E-4 /yr
Multi-Fault Rate4.311093E-4 /yr (53.44%)
Directly-Connected Faults9
All Co-Rupturing Faults130

Table Of Contents

Magnitude-Frequency Distribution

(top)

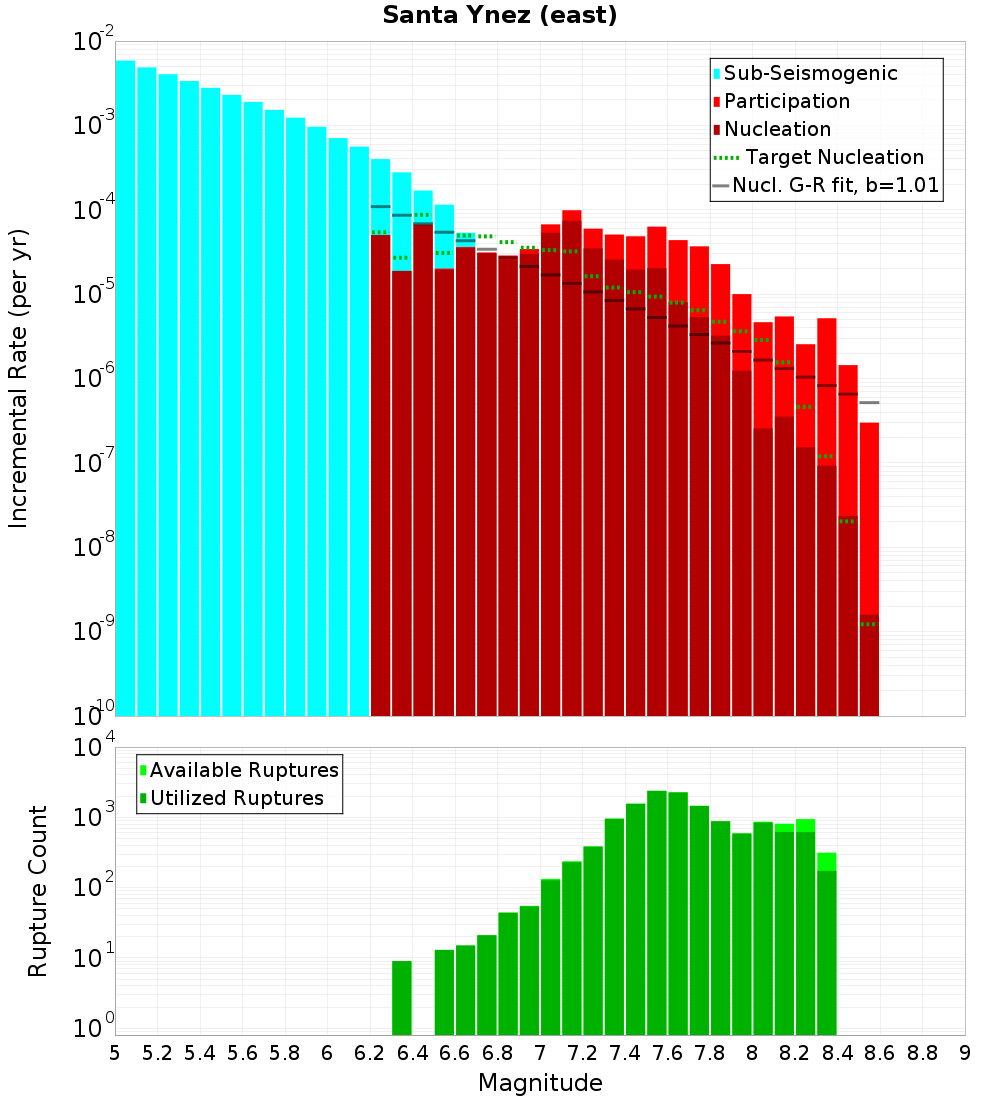

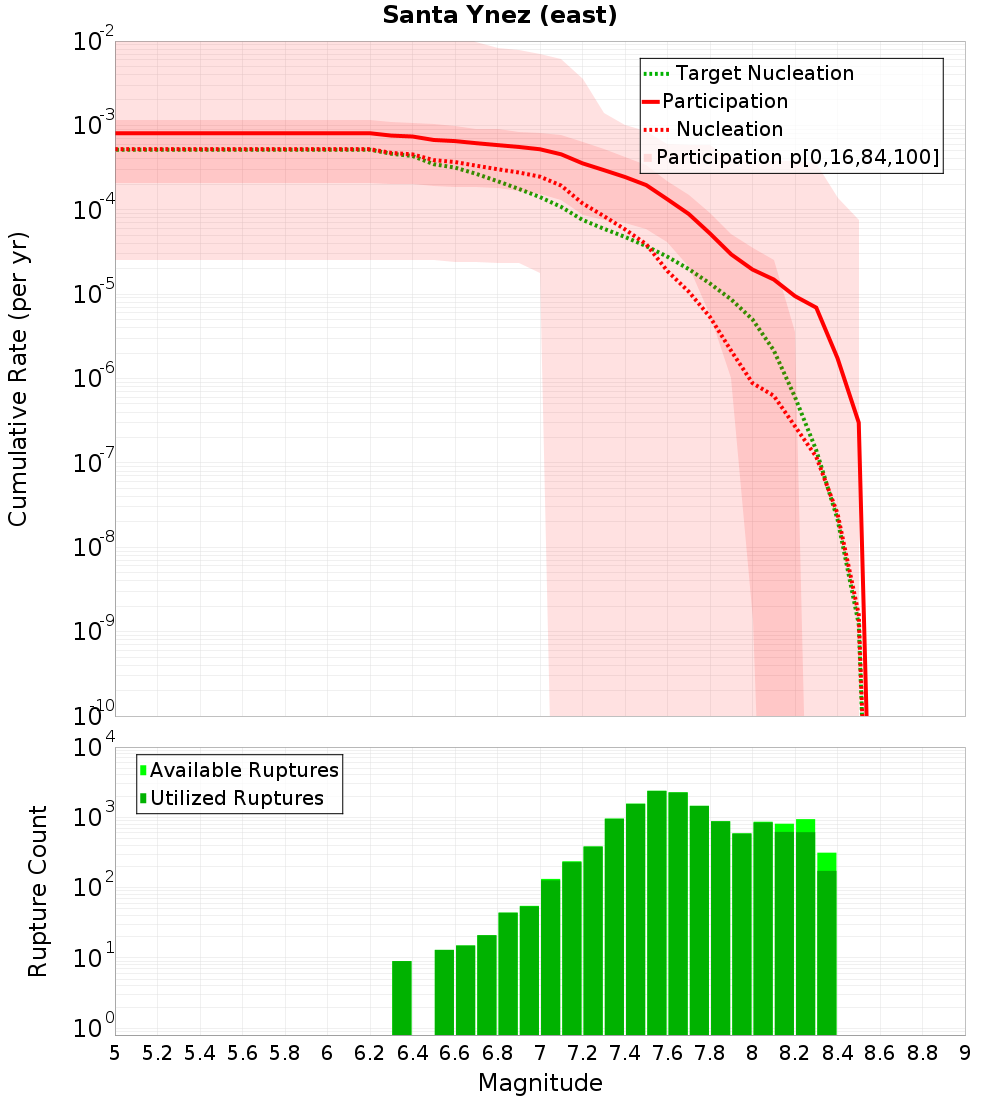

Fault magnitude-frequency distributions. The left plot shows incremental rates (rates within each magnitude bin), and the right plot shows cumulative rates (rates at or above the given magnitude).

The smaller bottom panel shows the distribution of available ruptures with a green histogram and is not rate-weighted. It only shows the raw count of ruptures of various magnitudes available in the rupture set.

IncrementalCumulative
Incremental PlotCumulative Plot

NOTE: This solution has a distribution of magnitudes and rates for each ruptures, and is likely a branch-averaged solution. That full distribution for each rupture is used to construct the MFDs above, but only mean magnitudes are used in the lower panel showing available and utilized magnitudes, and thus there may be bins with nonzero rates in the top panel where no mgnitudes are shown in the bottom. The magnitude rage at the top of this page also only considers mean magnitudes.

Cumulative Rates and Recurrence Intervals Table

(top)

MagnitudeParticipation RateRangeParticipation RI (yrs)Range
M≥6.28.067649E-4[2.55E-5, 2.86E-2]1,239.52[34.97, 39,189.03]
M≥6.37.566771E-4[2.55E-5, 2.51E-2]1,321.57[39.81, 39,189.03]
M≥6.47.3784E-4[2.55E-5, 2.15E-2]1,355.31[46.53, 39,189.03]
M≥6.56.7118346E-4[2.55E-5, 1.53E-2]1,489.91[65.45, 39,189.03]
M≥6.66.511084E-4[2.37E-5, 1.31E-2]1,535.84[76.51, 42,111.74]
M≥6.76.1495625E-4[2.37E-5, 9.71E-3]1,626.13[102.98, 42,111.74]
M≥6.85.837546E-4[2.36E-5, 8.24E-3]1,713.05[121.33, 42,322.67]
M≥6.95.5506197E-4[2.36E-5, 7.78E-3]1,801.6[128.53, 42,322.67]
M≥75.2080414E-4[1.80E-5, 7.07E-3]1,920.11[141.36, 55,432.37]
M≥7.14.53649E-4[0.00E0, 6.05E-3]2,204.35[165.21, ∞]
M≥7.23.5493998E-4[0.00E0, 3.55E-3]2,817.38[282.01, ∞]
M≥7.32.9520813E-4[0.00E0, 1.39E-3]3,387.44[718, ∞]
M≥7.42.4436778E-4[0.00E0, 1.00E-3]4,092.19[998.5, ∞]
M≥7.51.9588569E-4[0.00E0, 8.46E-4]5,105.02[1,181.78, ∞]
M≥7.61.3277799E-4[0.00E0, 5.98E-4]7,531.37[1,671.71, ∞]
M≥7.78.9109264E-5[0.00E0, 5.82E-4]11,222.18[1,719.51, ∞]
M≥7.85.2258456E-5[0.00E0, 5.77E-4]19,135.66[1,731.75, ∞]
M≥7.92.9561179E-5[0.00E0, 3.99E-4]33,828.15[2,506.01, ∞]
M≥81.9556303E-5[0.00E0, 3.77E-4]51,134.41[2,653.93, ∞]
M≥8.11.49073185E-5[0.00E0, 3.77E-4]67,081.15[2,653.93, ∞]
M≥8.29.467069E-6[0.00E0, 3.77E-4]105,629.31[2,653.93, ∞]
M≥8.36.9177977E-6[0.00E0, 3.56E-4]144,554.68[2,808.99, ∞]
M≥8.41.7406514E-6[0.00E0, 1.39E-4]574,497.56[7,194.24, ∞]
M≥8.52.9995564E-7[0.00E0, 7.63E-5]3,333,826.39[13,099.29, ∞]

Individual Branch Nucleation MFDs

(top)

Individual nucleation MFDs across 2250 logic tree branches. The individual branches with the highest and lowest total rate are highlighted, as are the mean and median models.

IncrementalCumulative
Incremental PlotCumulative Plot

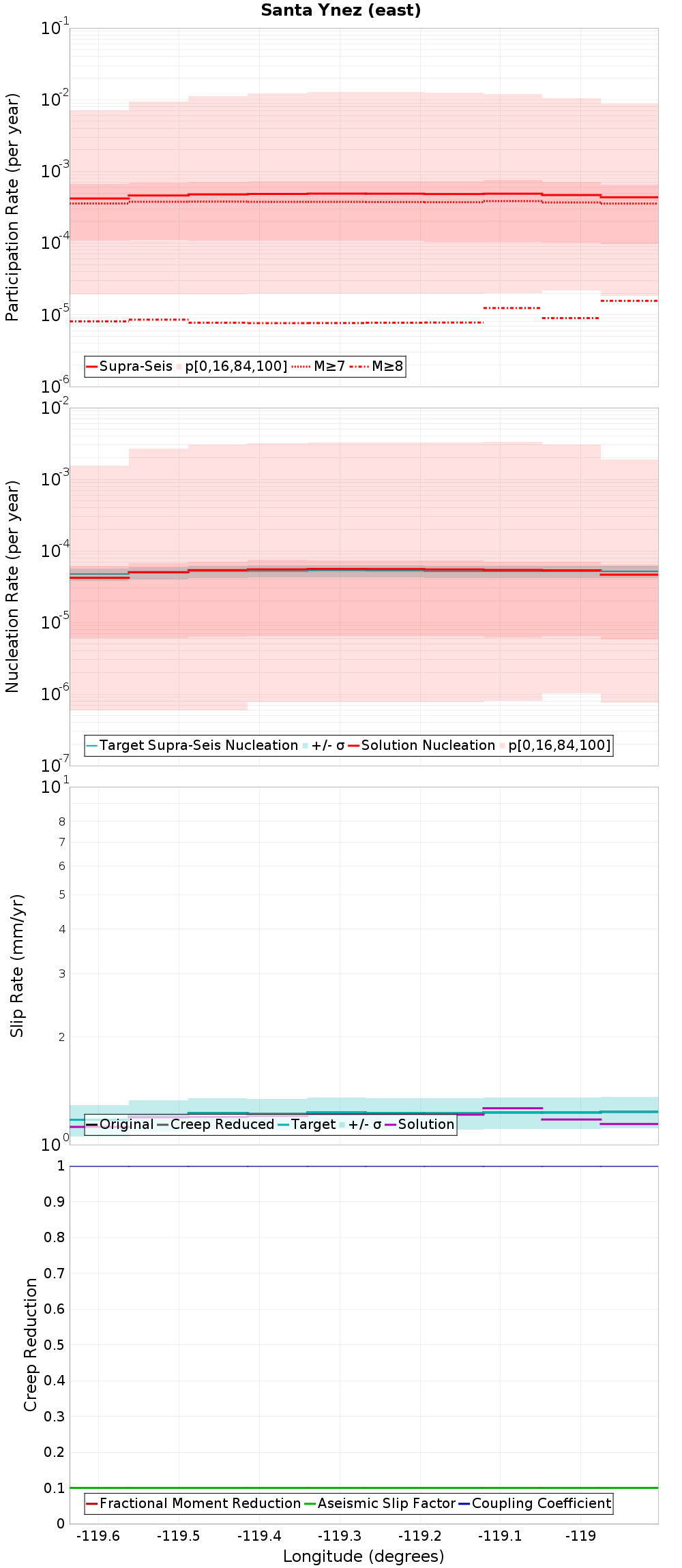

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Length Distributions

(top)

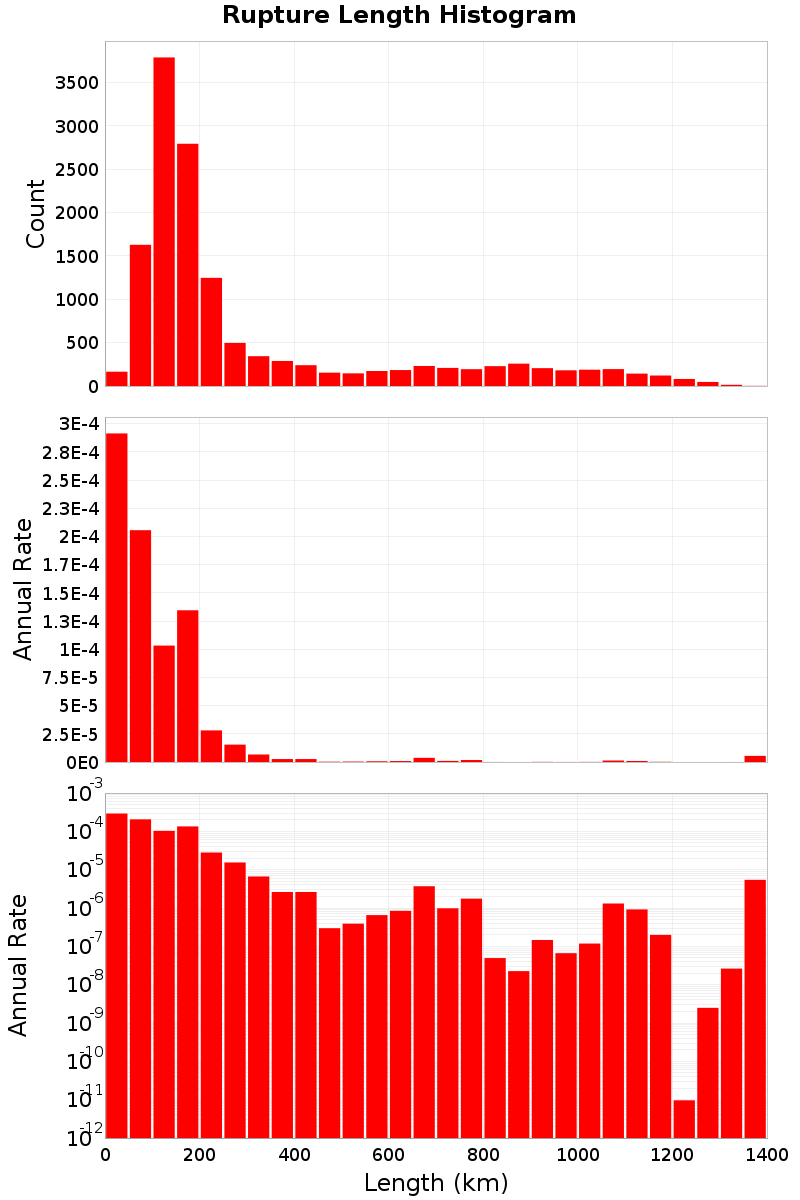

Fault rupture length distributions. The top panel shows the raw count of ruptures in which Santa Ynez (east) participates in the rupture set as a function of rupture length. The bottom two panels show the rate-weighted distribution (i.e., the distribution of lengths in the solution). The middle panel is plotted with a linear scale, and the bottom paney a logarithmic scale.

Length Hist

Rupture Examples

(top)

The following table includes example ruptures, selected at various percentiles from the rate-weighted rupture length distribution. So, for example, the rupture with length closest to the median length (again, rate-weighted) is plotted in the first column ('p50 Example'). The longest participating rupture is plotted last ('p100 Example').

It is important to note that the rupture examples here may not be representative, and may have negligible rates. They are included for illustration purposes only.

p50 Example

p75 Example

p90 Example

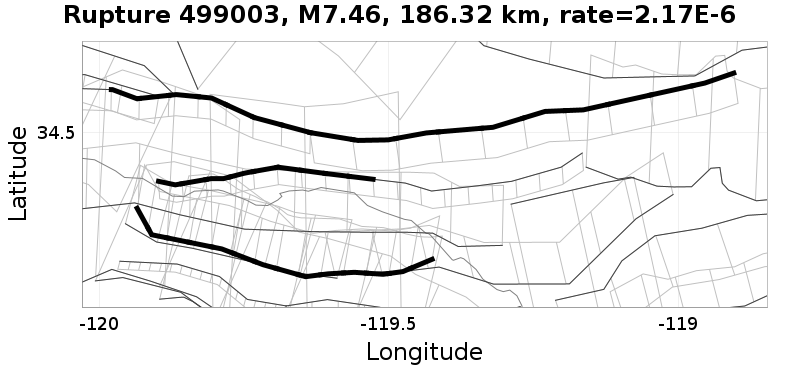

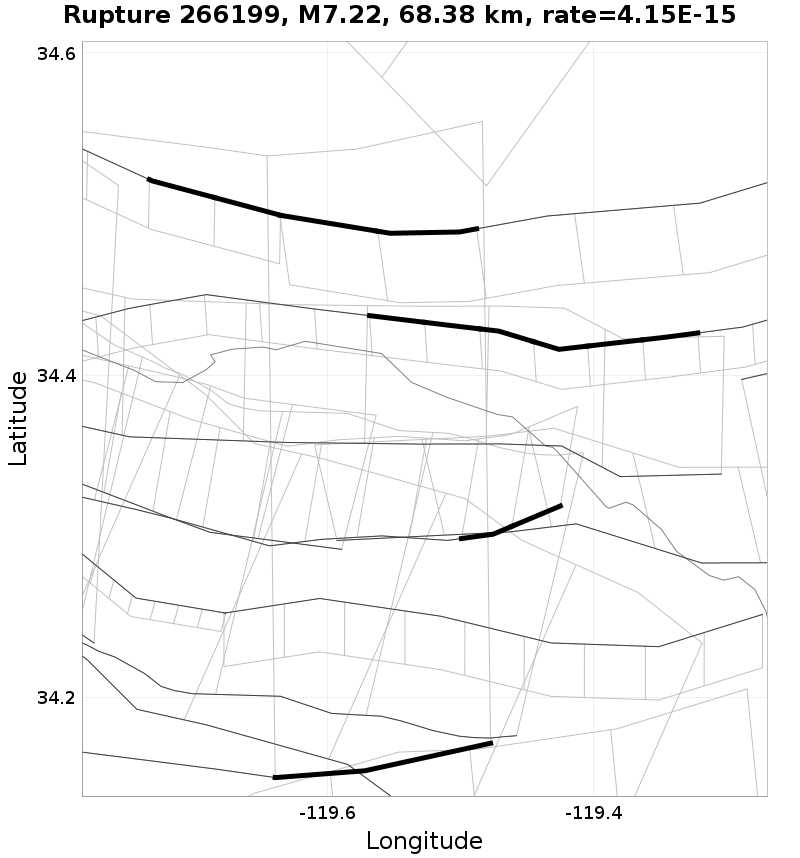

Rupture 266199Rupture 93204Rupture 499003

p97.5 Example

p99 Example

p100 Example

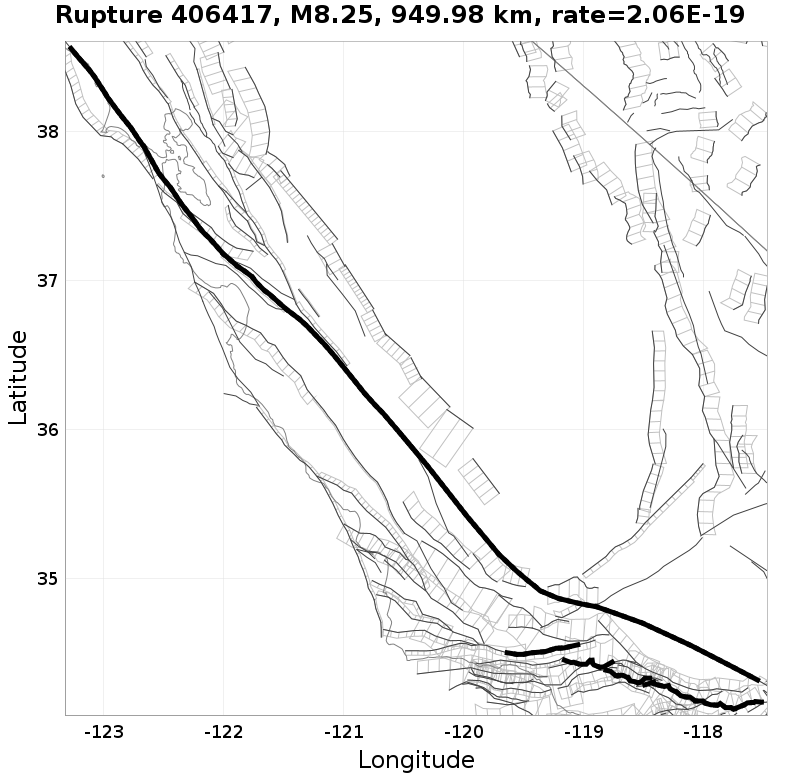

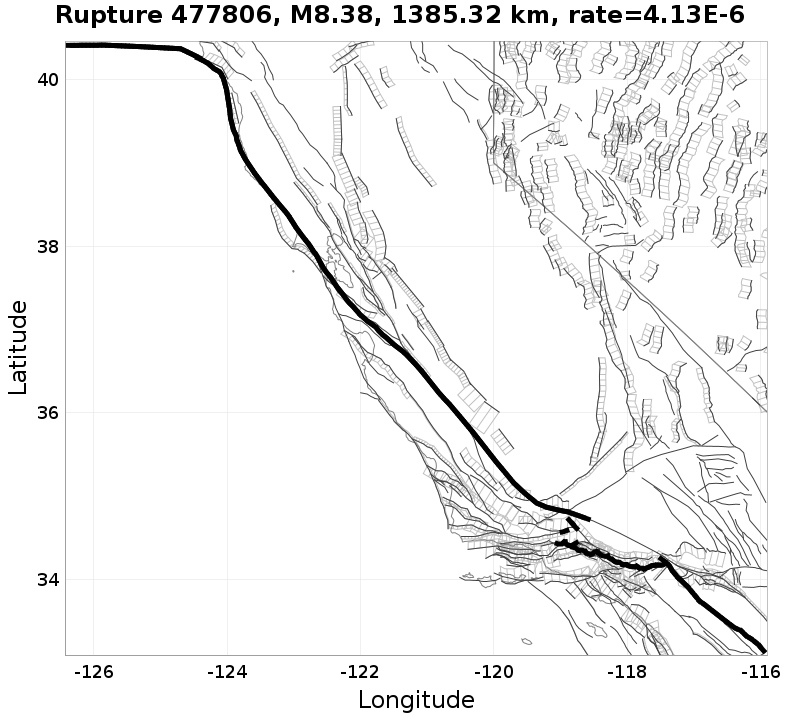

Rupture 135965Rupture 406417Rupture 477806

Connectivity

(top)

Map

Nearby Sections

(top)

Fault SectionFault Section
Santa Ynez (west), 0.04 km awayMid Channel, 8.21 km away
San Cayetano, 0.08 km awayPitas Point (upper), 8.6 km away
Pitas Point (lower, Montalvo), 0.22 km awayChannel Islands (ramp), 9.58 km away
Red Mountain, 0.87 km awayNorth Channel, 10.94 km away
Pine Mountain, 1.47 km awaySisar, 11.27 km away
Pitas Point, 4.87 km awayPitas Point (lower, west), 11.75 km away
Mission Ridge - Arroyo Parida - Santa Ana, 5.5 km awaySan Gabriel, 11.78 km away
Ozena, 7.4 km awaySanta Susana, 11.92 km away

Santa Ynez (west), 0.04 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.04 km
Min Rate-Weighted Dist0.04 km
Co-rupture Count8,389
Co-rupture Rate2.2224625E-4
Co-rupture Mag Range[6.56, 8.35]

San Cayetano, 0.08 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.08 km
Min Rate-Weighted Dist0.15 km
Co-rupture Count4,028
Co-rupture Rate2.2789698E-4
Co-rupture Mag Range[6.95, 8.38]

Pitas Point (lower, Montalvo), 0.22 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.22 km
Min Rate-Weighted Dist0.22 km
Co-rupture Count4,633
Co-rupture Rate4.5924597E-5
Co-rupture Mag Range[7.06, 8.22]

Red Mountain, 0.87 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.87 km
Min Rate-Weighted Dist0.94 km
Co-rupture Count1,935
Co-rupture Rate5.4198837E-5
Co-rupture Mag Range[6.79, 8.25]

Pine Mountain, 1.47 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.47 km
Min Rate-Weighted Dist1.5 km
Co-rupture Count303
Co-rupture Rate1.3947263E-6
Co-rupture Mag Range[7.07, 8.03]

Pitas Point, 4.87 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count175
Co-rupture Rate1.7103726E-5
Co-rupture Mag Range[7.30, 8.16]

Mission Ridge - Arroyo Parida - Santa Ana, 5.5 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist5.5 km
Min Rate-Weighted Dist5.79 km
Co-rupture Count1,727
Co-rupture Rate5.634551E-5
Co-rupture Mag Range[6.51, 8.24]

Ozena, 7.4 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count43
Co-rupture Rate3.000504E-8
Co-rupture Mag Range[7.53, 7.97]

Mid Channel, 8.21 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count137
Co-rupture Rate7.478205E-6
Co-rupture Mag Range[7.03, 7.84]

Pitas Point (upper), 8.6 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist8.6 km
Min Rate-Weighted Dist8.6 km
Co-rupture Count1,768
Co-rupture Rate1.7129914E-5
Co-rupture Mag Range[6.65, 8.14]

Channel Islands (ramp), 9.58 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count345
Co-rupture Rate3.1371445E-7
Co-rupture Mag Range[7.27, 8.19]

North Channel, 10.94 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count3,692
Co-rupture Rate3.640254E-5
Co-rupture Mag Range[6.62, 8.19]

Sisar, 11.27 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist11.27 km
Min Rate-Weighted Dist11.27 km
Co-rupture Count521
Co-rupture Rate1.6151204E-6
Co-rupture Mag Range[6.94, 8.15]

Pitas Point (lower, west), 11.75 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count1,651
Co-rupture Rate2.9119989E-5
Co-rupture Mag Range[7.31, 8.22]

San Gabriel, 11.78 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist11.78 km
Min Rate-Weighted Dist11.78 km
Co-rupture Count3,703
Co-rupture Rate1.8663832E-5
Co-rupture Mag Range[6.77, 8.38]

Santa Susana, 11.92 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count2,989
Co-rupture Rate8.2244595E-5
Co-rupture Mag Range[7.49, 8.38]
