Concord Logic Tree Hazard Curves
Table Of Contents
- Concord, PGA
- Concord, PGA, Hazard Value Distributions
- Concord, PGA, Deformation Model Hazard
- Concord, PGA, Scaling Relationship Hazard
- Concord, PGA, Supra-Seismogenic b-value Hazard
- Concord, PGA, Paleoseismic Data Uncertainties Hazard
- Concord, PGA, Segmentation Model Hazard
- Concord, PGA, Regional Seismicity Rate Hazard
- Concord, PGA, Seismicity Declustering Algorithm Hazard
- Concord, PGA, Seismicity Smoothing Kernel Hazard
- Concord, PGA, Off Fault Mmax Hazard
- Concord, 1.0s SA
- Concord, 1.0s SA, Hazard Value Distributions
- Concord, 1.0s SA, Deformation Model Hazard
- Concord, 1.0s SA, Scaling Relationship Hazard
- Concord, 1.0s SA, Supra-Seismogenic b-value Hazard
- Concord, 1.0s SA, Paleoseismic Data Uncertainties Hazard
- Concord, 1.0s SA, Segmentation Model Hazard
- Concord, 1.0s SA, Regional Seismicity Rate Hazard
- Concord, 1.0s SA, Seismicity Declustering Algorithm Hazard
- Concord, 1.0s SA, Seismicity Smoothing Kernel Hazard
- Concord, 1.0s SA, Off Fault Mmax Hazard
Concord, PGA
| Primary | Comparison |
|---|---|
 |  |
Concord, PGA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
Comparison Distribution, 2% in 50 year | Comparison Distribution, 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Primary | 0.8996431 (g) | 0.5011899 (g) |
| Comparison | 1.2579474 (g) | 0.65581506 (g) |

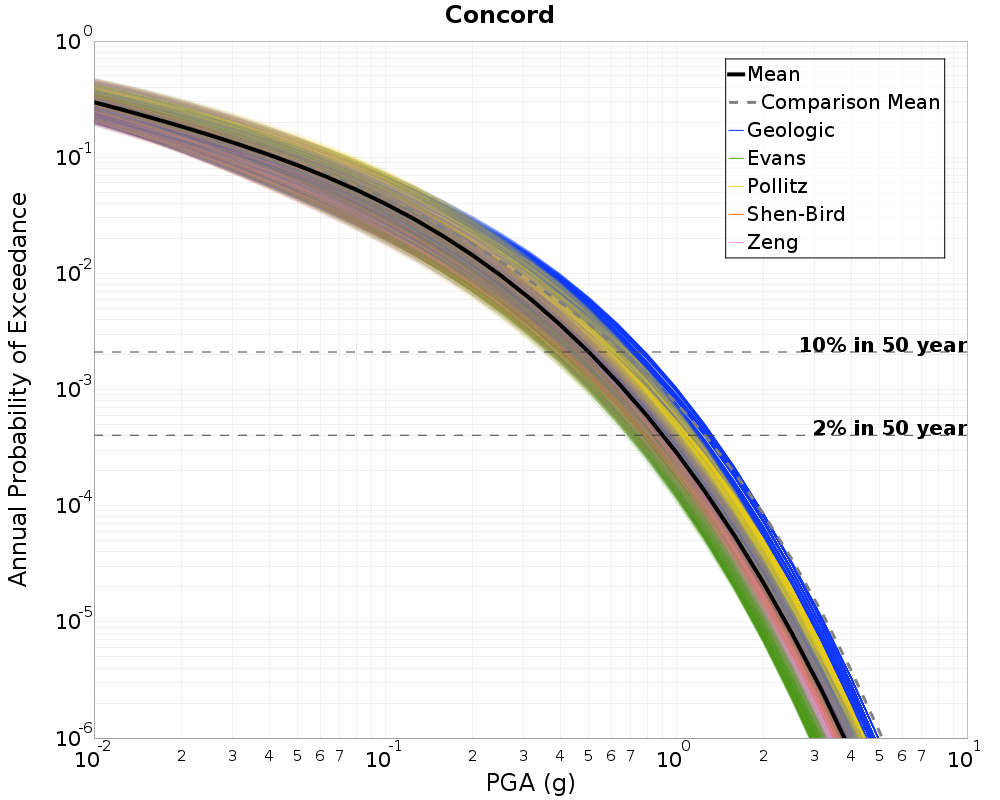

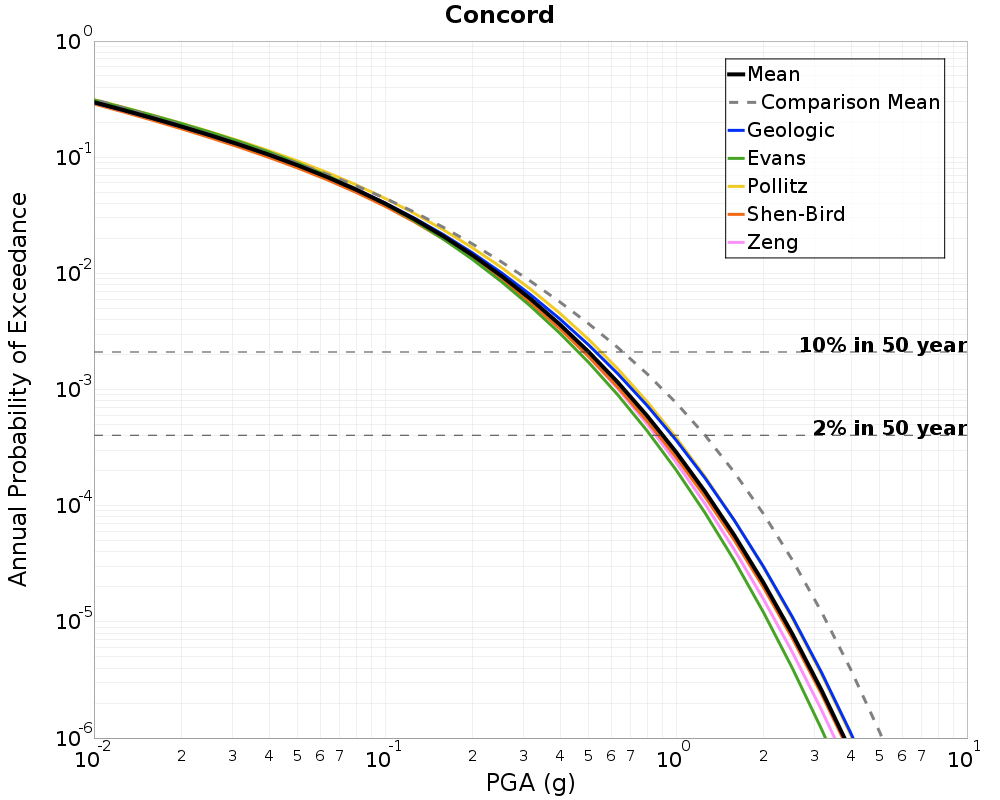

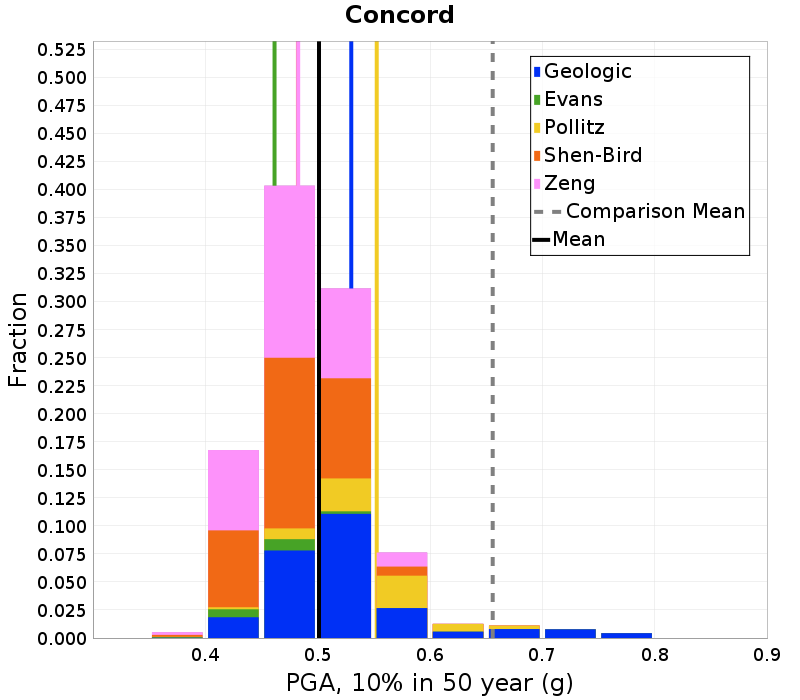

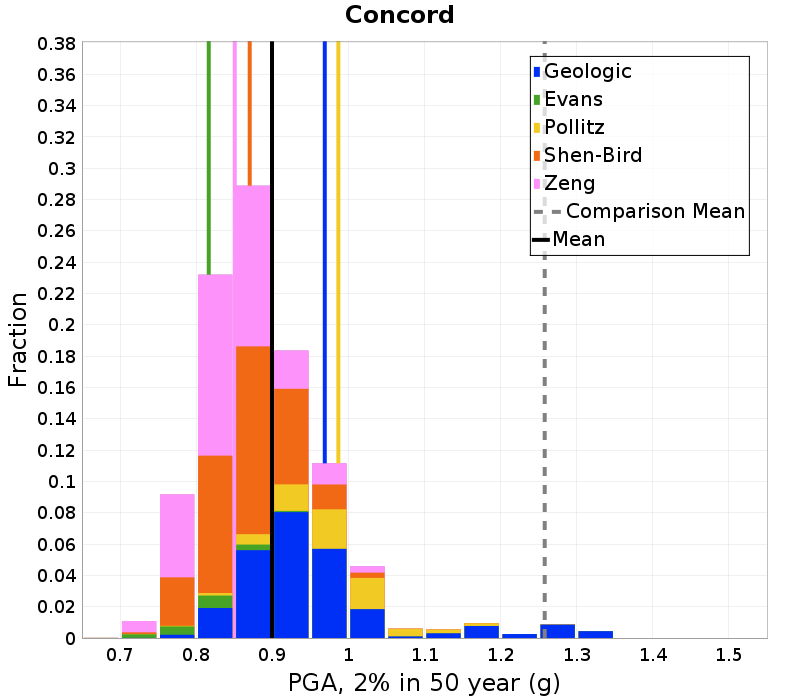

Concord, PGA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8996431 (g) | 0.5011899 (g) |
| Geologic | 0.9689781 (g) | 0.529913 (g) |
| Evans | 0.81653345 (g) | 0.4616093 (g) |
| Pollitz | 0.9868253 (g) | 0.5525751 (g) |
| Shen-Bird | 0.87035453 (g) | 0.48244768 (g) |
| Zeng | 0.8507028 (g) | 0.482653 (g) |

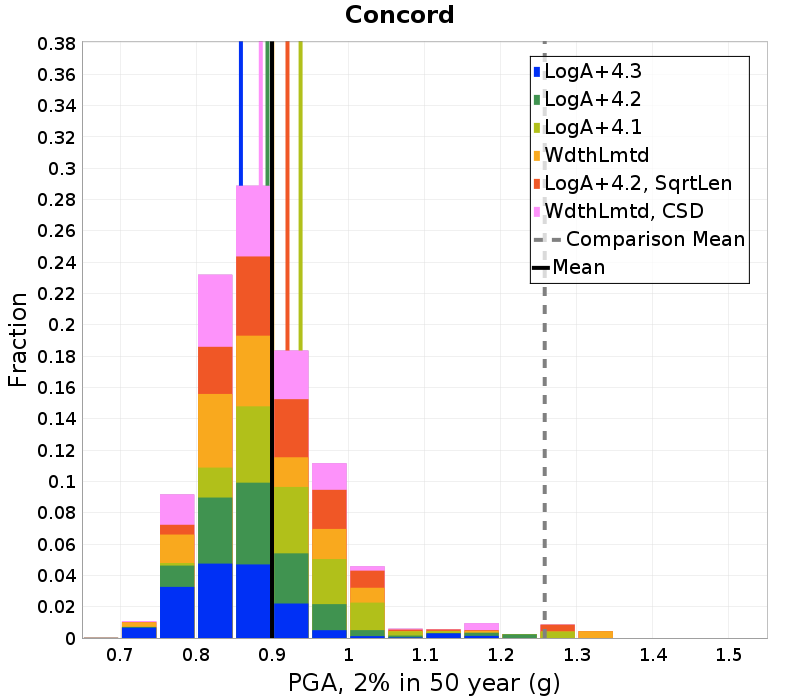

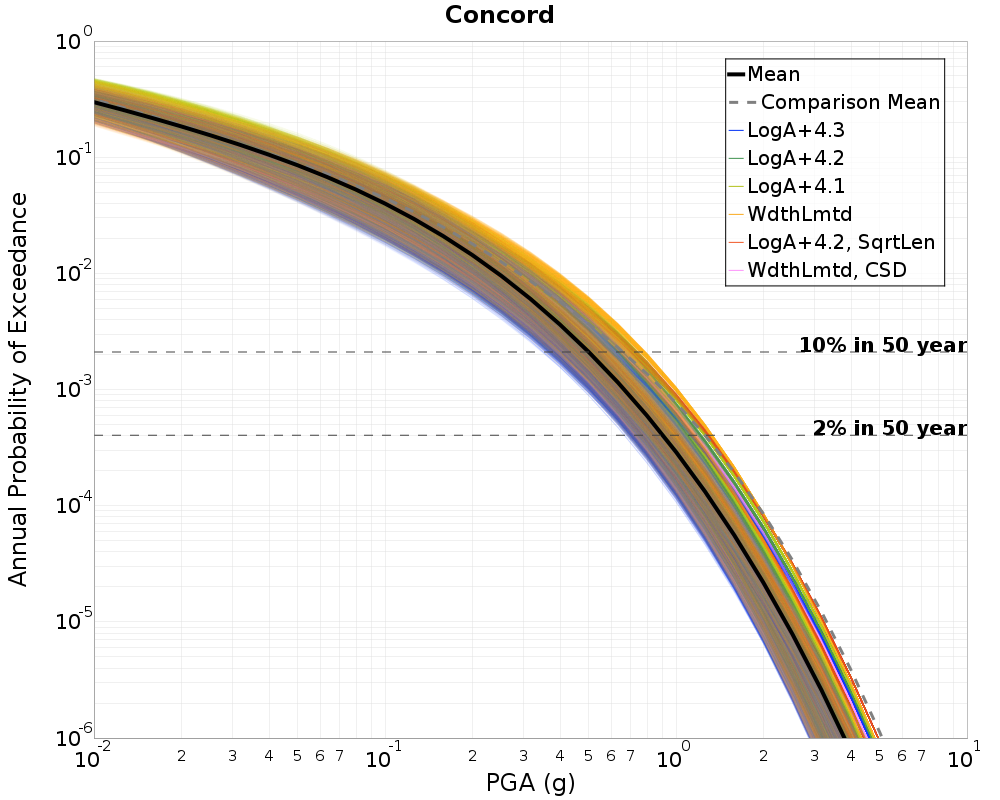

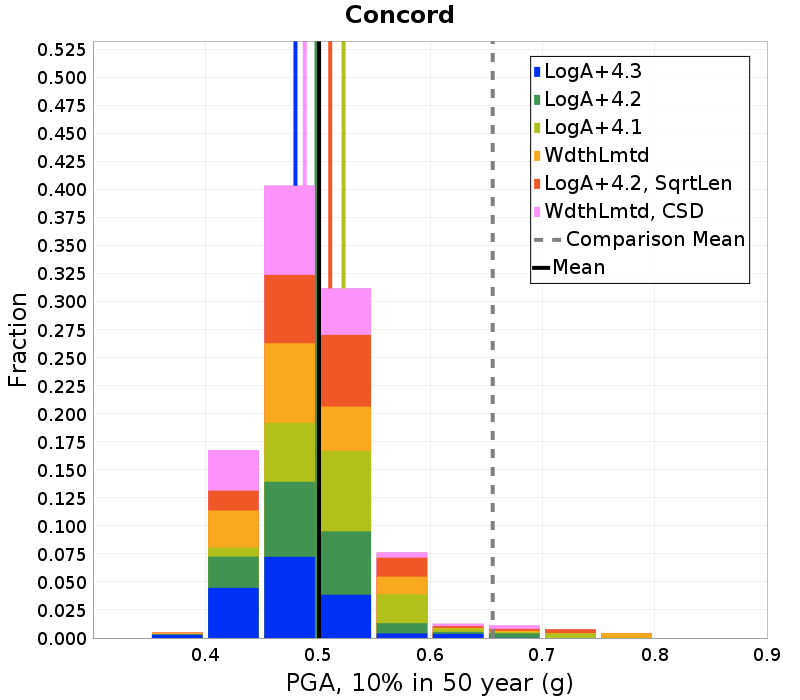

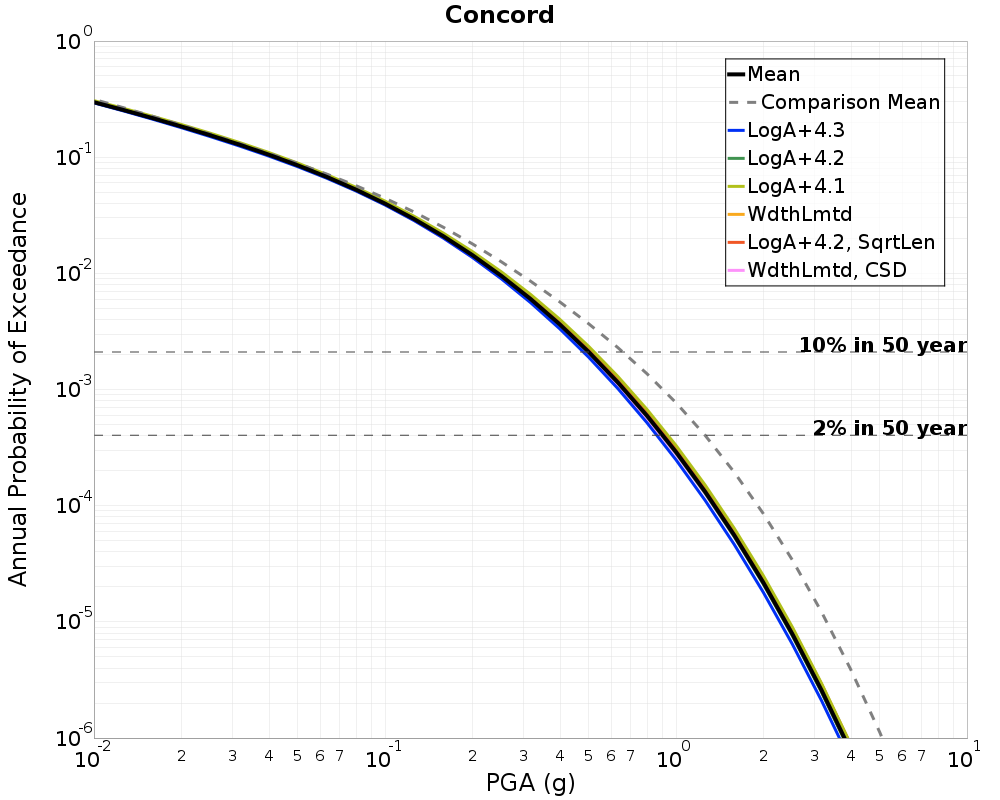

Concord, PGA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8996431 (g) | 0.5011899 (g) |
| LogA+4.3 | 0.85879844 (g) | 0.48023626 (g) |
| LogA+4.2 | 0.89374053 (g) | 0.49897733 (g) |
| LogA+4.1 | 0.93718946 (g) | 0.52304417 (g) |
| WdthLmtd | 0.90006995 (g) | 0.5013918 (g) |
| LogA+4.2, SqrtLen | 0.9199866 (g) | 0.5111646 (g) |
| WdthLmtd, CSD | 0.8848943 (g) | 0.48850945 (g) |

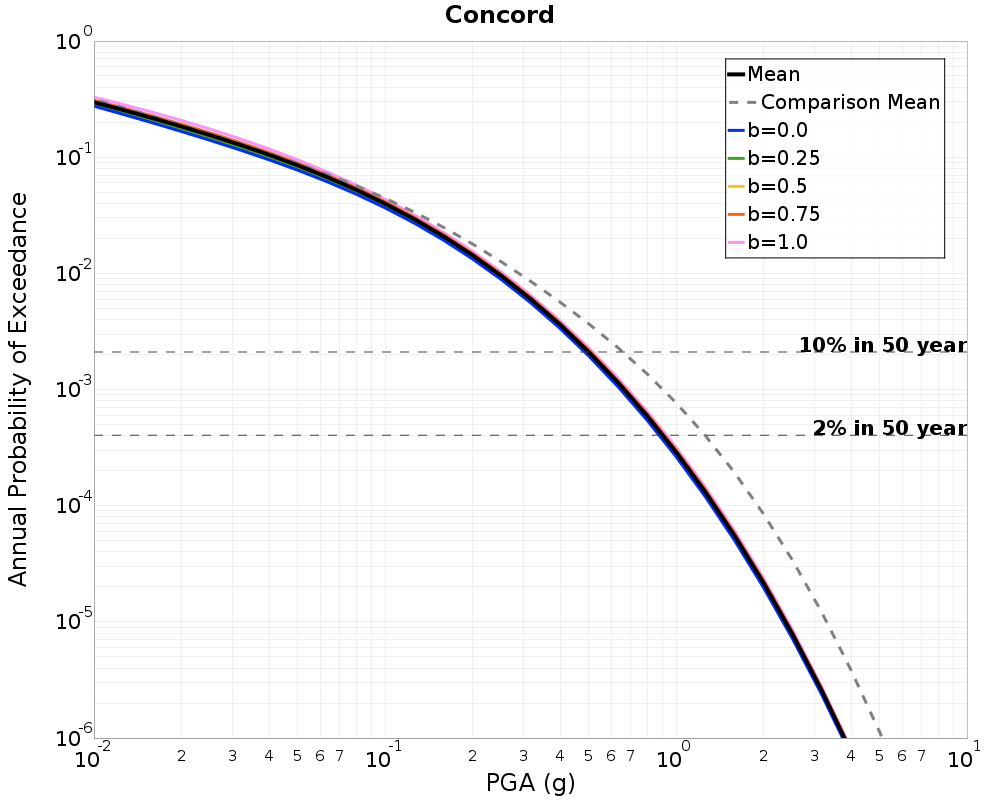

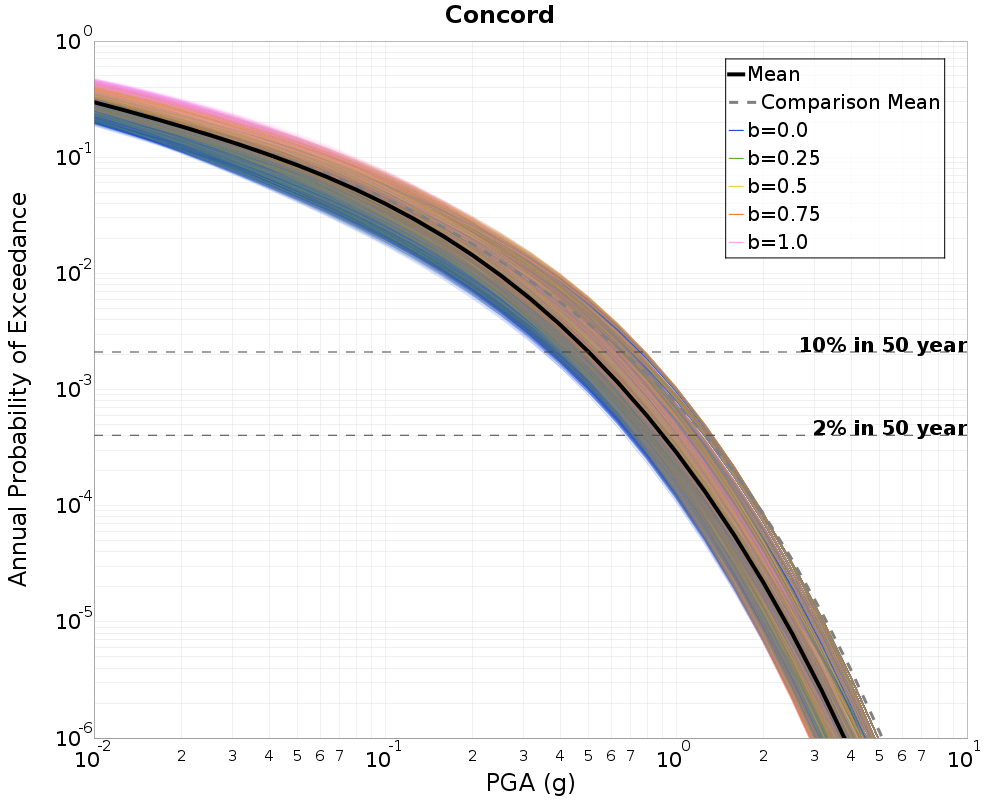

Concord, PGA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8996431 (g) | 0.5011899 (g) |
| b=0.0 | 0.8744975 (g) | 0.48498082 (g) |
| b=0.25 | 0.88514596 (g) | 0.49188673 (g) |
| b=0.5 | 0.898481 (g) | 0.50060254 (g) |
| b=0.75 | 0.91215706 (g) | 0.5085169 (g) |
| b=1.0 | 0.92624754 (g) | 0.51700914 (g) |

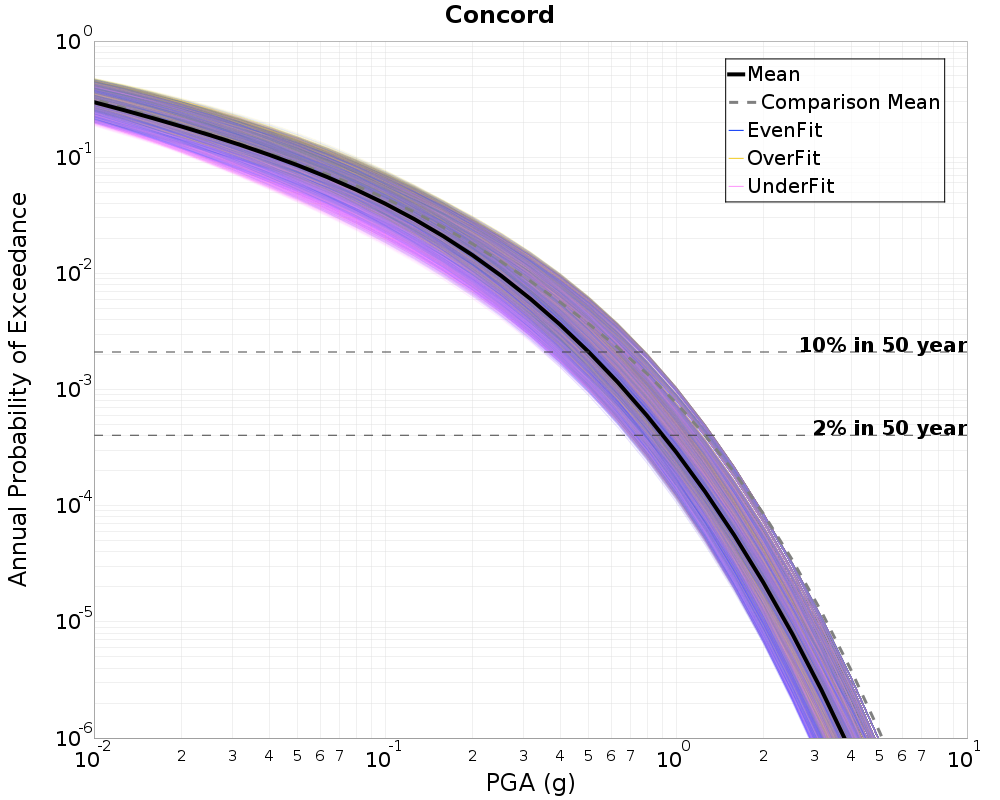

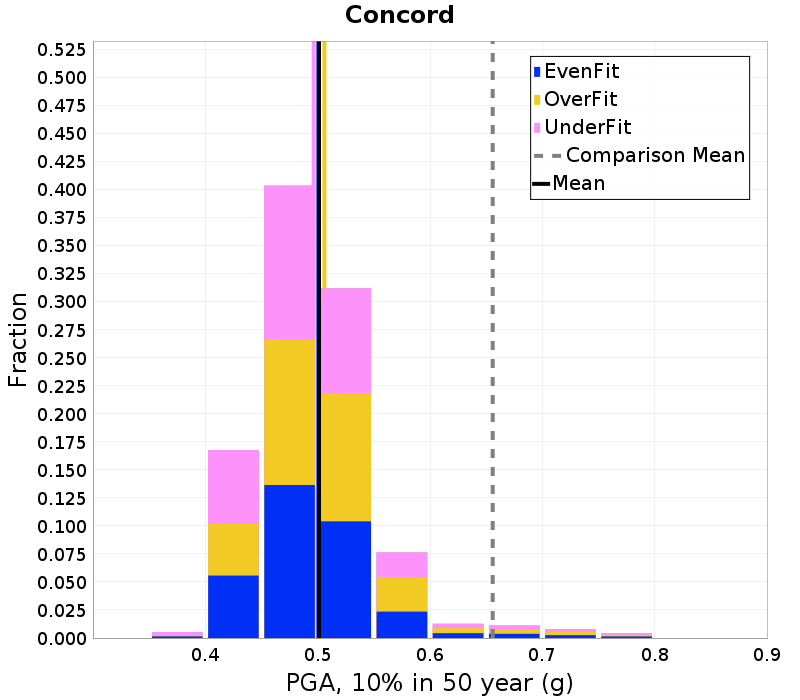

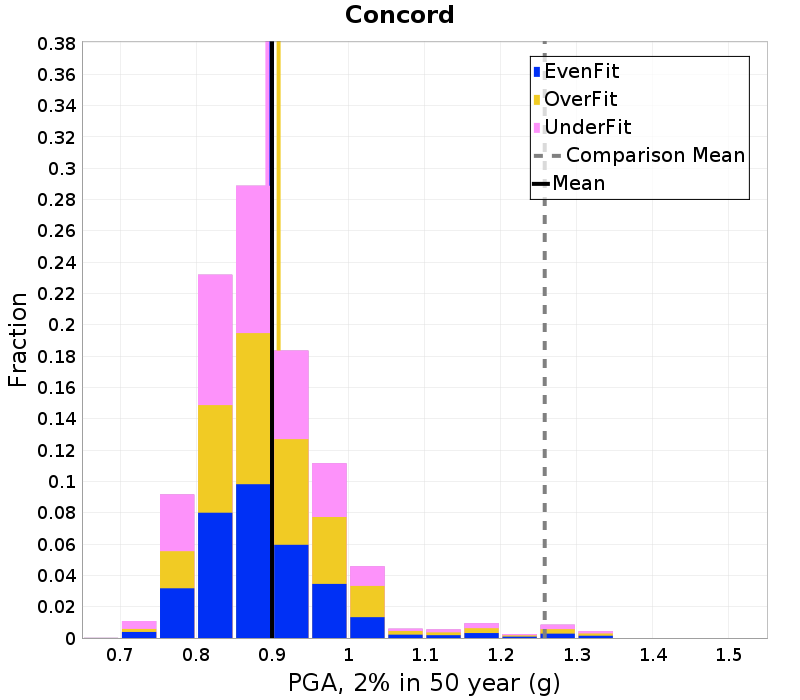

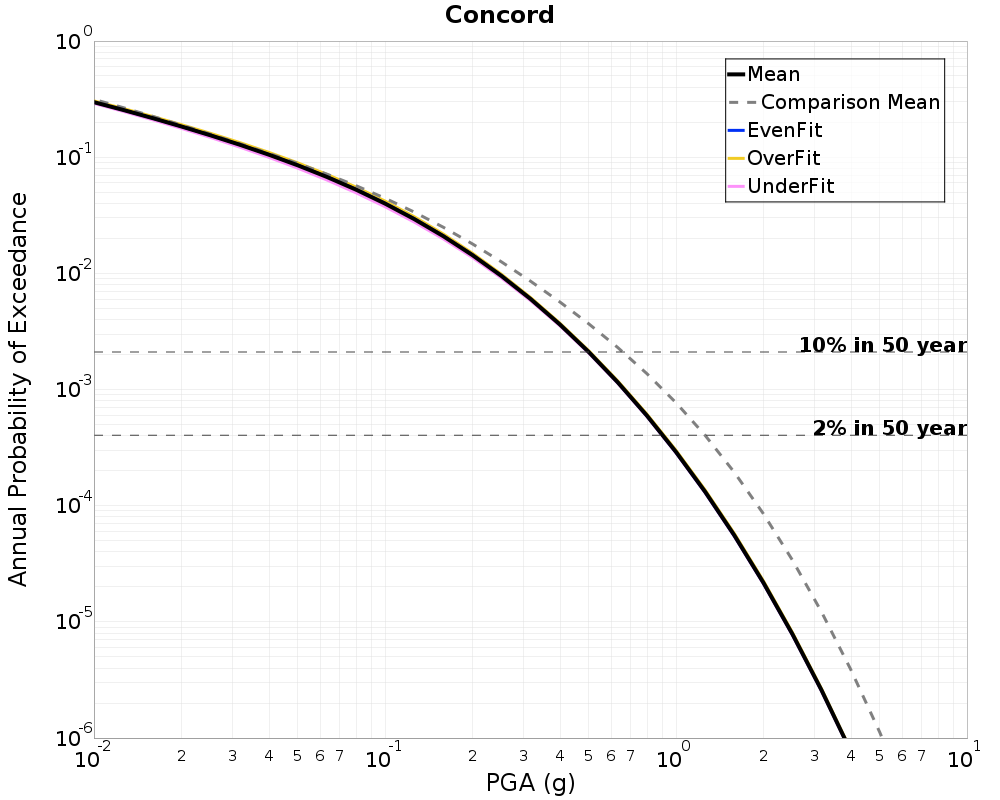

Concord, PGA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8996431 (g) | 0.5011899 (g) |
| EvenFit | 0.8969523 (g) | 0.50059164 (g) |
| OverFit | 0.9083228 (g) | 0.5060114 (g) |
| UnderFit | 0.8935625 (g) | 0.49641424 (g) |

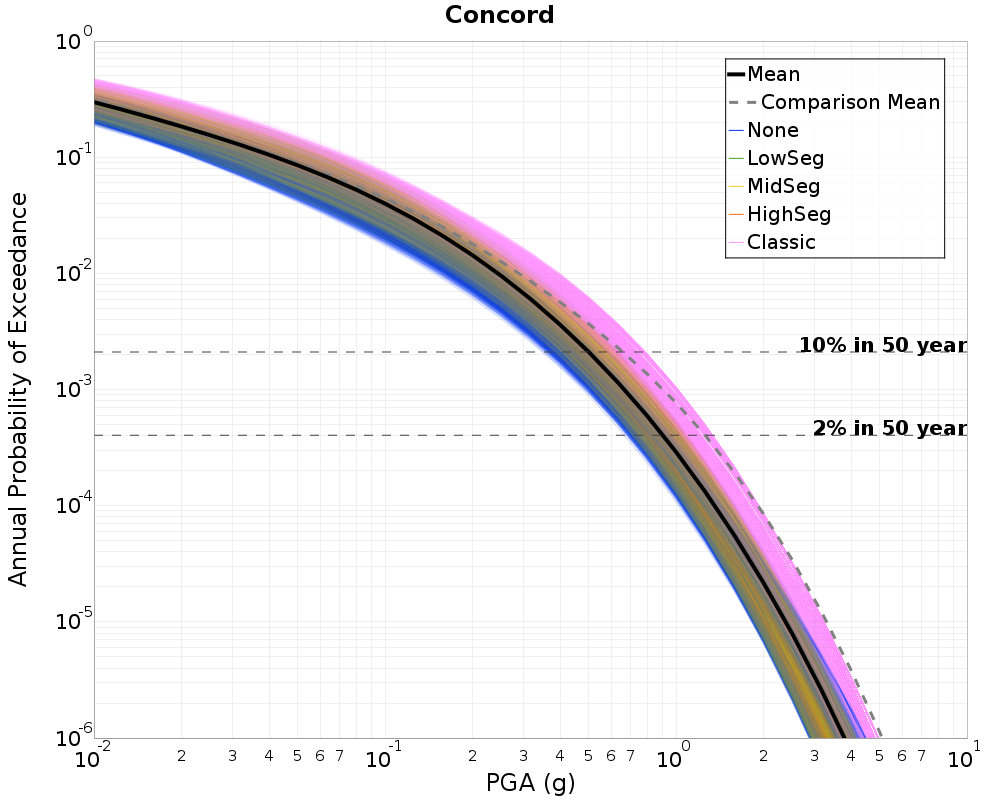

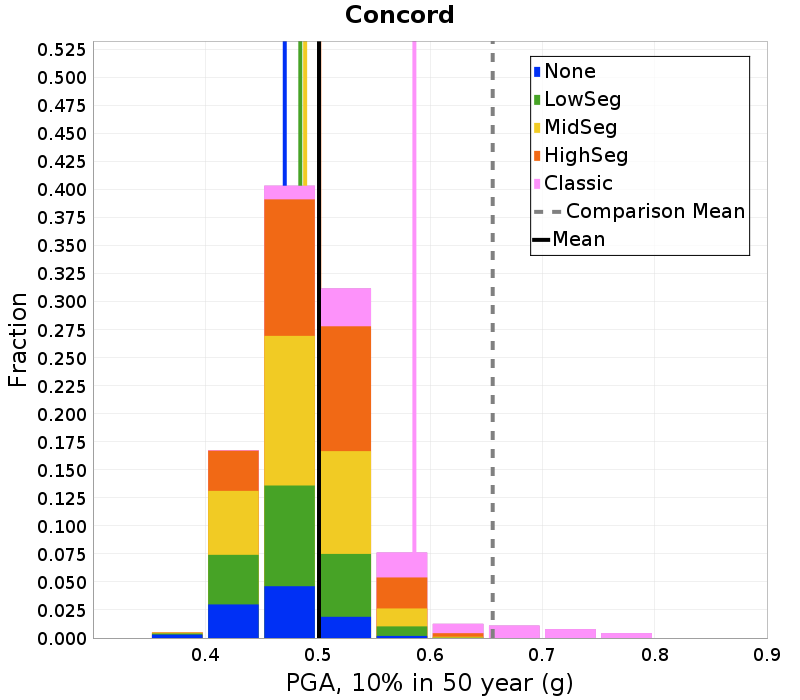

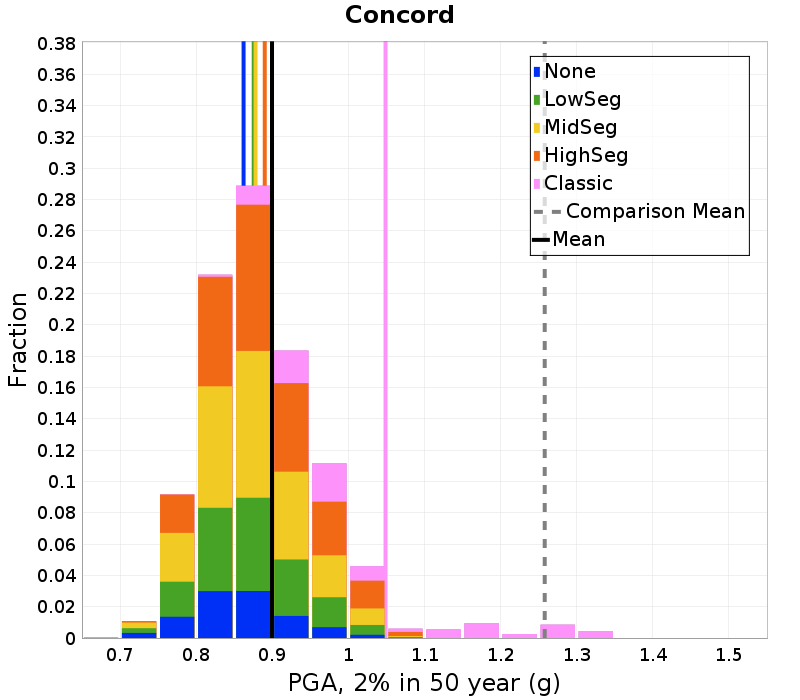

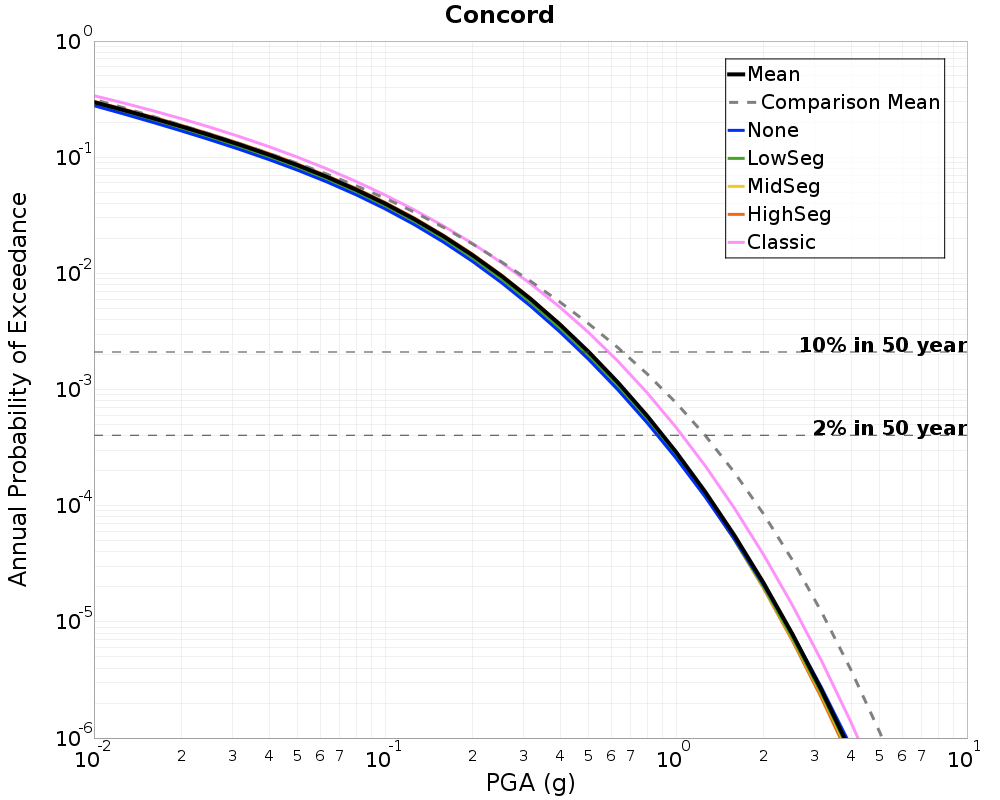

Concord, PGA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8996431 (g) | 0.5011899 (g) |
| None | 0.8622884 (g) | 0.4707127 (g) |
| LowSeg | 0.8756035 (g) | 0.4845418 (g) |
| MidSeg | 0.8780266 (g) | 0.48886827 (g) |
| HighSeg | 0.8901047 (g) | 0.50146013 (g) |
| Classic | 1.0488136 (g) | 0.58609766 (g) |

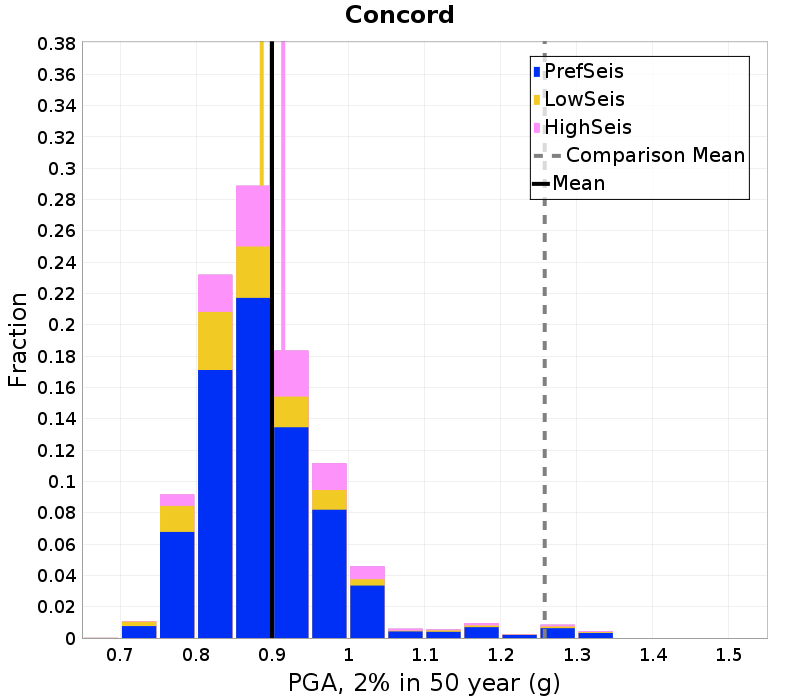

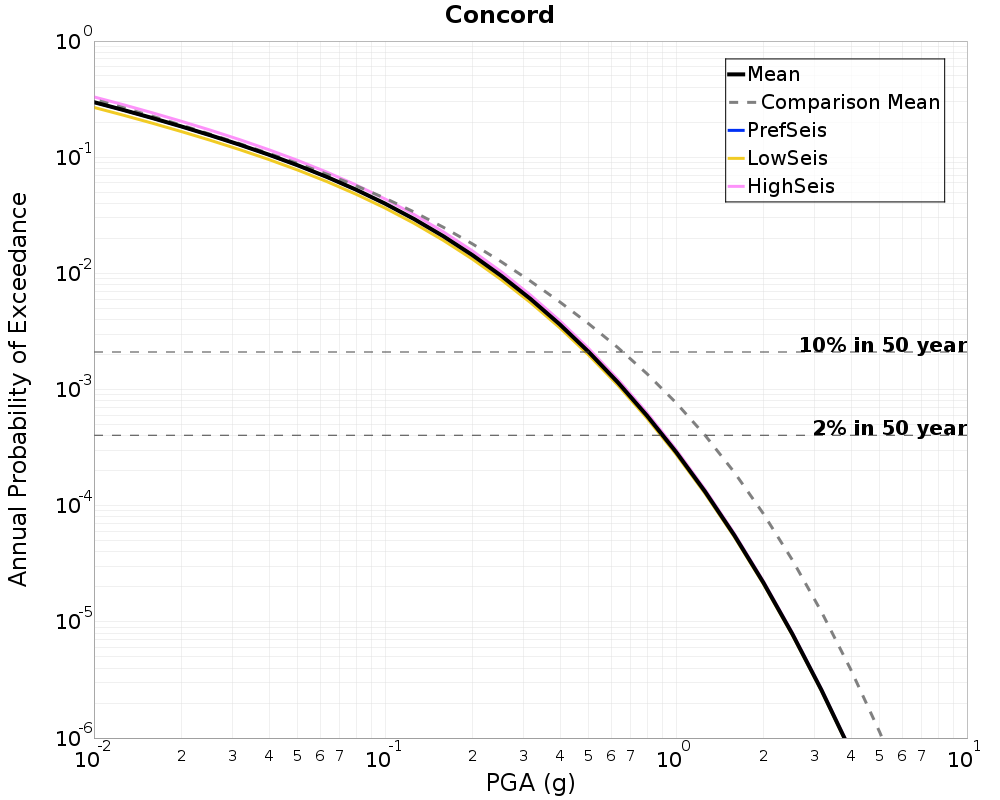

Concord, PGA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8996431 (g) | 0.5011899 (g) |
| PrefSeis | 0.8993064 (g) | 0.5008774 (g) |
| LowSeis | 0.8861563 (g) | 0.48822075 (g) |
| HighSeis | 0.9143277 (g) | 0.51394266 (g) |

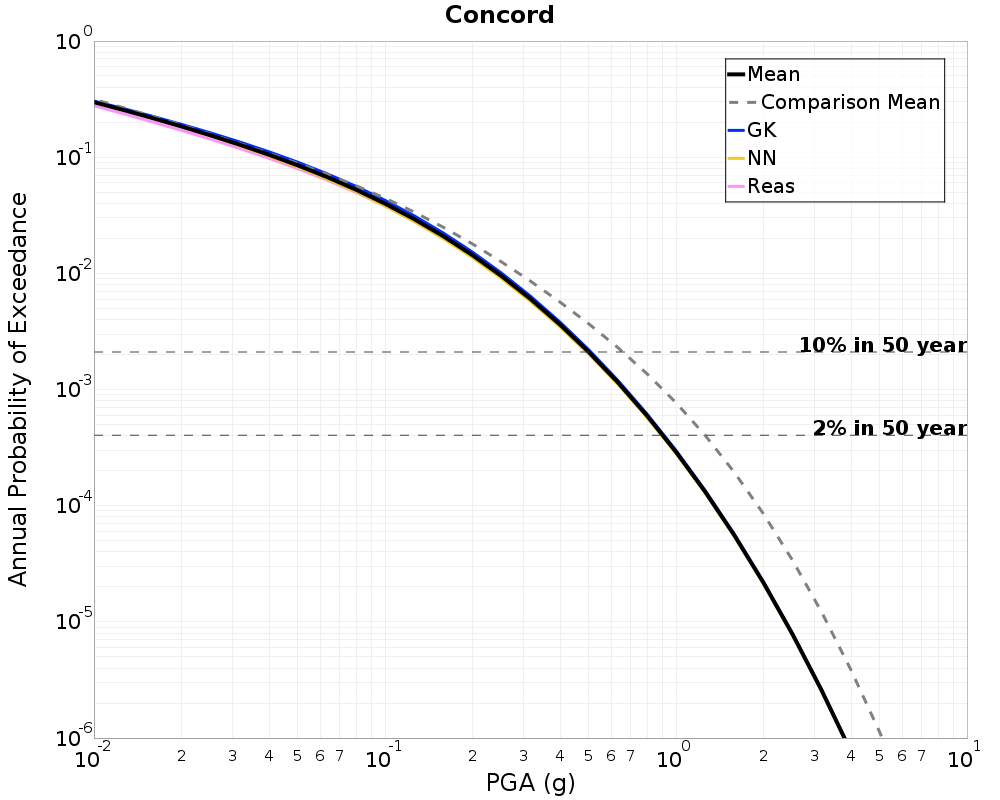

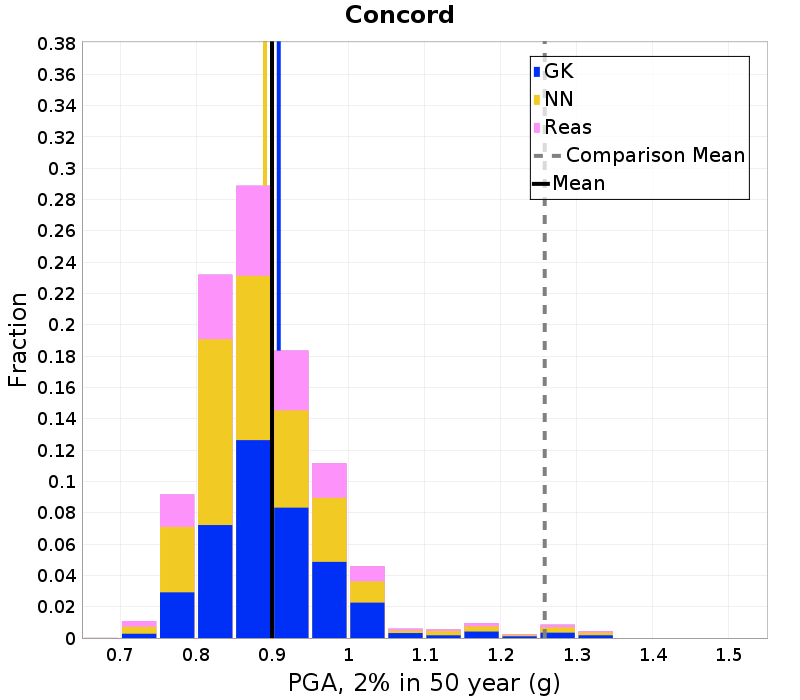

Concord, PGA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8996431 (g) | 0.5011899 (g) |
| GK | 0.9085188 (g) | 0.5095763 (g) |
| NN | 0.89041644 (g) | 0.49245578 (g) |
| Reas | 0.8997296 (g) | 0.49955782 (g) |

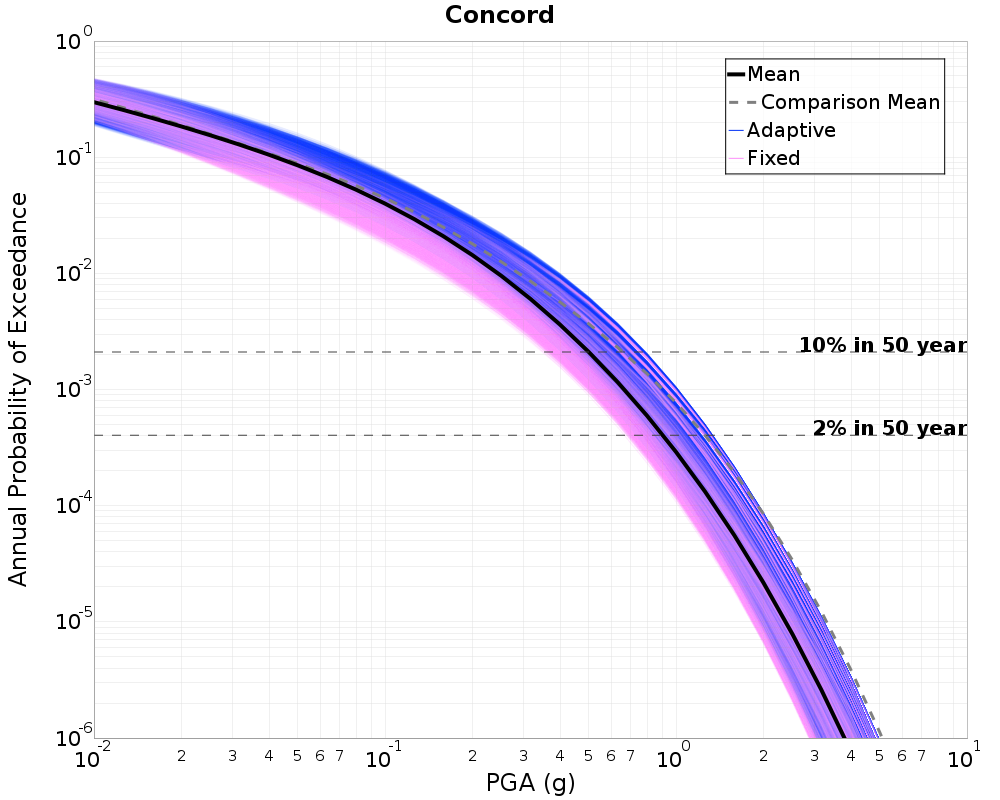

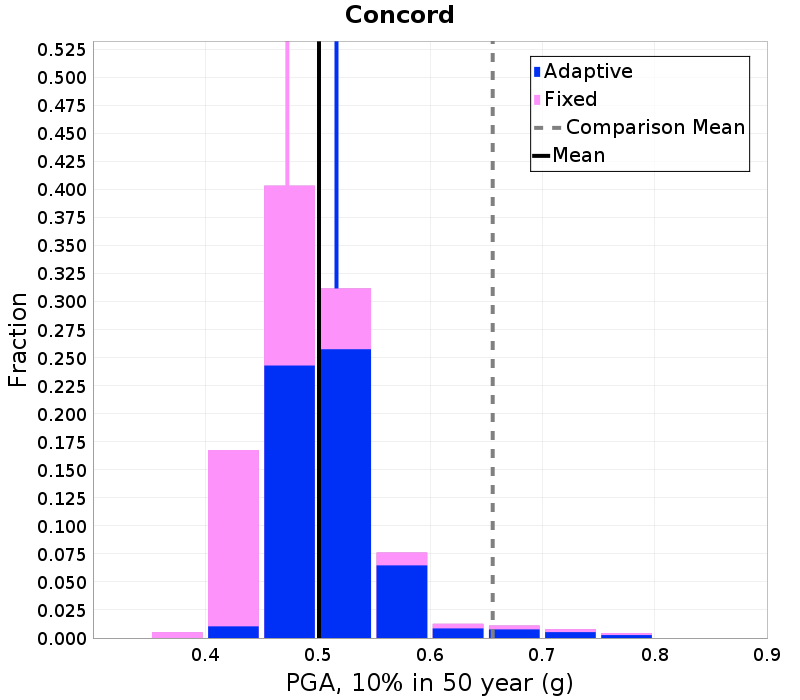

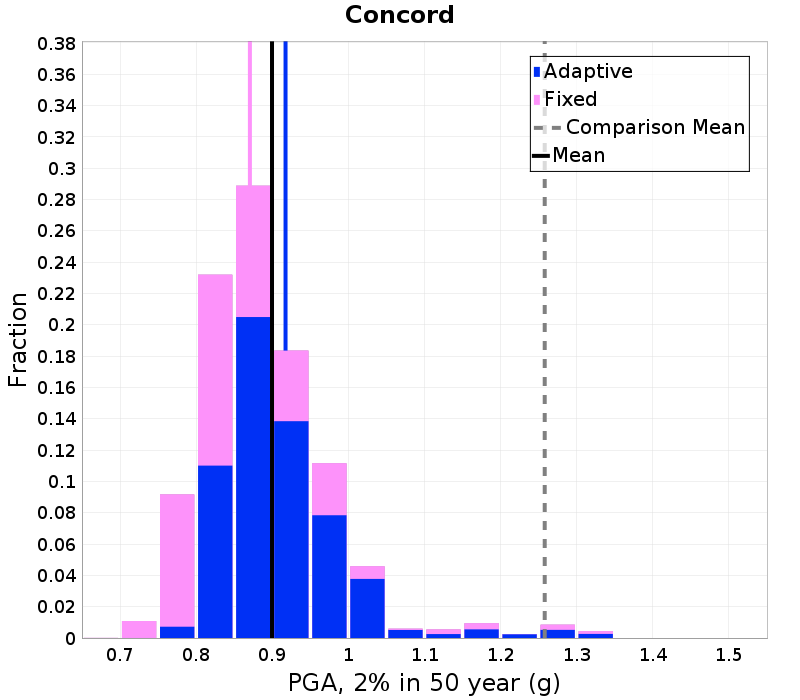

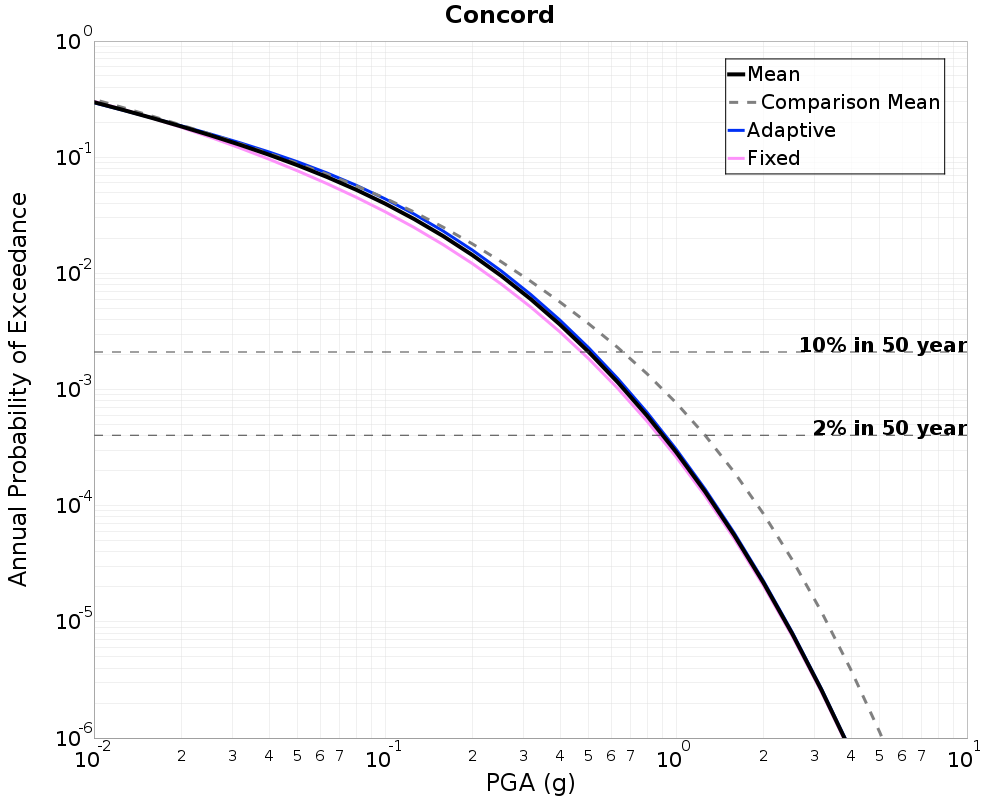

Concord, PGA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8996431 (g) | 0.5011899 (g) |
| Adaptive | 0.91742194 (g) | 0.5167547 (g) |
| Fixed | 0.8705961 (g) | 0.47301704 (g) |

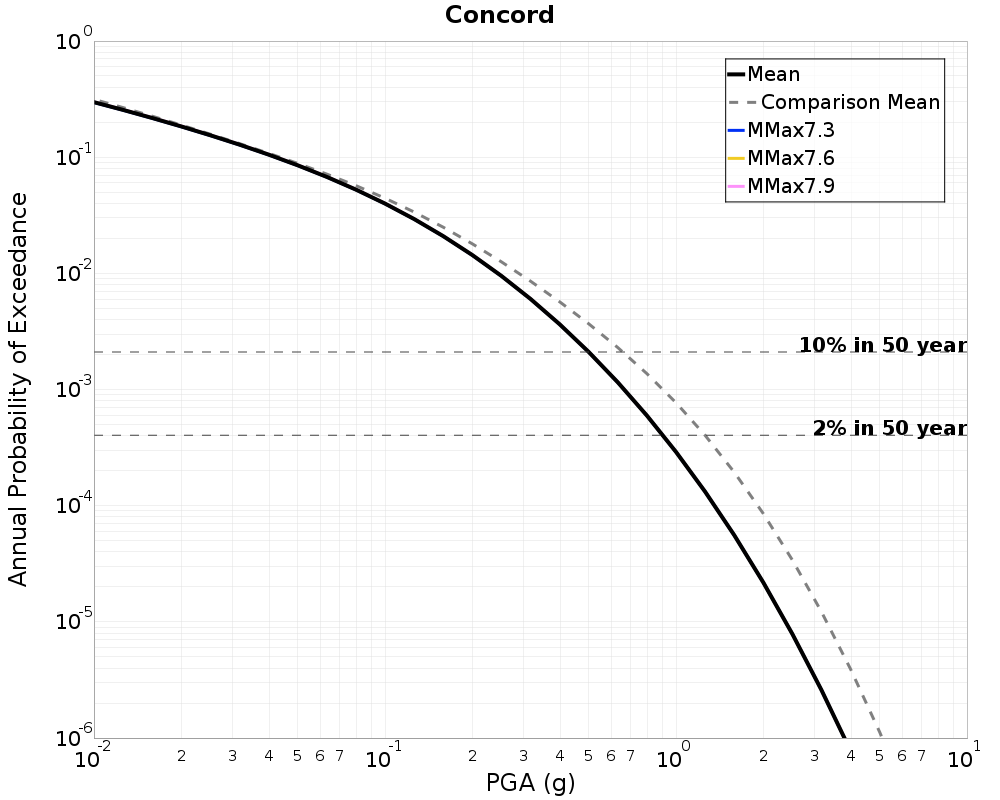

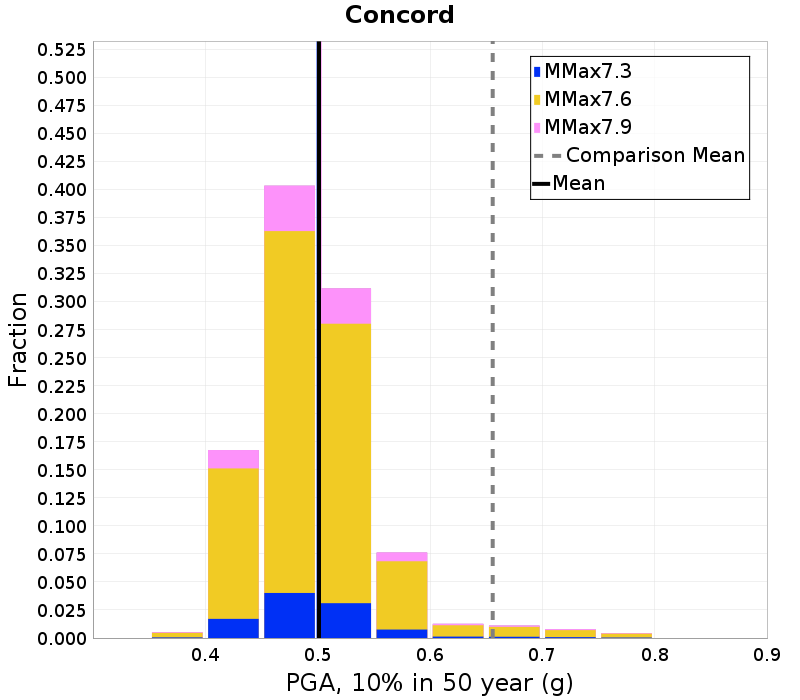

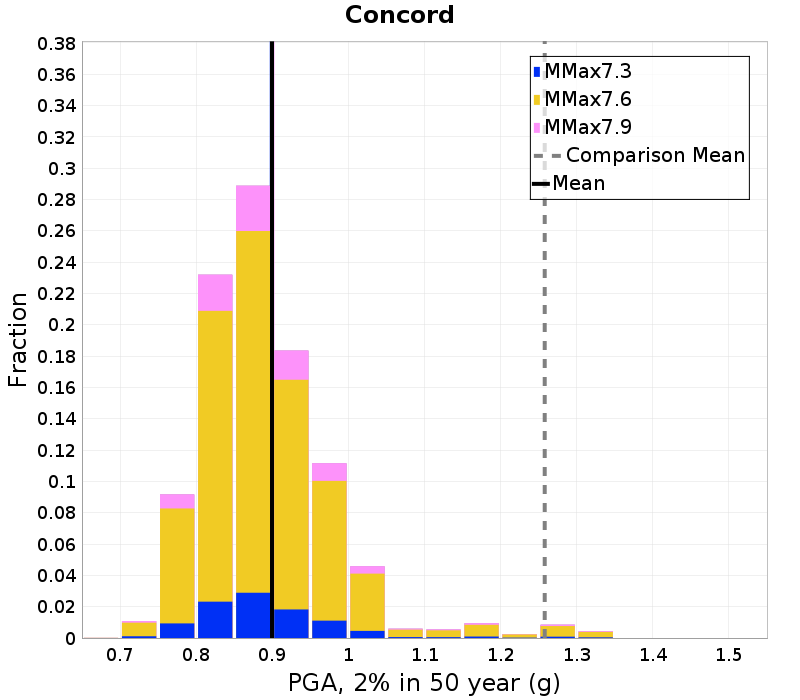

Concord, PGA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8996431 (g) | 0.5011899 (g) |
| MMax7.3 | 0.8993252 (g) | 0.5007894 (g) |
| MMax7.6 | 0.89961153 (g) | 0.50115776 (g) |
| MMax7.9 | 0.9002129 (g) | 0.50178903 (g) |
Concord, 1.0s SA
| Primary | Comparison |
|---|---|
 |  |
Concord, 1.0s SA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
Comparison Distribution, 2% in 50 year | Comparison Distribution, 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Primary | 0.5927259 (g) | 0.30978513 (g) |
| Comparison | 0.73173994 (g) | 0.3708292 (g) |

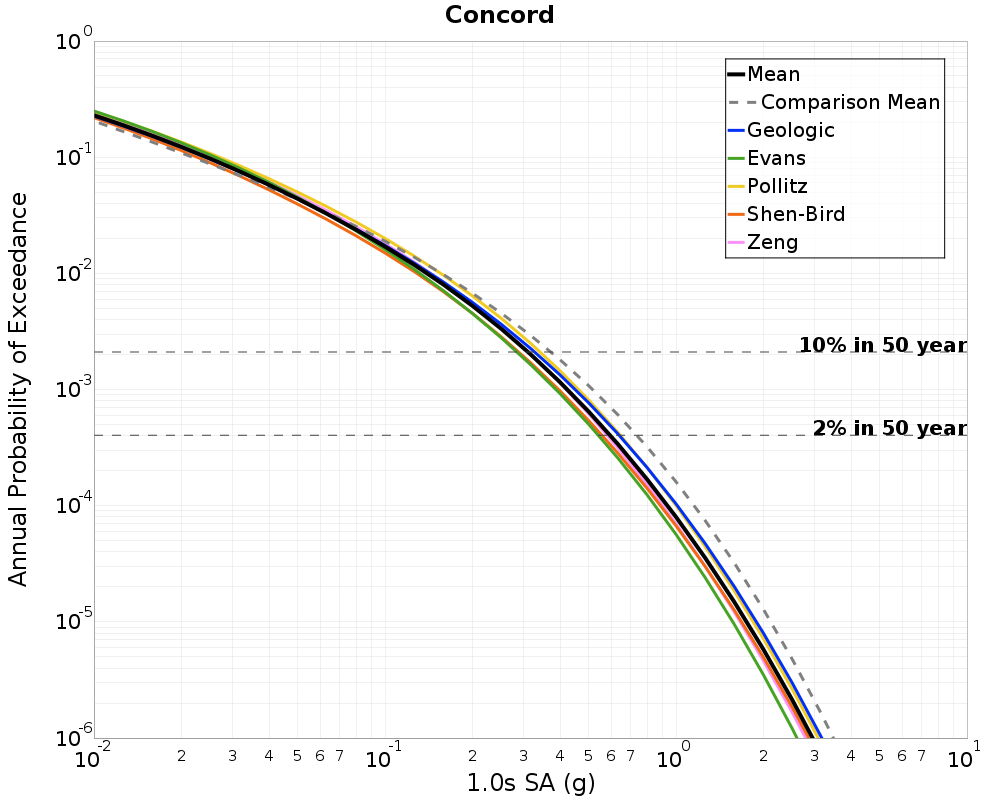

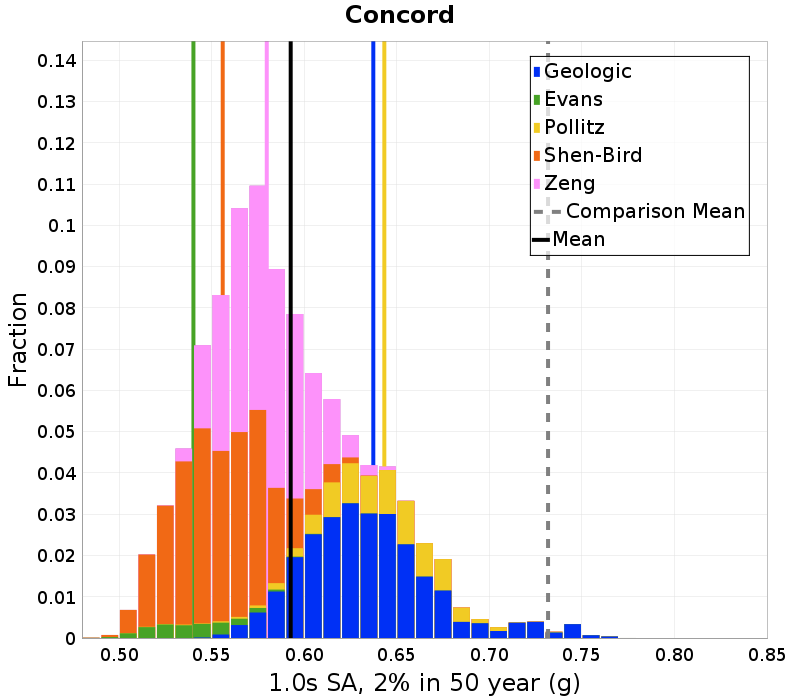

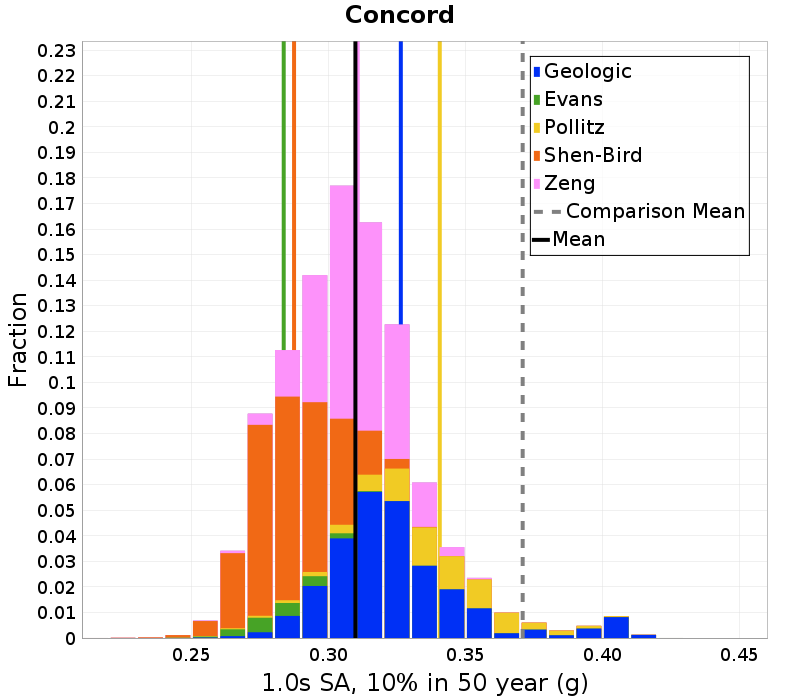

Concord, 1.0s SA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.5927259 (g) | 0.30978513 (g) |
| Geologic | 0.63735014 (g) | 0.3263611 (g) |
| Evans | 0.54018694 (g) | 0.28361744 (g) |
| Pollitz | 0.64330244 (g) | 0.3405741 (g) |
| Shen-Bird | 0.55600756 (g) | 0.28739363 (g) |
| Zeng | 0.579801 (g) | 0.31061706 (g) |

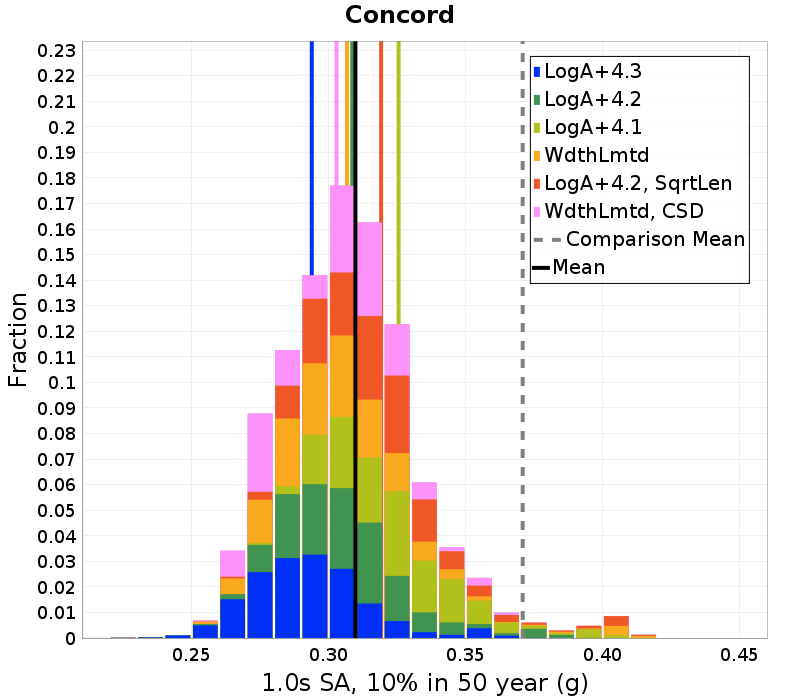

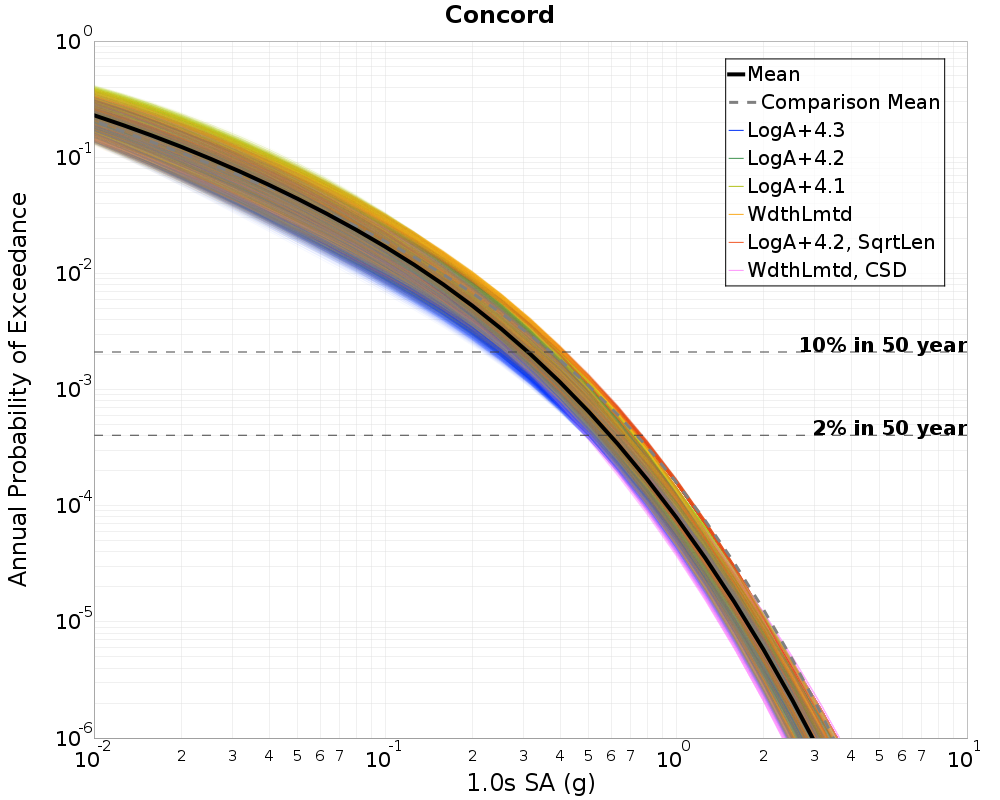

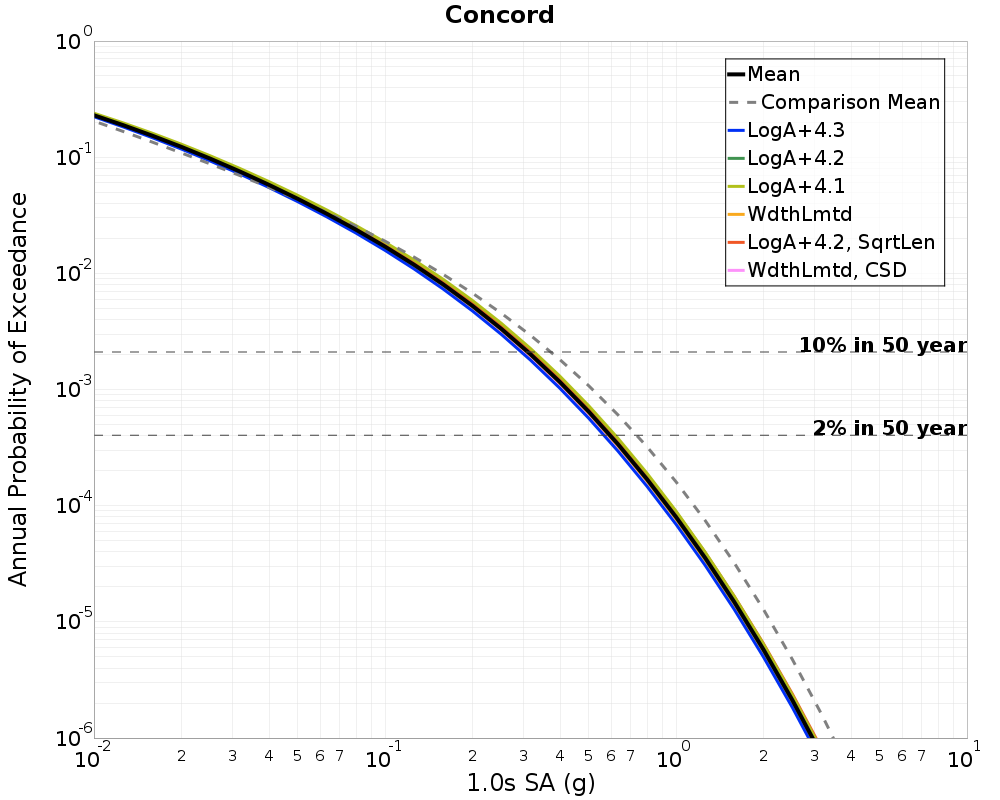

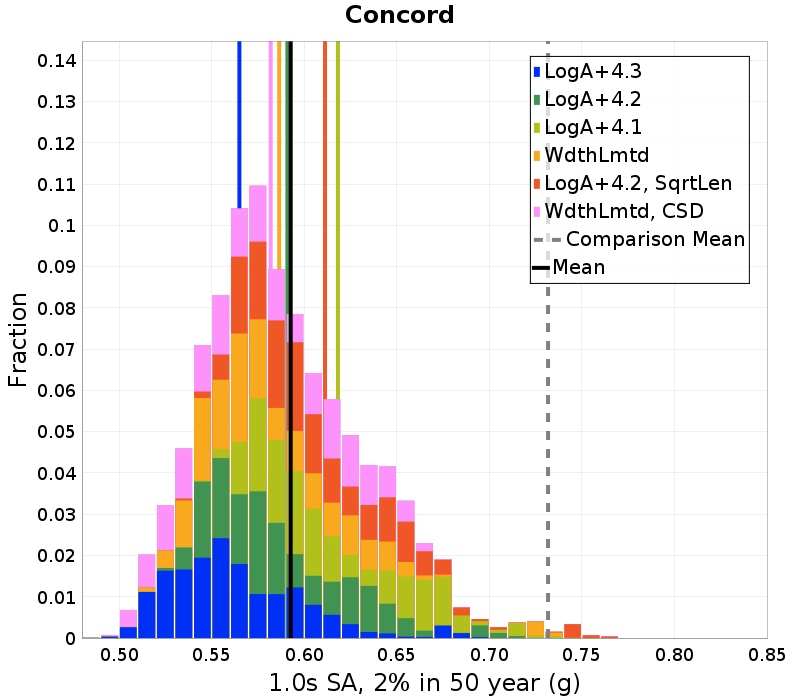

Concord, 1.0s SA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.5927259 (g) | 0.30978513 (g) |
| LogA+4.3 | 0.56501234 (g) | 0.29386055 (g) |
| LogA+4.2 | 0.5909343 (g) | 0.3086231 (g) |
| LogA+4.1 | 0.6182522 (g) | 0.32554805 (g) |
| WdthLmtd | 0.5865276 (g) | 0.306733 (g) |
| LogA+4.2, SqrtLen | 0.611273 (g) | 0.31915995 (g) |
| WdthLmtd, CSD | 0.58192056 (g) | 0.30290416 (g) |

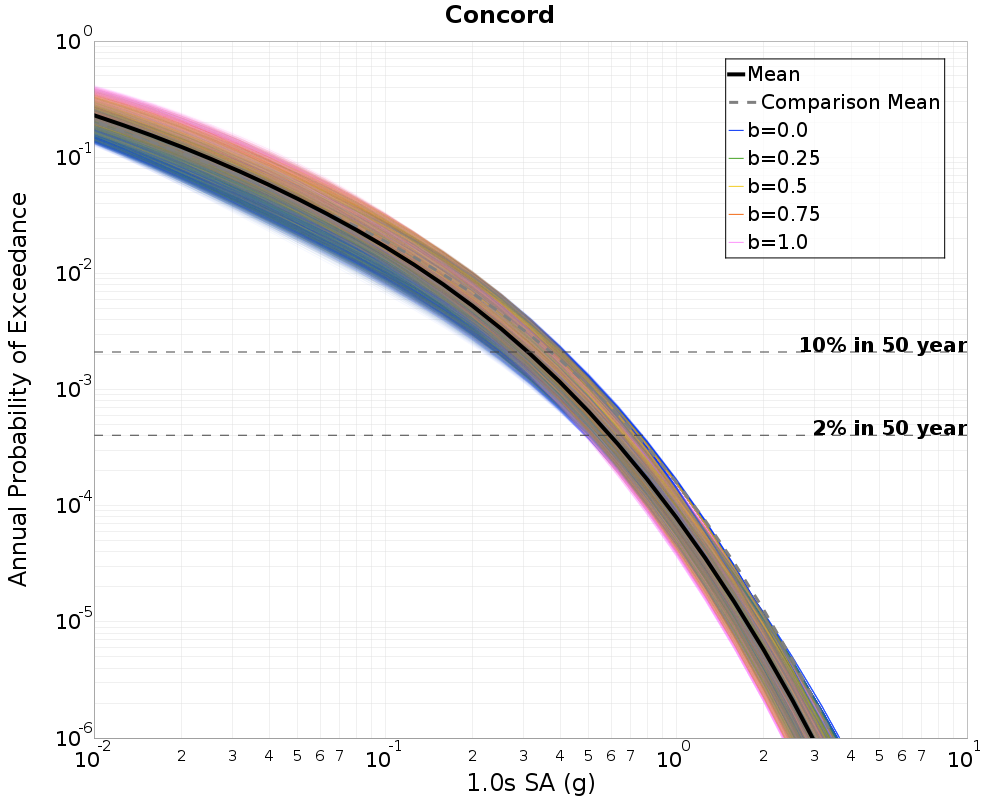

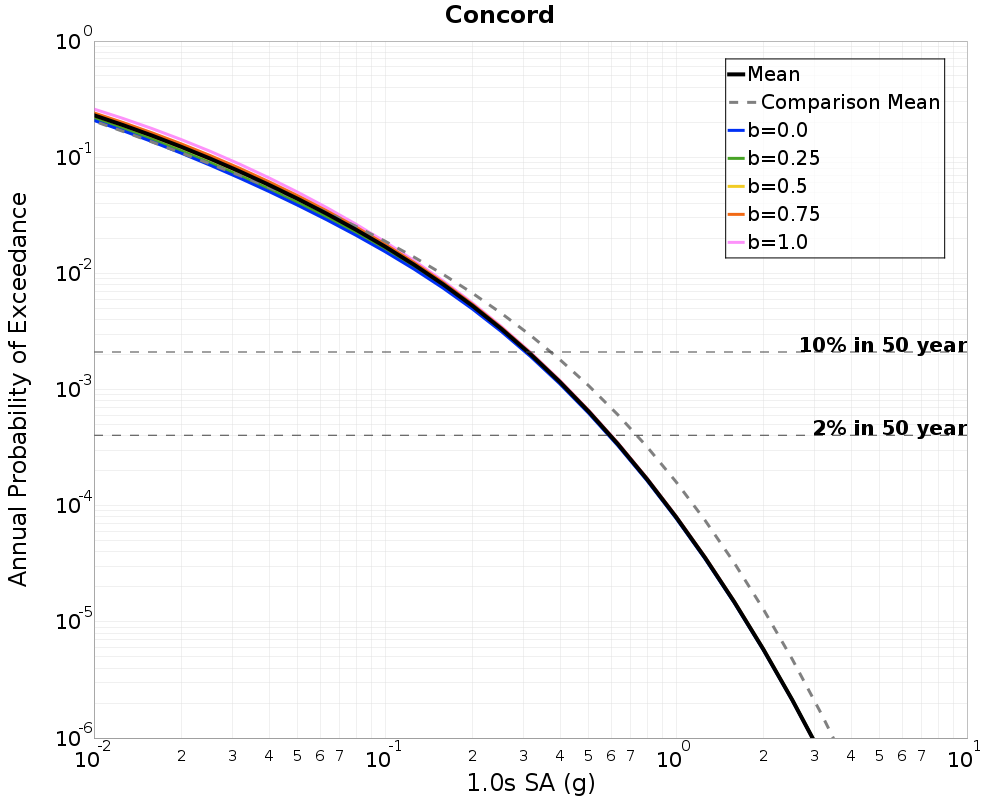

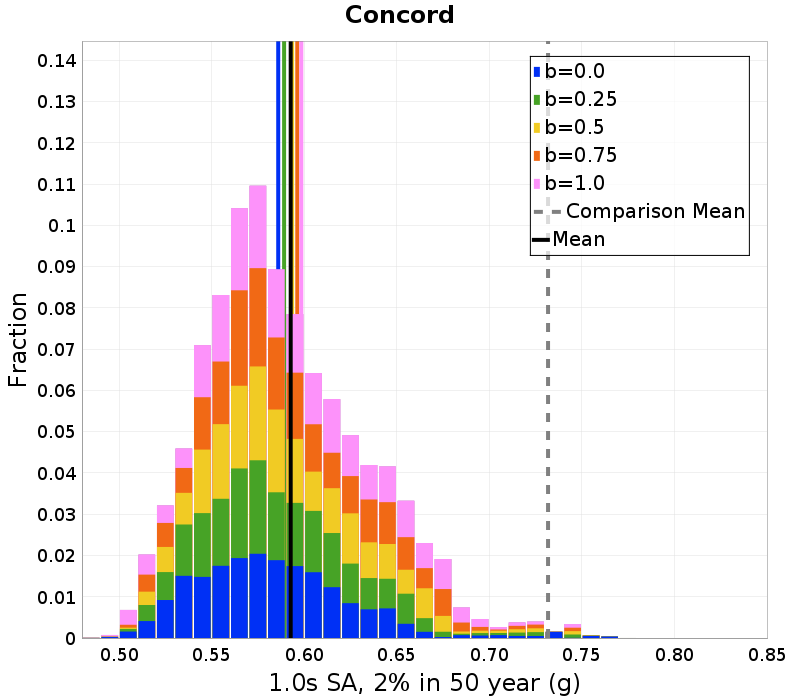

Concord, 1.0s SA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.5927259 (g) | 0.30978513 (g) |
| b=0.0 | 0.5859852 (g) | 0.30320236 (g) |
| b=0.25 | 0.58916664 (g) | 0.3063789 (g) |
| b=0.5 | 0.5935077 (g) | 0.31040564 (g) |
| b=0.75 | 0.59626967 (g) | 0.31301588 (g) |
| b=1.0 | 0.59846 (g) | 0.31548667 (g) |

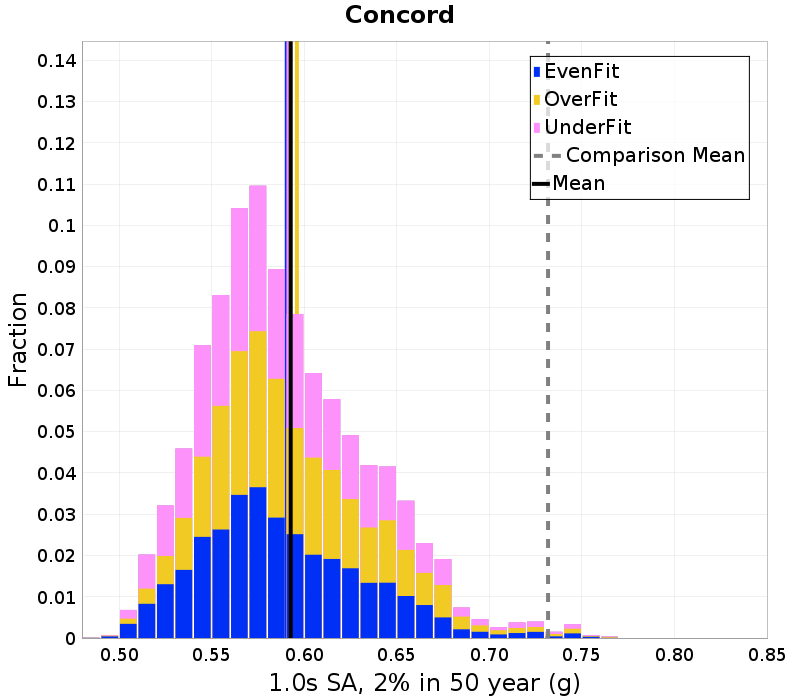

Concord, 1.0s SA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.5927259 (g) | 0.30978513 (g) |
| EvenFit | 0.59059644 (g) | 0.3097841 (g) |
| OverFit | 0.5960874 (g) | 0.31091893 (g) |
| UnderFit | 0.59151113 (g) | 0.30862802 (g) |

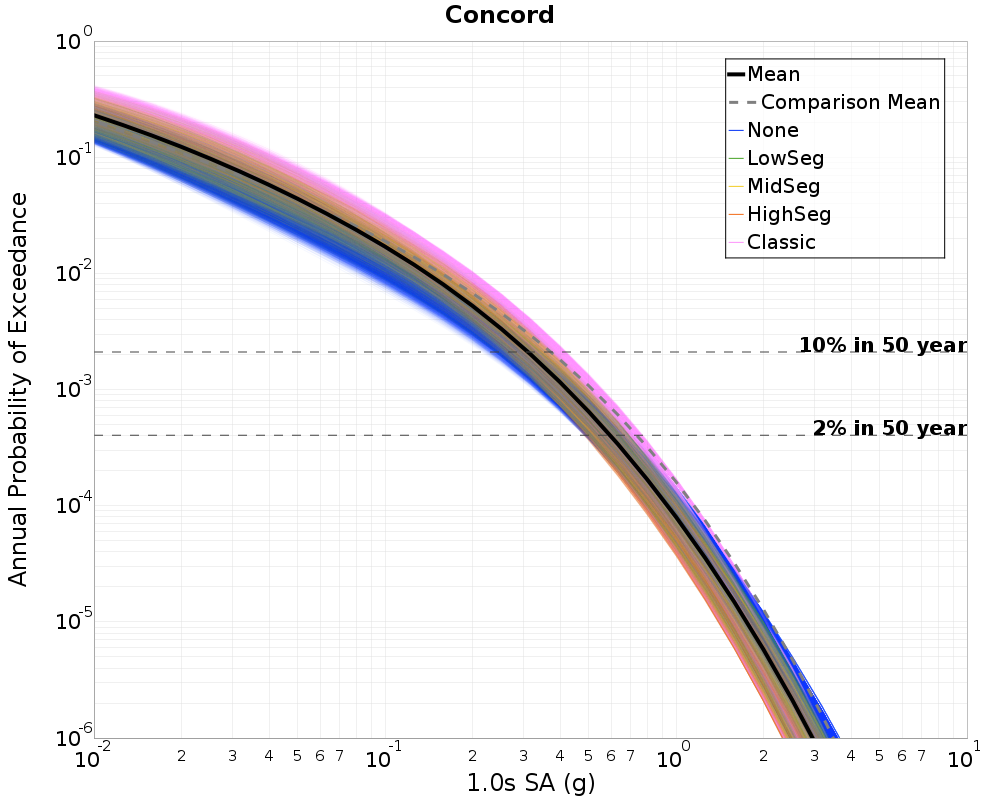

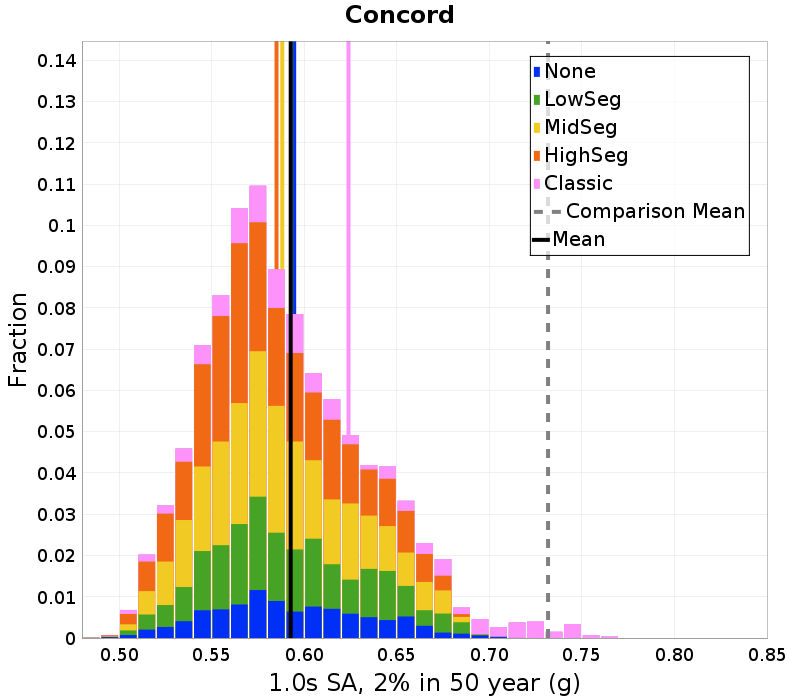

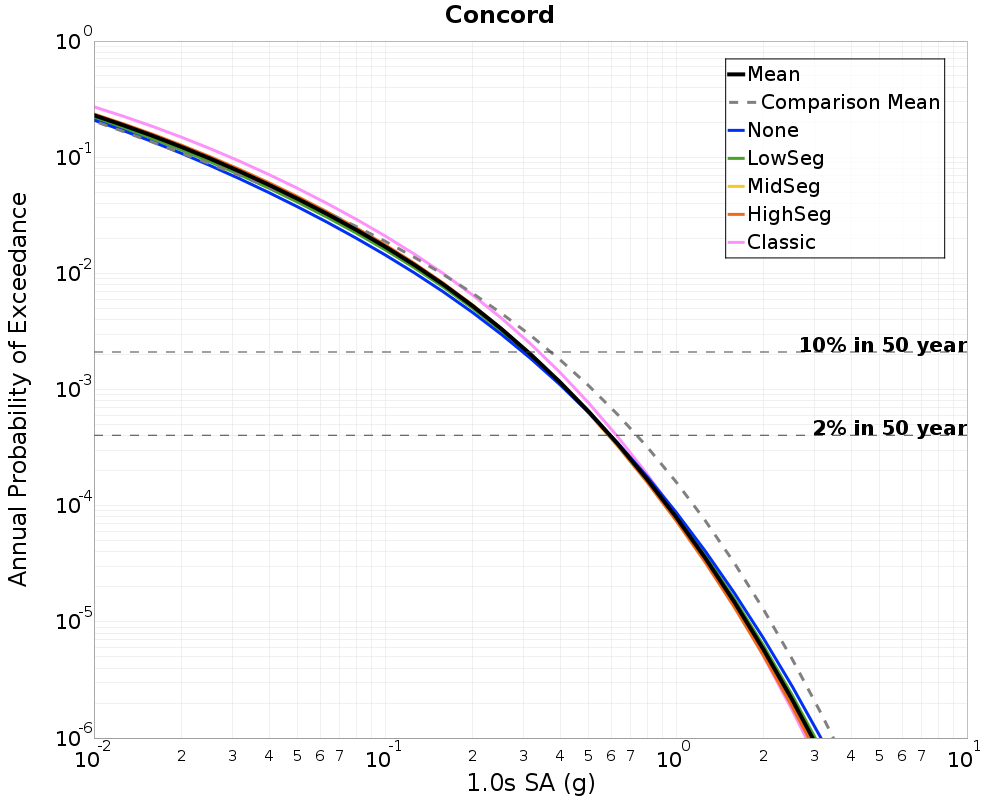

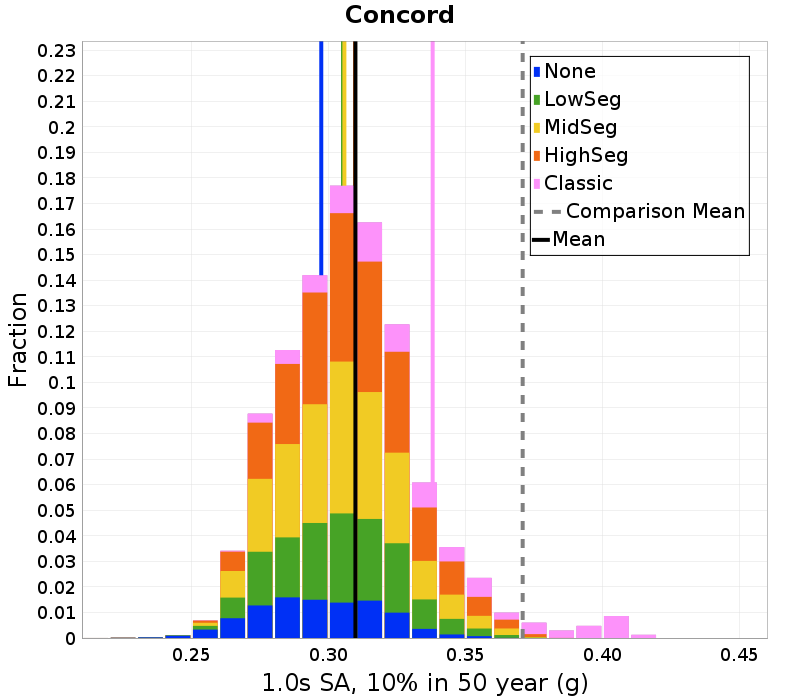

Concord, 1.0s SA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.5927259 (g) | 0.30978513 (g) |
| None | 0.5946051 (g) | 0.29732534 (g) |
| LowSeg | 0.59298635 (g) | 0.30526292 (g) |
| MidSeg | 0.5881627 (g) | 0.3057621 (g) |
| HighSeg | 0.5850675 (g) | 0.30965543 (g) |
| Classic | 0.6239512 (g) | 0.33797842 (g) |

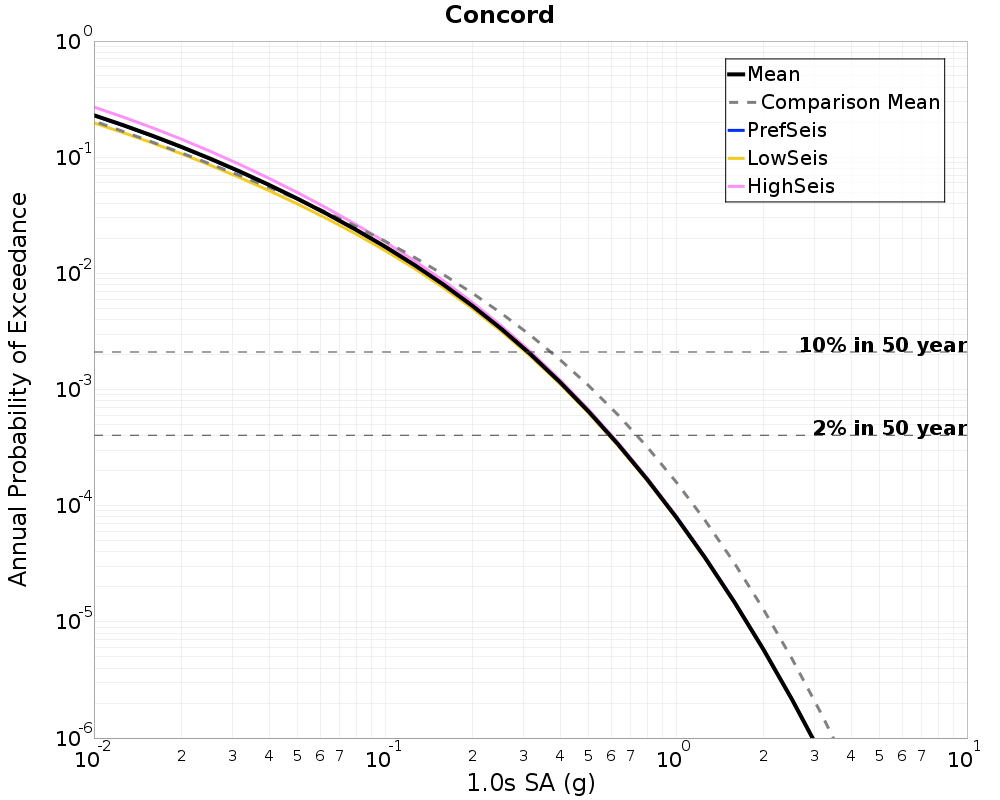

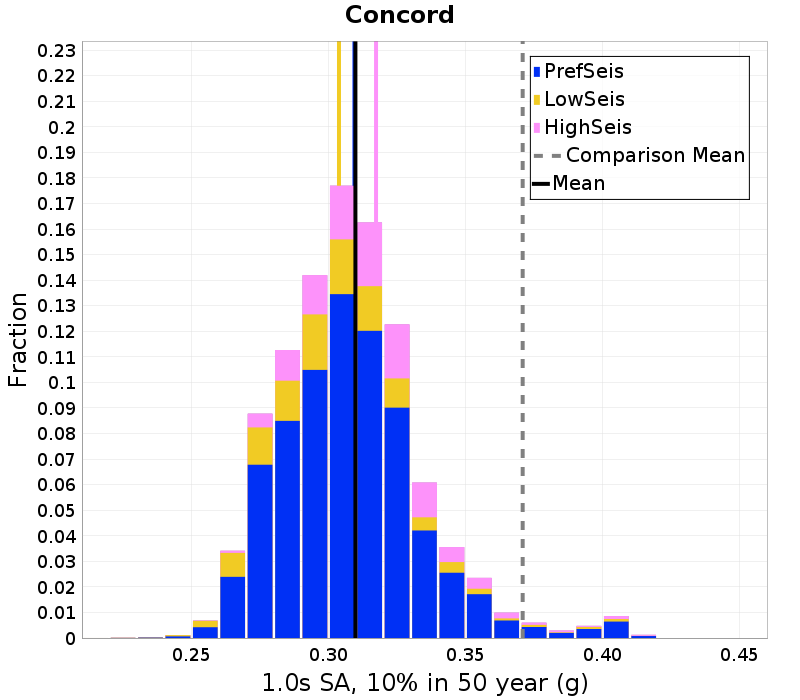

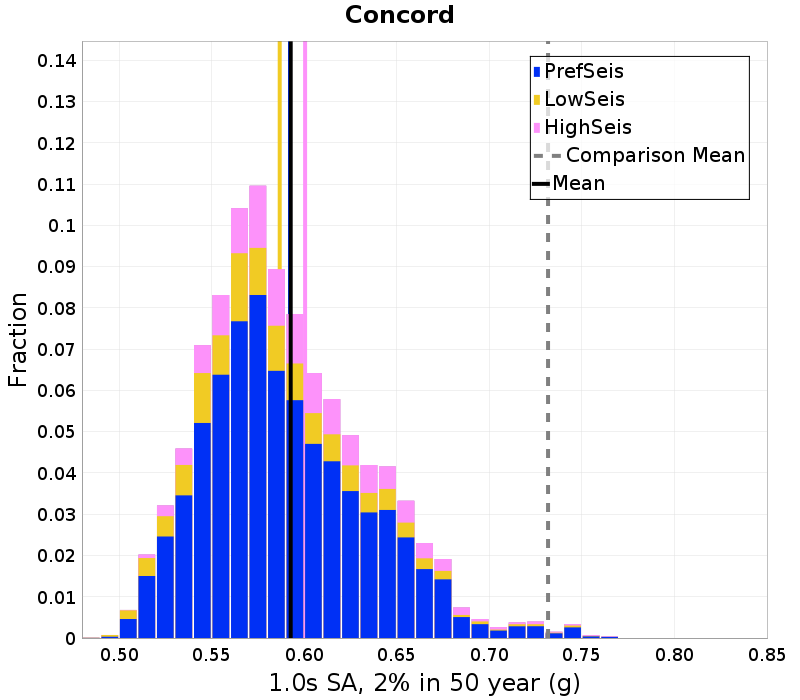

Concord, 1.0s SA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.5927259 (g) | 0.30978513 (g) |
| PrefSeis | 0.59235686 (g) | 0.3094354 (g) |
| LowSeis | 0.58678937 (g) | 0.30379143 (g) |
| HighSeis | 0.60050714 (g) | 0.3173147 (g) |

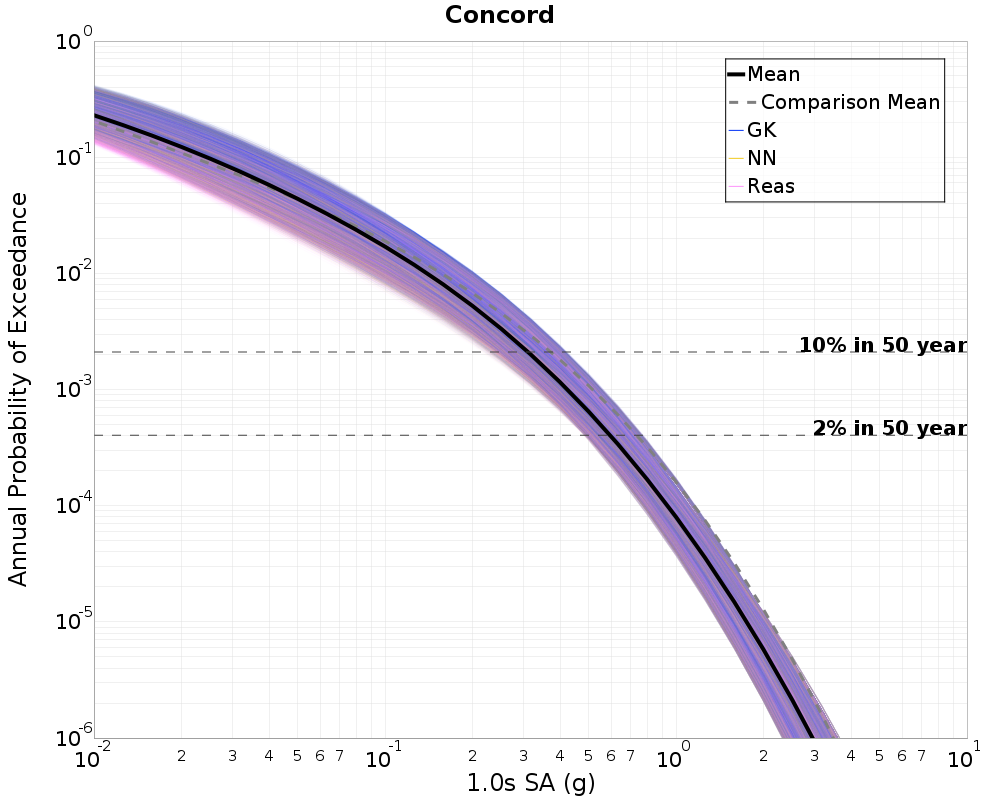

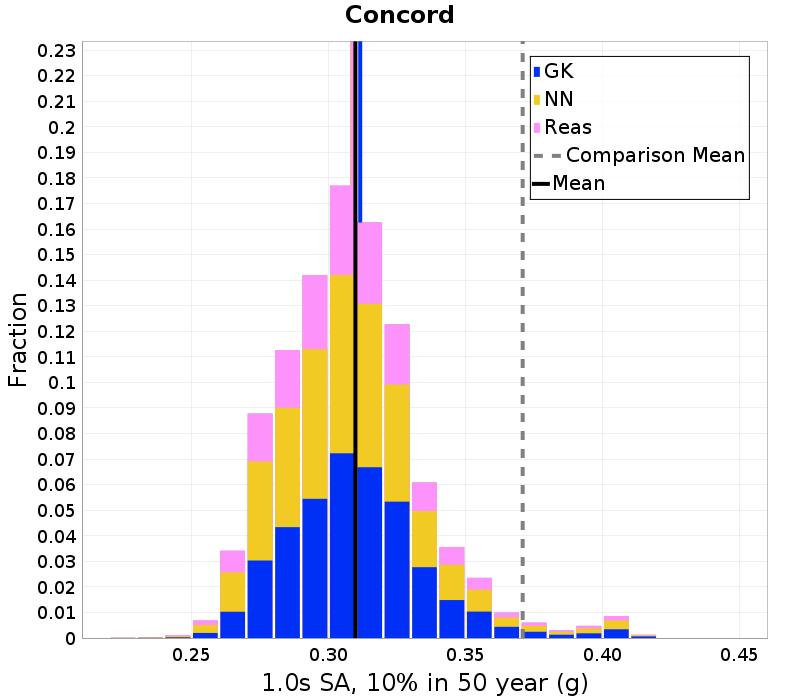

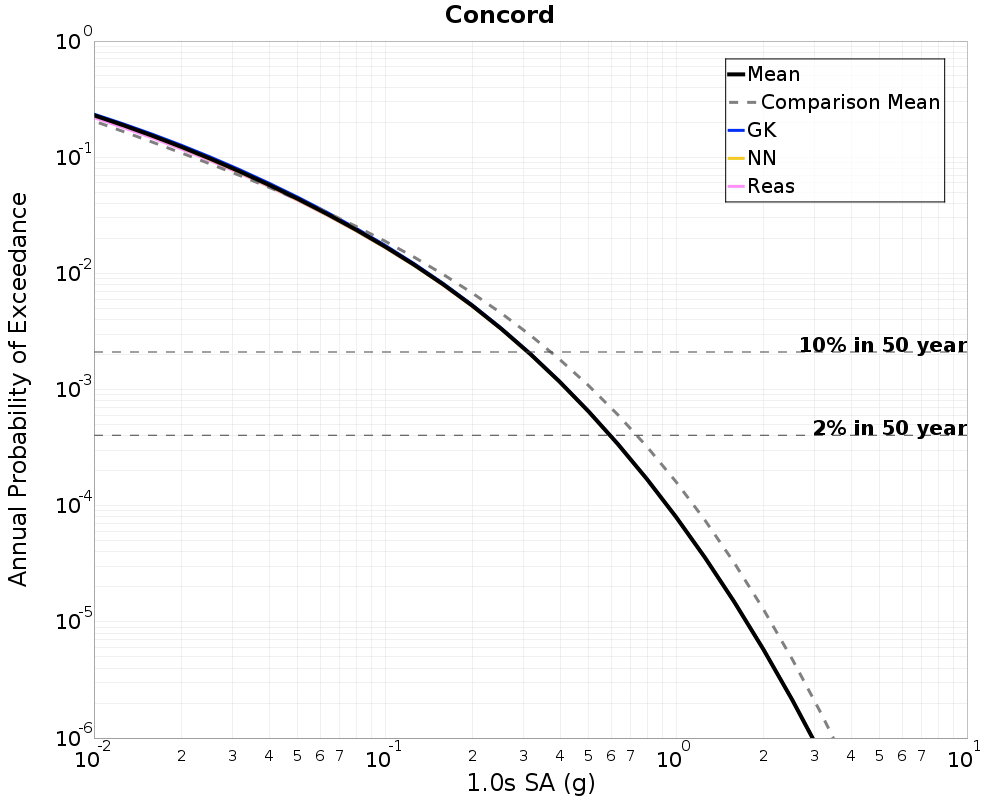

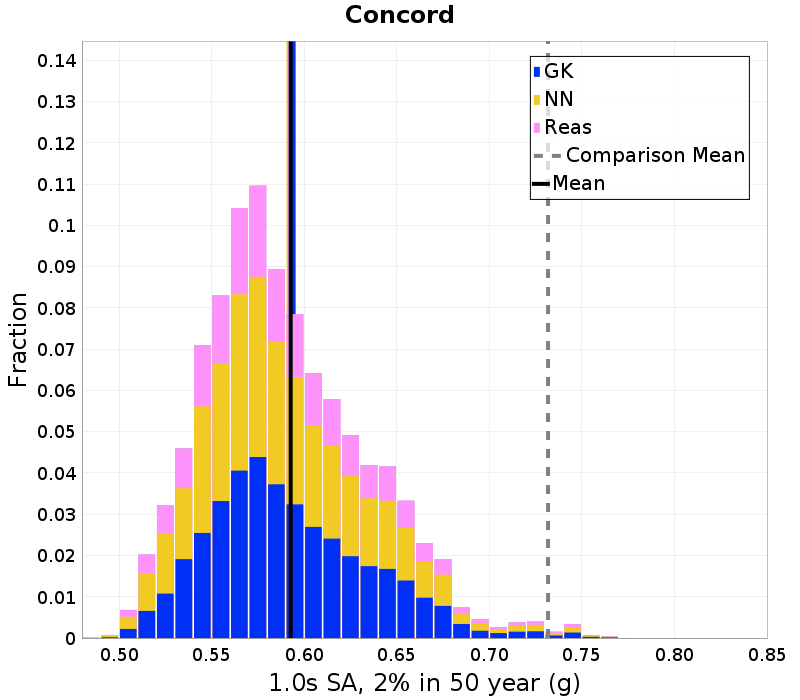

Concord, 1.0s SA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.5927259 (g) | 0.30978513 (g) |
| GK | 0.5943113 (g) | 0.3115405 (g) |
| NN | 0.591586 (g) | 0.30853775 (g) |
| Reas | 0.5918099 (g) | 0.30872273 (g) |

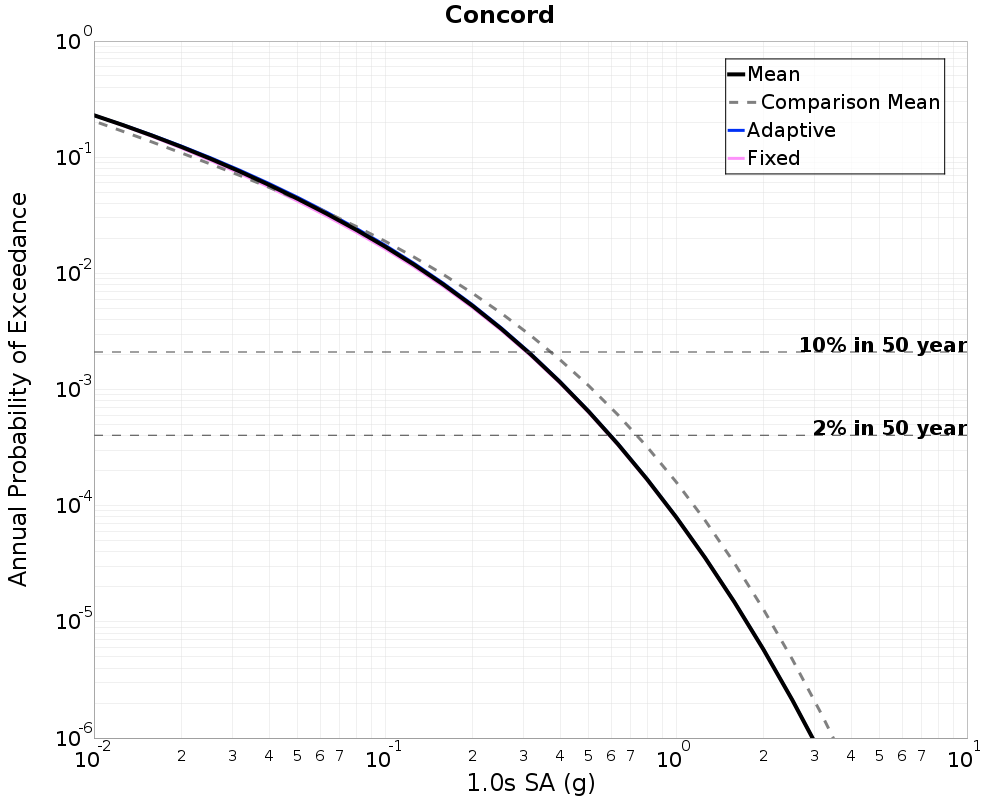

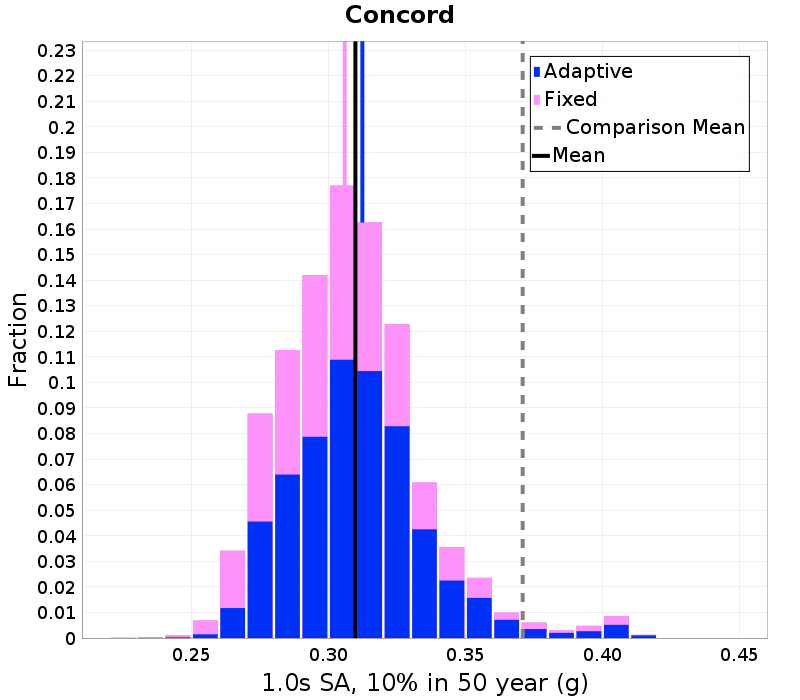

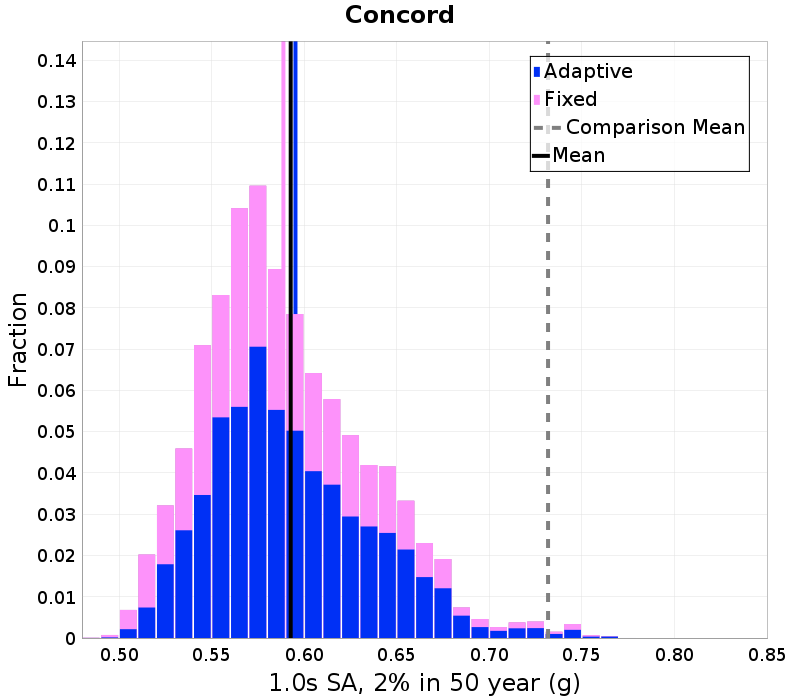

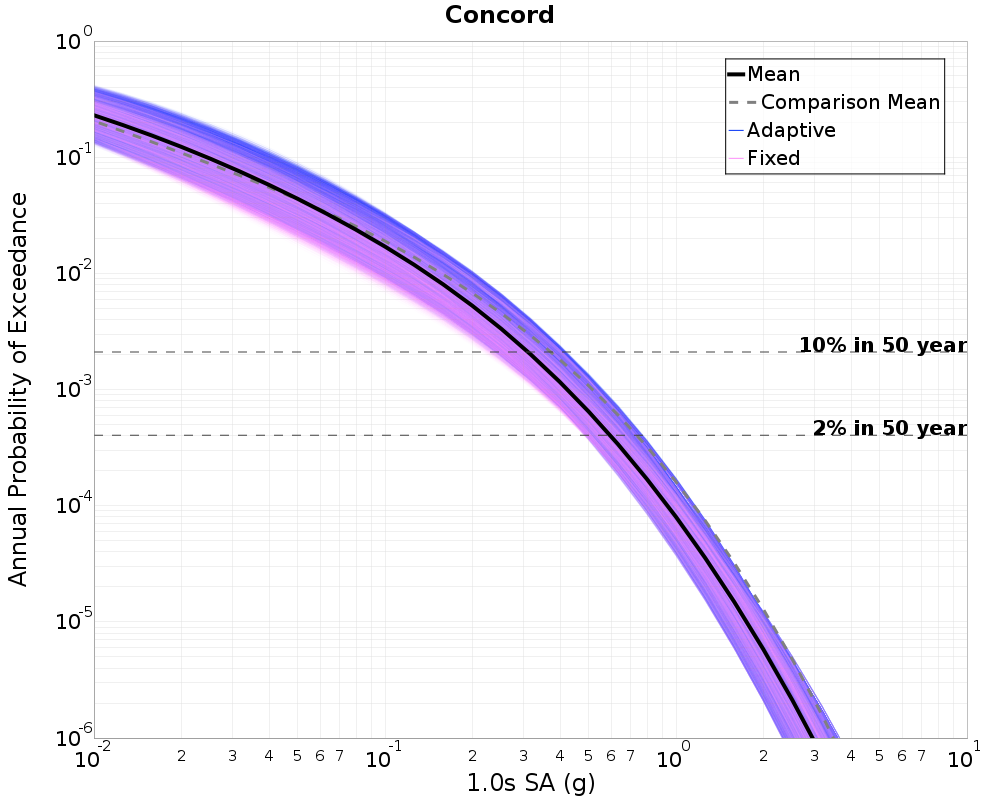

Concord, 1.0s SA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.5927259 (g) | 0.30978513 (g) |
| Adaptive | 0.59530675 (g) | 0.31232092 (g) |
| Fixed | 0.5887875 (g) | 0.3058894 (g) |

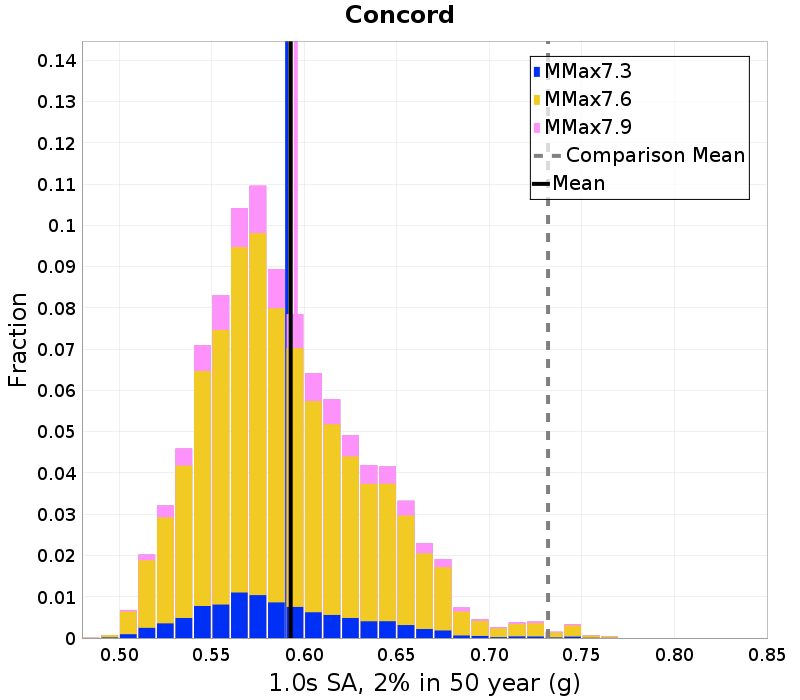

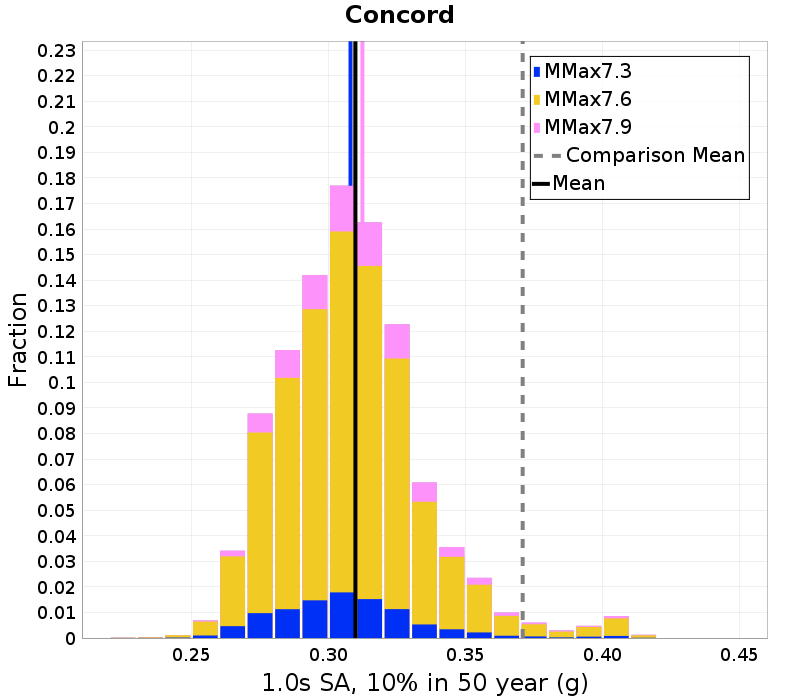

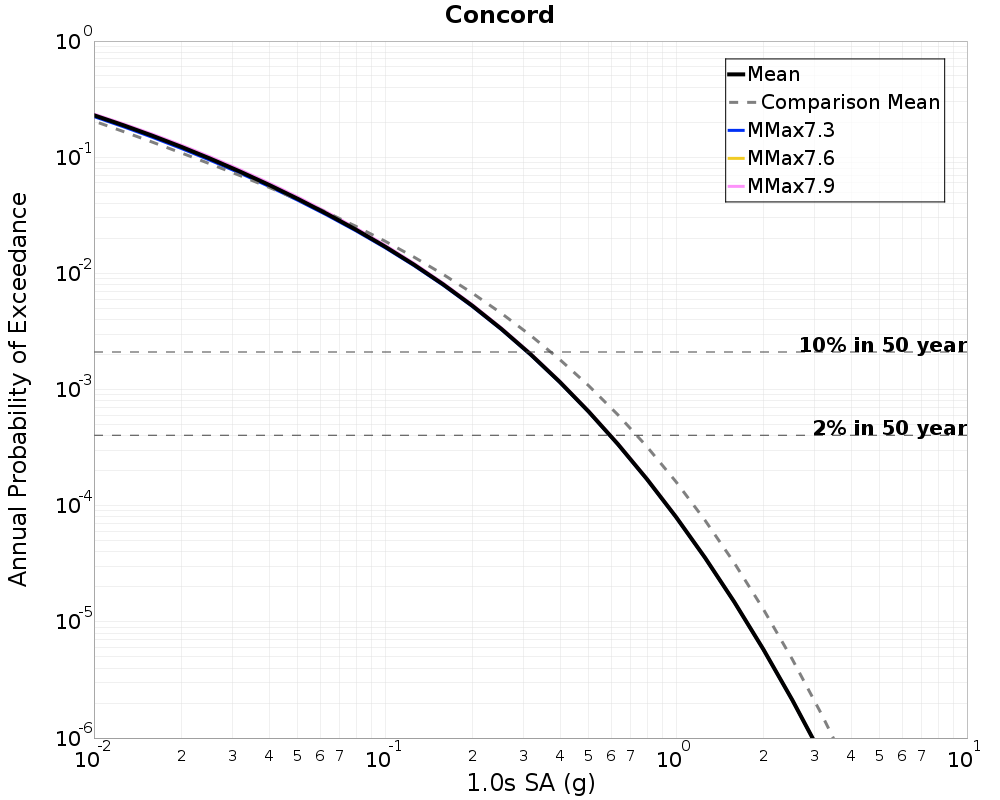

Concord, 1.0s SA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.5927259 (g) | 0.30978513 (g) |
| MMax7.3 | 0.5908018 (g) | 0.3079972 (g) |
| MMax7.6 | 0.59261787 (g) | 0.30968544 (g) |
| MMax7.9 | 0.5954865 (g) | 0.31233662 (g) |
