Los Angeles Logic Tree Hazard Curves
Table Of Contents
- Los Angeles, PGA
- Los Angeles, PGA, Hazard Value Distributions
- Los Angeles, PGA, Deformation Model Hazard
- Los Angeles, PGA, Scaling Relationship Hazard
- Los Angeles, PGA, Supra-Seismogenic b-value Hazard
- Los Angeles, PGA, Paleoseismic Data Uncertainties Hazard
- Los Angeles, PGA, Segmentation Model Hazard
- Los Angeles, PGA, Regional Seismicity Rate Hazard
- Los Angeles, PGA, Seismicity Declustering Algorithm Hazard
- Los Angeles, PGA, Seismicity Smoothing Kernel Hazard
- Los Angeles, PGA, Off Fault Mmax Hazard
- Los Angeles, 1.0s SA
- Los Angeles, 1.0s SA, Hazard Value Distributions
- Los Angeles, 1.0s SA, Deformation Model Hazard
- Los Angeles, 1.0s SA, Scaling Relationship Hazard
- Los Angeles, 1.0s SA, Supra-Seismogenic b-value Hazard
- Los Angeles, 1.0s SA, Paleoseismic Data Uncertainties Hazard
- Los Angeles, 1.0s SA, Segmentation Model Hazard
- Los Angeles, 1.0s SA, Regional Seismicity Rate Hazard
- Los Angeles, 1.0s SA, Seismicity Declustering Algorithm Hazard
- Los Angeles, 1.0s SA, Seismicity Smoothing Kernel Hazard
- Los Angeles, 1.0s SA, Off Fault Mmax Hazard
Los Angeles, PGA
| Primary | Comparison |
|---|---|
 |  |
Los Angeles, PGA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
Comparison Distribution, 2% in 50 year | Comparison Distribution, 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Primary | 0.8674039 (g) | 0.45043036 (g) |
| Comparison | 0.87875026 (g) | 0.4681758 (g) |

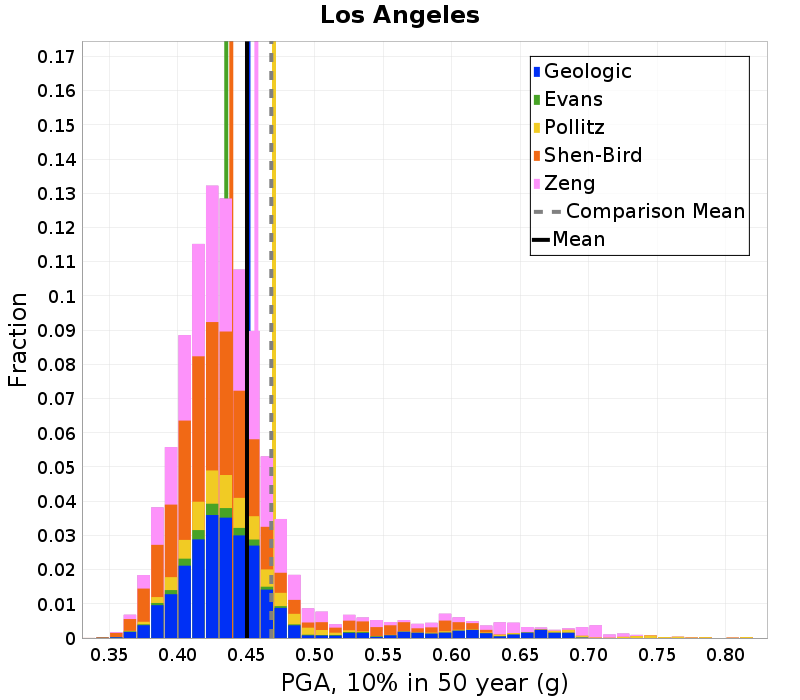

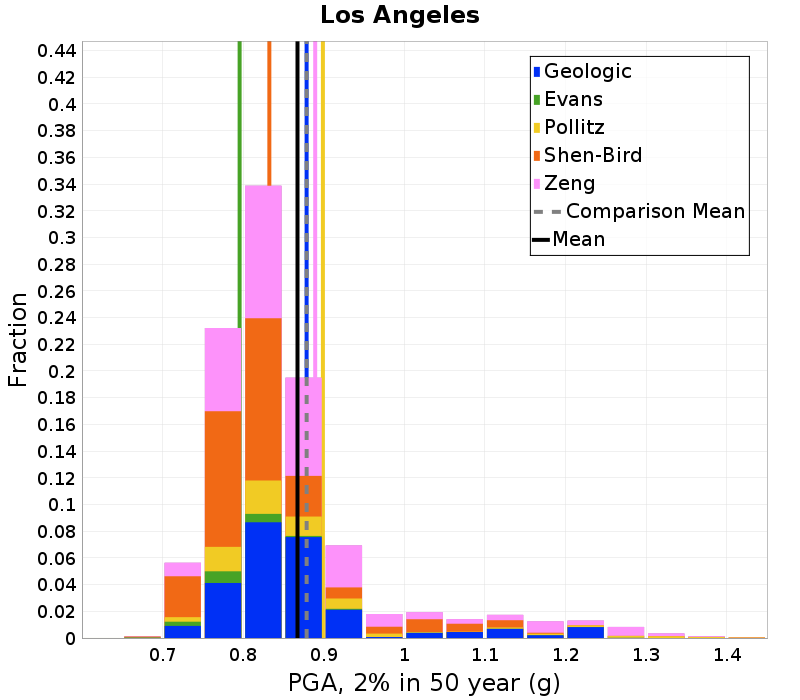

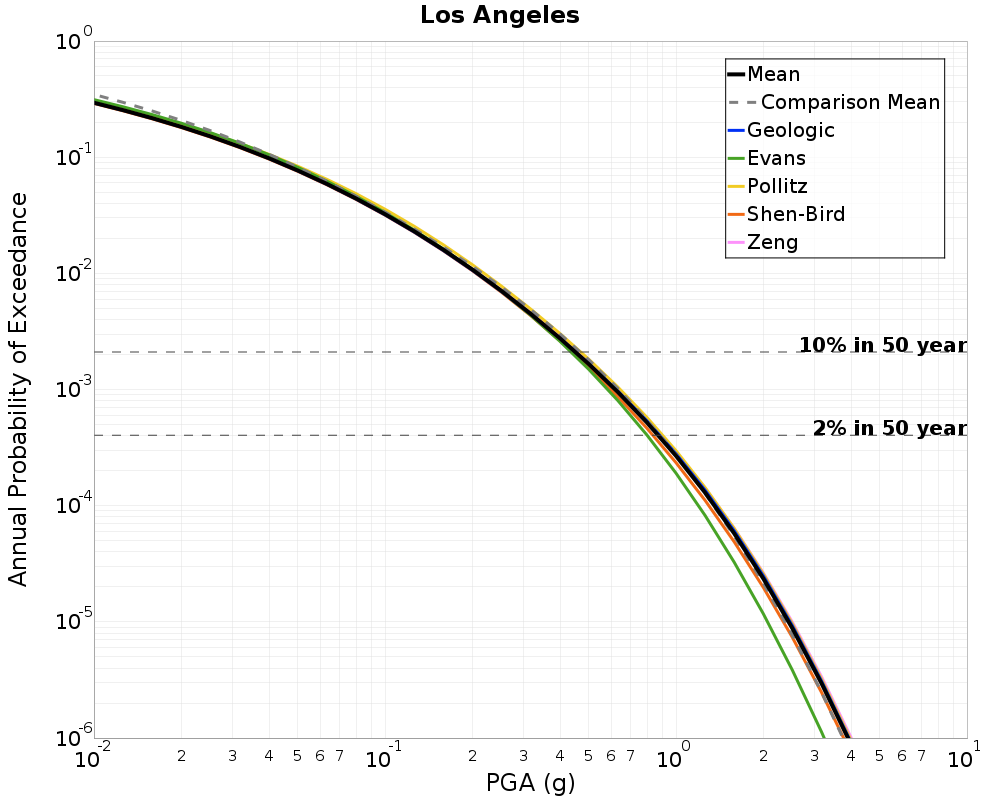

Los Angeles, PGA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8674039 (g) | 0.45043036 (g) |
| Geologic | 0.8787058 (g) | 0.45151815 (g) |
| Evans | 0.79558134 (g) | 0.4352959 (g) |
| Pollitz | 0.8989327 (g) | 0.4701437 (g) |
| Shen-Bird | 0.83247286 (g) | 0.43897036 (g) |
| Zeng | 0.88935566 (g) | 0.45727614 (g) |

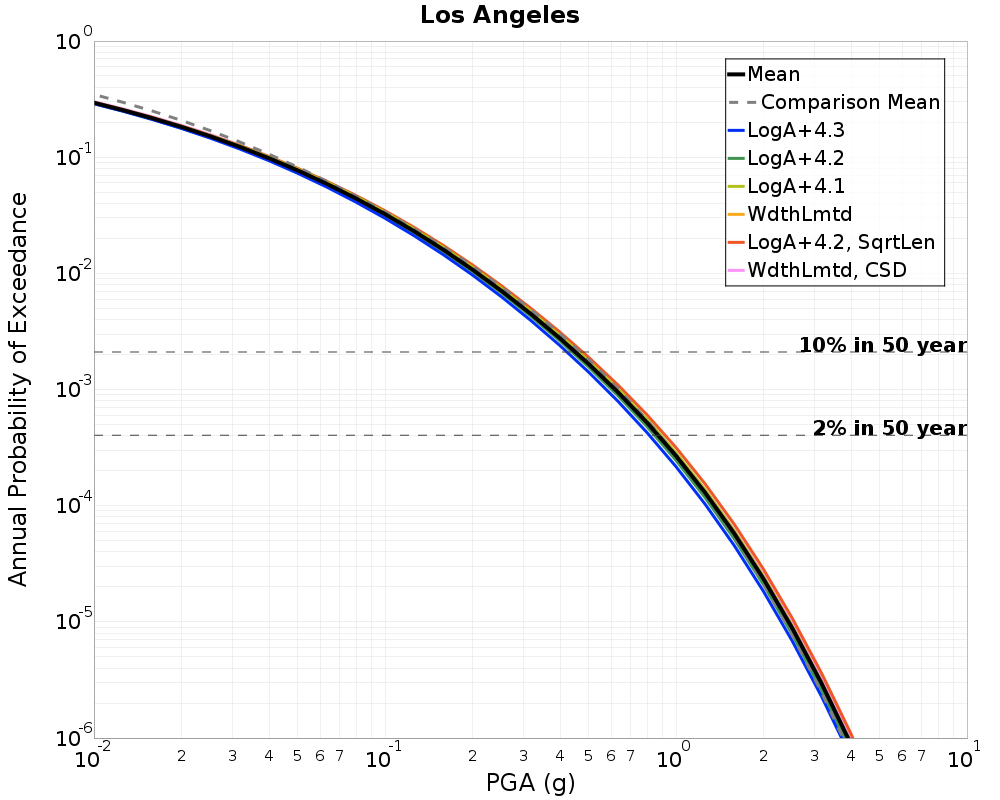

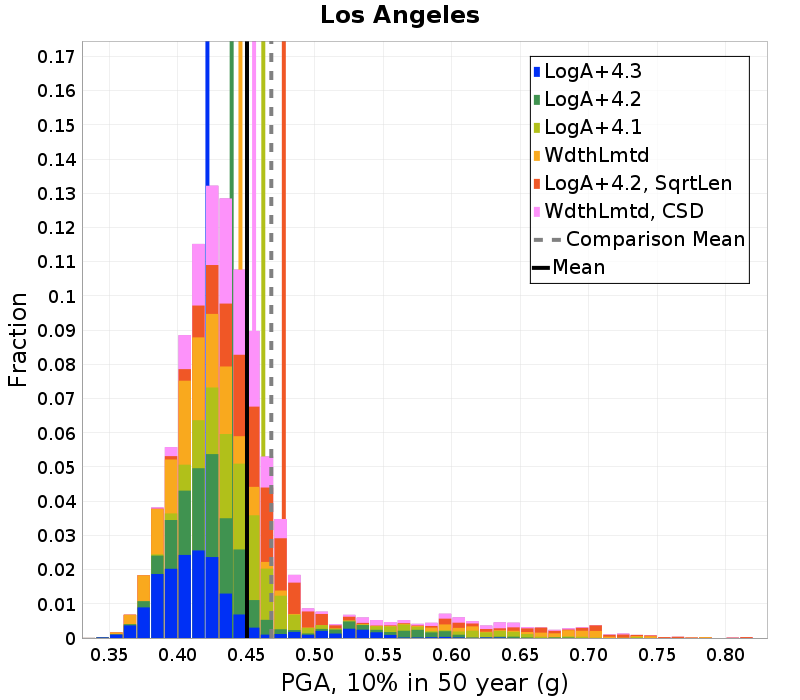

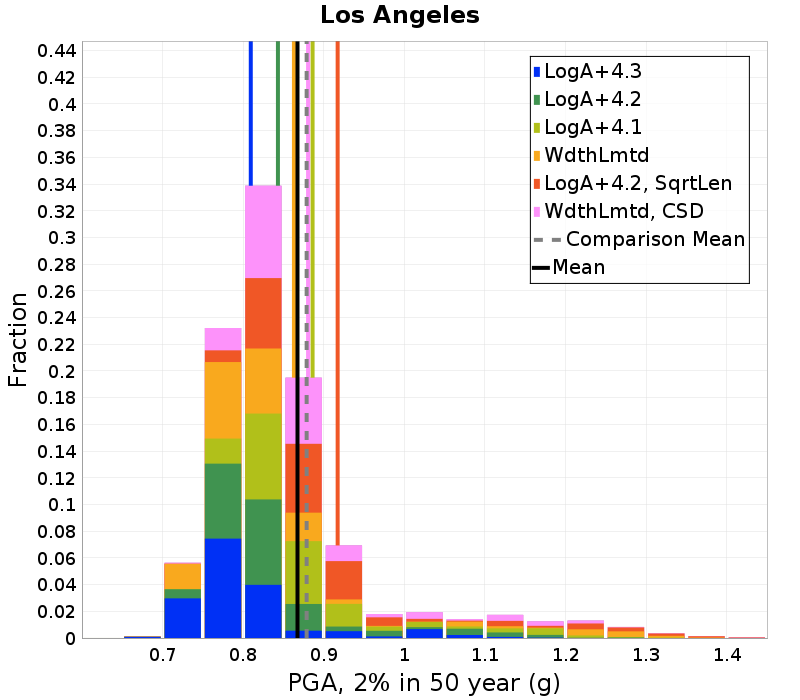

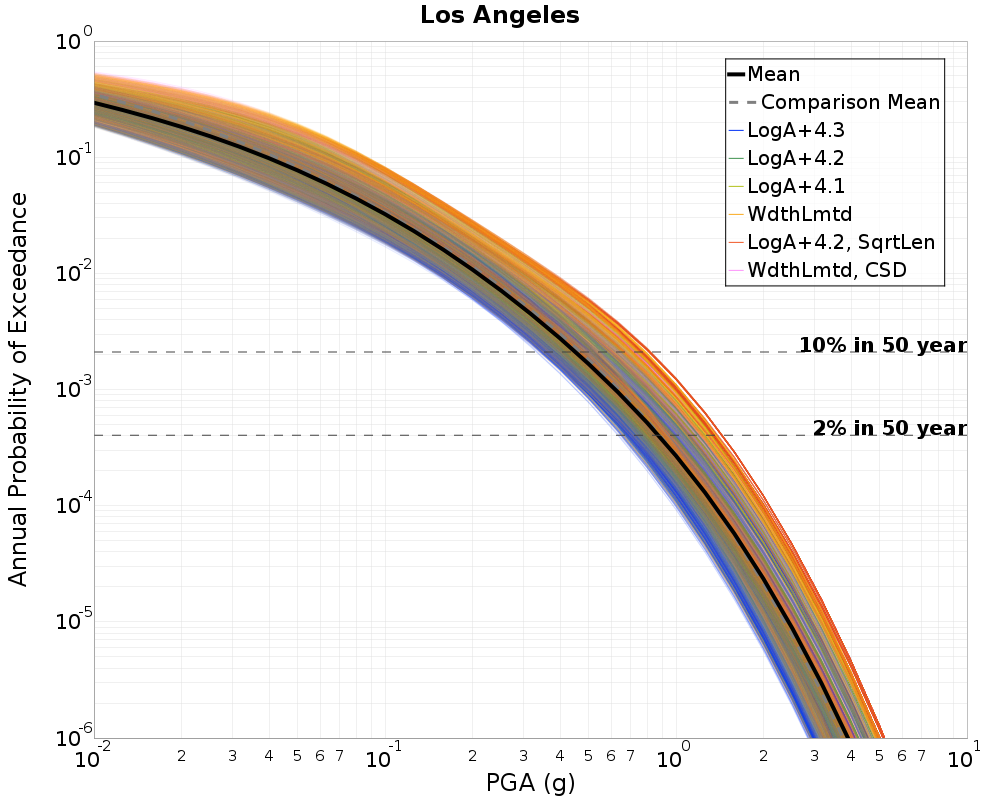

Los Angeles, PGA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8674039 (g) | 0.45043036 (g) |
| LogA+4.3 | 0.8094284 (g) | 0.42154488 (g) |
| LogA+4.2 | 0.84312826 (g) | 0.43924305 (g) |
| LogA+4.1 | 0.88612187 (g) | 0.46233386 (g) |
| WdthLmtd | 0.8629852 (g) | 0.4456498 (g) |
| LogA+4.2, SqrtLen | 0.9172263 (g) | 0.47731856 (g) |
| WdthLmtd, CSD | 0.8805324 (g) | 0.4556091 (g) |

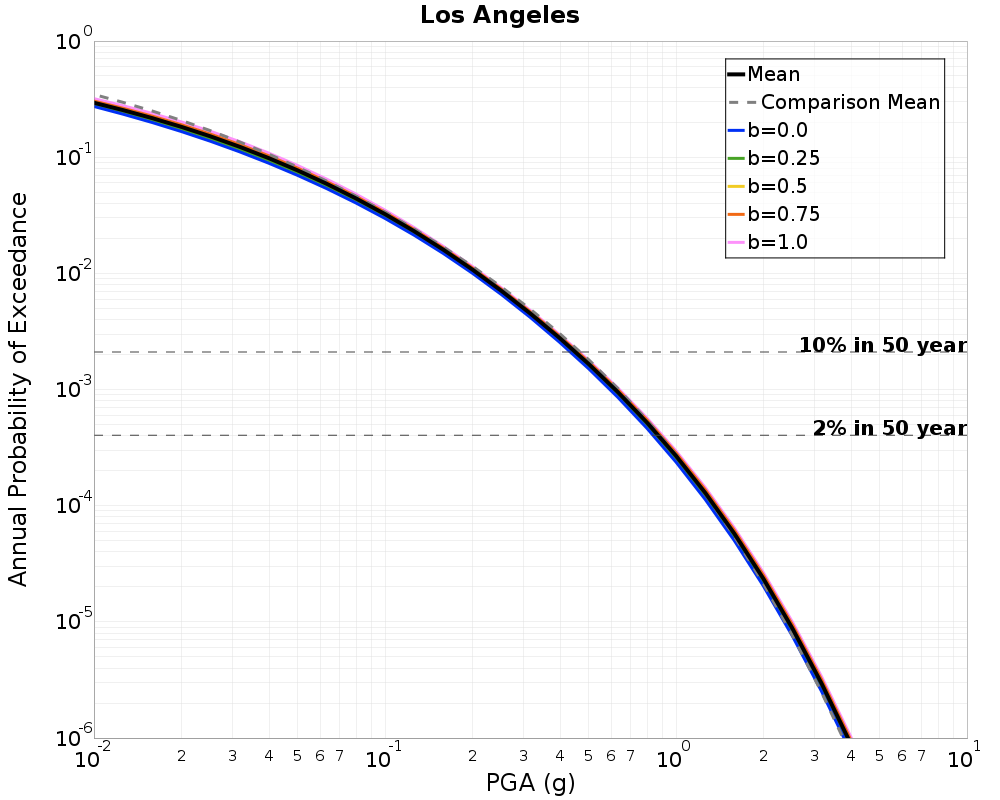

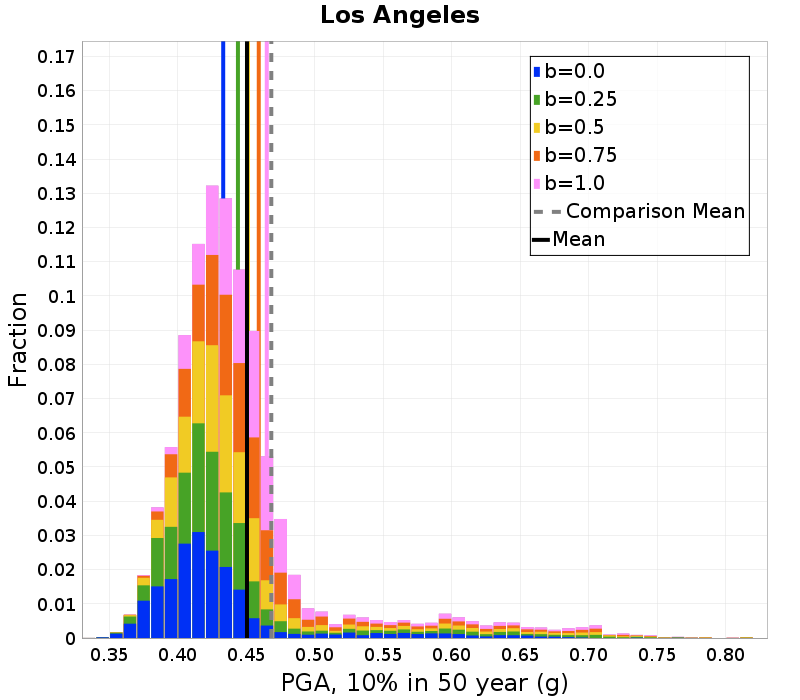

Los Angeles, PGA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8674039 (g) | 0.45043036 (g) |
| b=0.0 | 0.83315206 (g) | 0.43307164 (g) |
| b=0.25 | 0.85321546 (g) | 0.4438222 (g) |
| b=0.5 | 0.8681163 (g) | 0.4511138 (g) |
| b=0.75 | 0.8846664 (g) | 0.4590237 (g) |
| b=1.0 | 0.89623785 (g) | 0.4648682 (g) |

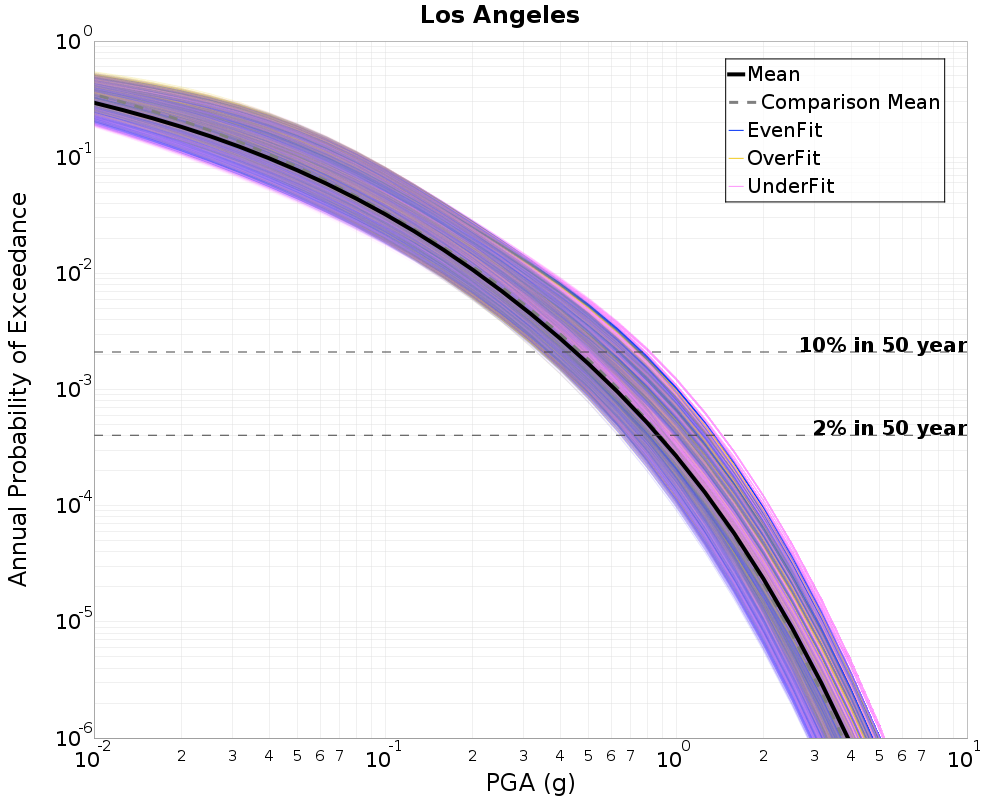

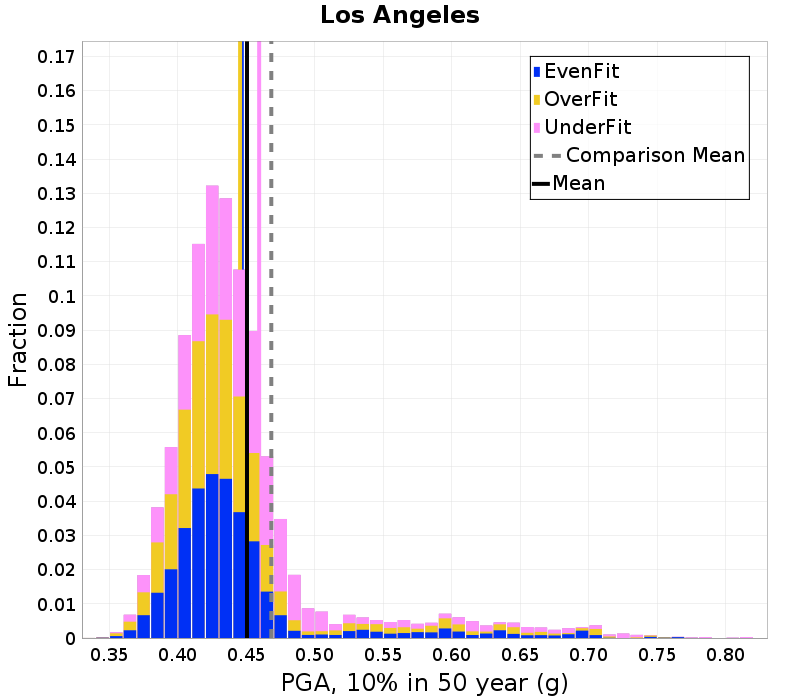

Los Angeles, PGA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8674039 (g) | 0.45043036 (g) |
| EvenFit | 0.8574347 (g) | 0.446649 (g) |
| OverFit | 0.85641414 (g) | 0.44539434 (g) |
| UnderFit | 0.8880146 (g) | 0.4593074 (g) |

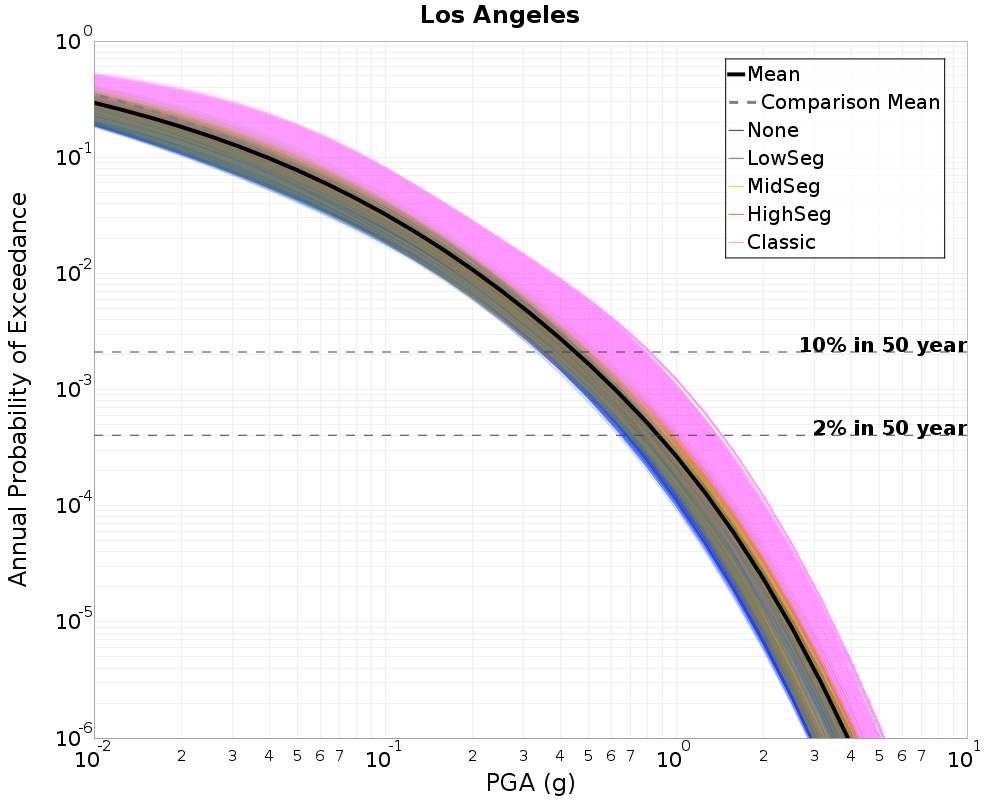

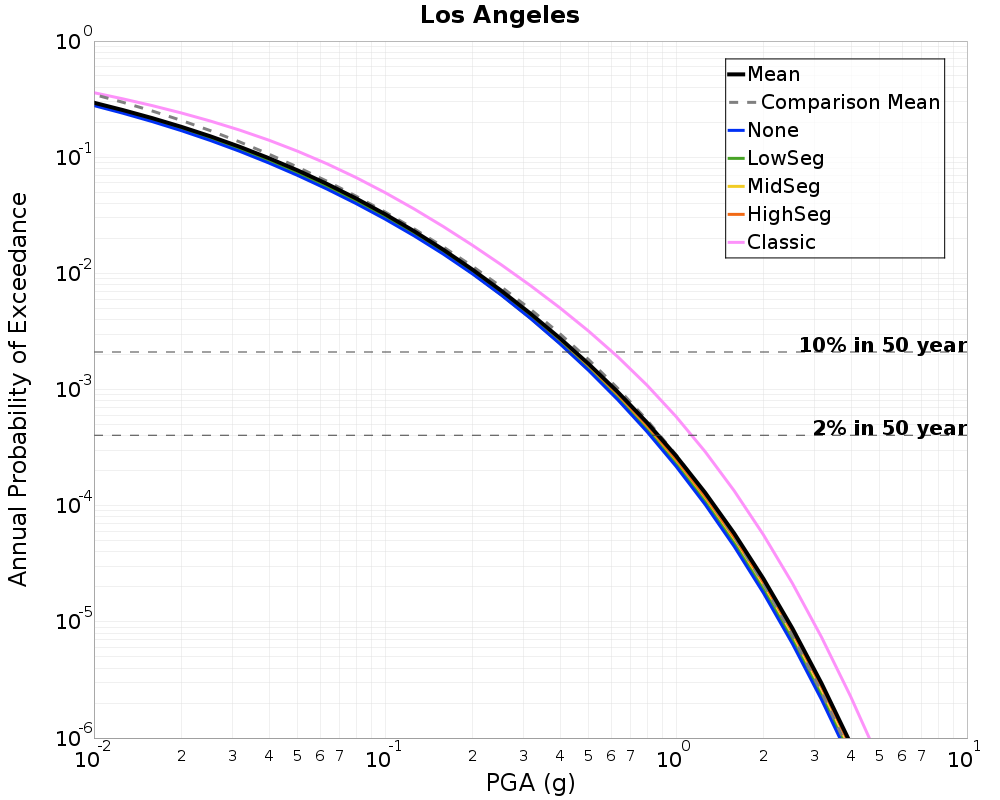

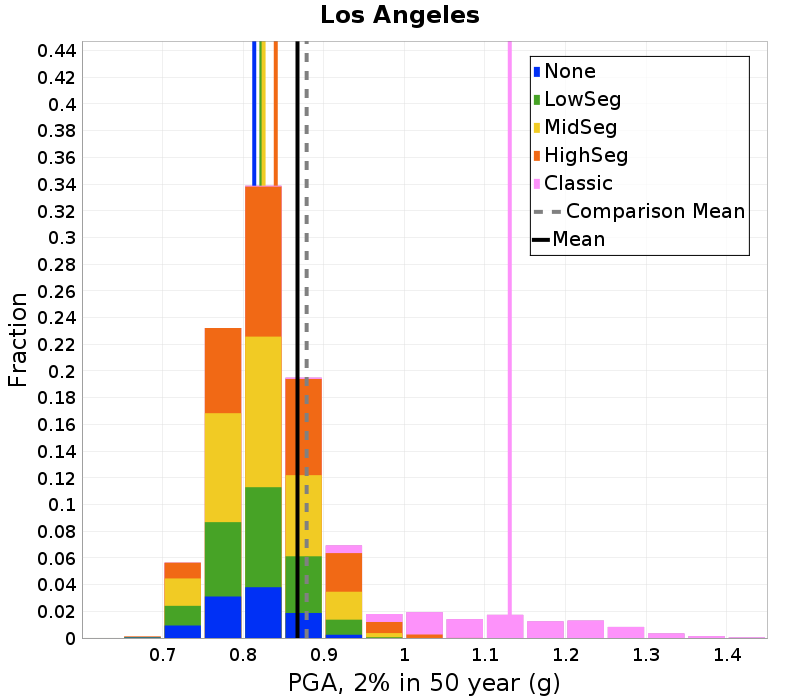

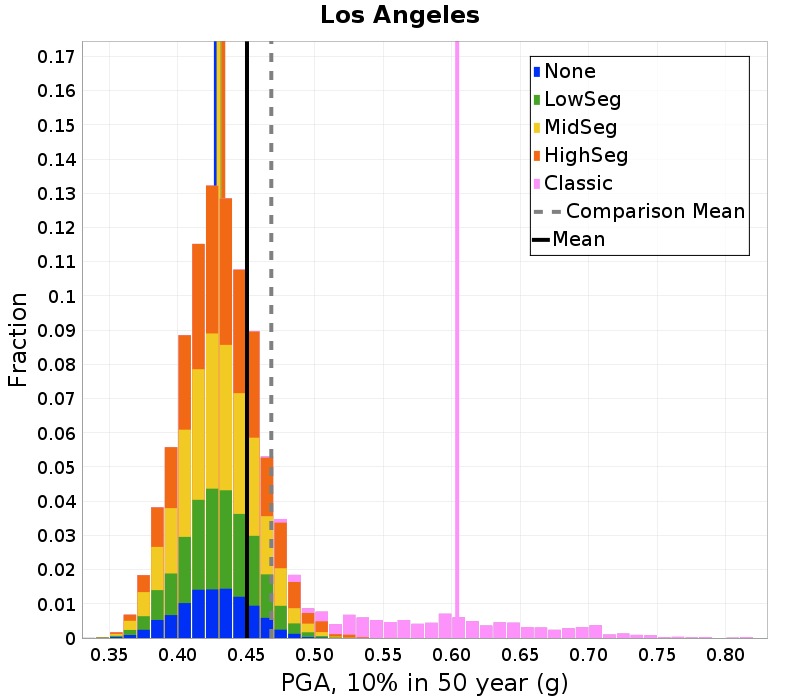

Los Angeles, PGA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8674039 (g) | 0.45043036 (g) |
| None | 0.8137358 (g) | 0.42772534 (g) |
| LowSeg | 0.82257867 (g) | 0.43035567 (g) |
| MidSeg | 0.82531995 (g) | 0.4296881 (g) |
| HighSeg | 0.840444 (g) | 0.43311986 (g) |
| Classic | 1.1308079 (g) | 0.6038498 (g) |

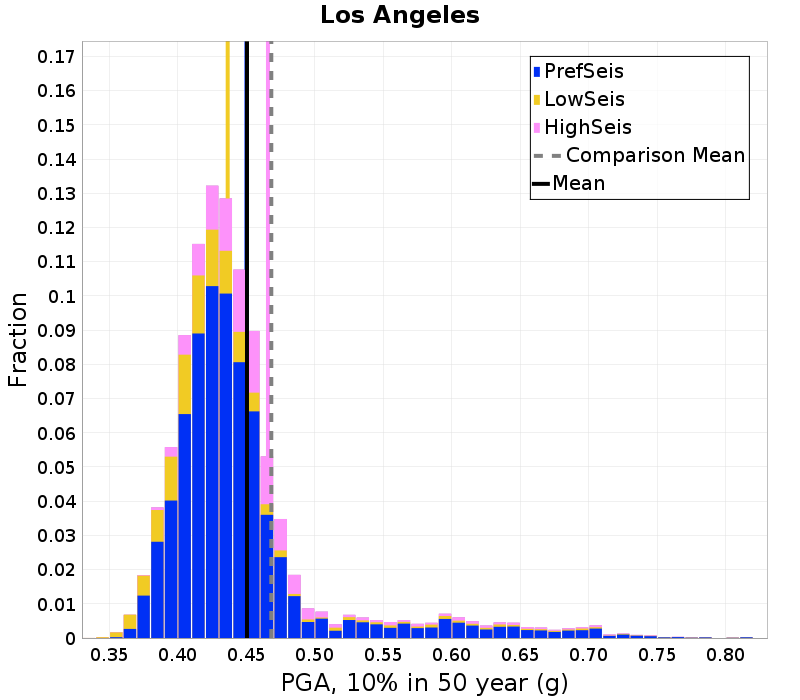

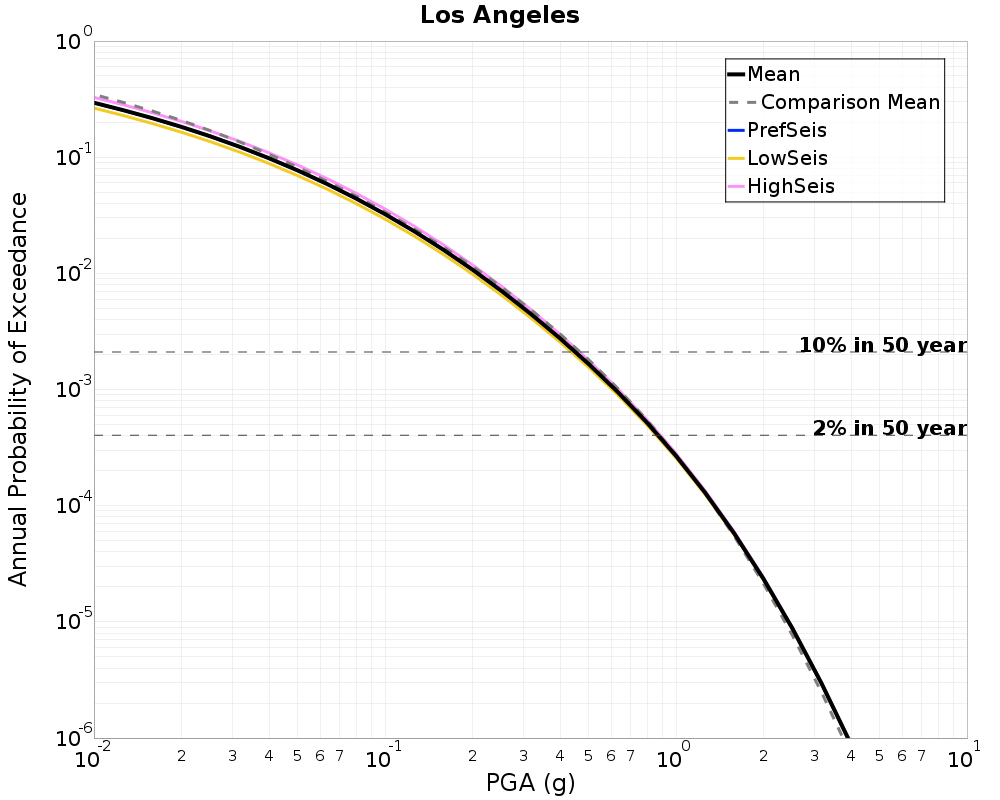

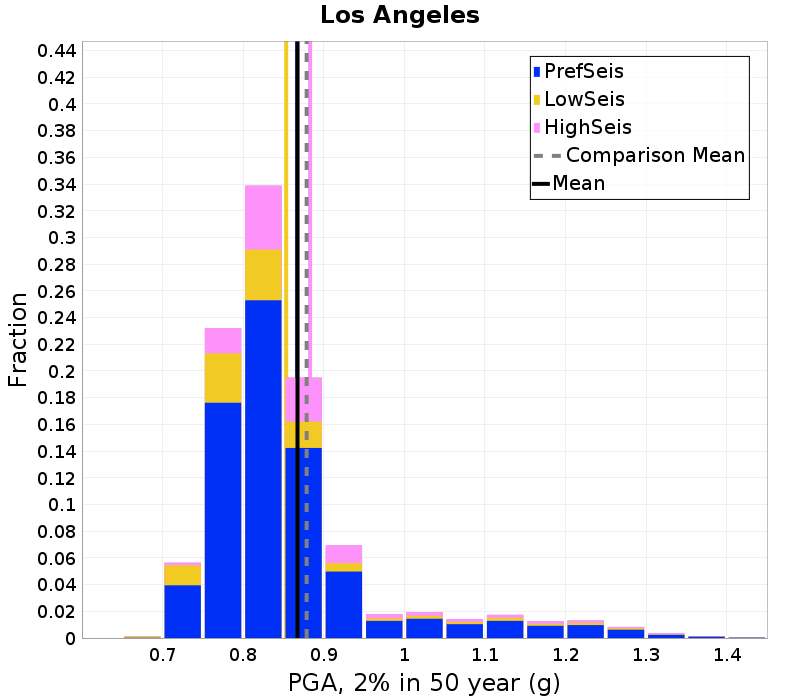

Los Angeles, PGA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8674039 (g) | 0.45043036 (g) |
| PrefSeis | 0.86696565 (g) | 0.4500351 (g) |
| LowSeis | 0.8533633 (g) | 0.4363388 (g) |
| HighSeis | 0.88307136 (g) | 0.4657395 (g) |

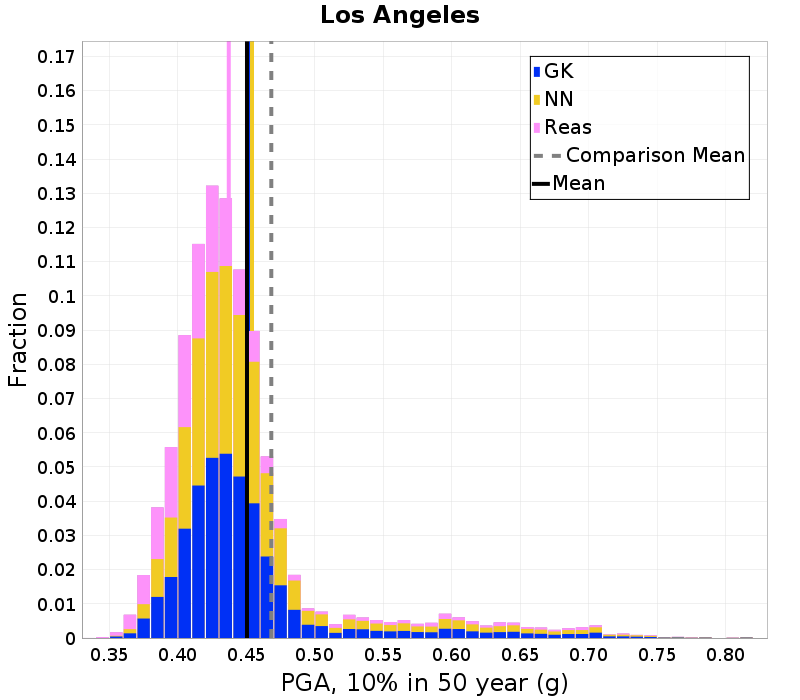

Los Angeles, PGA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8674039 (g) | 0.45043036 (g) |
| GK | 0.8704027 (g) | 0.45314243 (g) |
| NN | 0.87044907 (g) | 0.4540896 (g) |
| Reas | 0.85491884 (g) | 0.43713155 (g) |

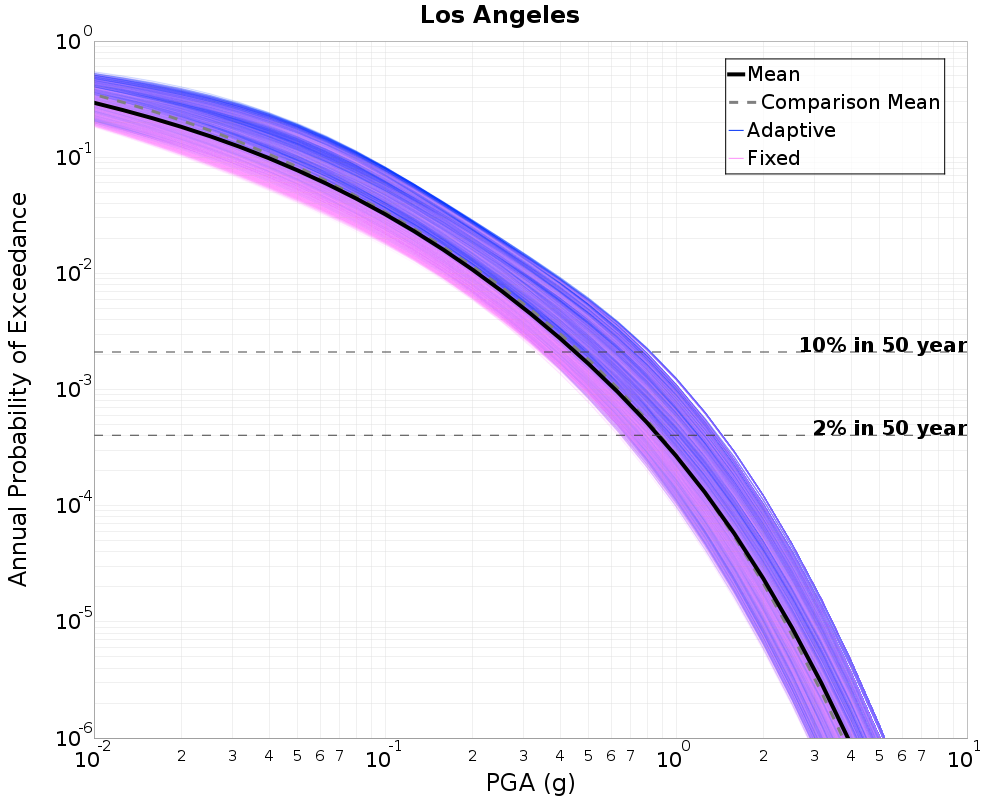

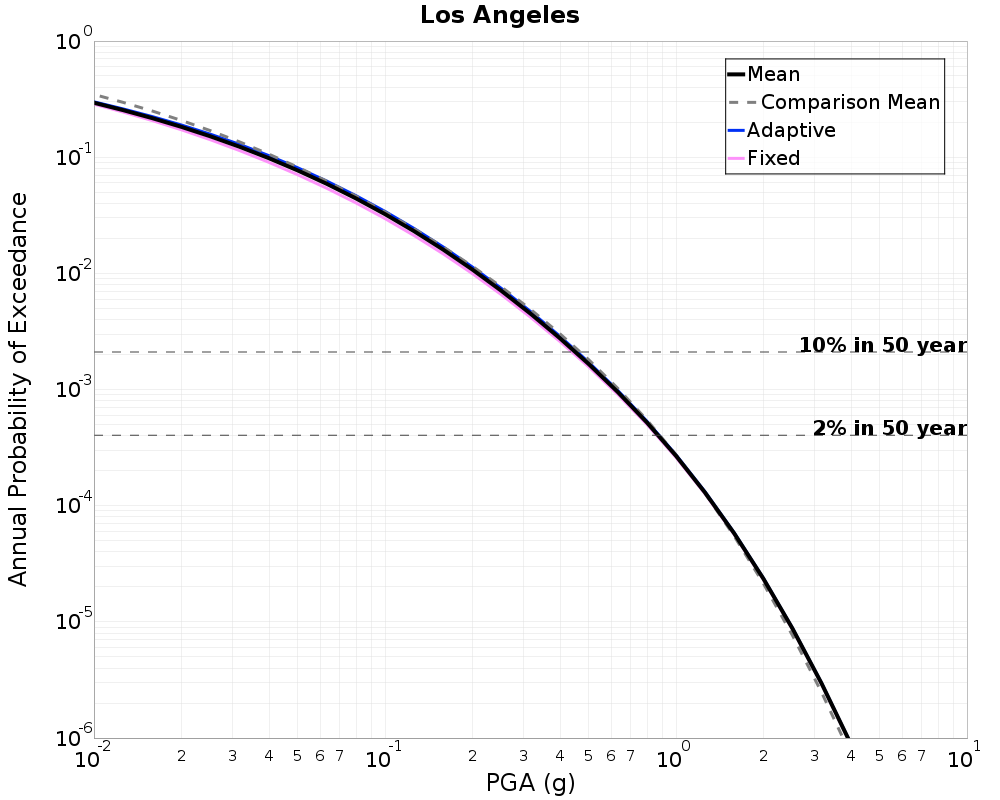

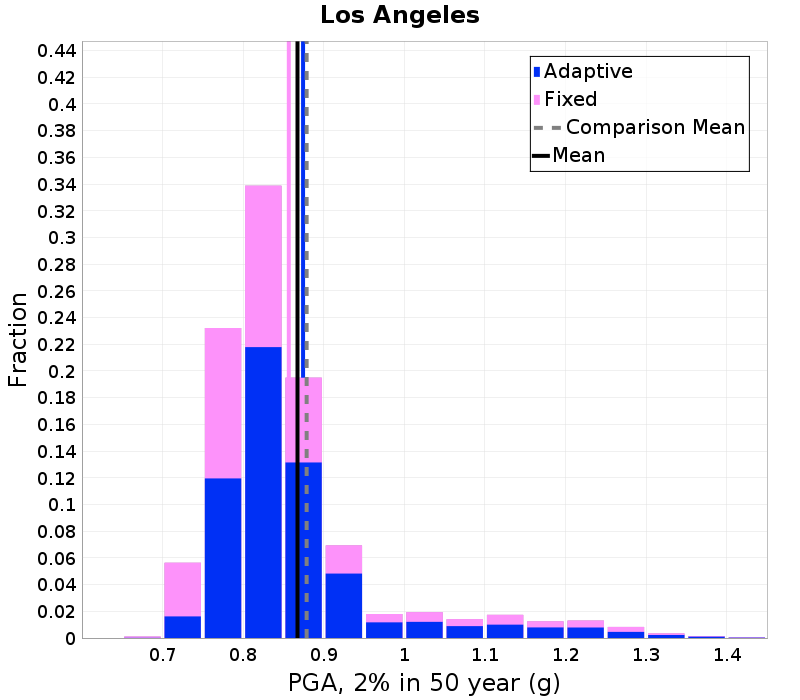

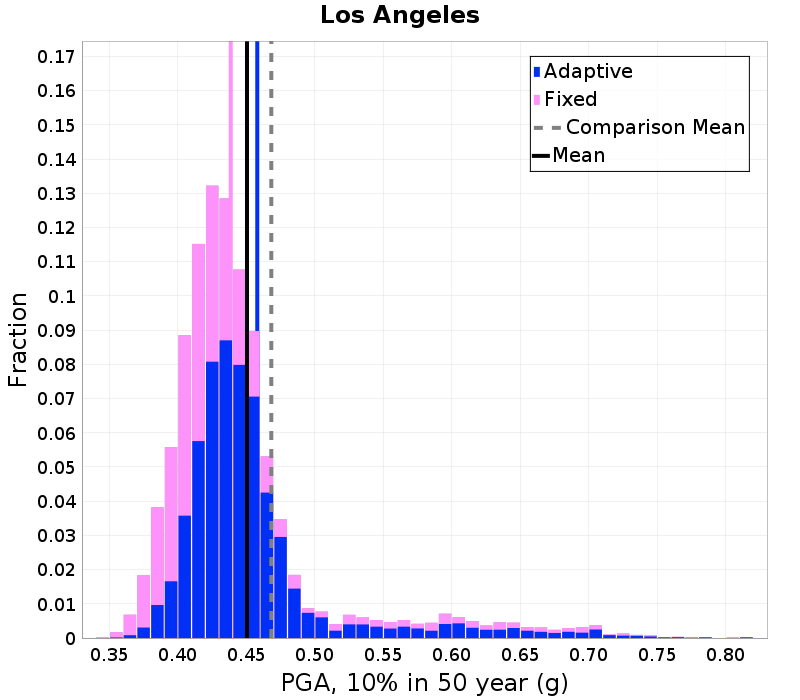

Los Angeles, PGA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8674039 (g) | 0.45043036 (g) |
| Adaptive | 0.8743261 (g) | 0.4579291 (g) |
| Fixed | 0.85662216 (g) | 0.43858343 (g) |

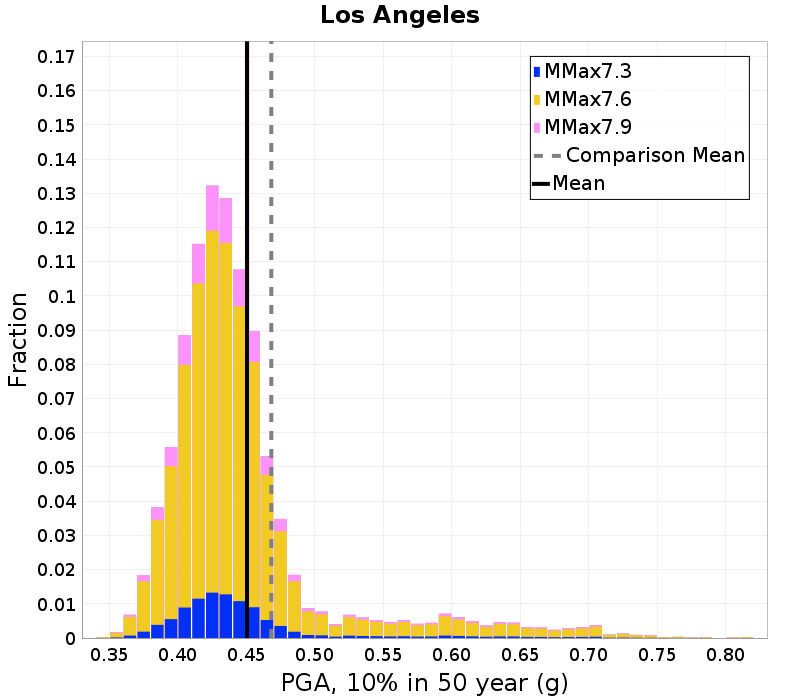

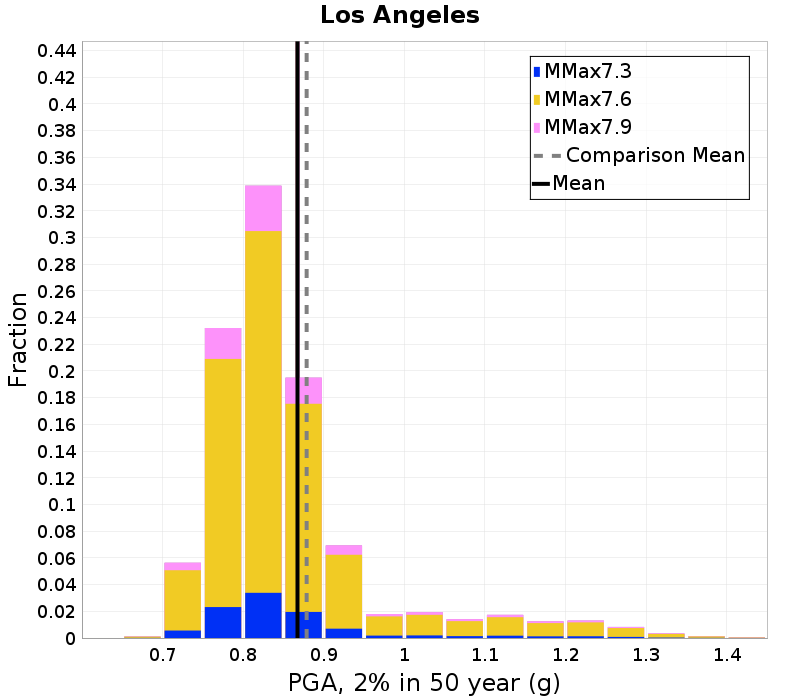

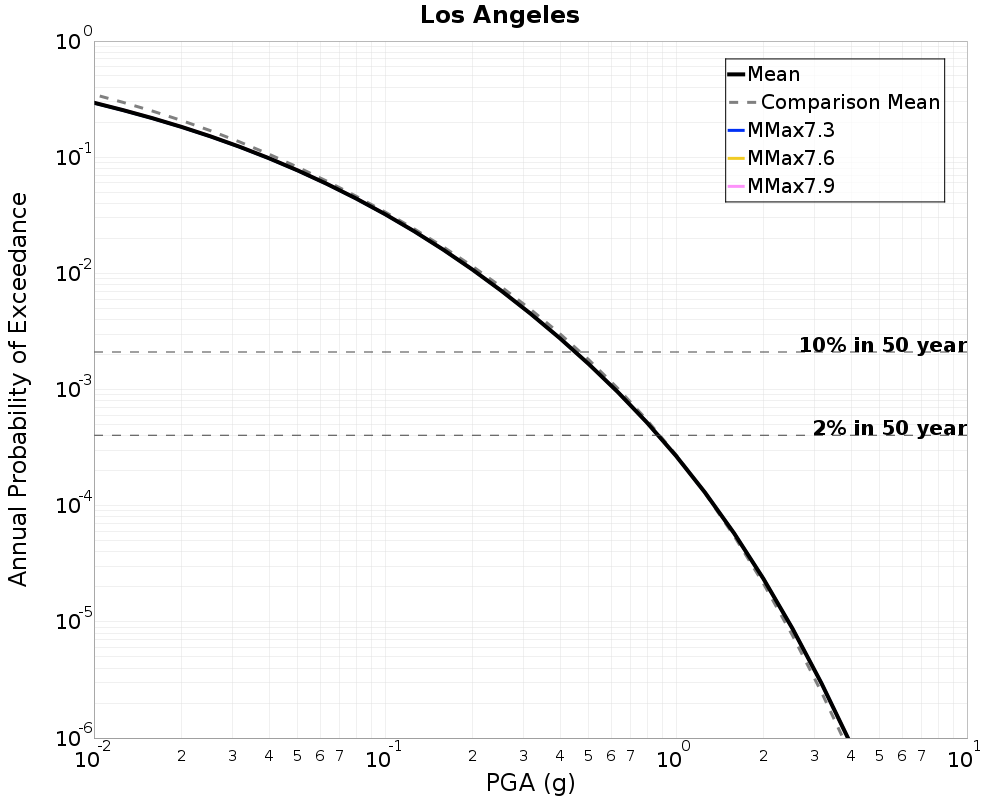

Los Angeles, PGA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8674039 (g) | 0.45043036 (g) |
| MMax7.3 | 0.86757886 (g) | 0.45042652 (g) |
| MMax7.6 | 0.86737204 (g) | 0.45039025 (g) |
| MMax7.9 | 0.8674837 (g) | 0.45075455 (g) |
Los Angeles, 1.0s SA
| Primary | Comparison |
|---|---|
 |  |
Los Angeles, 1.0s SA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
Comparison Distribution, 2% in 50 year | Comparison Distribution, 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Primary | 0.5947774 (g) | 0.29954576 (g) |
| Comparison | 0.57766396 (g) | 0.28766057 (g) |

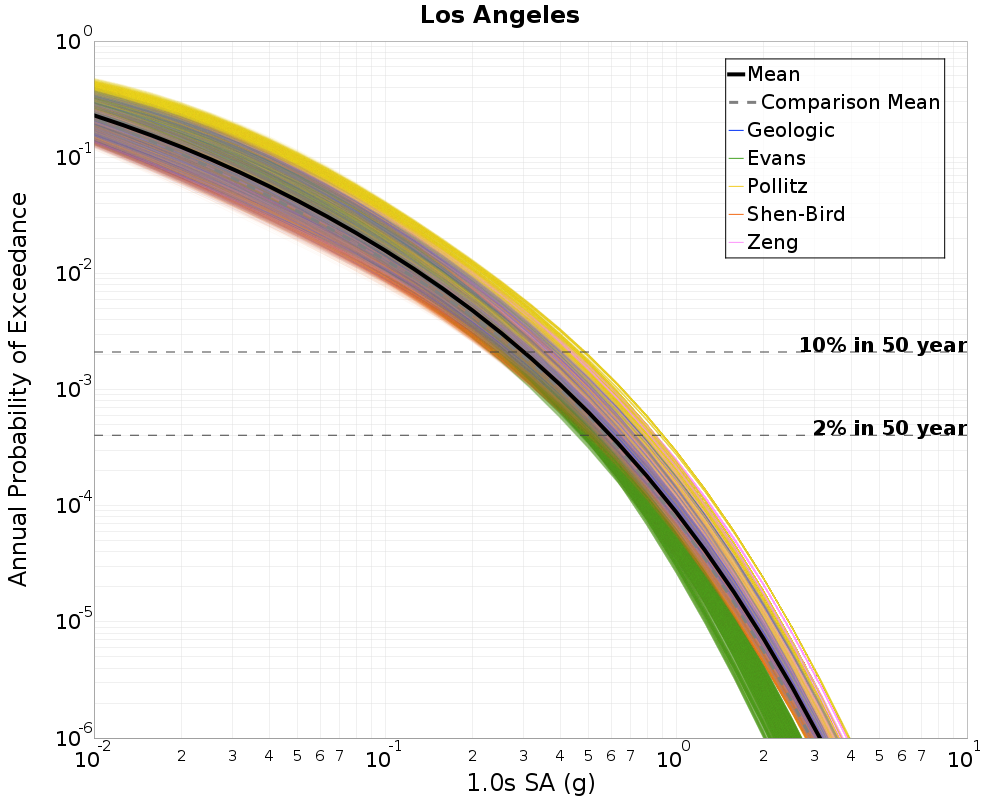

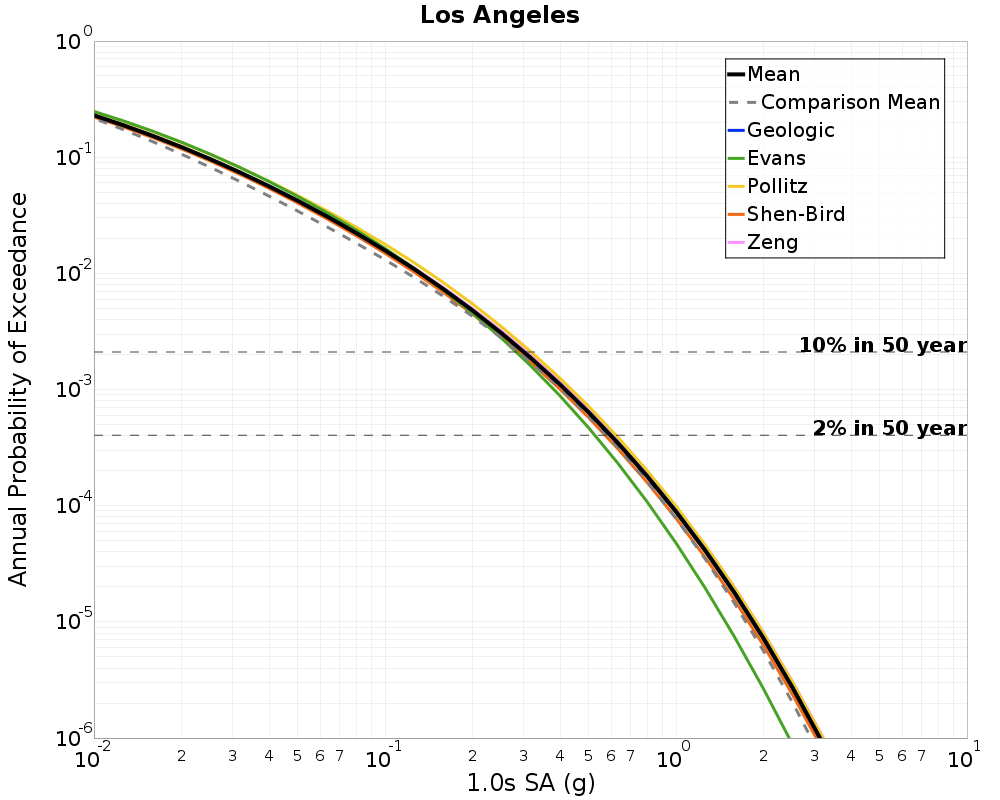

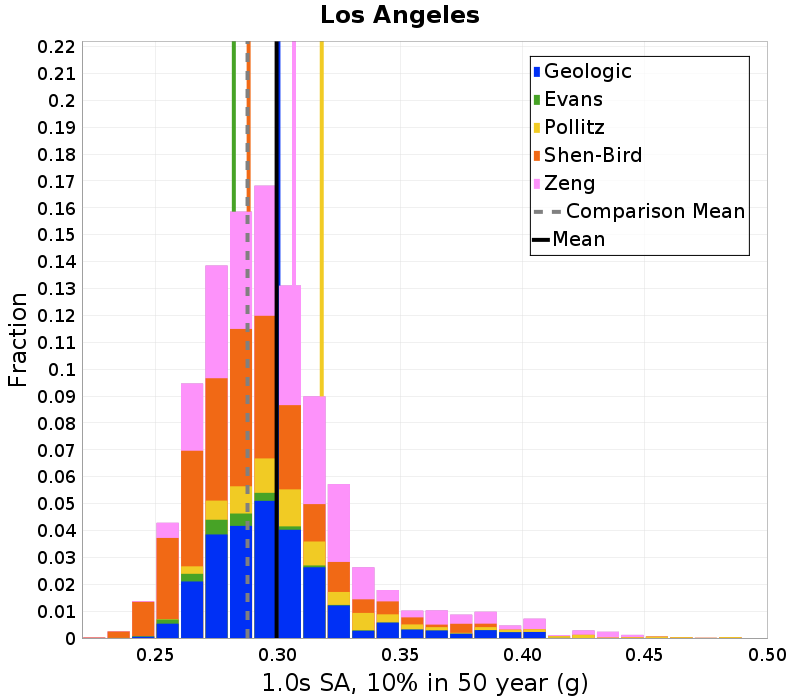

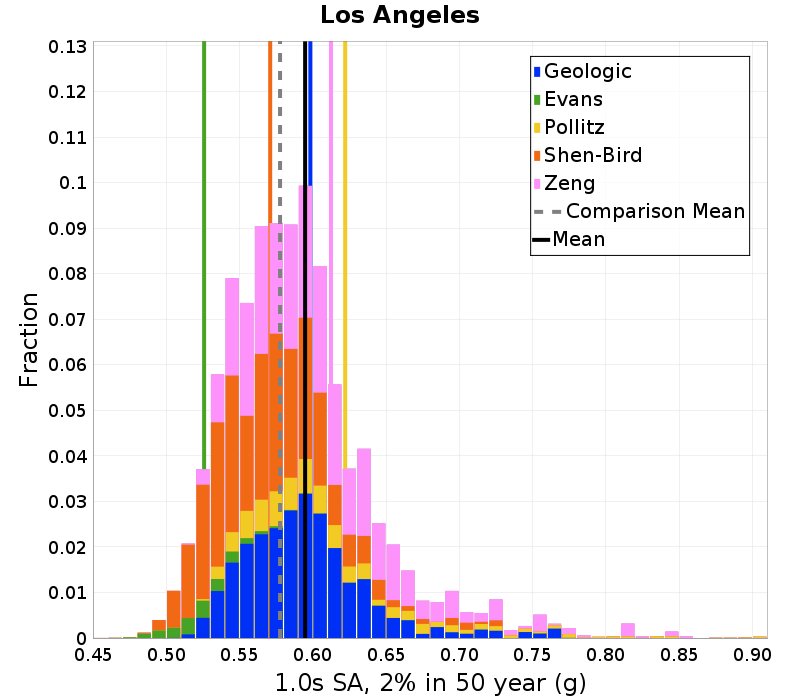

Los Angeles, 1.0s SA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.5947774 (g) | 0.29954576 (g) |
| Geologic | 0.5983291 (g) | 0.300291 (g) |
| Evans | 0.52583694 (g) | 0.2820639 (g) |
| Pollitz | 0.62211996 (g) | 0.31799927 (g) |
| Shen-Bird | 0.5709313 (g) | 0.28810722 (g) |
| Zeng | 0.6124335 (g) | 0.30665845 (g) |

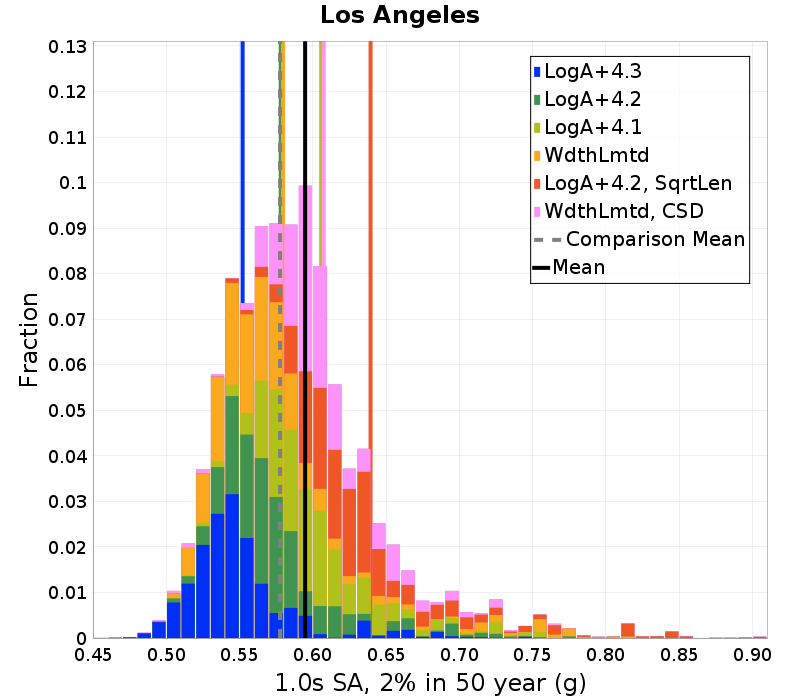

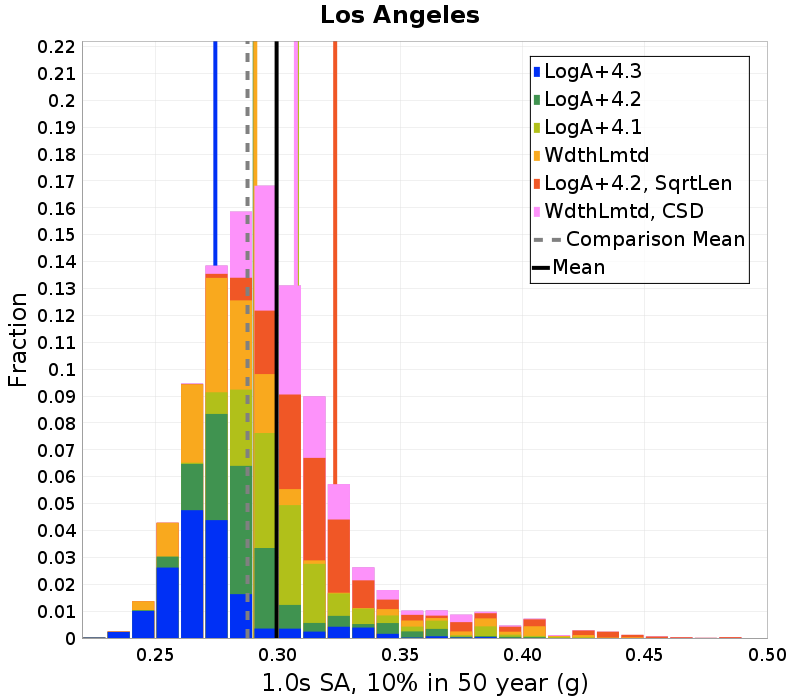

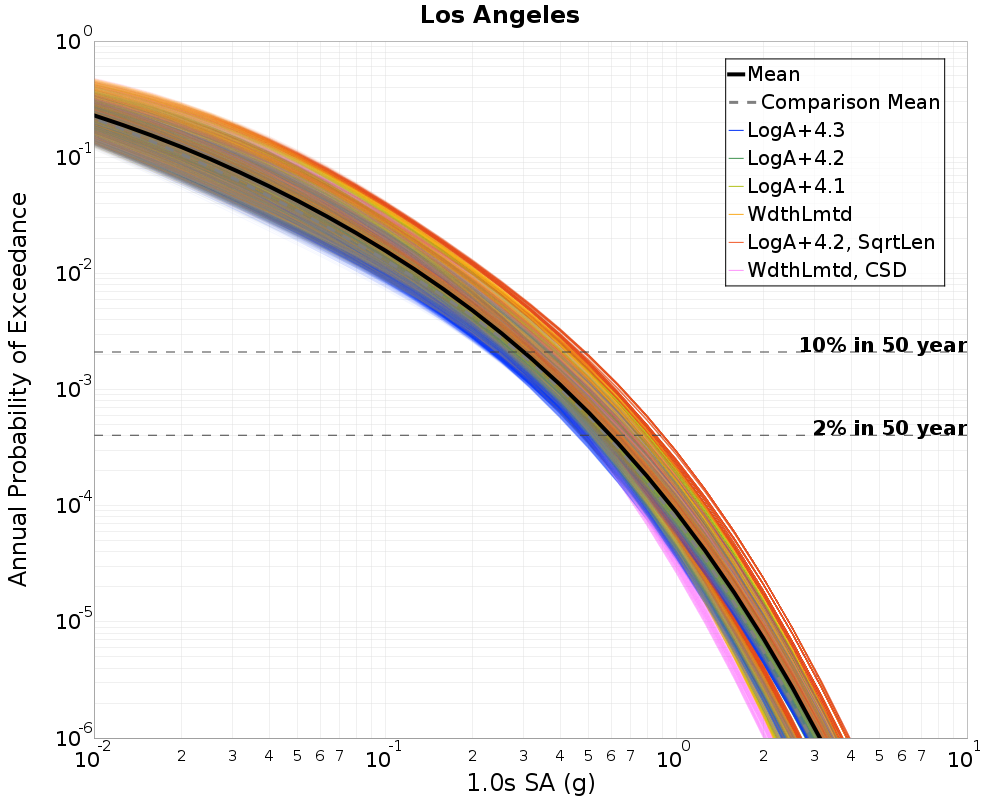

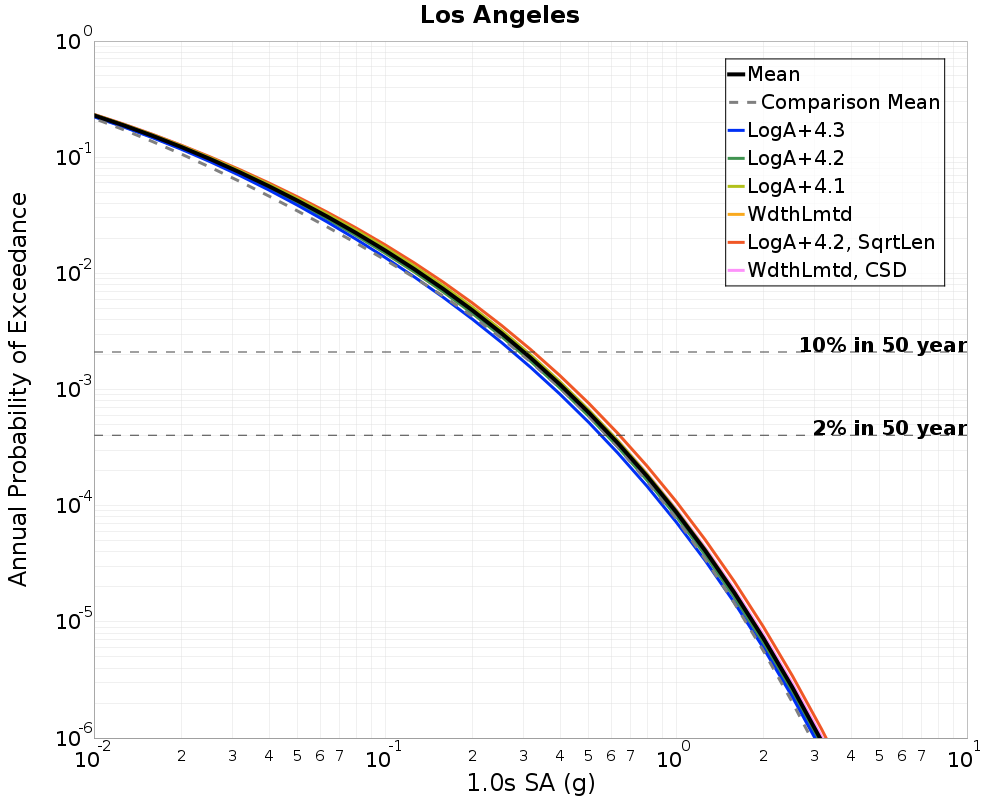

Los Angeles, 1.0s SA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.5947774 (g) | 0.29954576 (g) |
| LogA+4.3 | 0.55211174 (g) | 0.2745026 (g) |
| LogA+4.2 | 0.57812524 (g) | 0.2905823 (g) |
| LogA+4.1 | 0.6057295 (g) | 0.30789894 (g) |
| WdthLmtd | 0.5796565 (g) | 0.2908345 (g) |
| LogA+4.2, SqrtLen | 0.6394291 (g) | 0.32348886 (g) |
| WdthLmtd, CSD | 0.60747284 (g) | 0.3074244 (g) |

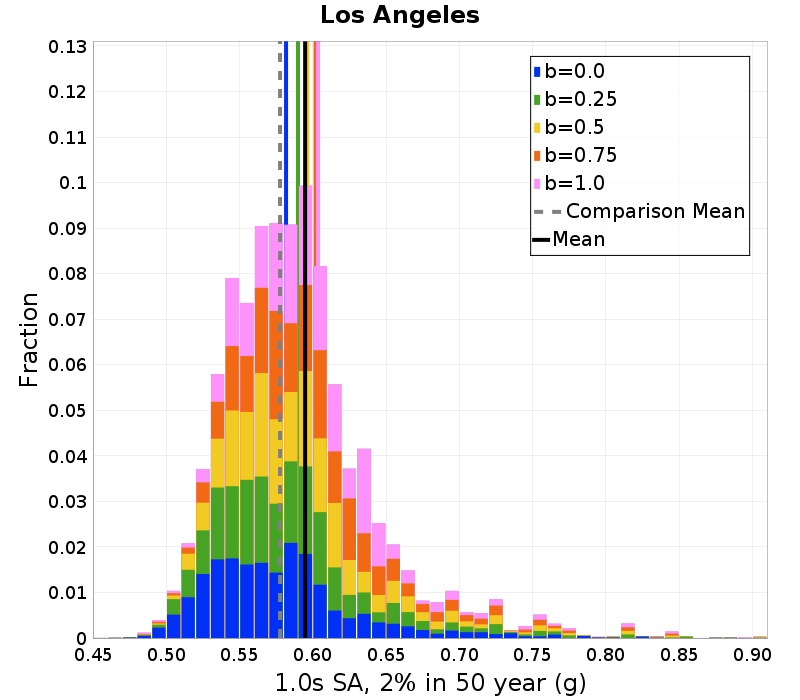

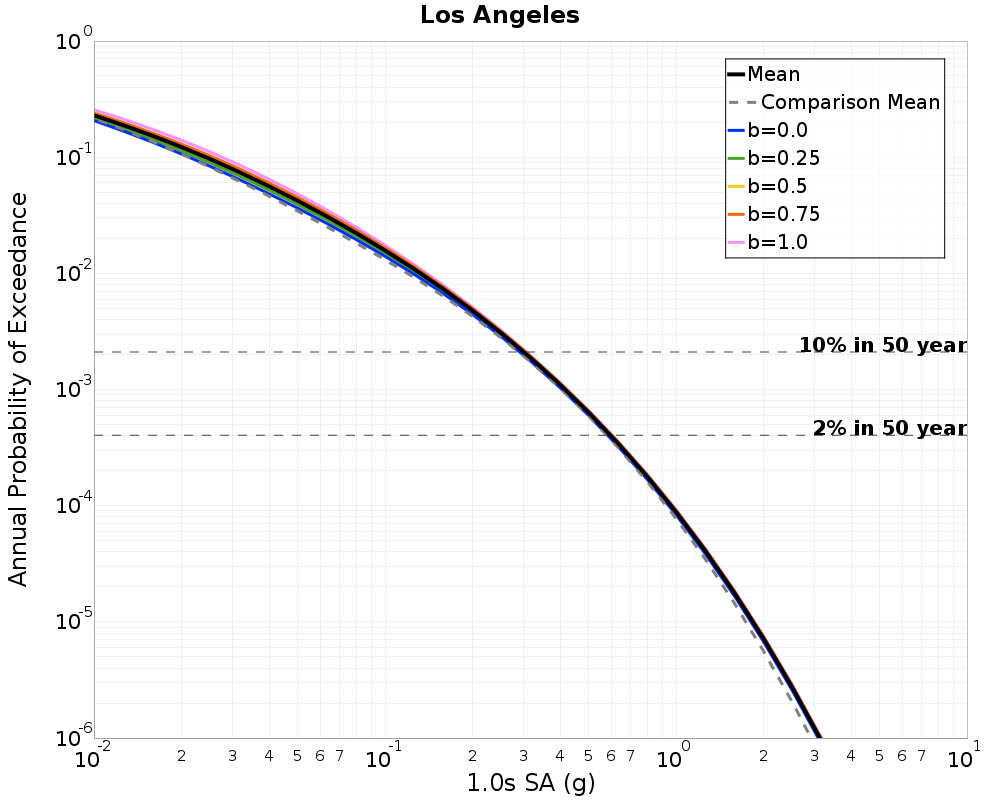

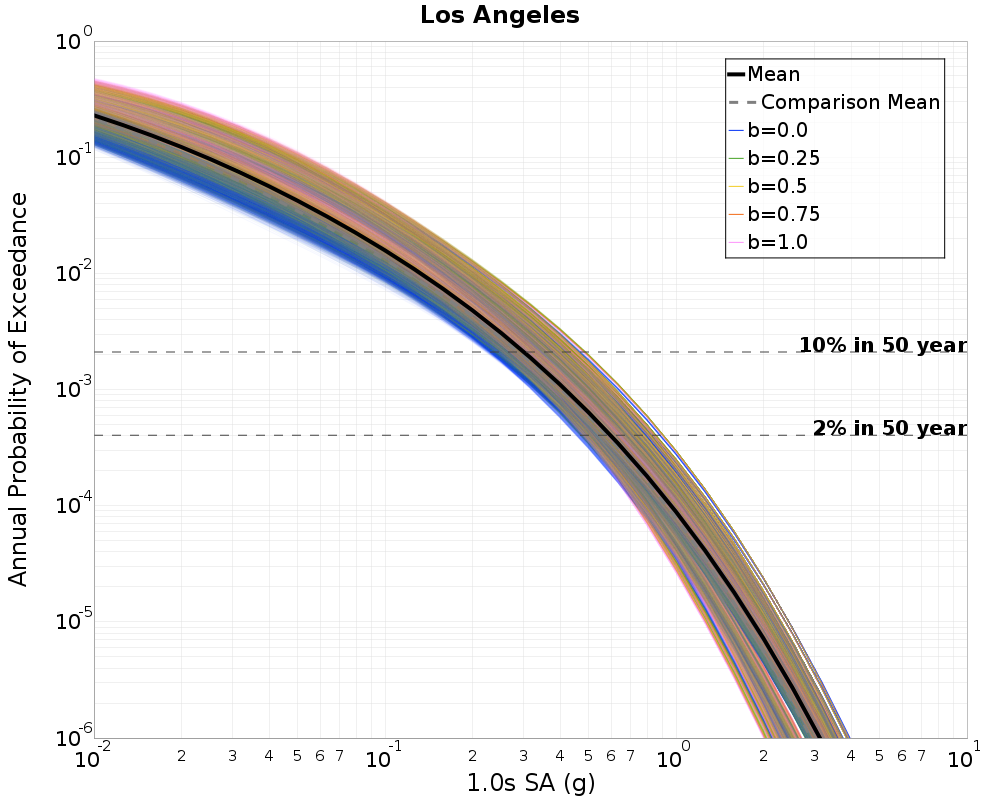

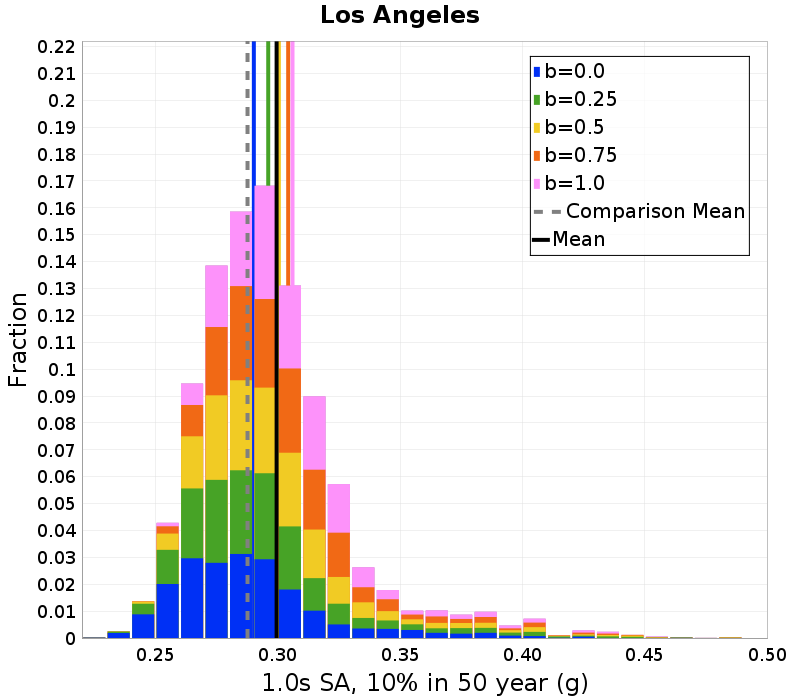

Los Angeles, 1.0s SA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.5947774 (g) | 0.29954576 (g) |
| b=0.0 | 0.5817619 (g) | 0.29024214 (g) |
| b=0.25 | 0.589918 (g) | 0.29612094 (g) |
| b=0.5 | 0.5962804 (g) | 0.30047137 (g) |
| b=0.75 | 0.60187876 (g) | 0.30427796 (g) |
| b=1.0 | 0.6036072 (g) | 0.30604467 (g) |

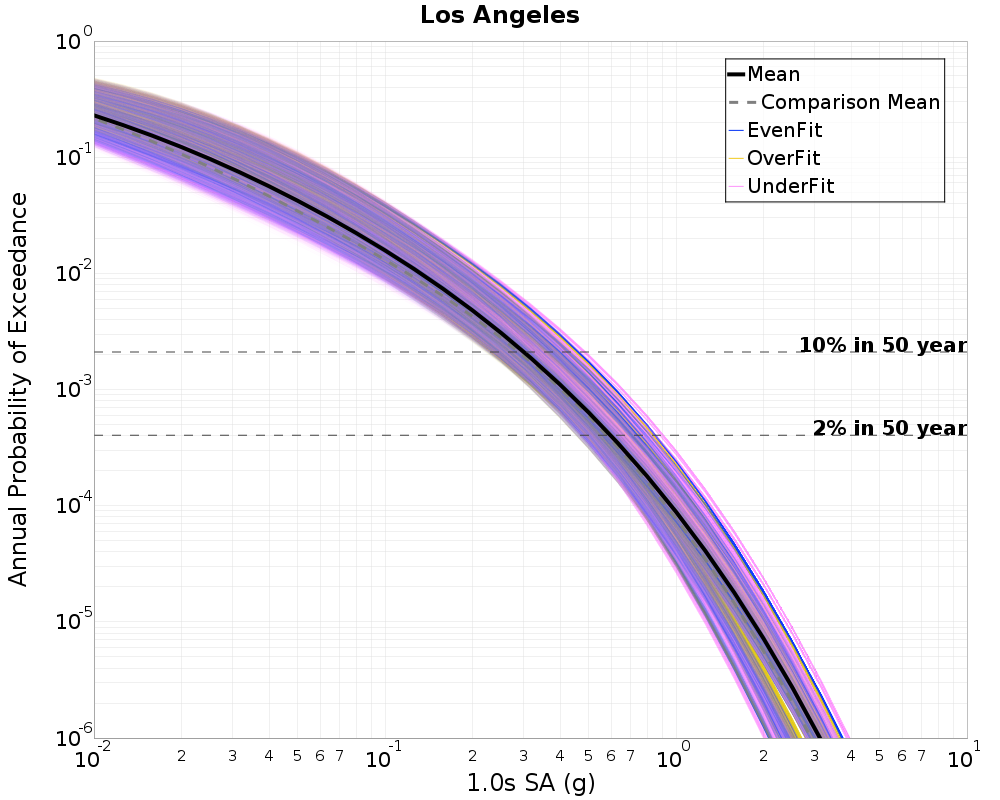

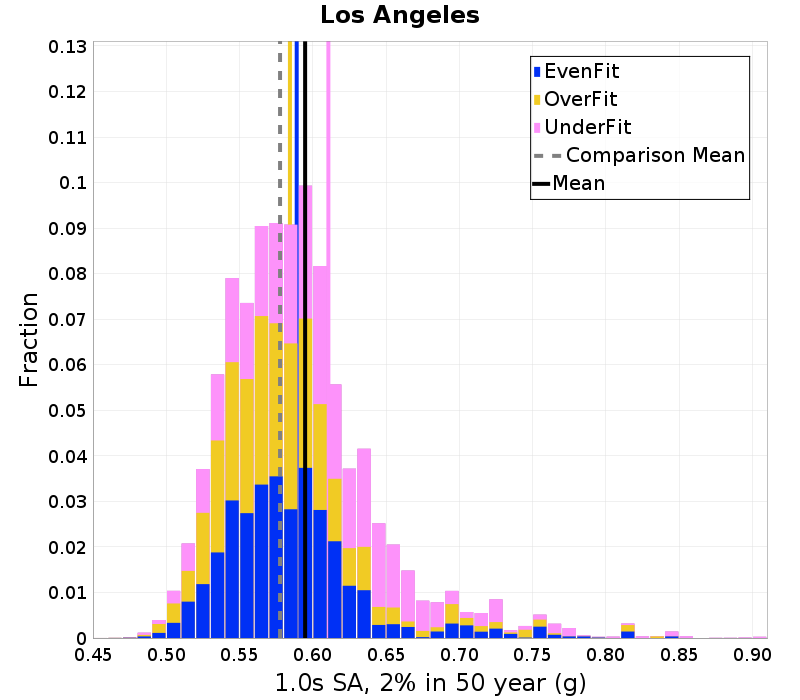

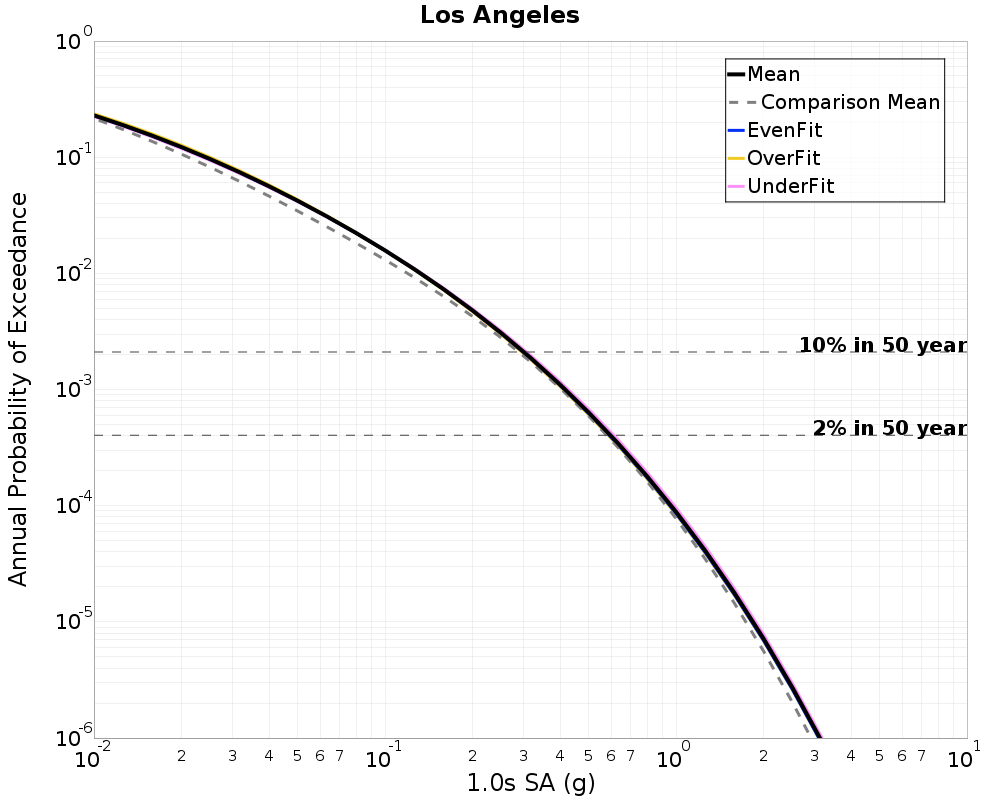

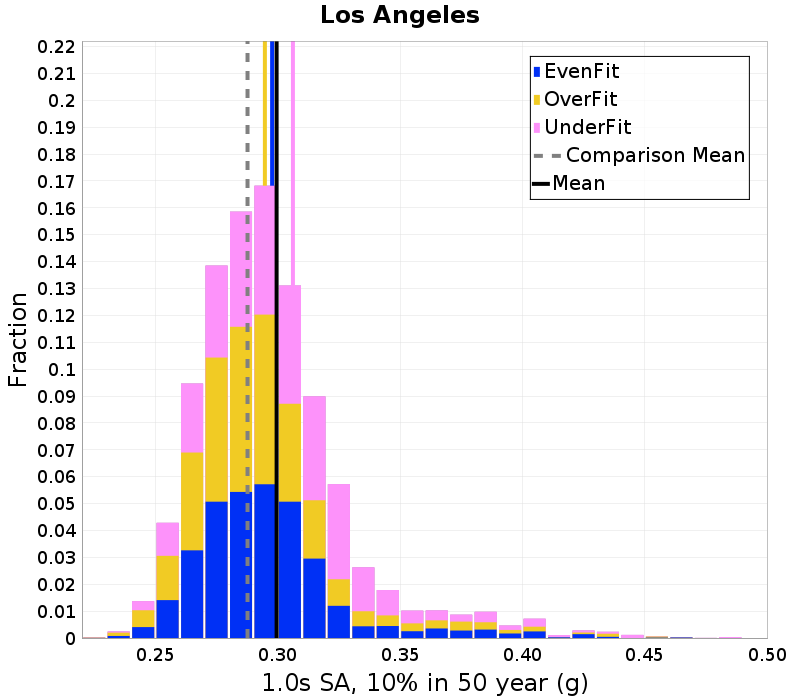

Los Angeles, 1.0s SA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.5947774 (g) | 0.29954576 (g) |
| EvenFit | 0.58902663 (g) | 0.2977129 (g) |
| OverFit | 0.5843973 (g) | 0.29475427 (g) |
| UnderFit | 0.6106437 (g) | 0.3062201 (g) |

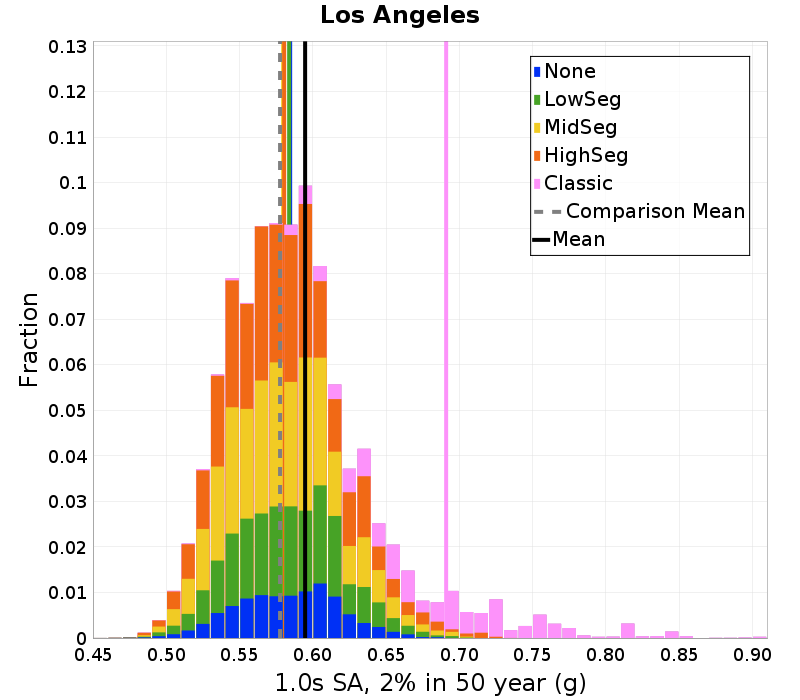

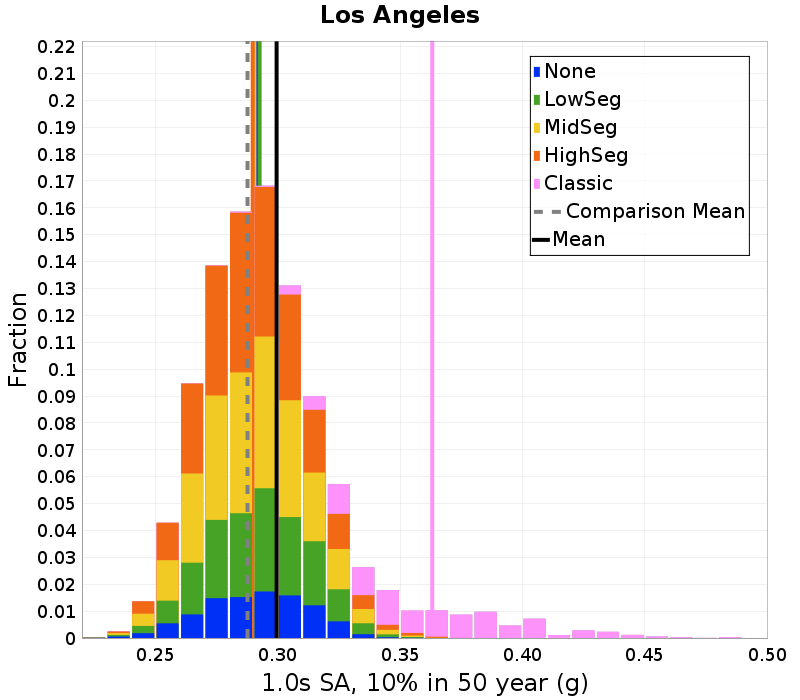

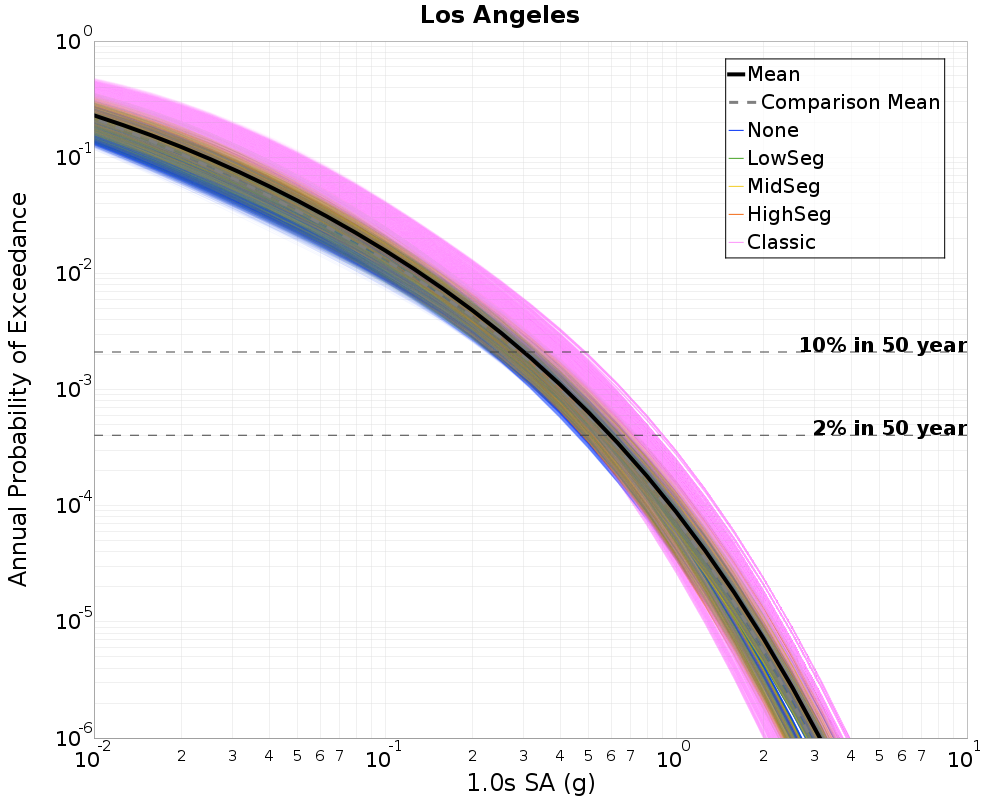

Los Angeles, 1.0s SA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.5947774 (g) | 0.29954576 (g) |
| None | 0.5845632 (g) | 0.29189193 (g) |
| LowSeg | 0.58387625 (g) | 0.29260805 (g) |
| MidSeg | 0.5797733 (g) | 0.29047343 (g) |
| HighSeg | 0.5804808 (g) | 0.2897803 (g) |
| Classic | 0.69102746 (g) | 0.36315805 (g) |

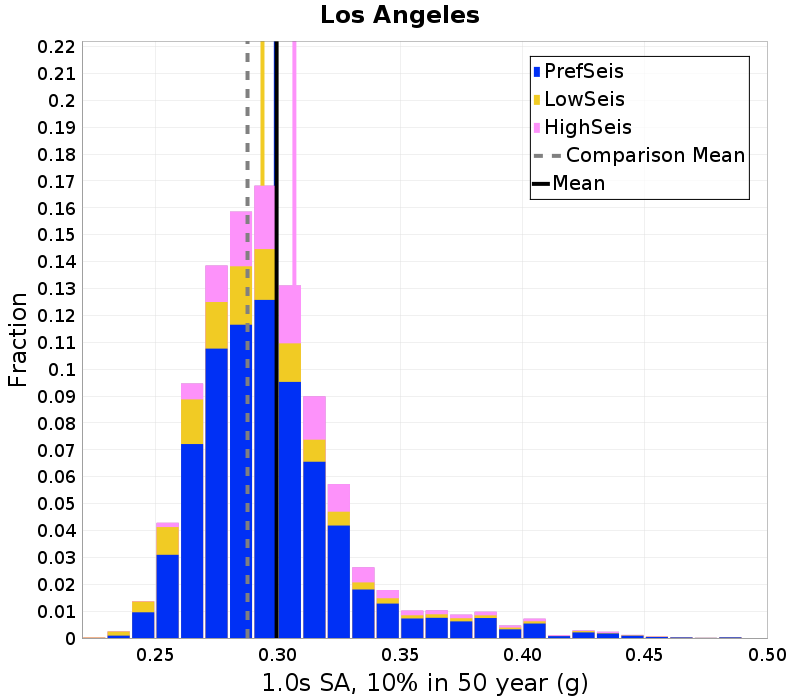

Los Angeles, 1.0s SA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.5947774 (g) | 0.29954576 (g) |
| PrefSeis | 0.59444886 (g) | 0.29922122 (g) |
| LowSeis | 0.58920187 (g) | 0.29377243 (g) |
| HighSeis | 0.6019923 (g) | 0.30681413 (g) |

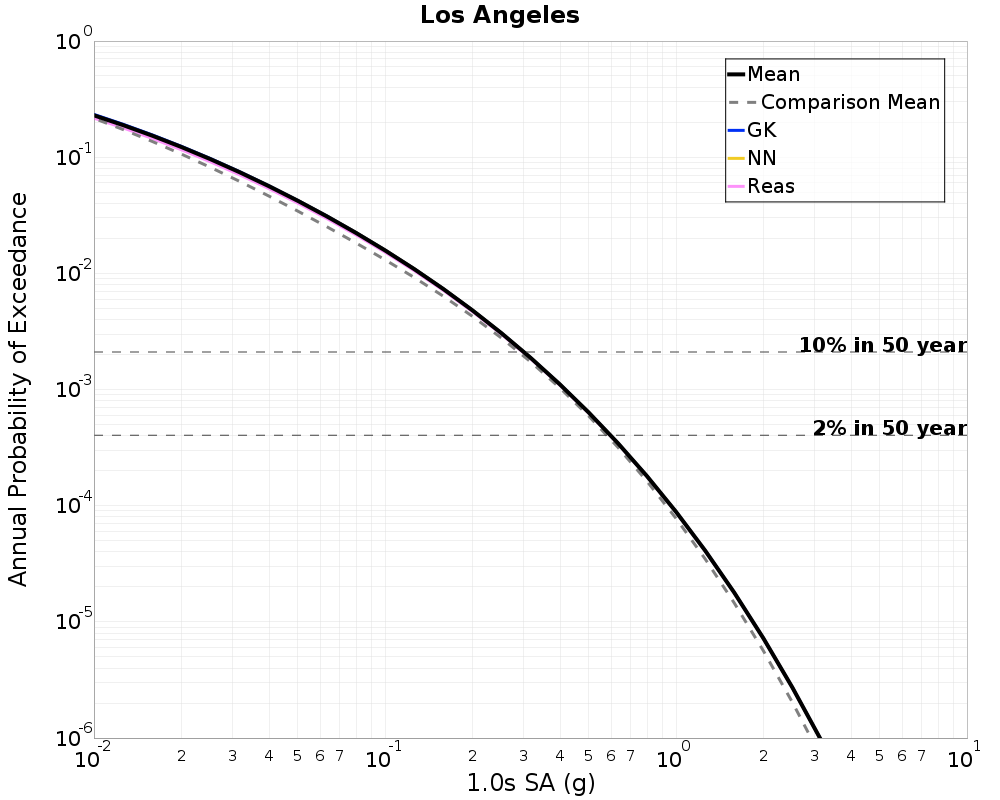

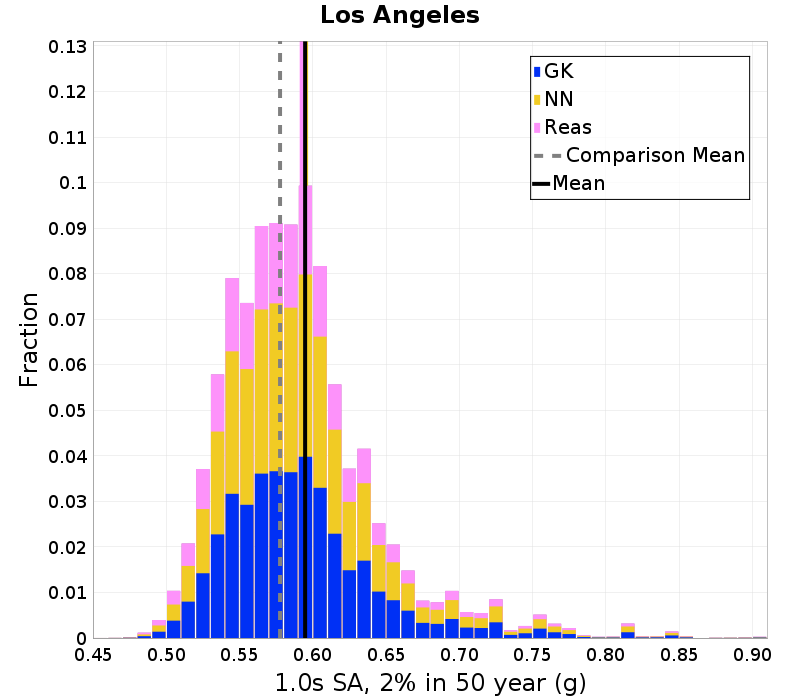

Los Angeles, 1.0s SA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.5947774 (g) | 0.29954576 (g) |
| GK | 0.59527427 (g) | 0.3000613 (g) |
| NN | 0.59544384 (g) | 0.30030054 (g) |
| Reas | 0.5924303 (g) | 0.296969 (g) |

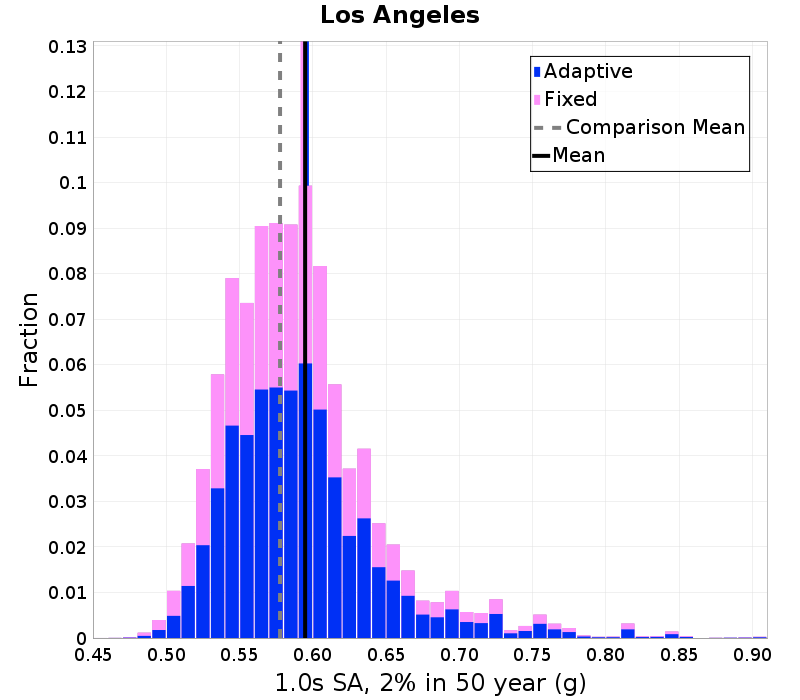

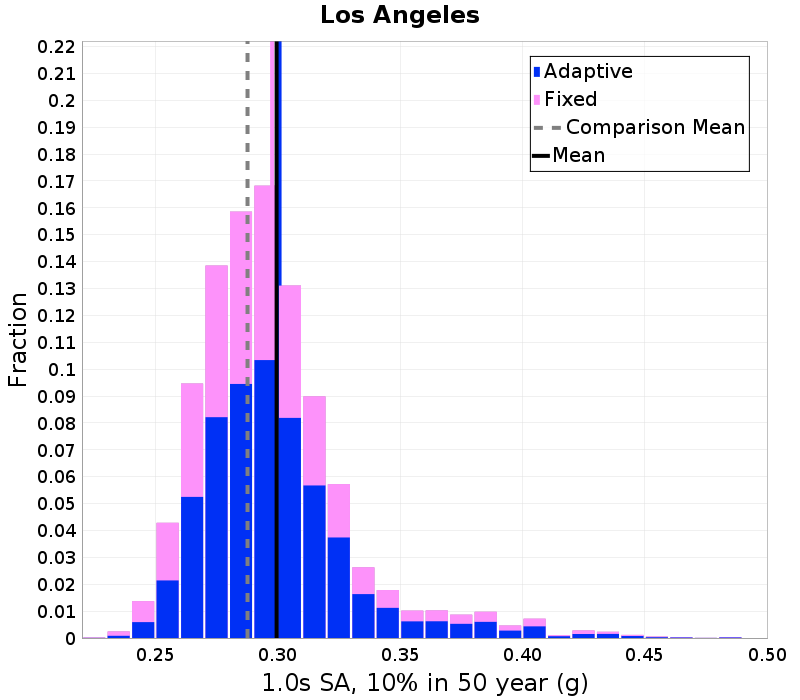

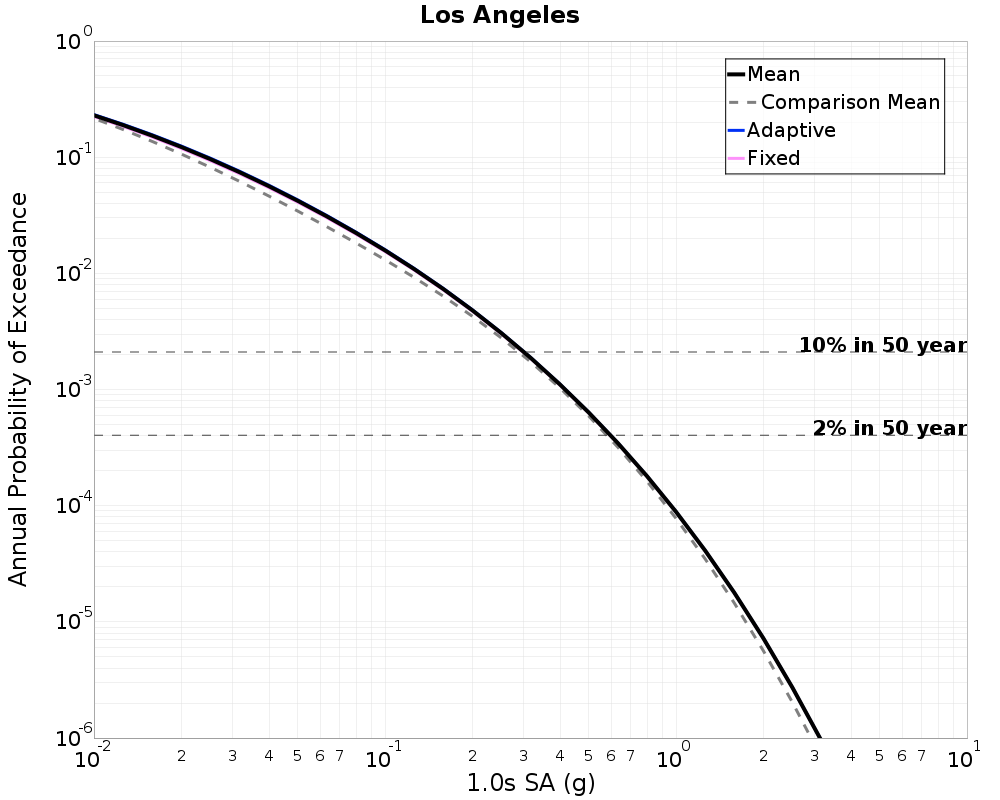

Los Angeles, 1.0s SA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.5947774 (g) | 0.29954576 (g) |
| Adaptive | 0.59598637 (g) | 0.30075714 (g) |
| Fixed | 0.59294885 (g) | 0.29770675 (g) |

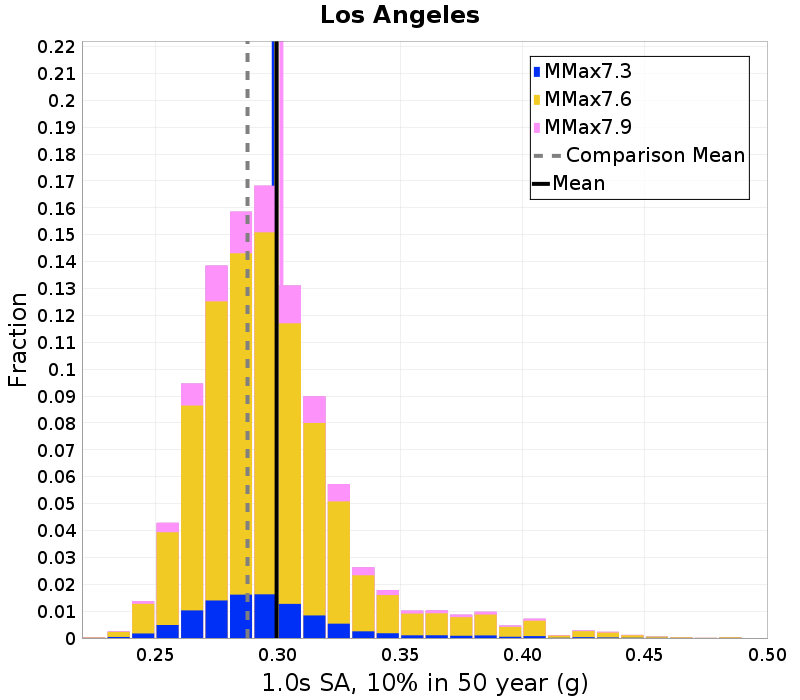

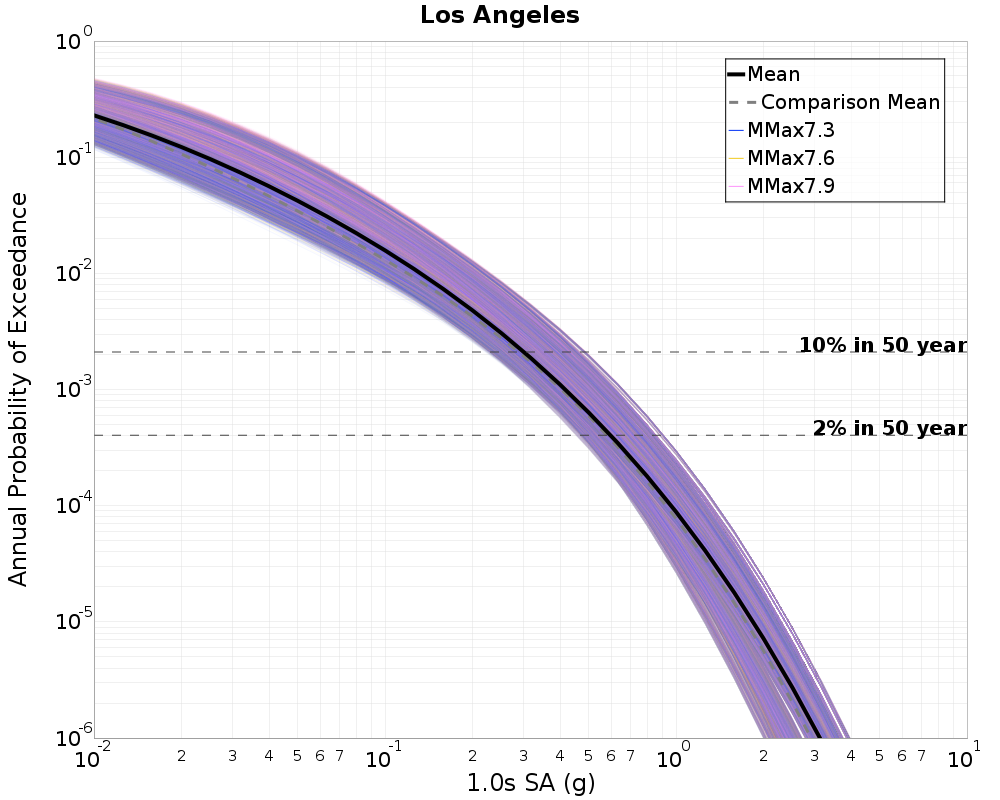

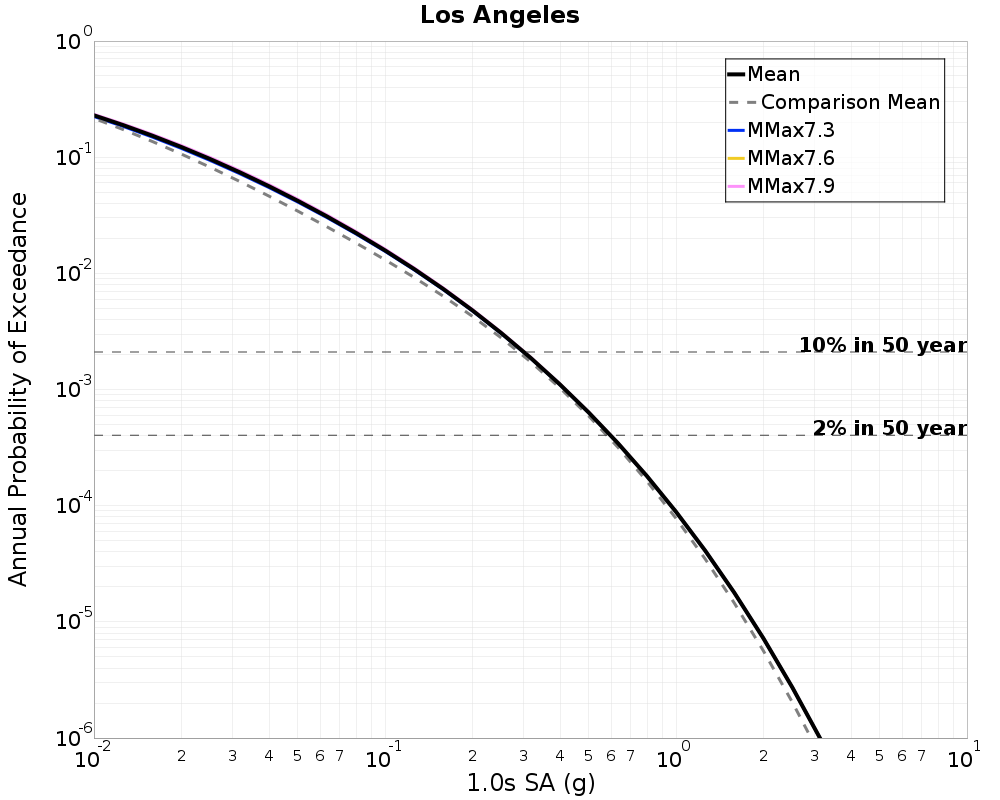

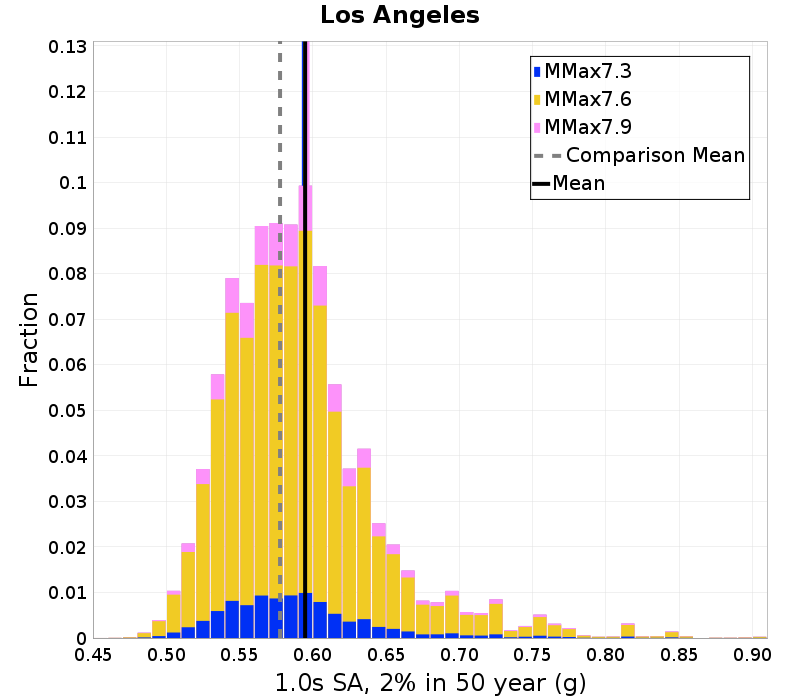

Los Angeles, 1.0s SA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.5947774 (g) | 0.29954576 (g) |
| MMax7.3 | 0.5938931 (g) | 0.29838258 (g) |
| MMax7.6 | 0.5946813 (g) | 0.2994436 (g) |
| MMax7.9 | 0.596418 (g) | 0.3015016 (g) |
