San Diego Logic Tree Hazard Curves
Table Of Contents
- San Diego, PGA
- San Diego, PGA, Hazard Value Distributions
- San Diego, PGA, Deformation Model Hazard
- San Diego, PGA, Scaling Relationship Hazard
- San Diego, PGA, Supra-Seismogenic b-value Hazard
- San Diego, PGA, Paleoseismic Data Uncertainties Hazard
- San Diego, PGA, Segmentation Model Hazard
- San Diego, PGA, Regional Seismicity Rate Hazard
- San Diego, PGA, Seismicity Declustering Algorithm Hazard
- San Diego, PGA, Seismicity Smoothing Kernel Hazard
- San Diego, PGA, Off Fault Mmax Hazard
- San Diego, 1.0s SA
- San Diego, 1.0s SA, Hazard Value Distributions
- San Diego, 1.0s SA, Deformation Model Hazard
- San Diego, 1.0s SA, Scaling Relationship Hazard
- San Diego, 1.0s SA, Supra-Seismogenic b-value Hazard
- San Diego, 1.0s SA, Paleoseismic Data Uncertainties Hazard
- San Diego, 1.0s SA, Segmentation Model Hazard
- San Diego, 1.0s SA, Regional Seismicity Rate Hazard
- San Diego, 1.0s SA, Seismicity Declustering Algorithm Hazard
- San Diego, 1.0s SA, Seismicity Smoothing Kernel Hazard
- San Diego, 1.0s SA, Off Fault Mmax Hazard
San Diego, PGA
| Primary | Comparison |
|---|---|
 |  |
San Diego, PGA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
Comparison Distribution, 2% in 50 year | Comparison Distribution, 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Primary | 0.82448745 (g) | 0.33526203 (g) |
| Comparison | 0.7198433 (g) | 0.28878108 (g) |

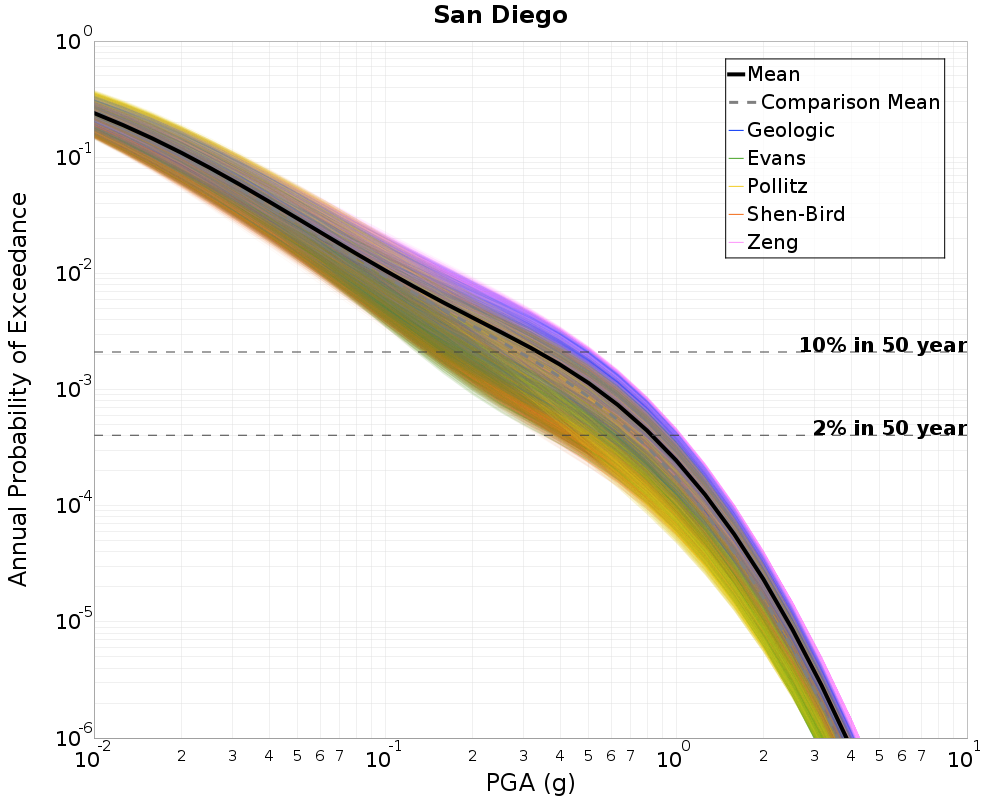

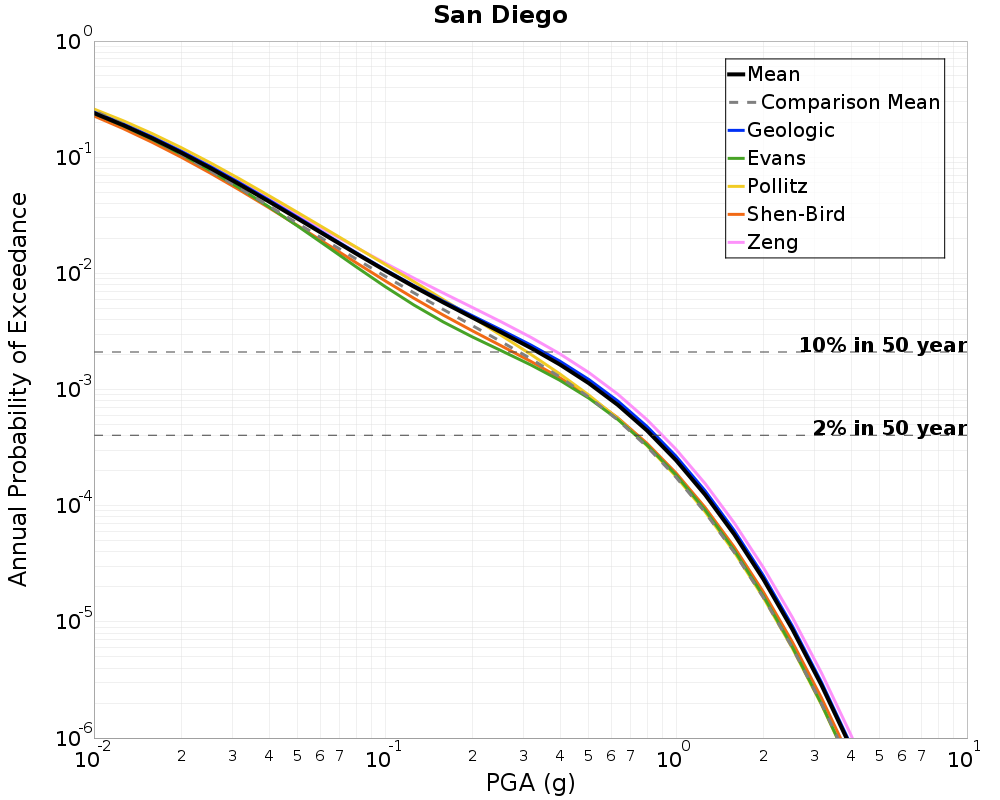

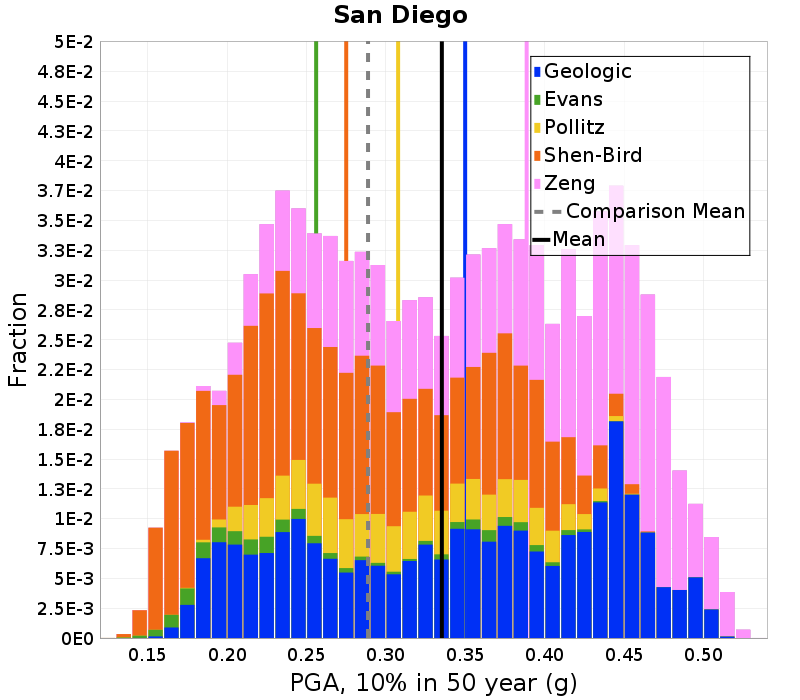

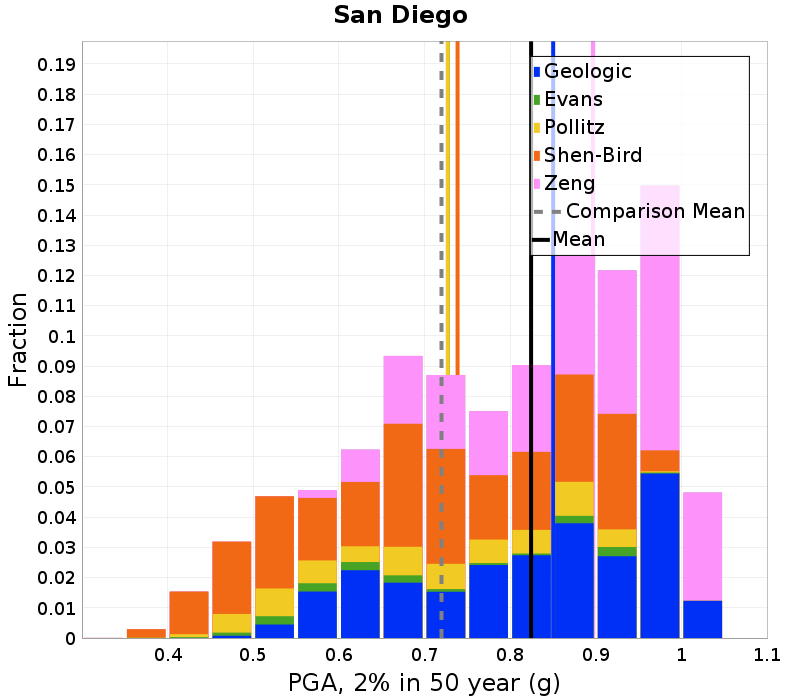

San Diego, PGA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.82448745 (g) | 0.33526203 (g) |
| Geologic | 0.8502714 (g) | 0.34993786 (g) |
| Evans | 0.7274565 (g) | 0.25610444 (g) |
| Pollitz | 0.72718704 (g) | 0.30772263 (g) |
| Shen-Bird | 0.7386226 (g) | 0.2750373 (g) |
| Zeng | 0.89672965 (g) | 0.38866076 (g) |

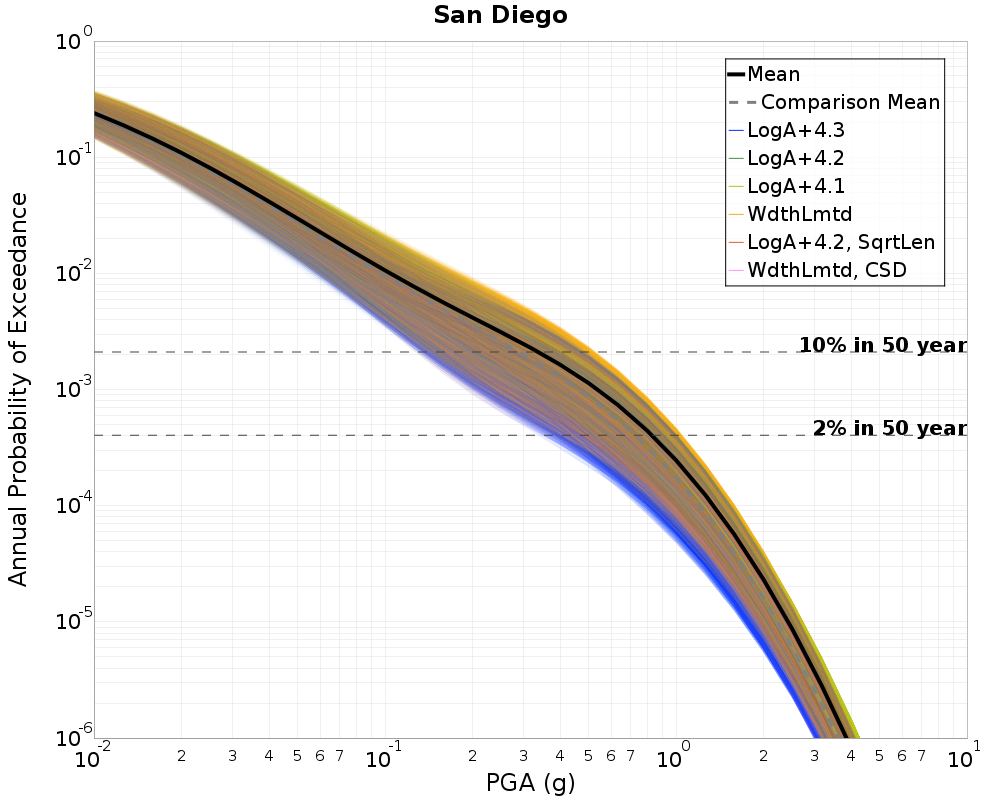

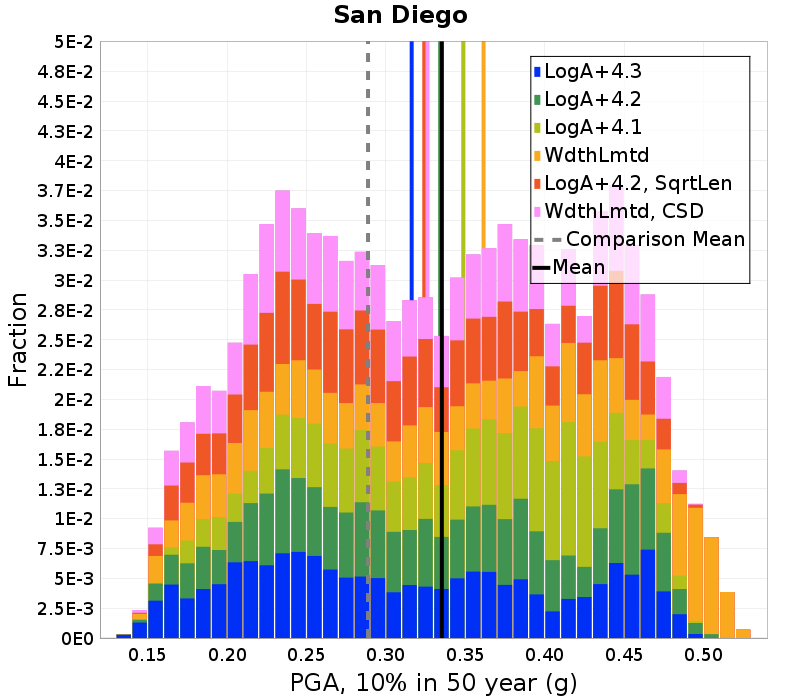

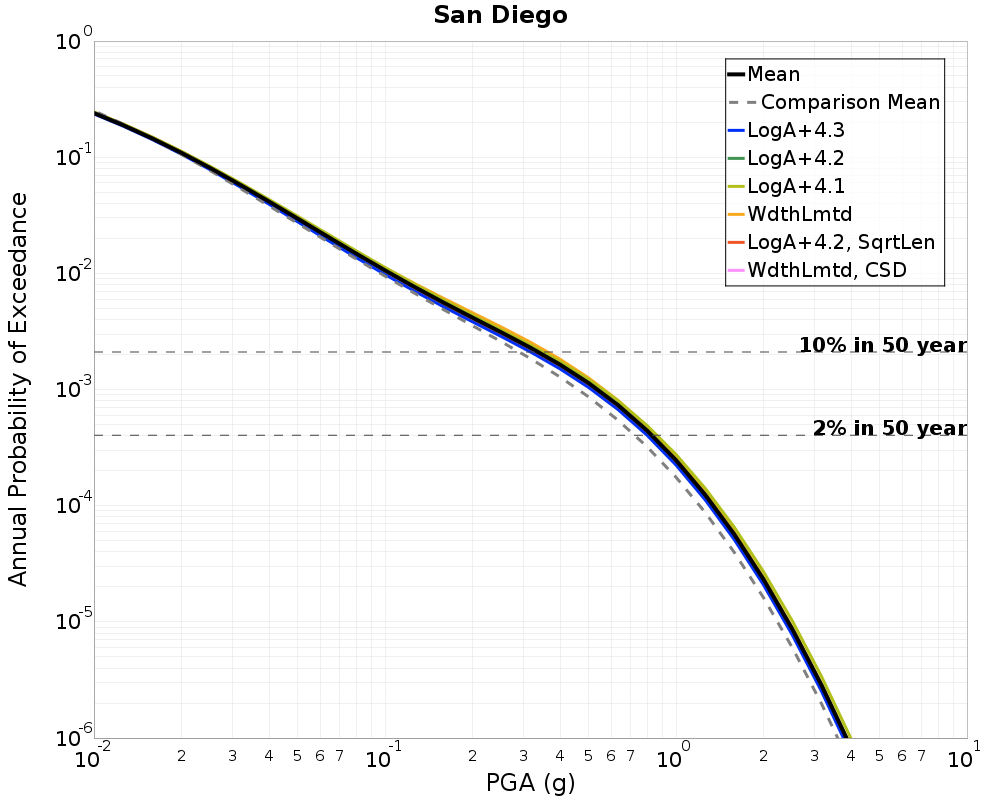

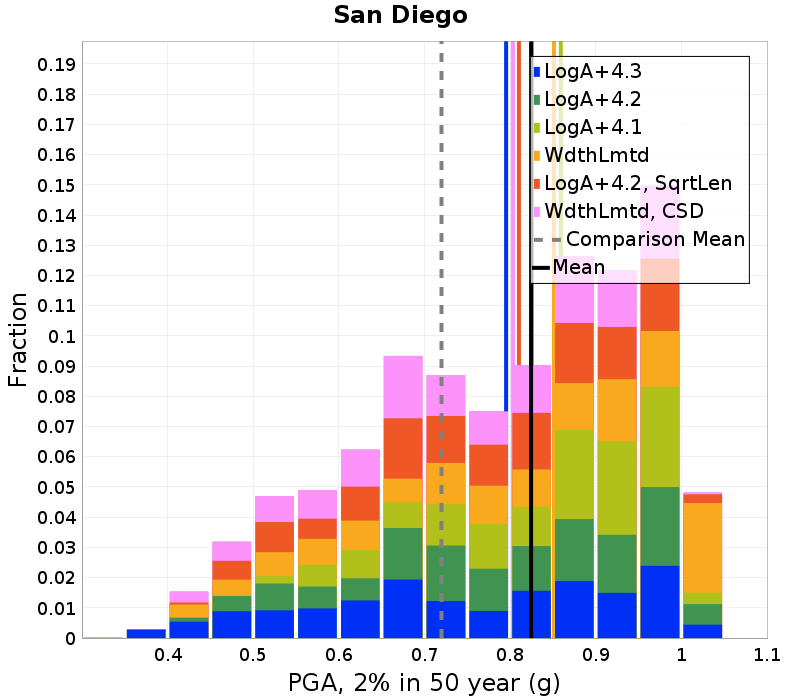

San Diego, PGA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.82448745 (g) | 0.33526203 (g) |
| LogA+4.3 | 0.795313 (g) | 0.3162574 (g) |
| LogA+4.2 | 0.82516915 (g) | 0.33419532 (g) |
| LogA+4.1 | 0.8592057 (g) | 0.3487344 (g) |
| WdthLmtd | 0.85119194 (g) | 0.36153397 (g) |
| LogA+4.2, SqrtLen | 0.8102943 (g) | 0.32417682 (g) |
| WdthLmtd, CSD | 0.8033006 (g) | 0.3262302 (g) |

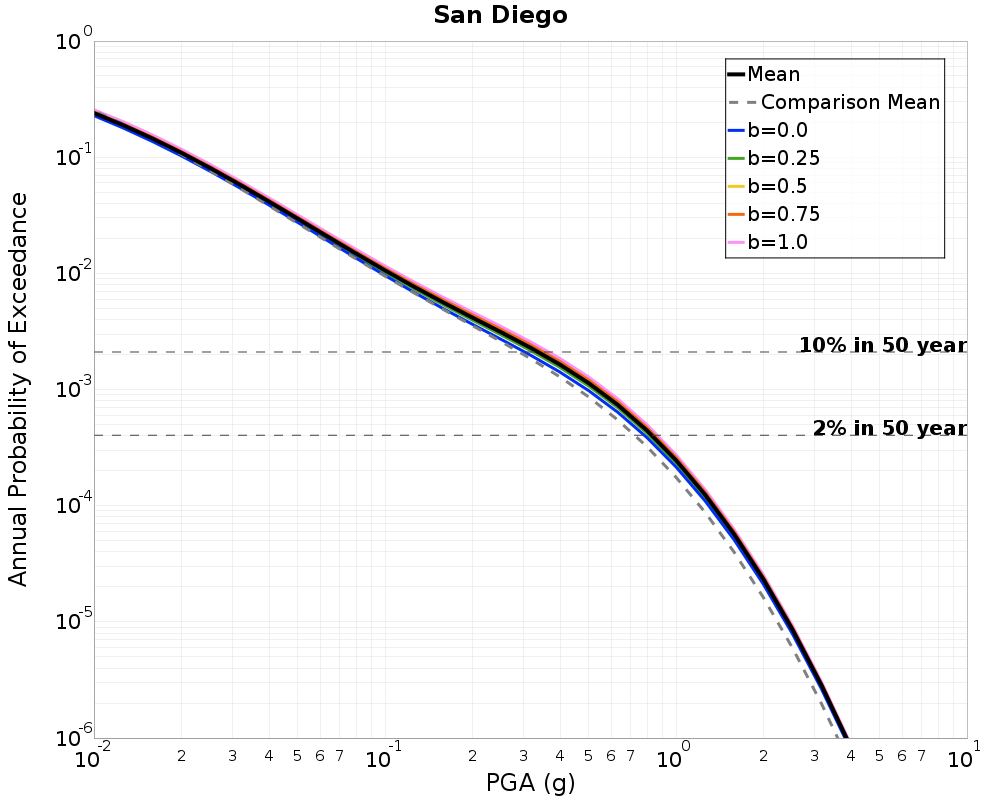

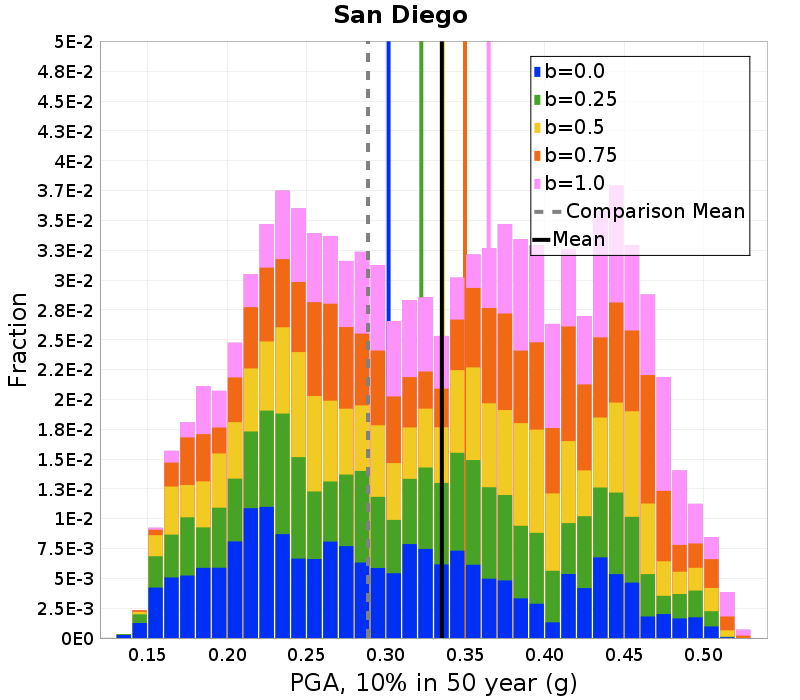

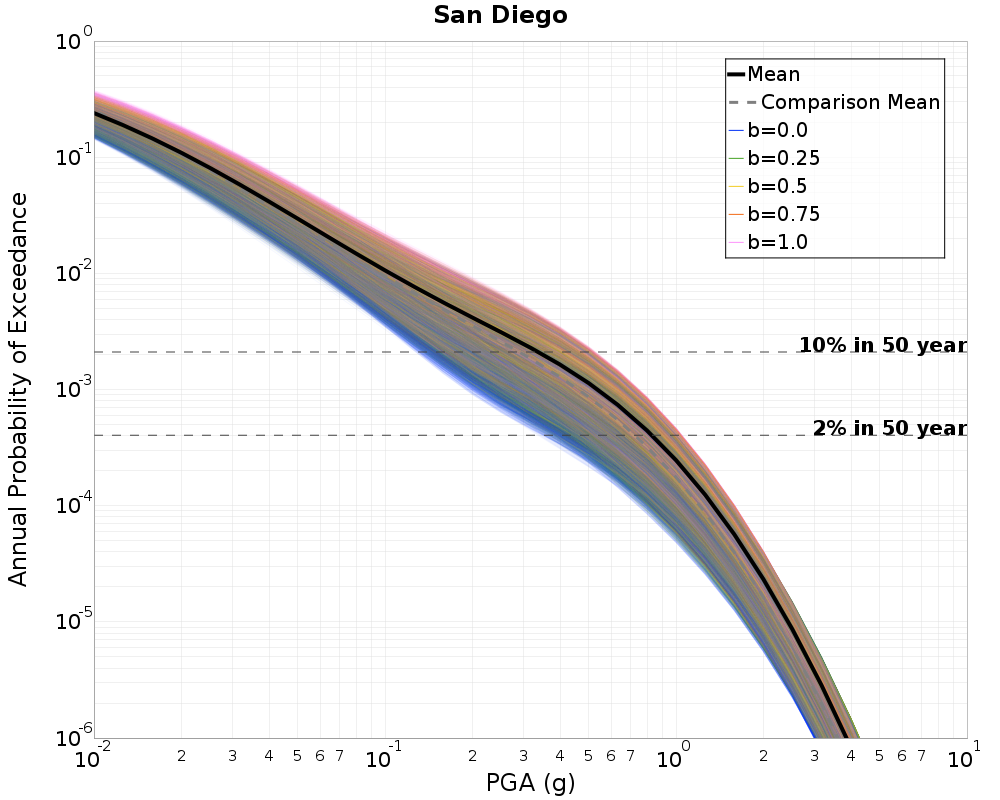

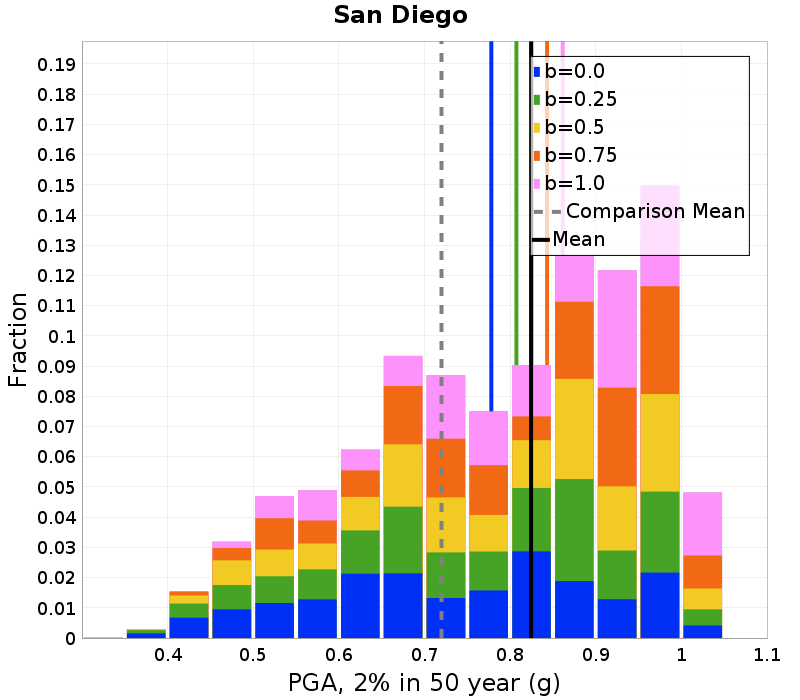

San Diego, PGA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.82448745 (g) | 0.33526203 (g) |
| b=0.0 | 0.77805376 (g) | 0.30171743 (g) |
| b=0.25 | 0.80733097 (g) | 0.32232723 (g) |
| b=0.5 | 0.8252739 (g) | 0.33582473 (g) |
| b=0.75 | 0.843177 (g) | 0.349841 (g) |
| b=1.0 | 0.8614507 (g) | 0.3647537 (g) |

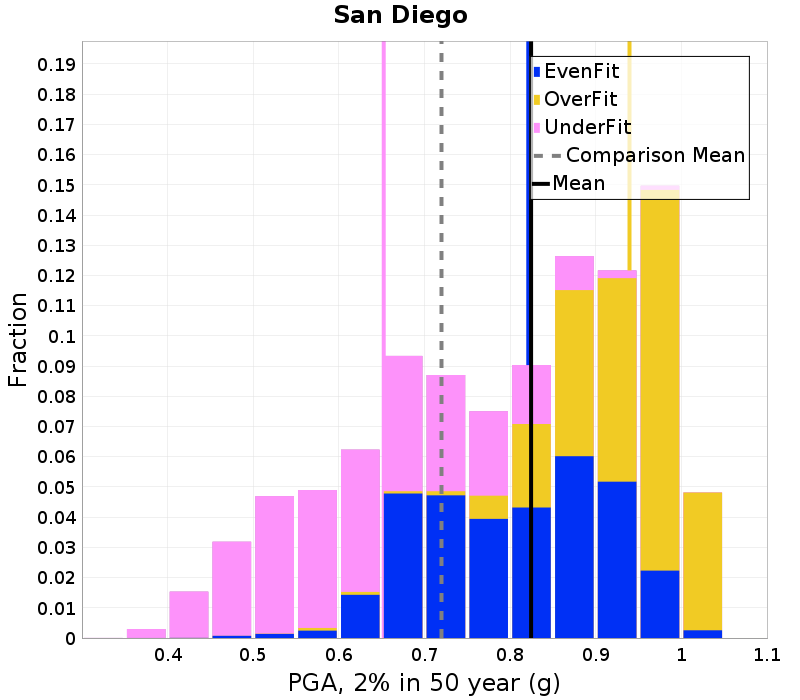

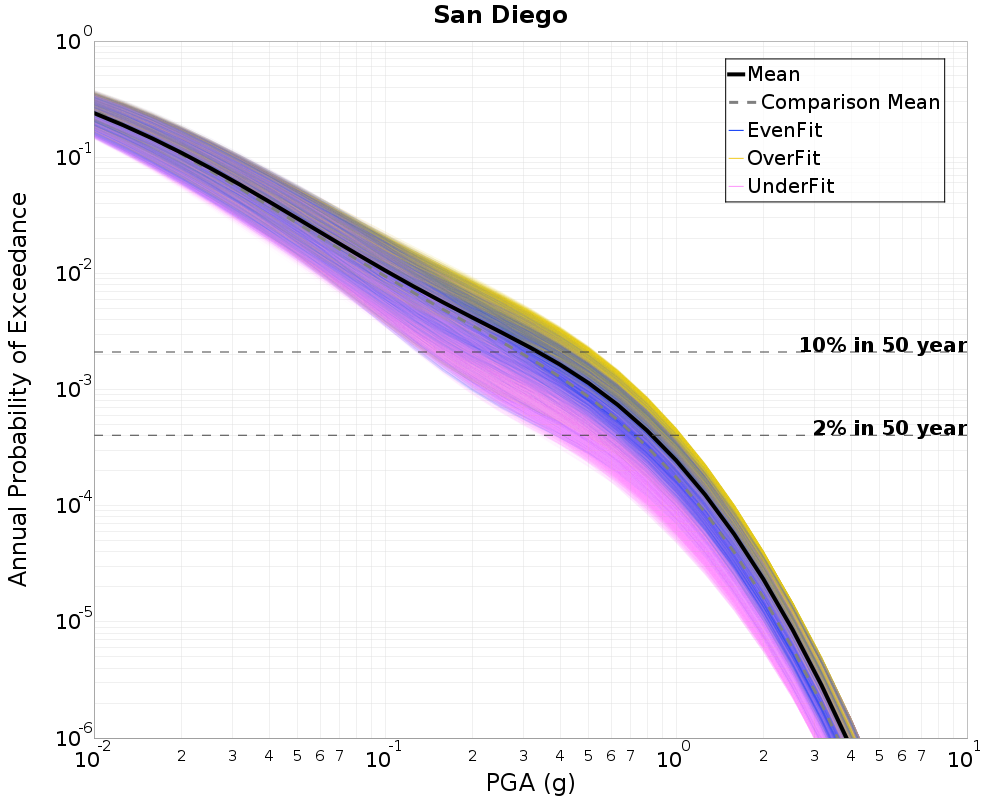

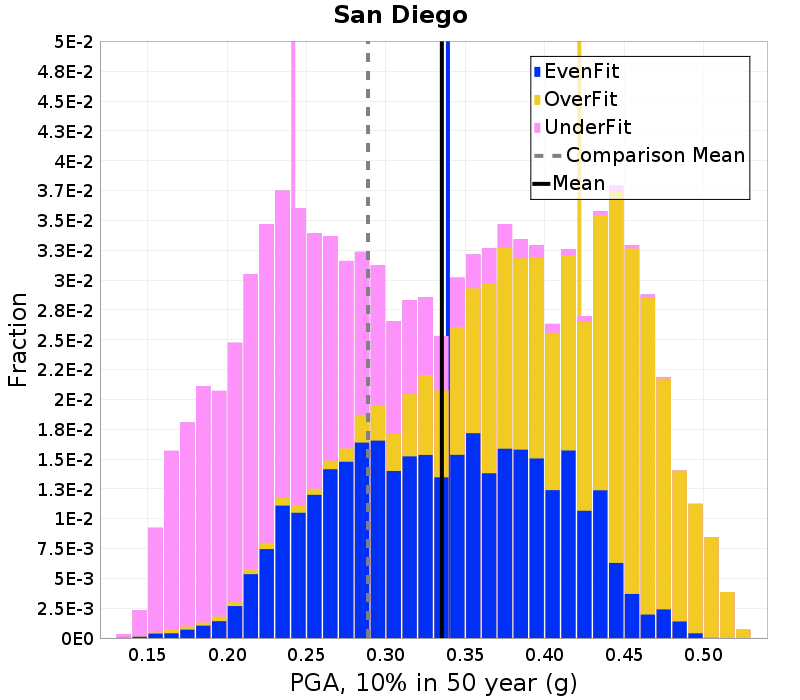

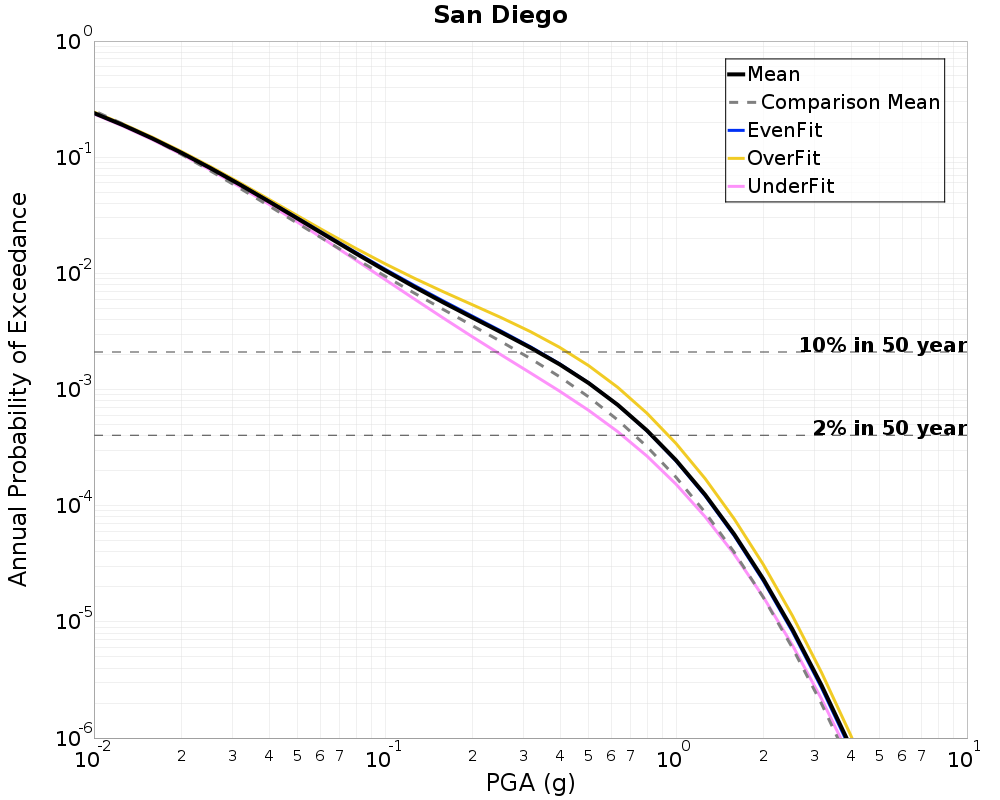

San Diego, PGA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.82448745 (g) | 0.33526203 (g) |
| EvenFit | 0.82121557 (g) | 0.33908862 (g) |
| OverFit | 0.9394227 (g) | 0.42182946 (g) |
| UnderFit | 0.65238345 (g) | 0.24168679 (g) |

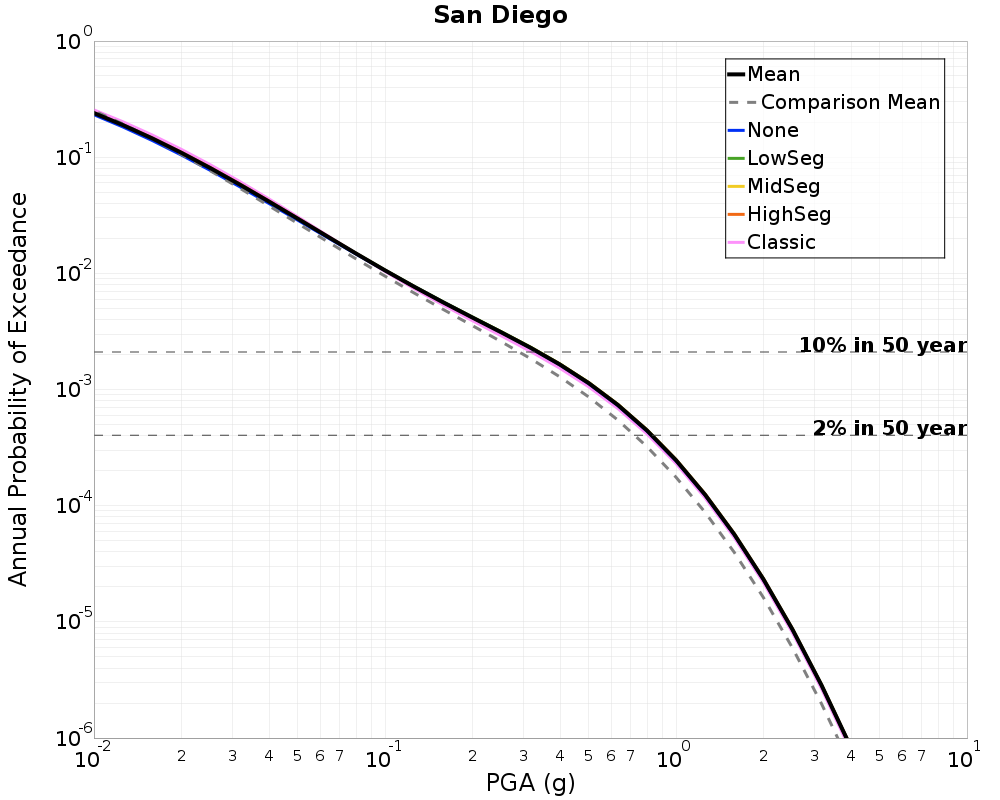

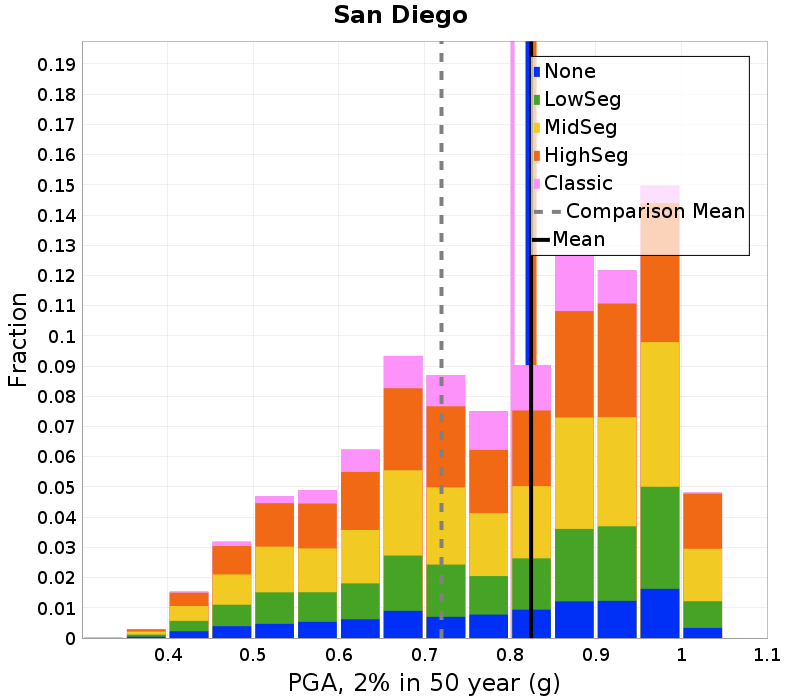

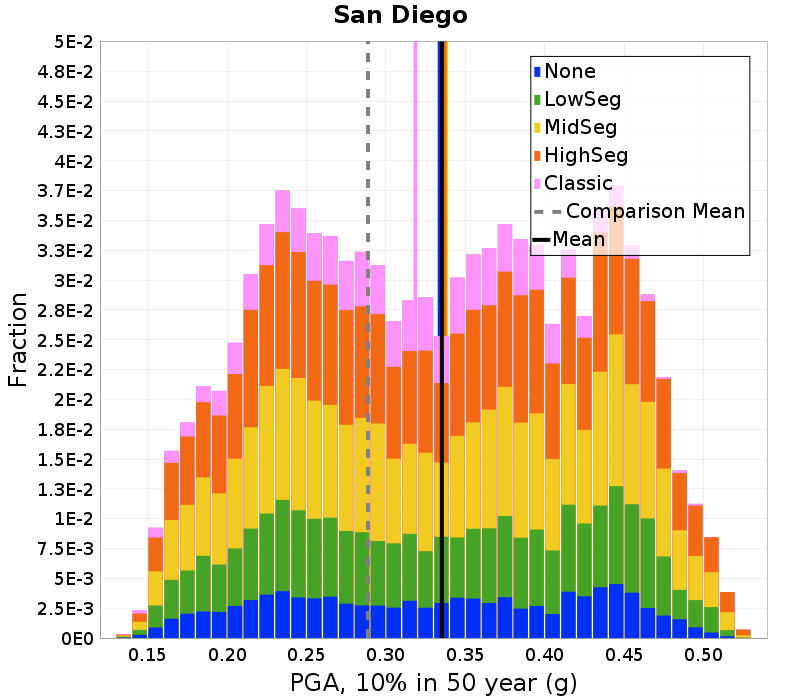

San Diego, PGA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.82448745 (g) | 0.33526203 (g) |
| None | 0.82030046 (g) | 0.33389726 (g) |
| LowSeg | 0.825819 (g) | 0.33761442 (g) |
| MidSeg | 0.82799304 (g) | 0.3379833 (g) |
| HighSeg | 0.8284915 (g) | 0.33692825 (g) |
| Classic | 0.8028562 (g) | 0.3186323 (g) |

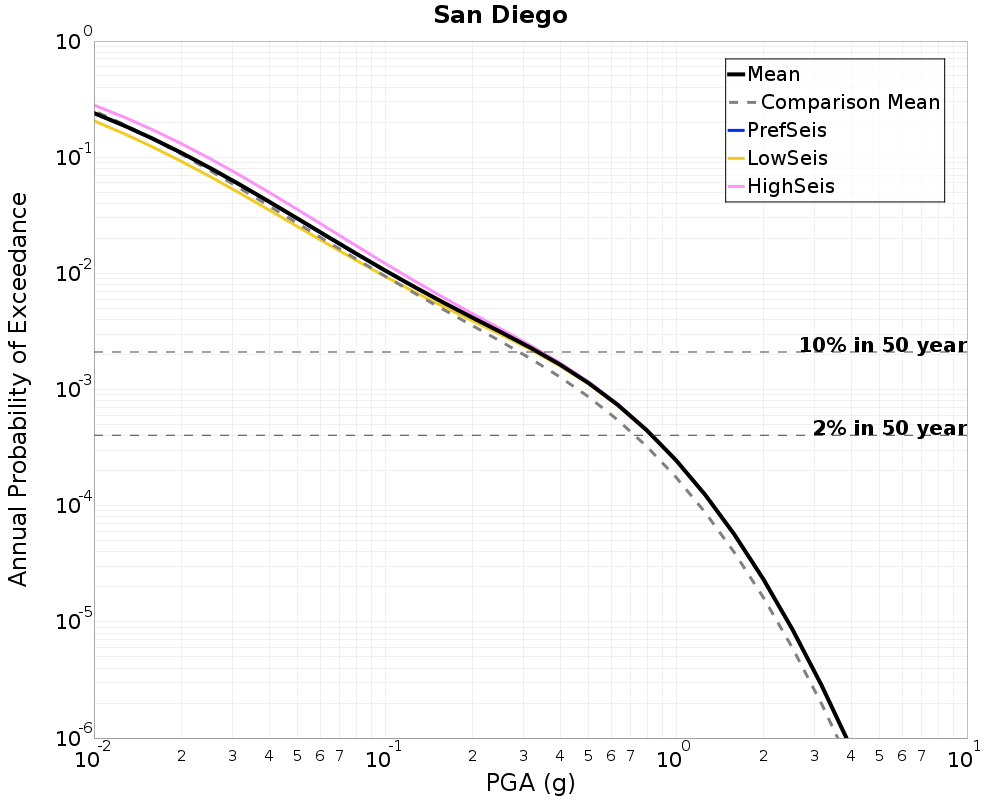

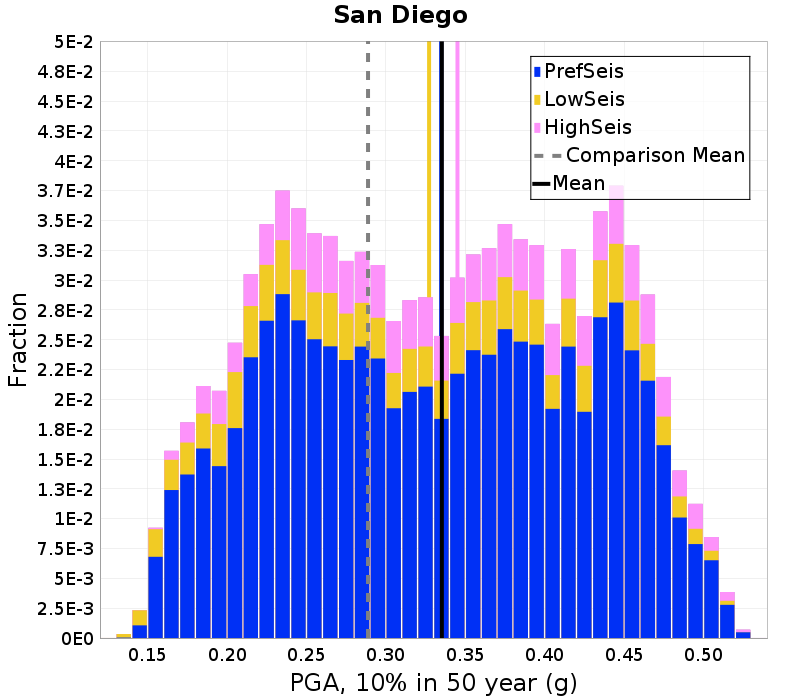

San Diego, PGA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.82448745 (g) | 0.33526203 (g) |
| PrefSeis | 0.82431346 (g) | 0.33482248 (g) |
| LowSeis | 0.8211331 (g) | 0.32722268 (g) |
| HighSeis | 0.8287648 (g) | 0.34509492 (g) |

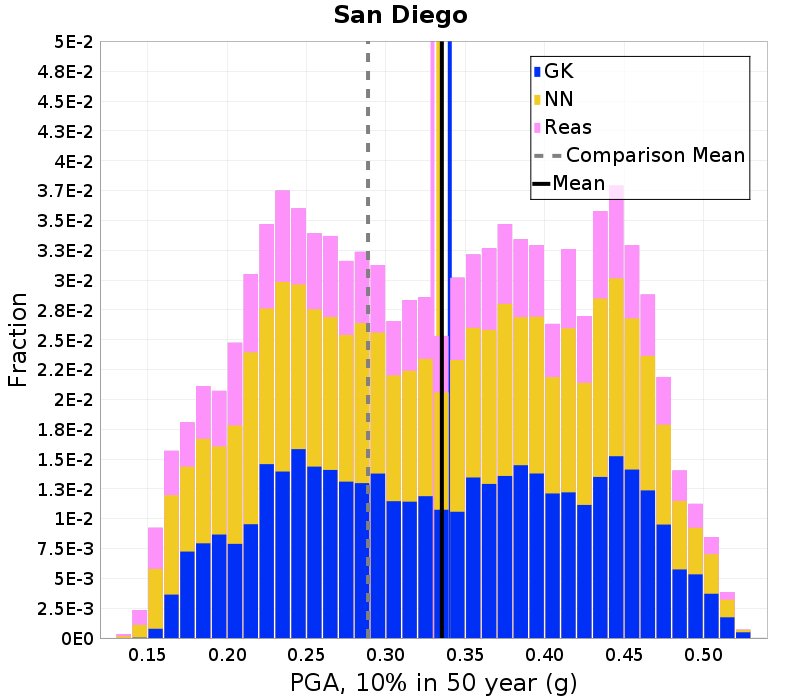

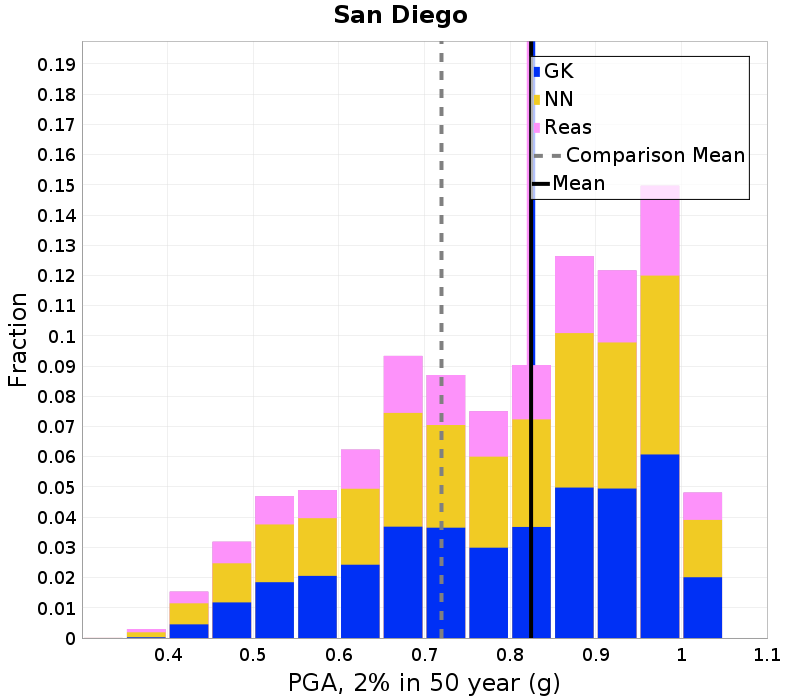

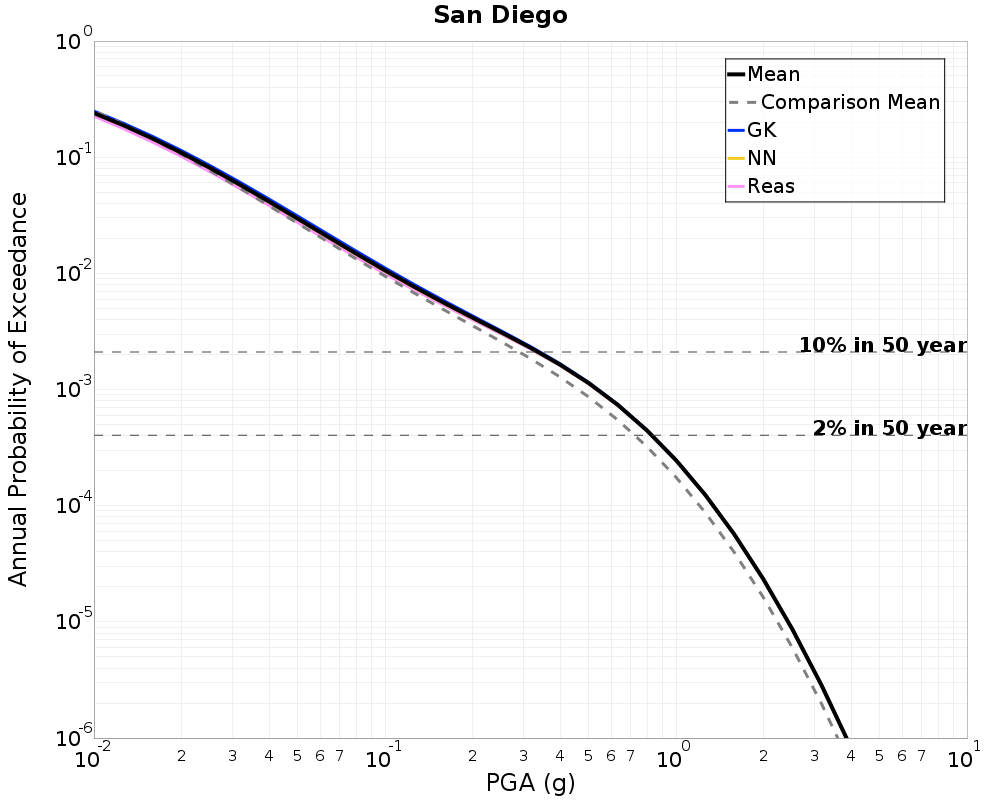

San Diego, PGA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.82448745 (g) | 0.33526203 (g) |
| GK | 0.82698095 (g) | 0.3402551 (g) |
| NN | 0.82333 (g) | 0.33303666 (g) |
| Reas | 0.8217667 (g) | 0.32936835 (g) |

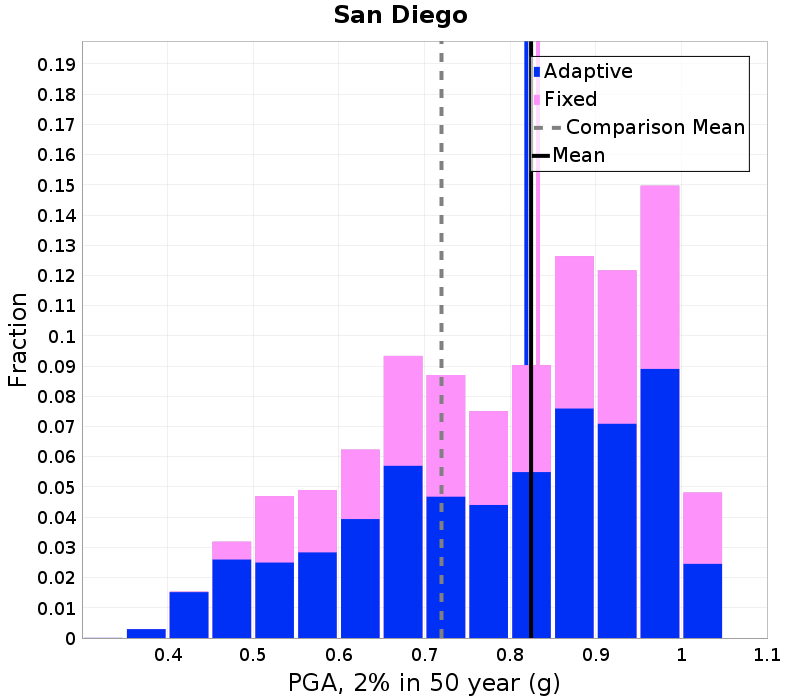

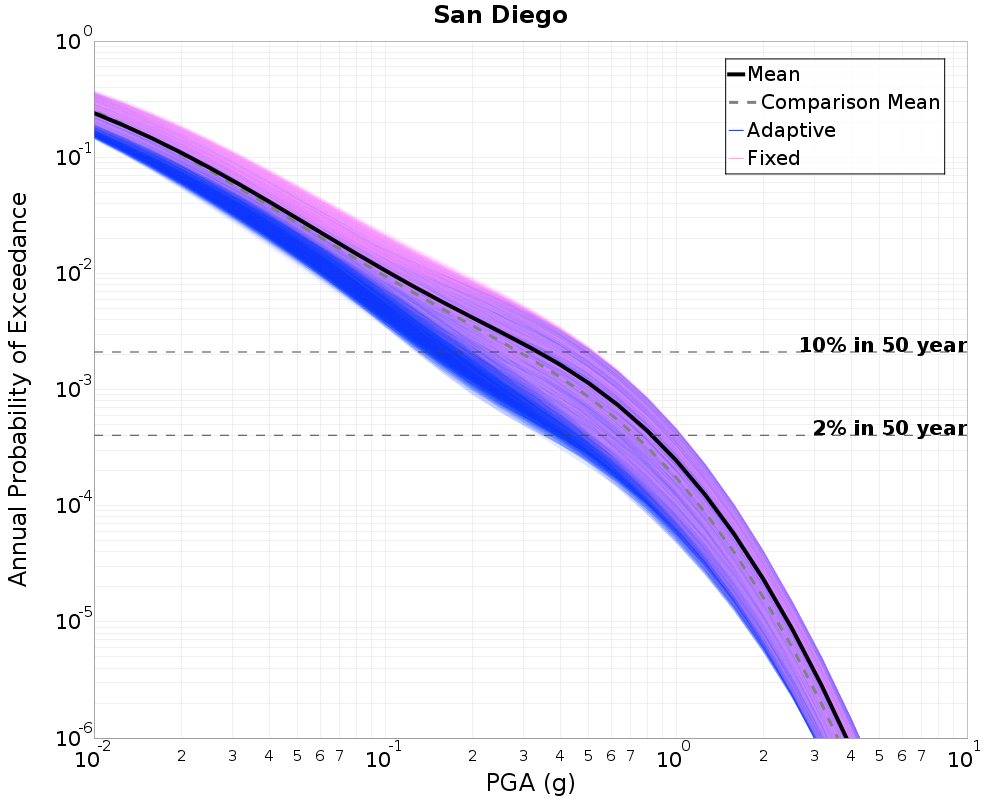

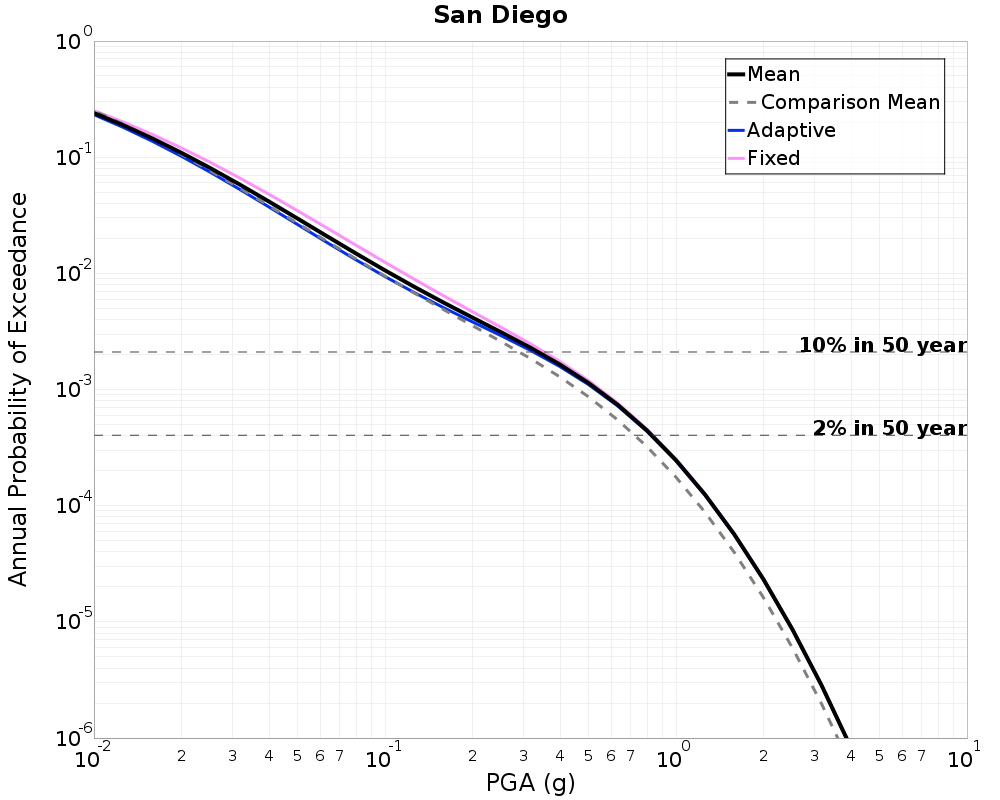

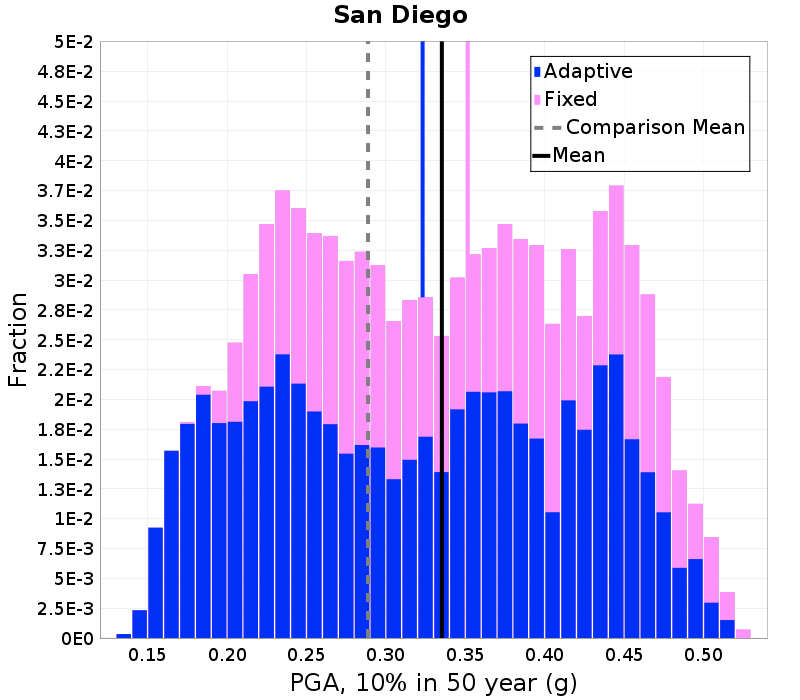

San Diego, PGA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.82448745 (g) | 0.33526203 (g) |
| Adaptive | 0.8189283 (g) | 0.32313865 (g) |
| Fixed | 0.8325807 (g) | 0.35155782 (g) |

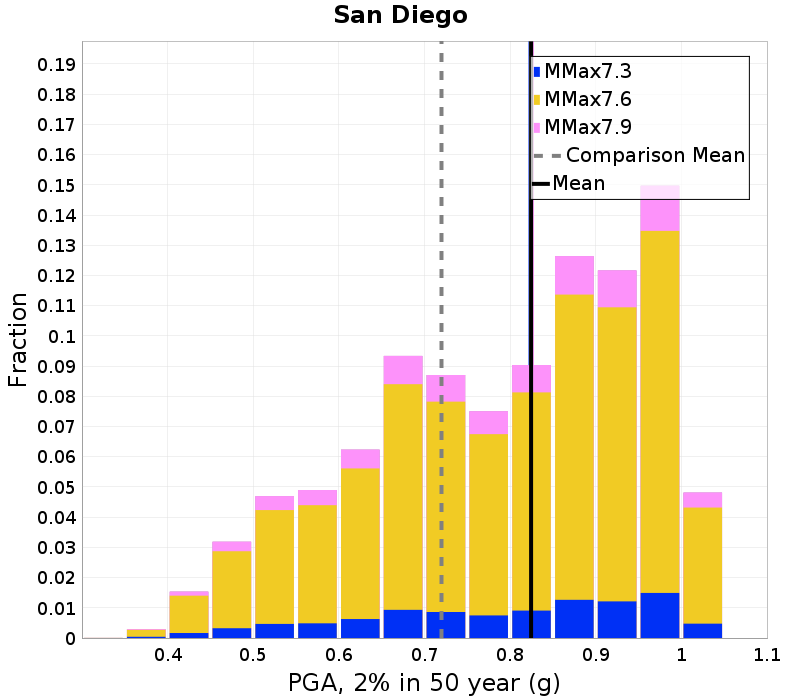

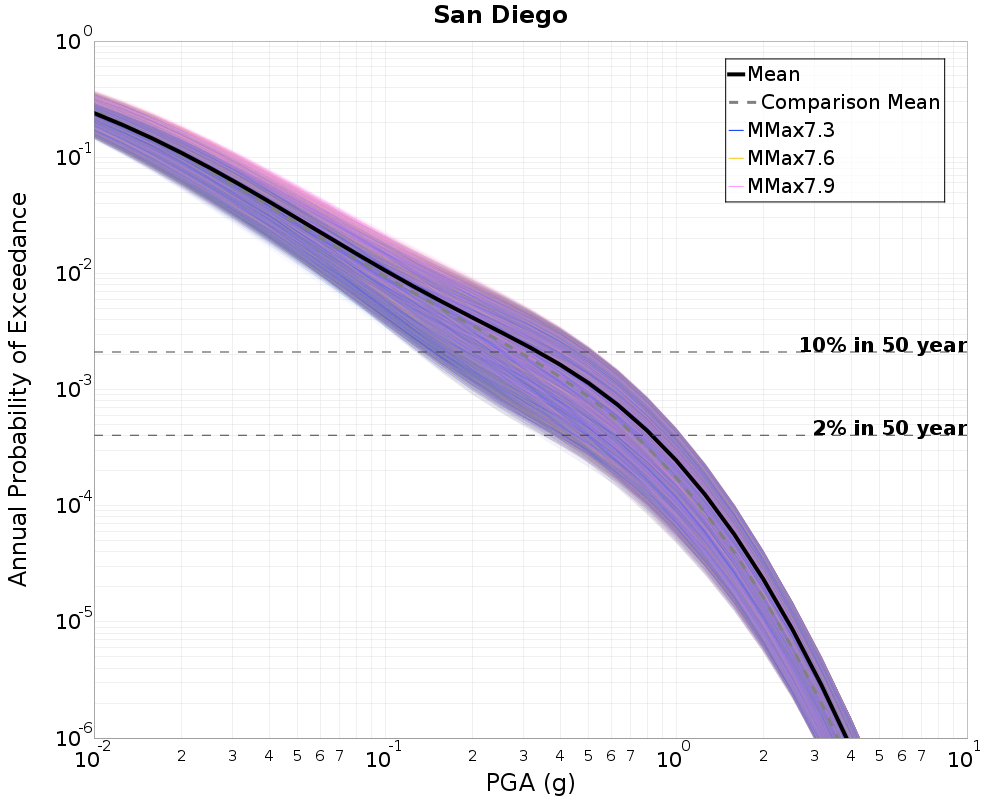

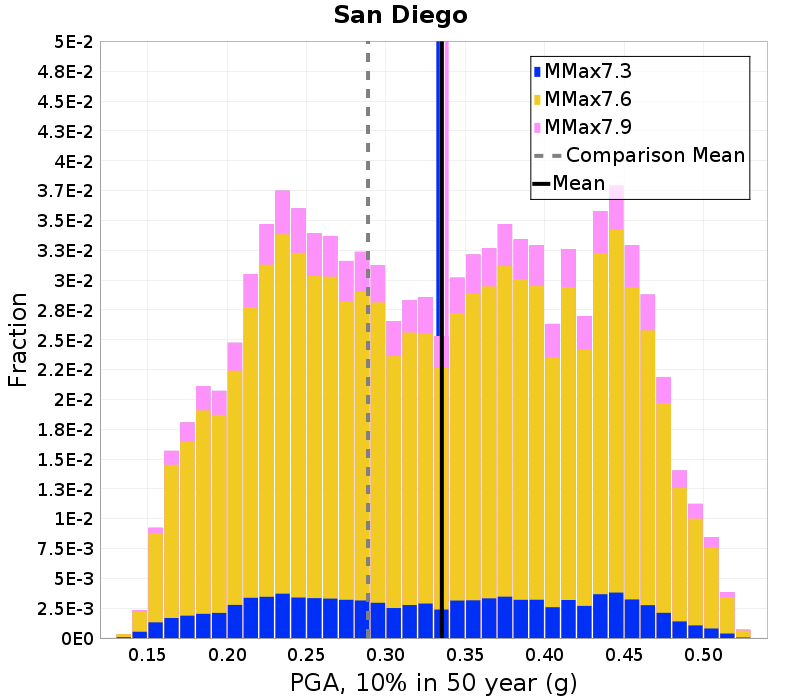

San Diego, PGA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.82448745 (g) | 0.33526203 (g) |
| MMax7.3 | 0.8237906 (g) | 0.33303344 (g) |
| MMax7.6 | 0.8244624 (g) | 0.33515015 (g) |
| MMax7.9 | 0.8253813 (g) | 0.33831078 (g) |
San Diego, 1.0s SA
| Primary | Comparison |
|---|---|
 |  |
San Diego, 1.0s SA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
Comparison Distribution, 2% in 50 year | Comparison Distribution, 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Primary | 0.49450353 (g) | 0.2196137 (g) |
| Comparison | 0.4283702 (g) | 0.18255146 (g) |

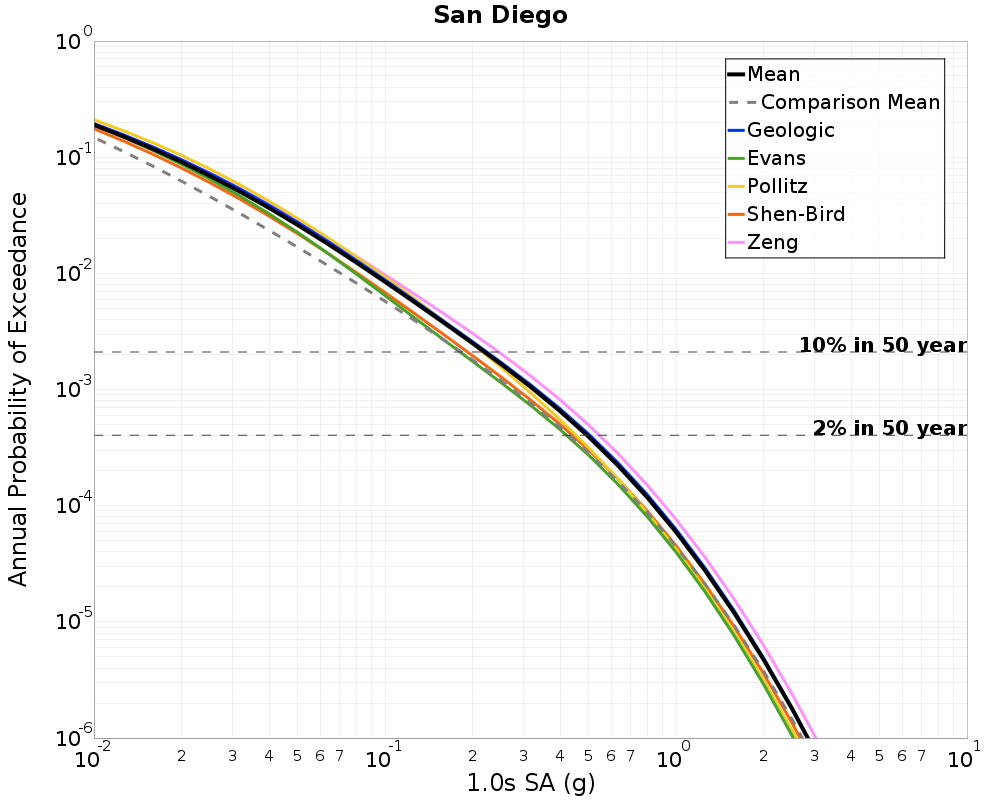

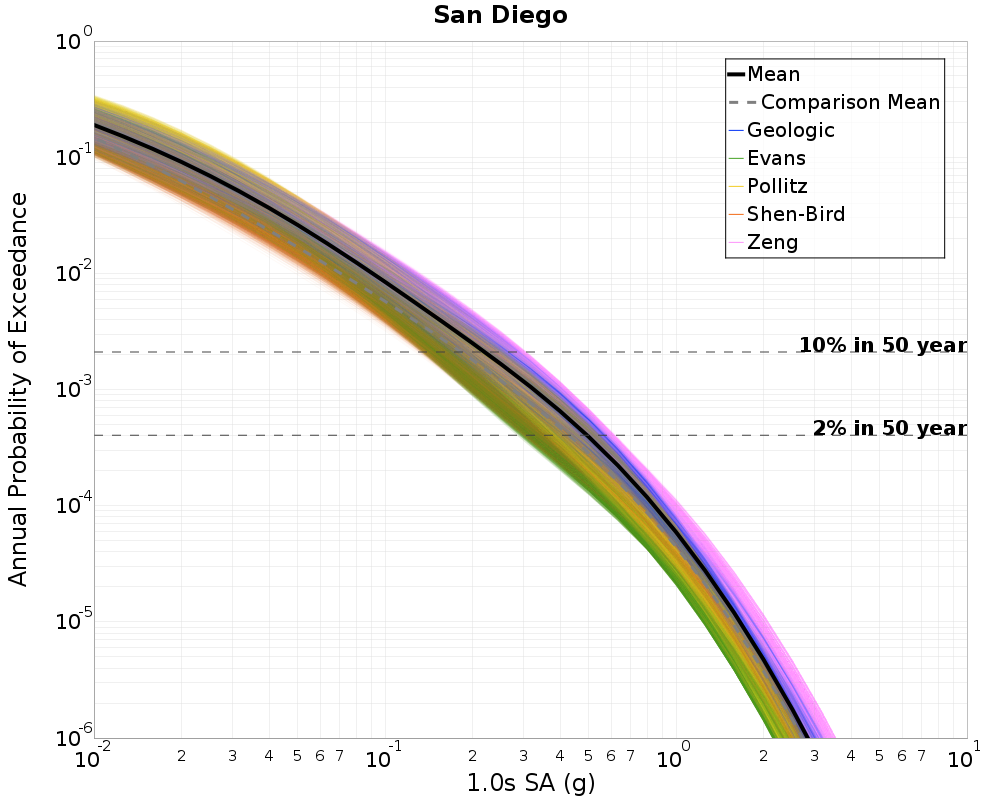

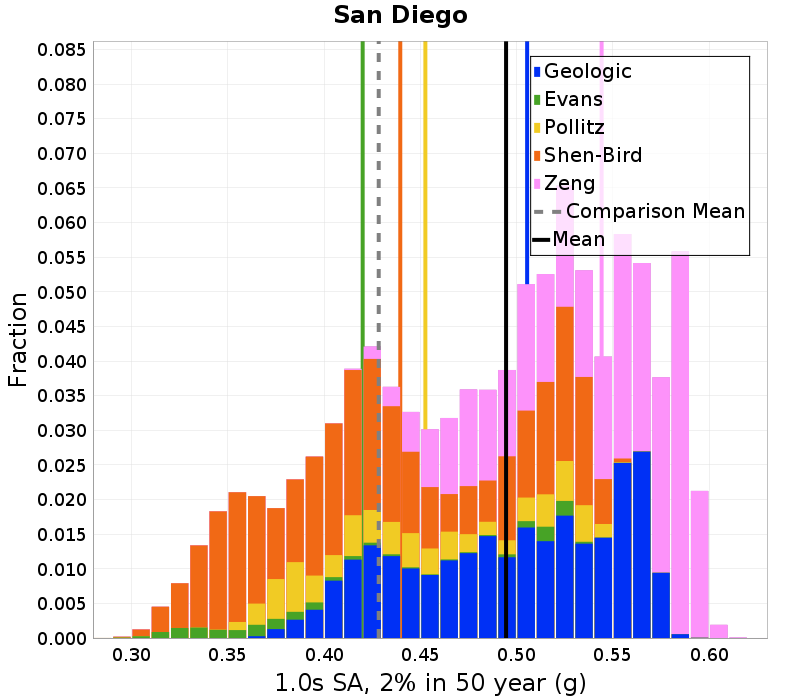

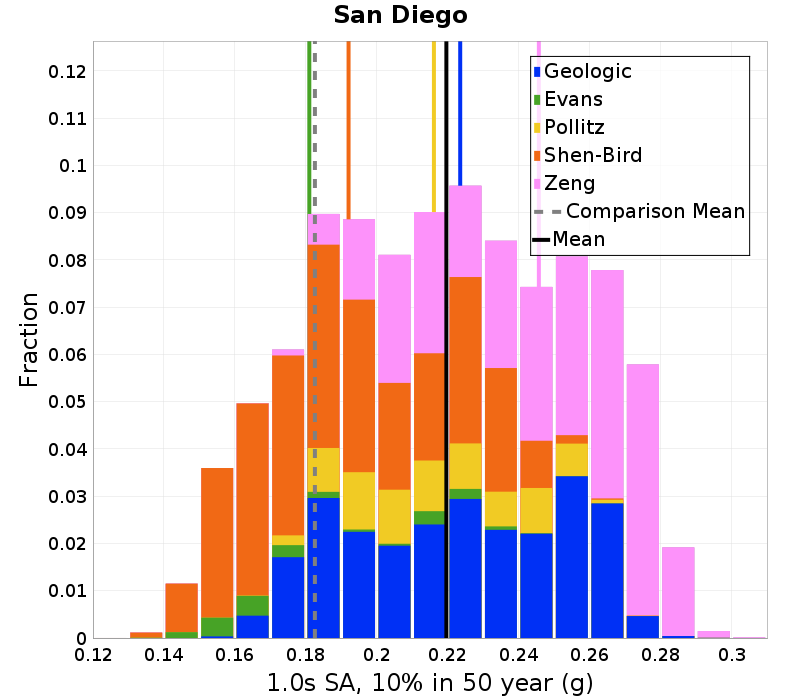

San Diego, 1.0s SA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.49450353 (g) | 0.2196137 (g) |
| Geologic | 0.50544065 (g) | 0.22351663 (g) |
| Evans | 0.42003357 (g) | 0.18097858 (g) |
| Pollitz | 0.45259607 (g) | 0.21610422 (g) |
| Shen-Bird | 0.43956277 (g) | 0.19204128 (g) |
| Zeng | 0.5441192 (g) | 0.2456869 (g) |

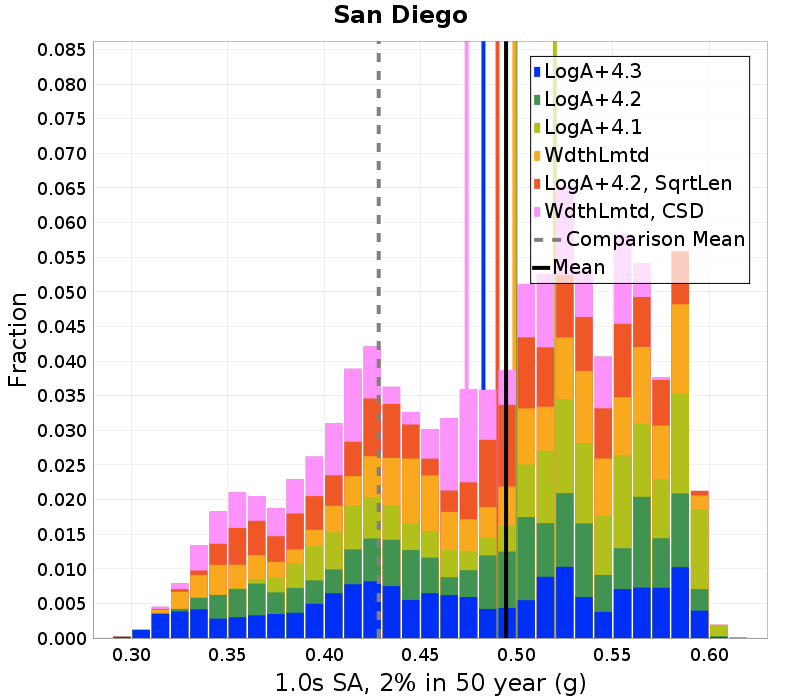

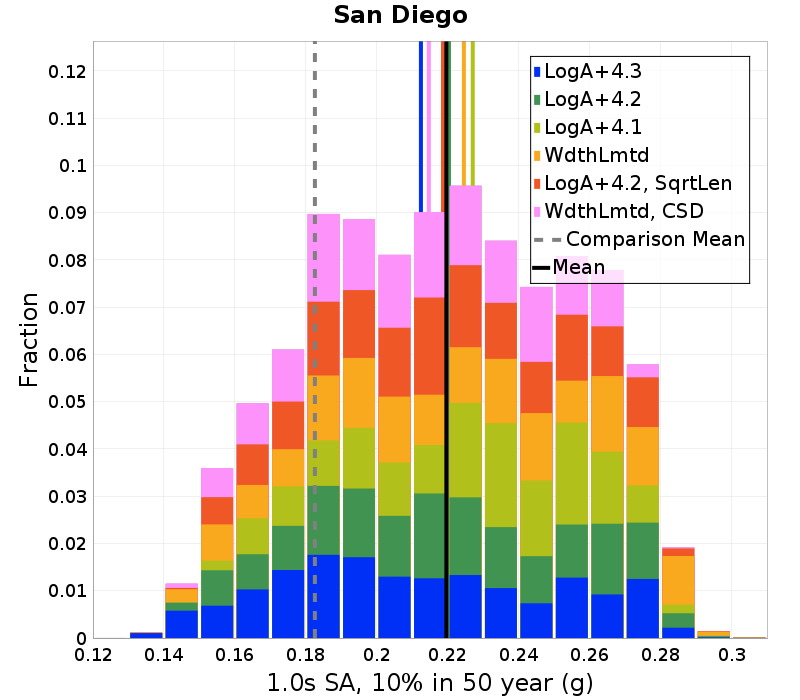

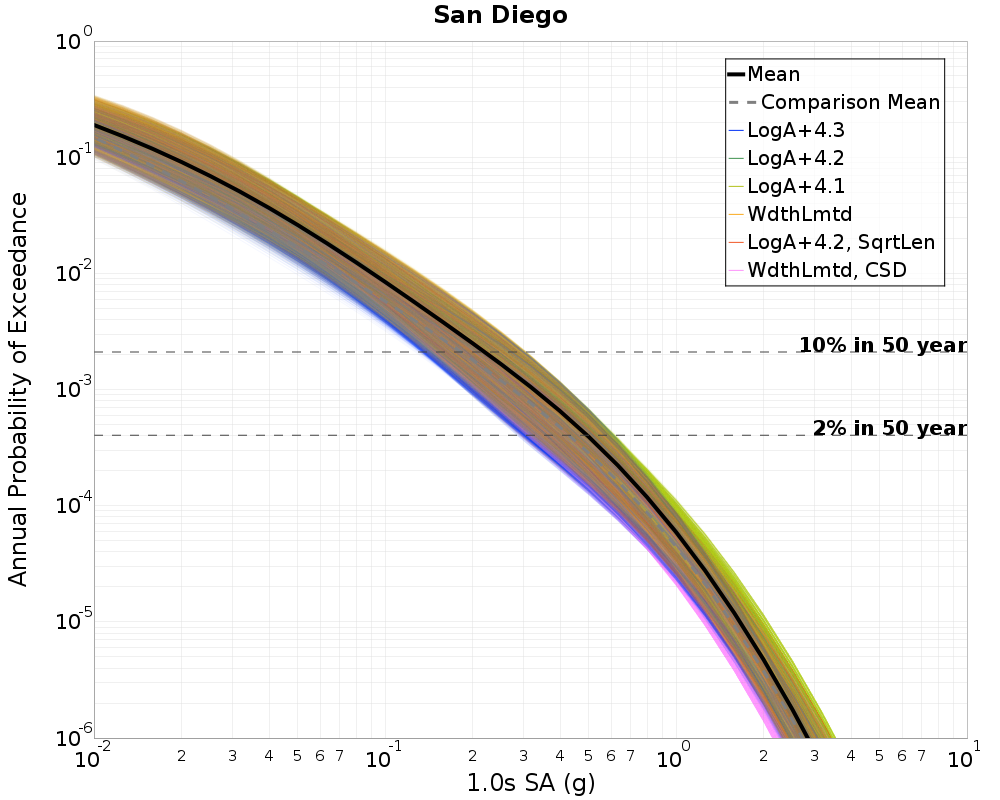

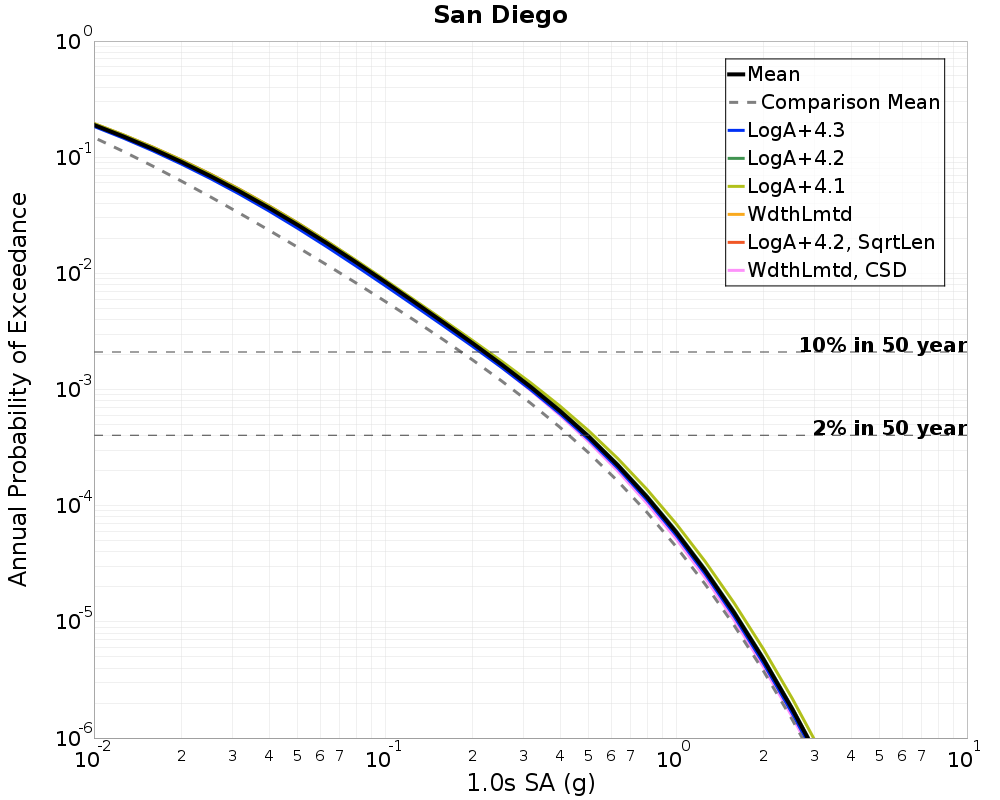

San Diego, 1.0s SA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.49450353 (g) | 0.2196137 (g) |
| LogA+4.3 | 0.4827585 (g) | 0.21244343 (g) |
| LogA+4.2 | 0.4993331 (g) | 0.22034429 (g) |
| LogA+4.1 | 0.5198444 (g) | 0.2270486 (g) |
| WdthLmtd | 0.49881878 (g) | 0.22455323 (g) |
| LogA+4.2, SqrtLen | 0.49008098 (g) | 0.2186681 (g) |
| WdthLmtd, CSD | 0.47402596 (g) | 0.21467586 (g) |

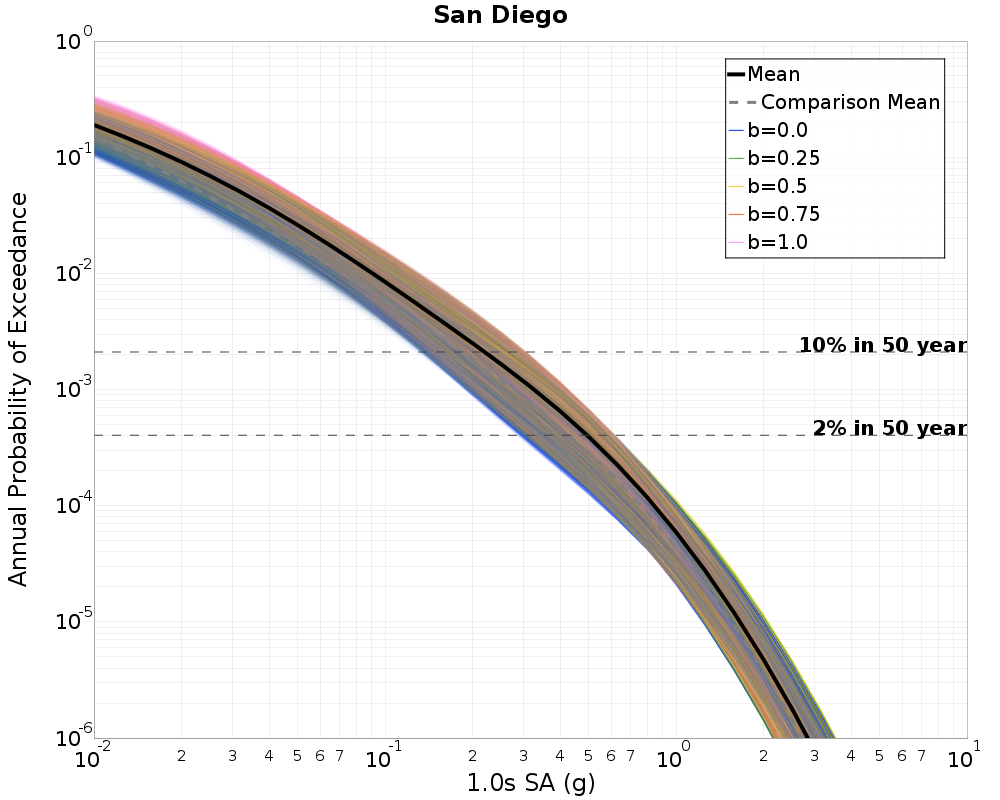

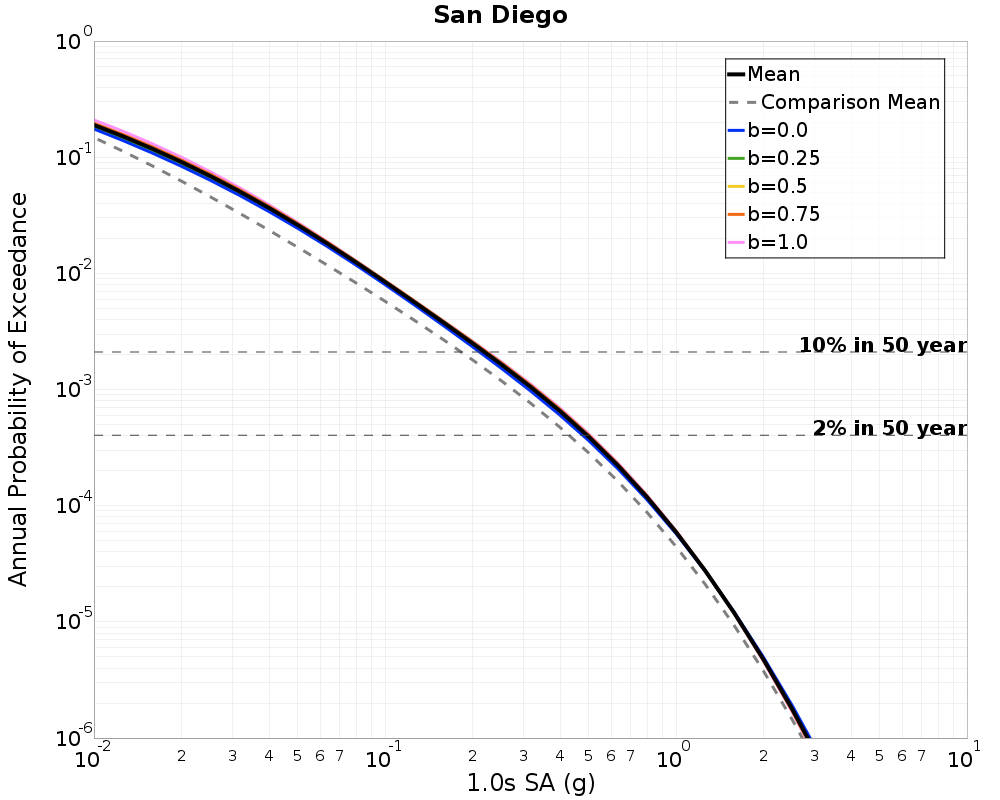

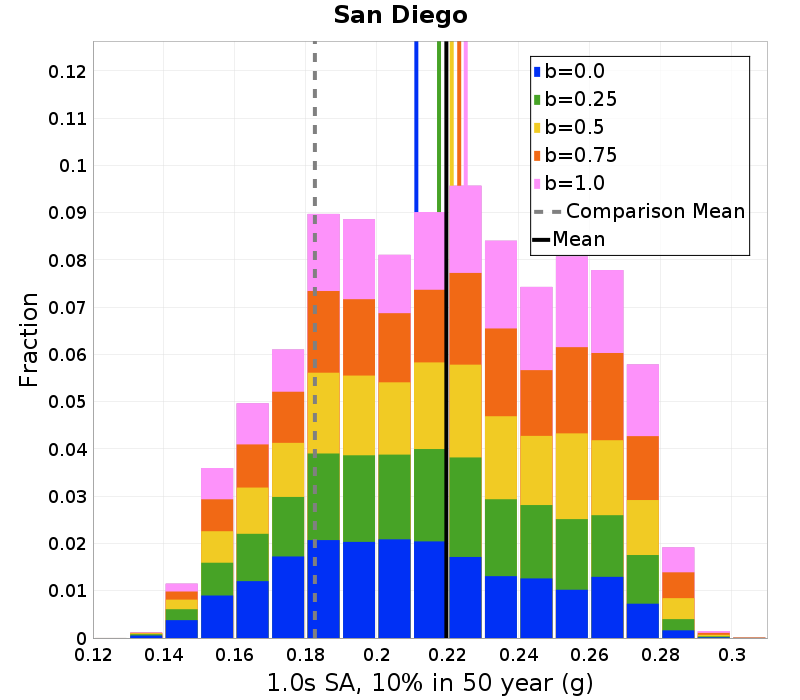

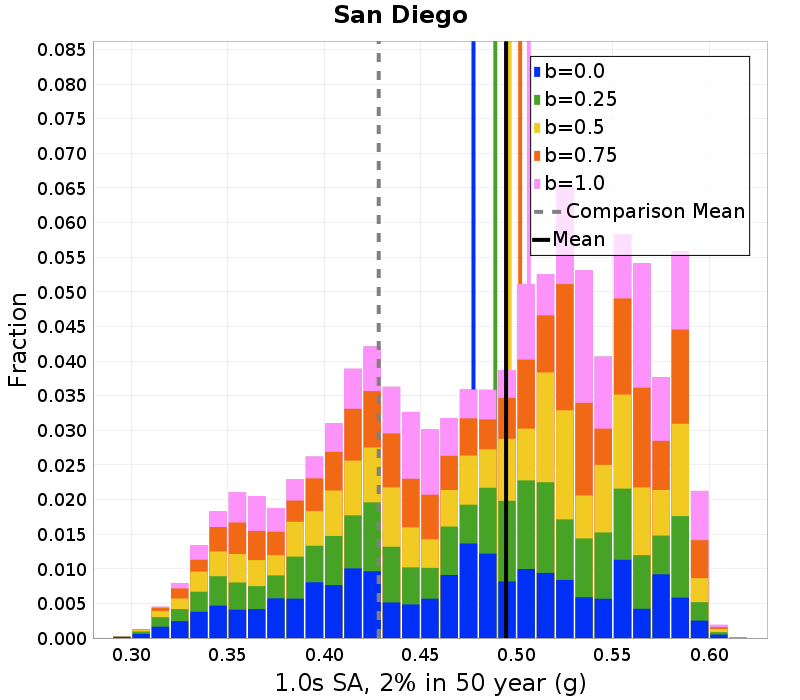

San Diego, 1.0s SA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.49450353 (g) | 0.2196137 (g) |
| b=0.0 | 0.47757715 (g) | 0.21114966 (g) |
| b=0.25 | 0.48891813 (g) | 0.21754338 (g) |
| b=0.5 | 0.49635595 (g) | 0.2211262 (g) |
| b=0.75 | 0.5018191 (g) | 0.22323337 (g) |
| b=1.0 | 0.5063195 (g) | 0.22507732 (g) |

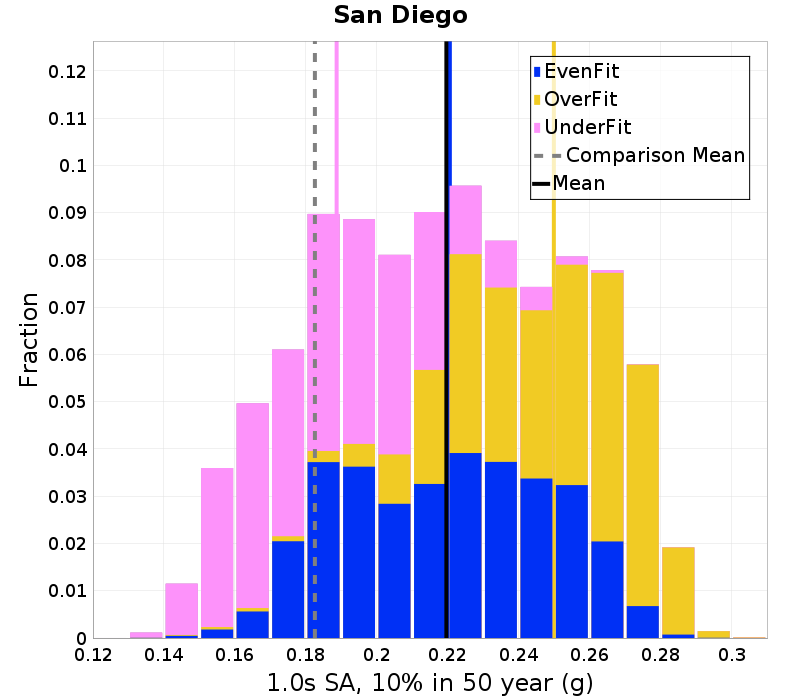

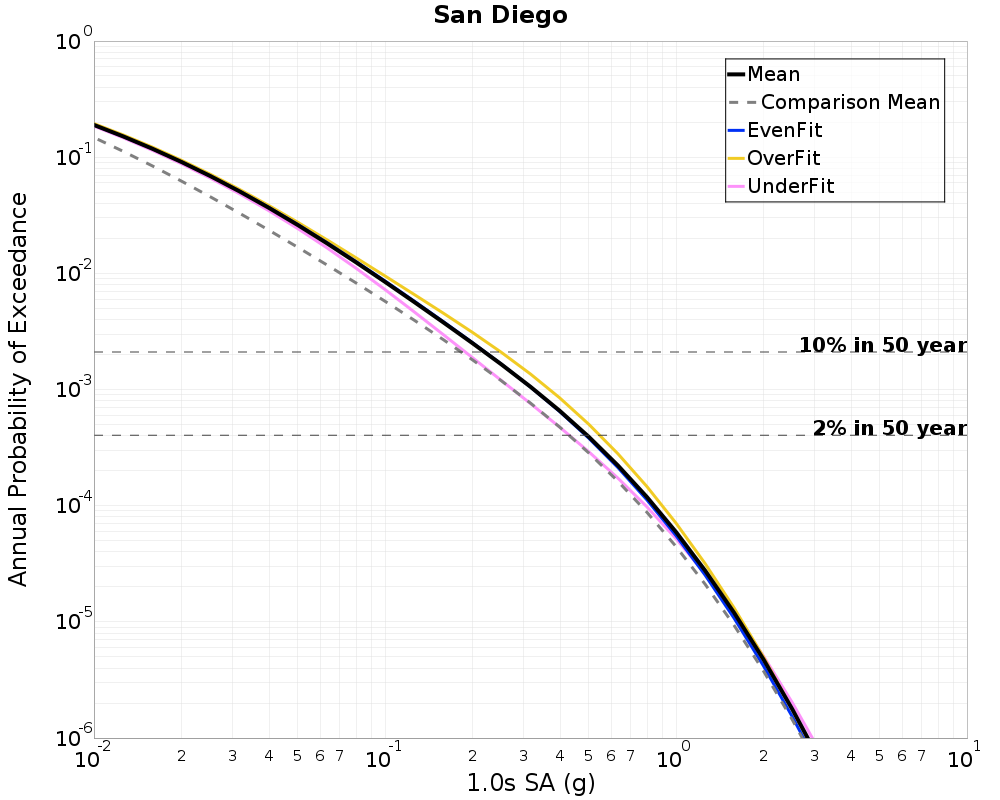

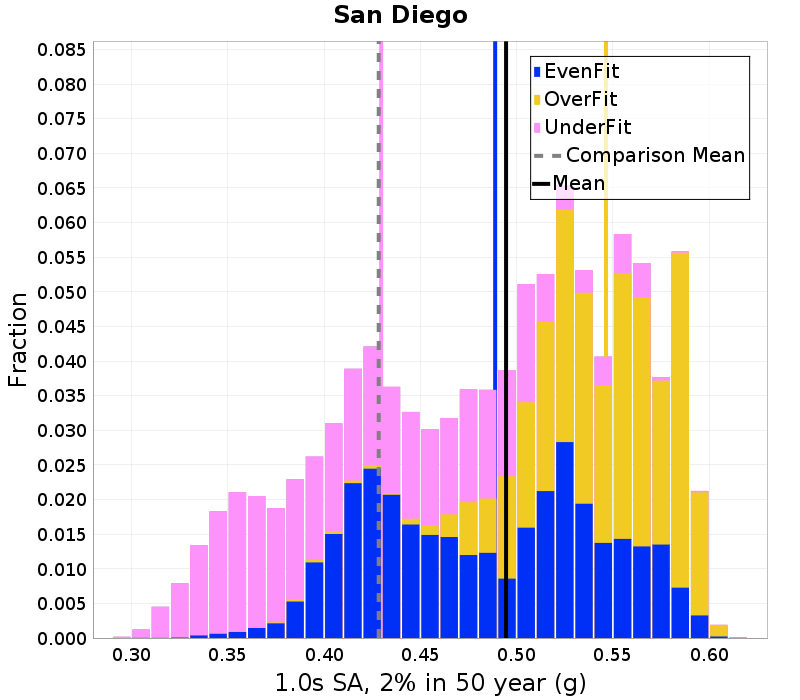

San Diego, 1.0s SA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.49450353 (g) | 0.2196137 (g) |
| EvenFit | 0.4888379 (g) | 0.22059251 (g) |
| OverFit | 0.5463985 (g) | 0.24991271 (g) |
| UnderFit | 0.42961755 (g) | 0.18868002 (g) |

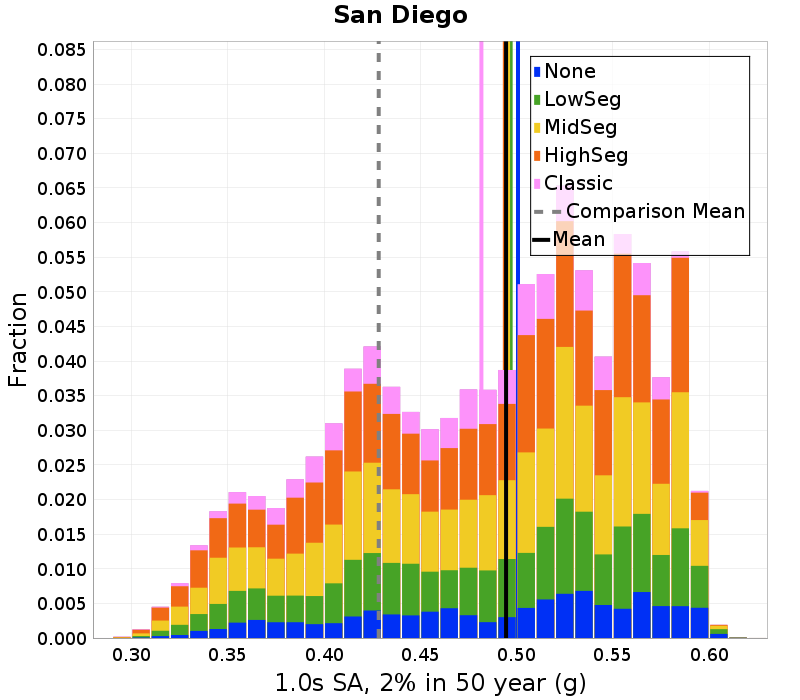

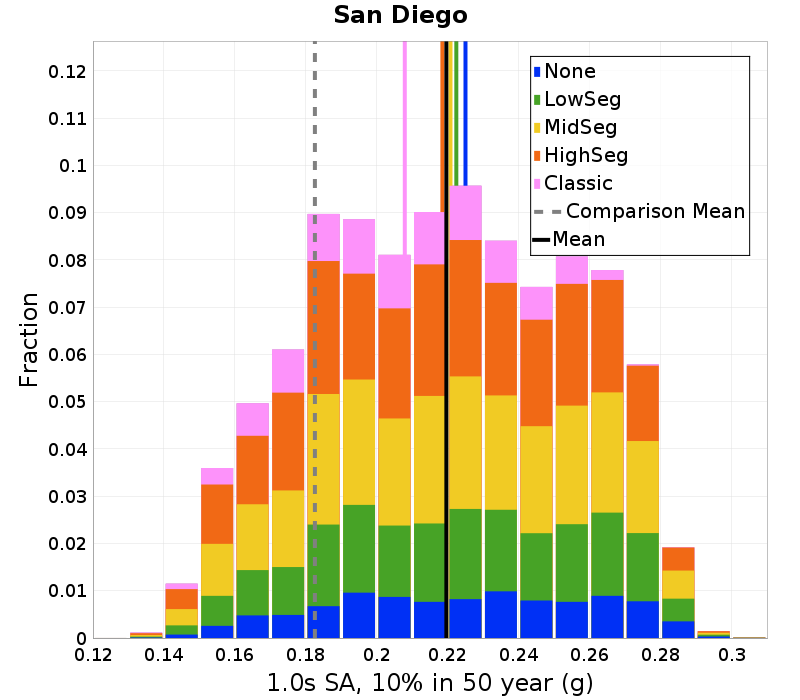

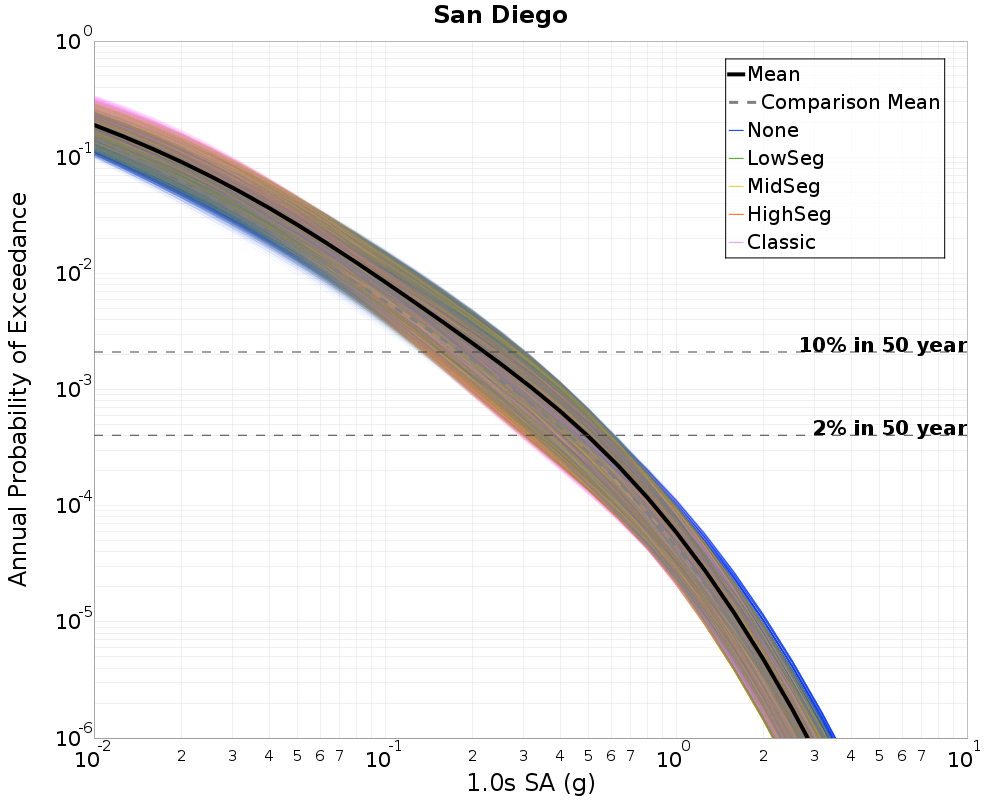

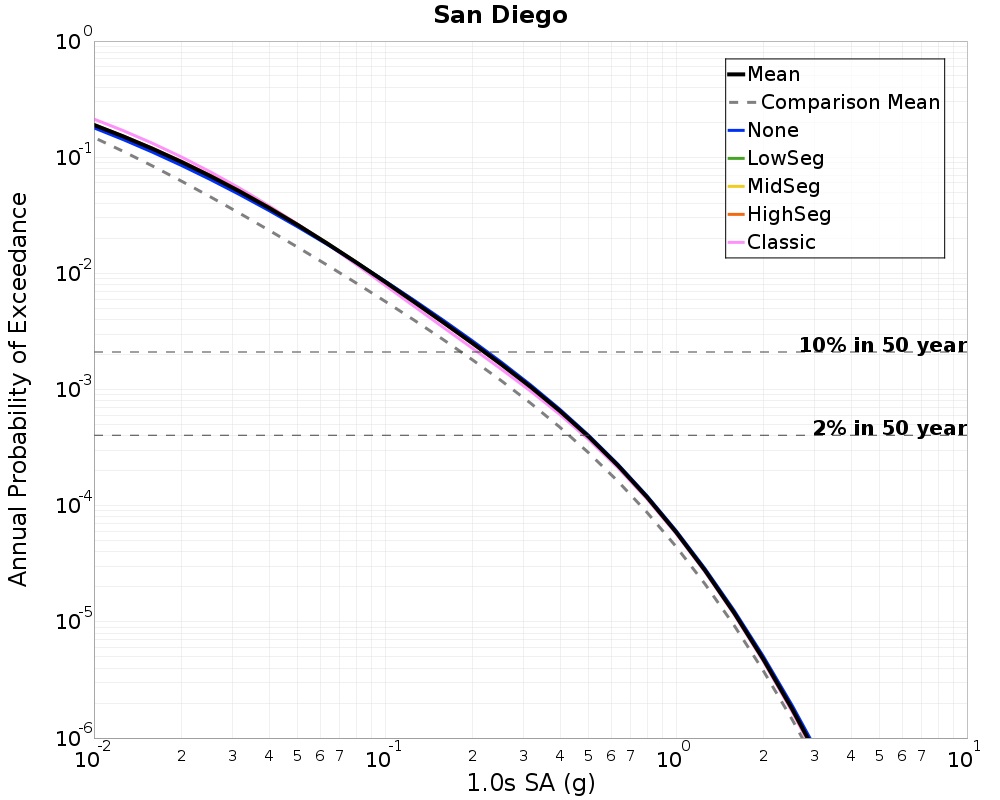

San Diego, 1.0s SA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.49450353 (g) | 0.2196137 (g) |
| None | 0.50069445 (g) | 0.22500457 (g) |
| LowSeg | 0.49688154 (g) | 0.22242099 (g) |
| MidSeg | 0.495537 (g) | 0.22077507 (g) |
| HighSeg | 0.49385563 (g) | 0.21849118 (g) |
| Classic | 0.48169193 (g) | 0.2078944 (g) |

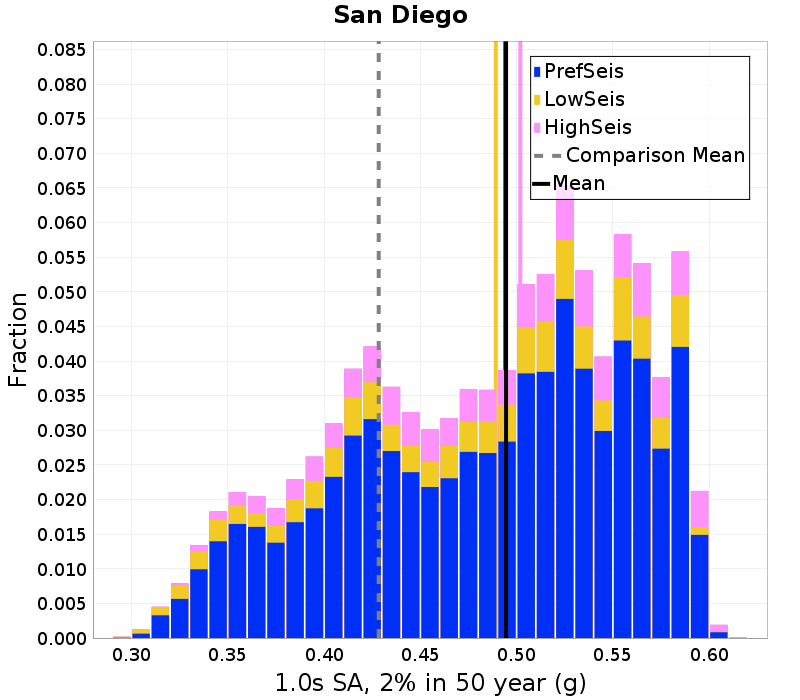

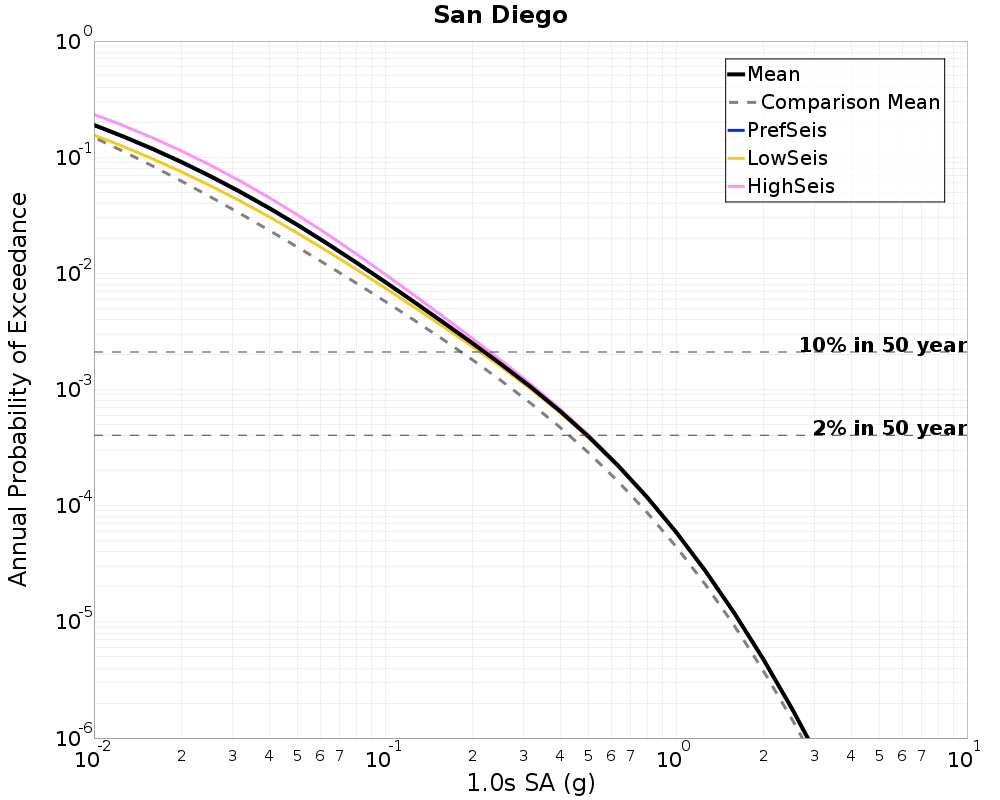

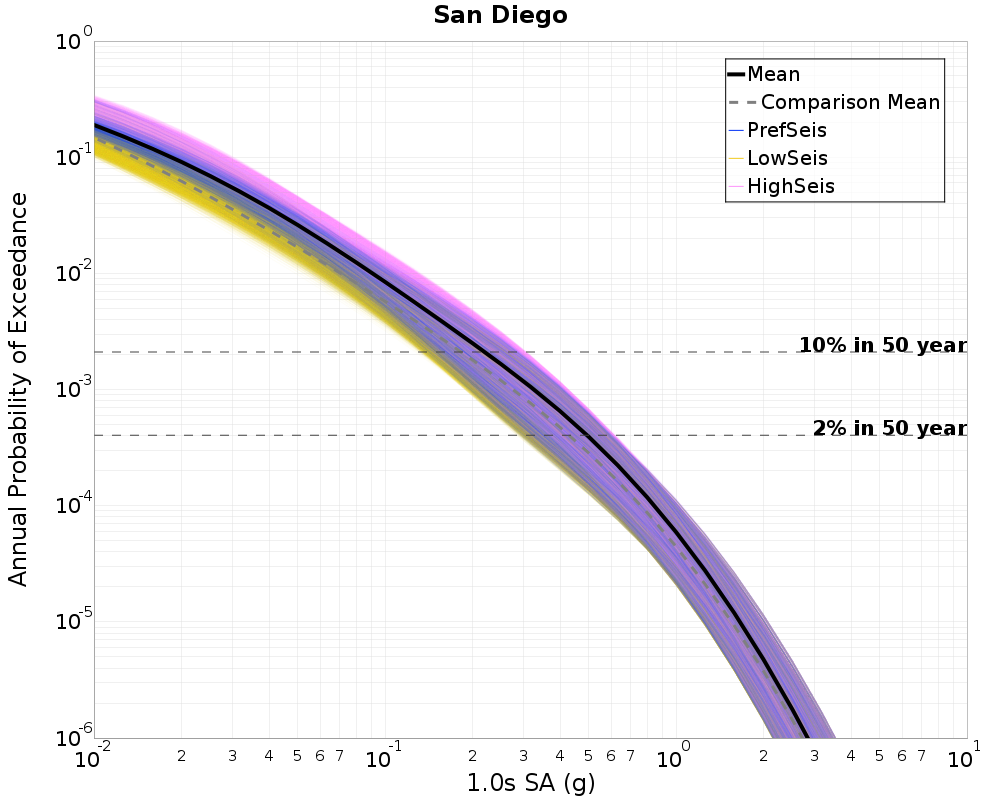

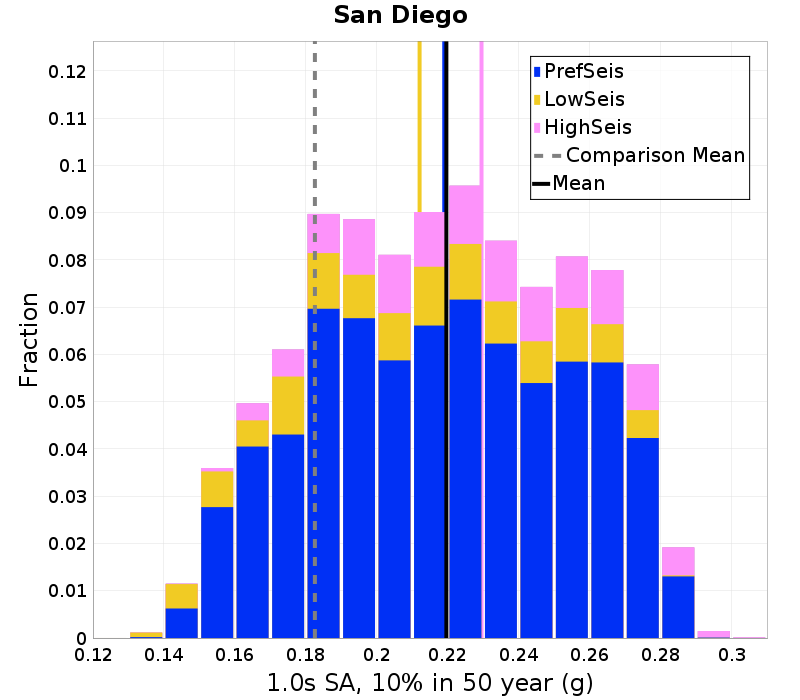

San Diego, 1.0s SA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.49450353 (g) | 0.2196137 (g) |
| PrefSeis | 0.4940689 (g) | 0.21901585 (g) |
| LowSeis | 0.48916057 (g) | 0.21206544 (g) |
| HighSeis | 0.50191206 (g) | 0.22952093 (g) |

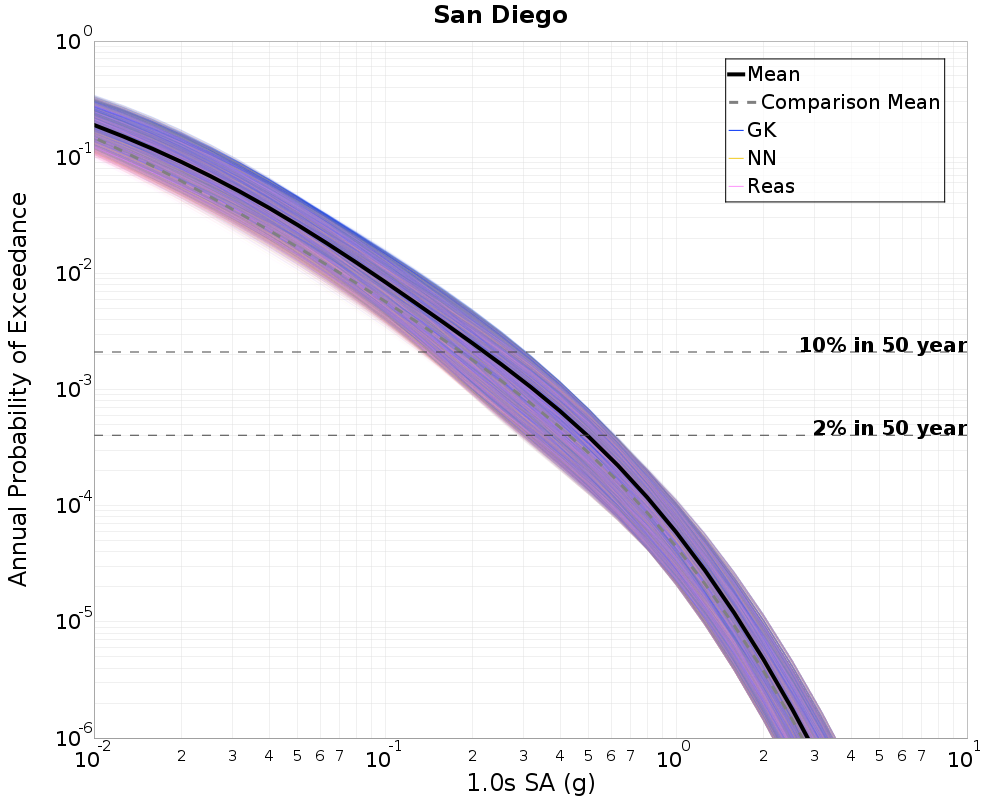

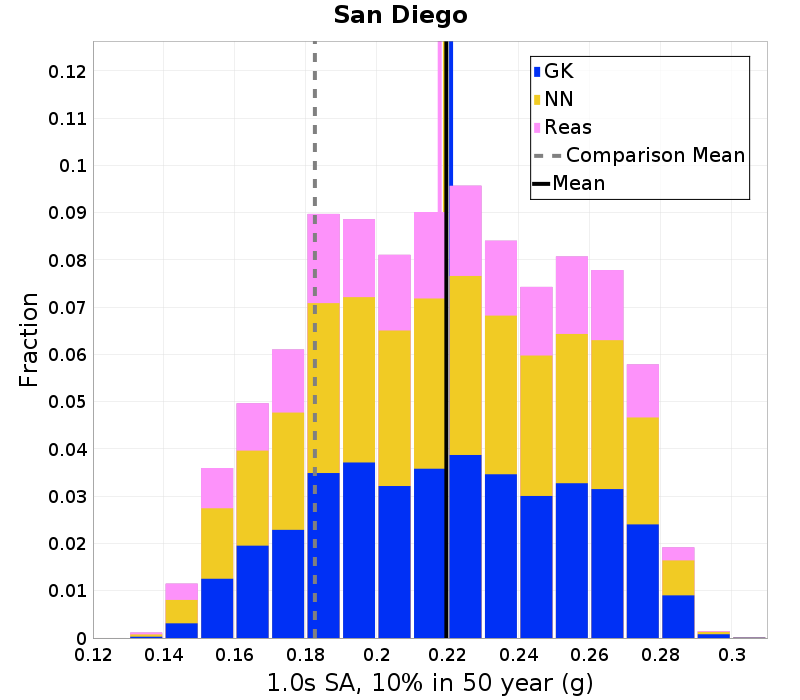

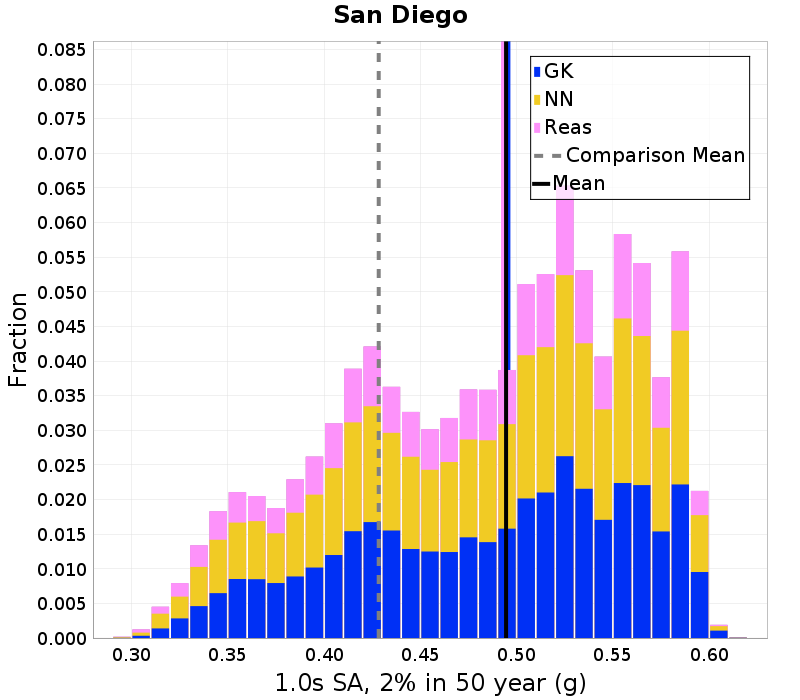

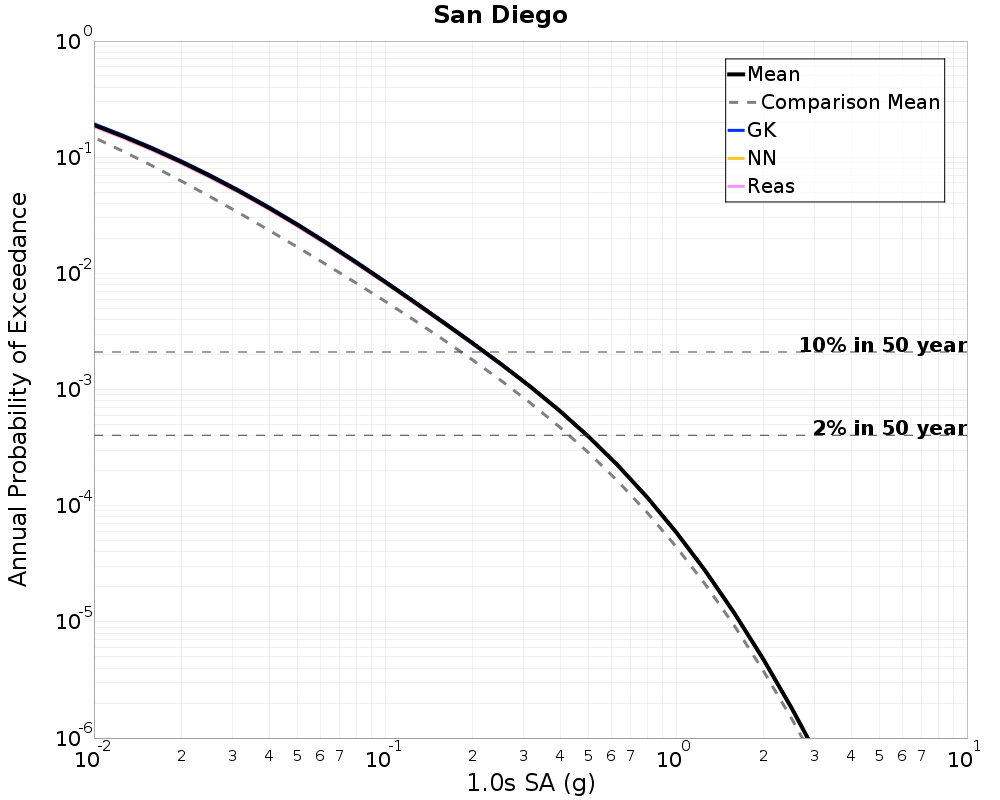

San Diego, 1.0s SA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.49450353 (g) | 0.2196137 (g) |
| GK | 0.49570924 (g) | 0.22094215 (g) |
| NN | 0.49407753 (g) | 0.21920449 (g) |
| Reas | 0.4929242 (g) | 0.21773528 (g) |

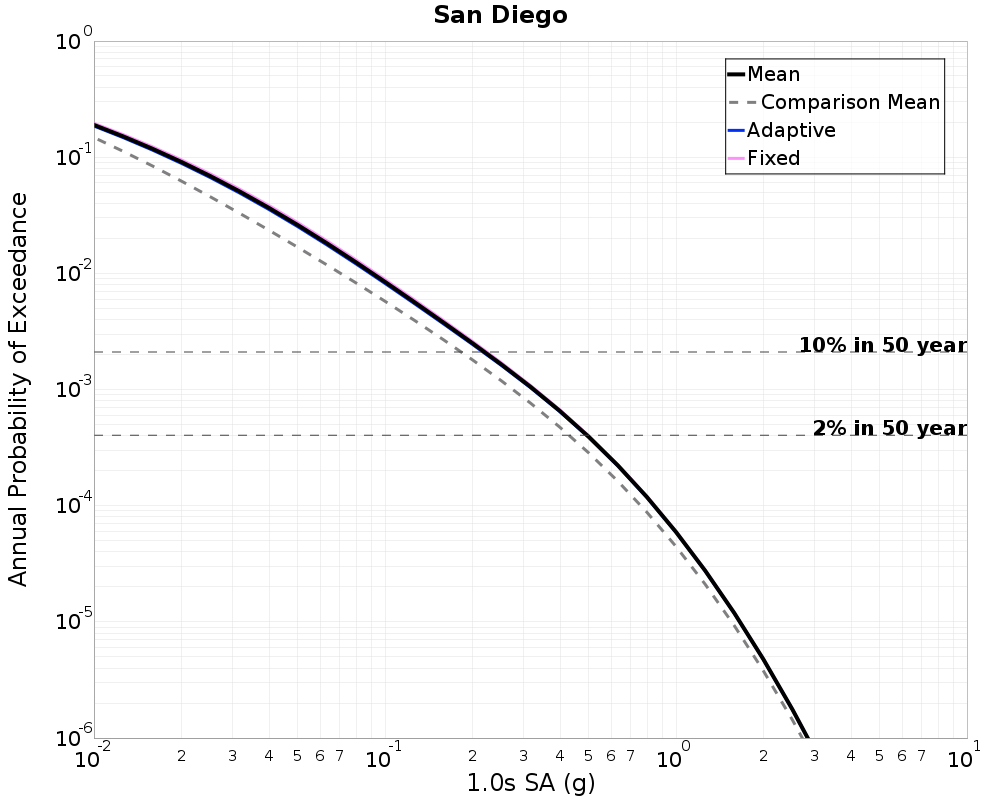

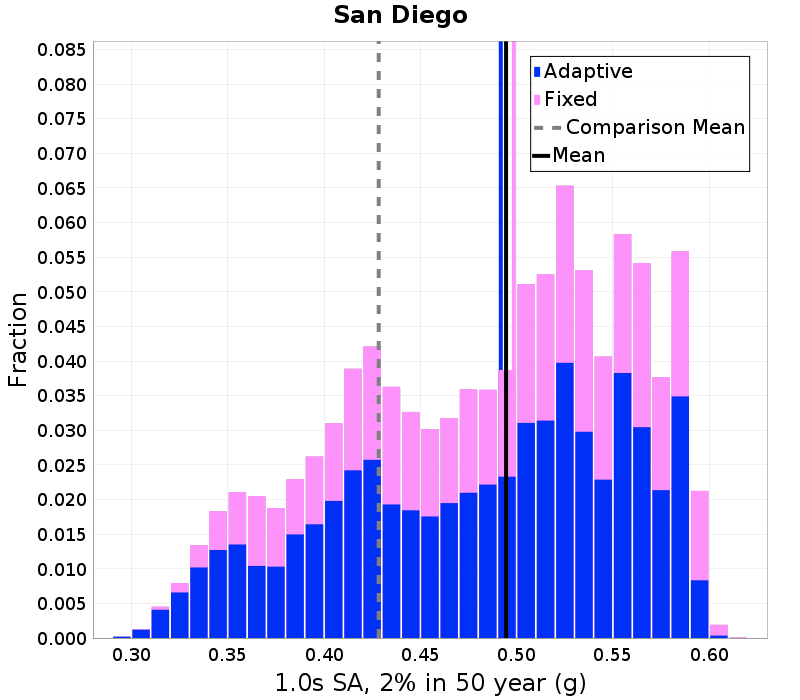

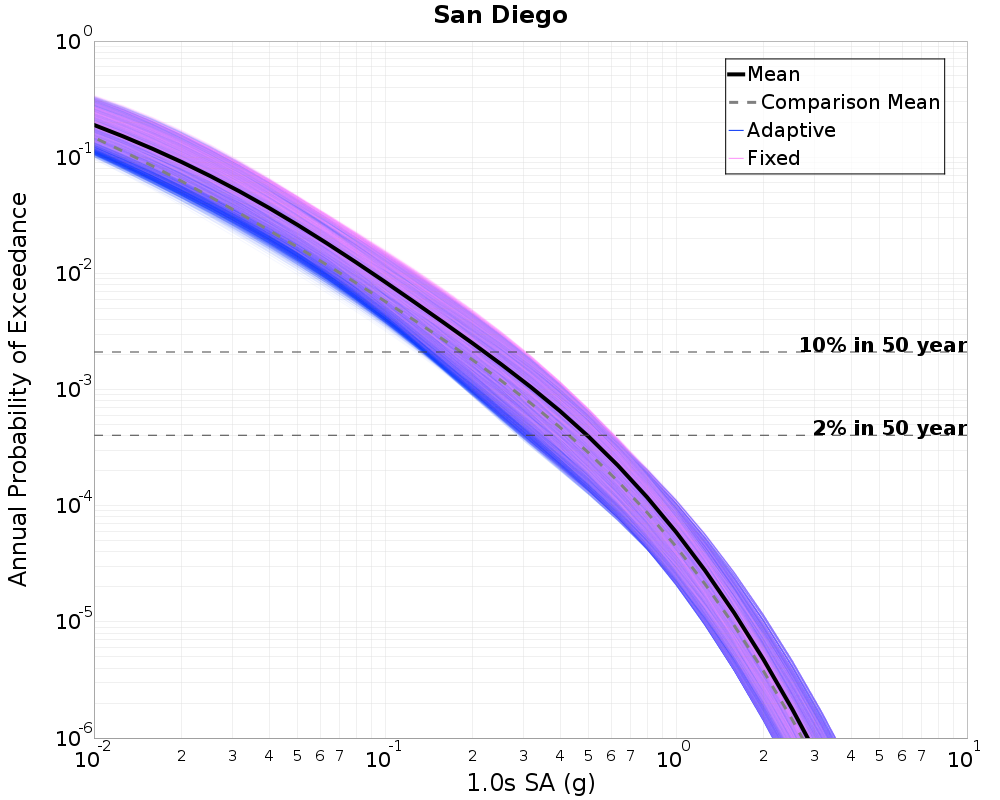

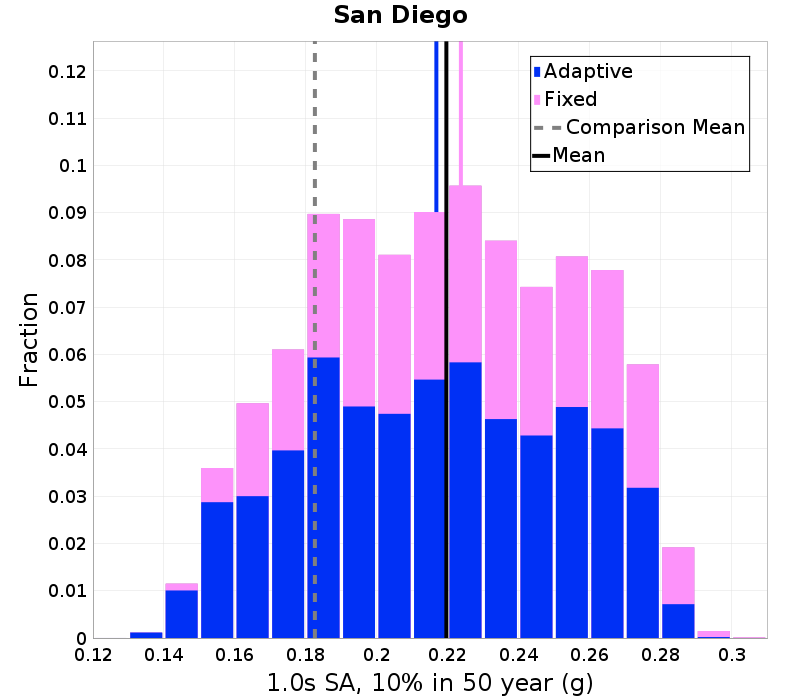

San Diego, 1.0s SA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.49450353 (g) | 0.2196137 (g) |
| Adaptive | 0.49176034 (g) | 0.21679415 (g) |
| Fixed | 0.4985296 (g) | 0.22370754 (g) |

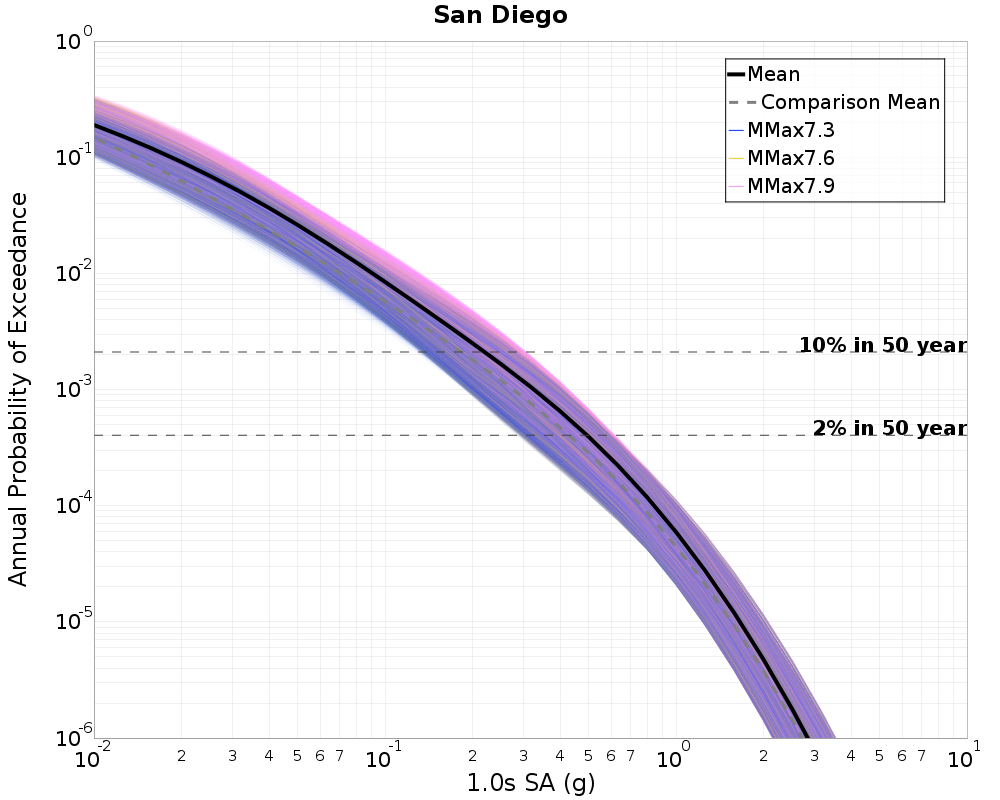

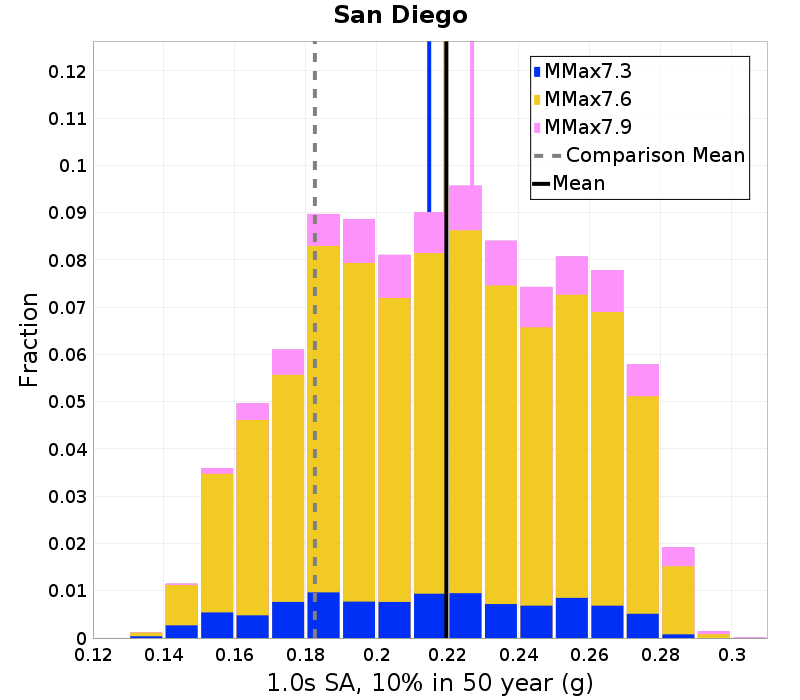

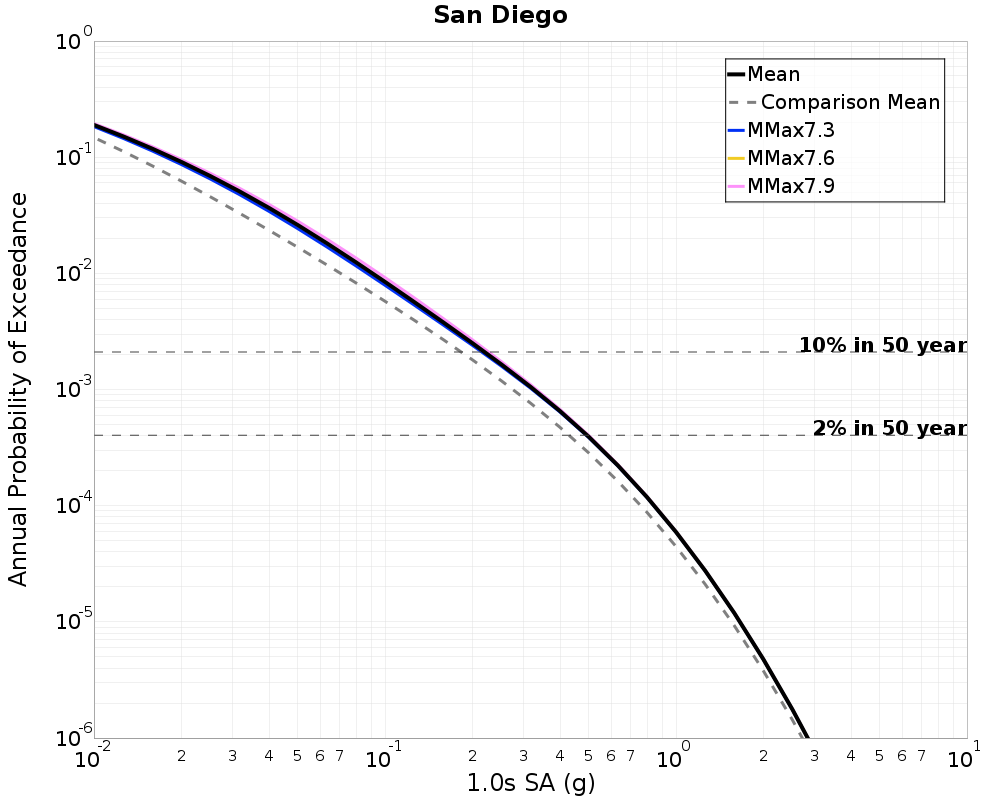

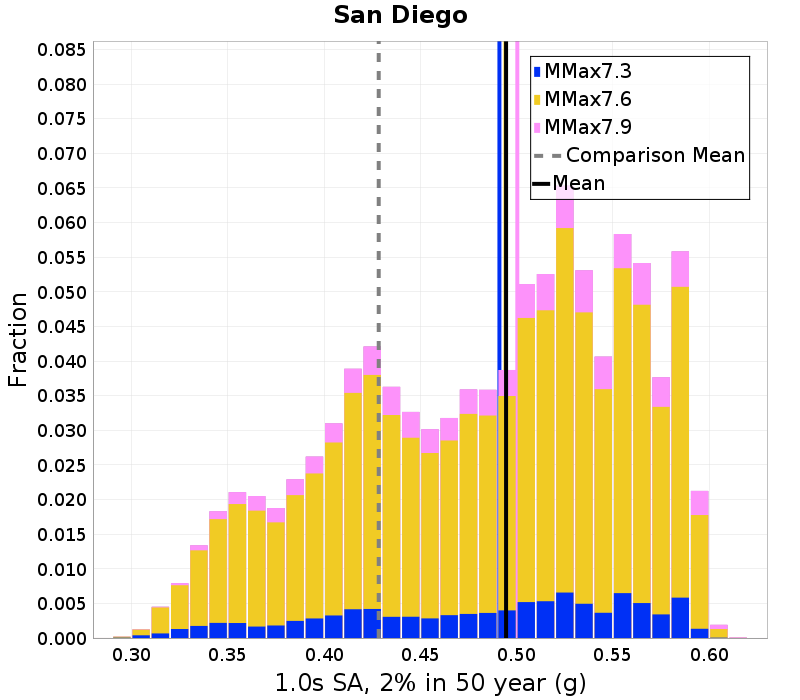

San Diego, 1.0s SA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.49450353 (g) | 0.2196137 (g) |
| MMax7.3 | 0.4910489 (g) | 0.21477517 (g) |
| MMax7.6 | 0.49418205 (g) | 0.2192556 (g) |
| MMax7.9 | 0.50034136 (g) | 0.22686931 (g) |
