San Francisco Logic Tree Hazard Curves
Table Of Contents
- San Francisco, PGA
- San Francisco, 1.0s SA
- San Francisco, 1.0s SA, Hazard Value Distributions
- San Francisco, 1.0s SA, Deformation Model Hazard
- San Francisco, 1.0s SA, Scaling Relationship Hazard
- San Francisco, 1.0s SA, Supra-Seismogenic b-value Hazard
- San Francisco, 1.0s SA, Paleoseismic Data Uncertainties Hazard
- San Francisco, 1.0s SA, Segmentation Model Hazard
San Francisco, PGA
| Primary | Comparison |
|---|---|
 |  |
San Francisco, PGA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
Comparison Distribution, 2% in 50 year | Comparison Distribution, 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Primary | 0.7684002 (g) | 0.43315756 (g) |
| Comparison | 0.71332407 (g) | 0.3984289 (g) |

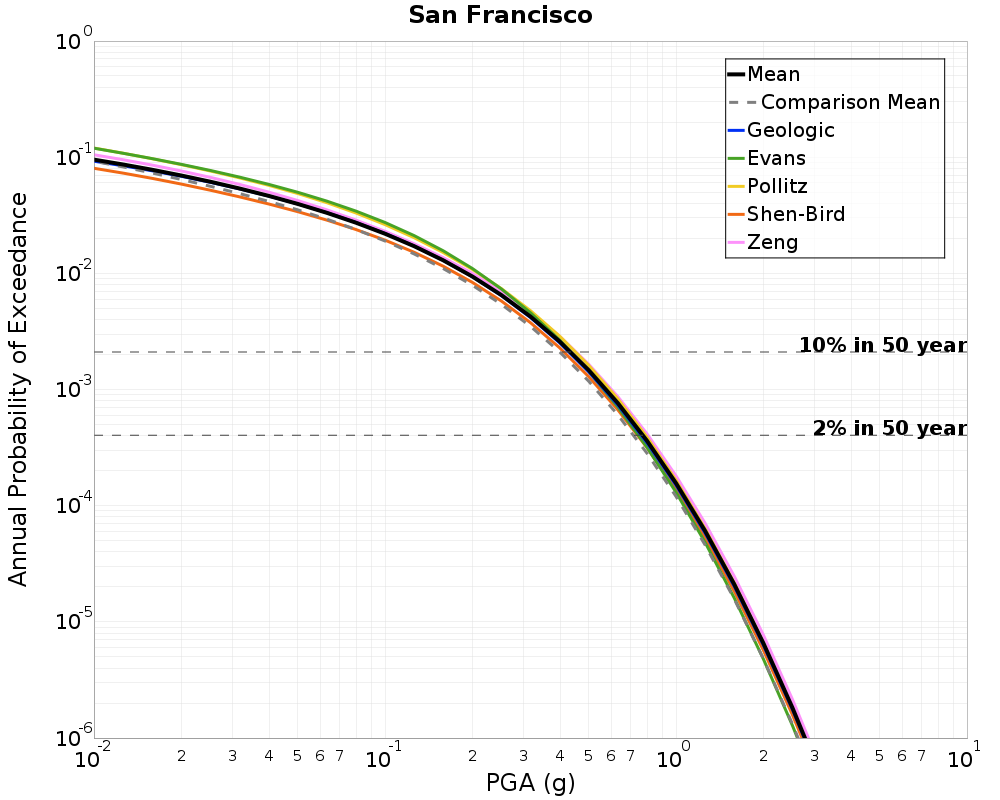

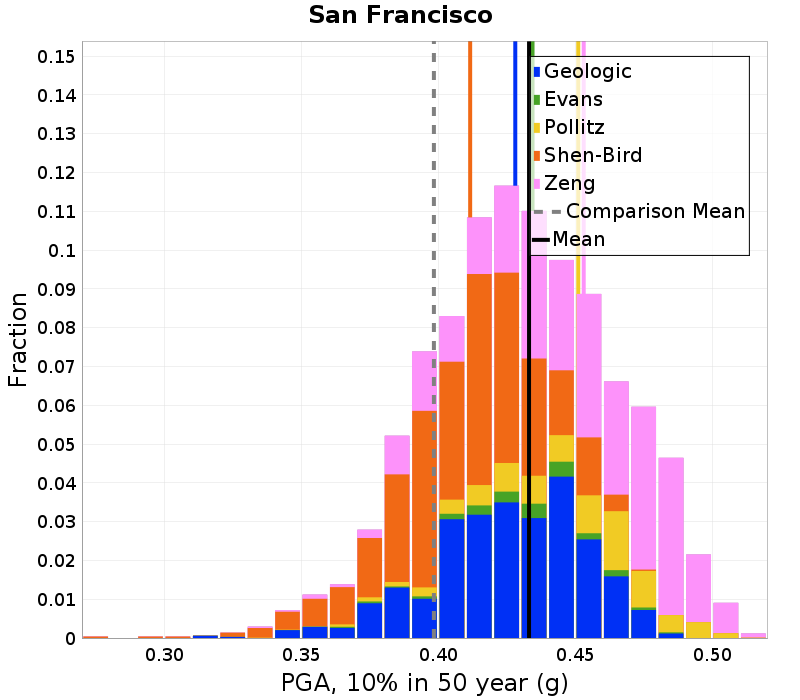

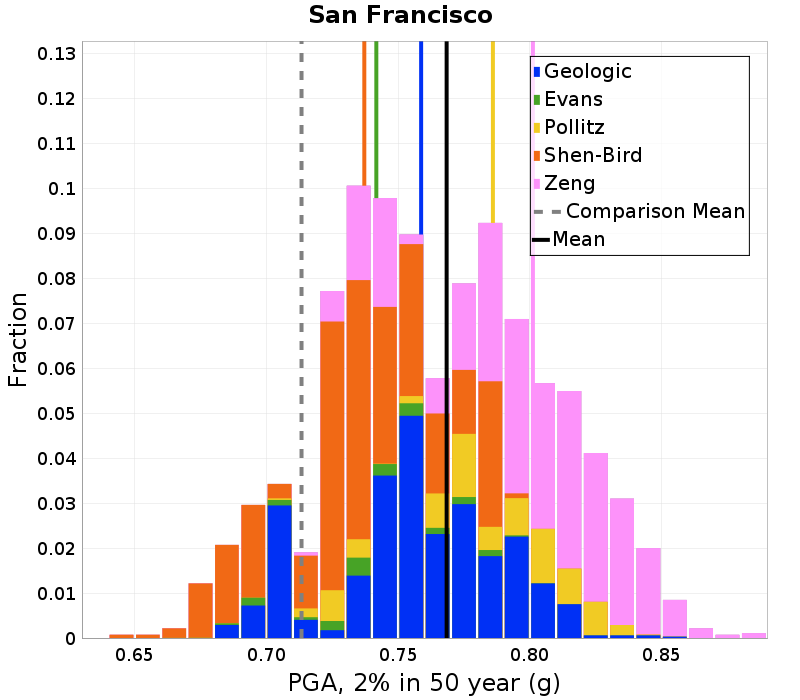

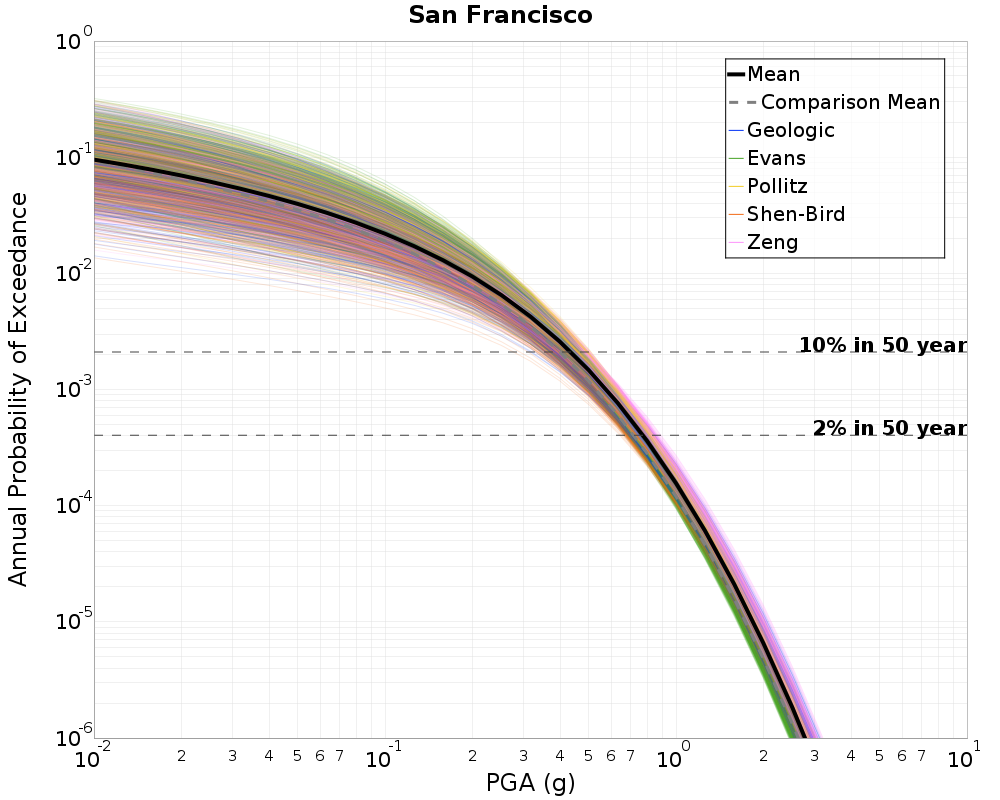

San Francisco, PGA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.7684002 (g) | 0.43315756 (g) |
| Geologic | 0.75872225 (g) | 0.428132 (g) |
| Evans | 0.7417156 (g) | 0.43442369 (g) |
| Pollitz | 0.78596574 (g) | 0.45111427 (g) |
| Shen-Bird | 0.7371535 (g) | 0.41166586 (g) |
| Zeng | 0.801153 (g) | 0.45310724 (g) |

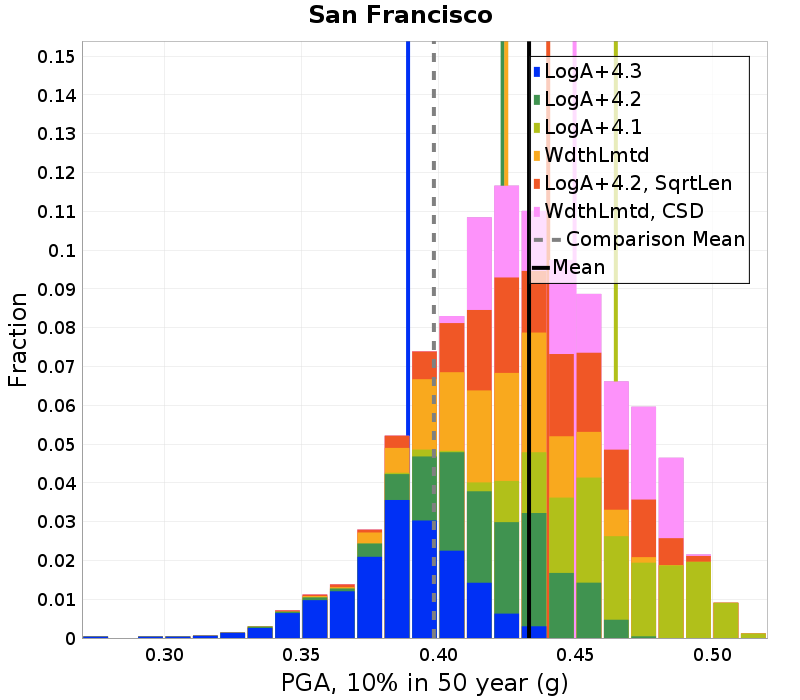

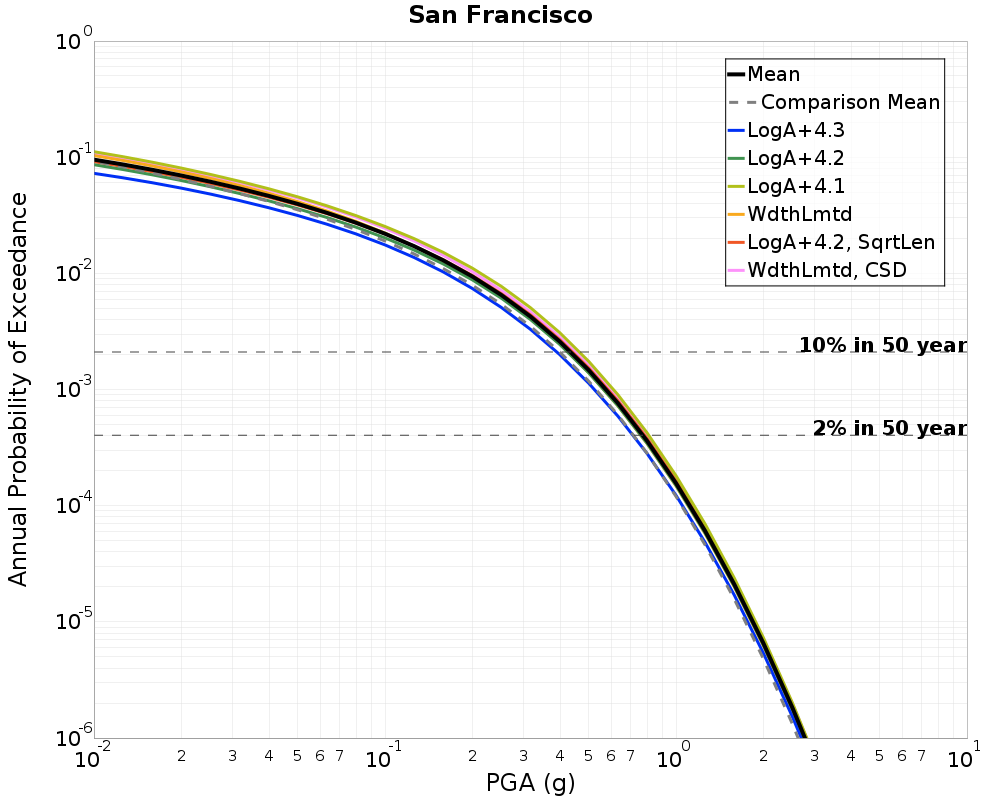

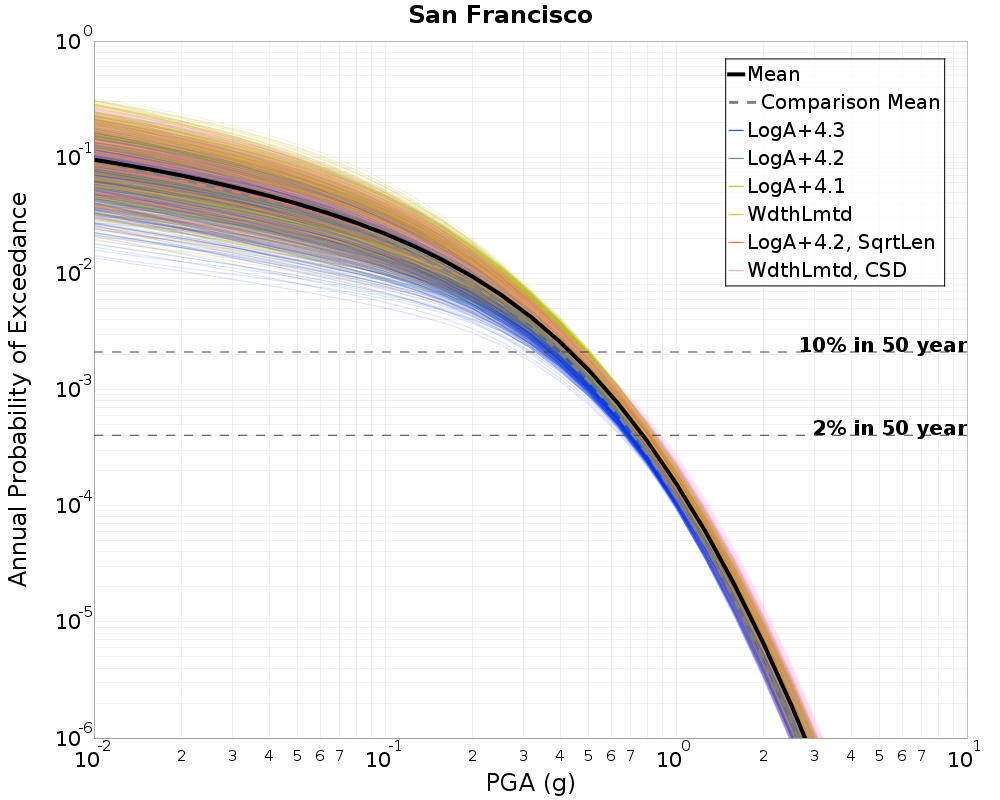

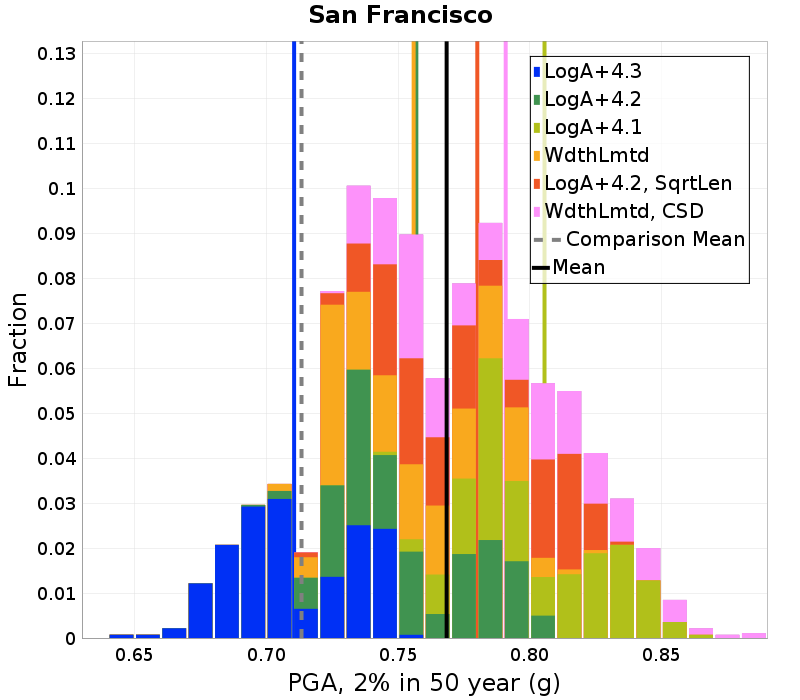

San Francisco, PGA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.7684002 (g) | 0.43315756 (g) |
| LogA+4.3 | 0.71051216 (g) | 0.38900697 (g) |
| LogA+4.2 | 0.75690705 (g) | 0.42350918 (g) |
| LogA+4.1 | 0.8055565 (g) | 0.46483293 (g) |
| WdthLmtd | 0.75587463 (g) | 0.42484403 (g) |
| LogA+4.2, SqrtLen | 0.78003937 (g) | 0.44015762 (g) |
| WdthLmtd, CSD | 0.79081744 (g) | 0.44977787 (g) |

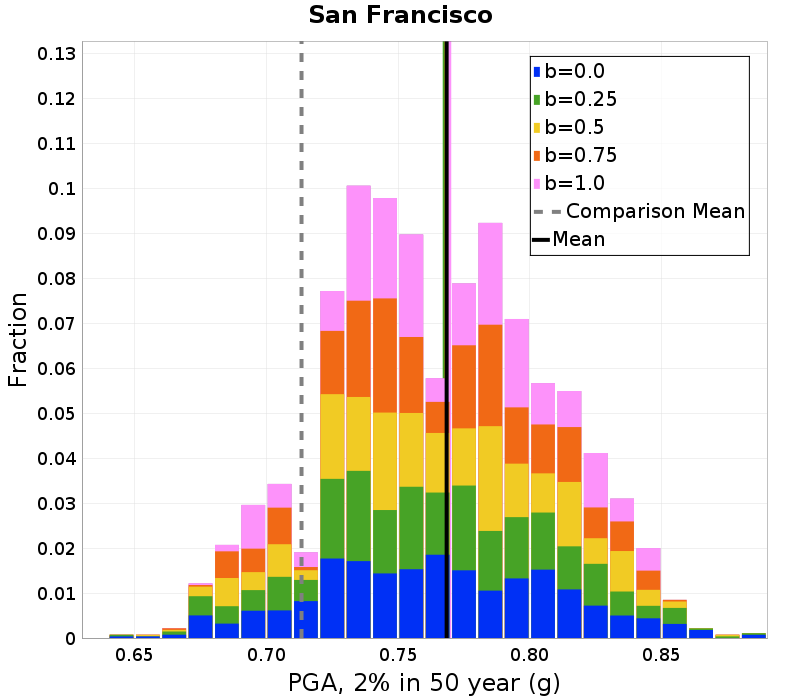

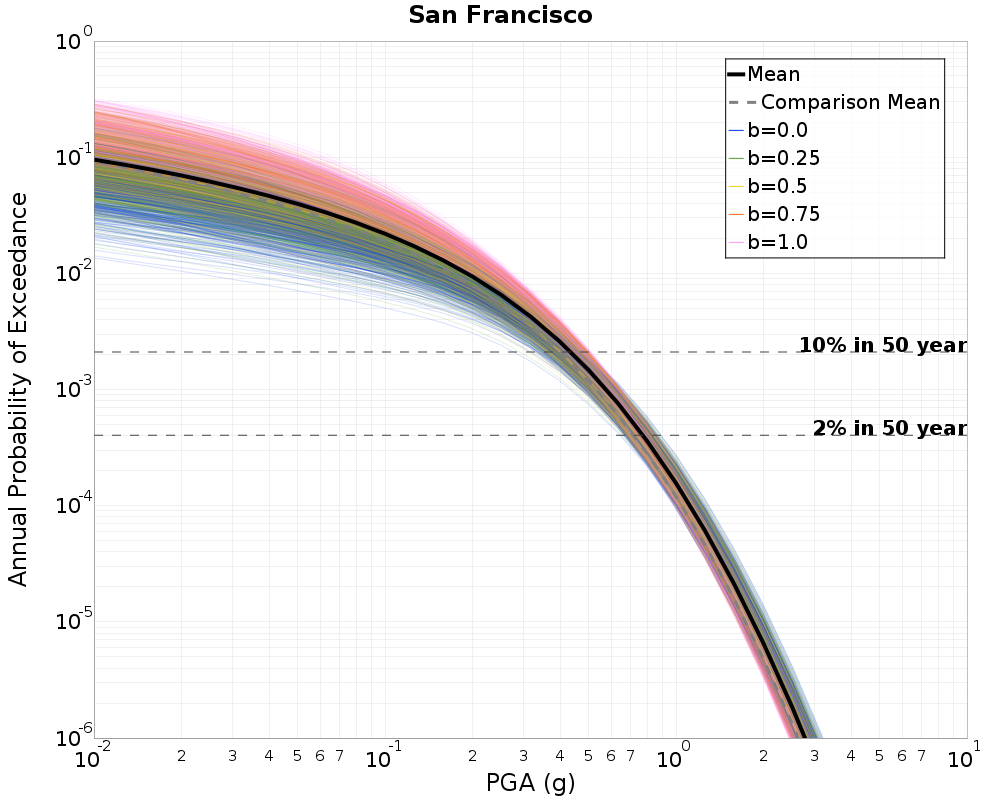

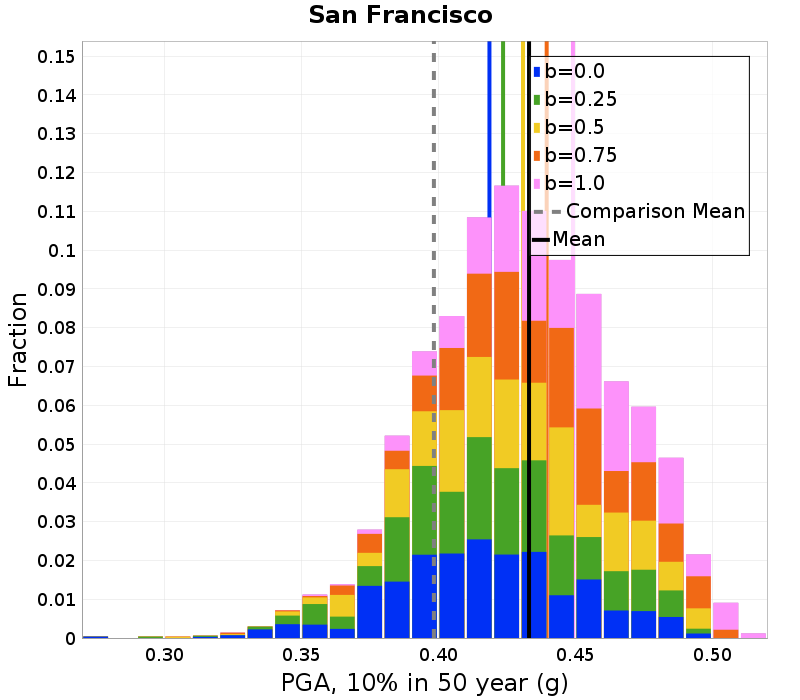

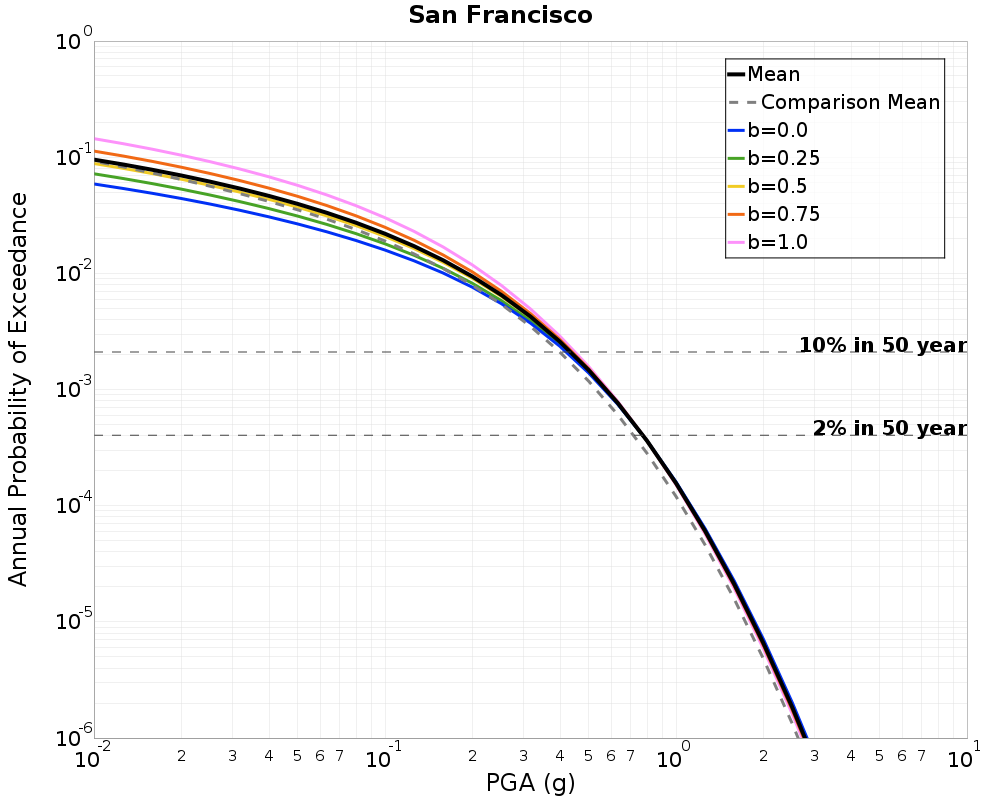

San Francisco, PGA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.7684002 (g) | 0.43315756 (g) |
| b=0.0 | 0.76795936 (g) | 0.41870114 (g) |
| b=0.25 | 0.7676671 (g) | 0.42367607 (g) |
| b=0.5 | 0.7683614 (g) | 0.43095446 (g) |
| b=0.75 | 0.7684984 (g) | 0.43958834 (g) |
| b=1.0 | 0.7693939 (g) | 0.4491809 (g) |

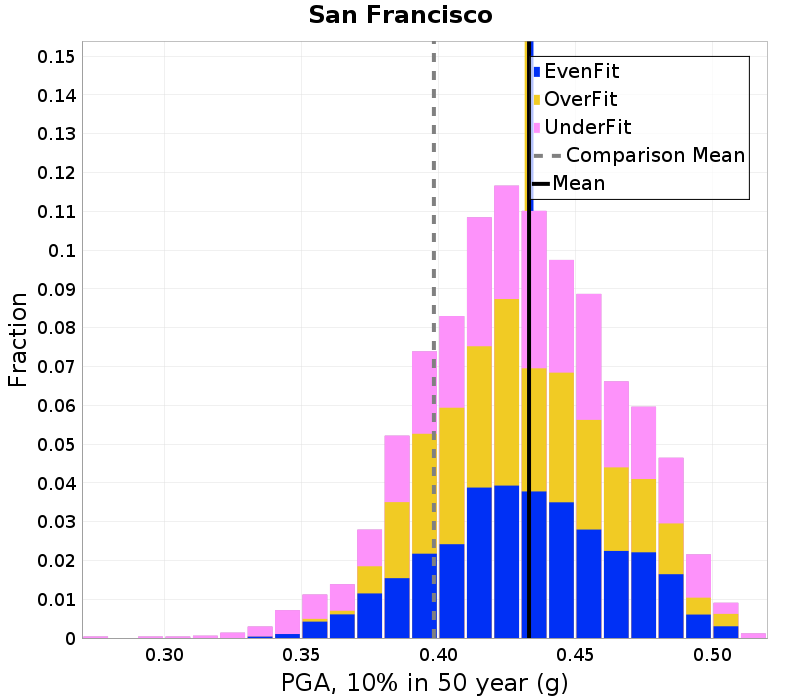

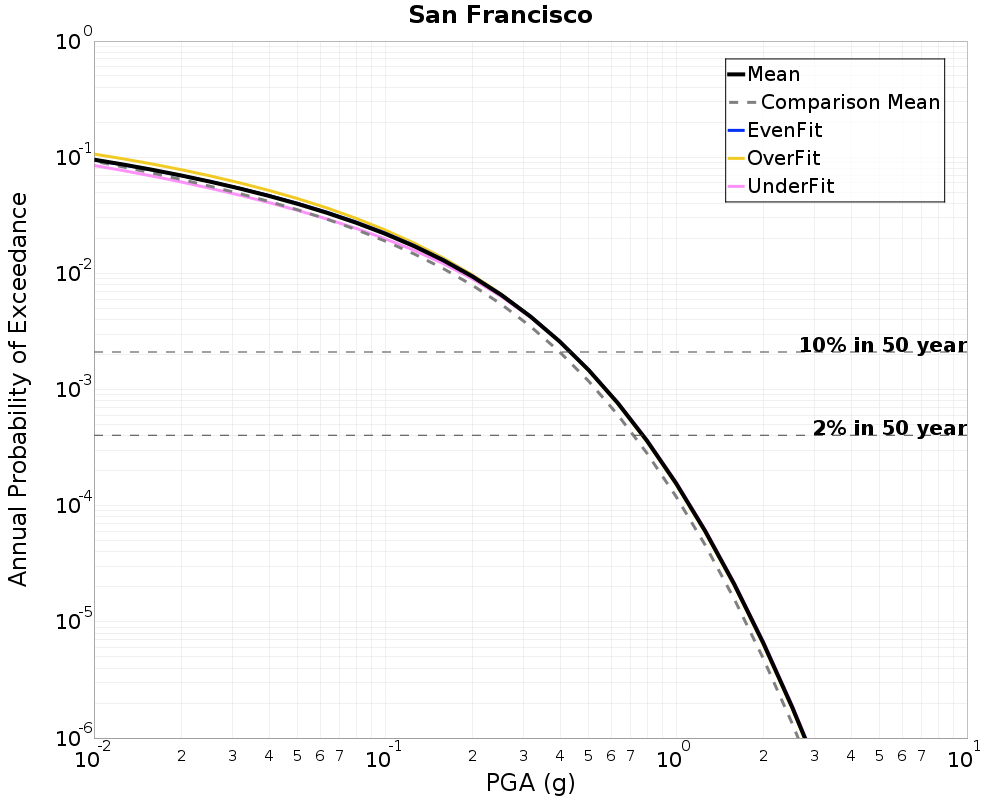

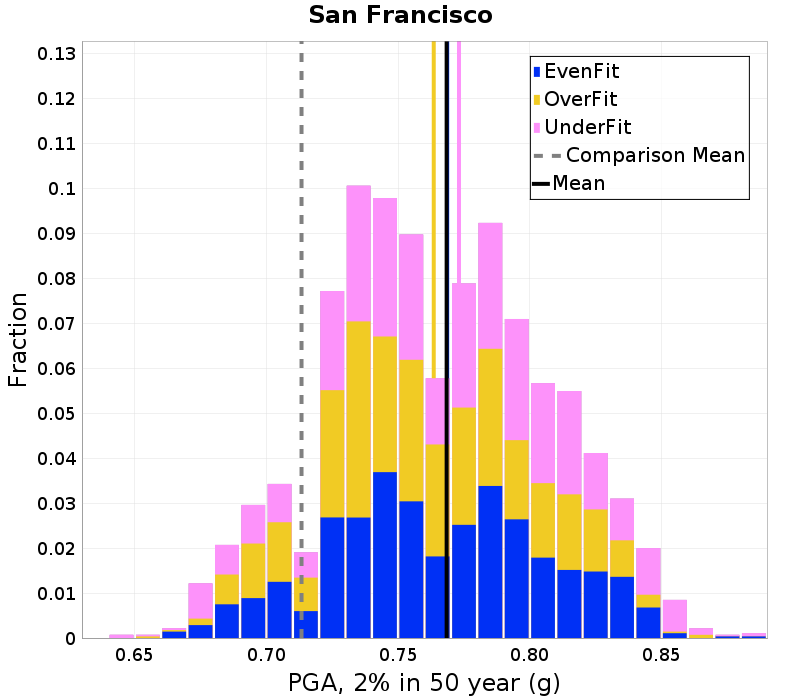

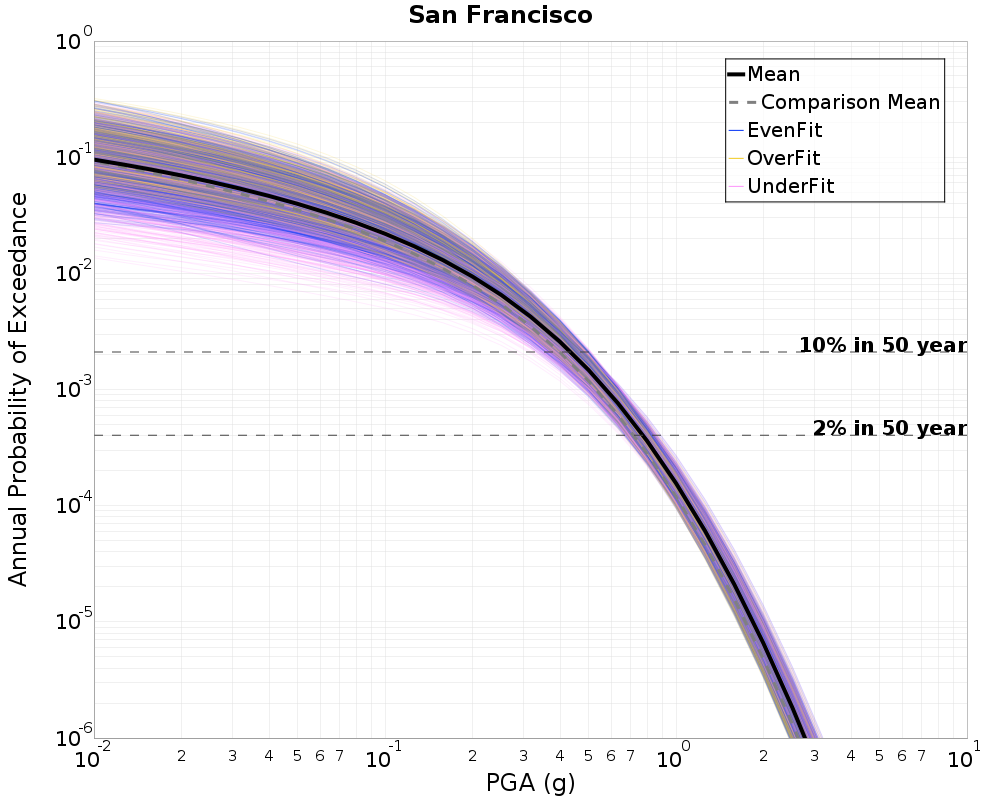

San Francisco, PGA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.7684002 (g) | 0.43315756 (g) |
| EvenFit | 0.7686081 (g) | 0.43404067 (g) |
| OverFit | 0.76350766 (g) | 0.43229133 (g) |
| UnderFit | 0.7730908 (g) | 0.43314338 (g) |

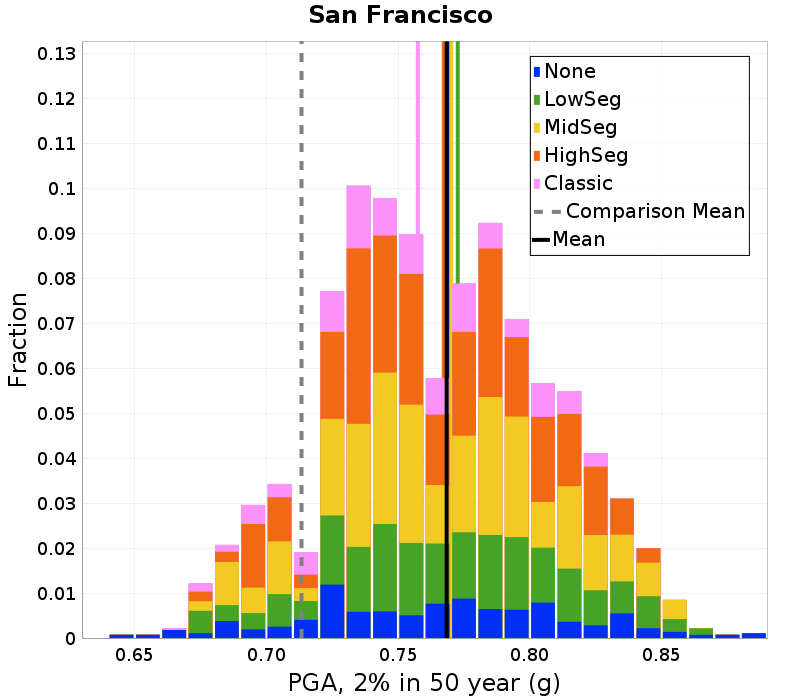

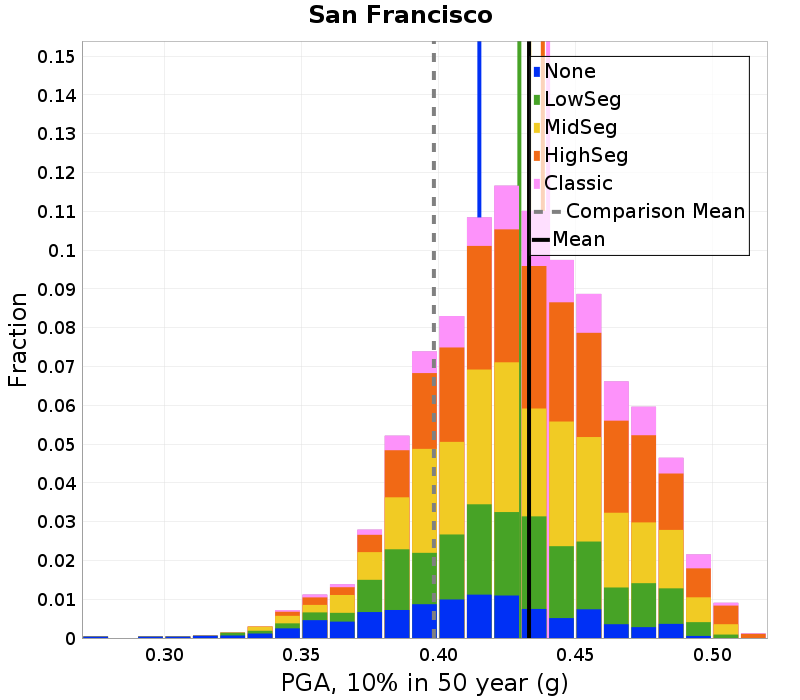

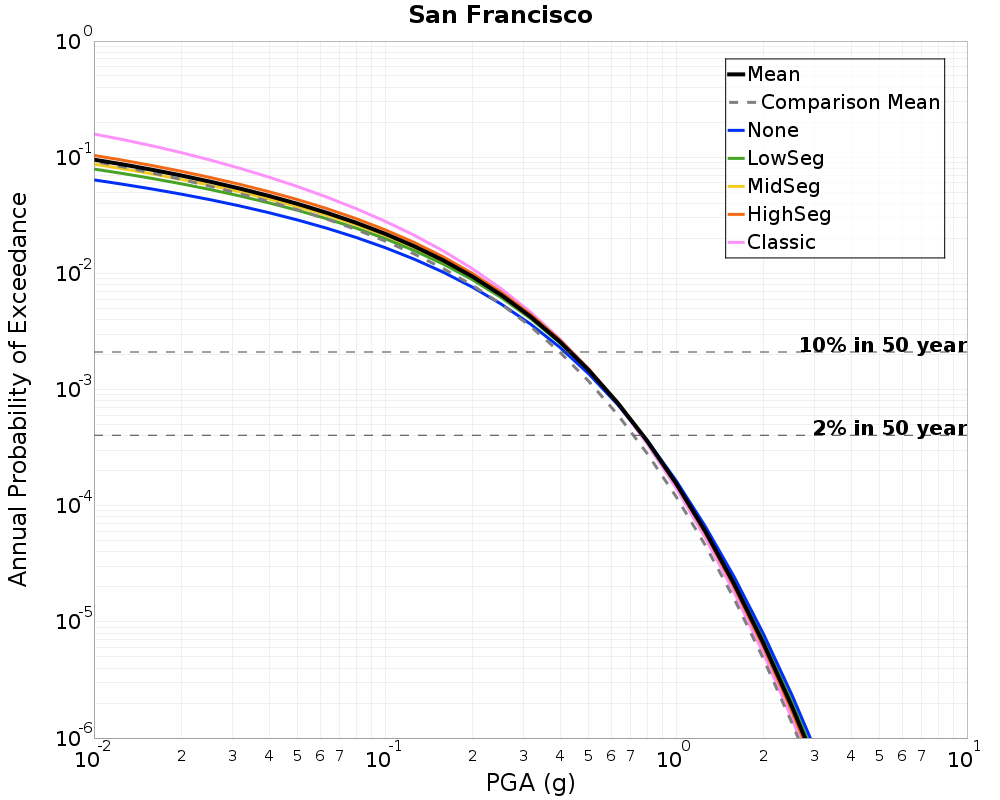

San Francisco, PGA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.7684002 (g) | 0.43315756 (g) |
| None | 0.7693459 (g) | 0.41502067 (g) |
| LowSeg | 0.77261895 (g) | 0.42962065 (g) |
| MidSeg | 0.7701681 (g) | 0.43322045 (g) |
| HighSeg | 0.76732564 (g) | 0.43818706 (g) |
| Classic | 0.75745964 (g) | 0.44011354 (g) |
San Francisco, 1.0s SA
| Primary | Comparison |
|---|---|
 |  |
San Francisco, 1.0s SA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
Comparison Distribution, 2% in 50 year | Comparison Distribution, 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Primary | 0.650849 (g) | 0.3337668 (g) |
| Comparison | 0.62353164 (g) | 0.31834537 (g) |

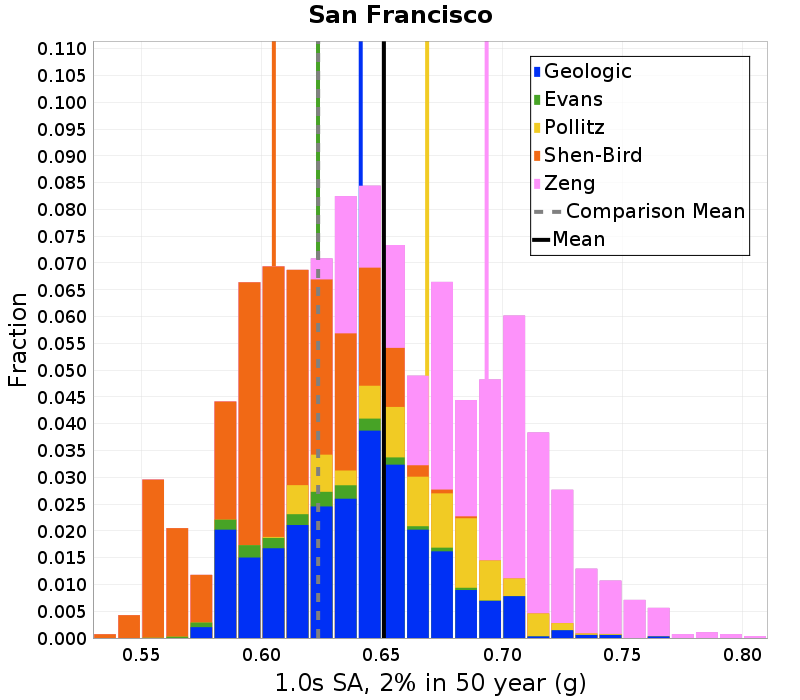

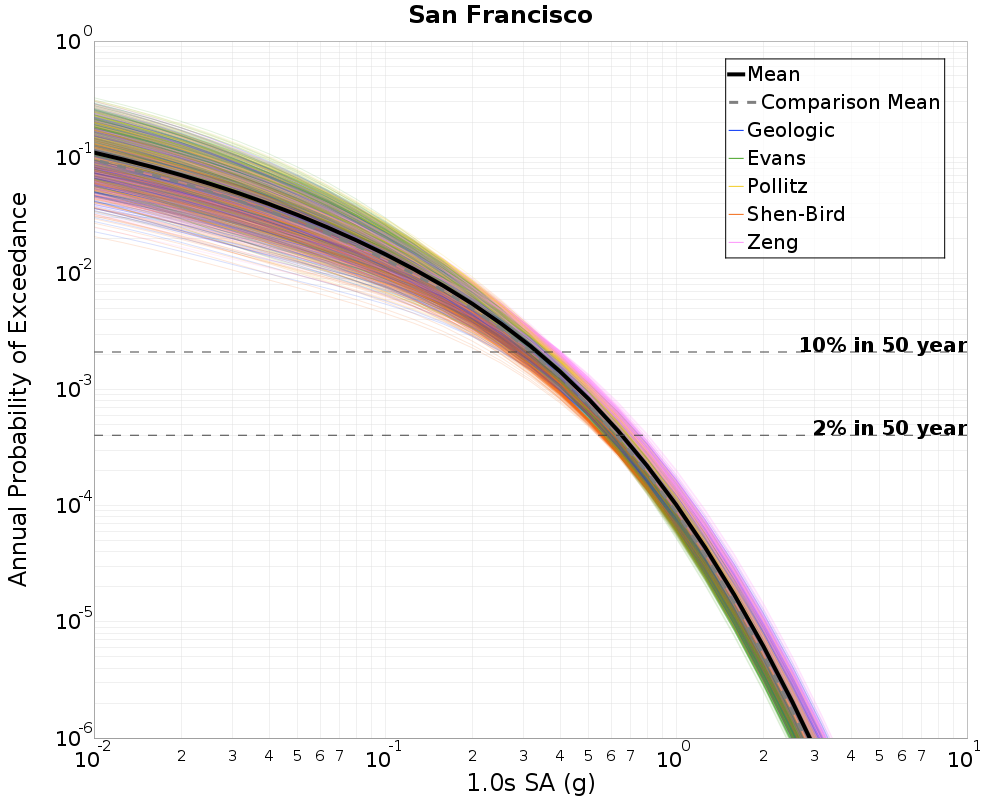

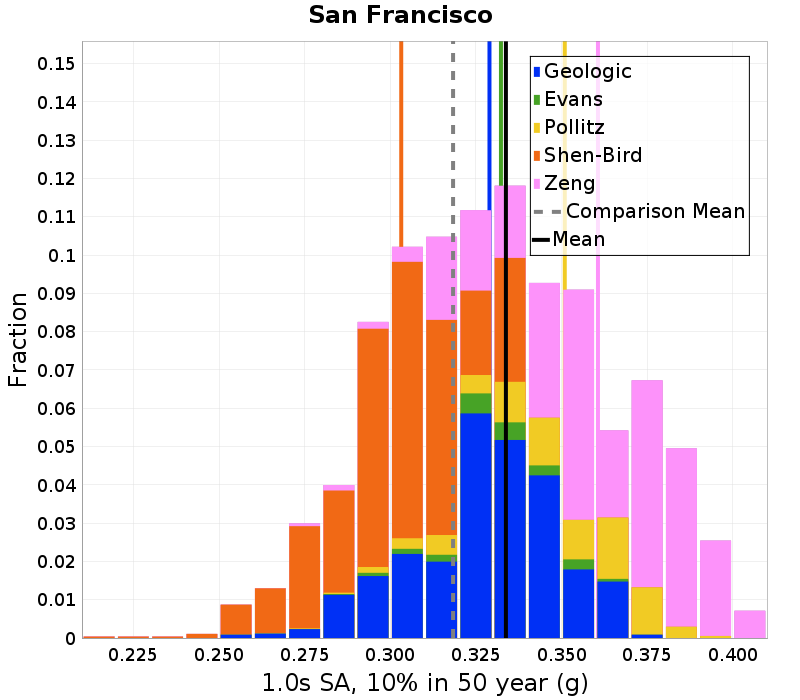

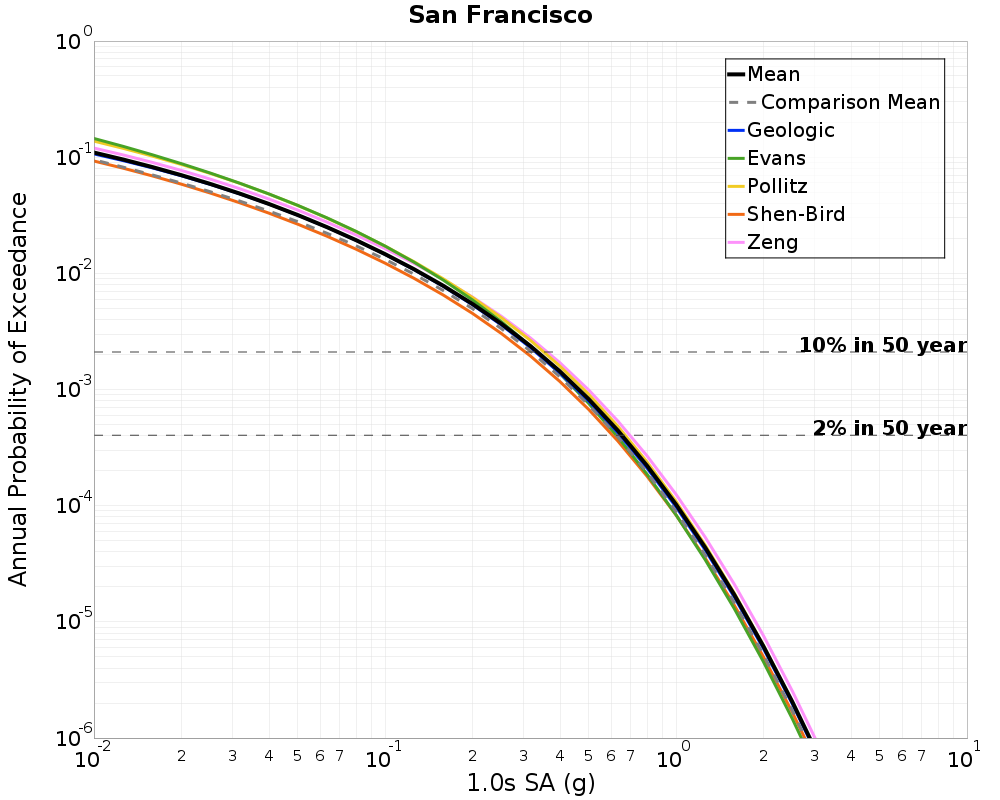

San Francisco, 1.0s SA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.650849 (g) | 0.3337668 (g) |
| Geologic | 0.6412198 (g) | 0.32897013 (g) |
| Evans | 0.6234784 (g) | 0.33232203 (g) |
| Pollitz | 0.66880727 (g) | 0.350954 (g) |
| Shen-Bird | 0.60513645 (g) | 0.30320764 (g) |
| Zeng | 0.6935302 (g) | 0.36064553 (g) |

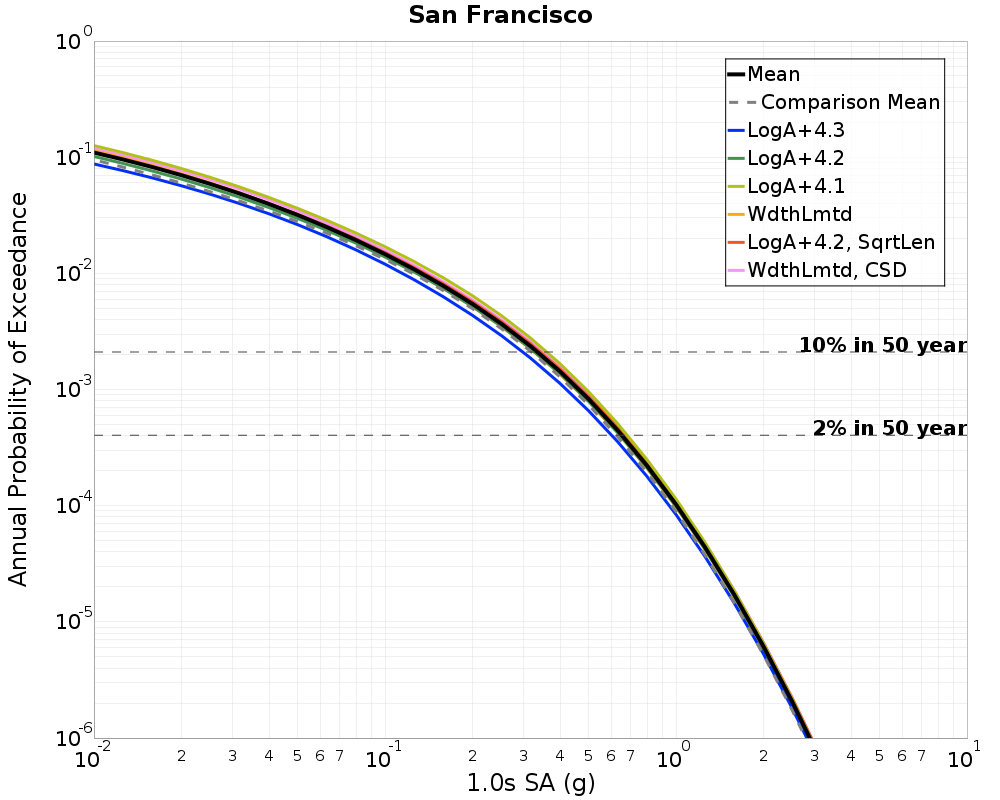

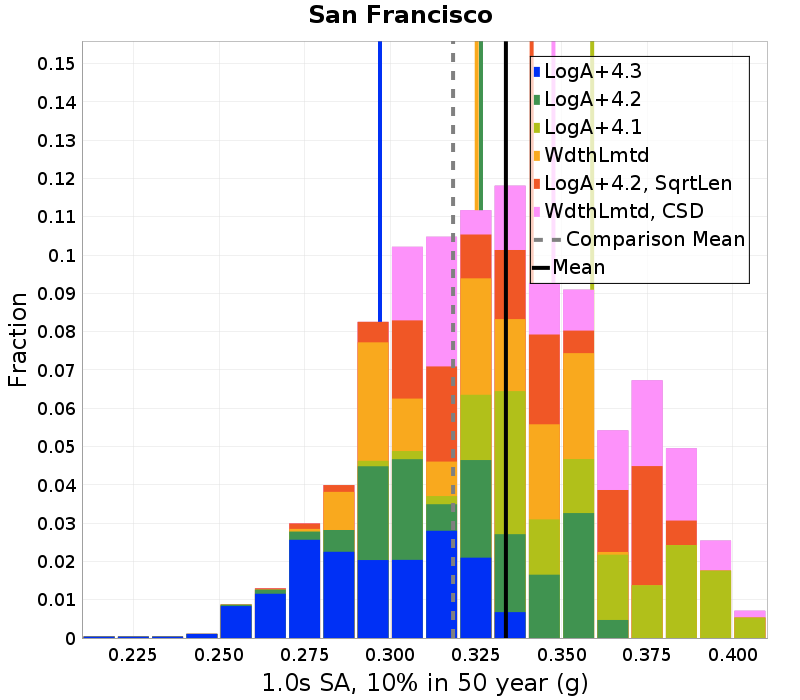

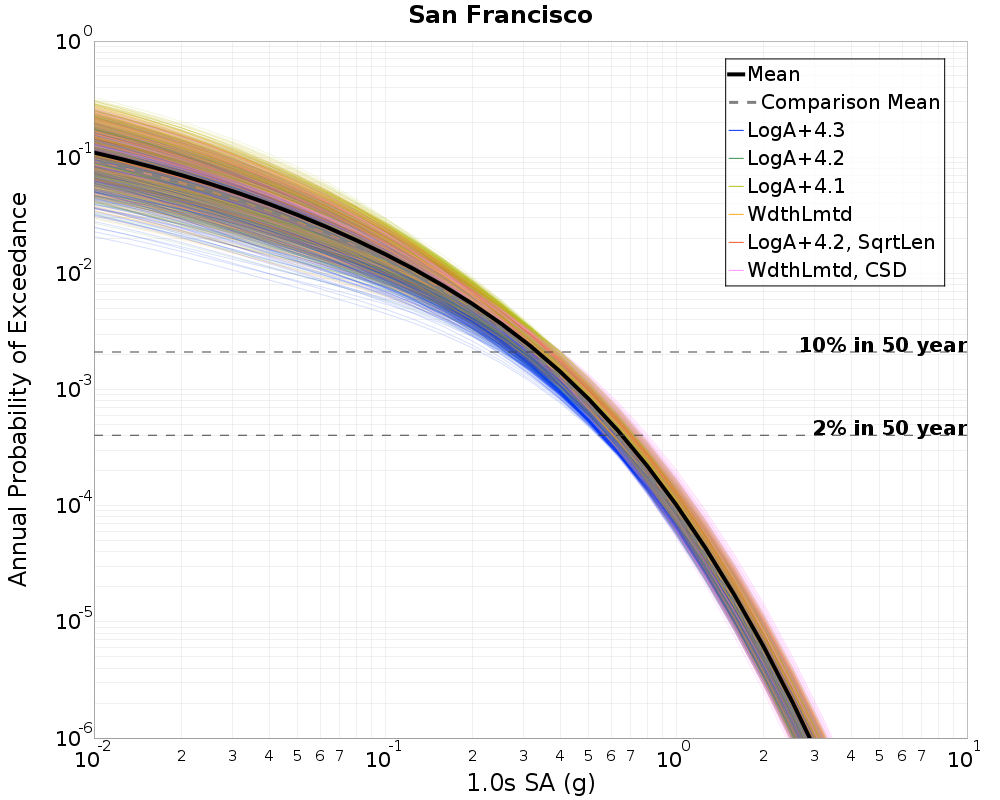

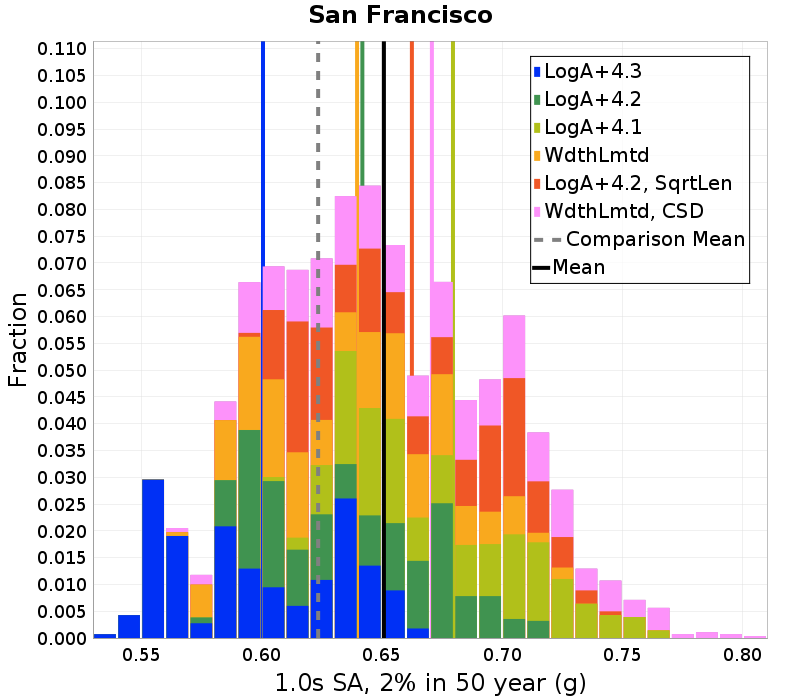

San Francisco, 1.0s SA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.650849 (g) | 0.3337668 (g) |
| LogA+4.3 | 0.60062087 (g) | 0.29700768 (g) |
| LogA+4.2 | 0.64190227 (g) | 0.32649243 (g) |
| LogA+4.1 | 0.67954296 (g) | 0.35895535 (g) |
| WdthLmtd | 0.639702 (g) | 0.32524672 (g) |
| LogA+4.2, SqrtLen | 0.6624786 (g) | 0.34127954 (g) |
| WdthLmtd, CSD | 0.67078847 (g) | 0.34764725 (g) |

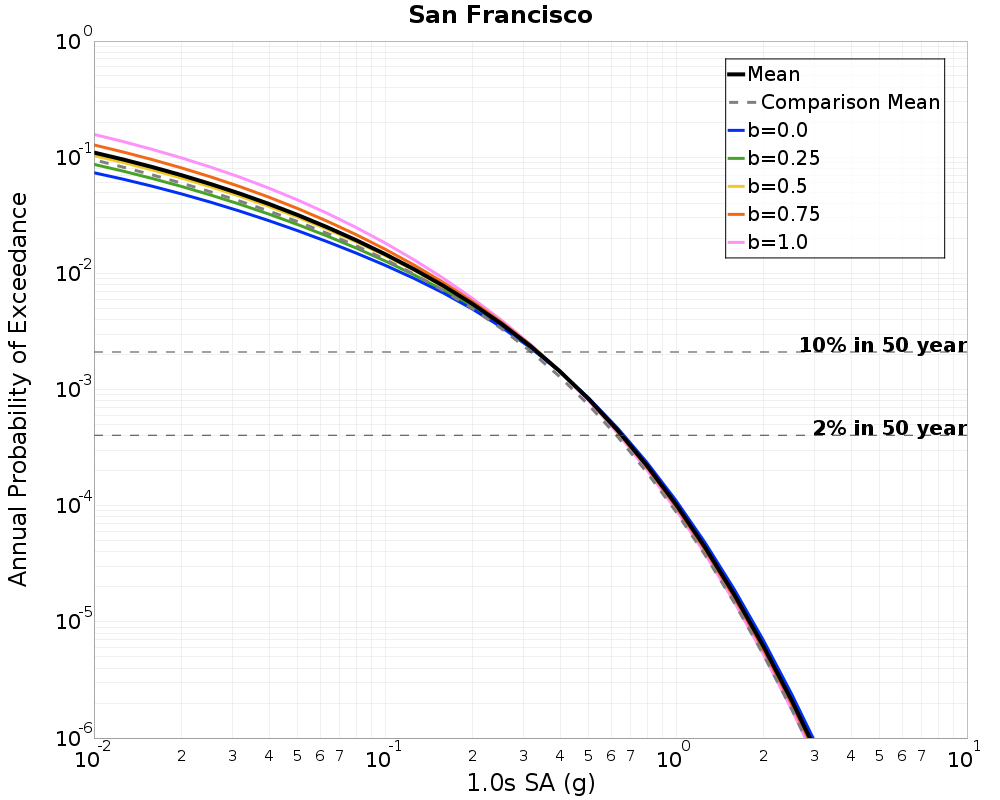

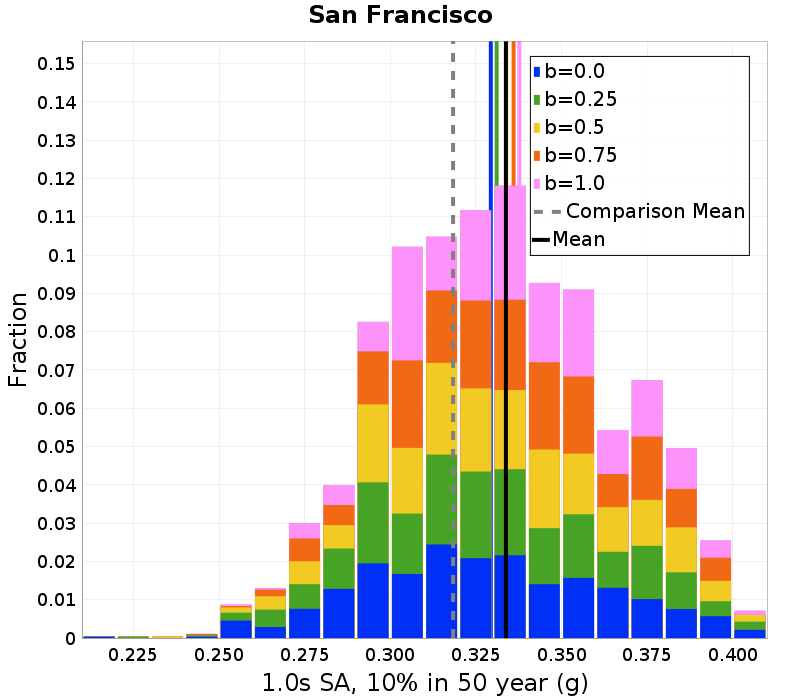

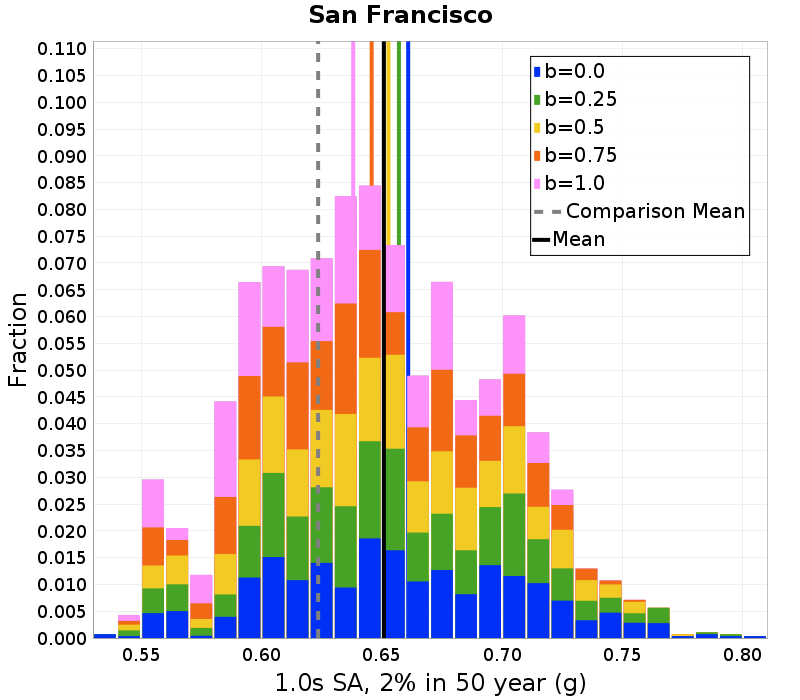

San Francisco, 1.0s SA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.650849 (g) | 0.3337668 (g) |
| b=0.0 | 0.66094166 (g) | 0.3293634 (g) |
| b=0.25 | 0.65709275 (g) | 0.33106804 (g) |
| b=0.5 | 0.6527397 (g) | 0.33389273 (g) |
| b=0.75 | 0.6457651 (g) | 0.33601457 (g) |
| b=1.0 | 0.63809514 (g) | 0.33768398 (g) |

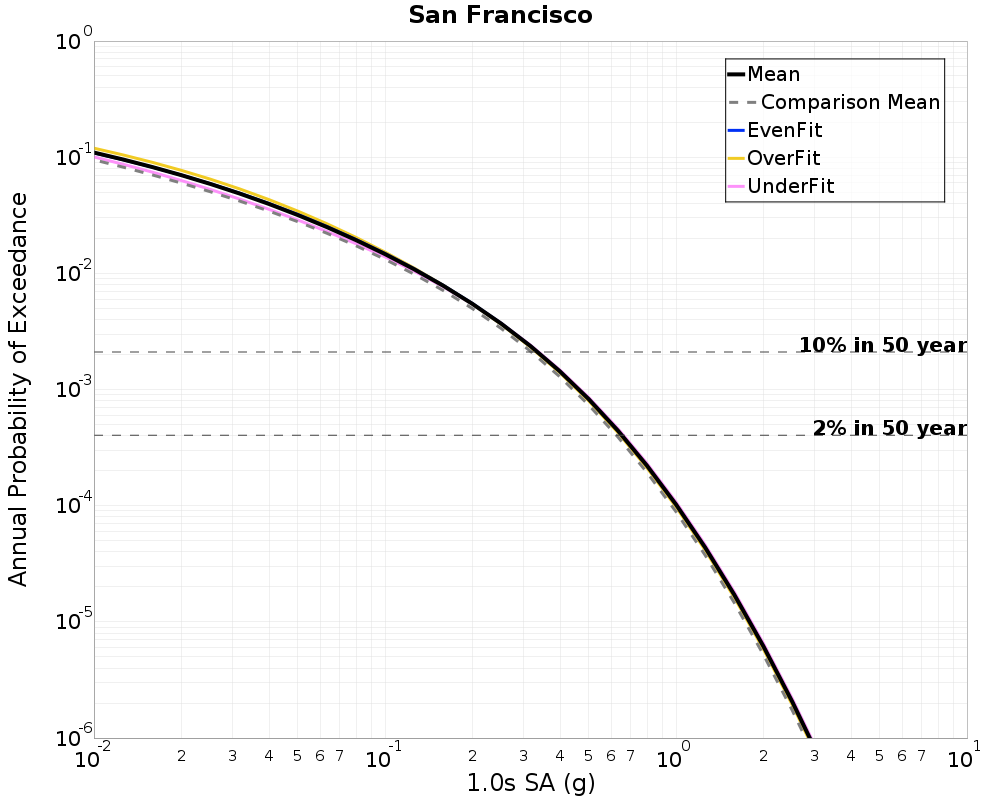

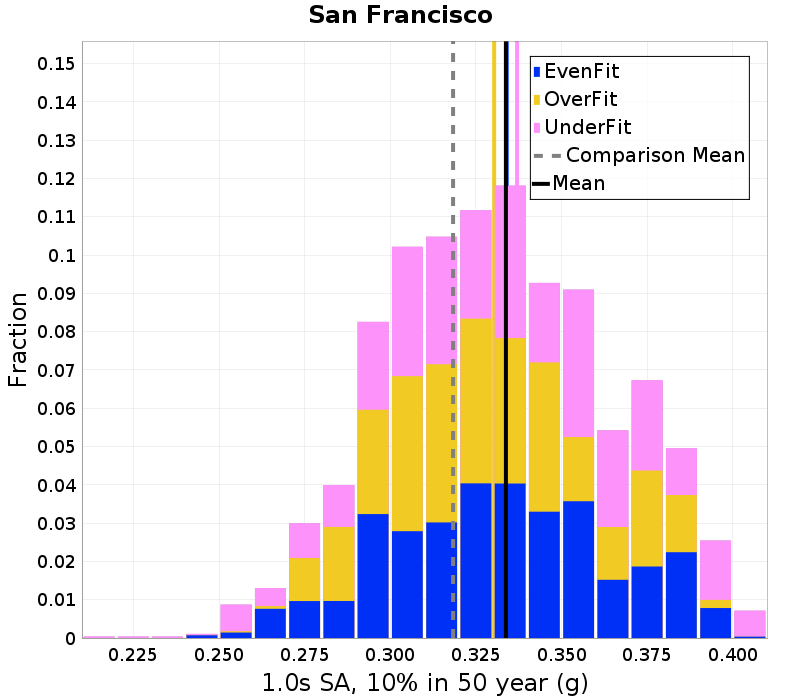

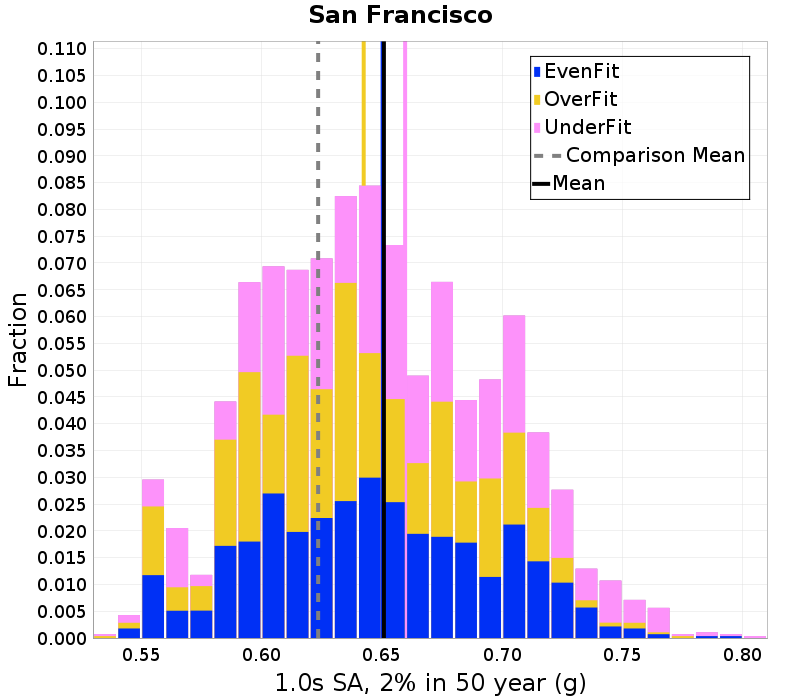

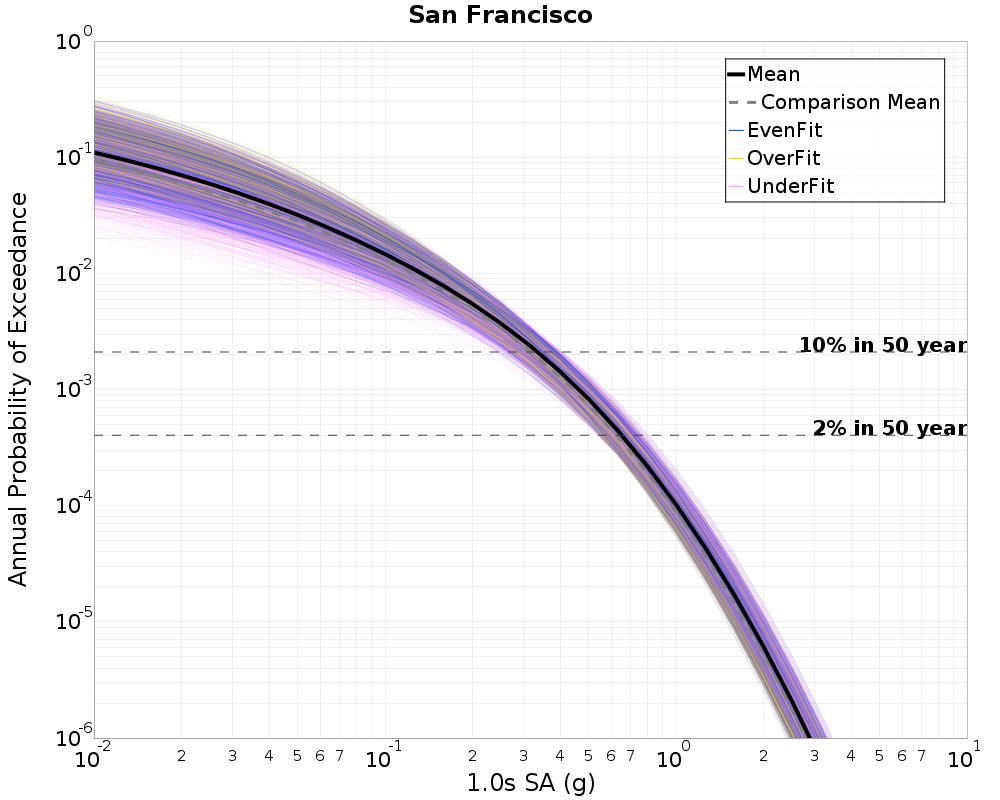

San Francisco, 1.0s SA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.650849 (g) | 0.3337668 (g) |
| EvenFit | 0.6503107 (g) | 0.33399636 (g) |
| OverFit | 0.6424567 (g) | 0.33033696 (g) |
| UnderFit | 0.65966266 (g) | 0.3370313 (g) |

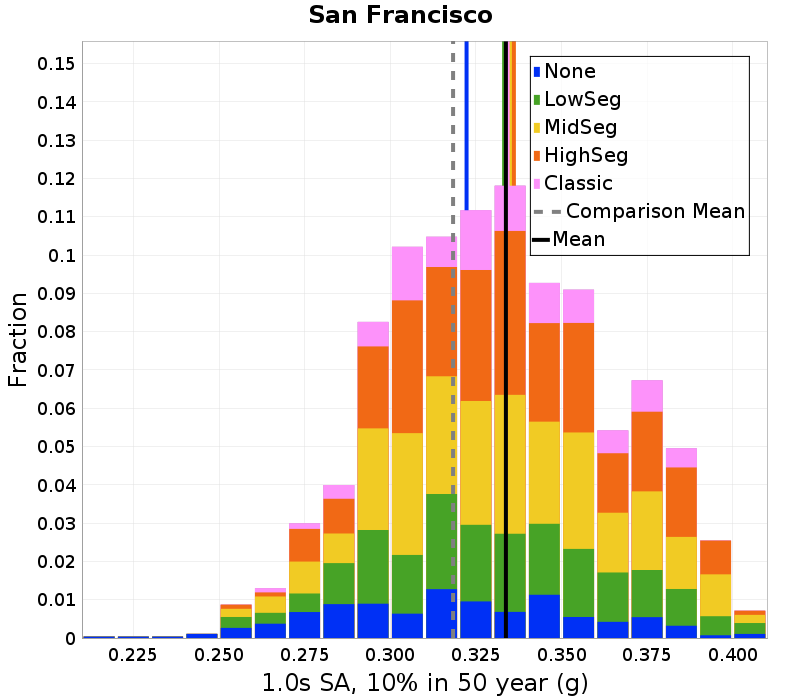

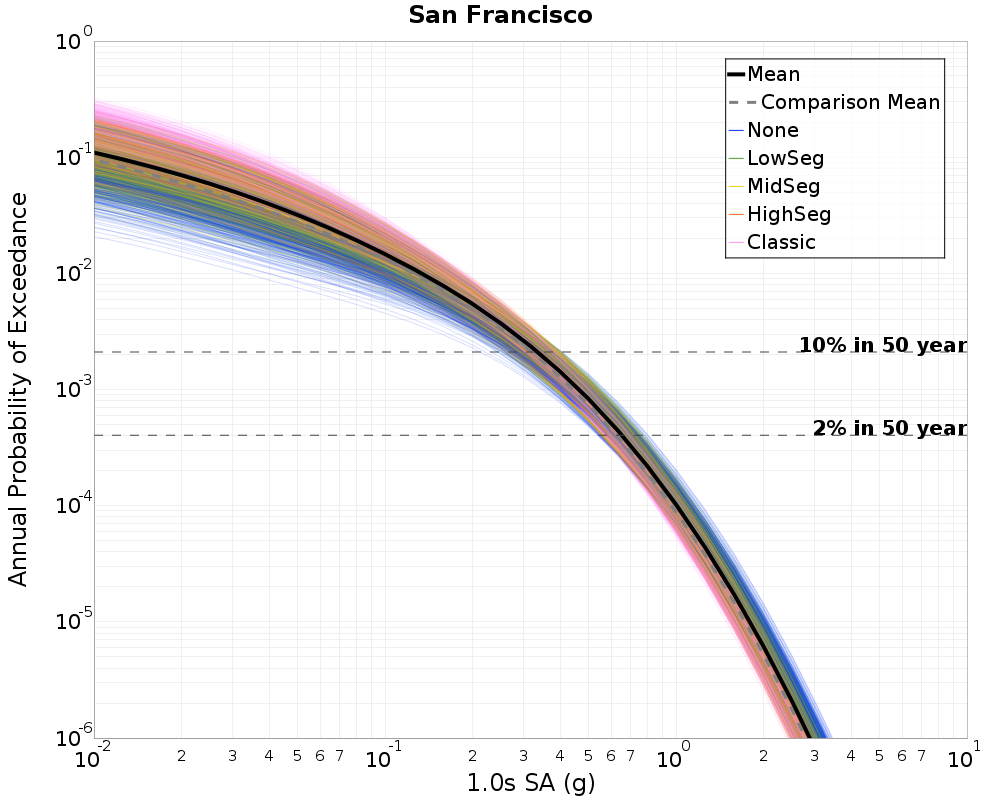

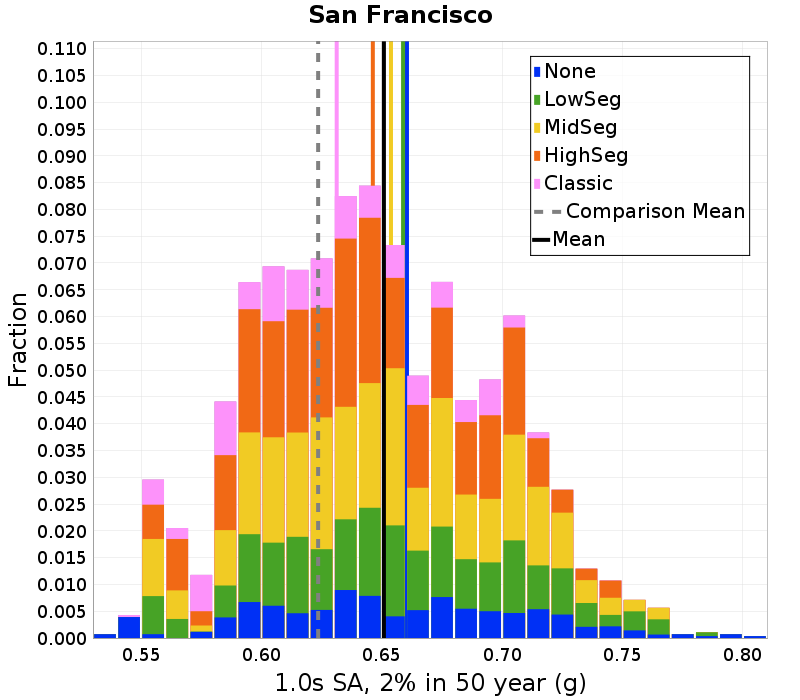

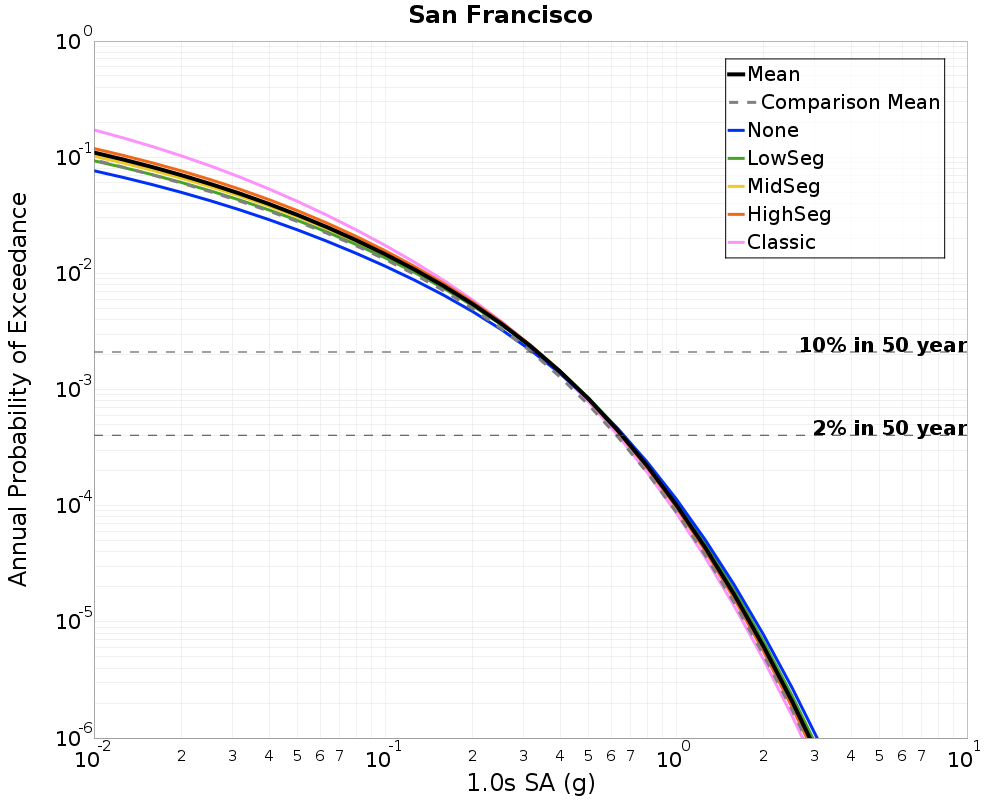

San Francisco, 1.0s SA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.650849 (g) | 0.3337668 (g) |
| None | 0.6604281 (g) | 0.32228127 (g) |
| LowSeg | 0.6588183 (g) | 0.33324194 (g) |
| MidSeg | 0.65378946 (g) | 0.3349931 (g) |
| HighSeg | 0.64625037 (g) | 0.33610082 (g) |
| Classic | 0.6312387 (g) | 0.3342689 (g) |
