Hazard Comparisons, NSHM23 vs NSHM18
This page compares NSHM23 and NSHM18 hazard maps, computed externally with nshmp-haz. Each individual ERF contributor to hazard changes are plotted separately, but GMMs are held constant.
Download map CSVs: maps_TWO_IN_50.csv maps_TEN_IN_50.csv
Table Of Contents
Full Model Comparison
Full model comparison, including fault, gridded, and subduction model changes.

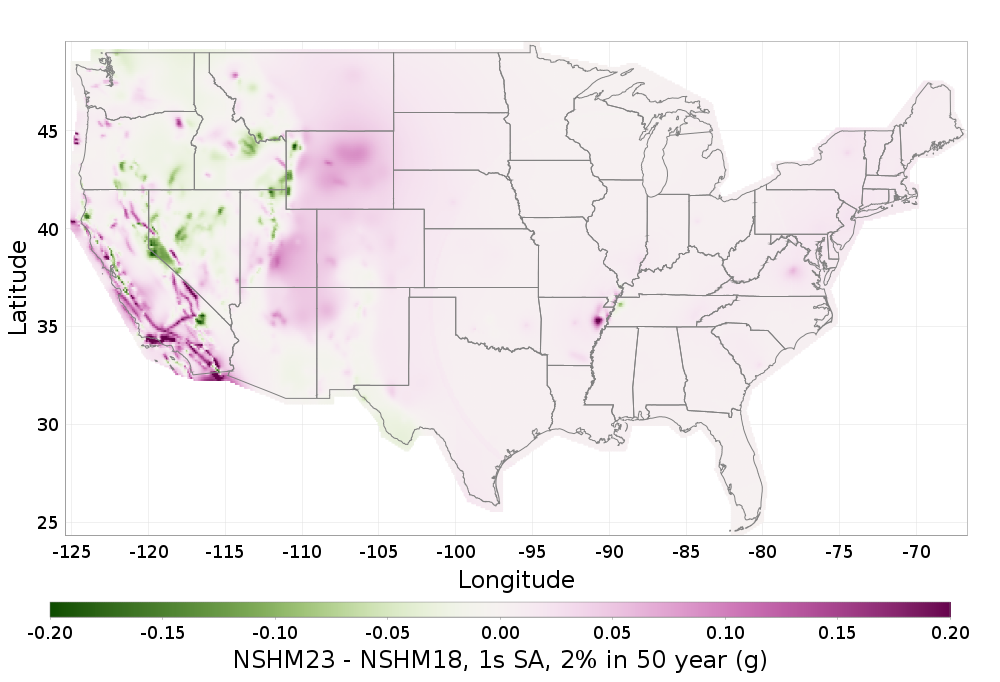

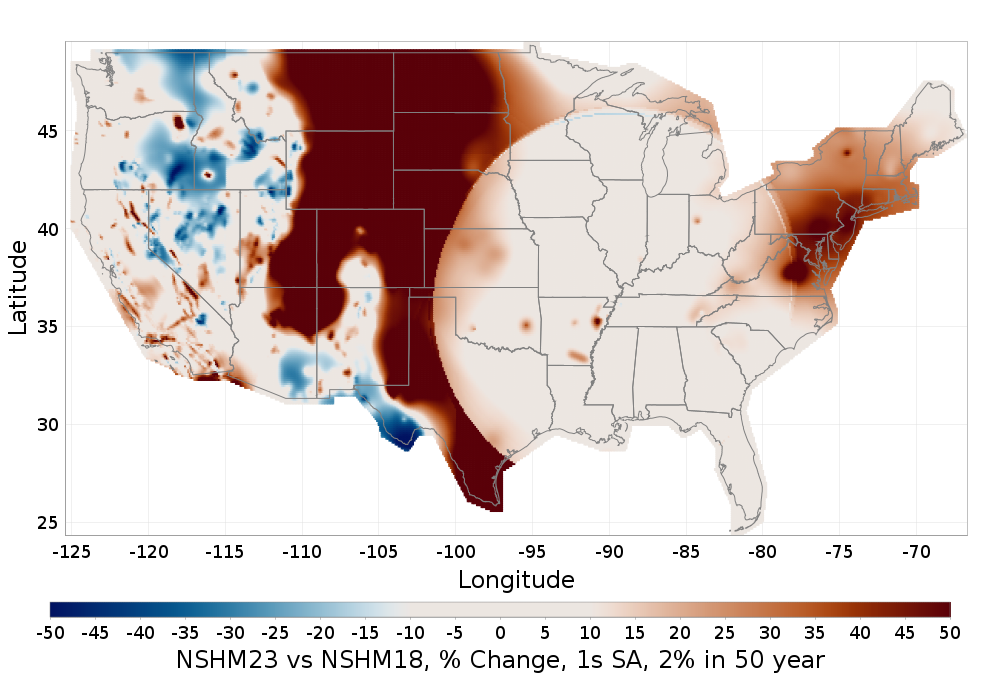

Full Model Comparison, 2% in 50 year
NSHM23 | NSHM18 |
---|---|
![]() | ![]() |
Ratio | Difference |
![]() | ![]() |

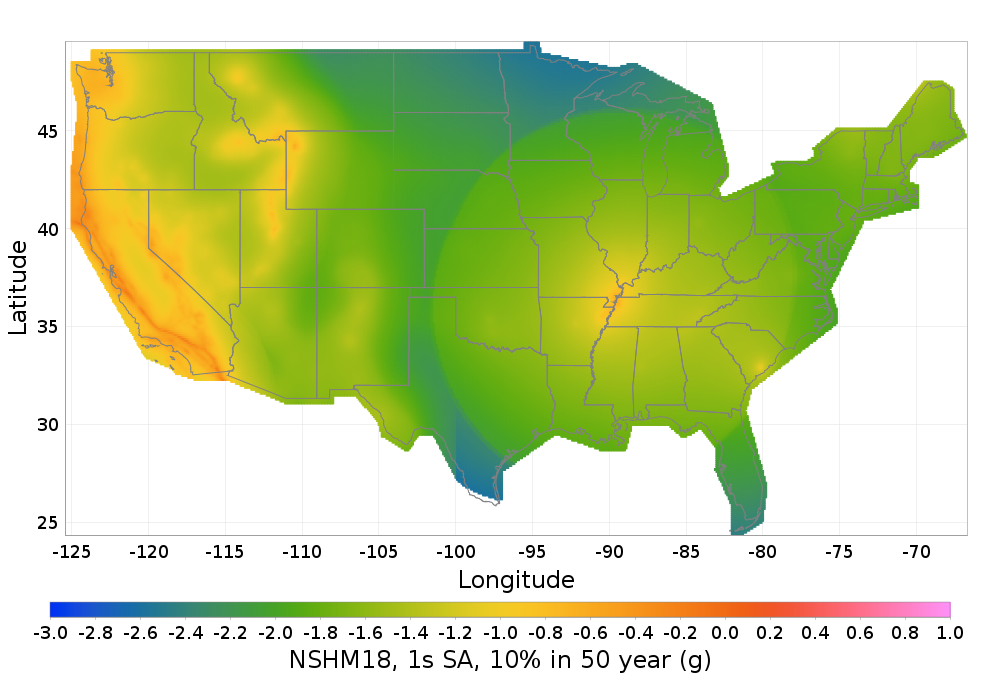

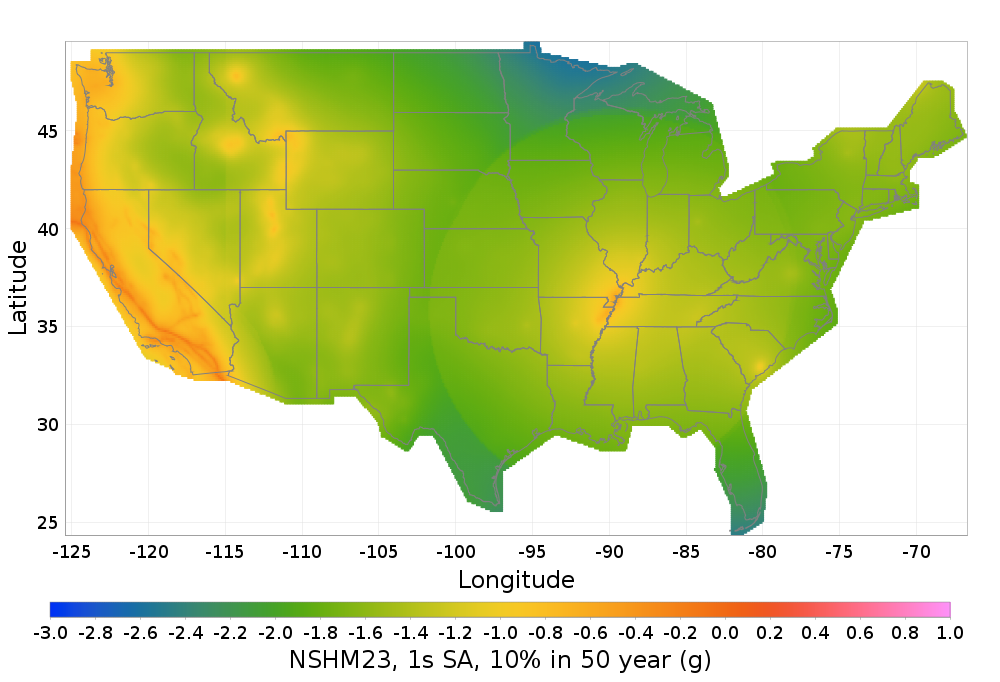

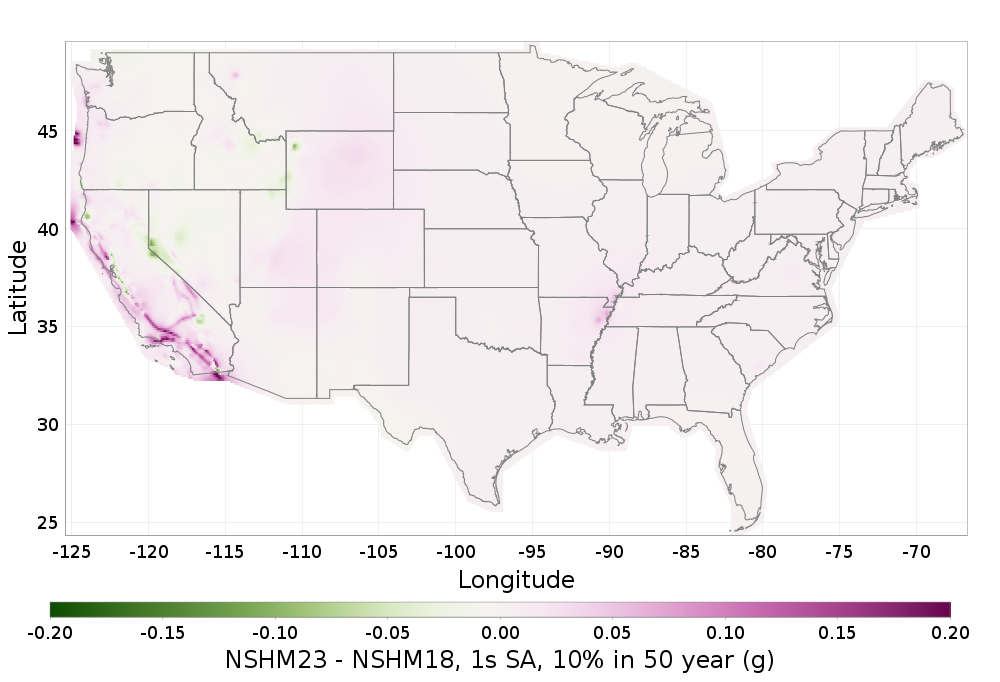

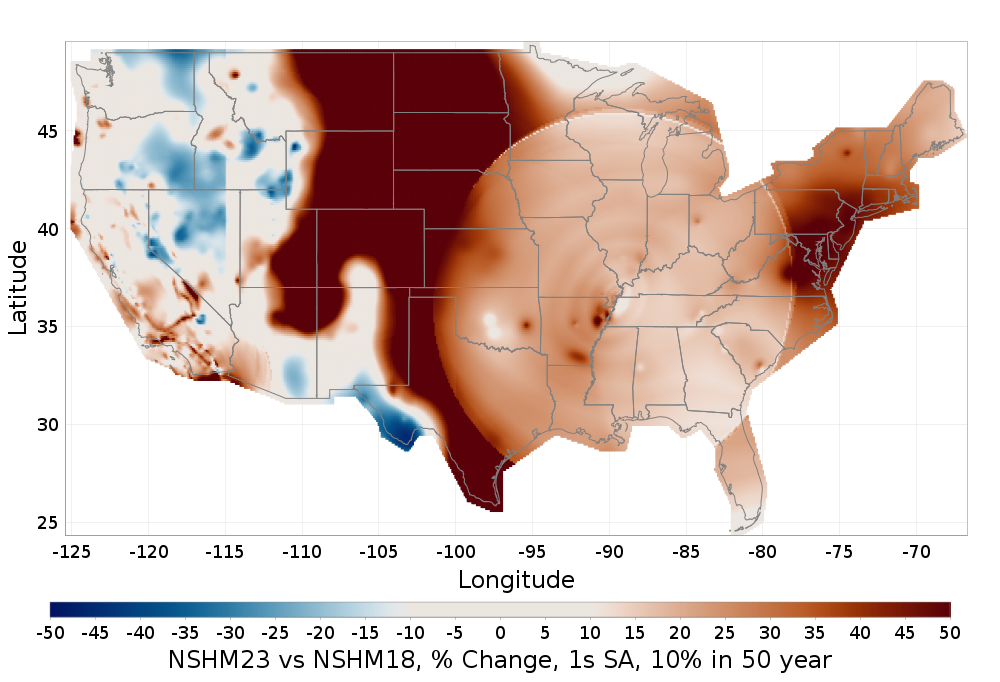

Full Model Comparison, 10% in 50 year
NSHM23 | NSHM18 |
---|---|
![]() | ![]() |
Ratio | Difference |
![]() | ![]() |
Fault-Only Comparison
Fault-only comparison, holding gridded and subduction sources constant (using those from NSHM23).

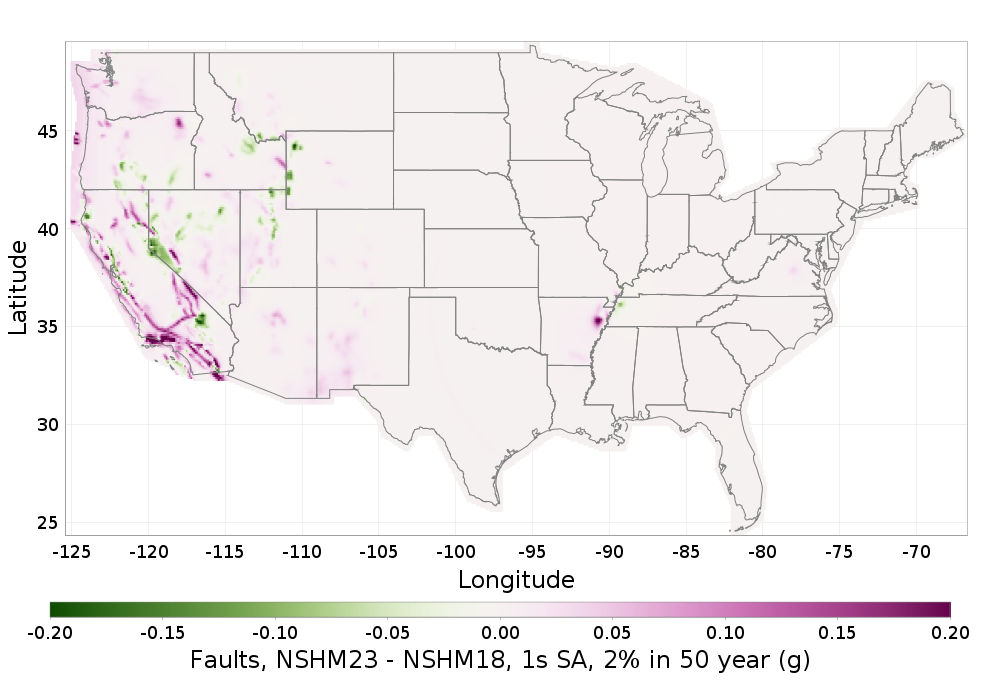

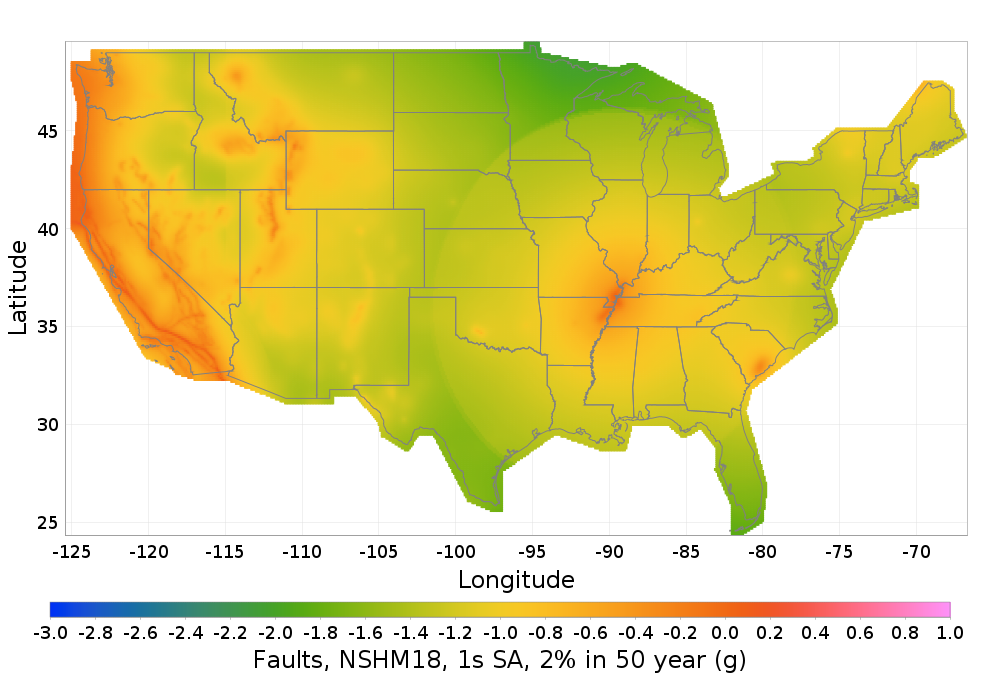

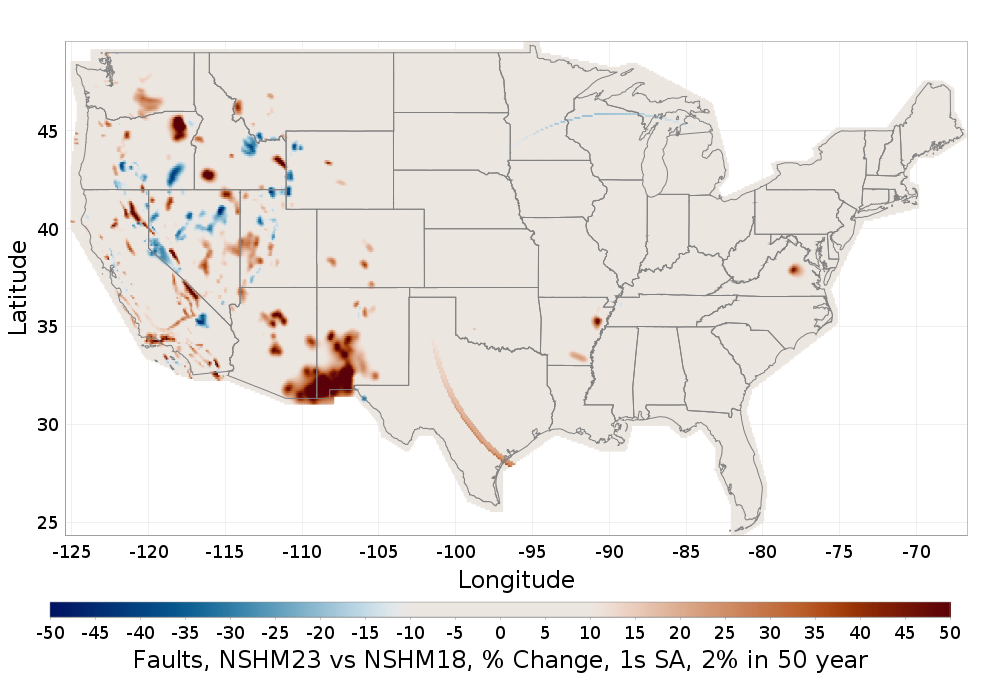

Fault-Only Comparison, 2% in 50 year
NSHM23 | NSHM18 |
---|---|
![]() | ![]() |
Ratio | Difference |
![]() | ![]() |

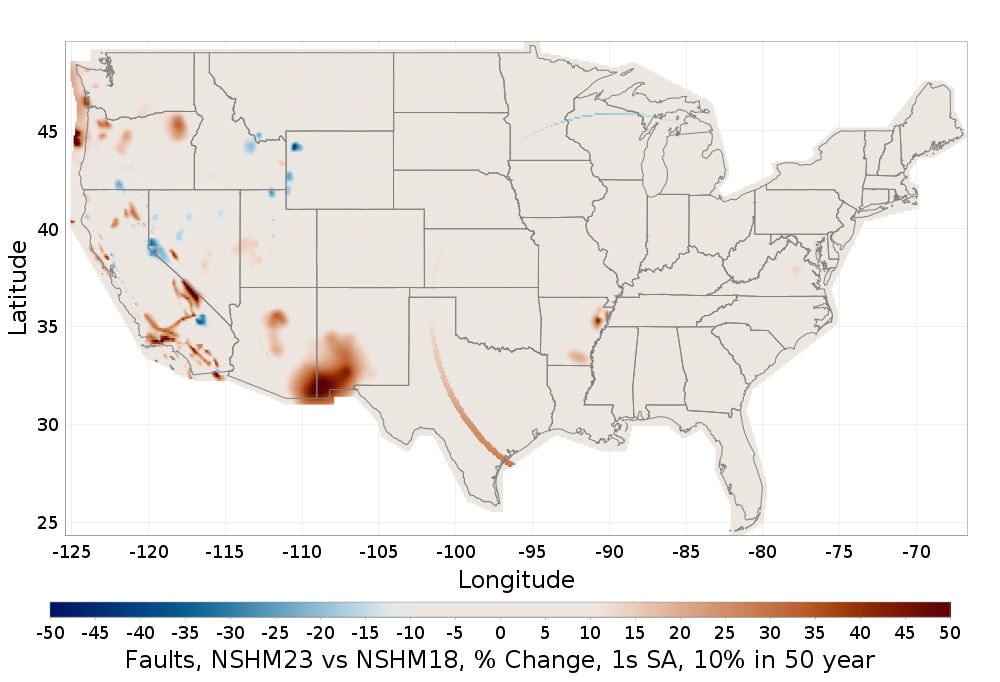

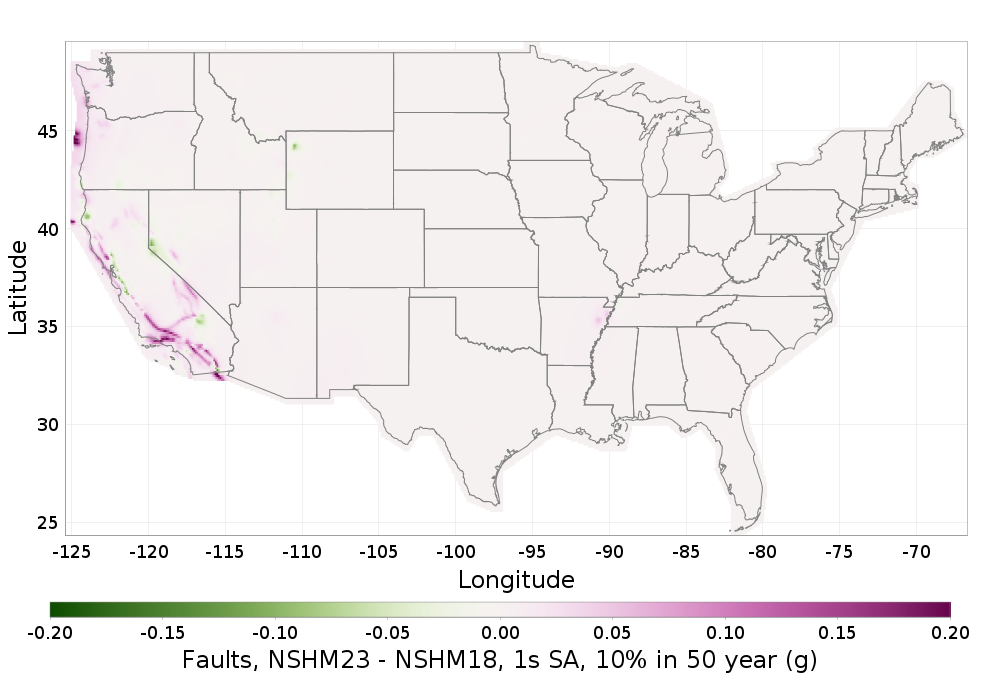

Fault-Only Comparison, 10% in 50 year
NSHM23 | NSHM18 |
---|---|
![]() | ![]() |
Ratio | Difference |
![]() | ![]() |
Gridded-Only Comparison
Gridded-only comparison, holding fault and subduction sources constant (using those from NSHM23).

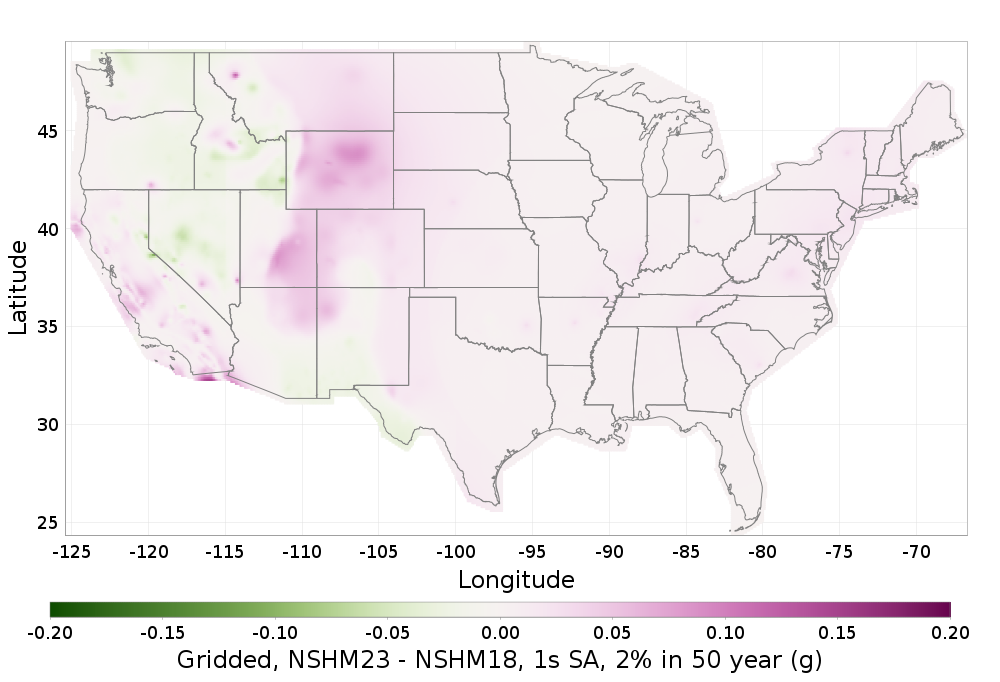

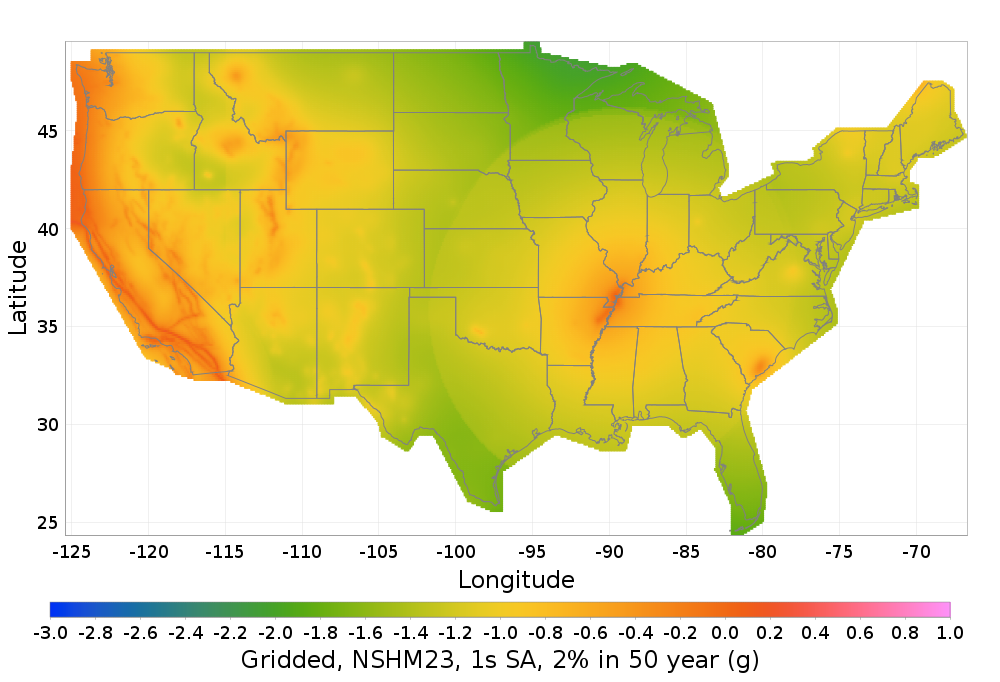

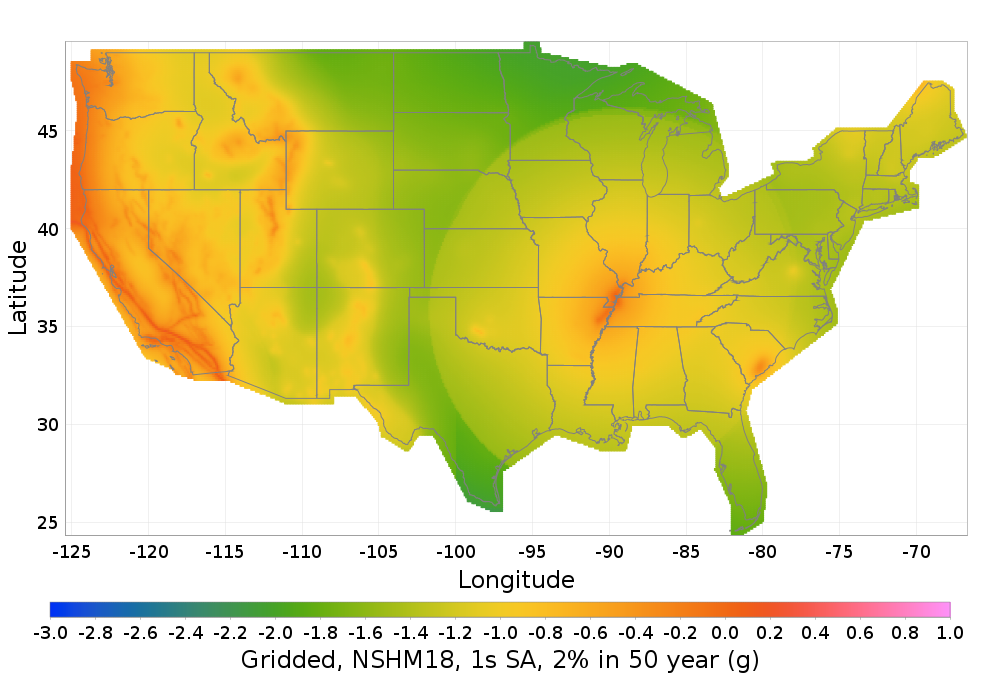

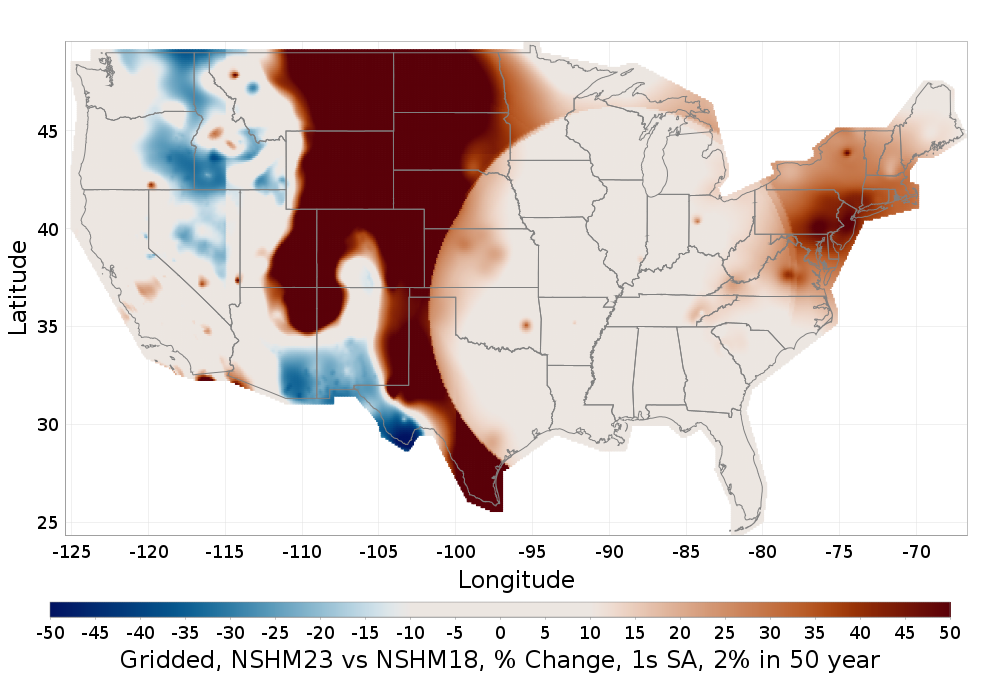

Gridded-Only Comparison, 2% in 50 year
NSHM23 | NSHM18 |
---|---|
![]() | ![]() |
Ratio | Difference |
![]() | ![]() |

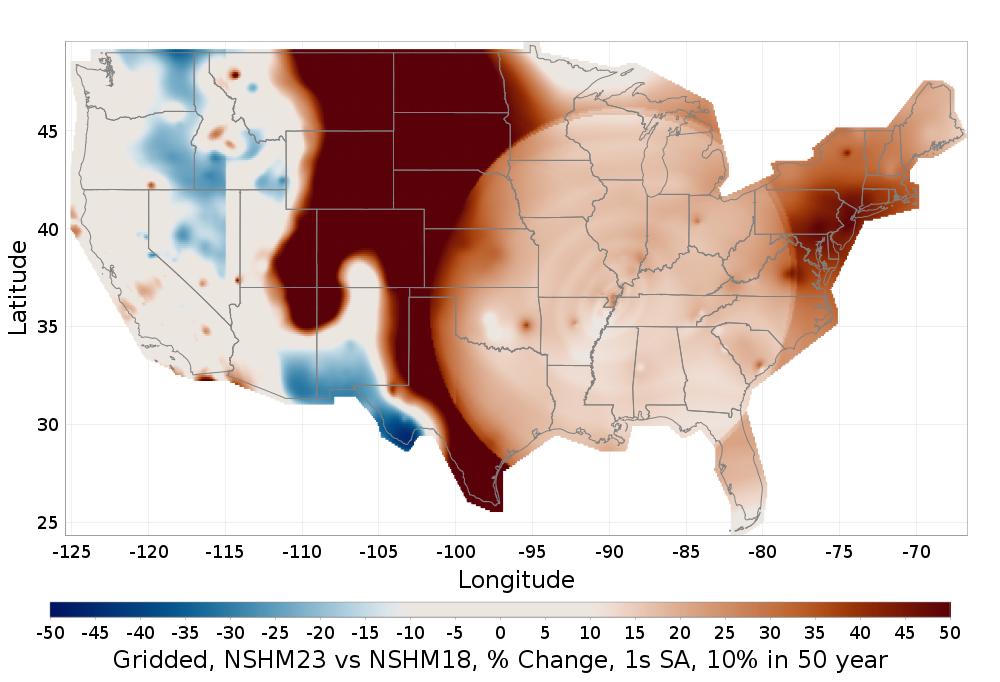

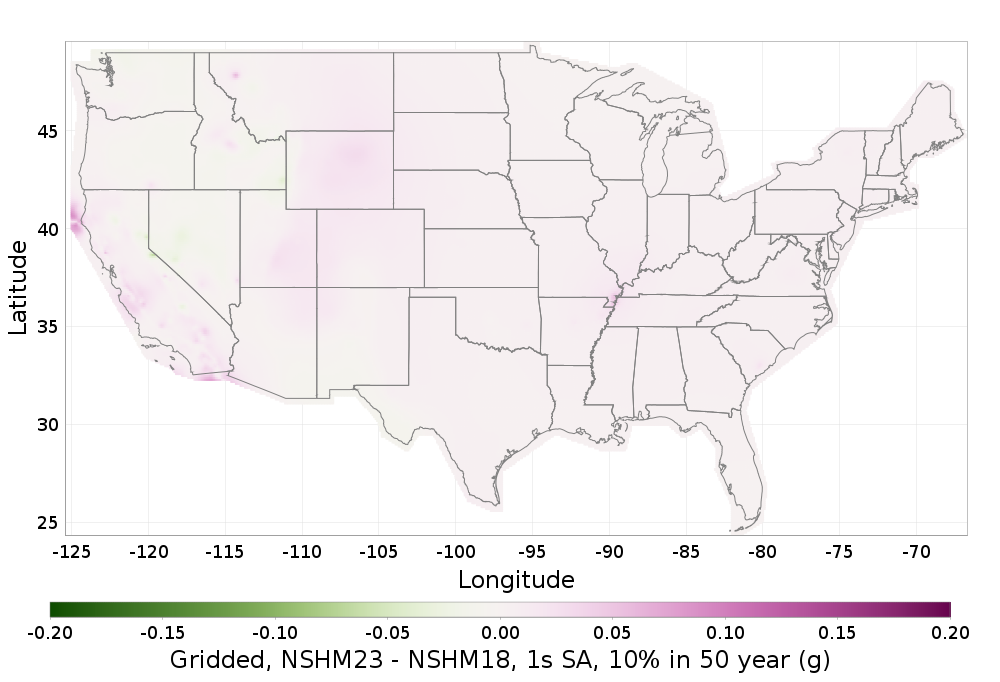

Gridded-Only Comparison, 10% in 50 year
NSHM23 | NSHM18 |
---|---|
![]() | ![]() |
Ratio | Difference |
![]() | ![]() |
Subduction-Only Comparison
Subduction-only comparison, holding fault and gridded sources constant (using those from NSHM23).

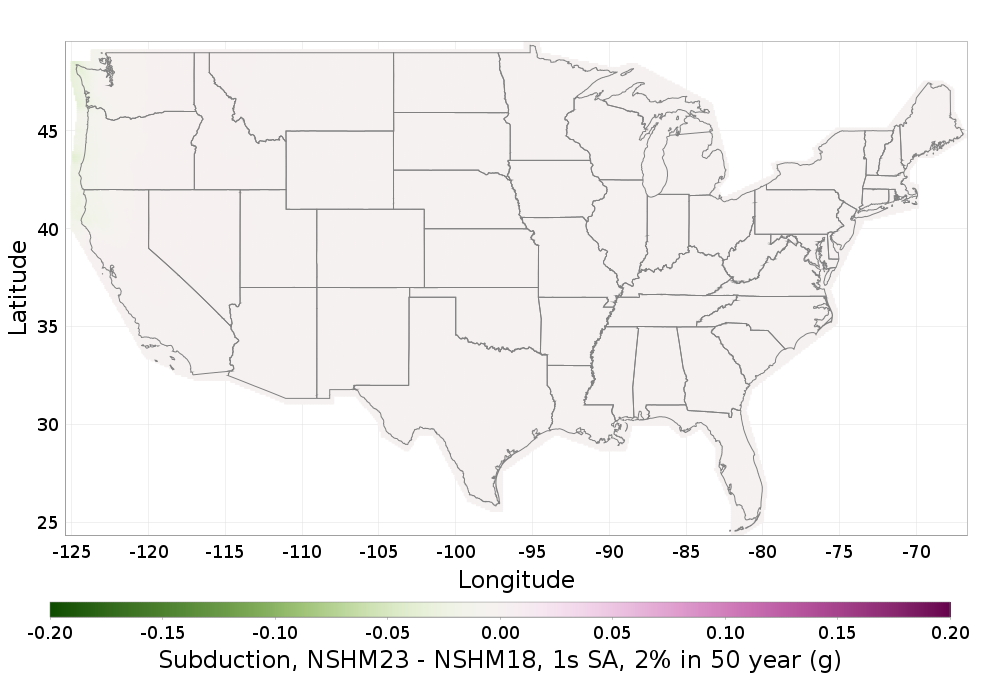

Subduction-Only Comparison, 2% in 50 year
NSHM23 | NSHM18 |
---|---|
![]() | ![]() |
Ratio | Difference |
![]() | ![]() |

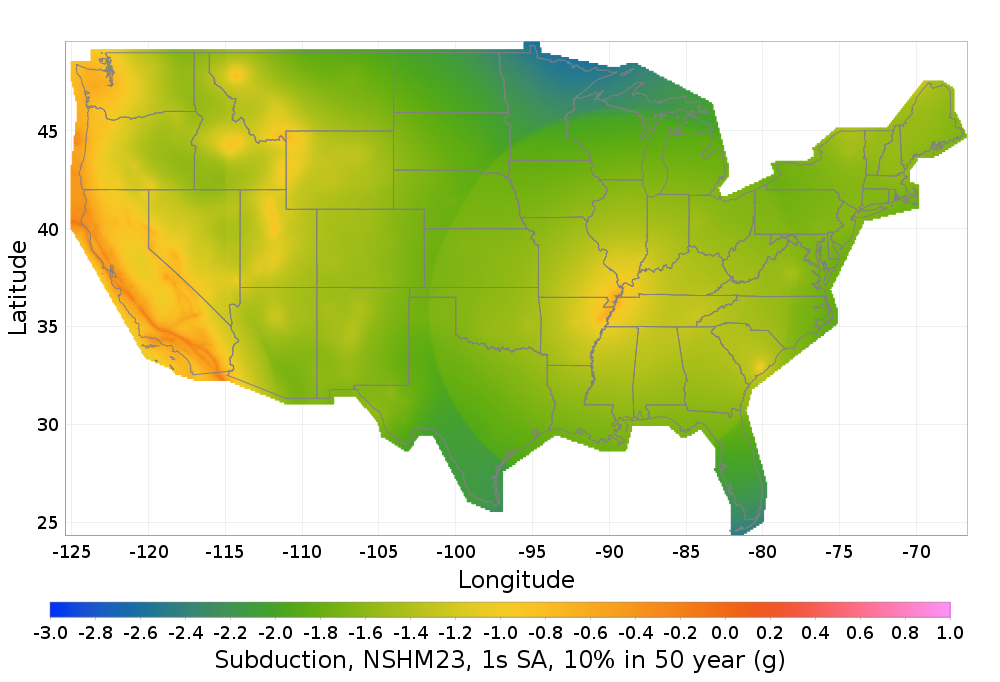

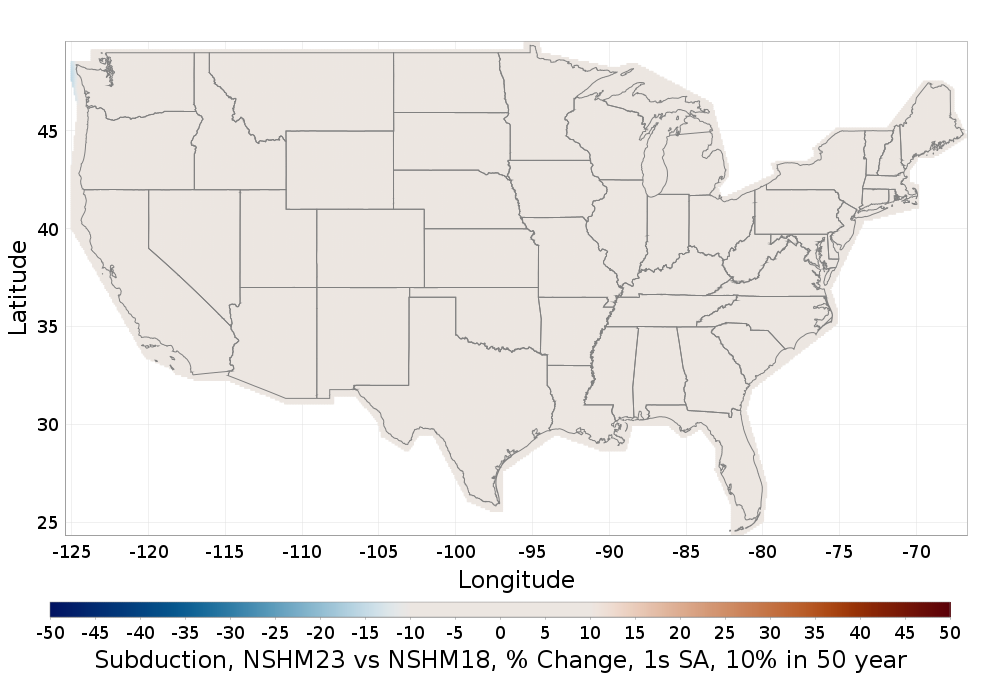

Subduction-Only Comparison, 10% in 50 year
NSHM23 | NSHM18 |
---|---|
![]() | ![]() |
Ratio | Difference |
![]() | ![]() |
