Solution Report: Updated

	Primary	Comparison: NSHM23 V2
Num Sections	5,572	5,572
Num Ruptures	582,004	582,004
Num Unique Ruptures	0 (0.00%)	0 (0.00%)
Total Supra-Seis Rupture Rate	0.5963129	0.59671575
Total Supra-Seis Recurrence Interval	1.68 yrs	1.68 yrs
Solution Total Moment Rate	2.4606002e19 N-m/yr	2.4608928e19 N-m/yr
Target Total Moment Rate	2.373875e19 N-m/yr	2.3738416e19 N-m/yr
Deformation Model Creep-Reduced Total Moment Rate	2.3646862e19 N-m/yr	2.3646862e19 N-m/yr
Deformation Model Original Total Moment Rate	2.8716726e19 N-m/yr	2.8716726e19 N-m/yr
Magnitude Range	[5.13,8.38]	[5.13,8.38]
Length Range	[3.26,1469.36] km	[3.26,1469.36] km
Rupture Section Count Range	[2,250]	[2,250]

General Information
Logic Tree Branch
Solution MFDs
Rupture Rate Distribution
Fault Participation Rates
Section b-values
Rupture Scaling
- Magnitude Scaling
- Slip Scaling
Rupture Scalar Histograms
Subsection Maximum Values
- Subsection Maximum Rupture Length
- Subsection Maximum Rupture Magnitude
Fault Section Connections
Slip Rates
SAF Creeping Section and Parkfield

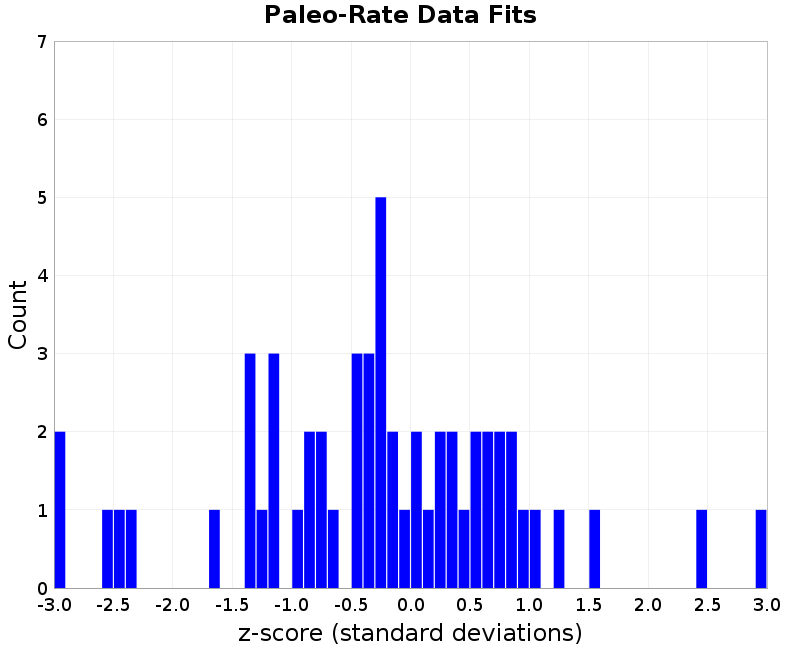

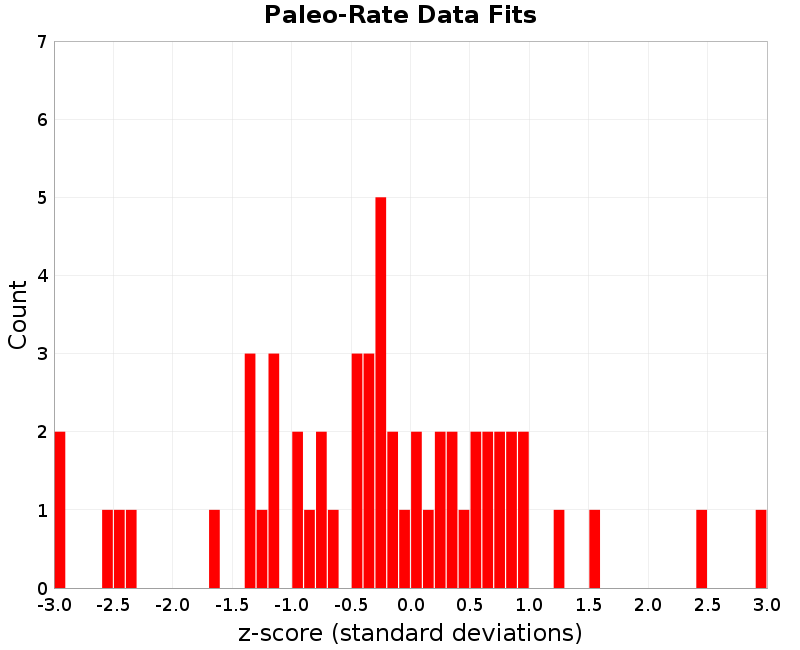

Paleoseismic Data Comparison

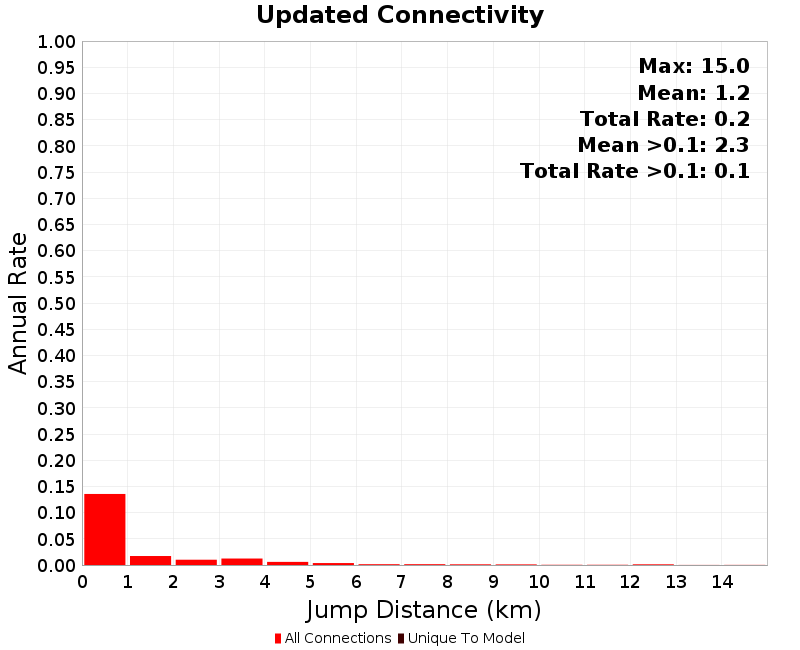

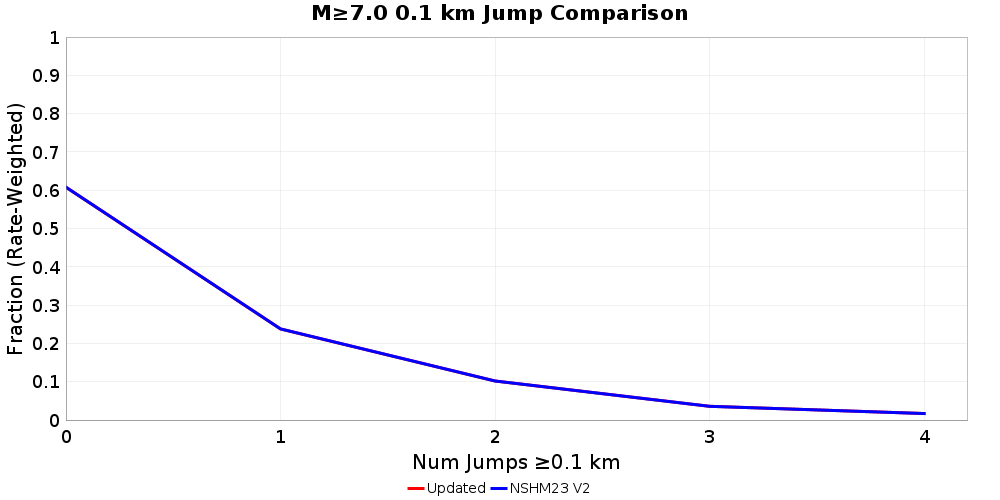

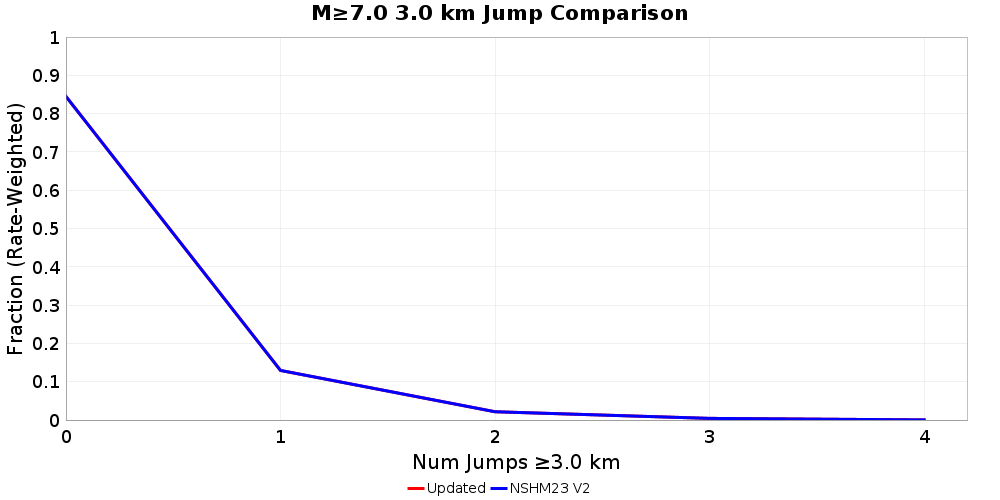

Jump Counts Over Distance

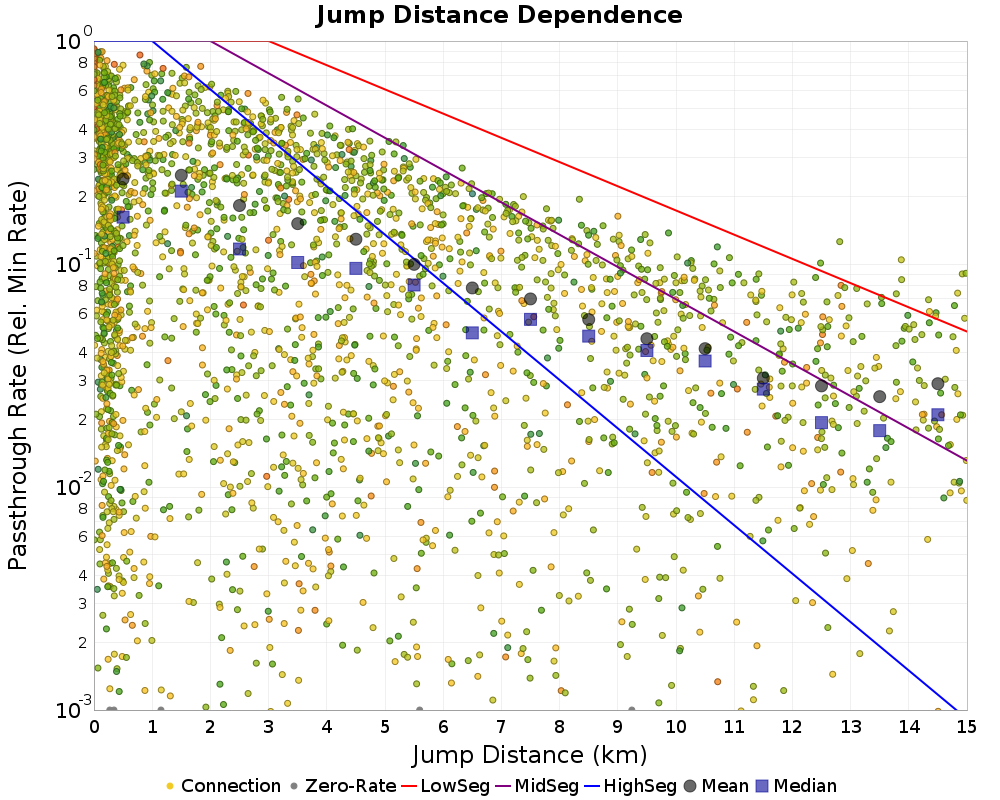

Fault Segmentation

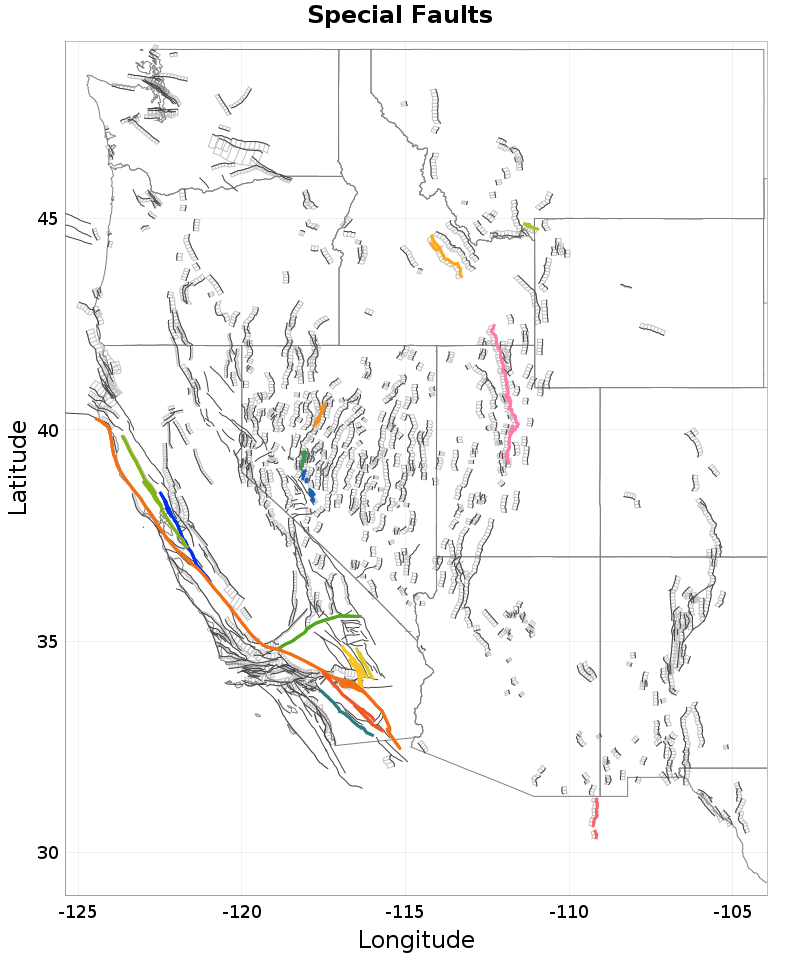

Special Fault Detail Pages
Parent Section Detail Pages

General Information

(top)

Branch Averaged Fault System Solution, across 2250 branches with a total weight of 17.999999999999766.

The utilized branches at each level are (counts in parenthesis):

Fault Model:
	NSHM23 WUS Fault Model v2 (2250)
Rupture Plausibility Model:
	Coulomb (2250)
Deformation Model:
	NSHM23 Geologic Deformation Model (450)
	NSHM23 Evans Deformation Model (450)
	NSHM23 Pollitz Deformation Model (450)
	NSHM23 Shen-Bird Deformation Model (450)
	NSHM23 Zeng Deformation Model (450)
Scaling Relationship:
	LogA+4.3, From Moment (375)
	LogA+4.2, From Moment (375)
	LogA+4.1, From Moment (375)
	Width Limited, From Moment (375)
	LogA+4.2, Sqrt Length (375)
	Width Limited, Constant Stress Drop (375)
Slip Along Rupture:
	Uniform (2250)
Supra-Seismogenic b-value:
	b=0.0 (450)
	b=0.25 (450)
	b=0.5 (450)
	b=0.75 (450)
	b=1.0 (450)
Sub-Sect Constraint Model:
	Total Nucleation Rate (2250)
Sub-Sect Moment Rate Reduction:
	None (2250)
Paleoseismic Data Uncertainties:
	Even-Fit Paleo Data (750)
	Over-Fit Paleo Data (5x) (750)
	Under-Fit Paleo Data (10x) (750)
Segmentation Model:
	None (450)
	Low Segmentation (450)
	Middle Segmentation (450)
	High Segmentation (450)
	Classic (450)
Segmentation MFD Adjustment:
	Threshold Averaging, Rel G-R (2250)

Logic Tree Branch

(top)

Level	Choice	Comparison Choice
Fault Model	NSHM23 WUS Fault Model v2	NSHM23 WUS Fault Model v2
Rupture Plausibility Model	Coulomb	Coulomb
Deformation Model	(N/A)	(N/A)
Scaling Relationship	(N/A)	(N/A)
Slip Along Rupture	Uniform	Uniform
Supra-Seismogenic b-value	(N/A)	(N/A)
Sub-Sect Constraint Model	Total Nucleation Rate	Total Nucleation Rate
Sub-Sect Moment Rate Reduction	None	None
Paleoseismic Data Uncertainties	(N/A)	(N/A)
Segmentation Model	(N/A)	(N/A)
Segmentation MFD Adjustment	Threshold Averaging, Rel G-R	Threshold Averaging, Rel G-R

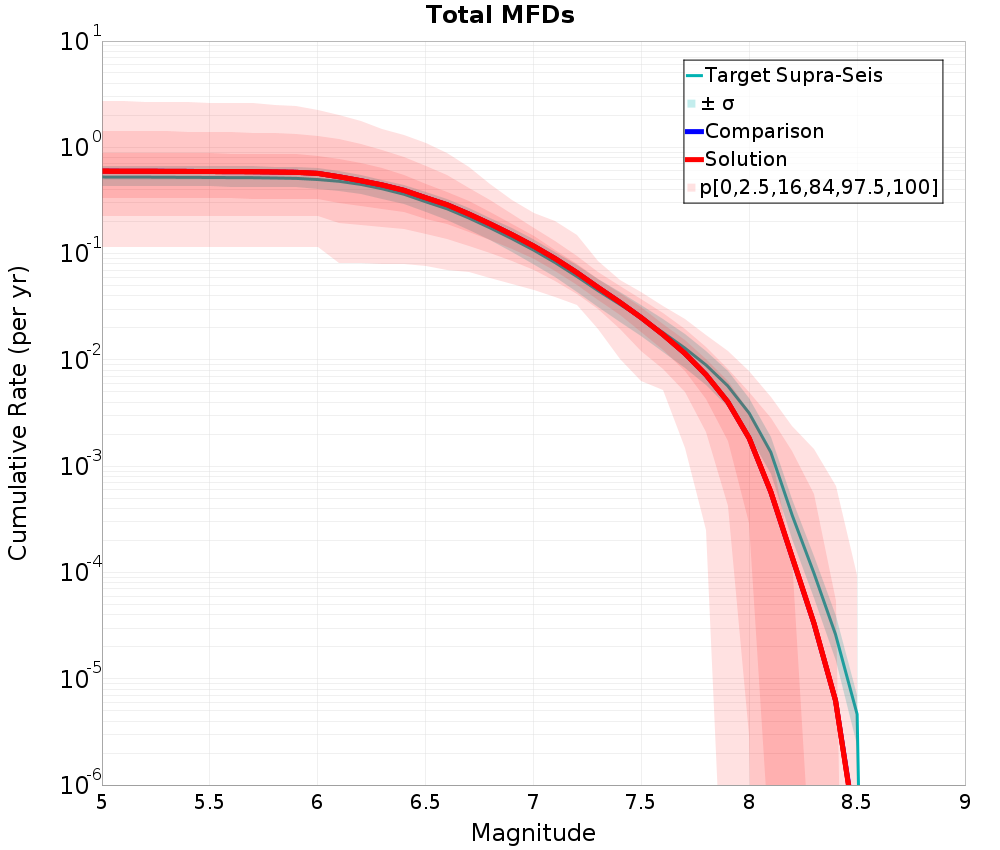

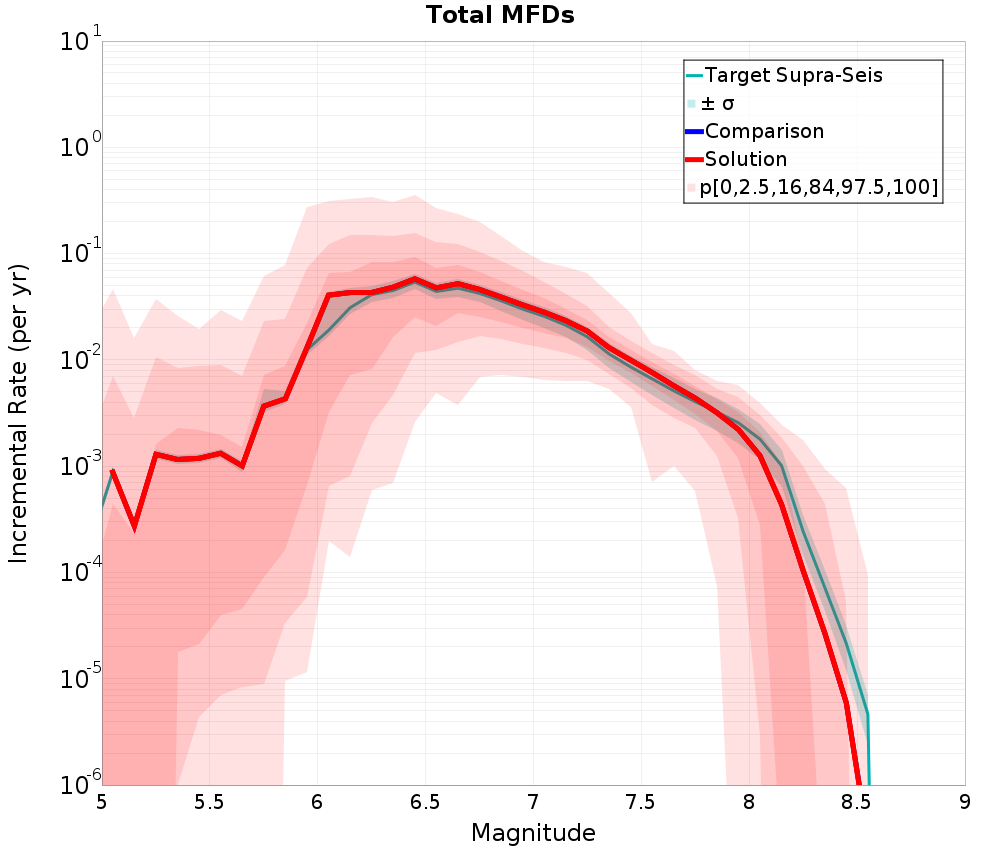

Solution MFDs

(top)

Incremental MFDs	Cumulative MFDs

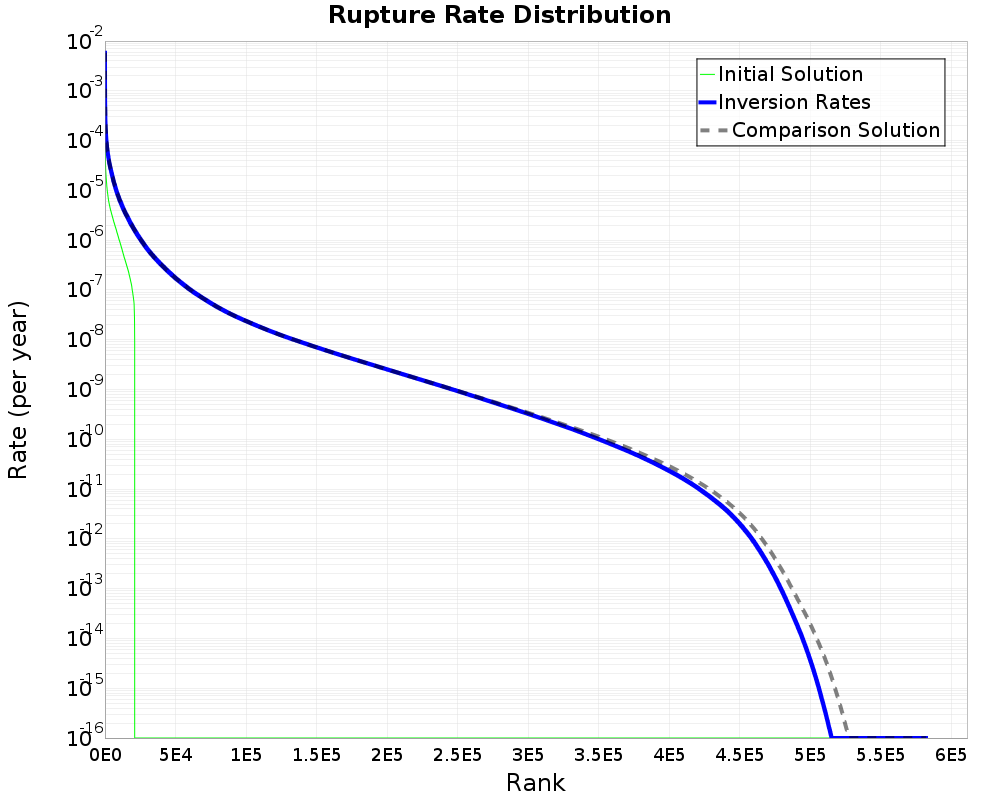

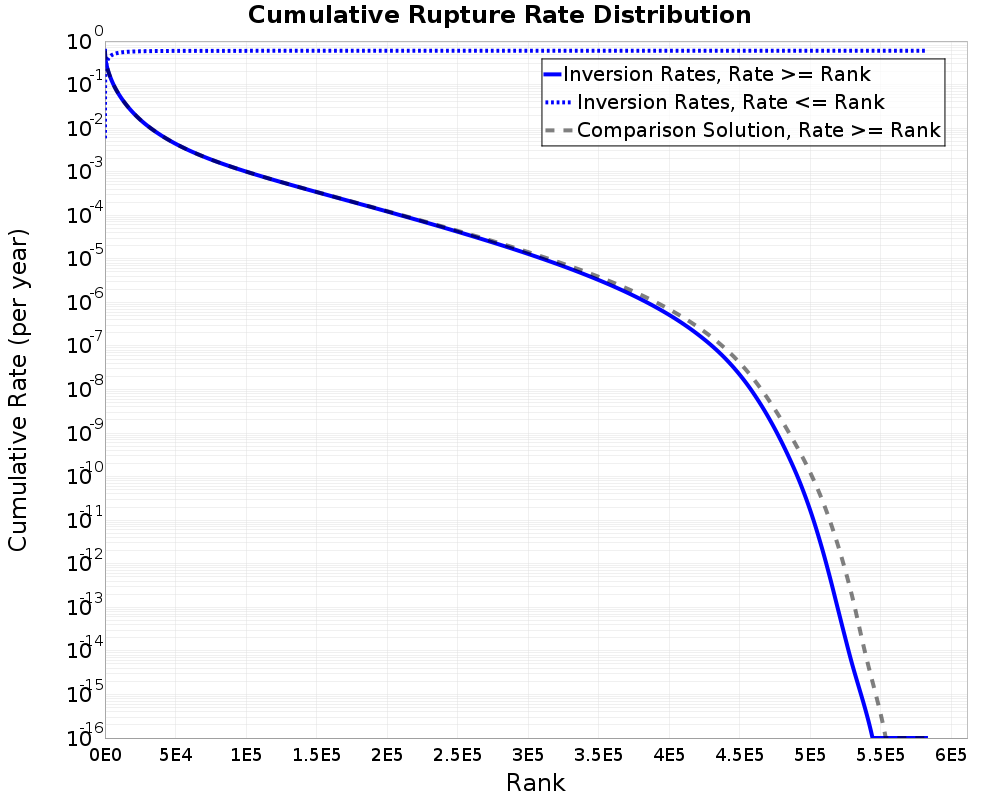

Rupture Rate Distribution

(top)

	Primary	Comparison
Non-zero ruptures	552,701 (94.97%)	560,708 (96.34%)
Unique non-zero ruptures	8,243 (1.42%)	16,250 (2.79%)
Rate of unique non-zero ruptures	1.2170824E-7 (0.00%)	7.4367125E-7 (0.00%)

Logic Tree Rate Statistics

(top)

	% ≥ 0.0	% ≥ 1.0E-16	% ≥ 1.0E-14	% ≥ 1.0E-12	% ≥ 1.0E-10	% ≥ 1.0E-8
Overall	7.70%, [0.43%,19.21%]	7.68%, [0.43%,19.21%]	7.51%, [0.43%,19.15%]	7.06%, [0.39%,18.42%]	6.33%, [0.38%,15.94%]	4.51%, [0.36%,9.63%]
Deformation Model
NSHM23 Geologic Deformation Model	7.93%, [0.51%,16.25%]	7.92%, [0.51%,16.25%]	7.90%, [0.51%,16.20%]	7.66%, [0.51%,15.51%]	6.79%, [0.49%,13.28%]	4.83%, [0.45%,8.54%]
NSHM23 Evans Deformation Model	7.71%, [0.48%,15.94%]	7.67%, [0.48%,15.90%]	7.12%, [0.44%,14.89%]	6.10%, [0.39%,11.63%]	5.29%, [0.39%,9.36%]	3.60%, [0.36%,5.77%]
NSHM23 Pollitz Deformation Model	7.15%, [0.43%,14.46%]	7.14%, [0.43%,14.45%]	6.94%, [0.43%,13.98%]	6.47%, [0.39%,12.88%]	5.86%, [0.38%,11.73%]	4.32%, [0.36%,7.60%]
NSHM23 Shen-Bird Deformation Model	8.40%, [0.65%,19.21%]	8.40%, [0.65%,19.21%]	8.30%, [0.64%,19.15%]	8.02%, [0.60%,18.42%]	7.36%, [0.59%,15.94%]	5.22%, [0.57%,9.63%]
NSHM23 Zeng Deformation Model	7.29%, [0.46%,16.90%]	7.29%, [0.46%,16.90%]	7.26%, [0.46%,16.88%]	7.08%, [0.46%,16.46%]	6.32%, [0.44%,14.28%]	4.59%, [0.41%,8.98%]
Scaling Relationship
LogA+4.3, From Moment	7.49%, [0.43%,18.63%]	7.47%, [0.43%,18.63%]	7.33%, [0.43%,18.58%]	6.91%, [0.39%,17.95%]	6.11%, [0.38%,15.34%]	4.20%, [0.36%,8.26%]
LogA+4.2, From Moment	7.56%, [0.44%,18.44%]	7.55%, [0.44%,18.44%]	7.38%, [0.43%,18.38%]	6.97%, [0.40%,17.86%]	6.23%, [0.39%,15.64%]	4.43%, [0.37%,8.73%]
LogA+4.1, From Moment	7.83%, [0.47%,18.25%]	7.82%, [0.47%,18.24%]	7.63%, [0.47%,18.18%]	7.19%, [0.43%,17.68%]	6.51%, [0.41%,15.68%]	4.75%, [0.36%,9.63%]
Width Limited, From Moment	7.69%, [0.46%,18.47%]	7.68%, [0.46%,18.47%]	7.51%, [0.46%,18.42%]	7.06%, [0.41%,17.70%]	6.30%, [0.41%,15.31%]	4.50%, [0.40%,8.74%]
LogA+4.2, Sqrt Length	7.67%, [0.46%,18.70%]	7.66%, [0.46%,18.70%]	7.47%, [0.45%,18.65%]	7.04%, [0.42%,18.16%]	6.35%, [0.39%,15.94%]	4.58%, [0.37%,9.20%]
Width Limited, Constant Stress Drop	7.93%, [0.49%,19.21%]	7.92%, [0.49%,19.21%]	7.71%, [0.49%,19.15%]	7.22%, [0.45%,18.42%]	6.46%, [0.43%,15.88%]	4.62%, [0.37%,9.11%]
Supra-Seismogenic b-value
b=0.0	7.36%, [0.43%,19.21%]	7.35%, [0.43%,19.21%]	7.26%, [0.43%,19.15%]	6.92%, [0.39%,18.42%]	6.20%, [0.38%,15.94%]	4.16%, [0.36%,9.63%]
b=0.5	7.47%, [1.87%,16.67%]	7.46%, [1.87%,16.67%]	7.29%, [1.85%,16.62%]	6.91%, [1.77%,16.23%]	6.22%, [1.66%,14.25%]	4.49%, [1.45%,9.02%]
b=0.25	7.62%, [1.55%,18.14%]	7.61%, [1.55%,18.14%]	7.49%, [1.54%,18.09%]	7.14%, [1.52%,17.64%]	6.46%, [1.46%,15.57%]	4.62%, [1.28%,9.58%]
b=0.75	7.69%, [2.29%,16.30%]	7.68%, [2.28%,16.30%]	7.45%, [2.17%,16.24%]	6.96%, [2.08%,15.84%]	6.22%, [1.97%,13.93%]	4.53%, [1.73%,8.79%]
b=1.0	8.34%, [2.90%,16.60%]	8.32%, [2.89%,16.59%]	8.04%, [2.72%,16.49%]	7.38%, [2.56%,15.91%]	6.53%, [2.37%,13.95%]	4.77%, [2.10%,8.81%]
Paleoseismic Data Uncertainties
Even-Fit Paleo Data	7.29%, [0.45%,18.53%]	7.27%, [0.44%,18.53%]	7.10%, [0.44%,18.47%]	6.70%, [0.39%,17.87%]	6.04%, [0.39%,15.60%]	4.32%, [0.37%,9.22%]
Over-Fit Paleo Data (5x)	7.92%, [0.43%,19.21%]	7.91%, [0.43%,19.21%]	7.77%, [0.43%,19.15%]	7.33%, [0.39%,18.42%]	6.49%, [0.38%,15.88%]	4.67%, [0.36%,9.63%]
Under-Fit Paleo Data (10x)	7.88%, [0.46%,18.70%]	7.87%, [0.46%,18.70%]	7.65%, [0.46%,18.65%]	7.16%, [0.42%,18.16%]	6.45%, [0.39%,15.94%]	4.54%, [0.38%,9.20%]
Segmentation Model
Classic	3.21%, [0.43%,4.55%]	3.21%, [0.43%,4.55%]	3.20%, [0.43%,4.55%]	3.15%, [0.39%,4.49%]	3.13%, [0.38%,4.36%]	3.08%, [0.36%,4.15%]
None	3.18%, [1.40%,9.26%]	3.16%, [1.40%,9.20%]	2.97%, [1.40%,8.96%]	2.81%, [1.39%,8.65%]	2.63%, [1.33%,7.55%]	2.24%, [1.18%,6.02%]
High Segmentation	13.66%, [10.54%,19.21%]	13.65%, [10.53%,19.21%]	13.42%, [10.07%,19.15%]	12.50%, [8.61%,18.42%]	10.62%, [6.72%,15.94%]	6.45%, [3.54%,9.63%]
Middle Segmentation	10.47%, [7.59%,14.77%]	10.45%, [7.58%,14.73%]	10.22%, [7.30%,13.73%]	9.60%, [6.84%,13.30%]	8.64%, [5.77%,12.27%]	5.91%, [3.65%,8.48%]
Low Segmentation	7.96%, [5.97%,14.23%]	7.95%, [5.97%,14.18%]	7.71%, [5.78%,13.07%]	7.25%, [4.85%,10.69%]	6.61%, [4.43%,9.43%]	4.89%, [3.37%,7.51%]

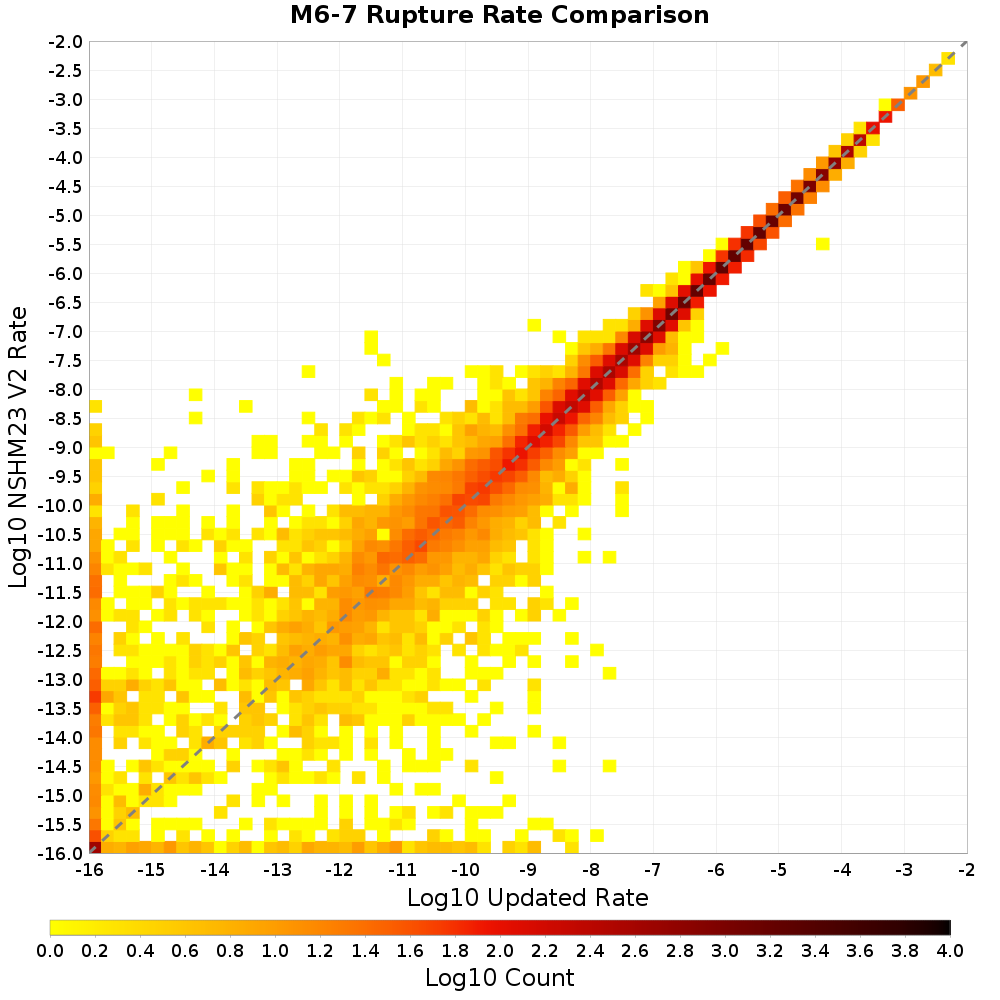

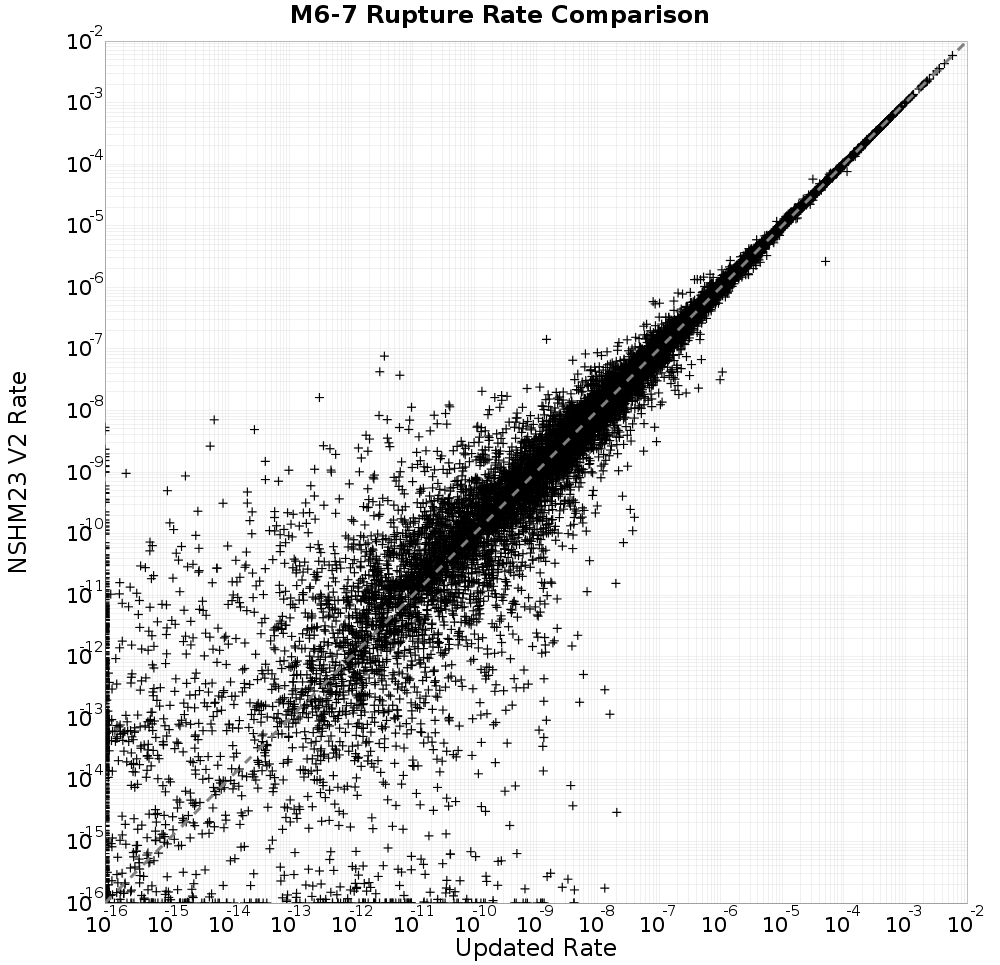

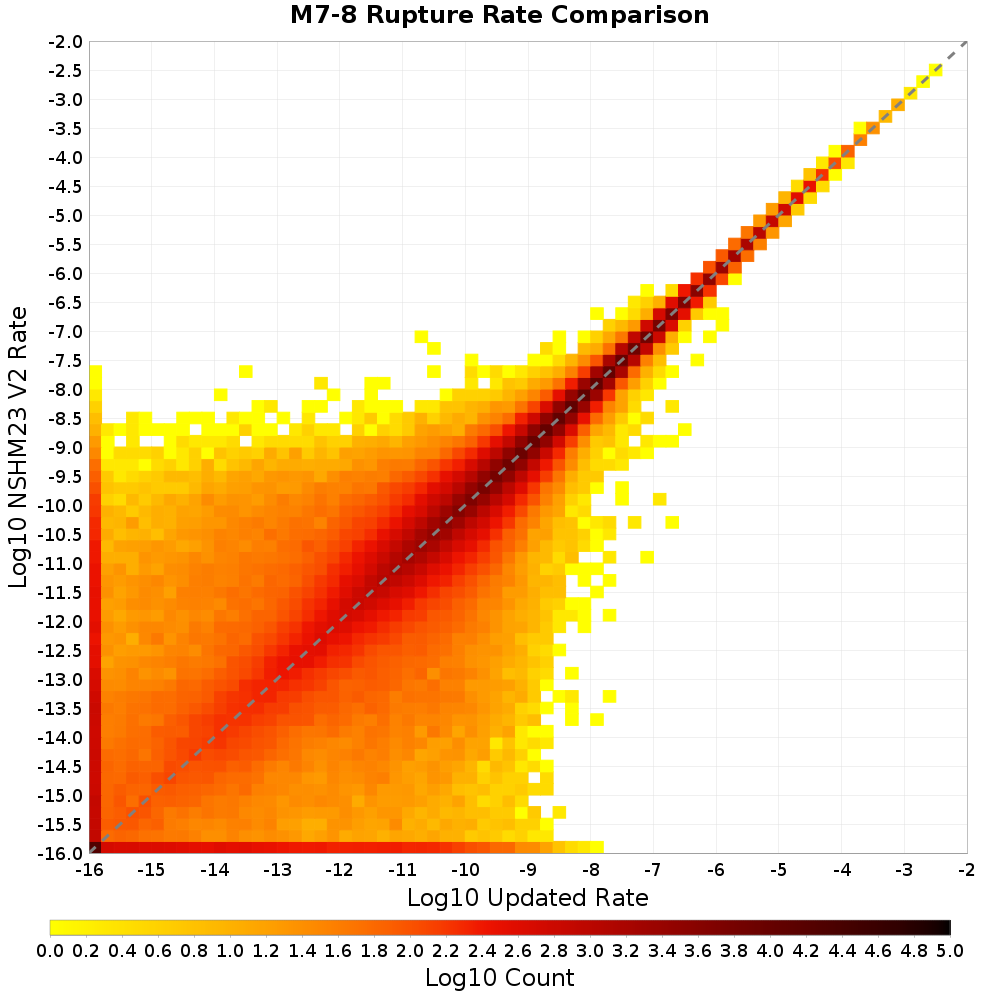

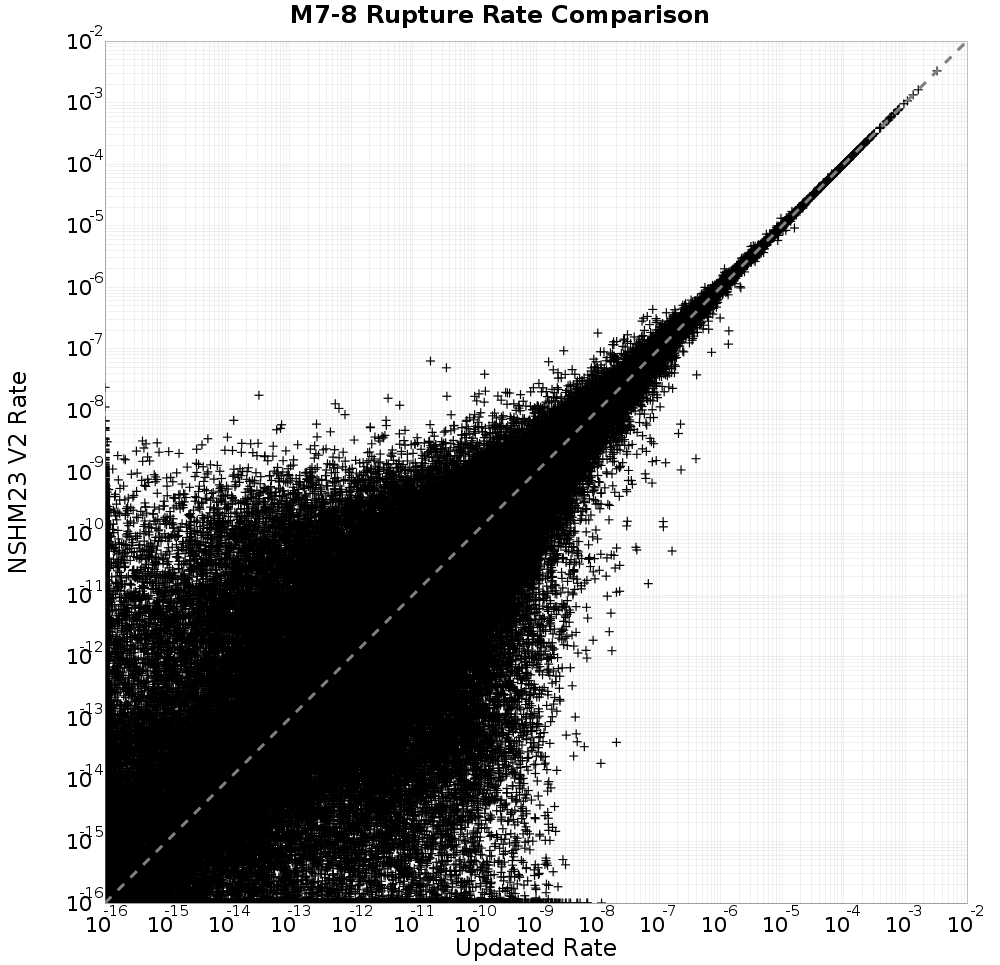

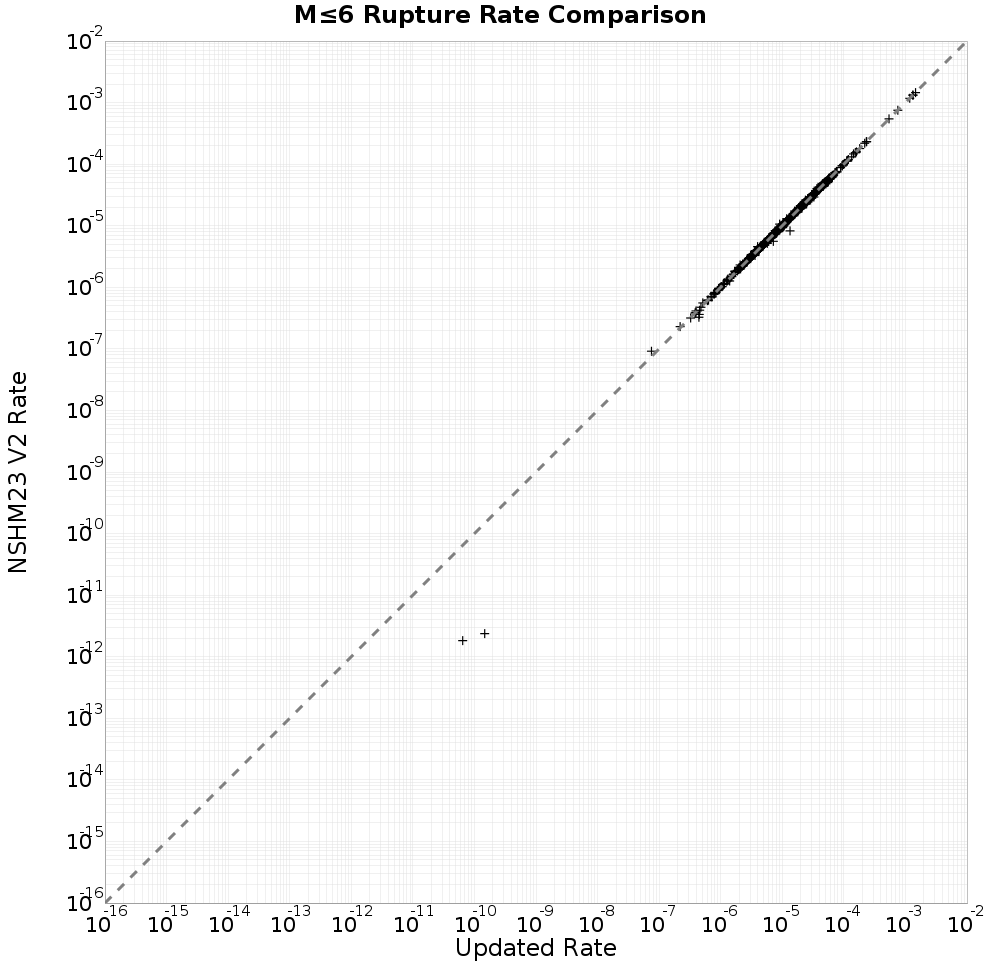

Rupture Rate Comparison

(top)

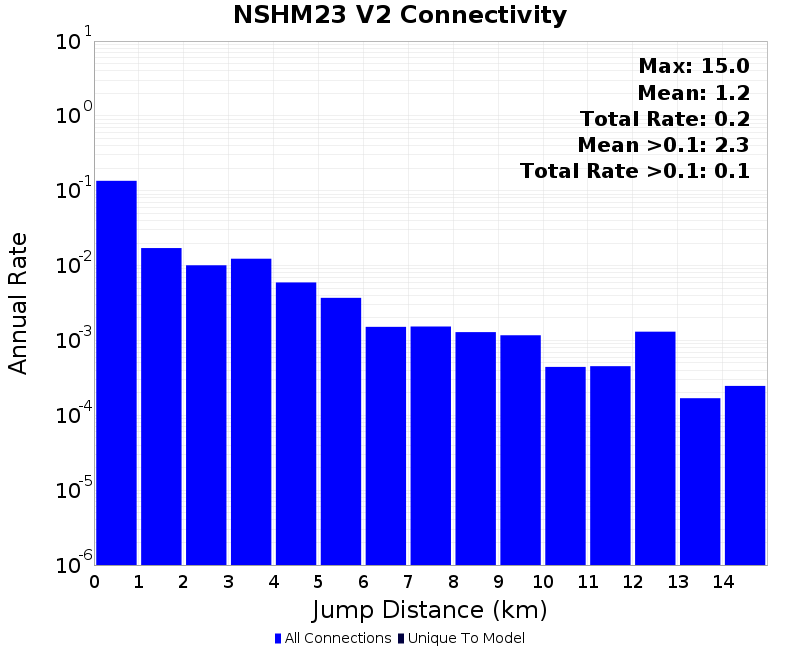

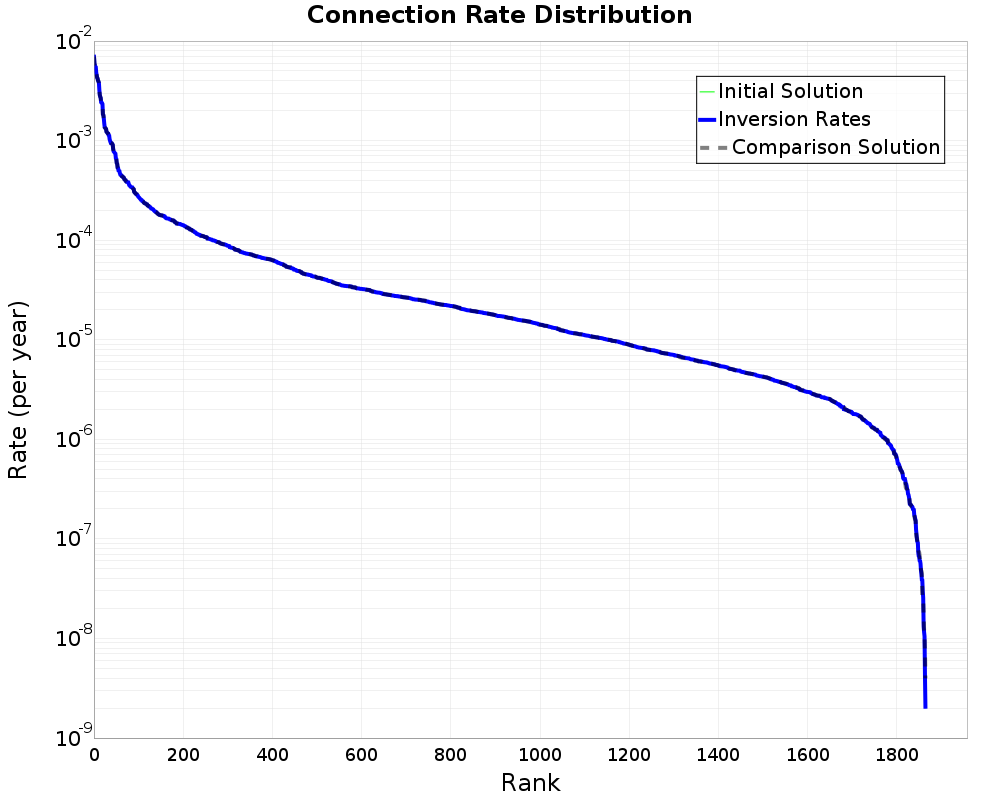

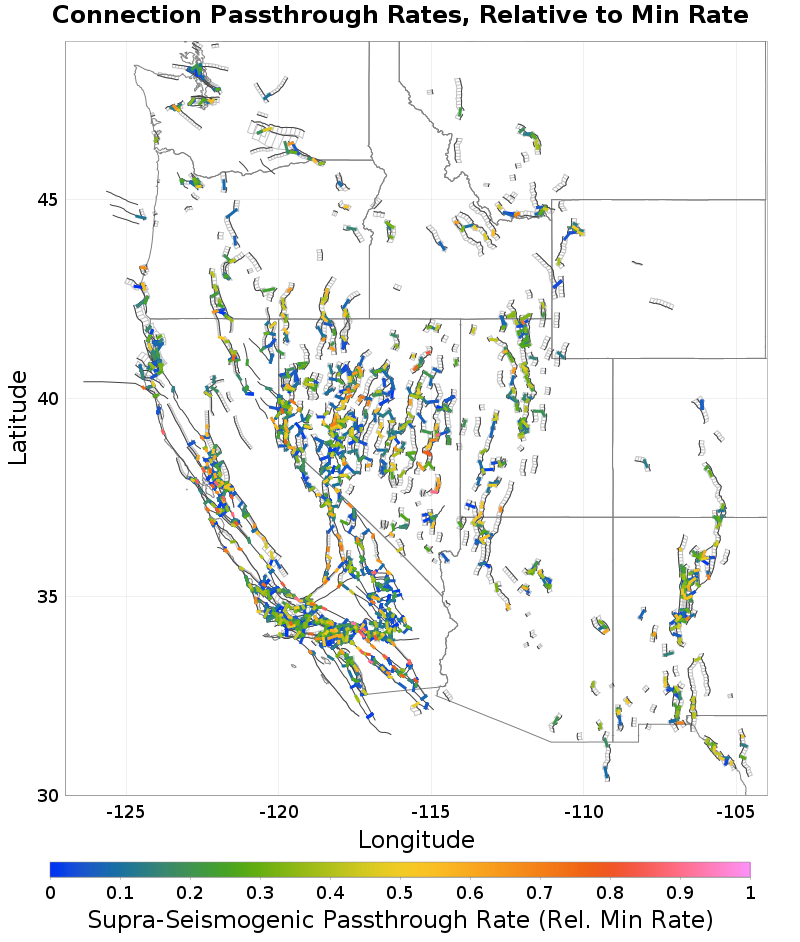

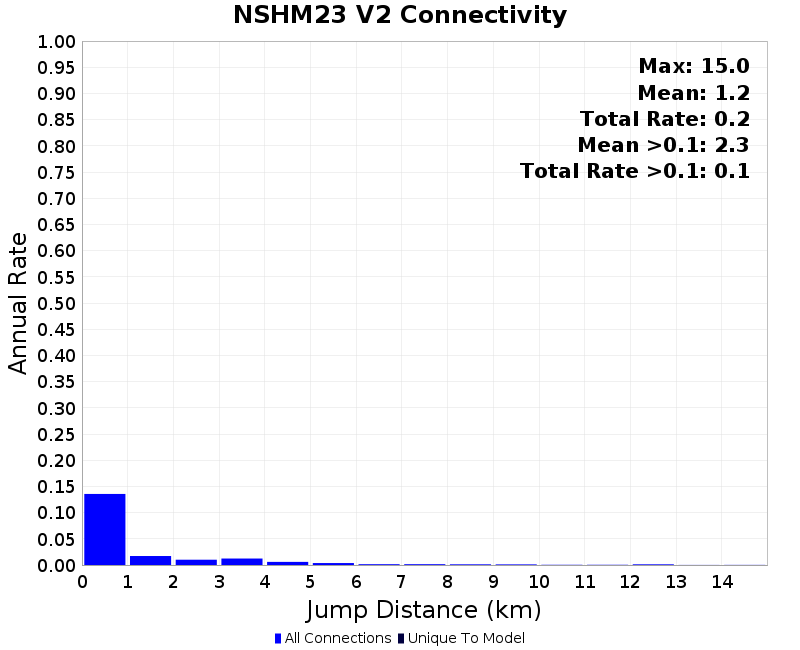

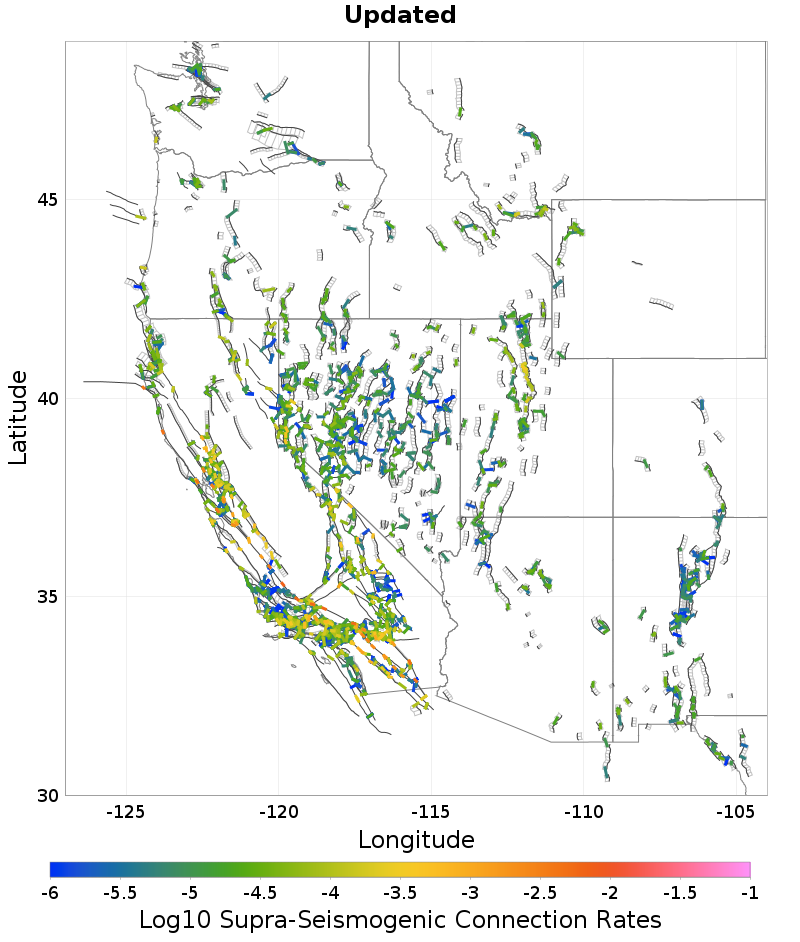

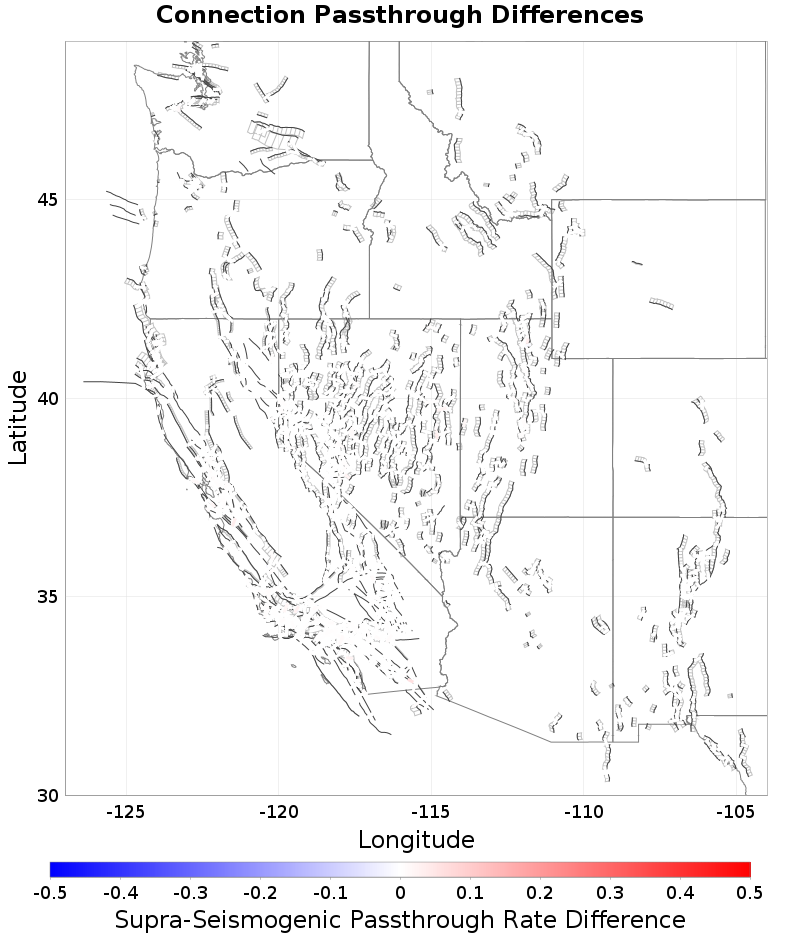

Connection Rate Distribution

(top)

This plot gives the rate that each unique connection (between separate fault sections) is utilized.

Fault Participation Rates

(top)

The rate at which each fault section participates in events in the listed magnitude range. Maps in the left column give rates above various magnitude thresholds, and in the right column rates between the given threshold and the next threshold level.

Rates are plotted on a log scale. Gray values mean that the rate is zero, and blue means that it is at or below the minimum plotted rate.

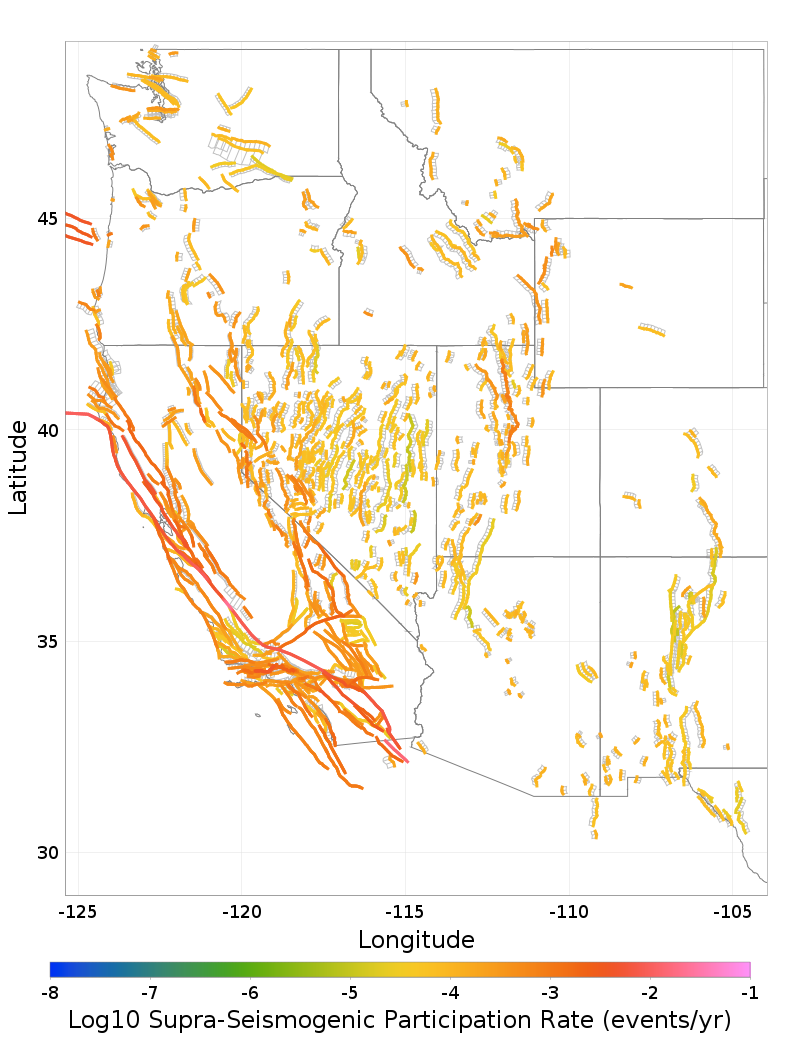

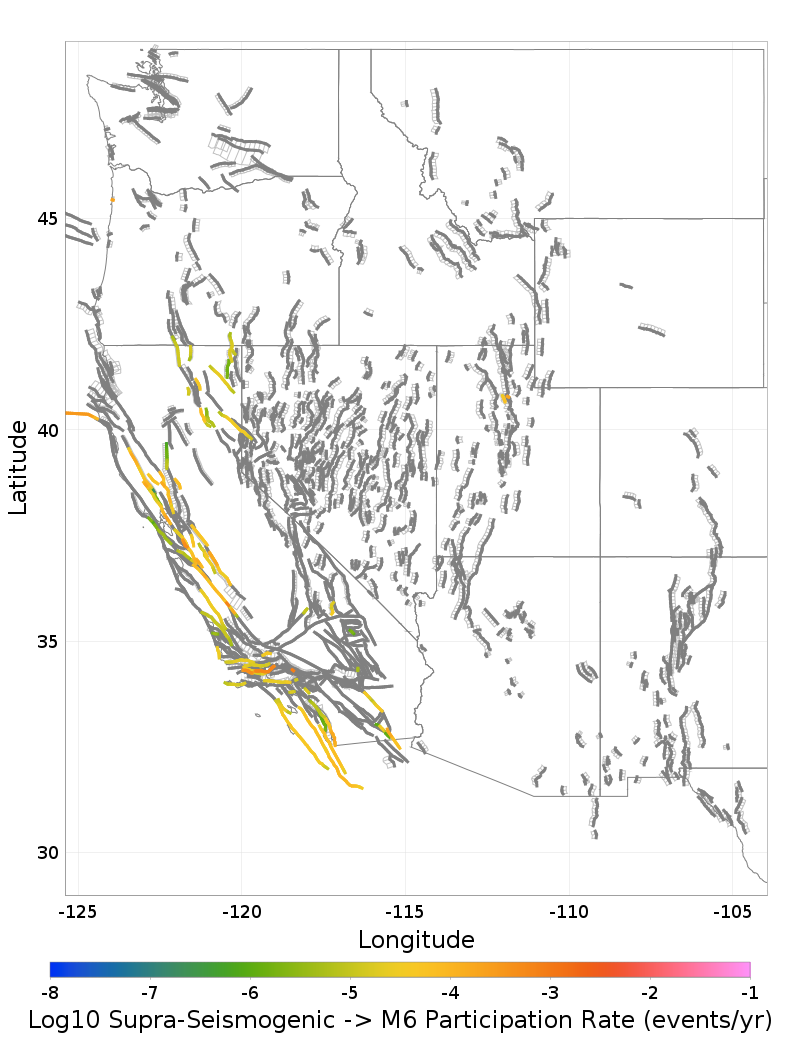

Supra-Seismogenic	Range: M≤6

Download GeoJSON	Download GeoJSON

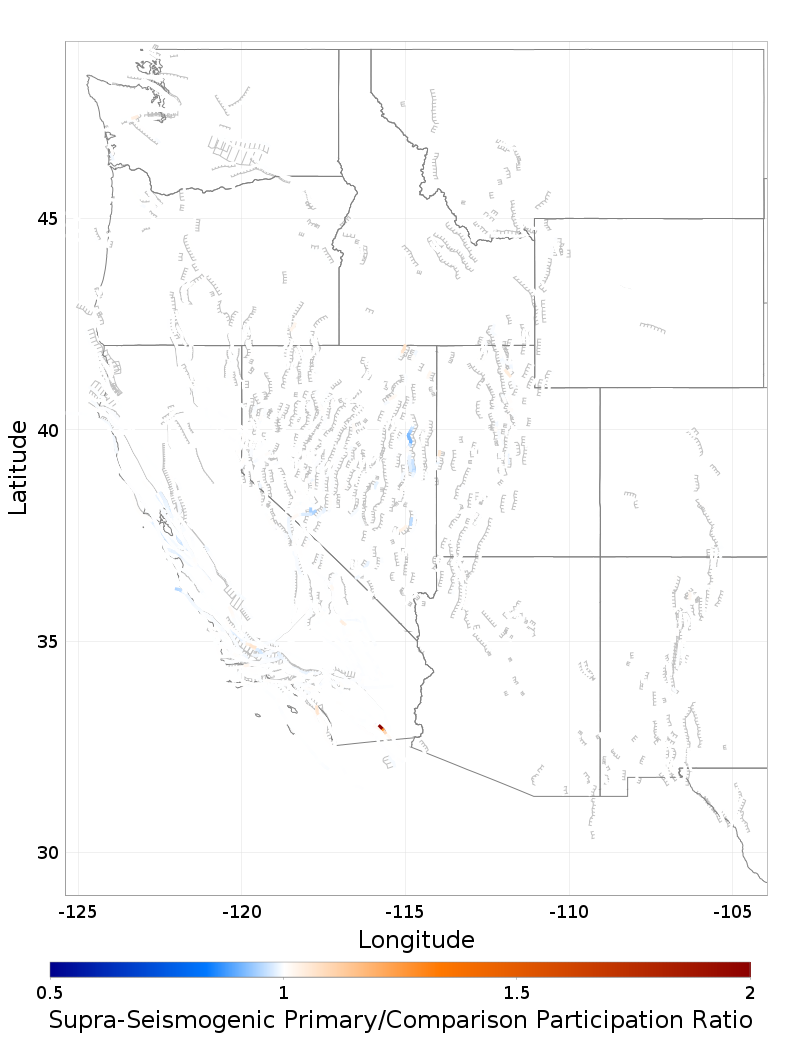

Supra-Seismogenic Comparison Ratio	Supra-Seismogenic Comparison Scatter

Download GeoJSON

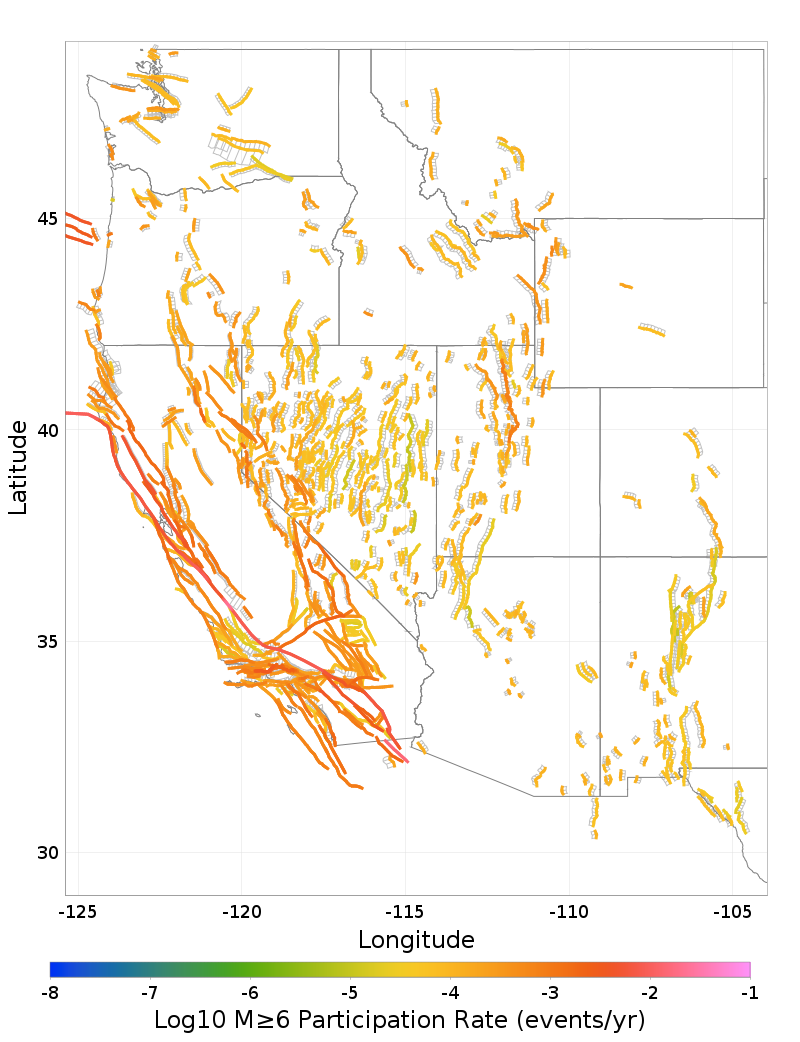

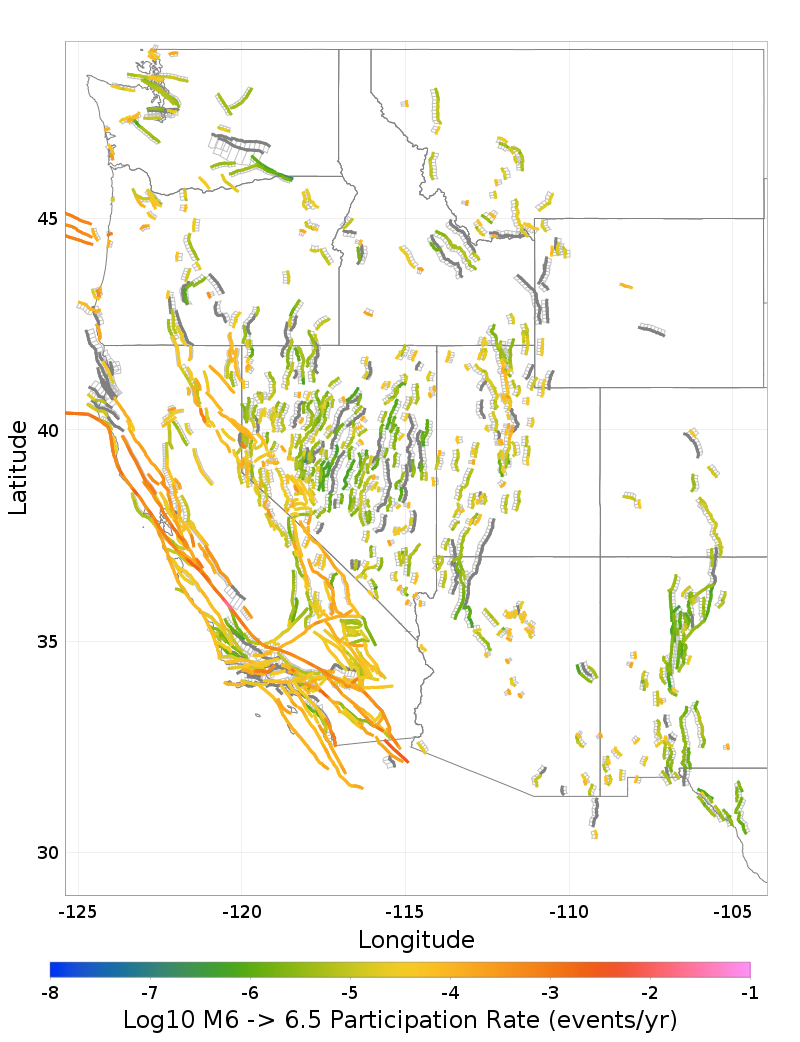

M≥6	Range: M∈[6, 6.5]

Download GeoJSON	Download GeoJSON

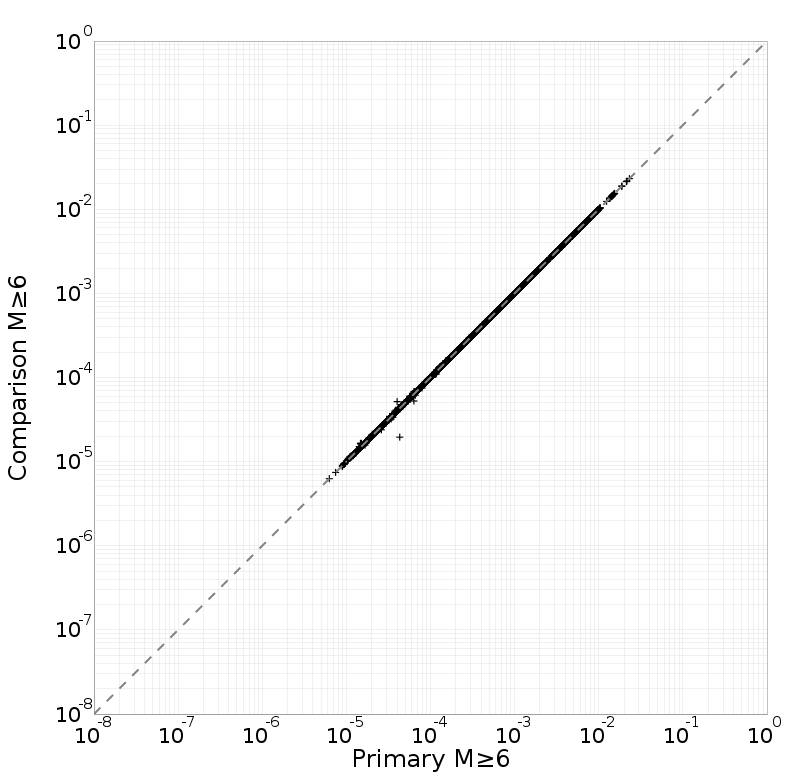

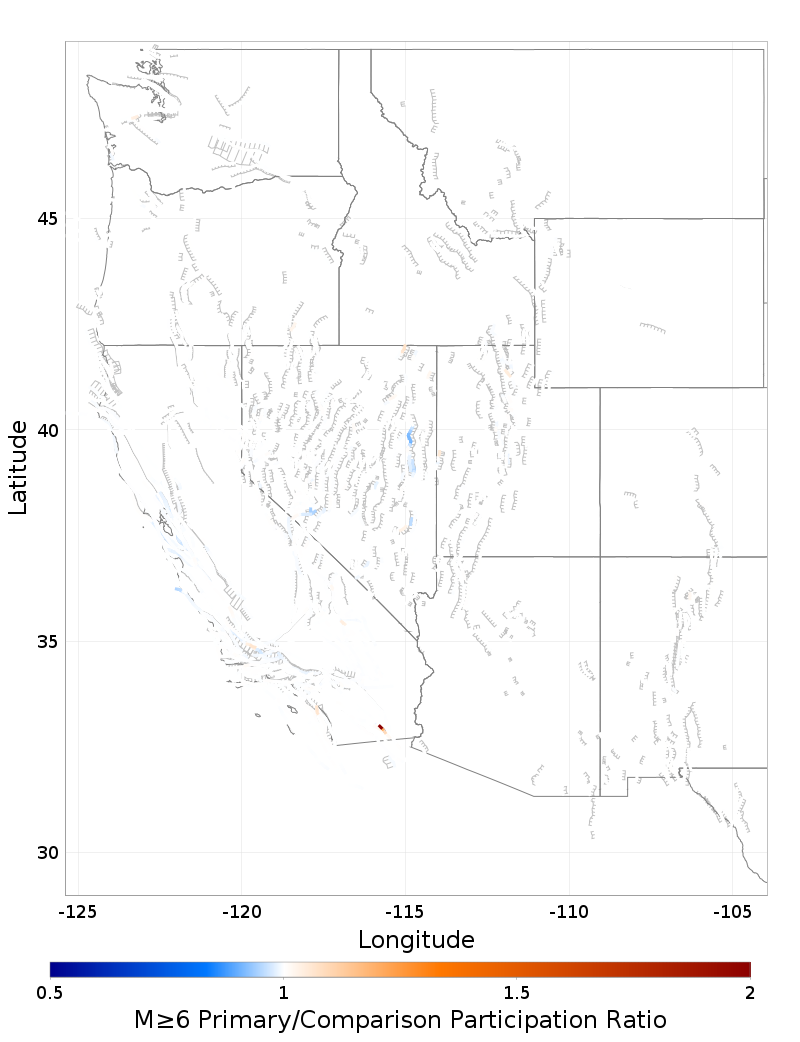

M≥6 Comparison Ratio	M≥6 Comparison Scatter

Download GeoJSON

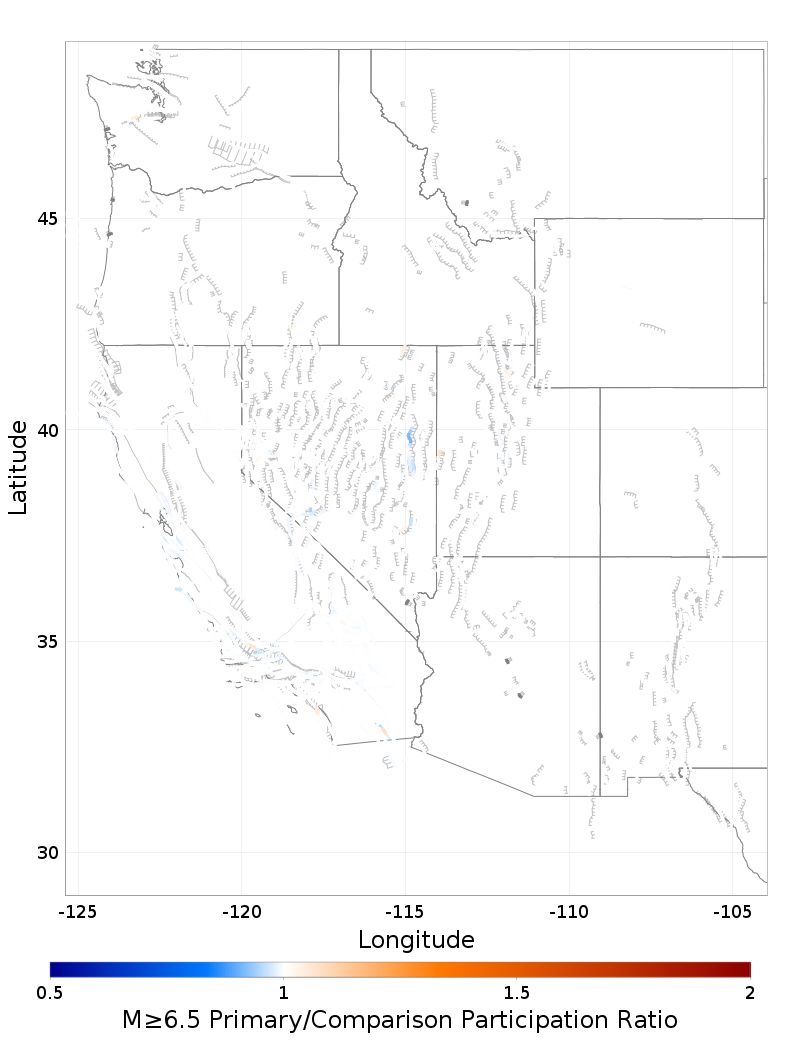

M≥6.5	Range: M∈[6.5, 7]

Download GeoJSON	Download GeoJSON

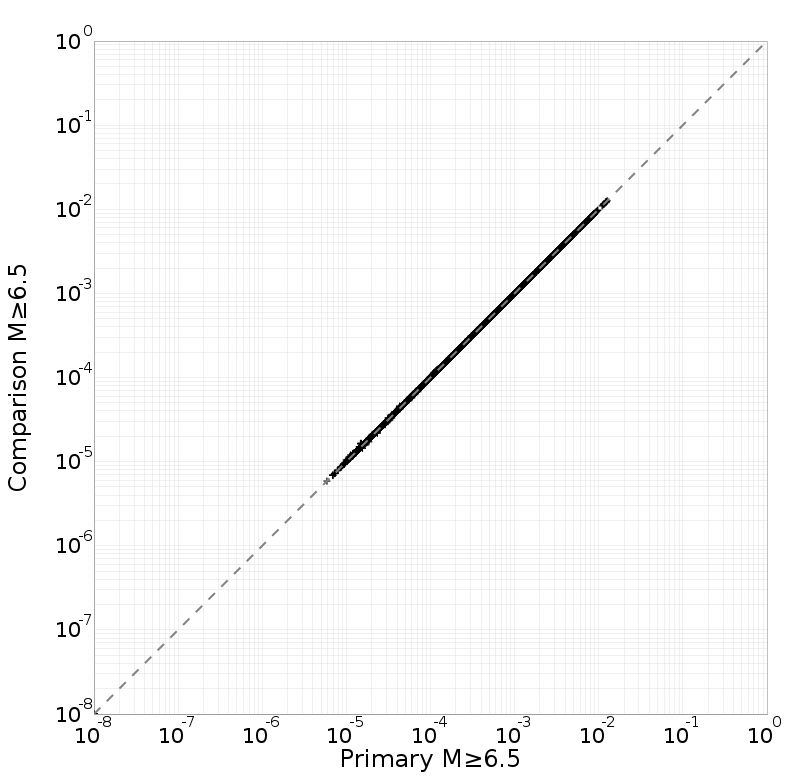

M≥6.5 Comparison Ratio	M≥6.5 Comparison Scatter

Download GeoJSON
M≥7	Range: M∈[7, 7.5]

Download GeoJSON	Download GeoJSON

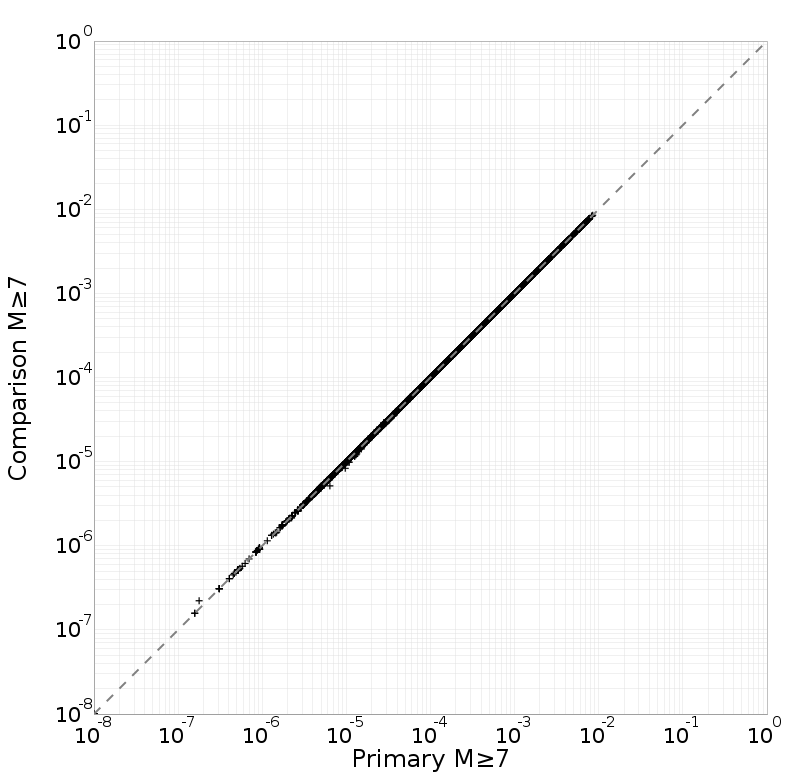

M≥7 Comparison Ratio	M≥7 Comparison Scatter

Download GeoJSON

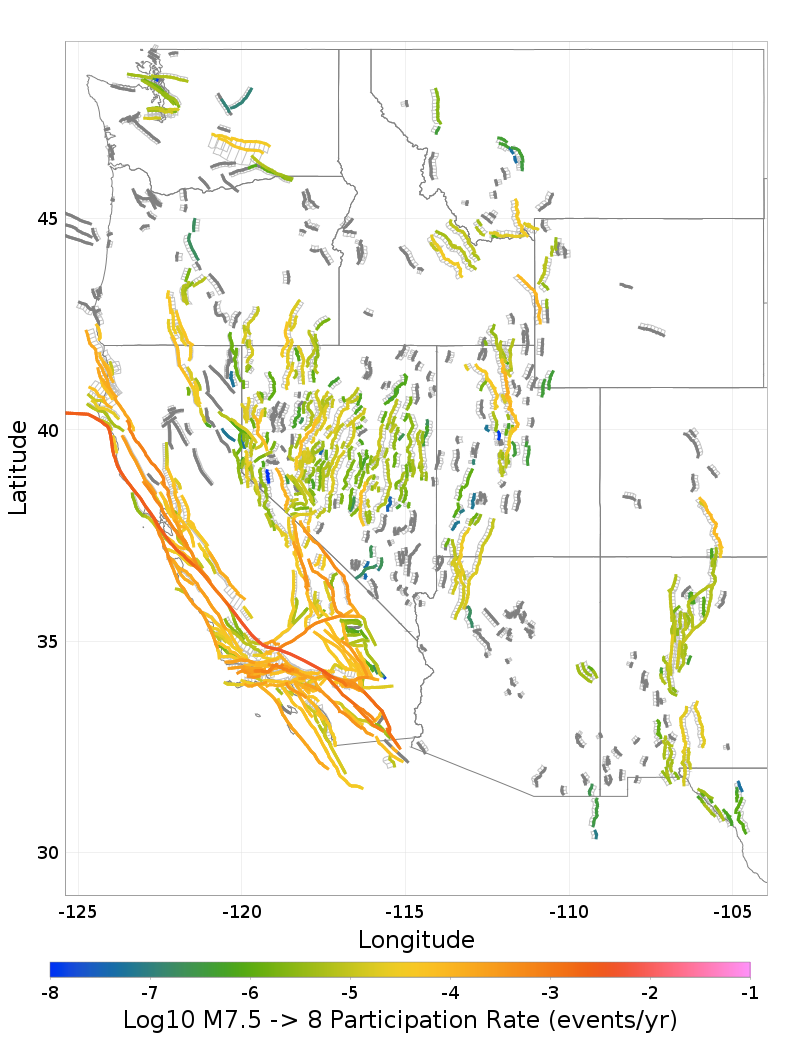

M≥7.5	Range: M∈[7.5, 8]

Download GeoJSON	Download GeoJSON
M≥7.5 Comparison Ratio	M≥7.5 Comparison Scatter

Download GeoJSON
M≥8

Download GeoJSON

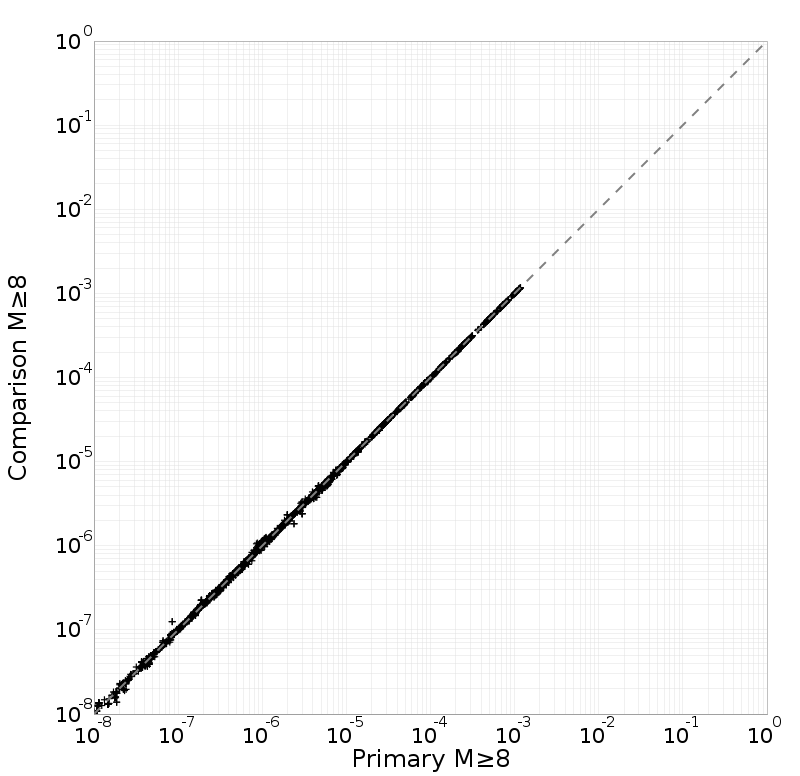

M≥8 Comparison Ratio	M≥8 Comparison Scatter

Download GeoJSON

Section b-values

(top)

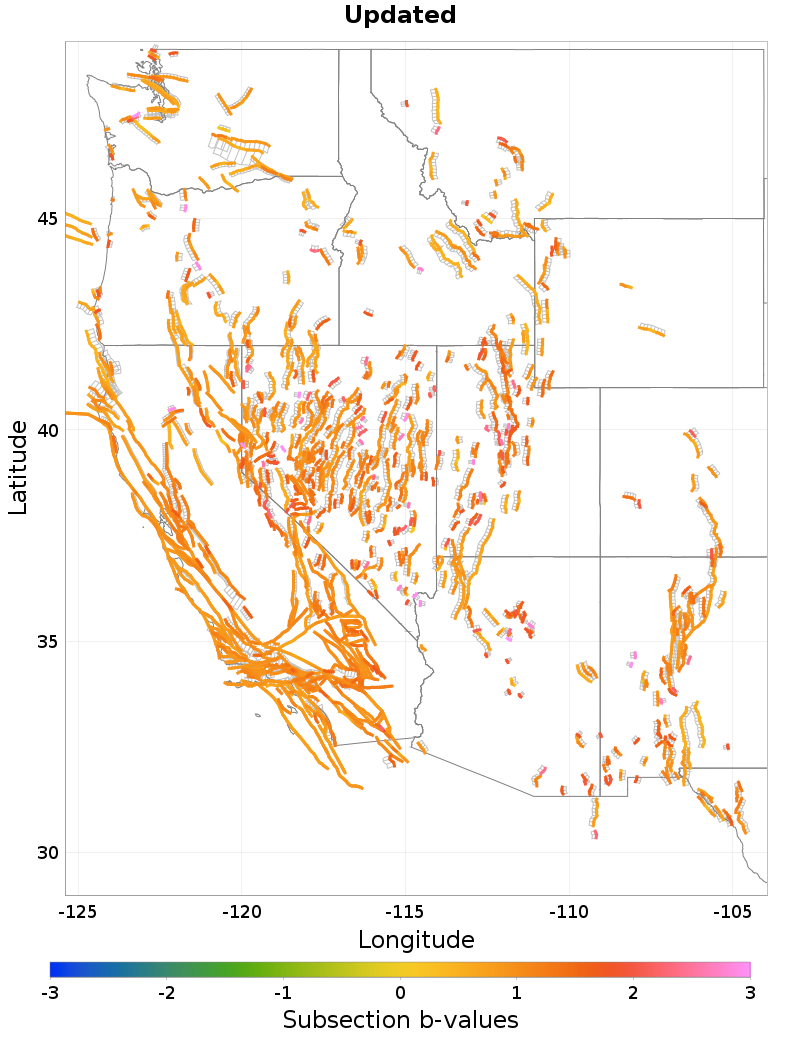

Subsection b-values

(top)

These plots estimate a Gutenberg-Richter b-value for each subsection and parent section nucleation MFD. This is a rough approximation, and is intended primarily for model comparisons.

Note that b-values here are calculated from the branch-averaged nucleation MFD on each section, and do not represent the average of branch-specific b-values. The latter are plotted separately at the end of this section.

Download b-value CSV files: sect_b_values.csv sect_b_values_comp.csv

Primary b-value Distribution	Primary b-value Rate-Dependence

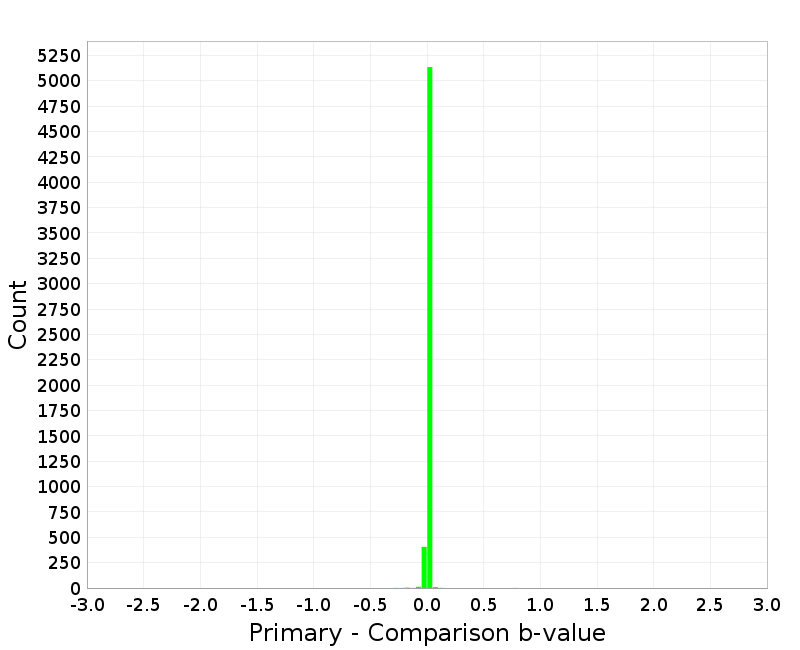

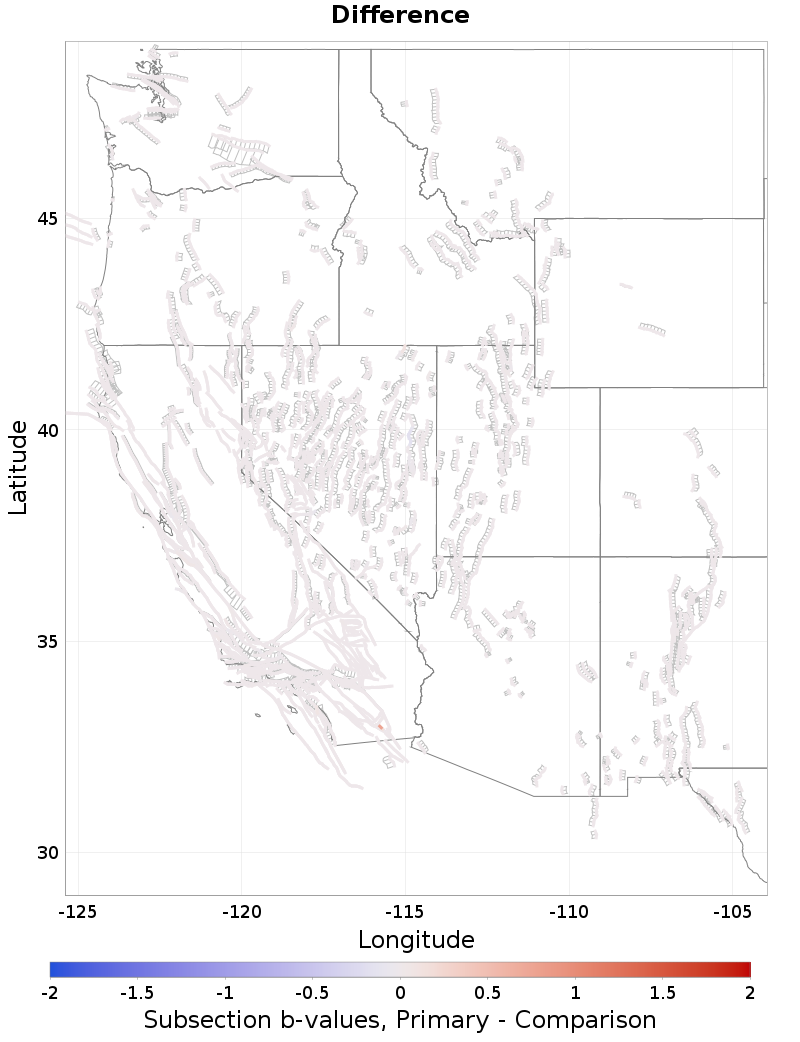

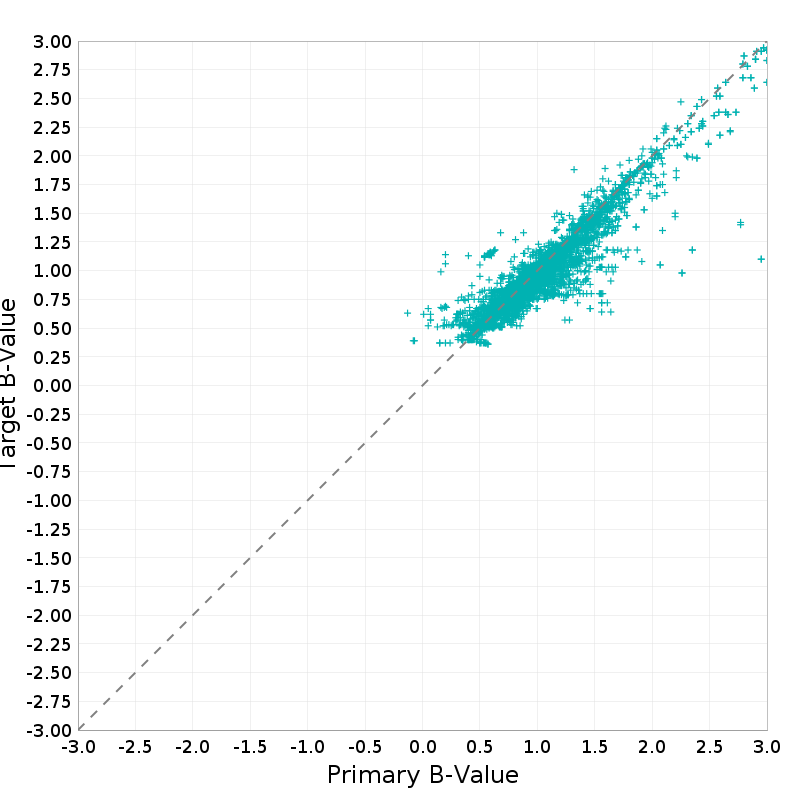

Target b-value Difference	Target b-value Scatter

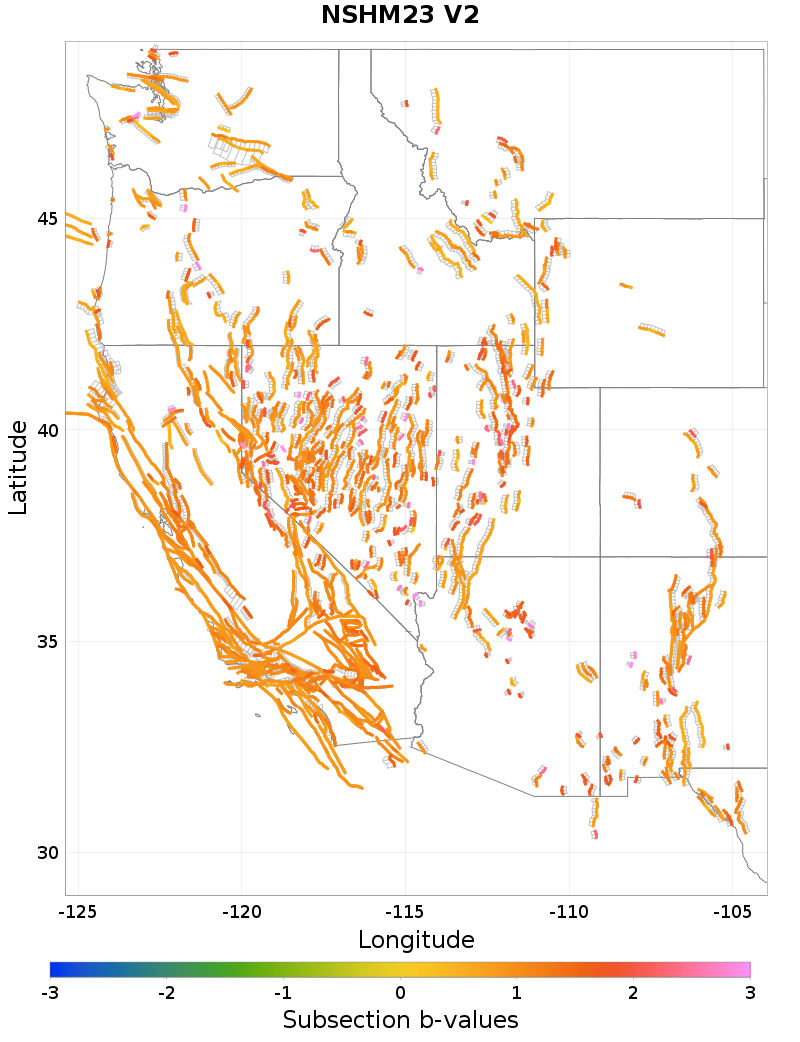

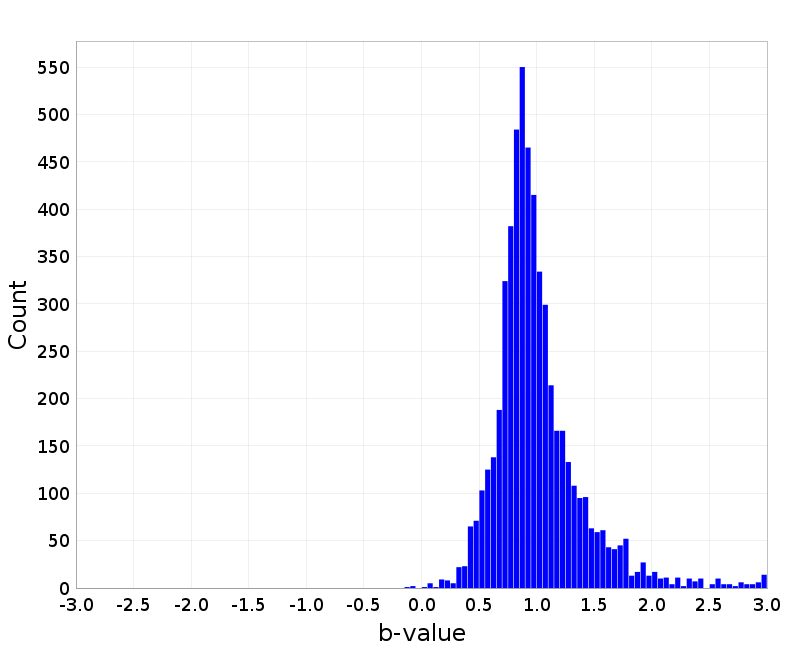

Comparison B-Value Distribution	Comparison b-value Rate-Dependence

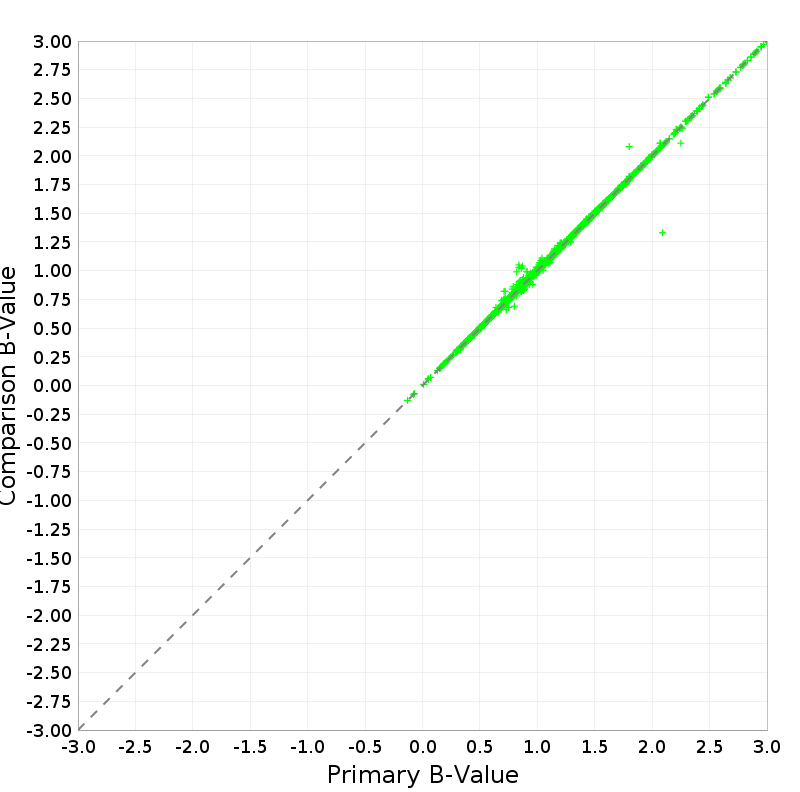

Comparison b-value Difference	Comparison b-value Scatter

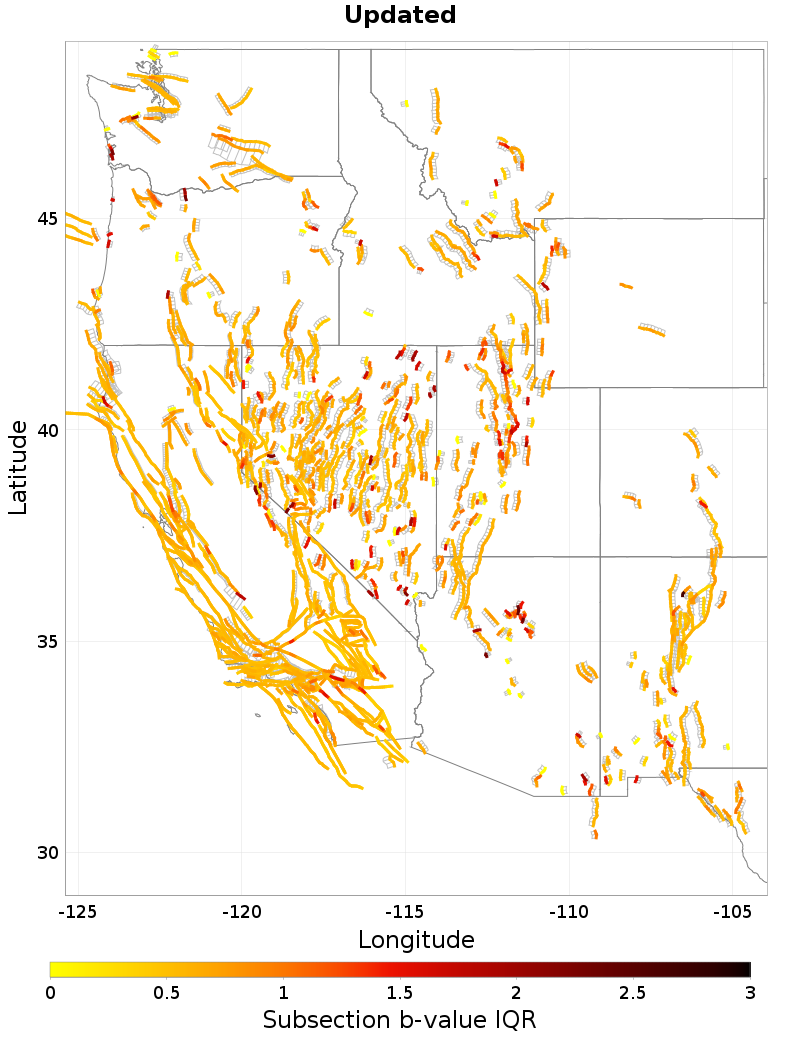

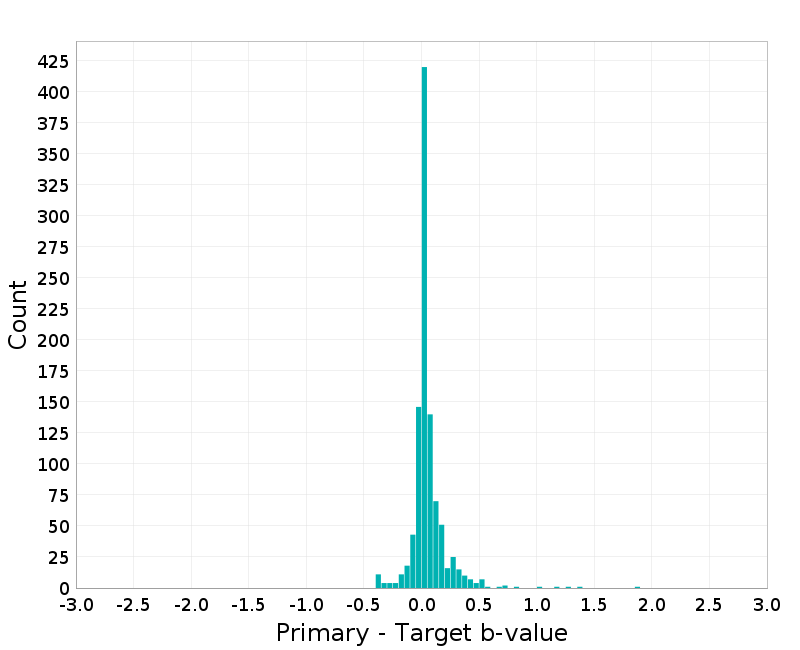

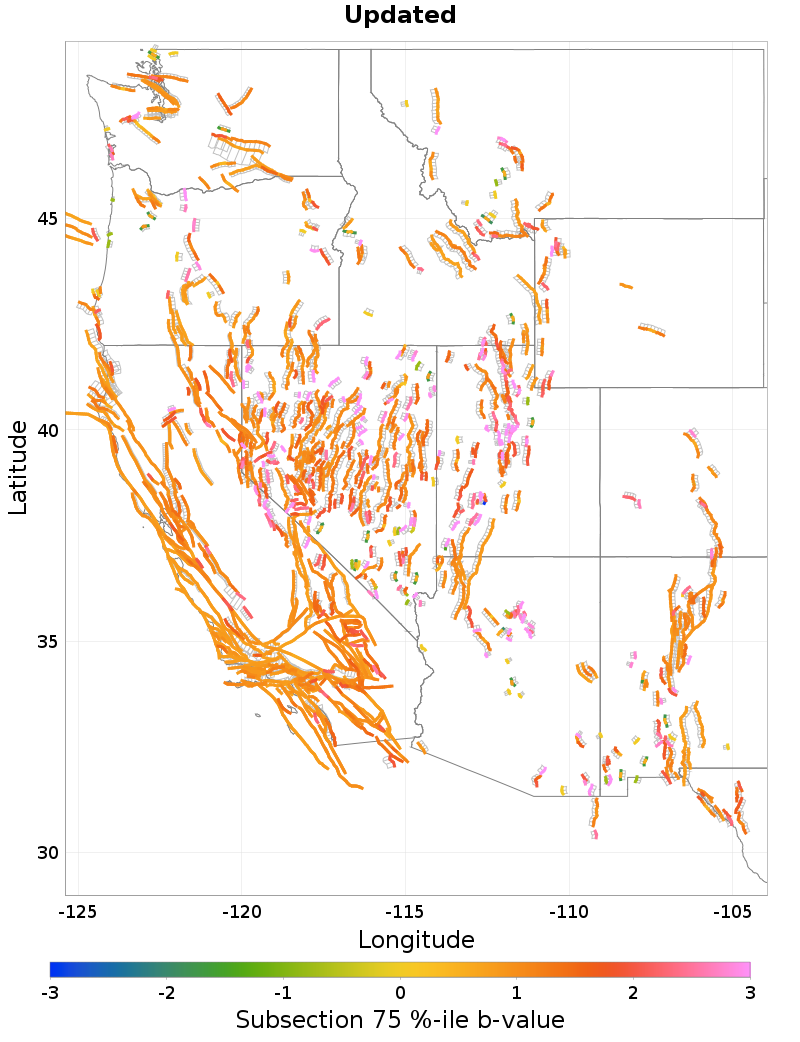

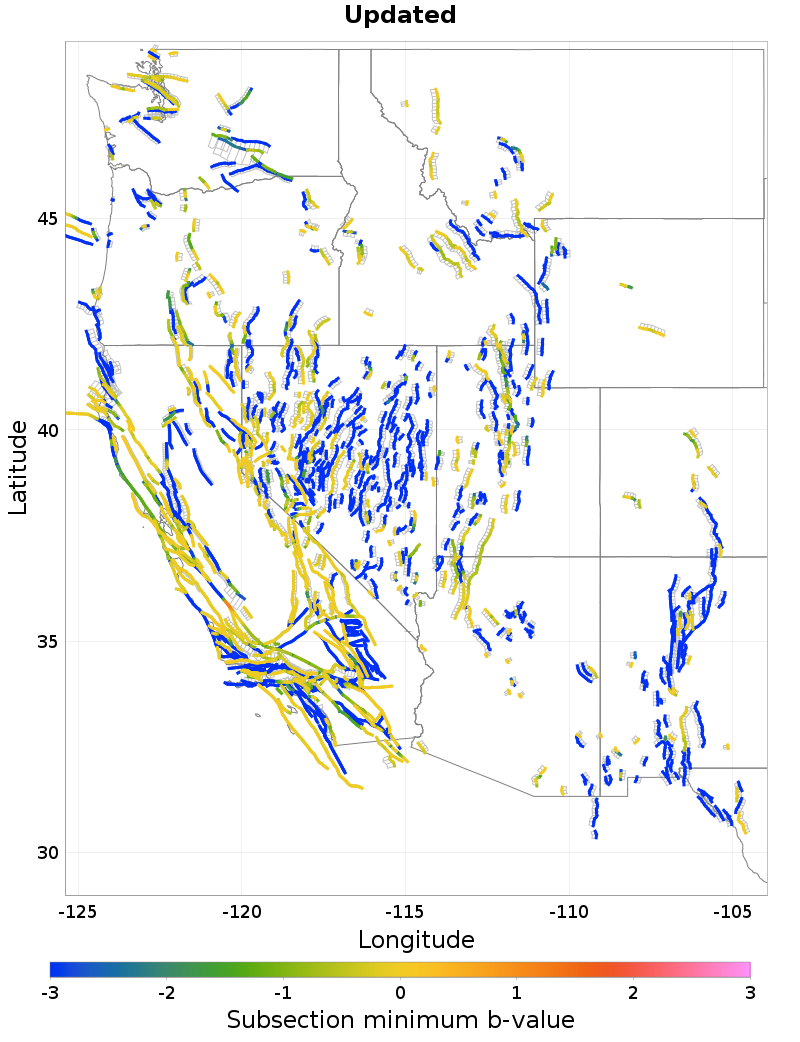

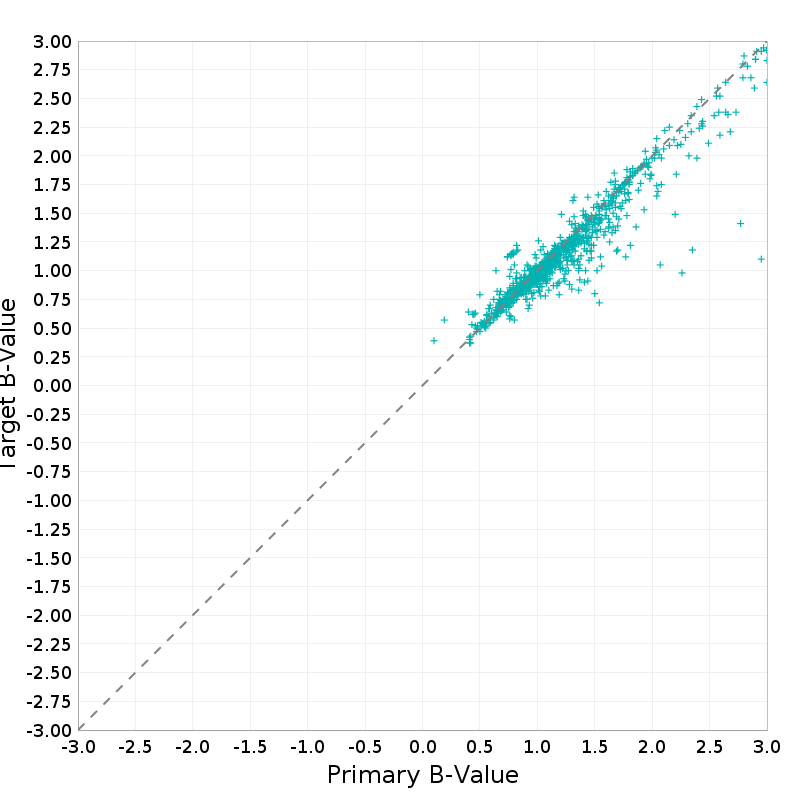

Parent Section b-values

(top)

Download b-value CSV files: parent_sect_b_values.csv parent_sect_b_values_comp.csv

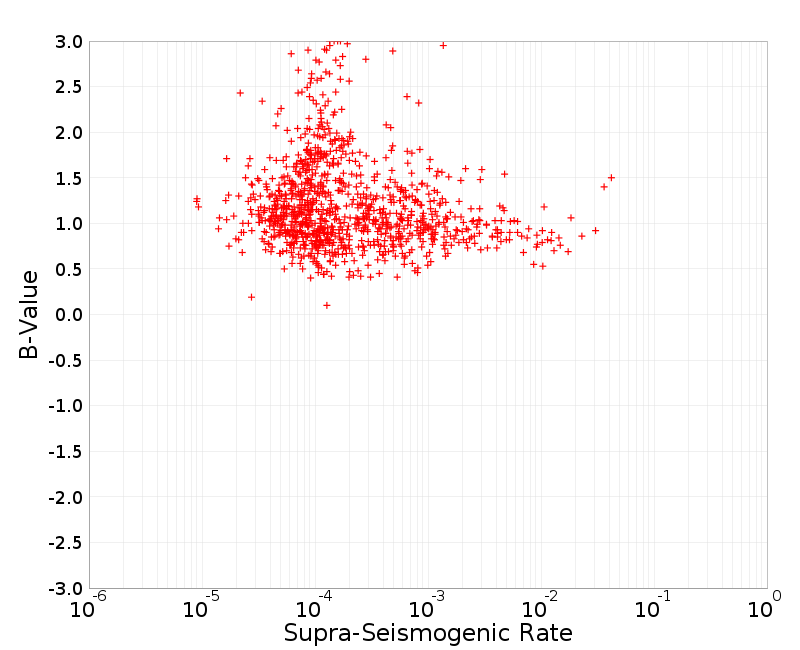

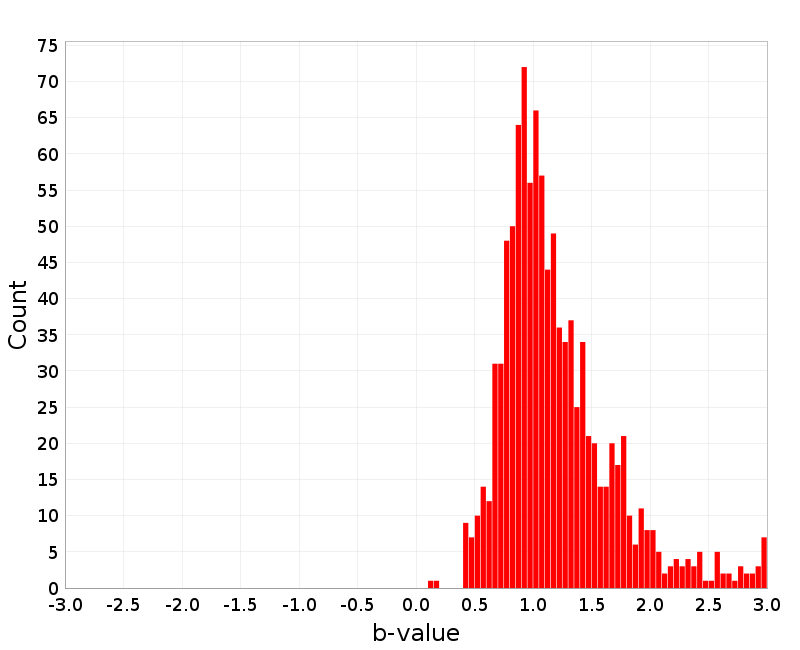

Primary b-value Distribution	Primary b-value Rate-Dependence

Target b-value Difference	Target b-value Scatter

Comparison B-Value Distribution	Comparison b-value Rate-Dependence

Comparison b-value Difference	Comparison b-value Scatter

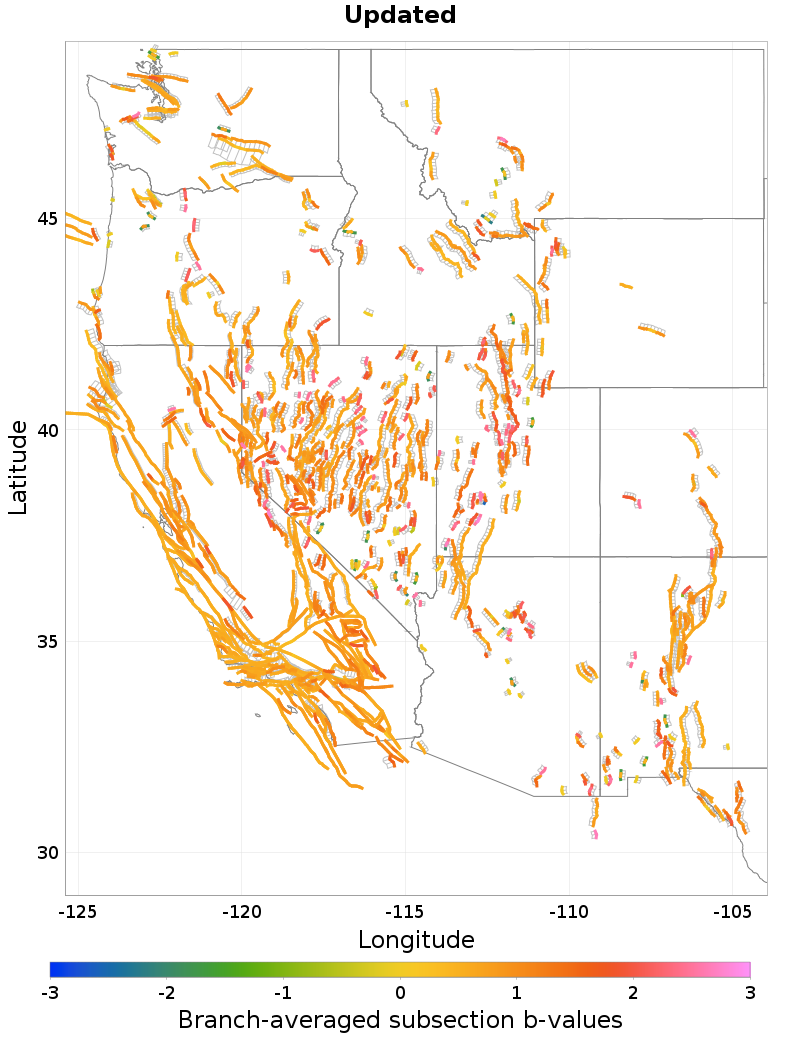

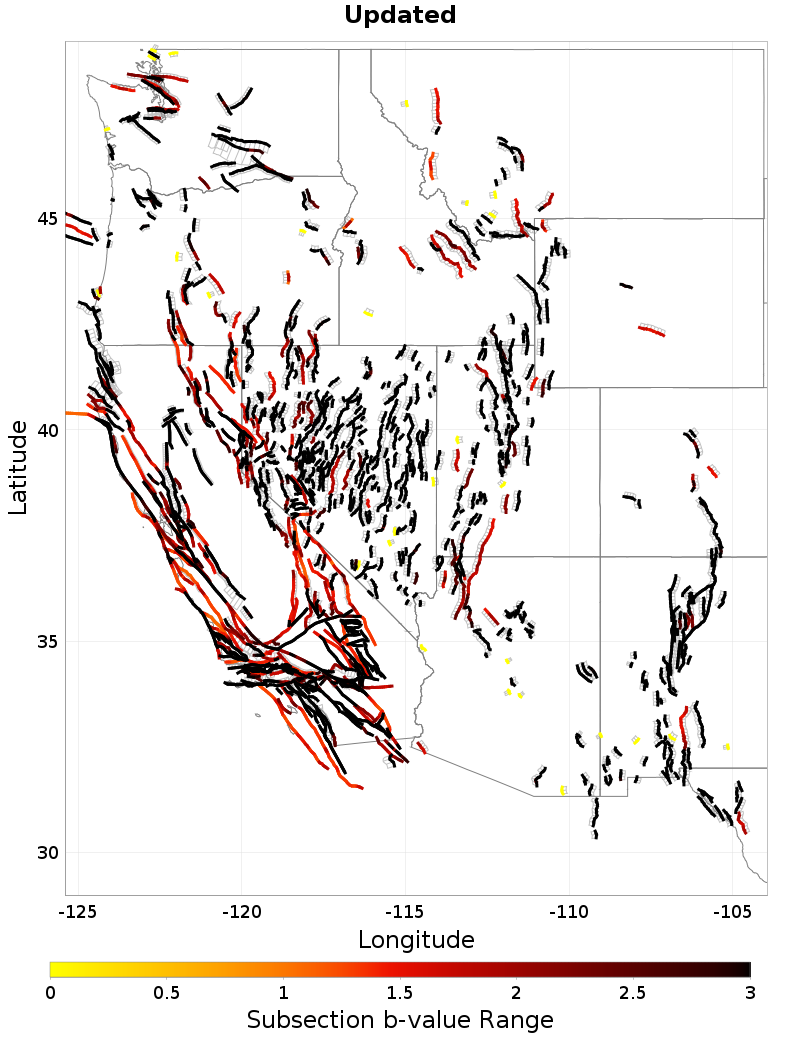

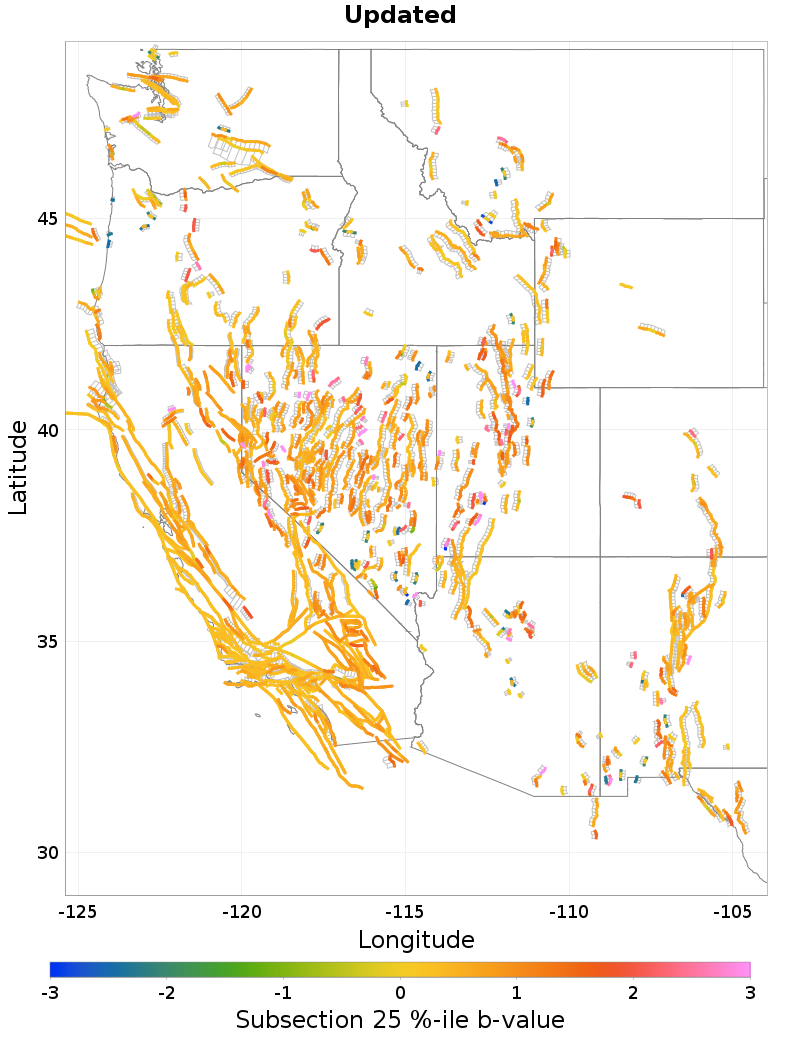

Branch-averaged subsection b-values

(top)

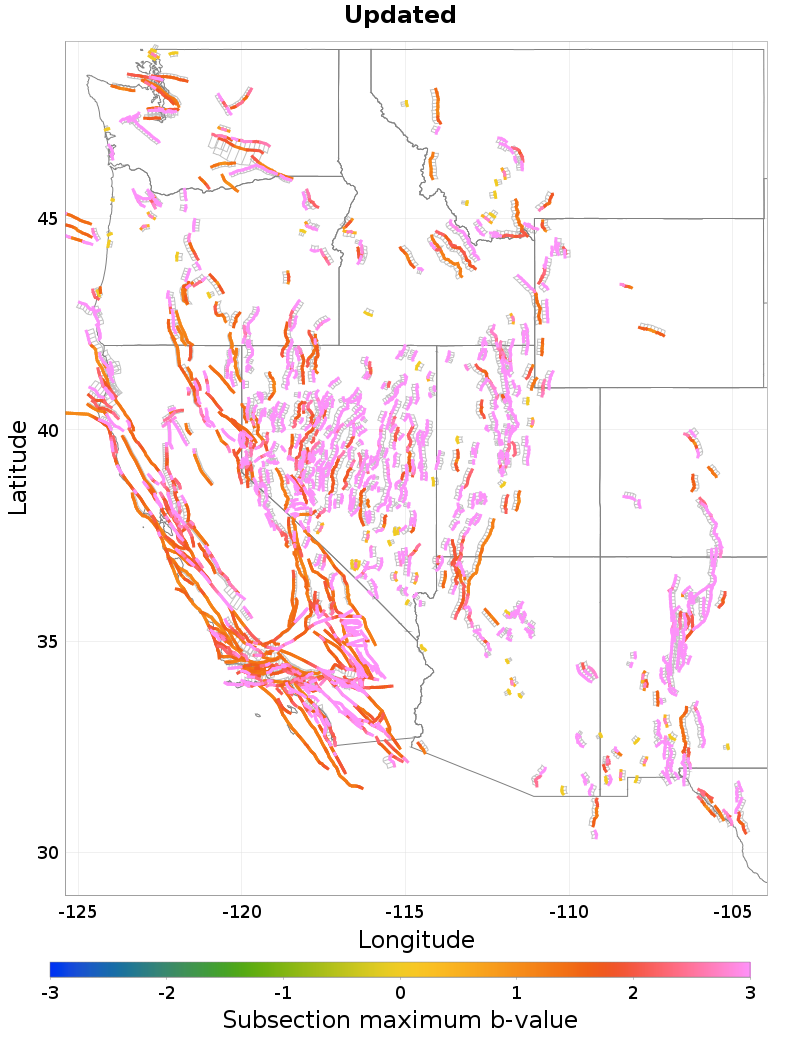

This solution has branch-specific b-values attached. The following plots show the branch-averaged b-value, interquartile range (IQR), and total range computed across all 2250 branches.

Interquartile Range	Full Range

Minimum	Maximum

25 %-ile	75 %-ile

Rupture Scaling

(top)

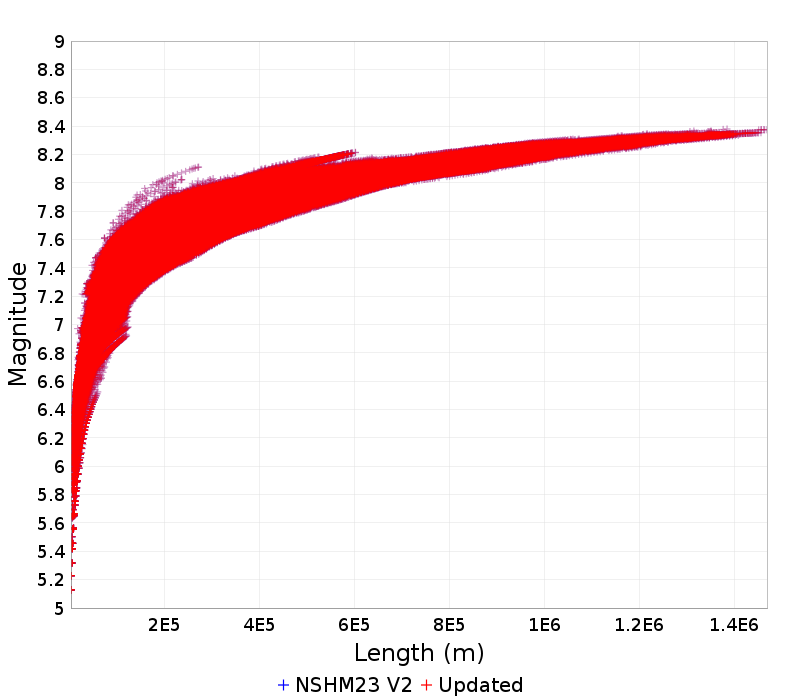

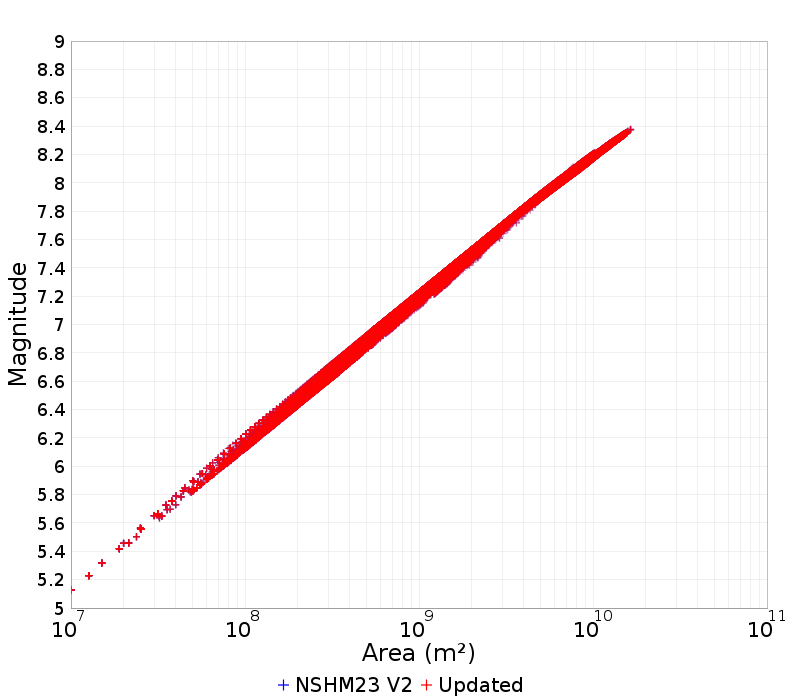

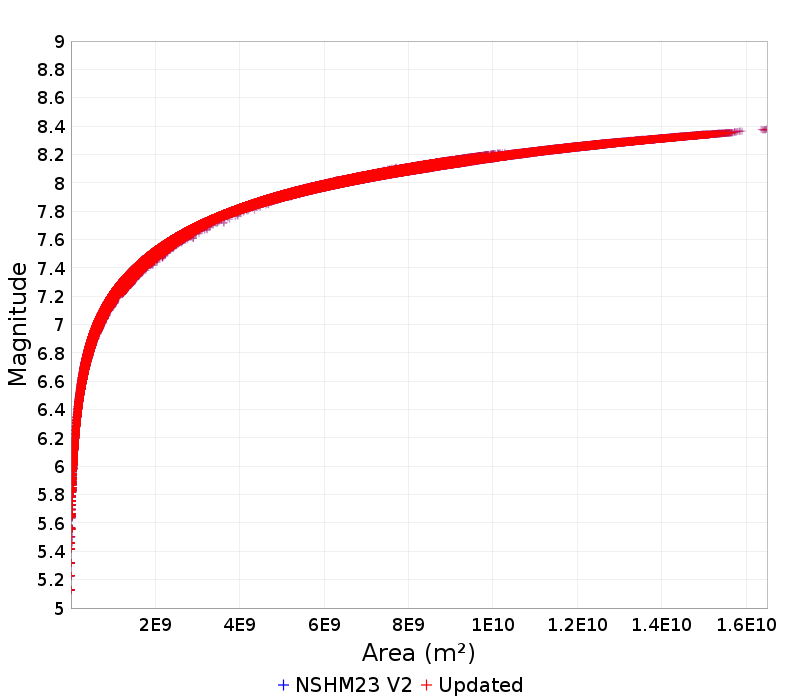

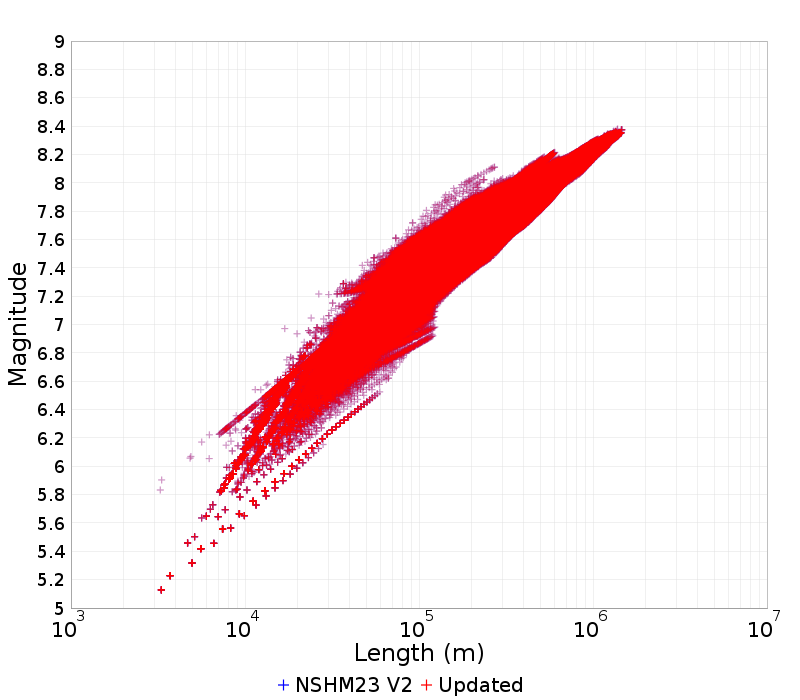

Magnitude Scaling

(top)

Linear Plots	Log10 Plots

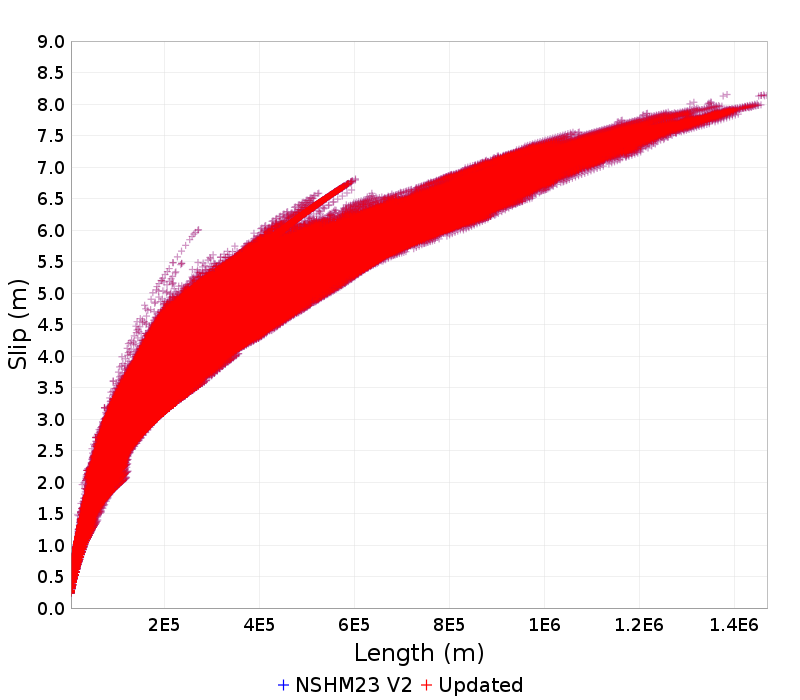

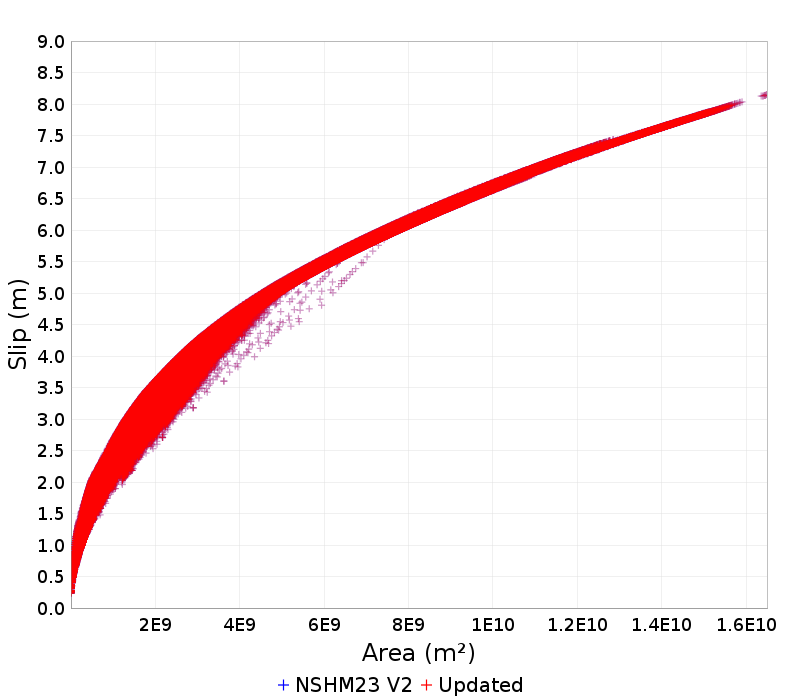

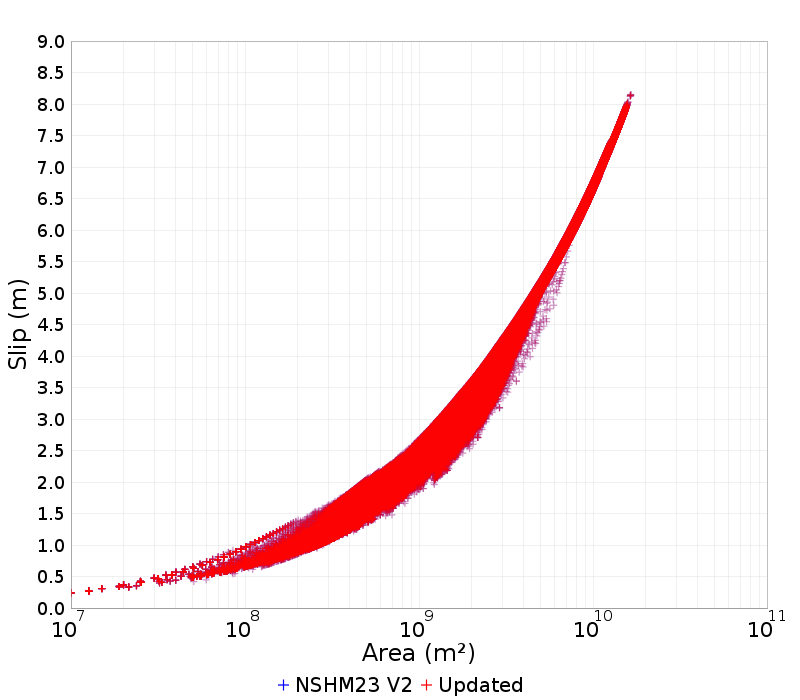

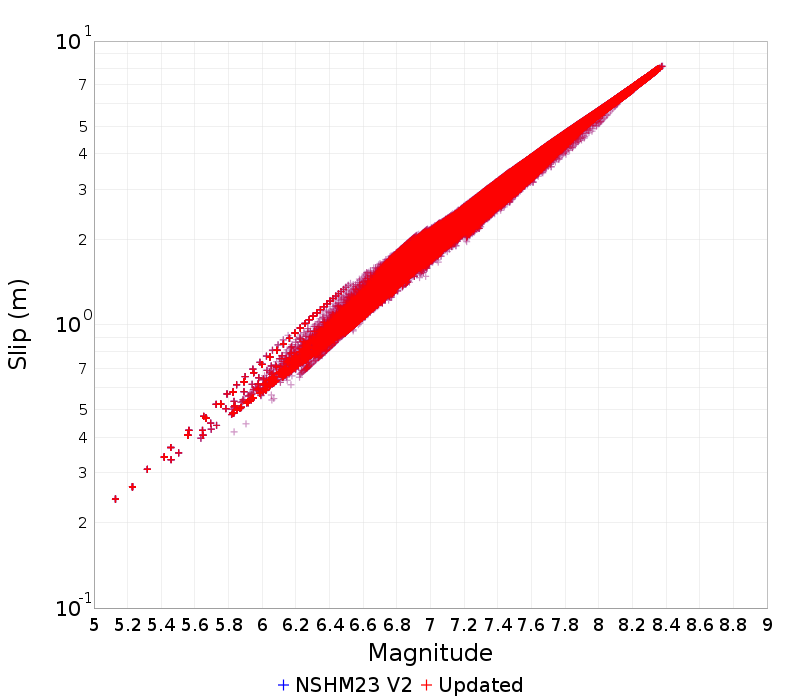

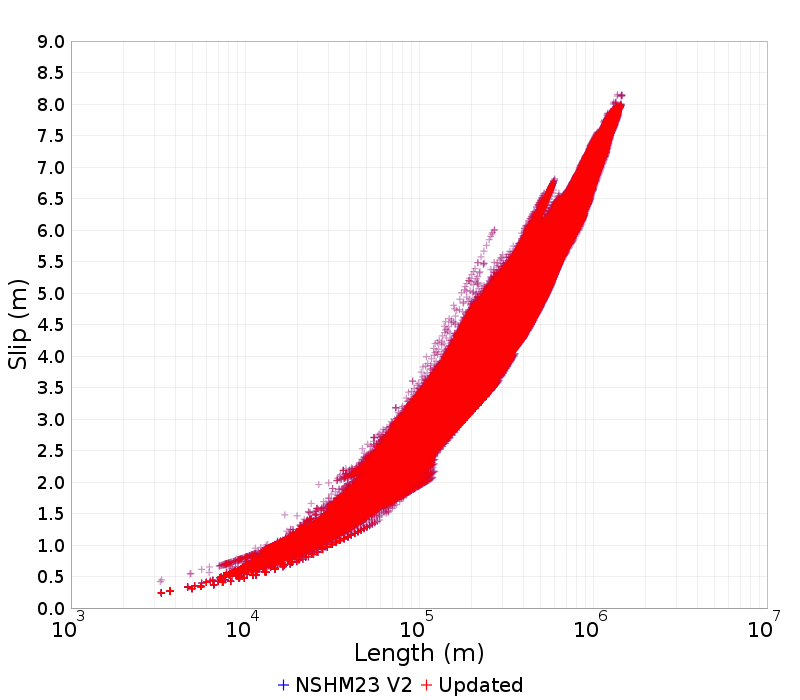

Slip Scaling

(top)

Linear Plots	Log10 Plots

Rupture Scalar Histograms

(top)

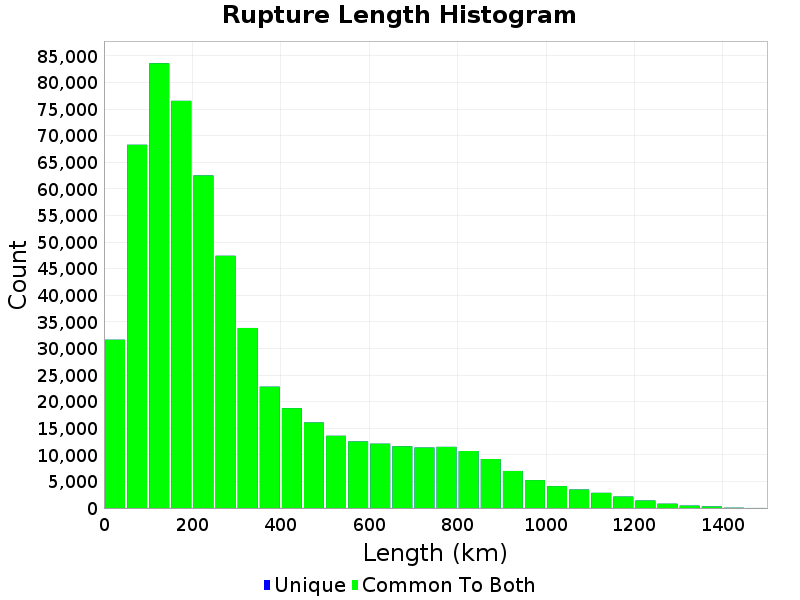

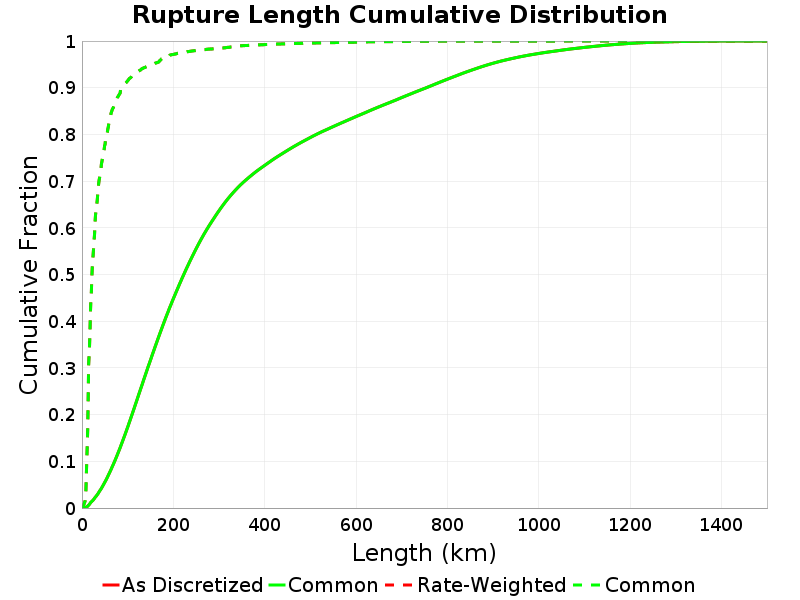

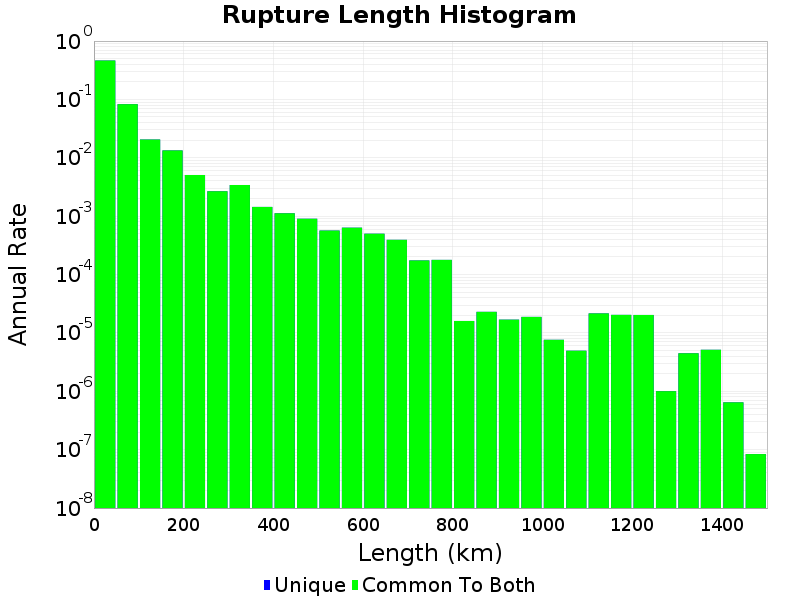

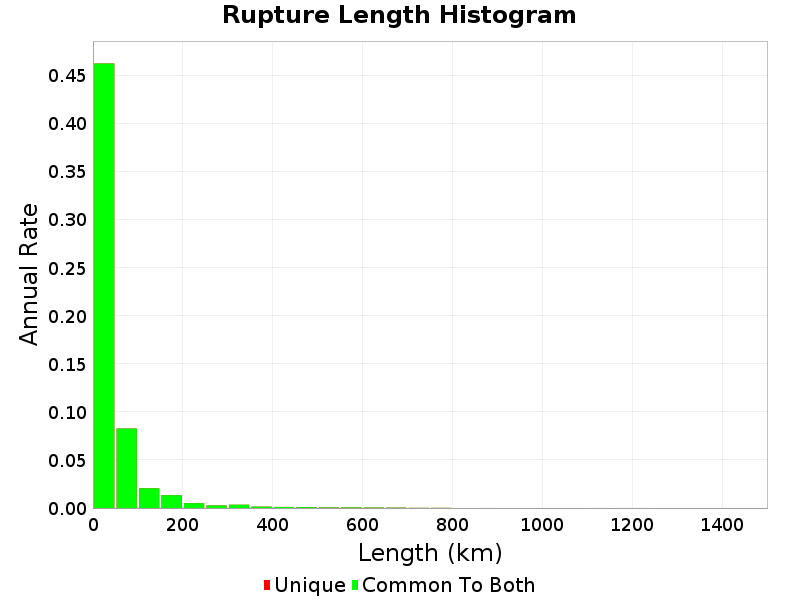

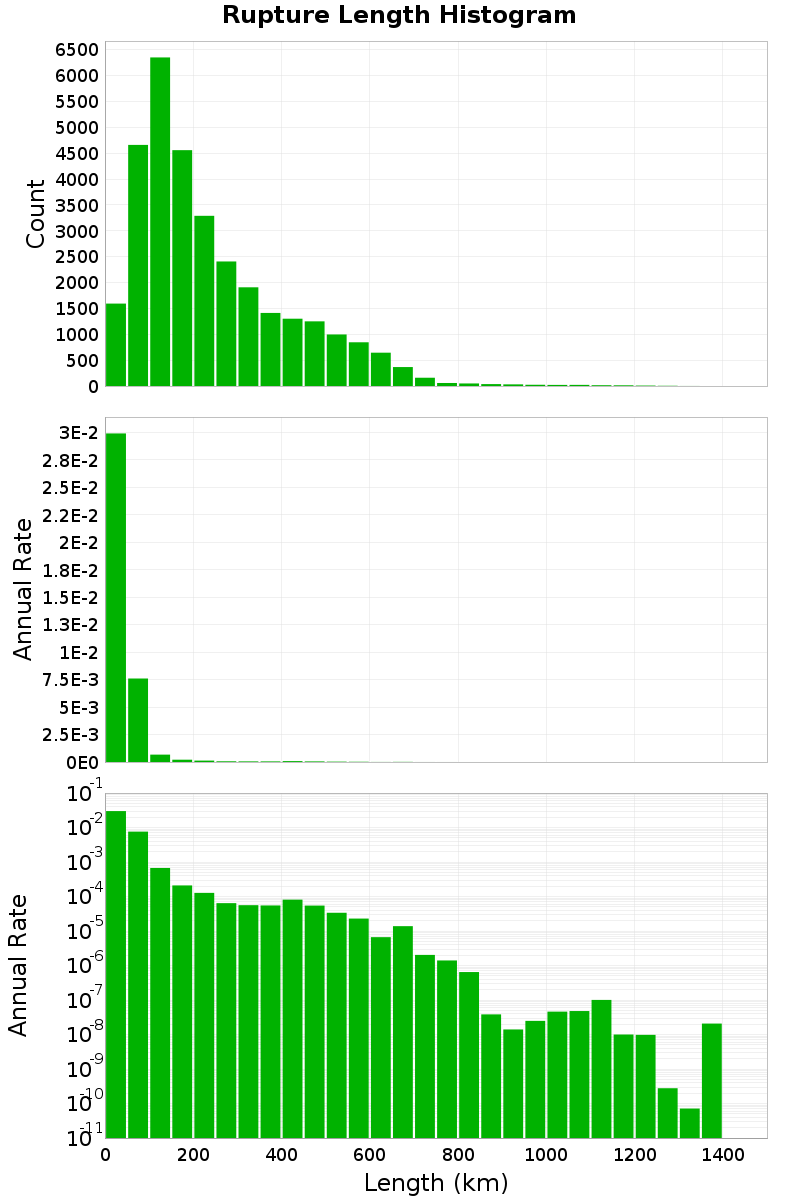

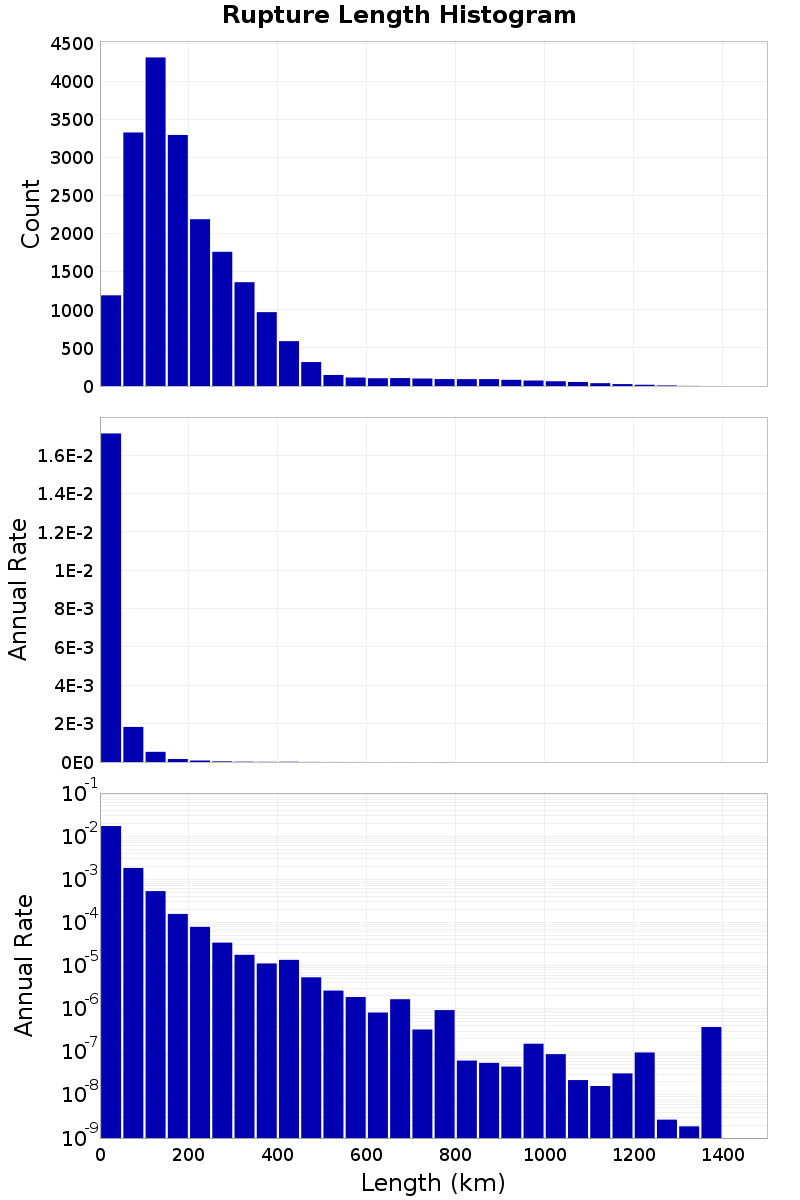

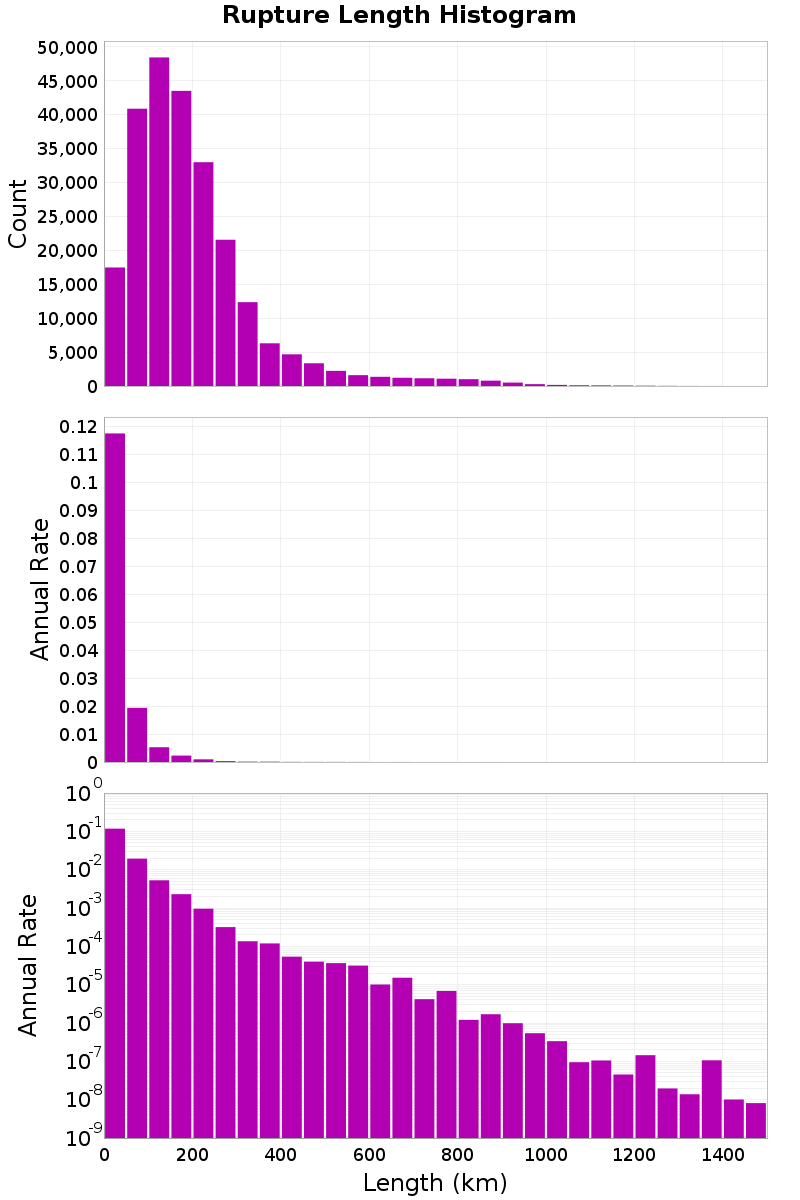

Rupture Length

(top)

Total length (km) of the rupture, not including jumps or gaps.

Updated	NSHM23 V2

Rupture Length Mechanism-Specific Histograms

(top)

Right-Lateral SS	Left-Lateral SS	Reverse

Normal	Oblique

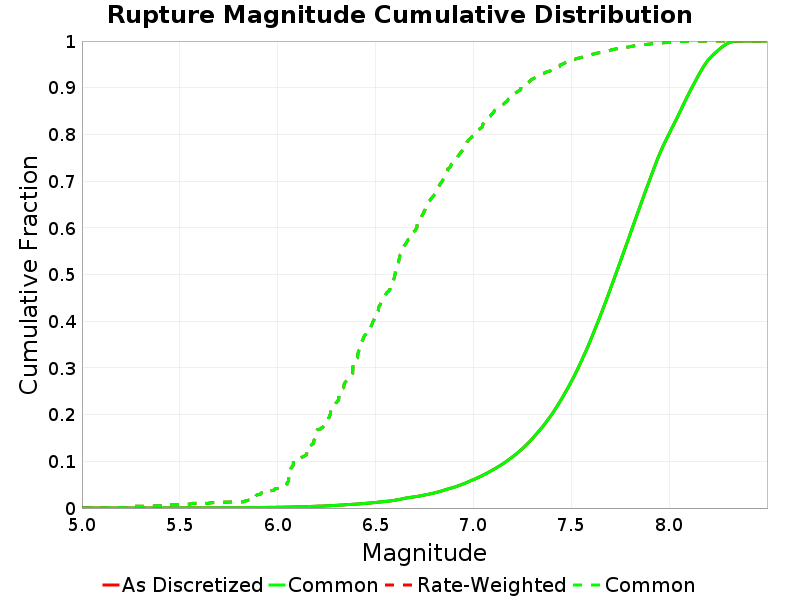

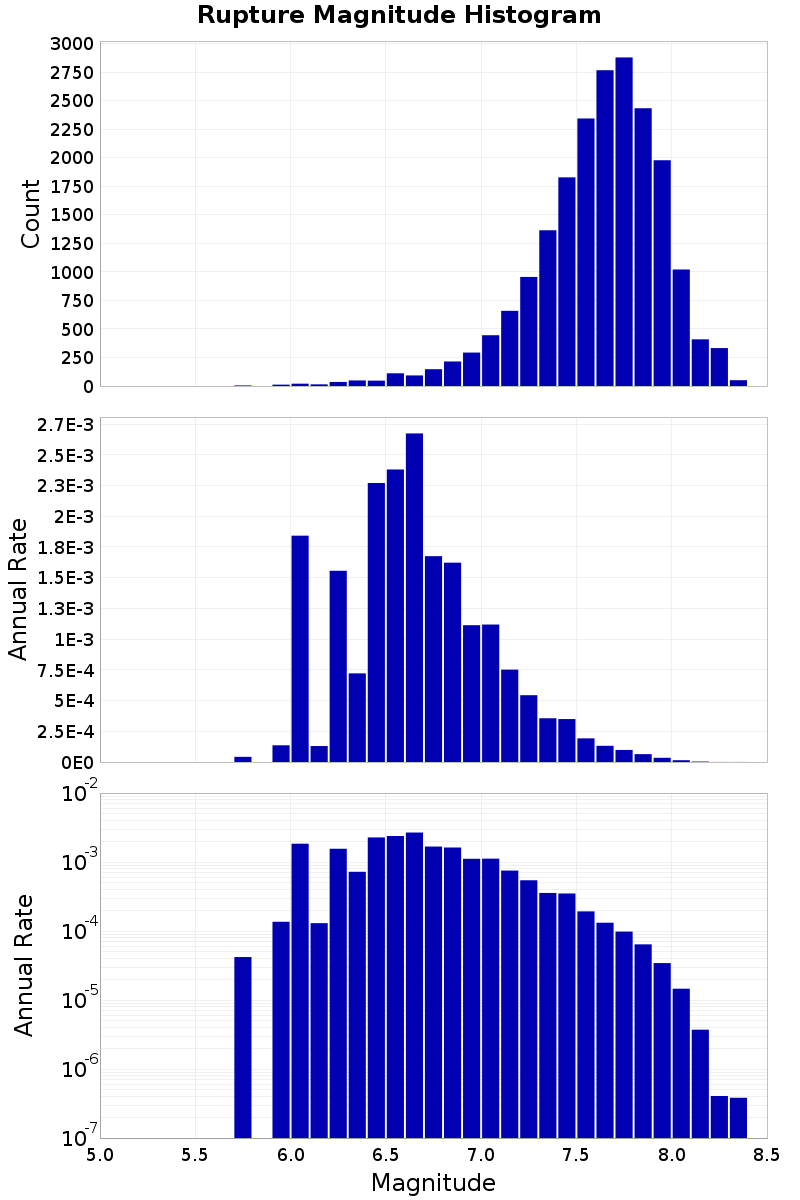

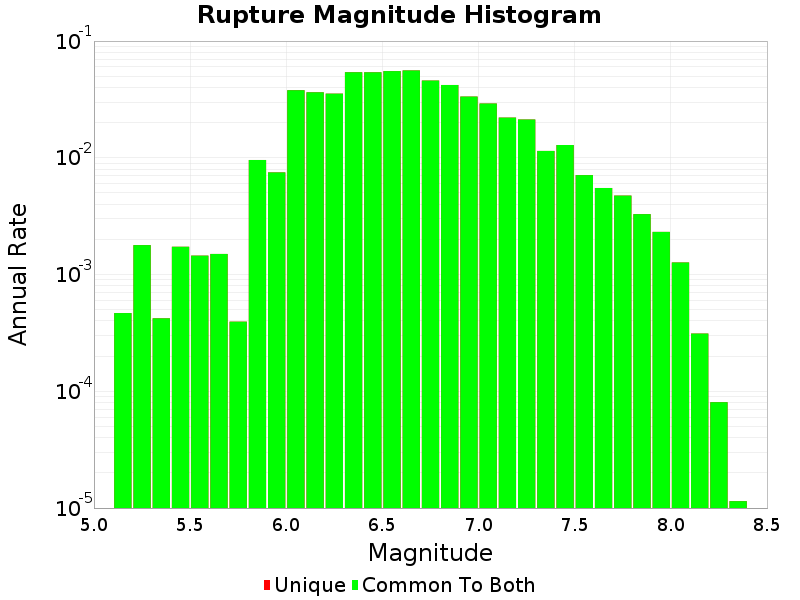

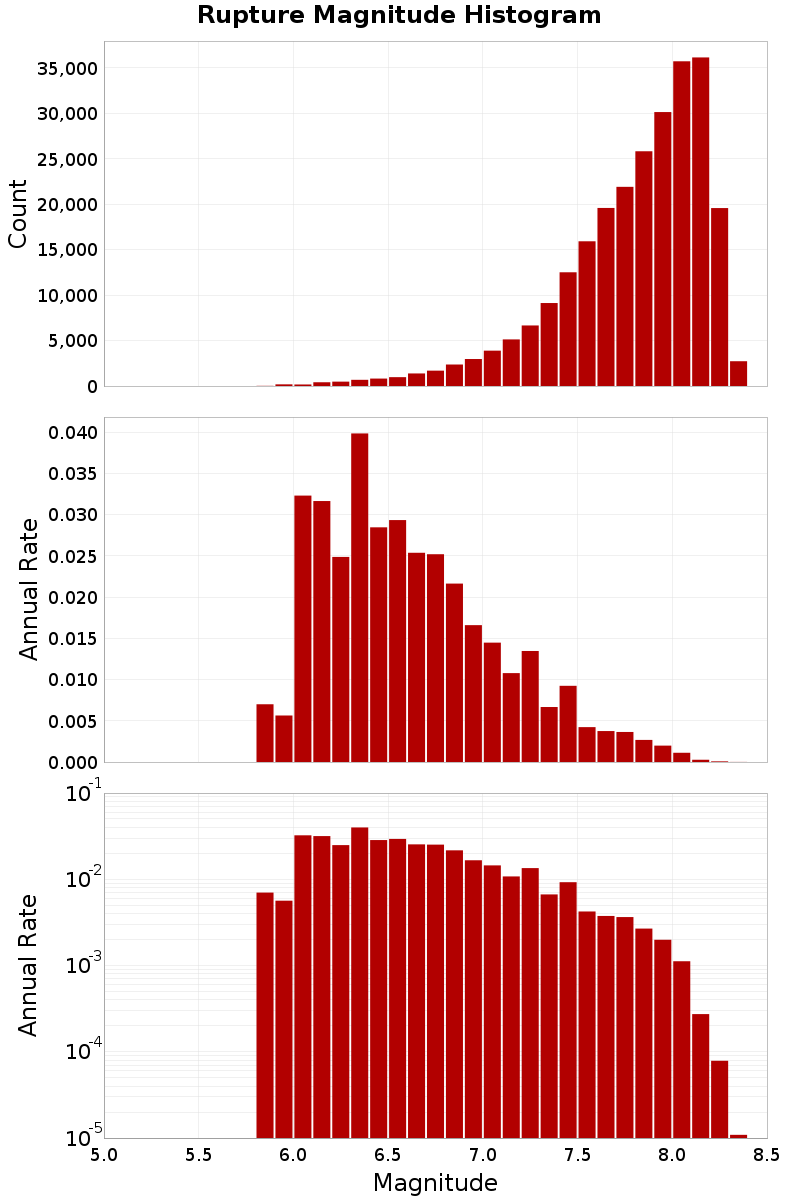

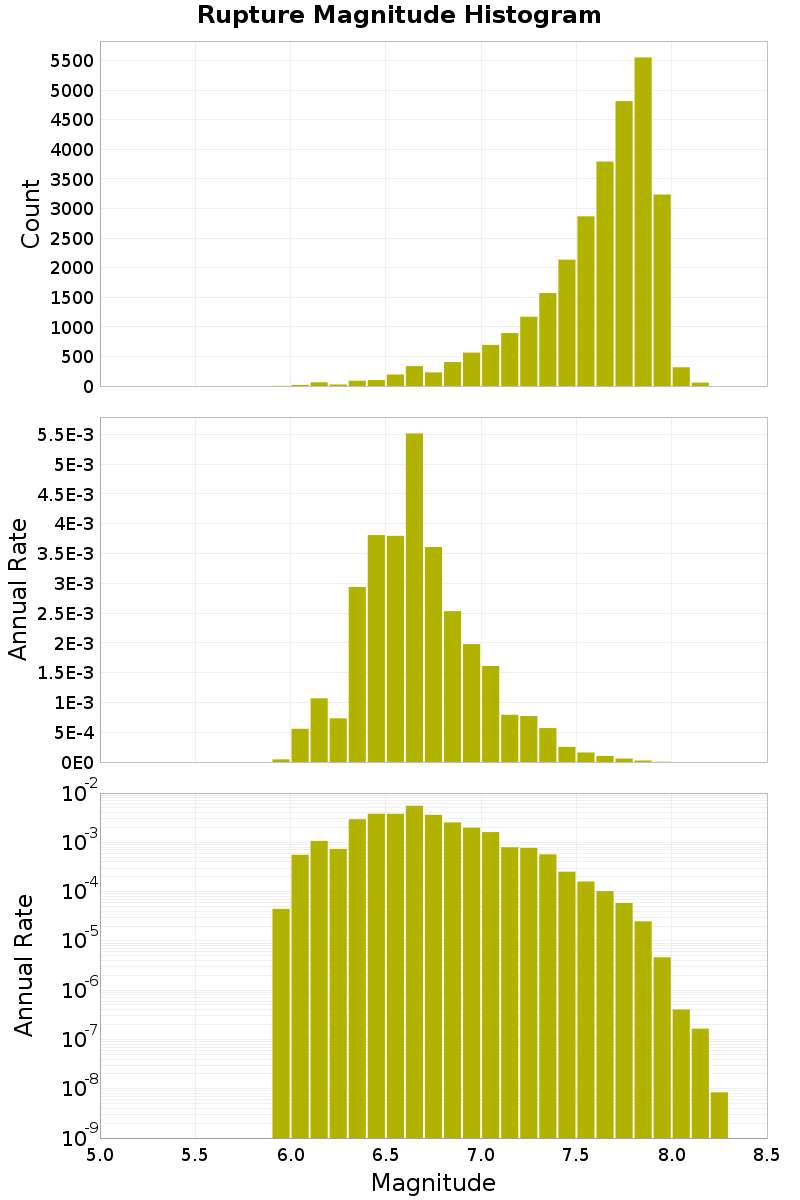

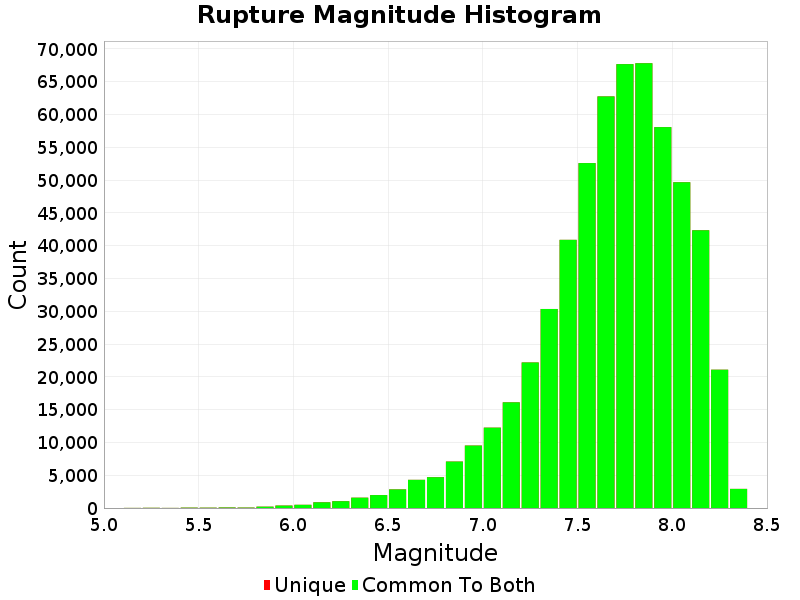

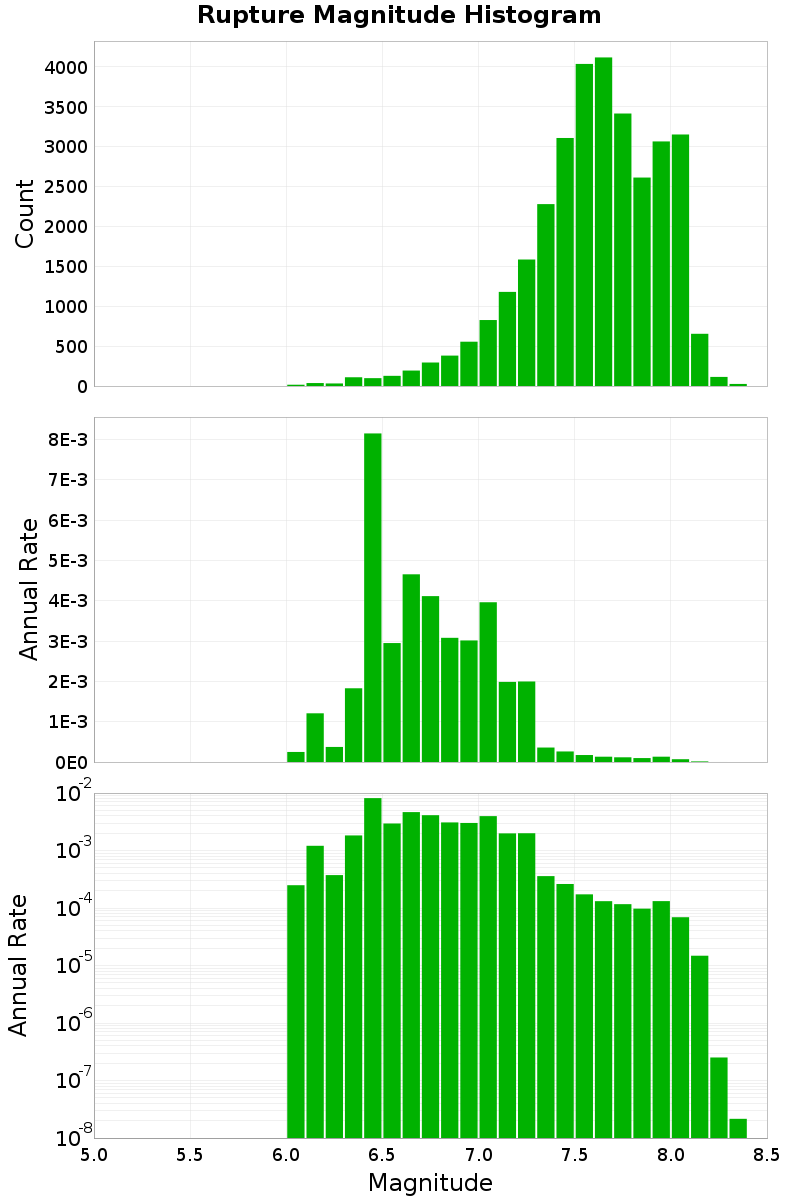

Rupture Magnitude

(top)

Magnitude of the rupture.

Updated	NSHM23 V2

Rupture Magnitude Mechanism-Specific Histograms

(top)

Right-Lateral SS	Left-Lateral SS	Reverse

Normal	Oblique

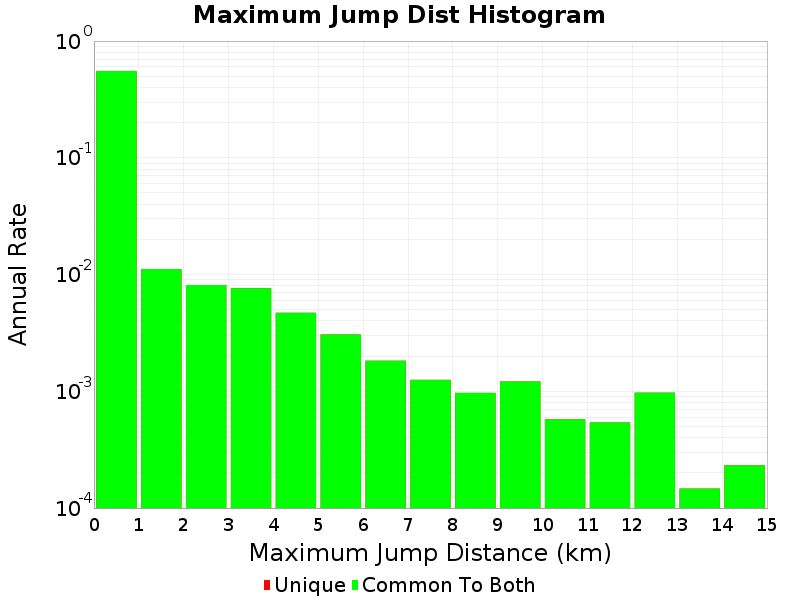

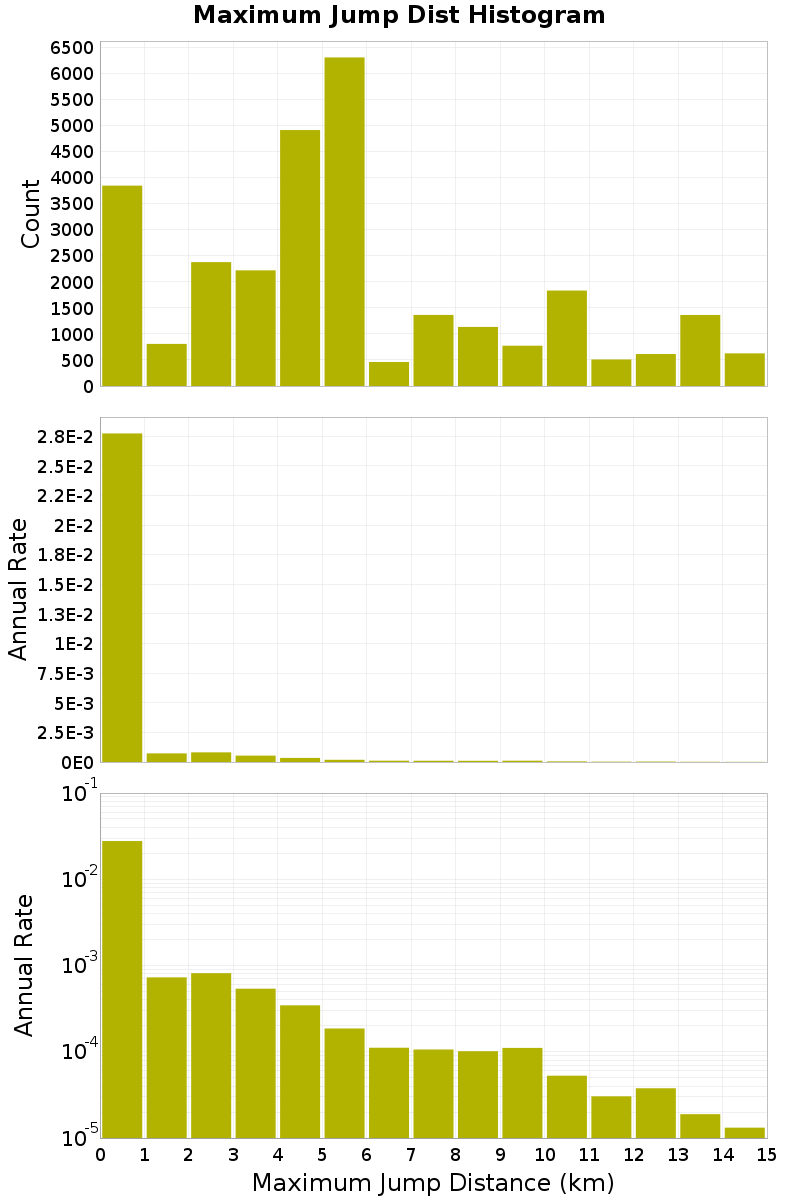

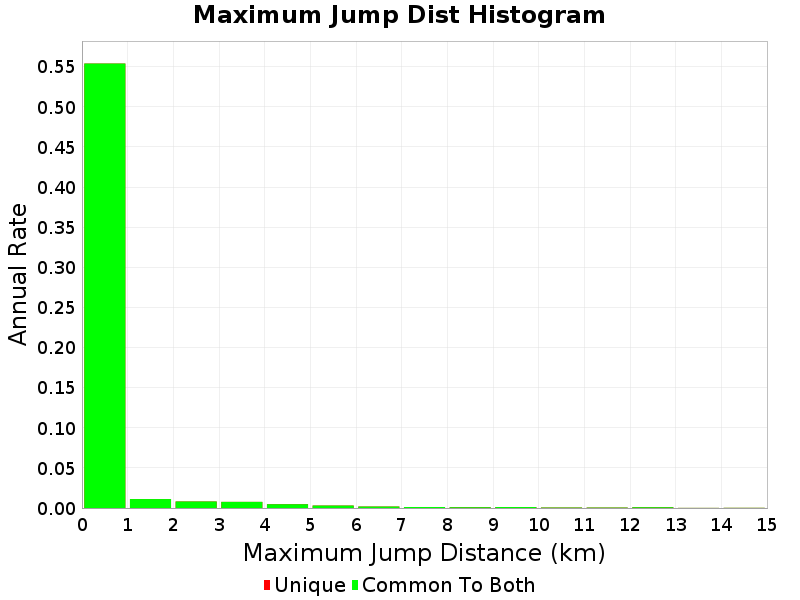

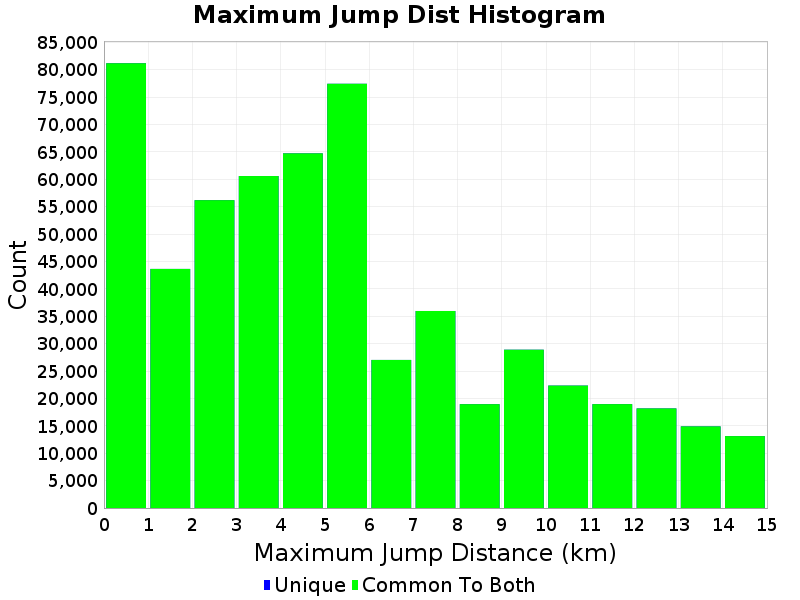

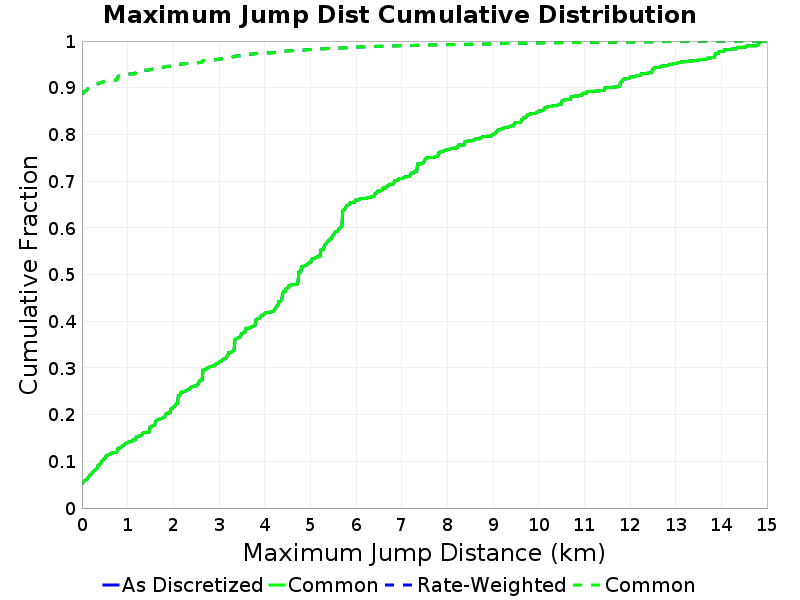

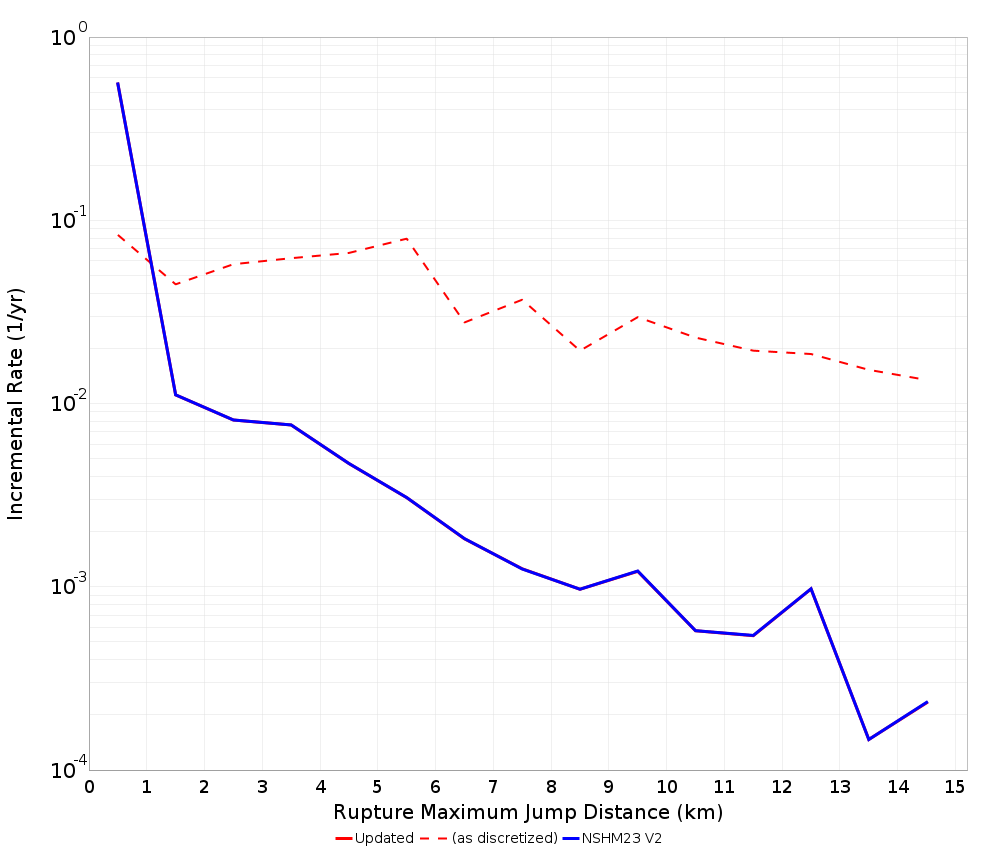

Maximum Jump Dist

(top)

The maximum jump distance in the rupture.

Updated	NSHM23 V2

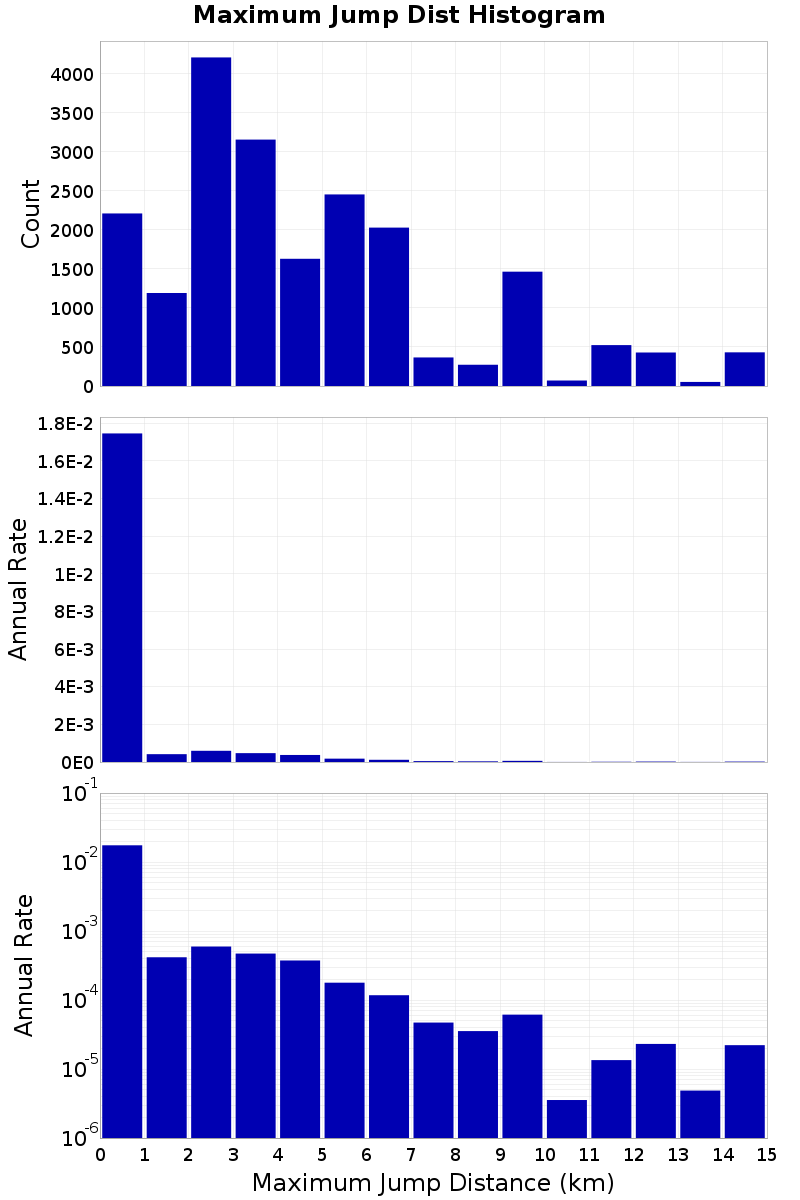

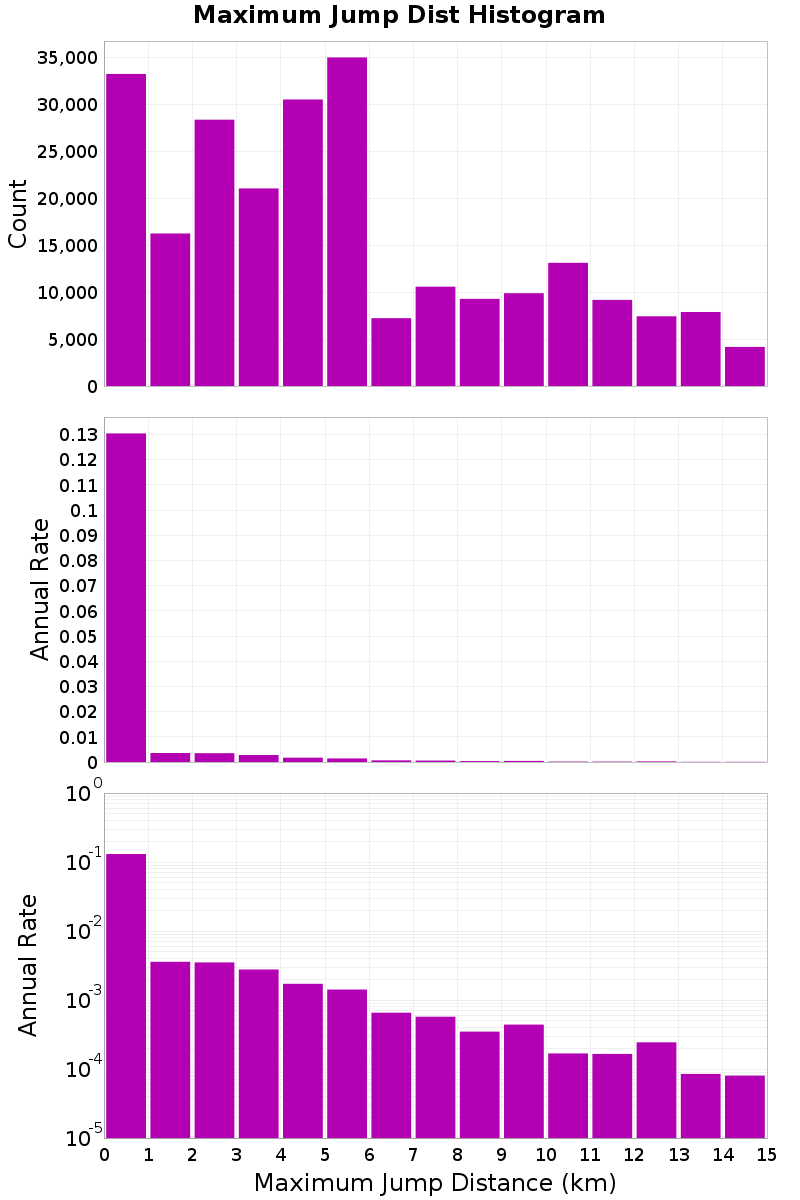

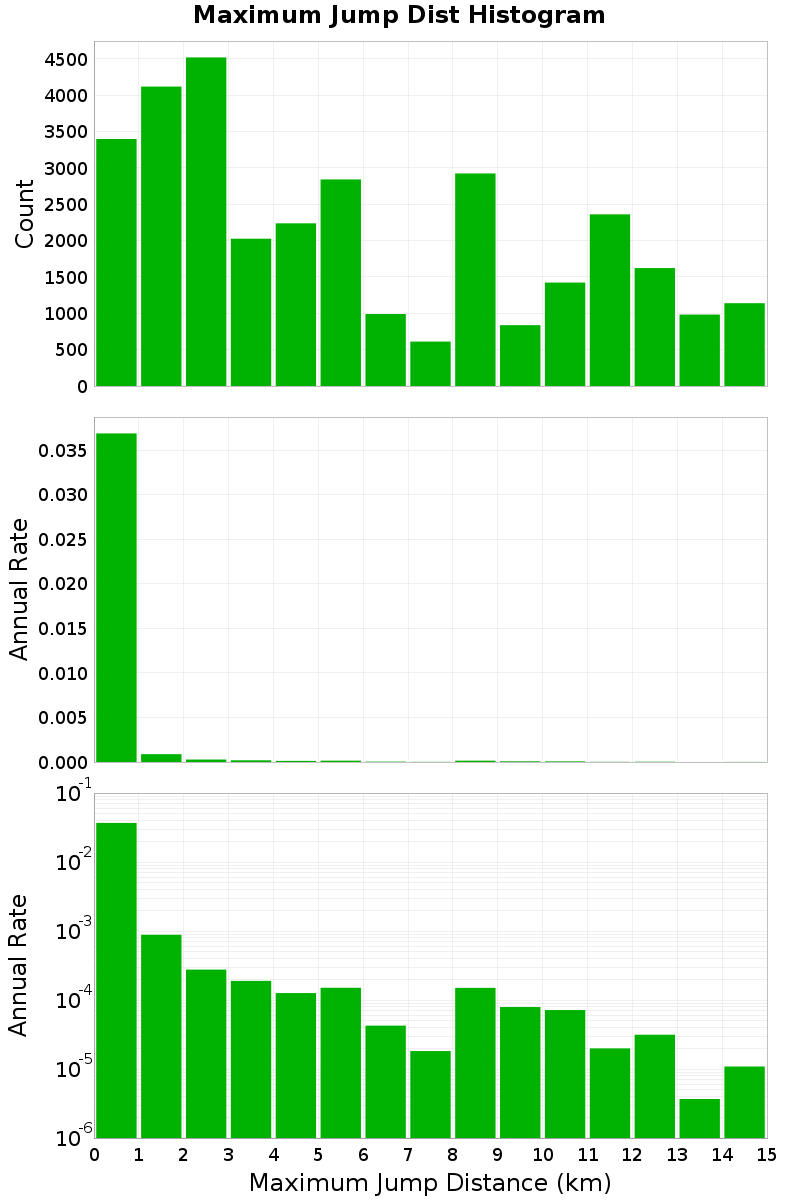

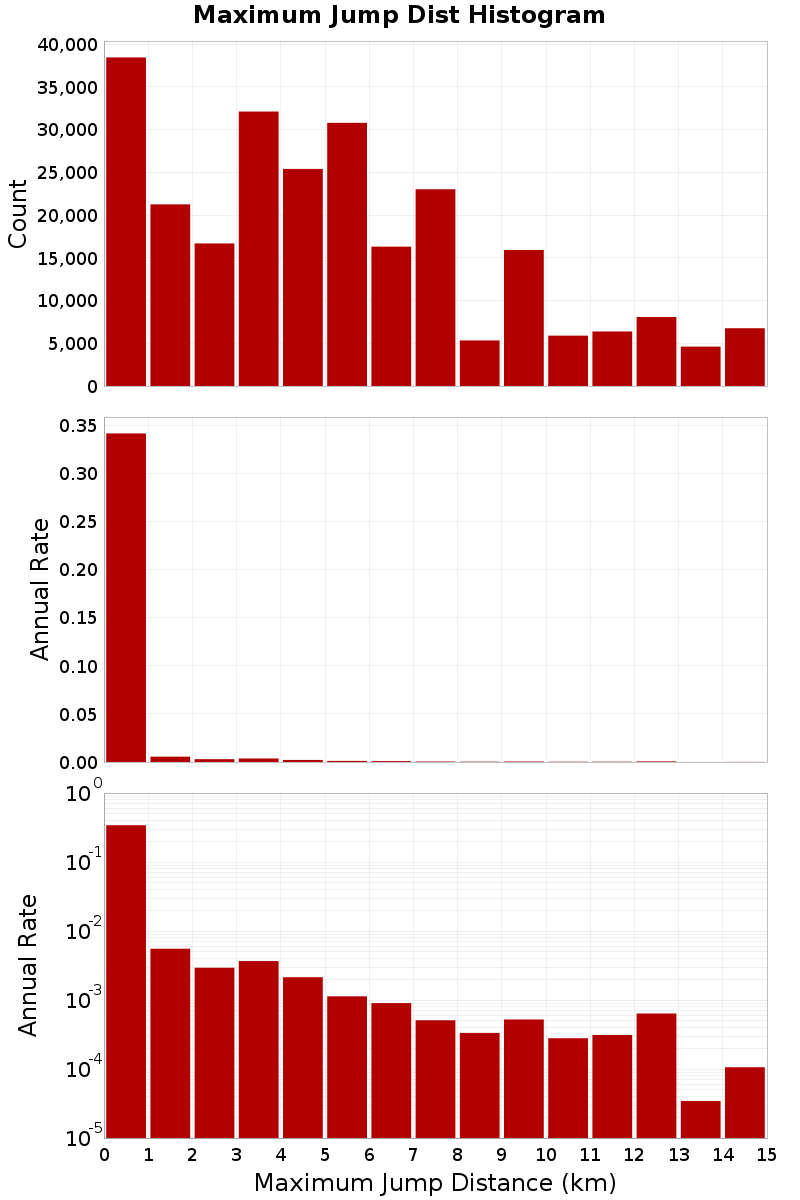

Maximum Jump Dist Mechanism-Specific Histograms

(top)

Right-Lateral SS	Left-Lateral SS	Reverse

Normal	Oblique

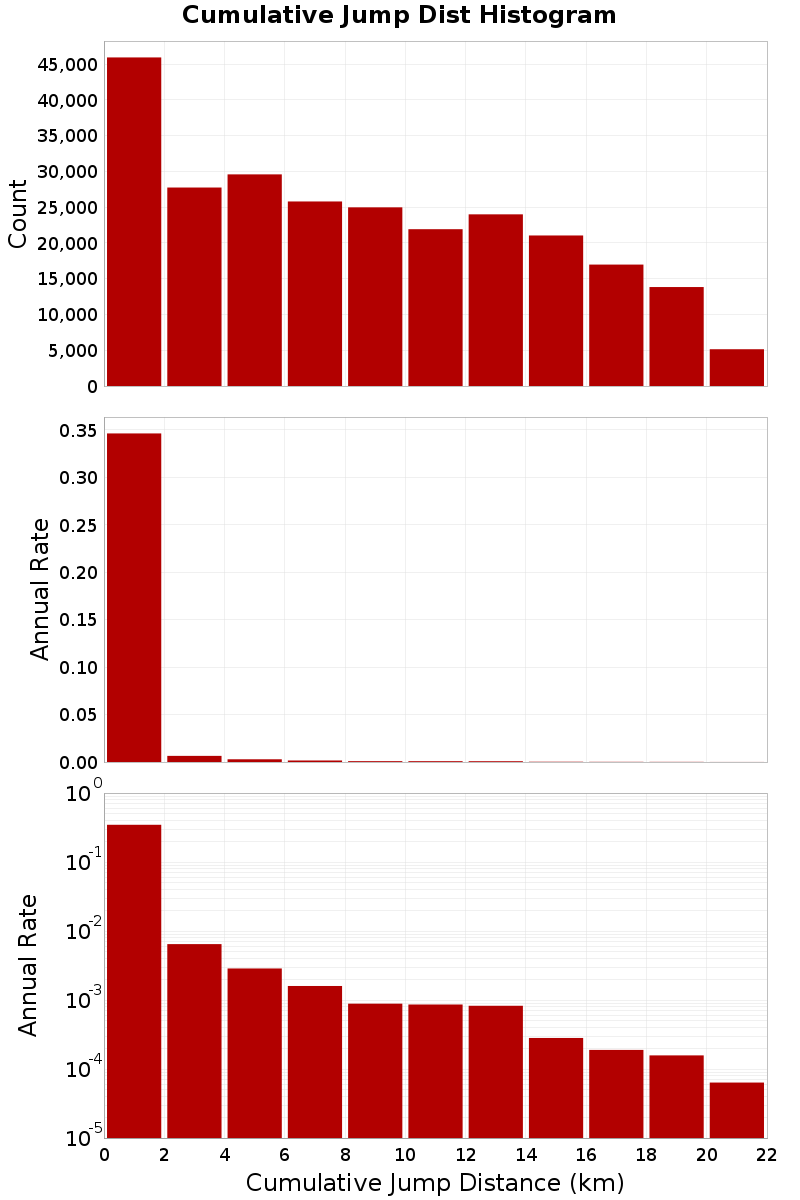

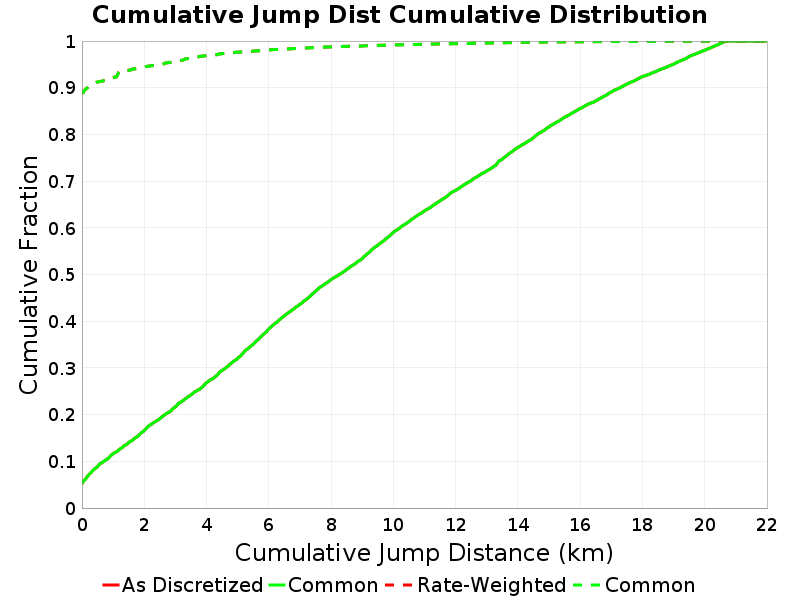

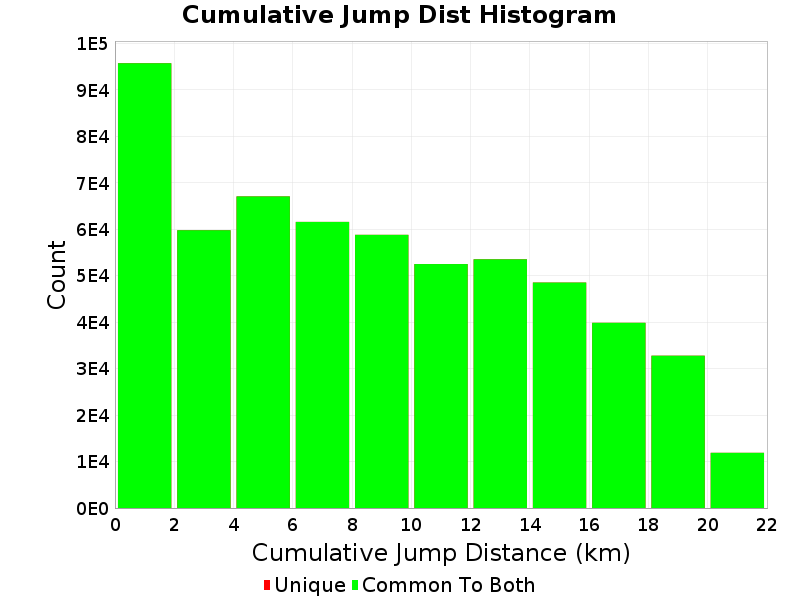

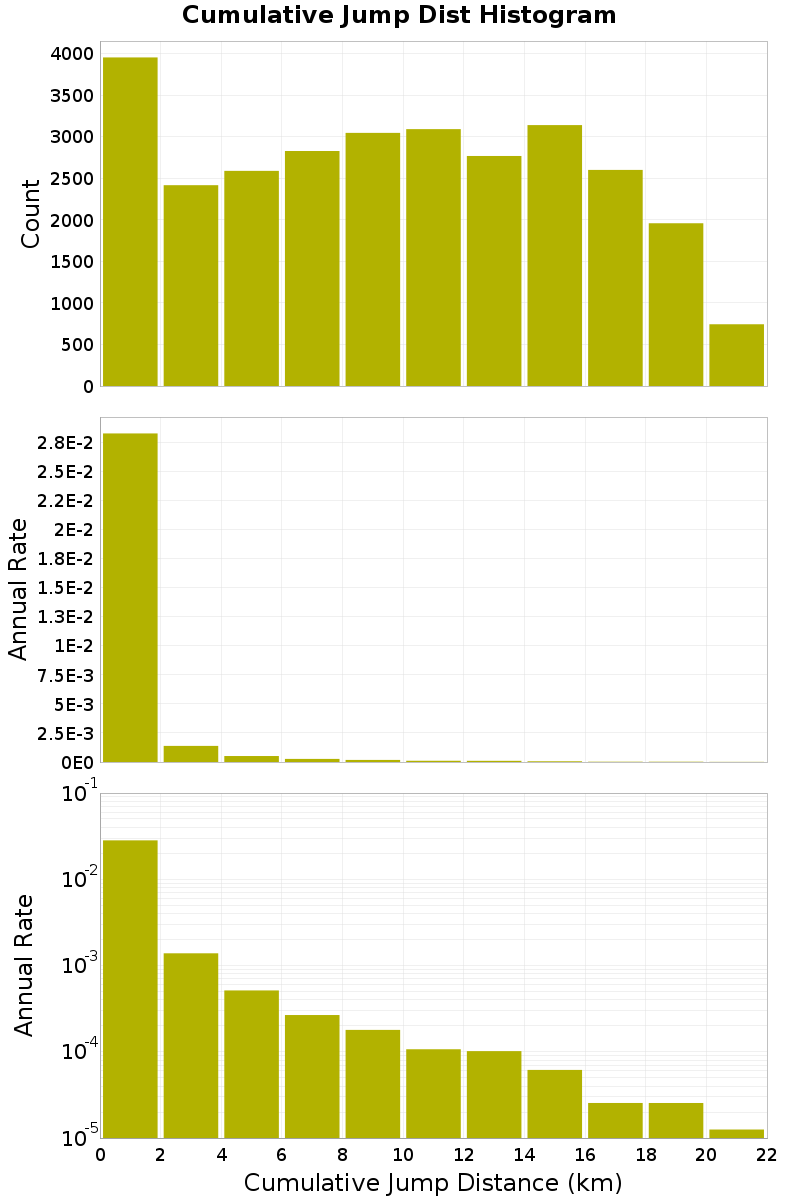

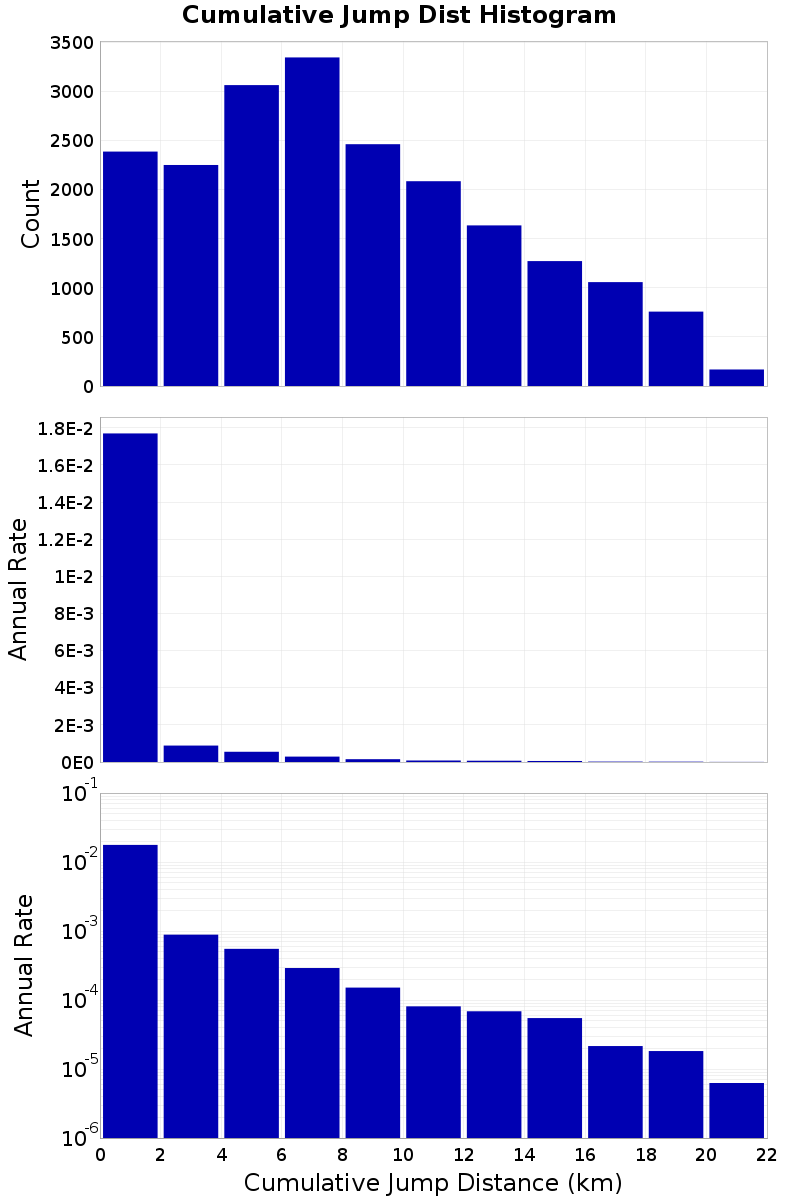

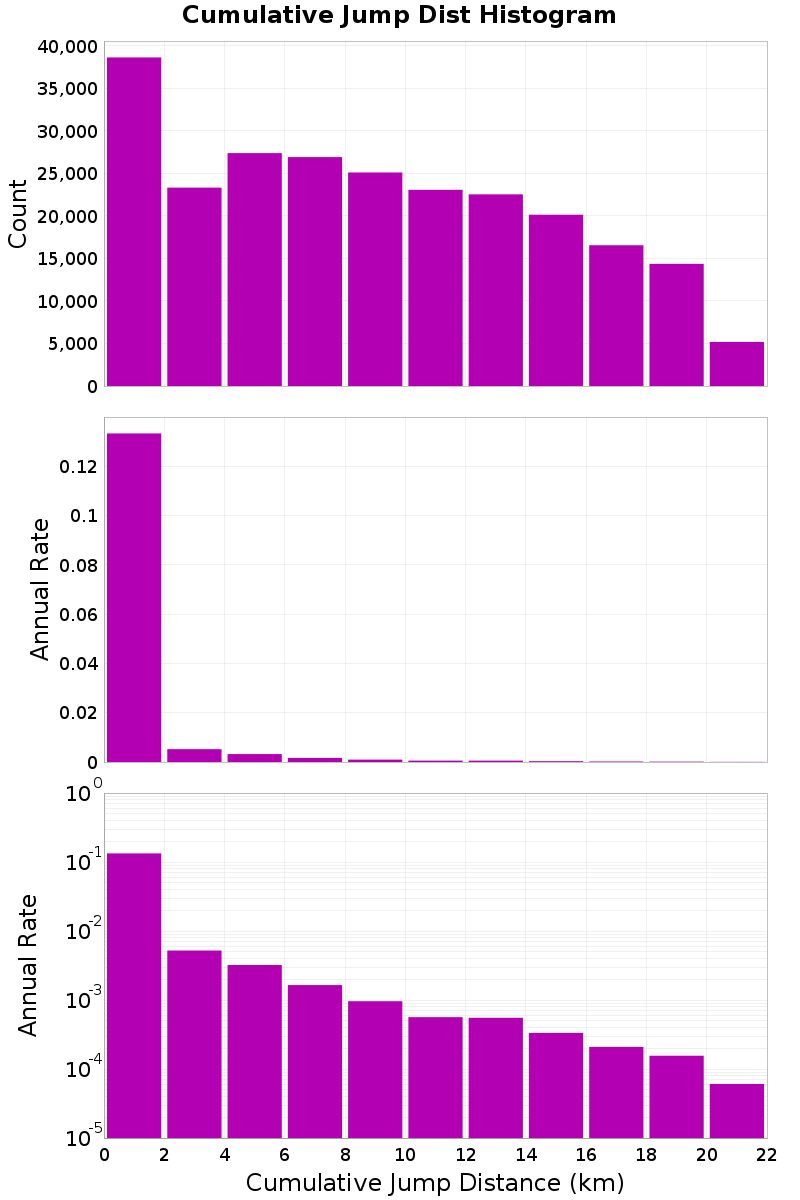

Cumulative Jump Dist

(top)

The total cumulative jump distance summed over all jumps in the rupture.

Updated	NSHM23 V2

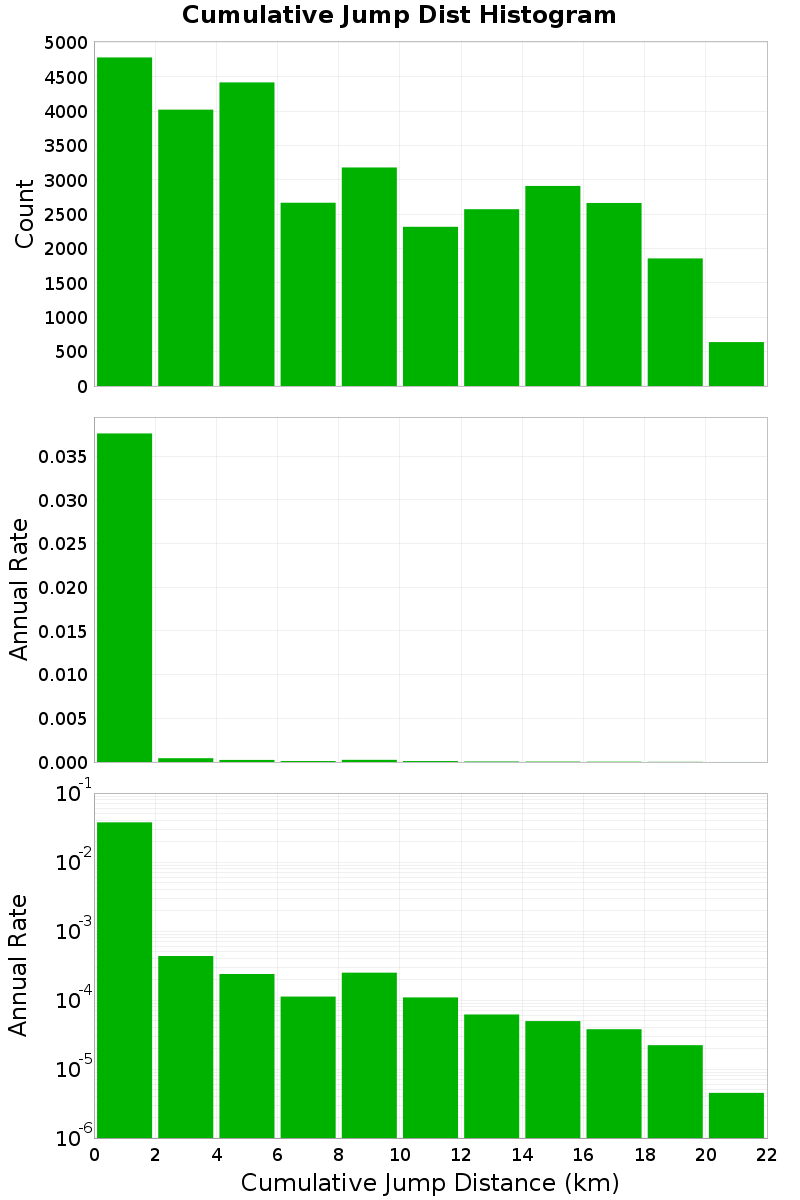

Cumulative Jump Dist Mechanism-Specific Histograms

(top)

Right-Lateral SS	Left-Lateral SS	Reverse

Normal	Oblique

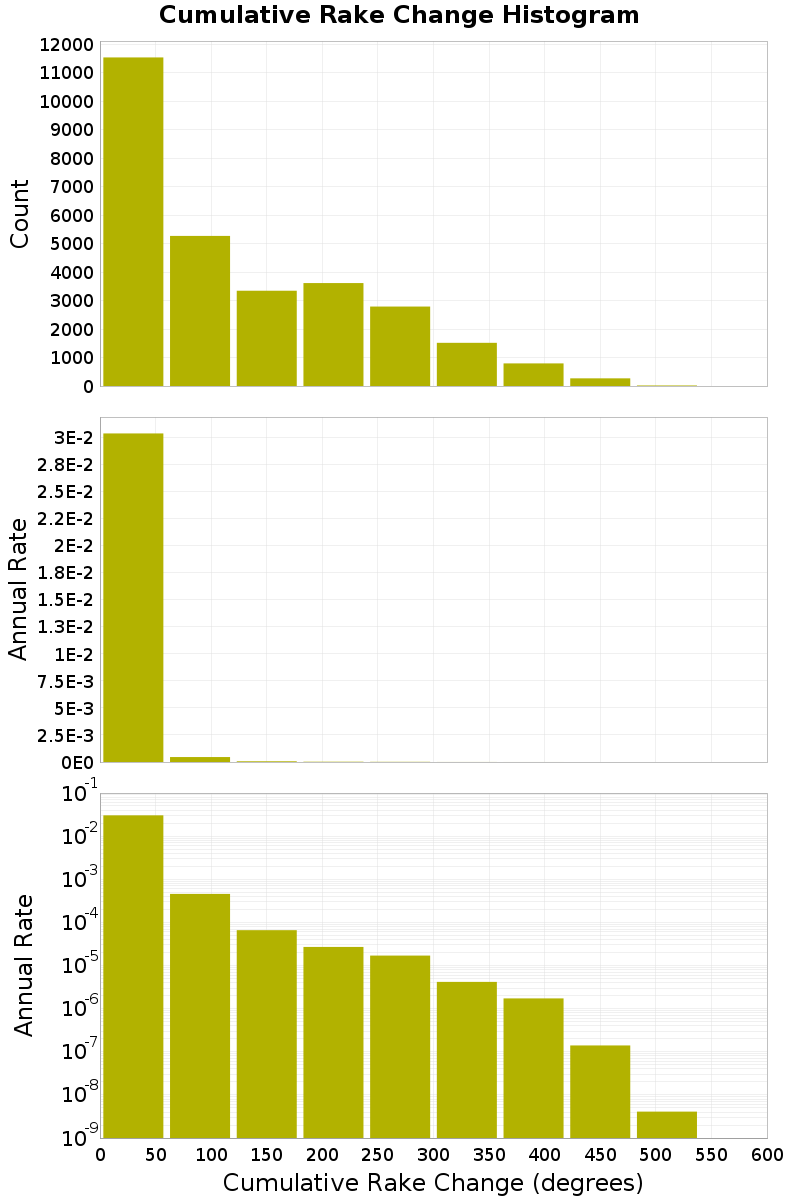

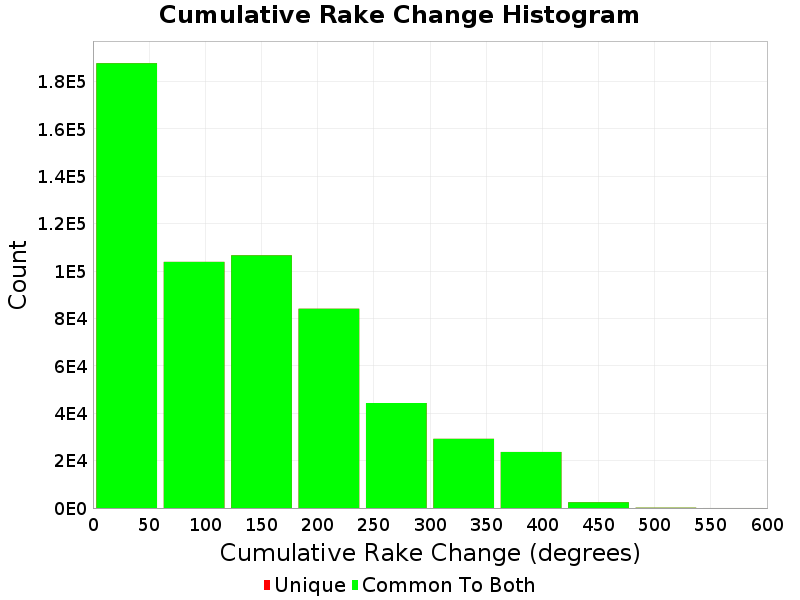

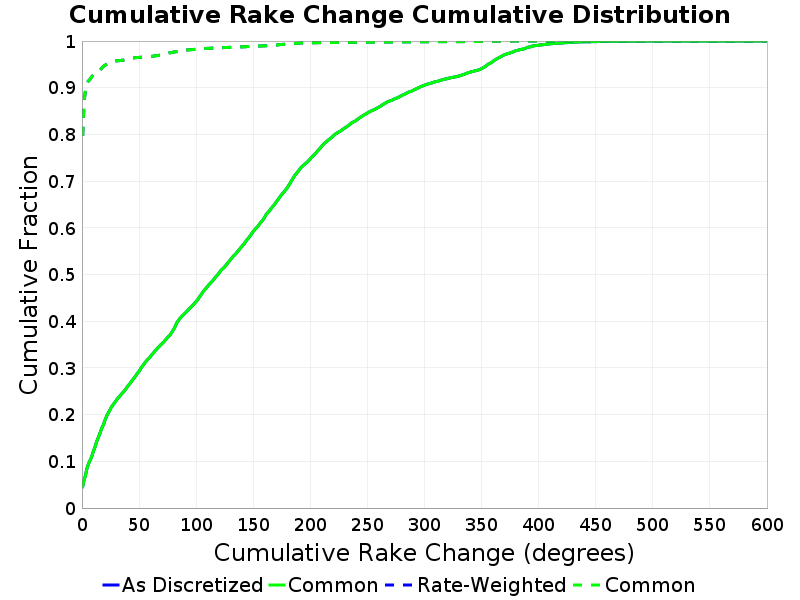

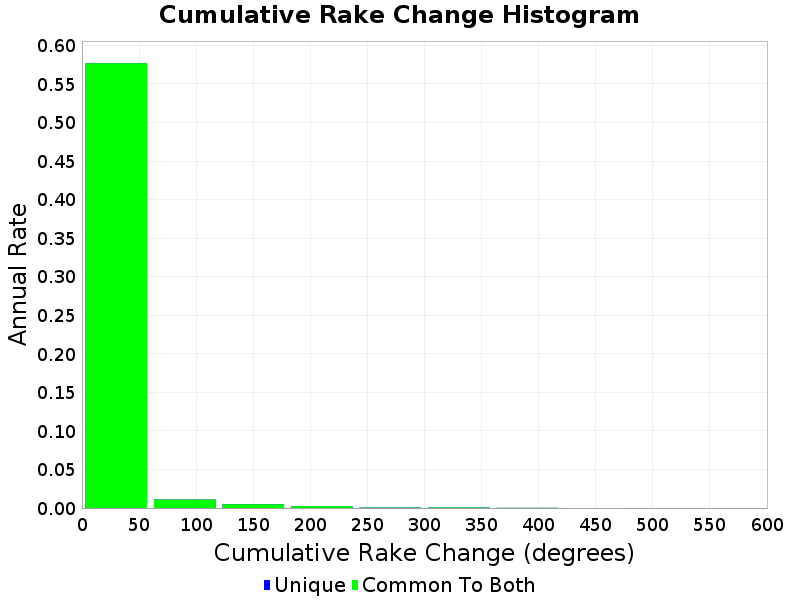

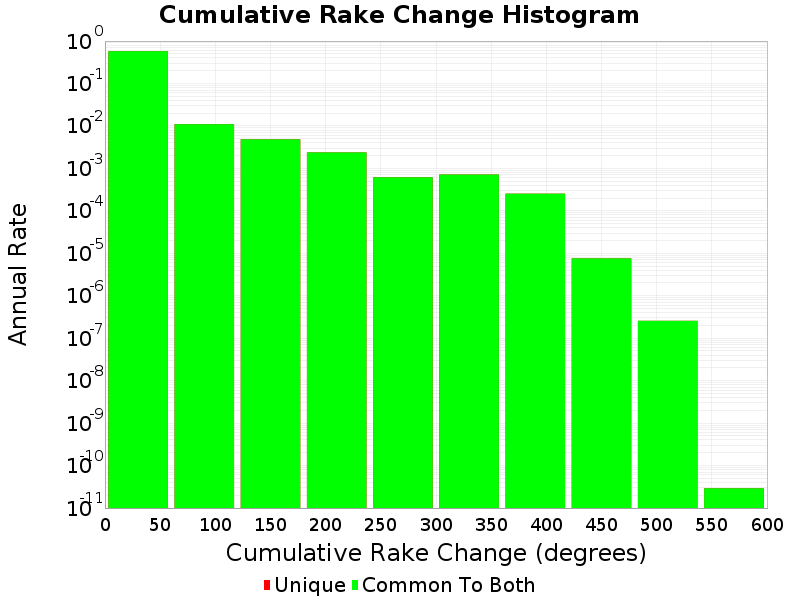

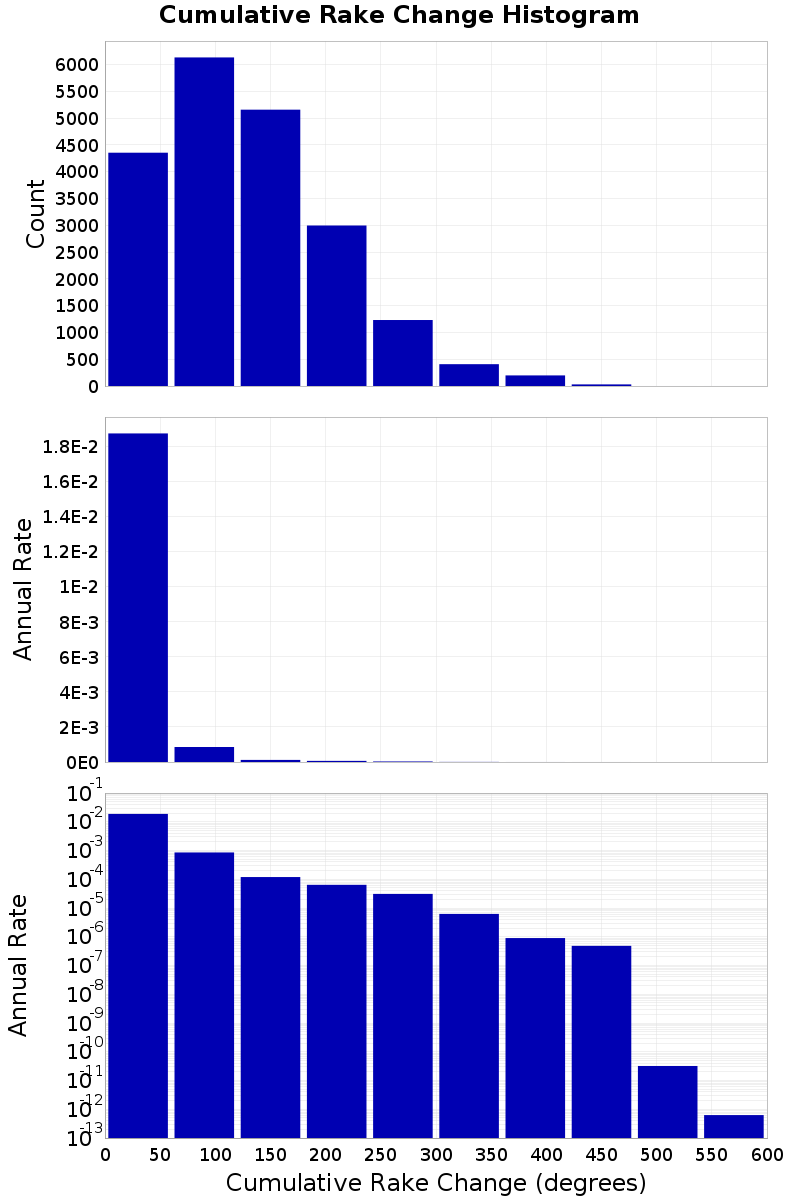

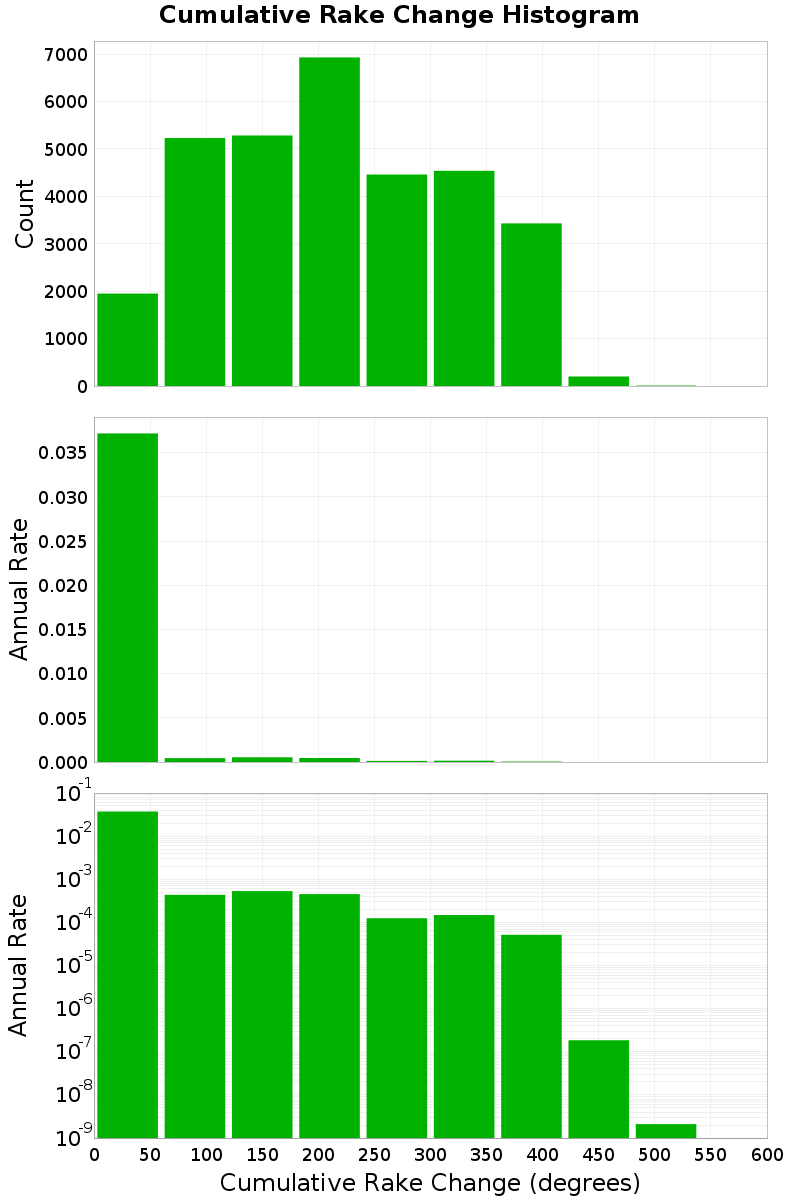

Cumulative Rake Change

(top)

Cumulative rake change for this rupture.

Updated	NSHM23 V2

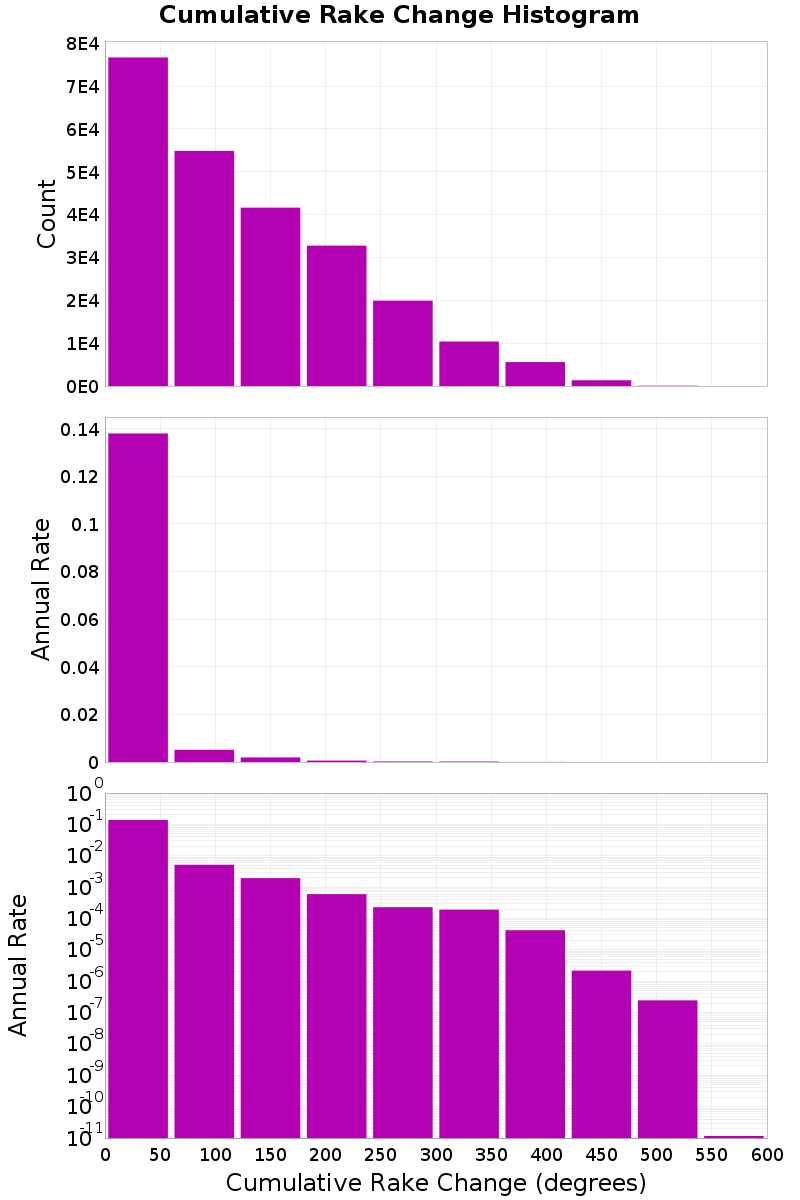

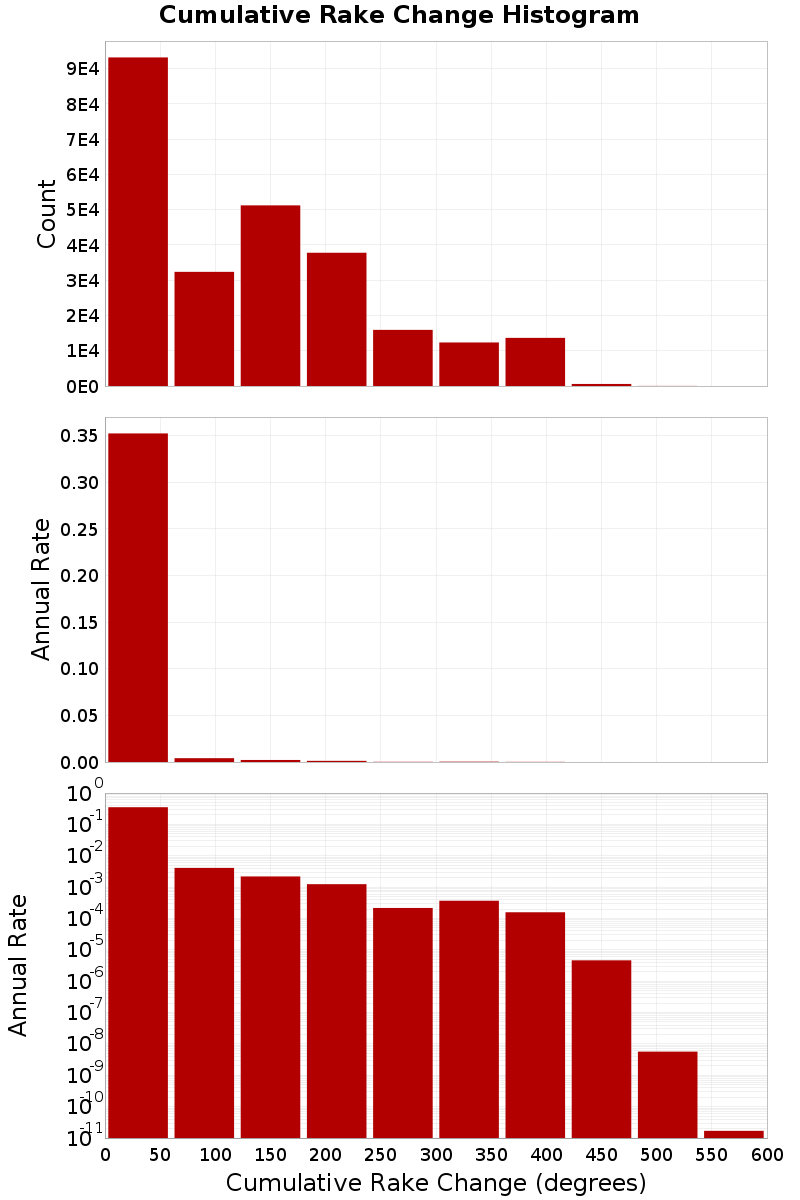

Cumulative Rake Change Mechanism-Specific Histograms

(top)

Right-Lateral SS	Left-Lateral SS	Reverse

Normal	Oblique

Subsection Maximum Values

(top)

These plots show the maximum value of various quantities across all ruptures for which each individual subsection participates. This is useful, for example, to find sections with low maximum magnitudes (due to low or no connectivity).

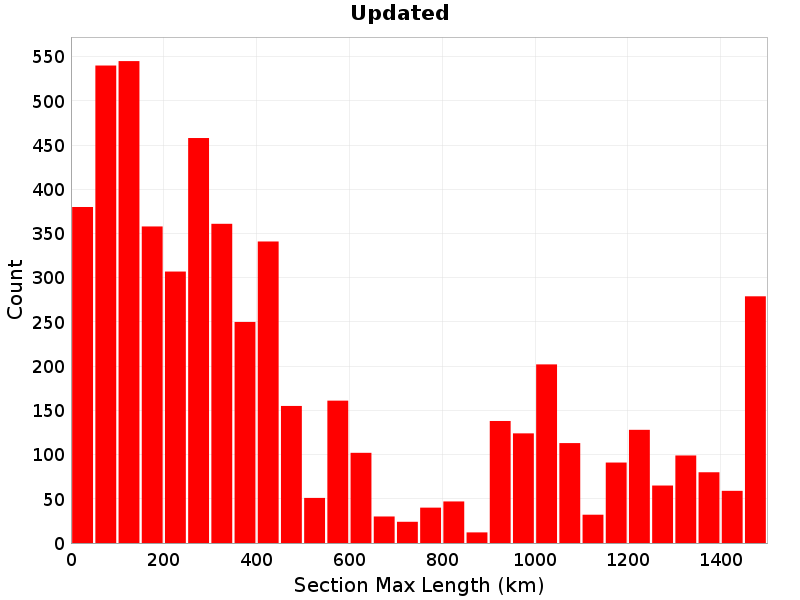

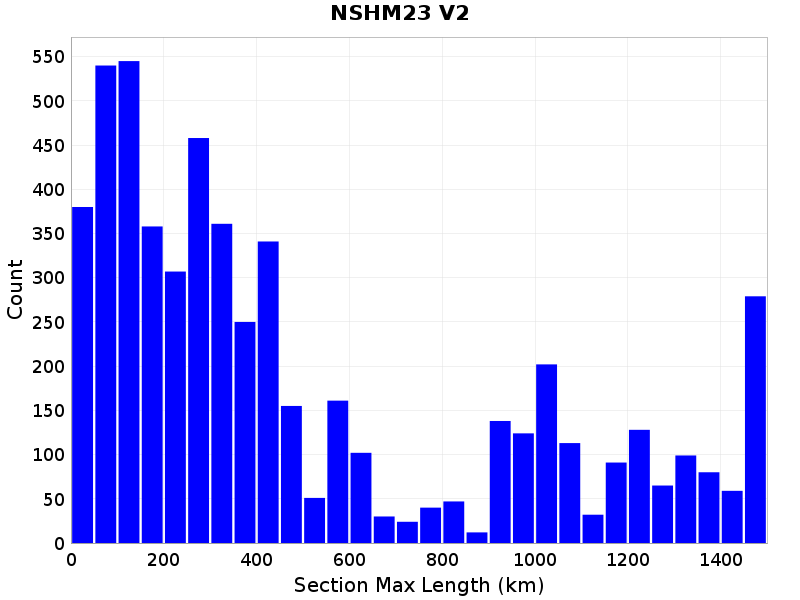

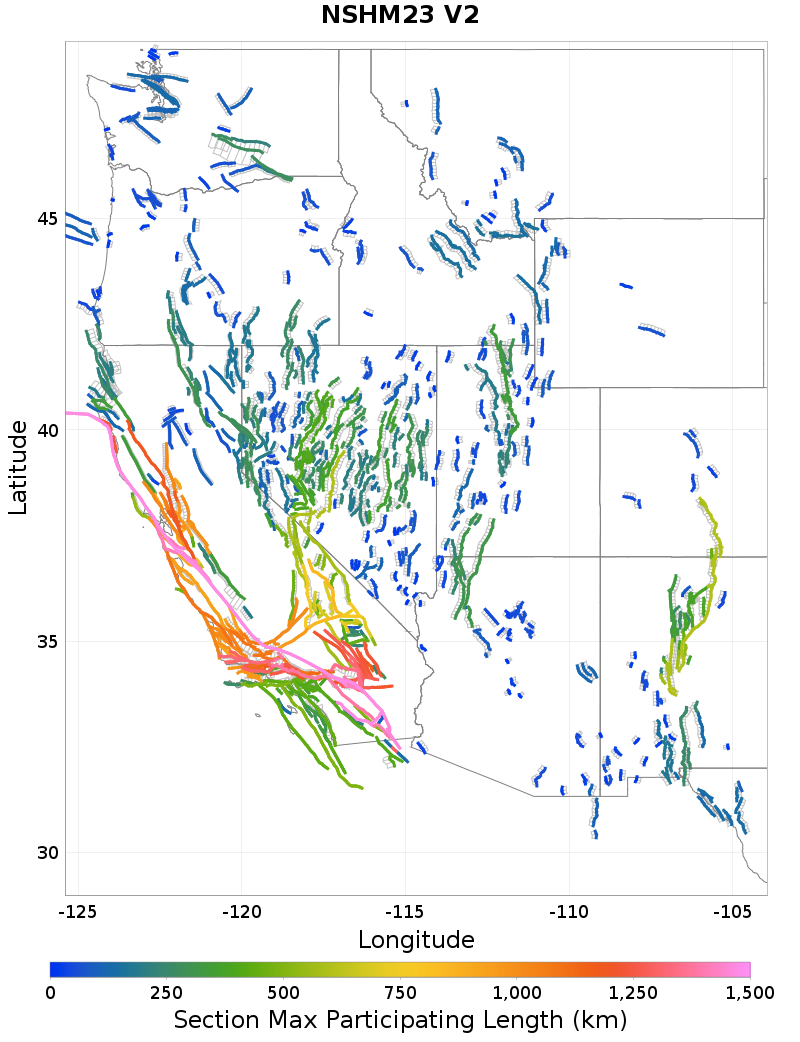

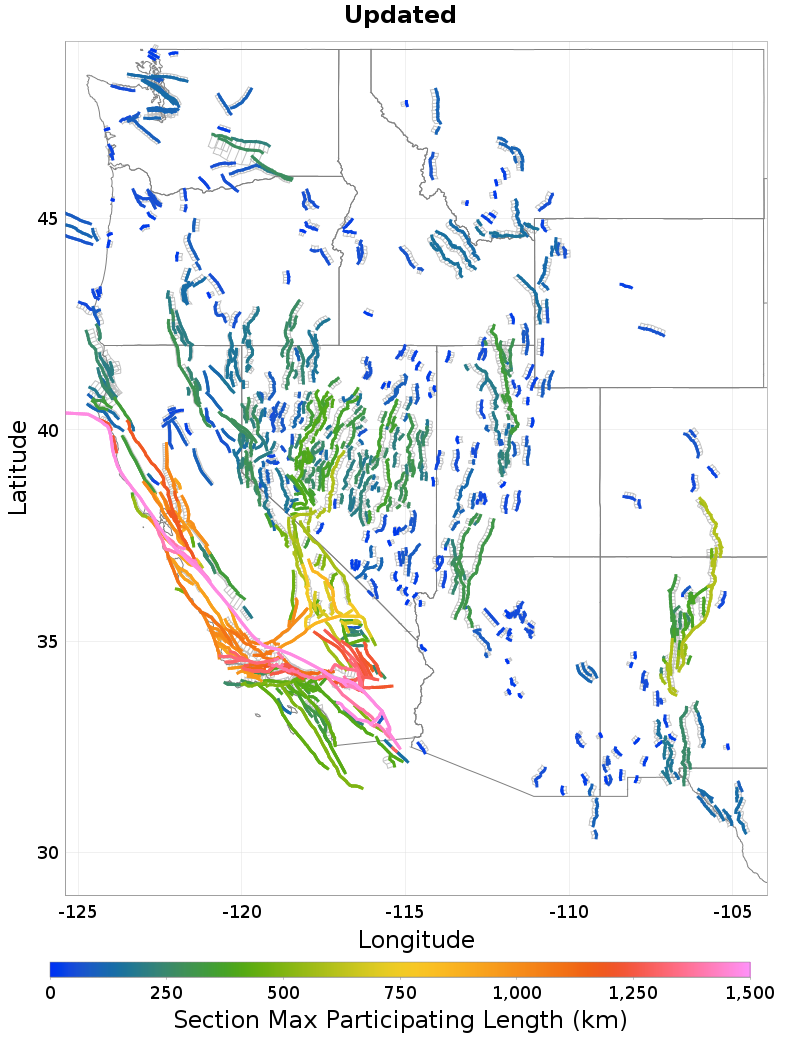

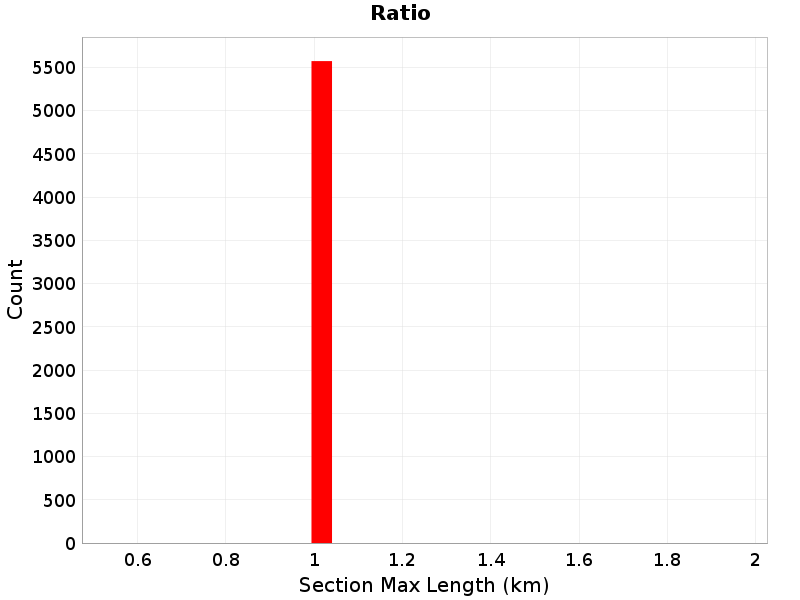

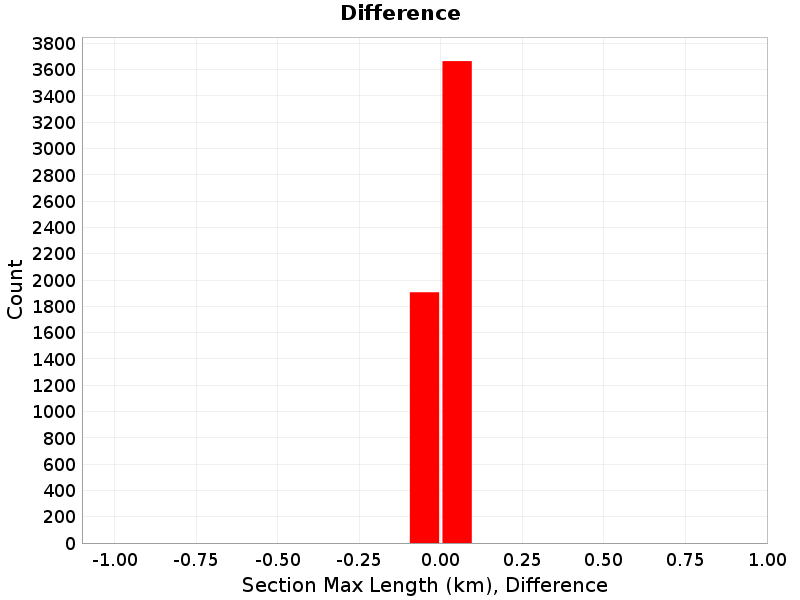

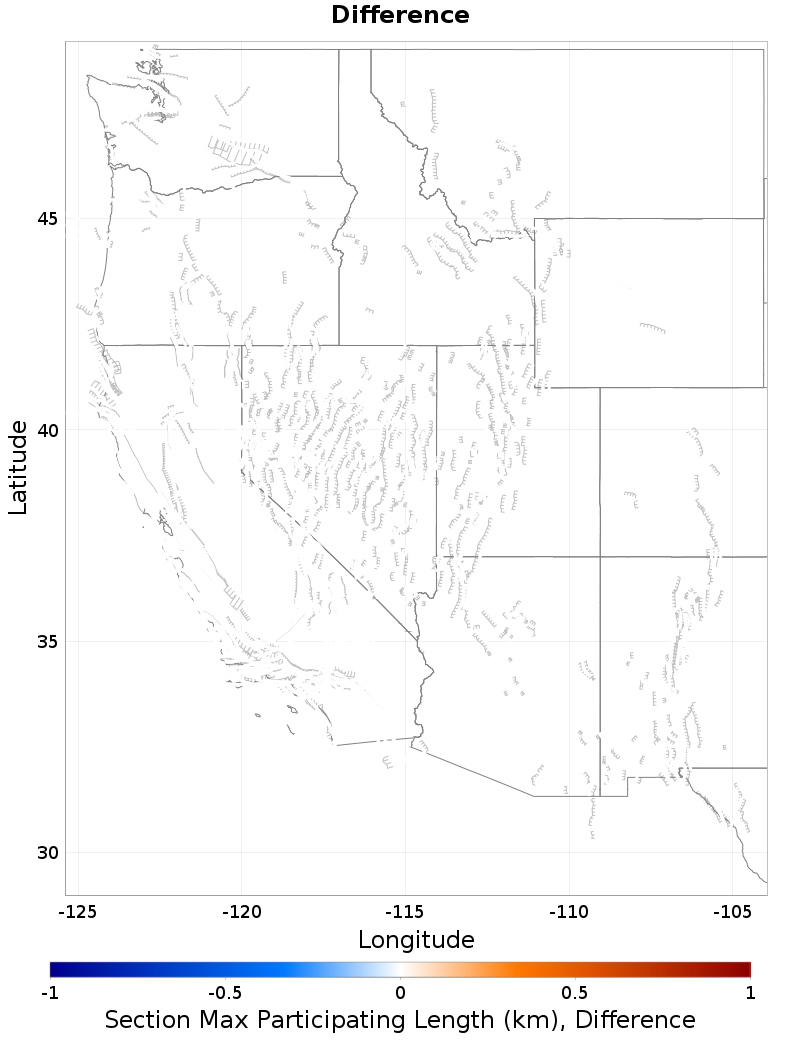

Subsection Maximum Rupture Length

(top)

Updated	NSHM23 V2

Download GeoJSON	Download GeoJSON

Difference	Ratio

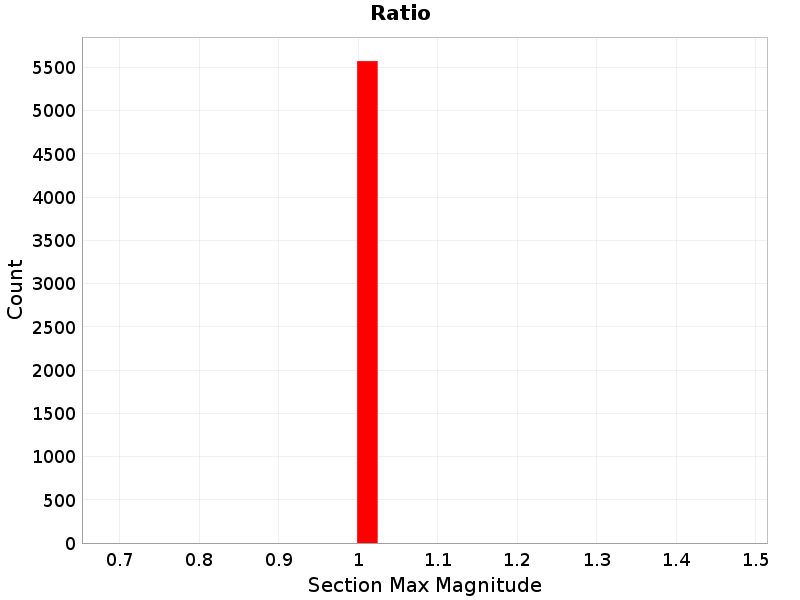

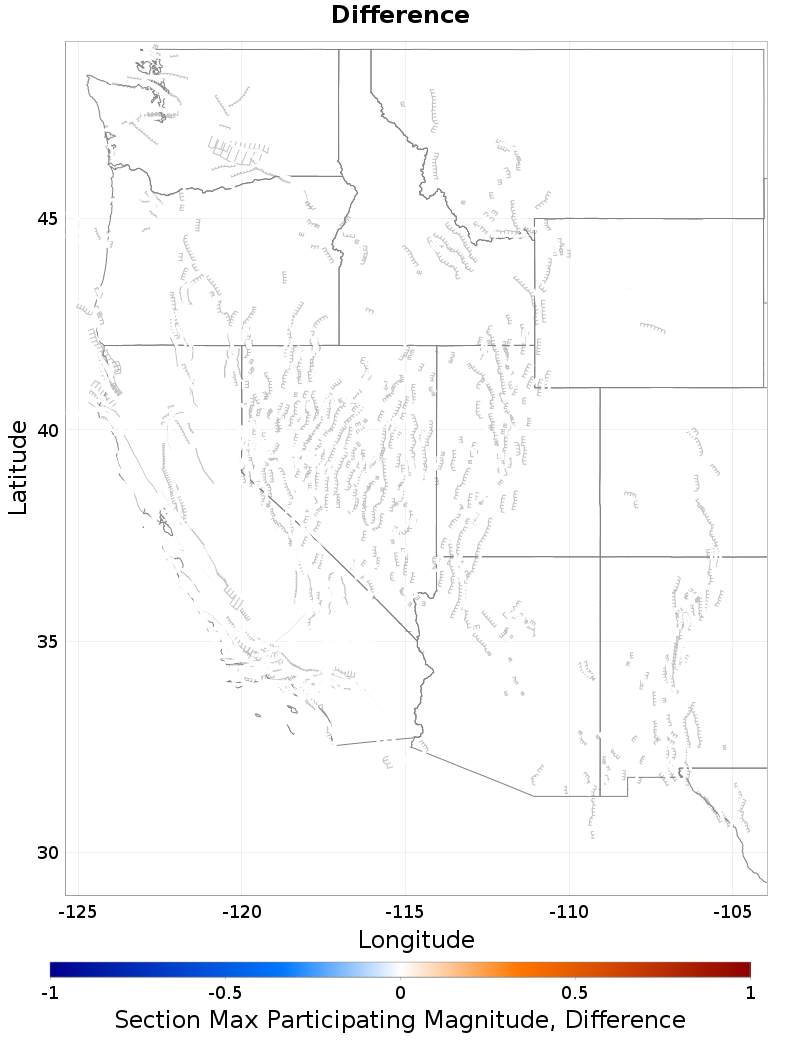

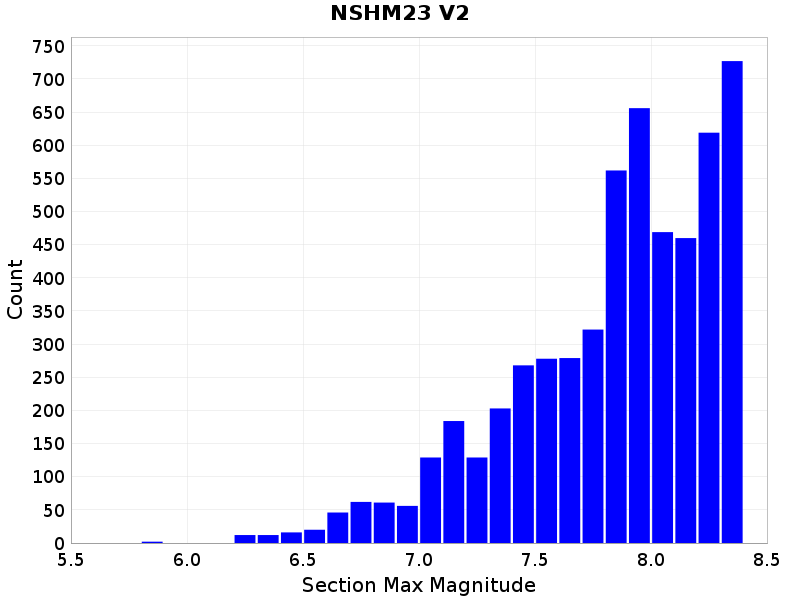

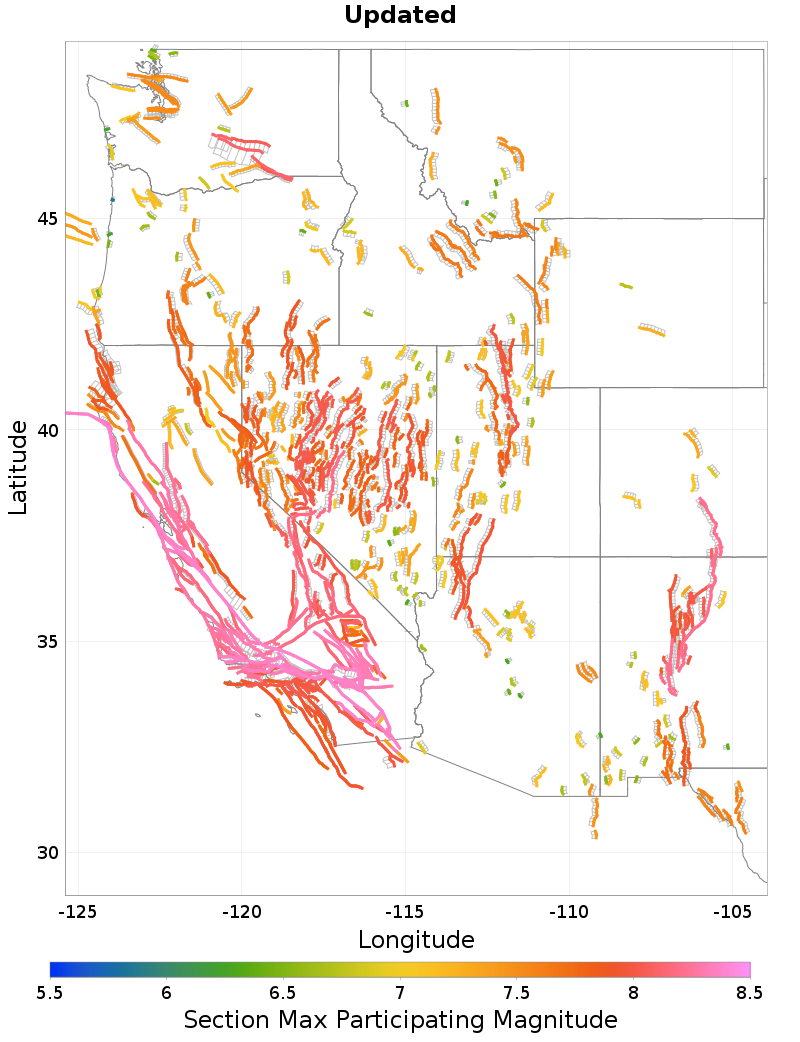

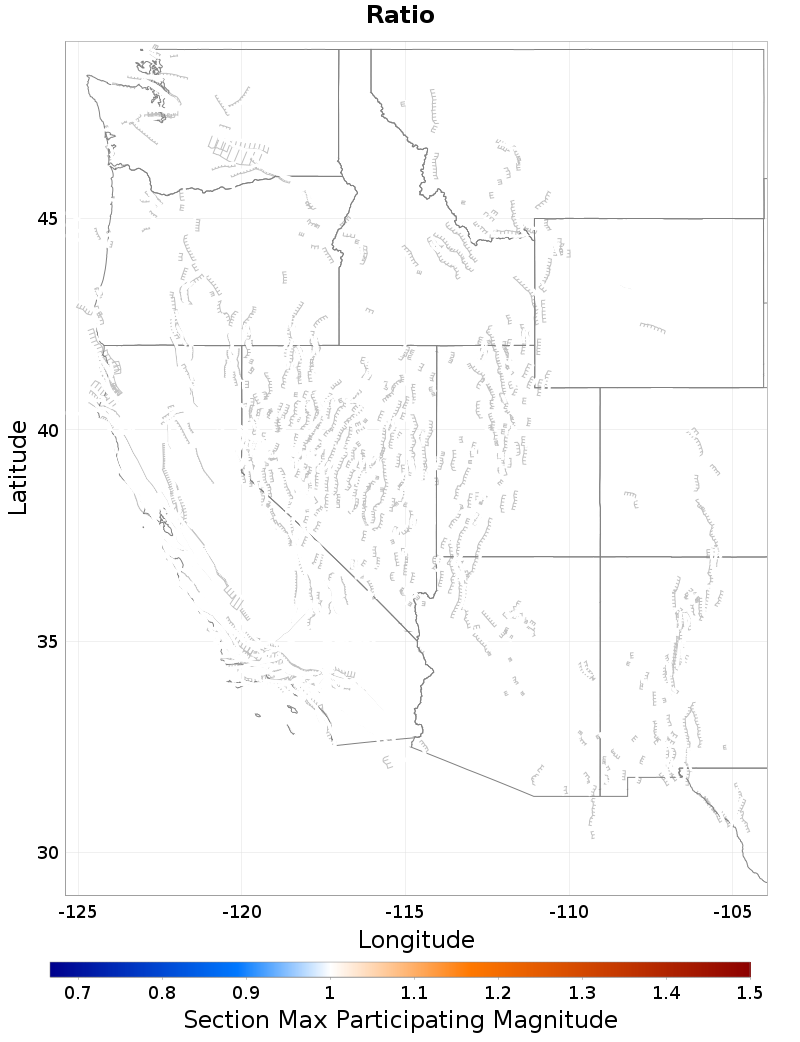

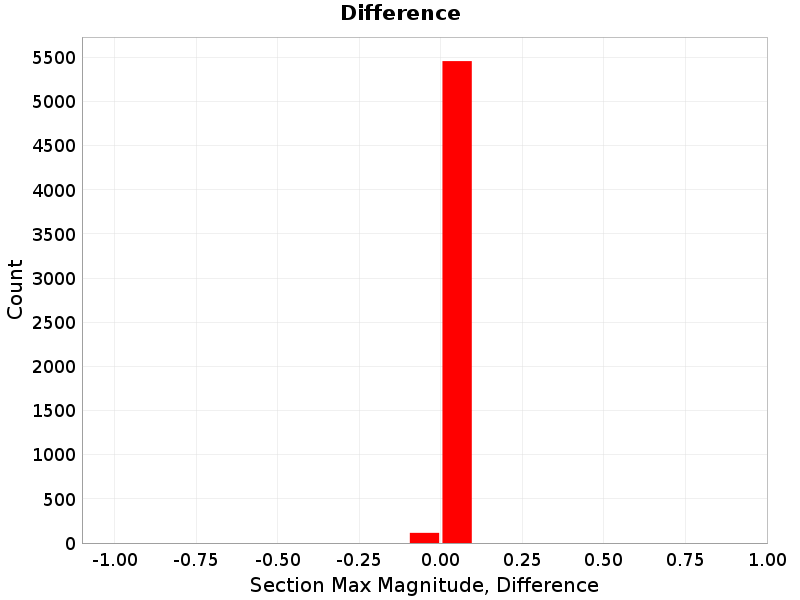

Subsection Maximum Rupture Magnitude

(top)

Updated	NSHM23 V2

Download GeoJSON	Download GeoJSON

Difference	Ratio

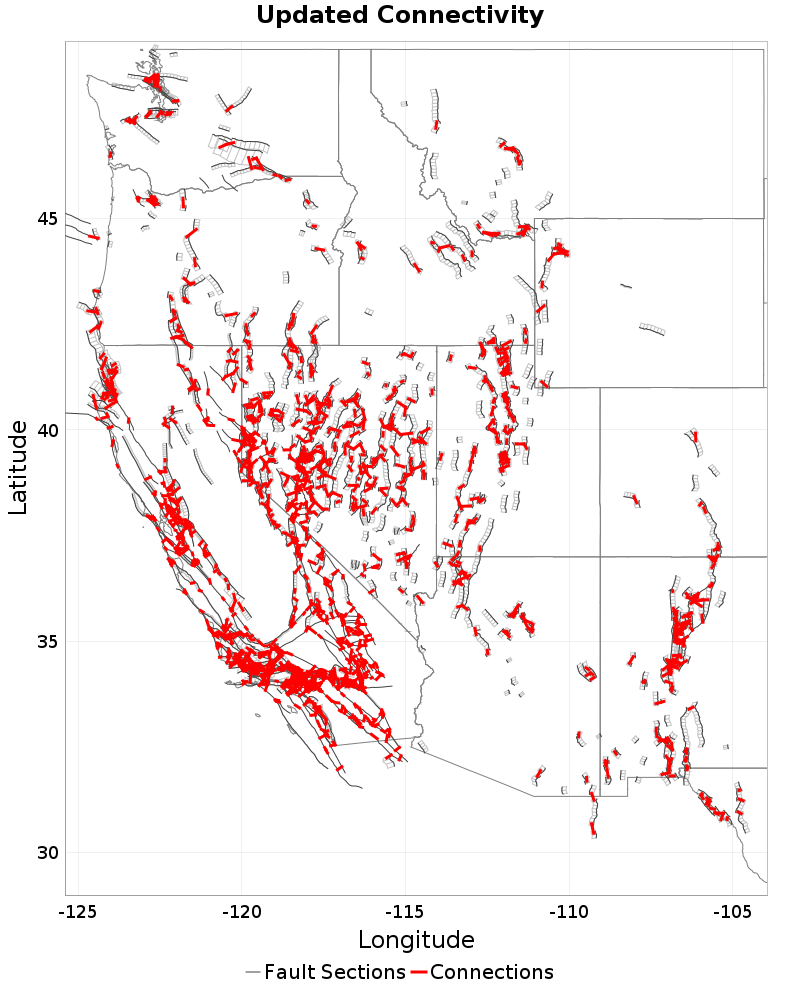

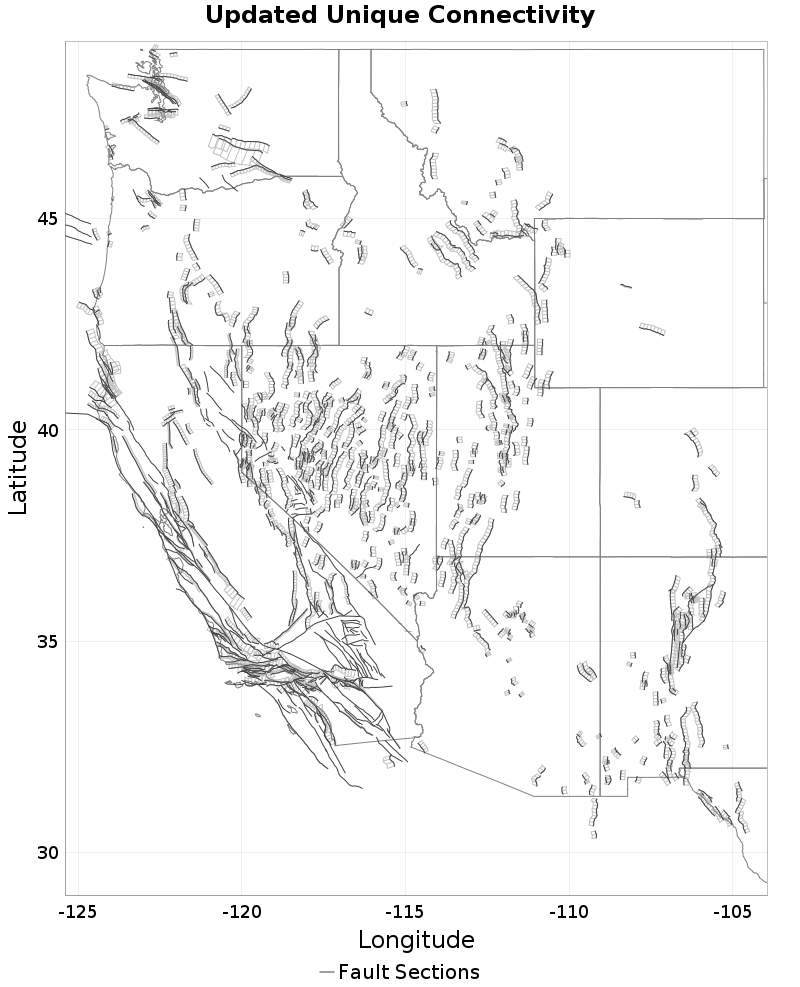

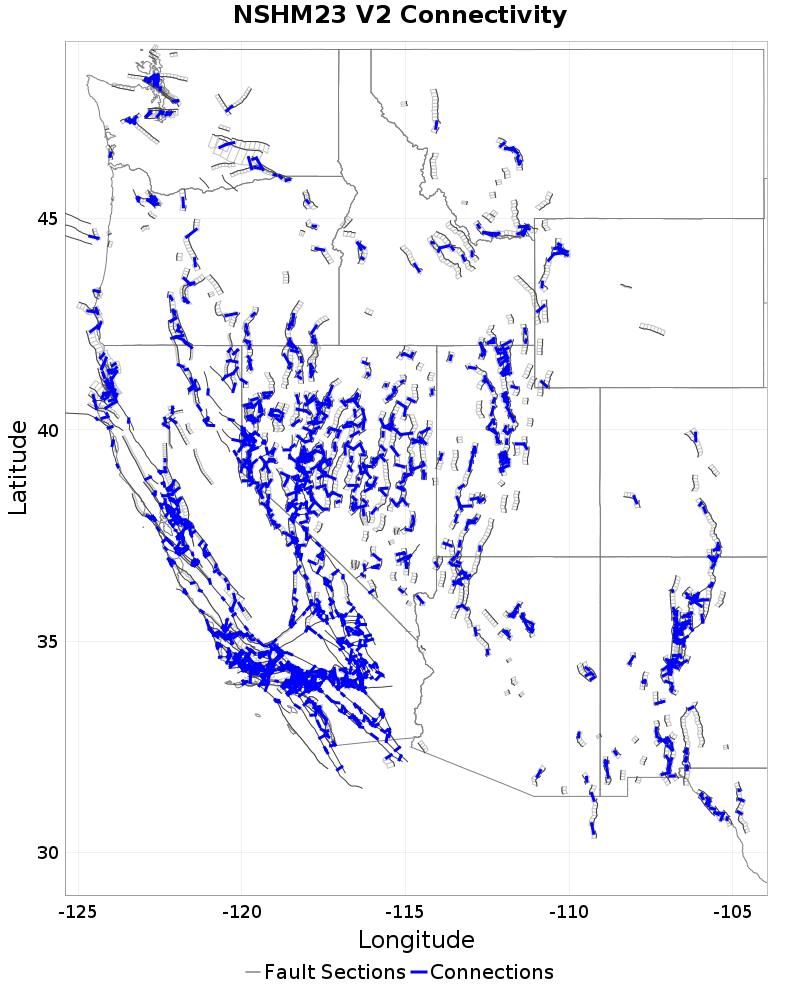

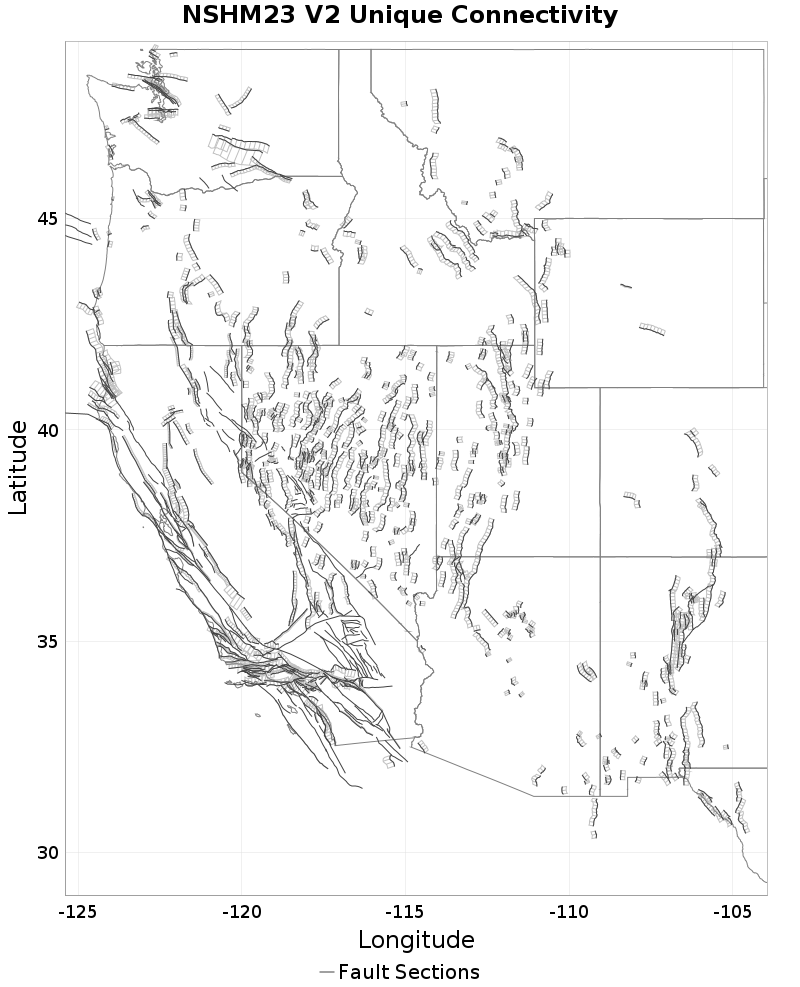

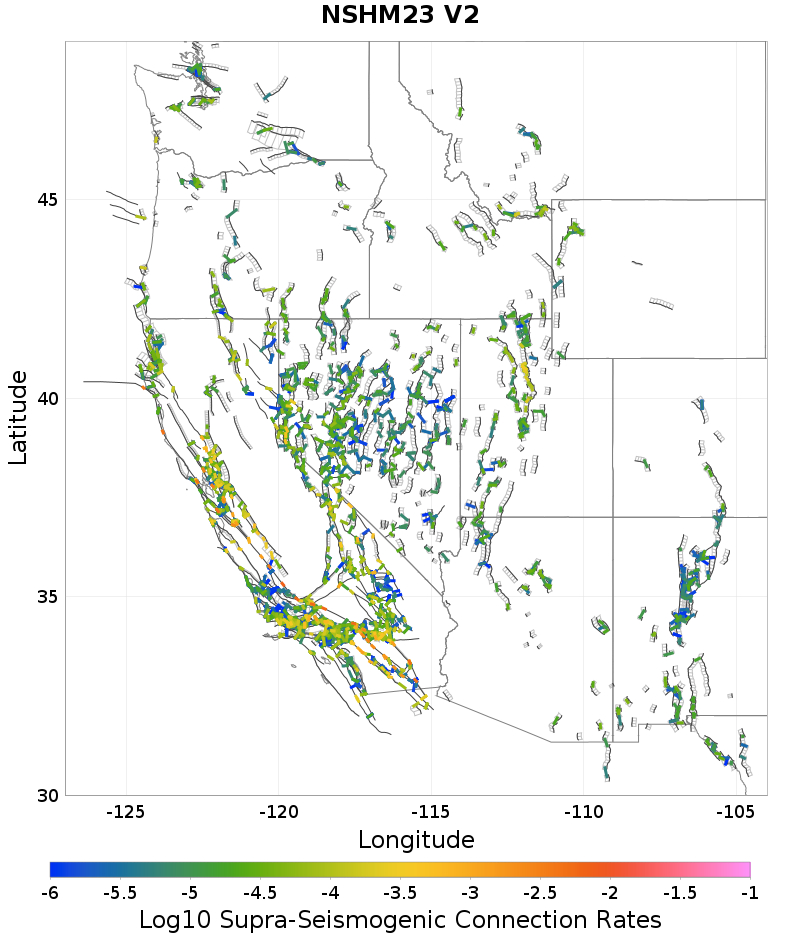

Fault Section Connections

(top)

View high resolution		Download GeoJSON	Download Jumps-Only GeoJSON

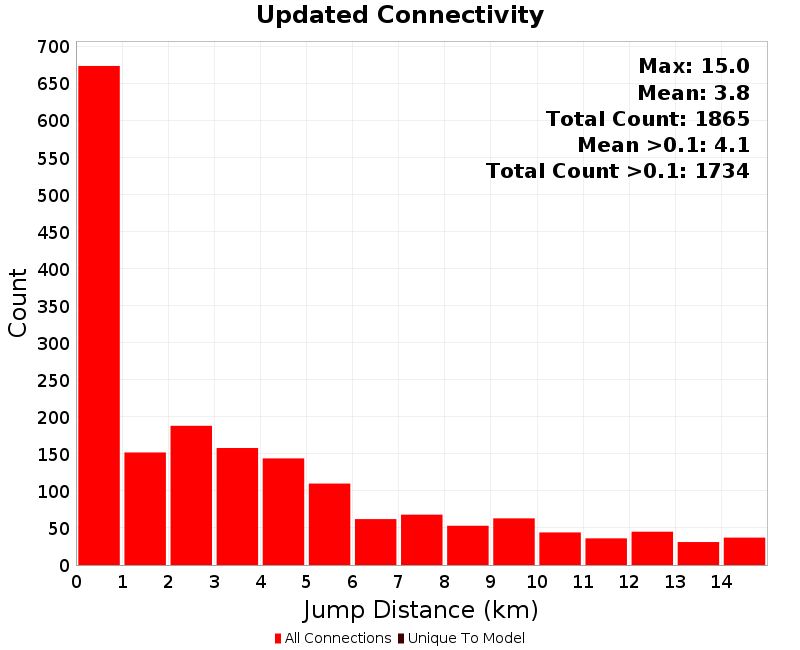

Jump Overlaps

(top)

	Updated	NSHM23 V2
Total Count	1865	1865
# Unique Jumps	0 (0.00%)	0 (0.00%)
Unique Jump Rate	0.0 (0.00%)	0.0 (0.00%)

Updated	NSHM23 V2

Download GeoJSON	Download GeoJSON

Download GeoJSON	Download GeoJSON

Unique Connection Example Ruptures

(top)

New Ruptures with Unique Connections

(N/A)

NSHM23 V2 Ruptures with Unique Connections

(N/A)

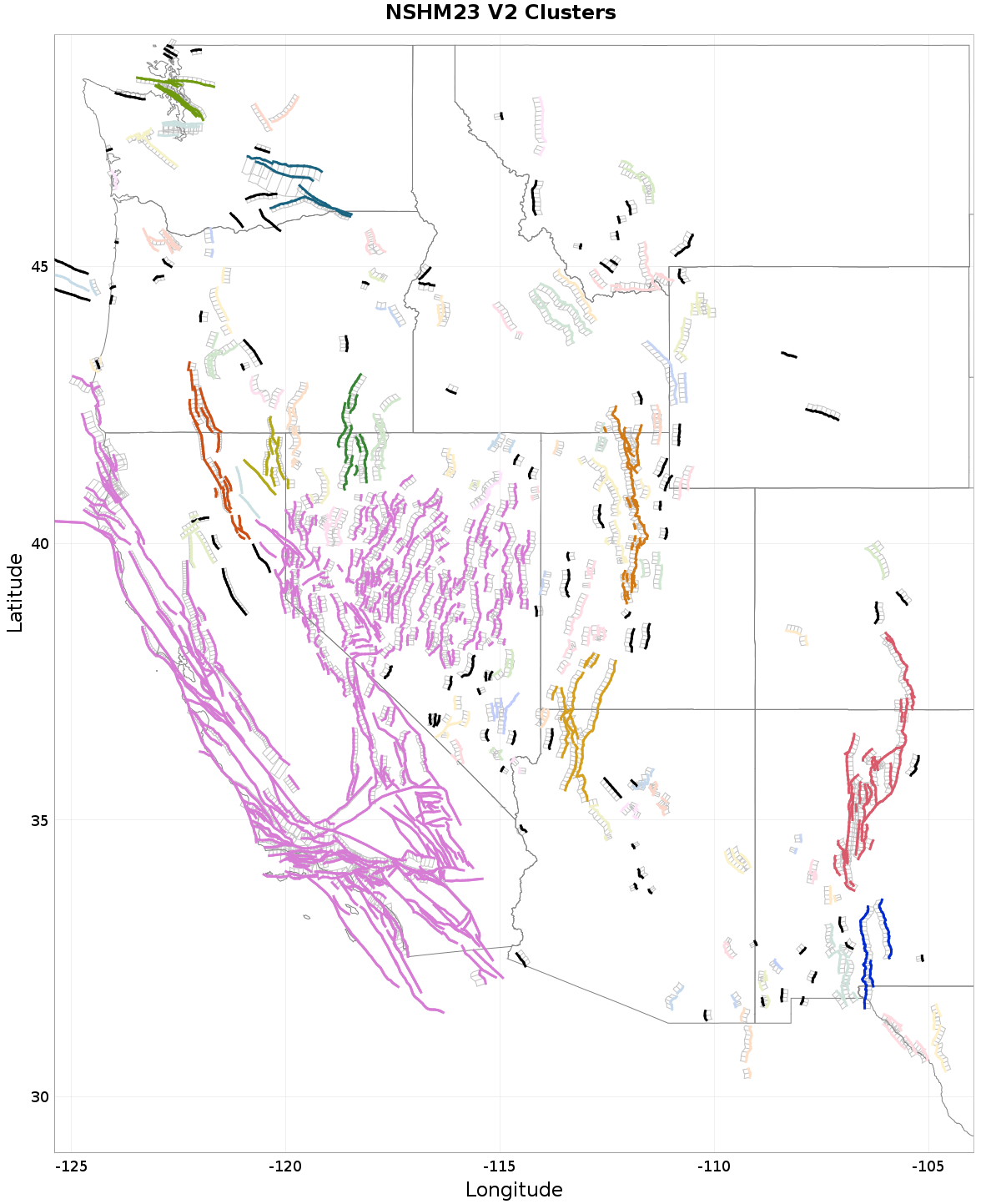

Connected Clusters

(top)

Connected clusters of fault sections, where all sections plotted in a given color connect with all other sections of the same color through ruptures. There may not be any single rupture that connects all such sections, but rather, chains of ruptures connect the sections. Only the first 10 clusters are plotted with bold colors; smaller clusters are plotted in random saturated colors (note that neighboring clusters can be similar colors by chance), and fully isolated faults are plotted in black.

Updated	NSHM23 V2

Download GeoJSON	Download GeoJSON

Rank	Sections	Parent Sections	Ruptures
1	3,429 (61.54%)	515 (50.69%)	522,885 (89.84%)
2	213 (3.82%)	46 (4.53%)	36,049 (6.19%)
3	124 (2.23%)	18 (1.77%)	3,365 (0.58%)
4	108 (1.94%)	32 (3.15%)	6,861 (1.18%)
5	97 (1.74%)	15 (1.48%)	1,950 (0.34%)
6	70 (1.26%)	7 (0.69%)	1,195 (0.21%)
7	61 (1.09%)	7 (0.69%)	650 (0.11%)
8	56 (1.01%)	10 (0.98%)	1,760 (0.30%)
9	49 (0.88%)	7 (0.69%)	458 (0.08%)
10	46 (0.83%)	6 (0.59%)	736 (0.13%)
11->80	989 (17.75%)	262 (25.79%)	5,413 (0.93%)
91 isolated	330 (5.92%)	91 (8.96%)	682 (0.12%)

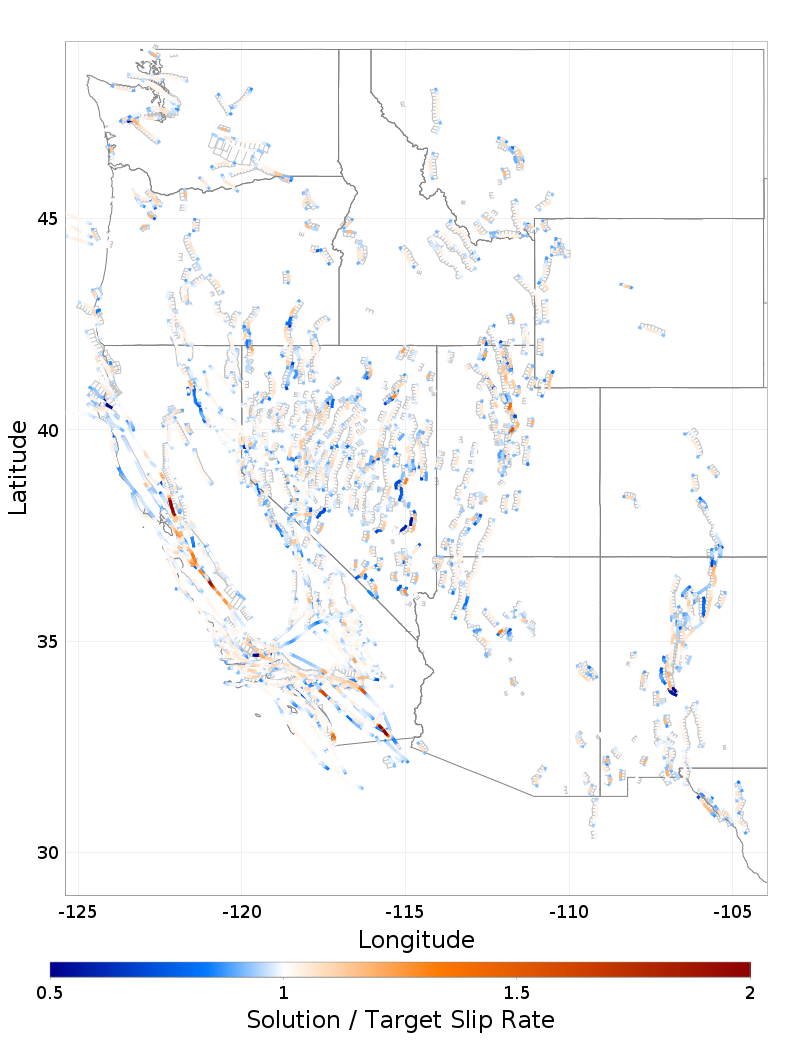

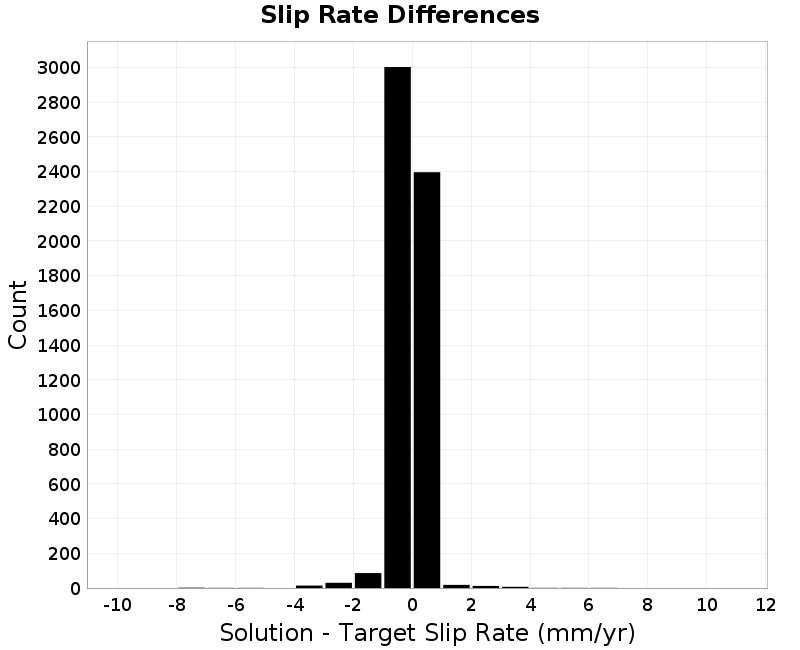

Slip Rates

(top)

Download CSV file with slip rate data: slip_rates.csv

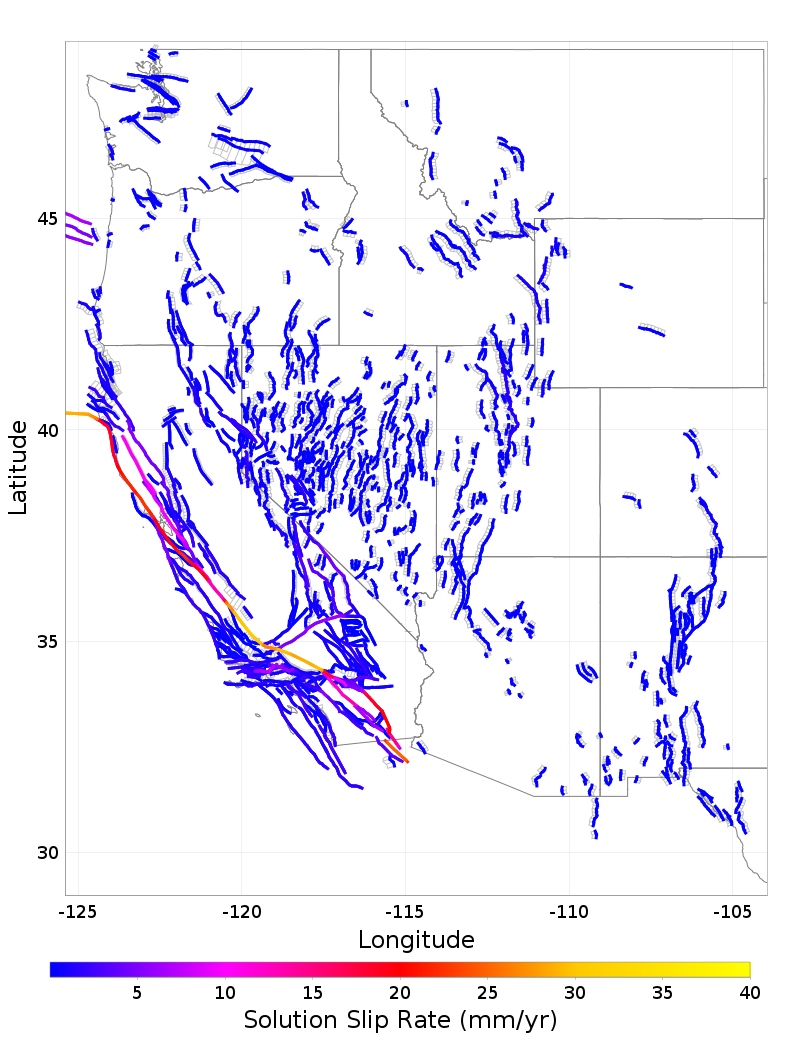

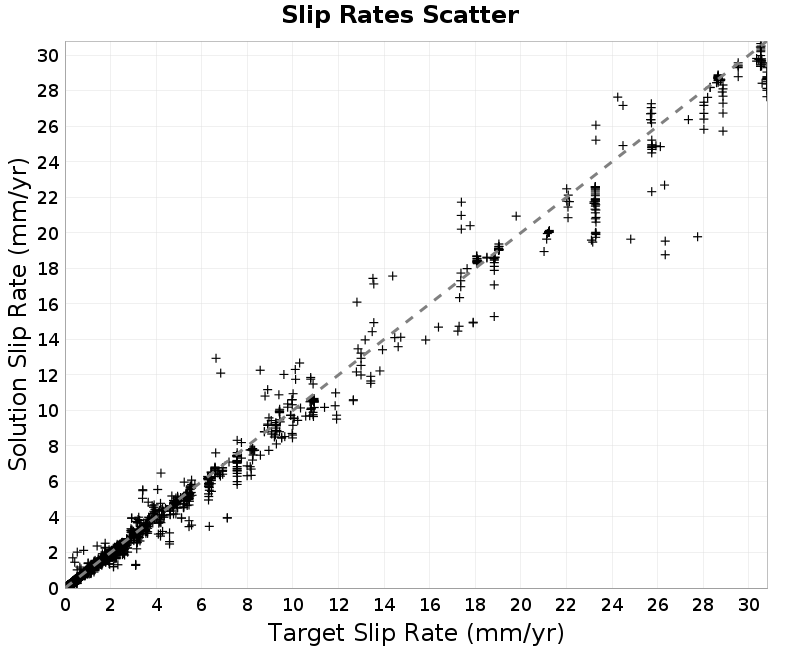

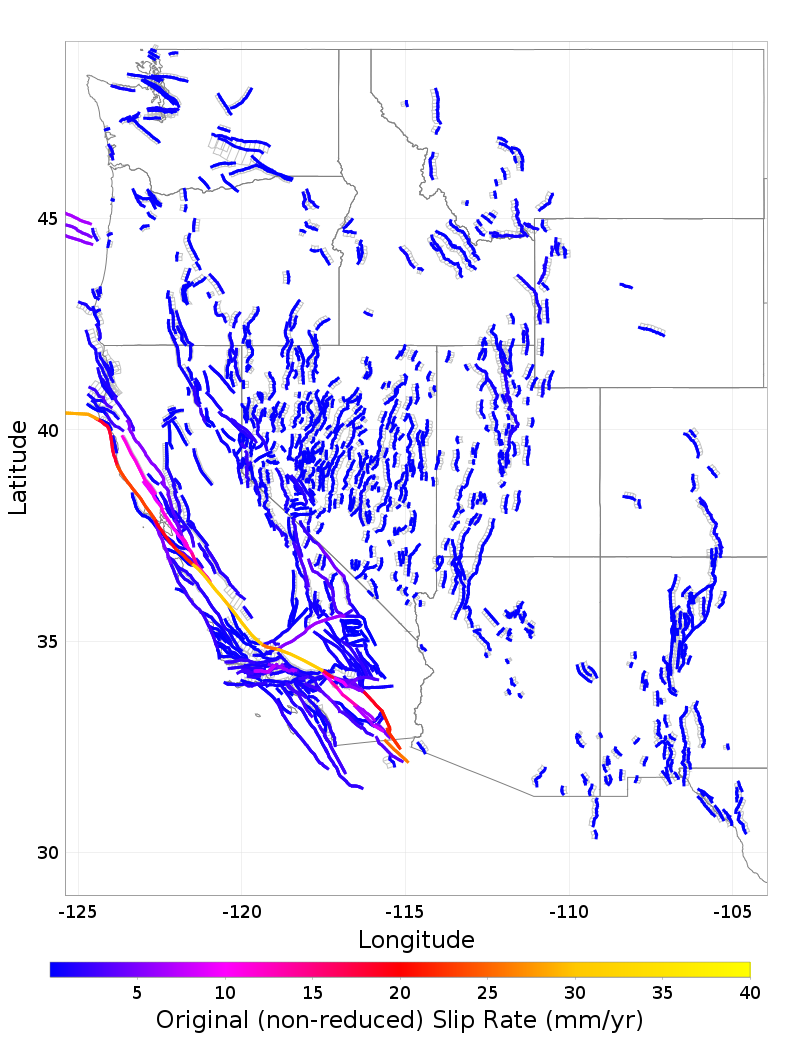

Linear Slip Rate Plots

(top)


Download GeoJSON	Download GeoJSON

Download GeoJSON	Download GeoJSON

Download GeoJSON	Download GeoJSON

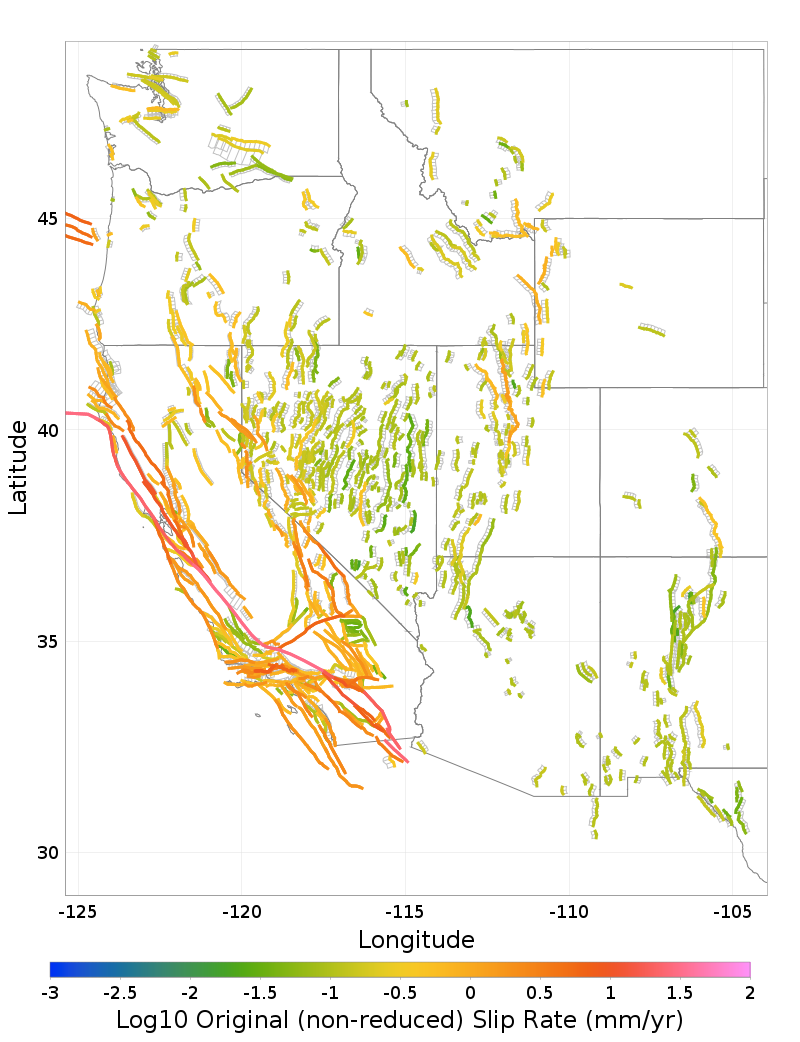

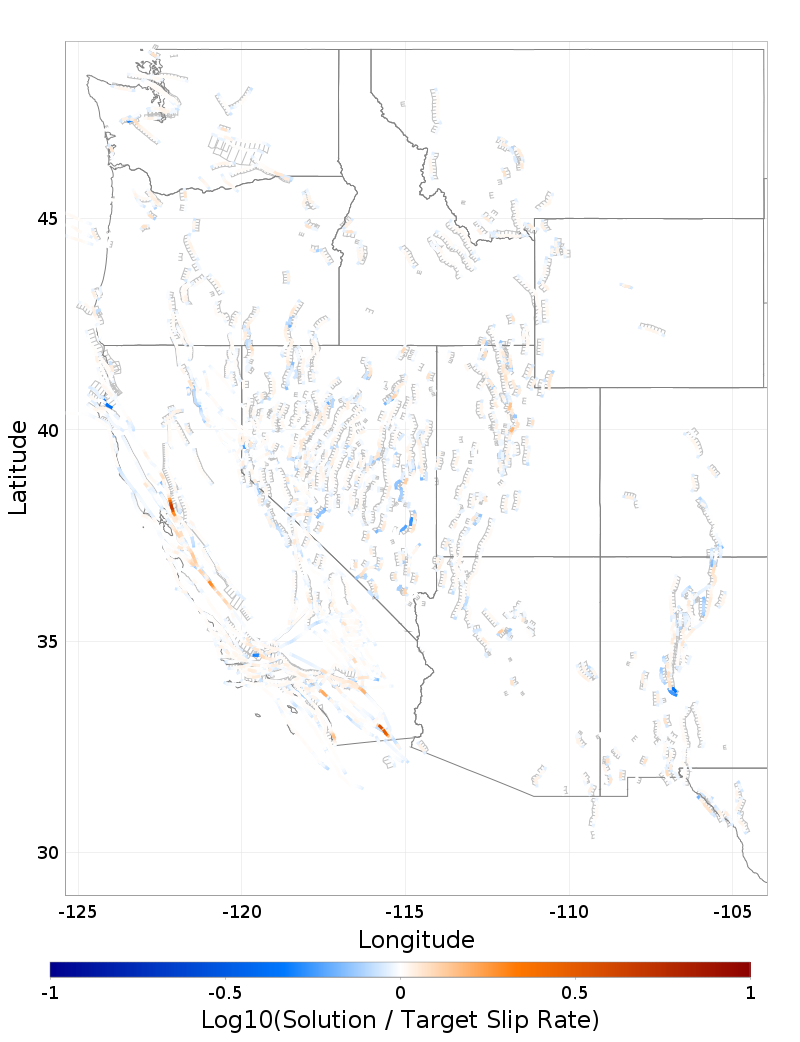

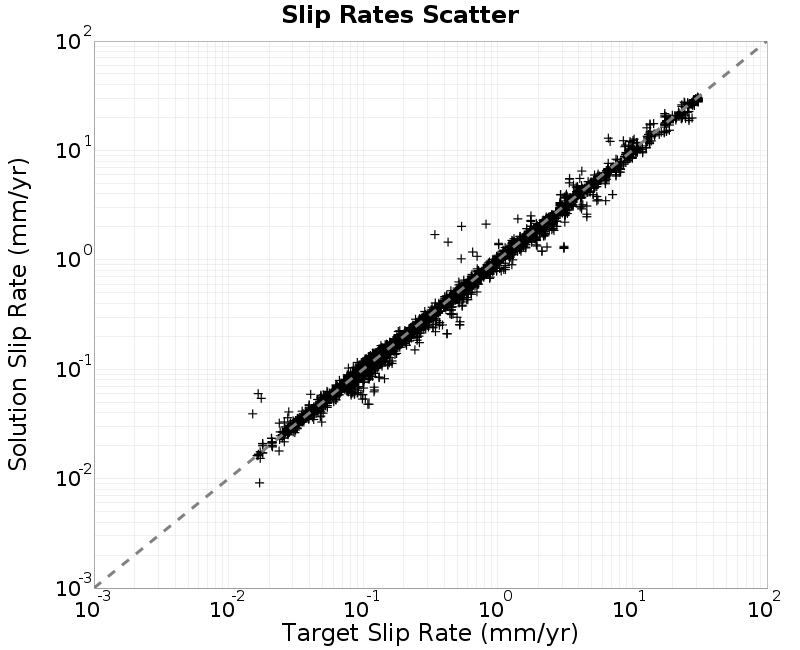

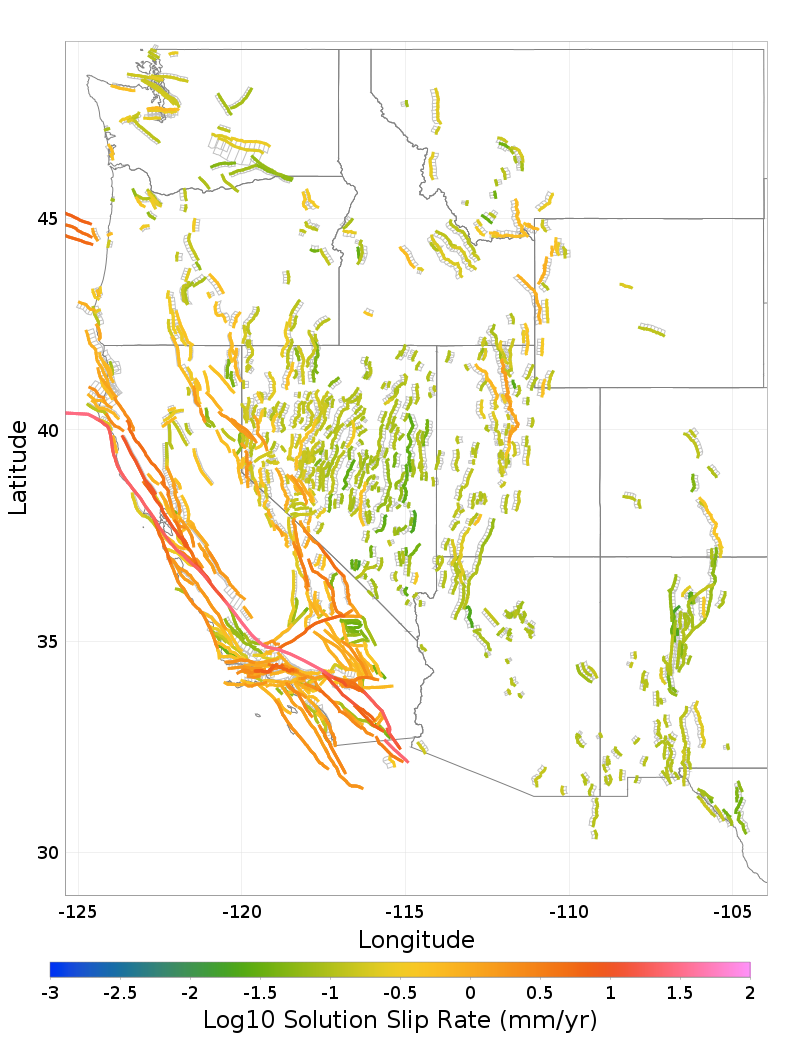

Log10 Slip Rate Plots

(top)


Download GeoJSON	Download GeoJSON

Download GeoJSON	Download GeoJSON

Download GeoJSON

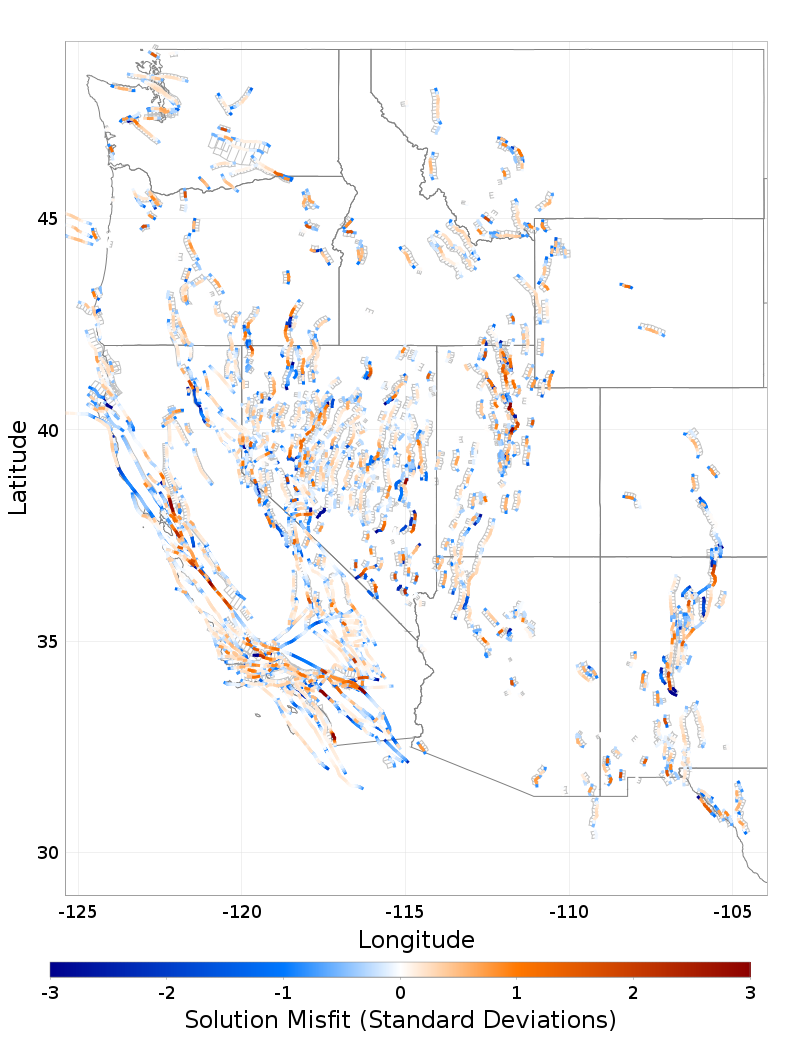

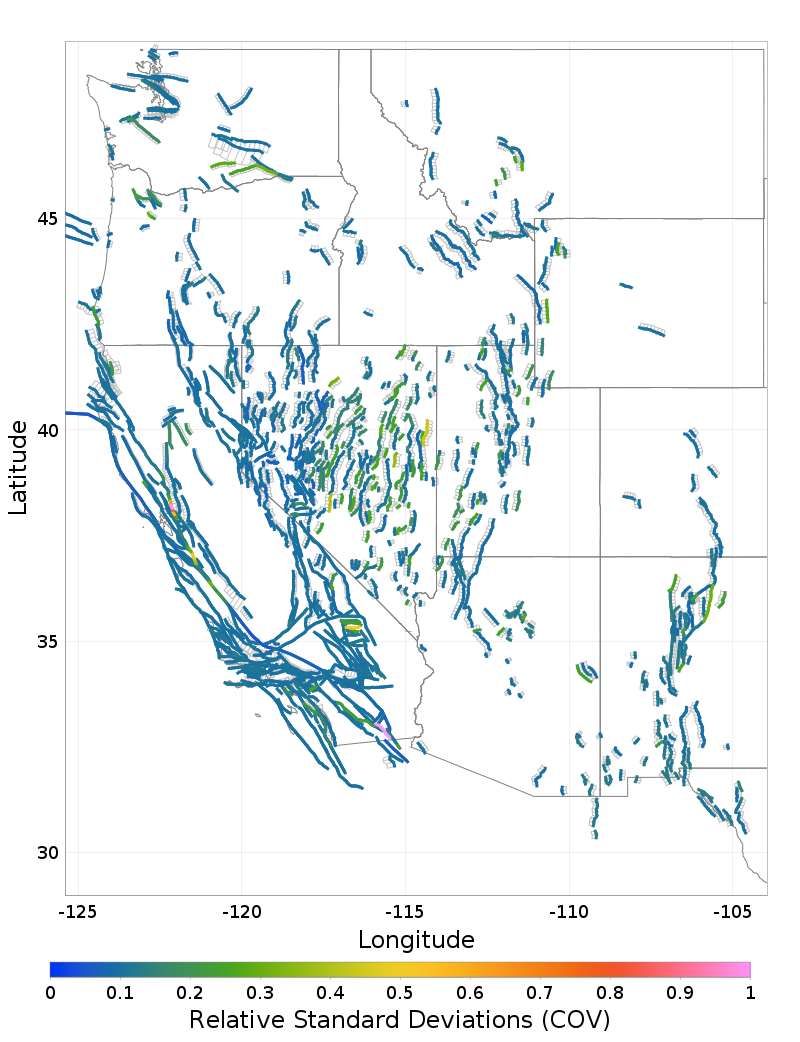

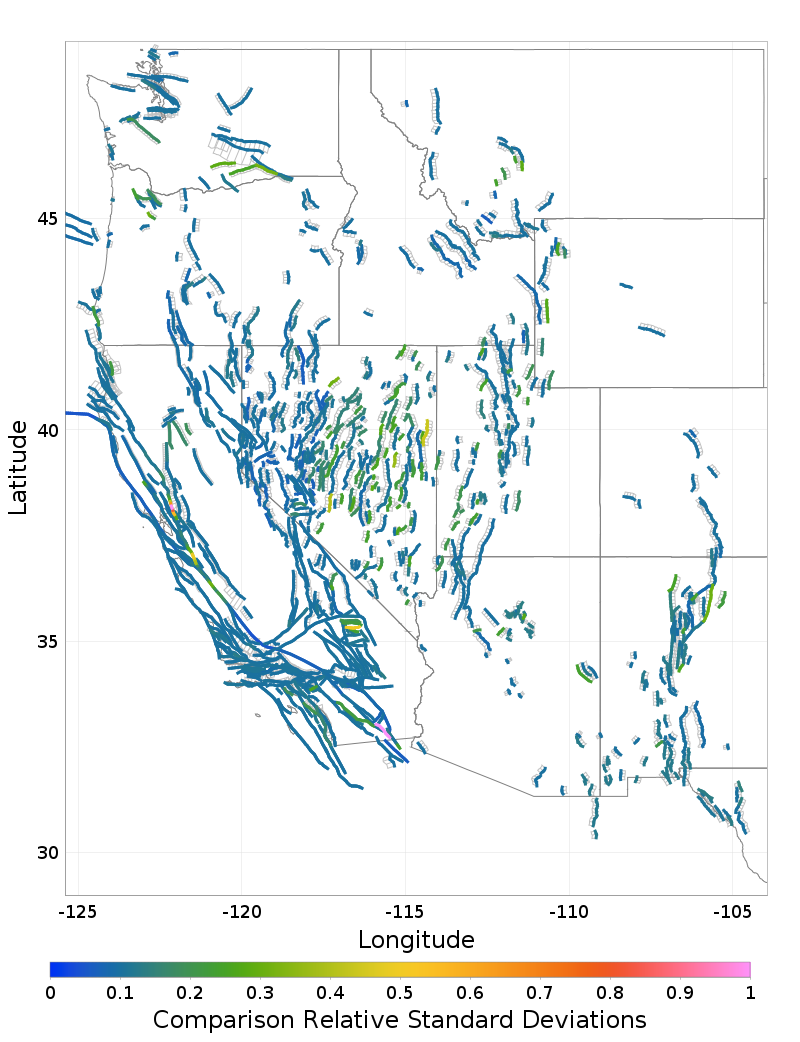

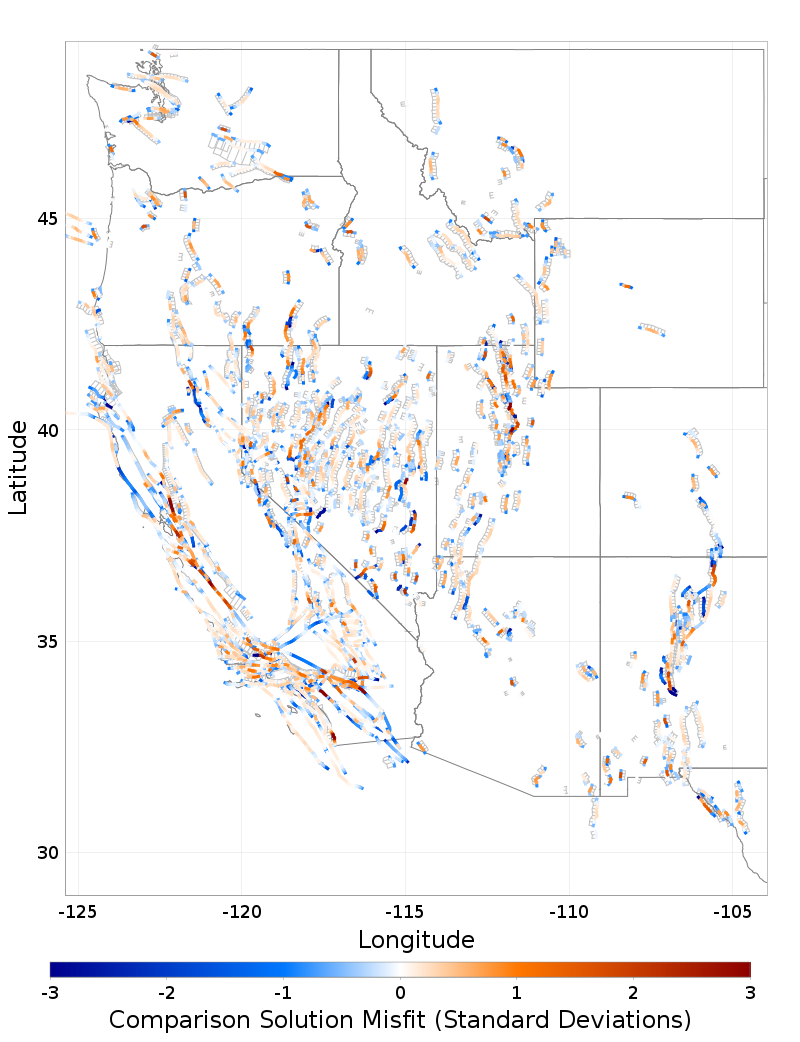

Slip Rate Std Dev Plots

(top)


Download GeoJSON	Download GeoJSON

Download GeoJSON	Download GeoJSON

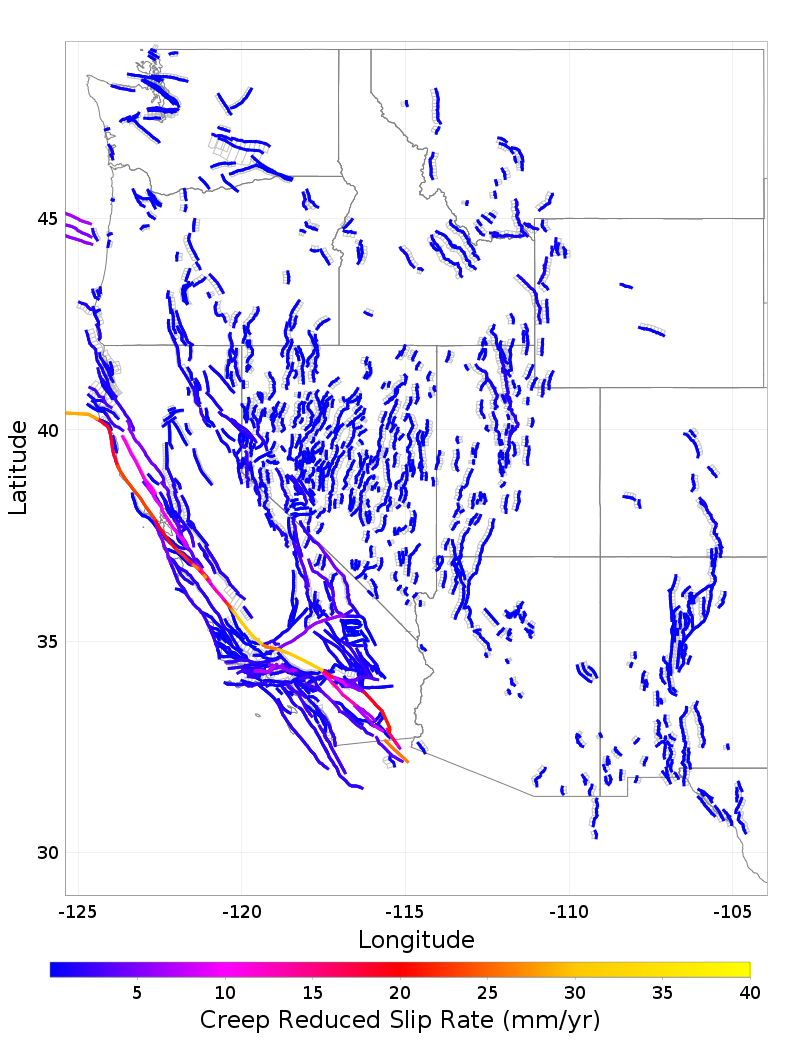

Slip Rate & Area Reductions

(top)

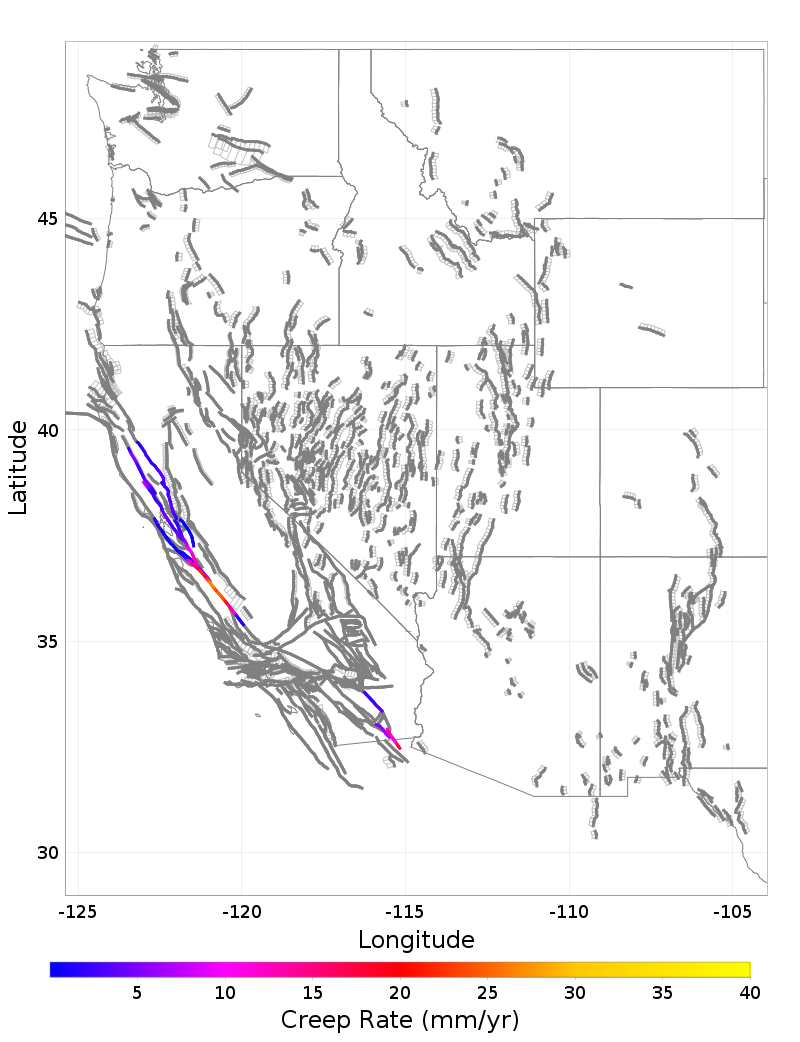

Primary Creep Rates	Comparison Creep Rates

Download GeoJSON	Download GeoJSON

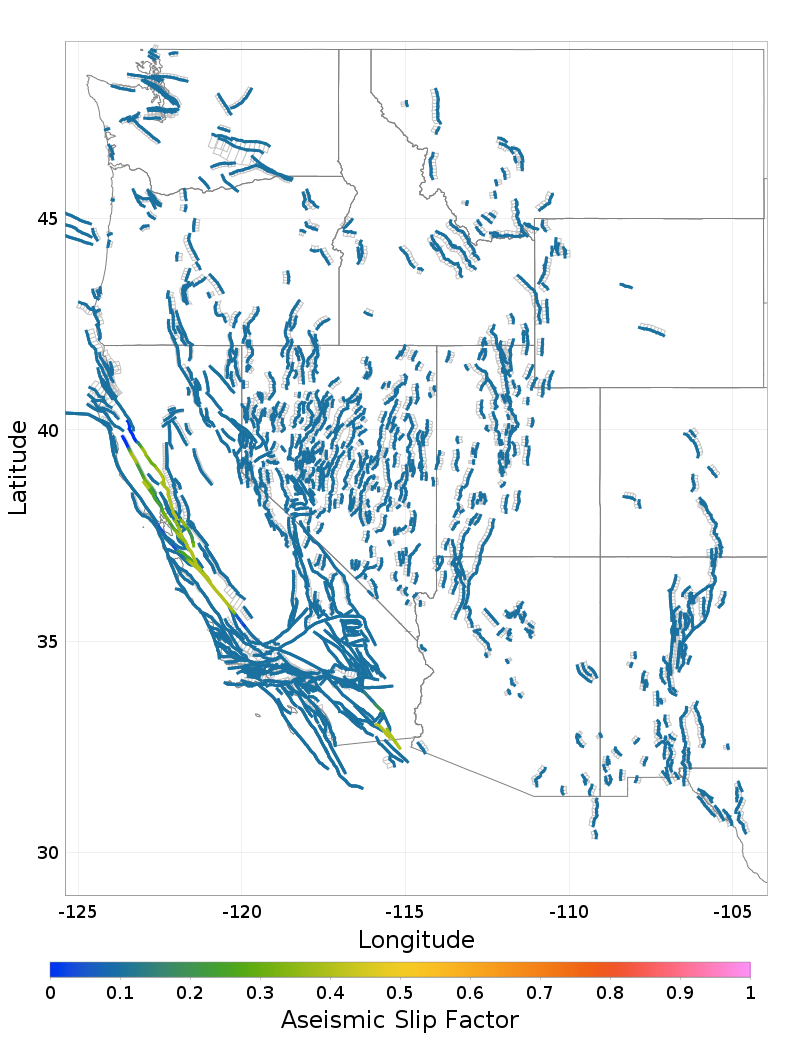

Primary Aseismic Slip Factors	Comparison Aseismic Slip Factors

Download GeoJSON	Download GeoJSON

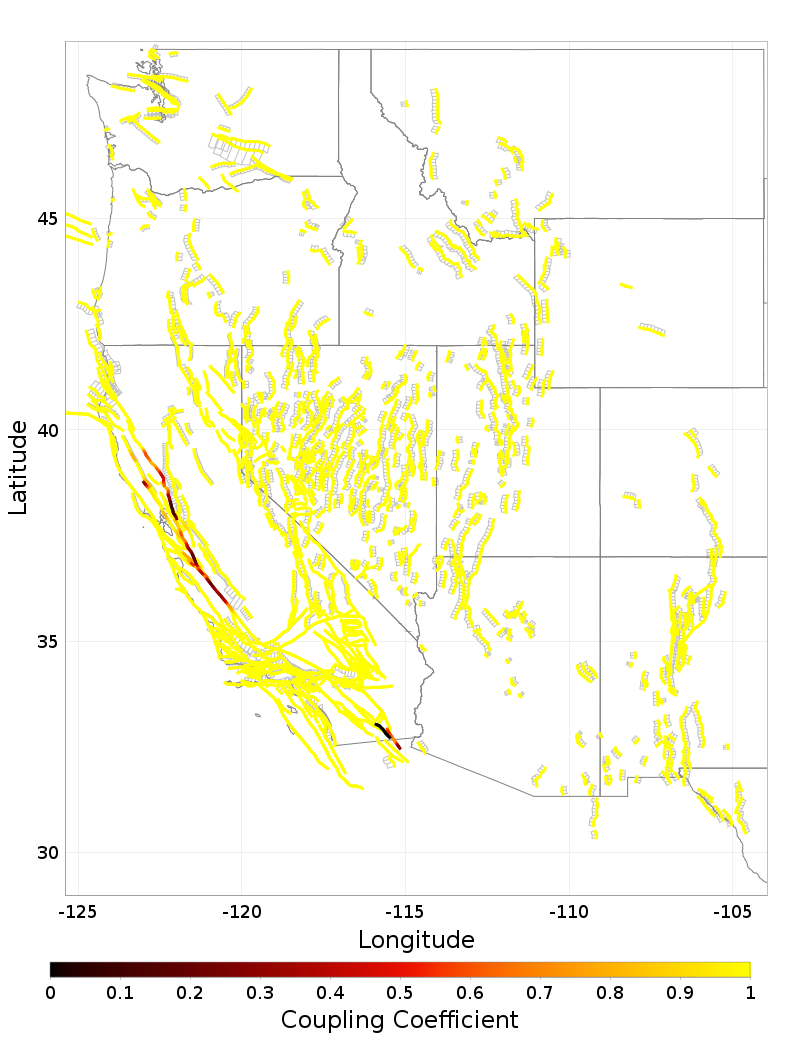

Primary Coupling Coefficients	Comparison Coupling Coefficients

Download GeoJSON	Download GeoJSON

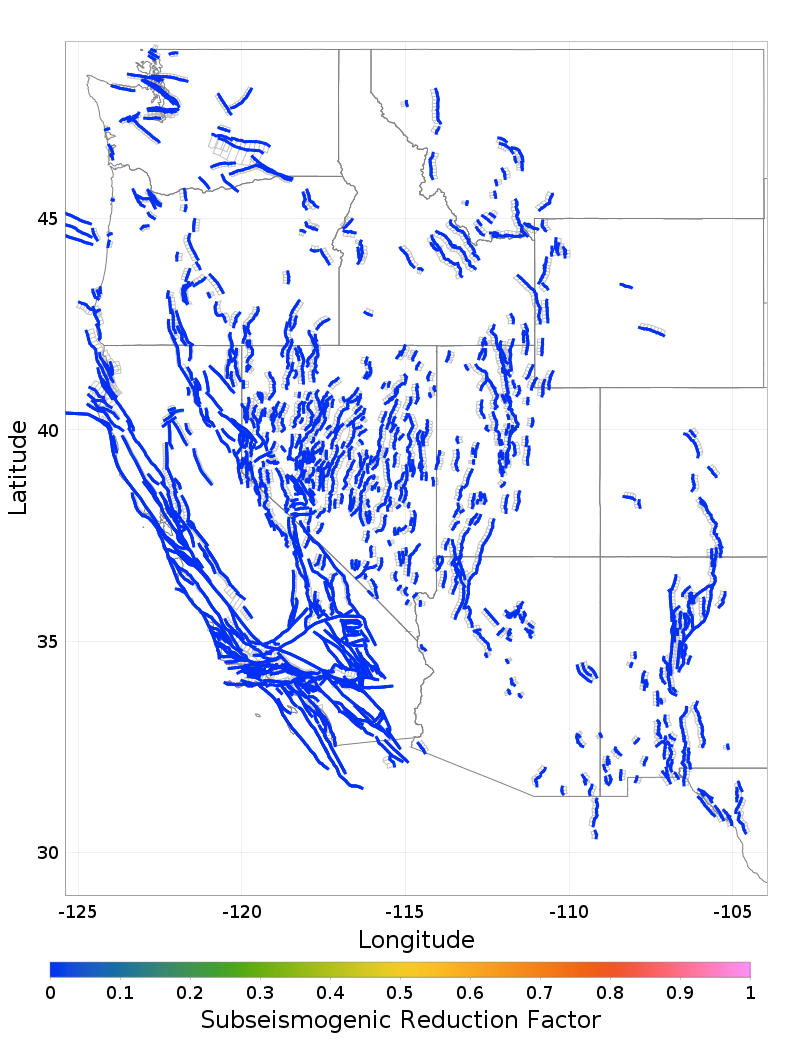

Primary Subseismogenic Reduction Factors	Comparison Subseismogenic Reduction Factors

Download GeoJSON	Download GeoJSON

SAF Creeping Section and Parkfield

(top)

Parkfield Magnitudes

(top)

28 ruptures found that rupture only the Parkfield section.

# Subsections	Rupture Count	Length (km)	Magnitude Range	Annual Rate	Recurrence Interval
2	7	9.11	[5.87,5.90]	0.0068078195	146.89
3	6	13.67	[6.05,6.07]	0.01868873	53.51
4	5	18.23	[6.18,6.19]	0.012371281	80.83
5	4	22.79	[6.30,6.30]	1.0151325E-5	98509.30
6	3	27.34	[6.38,6.39]	2.2341637E-6	447594.76
7	2	31.90	[6.46,6.46]	1.9134139E-9	522626061.11
8	1	36.46	[6.52,6.52]	1.945965E-6	513883.82
Total	28	[9.11,36.46]	[5.87,6.52]	0.037882164	26.40

Rupture Rates Through Creeping Section

(top)

A rupture is considered to be through the creeping section if it ruptures the creeping section as well as at least part of one section on each side of the creeping section.

Minimum Magnitude or Length	Rate Through Creeping	RI (years)	% of Creeping Sect Rate	% of Santa Cruz Rate	% of Calaveras Rate	% of Parkfield Rate	% of Total Solution Rate
Supra-Seismogenic	9.16156E-4	1091.52	4.97%	7.38%	15.84%	2.18%	0.15%
M≥6	9.16156E-4	1091.52	4.97%	7.38%	15.84%	2.61%	0.16%
M≥7	9.1388443E-4	1094.23	22.99%	16.94%	51.53%	24.43%	0.75%
M≥7.5	9.0435275E-4	1105.76	35.83%	24.87%	121.61%	28.74%	3.67%
M≥8	6.343091E-4	1576.52	71.74%	93.37%	269.69%	76.71%	37.94%
L≥500 km	7.6751073E-4	1302.91	67.56%	62.88%	238.81%	78.30%	29.37%
L≥600 km	6.3140213E-4	1583.78	75.41%	68.38%	259.23%	93.02%	44.72%
L≥700 km	3.7396292E-4	2674.06	83.30%	98.23%	320.44%	99.76%	72.39%
L≥800 km	1.4243484E-4	7020.75	100.00%	110.18%	761.80%	100.00%	86.81%

Along-Strike Slip Rates and Reductions

(top)

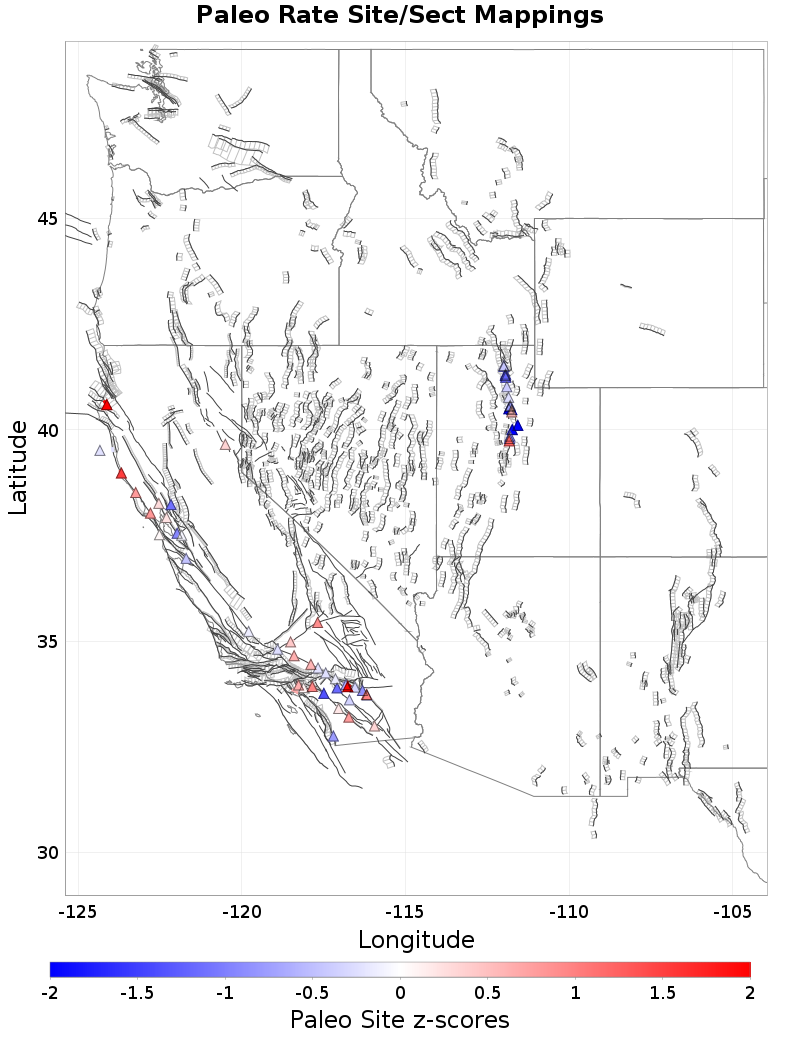

Paleoseismic Data Comparison

(top)


Download GeoJSON

Primary	Comparison

Paleo data comparison table. For the solution and comparison columns, text is bold if within 68% bounds, italicized if within 95% bounds, and otherwise plain text. Download CSV here.

Site Name	Mapped Subsection ID	Mapped Parent Section	Constraint Mean Rate	68% Bounds	Constraint 95% Bounds	Std. Dev	Solution Rate	z-score	Comparison Solution Rate	Comparison z-score
Calaveras North	511	Calaveras (north)	0.001305483	[5.191898E-4, 0.0020917763]	[1.6608537E-4, 0.0033112583]	7.8629324E-4	0.0012408197	-0.082238145	0.0012422251	-0.08045091
Compton	811	Compton	3.1685678E-4	[1.0594772E-4, 5.2776583E-4]	[1.0513036E-4, 9.487666E-4]	2.1090906E-4	4.5272487E-4	0.6442022	4.528163E-4	0.64463574
Elsinore-Glen Ivy	1313	Elsinore (Glen Ivy)	0.004830918	[0.0033520604, 0.006309775]	[0.002631579, 0.008547009]	0.0014788574	0.0027891237	-1.3806566	0.0027899756	-1.3800805
Elsinore-Julian	1320	Elsinore (Julian)	3.2840722E-4	[5.1921856E-5, 6.048926E-4]	[7.644267E-6, 0.0011135858]	2.7648537E-4	5.428971E-4	0.7757728	5.431544E-4	0.7767037
Elsinore-Temecula	1328	Elsinore (Temecula)	8.6430425E-4	[1.0757182E-4, 0.0016210367]	[1.376273E-4, 0.003164557]	7.567324E-4	0.0010040425	0.18466	0.00100444	0.18518536
Elsinore-Whittier	5518	Whittier	3.3456006E-4	[6.5853426E-5, 6.032667E-4]	[7.4245663E-6, 0.0010822511]	2.6870662E-4	5.910134E-4	0.954399	5.910668E-4	0.95459765
Garlock-Central	1486	Garlock (center)	6.142506E-4	[1.9146162E-4, 0.0010370396]	[1.9920319E-4, 0.0018903592]	4.22789E-4	9.908739E-4	0.89080685	9.913308E-4	0.89188737
Garlock-Western	1514	Garlock (west)	6.6093856E-4	[6.412676E-5, 0.0012577503]	[1.5728216E-4, 0.0025445293]	5.9681176E-4	9.1622747E-4	0.4277545	9.1668917E-4	0.4285281
Green Valley Mason Rd	1745	Green Valley	0.002617801	[0.0010188379, 0.004216764]	[3.1555697E-4, 0.0067114094]	0.0015989632	8.3786953E-4	-1.1131786	8.3781354E-4	-1.1132137
Hayward North	1831	Hayward (north)	0.0026737968	[0.0018872519, 0.0034603416]	[0.0015267176, 0.004672897]	7.8654493E-4	0.0028551302	0.23054416	0.0028555642	0.23109601
Hayward South-Tyson	1841	Hayward (south)	0.0054054055	[0.004490957, 0.0063198535]	[0.0038610038, 0.007518797]	9.144483E-4	0.0045422455	-0.94391334	0.004544038	-0.9419535
Little Salmon-Strongs	2457	Little Salmon (onshore)	1.0924186E-4	[1.1234016E-5, 2.072497E-4]	[1.7804683E-5, 4.0983607E-4]	9.800785E-5	4.8558484E-4	3.839927	4.8610088E-4	3.8451924
Mohawk Valley Fault Zone - Sulphur Creek	2844	Mohawk Valley	1.7056115E-4	[6.316872E-6, 3.3480543E-4]	[1.8698578E-5, 6.756757E-4]	1.6424428E-4	2.2699962E-4	0.34362522	2.2700669E-4	0.34366825
NSAF - Alder Creek	3899	San Andreas (North Coast)	0.001310616	[1.3946473E-4, 0.0024817672]	[3.237608E-5, 0.004716981]	0.0011711513	0.0030940496	1.5228039	0.0030941148	1.5228595
NSAF - Santa Cruz Segment	3982	San Andreas (Santa Cruz Mountains)	0.0078125	[0.0052531413, 0.010371858]	[0.004255319, 0.014492754]	0.0025593587	0.0066319793	-0.46125638	0.0066340556	-0.4604451
NSAF - Fort Ross	3887	San Andreas (North Coast)	0.0026809652	[9.416762E-4, 0.004420254]	[3.4211428E-4, 0.00729927]	0.0017392889	0.0040579825	0.79171276	0.004057524	0.7914492
NSAF - Vedanta	3874	San Andreas (North Coast)	0.0033003301	[0.002359722, 0.004240938]	[0.0019193857, 0.0056818184]	9.406081E-4	0.004071602	0.81997186	0.0040708627	0.81918544
NSAF - Noyo Canyon	3911	San Andreas (Offshore)	0.0045871558	[0.0037570274, 0.0054172846]	[0.003215434, 0.006535948]	8.301284E-4	0.0043967324	-0.22939022	0.00439853	-0.22722495
Puente Hills	3498	Puente Hills (Santa Fe Springs)	2.2016733E-4	[-1.21142235E-4, 5.614769E-4]	[6.5038535E-6, 0.0013717421]	3.4130955E-4	2.494002E-4	0.08564921	2.4946633E-4	0.08584288
San Gregorio - North	4192	San Gregorio (north)	0.0010559662	[-0.0010304232, 0.0031423557]	[5.7803467E-5, 0.008403362]	0.0020863896	0.0011756087	0.05734428	0.0011761927	0.057624158
Rodgers Creek	3687	Rodgers Creek - Healdsburg	0.0021008404	[2.1396729E-4, 0.0039877133]	[8.609557E-5, 0.007633588]	0.001886873	0.0026293374	0.28009146	0.00262875	0.2797801
Rose Canyon - Old Town	3705	Rose Canyon	0.002020202	[0.0010071308, 0.0030332732]	[8.2576385E-4, 0.004878049]	0.0010130713	0.0012239998	-0.7859292	0.0012243827	-0.78555125
SJF - Hog Lake	4226	San Jacinto (Anza)	0.0044444446	[0.0035786435, 0.0053102453]	[0.003030303, 0.0064935065]	8.658009E-4	0.00414014	-0.3514718	0.0041422606	-0.34902227
SJF - Mystic Lake	4262	San Jacinto (stepover)	0.005050505	[0.0040125567, 0.0060884533]	[0.0033670033, 0.007518797]	0.0010379484	0.0038411133	-1.1651752	0.0038425946	-1.1637481
SJF - Superstition	4257	San Jacinto (Superstition Mountain)	0.0016207455	[5.0425383E-6, 0.0032364486]	[2.9394473E-4, 0.006756757]	0.001615703	0.002140048	0.32140958	0.0021327038	0.31686404
SSAF - Bidart	3799	San Andreas (Carrizo)	0.008264462	[0.005130854, 0.011398071]	[0.004132231, 0.016666668]	0.0031336087	0.007812887	-0.14410721	0.00781798	-0.14248215
SSAF - Burro Flats	3960	San Andreas (San Bernardino, south)	0.003690037	[0.0023510326, 0.0050290413]	[0.0018903592, 0.007246377]	0.0013390044	0.002812129	-0.6556423	0.0028148547	-0.6536066
SSAF - Cabazon	3975	San Andreas (San Gorgonio Pass - Garnet Hill)	5.3676864E-4	[2.144262E-4, 8.5911114E-4]	[7.117438E-5, 0.0013605442]	3.2234247E-4	0.0013277517	2.4538593	0.0013285266	2.4562633
SSAF - Coachella	3828	San Andreas (Coachella)	0.004878049	[0.0035344765, 0.0062216213]	[0.0028901733, 0.008264462]	0.0013435724	0.0043511544	-0.3921593	0.0043524806	-0.3911721
SSAF - Elizabeth Lake	3857	San Andreas (Mojave, south)	0.0046296297	[0.0023959496, 0.0068633095]	[0.0017035775, 0.010638298]	0.00223368	0.0060503036	0.63602394	0.0060533592	0.637392
SSAF - 18th Avenue	3788	San Andreas (Banning)	0.0011600928	[5.3503196E-4, 0.0017851536]	[1.5227654E-4, 0.0026525198]	6.250608E-4	9.642303E-4	-0.31334952	9.6446415E-4	-0.31297535
SSAF - Frazier Mountain	3797	San Andreas (Big Bend)	0.007194245	[0.0047059166, 0.009682572]	[0.0037453184, 0.01369863]	0.002488328	0.0065479768	-0.2597198	0.0065516494	-0.25824383
SSAF - Indio	3828	San Andreas (Coachella)	0.0028901733	[0.0014284198, 0.004351927]	[3.6416607E-4, 0.0062111802]	0.0014617535	0.0043511544	0.9994715	0.0043524806	1.0003788
SSAF - Pallett Creek	3865	San Andreas (Mojave, south)	0.0056497175	[0.0041358215, 0.0071636136]	[0.0033783785, 0.009433962]	0.0015138959	0.0065283403	0.58037204	0.006530521	0.5818125
SSAF - Pitman Canyon	3957	San Andreas (San Bernardino, north)	0.0049751243	[0.0033535894, 0.0065966593]	[0.002688172, 0.0091743115]	0.0016215349	0.004580828	-0.24316256	0.004585002	-0.24058835
SSAF - Plunge Creek	3965	San Andreas (San Bernardino, south)	0.0031347962	[8.083323E-4, 0.00546126]	[1.2810658E-4, 0.009433962]	0.0023264638	0.002800748	-0.14358628	0.0028021825	-0.14296965
SSAF - Thousand Palms	2779	Mill Creek (San Andreas, north branch)	0.002967359	[0.0017052804, 0.0042294376]	[6.98812E-4, 0.0057471264]	0.0012620786	0.0018603118	-0.87716186	0.0018594123	-0.87787455
SSAF - Wrightwood	3869	San Andreas (Mojave, south)	0.007751938	[0.0059898896, 0.009513986]	[0.005, 0.012048192]	0.0017620482	0.007357154	-0.2240482	0.007357944	-0.22360021
Bowden Canyon	5253	Wasatch (Brigham City)	8.8339E-4	[5.547425E-4, 0.0012120375]	[5.569E-4, 0.00187149]	3.286475E-4	7.3388306E-4	-0.4549158	7.3438877E-4	-0.45337698
Box Elder Canyon	5253	Wasatch (Brigham City)	8.7032E-4	[7.66305E-4, 9.74335E-4]	[7.2289E-4, 0.00113895]	1.04015E-4	7.3388306E-4	-1.3117044	7.3438877E-4	-1.3068424
Rice Creek	5301	Wasatch (Weber)	7.3828E-4	[6.834675E-4, 7.930925E-4]	[6.0634E-4, 8.2559E-4]	5.48125E-5	6.6476455E-4	-1.3412174	6.6491216E-4	-1.3385235
Garner Canyon	5301	Wasatch (Weber)	7.9533E-4	[7.1837E-4, 8.7229E-4]	[6.7416E-4, 9.82E-4]	7.696E-5	6.6476455E-4	-1.6965369	6.6491216E-4	-1.6946182
East Ogden	5302	Wasatch (Weber)	8.5861E-4	[7.44735E-4, 9.72485E-4]	[6.9525E-4, 0.00115075]	1.13875E-4	7.2004105E-4	-1.2168511	7.20176E-4	-1.2156667
Kaysville	5305	Wasatch (Weber)	5.805E-4	[5.001375E-4, 6.608625E-4]	[4.9399E-4, 8.1544E-4]	8.03625E-5	5.478262E-4	-0.40658042	5.4807705E-4	-0.40345842
Penrose Drive	5263	Wasatch (East Bench)	6.1874E-4	[5.672125E-4, 6.702675E-4]	[5.001E-4, 7.0621E-4]	5.15275E-5	6.054821E-4	-0.257298	6.053396E-4	-0.2600633
Little Cottonwood Canyon	5297	Wasatch (Salt Lake City, south)	7.1565E-4	[6.593325E-4, 7.719675E-4]	[5.8445E-4, 8.0972E-4]	5.63175E-5	6.718846E-4	-0.7771182	6.72394E-4	-0.7680739
South Fork Dry Creek	5298	Wasatch (Salt Lake City, south)	8.2554E-4	[7.56005E-4, 8.95075E-4]	[7.1327E-4, 9.9141E-4]	6.9535E-5	6.526597E-4	-2.4862342	6.532273E-4	-2.478071
Corner Canyon	5298	Wasatch (Salt Lake City, south)	0.00115407	[0.0010337, 0.00127444]	[0.001, 0.00148148]	1.2037E-4	6.526597E-4	-4.165575	6.532273E-4	-4.1608596
Alpine	5286	Wasatch (Provo, north)	8.5455E-4	[7.623025E-4, 9.467975E-4]	[7.1891E-4, 0.0010879]	9.22475E-5	5.2651763E-4	-3.5560026	5.230368E-4	-3.5937362
American Fork	5287	Wasatch (Provo, north)	5.1885E-4	[4.75835E-4, 5.61865E-4]	[4.3757E-4, 6.0963E-4]	4.3015E-5	5.433126E-4	0.5686984	5.4311287E-4	0.56405616
Mapleton	5291	Wasatch (Provo, south)	7.9507E-4	[7.5473E-4, 8.3541E-4]	[7.2556E-4, 8.8692E-4]	4.034E-5	6.9992023E-4	-2.358695	7.0017885E-4	-2.3522844
Spring Lake	5281	Wasatch (Nephi, north)	8.2525E-4	[7.56035E-4, 8.94465E-4]	[7.0909E-4, 9.8595E-4]	6.9215E-5	6.470897E-4	-2.574013	6.4715126E-4	-2.5731232
North Creek	5284	Wasatch (Nephi, south)	8.9989E-4	[8.366625E-4, 9.631175E-4]	[7.874E-4, 0.00104031]	6.32275E-5	8.4276363E-4	-0.90350467	8.430766E-4	-0.898555
Willow Creek	5285	Wasatch (Nephi, south)	8.4788E-4	[6.96355E-4, 9.99405E-4]	[6.4861E-4, 0.00125471]	1.51525E-4	6.700839E-4	-1.173378	6.703204E-4	-1.1718171
Red Canyon	5285	Wasatch (Nephi, south)	4.7416E-4	[3.168625E-4, 6.314575E-4]	[2.7252E-4, 9.0171E-4]	1.572975E-4	6.700839E-4	1.2455627	6.703204E-4	1.2470663

Jump Counts Over Distance

(top)

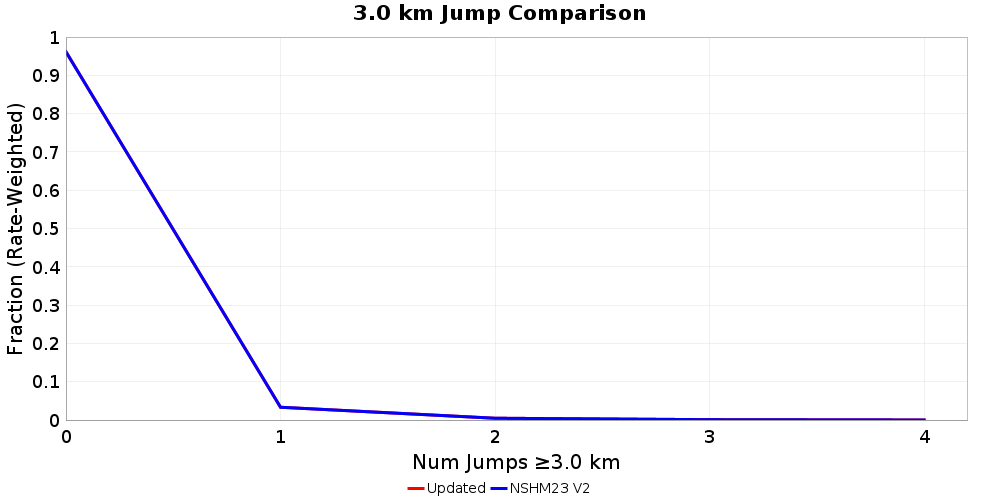

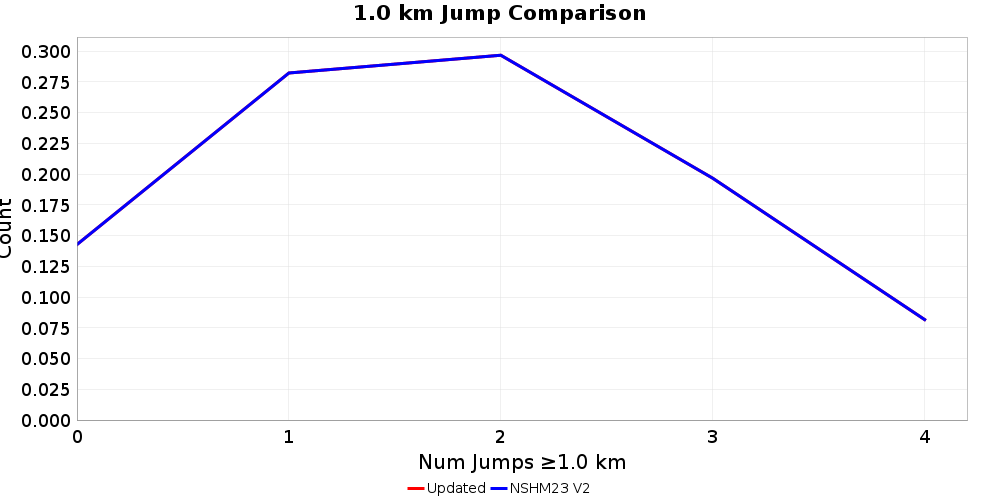

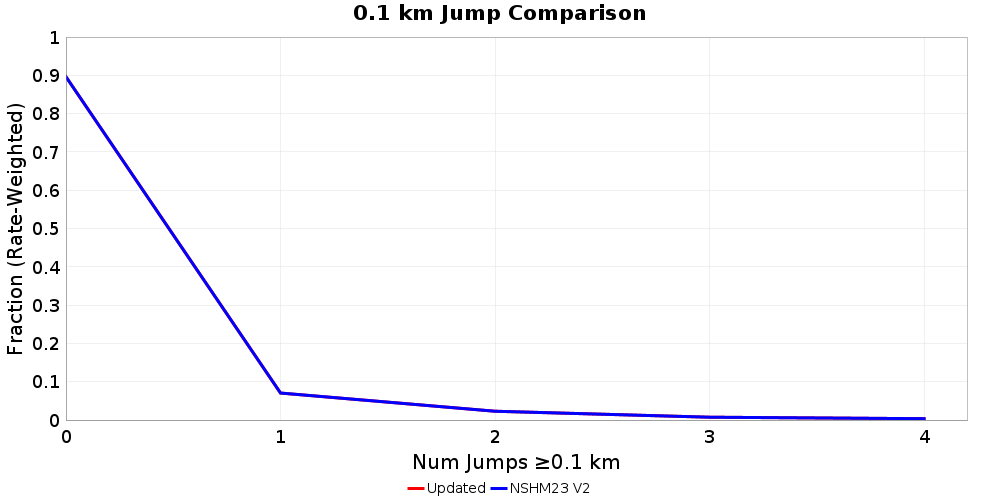

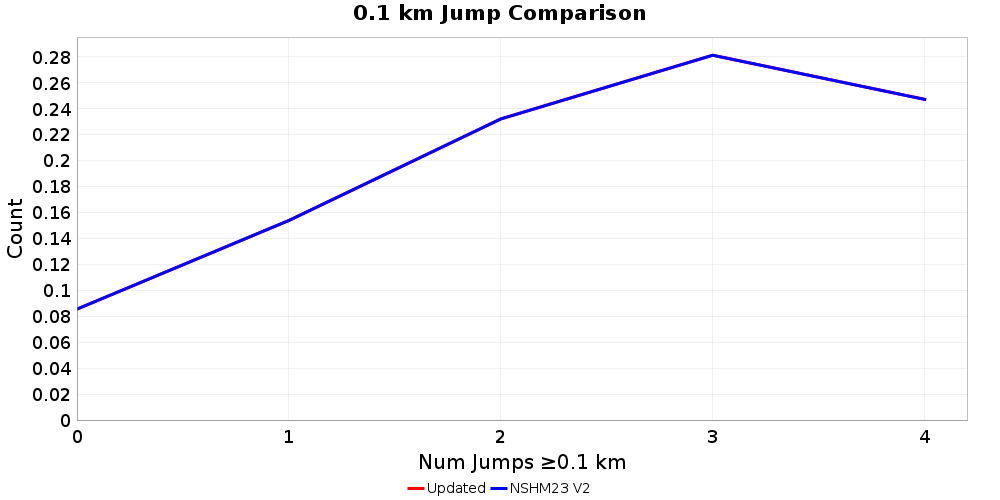

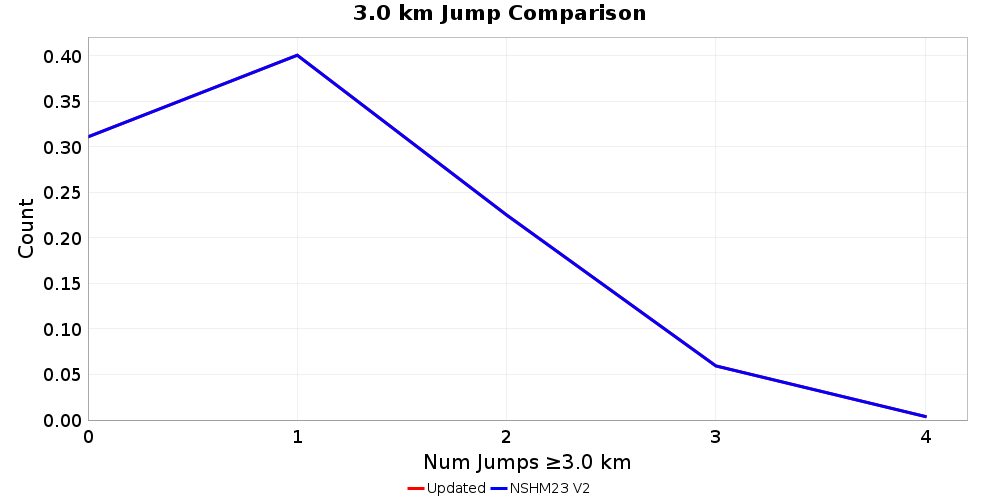

Supra-seismogenic Jump Counts

(top)

As Discretized	Rate Weighted

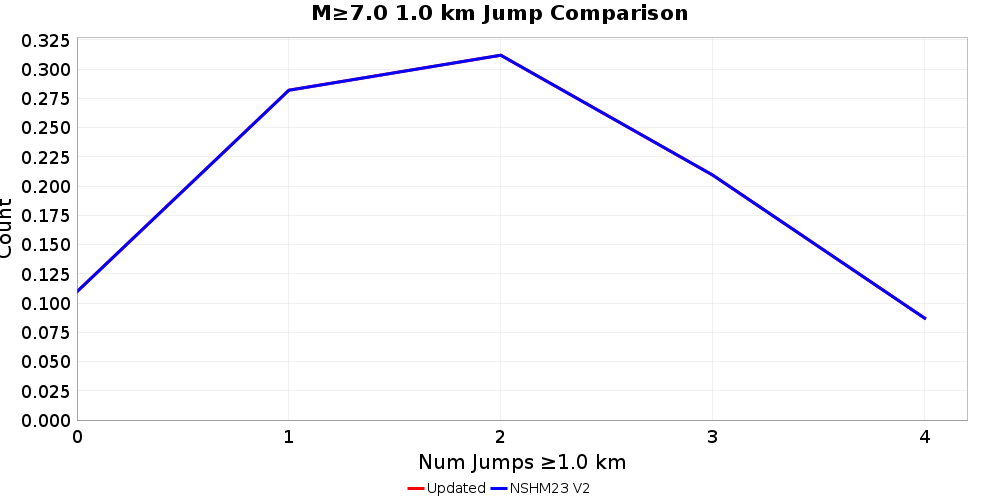

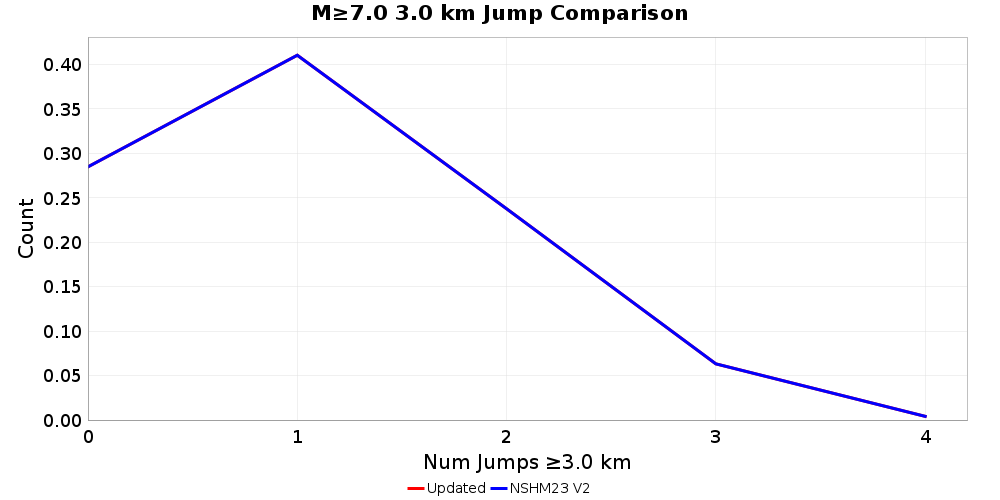

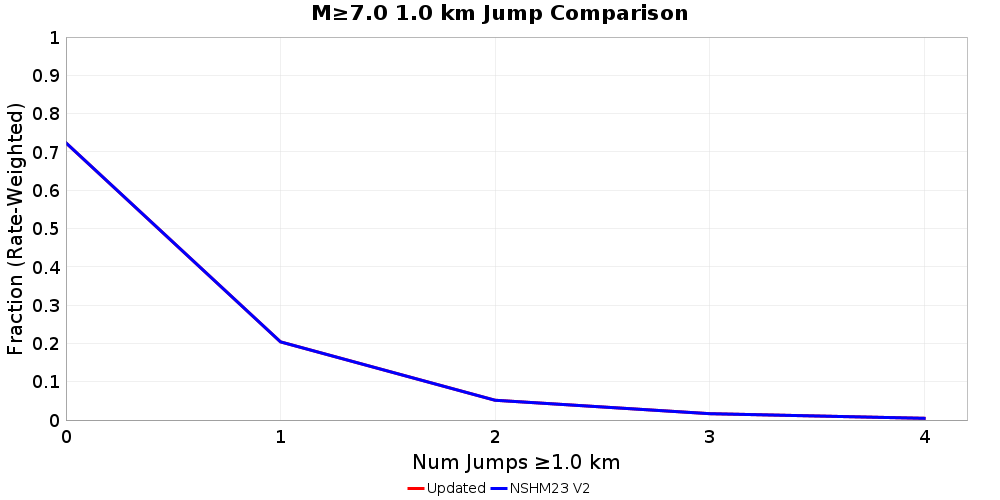

M≥7 Jump Counts

(top)

As Discretized	Rate Weighted

Max Jump Distance Distribution

(top)

Cumulative Jump Distance Distribution

(top)

Fault Segmentation

(top)

The following plots show implied segmentation from the rates of this fault system solution.

Connection Rates

This shows the rate at which each connection is taken.

Updated	NSHM23 V2

Download GeoJSON	Download GeoJSON

Connection Passthrough Rates

(top)

Passthrough rates refer to the ratio of the jumping rate to the rates on either side of the jump. The denominator of that ratio can be either the minimum, maximum, or average of the subsection rates on either side of the jump. Each choice of denomiator is plotted separately.

Updated	NSHM23 V2

Download GeoJSON	Download GeoJSON

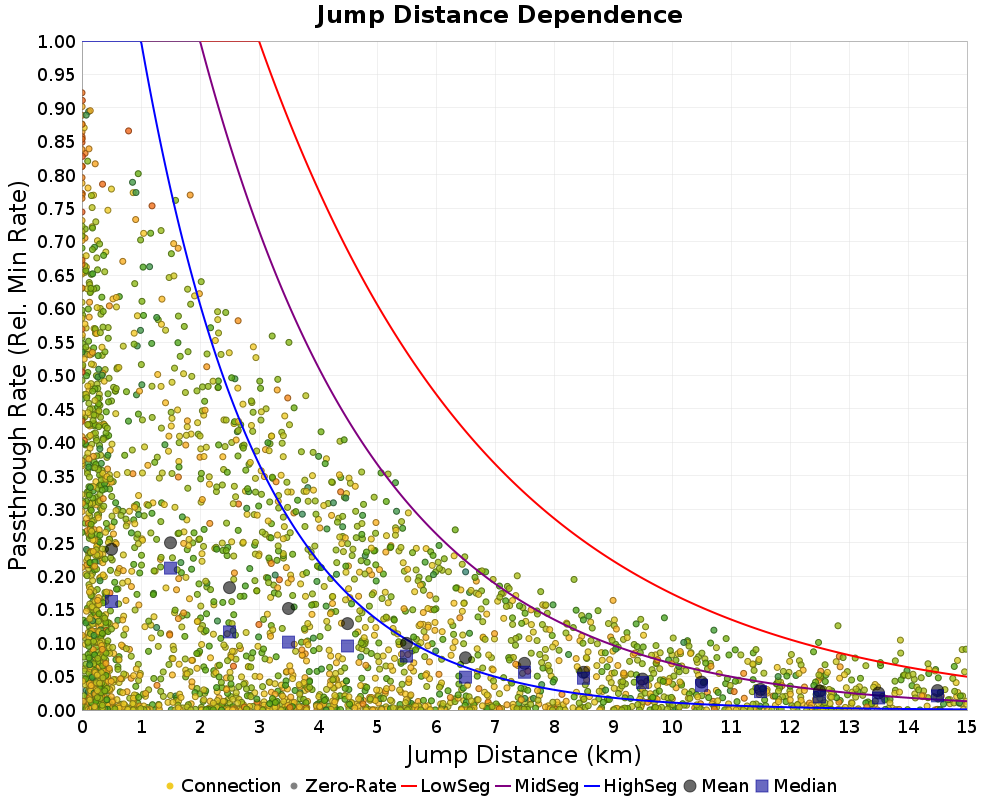

Connection Passthrough Rates vs Distance

(top)

This plots passthrough rates versus distance, either comparing with the relationship established in Shaw and Dieterich (2007), or distance-dependent segmentation models for this model's logic tree.

Linear	Log10

Comparison Linear	Comparison Log10

Download CSV files: Updated NSHM23 V2

Special Fault Detail Pages

(top)


Download GeoJSON

Fault Section
Calaveras
Cedar Mountains
Elsinore
Fairview Peak
Garlock
Hayward-Rodgers Creek
Hebgen Lake
Hector Mine
Landers
Lost River
Pleasant Valley
San Andreas
San Jacinto
Sonora
Wasatch

Parent Section Detail Pages

(top)

This section includes links to pages with plots for specific parent fault sections.

Clickable GeoJSON map to identify fault section names (each parent section is plotted in a random color): Download GeoJSON

Fault Section	Fault Section	Fault Section
Abert Rim	Great Valley 10 (Panoche)	Red Hills (NM)
Acala	Great Valley 11	Red Hills (UT)
Agai Pah Hills	Great Valley 12	Red Mountain
Airport Lake	Great Valley 13 (Coalinga)	Red Pass
Airport Lake (south)	Great Valley 14 (Kettleman Hills)	Red Rock
Alamogordo	Great Valley 2	Red Rock Hills
Algodones	Great Valley 3 (Mysterious Ridge)	Redondo Canyon
Almanor	Great Valley 3a (Dunnigan Hills)	Reliz
Alvin Canyon	Great Valley 4a (Trout Creek)	Reno (unnamed)
Amargosa	Great Valley 4b (Gordon Valley)	Reservoir Canyon
Anacapa - Dume	Great Valley 5 (Pittsburg - Kirby Hills)	Richfield
Anaheim	Great Valley 6 (Midland)	Rimrock
Andesite Ridge (unnamed)	Great Valley 7 (Orestimba)	Rincon
Animas Valley	Great Valley 8 (Quinto)	Rinconada
Annabella Graben	Great Valley 9 (Laguna Seca)	Robinson Creek
Antelope Peak	Green Valley	Robinson Creek (south)
Antelope Range (NV)	Greenville (north)	Rock Creek
Antelope Range (UT)	Greenville (south)	Rock House (northeast)
Antelope Range (unnamed)	Greys River	Rock House (northwest)
Antelope Range - Kingsley Mountains	Grizzly Valley	Rock House (south)
Antelope Valley	Grogan	Rock Valley
Arlington - Shutler Butte	Grouse Creek - Dove Creek Mountains (north)	Rocky Ledge
Arrow Canyon Range	Grouse Creek - Dove Creek Mountains (south)	Rodgers Creek - Healdsburg
Arrowhead - Citadel Ruins	Guadalupe	Rose Canyon
Arroyo Diablo	Gumdrop Hills	Roubideau Creek
Artillery Range	Gunlock	Round Valley
Ash Hill	Gunnison	Ruby Mountains (center)
Aubrey	Hachita Valley	Ruby Mountains (north)
Babbitt Lake	Hansel Mountains (east side)	Ruby Mountains (south)
Baker	Hansel Valley	Ruby Valley
Bare Mountain	Happy Camp	Rush Peak
Bartlett Springs	Harney	Russ
Battle Creek	Hartley Springs	SP Crater
Battle Mountain	Hat Creek	Saddle Hill (Langley Hill)
Battle Rock	Hayward (north)	Saddle Mountains
Bear Creek	Hayward (south)	Safford
Bear River (CA)	Hayward (south, extension)	Sagouse
Bear River (WY)	Hebgen	Sahwave Mountains (unnamed)
Beaver Basin (east)	Hector Mine	Salt Wells Valley
Beaver Basin (intrabasin, central)	Helena Valley	San Andreas (Banning)
Beaver Basin (intrabasin, east)	Helendale - Lockhart (south)	San Andreas (Big Bend)
Beaver Basin (intrabasin, west)	Hickison Summit	San Andreas (Carrizo)
Beaver Creek (MT)	Hickman	San Andreas (Cholame)
Beaver Creek (OR)	Hiko	San Andreas (Coachella)
Beaverhead (Blue Dome)	Hilger	San Andreas (Creeping)
Beaverhead (north)	Hilton Creek	San Andreas (Mojave, north)
Beaverton	Hoback	San Andreas (Mojave, south)
Bellemont	Hogsback	San Andreas (North Coast)
Belted Range	Hollywood	San Andreas (Offshore)
Bennett Valley	Holser	San Andreas (Parkfield)
Benton Spring (south)	Holser - San Gabriel (connector)	San Andreas (Peninsula)
Beowawe	Homestead Valley	San Andreas (San Bernardino, north)
Bettles Well - Petrified Springs	Honey Lake	San Andreas (San Bernardino, south)
Bicycle Lake	Hoppins Peak	San Andreas (San Gorgonio Pass - Garnet Hill)
Big Chino - Little Chino	Horse Heaven Hills	San Andreas (Santa Cruz Mountains)
Big Flat	Horse Heaven Hills - Wallula	San Andres Mountains
Big Lagoon	Horseshoe	San Cayetano
Big Pass	Hosgri	San Clemente
Big Pine (center)	Hosgri (extension)	San Diego Trough (north)
Big Pine (east)	Hot Springs	San Diego Trough (south)
Big Pine (west)	Hot Springs Mountains	San Emidio
Big Sand Springs (center)	House Range	San Felipe
Big Sand Springs (north)	Huachuca	San Felipe (proxy)
Big Sand Springs Valley	Hubbell Spring	San Francisco
Big Valley (unnamed, proxy)	Hueco	San Francisco Mountains (west)
Bill Williams	Hunter Mountain - Saline Valley	San Gabriel
Birch Bay	Hunting Creek - Bartlett Springs (connector)	San Gabriel (extension)
Bitterroot	Hunting Creek - Berryessa	San Gorgonio Pass
Black Hill	Huntoon Valley (north)	San Gregorio (north)
Black Hills	Huntoon Valley (south)	San Gregorio (south)
Black Mountains	Hurricane (Ash Creek, Cedar City)	San Jacinto (Anza)
Black Point - Doney Mountain (center)	Hurricane (center)	San Jacinto (Borrego)
Black Point - Doney Mountain (north)	Hurricane (south)	San Jacinto (Clark)
Black Point - Doney Mountain (south)	Imperial	San Jacinto (Coyote Creek)
Black Rock	Incline Village	San Jacinto (San Bernardino)
Blacktail	Independence	San Jacinto (San Jacinto Valley)
Blackwater	Independence (north)	San Jacinto (Superstition Mountain)
Bloody Run Hills	Independence Valley	San Jacinto (stepover)
Blue Cut	Indian Head	San Joaquin Hills
Blue Mountain	Indian Hill	San Jose
Blue Ridge - Gate Creek	Inks Creek - Hooker Dome	San Juan
Bluewing Mountains (unnamed)	Ione Valley	San Luis Bay
Bolton	Ione Valley (unnamed)	San Luis Range (Oceano)
Bonham Ranch	Iron Mountain	San Luis Range (Pecho)
Boulder Creek (Kendall)	Jackson Mountains	San Luis Range (extended)
Boulder River valley western border	Jakes Valley	San Mateo
Boulder front	Jemez - San Ysidro (Calabacillas)	San Mateo Mountains (unnamed)
Brawley	Jemez - San Ysidro (Jemez)	San Pedro Basin
Breckenridge	Jemez - San Ysidro (San Ysidro)	San Pedro Escarpment
Broadmouth Canyon - James Peak	Jersey Valley	San Vicente
Buena Vista Valley	Jess Valley	Sand Springs Range
Buffalo Creek	Jocko	Sandia
Buffalo Fork	Joes Valley	Sandy Point
Buffalo Mountain	Johnson Valley (north)	Sangre de Cristo (Crestone, Blanca, Zapata, San Luis)
Buffalo Valley	Jornada Draw (north, Engle Lake)	Sangre de Cristo (San Luis)
Bullion Mountains	Jornada Draw (south)	Sangre de Cristo (south)
Burnt Mountain	Joshua Tree (seismicity)	Santa Clara
Busted Boiler	Juniper Mountain	Santa Cruz - San Clemente
Butte Mountains	Kane Spring Wash	Santa Cruz Island
Caballo (NM)	Kawich Range - Hot Creek Ranges	Santa Monica
Caballo (TX)	Keddie Ridge	Santa Monica Bay
Cactus Flats	Kern Canyon (Lake Isabella)	Santa Rita (north)
Cady	Kern Canyon (north)	Santa Rita (south)
Calaveras (center)	Kern Canyon (south)	Santa Rosa Island
Calaveras (north)	Kickapoo	Santa Rosa Range (center)
Calaveras (south)	King Range	Santa Rosa Range (north)
Calaveras (south, Paicines)	Kings Canyon	Santa Rosa Range (south)
Calico - Hidalgo	Kittitas Valley	Santa Susana
California Wash	Klamath Graben (Klamath Lake)	Santa Susana (east, connector)
Cameron Graben	Klamath Graben (east)	Santa Ynez (east)
Camp Rock	Klamath Graben (west, center)	Santa Ynez (west)
Campbell Francis - Large Whiskers - Rimmy Jim	Klamath Graben (west, north)	Santa Ynez River
Campo Grande	Klamath Graben (west, south)	Sargent
Canada David	La Bajada	Sawatch (south)
Canby	La Canada del Amagre	Sawtooth
Candelaria Hills (unnamed)	La Jencia	Sawyer Canyon
Canones	La Panza	Schell Creek Range
Canyon Ferry	La Pine Graben	Scipio - Maple Grove - Pavant Range - Red Canyon
Canyon Ferry (Toston)	Laguna Salada	Scodie Lineament (seismicity)
Canyon River	Lake Creek - Boundary Creek - Sadie	Seattle (east)
Canyon River - Price Lake (northeast)	Lake Isabella (seismicity)	Seattle (middle)
Canyon River - Price Lake (southwest)	Lake Peak	Seattle (north)
Cape Blanco Anticline	Lake Range	Seattle (south)
Carefree	Las Positas	Selenite Range
Carico Lake Valley	Last Chance	Seligman
Carlsbad	Lausuen Knoll	Seven Troughs Range
Carlsbad Ridge	Lava Butte	Sevier - Toroweap
Carrington	Lemhi (Big Gulch, Warm Creek)	Sevier - Toroweap (north)
Carson City	Lemhi (Ellis, May, Big Gulch)	Sheep Basin
Carson Lineament	Lemhi (Fallert Springs, Howe)	Sheep Creek Range (southeast)
Casmalia	Lenwood - Lockhart - Old Woman Springs	Sheep Creek Range (west)
Casner Cabin	Leupps	Sheep Range
Catalina	Likely	Sheep Range - East Desert Range
Cataract Creek	Lima Reservoir	Sheephole
Cebollita Mesa	Lions Head	Sheeprock
Cedar Mountain - Mahogany Mountain	Little Fish Lake Valley	Shirt Creek
Cedar Mountains (unnamed)	Little Lake	Shoreline
Cedar Ranch	Little Salmon (offshore)	Shoshone Range
Cedar Wash	Little Salmon (onshore)	Sierra Madre
Cemetery	Little Valley	Sierra Madre (San Fernando)
Centennial (east)	Little Valley (east)	Sierra Nevada (north)
Centennial (west)	Little Valley (unnamed)	Sierra Nevada (south)
Cerro Prieto	Little Valley (west)	Sierra Palomas
Channel Islands	Littlefield Mesa	Sierra de las Uvas
Channel Islands (ramp)	Llano de Albuquerque (proxy)	Silver Creek
Chemult Graben (east)	Llano de Manzano (proxy)	Silver King Pass
Chemult Graben (west)	Lobato Mesa	Silver Lake
Cherry Creek	Loma Blanca	Simi - Santa Rosa
Chico Monocline	Loma Pelada	Simpson Park Mountains
Chino	Lone Mountain	Singatse Range
Clamshell - Sawpit	Lone Pine	Sisar
Clan Alpine	Long Valley (center, unnamed)	Six-mile Flat
Clan Alpine Mountains (unnamed)	Long Valley (north, unnamed)	Skinner Flat
Clayton	Long Valley (south, unnamed)	Sky Lakes
Clayton Valley	Los Alamos	Slinkard Valley
Cleghorn	Los Alamos (extension)	Smith Valley (north)
Cleghorn Lake	Los Medanos - Roe Island	Smith Valley (south)
Cleghorn Pass	Los Osos	Snake Valley (north)
Cliff	Los Pinos	Snake Valley (south)
Coal Mine Canyon	Lost Hills	Socorro Canyon
Coaldale	Lost Man	Sonora Basin
Cochiti Pueblo	Lost River	South Granite Mountains
Cohasset Ridge	Louderback Mountains	South Mono (proxy)
Collayomi	Ludlow	South Napa
Compton	Luning (unnamed)	South Slough
Concho	Lytle Creek (San Jacinto, connector)	Southampton
Concord	Maacama	Southeast Fish Creek Mountains
Contact (north)	Mad River	Southeast Newberry
Contact (south)	Madison	Southern Huntington Valley
Coquille Anticline	Main Canyon	Southern Oquirrh Mountains
Corning	Main Street	Southern Snake Range
Coronado Bank	Malibu Coast	Southern Spring Valley
Cortez Mountain	Malibu Coast (extension)	Southern Whidbey Island (middle)
Cottonwood Mountain (east)	Manastash Ridge	Southern Whidbey Island (north)
County Dump	Manix - Afton Hills	Southern Whidbey Island (south)
Cox Ranch	Manzano	Southwest Newberry
Coyote Canyon	Maple Grove	Southwest Reese River Valley
Coyote Lake	Mastodon	Spanish Springs Peak
Coyote Spring	Maverick Springs Range (north)	Spanish Springs Valley
Coyote Springs	Maverick Springs Range (south)	Spencer Canyon
Coyote Wash	Mayfield	Spokane Hills
Crafton Hills	McAfee Canyon	Spotted Range
Crater Bench	McArthur	Spruce Mountain Ridge
Crawford Mountains - Saleratus Creek	McKinleyville	Squaw Creek
Crescent Dunes	McLean Lake	Stagner Creek
Cricket Mountains (west)	Mead Slope	Stansbury
Cucamonga	Mendocino	Steens (center)
Cuddy Mountain	Mesita	Steens (north)
Curlew Valley	Mesquite	Steens (south)
Cuyama (south)	Metolius	Steptoe (center)
Daisy Bank	Metz Tank	Steptoe Valley (east)
Datil (unnamed)	Mexican Butte	Steptoe Valley (west)
Davis Creek	Mid Channel	Stone Cabin Valley (center)
Dead Camel Mountain (unnamed)	Middlegate	Stone Cabin Valley (east)
Death Valley (Black Mountains)	Midway	Stonewall Anticline
Death Valley (Fish Lake Valley)	Midway Hills	Strawberry
Death Valley (north)	Mike Well - Bosque del Apache	Strawberry Point
Death Valley (south)	Mill Creek (San Andreas, north branch)	Sugarloaf
Deep Springs	Mineral Mountains	Sumpter Valley
Del Valle	Mission	Sunshine
Derry Hills - Foothills	Mission (connected)	Sunshine Valley
Desatoya Mountains (north)	Mission Creek	Superstition Hills
Desatoya Mountains (south)	Mission Hills	Surprise Valley
Desert Mountains (center, unnamed)	Mission Ridge - Arroyo Parida - Santa Ana	Surpur Creek
Desert Mountains (east, unnamed)	Mohawk Valley	Susanville - Eagle Lake (unnamed, proxy)
Desert Mountains (west, unnamed)	Mono Lake	Swain Ravine - Spenceville
Detrital Valley	Montana Mountains - Desert Valley	Sweetwater
Devils Mountain	Monte Cristo Valley	Swisshelm (north)
Diamond Mountains	Monte Vista - Shannon	Swisshelm (south)
Dixie Valley	Monterey Bay - Tularcitos	Sylvain - Oatfield
Dog Valley	Morales (east)	Table Bluff
Double Spring Flat	Morales (west)	Tacoma
Dover	Morgan	Tank Canyon
Drayton Harbor	Morongo Valley	Teels Marsh (unnamed)
Drum Mountains (east)	Mount Angel	Terraced Hills
Drum Mountains (northwest)	Mount Callaghan	Teton
Drum Mountains (south)	Mount Diablo (north)	The Cove
Dry Hills	Mount Diablo (south)	The Lava Beds (east)
Dry Lake	Mount Riley	The Lava Beds (west)
Dry Mountain	Mount Rose	Thompson Valley
Dry Valley - Smoke Creek Ranch	Mountainair (unnamed)	Thousand Lake
Duck Flat	Murphy Meadows	Thousand Springs Valley
Dunn Glenn	Murrieta Hot Springs	Tijeras - Canoncito
Dutchman Draw	Nacimiento	Tikaboo
Eagle Bay	Nambe	Tin Mountain
Earthquake Valley (center)	Needles Graben	Toiyabe Range
Earthquake Valley (north)	Nelson Lake	Topliff Hill
Earthquake Valley (south)	Newark Valley	Toppenish Ridge (Mill Creek thrust)
East Baylor Mountain - Carizzo Mountain	Newport - Inglewood	Toquima Range
East Cache	Newport - Inglewood (offshore)	Towne Pass
East Carson Valley (proxy)	North Channel	Trinidad
East Franklin Mountains	North Frontal (east)	Trinity Range (unnamed)
East Gallatin - Reese Creek	North Frontal (west)	Tule Springs Rims
East Gem Valley	North Genola	Turner - Mill Creek
East Grand Ronde Valley	North Promontory	Tuscarora
East Huasna	North Salt Lake	Twin Lakes - Multorpor Mountain Graben
East Kamas	North Tahoe	Uhtanum Ridge - Gable Mountain
East Mount Sheridan	Northern Butte Valley	Uinkaret volcanic field
East Paradise	Northern Huntington Valley	Upper Yellowstone Valley (east)
East Potrillo	Northern Monitor Valley	Upper Yellowstone Valley (west)
East Pueblo Valley	Northern Roberts Mountains	Utah Lakes
East Rincon Hills	Northern Simpson Park Mountains	Utsalady Point (east)
East Robledo	Northern Snake Mountains	Utsalady Point (west)
East Sierra Diablo	Northridge	Vendome
East Tintic Mountains (northwest)	Northridge Hills	Verde
East Tintic Mountains (southeast)	Noyo Basin	Verdugo
East Tintic Mountains (southwest)	Oak Ridge (offshore)	Vernon
East Tonuco	Oak Ridge (offshore, extension)	Very Large Array (east)
East-Side Chase Gulch	Oak Ridge (onshore)	Very Large Array (west)
Eastern Bear Lake	Oceanic - West Huasna	Villa Grove
Eastern Bilk Creek Mountains	Oceanside	Volcanic Hills (unnamed)
Eastern Carson Sink	Ogden Valley North Fork	Wah Wah Mountains (south)
Eastern Columbus Salt Marsh	Olinghouse	Wahmonie
Eastern Dixie Valley (north)	Olympia	Waldport
Eastern Dixie Valley (south)	Oneil Basin (east)	Walker Spring
Eastern Edwards Creek Valley	Oneil Basin (west)	Wallula (northeast)
Eastern Granite Range	Oquirrh	Wallula (southwest)
Eastern Humboldt Range	Organ Mountains	Walnut Creek
Eastern Independence Valley	Ortigalita (north)	Ward Tank - Sierro Kemado - Hackler Tank
Eastern Jackson Mountains	Ortigalita (south)	Warm Springs
Eastern Little Smoky Valley	Owens Valley	Warm Springs Valley
Eastern Monitor Range (north)	Owens Valley (Keough Hot Springs)	Warner Valley (east, Coleman Valley)
Eastern Monitor Range (south)	Owl Lake	Warner Valley (east, center)
Eastern Osgood Mountains	Owyhee Mountains - Halfway Gulch	Warner Valley (east, north)
Eastern Pine Forest Range	Ozena	Warner Valley (west, Coleman Valley)
Eastern Reveille Range	Packard Flat (unnamed)	Warner Valley (west, north)
Eastgate	Pahranagat Valley (unnamed)	Warwick
Eaton Roughs	Pahrump	Wasatch (Brigham City)
Echo Canyon	Pajarito	Wasatch (Clarkston Mountain)
Edna Mountain	Palisade Mesa	Wasatch (Collinston)
Eglington	Palos Verdes	Wasatch (East Bench)
Elmore Ranch	Panamint Valley	Wasatch (Fayette)
Elsinore (Coyote Mountains)	Paradise	Wasatch (Foothills)
Elsinore (Glen Ivy)	Paradise Range	Wasatch (Levan)
Elsinore (Julian)	Paradise Range (unnamed)	Wasatch (Malad City)
Elsinore (Temecula)	Paragonah	Wasatch (Nephi, north)
Elsinore (stepover)	Park Range	Wasatch (Nephi, south)
Elysian Park (lower)	Paulina Marsh	Wasatch (Provo, north)
Elysian Park (upper)	Paunsaugunt	Wasatch (Provo, south)
Embudo	Paxton Ranch	Wasatch (Salt Lake City, north)
Emerson - Copper Mountain	Pearl Harbor	Wasatch (Salt Lake City, south)
Emigrant	Peavine Peak	Wasatch (Virginia Street)
Emigrant Peak	Pedrogosa	Wasatch (Weber)
Enoch Graben	Peko Peak	Washburn Ranch
Entiat	Penoyer	Washington (Fort Pearce)
Eugene Mountains	Peralta Hills	Wassuk Range
Eureka Peak	Petersen Mountain (east)	Wecoma
Excelsior Mountains (unnamed)	Petersen Mountain (west)	Wellington Hills (unnamed)
Extra	Pfieffer Point	West Baker Valley (center)
Fairview	Picuris - Pecos	West Baker Valley (southeast)
Faults north of Placitas	Pilarcitos	West Cache (Clarkston)
Fickle Hill	Pilot Creek Valley	West Cache (Junction Hills)
Fish Creek Range	Pilot Mountains (unnamed)	West Cache (Wellsville)
Fish Lake Valley	Pilot Range	West Delaware Mountains
Fish Slough	Pine Mountain	West Dry Lake
Fish Springs	Pine Mountains (unnamed)	West Eagle Mountains - Red Hills
Fitzgerald	Pine Valley (unnamed)	West Florida Mountains
Fitzhugh Creek	Pinto Mountain	West Gate
Fontana (seismicity)	Pioneer	West Grand Ronde Valley
Fourmile Flat (unnamed)	Pisgah - Bullion Mountain - Mesquite Lake	West Indio Mountains
Fox Range	Pitas Point	West Lobo Valley
Franklin	Pitas Point (lower, Montalvo)	West Napa
Freds Mountain	Pitas Point (lower, west)	West Pocatello Valley
Frenchman Mountain	Pitas Point (upper)	West Specter Range
Frigid Creek	Pitaycachi (north)	West Spring Mountains
Gabbs Valley	Pitaycachi (south)	West Tahoe
Gabbs Valley (unnamed)	Pittville	West Tracy
Gales Creek (Chehalem Valley)	Pleasant Valley (China Mountain)	West Valley
Gales Creek (Parsons Creek)	Pleasant Valley (Pearce)	Western Bear Lake
Gallina	Pleasant Valley (Sou Hills)	Western Bull Run Mountains
Garberville - Briceland	Pleasant Valley (Tobin)	Western Fairview Peak
Garden Valley (unnamed)	Pleito	Western Granite Range
Garlic Springs	Point Reyes	Western Humboldt Range
Garlock (center)	Point Reyes (connector)	Western Reveille Range
Garlock (east)	Polaris (CA)	Western Roberts Mountains
Garlock (west)	Polaris (MT)	Western Tecoma Valley
Genoa (north)	Pondosa (proxy)	Western Toiyabe Range
Genoa (south)	Porcupine Mountains	Whaleshead
Georgia Gulch	Portland Hills (north)	Wheeler Peak
Gillem - Big Crack	Portland Hills (south)	White Branch
Gillespie Mountain	Prescott Valley Grabens	White Mountains
Gold Hill (north)	Preston	White River Valley
Gold Hill (south)	Puente Hills (Coyote Hills)	White River Valley (unnamed)
Gold King	Puente Hills (Los Angeles)	White Wolf
Goldstone Lake	Puente Hills (Santa Fe Springs)	White Wolf (extension)
Goose Lake	Puye	Whittier
Gooseberry Graben	Pyramid Lake	Wildcat Wash
Gore Range	Pyramid Mountains (unnamed)	Willapa Bay (north)
Goshen	Quebraditas - El Oro	Willapa Bay (south)
Grand Valley	Quien Sabe	Williams Fork Mountains
Grand Wash	Railroad Valley	Winter Rim
Granite Springs Valley	Rainbow Mountain	Yaquina
Grass Valley	Rattlesnake Flat	Yorba Linda
Gravel Hills - Harper Lake	Ravenswood	Yucca - Boundary
Gray Ranch	Raymond	Yucca Mountains (east)
Great Salt Lake (Antelope Island)	Red Bluff	Yucca Mountains (west)
Great Salt Lake (Fremont Island)	Red Buttes	Zayante - Vergeles
Great Salt Lake (Promontory)	Red Canyon	Zia
Great Valley 1	Red Hill

Solution Report: Updated

Table Of Contents

General Information

Logic Tree Branch

Solution MFDs

Rupture Rate Distribution

Logic Tree Rate Statistics

Rupture Rate Comparison

Connection Rate Distribution

Fault Participation Rates

Section b-values

Subsection b-values

Parent Section b-values

Branch-averaged subsection b-values

Rupture Scaling

Magnitude Scaling

Slip Scaling

Rupture Scalar Histograms

Rupture Length

Rupture Length Mechanism-Specific Histograms

Rupture Magnitude

Rupture Magnitude Mechanism-Specific Histograms

Maximum Jump Dist

Maximum Jump Dist Mechanism-Specific Histograms

Cumulative Jump Dist

Cumulative Jump Dist Mechanism-Specific Histograms

Cumulative Rake Change

Cumulative Rake Change Mechanism-Specific Histograms

Subsection Maximum Values

Subsection Maximum Rupture Length

Subsection Maximum Rupture Magnitude

Fault Section Connections

Jump Overlaps

Unique Connection Example Ruptures

Connected Clusters

Slip Rates

Linear Slip Rate Plots

Log10 Slip Rate Plots

Slip Rate Std Dev Plots

Slip Rate & Area Reductions

SAF Creeping Section and Parkfield

Parkfield Magnitudes

Rupture Rates Through Creeping Section

Along-Strike Slip Rates and Reductions

Paleoseismic Data Comparison

Jump Counts Over Distance

Supra-seismogenic Jump Counts

M≥7 Jump Counts

Max Jump Distance Distribution

Cumulative Jump Distance Distribution

Fault Segmentation

Special Fault Detail Pages

Parent Section Detail Pages
