Pitas Point Details

PropertyValue
Rupture Count35,160
Ruptures w/ Nonzero Rates34,303
Magnitude Range[5.23, 8.35]
Length Range[4, 1,302] km
Total Rate0.010293407 /yr
Multi-Fault Rate0.003144921 /yr (30.55%)
Directly-Connected Faults11
All Co-Rupturing Faults98

Table Of Contents

Magnitude-Frequency Distribution

(top)

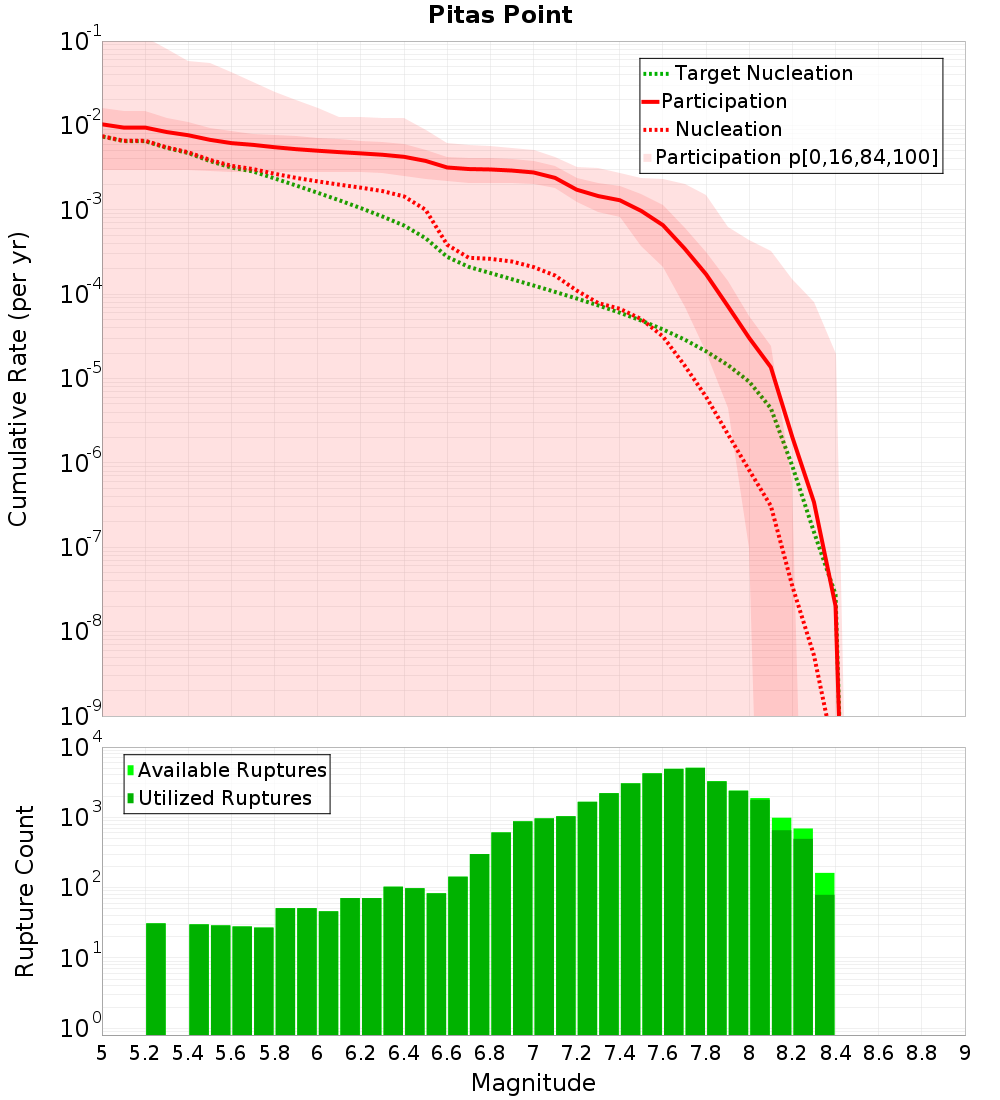

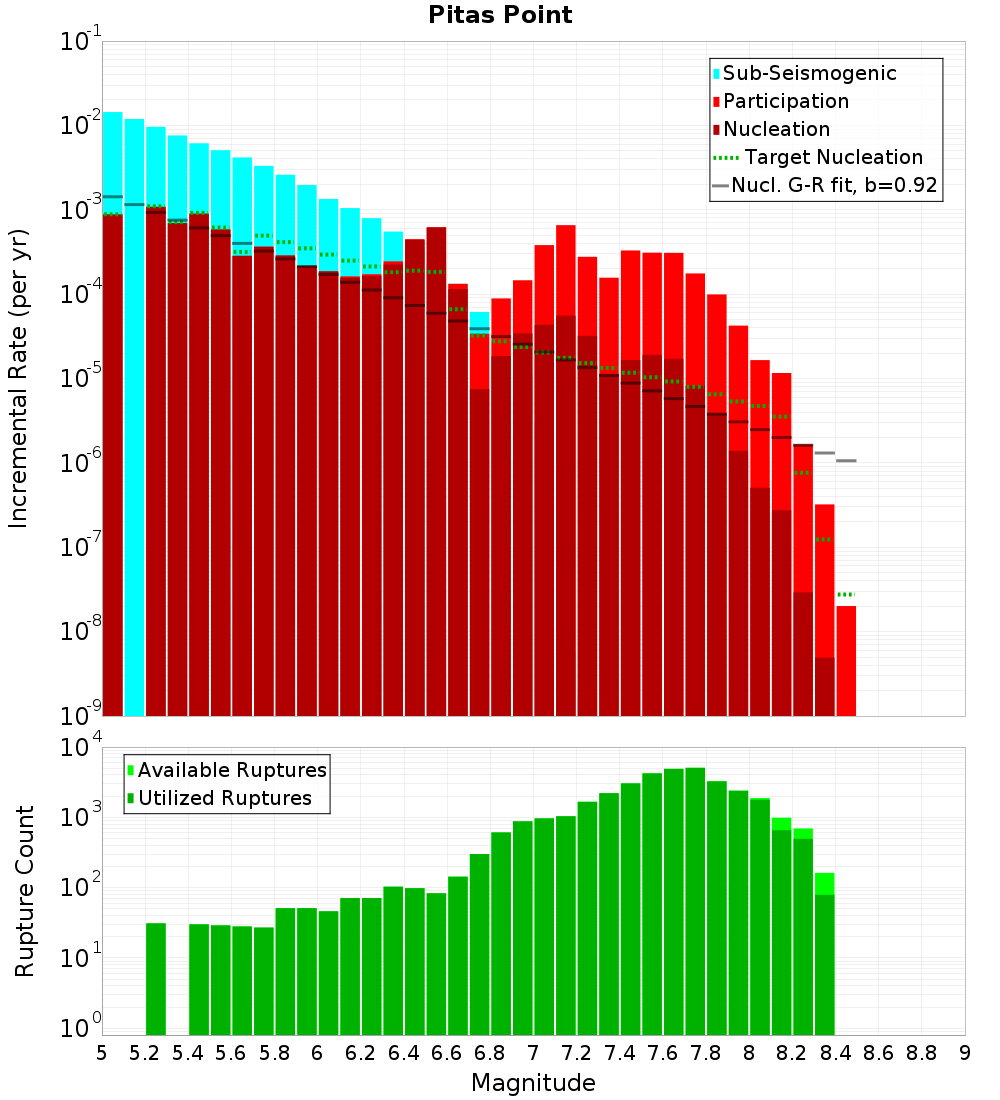

Fault magnitude-frequency distributions. The left plot shows incremental rates (rates within each magnitude bin), and the right plot shows cumulative rates (rates at or above the given magnitude).

The smaller bottom panel shows the distribution of available ruptures with a green histogram and is not rate-weighted. It only shows the raw count of ruptures of various magnitudes available in the rupture set.

IncrementalCumulative
Incremental PlotCumulative Plot

NOTE: This solution has a distribution of magnitudes and rates for each ruptures, and is likely a branch-averaged solution. That full distribution for each rupture is used to construct the MFDs above, but only mean magnitudes are used in the lower panel showing available and utilized magnitudes, and thus there may be bins with nonzero rates in the top panel where no mgnitudes are shown in the bottom. The magnitude rage at the top of this page also only considers mean magnitudes.

Cumulative Rates and Recurrence Intervals Table

(top)

MagnitudeParticipation RateRangeParticipation RI (yrs)Range
M≥50.010293407[0.00E0, 0.1425378]97.15[7.02, ∞]
M≥5.10.009415671[0.00E0, 0.112132005]106.21[8.92, ∞]
M≥5.20.009415671[0.00E0, 0.112132005]106.21[8.92, ∞]
M≥5.30.008333917[0.00E0, 8.04E-2]119.99[12.45, ∞]
M≥5.40.0076387282[0.00E0, 5.82E-2]130.91[17.19, ∞]
M≥5.50.0067417827[0.00E0, 5.51E-2]148.33[18.15, ∞]
M≥5.60.006159185[0.00E0, 4.25E-2]162.36[23.52, ∞]
M≥5.70.0058747623[0.00E0, 3.25E-2]170.22[30.76, ∞]
M≥5.80.0055101416[0.00E0, 2.49E-2]181.48[40.21, ∞]
M≥5.90.005222289[0.00E0, 2.00E-2]191.49[50.05, ∞]
M≥60.0050052875[0.00E0, 1.62E-2]199.79[61.9, ∞]
M≥6.10.004818351[0.00E0, 1.27E-2]207.54[78.63, ∞]
M≥6.20.004656066[0.00E0, 1.27E-2]214.77[78.67, ∞]
M≥6.30.004484063[0.00E0, 1.23E-2]223.01[81.1, ∞]
M≥6.40.0042395988[0.00E0, 1.23E-2]235.87[81.1, ∞]
M≥6.50.0037911844[0.00E0, 8.73E-3]263.77[114.6, ∞]
M≥6.60.0031688195[0.00E0, 6.18E-3]315.57[161.86, ∞]
M≥6.70.0030363996[0.00E0, 5.80E-3]329.34[172.56, ∞]
M≥6.80.0030024776[0.00E0, 5.72E-3]333.06[174.88, ∞]
M≥6.90.0029135032[0.00E0, 5.35E-3]343.23[186.83, ∞]
M≥70.002767479[0.00E0, 5.09E-3]361.34[196.47, ∞]
M≥7.10.0023863488[0.00E0, 4.25E-3]419.05[235.45, ∞]
M≥7.20.001729558[0.00E0, 3.24E-3]578.18[308.77, ∞]
M≥7.30.0014524912[0.00E0, 3.13E-3]688.47[319.86, ∞]
M≥7.40.0012959666[0.00E0, 2.70E-3]771.62[371.05, ∞]
M≥7.59.6665515E-4[0.00E0, 2.38E-3]1,034.5[420.77, ∞]
M≥7.66.5637805E-4[0.00E0, 2.29E-3]1,523.51[437.53, ∞]
M≥7.73.476632E-4[0.00E0, 2.03E-3]2,876.35[492.98, ∞]
M≥7.81.7173294E-4[0.00E0, 1.51E-3]5,822.99[661.16, ∞]
M≥7.97.2496405E-5[0.00E0, 6.33E-4]13,793.79[1,580.75, ∞]
M≥83.014615E-5[0.00E0, 4.39E-4]33,171.73[2,279.46, ∞]
M≥8.11.3625886E-5[0.00E0, 3.22E-4]73,389.73[3,102.7, ∞]
M≥8.22.0061107E-6[0.00E0, 1.51E-4]498,477.01[6,618.13, ∞]
M≥8.33.4218795E-7[0.00E0, 8.10E-5]2,922,370.56[12,344.15, ∞]
M≥8.42.010839E-8[0.00E0, 1.95E-5]49,730,485.34[51,203.28, ∞]

Individual Branch Nucleation MFDs

(top)

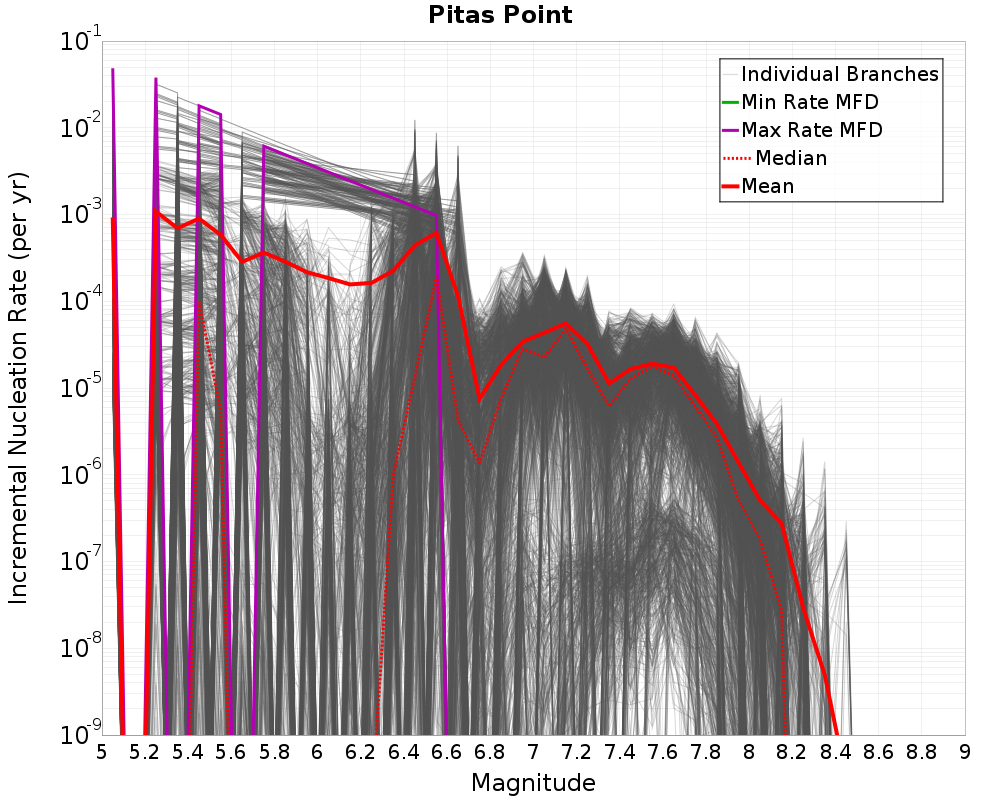

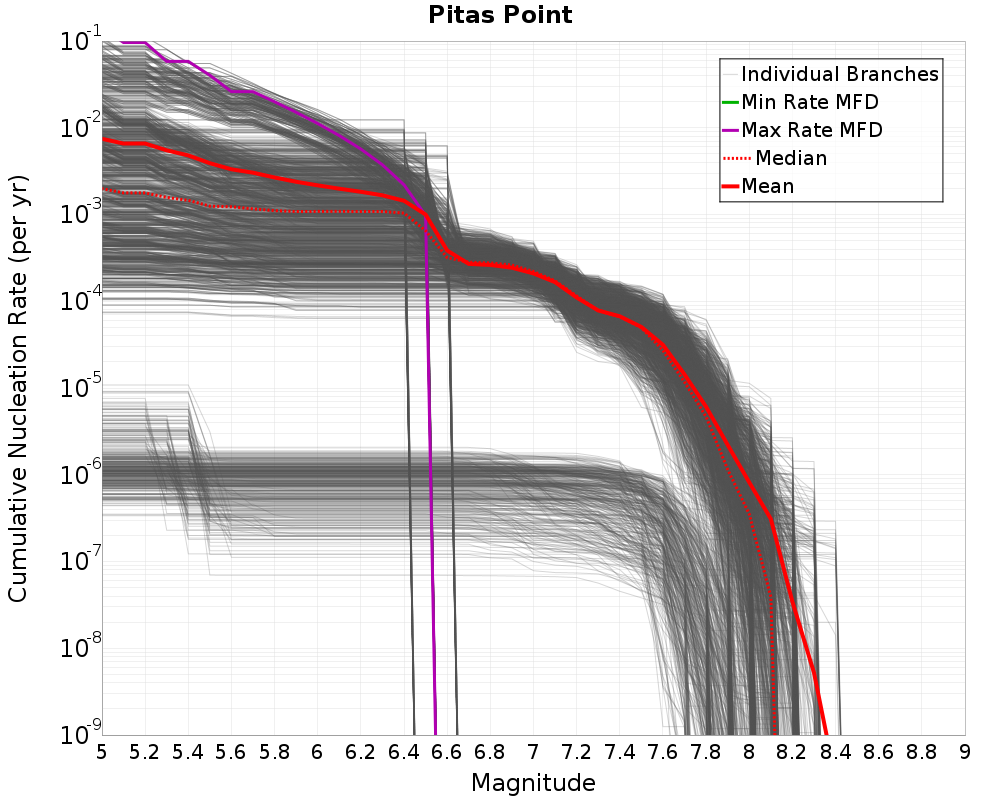

Individual nucleation MFDs across 2250 logic tree branches. The individual branches with the highest and lowest total rate are highlighted, as are the mean and median models.

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

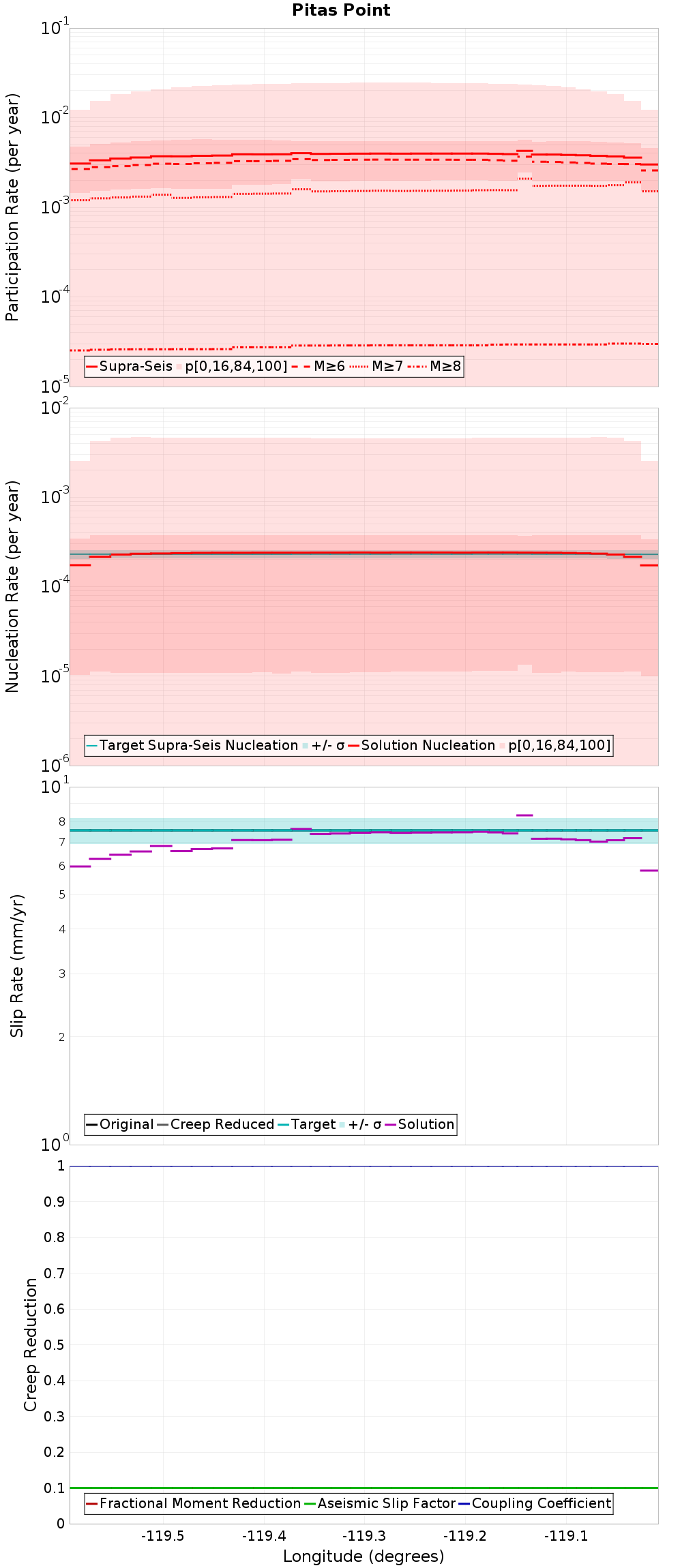

Along-strike plot

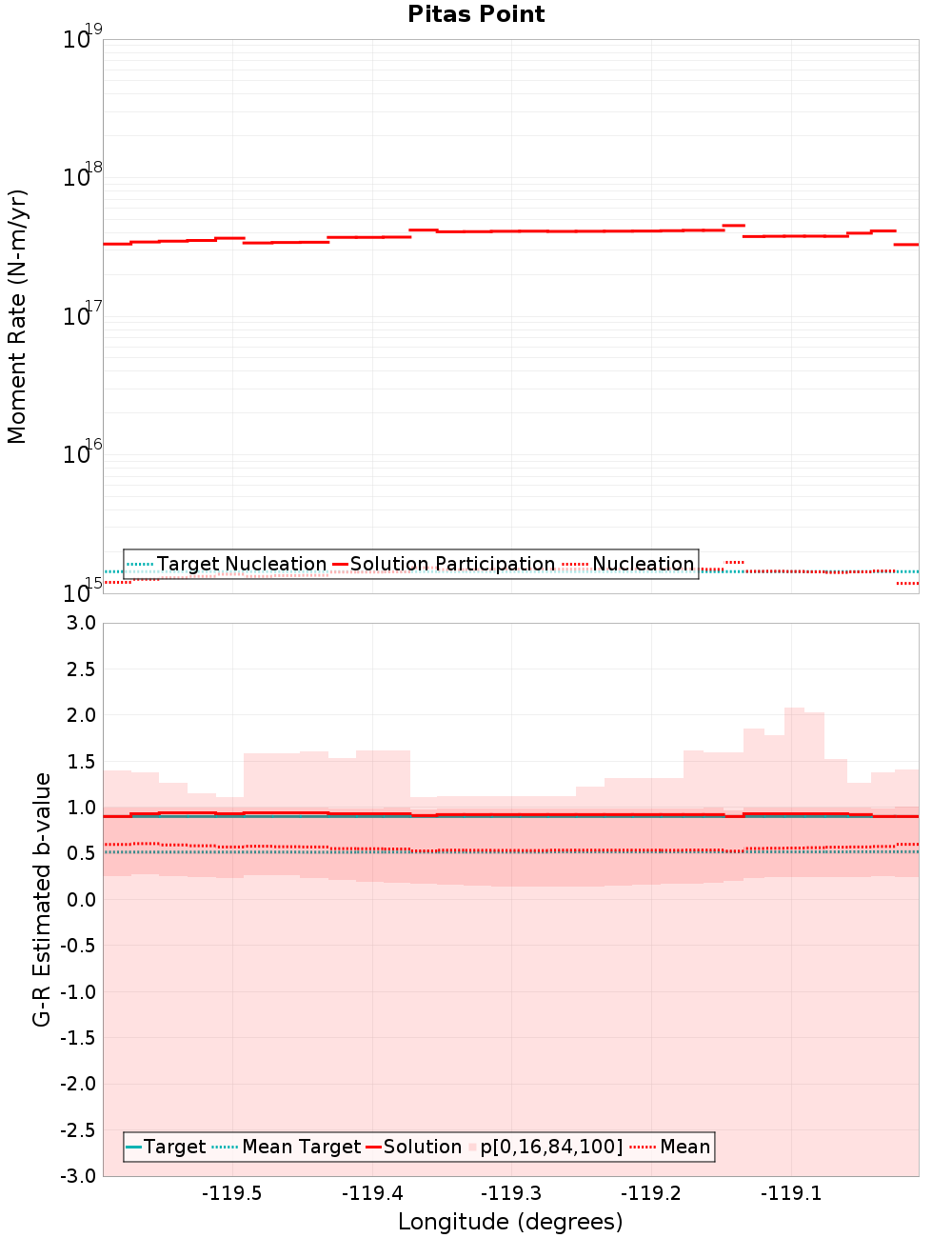

Moment-Rates and b-Values

(top)

Along-strike plot

Length Distributions

(top)

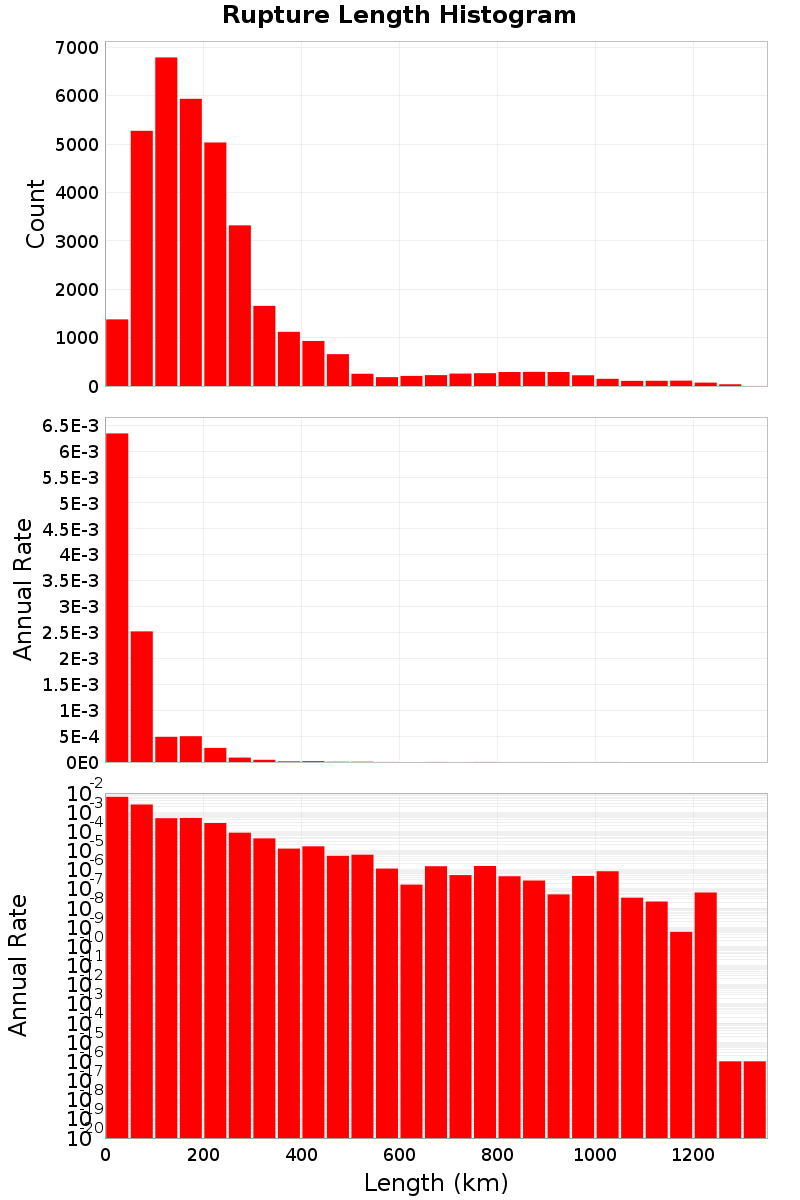

Fault rupture length distributions. The top panel shows the raw count of ruptures in which Pitas Point participates in the rupture set as a function of rupture length. The bottom two panels show the rate-weighted distribution (i.e., the distribution of lengths in the solution). The middle panel is plotted with a linear scale, and the bottom paney a logarithmic scale.

Length Hist

Rupture Examples

(top)

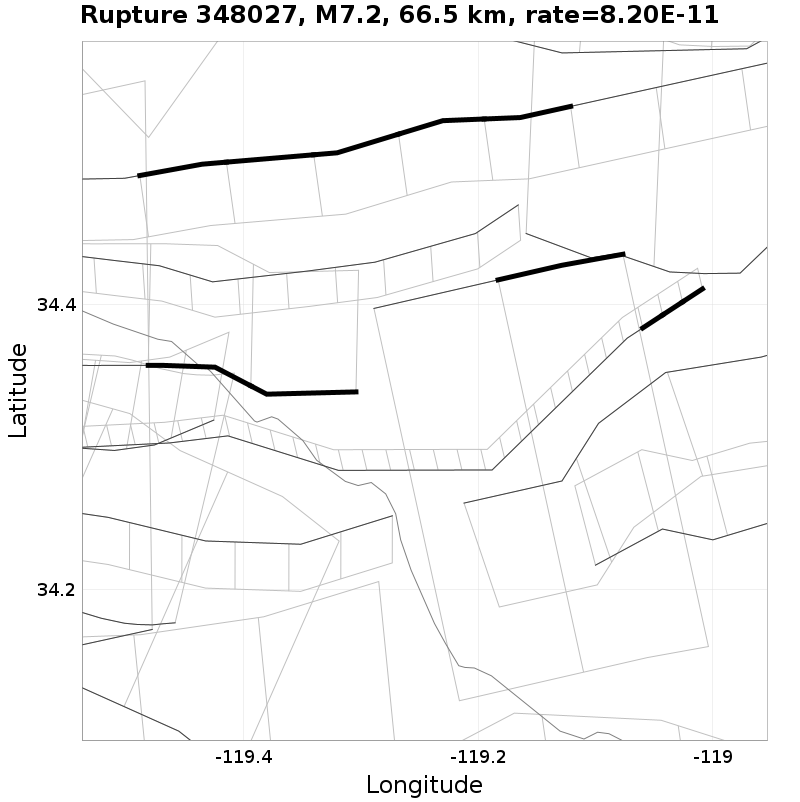

The following table includes example ruptures, selected at various percentiles from the rate-weighted rupture length distribution. So, for example, the rupture with length closest to the median length (again, rate-weighted) is plotted in the first column ('p50 Example'). The longest participating rupture is plotted last ('p100 Example').

It is important to note that the rupture examples here may not be representative, and may have negligible rates. They are included for illustration purposes only.

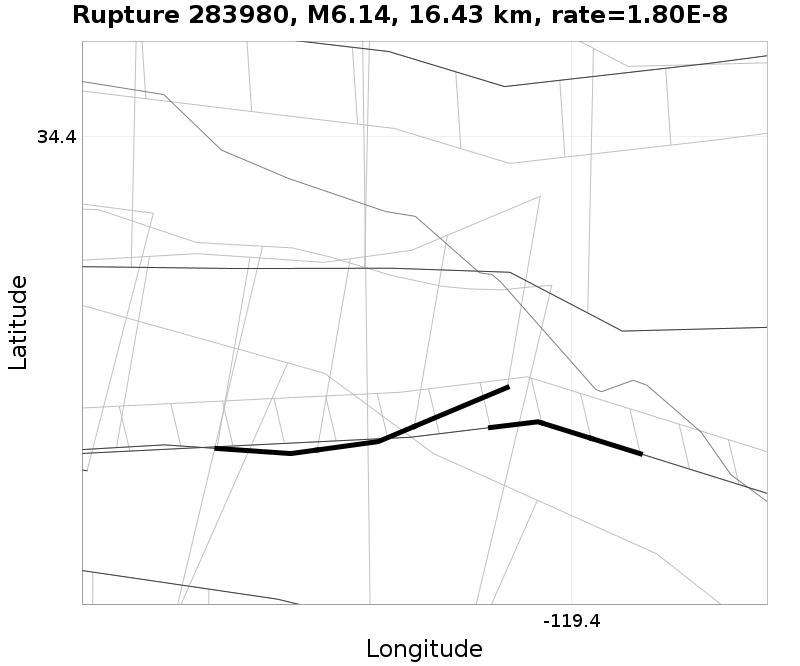

p50 Example

p75 Example

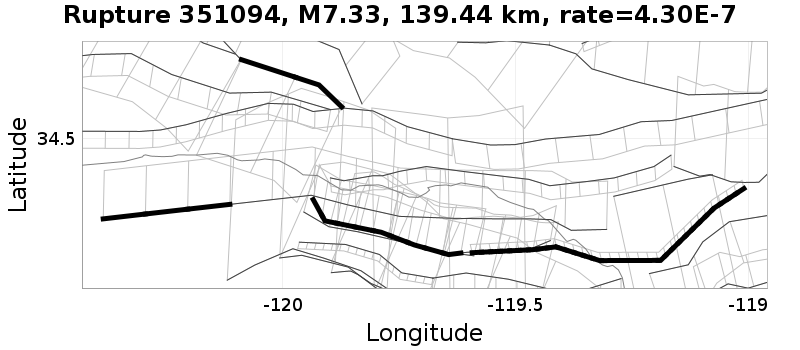

p90 Example
Rupture 283980Rupture 348027Rupture 351094

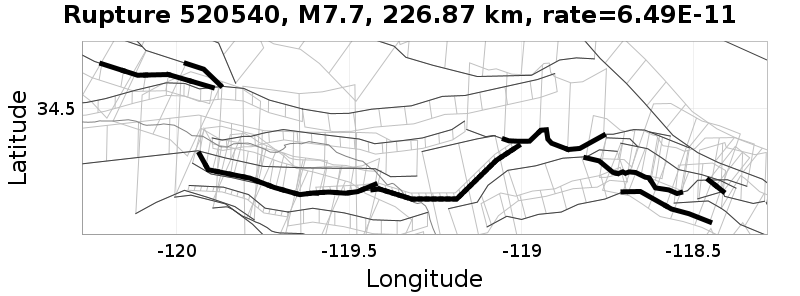

p97.5 Example

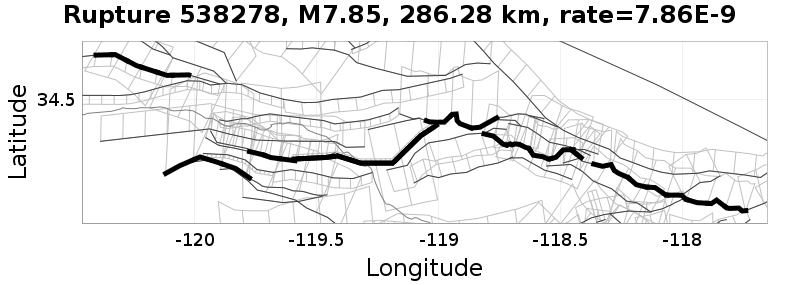

p99 Example

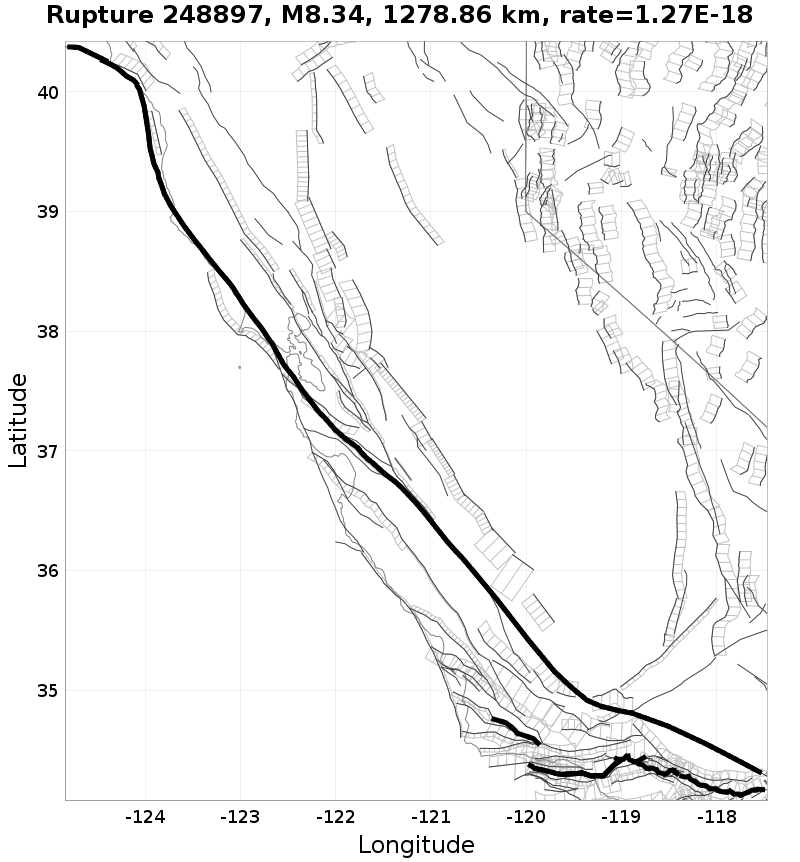

p100 Example

Rupture 520540Rupture 538278Rupture 248897

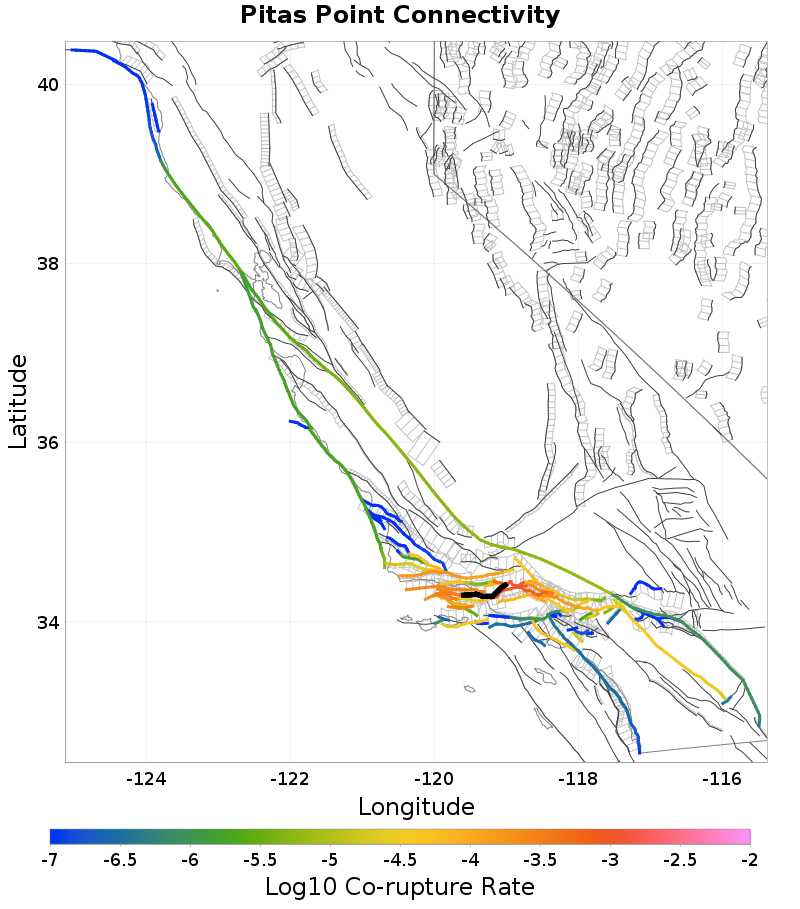

Connectivity

(top)

Map

Nearby Sections

(top)

Fault Section
Pitas Point (upper), 0.1 km away
North Channel, 0.14 km away
Sisar, 0.3 km away
Pitas Point (lower, Montalvo), 0.65 km away
San Cayetano, 1.63 km away
Oak Ridge (onshore), 2.17 km away
Oak Ridge (offshore), 3.73 km away
Red Mountain, 4.23 km away
Mid Channel, 4.9 km away
Channel Islands (ramp), 6.14 km away
Mission Ridge - Arroyo Parida - Santa Ana, 8.34 km away
Oak Ridge (offshore, extension), 9.24 km away
Simi - Santa Rosa, 9.52 km away
Santa Ynez (east), 12.1 km away
Channel Islands, 12.94 km away

Pitas Point (upper), 0.1 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.1 km
Min Rate-Weighted Dist0.1 km
Co-rupture Count11,886
Co-rupture Rate3.93405E-4
Co-rupture Mag Range[6.31, 8.35]

North Channel, 0.14 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.14 km
Min Rate-Weighted Dist1.45 km
Co-rupture Count12,264
Co-rupture Rate3.3382172E-4
Co-rupture Mag Range[5.95, 8.20]

Sisar, 0.3 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.3 km
Min Rate-Weighted Dist0.74 km
Co-rupture Count3,560
Co-rupture Rate6.519244E-5
Co-rupture Mag Range[6.84, 8.32]

Pitas Point (lower, Montalvo), 0.65 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.65 km
Min Rate-Weighted Dist0.69 km
Co-rupture Count3,594
Co-rupture Rate3.040564E-4
Co-rupture Mag Range[6.97, 8.13]

San Cayetano, 1.63 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.63 km
Min Rate-Weighted Dist2.02 km
Co-rupture Count21,439
Co-rupture Rate0.0013527919
Co-rupture Mag Range[6.76, 8.35]

Oak Ridge (onshore), 2.17 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.17 km
Min Rate-Weighted Dist2.79 km
Co-rupture Count1,541
Co-rupture Rate0.0010343986
Co-rupture Mag Range[6.71, 7.94]

Oak Ridge (offshore), 3.73 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.73 km
Min Rate-Weighted Dist4.92 km
Co-rupture Count1,022
Co-rupture Rate8.931548E-5
Co-rupture Mag Range[6.04, 7.88]

Red Mountain, 4.23 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.23 km
Min Rate-Weighted Dist4.34 km
Co-rupture Count8,180
Co-rupture Rate4.216972E-4
Co-rupture Mag Range[6.57, 8.21]

Mid Channel, 4.9 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.9 km
Min Rate-Weighted Dist4.9 km
Co-rupture Count335
Co-rupture Rate9.403736E-5
Co-rupture Mag Range[6.76, 7.88]

Channel Islands (ramp), 6.14 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count690
Co-rupture Rate9.978858E-6
Co-rupture Mag Range[6.83, 8.08]

Mission Ridge - Arroyo Parida - Santa Ana, 8.34 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count1,619
Co-rupture Rate6.939119E-5
Co-rupture Mag Range[6.25, 8.32]

Oak Ridge (offshore, extension), 9.24 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist13.3 km
Min Rate-Weighted Dist13.3 km
Co-rupture Count2,862
Co-rupture Rate3.5159578E-4
Co-rupture Mag Range[6.64, 8.10]

Simi - Santa Rosa, 9.52 km away

(back to table)

NSHM23
Connected?true
Directly Connected?true
Min Co-Rupture Dist9.52 km
Min Rate-Weighted Dist9.52 km
Co-rupture Count1,311
Co-rupture Rate7.474103E-5
Co-rupture Mag Range[6.29, 8.18]

Santa Ynez (east), 12.1 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count3,587
Co-rupture Rate1.6340108E-4
Co-rupture Mag Range[6.67, 8.19]

Channel Islands, 12.94 km away

(back to table)

NSHM23
Connected?true
Directly Connected?false
Co-rupture Count680
Co-rupture Rate4.478846E-5
Co-rupture Mag Range[6.82, 8.05]
