Logic Tree Site Hazard Curves
Table Of Contents
Los Angeles
Los Angeles, PGA
Los Angeles, PGA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
| 2% in 50 year | 10% in 50 year |
|---|---|
| 0.83250564 (g) | 0.43179965 (g) |

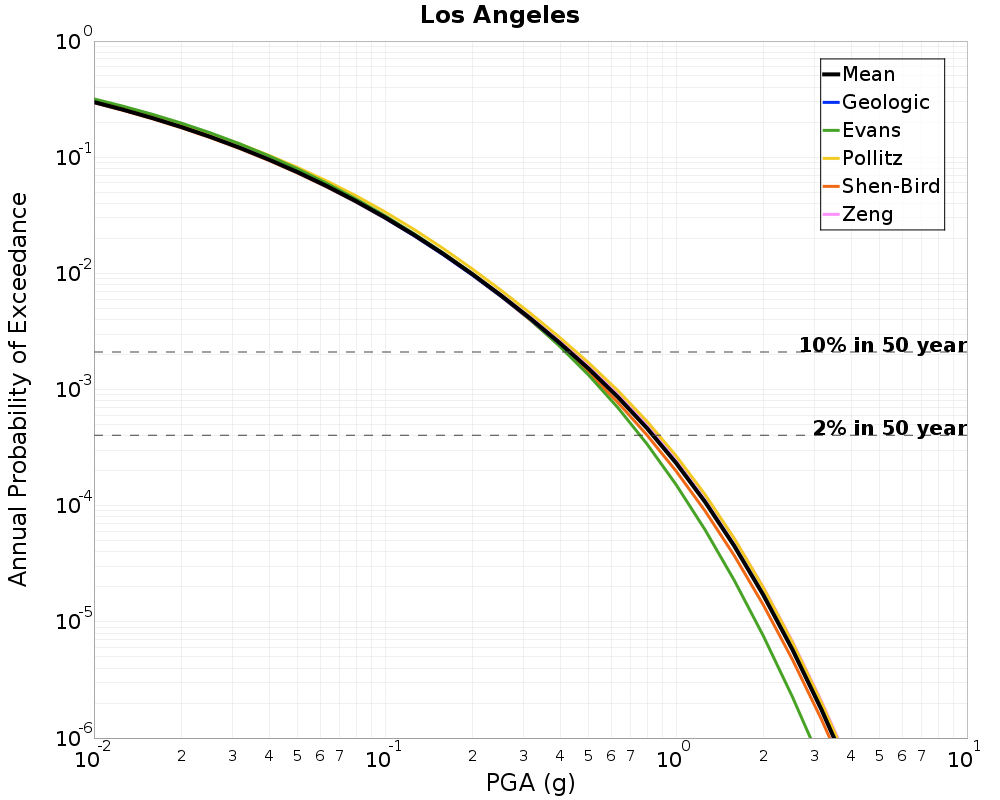

Los Angeles, PGA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.83250564 (g) | 0.43179965 (g) |
| Geologic | 0.8349834 (g) | 0.43001875 (g) |
| Evans | 0.7519228 (g) | 0.4168446 (g) |
| Pollitz | 0.8725118 (g) | 0.45438752 (g) |
| Shen-Bird | 0.7957061 (g) | 0.42047393 (g) |
| Zeng | 0.8612369 (g) | 0.4403815 (g) |

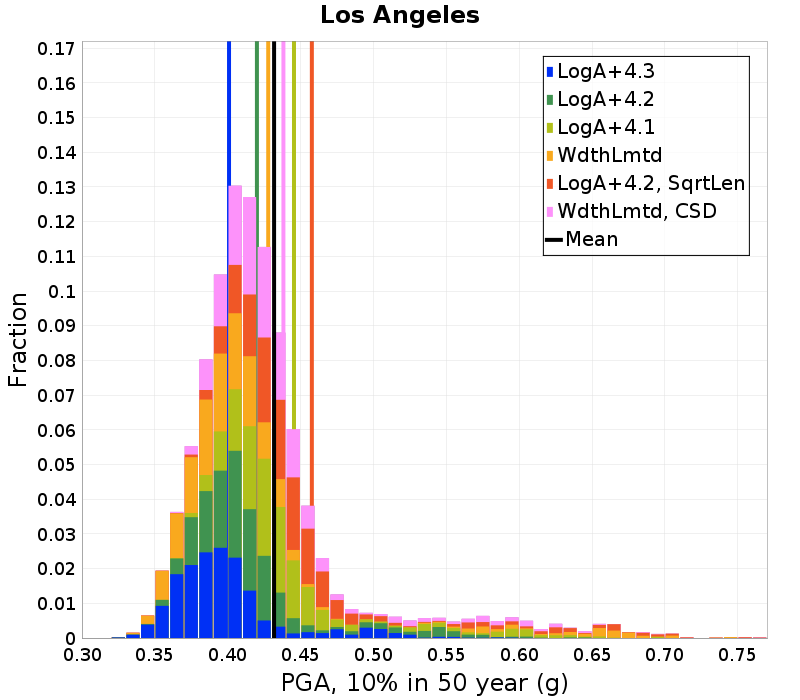

Los Angeles, PGA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.83250564 (g) | 0.43179965 (g) |
| LogA+4.3 | 0.7702426 (g) | 0.40088117 (g) |
| LogA+4.2 | 0.80886304 (g) | 0.42001796 (g) |
| LogA+4.1 | 0.8533141 (g) | 0.44545513 (g) |
| WdthLmtd | 0.8278787 (g) | 0.42776668 (g) |
| LogA+4.2, SqrtLen | 0.8784946 (g) | 0.45770723 (g) |
| WdthLmtd, CSD | 0.8477814 (g) | 0.4381994 (g) |

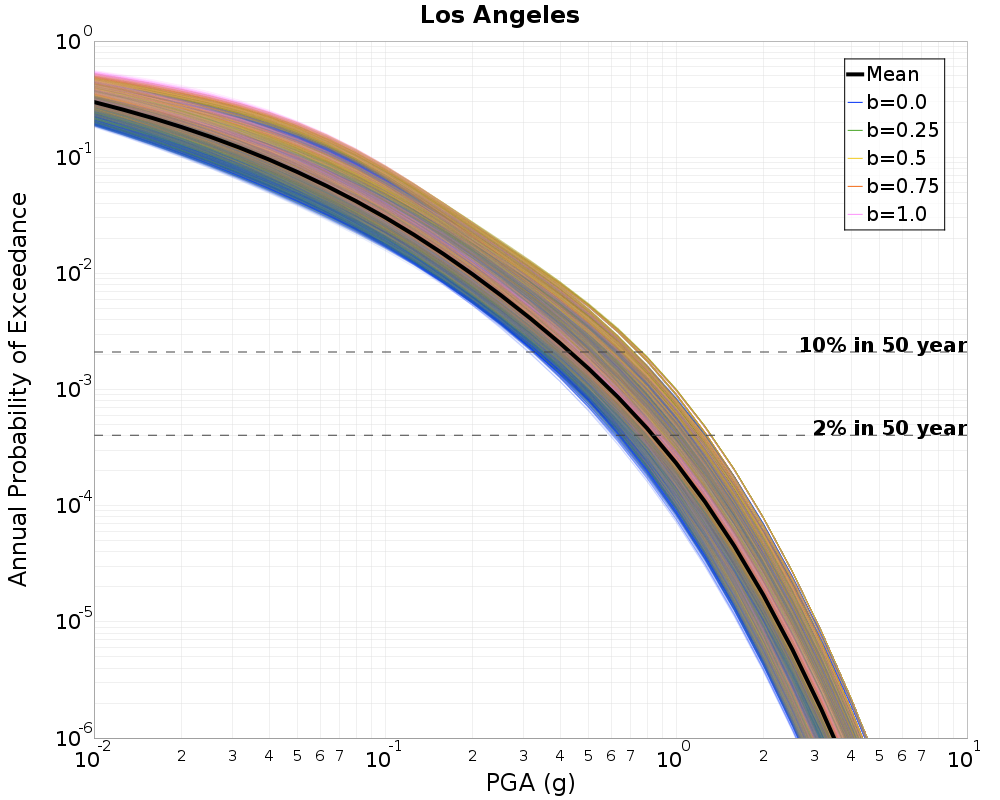

Los Angeles, PGA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.83250564 (g) | 0.43179965 (g) |
| b=0.0 | 0.8001922 (g) | 0.41372344 (g) |
| b=0.25 | 0.81864697 (g) | 0.42456102 (g) |
| b=0.5 | 0.8329532 (g) | 0.43222126 (g) |
| b=0.75 | 0.84876055 (g) | 0.44068608 (g) |
| b=1.0 | 0.859976 (g) | 0.44741175 (g) |

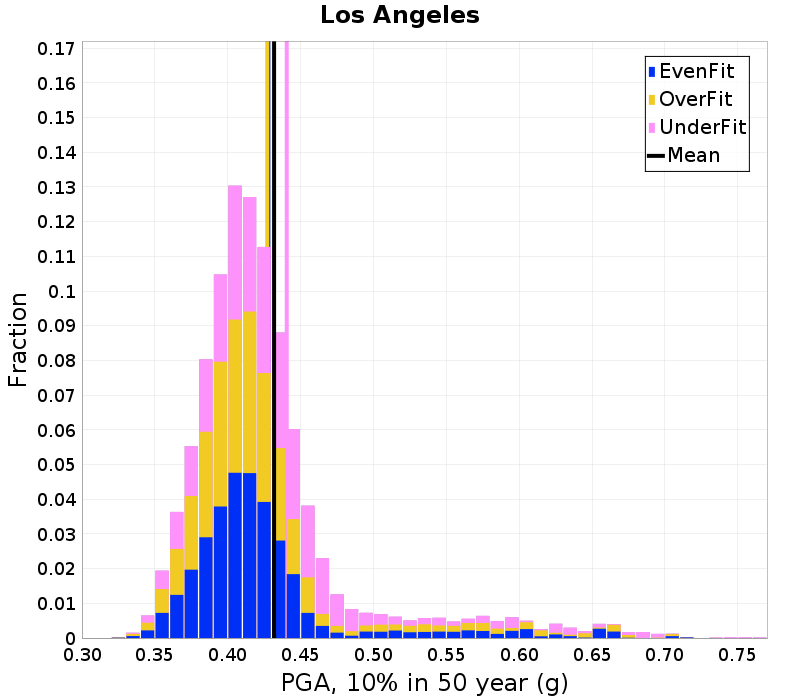

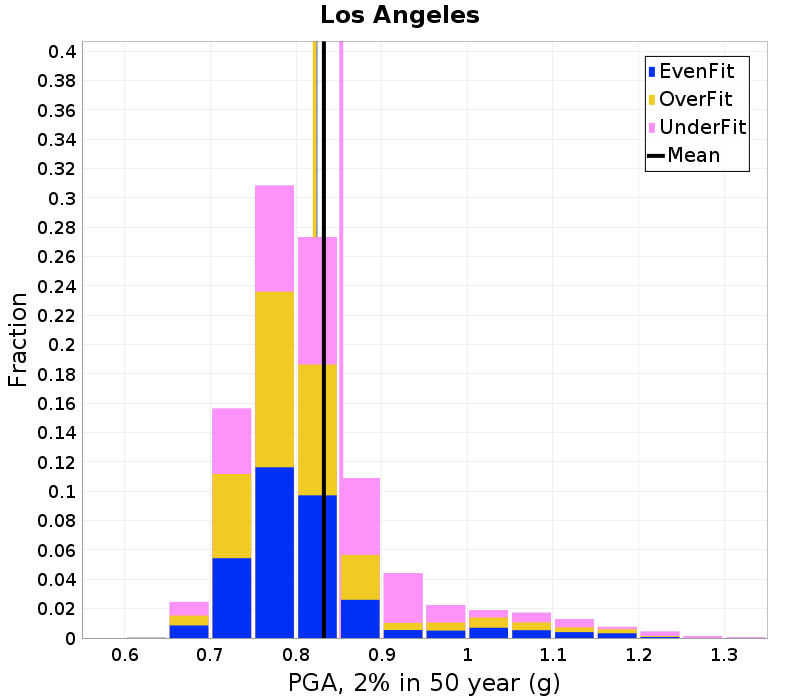

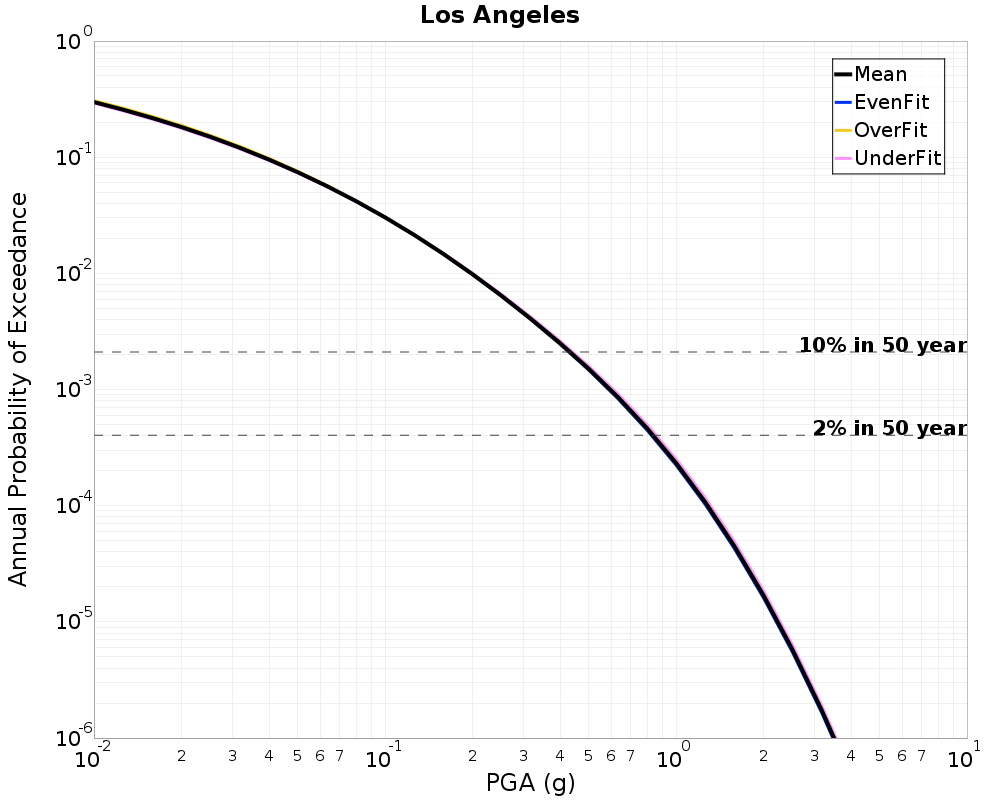

Los Angeles, PGA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.83250564 (g) | 0.43179965 (g) |
| EvenFit | 0.82257426 (g) | 0.4279086 (g) |
| OverFit | 0.82180524 (g) | 0.42710477 (g) |
| UnderFit | 0.85276216 (g) | 0.4404762 (g) |

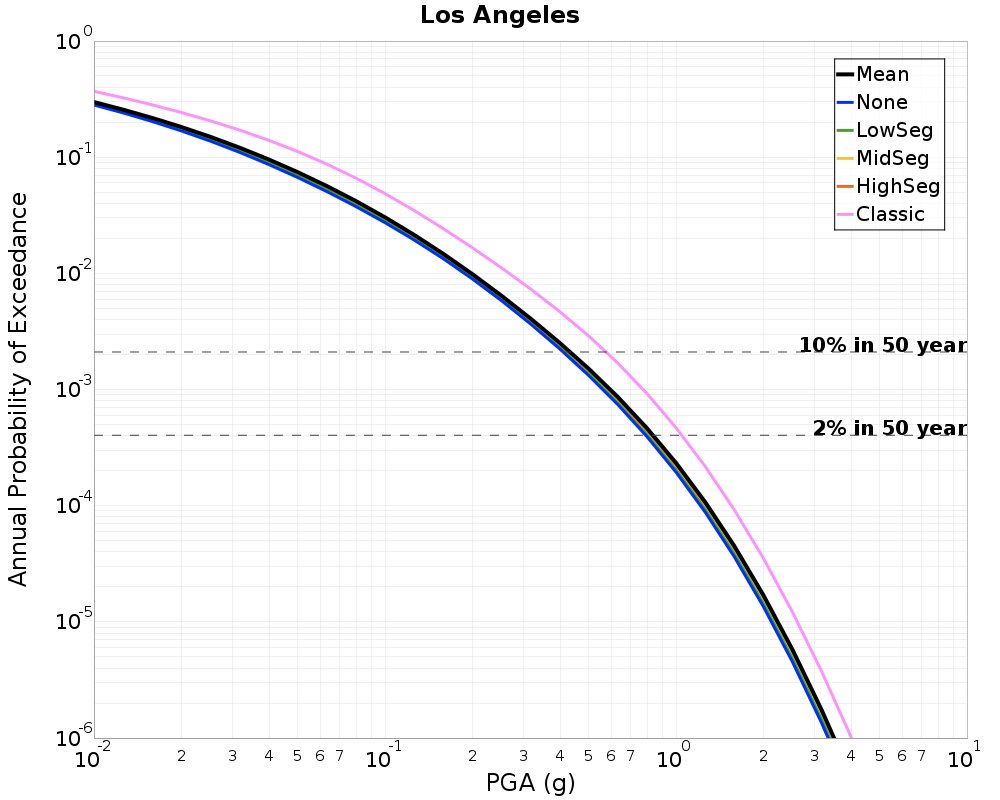

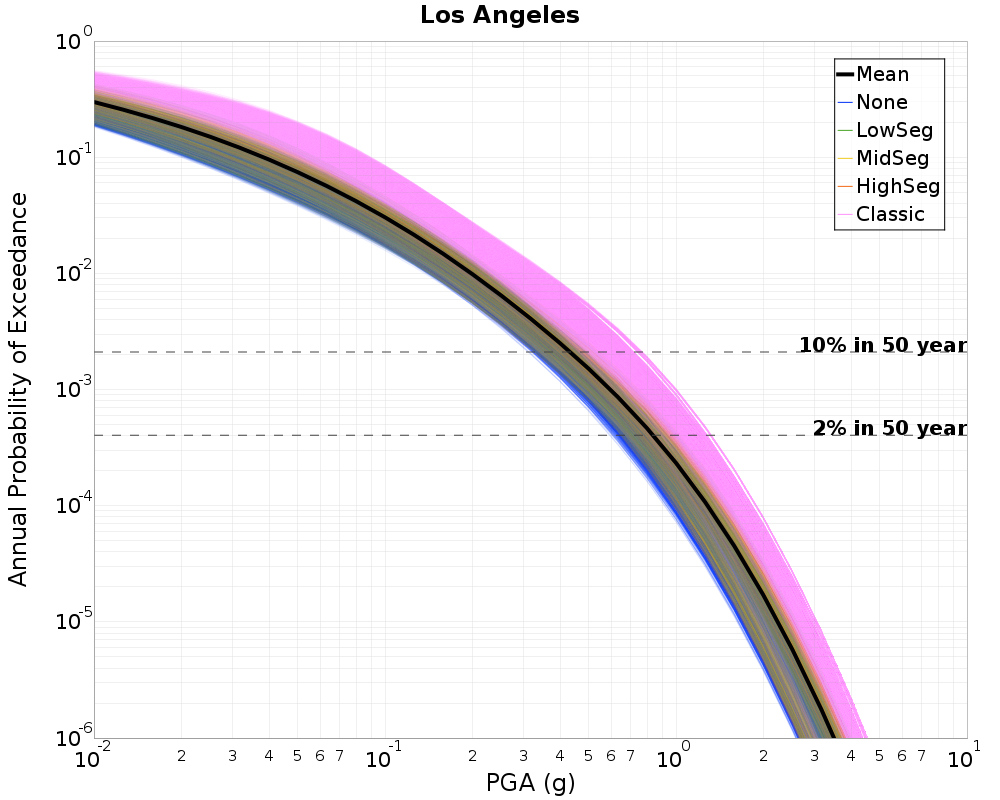

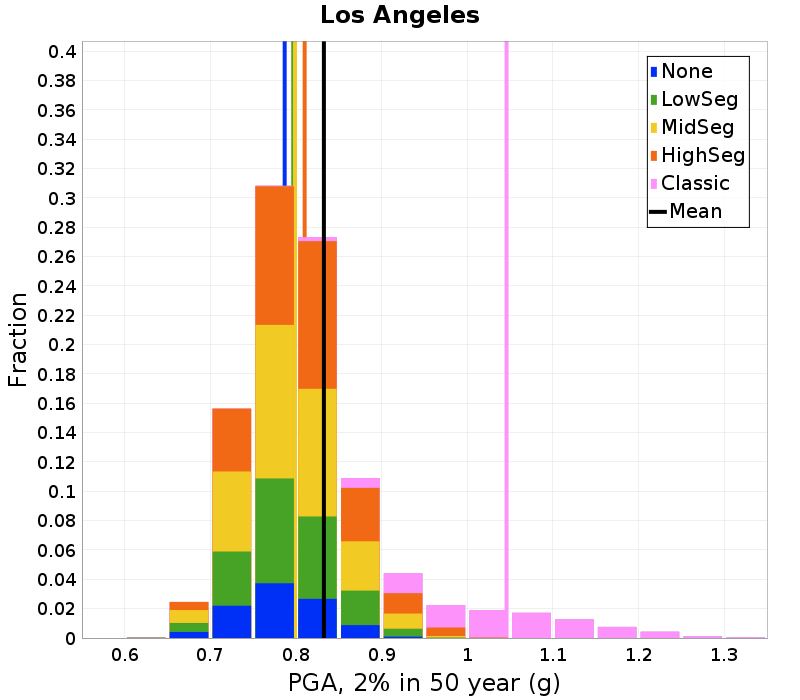

Los Angeles, PGA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.83250564 (g) | 0.43179965 (g) |
| None | 0.78670657 (g) | 0.40920427 (g) |
| LowSeg | 0.7967355 (g) | 0.4124059 (g) |
| MidSeg | 0.79874426 (g) | 0.4119364 (g) |
| HighSeg | 0.81002647 (g) | 0.41466397 (g) |
| Classic | 1.0458258 (g) | 0.57394487 (g) |

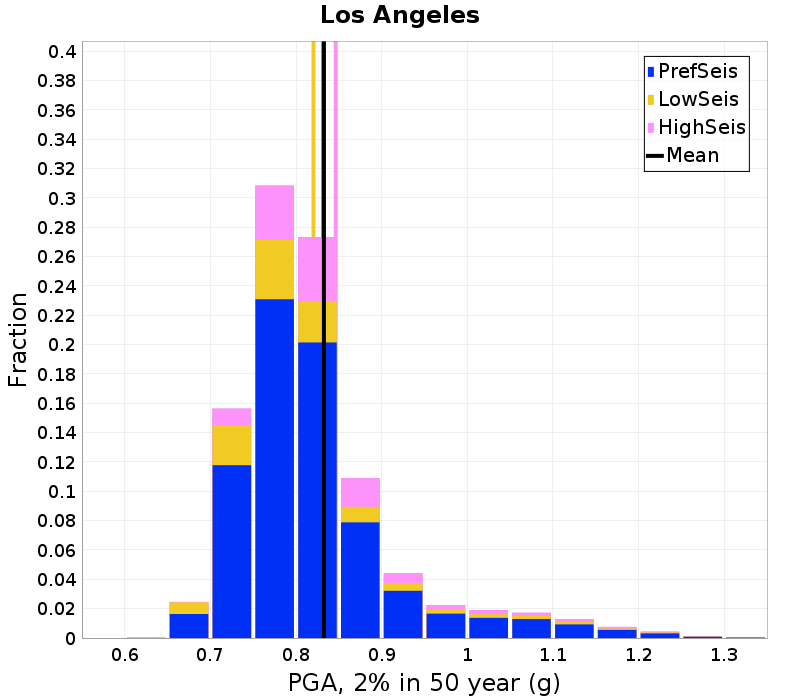

Los Angeles, PGA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.83250564 (g) | 0.43179965 (g) |
| PrefSeis | 0.83207935 (g) | 0.43136987 (g) |
| LowSeis | 0.82035387 (g) | 0.41789487 (g) |
| HighSeis | 0.84632367 (g) | 0.44698933 (g) |

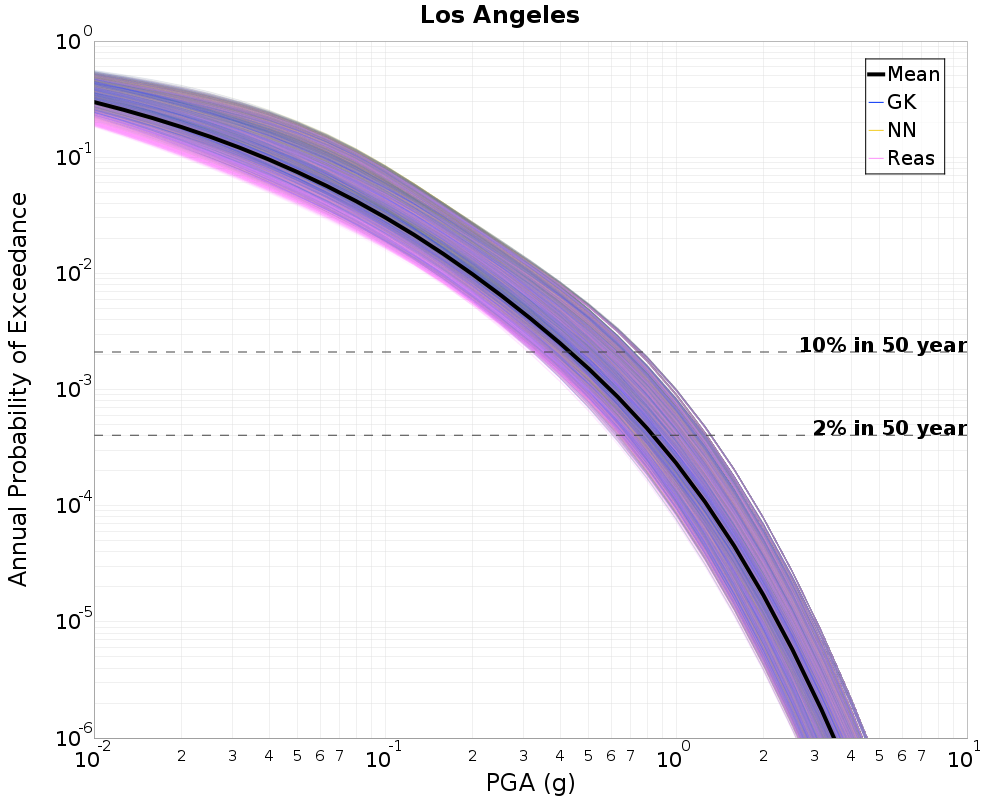

Los Angeles, PGA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.83250564 (g) | 0.43179965 (g) |
| GK | 0.83475363 (g) | 0.43418893 (g) |
| NN | 0.8347321 (g) | 0.43492034 (g) |
| Reas | 0.82330906 (g) | 0.42028484 (g) |
Los Angeles, PGA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.83250564 (g) | 0.43179965 (g) |
| Adaptive | 0.83764166 (g) | 0.4382574 (g) |
| Fixed | 0.82455343 (g) | 0.42159185 (g) |

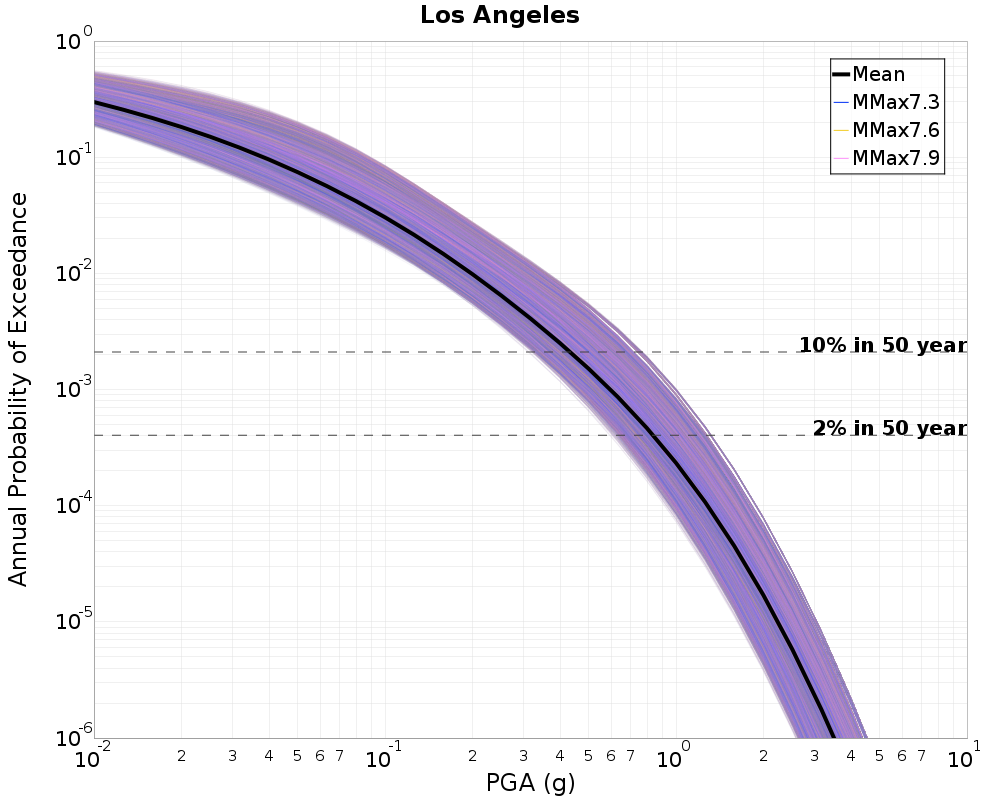

Los Angeles, PGA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.83250564 (g) | 0.43179965 (g) |
| MMax7.3 | 0.83262664 (g) | 0.4317735 (g) |
| MMax7.6 | 0.8324823 (g) | 0.43176615 (g) |
| MMax7.9 | 0.83257145 (g) | 0.43209314 (g) |
Los Angeles, 0.2s SA

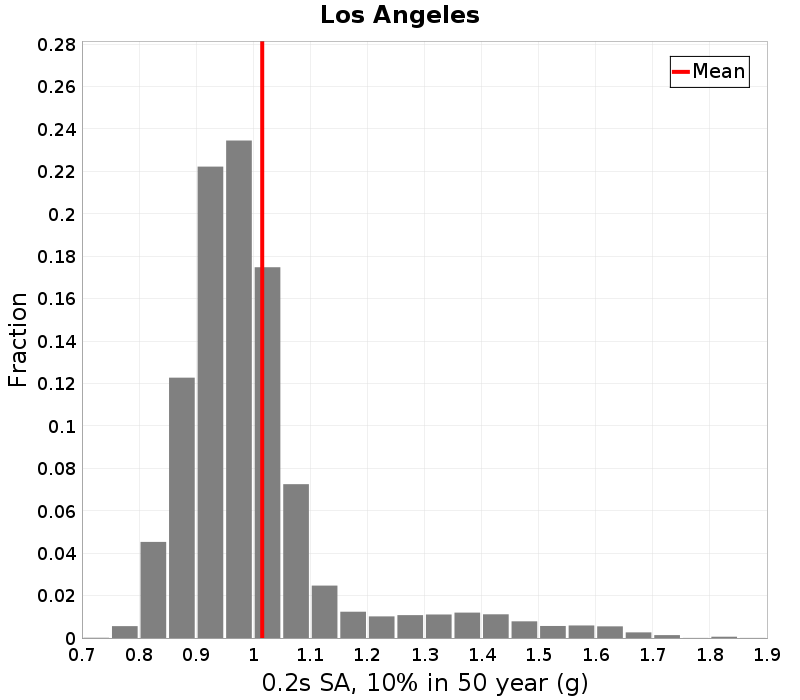

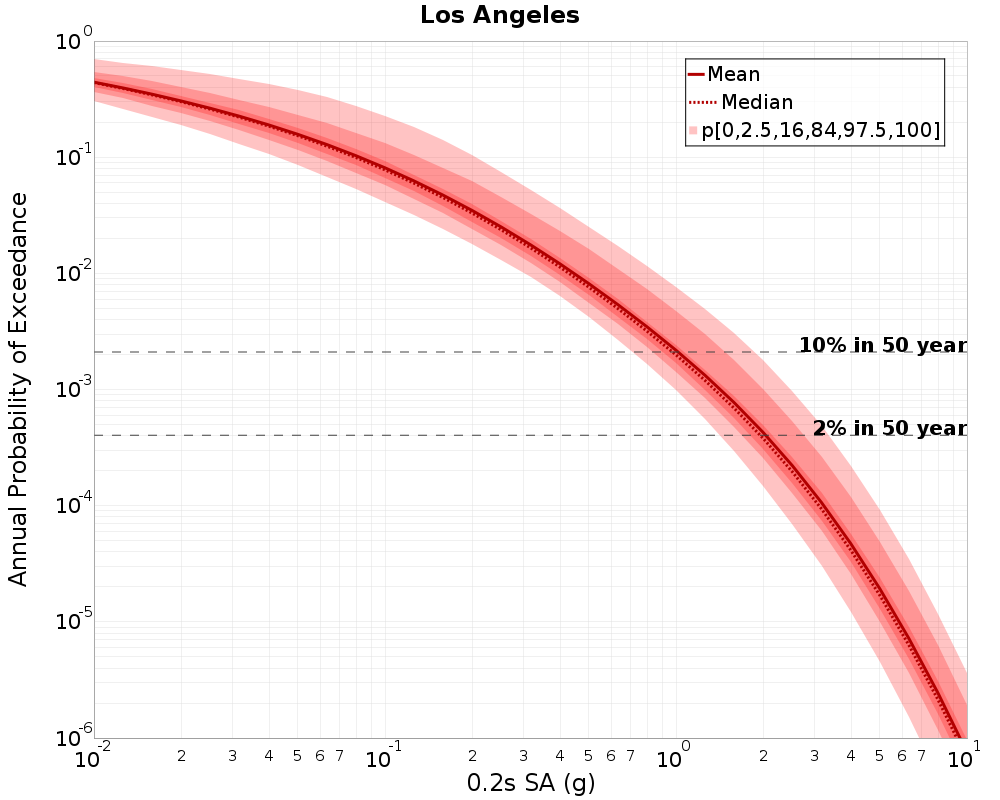

Los Angeles, 0.2s SA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
| 2% in 50 year | 10% in 50 year |
|---|---|
| 2.0318654 (g) | 1.015702 (g) |

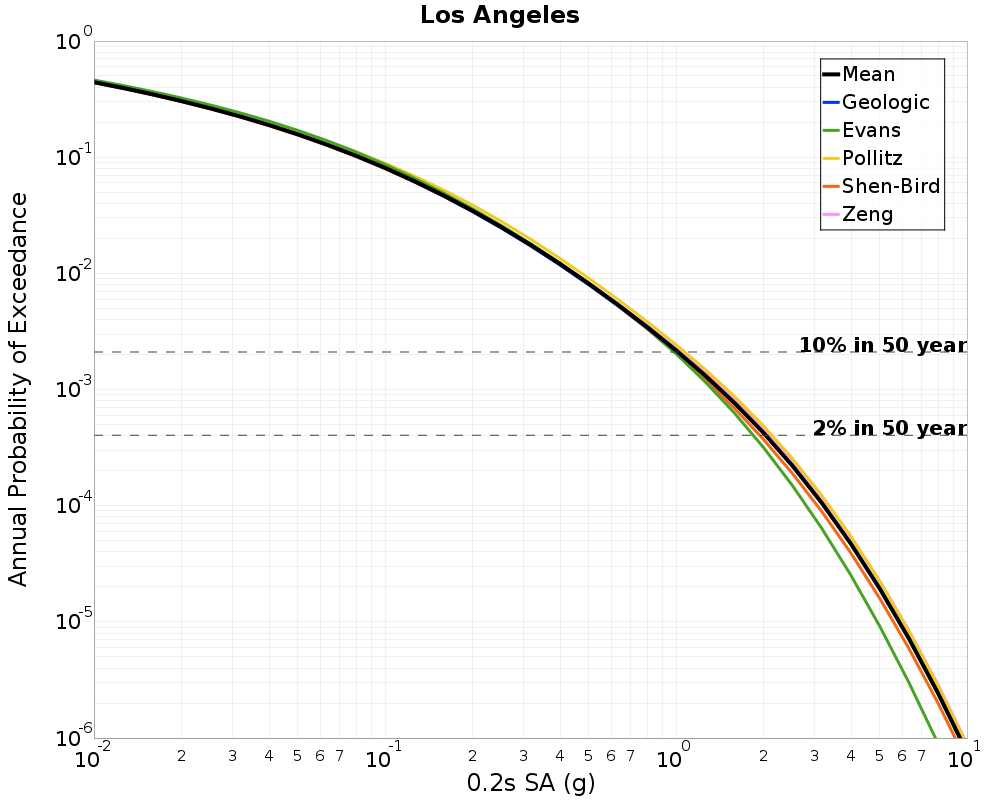

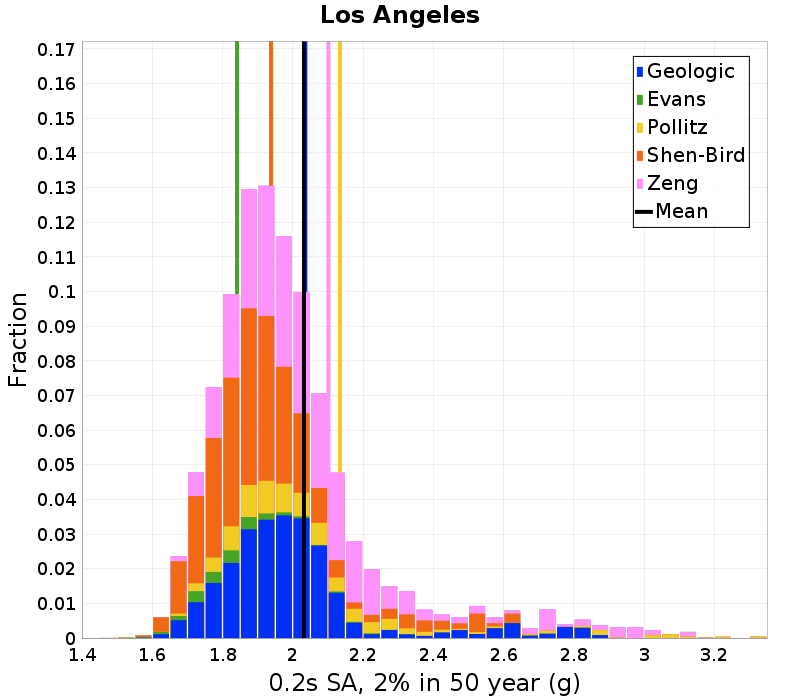

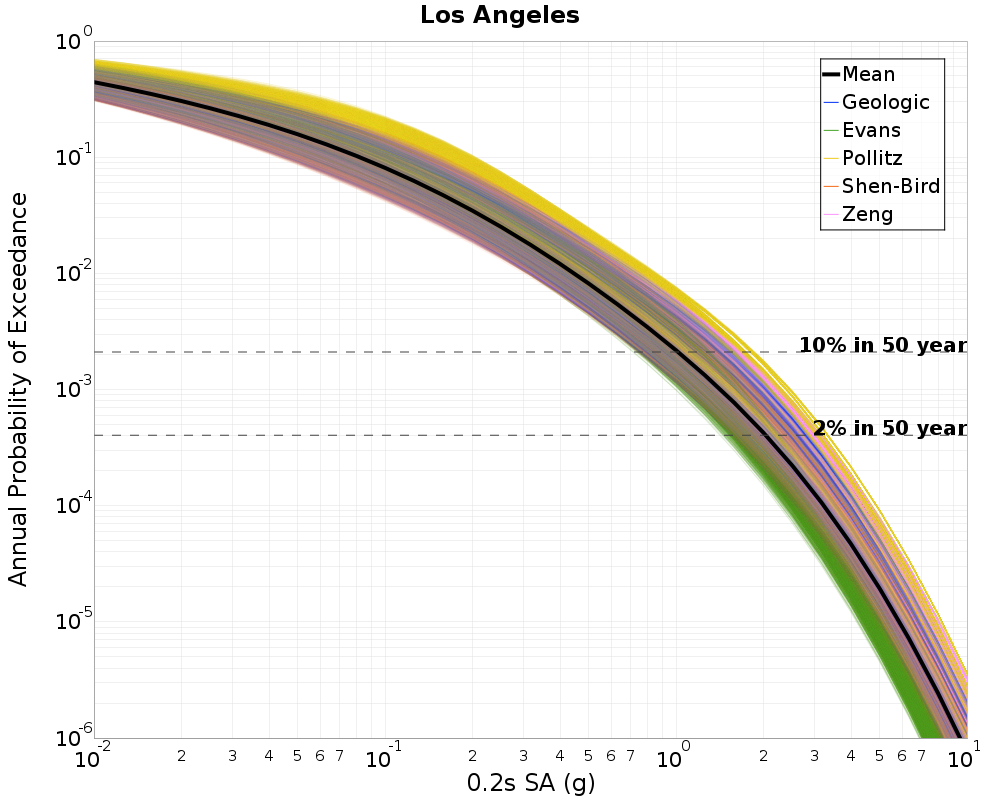

Los Angeles, 0.2s SA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 2.0318654 (g) | 1.015702 (g) |
| Geologic | 2.0358405 (g) | 1.0101779 (g) |
| Evans | 1.8413543 (g) | 0.9844457 (g) |
| Pollitz | 2.1342783 (g) | 1.0709478 (g) |
| Shen-Bird | 1.9379485 (g) | 0.98949826 (g) |
| Zeng | 2.1013706 (g) | 1.0348535 (g) |

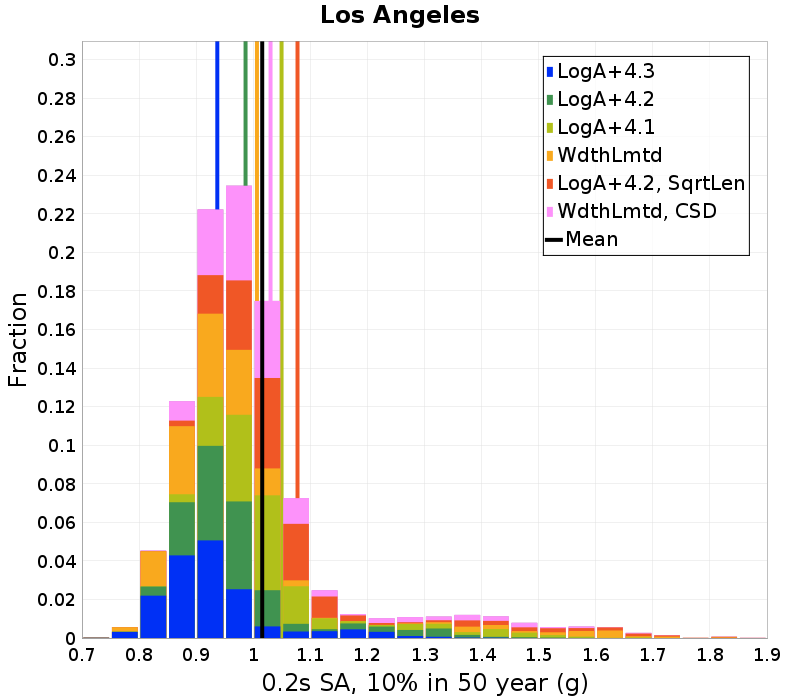

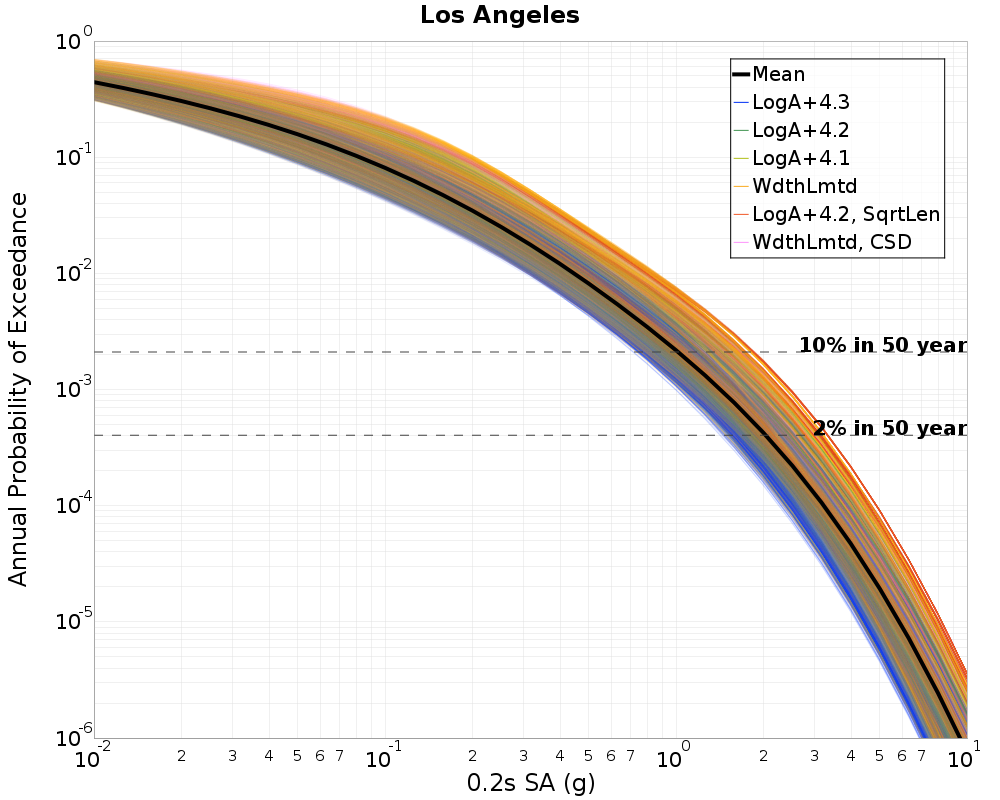

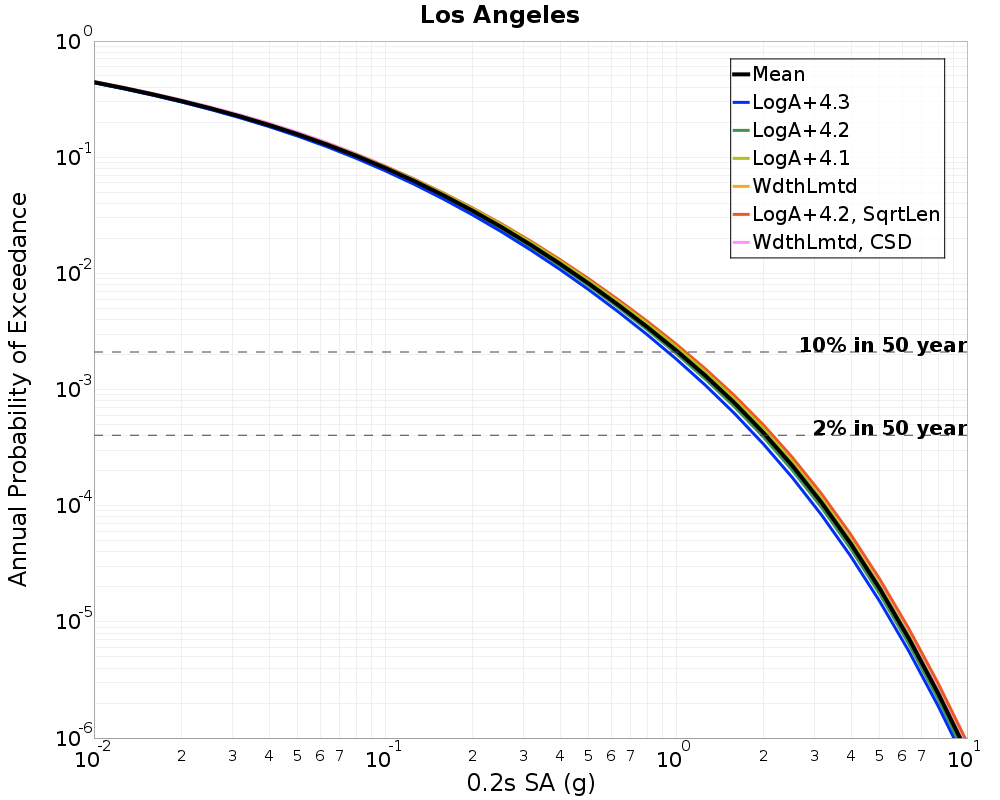

Los Angeles, 0.2s SA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 2.0318654 (g) | 1.015702 (g) |
| LogA+4.3 | 1.8696477 (g) | 0.93702054 (g) |
| LogA+4.2 | 1.9704238 (g) | 0.98651516 (g) |
| LogA+4.1 | 2.086574 (g) | 1.0496008 (g) |
| WdthLmtd | 2.020227 (g) | 1.0064774 (g) |
| LogA+4.2, SqrtLen | 2.1475449 (g) | 1.0775331 (g) |
| WdthLmtd, CSD | 2.0685198 (g) | 1.030301 (g) |

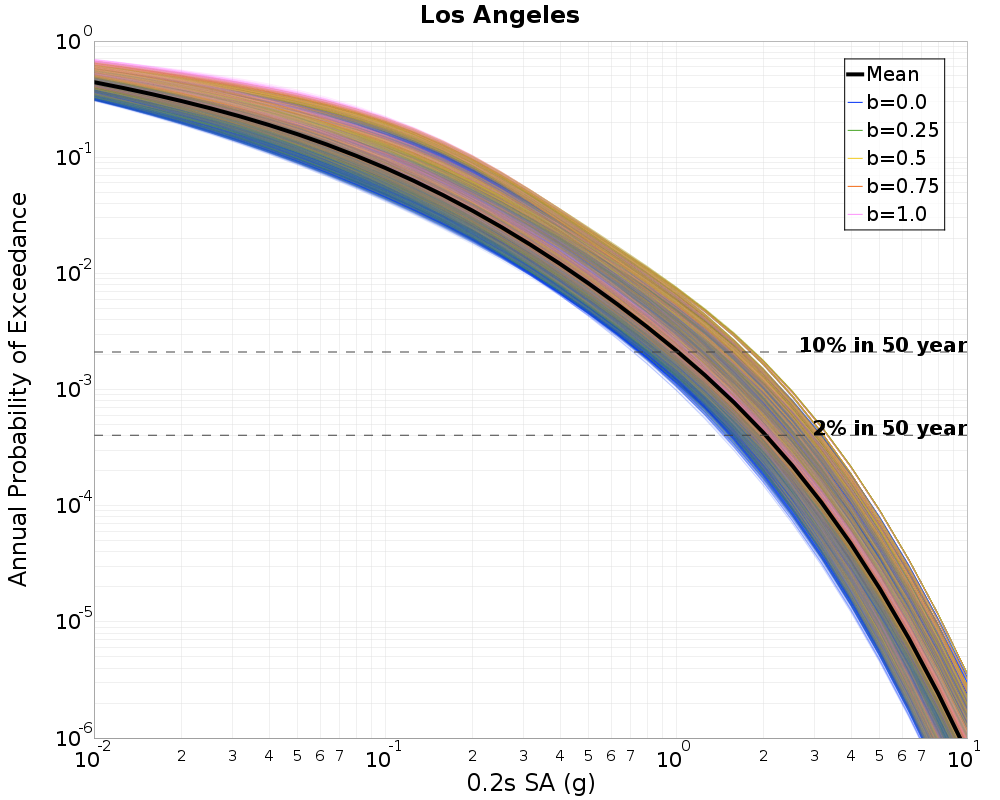

Los Angeles, 0.2s SA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 2.0318654 (g) | 1.015702 (g) |
| b=0.0 | 1.9421451 (g) | 0.96757346 (g) |
| b=0.25 | 1.996198 (g) | 0.9971053 (g) |
| b=0.5 | 2.0333798 (g) | 1.016628 (g) |
| b=0.75 | 2.074257 (g) | 1.0381137 (g) |
| b=1.0 | 2.103146 (g) | 1.055488 (g) |

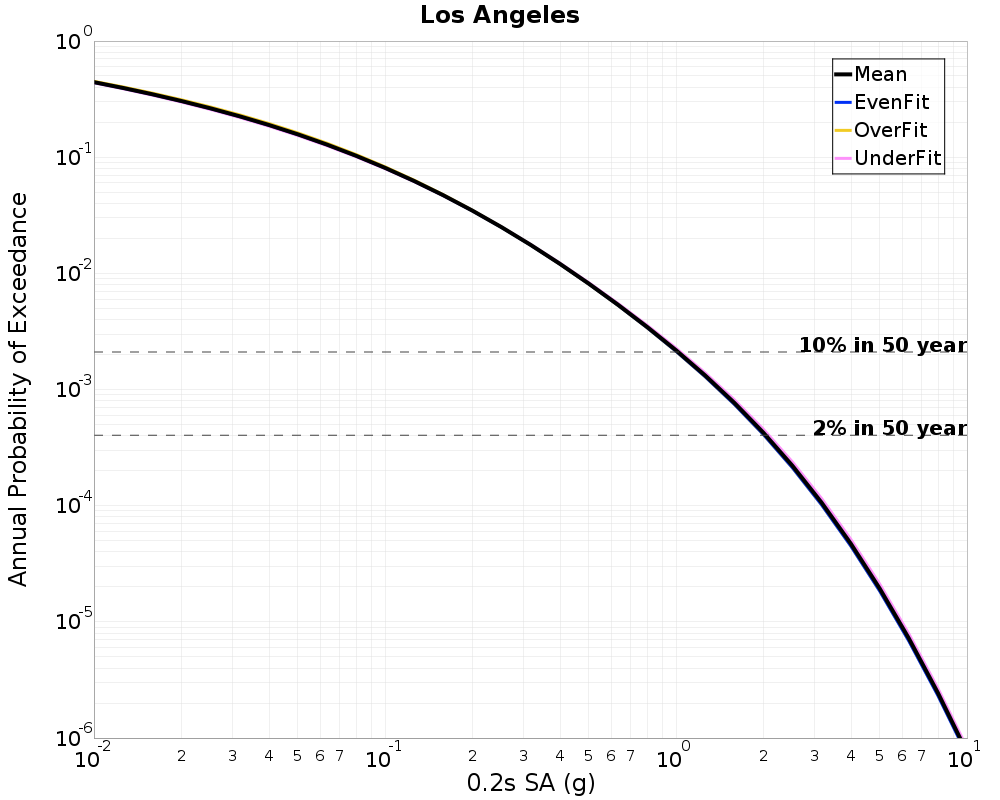

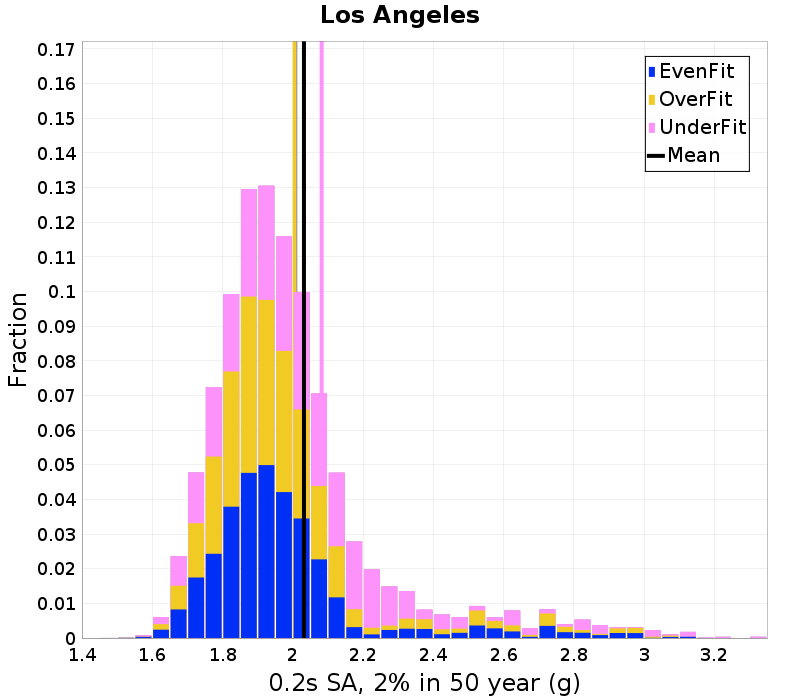

Los Angeles, 0.2s SA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 2.0318654 (g) | 1.015702 (g) |
| EvenFit | 2.0069337 (g) | 1.006449 (g) |
| OverFit | 2.0056303 (g) | 1.0049357 (g) |
| UnderFit | 2.0822153 (g) | 1.0359414 (g) |

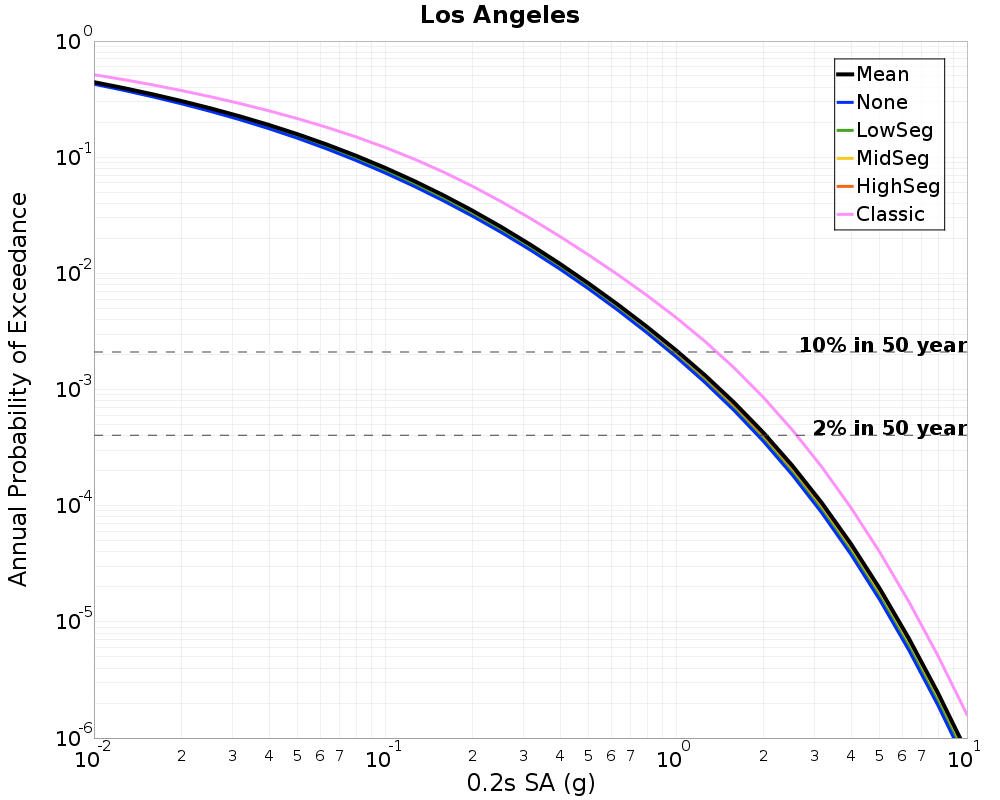

Los Angeles, 0.2s SA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 2.0318654 (g) | 1.015702 (g) |
| None | 1.9057441 (g) | 0.95389855 (g) |
| LowSeg | 1.9324492 (g) | 0.96358365 (g) |
| MidSeg | 1.9381977 (g) | 0.9631241 (g) |
| HighSeg | 1.9695309 (g) | 0.9710675 (g) |
| Classic | 2.5958602 (g) | 1.3789771 (g) |

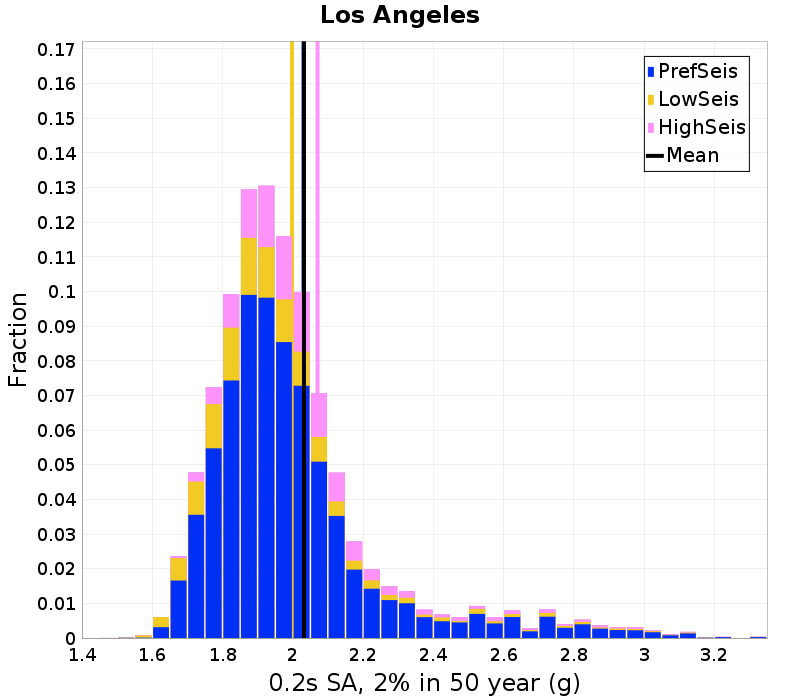

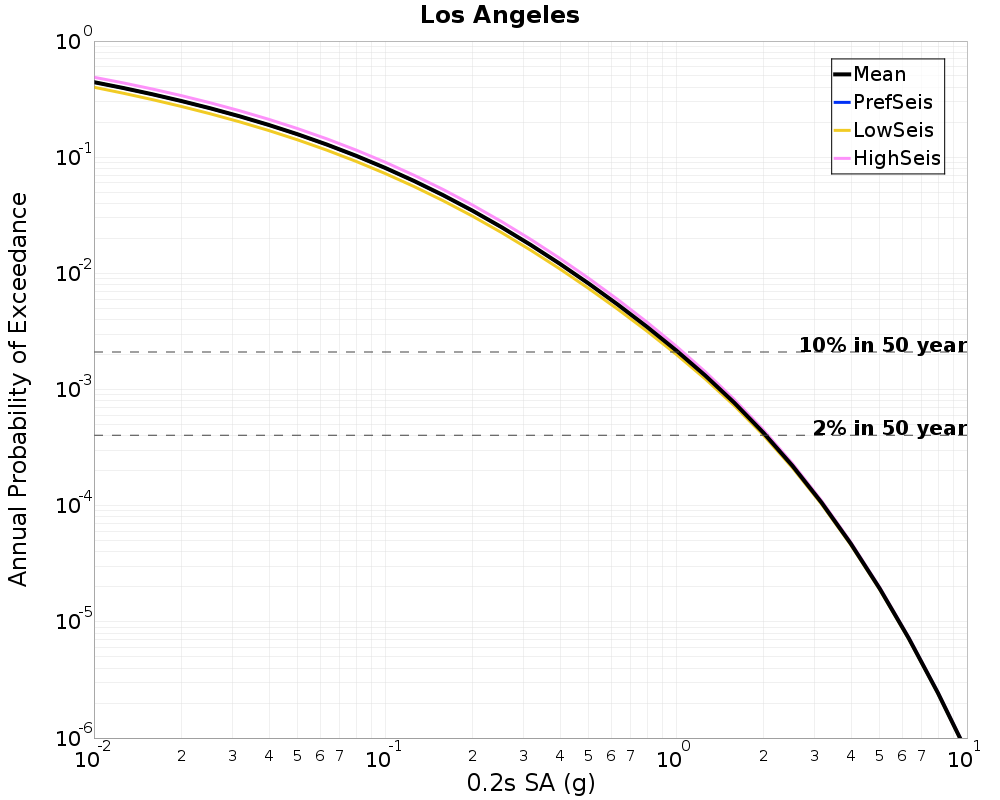

Los Angeles, 0.2s SA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 2.0318654 (g) | 1.015702 (g) |
| PrefSeis | 2.030664 (g) | 1.0145694 (g) |
| LowSeis | 1.9977996 (g) | 0.9783563 (g) |
| HighSeis | 2.0705557 (g) | 1.055017 (g) |

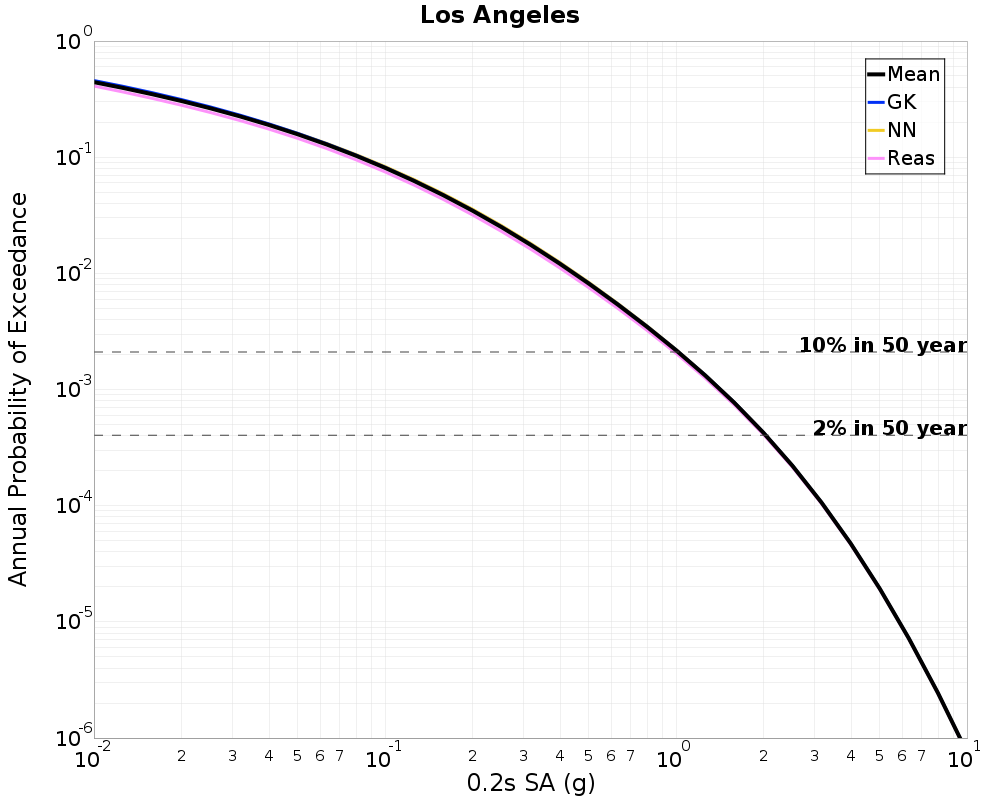

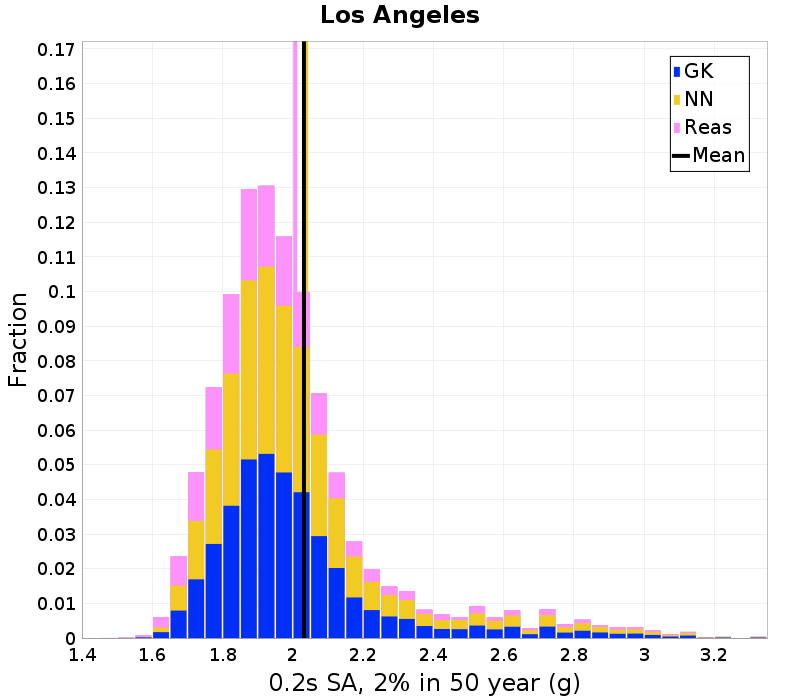

Los Angeles, 0.2s SA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 2.0318654 (g) | 1.015702 (g) |
| GK | 2.0376797 (g) | 1.0212184 (g) |
| NN | 2.0381389 (g) | 1.0237304 (g) |
| Reas | 2.0070264 (g) | 0.9865683 (g) |

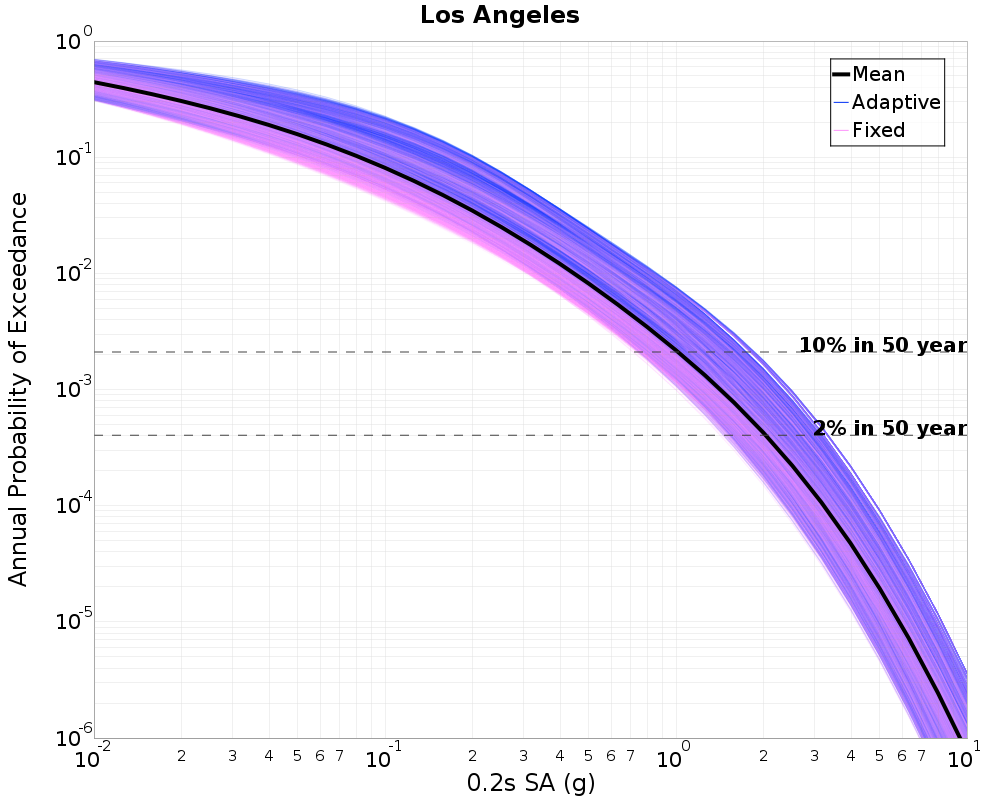

Los Angeles, 0.2s SA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 2.0318654 (g) | 1.015702 (g) |
| Adaptive | 2.0459056 (g) | 1.0318191 (g) |
| Fixed | 2.0101233 (g) | 0.989574 (g) |

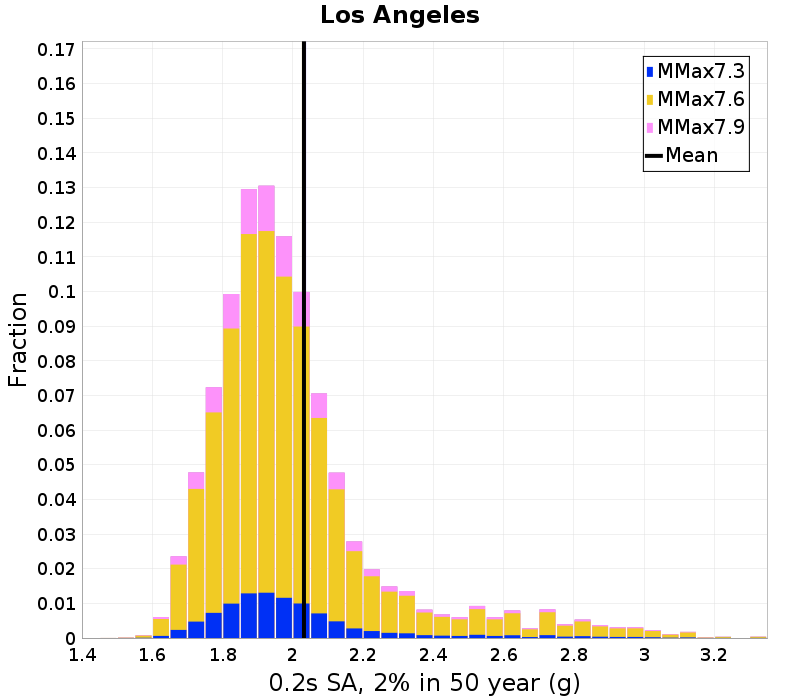

Los Angeles, 0.2s SA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 2.0318654 (g) | 1.015702 (g) |
| MMax7.3 | 2.0321531 (g) | 1.0156455 (g) |
| MMax7.6 | 2.031803 (g) | 1.0156261 (g) |
| MMax7.9 | 2.032077 (g) | 1.0163654 (g) |
Los Angeles, 1.0s SA

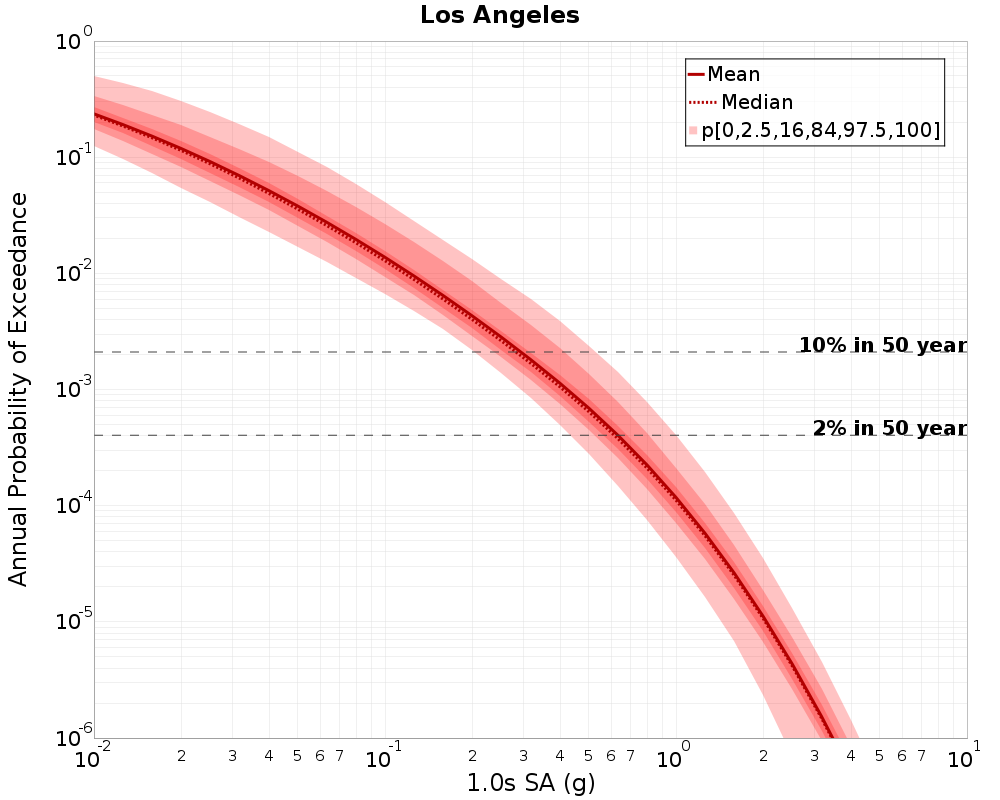

Los Angeles, 1.0s SA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
| 2% in 50 year | 10% in 50 year |
|---|---|
| 0.6313172 (g) | 0.29261634 (g) |

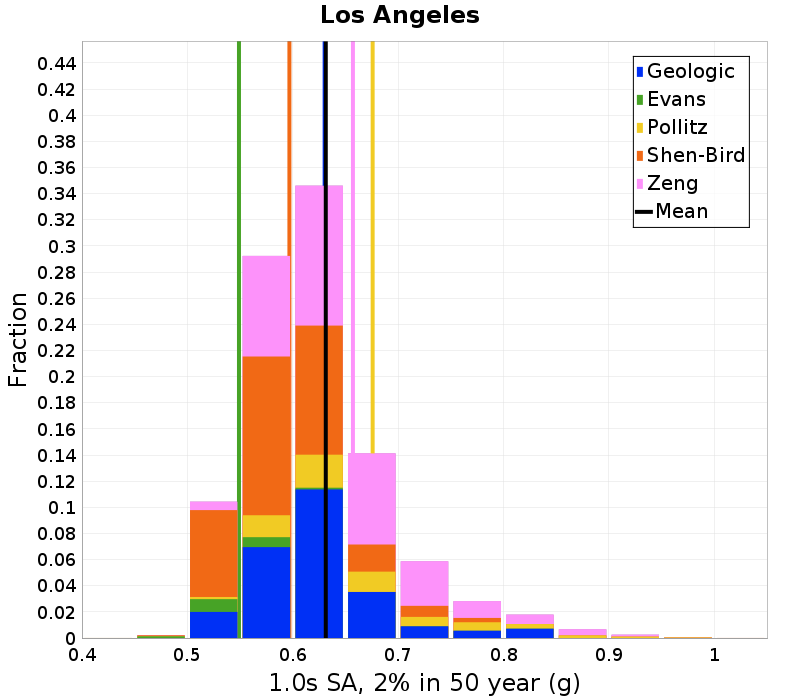

Los Angeles, 1.0s SA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6313172 (g) | 0.29261634 (g) |
| Geologic | 0.63023025 (g) | 0.2906953 (g) |
| Evans | 0.54895157 (g) | 0.2781297 (g) |
| Pollitz | 0.6757956 (g) | 0.31487963 (g) |
| Shen-Bird | 0.59681433 (g) | 0.28247392 (g) |
| Zeng | 0.65709484 (g) | 0.29994544 (g) |

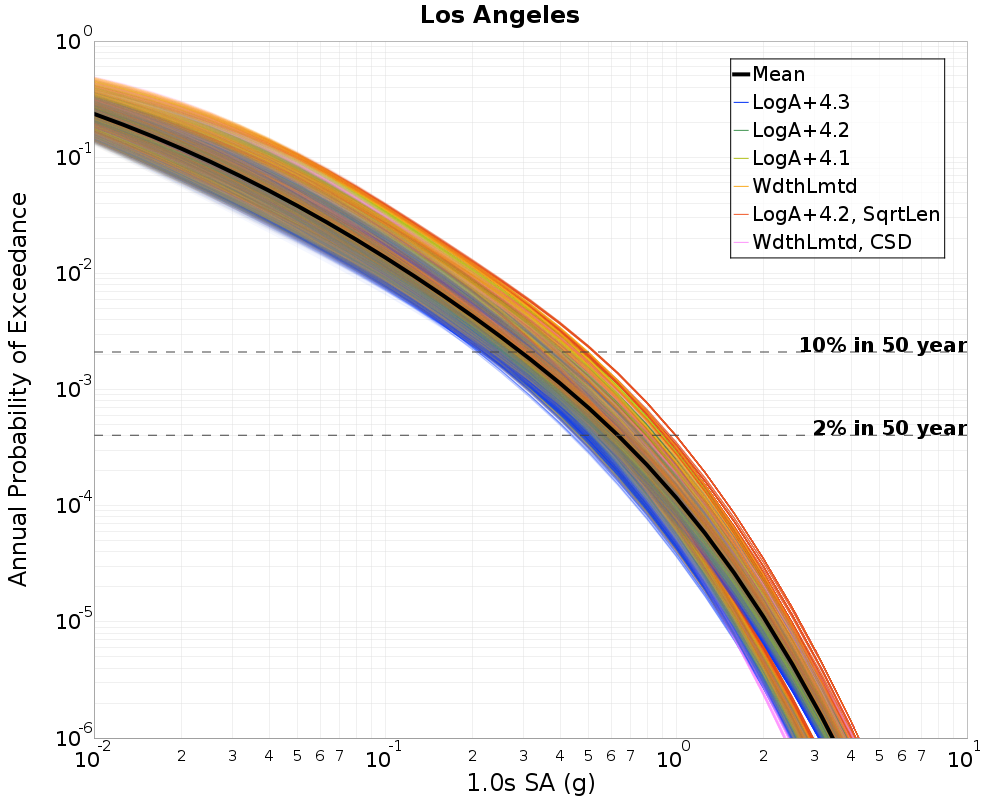

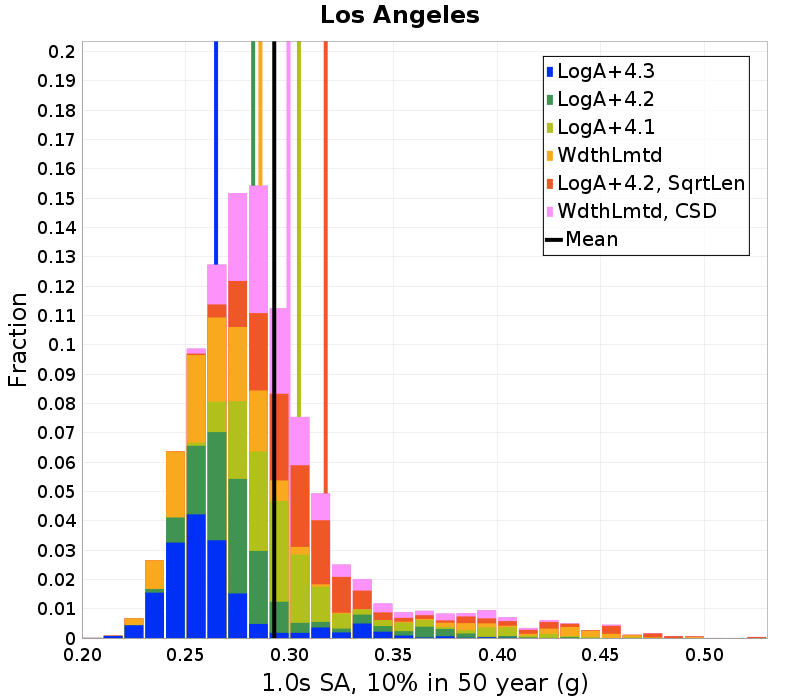

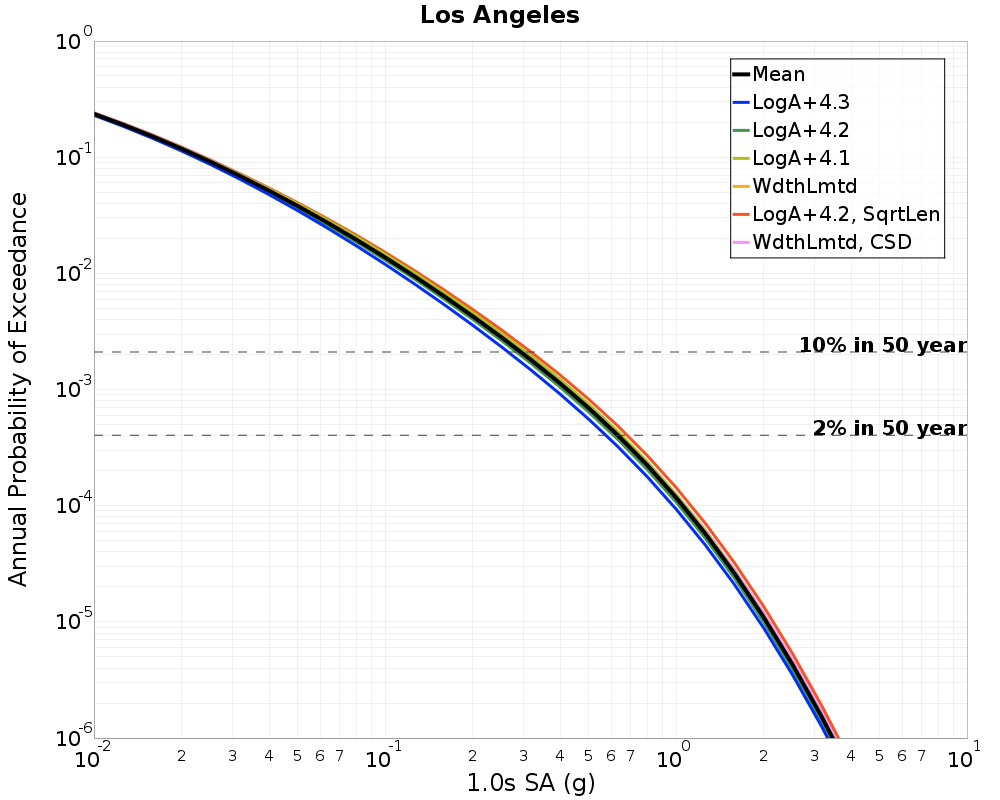

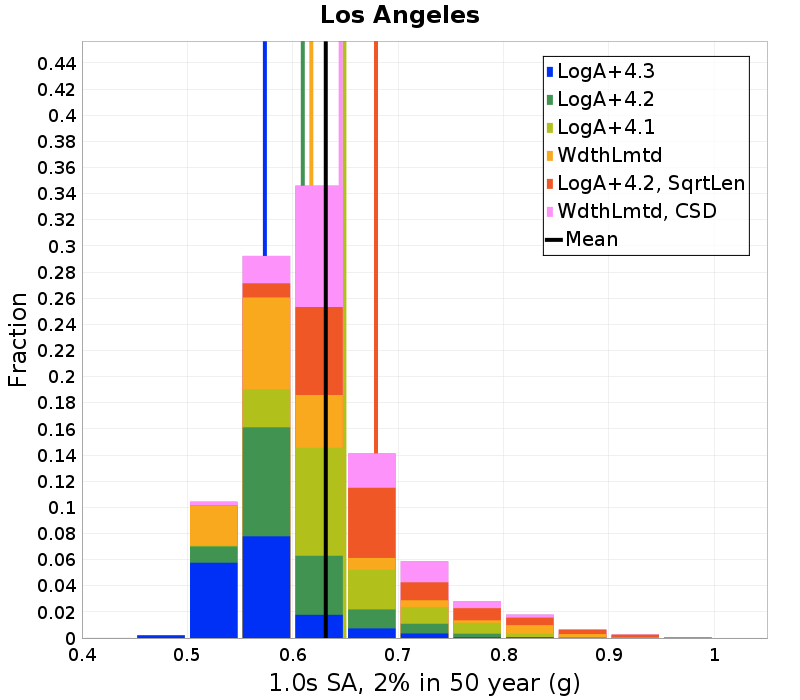

Los Angeles, 1.0s SA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6313172 (g) | 0.29261634 (g) |
| LogA+4.3 | 0.5735451 (g) | 0.26459092 (g) |
| LogA+4.2 | 0.60950714 (g) | 0.28245616 (g) |
| LogA+4.1 | 0.6489979 (g) | 0.30450585 (g) |
| WdthLmtd | 0.6175935 (g) | 0.2859514 (g) |
| LogA+4.2, SqrtLen | 0.6789926 (g) | 0.31741273 (g) |
| WdthLmtd, CSD | 0.64546293 (g) | 0.2994756 (g) |

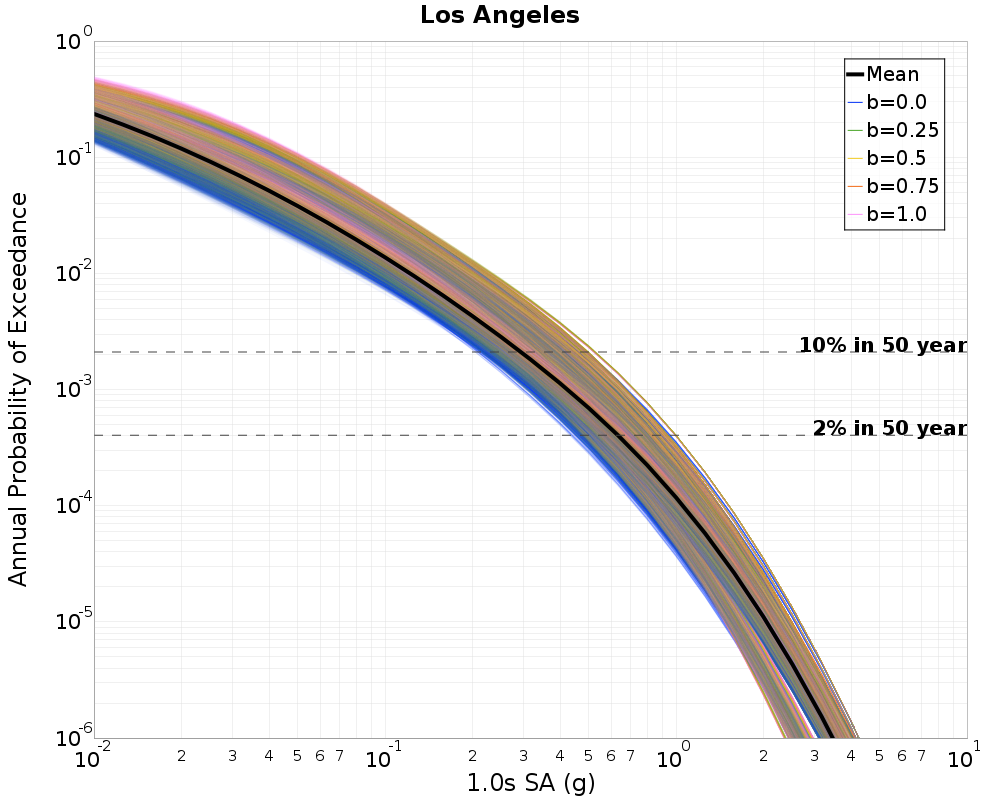

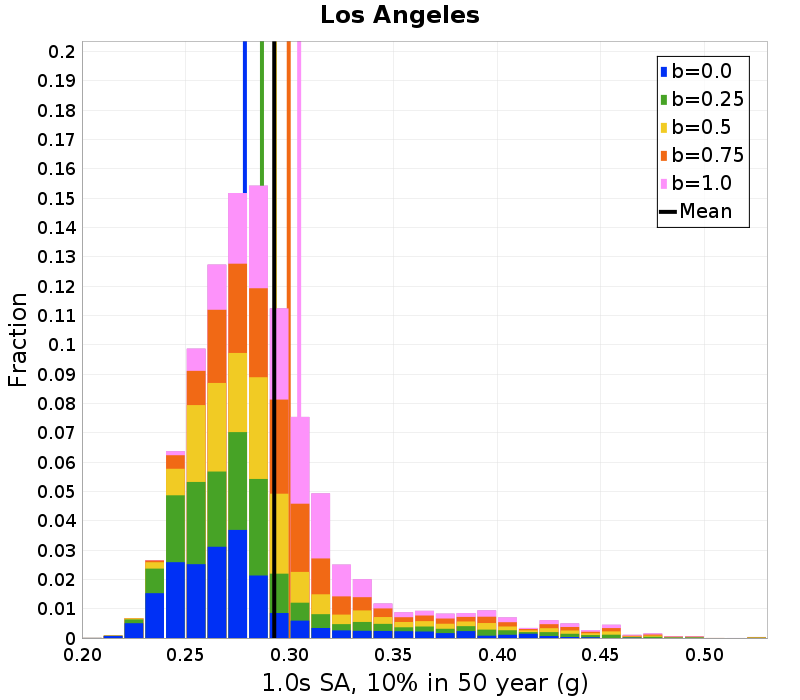

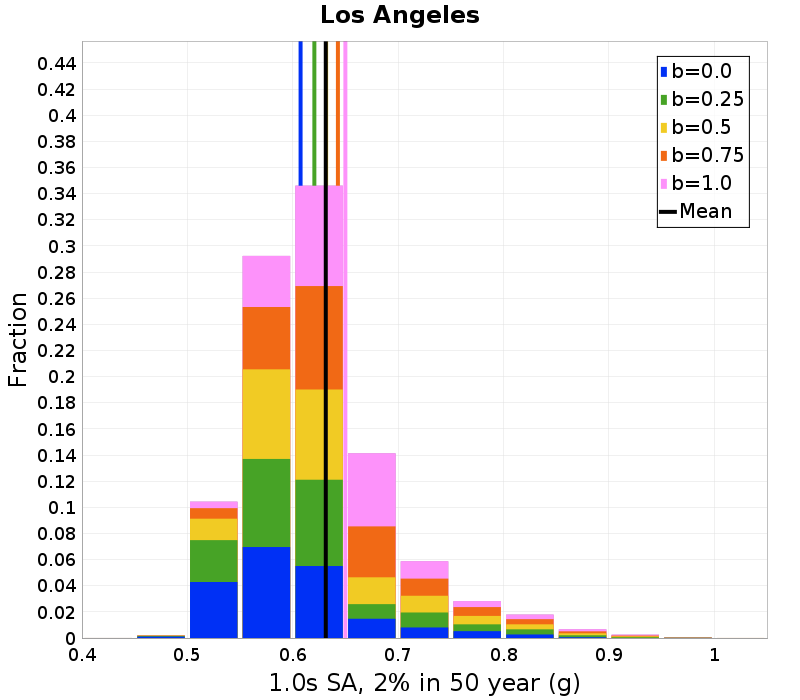

Los Angeles, 1.0s SA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6313172 (g) | 0.29261634 (g) |
| b=0.0 | 0.6074085 (g) | 0.27848282 (g) |
| b=0.25 | 0.6204914 (g) | 0.28669548 (g) |
| b=0.5 | 0.63168395 (g) | 0.2929225 (g) |
| b=0.75 | 0.64283293 (g) | 0.29959384 (g) |
| b=1.0 | 0.64991575 (g) | 0.30461547 (g) |

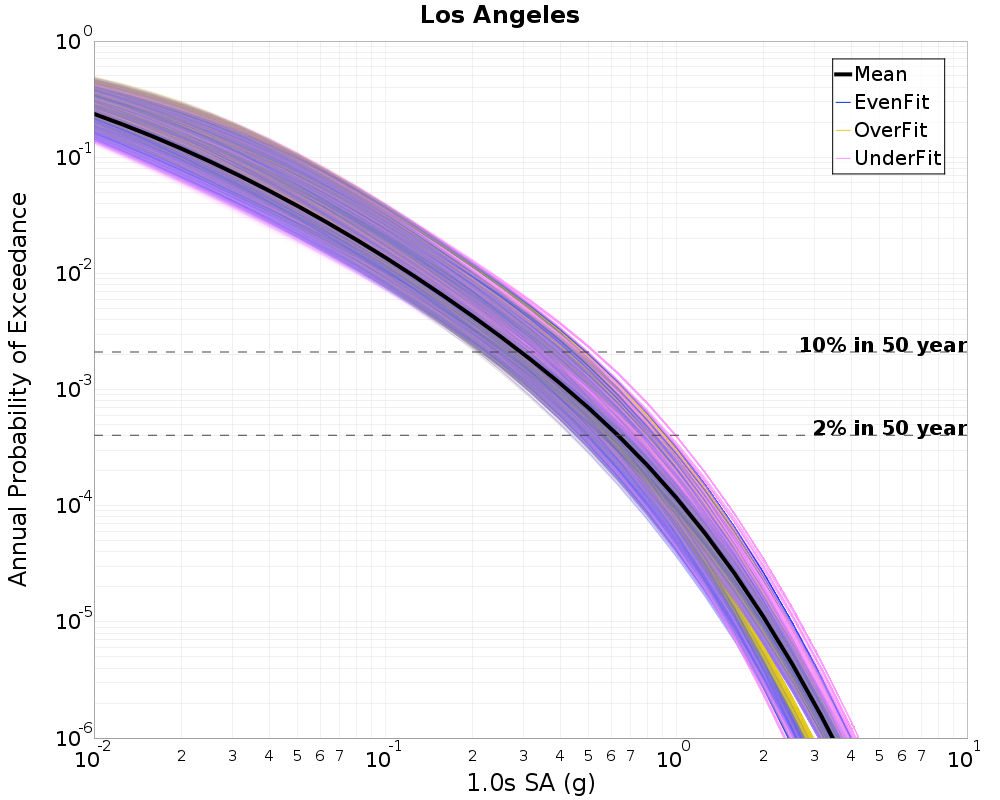

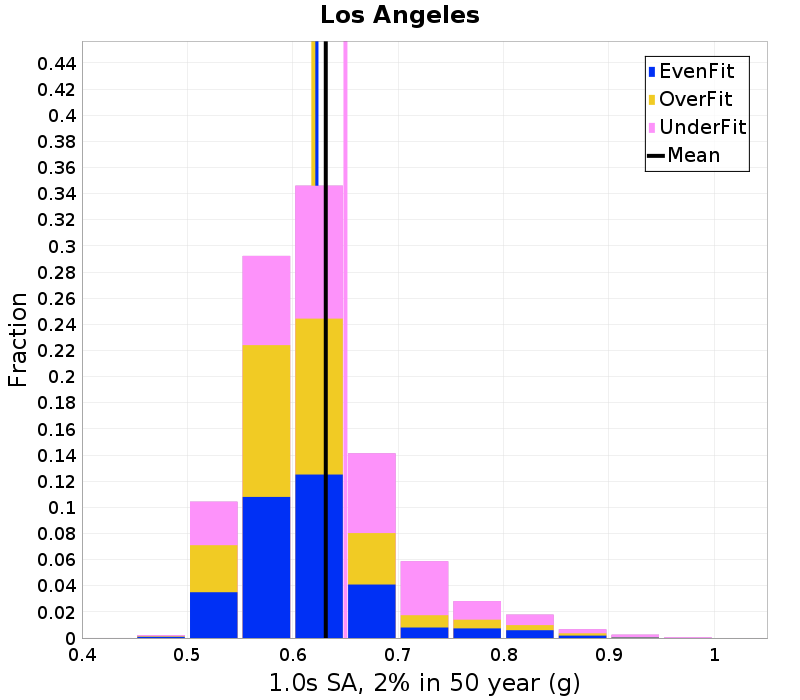

Los Angeles, 1.0s SA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6313172 (g) | 0.29261634 (g) |
| EvenFit | 0.6224895 (g) | 0.28983346 (g) |
| OverFit | 0.6194998 (g) | 0.28824237 (g) |
| UnderFit | 0.64998305 (g) | 0.29987013 (g) |

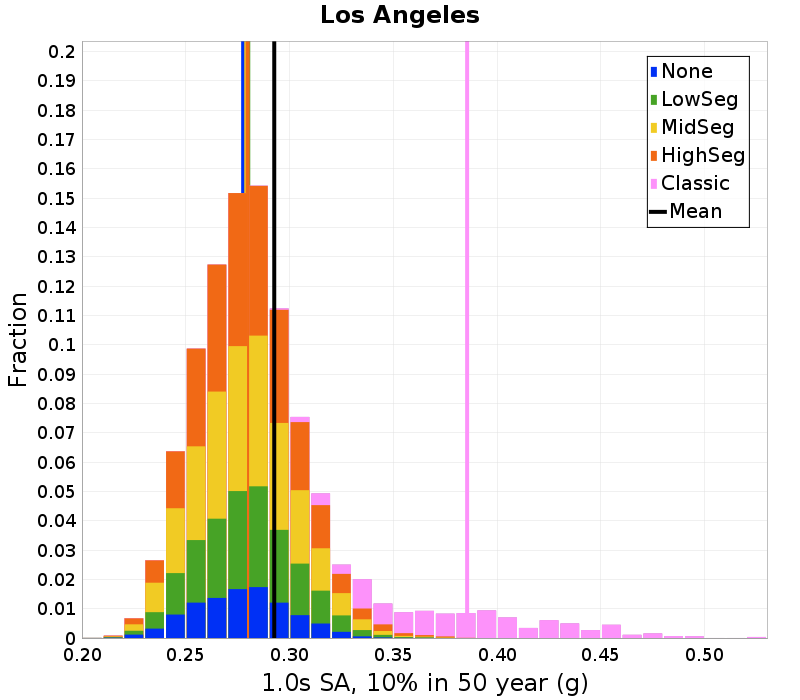

Los Angeles, 1.0s SA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6313172 (g) | 0.29261634 (g) |
| None | 0.6061811 (g) | 0.27763996 (g) |
| LowSeg | 0.6118791 (g) | 0.28010285 (g) |
| MidSeg | 0.61083376 (g) | 0.27913207 (g) |
| HighSeg | 0.6146104 (g) | 0.279824 (g) |
| Classic | 0.7550826 (g) | 0.38553533 (g) |

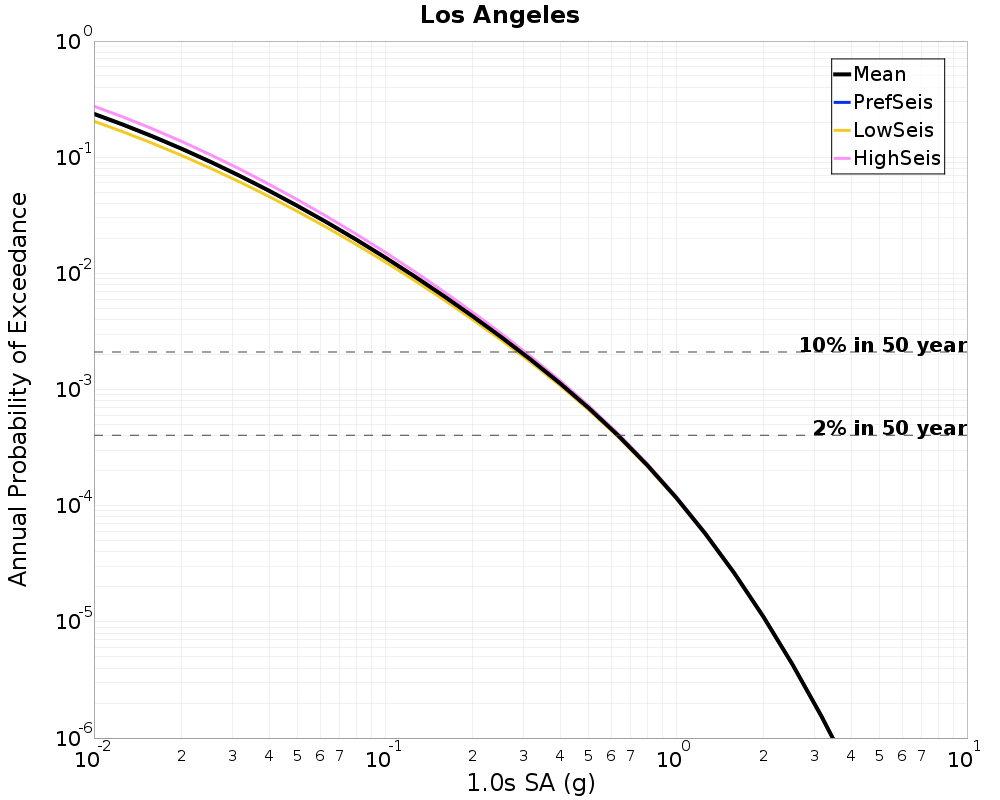

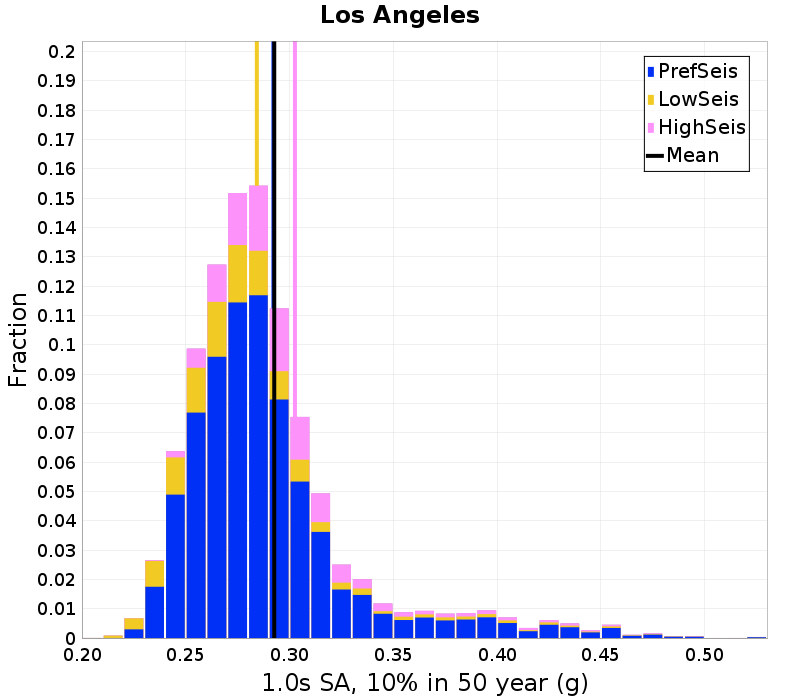

Los Angeles, 1.0s SA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6313172 (g) | 0.29261634 (g) |
| PrefSeis | 0.6309479 (g) | 0.29222798 (g) |
| LowSeis | 0.62331057 (g) | 0.28422508 (g) |
| HighSeis | 0.64040375 (g) | 0.30258808 (g) |

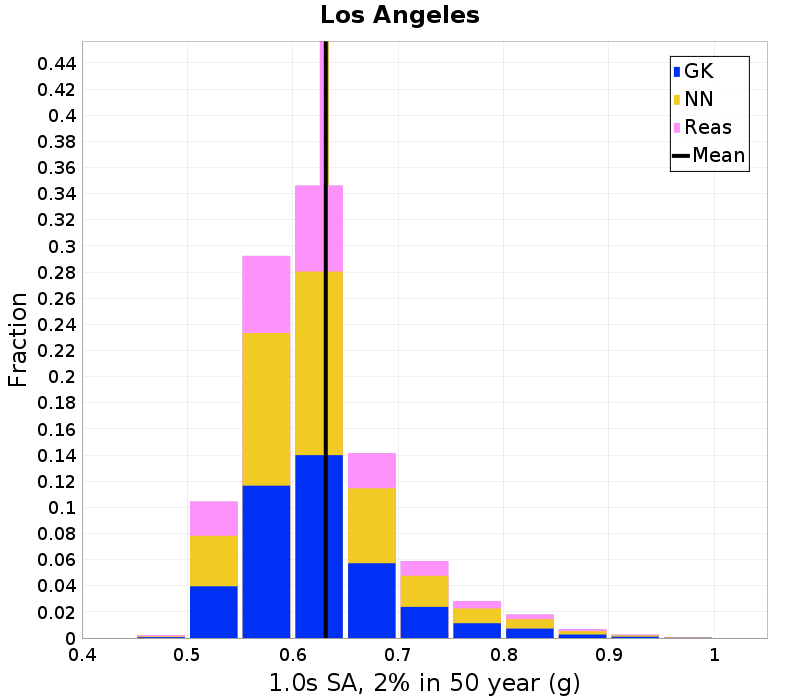

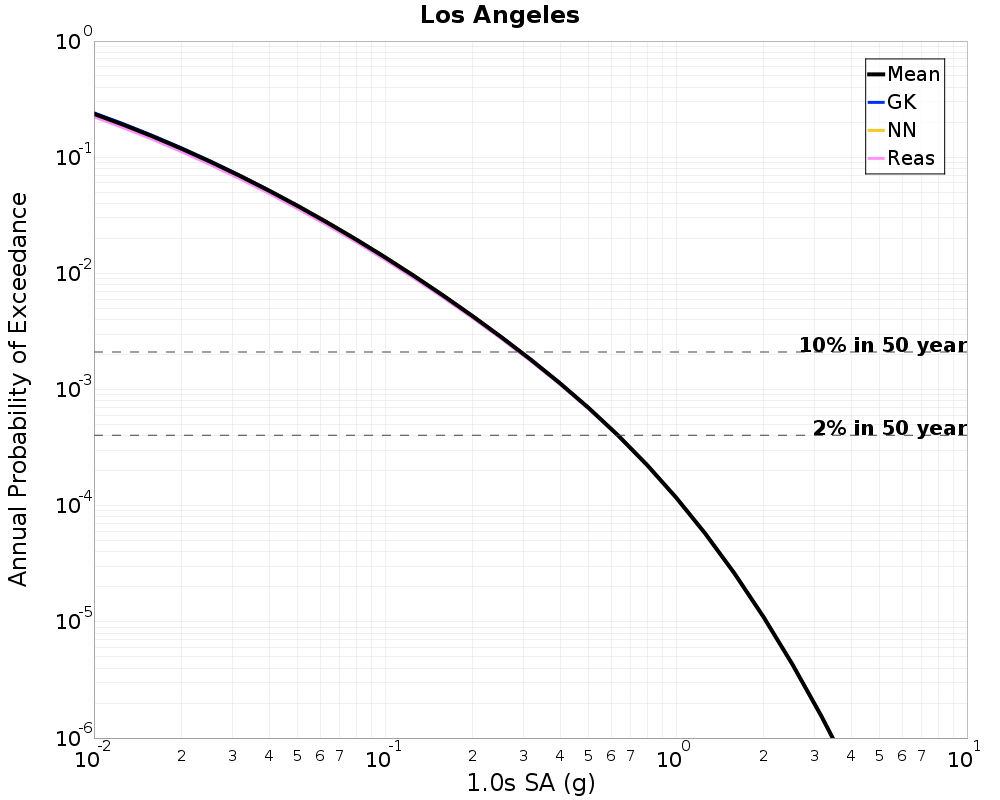

Los Angeles, 1.0s SA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6313172 (g) | 0.29261634 (g) |
| GK | 0.6320928 (g) | 0.2934216 (g) |
| NN | 0.6322831 (g) | 0.2939262 (g) |
| Reas | 0.6274941 (g) | 0.28829214 (g) |

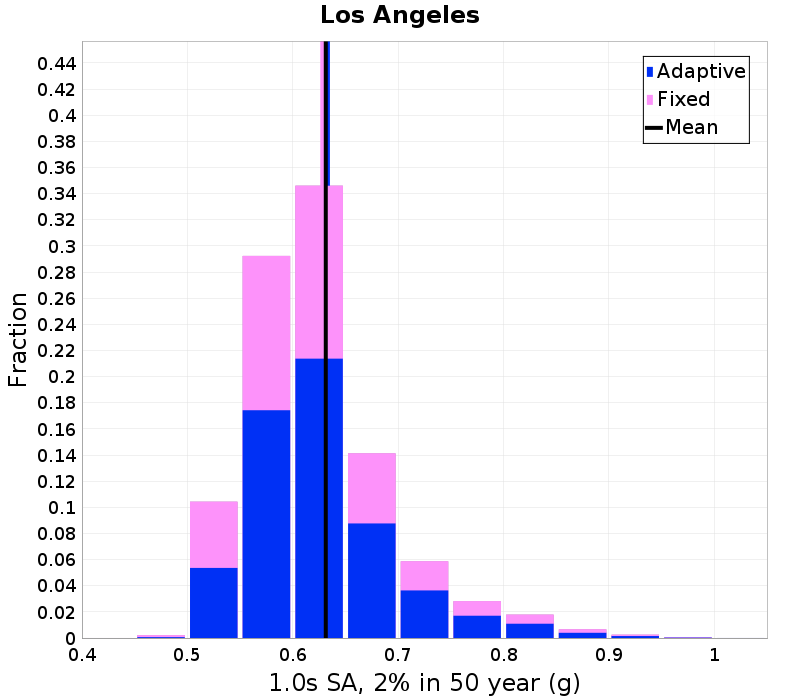

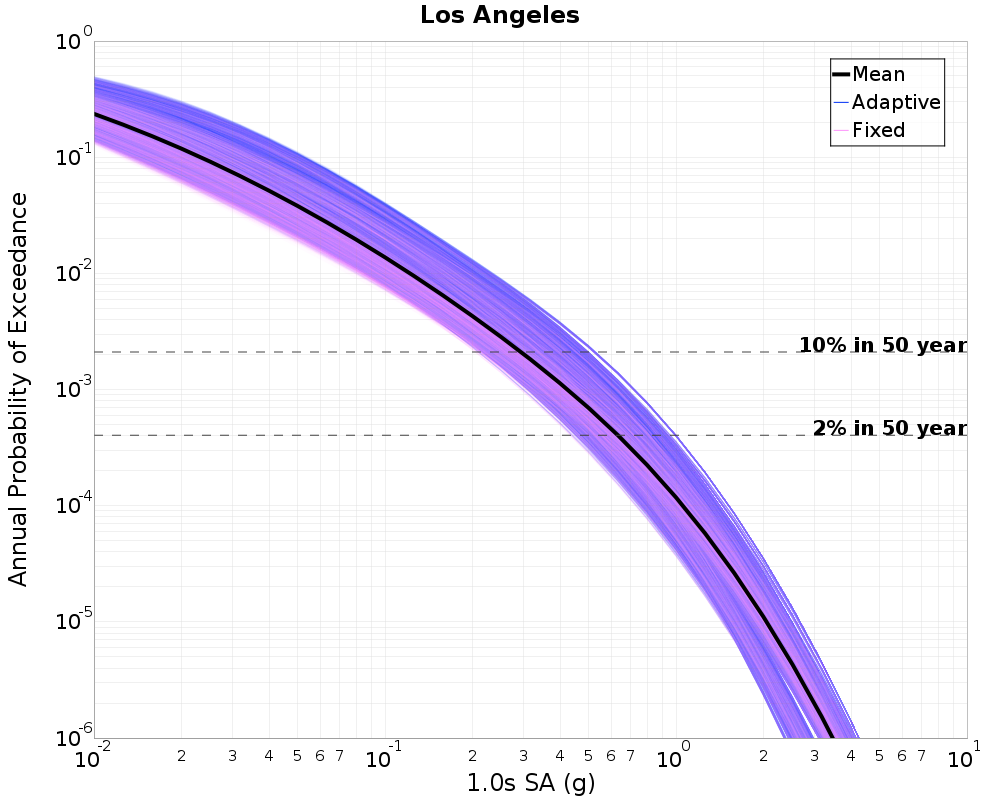

Los Angeles, 1.0s SA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6313172 (g) | 0.29261634 (g) |
| Adaptive | 0.6333467 (g) | 0.29502684 (g) |
| Fixed | 0.6279744 (g) | 0.28891397 (g) |

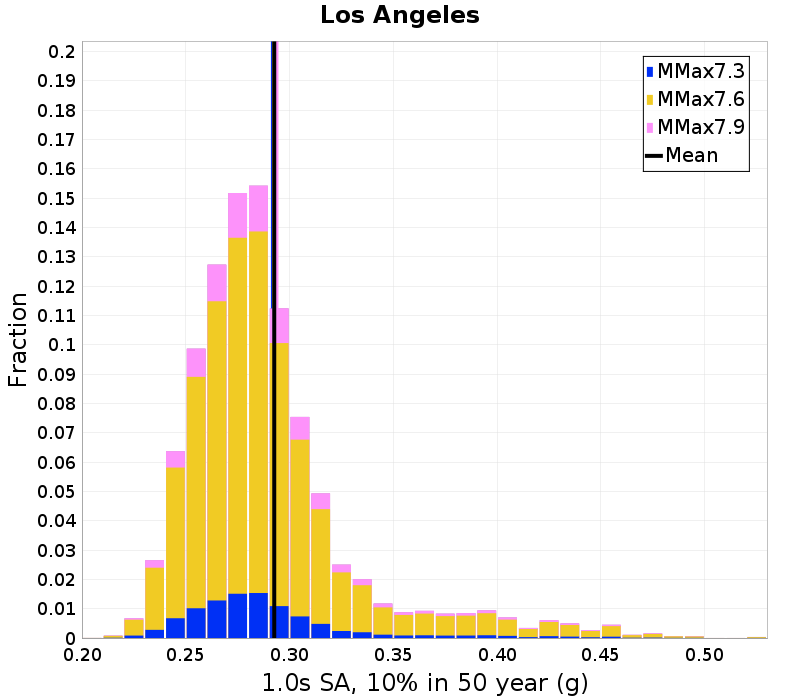

Los Angeles, 1.0s SA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6313172 (g) | 0.29261634 (g) |
| MMax7.3 | 0.6309976 (g) | 0.29197308 (g) |
| MMax7.6 | 0.63127846 (g) | 0.2925627 (g) |
| MMax7.9 | 0.63194513 (g) | 0.2936801 (g) |

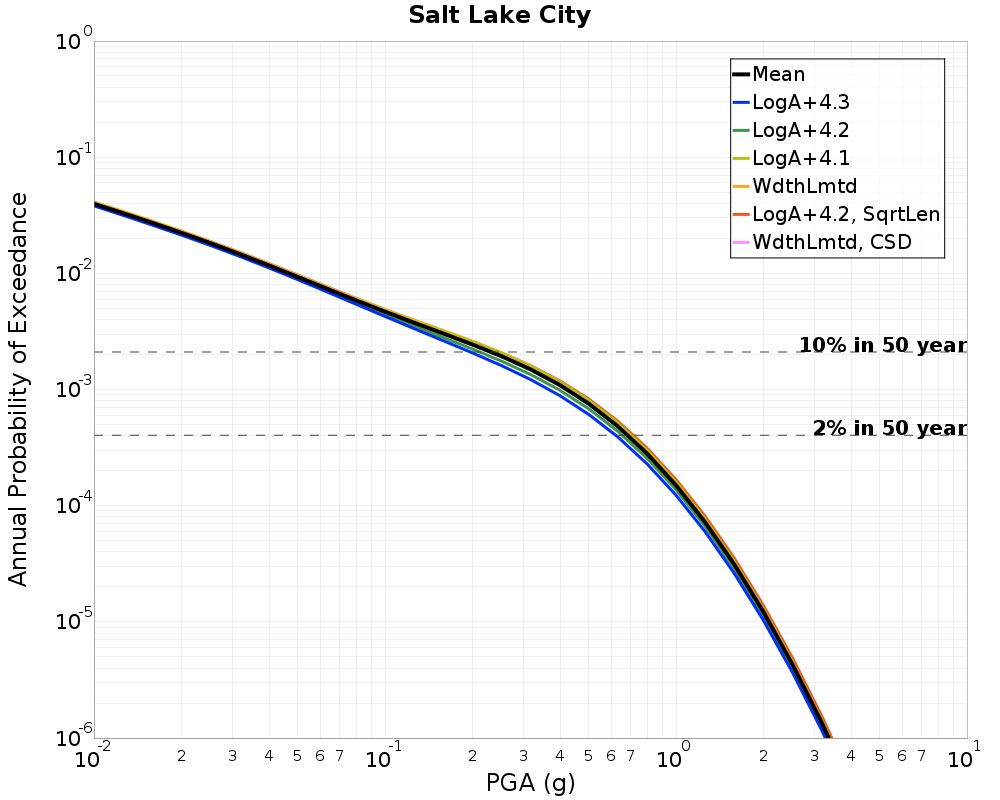

Salt Lake City
Salt Lake City, PGA

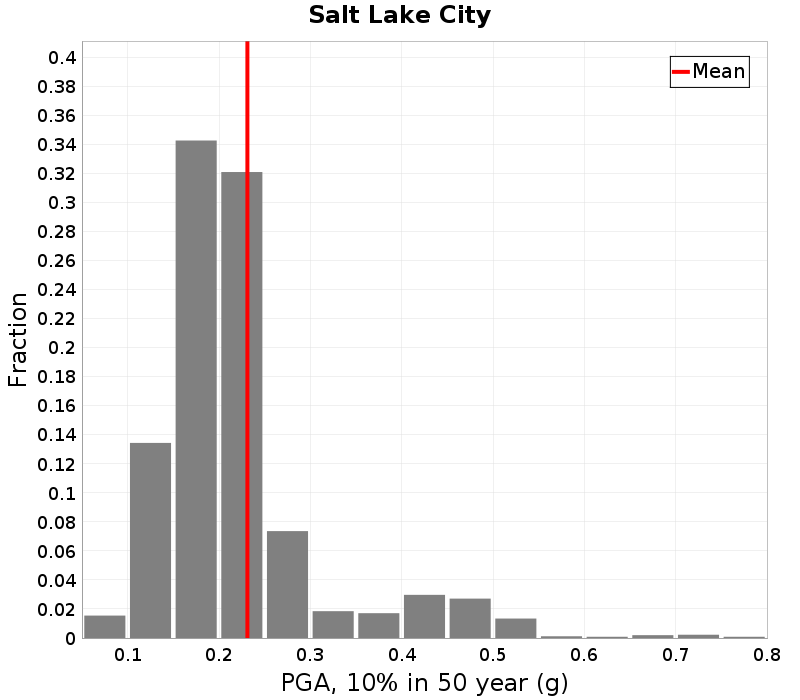

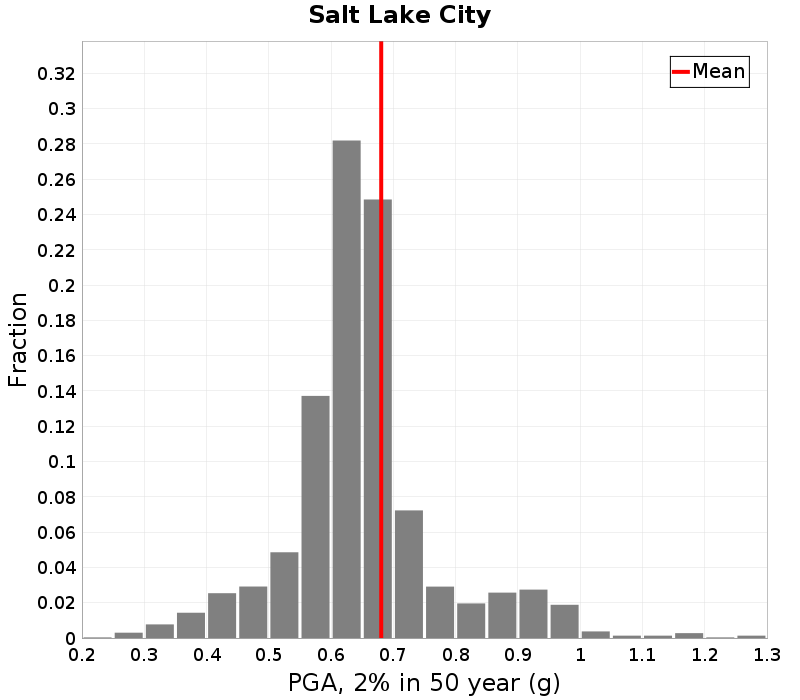

Salt Lake City, PGA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
| 2% in 50 year | 10% in 50 year |
|---|---|
| 0.6804883 (g) | 0.23108813 (g) |

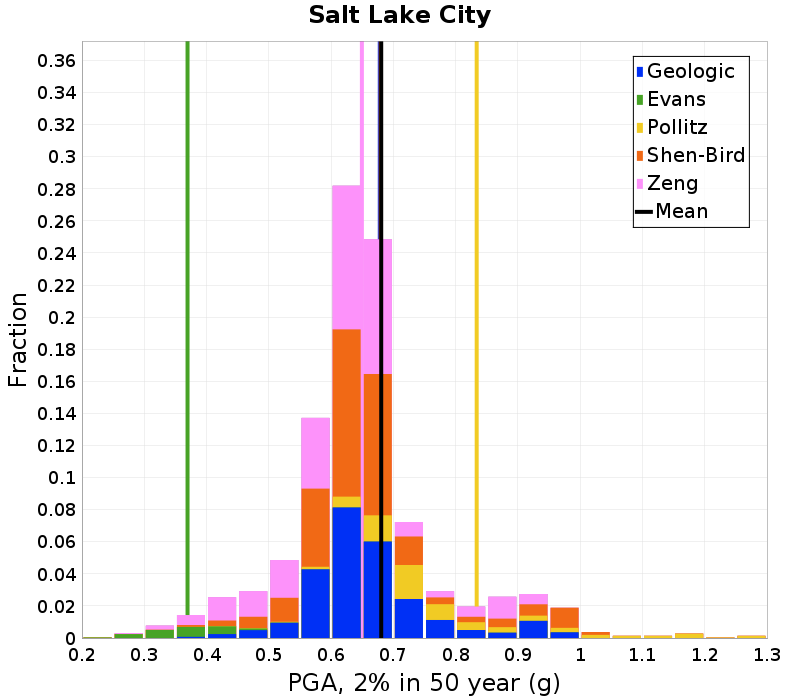

Salt Lake City, PGA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6804883 (g) | 0.23108813 (g) |
| Geologic | 0.67818046 (g) | 0.22407563 (g) |
| Evans | 0.36946988 (g) | 0.1466549 (g) |
| Pollitz | 0.8337959 (g) | 0.34933606 (g) |
| Shen-Bird | 0.67964953 (g) | 0.22812532 (g) |
| Zeng | 0.6494675 (g) | 0.216329 (g) |

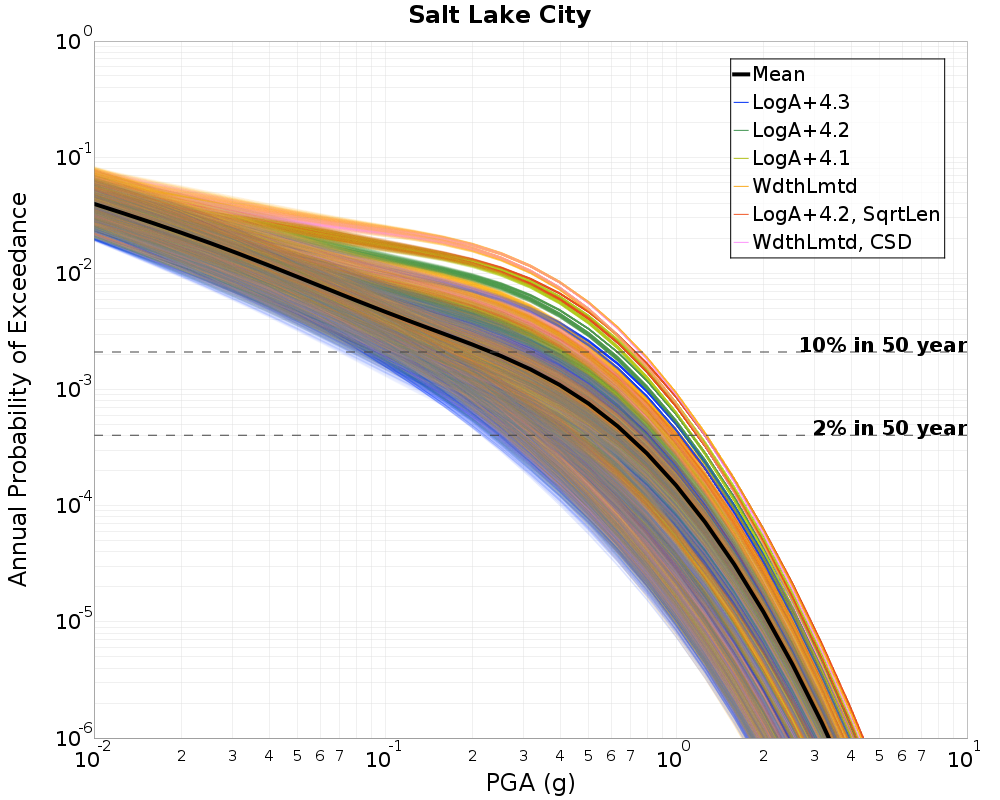

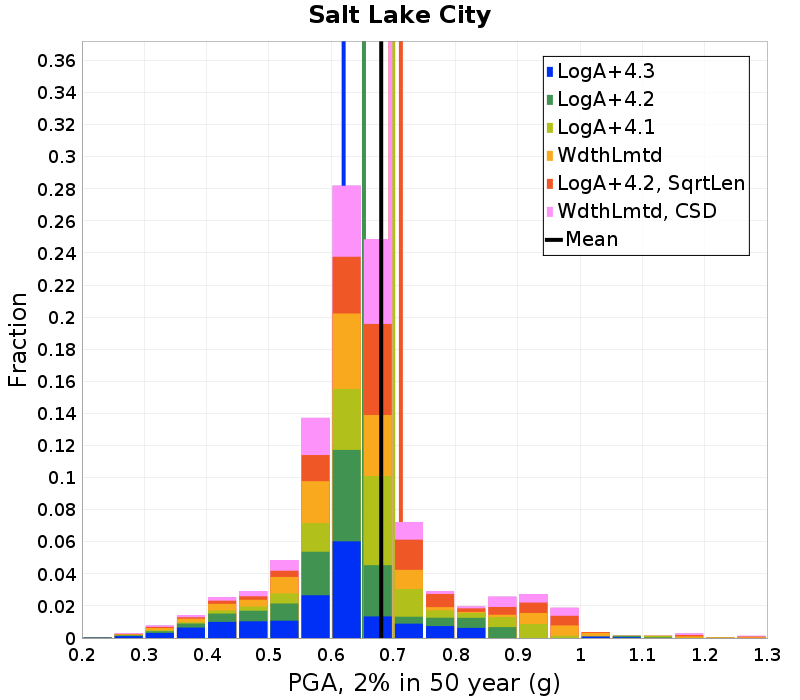

Salt Lake City, PGA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6804883 (g) | 0.23108813 (g) |
| LogA+4.3 | 0.6201319 (g) | 0.1961638 (g) |
| LogA+4.2 | 0.6528024 (g) | 0.2111212 (g) |
| LogA+4.1 | 0.69981486 (g) | 0.2430231 (g) |
| WdthLmtd | 0.69470346 (g) | 0.24768957 (g) |
| LogA+4.2, SqrtLen | 0.71206725 (g) | 0.2462825 (g) |
| WdthLmtd, CSD | 0.695149 (g) | 0.24704136 (g) |

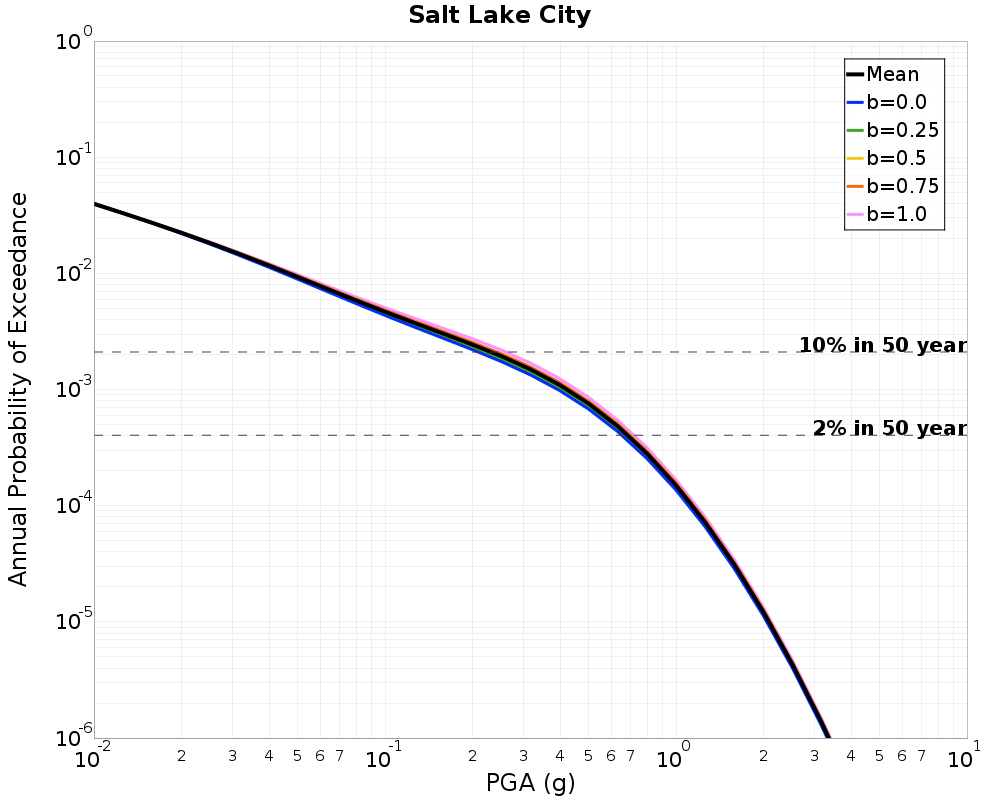

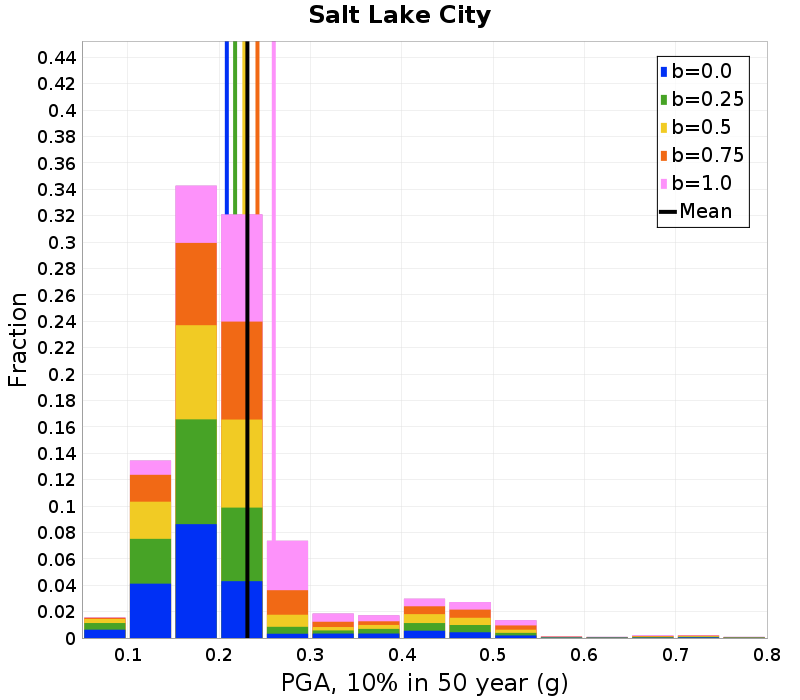

Salt Lake City, PGA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6804883 (g) | 0.23108813 (g) |
| b=0.0 | 0.65062 (g) | 0.20856999 (g) |
| b=0.25 | 0.6624223 (g) | 0.2176348 (g) |
| b=0.5 | 0.67612416 (g) | 0.22774589 (g) |
| b=0.75 | 0.6943271 (g) | 0.24212012 (g) |
| b=1.0 | 0.7155691 (g) | 0.25997597 (g) |

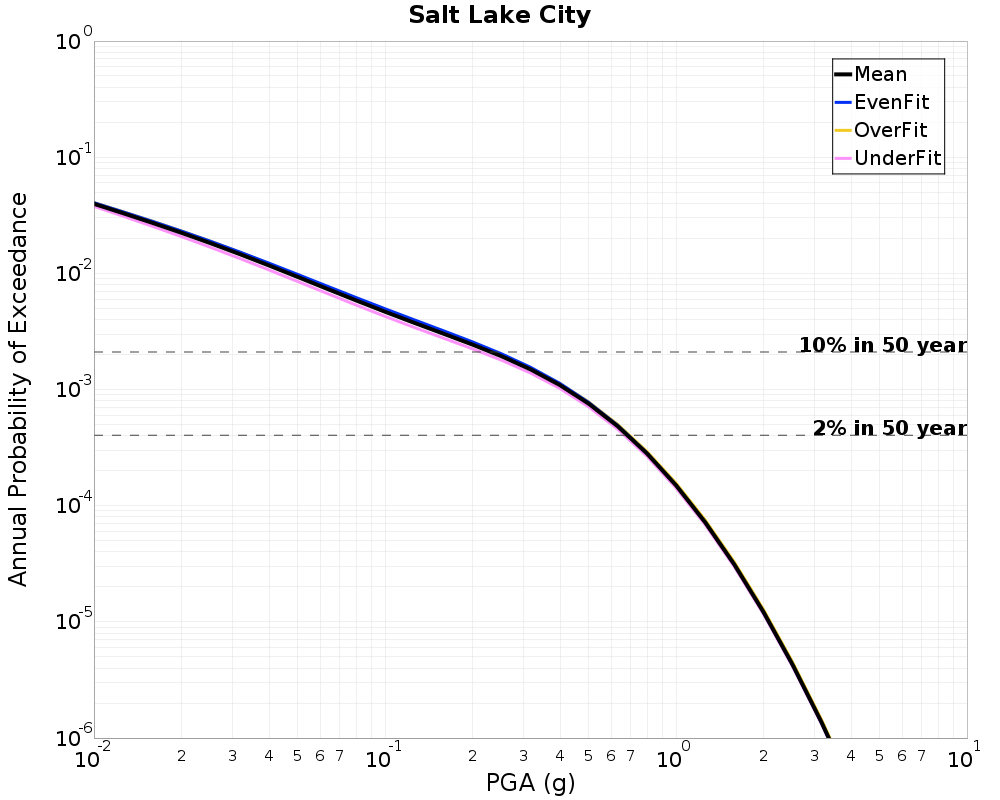

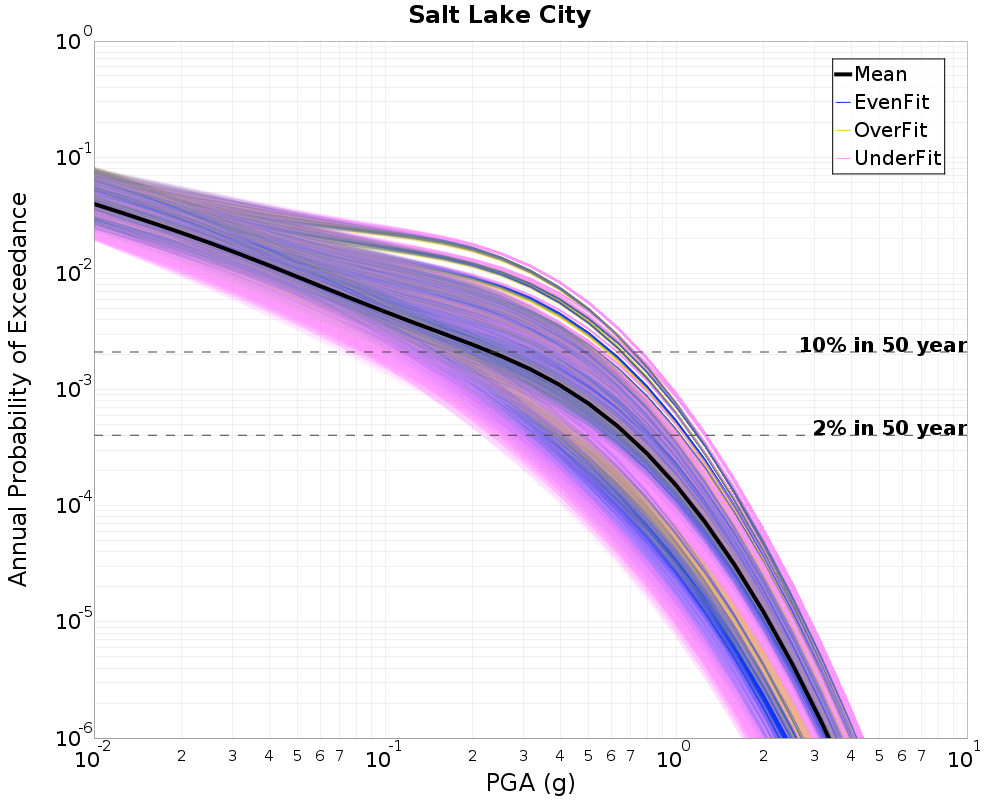

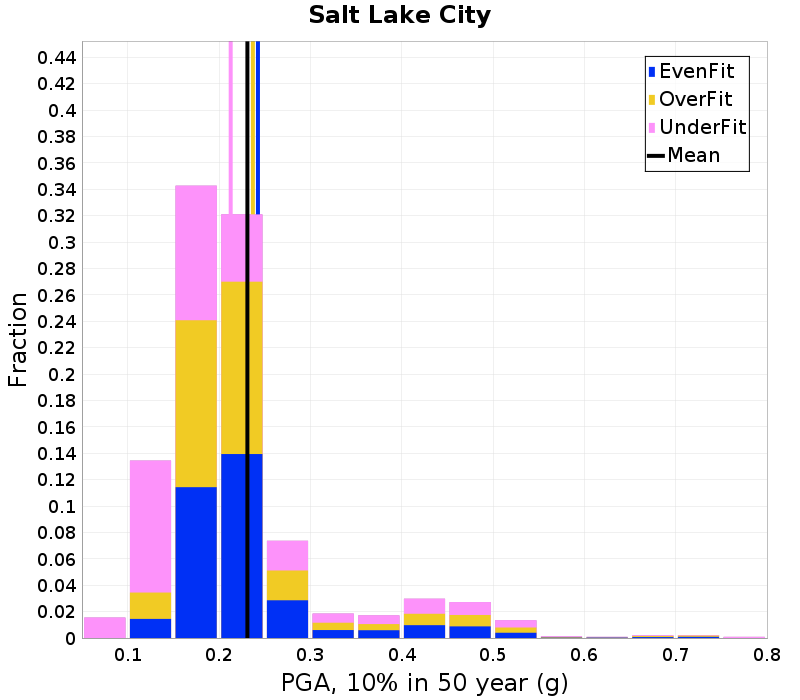

Salt Lake City, PGA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6804883 (g) | 0.23108813 (g) |
| EvenFit | 0.68525016 (g) | 0.2426482 (g) |
| OverFit | 0.69175214 (g) | 0.23711488 (g) |
| UnderFit | 0.66395026 (g) | 0.21279685 (g) |

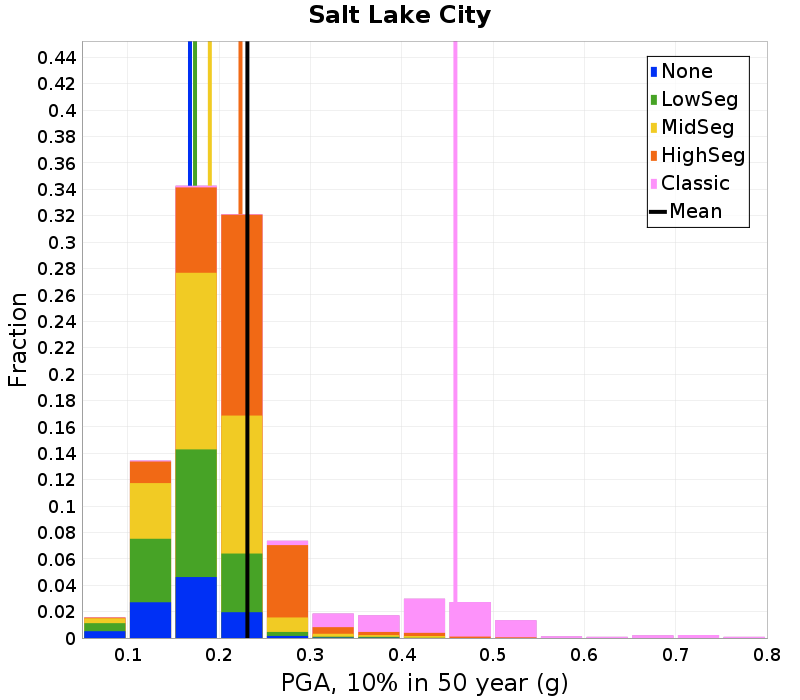

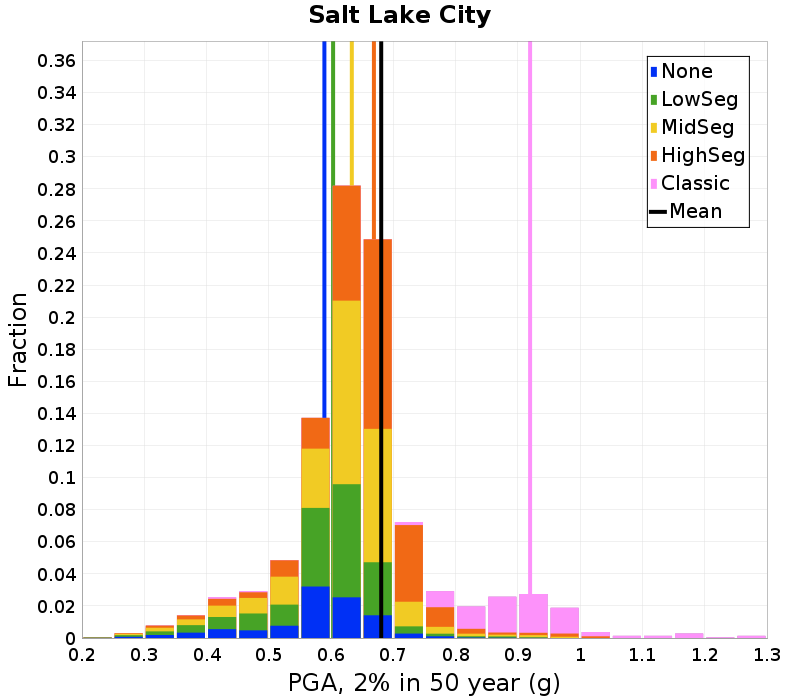

Salt Lake City, PGA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6804883 (g) | 0.23108813 (g) |
| None | 0.58924526 (g) | 0.16823746 (g) |
| LowSeg | 0.60324085 (g) | 0.1737534 (g) |
| MidSeg | 0.6332853 (g) | 0.18996455 (g) |
| HighSeg | 0.66876626 (g) | 0.2235233 (g) |
| Classic | 0.9195703 (g) | 0.45883167 (g) |

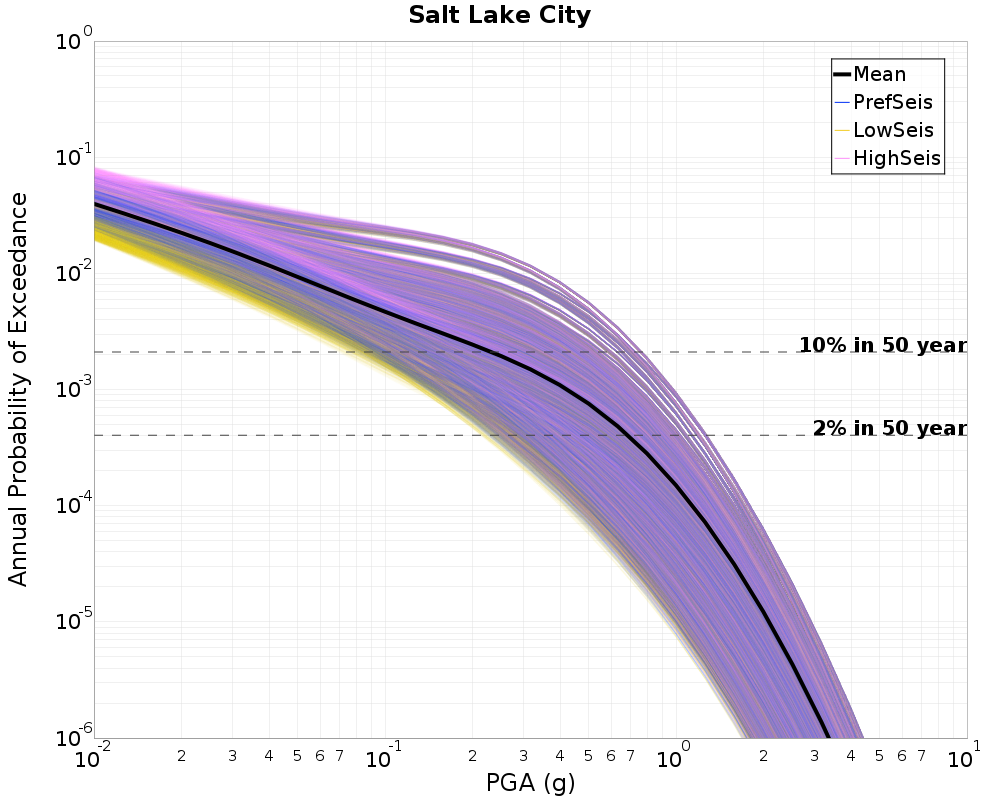

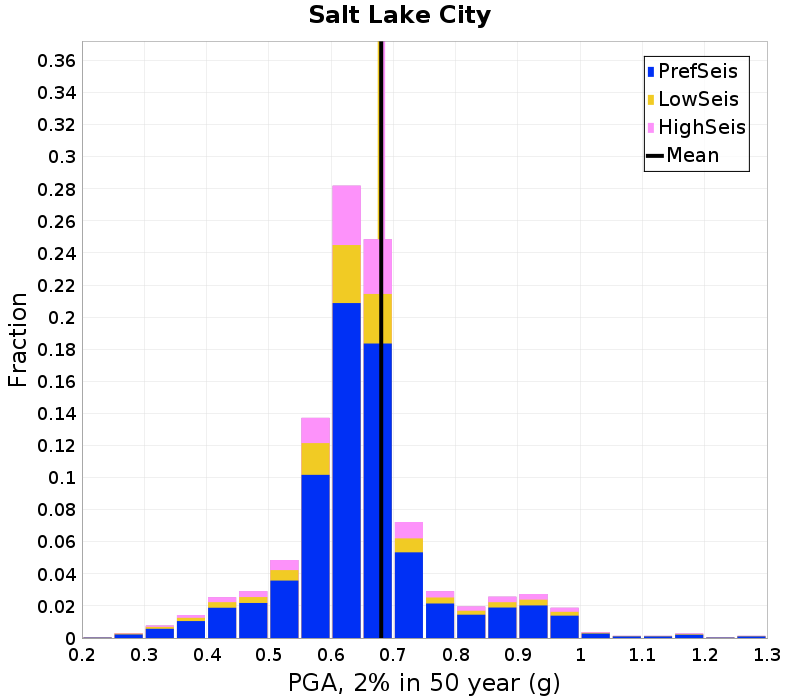

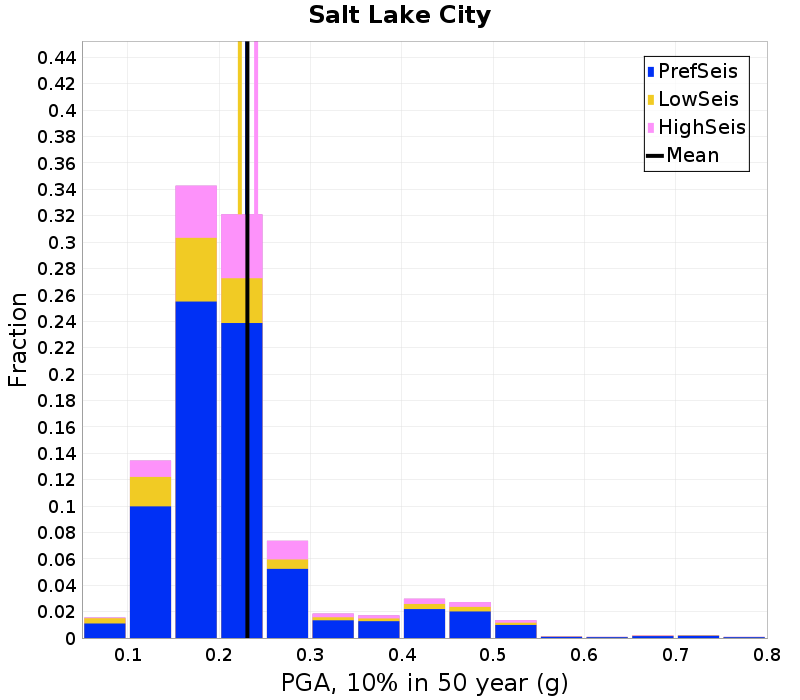

Salt Lake City, PGA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6804883 (g) | 0.23108813 (g) |
| PrefSeis | 0.6803678 (g) | 0.23071441 (g) |
| LowSeis | 0.6780463 (g) | 0.22282284 (g) |
| HighSeis | 0.68357164 (g) | 0.24063545 (g) |
Salt Lake City, PGA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6804883 (g) | 0.23108813 (g) |
| GK | 0.6807832 (g) | 0.23232459 (g) |
| NN | 0.6794661 (g) | 0.22747616 (g) |
| Reas | 0.6819303 (g) | 0.23557833 (g) |

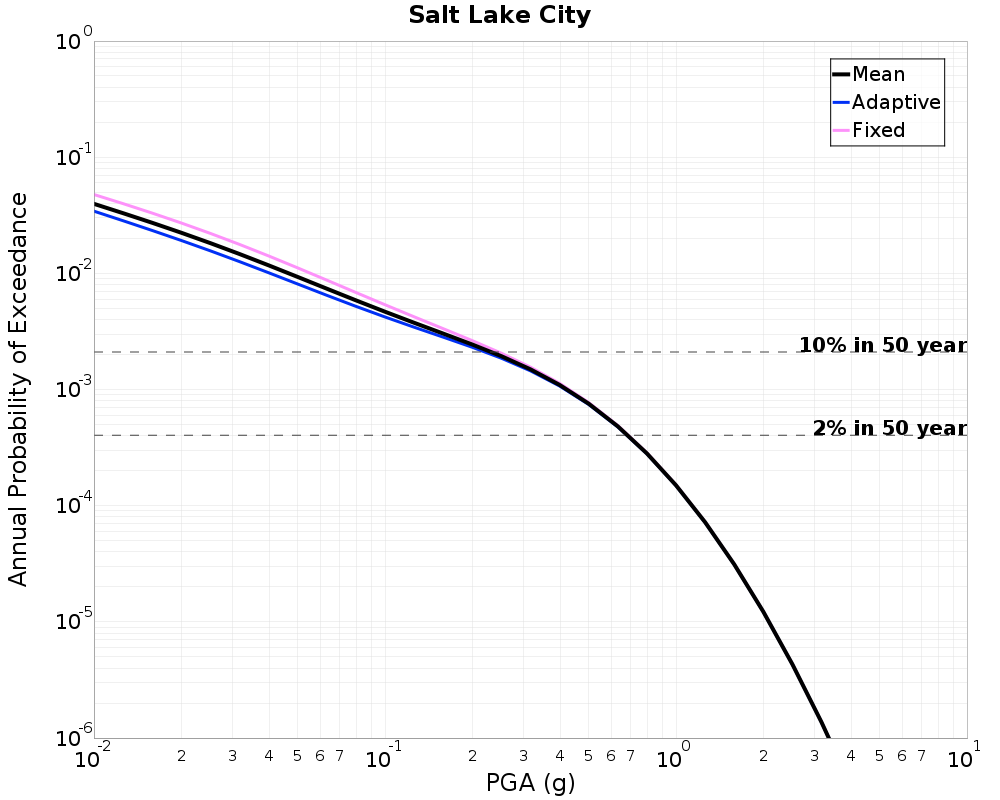

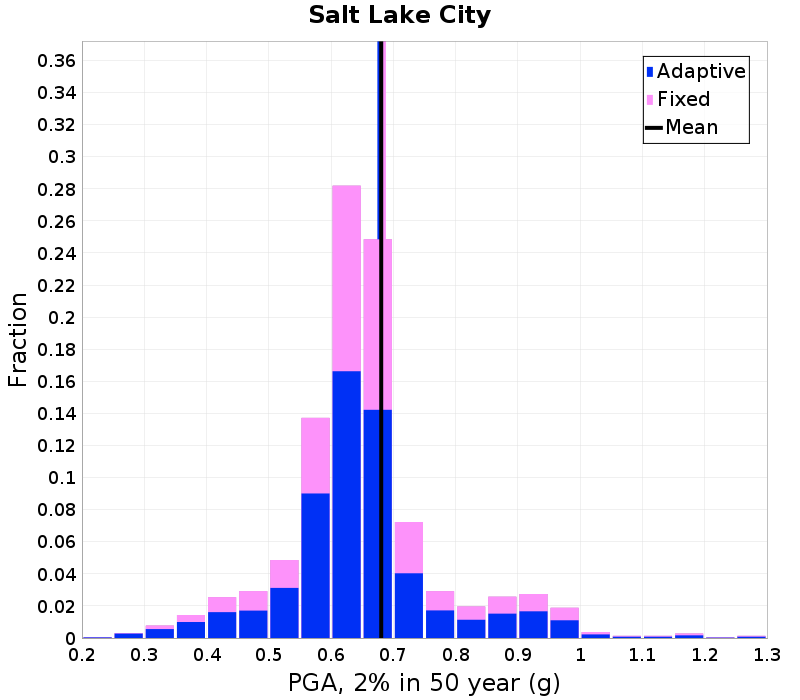

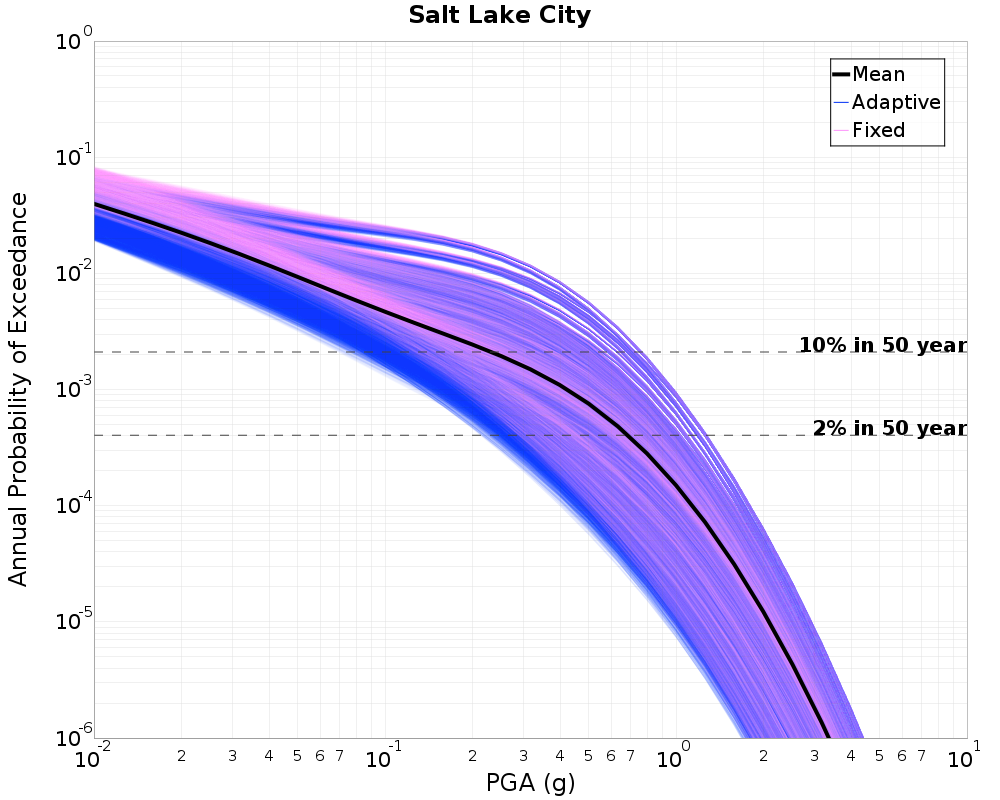

Salt Lake City, PGA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6804883 (g) | 0.23108813 (g) |
| Adaptive | 0.6775288 (g) | 0.22011688 (g) |
| Fixed | 0.68483347 (g) | 0.24539173 (g) |

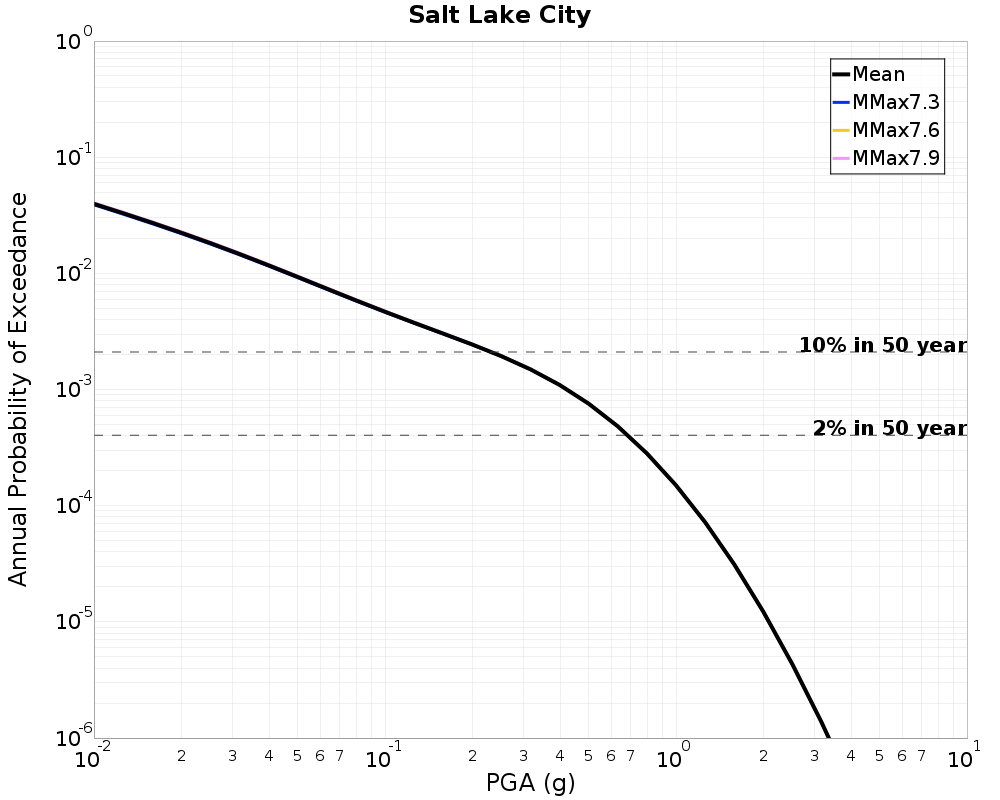

Salt Lake City, PGA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6804883 (g) | 0.23108813 (g) |
| MMax7.3 | 0.6801265 (g) | 0.22989689 (g) |
| MMax7.6 | 0.6804847 (g) | 0.23107234 (g) |
| MMax7.9 | 0.68087804 (g) | 0.23238936 (g) |
Salt Lake City, 0.2s SA

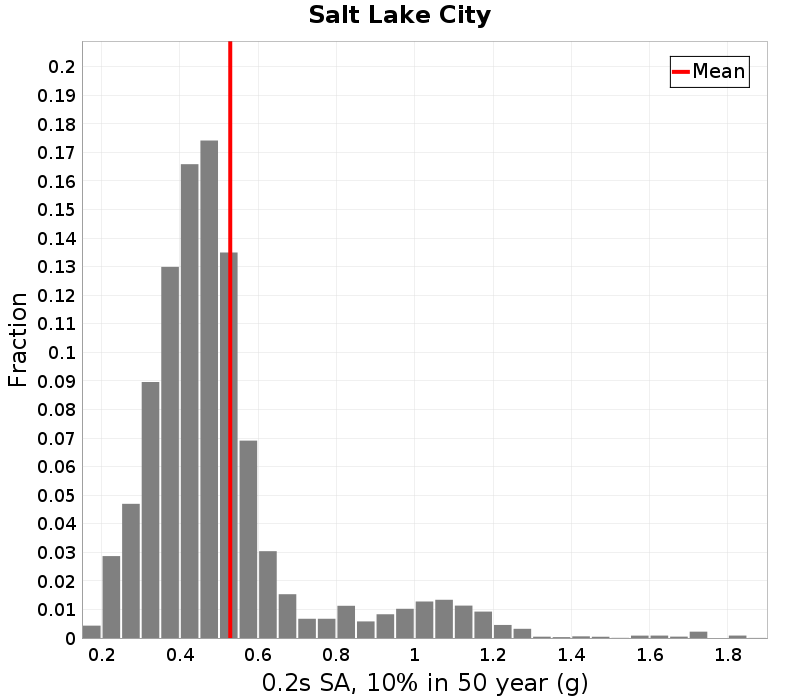

Salt Lake City, 0.2s SA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
| 2% in 50 year | 10% in 50 year |
|---|---|
| 1.6301196 (g) | 0.52873325 (g) |

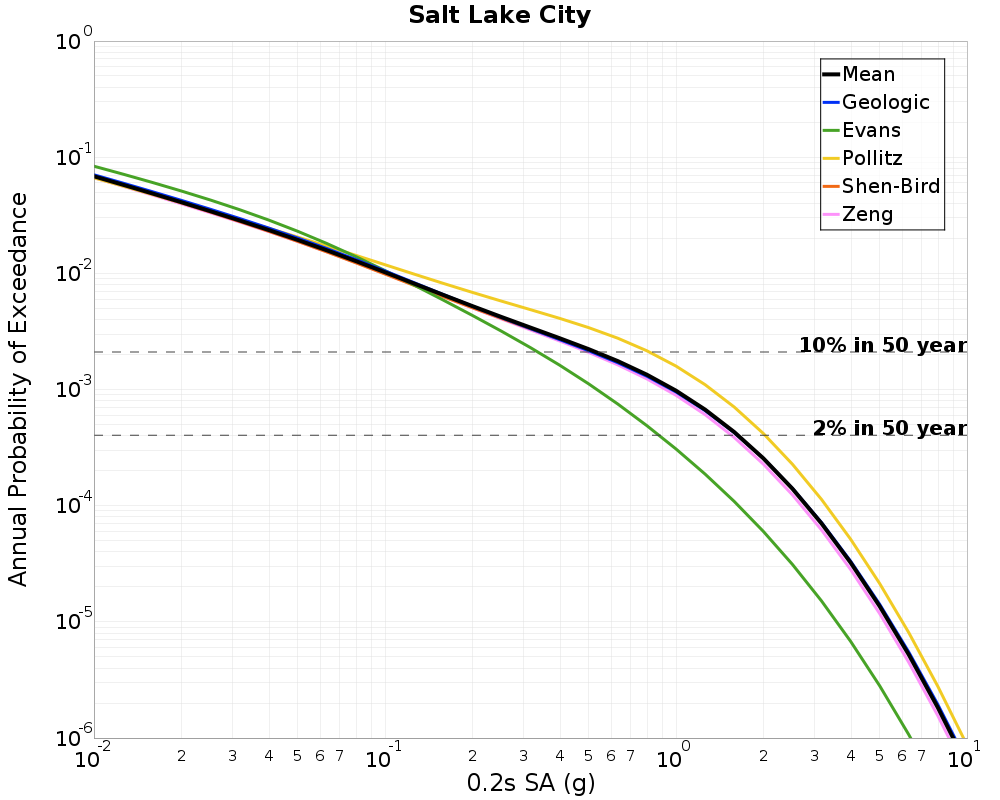

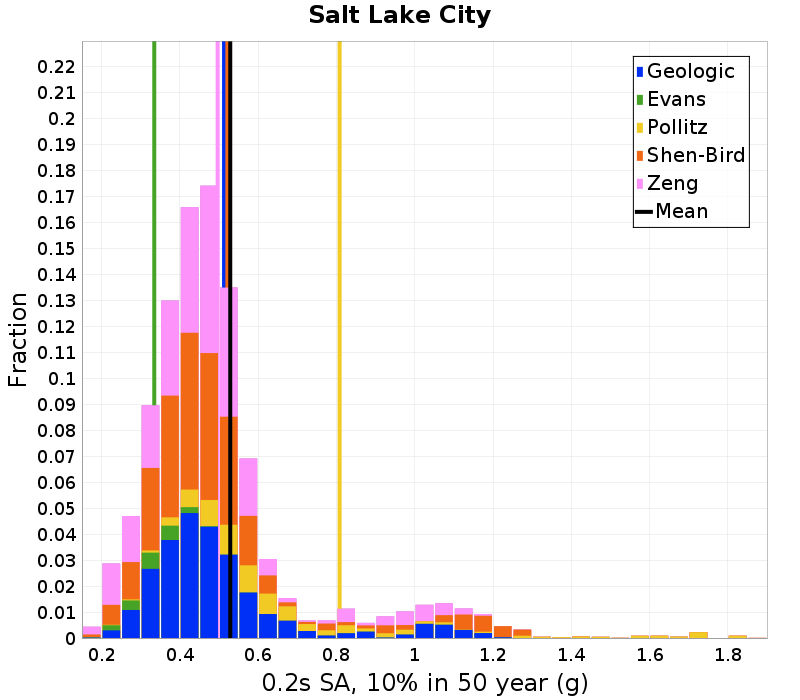

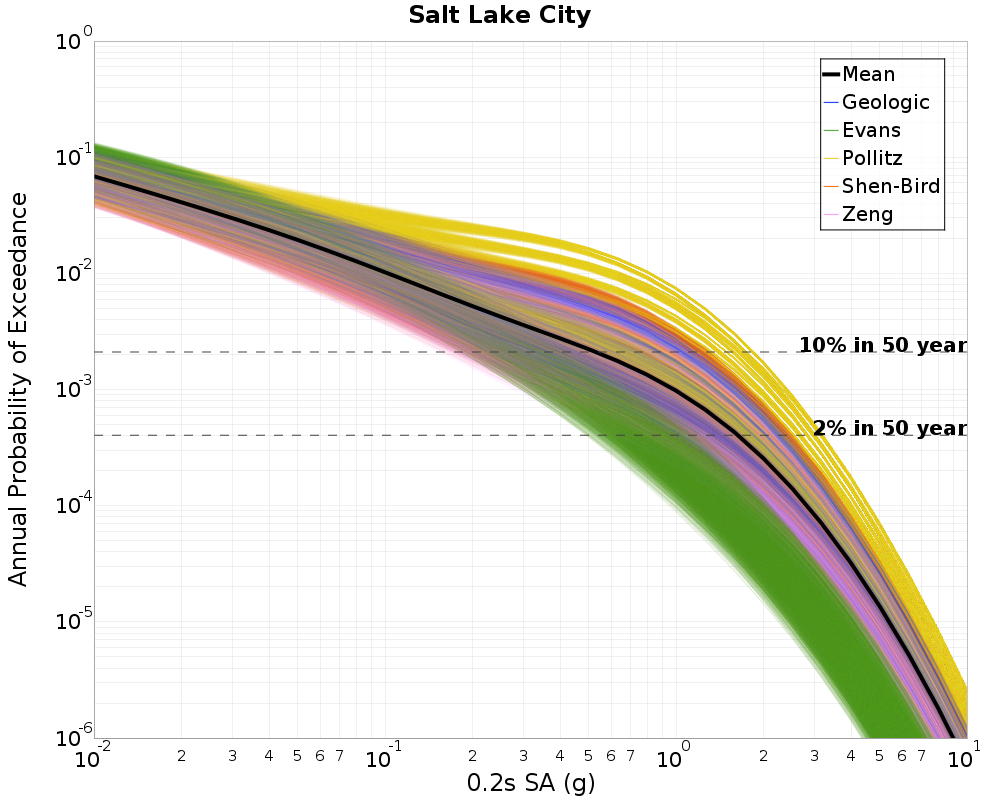

Salt Lake City, 0.2s SA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.6301196 (g) | 0.52873325 (g) |
| Geologic | 1.6225454 (g) | 0.51288325 (g) |
| Evans | 0.8728853 (g) | 0.3346118 (g) |
| Pollitz | 2.0221796 (g) | 0.80820364 (g) |
| Shen-Bird | 1.6280574 (g) | 0.5213724 (g) |
| Zeng | 1.5503501 (g) | 0.49653465 (g) |

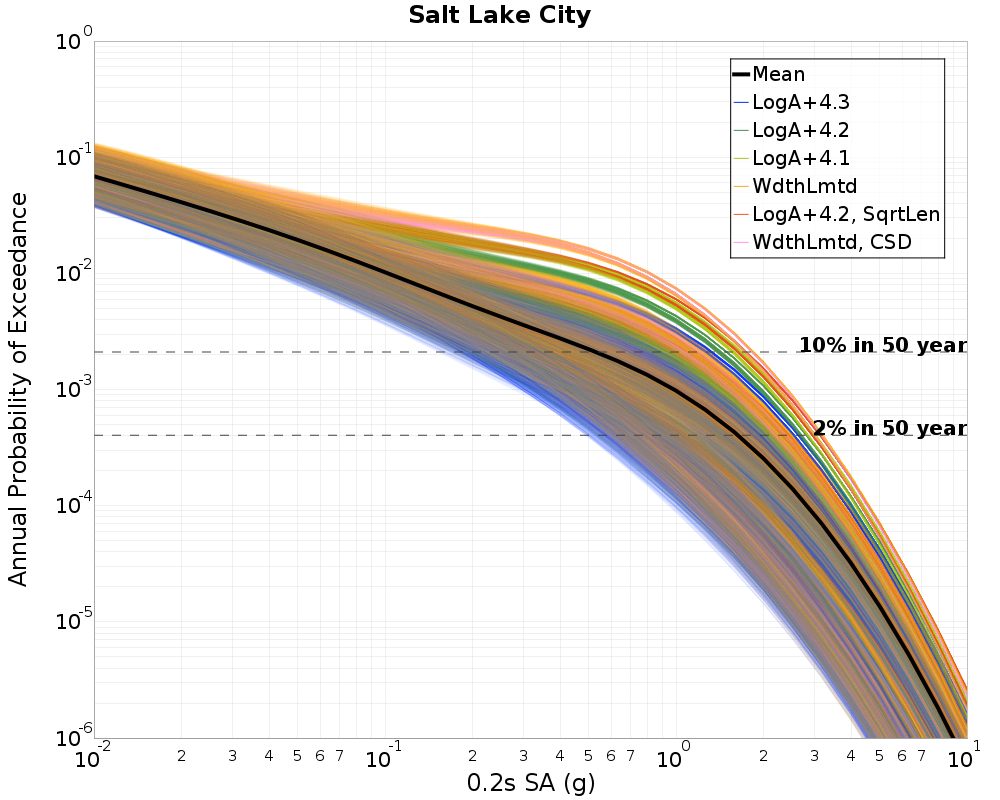

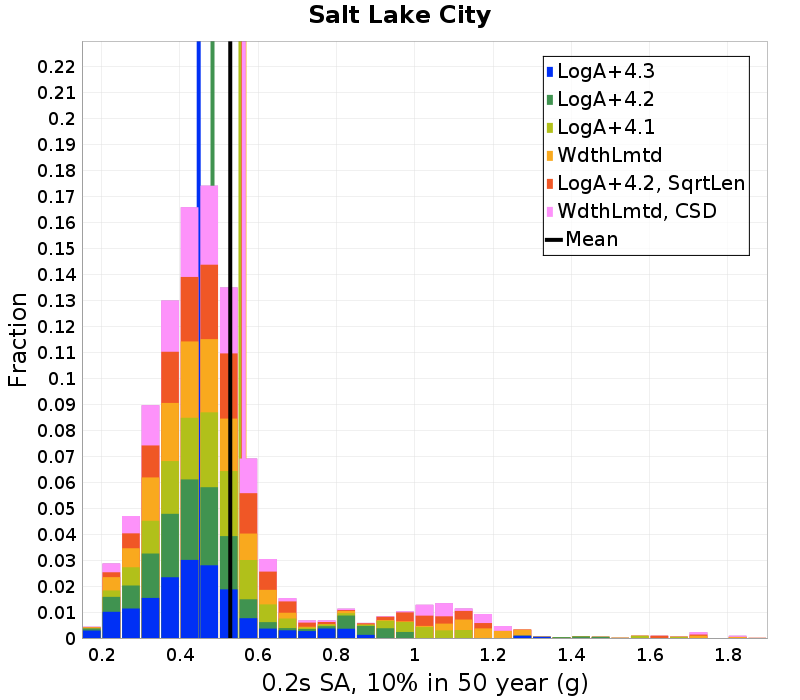

Salt Lake City, 0.2s SA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.6301196 (g) | 0.52873325 (g) |
| LogA+4.3 | 1.4701223 (g) | 0.4481307 (g) |
| LogA+4.2 | 1.5577072 (g) | 0.48341882 (g) |
| LogA+4.1 | 1.6778108 (g) | 0.5548368 (g) |
| WdthLmtd | 1.6659651 (g) | 0.56499034 (g) |
| LogA+4.2, SqrtLen | 1.7068642 (g) | 0.56170577 (g) |
| WdthLmtd, CSD | 1.6670904 (g) | 0.56343466 (g) |
Salt Lake City, 0.2s SA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.6301196 (g) | 0.52873325 (g) |
| b=0.0 | 1.5507 (g) | 0.47688428 (g) |
| b=0.25 | 1.585105 (g) | 0.49867156 (g) |
| b=0.5 | 1.6192489 (g) | 0.521455 (g) |
| b=0.75 | 1.6646086 (g) | 0.5531267 (g) |
| b=1.0 | 1.7177433 (g) | 0.5948717 (g) |

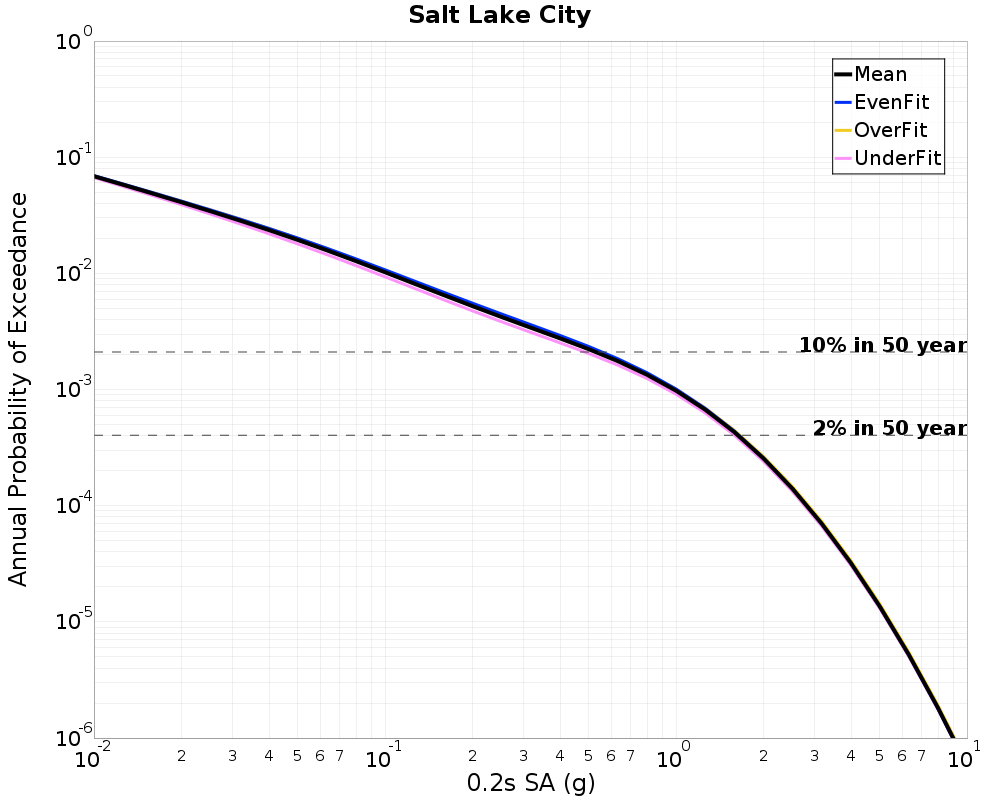

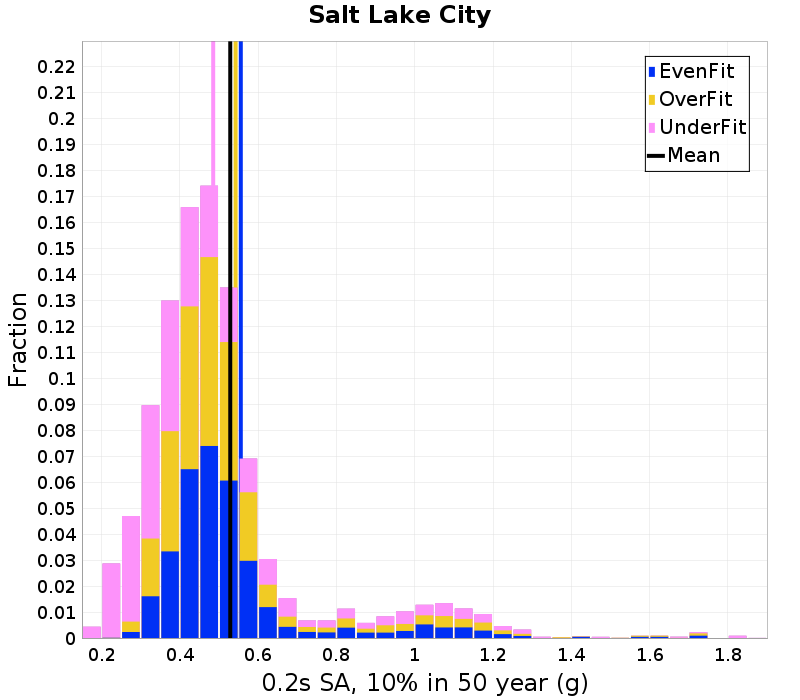

Salt Lake City, 0.2s SA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.6301196 (g) | 0.52873325 (g) |
| EvenFit | 1.6439949 (g) | 0.5556916 (g) |
| OverFit | 1.6573678 (g) | 0.54245484 (g) |
| UnderFit | 1.5876096 (g) | 0.48519146 (g) |

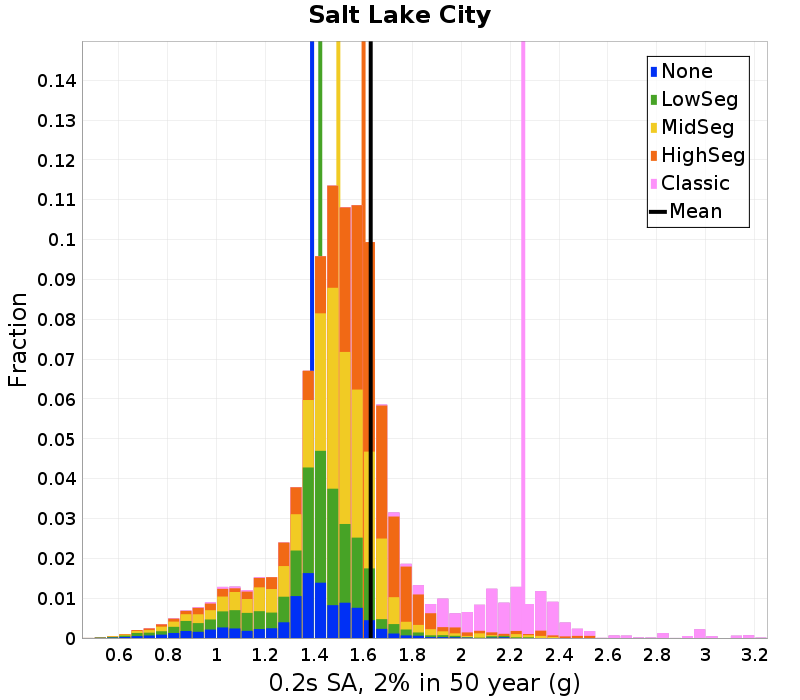

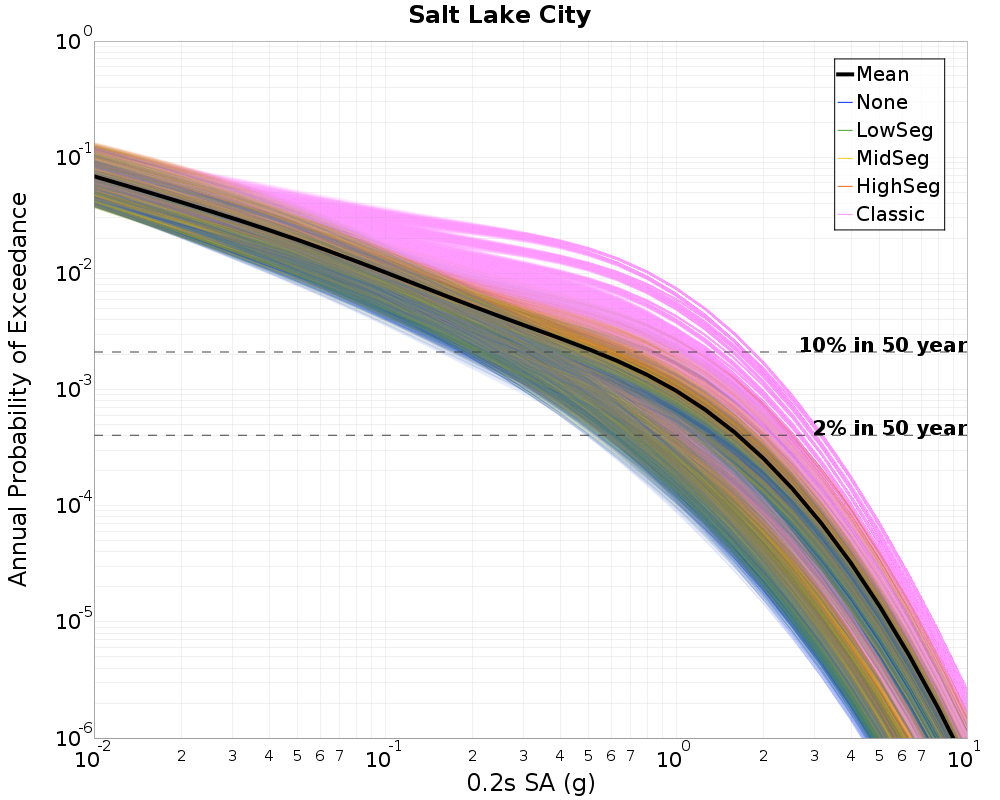

Salt Lake City, 0.2s SA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.6301196 (g) | 0.52873325 (g) |
| None | 1.3903208 (g) | 0.38369367 (g) |
| LowSeg | 1.4239182 (g) | 0.39657906 (g) |
| MidSeg | 1.4978381 (g) | 0.4339077 (g) |
| HighSeg | 1.6009334 (g) | 0.5130002 (g) |
| Classic | 2.2536488 (g) | 1.0768516 (g) |

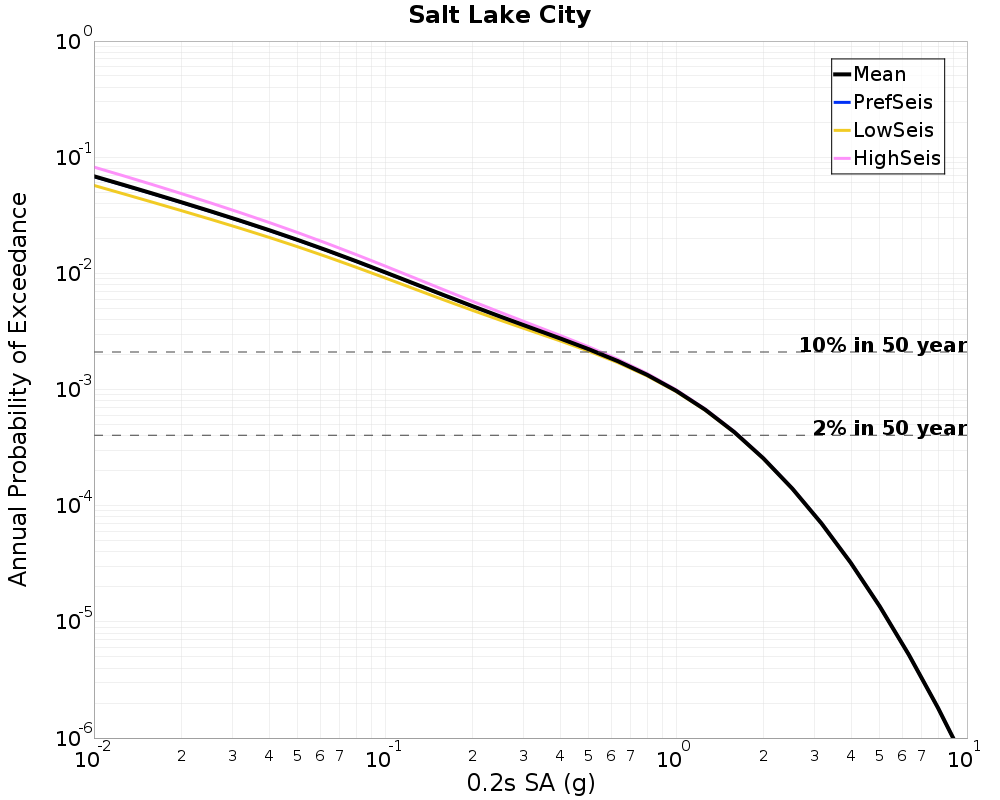

Salt Lake City, 0.2s SA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.6301196 (g) | 0.52873325 (g) |
| PrefSeis | 1.6297859 (g) | 0.5278651 (g) |
| LowSeis | 1.6234155 (g) | 0.5095394 (g) |
| HighSeis | 1.6385987 (g) | 0.5511212 (g) |

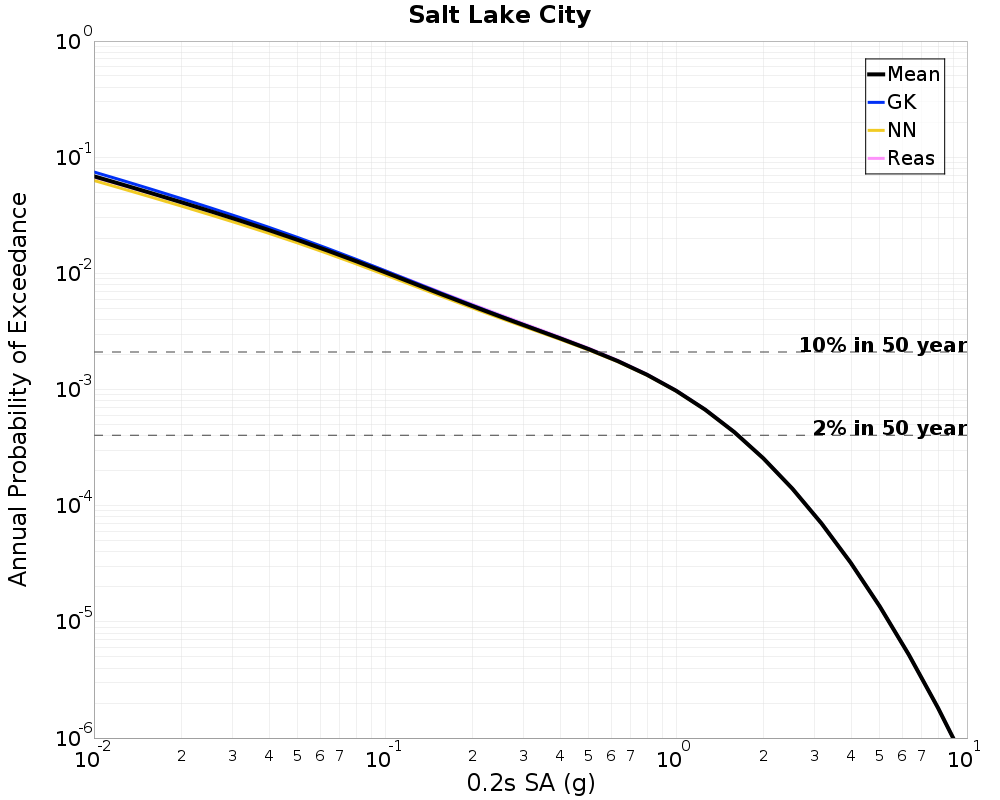

Salt Lake City, 0.2s SA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.6301196 (g) | 0.52873325 (g) |
| GK | 1.6309062 (g) | 0.531599 (g) |
| NN | 1.6274406 (g) | 0.5206232 (g) |
| Reas | 1.6338724 (g) | 0.53871584 (g) |

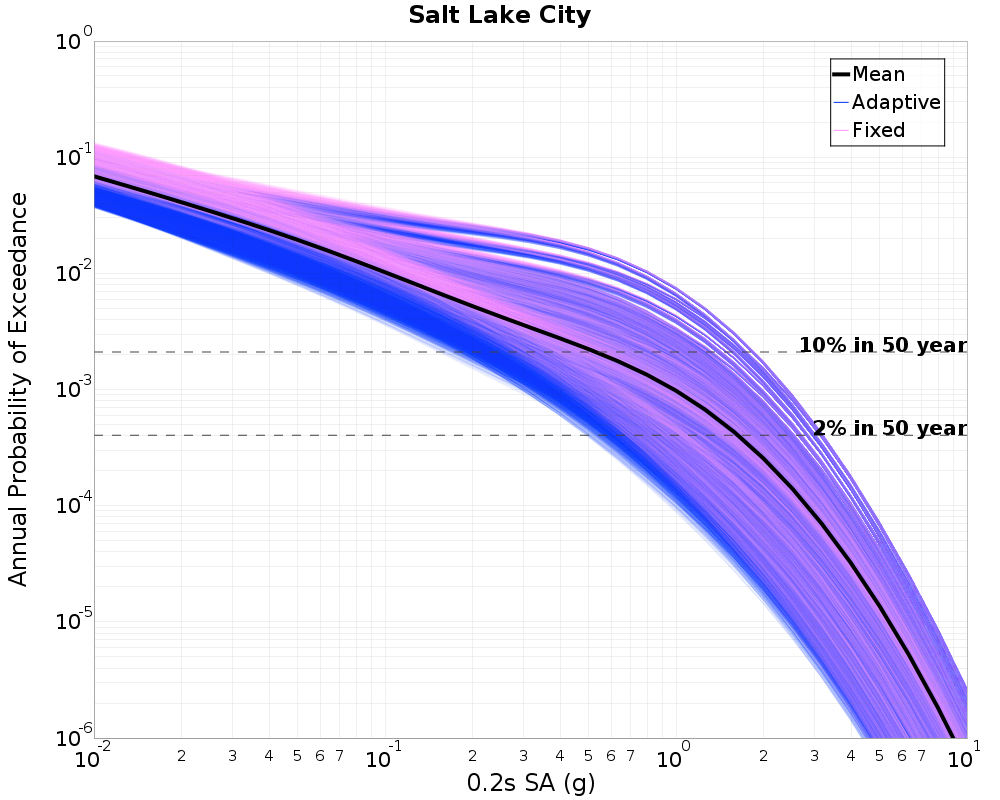

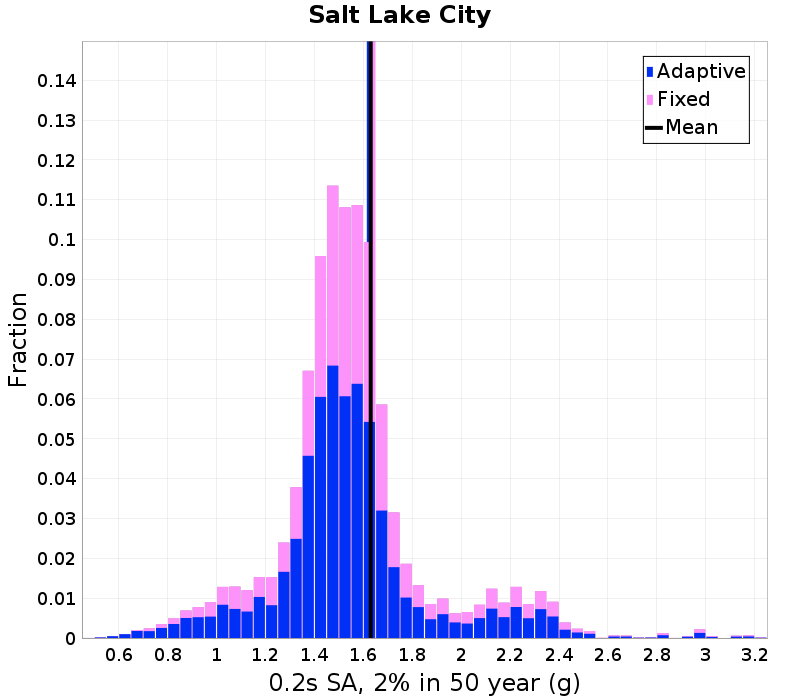

Salt Lake City, 0.2s SA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.6301196 (g) | 0.52873325 (g) |
| Adaptive | 1.6223532 (g) | 0.5041718 (g) |
| Fixed | 1.6415282 (g) | 0.5613443 (g) |

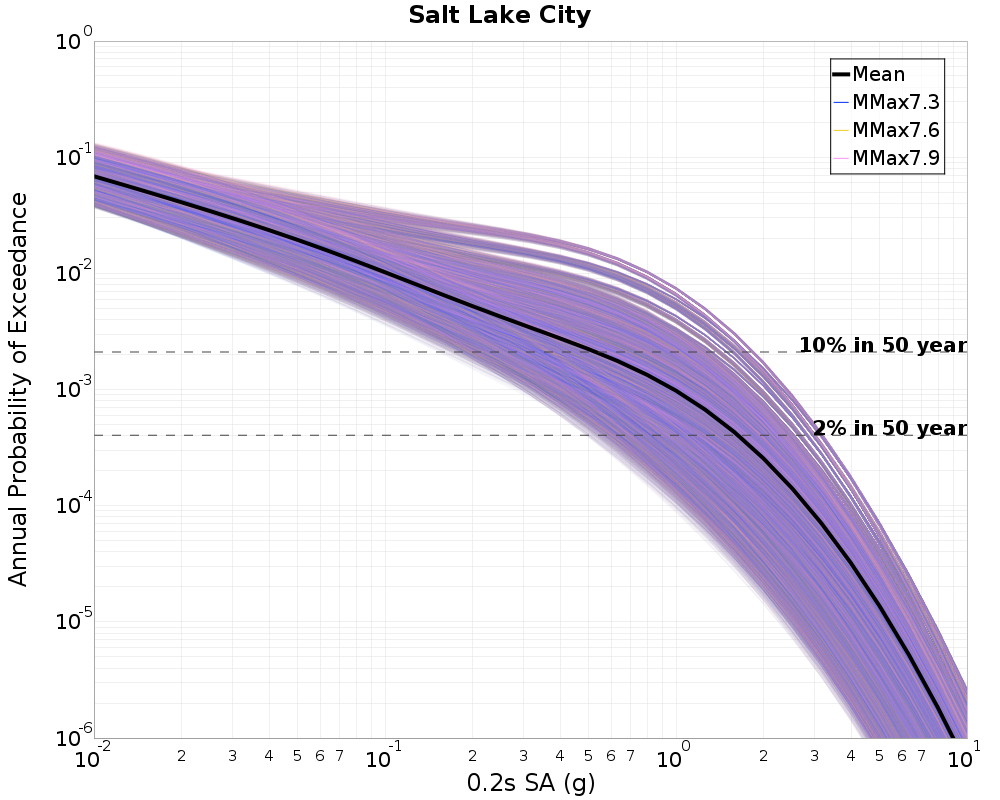

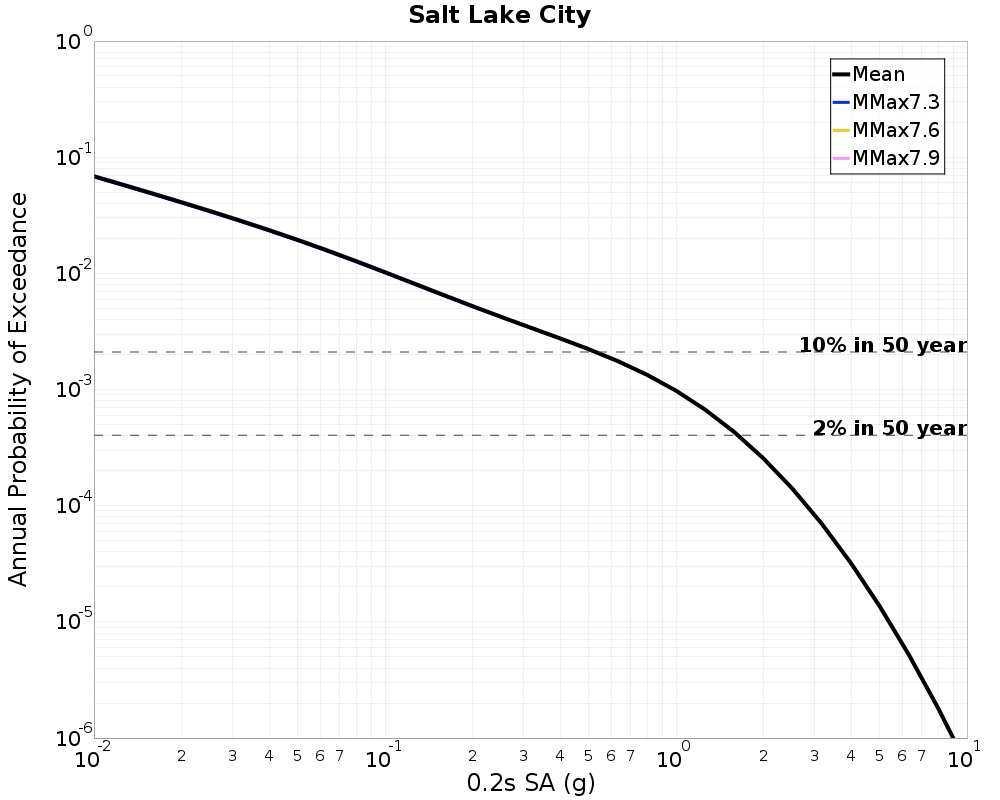

Salt Lake City, 0.2s SA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.6301196 (g) | 0.52873325 (g) |
| MMax7.3 | 1.6291595 (g) | 0.52621365 (g) |
| MMax7.6 | 1.6301134 (g) | 0.528713 (g) |
| MMax7.9 | 1.6311272 (g) | 0.5313895 (g) |
Salt Lake City, 1.0s SA
Salt Lake City, 1.0s SA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
| 2% in 50 year | 10% in 50 year |
|---|---|
| 0.49377787 (g) | 0.14335339 (g) |

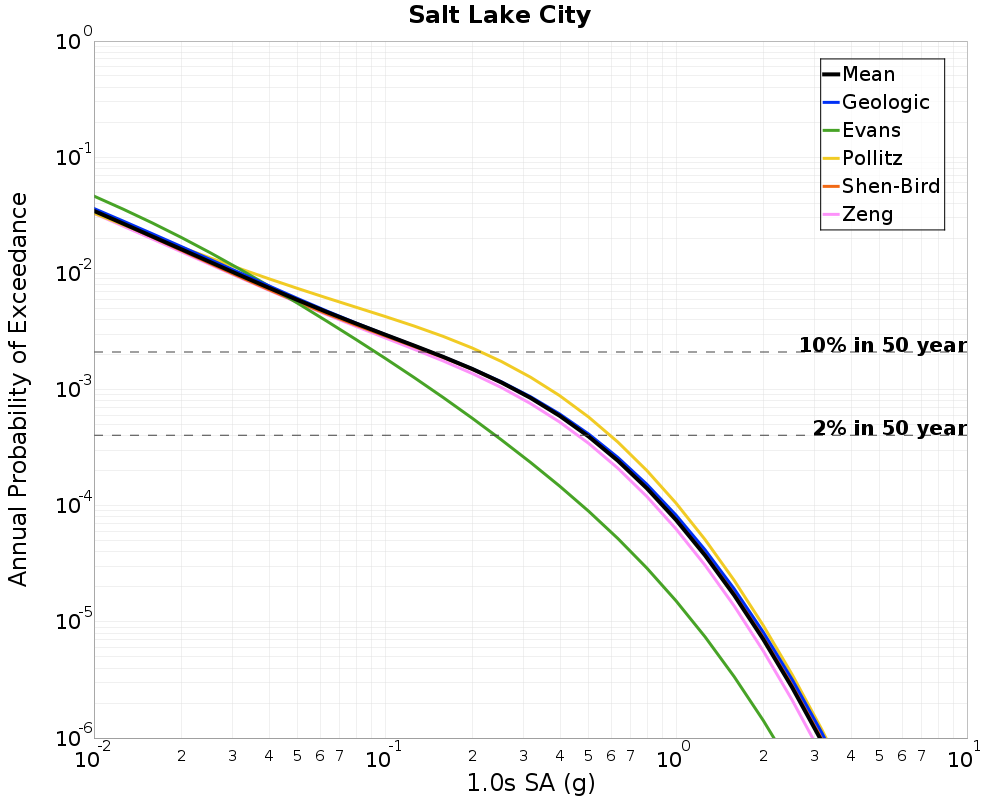

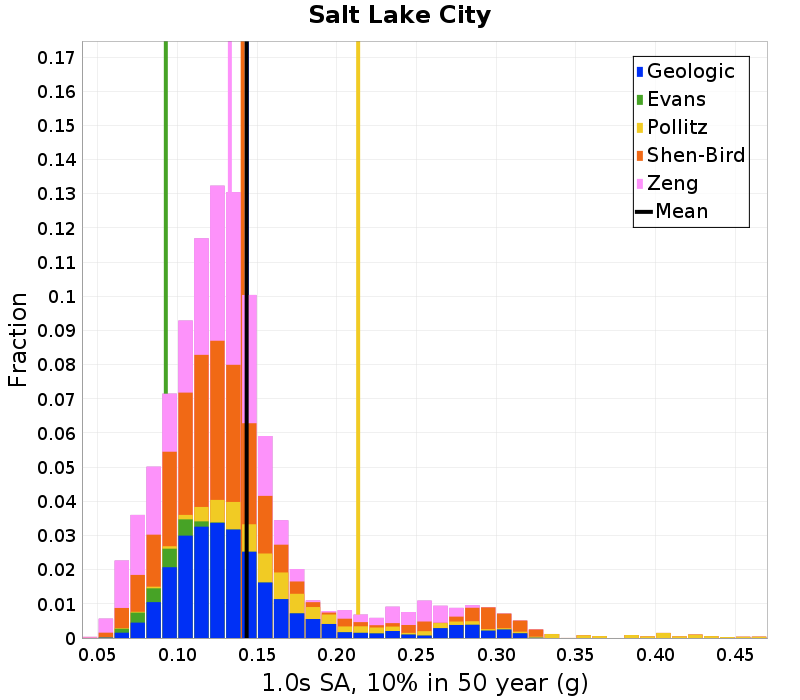

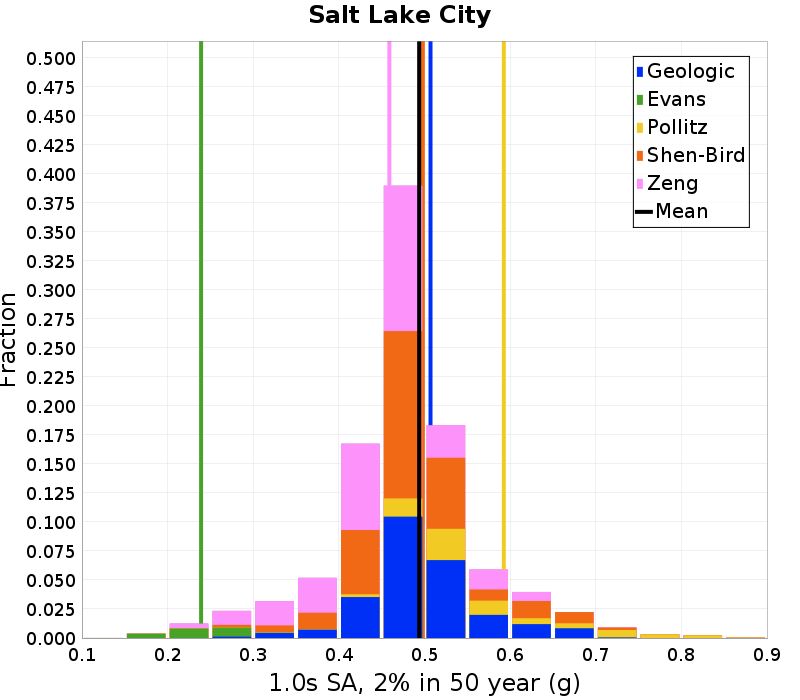

Salt Lake City, 1.0s SA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.49377787 (g) | 0.14335339 (g) |
| Geologic | 0.5070205 (g) | 0.1434717 (g) |
| Evans | 0.2390937 (g) | 0.09262371 (g) |
| Pollitz | 0.5926196 (g) | 0.21335173 (g) |
| Shen-Bird | 0.49806958 (g) | 0.14086159 (g) |
| Zeng | 0.45894414 (g) | 0.13282467 (g) |

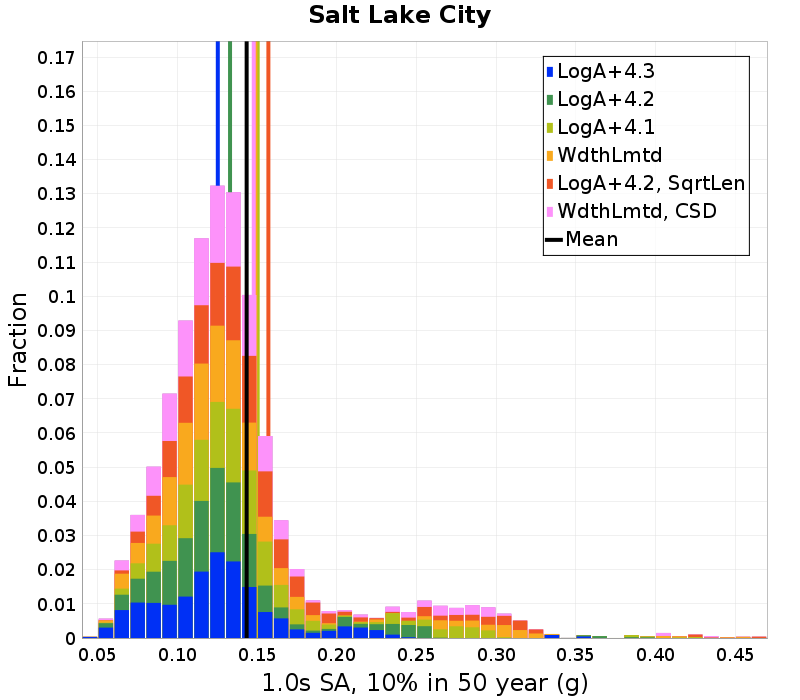

Salt Lake City, 1.0s SA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.49377787 (g) | 0.14335339 (g) |
| LogA+4.3 | 0.45036834 (g) | 0.12524922 (g) |
| LogA+4.2 | 0.4738145 (g) | 0.13293278 (g) |
| LogA+4.1 | 0.51016617 (g) | 0.150281 (g) |
| WdthLmtd | 0.49353927 (g) | 0.148897 (g) |
| LogA+4.2, SqrtLen | 0.5315076 (g) | 0.15700299 (g) |
| WdthLmtd, CSD | 0.49424157 (g) | 0.1477992 (g) |

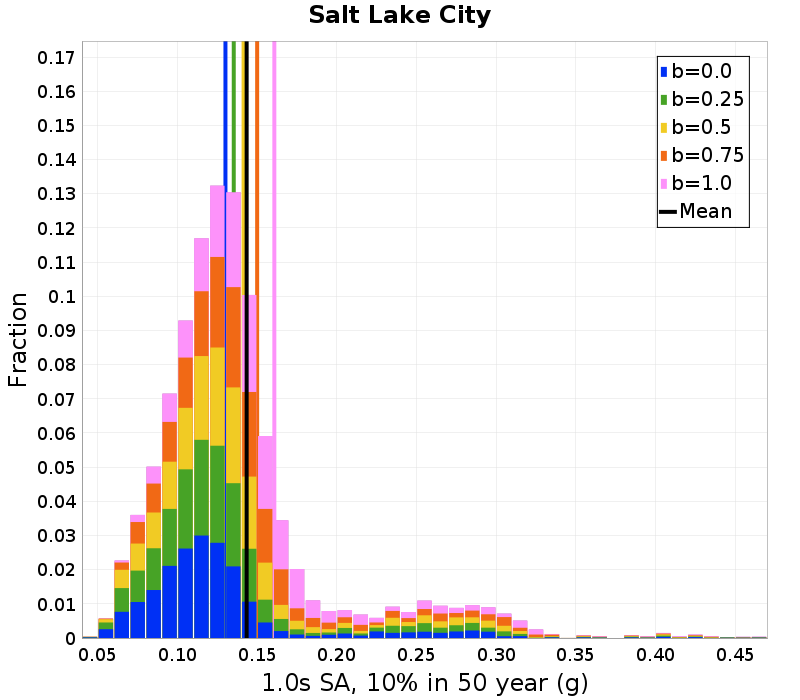

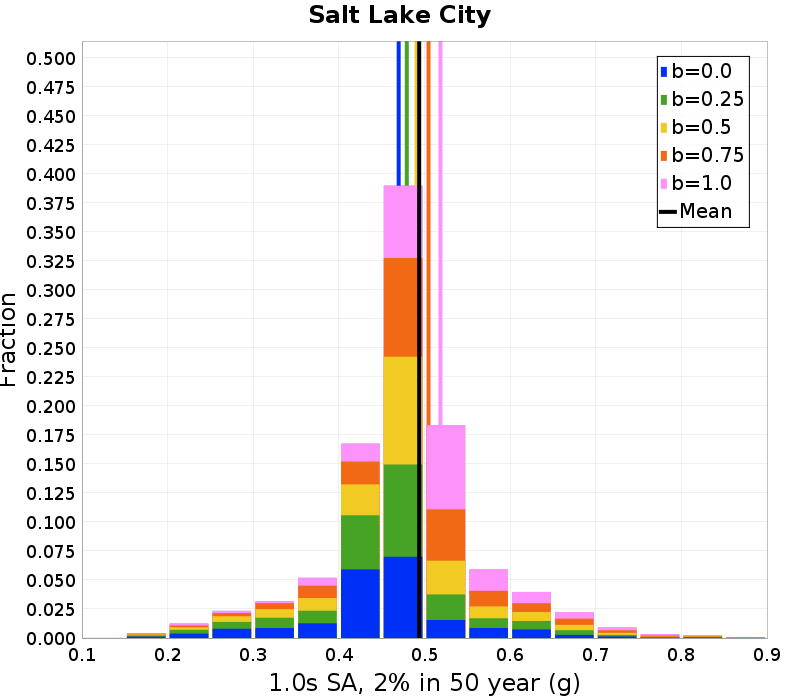

Salt Lake City, 1.0s SA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.49377787 (g) | 0.14335339 (g) |
| b=0.0 | 0.46983925 (g) | 0.13004579 (g) |
| b=0.25 | 0.4793158 (g) | 0.13525991 (g) |
| b=0.5 | 0.49072716 (g) | 0.14143226 (g) |
| b=0.75 | 0.5047144 (g) | 0.14994772 (g) |
| b=1.0 | 0.51864403 (g) | 0.16073751 (g) |

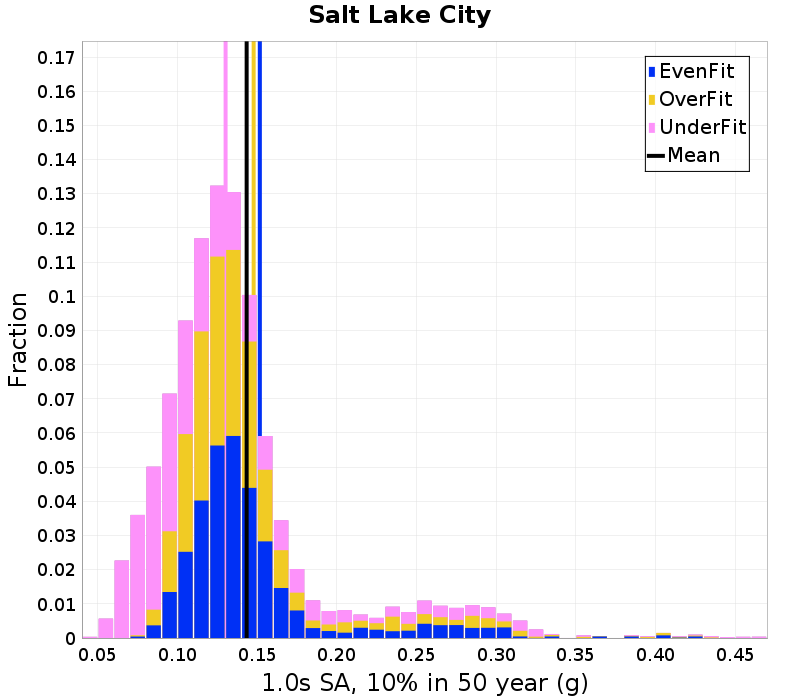

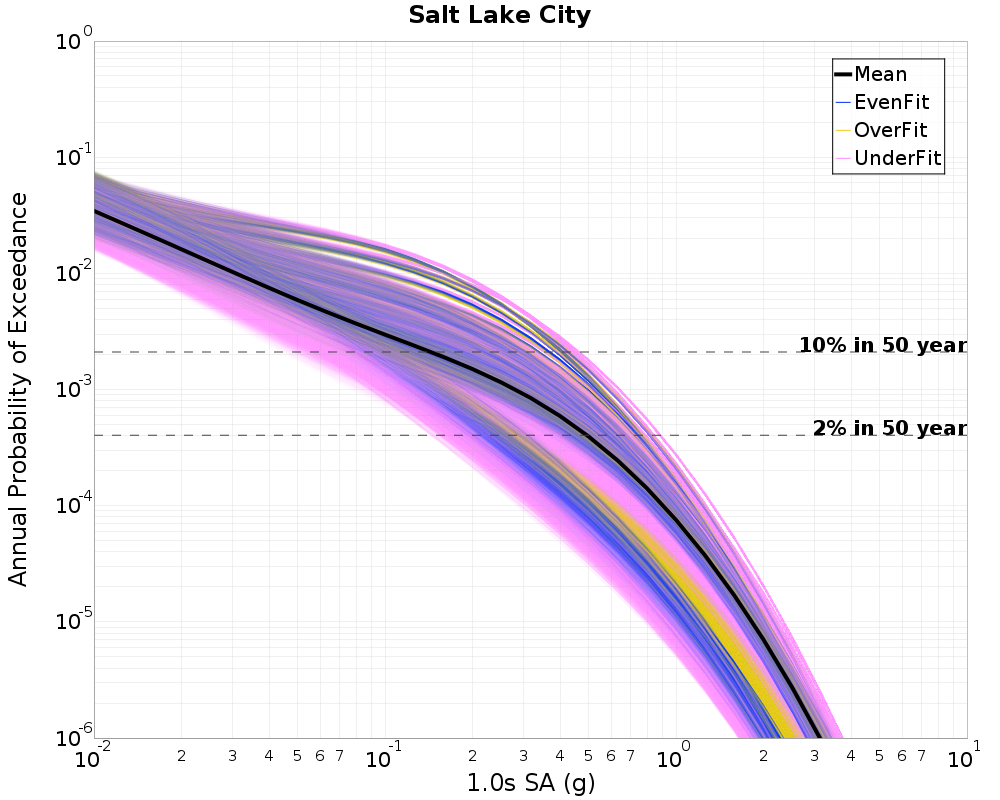

Salt Lake City, 1.0s SA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.49377787 (g) | 0.14335339 (g) |
| EvenFit | 0.49857888 (g) | 0.1516494 (g) |
| OverFit | 0.50285363 (g) | 0.14774646 (g) |
| UnderFit | 0.47906002 (g) | 0.13013604 (g) |

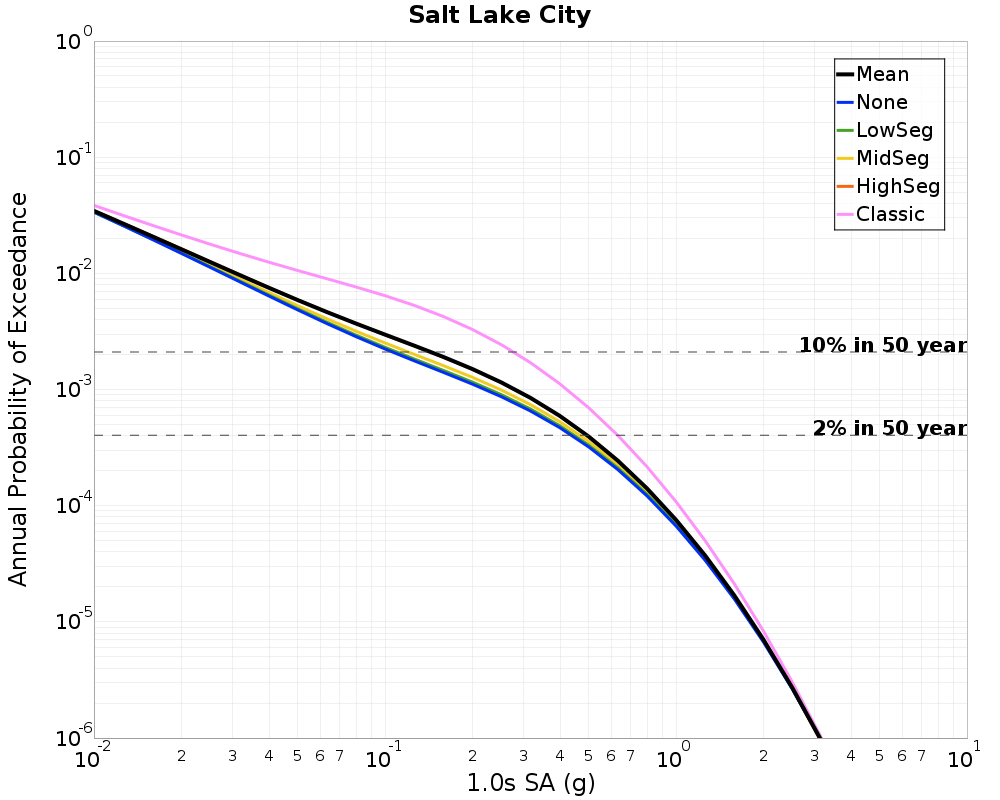

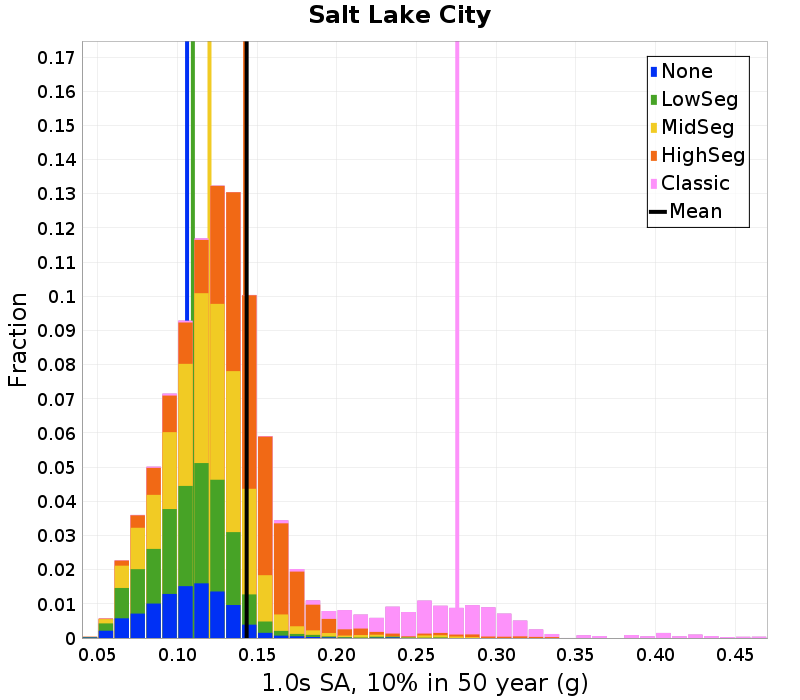

Salt Lake City, 1.0s SA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.49377787 (g) | 0.14335339 (g) |
| None | 0.43605545 (g) | 0.1059564 (g) |
| LowSeg | 0.44588482 (g) | 0.10960247 (g) |
| MidSeg | 0.46640992 (g) | 0.12002898 (g) |
| HighSeg | 0.49408975 (g) | 0.14237703 (g) |
| Classic | 0.6300239 (g) | 0.2755544 (g) |
Salt Lake City, 1.0s SA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.49377787 (g) | 0.14335339 (g) |
| PrefSeis | 0.49361625 (g) | 0.14298144 (g) |
| LowSeis | 0.49138075 (g) | 0.13722377 (g) |
| HighSeis | 0.4970347 (g) | 0.15085003 (g) |

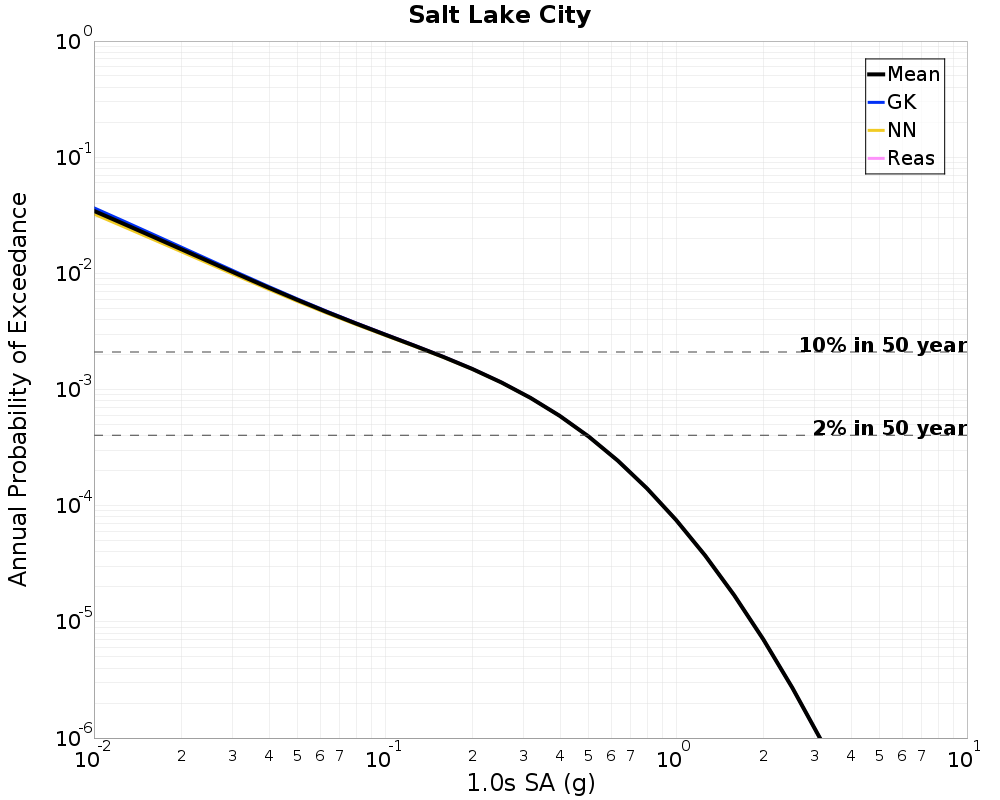

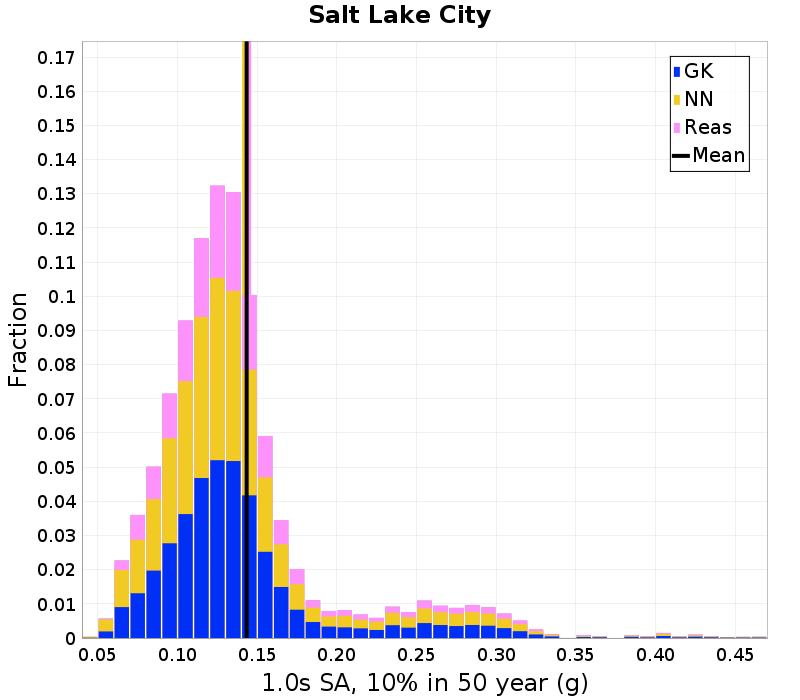

Salt Lake City, 1.0s SA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.49377787 (g) | 0.14335339 (g) |
| GK | 0.49397966 (g) | 0.14411095 (g) |
| NN | 0.49320704 (g) | 0.14178139 (g) |
| Reas | 0.4945111 (g) | 0.1449132 (g) |
Salt Lake City, 1.0s SA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.49377787 (g) | 0.14335339 (g) |
| Adaptive | 0.49214998 (g) | 0.13892749 (g) |
| Fixed | 0.4961818 (g) | 0.14945891 (g) |

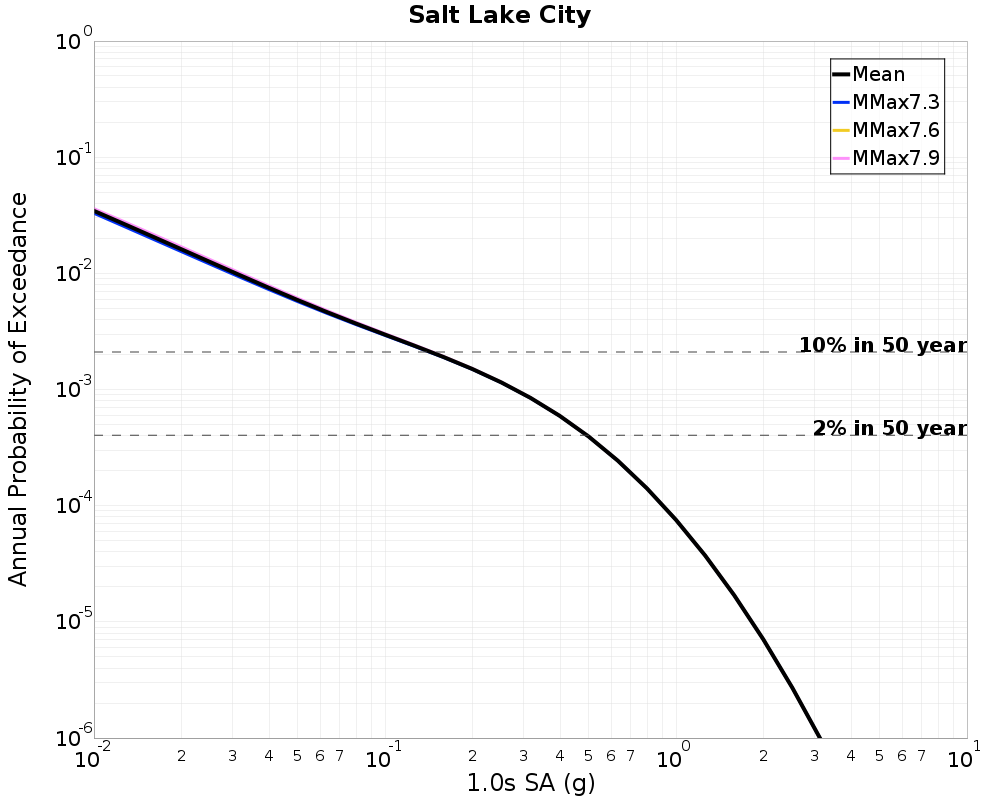

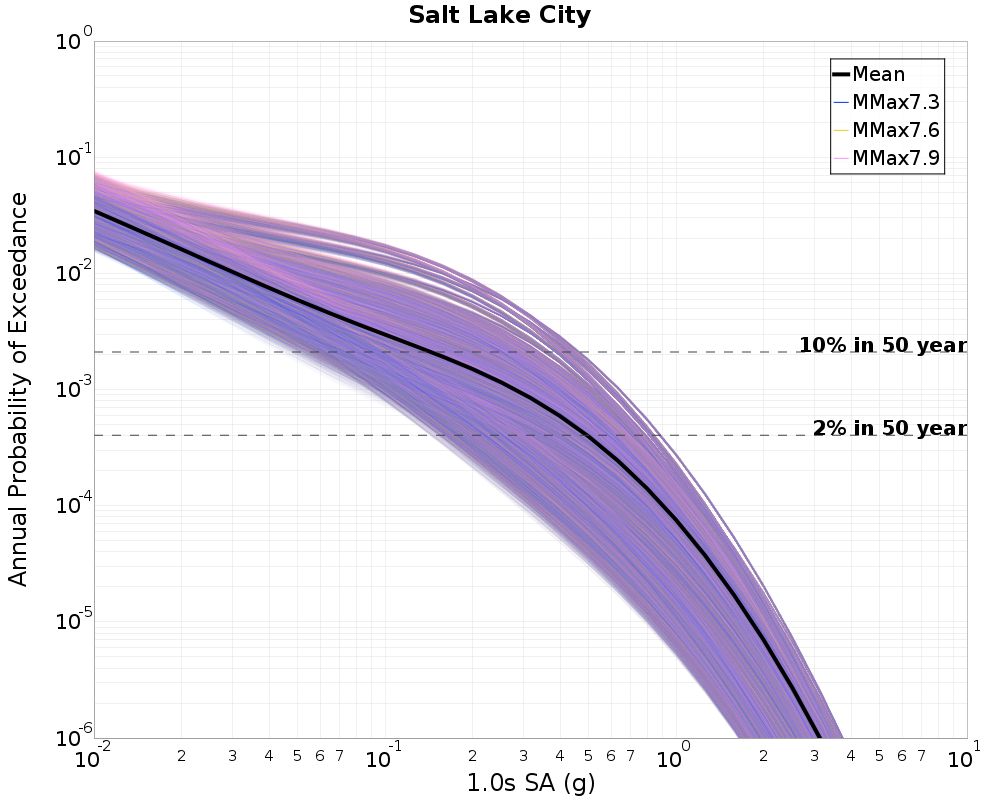

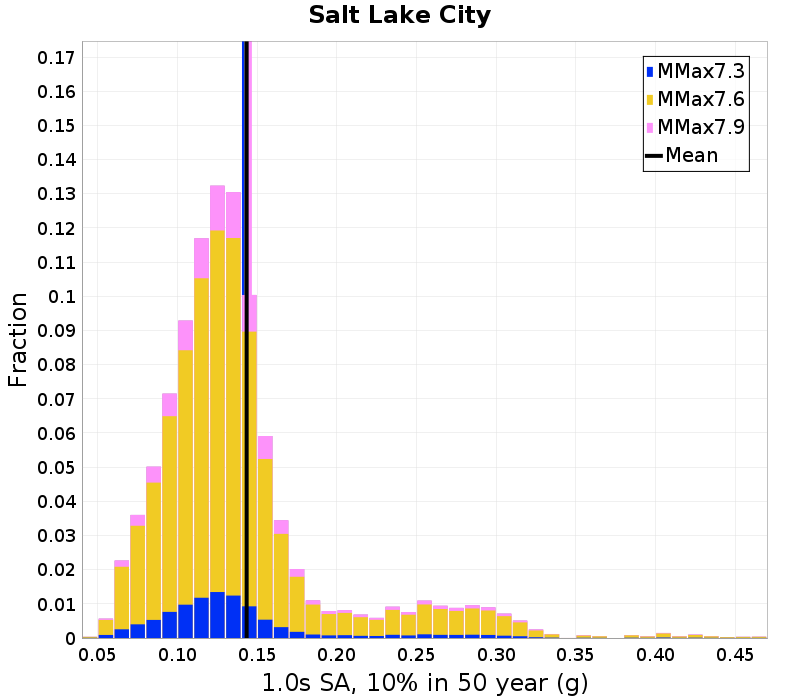

Salt Lake City, 1.0s SA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.49377787 (g) | 0.14335339 (g) |
| MMax7.3 | 0.4930445 (g) | 0.14168304 (g) |
| MMax7.6 | 0.4937599 (g) | 0.1433004 (g) |
| MMax7.9 | 0.49465036 (g) | 0.14539179 (g) |
San Francisco
San Francisco, PGA
San Francisco, PGA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
| 2% in 50 year | 10% in 50 year |
|---|---|
| 0.76771736 (g) | 0.45442796 (g) |

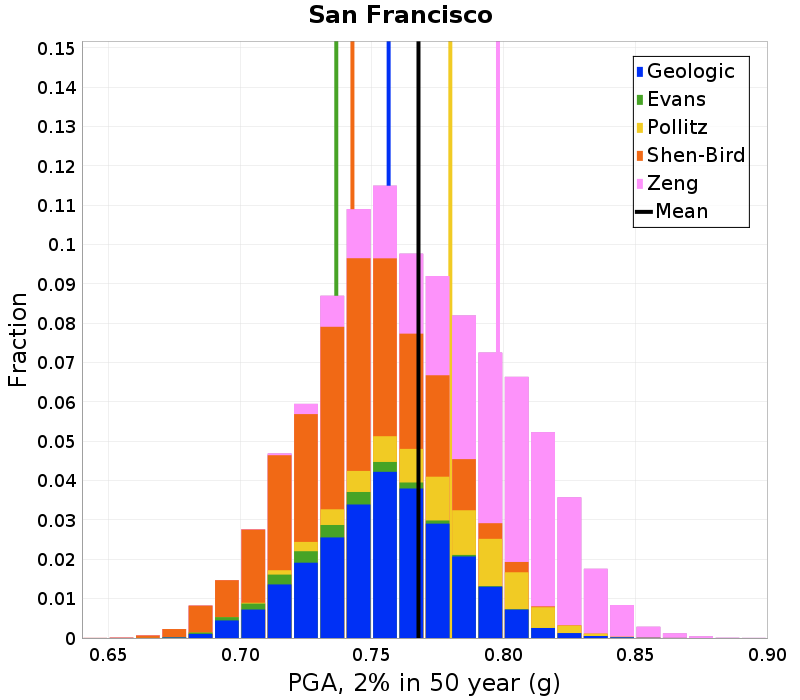

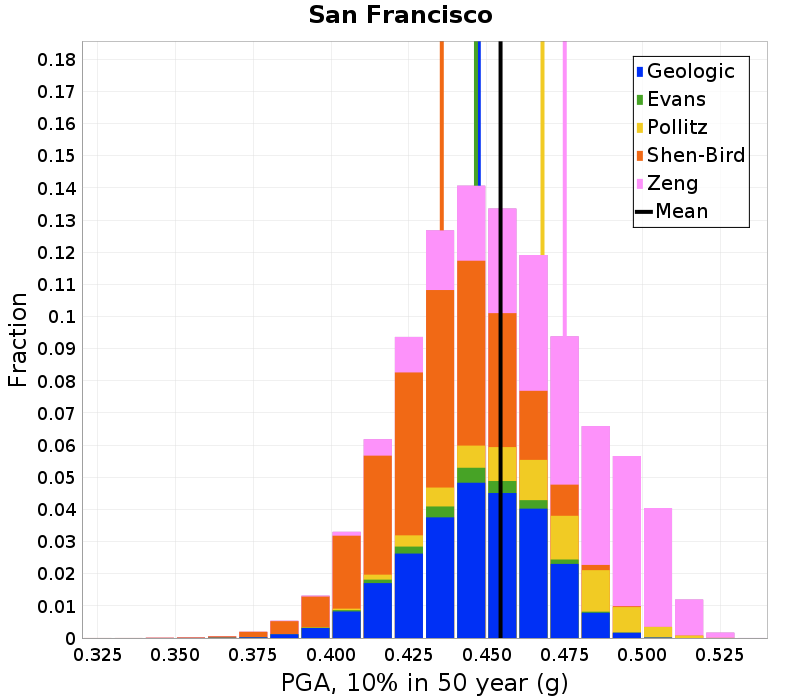

San Francisco, PGA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.76771736 (g) | 0.45442796 (g) |
| Geologic | 0.7563869 (g) | 0.44743684 (g) |
| Evans | 0.73651534 (g) | 0.4465289 (g) |
| Pollitz | 0.7798028 (g) | 0.46789843 (g) |
| Shen-Bird | 0.7426439 (g) | 0.43555573 (g) |
| Zeng | 0.79789066 (g) | 0.47504896 (g) |

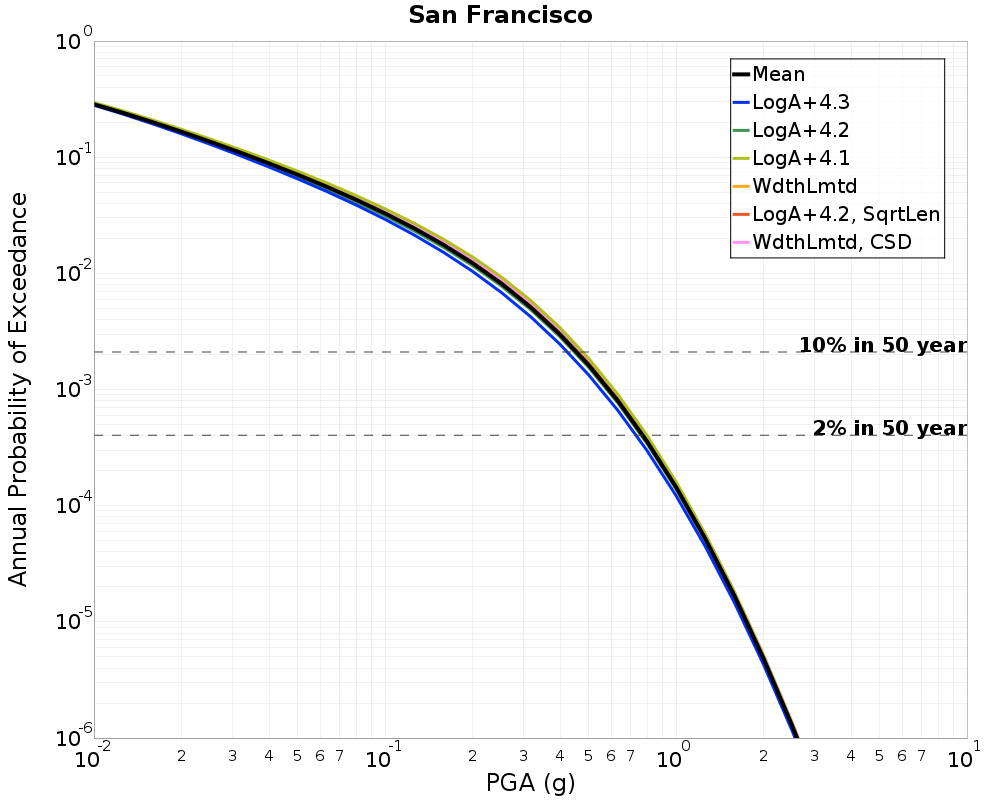

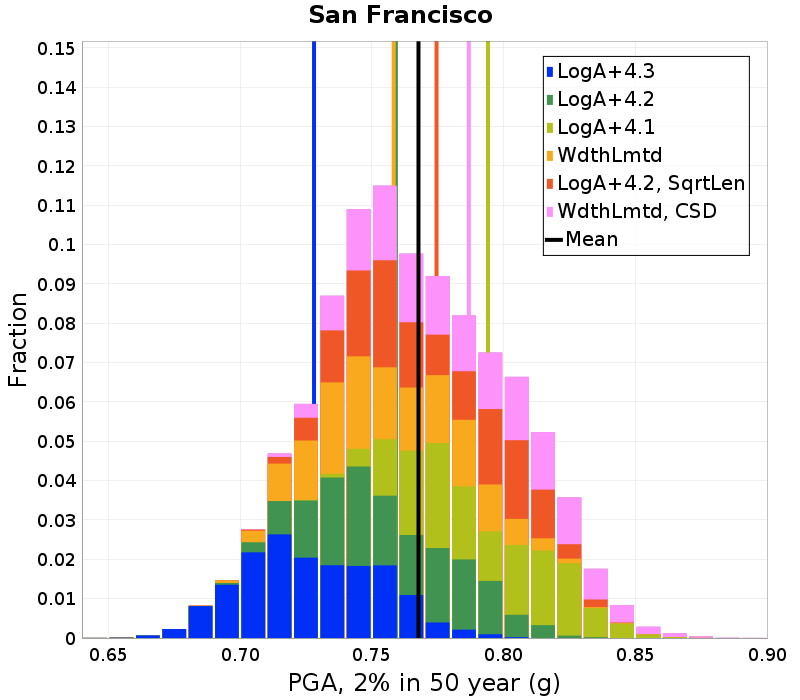

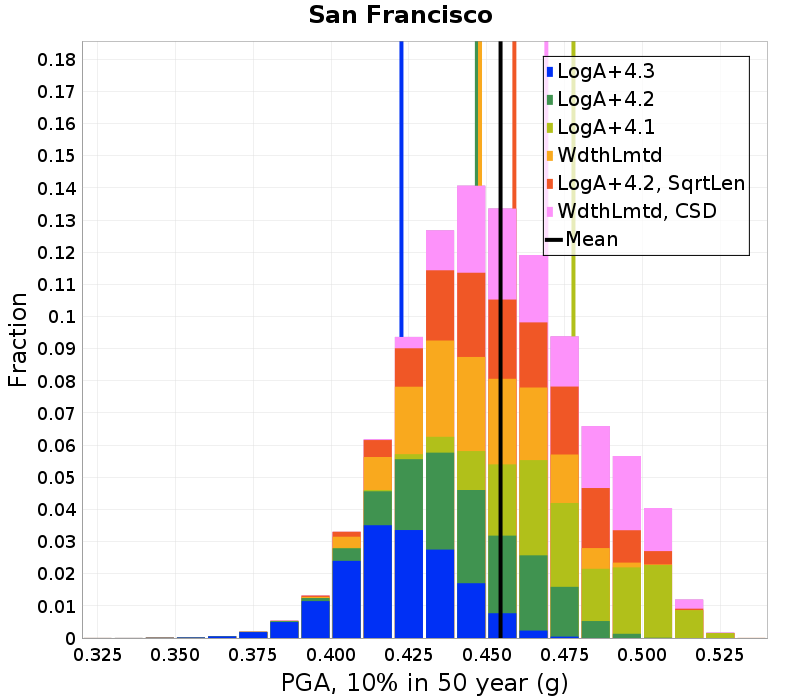

San Francisco, PGA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.76771736 (g) | 0.45442796 (g) |
| LogA+4.3 | 0.7280685 (g) | 0.42259526 (g) |
| LogA+4.2 | 0.75913244 (g) | 0.44682062 (g) |
| LogA+4.1 | 0.7940931 (g) | 0.47783995 (g) |
| WdthLmtd | 0.7583099 (g) | 0.4478304 (g) |
| LogA+4.2, SqrtLen | 0.77456915 (g) | 0.4588628 (g) |
| WdthLmtd, CSD | 0.7868324 (g) | 0.4691323 (g) |

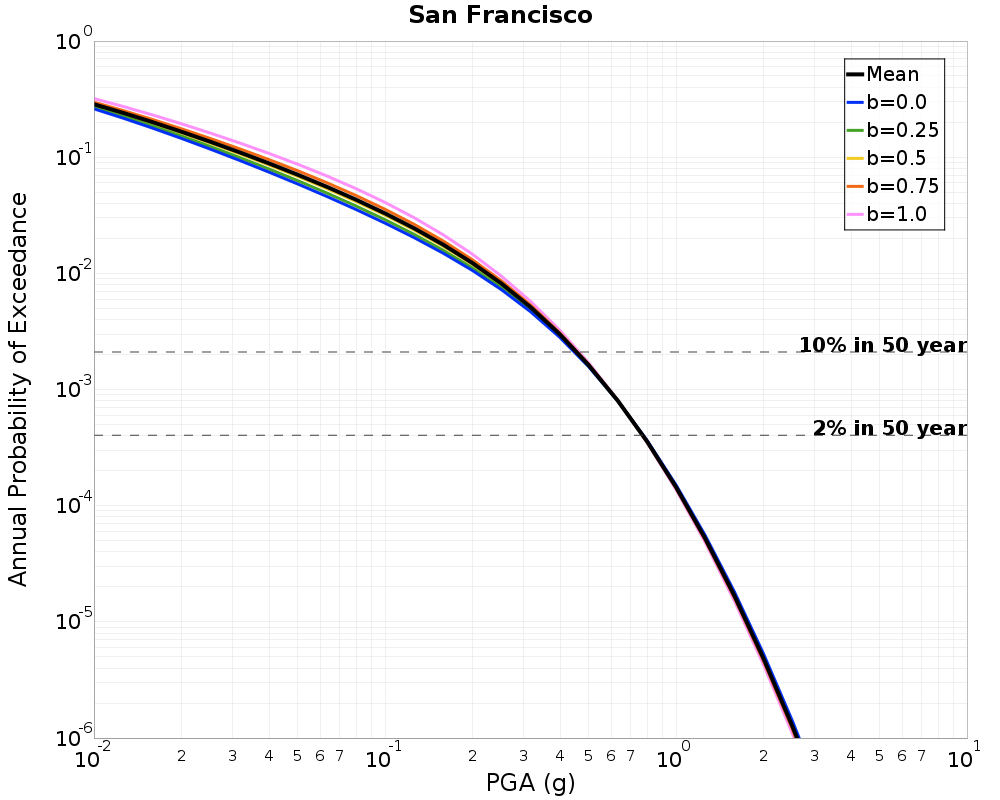

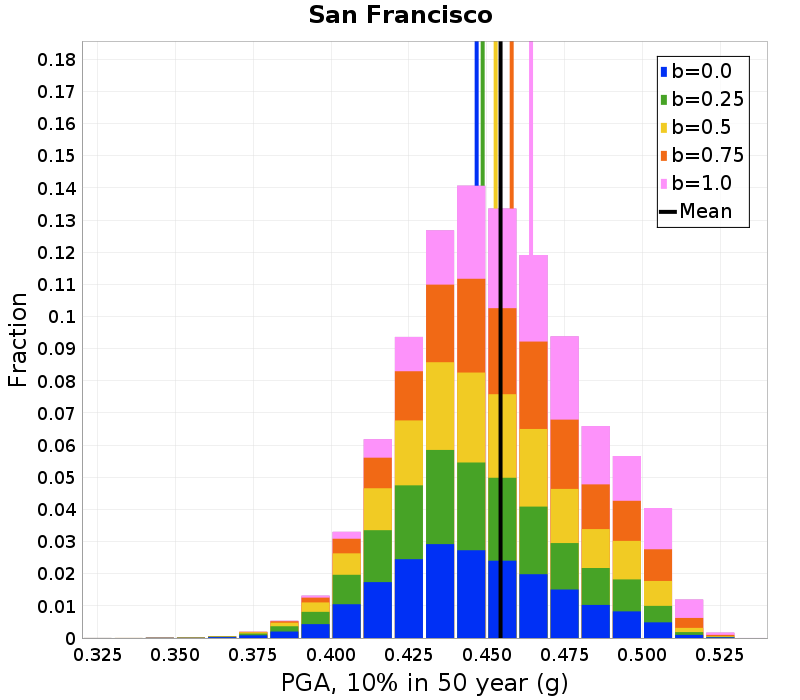

San Francisco, PGA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.76771736 (g) | 0.45442796 (g) |
| b=0.0 | 0.7715705 (g) | 0.4467512 (g) |
| b=0.25 | 0.76911545 (g) | 0.44868284 (g) |
| b=0.5 | 0.76795024 (g) | 0.45285174 (g) |
| b=0.75 | 0.76593465 (g) | 0.45800155 (g) |
| b=1.0 | 0.7642483 (g) | 0.46421853 (g) |

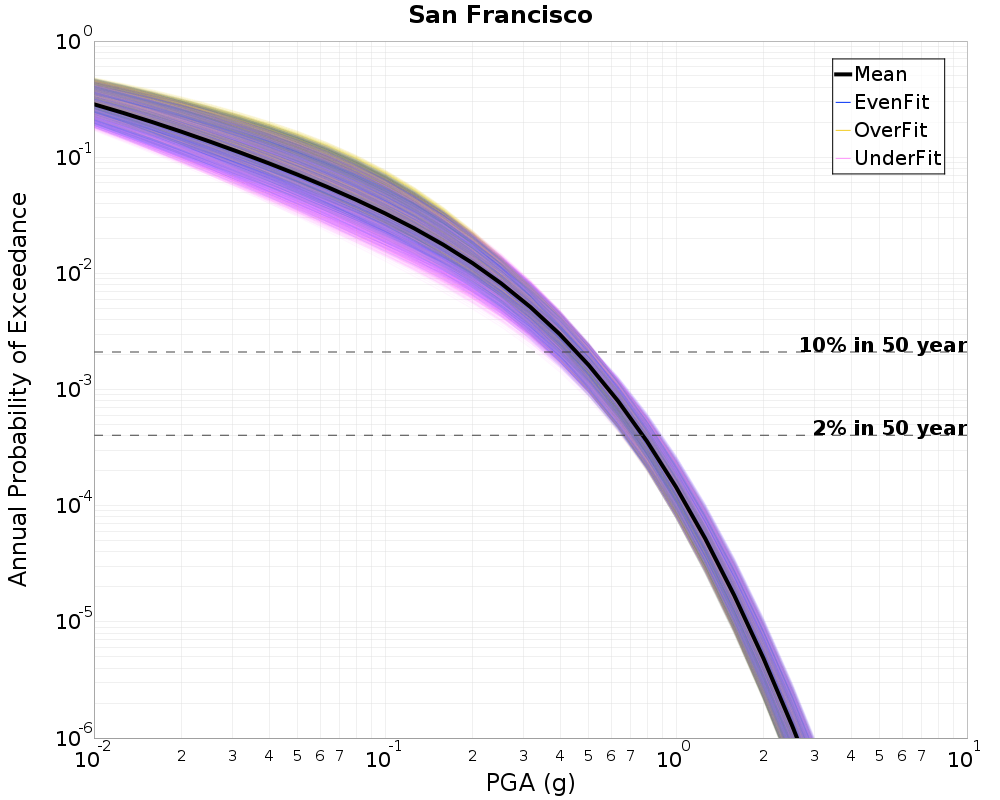

San Francisco, PGA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.76771736 (g) | 0.45442796 (g) |
| EvenFit | 0.76796395 (g) | 0.45495617 (g) |
| OverFit | 0.7627262 (g) | 0.45238134 (g) |
| UnderFit | 0.7724365 (g) | 0.45596763 (g) |

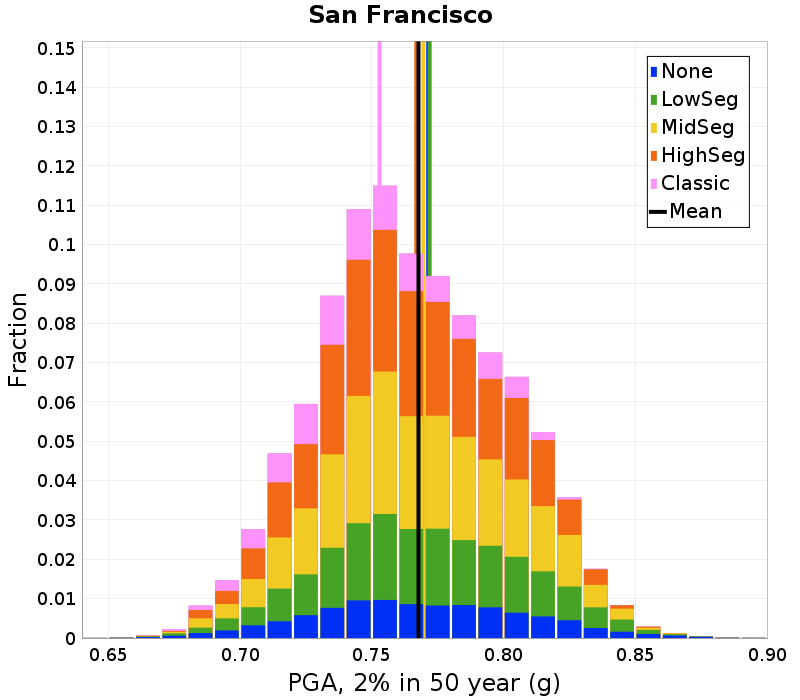

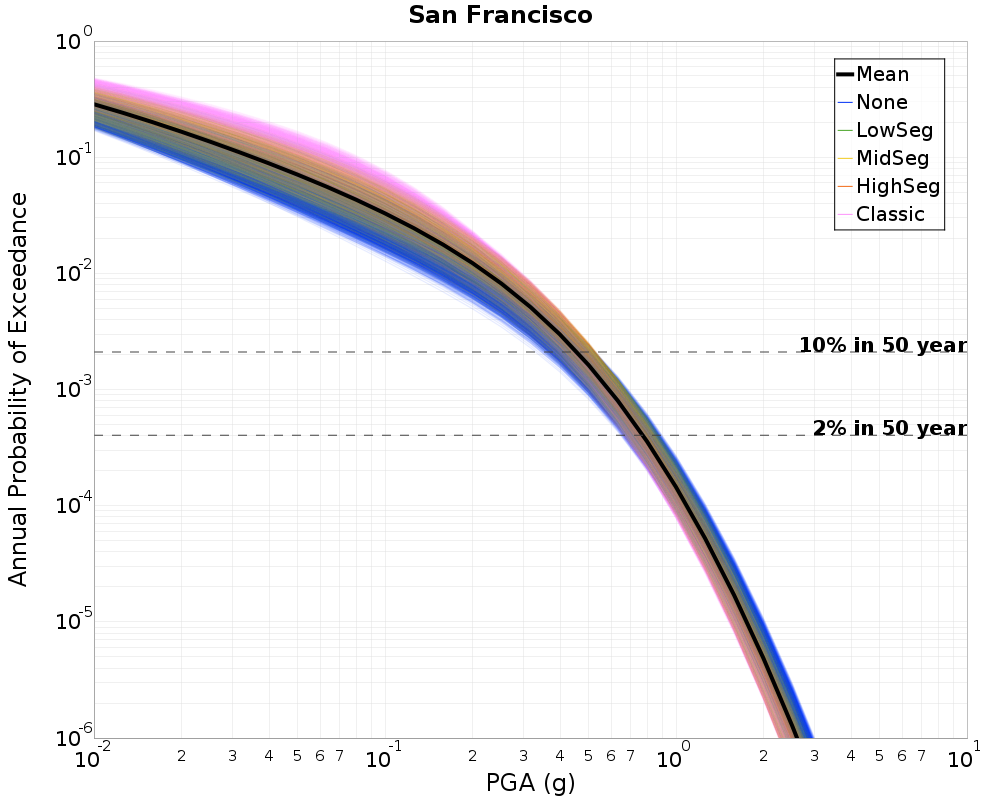

San Francisco, PGA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.76771736 (g) | 0.45442796 (g) |
| None | 0.7714097 (g) | 0.4437416 (g) |
| LowSeg | 0.77196515 (g) | 0.45278788 (g) |
| MidSeg | 0.76957434 (g) | 0.45491982 (g) |
| HighSeg | 0.7668642 (g) | 0.45809418 (g) |
| Classic | 0.7529512 (g) | 0.4548263 (g) |

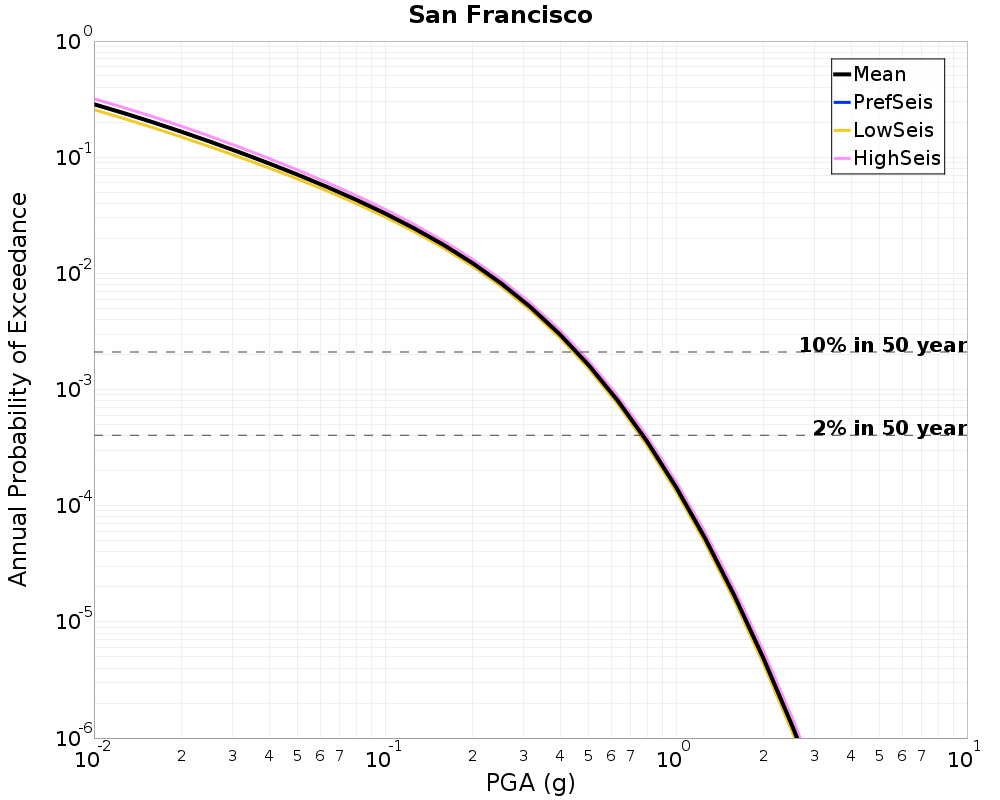

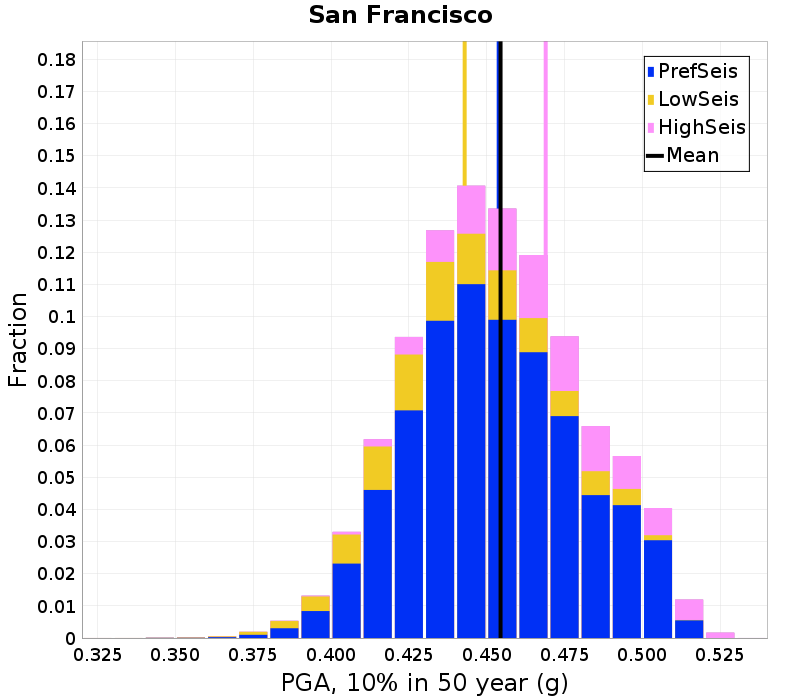

San Francisco, PGA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.76771736 (g) | 0.45442796 (g) |
| PrefSeis | 0.76672256 (g) | 0.45382625 (g) |
| LowSeis | 0.7504793 (g) | 0.44290033 (g) |
| HighSeis | 0.78967416 (g) | 0.46892405 (g) |

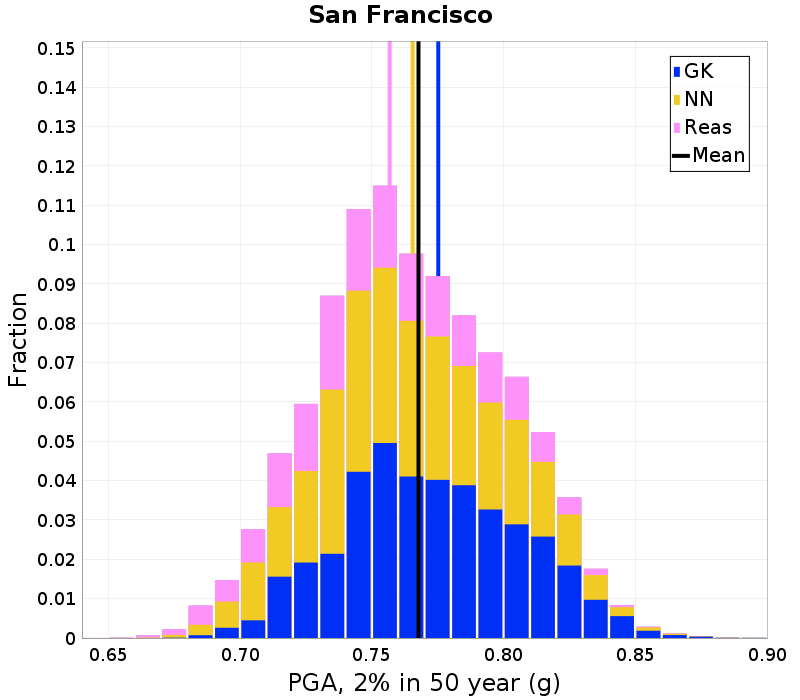

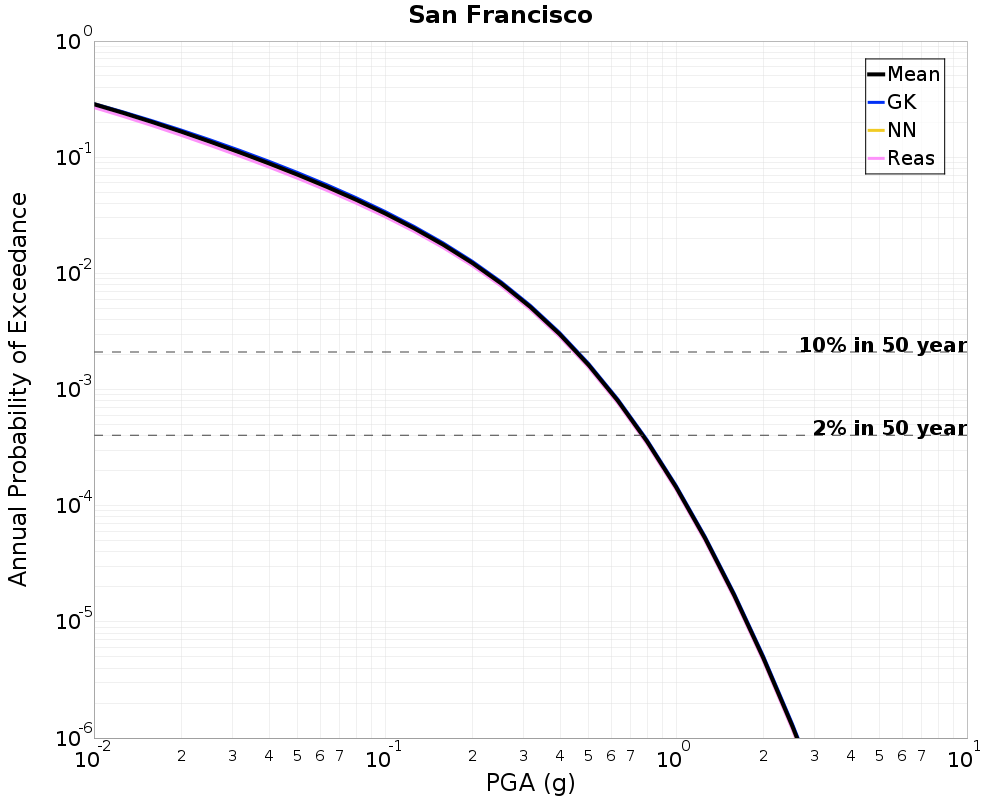

San Francisco, PGA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.76771736 (g) | 0.45442796 (g) |
| GK | 0.77522266 (g) | 0.45989555 (g) |
| NN | 0.76550335 (g) | 0.4530129 (g) |
| Reas | 0.75678563 (g) | 0.44607407 (g) |

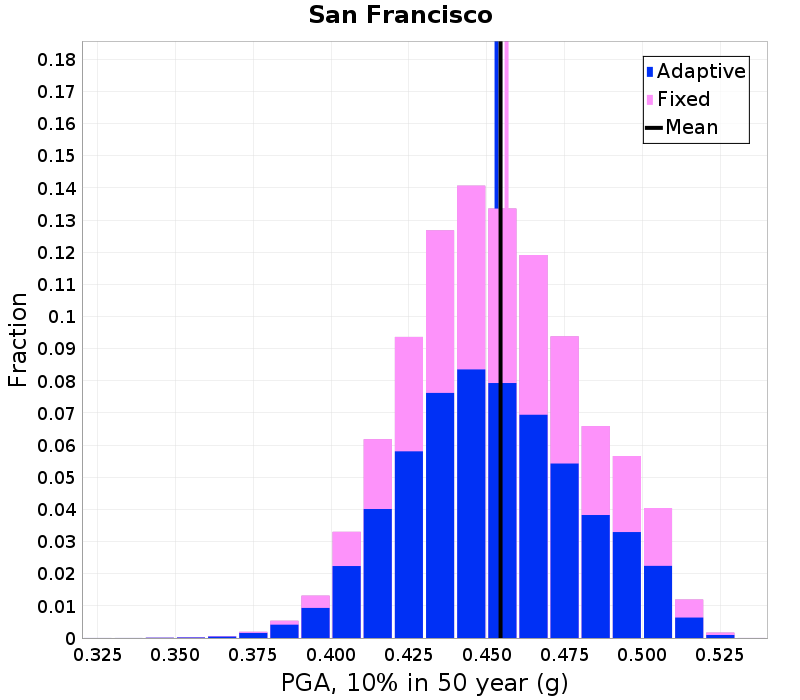

San Francisco, PGA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.76771736 (g) | 0.45442796 (g) |
| Adaptive | 0.76560754 (g) | 0.4531388 (g) |
| Fixed | 0.77086556 (g) | 0.4563555 (g) |
San Francisco, PGA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.76771736 (g) | 0.45442796 (g) |
| MMax7.3 | 0.76492447 (g) | 0.45289284 (g) |
| MMax7.6 | 0.7677438 (g) | 0.45444 (g) |
| MMax7.9 | 0.7702873 (g) | 0.455864 (g) |
San Francisco, 0.2s SA
San Francisco, 0.2s SA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
| 2% in 50 year | 10% in 50 year |
|---|---|
| 1.8774785 (g) | 1.0712111 (g) |

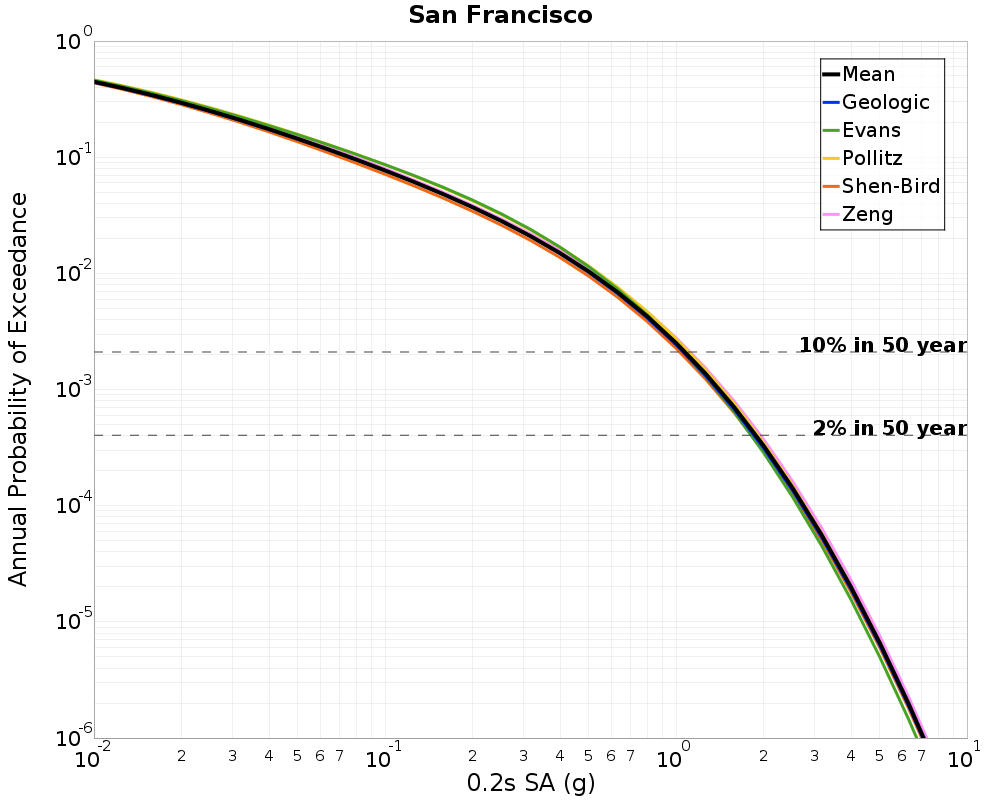

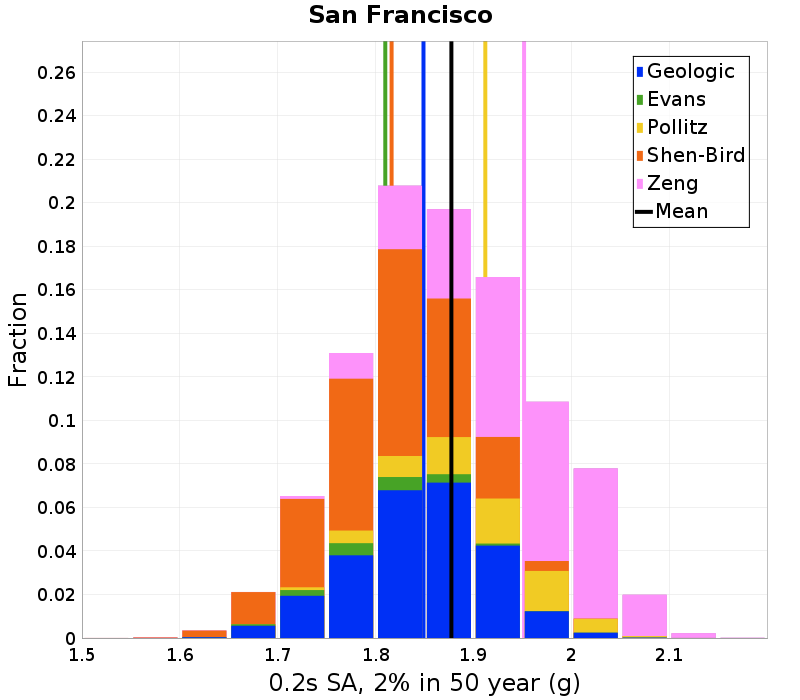

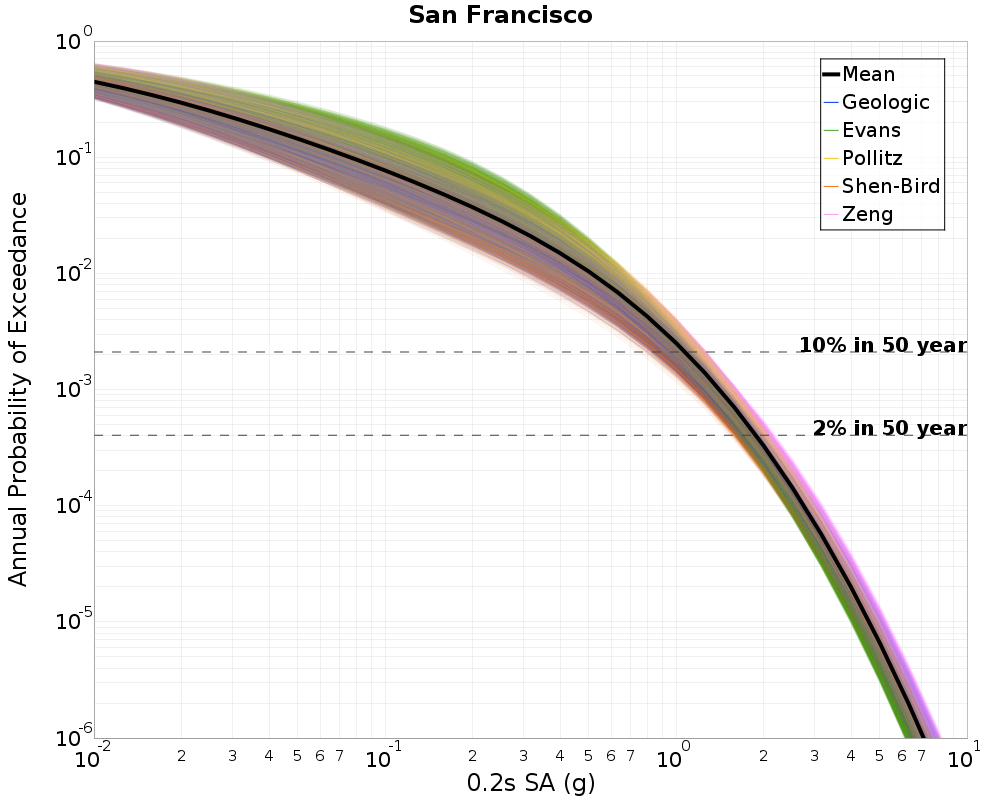

San Francisco, 0.2s SA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.8774785 (g) | 1.0712111 (g) |
| Geologic | 1.8489623 (g) | 1.0550876 (g) |
| Evans | 1.8099252 (g) | 1.0619613 (g) |
| Pollitz | 1.9121442 (g) | 1.1056898 (g) |
| Shen-Bird | 1.816376 (g) | 1.0287213 (g) |
| Zeng | 1.9517605 (g) | 1.116499 (g) |

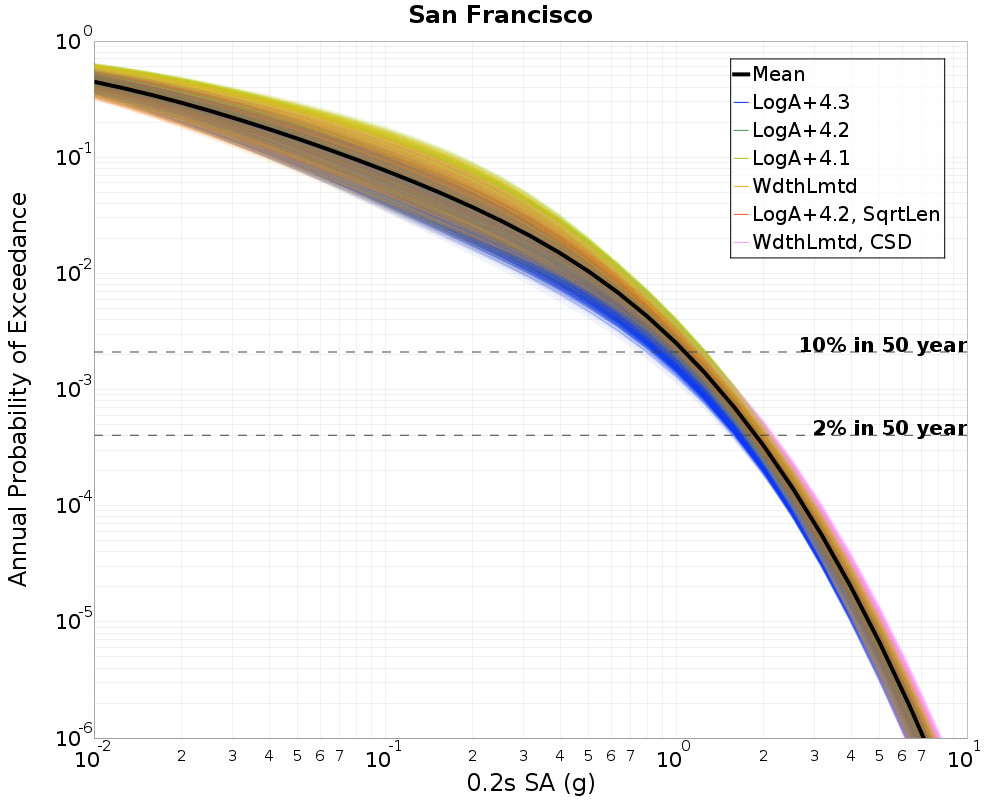

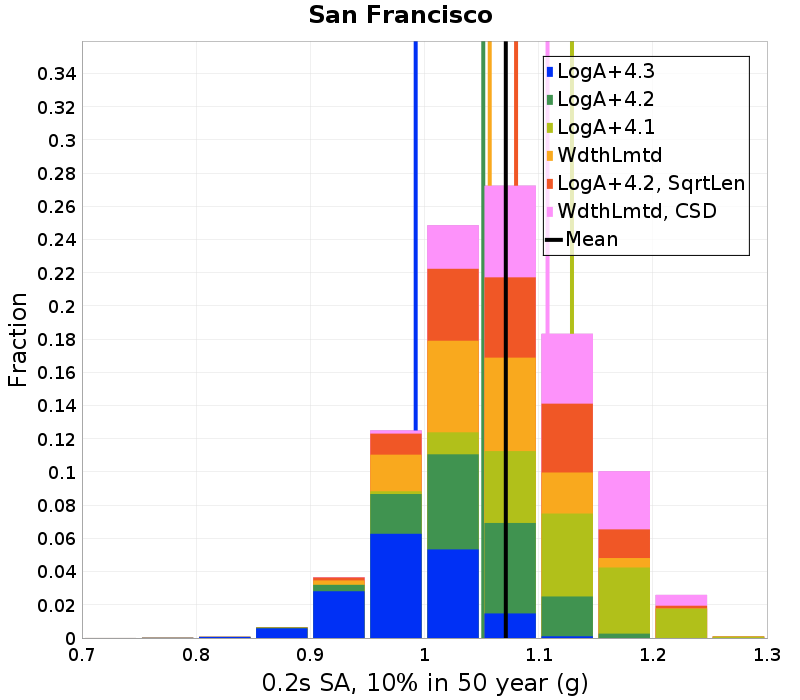

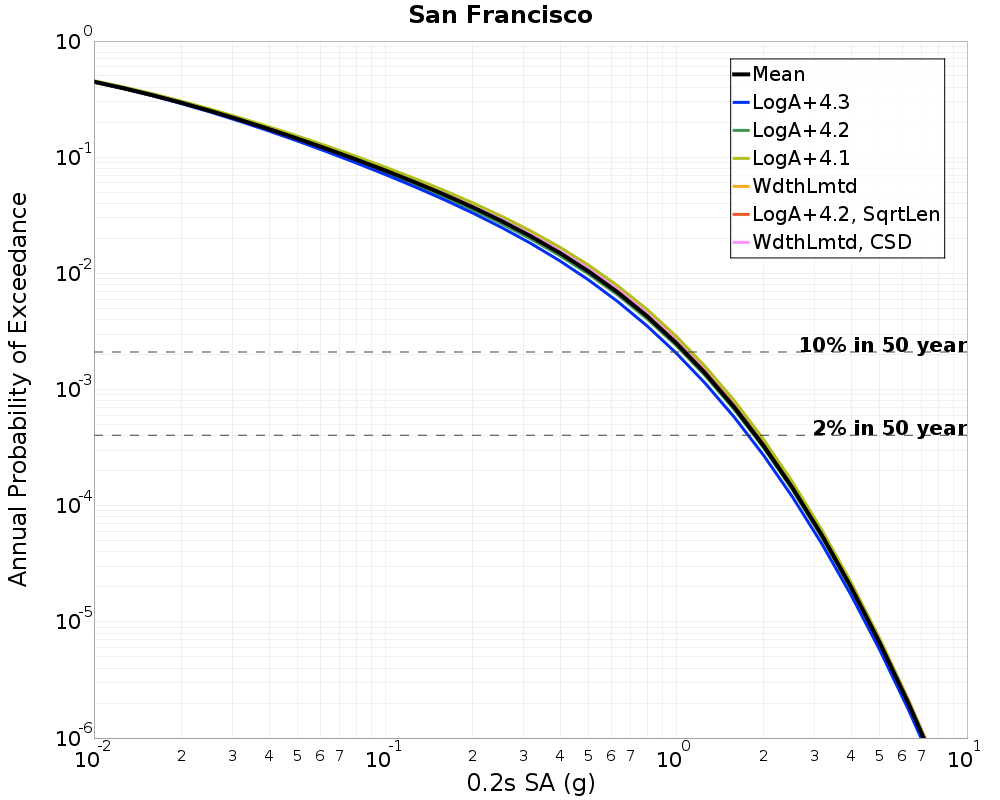

San Francisco, 0.2s SA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.8774785 (g) | 1.0712111 (g) |
| LogA+4.3 | 1.7699026 (g) | 0.99227494 (g) |
| LogA+4.2 | 1.8534217 (g) | 1.0514741 (g) |
| LogA+4.1 | 1.9509122 (g) | 1.1291806 (g) |
| WdthLmtd | 1.854536 (g) | 1.0571347 (g) |
| LogA+4.2, SqrtLen | 1.8935361 (g) | 1.0802091 (g) |
| WdthLmtd, CSD | 1.9284214 (g) | 1.1077687 (g) |

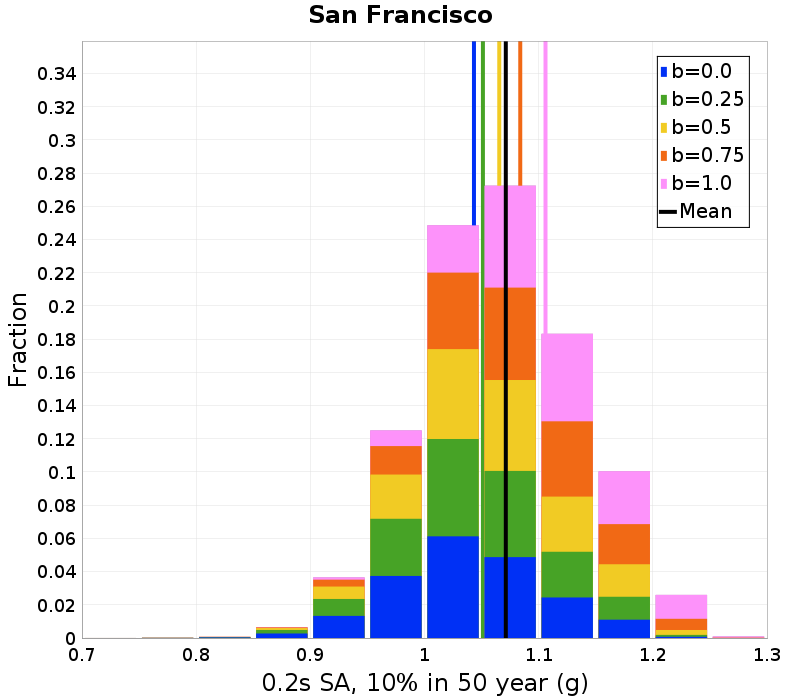

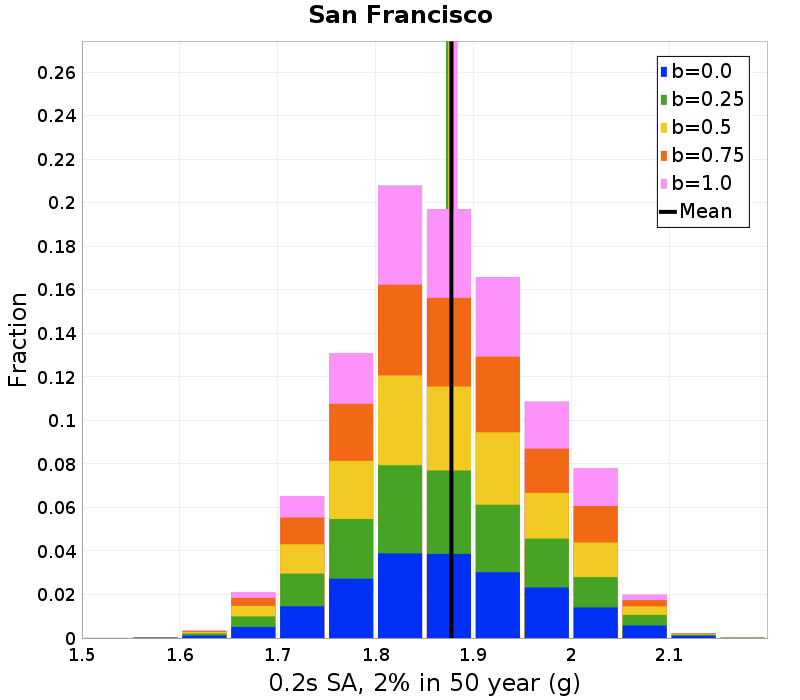

San Francisco, 0.2s SA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.8774785 (g) | 1.0712111 (g) |
| b=0.0 | 1.8767544 (g) | 1.0433269 (g) |
| b=0.25 | 1.8740501 (g) | 1.0511681 (g) |
| b=0.5 | 1.8762449 (g) | 1.0654786 (g) |
| b=0.75 | 1.8780214 (g) | 1.0838674 (g) |
| b=1.0 | 1.8818864 (g) | 1.1059885 (g) |

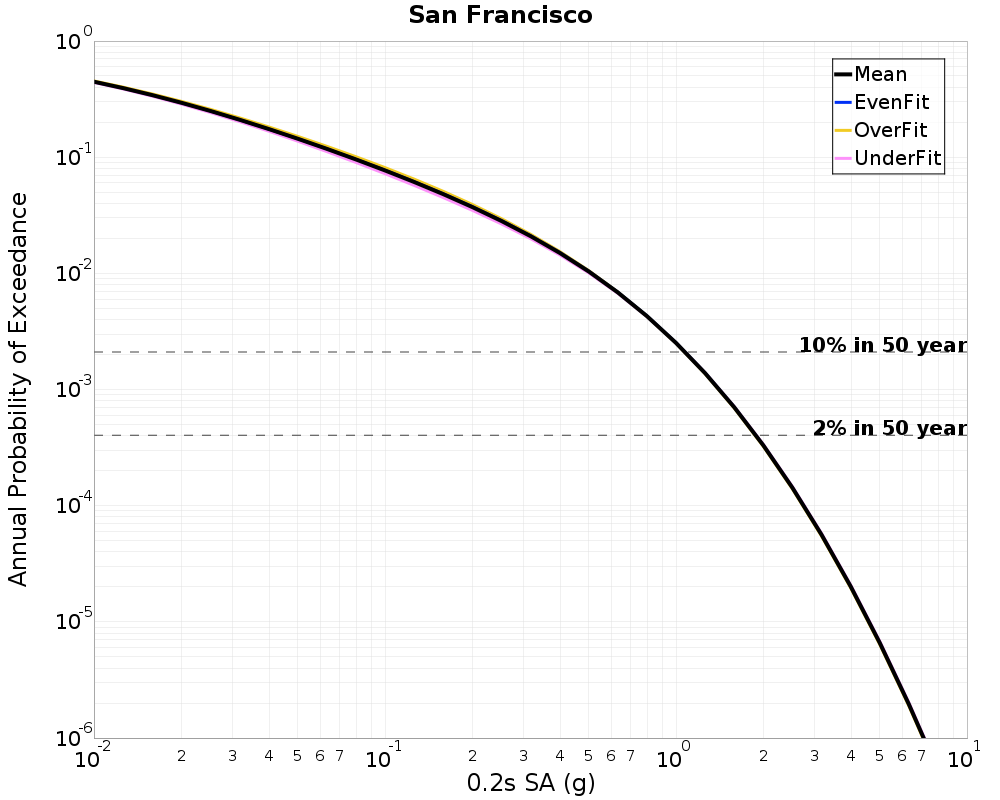

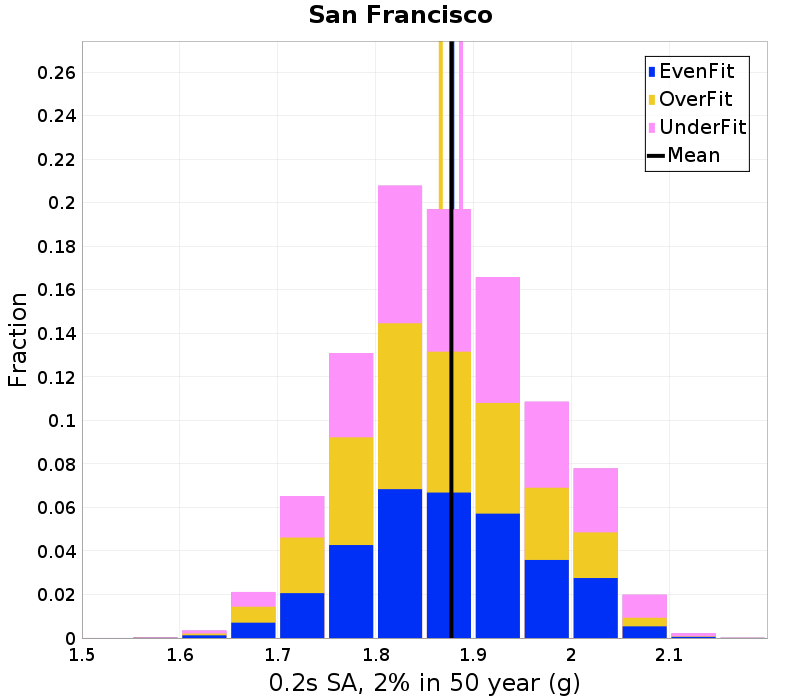

San Francisco, 0.2s SA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.8774785 (g) | 1.0712111 (g) |
| EvenFit | 1.878431 (g) | 1.0728849 (g) |
| OverFit | 1.8666509 (g) | 1.0683259 (g) |
| UnderFit | 1.8873409 (g) | 1.0724486 (g) |

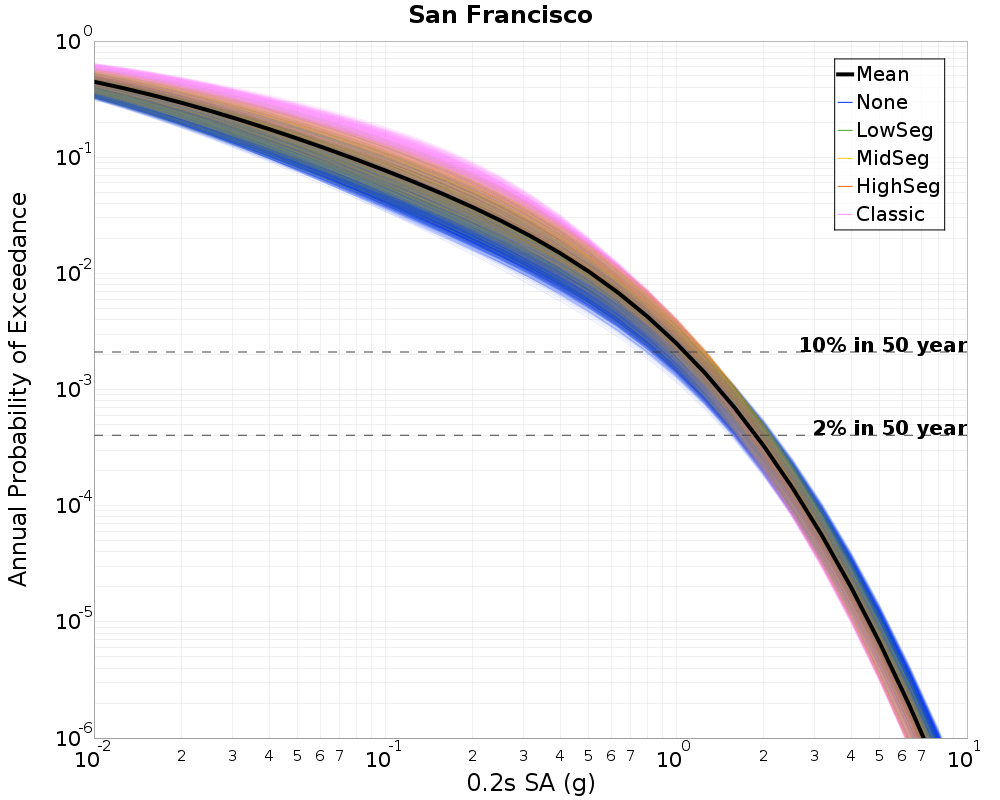

San Francisco, 0.2s SA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.8774785 (g) | 1.0712111 (g) |
| None | 1.8711629 (g) | 1.0367966 (g) |
| LowSeg | 1.8832189 (g) | 1.0639325 (g) |
| MidSeg | 1.8816984 (g) | 1.0714353 (g) |
| HighSeg | 1.8807116 (g) | 1.0831171 (g) |
| Classic | 1.8501358 (g) | 1.0798024 (g) |

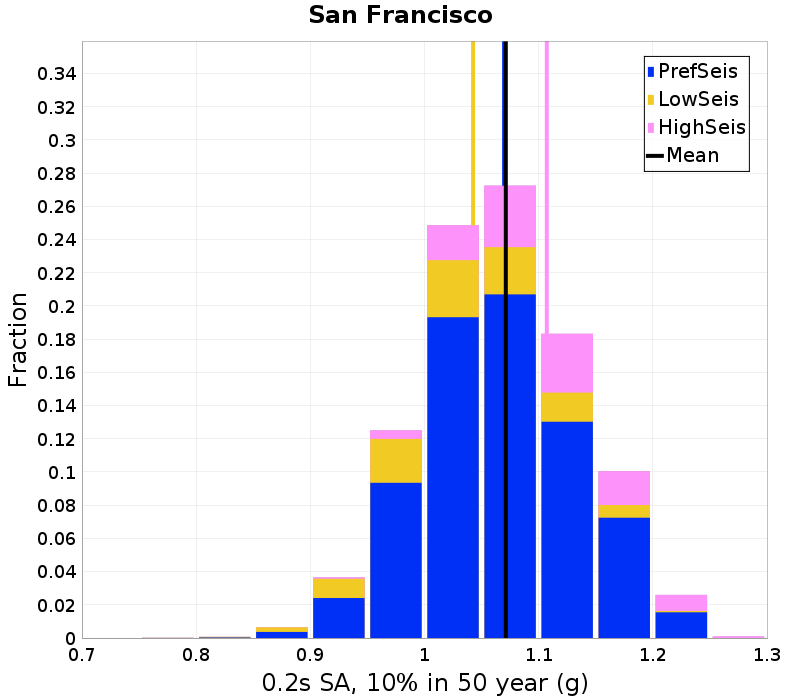

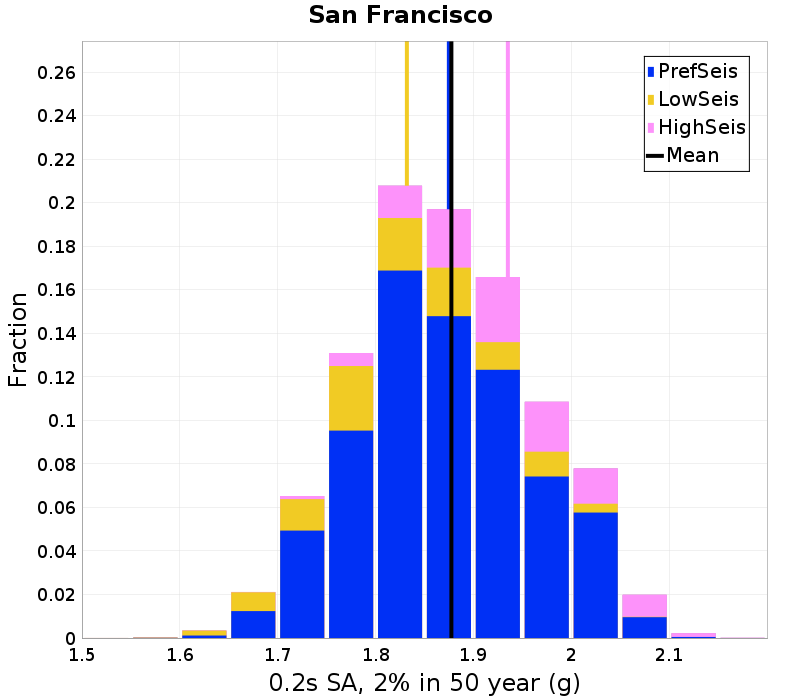

San Francisco, 0.2s SA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.8774785 (g) | 1.0712111 (g) |
| PrefSeis | 1.8748872 (g) | 1.0697343 (g) |
| LowSeis | 1.8319926 (g) | 1.0425534 (g) |
| HighSeis | 1.9351878 (g) | 1.1071339 (g) |

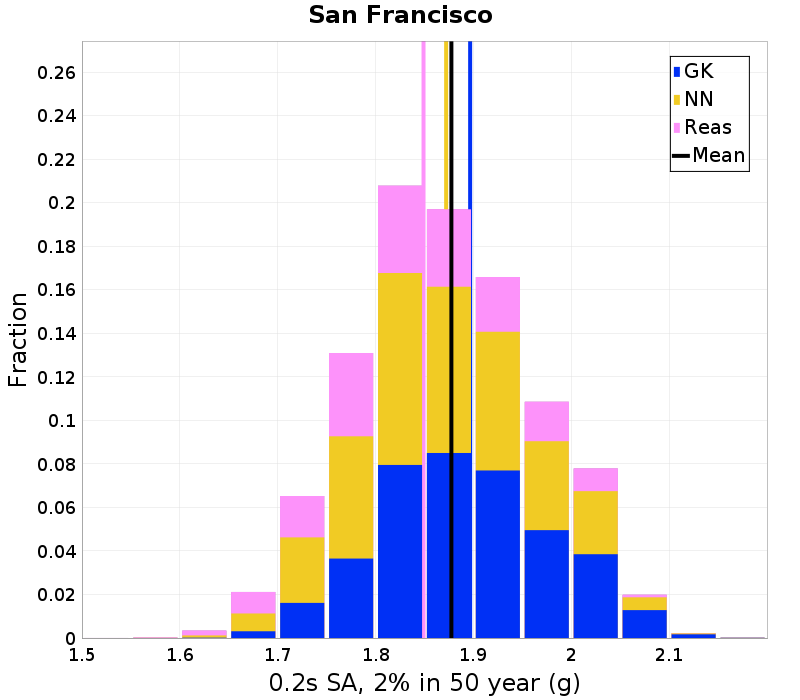

San Francisco, 0.2s SA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.8774785 (g) | 1.0712111 (g) |
| GK | 1.8966427 (g) | 1.0842835 (g) |
| NN | 1.8721111 (g) | 1.0680286 (g) |
| Reas | 1.8490021 (g) | 1.0508562 (g) |

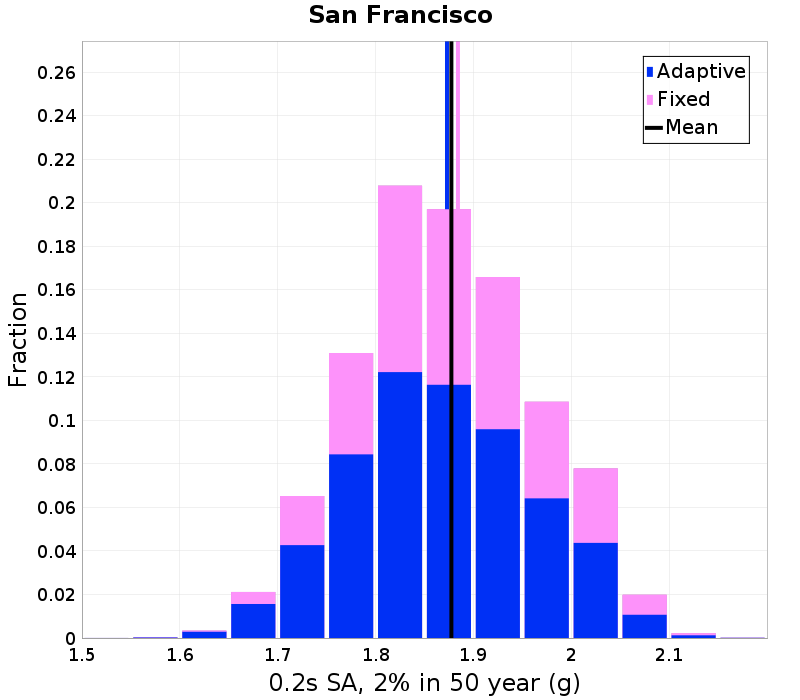

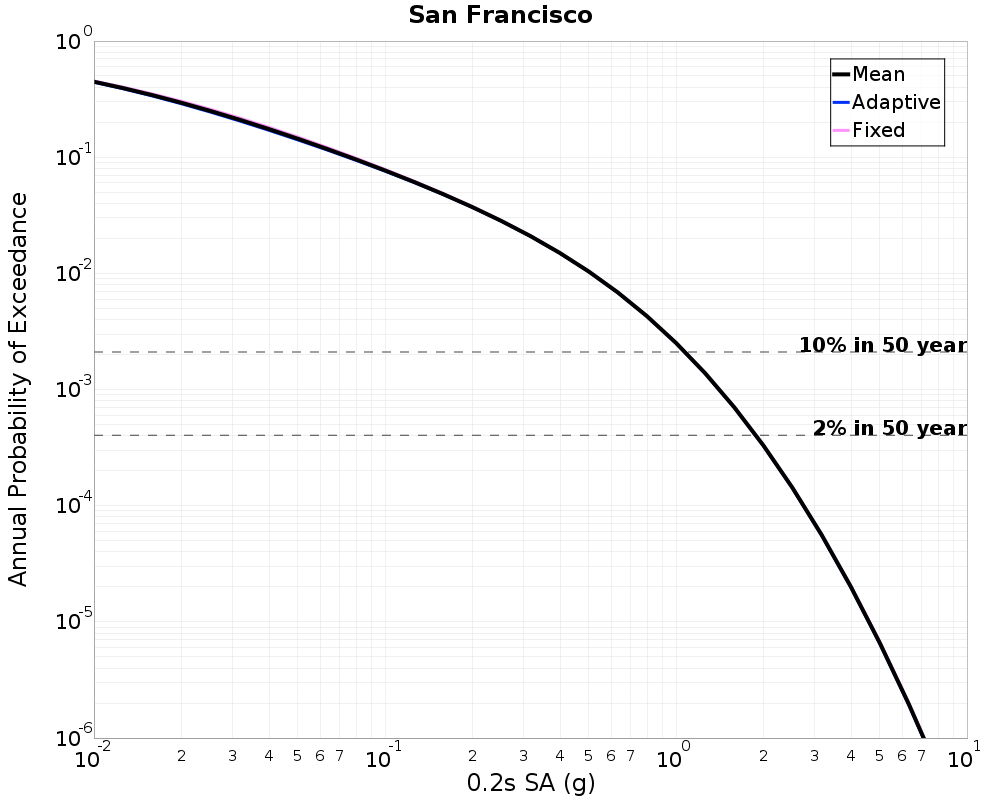

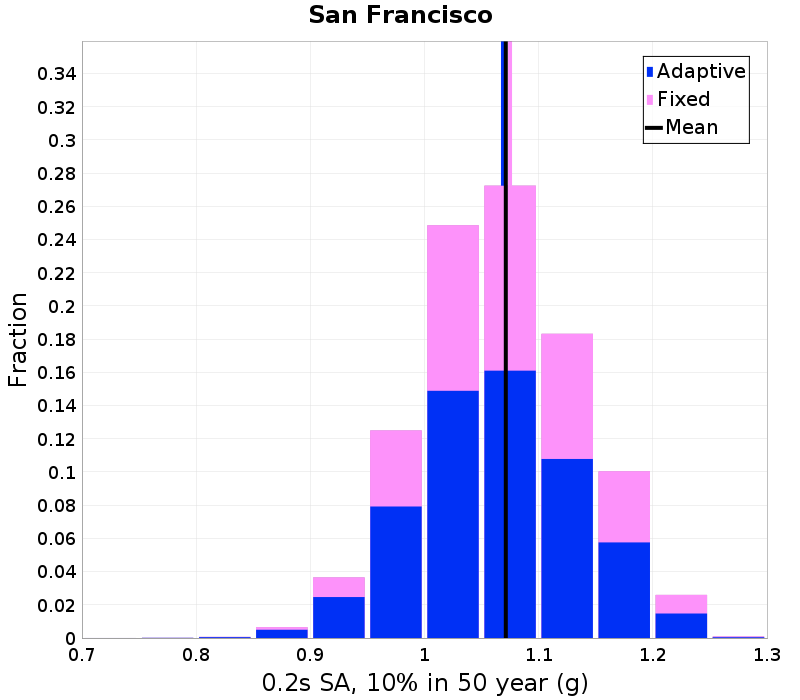

San Francisco, 0.2s SA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.8774785 (g) | 1.0712111 (g) |
| Adaptive | 1.8729904 (g) | 1.0687268 (g) |
| Fixed | 1.8841854 (g) | 1.0749291 (g) |
San Francisco, 0.2s SA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.8774785 (g) | 1.0712111 (g) |
| MMax7.3 | 1.8705176 (g) | 1.0676596 (g) |
| MMax7.6 | 1.877557 (g) | 1.0712463 (g) |
| MMax7.9 | 1.8837855 (g) | 1.0744768 (g) |
San Francisco, 1.0s SA

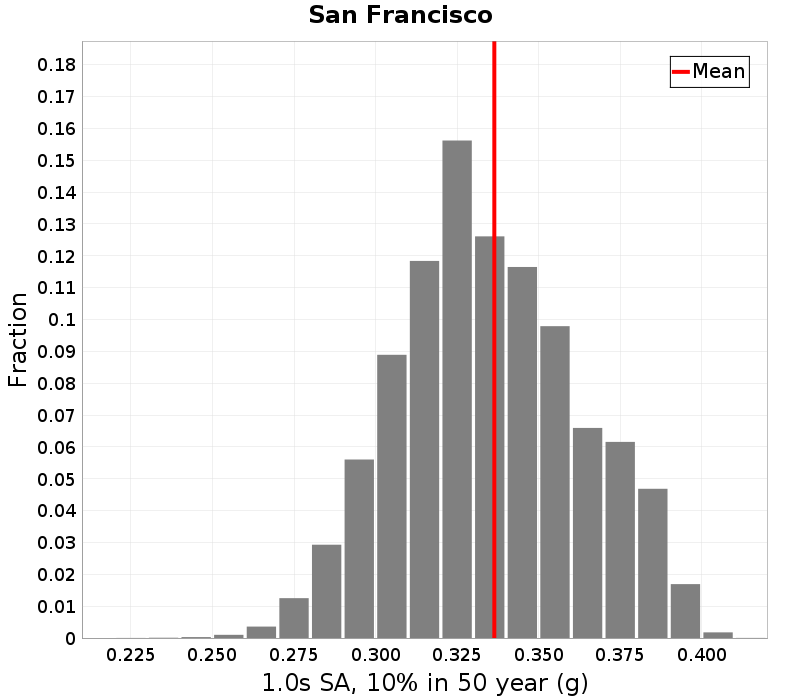

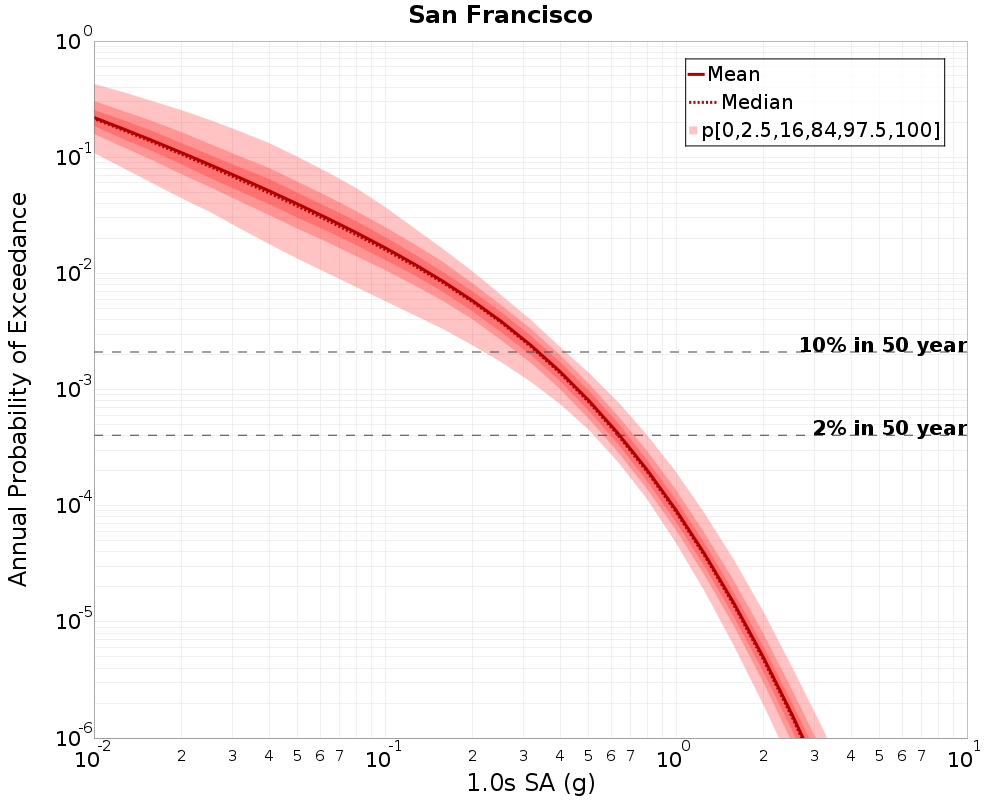

San Francisco, 1.0s SA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
| 2% in 50 year | 10% in 50 year |
|---|---|
| 0.63951766 (g) | 0.3364055 (g) |

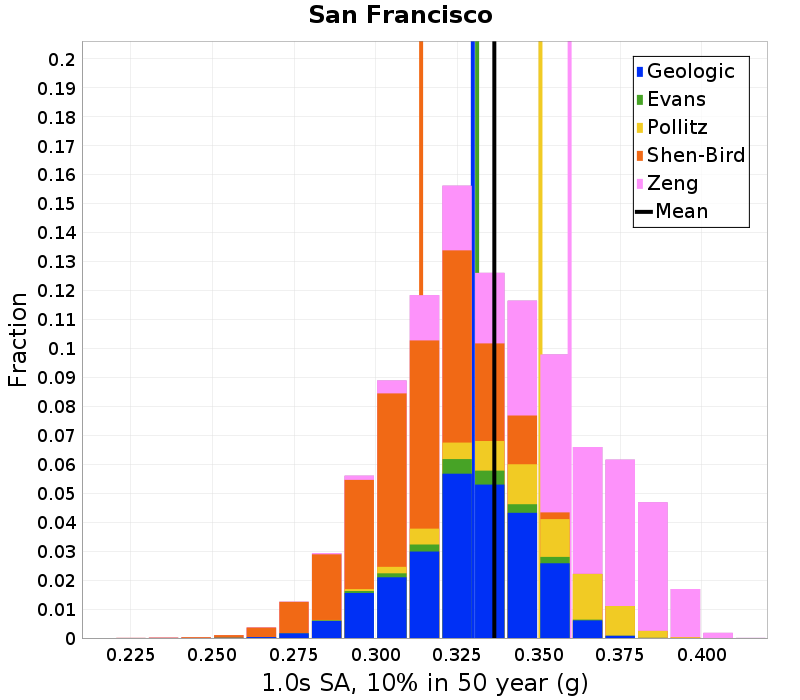

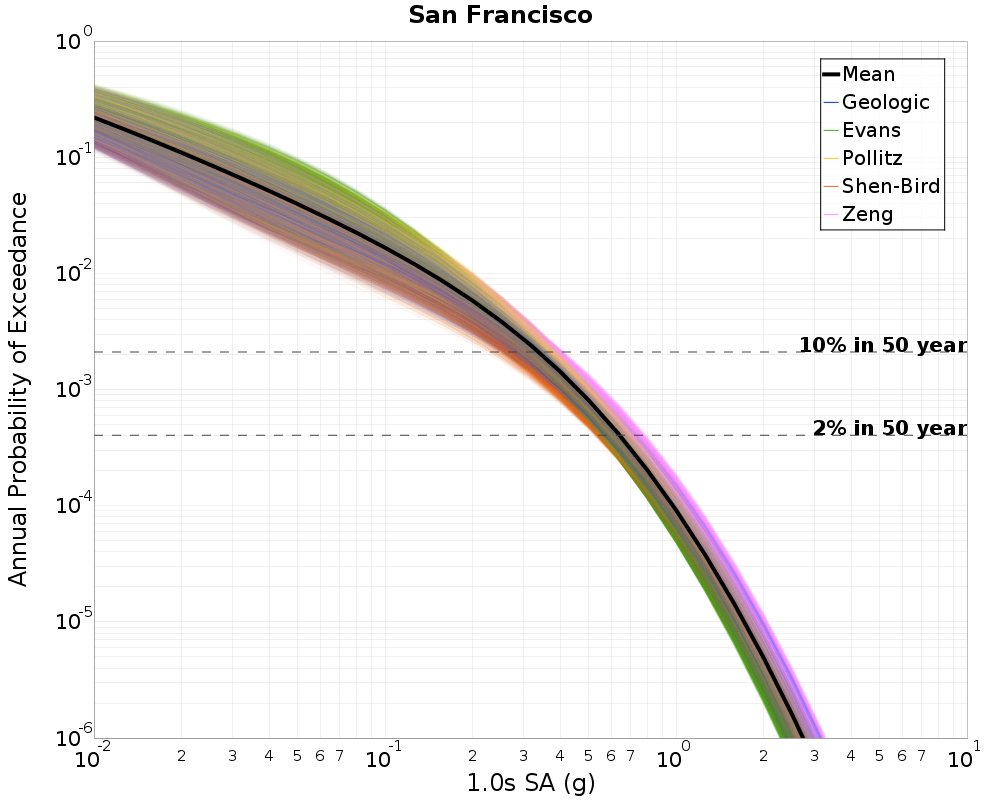

San Francisco, 1.0s SA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.63951766 (g) | 0.3364055 (g) |
| Geologic | 0.6274746 (g) | 0.3298151 (g) |
| Evans | 0.60698235 (g) | 0.33112964 (g) |
| Pollitz | 0.65317917 (g) | 0.3505513 (g) |
| Shen-Bird | 0.60432726 (g) | 0.31396312 (g) |
| Zeng | 0.67614233 (g) | 0.35948873 (g) |

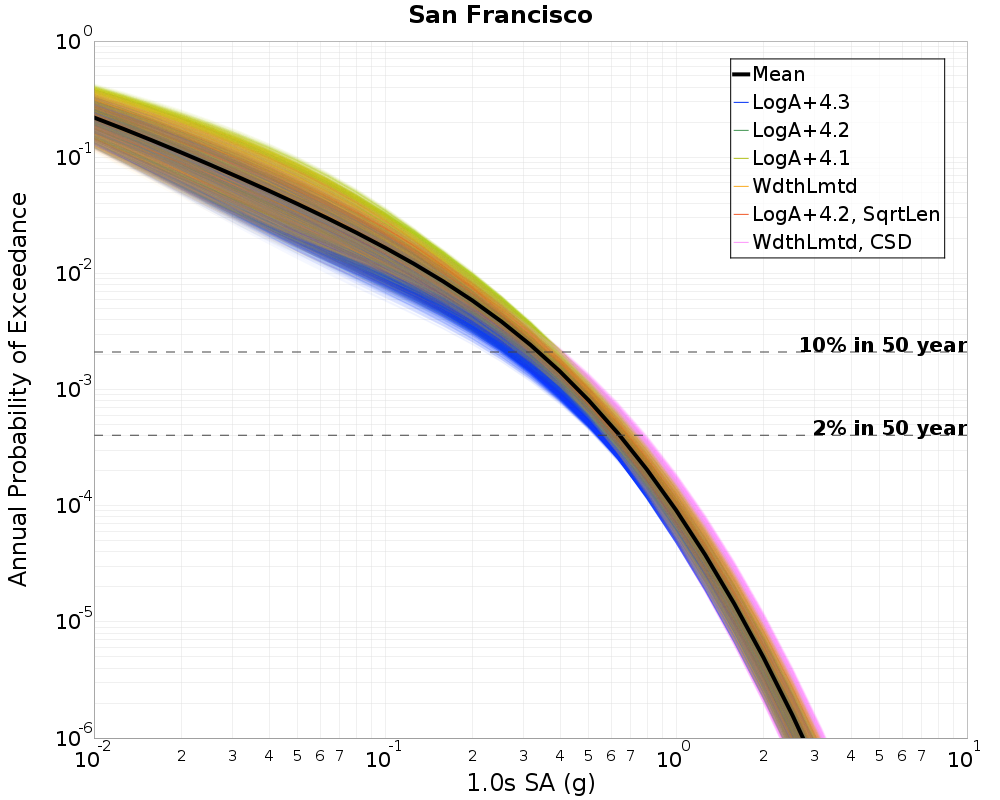

San Francisco, 1.0s SA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.63951766 (g) | 0.3364055 (g) |
| LogA+4.3 | 0.5960168 (g) | 0.30489582 (g) |
| LogA+4.2 | 0.6312297 (g) | 0.3294591 (g) |
| LogA+4.1 | 0.6642573 (g) | 0.3584601 (g) |
| WdthLmtd | 0.6299193 (g) | 0.3295296 (g) |
| LogA+4.2, SqrtLen | 0.6477542 (g) | 0.34149 (g) |
| WdthLmtd, CSD | 0.6586956 (g) | 0.35016704 (g) |

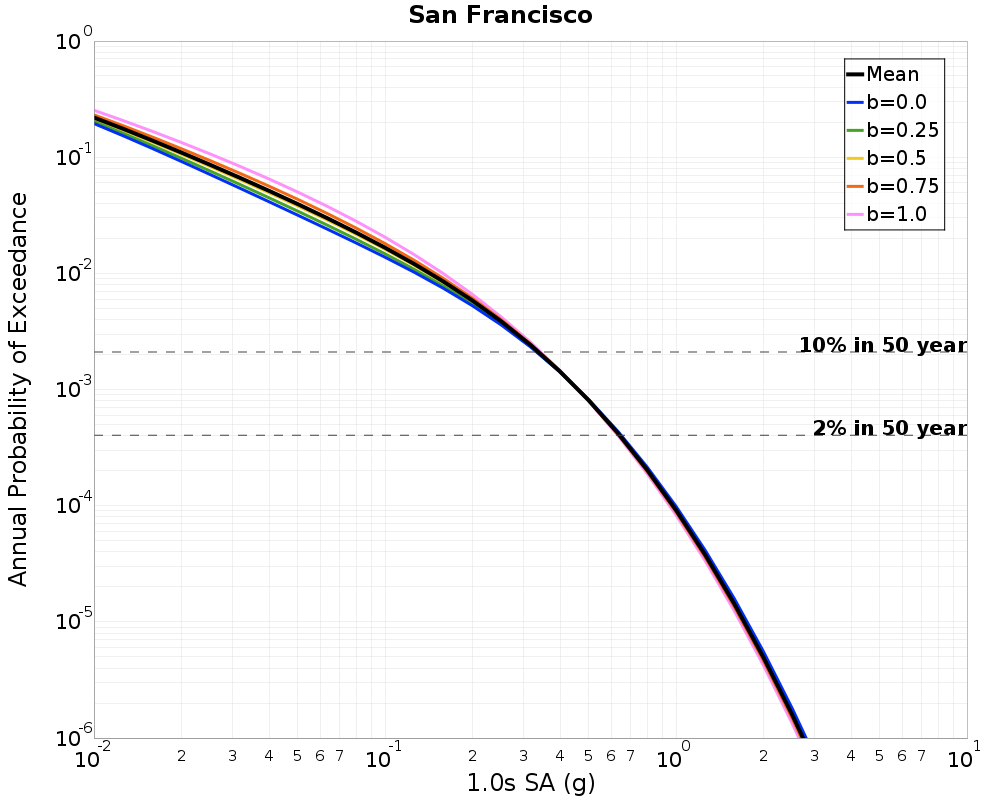

San Francisco, 1.0s SA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.63951766 (g) | 0.3364055 (g) |
| b=0.0 | 0.6475709 (g) | 0.33139706 (g) |
| b=0.25 | 0.6438717 (g) | 0.33267418 (g) |
| b=0.5 | 0.64053595 (g) | 0.33562595 (g) |
| b=0.75 | 0.6355659 (g) | 0.33881947 (g) |
| b=1.0 | 0.6303734 (g) | 0.34243593 (g) |

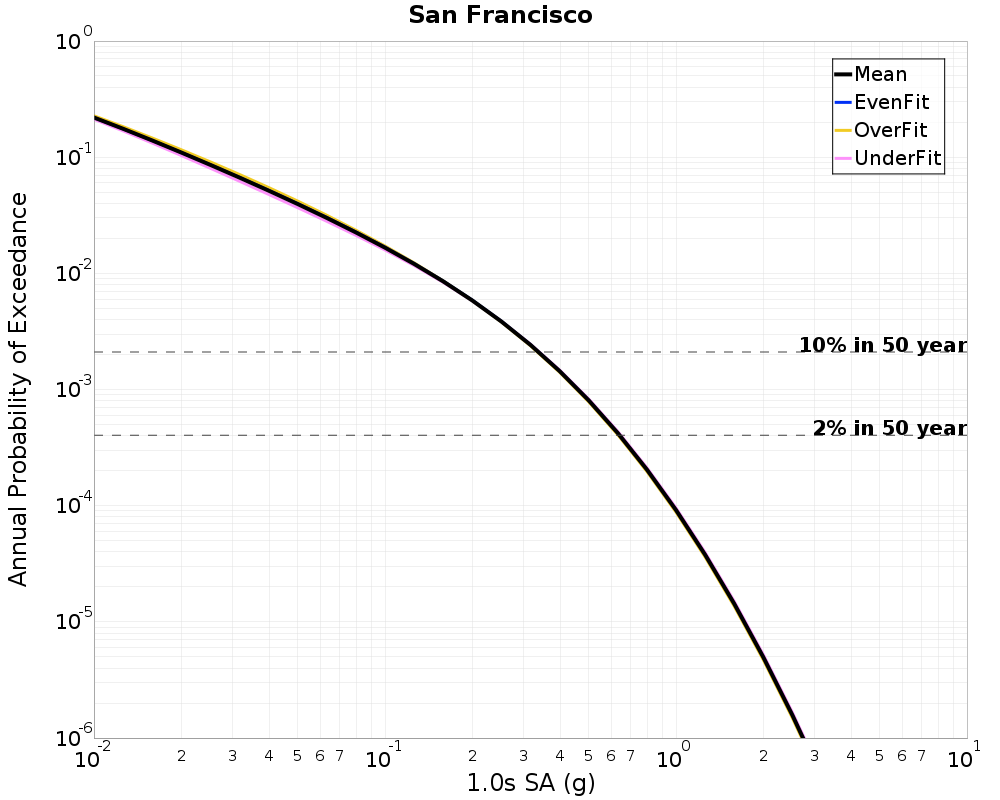

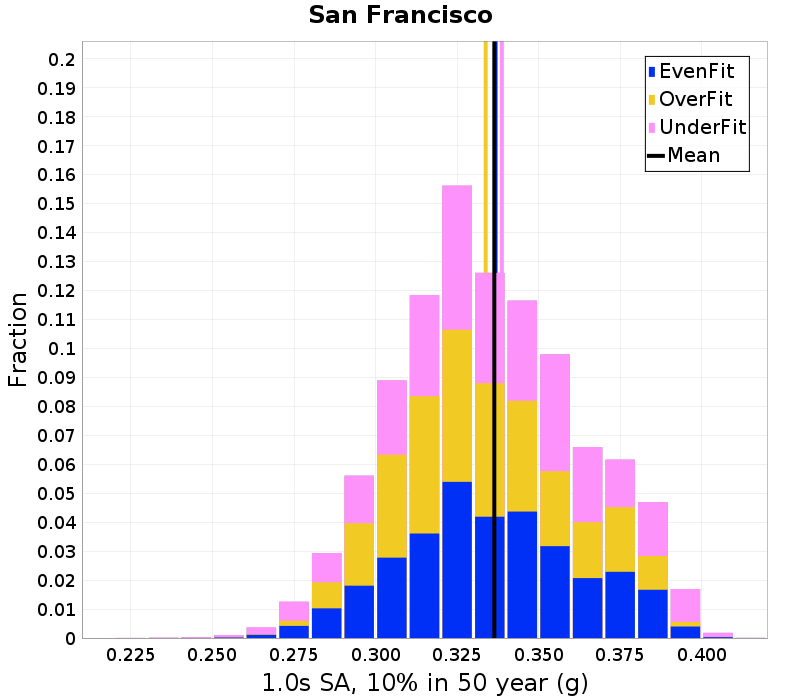

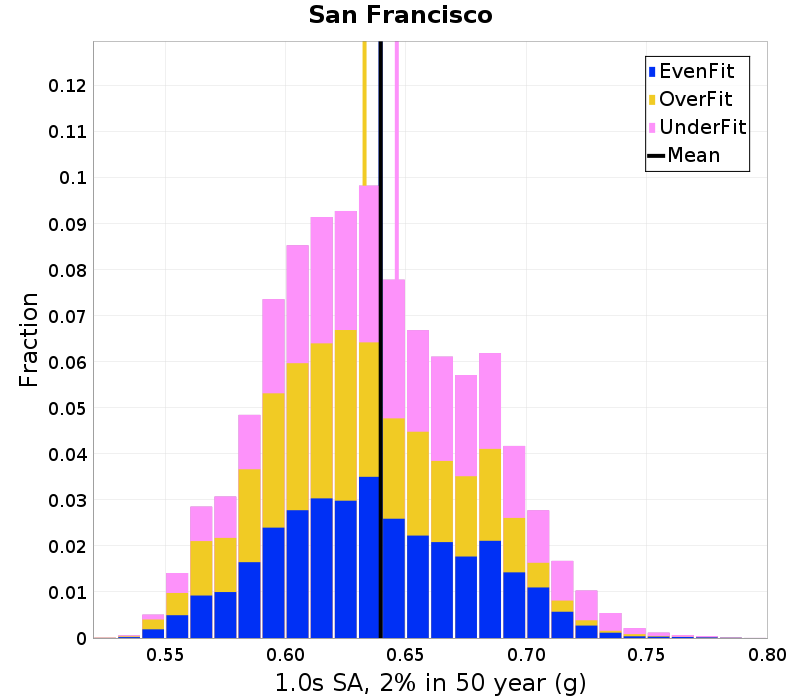

San Francisco, 1.0s SA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.63951766 (g) | 0.3364055 (g) |
| EvenFit | 0.6394593 (g) | 0.33678594 (g) |
| OverFit | 0.63281447 (g) | 0.33375728 (g) |
| UnderFit | 0.64621377 (g) | 0.33871335 (g) |

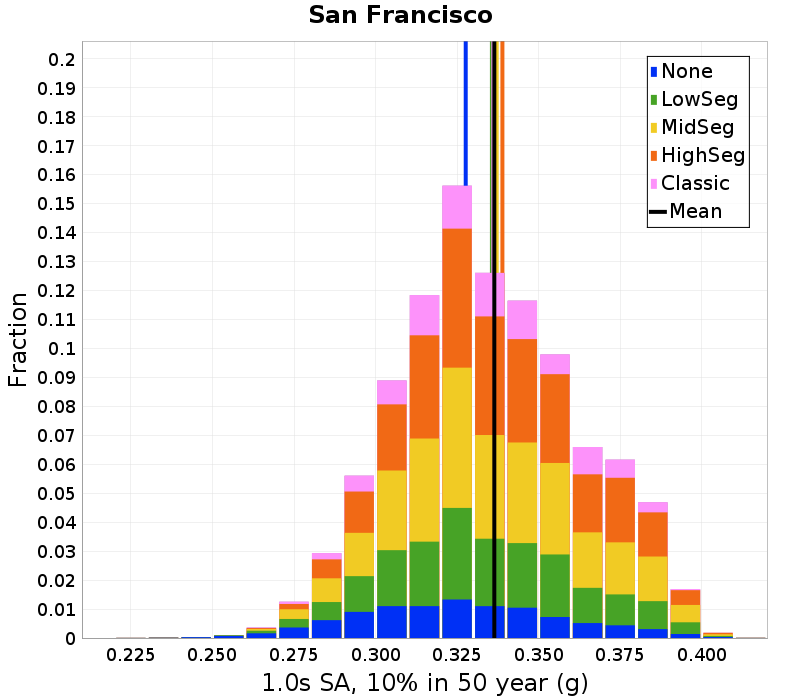

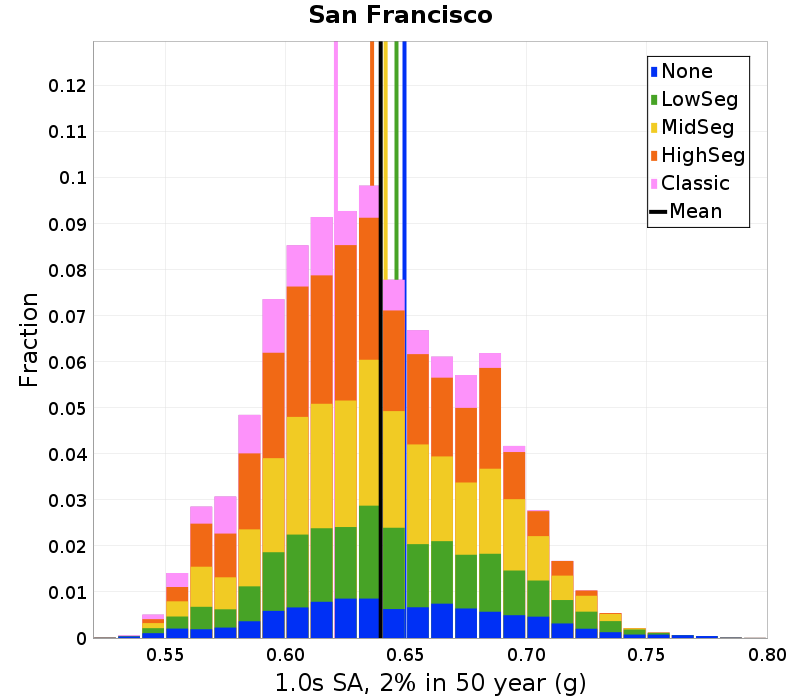

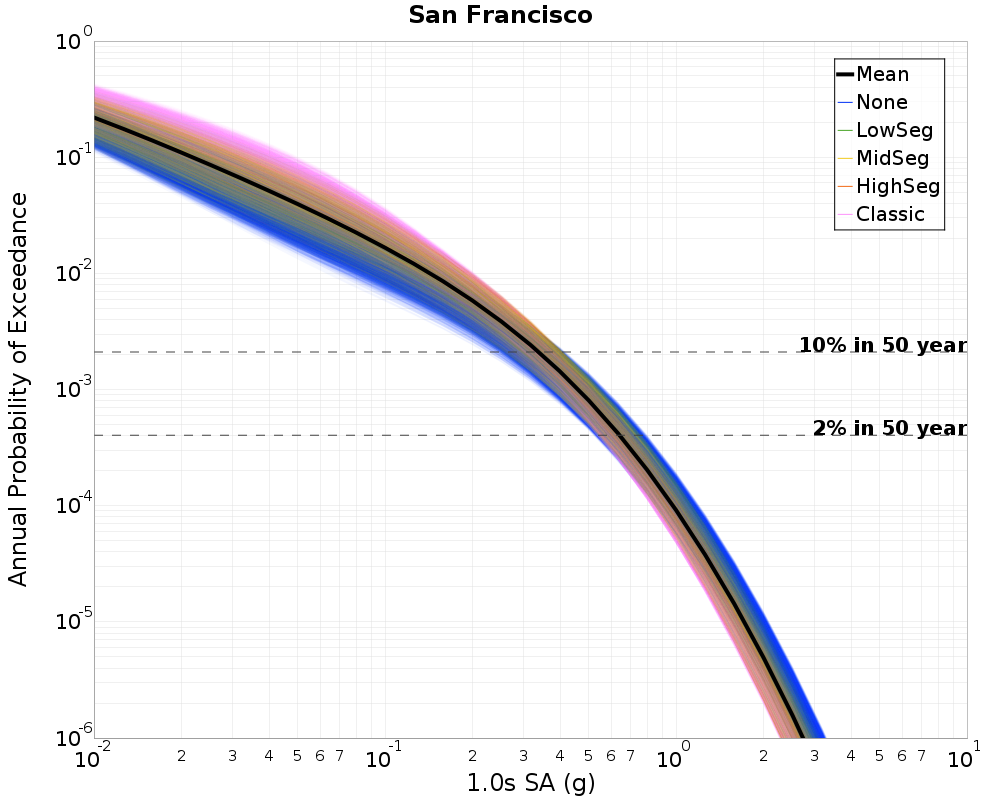

San Francisco, 1.0s SA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.63951766 (g) | 0.3364055 (g) |
| None | 0.64940476 (g) | 0.32763466 (g) |
| LowSeg | 0.6460792 (g) | 0.33566678 (g) |
| MidSeg | 0.6415691 (g) | 0.3371253 (g) |
| HighSeg | 0.6359425 (g) | 0.3388837 (g) |
| Classic | 0.6209191 (g) | 0.33611485 (g) |

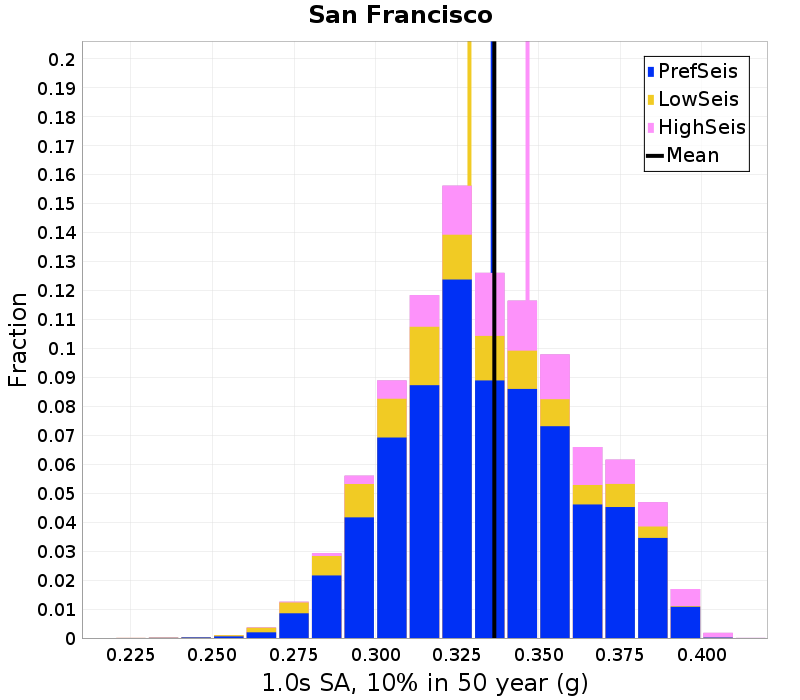

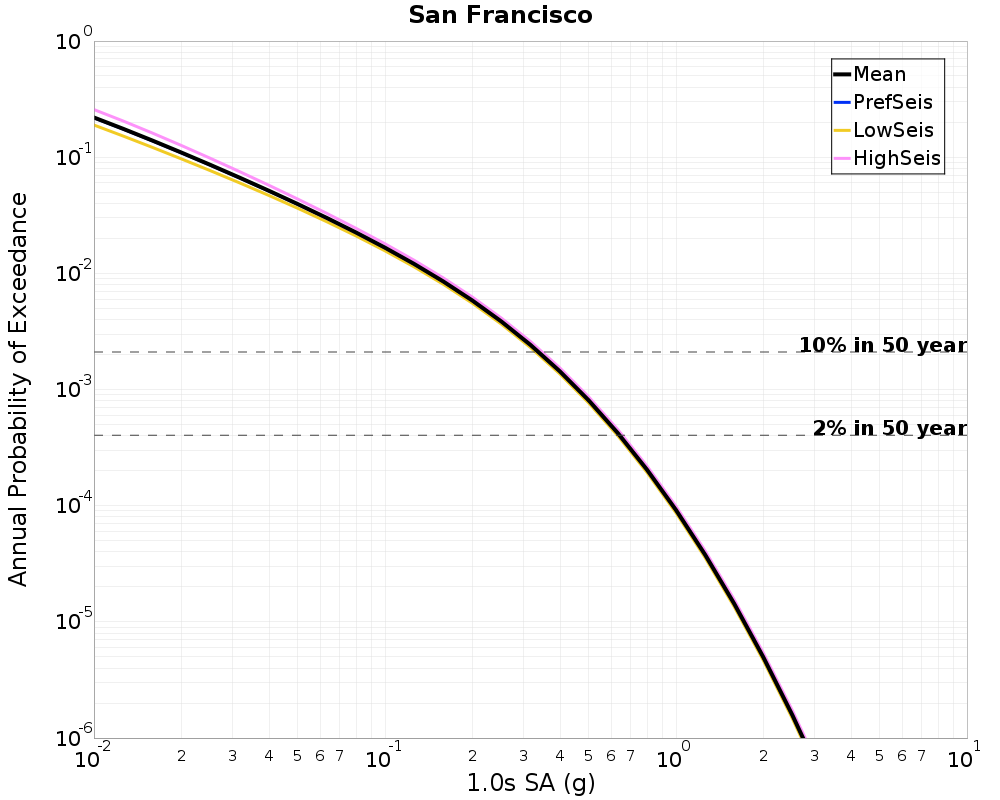

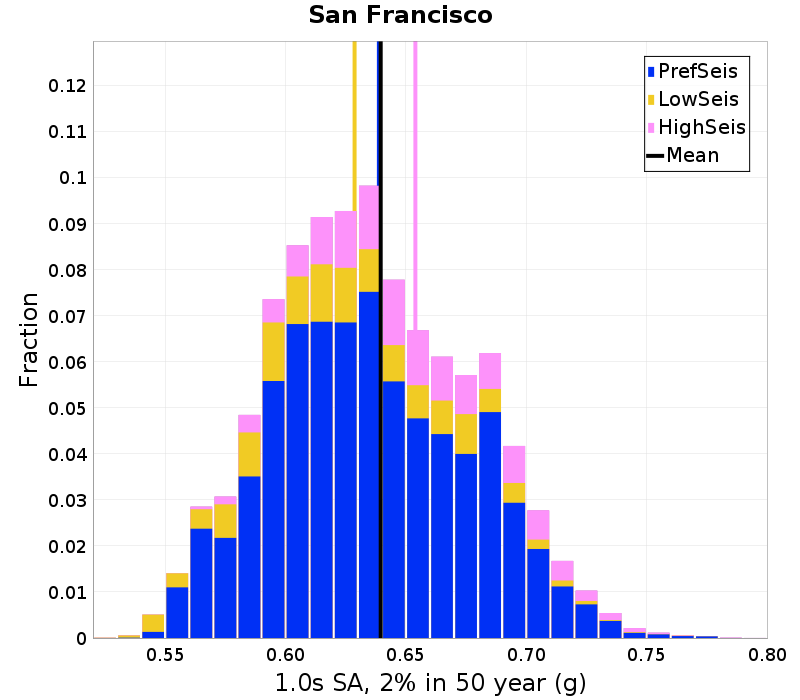

San Francisco, 1.0s SA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.63951766 (g) | 0.3364055 (g) |
| PrefSeis | 0.6387653 (g) | 0.33590427 (g) |
| LowSeis | 0.6286699 (g) | 0.3287794 (g) |
| HighSeis | 0.65392804 (g) | 0.34658685 (g) |

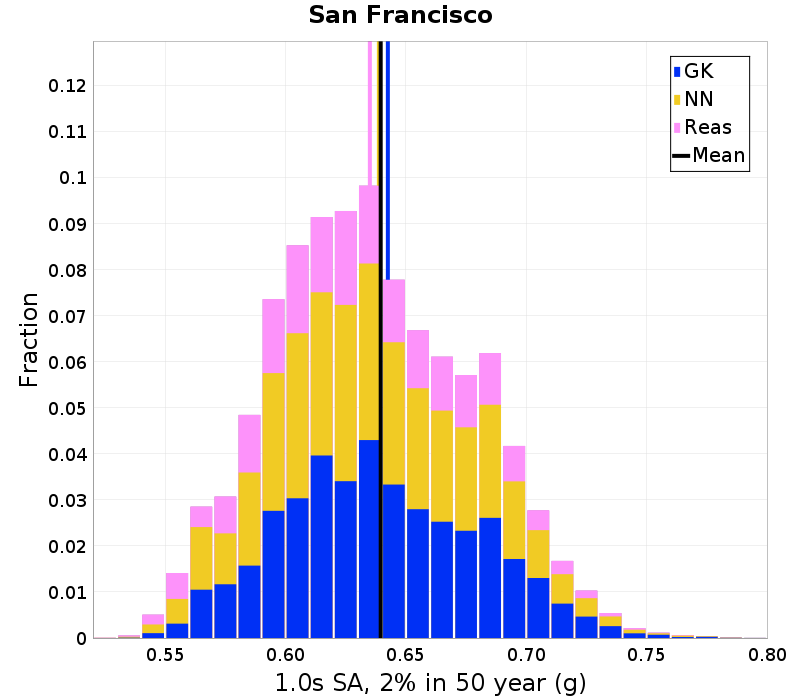

San Francisco, 1.0s SA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.63951766 (g) | 0.3364055 (g) |
| GK | 0.64249253 (g) | 0.3386613 (g) |
| NN | 0.6387632 (g) | 0.335905 (g) |
| Reas | 0.6350121 (g) | 0.3328418 (g) |

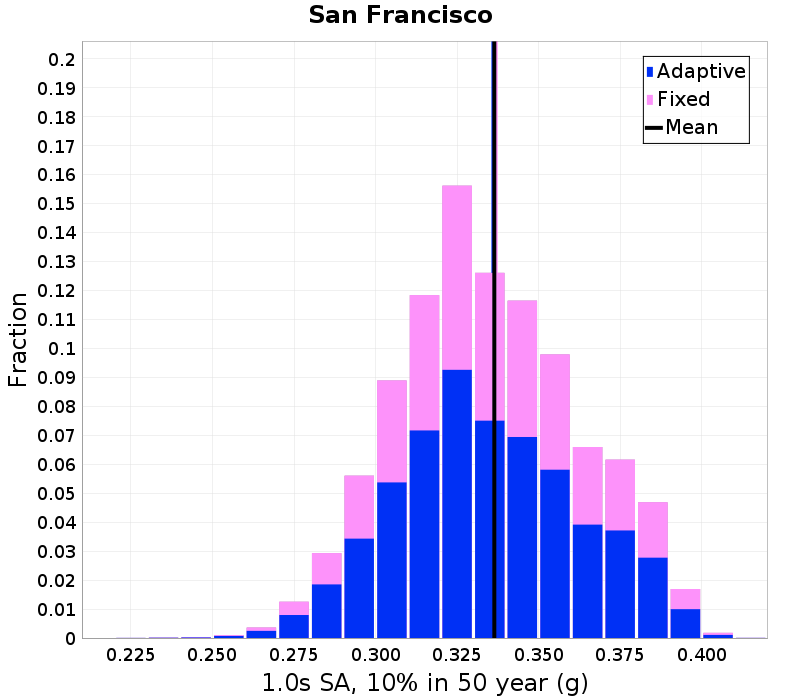

San Francisco, 1.0s SA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.63951766 (g) | 0.3364055 (g) |
| Adaptive | 0.6393312 (g) | 0.33612323 (g) |
| Fixed | 0.6397971 (g) | 0.3368271 (g) |

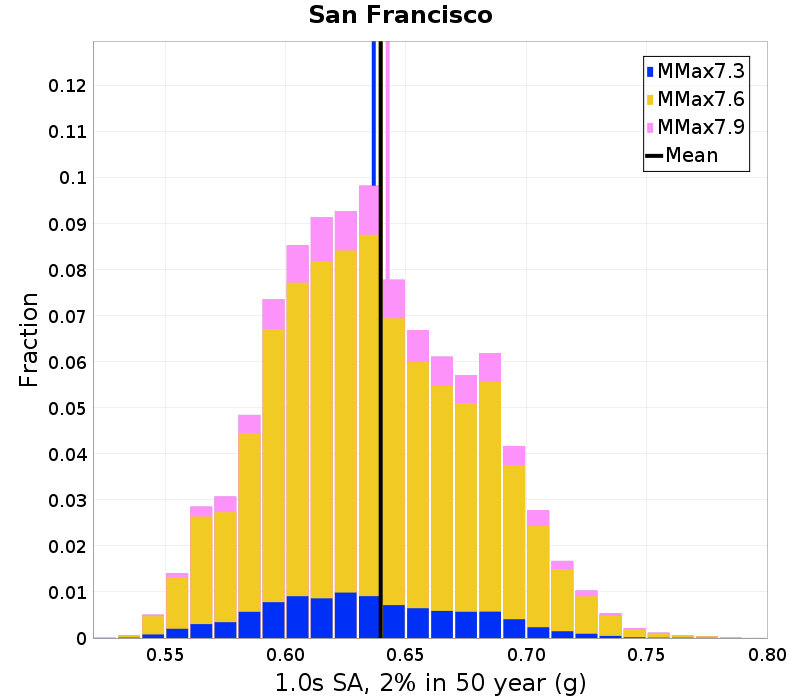

San Francisco, 1.0s SA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.63951766 (g) | 0.3364055 (g) |
| MMax7.3 | 0.6366355 (g) | 0.33466908 (g) |
| MMax7.6 | 0.6395136 (g) | 0.3363962 (g) |
| MMax7.9 | 0.64241576 (g) | 0.33820787 (g) |
