Logic Tree Site Hazard Curves
Table Of Contents
Los Angeles
Los Angeles, PGA

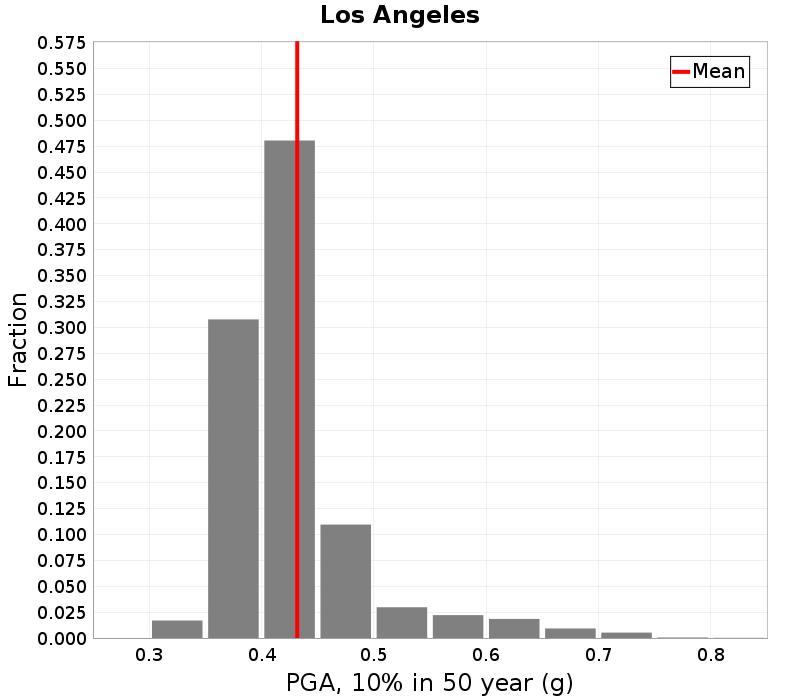

Los Angeles, PGA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
| 2% in 50 year | 10% in 50 year |
|---|---|
| 0.83250403 (g) | 0.4317979 (g) |

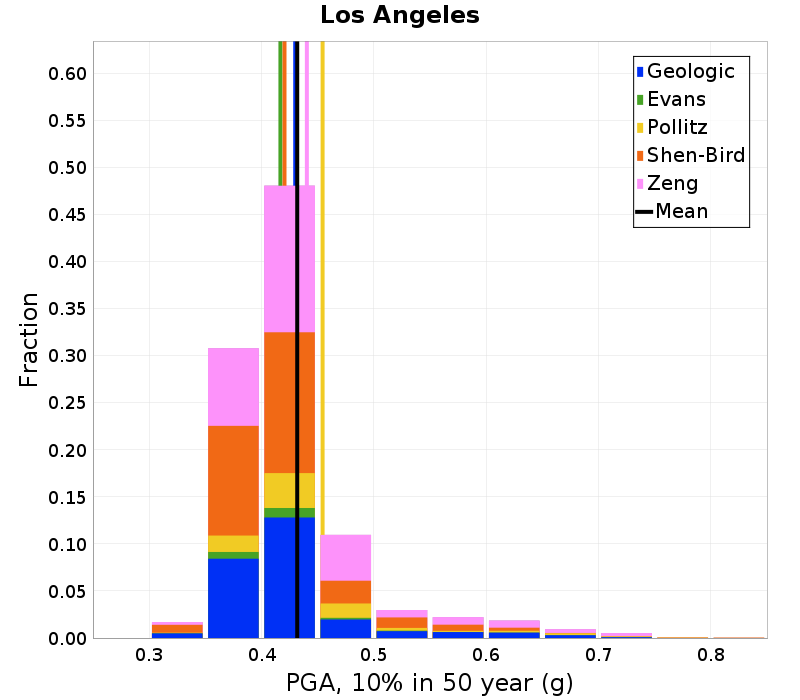

Los Angeles, PGA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.83250403 (g) | 0.4317979 (g) |
| Geologic | 0.83498156 (g) | 0.4300168 (g) |
| Evans | 0.75192165 (g) | 0.4168431 (g) |
| Pollitz | 0.87251025 (g) | 0.45438564 (g) |
| Shen-Bird | 0.7957048 (g) | 0.42047232 (g) |
| Zeng | 0.86123526 (g) | 0.44037977 (g) |
Los Angeles, PGA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.83250403 (g) | 0.4317979 (g) |
| LogA+4.3 | 0.77024156 (g) | 0.40087992 (g) |
| LogA+4.2 | 0.8088619 (g) | 0.4200166 (g) |
| LogA+4.1 | 0.8533126 (g) | 0.44545344 (g) |
| WdthLmtd | 0.82787645 (g) | 0.42776412 (g) |
| LogA+4.2, SqrtLen | 0.8784928 (g) | 0.45770526 (g) |
| WdthLmtd, CSD | 0.84777987 (g) | 0.4381977 (g) |

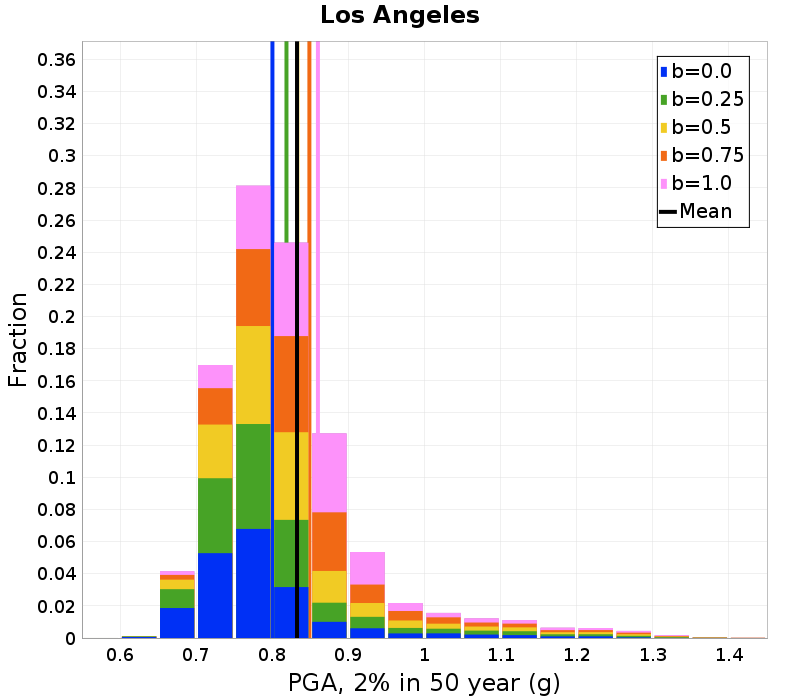

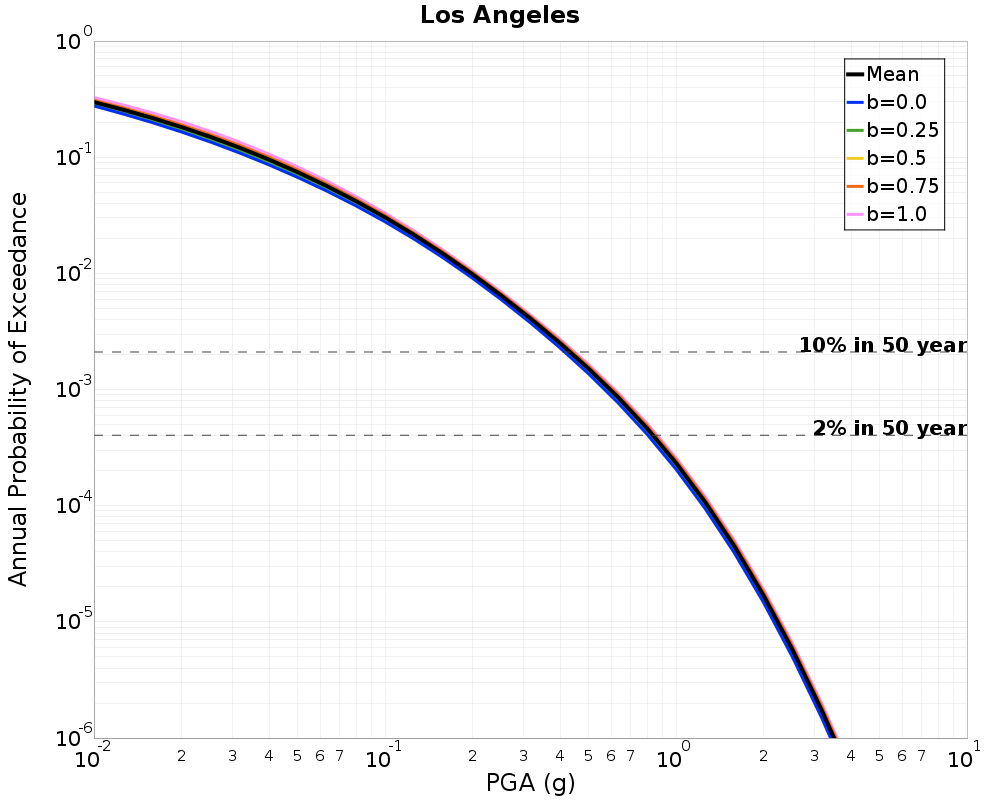

Los Angeles, PGA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.83250403 (g) | 0.4317979 (g) |
| b=0.0 | 0.80019087 (g) | 0.41372186 (g) |
| b=0.25 | 0.8186455 (g) | 0.4245592 (g) |
| b=0.5 | 0.83295166 (g) | 0.43221948 (g) |
| b=0.75 | 0.84875894 (g) | 0.4406843 (g) |
| b=1.0 | 0.85997427 (g) | 0.44740993 (g) |

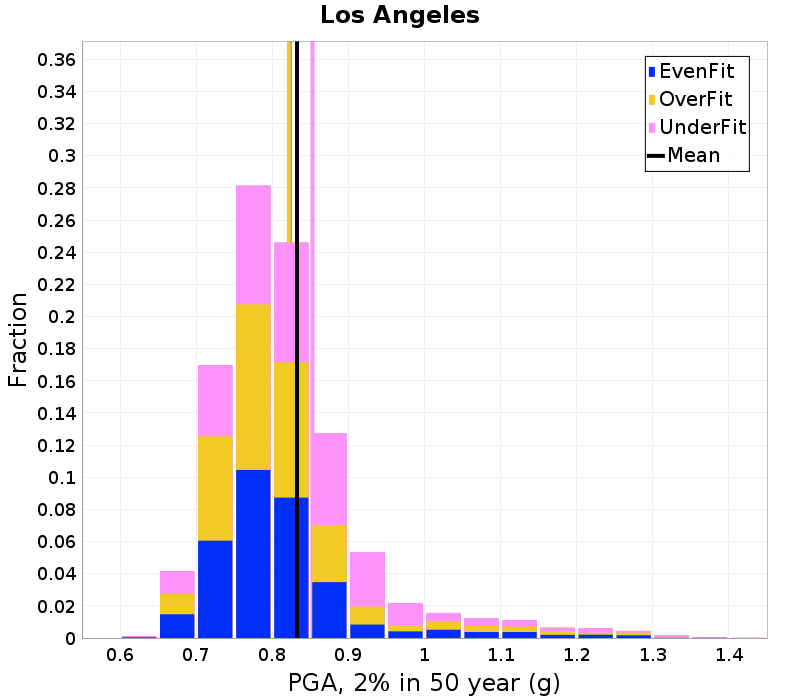

Los Angeles, PGA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.83250403 (g) | 0.4317979 (g) |
| EvenFit | 0.8225727 (g) | 0.4279068 (g) |
| OverFit | 0.8218037 (g) | 0.42710304 (g) |
| UnderFit | 0.85276055 (g) | 0.44047445 (g) |

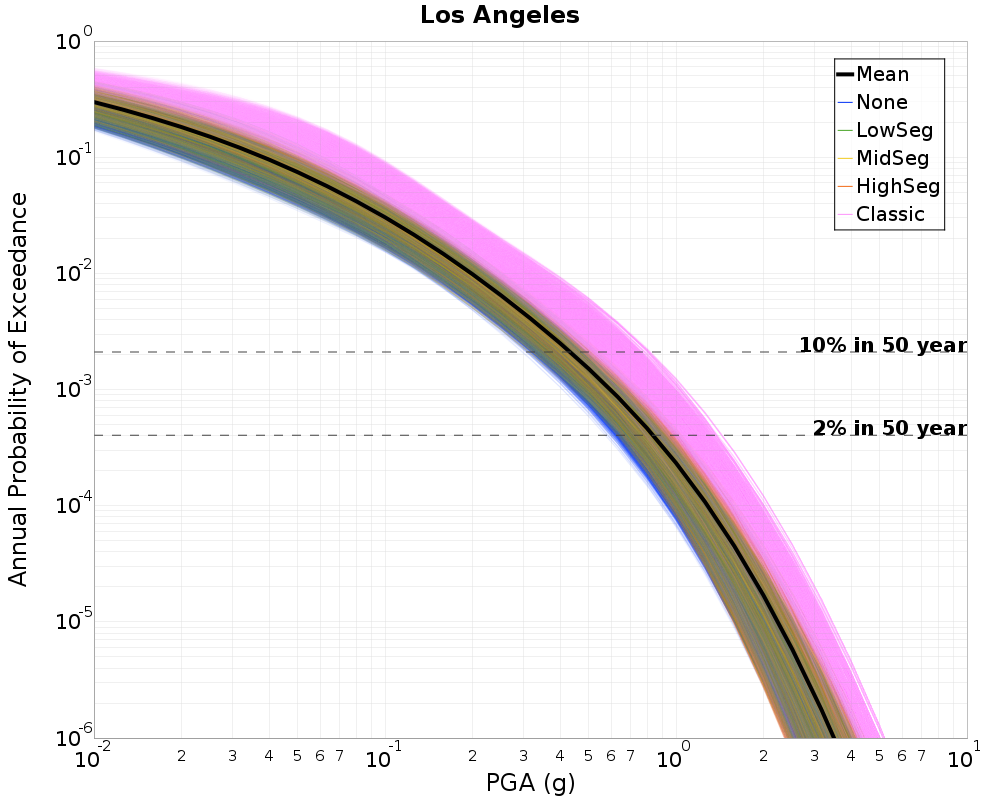

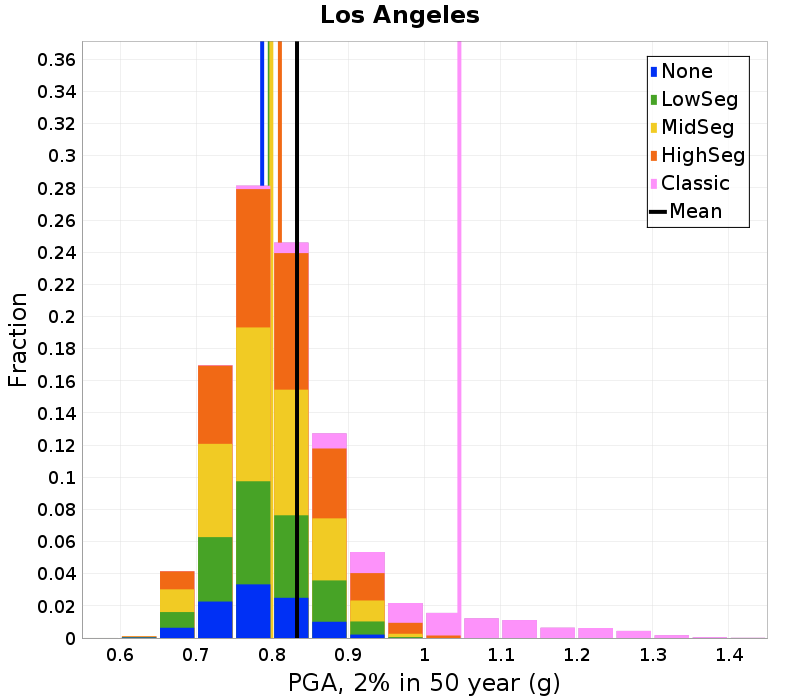

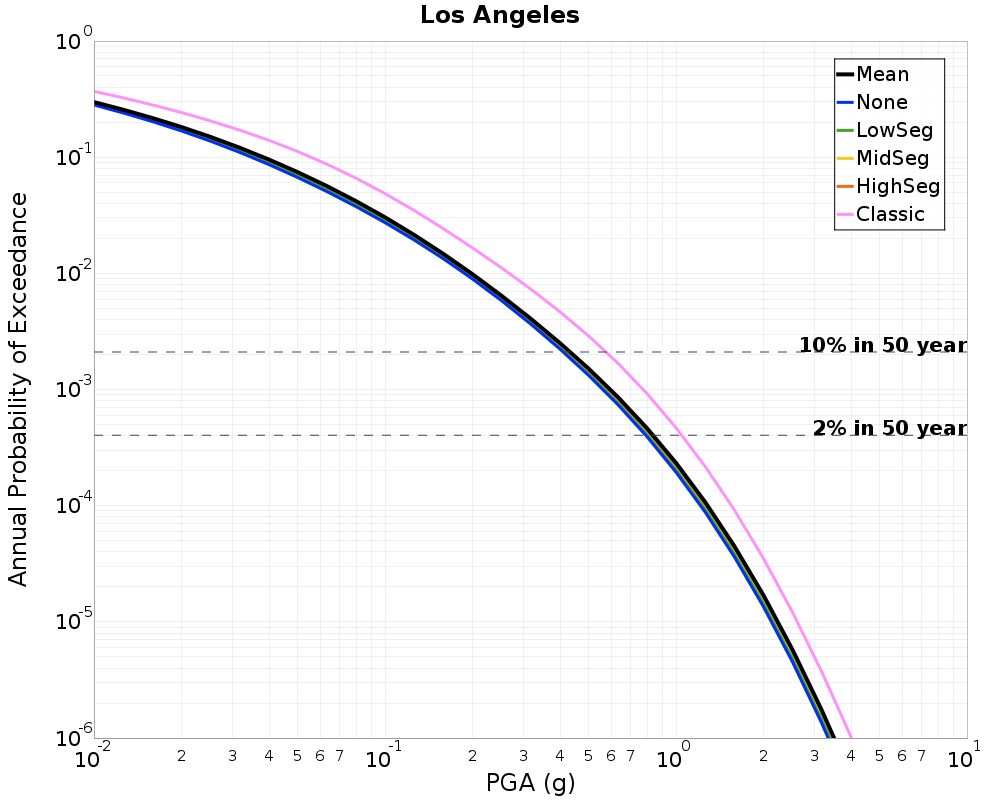

Los Angeles, PGA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.83250403 (g) | 0.4317979 (g) |
| None | 0.7867061 (g) | 0.40920326 (g) |
| LowSeg | 0.79673505 (g) | 0.41240495 (g) |
| MidSeg | 0.7987438 (g) | 0.41193548 (g) |
| HighSeg | 0.8100258 (g) | 0.41466308 (g) |
| Classic | 1.0458211 (g) | 0.57393825 (g) |

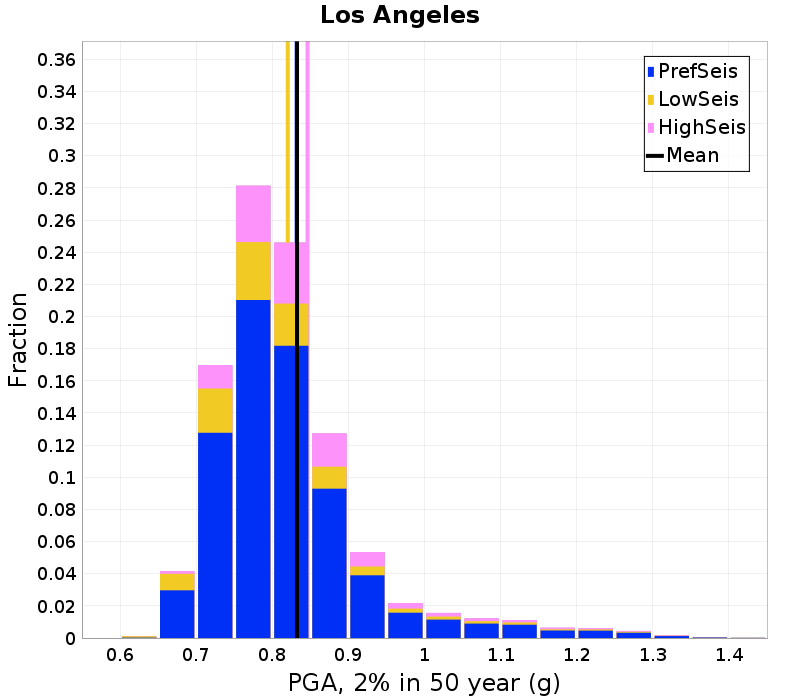

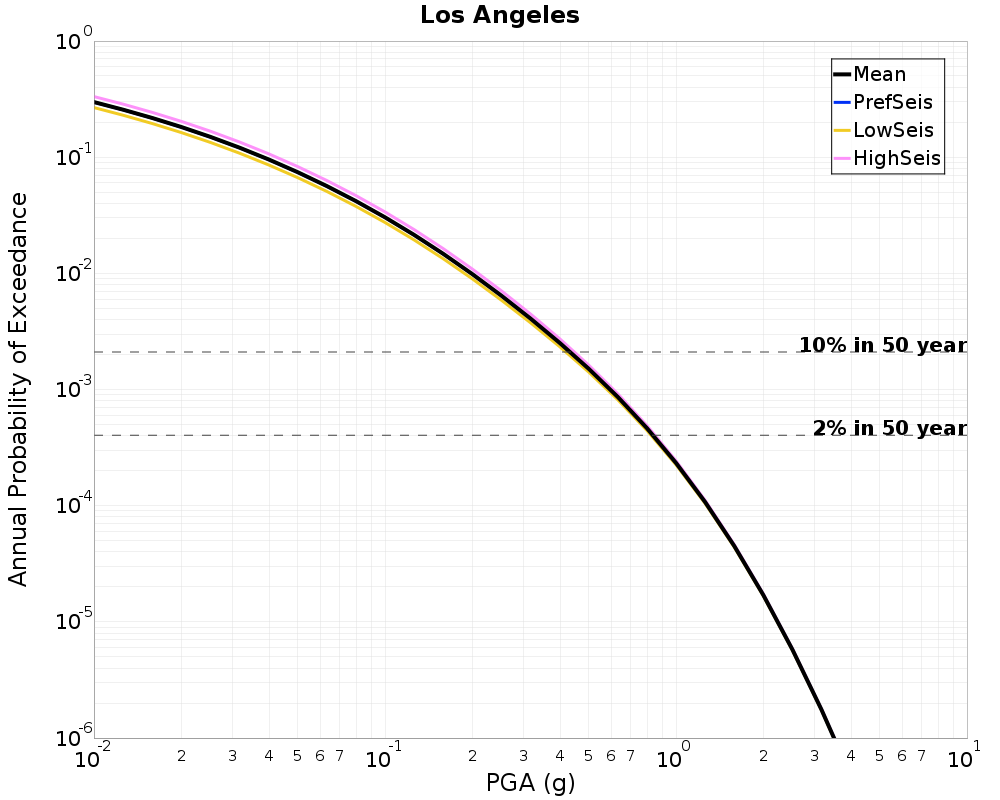

Los Angeles, PGA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.83250403 (g) | 0.4317979 (g) |
| PrefSeis | 0.83207774 (g) | 0.4313681 (g) |
| LowSeis | 0.82035226 (g) | 0.41789302 (g) |
| HighSeis | 0.8463221 (g) | 0.4469877 (g) |

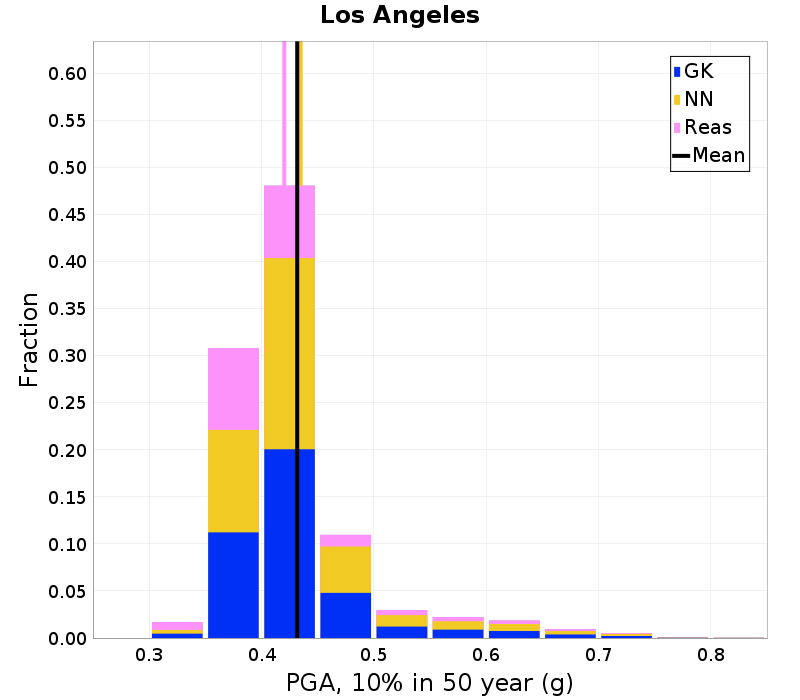

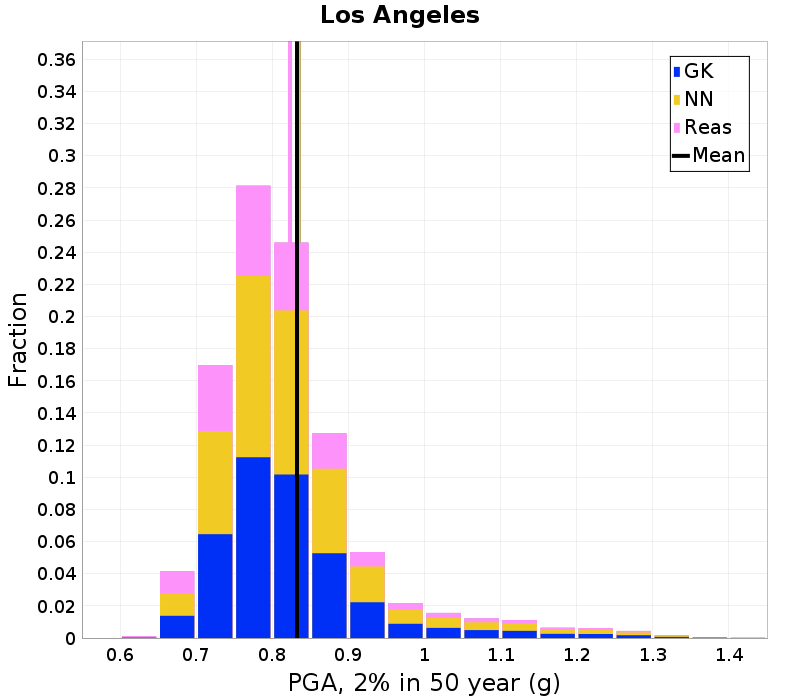

Los Angeles, PGA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.83250403 (g) | 0.4317979 (g) |
| GK | 0.8347521 (g) | 0.43418717 (g) |
| NN | 0.83473057 (g) | 0.43491858 (g) |
| Reas | 0.82330745 (g) | 0.4202831 (g) |

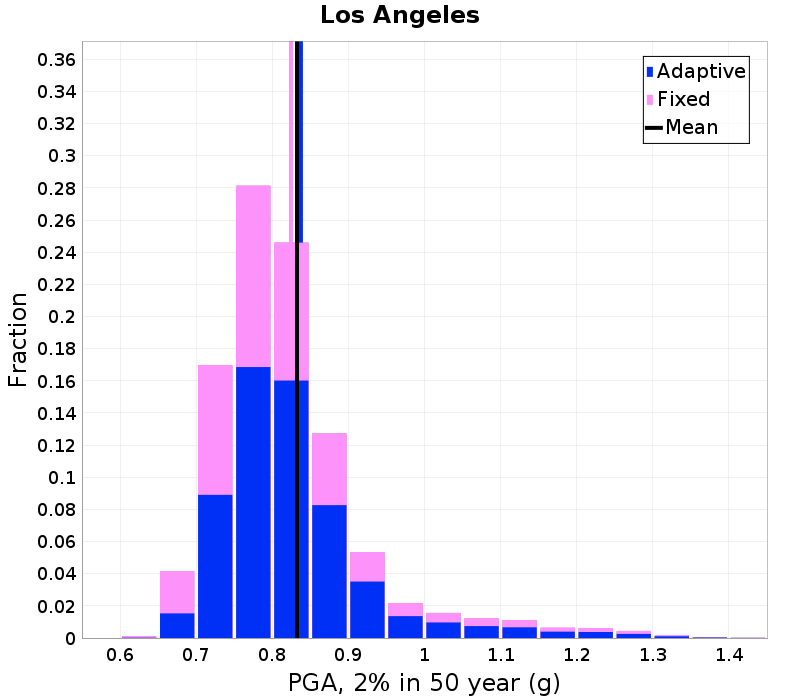

Los Angeles, PGA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.83250403 (g) | 0.4317979 (g) |
| Adaptive | 0.8376401 (g) | 0.43825564 (g) |
| Fixed | 0.8245518 (g) | 0.42159012 (g) |

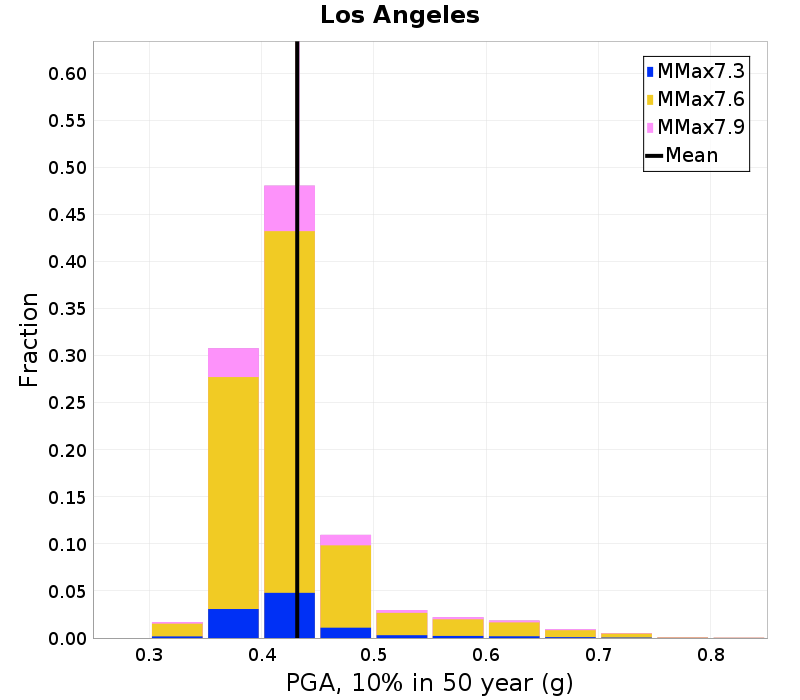

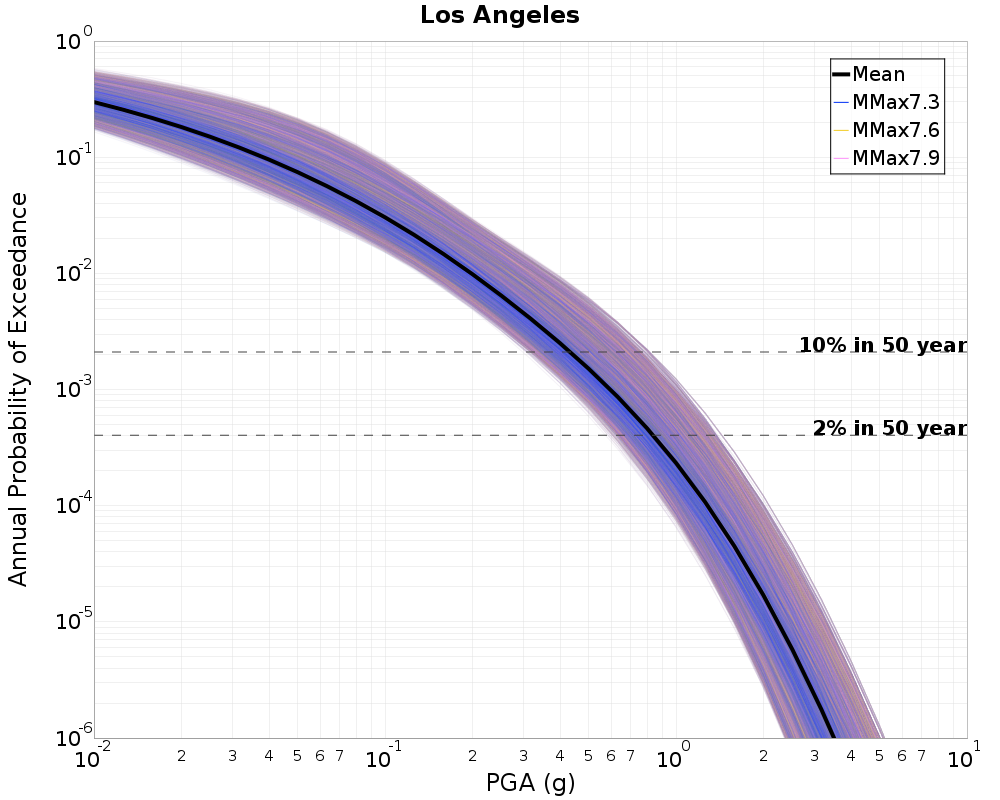

Los Angeles, PGA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.83250403 (g) | 0.4317979 (g) |
| MMax7.3 | 0.83262503 (g) | 0.43177176 (g) |
| MMax7.6 | 0.83248067 (g) | 0.43176442 (g) |
| MMax7.9 | 0.8325699 (g) | 0.4320914 (g) |
Los Angeles, PGA, NGA-W2 GMM Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.83250403 (g) | 0.4317979 (g) |
| ASK2014 | 0.8682776 (g) | 0.4508307 (g) |
| BSSA2014 | 0.7838453 (g) | 0.41759148 (g) |
| CB2014 | 0.8530584 (g) | 0.43006814 (g) |
| CY2014 | 0.82415485 (g) | 0.4285485 (g) |
Los Angeles, 0.2s SA

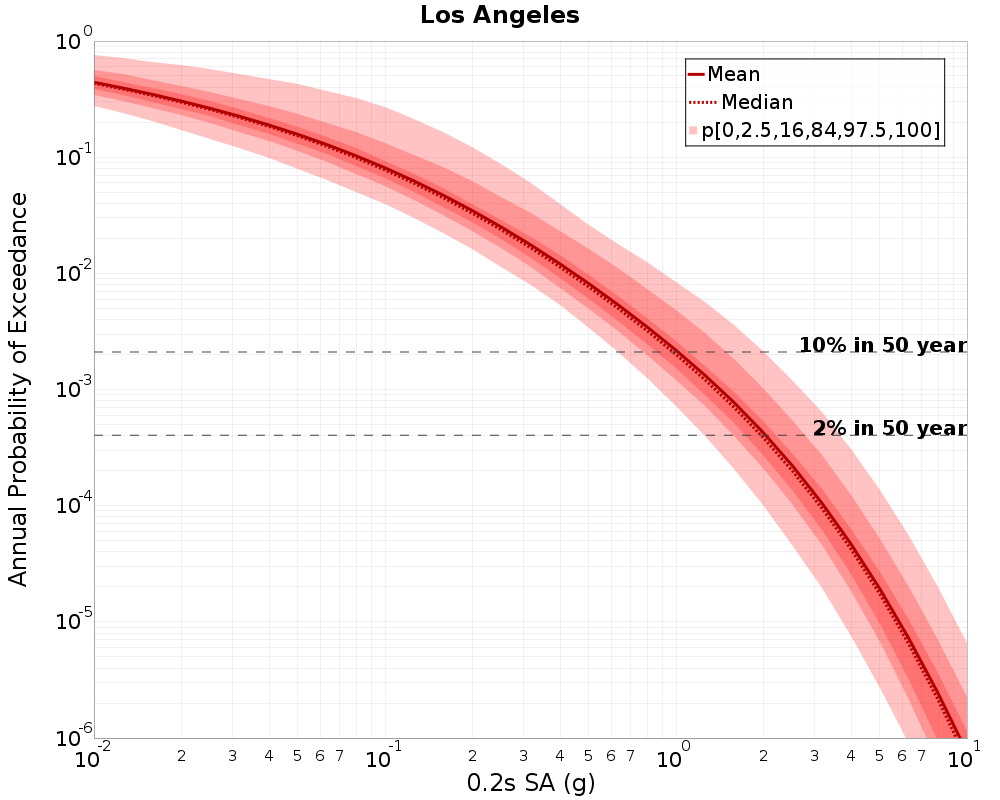

Los Angeles, 0.2s SA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
| 2% in 50 year | 10% in 50 year |
|---|---|
| 2.0318596 (g) | 1.0156909 (g) |

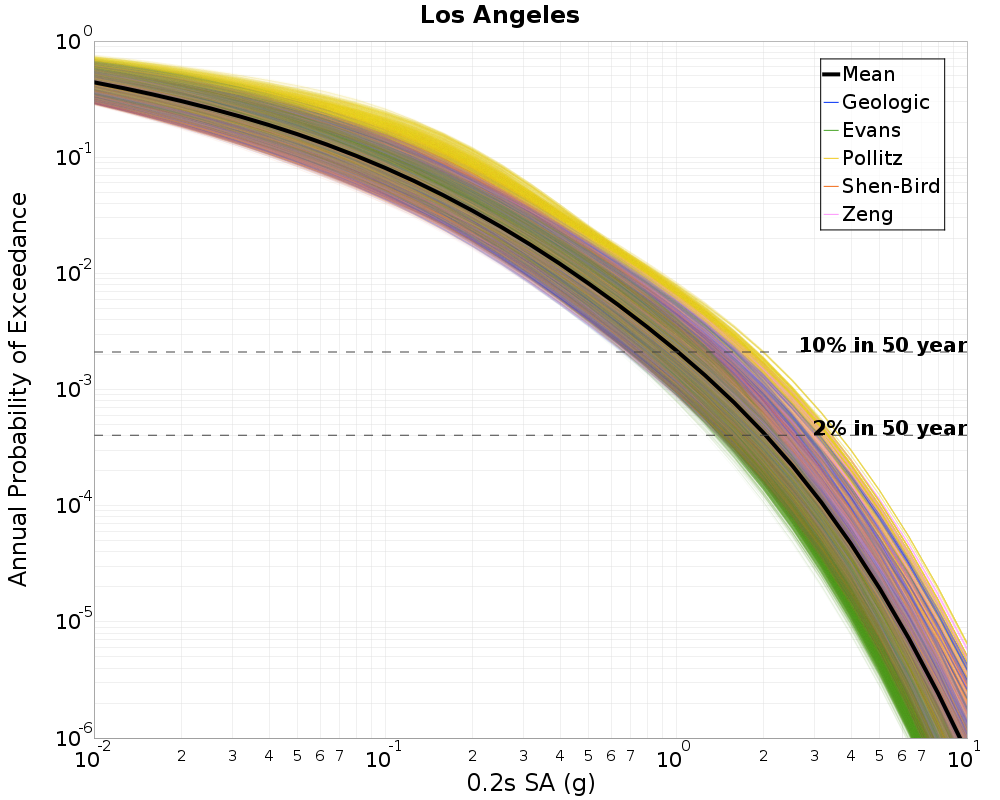

Los Angeles, 0.2s SA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 2.0318596 (g) | 1.0156909 (g) |
| Geologic | 2.0358348 (g) | 1.0101666 (g) |
| Evans | 1.8413508 (g) | 0.98443764 (g) |
| Pollitz | 2.1342723 (g) | 1.0709361 (g) |
| Shen-Bird | 1.9379425 (g) | 0.9894864 (g) |
| Zeng | 2.1013646 (g) | 1.034842 (g) |
Los Angeles, 0.2s SA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 2.0318596 (g) | 1.0156909 (g) |
| LogA+4.3 | 1.8696412 (g) | 0.9370082 (g) |
| LogA+4.2 | 1.9704177 (g) | 0.986503 (g) |
| LogA+4.1 | 2.086569 (g) | 1.0495903 (g) |
| WdthLmtd | 2.020222 (g) | 1.006468 (g) |
| LogA+4.2, SqrtLen | 2.1475377 (g) | 1.0775198 (g) |
| WdthLmtd, CSD | 2.0685146 (g) | 1.0302901 (g) |

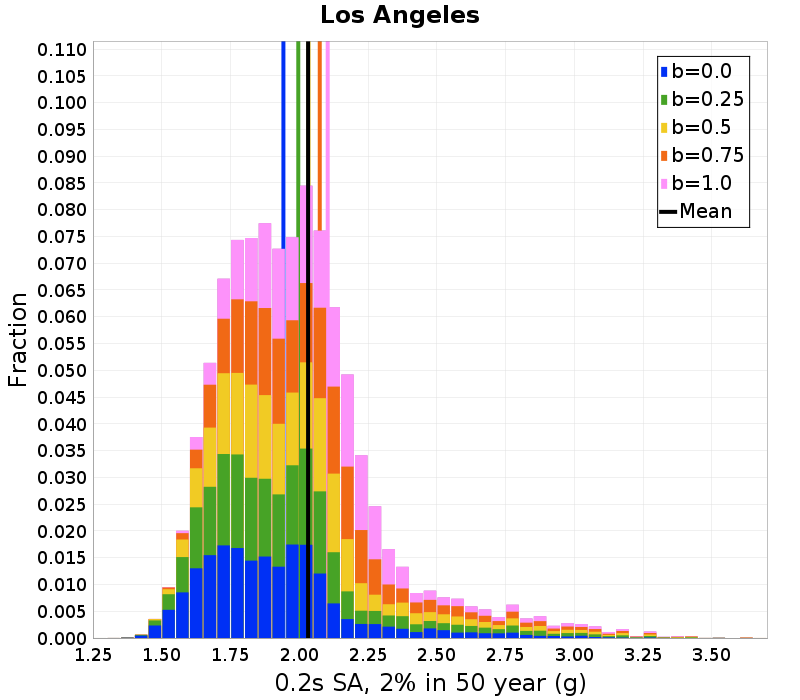

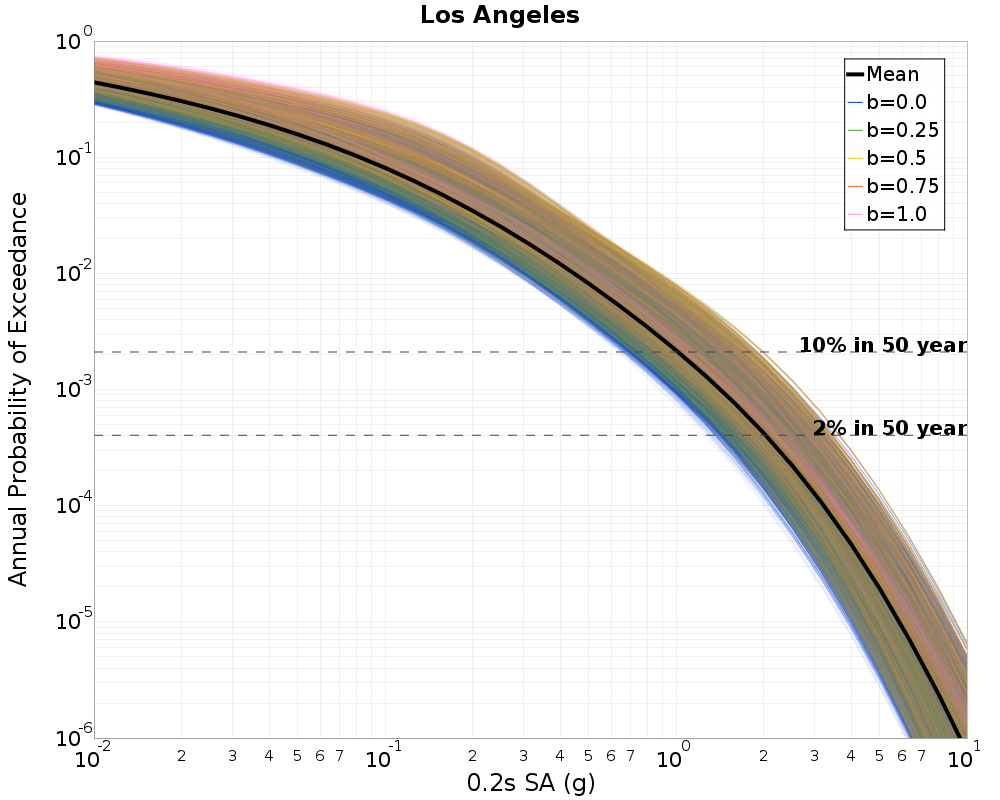

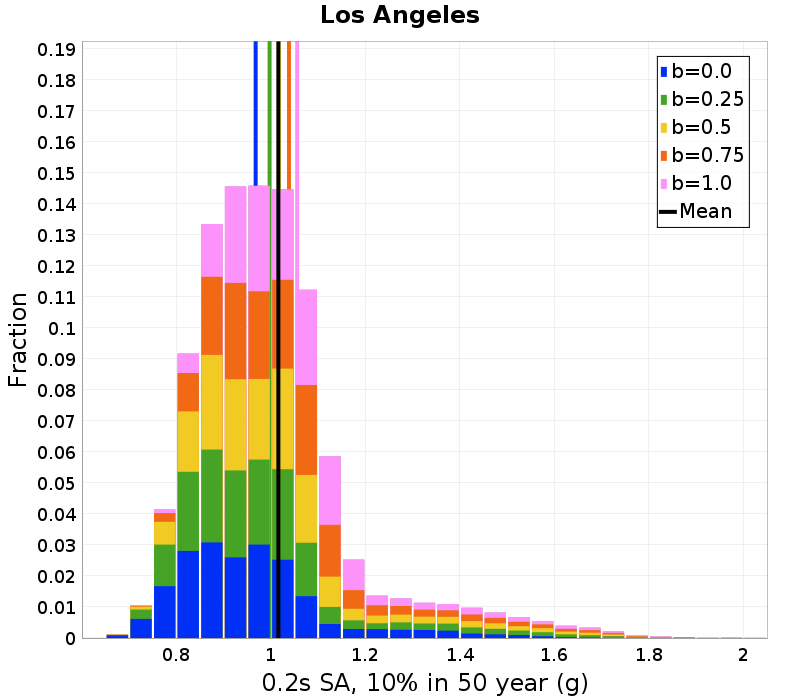

Los Angeles, 0.2s SA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 2.0318596 (g) | 1.0156909 (g) |
| b=0.0 | 1.9421388 (g) | 0.96756035 (g) |
| b=0.25 | 1.9961926 (g) | 0.9970931 (g) |
| b=0.5 | 2.0333743 (g) | 1.0166168 (g) |
| b=0.75 | 2.0742512 (g) | 1.0381029 (g) |
| b=1.0 | 2.1031404 (g) | 1.0554776 (g) |

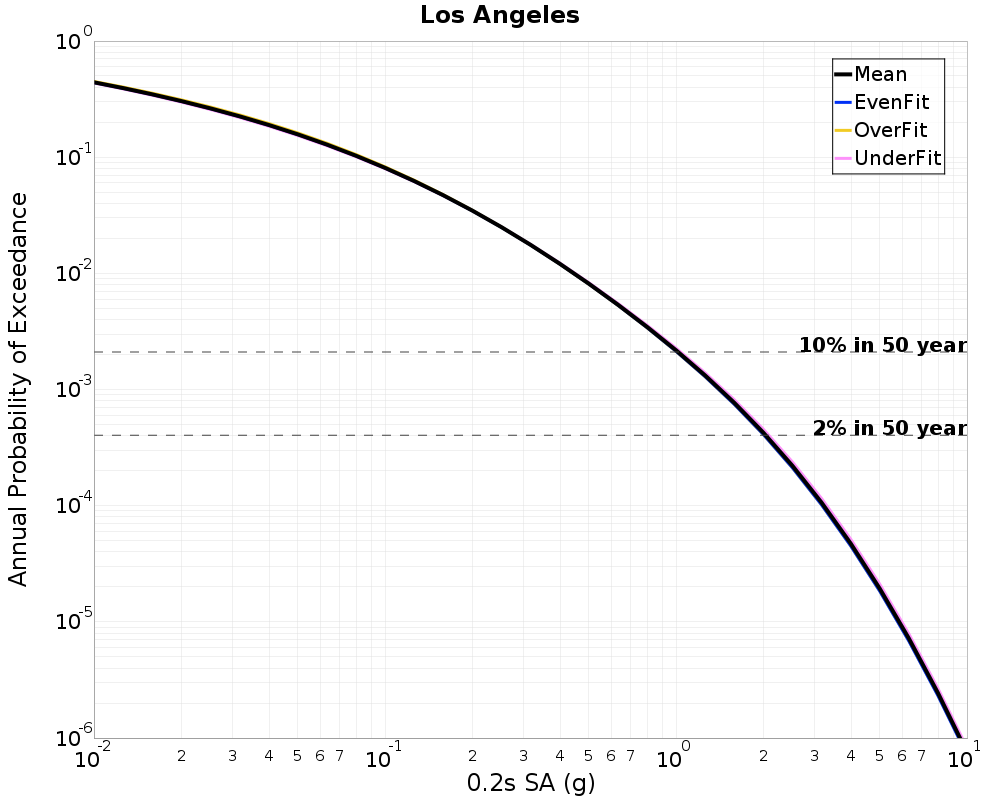

Los Angeles, 0.2s SA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 2.0318596 (g) | 1.0156909 (g) |
| EvenFit | 2.006928 (g) | 1.0064377 (g) |
| OverFit | 2.0056248 (g) | 1.0049248 (g) |
| UnderFit | 2.0822096 (g) | 1.0359302 (g) |
Los Angeles, 0.2s SA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 2.0318596 (g) | 1.0156909 (g) |
| None | 1.9057376 (g) | 0.95388365 (g) |
| LowSeg | 1.932443 (g) | 0.9635695 (g) |
| MidSeg | 1.9381918 (g) | 0.9631106 (g) |
| HighSeg | 1.9695252 (g) | 0.97105515 (g) |
| Classic | 2.5958529 (g) | 1.3789693 (g) |

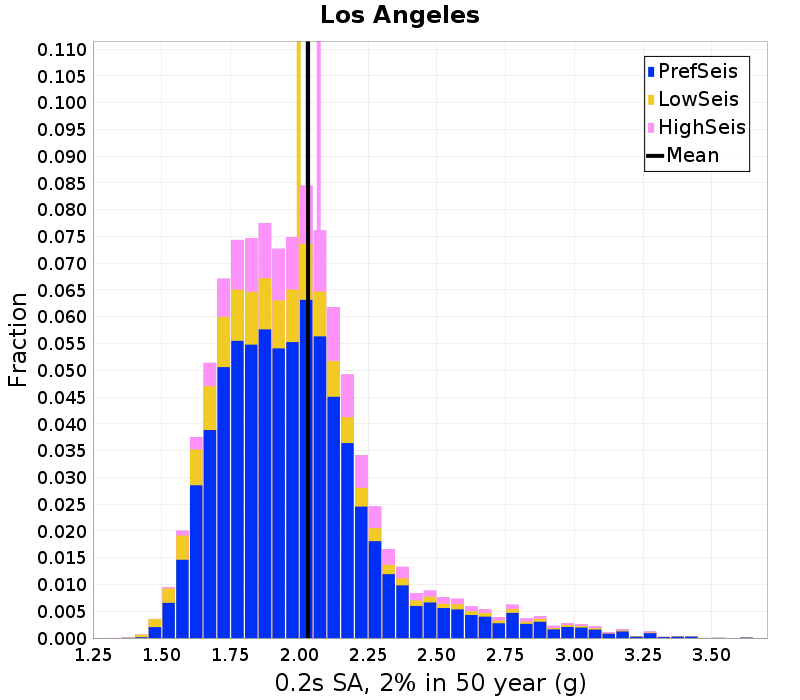

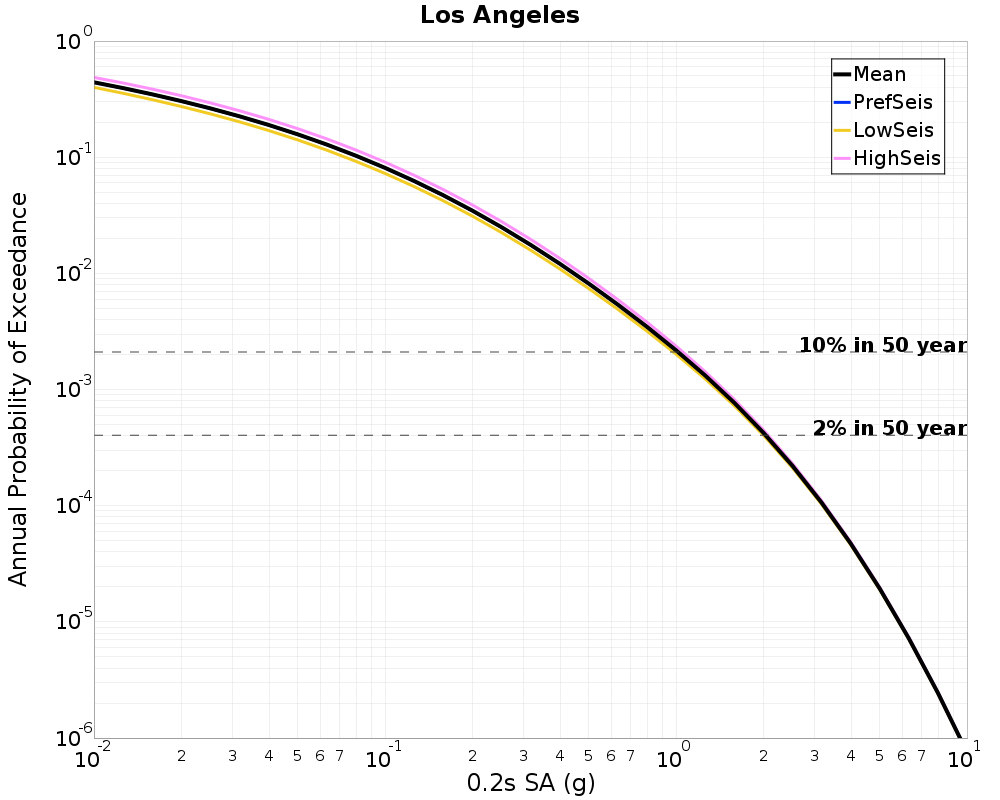

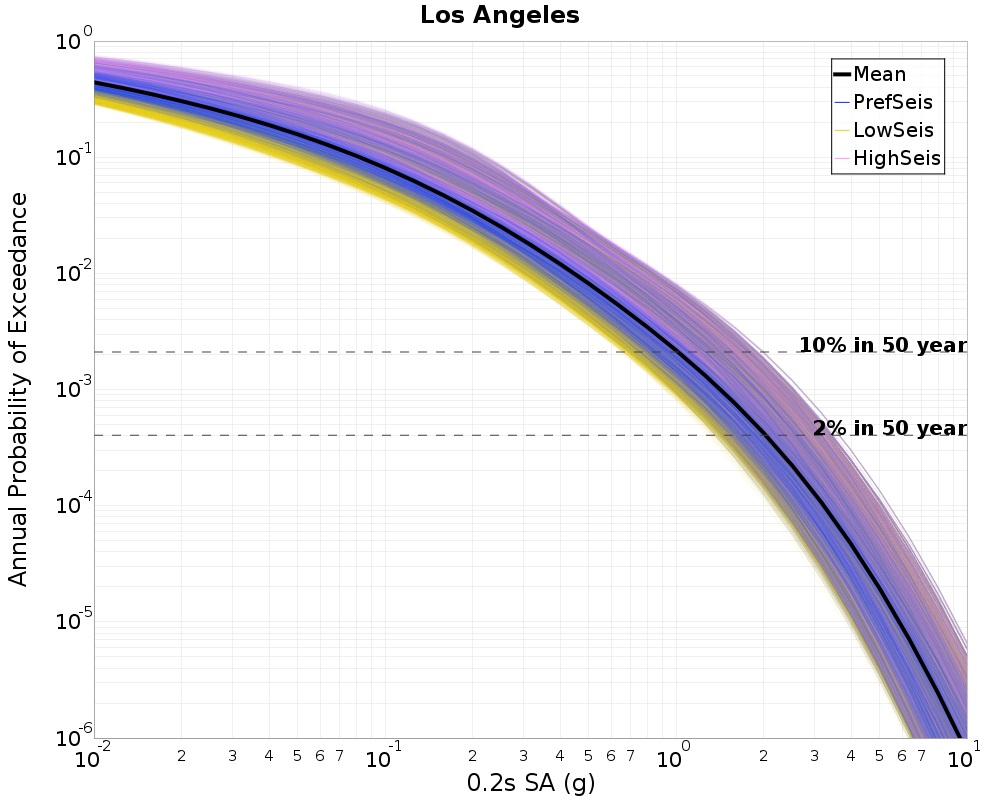

Los Angeles, 0.2s SA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 2.0318596 (g) | 1.0156909 (g) |
| PrefSeis | 2.0306585 (g) | 1.0145583 (g) |
| LowSeis | 1.9977939 (g) | 0.9783437 (g) |
| HighSeis | 2.0705502 (g) | 1.0550064 (g) |

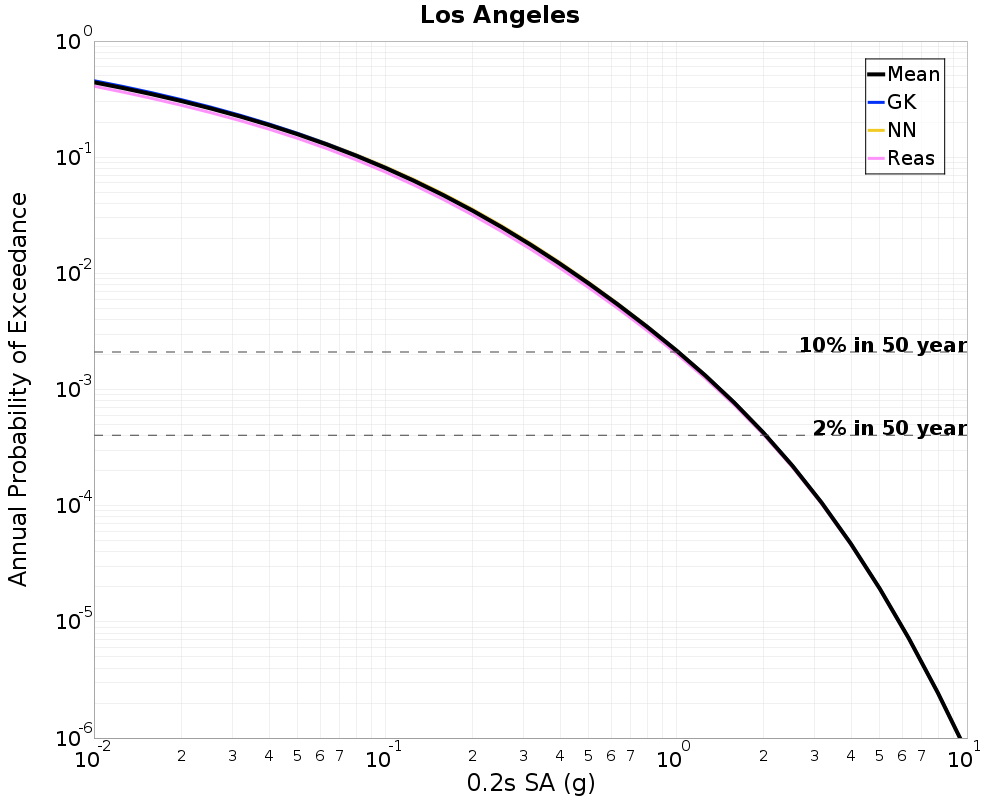

Los Angeles, 0.2s SA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 2.0318596 (g) | 1.0156909 (g) |
| GK | 2.037674 (g) | 1.0212072 (g) |
| NN | 2.0381331 (g) | 1.0237191 (g) |
| Reas | 2.007021 (g) | 0.9865569 (g) |
Los Angeles, 0.2s SA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 2.0318596 (g) | 1.0156909 (g) |
| Adaptive | 2.0458999 (g) | 1.0318078 (g) |
| Fixed | 2.0101178 (g) | 0.9895625 (g) |

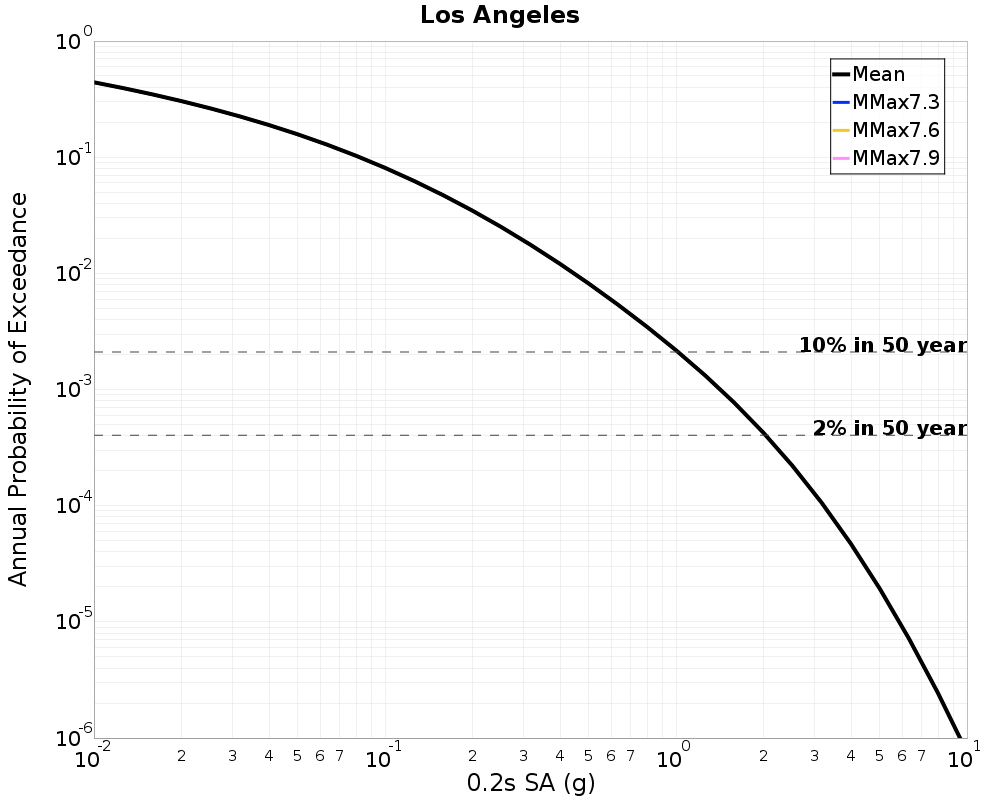

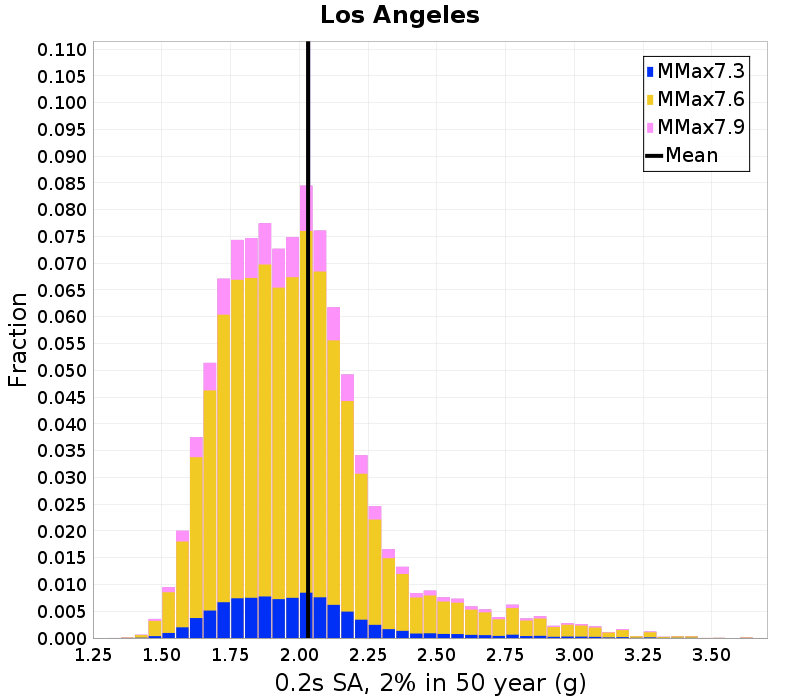

Los Angeles, 0.2s SA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 2.0318596 (g) | 1.0156909 (g) |
| MMax7.3 | 2.0321474 (g) | 1.0156344 (g) |
| MMax7.6 | 2.0317972 (g) | 1.015615 (g) |
| MMax7.9 | 2.0320714 (g) | 1.0163541 (g) |

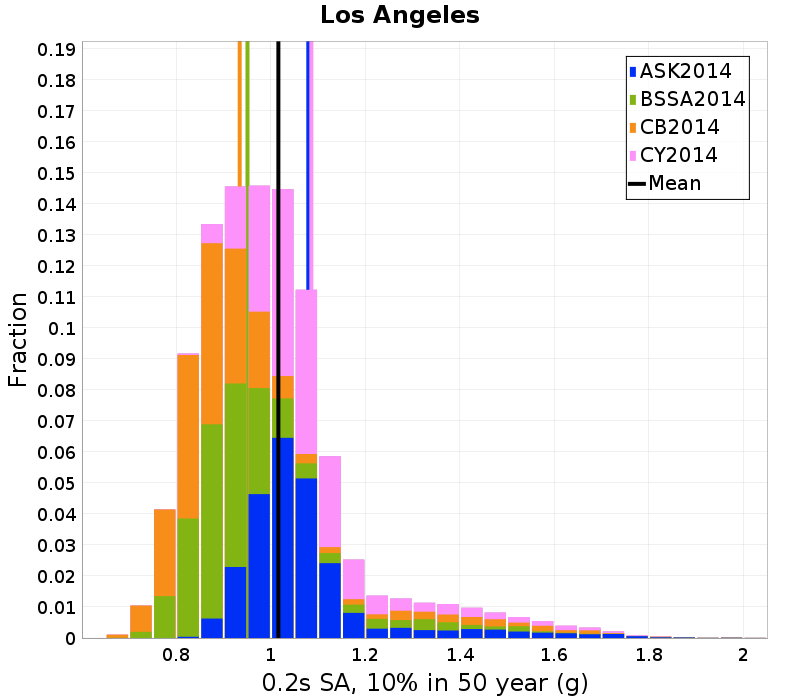

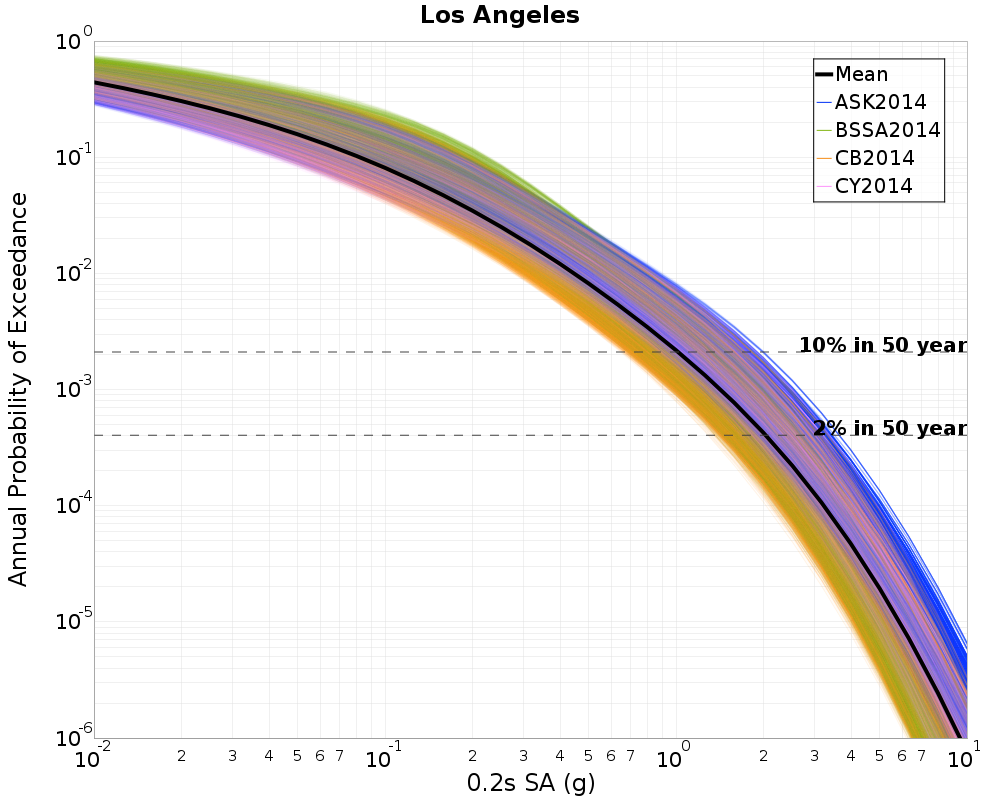

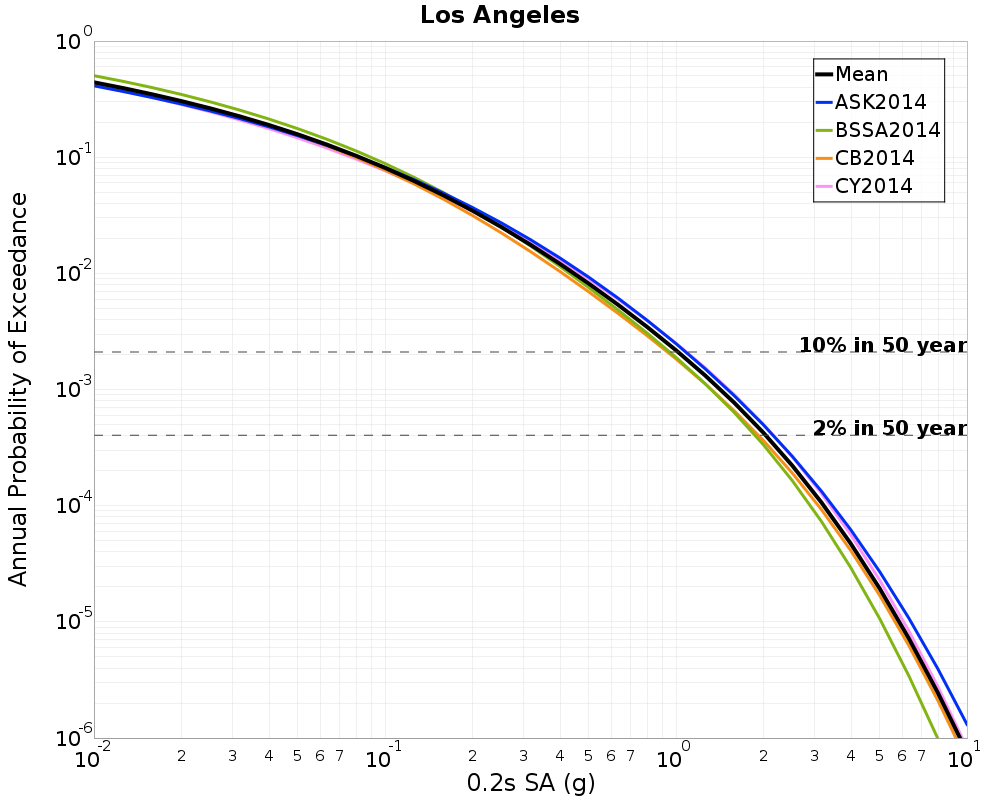

Los Angeles, 0.2s SA, NGA-W2 GMM Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 2.0318596 (g) | 1.0156909 (g) |
| ASK2014 | 2.1531231 (g) | 1.0790282 (g) |
| BSSA2014 | 1.8656847 (g) | 0.9502993 (g) |
| CB2014 | 1.9167799 (g) | 0.9338026 (g) |
| CY2014 | 2.1582346 (g) | 1.085471 (g) |
Los Angeles, 1.0s SA

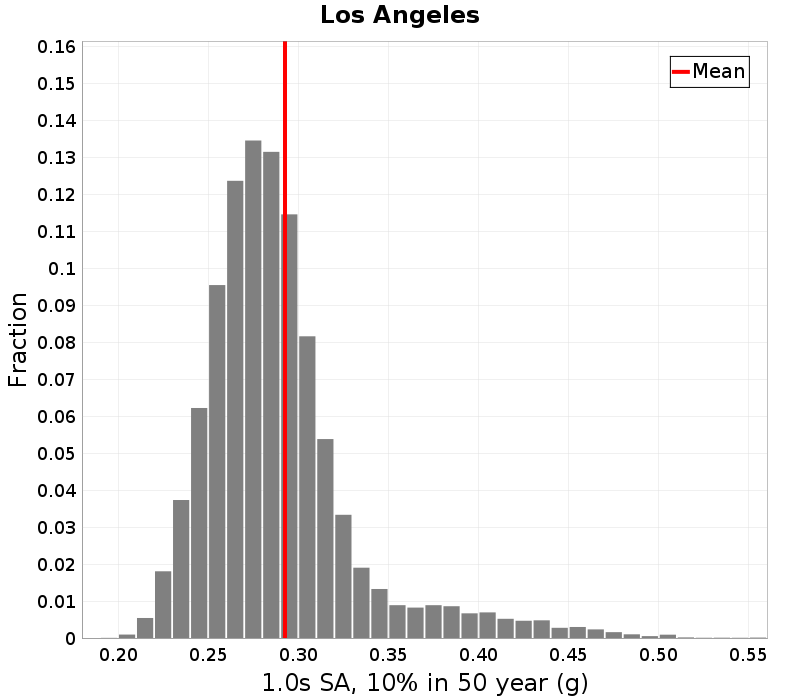

Los Angeles, 1.0s SA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
| 2% in 50 year | 10% in 50 year |
|---|---|
| 0.63131654 (g) | 0.29261544 (g) |

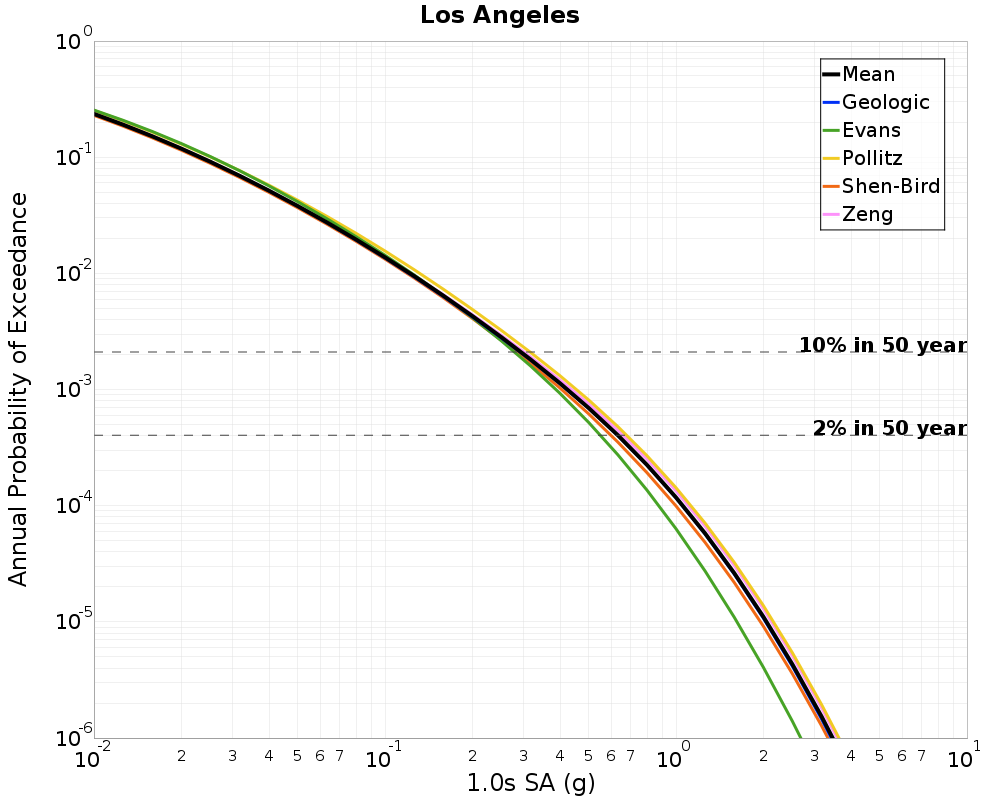

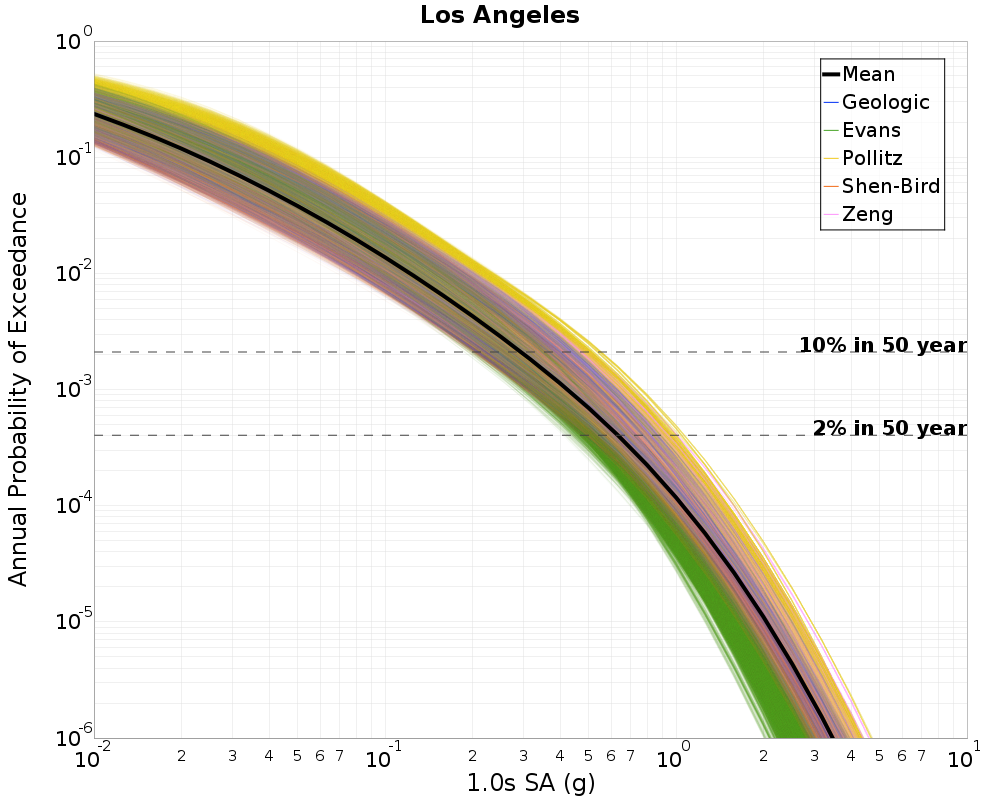

Los Angeles, 1.0s SA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.63131654 (g) | 0.29261544 (g) |
| Geologic | 0.63022965 (g) | 0.29069415 (g) |
| Evans | 0.5489512 (g) | 0.27812907 (g) |
| Pollitz | 0.67579424 (g) | 0.31487882 (g) |
| Shen-Bird | 0.59681386 (g) | 0.28247318 (g) |
| Zeng | 0.6570941 (g) | 0.29994464 (g) |

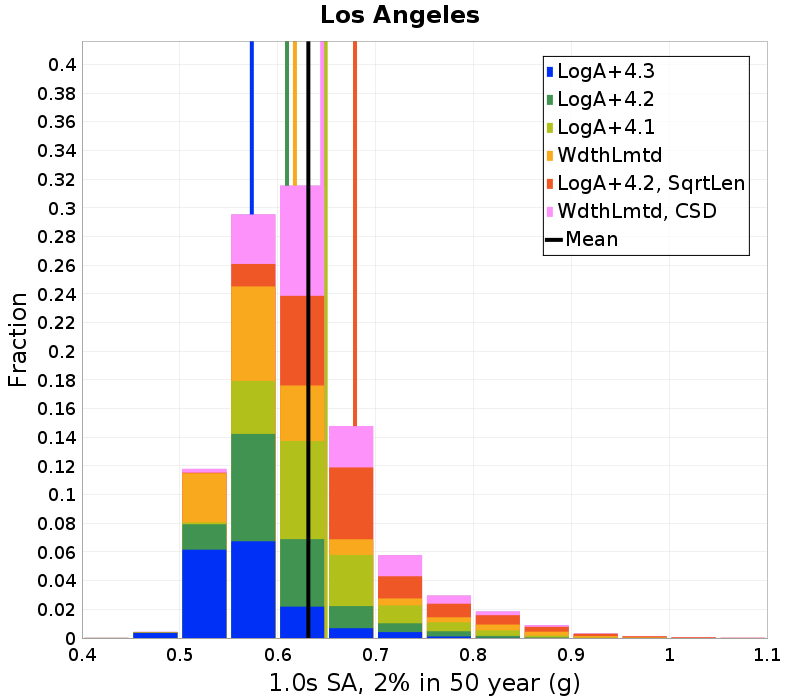

Los Angeles, 1.0s SA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.63131654 (g) | 0.29261544 (g) |
| LogA+4.3 | 0.57354486 (g) | 0.26459023 (g) |
| LogA+4.2 | 0.60950667 (g) | 0.28245544 (g) |
| LogA+4.1 | 0.6489972 (g) | 0.30450517 (g) |
| WdthLmtd | 0.6175926 (g) | 0.28595003 (g) |
| LogA+4.2, SqrtLen | 0.6789919 (g) | 0.3174121 (g) |
| WdthLmtd, CSD | 0.6454623 (g) | 0.29947454 (g) |

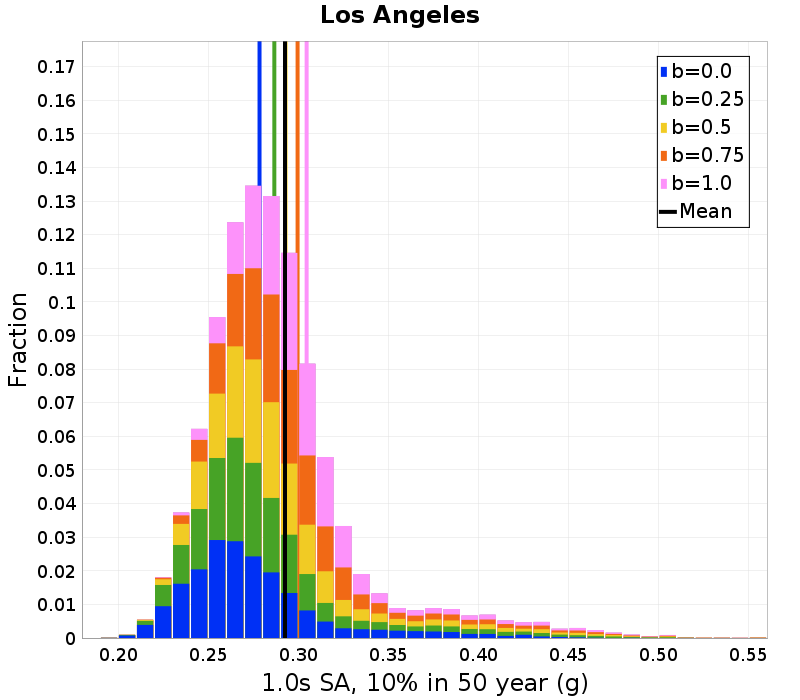

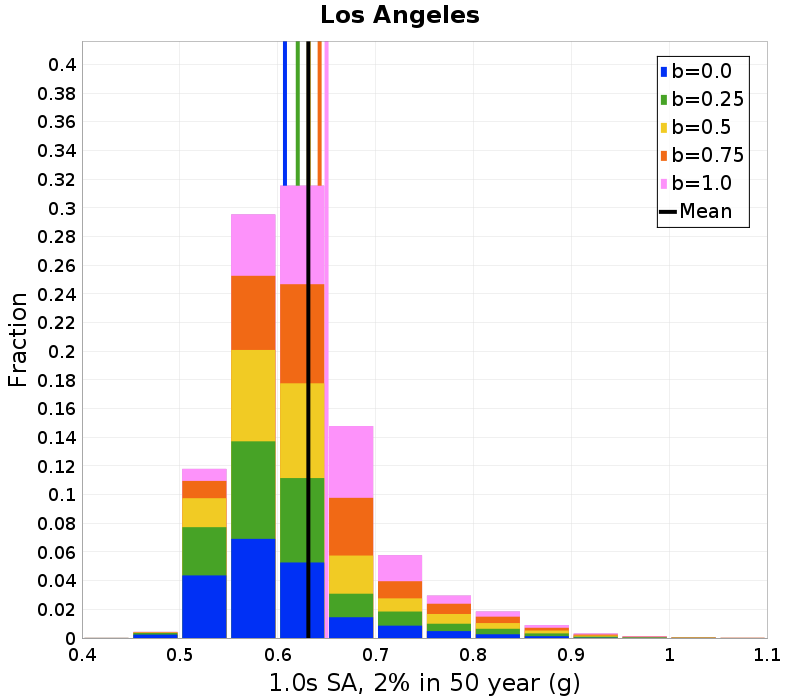

Los Angeles, 1.0s SA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.63131654 (g) | 0.29261544 (g) |
| b=0.0 | 0.60740805 (g) | 0.2784817 (g) |
| b=0.25 | 0.62049073 (g) | 0.28669438 (g) |
| b=0.5 | 0.6316833 (g) | 0.29292157 (g) |
| b=0.75 | 0.6428322 (g) | 0.29959306 (g) |
| b=1.0 | 0.64991504 (g) | 0.3046148 (g) |

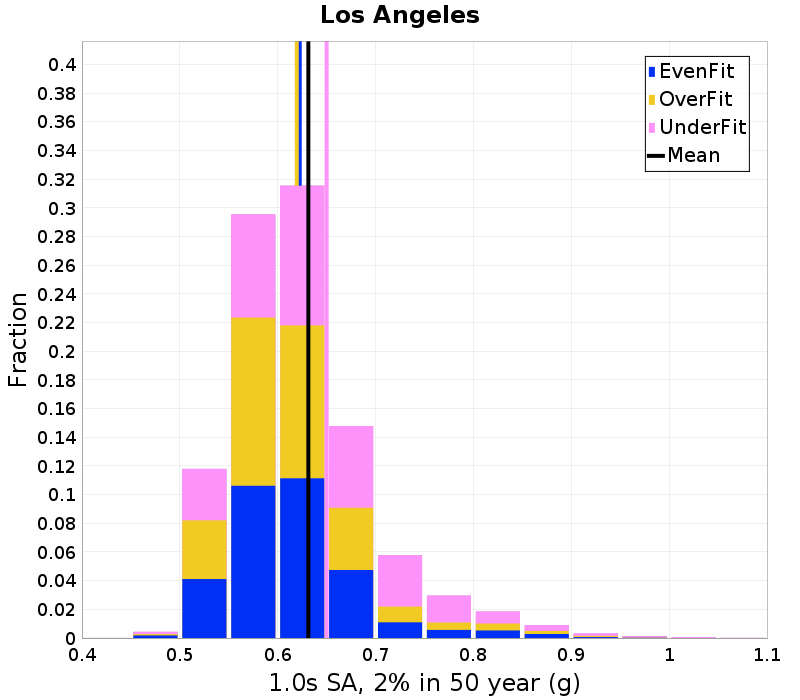

Los Angeles, 1.0s SA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.63131654 (g) | 0.29261544 (g) |
| EvenFit | 0.622489 (g) | 0.28983247 (g) |
| OverFit | 0.6194992 (g) | 0.28824148 (g) |
| UnderFit | 0.6499823 (g) | 0.2998693 (g) |
Los Angeles, 1.0s SA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.63131654 (g) | 0.29261544 (g) |
| None | 0.6061807 (g) | 0.27763864 (g) |
| LowSeg | 0.6118787 (g) | 0.2801018 (g) |
| MidSeg | 0.61083335 (g) | 0.27913114 (g) |
| HighSeg | 0.6146099 (g) | 0.2798233 (g) |
| Classic | 0.75508094 (g) | 0.38553345 (g) |
Los Angeles, 1.0s SA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.63131654 (g) | 0.29261544 (g) |
| PrefSeis | 0.6309472 (g) | 0.2922271 (g) |
| LowSeis | 0.6233099 (g) | 0.28422394 (g) |
| HighSeis | 0.6404031 (g) | 0.3025874 (g) |

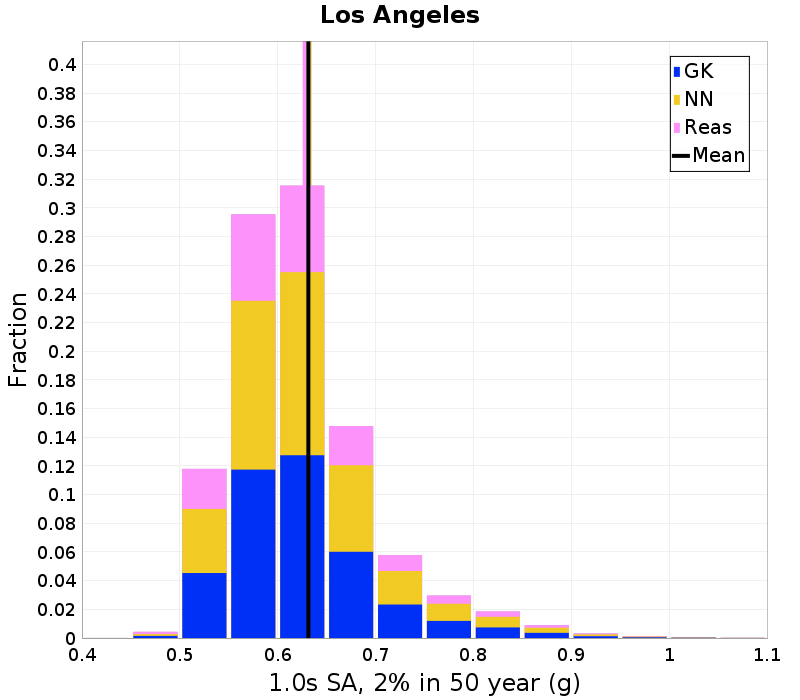

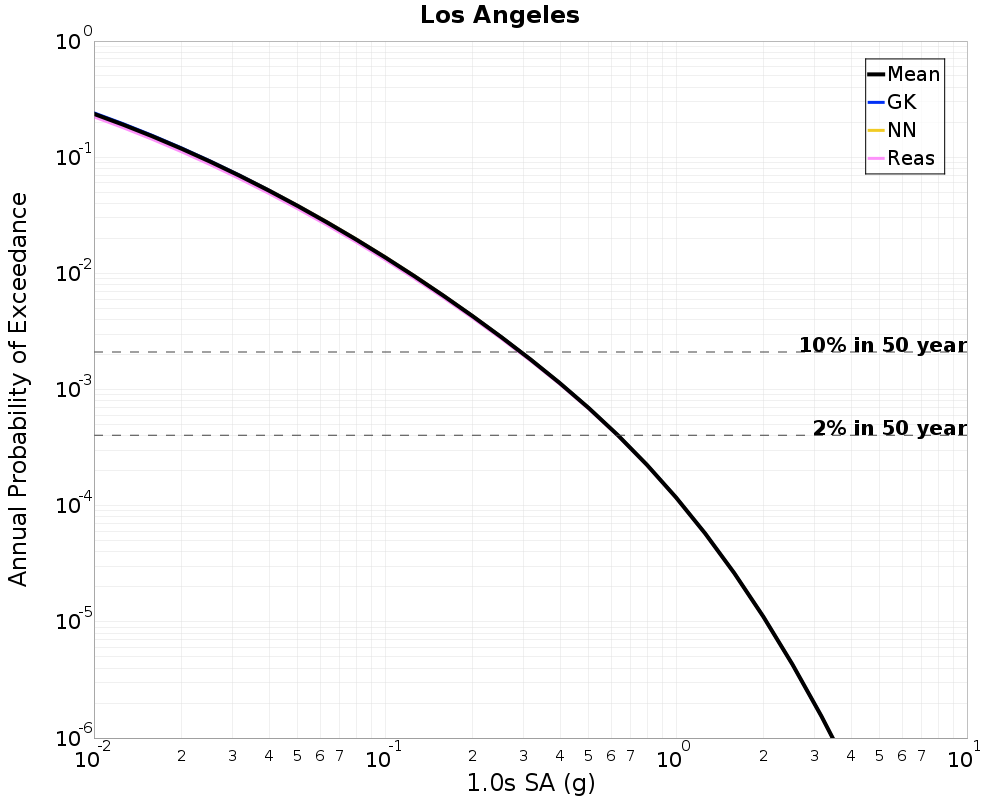

Los Angeles, 1.0s SA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.63131654 (g) | 0.29261544 (g) |
| GK | 0.6320921 (g) | 0.2934207 (g) |
| NN | 0.63228244 (g) | 0.29392534 (g) |
| Reas | 0.6274934 (g) | 0.28829113 (g) |

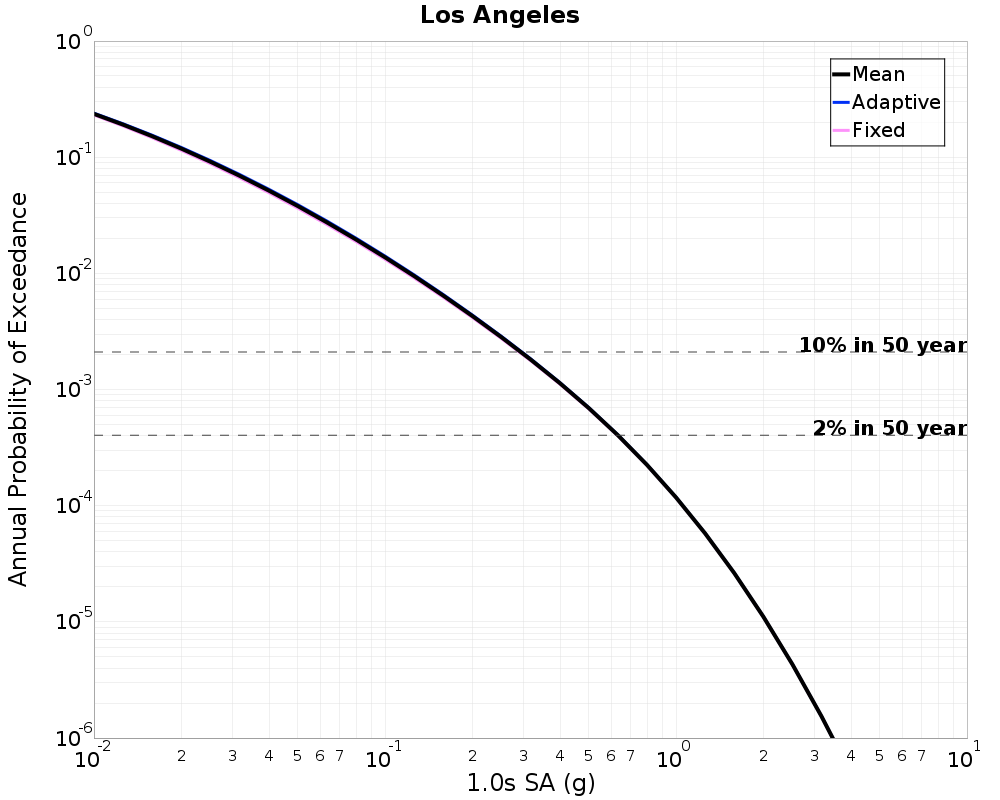

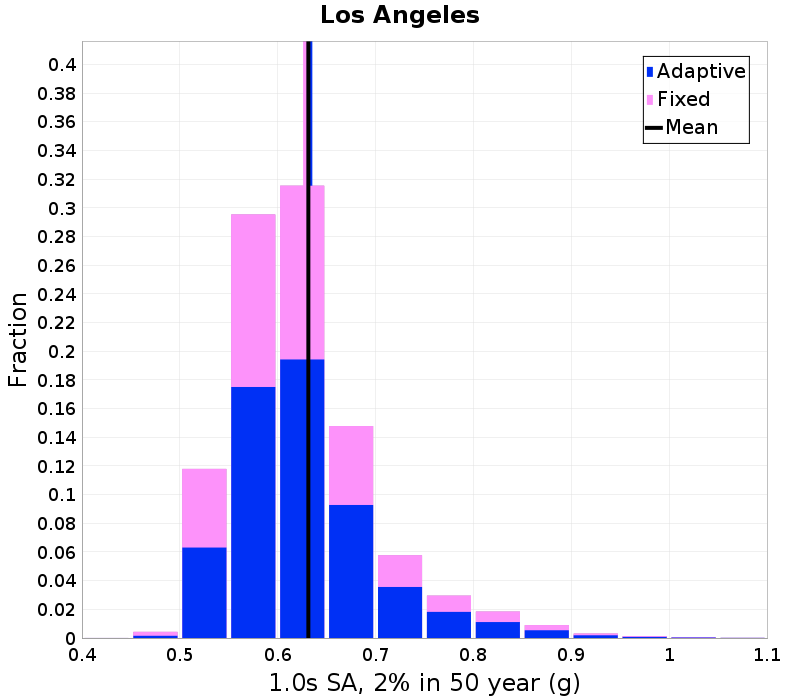

Los Angeles, 1.0s SA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.63131654 (g) | 0.29261544 (g) |
| Adaptive | 0.633346 (g) | 0.29502603 (g) |
| Fixed | 0.62797374 (g) | 0.28891292 (g) |

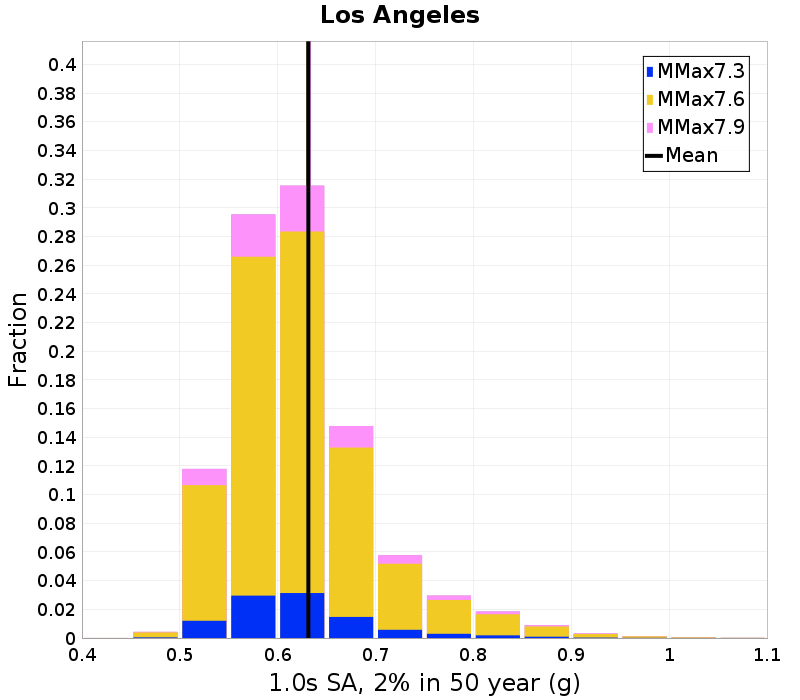

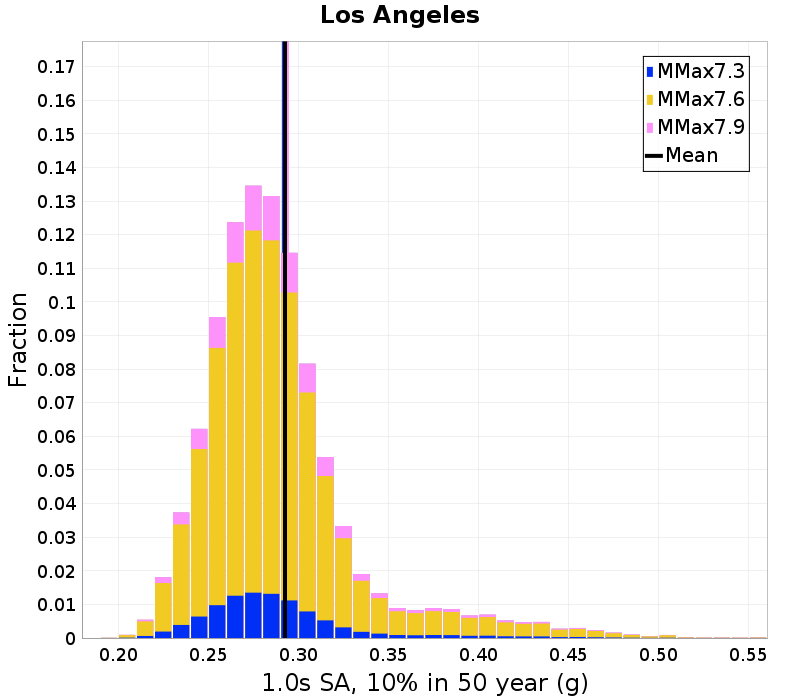

Los Angeles, 1.0s SA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.63131654 (g) | 0.29261544 (g) |
| MMax7.3 | 0.63099694 (g) | 0.29197222 (g) |
| MMax7.6 | 0.6312778 (g) | 0.29256183 (g) |
| MMax7.9 | 0.63194454 (g) | 0.29367915 (g) |

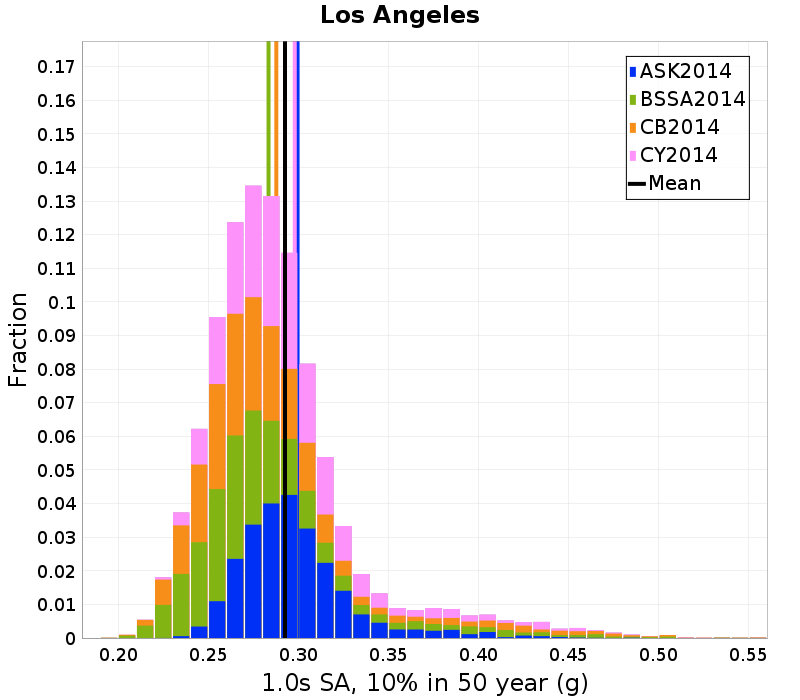

Los Angeles, 1.0s SA, NGA-W2 GMM Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.63131654 (g) | 0.29261544 (g) |
| ASK2014 | 0.5955562 (g) | 0.29958853 (g) |
| BSSA2014 | 0.64531773 (g) | 0.28348327 (g) |
| CB2014 | 0.64043415 (g) | 0.28778863 (g) |
| CY2014 | 0.6438593 (g) | 0.298022 (g) |
Salt Lake City
Salt Lake City, PGA

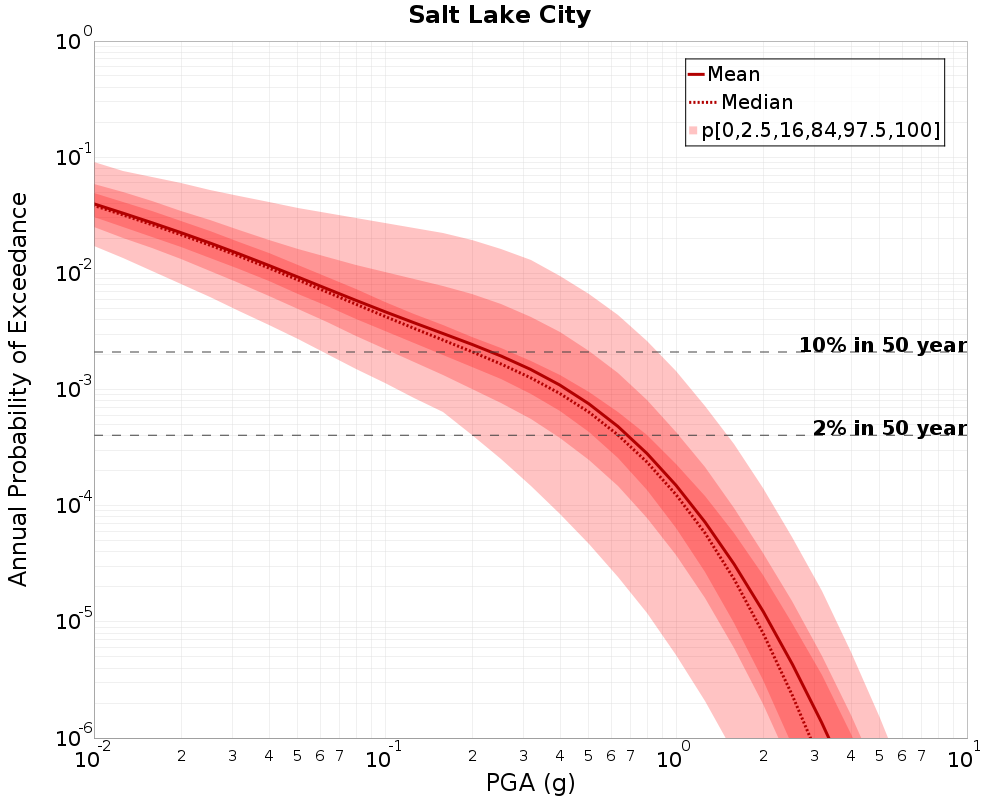

Salt Lake City, PGA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
| 2% in 50 year | 10% in 50 year |
|---|---|
| 0.6804813 (g) | 0.23108596 (g) |
Salt Lake City, PGA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6804813 (g) | 0.23108596 (g) |
| Geologic | 0.6781739 (g) | 0.22407372 (g) |
| Evans | 0.3694691 (g) | 0.14665397 (g) |
| Pollitz | 0.8337845 (g) | 0.34932855 (g) |
| Shen-Bird | 0.6796432 (g) | 0.22812343 (g) |
| Zeng | 0.6494618 (g) | 0.2163272 (g) |
Salt Lake City, PGA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6804813 (g) | 0.23108596 (g) |
| LogA+4.3 | 0.6201247 (g) | 0.19616207 (g) |
| LogA+4.2 | 0.652796 (g) | 0.21111946 (g) |
| LogA+4.1 | 0.69980747 (g) | 0.24302073 (g) |
| WdthLmtd | 0.6946966 (g) | 0.24768712 (g) |
| LogA+4.2, SqrtLen | 0.7120587 (g) | 0.24627978 (g) |
| WdthLmtd, CSD | 0.69514257 (g) | 0.247039 (g) |

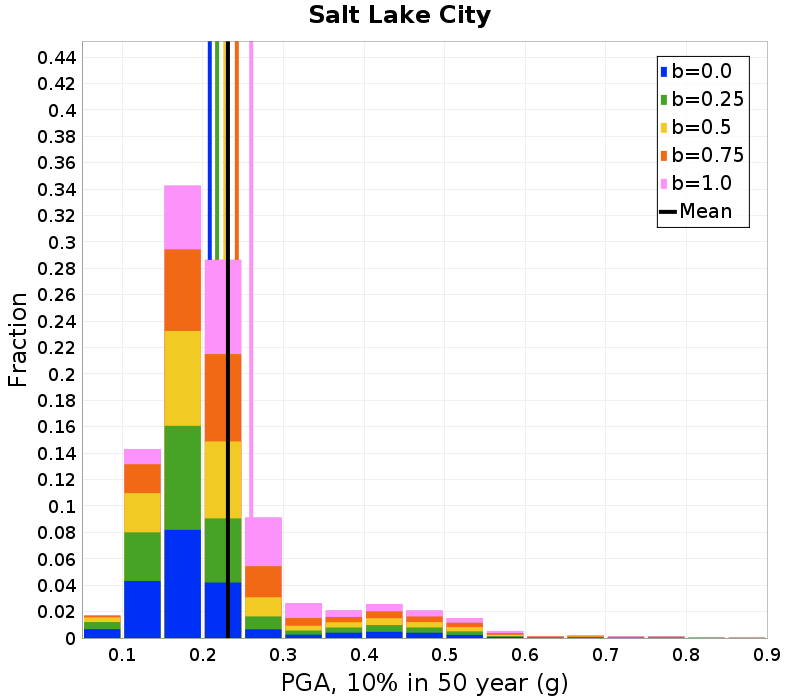

Salt Lake City, PGA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6804813 (g) | 0.23108596 (g) |
| b=0.0 | 0.65061355 (g) | 0.20856829 (g) |
| b=0.25 | 0.6624157 (g) | 0.21763295 (g) |
| b=0.5 | 0.67611724 (g) | 0.22774379 (g) |
| b=0.75 | 0.69431984 (g) | 0.24211769 (g) |
| b=1.0 | 0.7155615 (g) | 0.2599734 (g) |

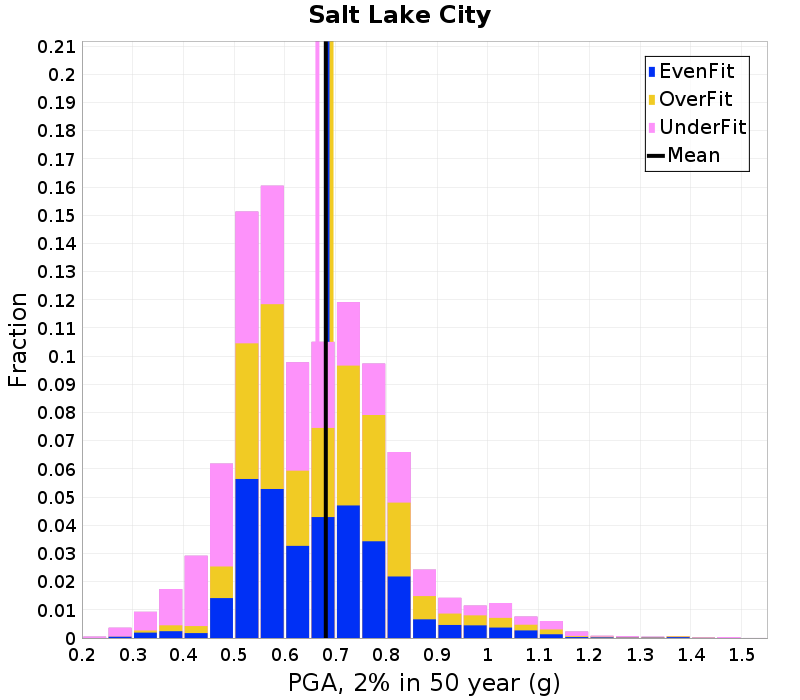

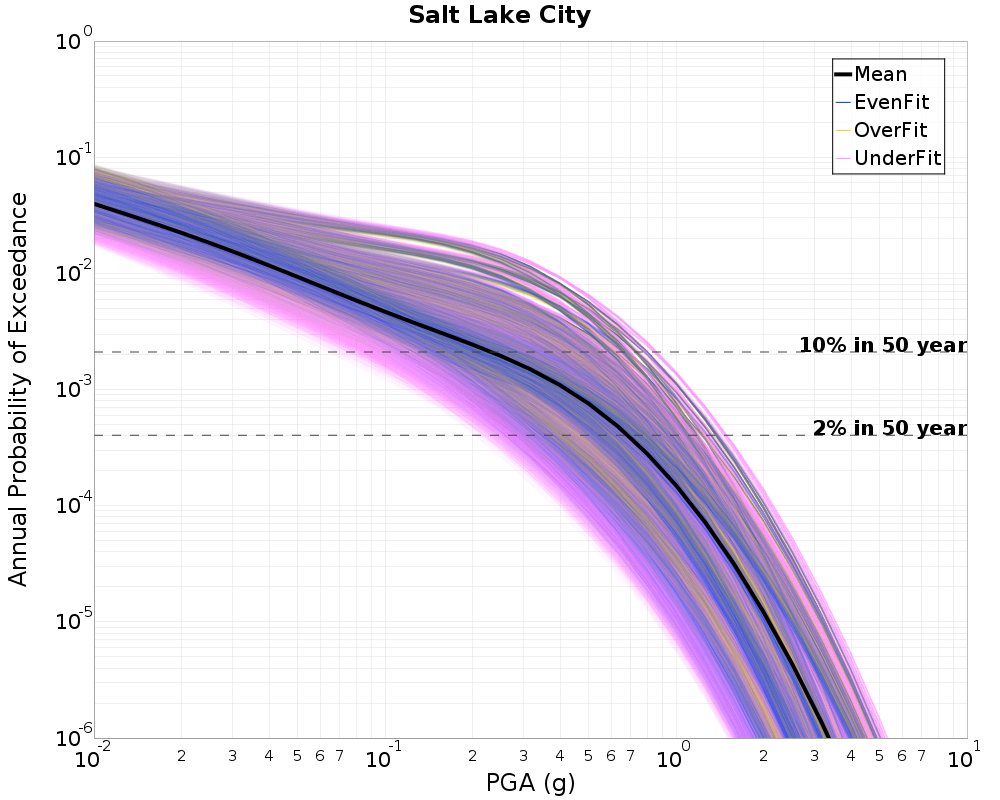

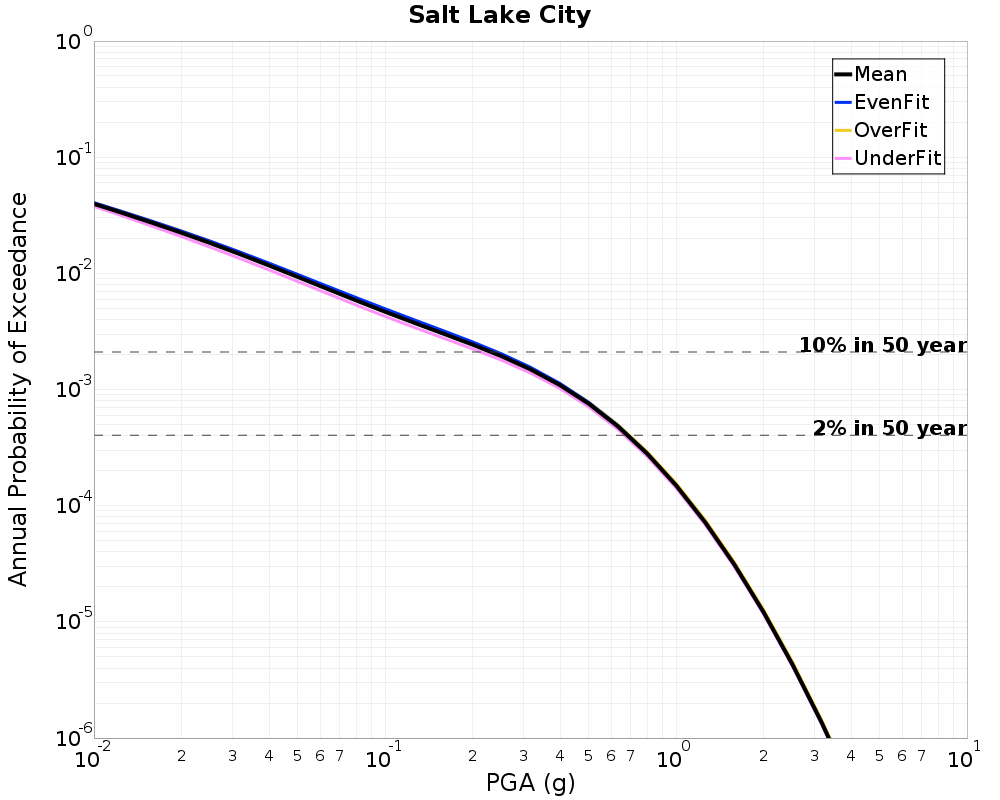

Salt Lake City, PGA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6804813 (g) | 0.23108596 (g) |
| EvenFit | 0.6852435 (g) | 0.24264565 (g) |
| OverFit | 0.69174516 (g) | 0.23711257 (g) |
| UnderFit | 0.663943 (g) | 0.21279524 (g) |

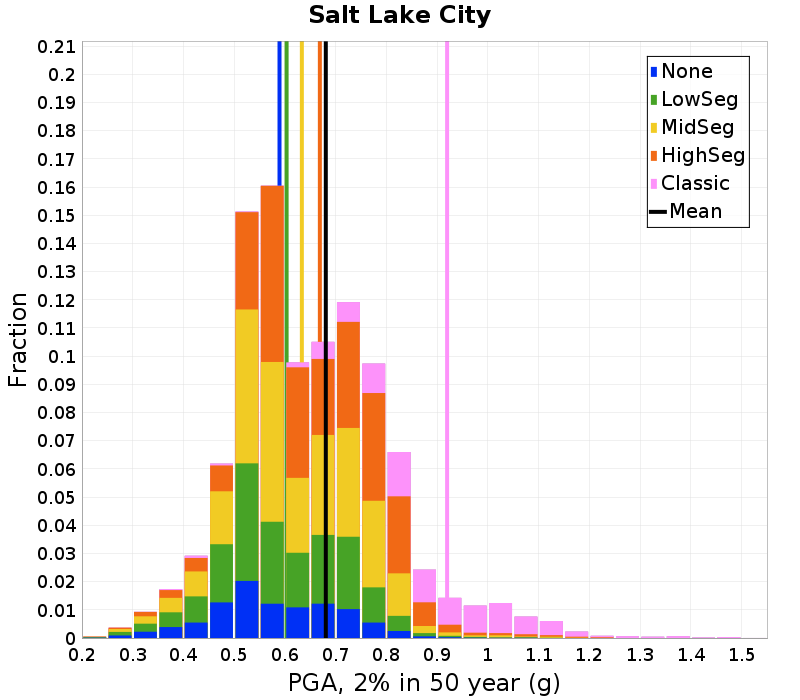

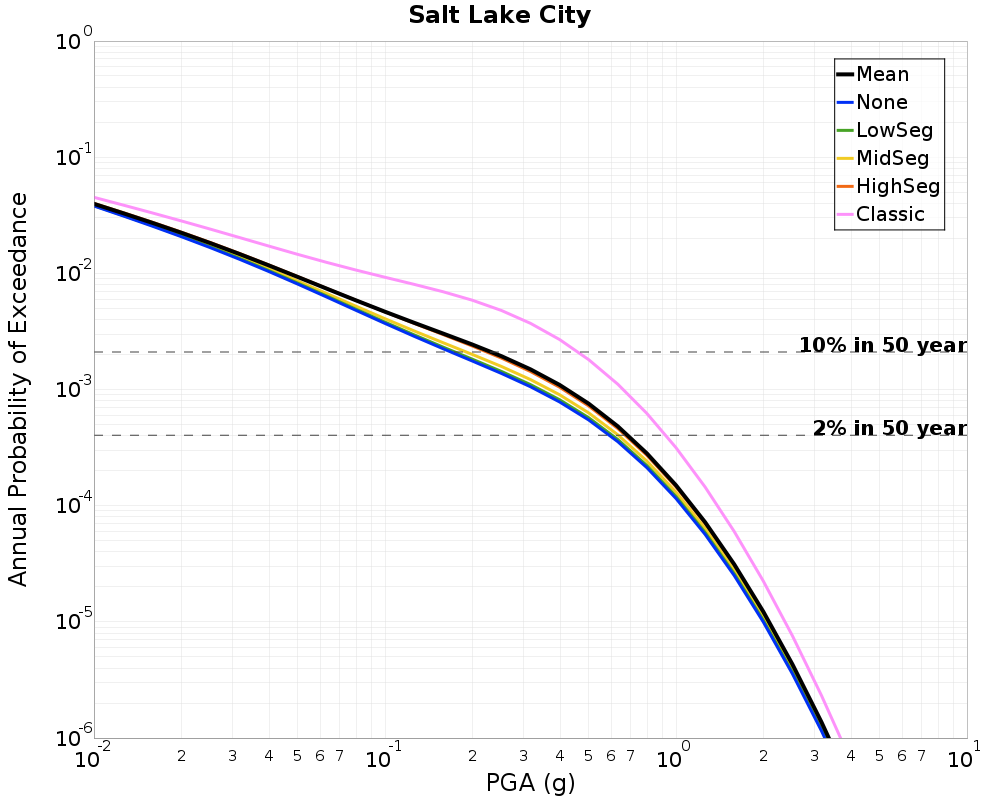

Salt Lake City, PGA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6804813 (g) | 0.23108596 (g) |
| None | 0.5892399 (g) | 0.1682363 (g) |
| LowSeg | 0.6032351 (g) | 0.17375217 (g) |
| MidSeg | 0.63327974 (g) | 0.18996322 (g) |
| HighSeg | 0.66875976 (g) | 0.22352149 (g) |
| Classic | 0.9195606 (g) | 0.45882276 (g) |

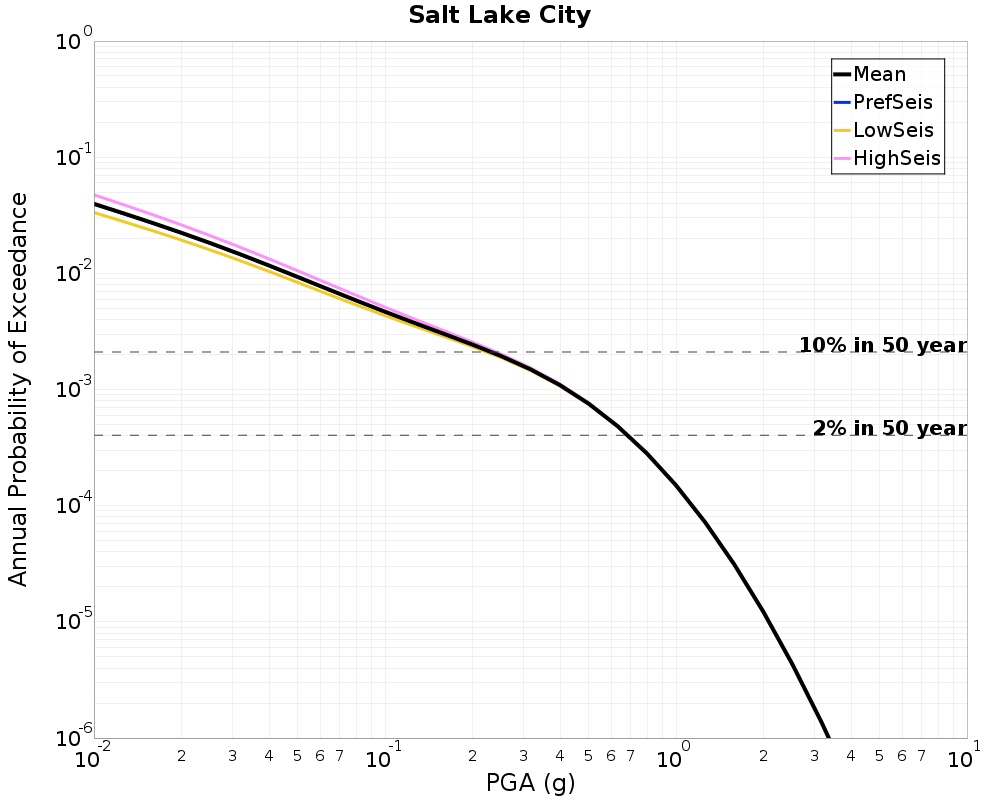

Salt Lake City, PGA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6804813 (g) | 0.23108596 (g) |
| PrefSeis | 0.68036085 (g) | 0.23071226 (g) |
| LowSeis | 0.6780393 (g) | 0.22282079 (g) |
| HighSeis | 0.68356466 (g) | 0.24063317 (g) |

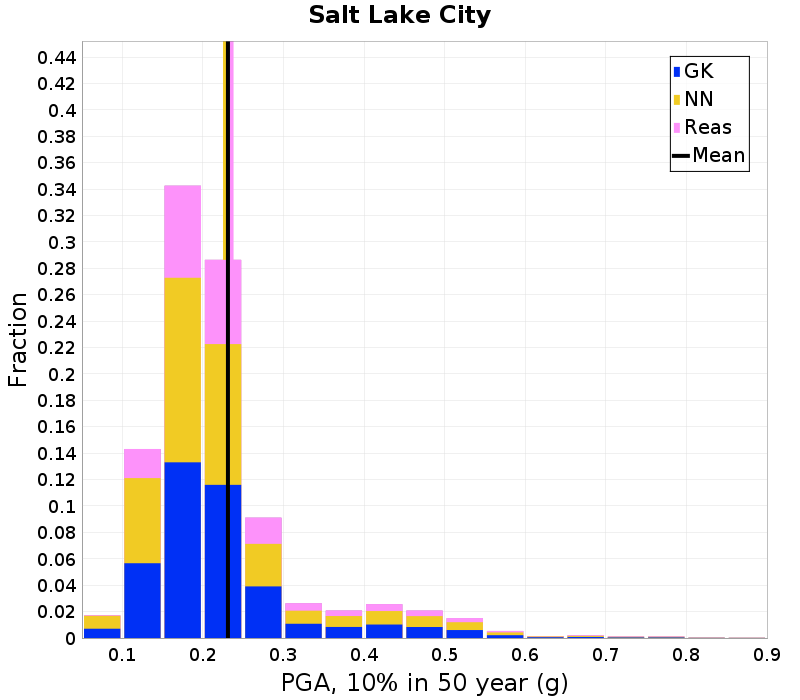

Salt Lake City, PGA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6804813 (g) | 0.23108596 (g) |
| GK | 0.68077624 (g) | 0.2323224 (g) |
| NN | 0.67945915 (g) | 0.22747405 (g) |
| Reas | 0.68192333 (g) | 0.23557614 (g) |

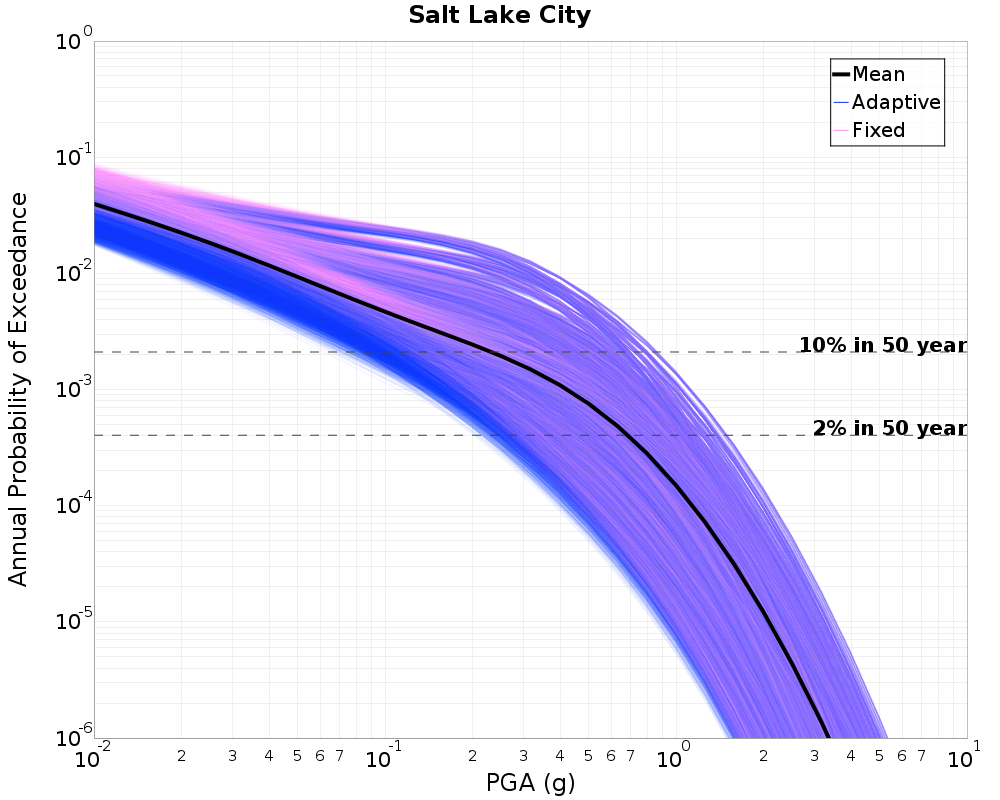

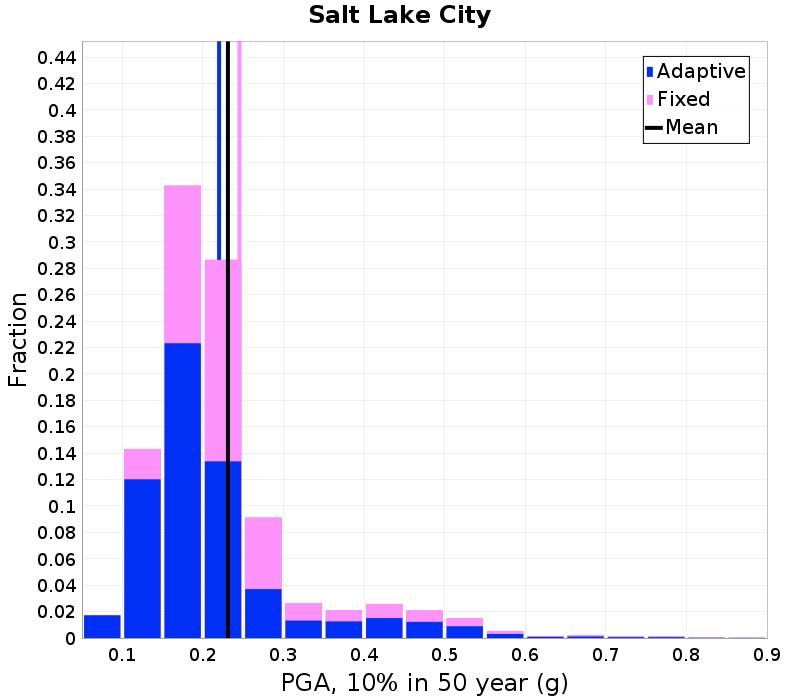

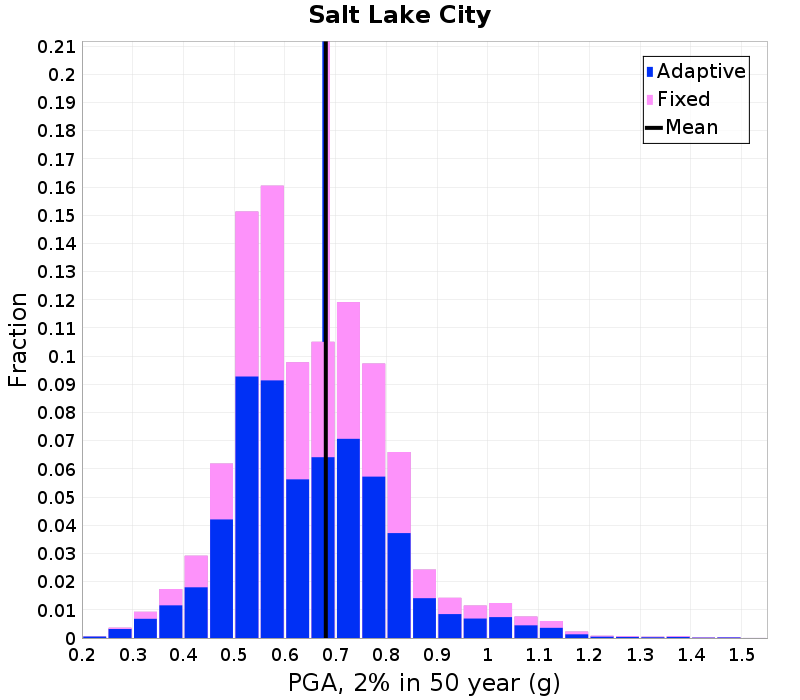

Salt Lake City, PGA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6804813 (g) | 0.23108596 (g) |
| Adaptive | 0.6775218 (g) | 0.22011486 (g) |
| Fixed | 0.6848265 (g) | 0.24538942 (g) |

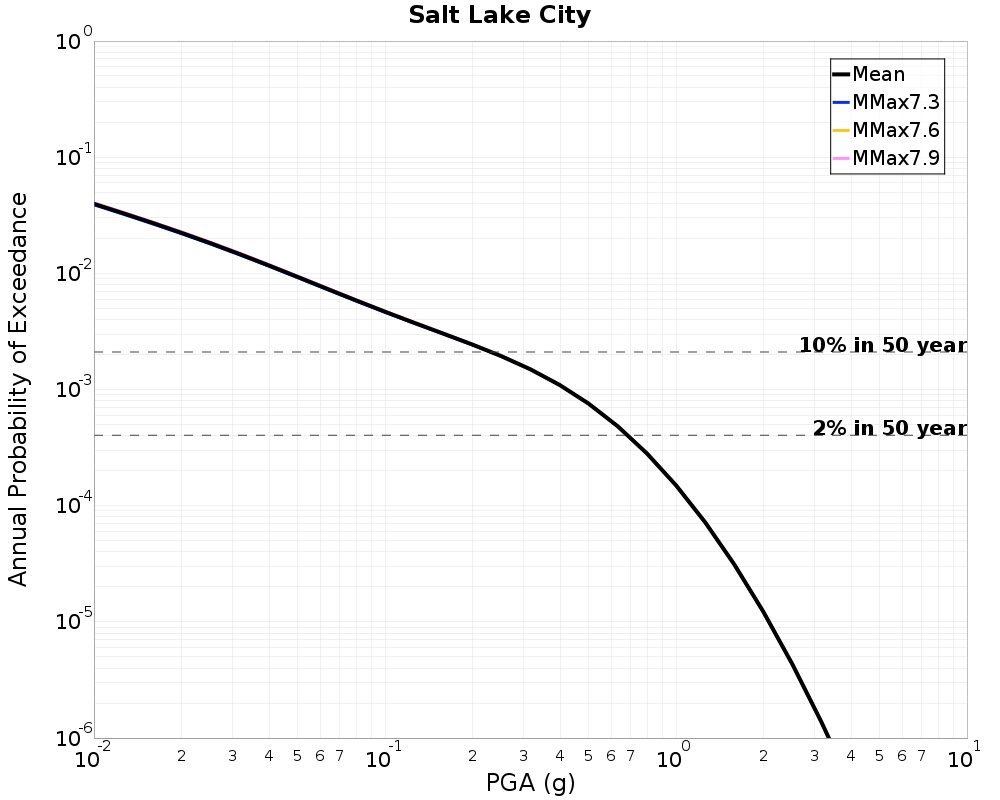

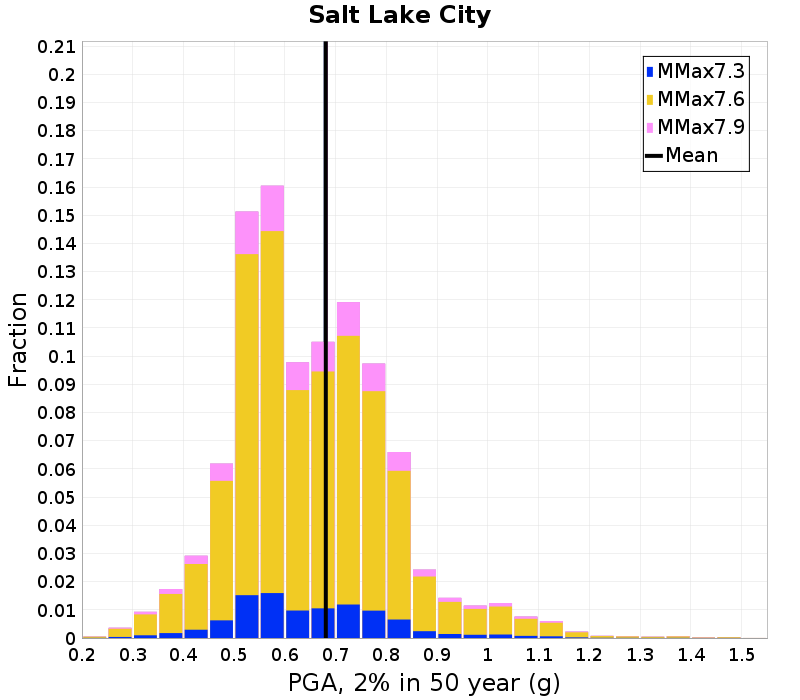

Salt Lake City, PGA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6804813 (g) | 0.23108596 (g) |
| MMax7.3 | 0.6801195 (g) | 0.22989473 (g) |
| MMax7.6 | 0.68047774 (g) | 0.23107018 (g) |
| MMax7.9 | 0.6808711 (g) | 0.23238717 (g) |

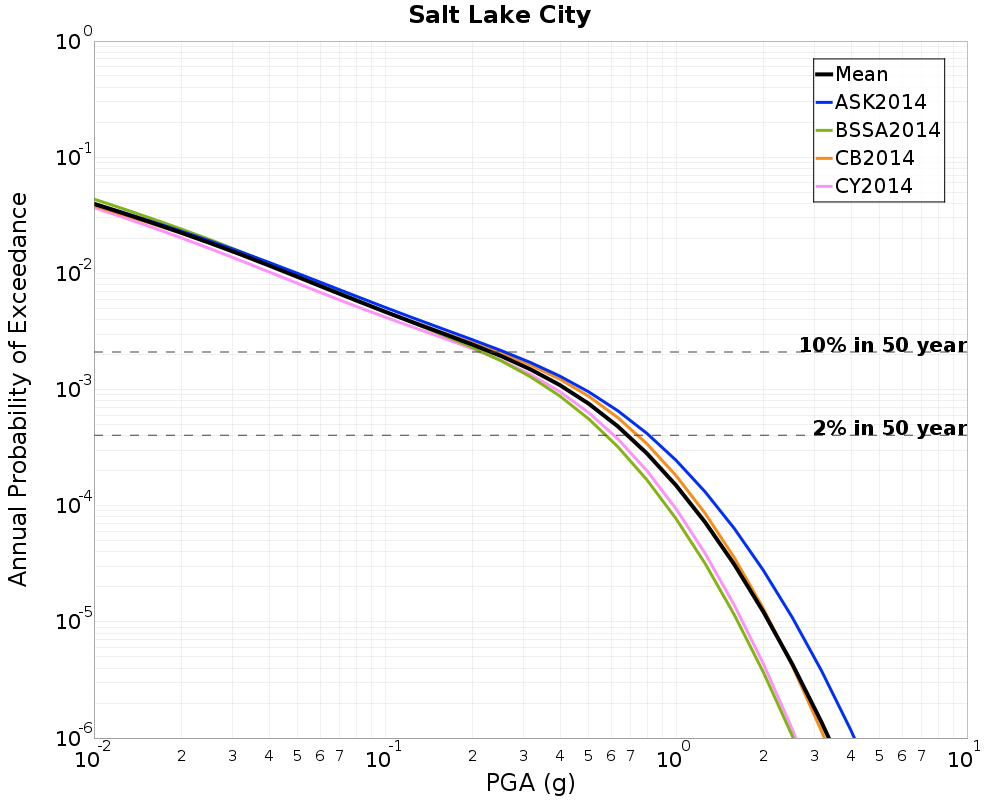

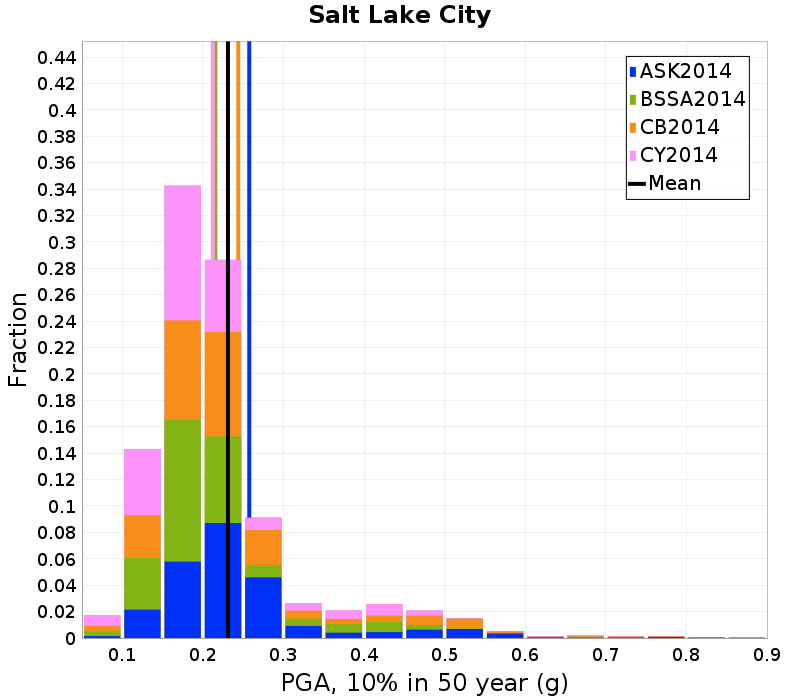

Salt Lake City, PGA, NGA-W2 GMM Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6804813 (g) | 0.23108596 (g) |
| ASK2014 | 0.8069952 (g) | 0.25755283 (g) |
| BSSA2014 | 0.5736657 (g) | 0.2154625 (g) |
| CB2014 | 0.73671585 (g) | 0.24394195 (g) |
| CY2014 | 0.6111694 (g) | 0.21249166 (g) |
Salt Lake City, 0.2s SA

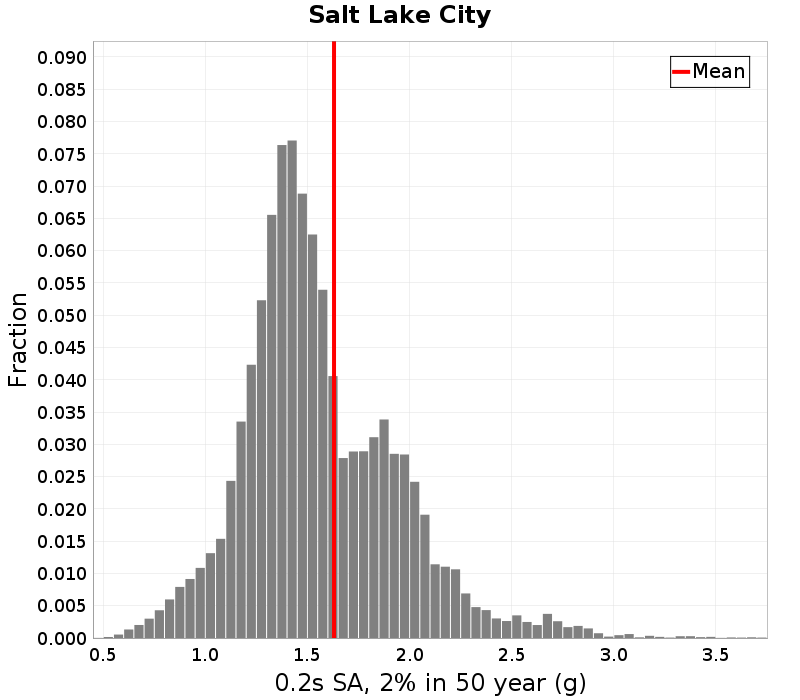

Salt Lake City, 0.2s SA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
| 2% in 50 year | 10% in 50 year |
|---|---|
| 1.6301072 (g) | 0.52873 (g) |

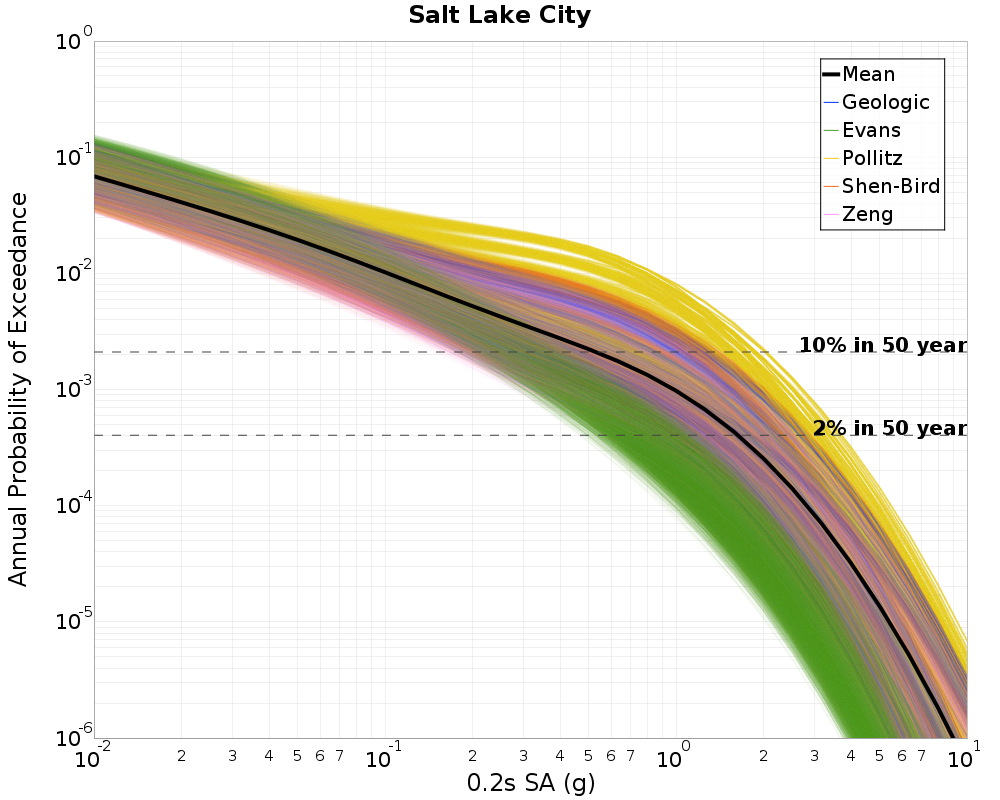

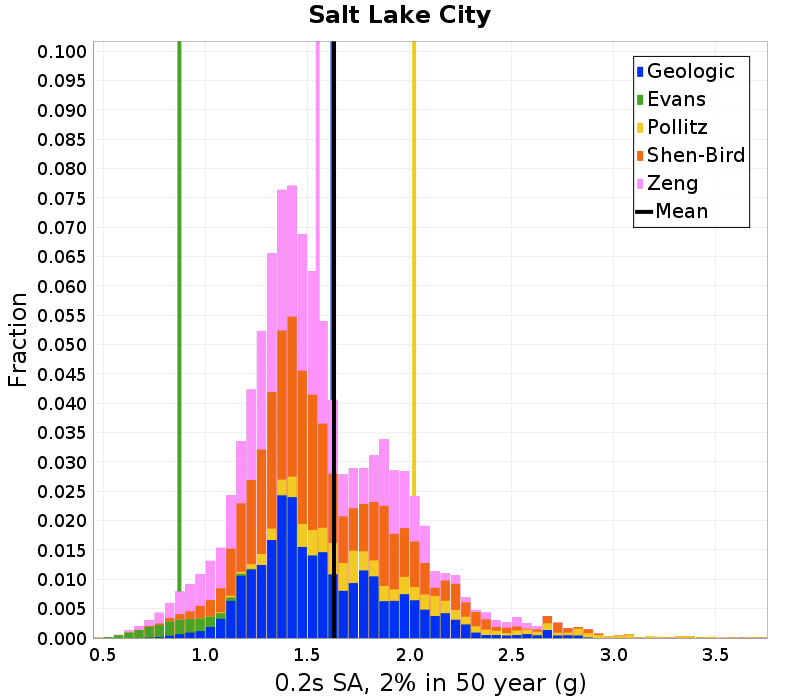

Salt Lake City, 0.2s SA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.6301072 (g) | 0.52873 (g) |
| Geologic | 1.6225327 (g) | 0.5128799 (g) |
| Evans | 0.87288415 (g) | 0.3346108 (g) |
| Pollitz | 2.0221608 (g) | 0.80819553 (g) |
| Shen-Bird | 1.6280453 (g) | 0.5213695 (g) |
| Zeng | 1.5503385 (g) | 0.49653164 (g) |

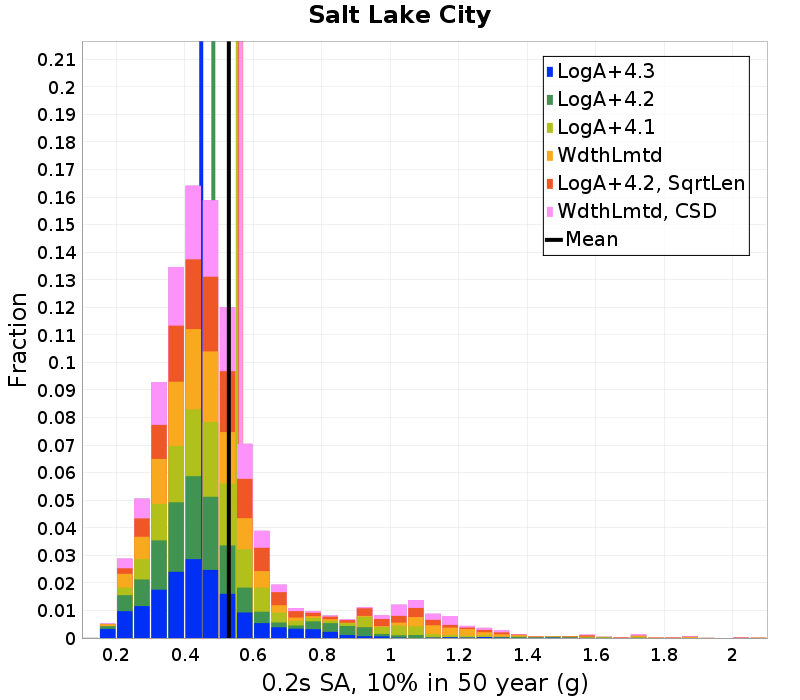

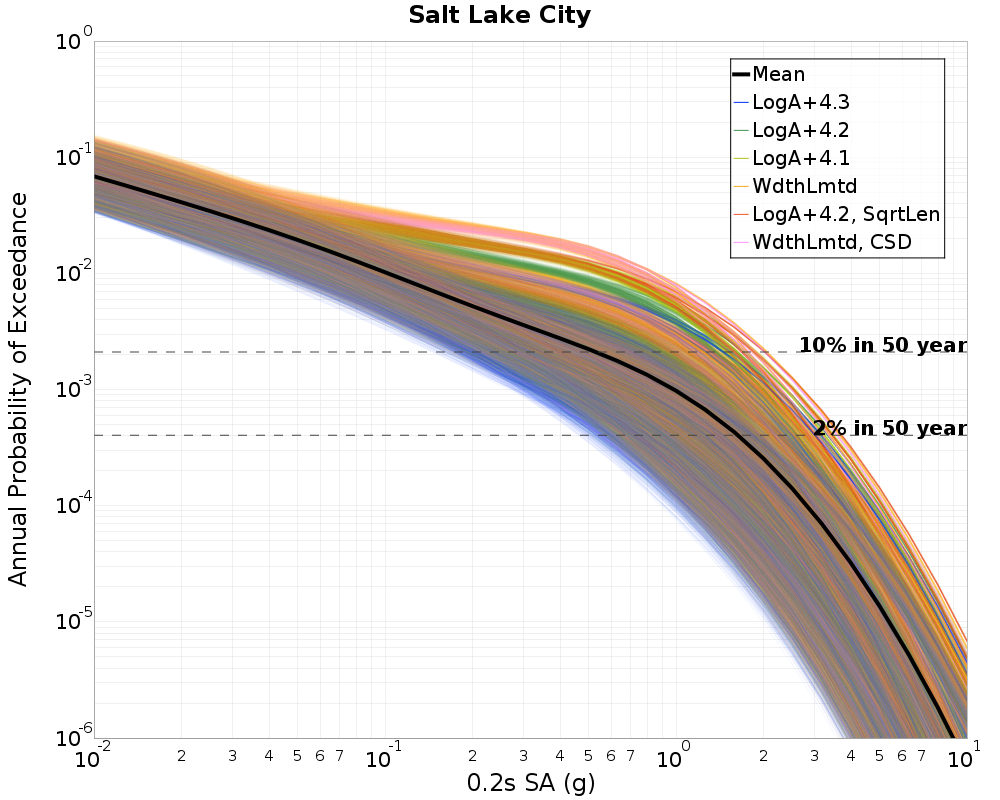

Salt Lake City, 0.2s SA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.6301072 (g) | 0.52873 (g) |
| LogA+4.3 | 1.4701092 (g) | 0.44812706 (g) |
| LogA+4.2 | 1.5576935 (g) | 0.48341557 (g) |
| LogA+4.1 | 1.677798 (g) | 0.55483353 (g) |
| WdthLmtd | 1.6659535 (g) | 0.56498724 (g) |
| LogA+4.2, SqrtLen | 1.7068486 (g) | 0.56170154 (g) |
| WdthLmtd, CSD | 1.6670792 (g) | 0.5634315 (g) |

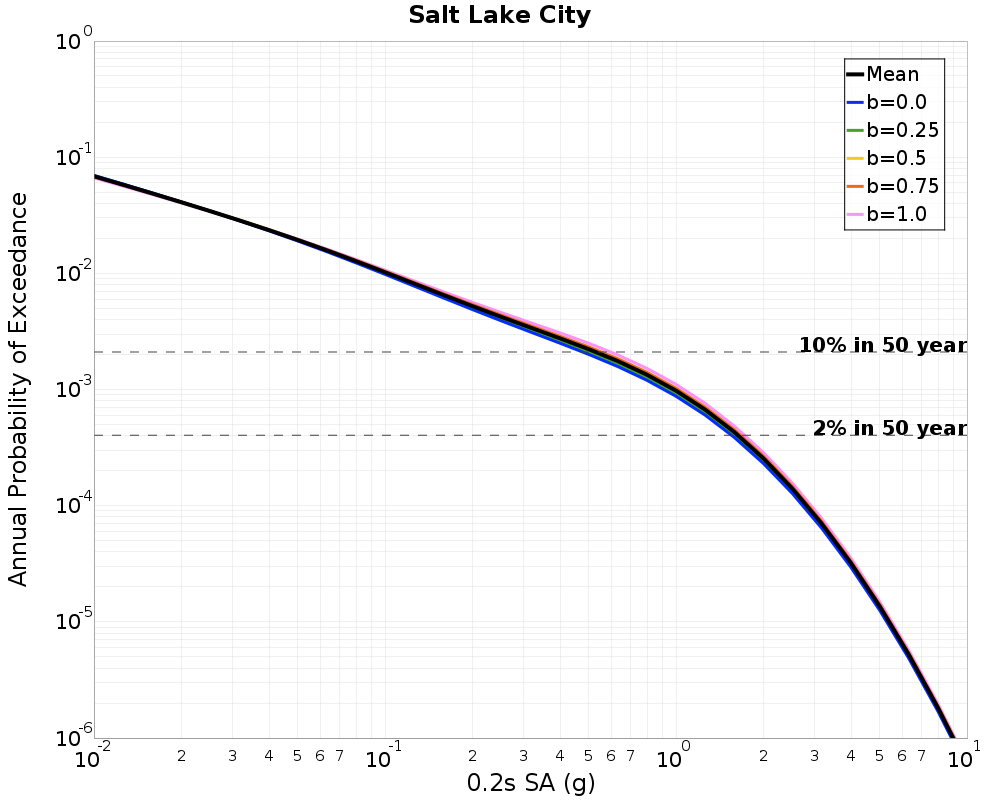

Salt Lake City, 0.2s SA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.6301072 (g) | 0.52873 (g) |
| b=0.0 | 1.5506867 (g) | 0.47688124 (g) |
| b=0.25 | 1.585093 (g) | 0.49866834 (g) |
| b=0.5 | 1.6192365 (g) | 0.5214518 (g) |
| b=0.75 | 1.6645956 (g) | 0.5531231 (g) |
| b=1.0 | 1.7177298 (g) | 0.59486765 (g) |

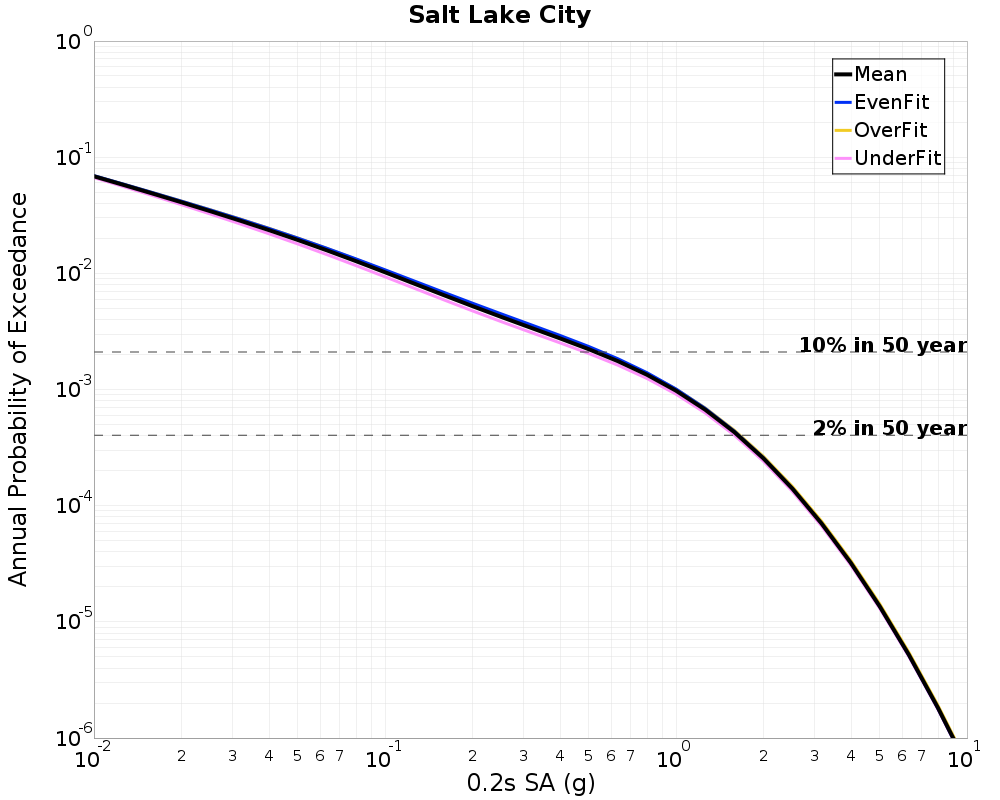

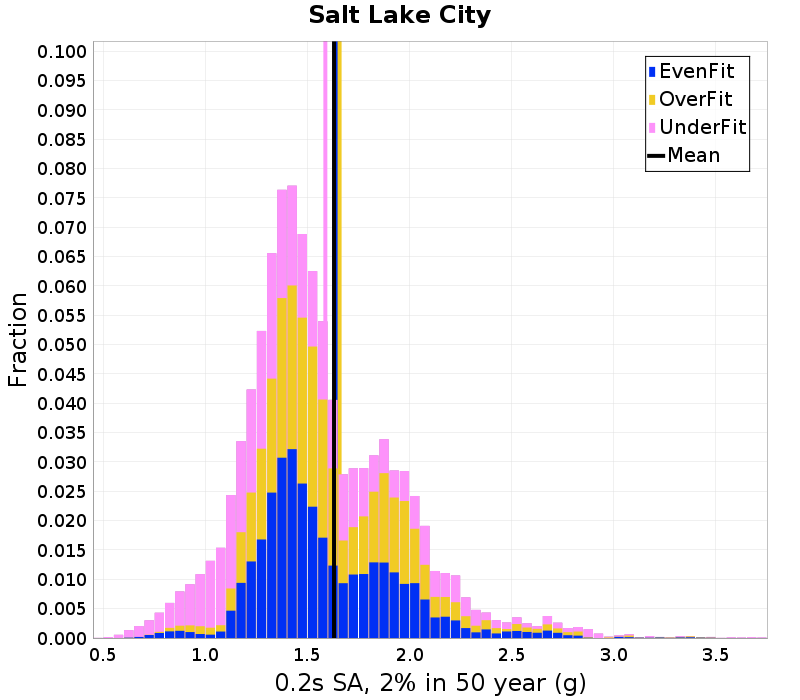

Salt Lake City, 0.2s SA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.6301072 (g) | 0.52873 (g) |
| EvenFit | 1.6439826 (g) | 0.5556878 (g) |
| OverFit | 1.6573553 (g) | 0.54245126 (g) |
| UnderFit | 1.5875971 (g) | 0.4851888 (g) |

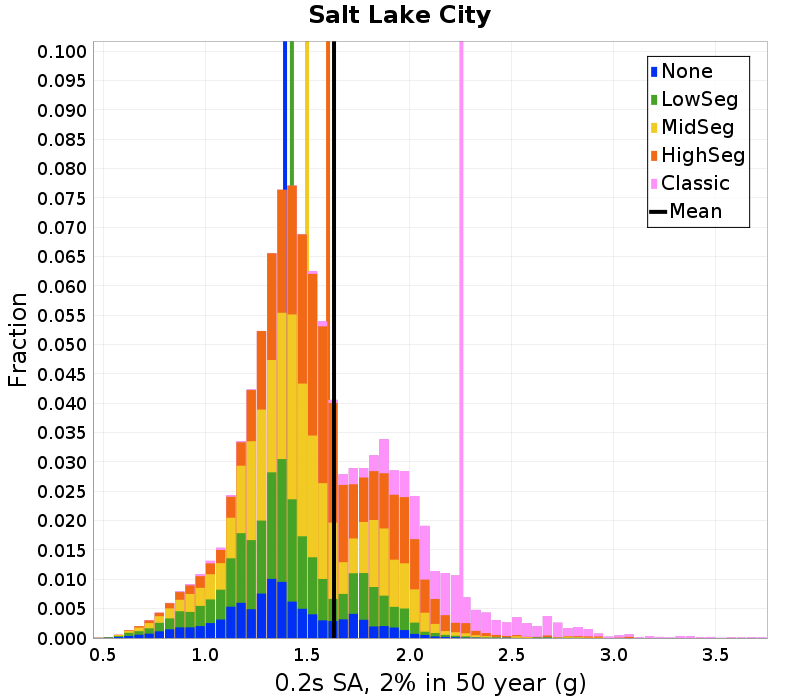

Salt Lake City, 0.2s SA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.6301072 (g) | 0.52873 (g) |
| None | 1.3903098 (g) | 0.38369137 (g) |
| LowSeg | 1.4239068 (g) | 0.39657664 (g) |
| MidSeg | 1.4978254 (g) | 0.433905 (g) |
| HighSeg | 1.6009212 (g) | 0.512997 (g) |
| Classic | 2.2536333 (g) | 1.0768427 (g) |
Salt Lake City, 0.2s SA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.6301072 (g) | 0.52873 (g) |
| PrefSeis | 1.6297735 (g) | 0.52786183 (g) |
| LowSeis | 1.6234031 (g) | 0.5095363 (g) |
| HighSeis | 1.6385863 (g) | 0.5511176 (g) |

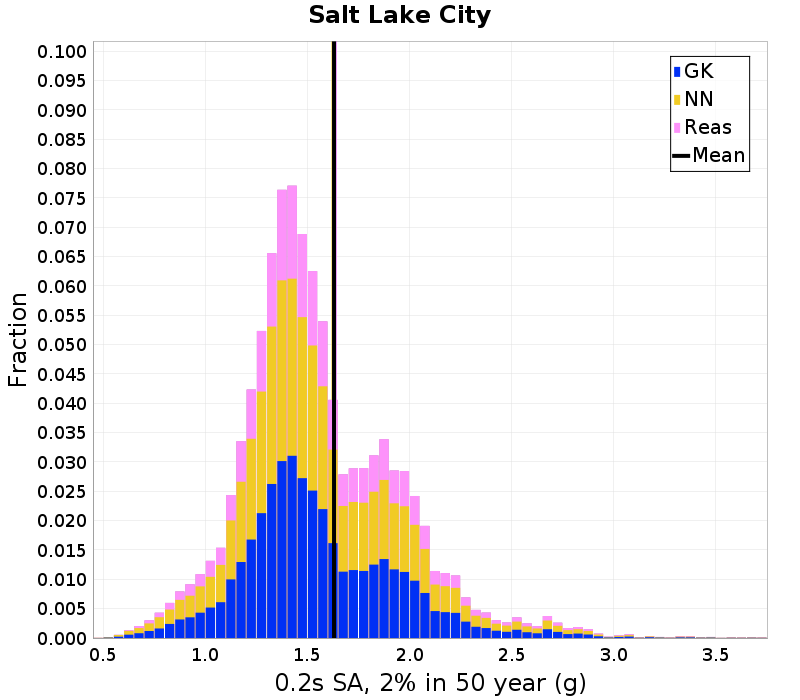

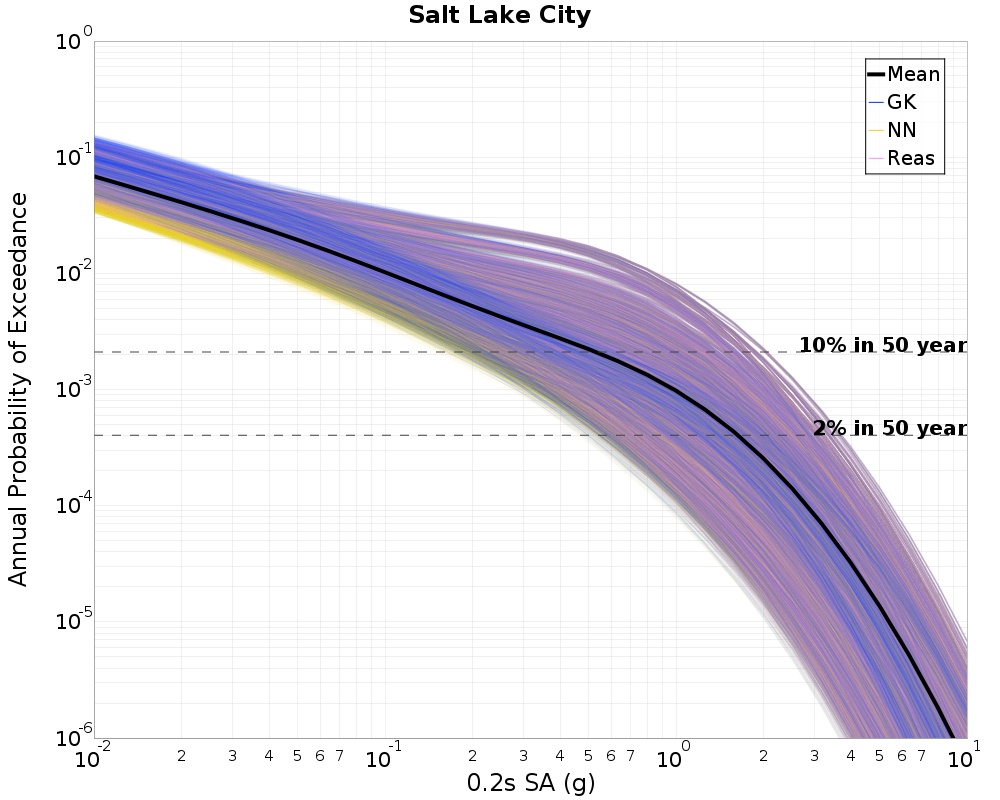

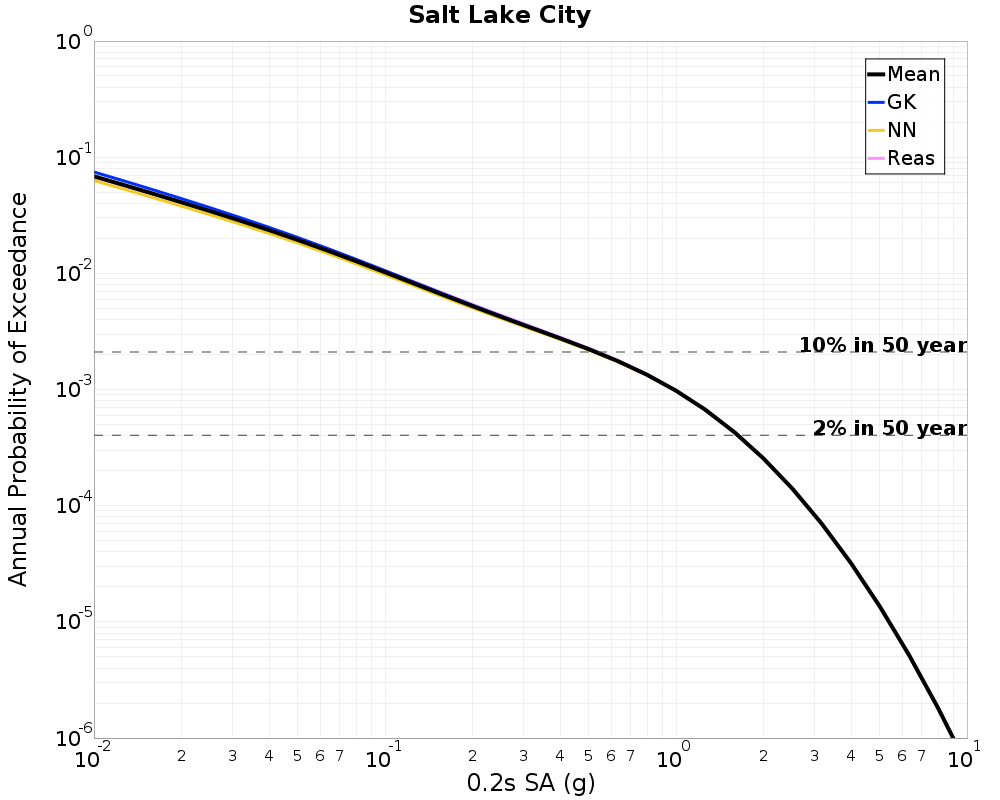

Salt Lake City, 0.2s SA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.6301072 (g) | 0.52873 (g) |
| GK | 1.6308938 (g) | 0.53159565 (g) |
| NN | 1.6274282 (g) | 0.52062005 (g) |
| Reas | 1.63386 (g) | 0.53871244 (g) |

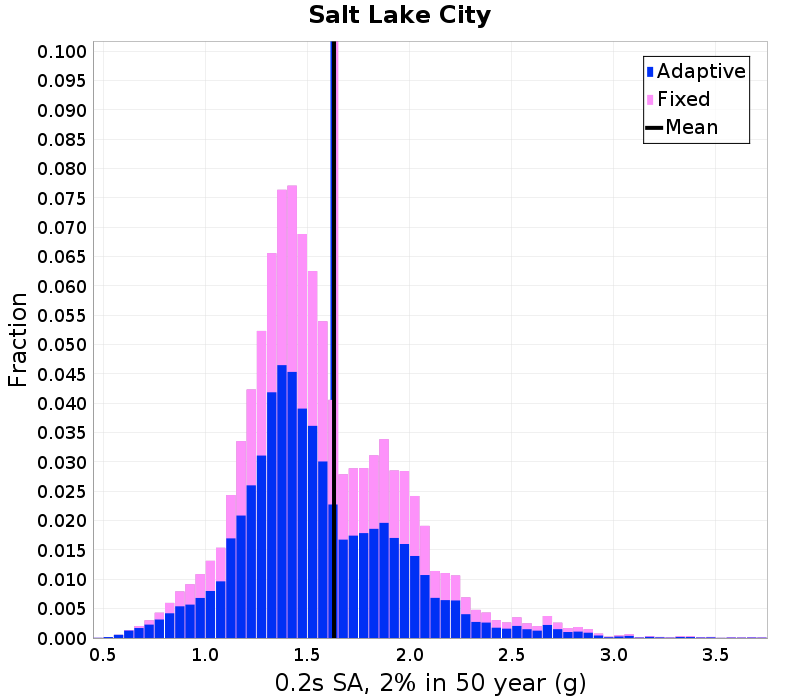

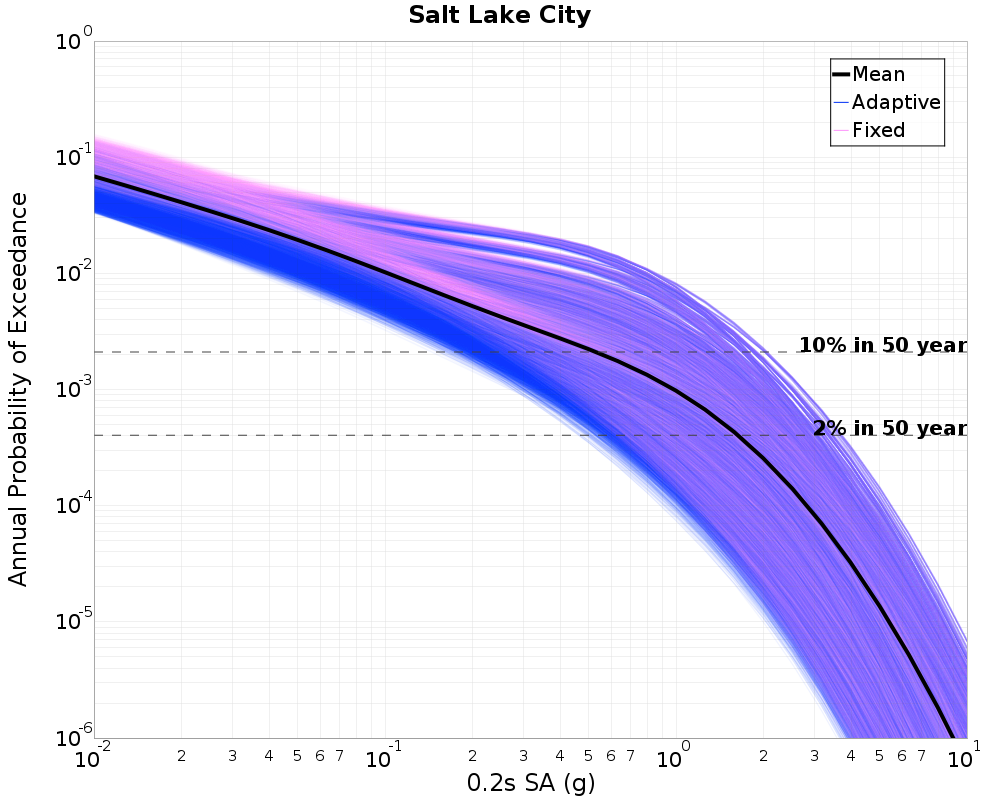

Salt Lake City, 0.2s SA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.6301072 (g) | 0.52873 (g) |
| Adaptive | 1.6223408 (g) | 0.5041689 (g) |
| Fixed | 1.6415157 (g) | 0.5613406 (g) |

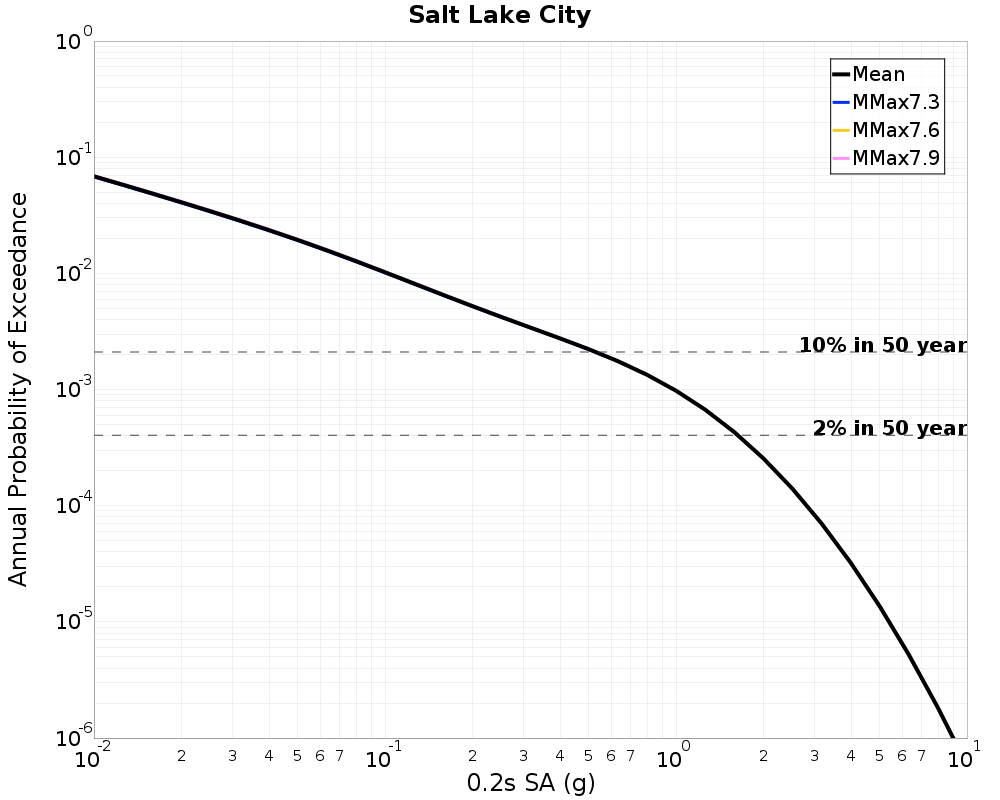

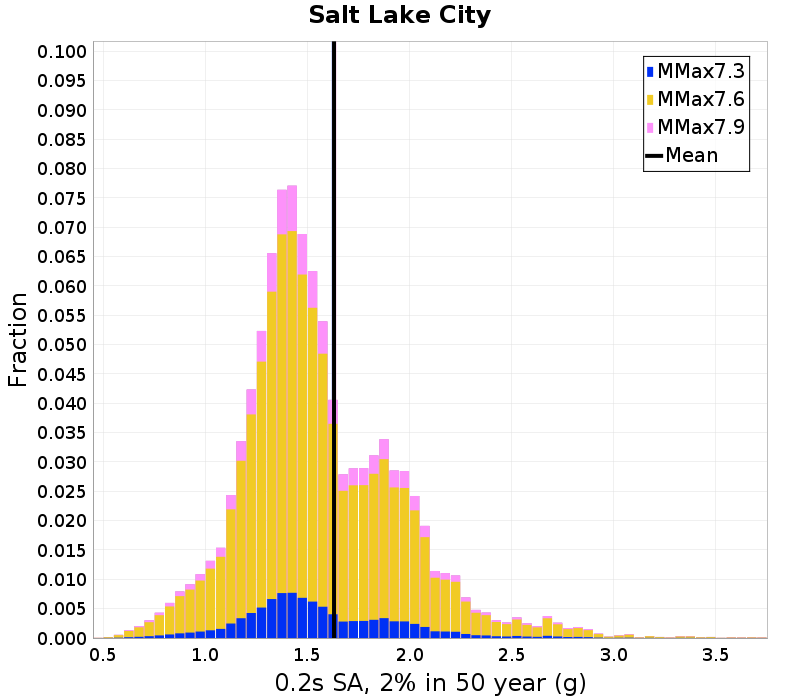

Salt Lake City, 0.2s SA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.6301072 (g) | 0.52873 (g) |
| MMax7.3 | 1.6291469 (g) | 0.5262104 (g) |
| MMax7.6 | 1.630101 (g) | 0.5287097 (g) |
| MMax7.9 | 1.6311148 (g) | 0.5313861 (g) |

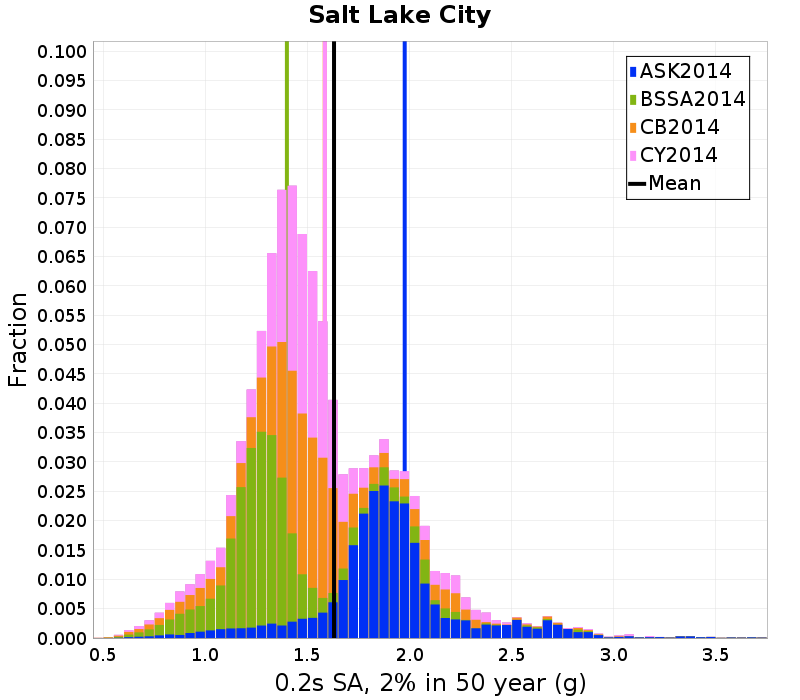

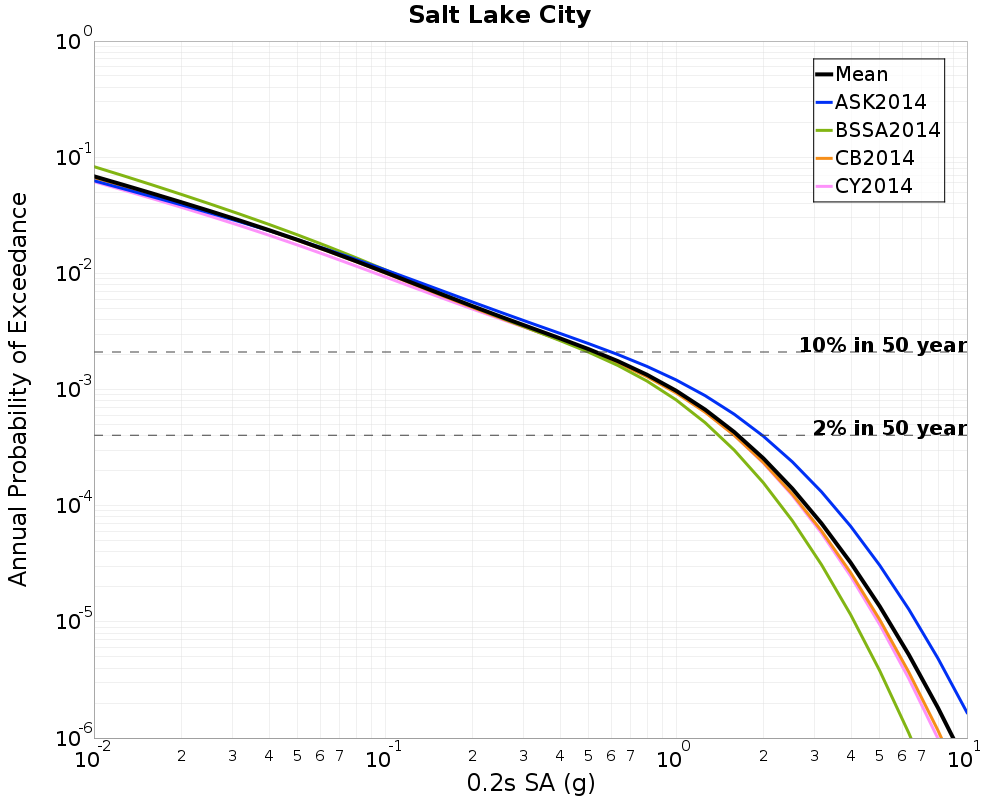

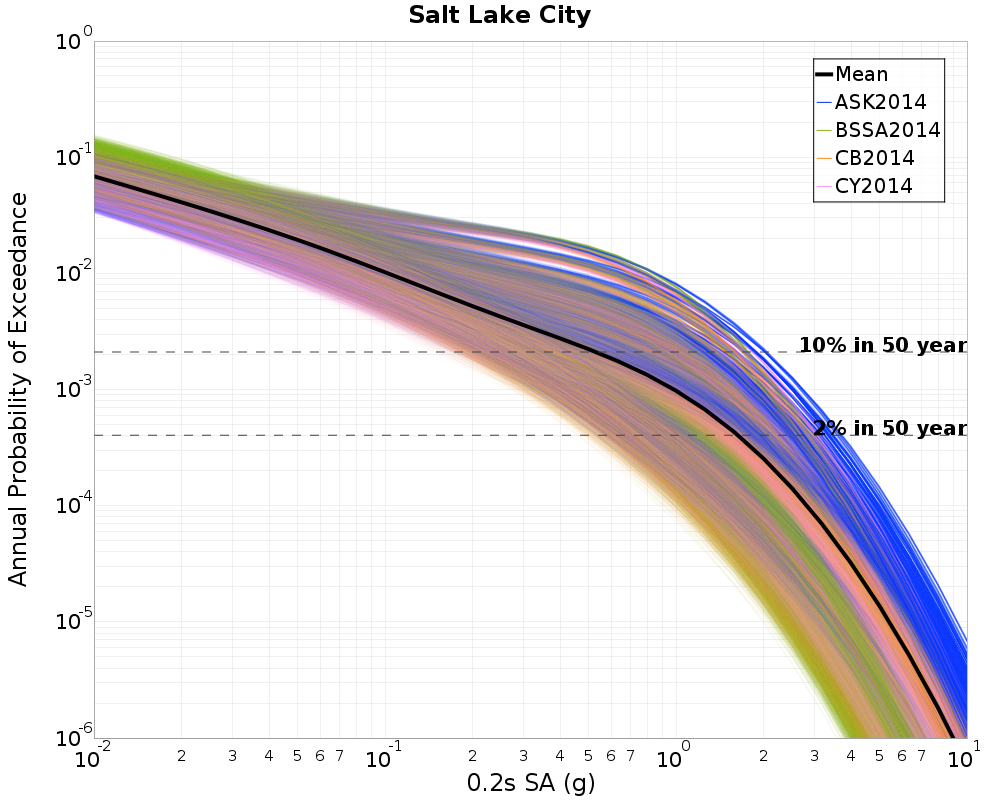

Salt Lake City, 0.2s SA, NGA-W2 GMM Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.6301072 (g) | 0.52873 (g) |
| ASK2014 | 1.9761461 (g) | 0.5975358 (g) |
| BSSA2014 | 1.3993524 (g) | 0.49859452 (g) |
| CB2014 | 1.5845779 (g) | 0.5119142 (g) |
| CY2014 | 1.5855511 (g) | 0.516121 (g) |
Salt Lake City, 1.0s SA

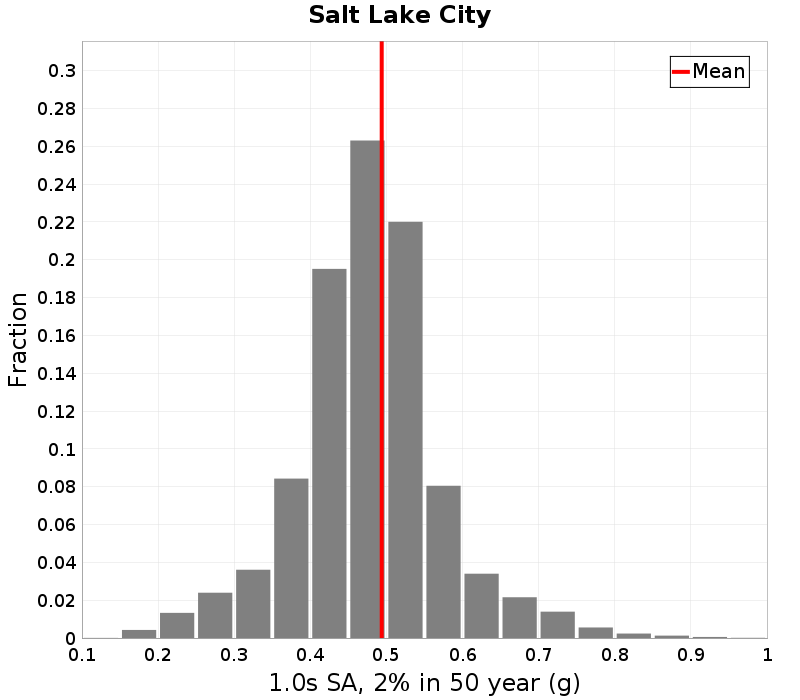

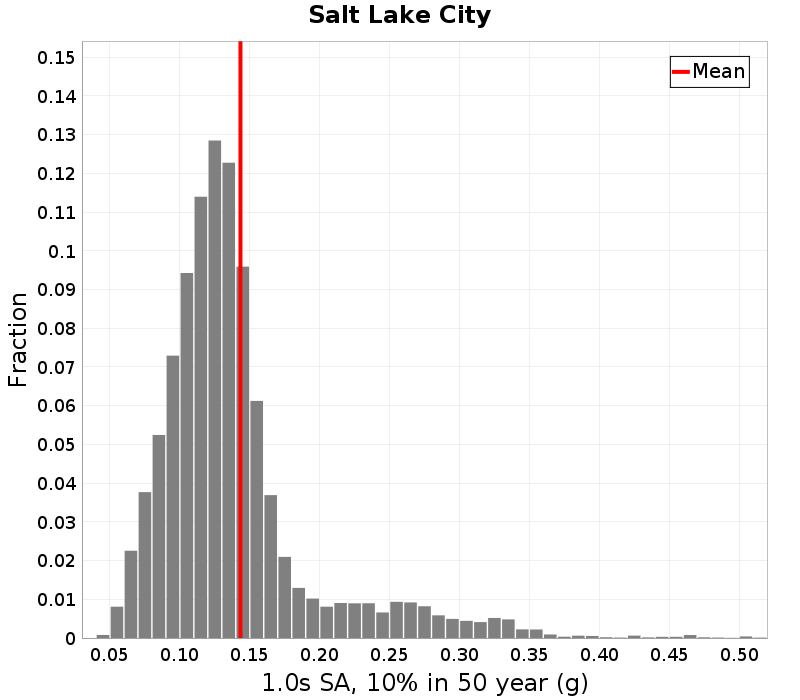

Salt Lake City, 1.0s SA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
| 2% in 50 year | 10% in 50 year |
|---|---|
| 0.49377564 (g) | 0.14335234 (g) |

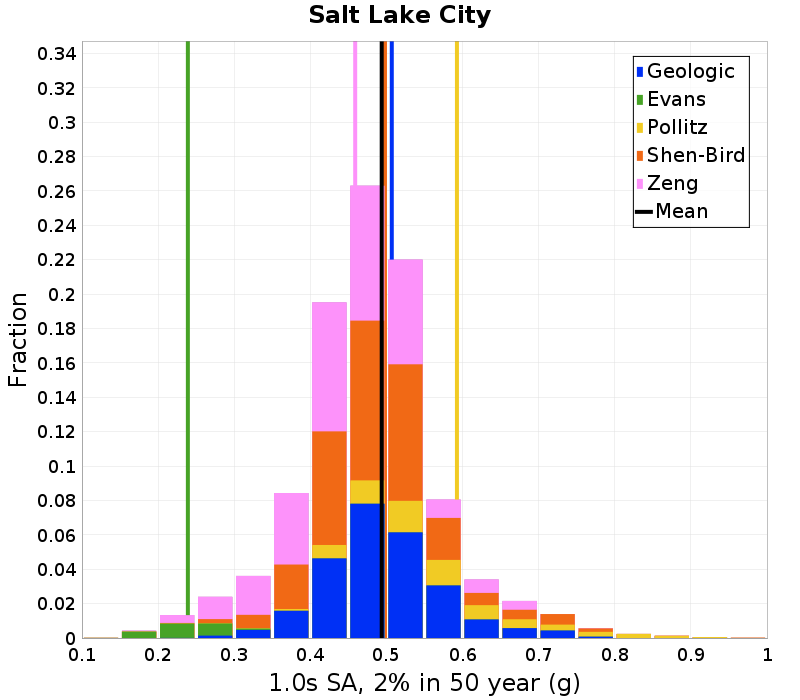

Salt Lake City, 1.0s SA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.49377564 (g) | 0.14335234 (g) |
| Geologic | 0.5070189 (g) | 0.14347102 (g) |
| Evans | 0.23909353 (g) | 0.092623174 (g) |
| Pollitz | 0.5926155 (g) | 0.21334687 (g) |
| Shen-Bird | 0.4980676 (g) | 0.14086072 (g) |
| Zeng | 0.45894247 (g) | 0.13282397 (g) |

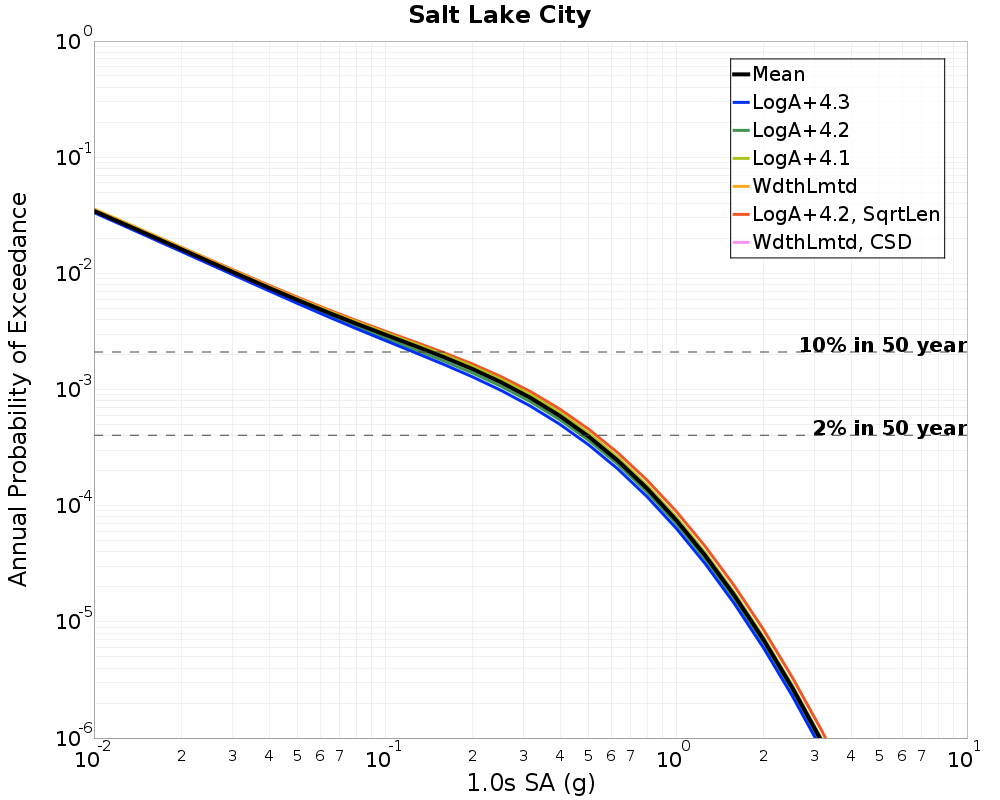

Salt Lake City, 1.0s SA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.49377564 (g) | 0.14335234 (g) |
| LogA+4.3 | 0.45036712 (g) | 0.12524876 (g) |
| LogA+4.2 | 0.4738129 (g) | 0.1329323 (g) |
| LogA+4.1 | 0.51016414 (g) | 0.15028004 (g) |
| WdthLmtd | 0.4935363 (g) | 0.14889506 (g) |
| LogA+4.2, SqrtLen | 0.5315057 (g) | 0.15700227 (g) |
| WdthLmtd, CSD | 0.49423876 (g) | 0.14779729 (g) |

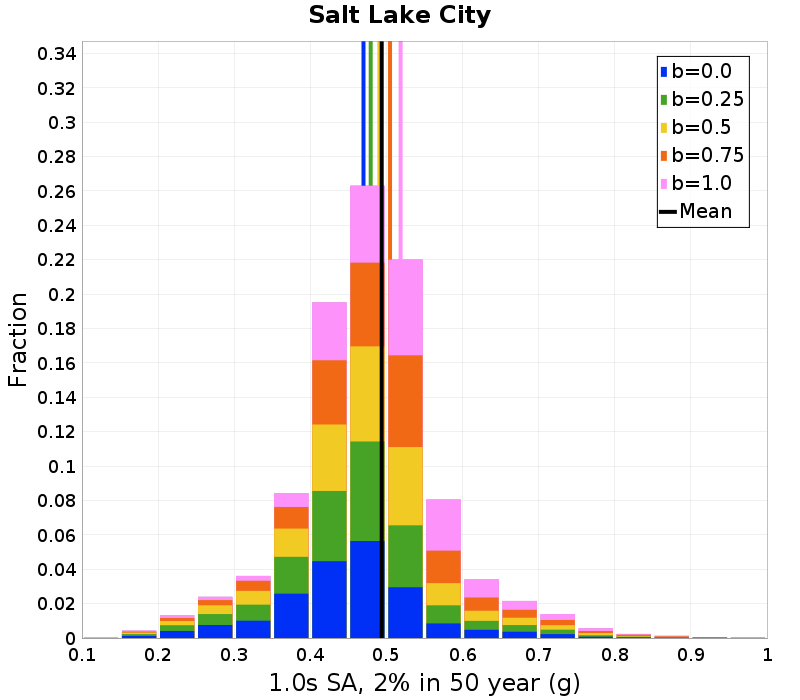

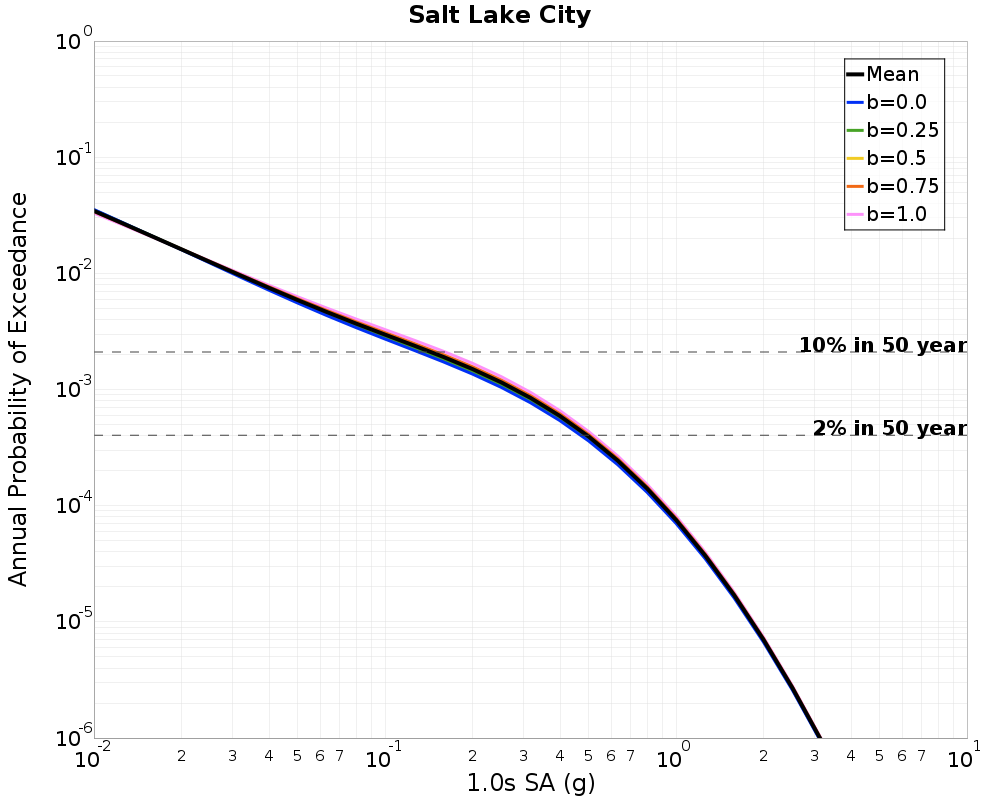

Salt Lake City, 1.0s SA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.49377564 (g) | 0.14335234 (g) |
| b=0.0 | 0.46983722 (g) | 0.130045 (g) |
| b=0.25 | 0.47931367 (g) | 0.13525897 (g) |
| b=0.5 | 0.49072495 (g) | 0.14143123 (g) |
| b=0.75 | 0.5047124 (g) | 0.14994657 (g) |
| b=1.0 | 0.51864195 (g) | 0.16073628 (g) |

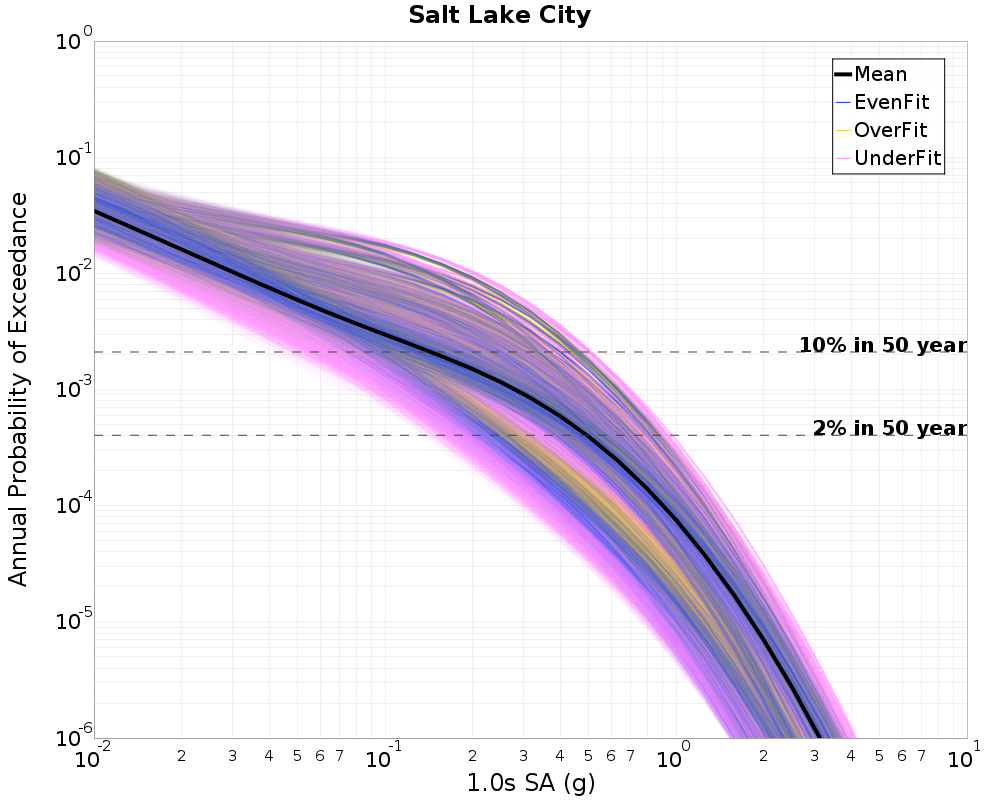

Salt Lake City, 1.0s SA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.49377564 (g) | 0.14335234 (g) |
| EvenFit | 0.49857682 (g) | 0.15164833 (g) |
| OverFit | 0.5028518 (g) | 0.14774539 (g) |
| UnderFit | 0.47905758 (g) | 0.1301351 (g) |

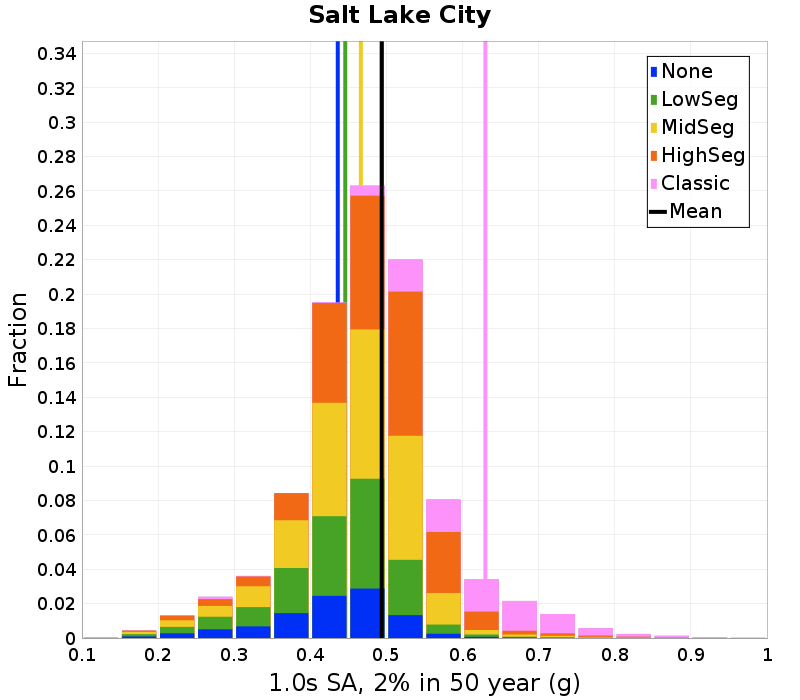

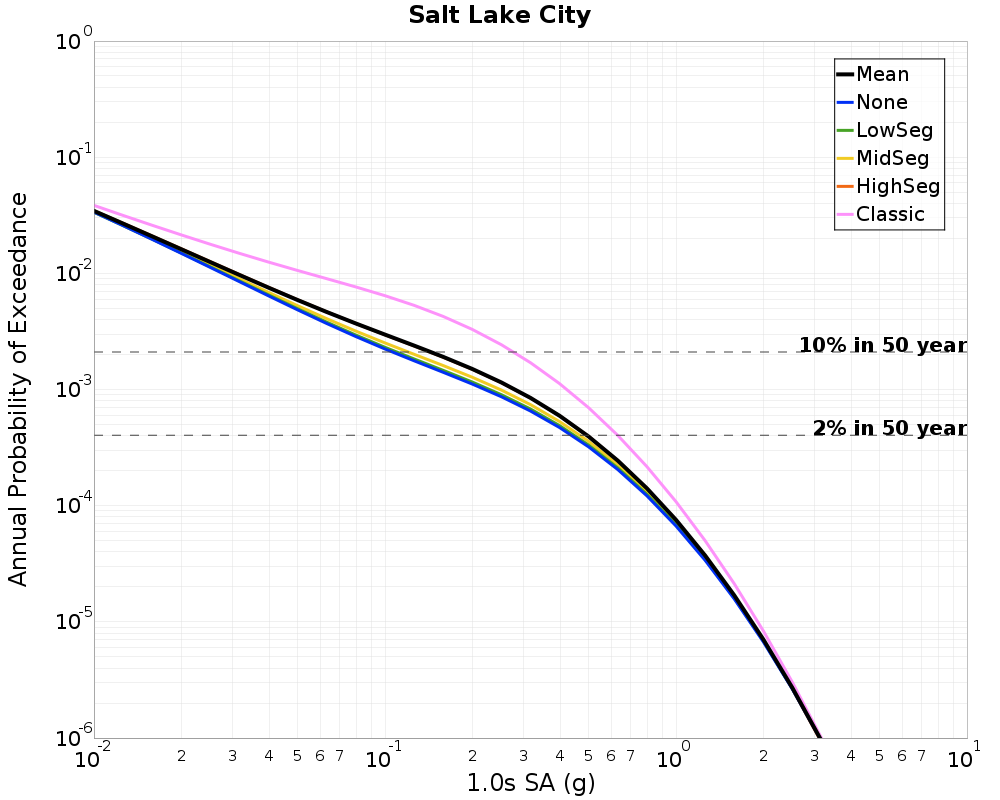

Salt Lake City, 1.0s SA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.49377564 (g) | 0.14335234 (g) |
| None | 0.43605444 (g) | 0.105955906 (g) |
| LowSeg | 0.44588375 (g) | 0.109602 (g) |
| MidSeg | 0.4664086 (g) | 0.12002855 (g) |
| HighSeg | 0.49408805 (g) | 0.14237657 (g) |
| Classic | 0.6300198 (g) | 0.2755488 (g) |

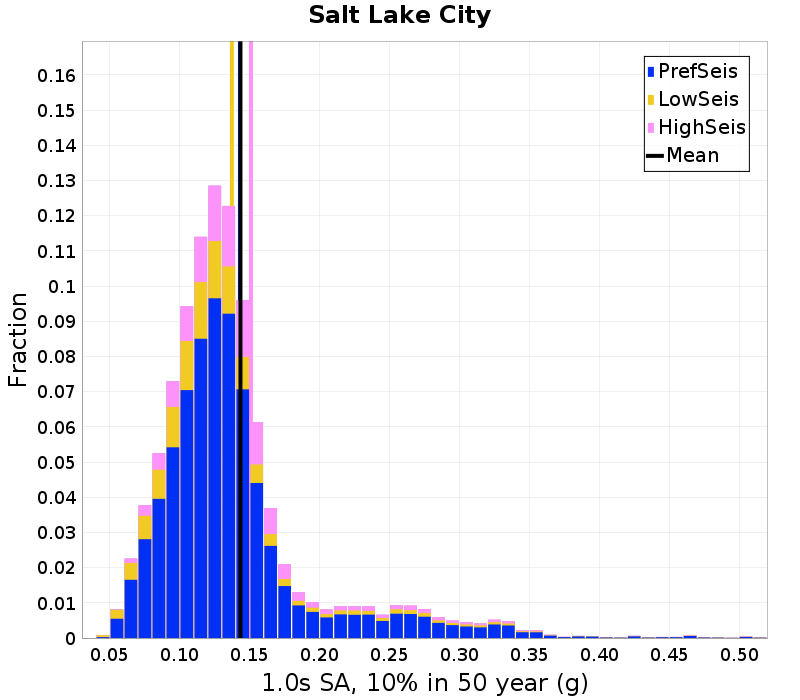

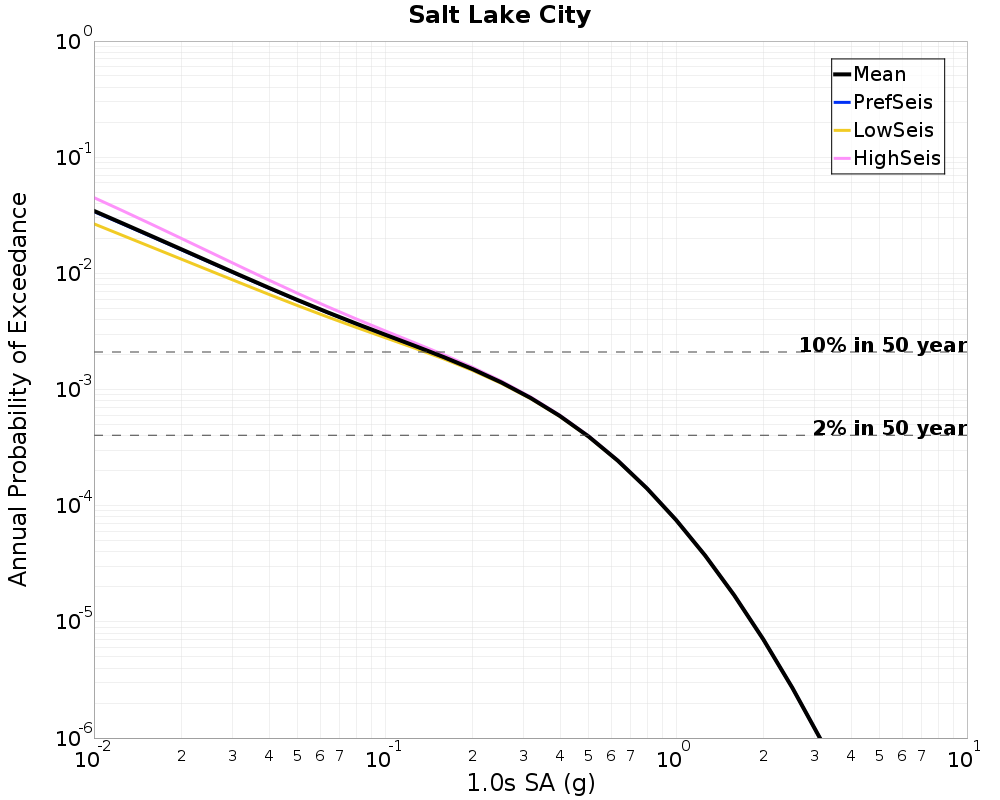

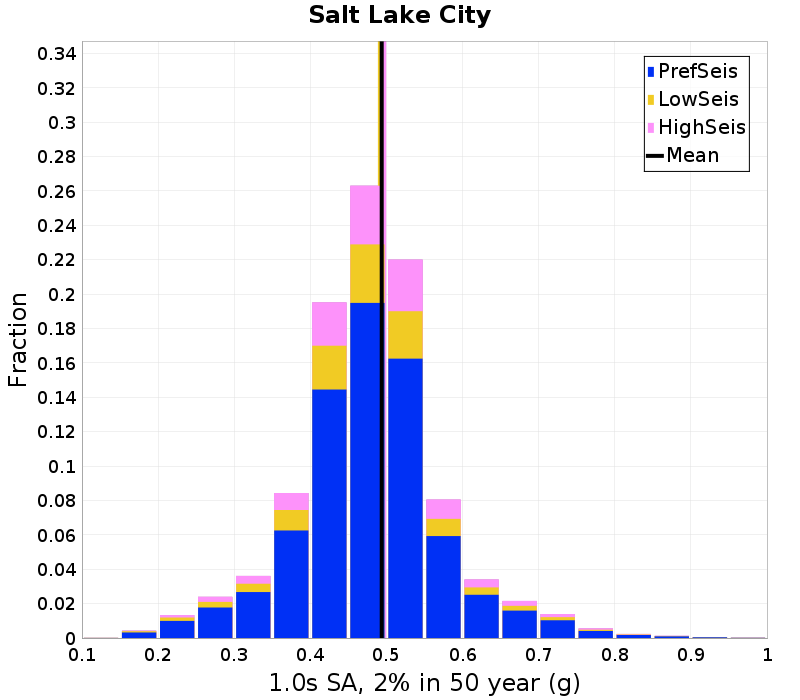

Salt Lake City, 1.0s SA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.49377564 (g) | 0.14335234 (g) |
| PrefSeis | 0.49361402 (g) | 0.1429804 (g) |
| LowSeis | 0.4913785 (g) | 0.13722274 (g) |
| HighSeis | 0.49703252 (g) | 0.15084898 (g) |

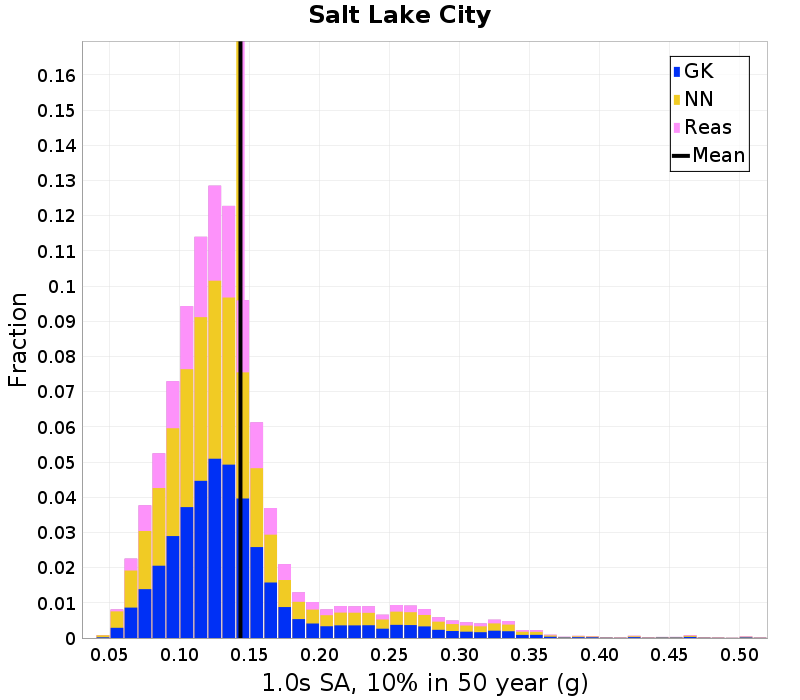

Salt Lake City, 1.0s SA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.49377564 (g) | 0.14335234 (g) |
| GK | 0.49397743 (g) | 0.1441099 (g) |
| NN | 0.4932048 (g) | 0.14178036 (g) |
| Reas | 0.49450886 (g) | 0.14491214 (g) |

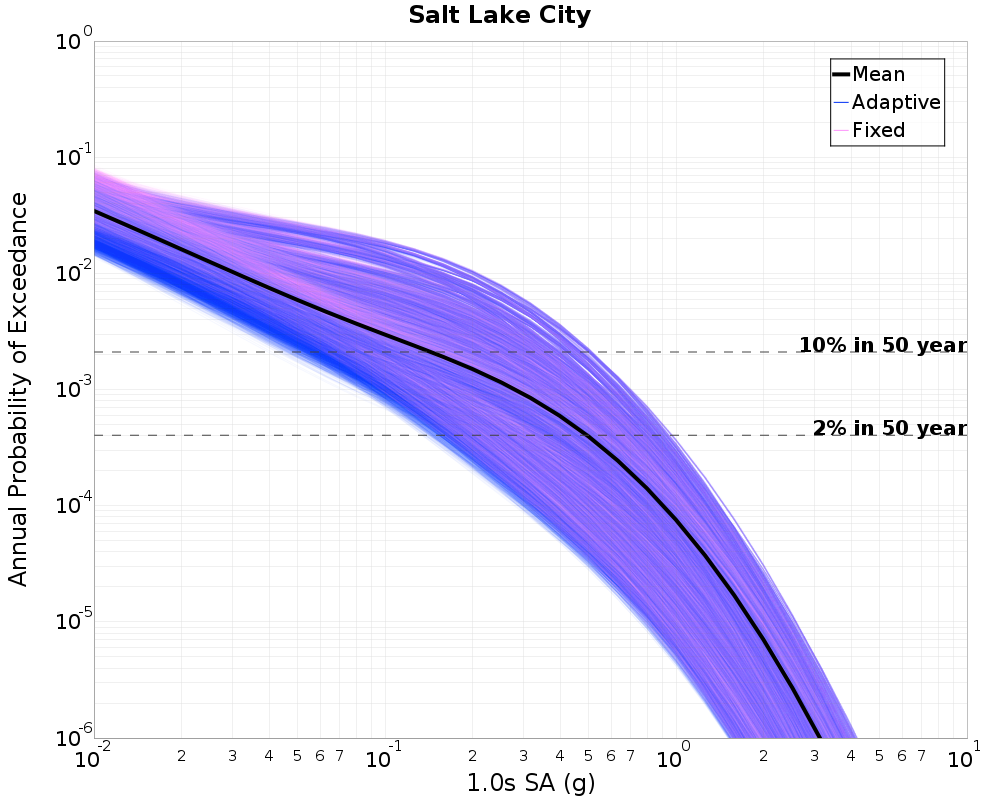

Salt Lake City, 1.0s SA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.49377564 (g) | 0.14335234 (g) |
| Adaptive | 0.49214774 (g) | 0.13892648 (g) |
| Fixed | 0.49617958 (g) | 0.14945783 (g) |

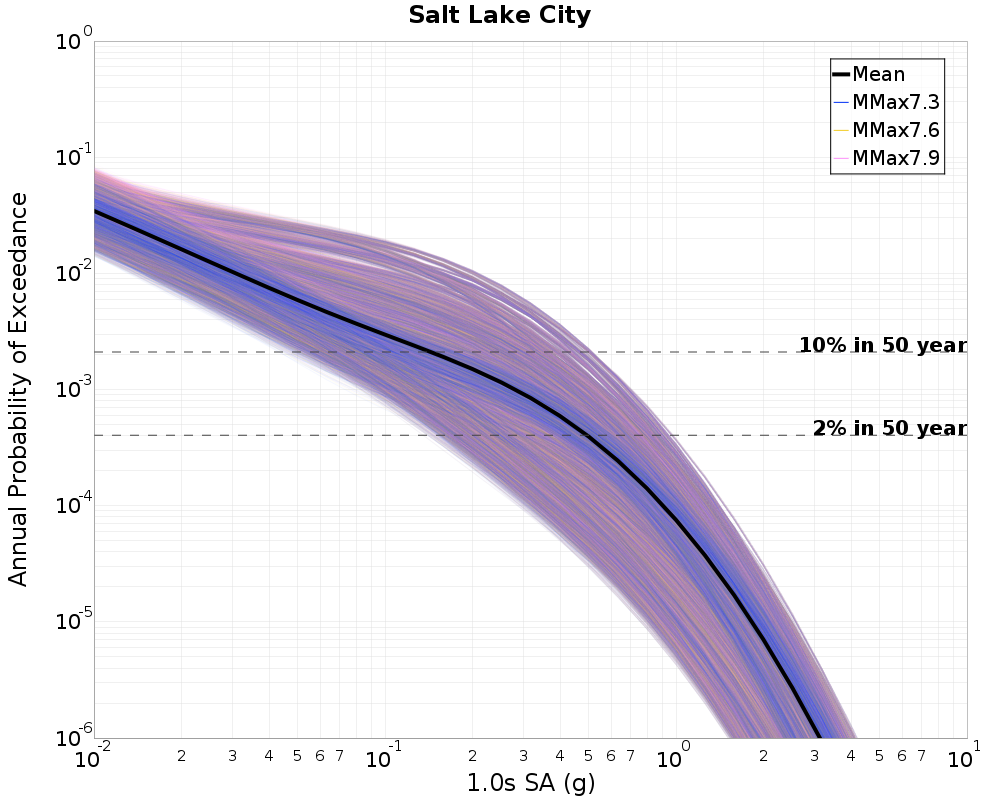

Salt Lake City, 1.0s SA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.49377564 (g) | 0.14335234 (g) |
| MMax7.3 | 0.49304226 (g) | 0.141682 (g) |
| MMax7.6 | 0.4937577 (g) | 0.14329936 (g) |
| MMax7.9 | 0.49464816 (g) | 0.14539073 (g) |
Salt Lake City, 1.0s SA, NGA-W2 GMM Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.49377564 (g) | 0.14335234 (g) |
| ASK2014 | 0.47784674 (g) | 0.14364499 (g) |
| BSSA2014 | 0.43043754 (g) | 0.13246375 (g) |
| CB2014 | 0.5350887 (g) | 0.15328054 (g) |
| CY2014 | 0.52760303 (g) | 0.14486851 (g) |
San Francisco
San Francisco, PGA

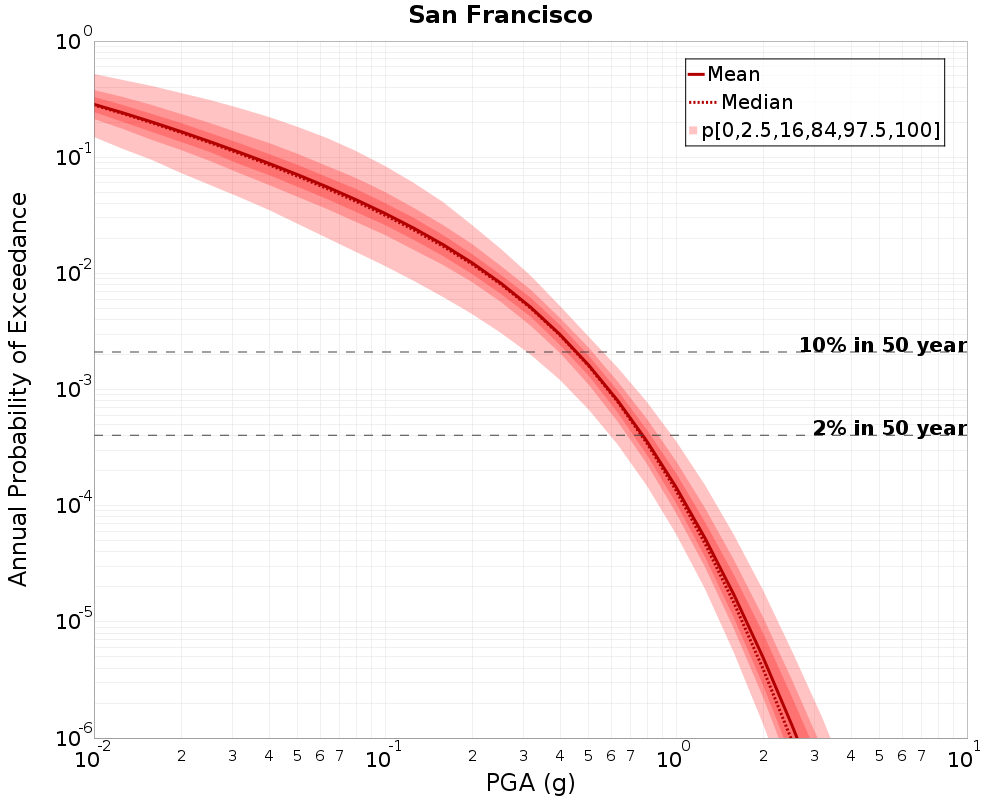

San Francisco, PGA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
| 2% in 50 year | 10% in 50 year |
|---|---|
| 0.76771605 (g) | 0.4544264 (g) |
San Francisco, PGA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.76771605 (g) | 0.4544264 (g) |
| Geologic | 0.75638545 (g) | 0.44743508 (g) |
| Evans | 0.73651415 (g) | 0.44652718 (g) |
| Pollitz | 0.77980167 (g) | 0.4678971 (g) |
| Shen-Bird | 0.7426425 (g) | 0.43555394 (g) |
| Zeng | 0.7978896 (g) | 0.4750477 (g) |

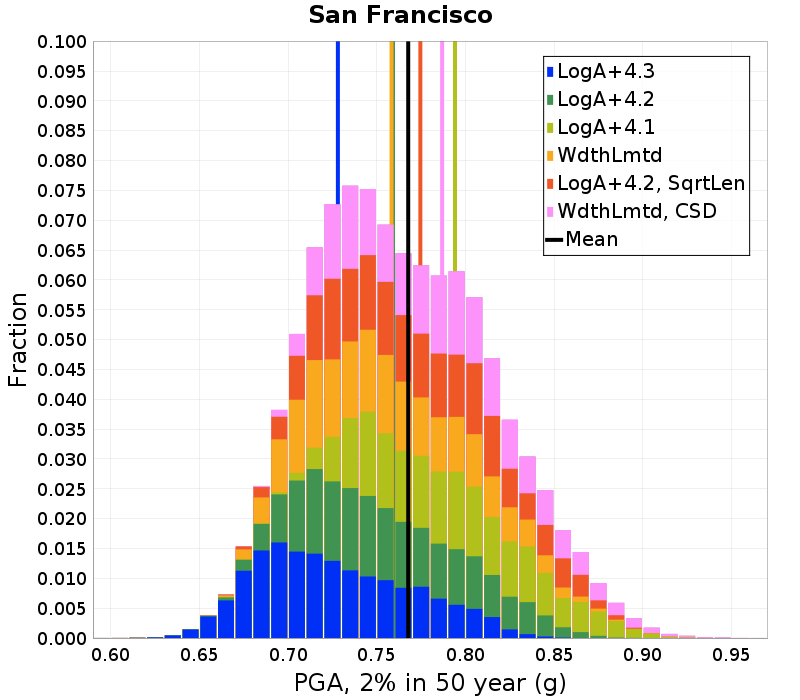

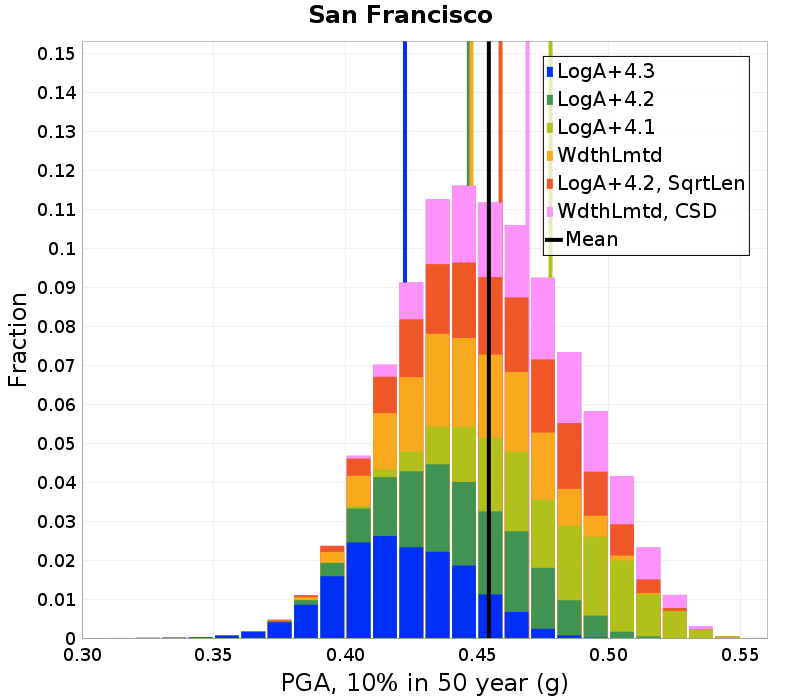

San Francisco, PGA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.76771605 (g) | 0.4544264 (g) |
| LogA+4.3 | 0.7280673 (g) | 0.42259377 (g) |
| LogA+4.2 | 0.75913113 (g) | 0.44681904 (g) |
| LogA+4.1 | 0.7940917 (g) | 0.4778382 (g) |
| WdthLmtd | 0.75830865 (g) | 0.44782904 (g) |
| LogA+4.2, SqrtLen | 0.7745678 (g) | 0.45886114 (g) |
| WdthLmtd, CSD | 0.78683114 (g) | 0.46913084 (g) |

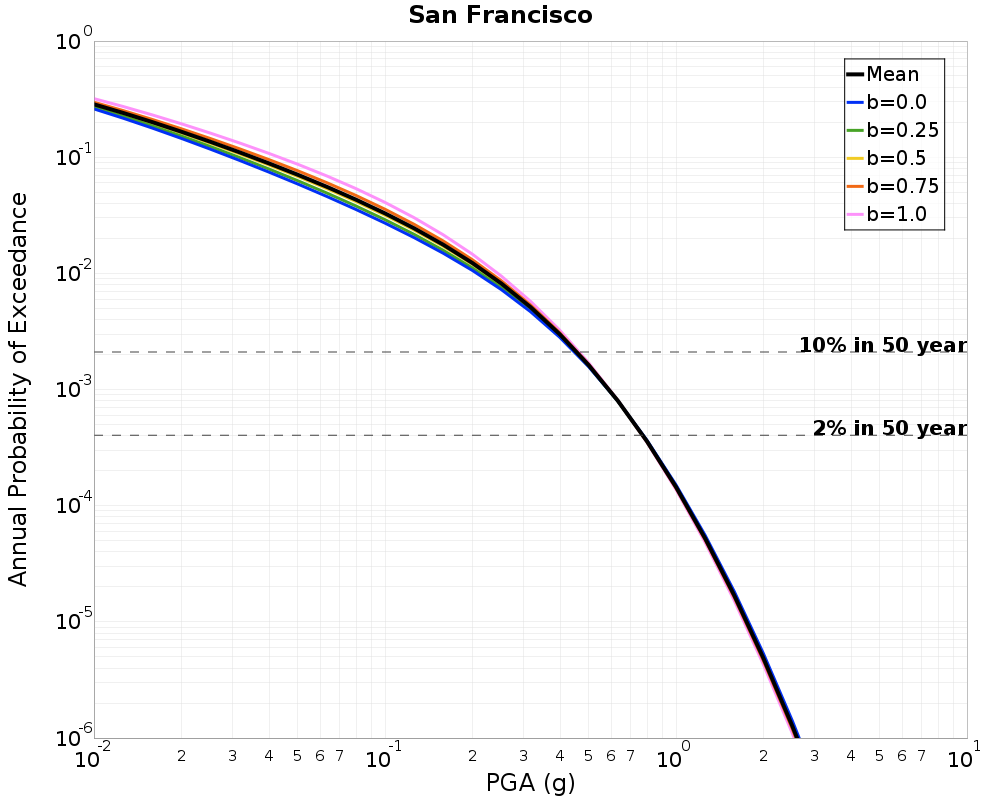

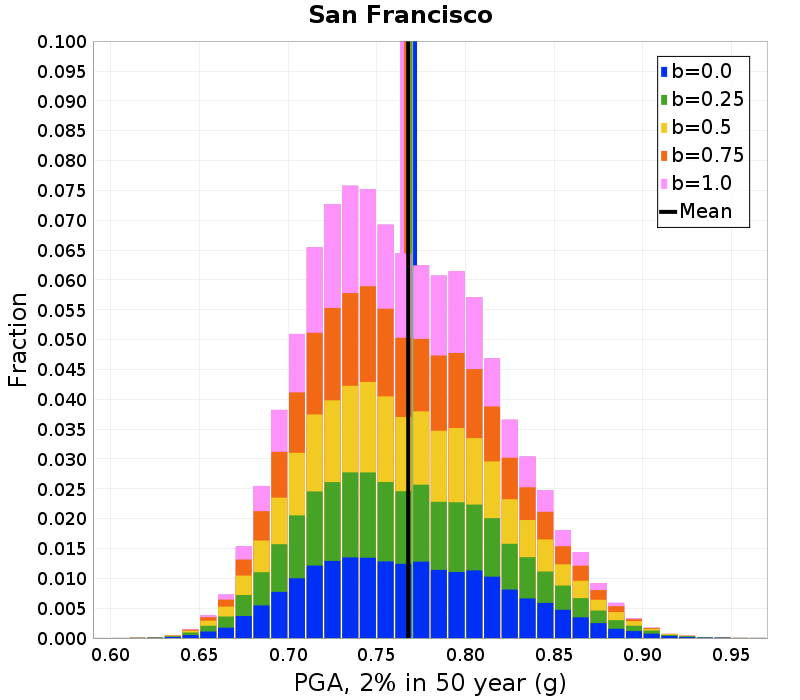

San Francisco, PGA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.76771605 (g) | 0.4544264 (g) |
| b=0.0 | 0.77156895 (g) | 0.44674924 (g) |
| b=0.25 | 0.76911396 (g) | 0.44868103 (g) |
| b=0.5 | 0.76794887 (g) | 0.45285016 (g) |
| b=0.75 | 0.76593345 (g) | 0.45800024 (g) |
| b=1.0 | 0.76424724 (g) | 0.46421733 (g) |

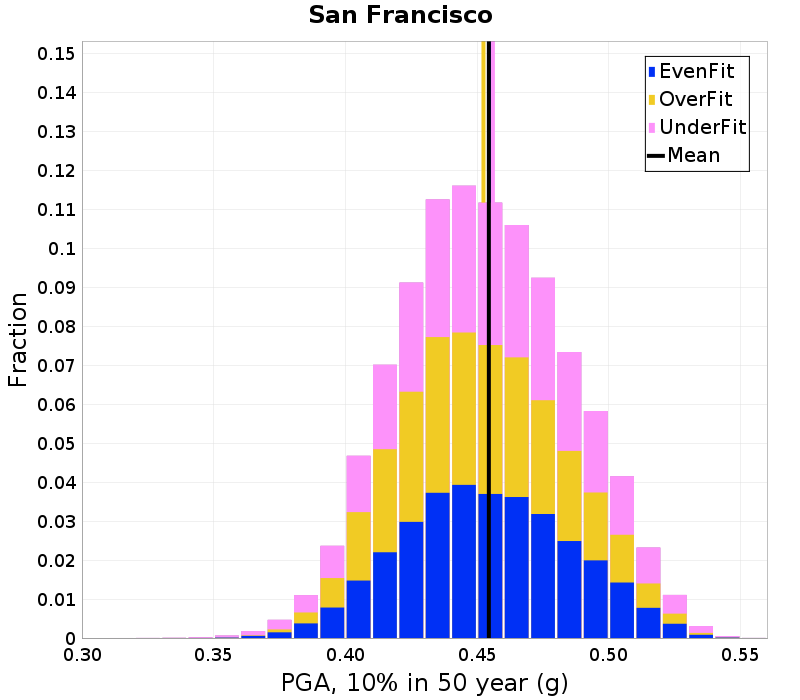

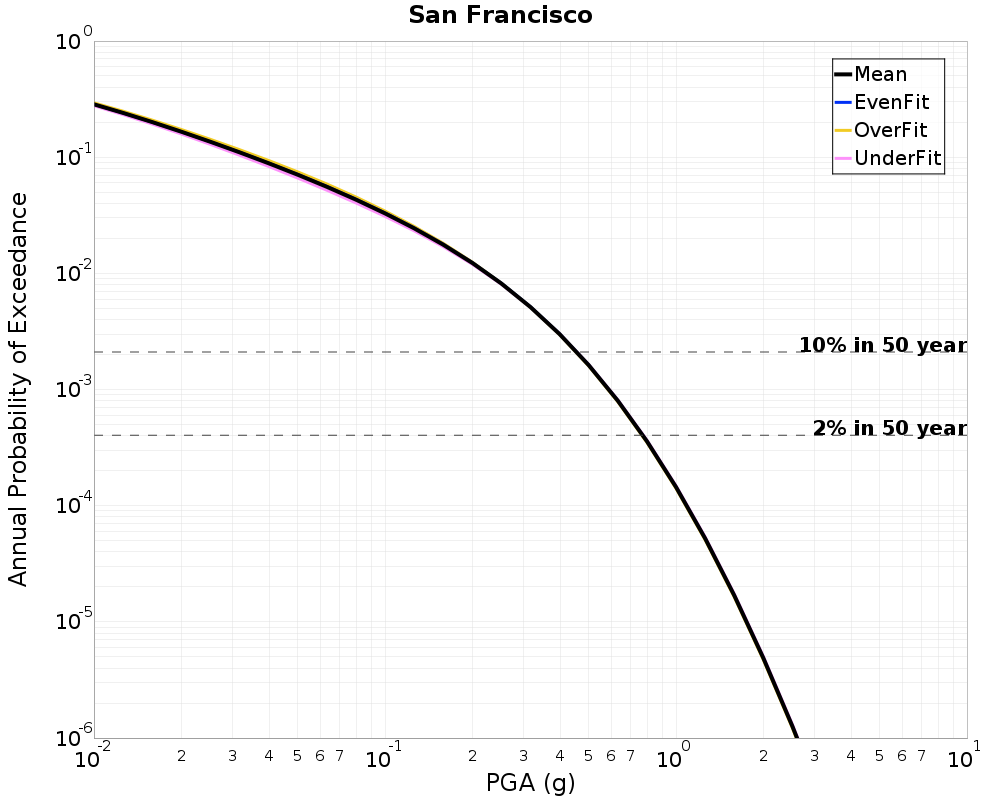

San Francisco, PGA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.76771605 (g) | 0.4544264 (g) |
| EvenFit | 0.76796263 (g) | 0.4549546 (g) |
| OverFit | 0.7627249 (g) | 0.4523798 (g) |
| UnderFit | 0.7724352 (g) | 0.4559661 (g) |

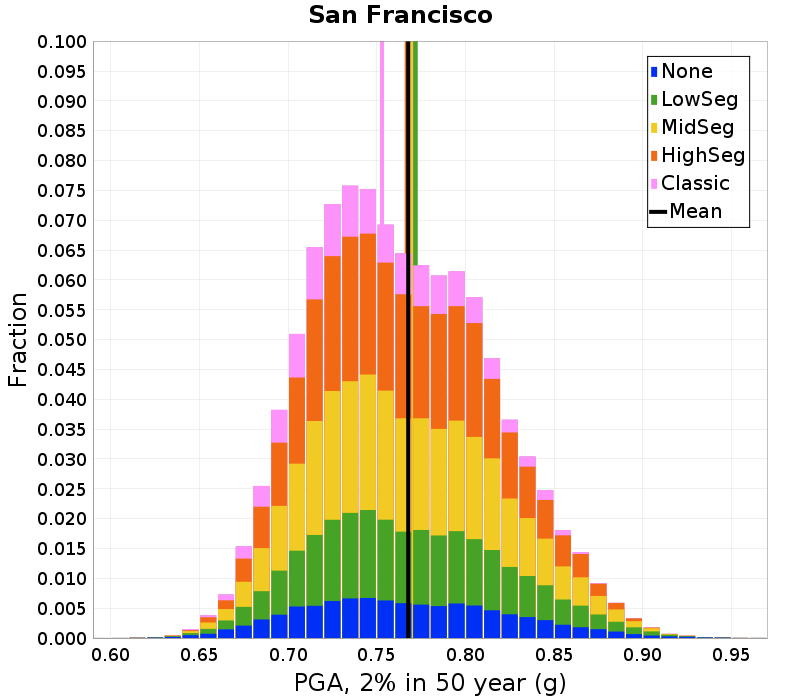

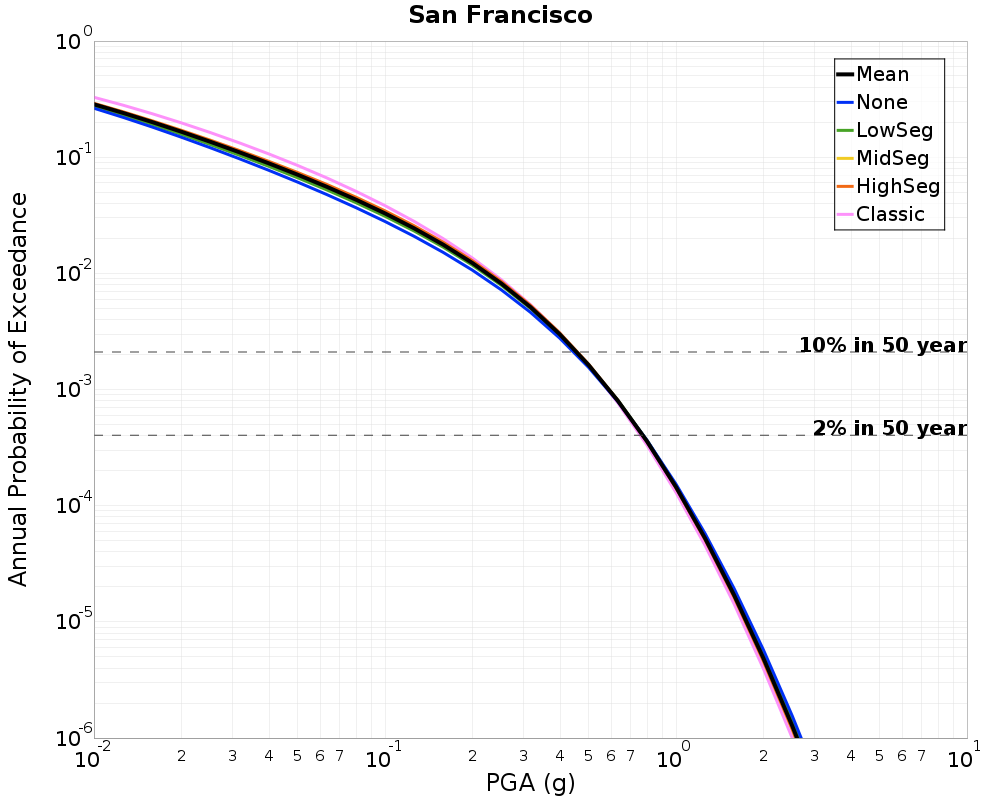

San Francisco, PGA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.76771605 (g) | 0.4544264 (g) |
| None | 0.771408 (g) | 0.4437397 (g) |
| LowSeg | 0.7719637 (g) | 0.45278618 (g) |
| MidSeg | 0.76957303 (g) | 0.45491824 (g) |
| HighSeg | 0.766863 (g) | 0.4580928 (g) |
| Classic | 0.7529502 (g) | 0.45482504 (g) |

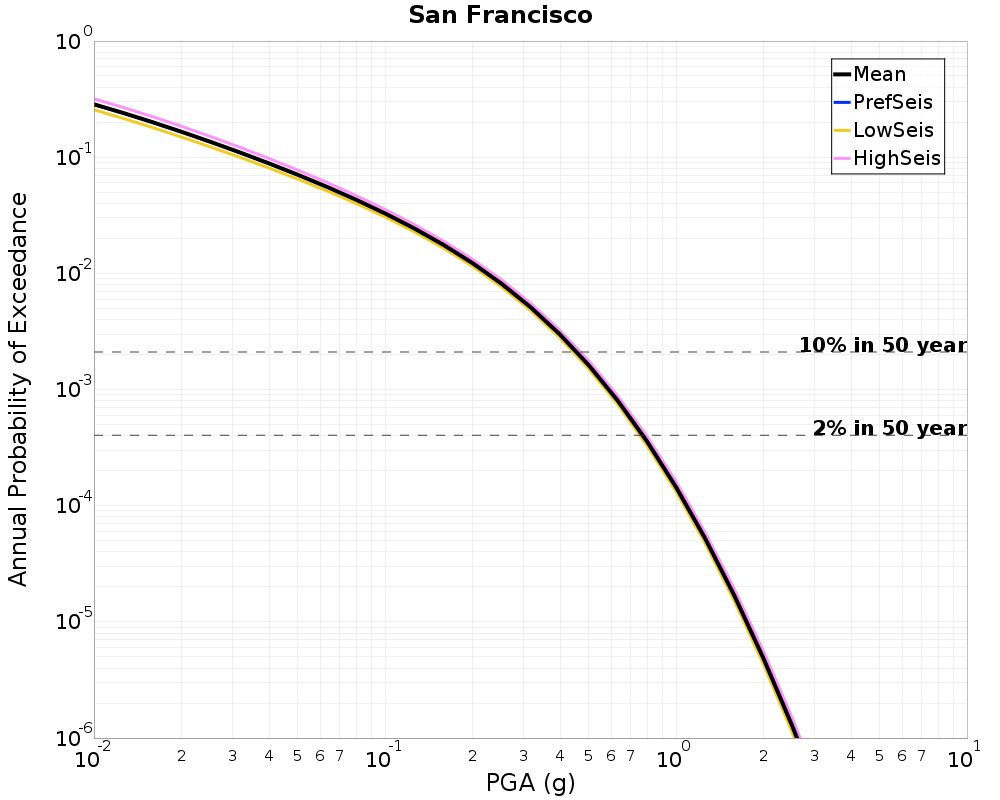

San Francisco, PGA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.76771605 (g) | 0.4544264 (g) |
| PrefSeis | 0.76672125 (g) | 0.4538247 (g) |
| LowSeis | 0.7504779 (g) | 0.44289875 (g) |
| HighSeis | 0.7896729 (g) | 0.46892256 (g) |

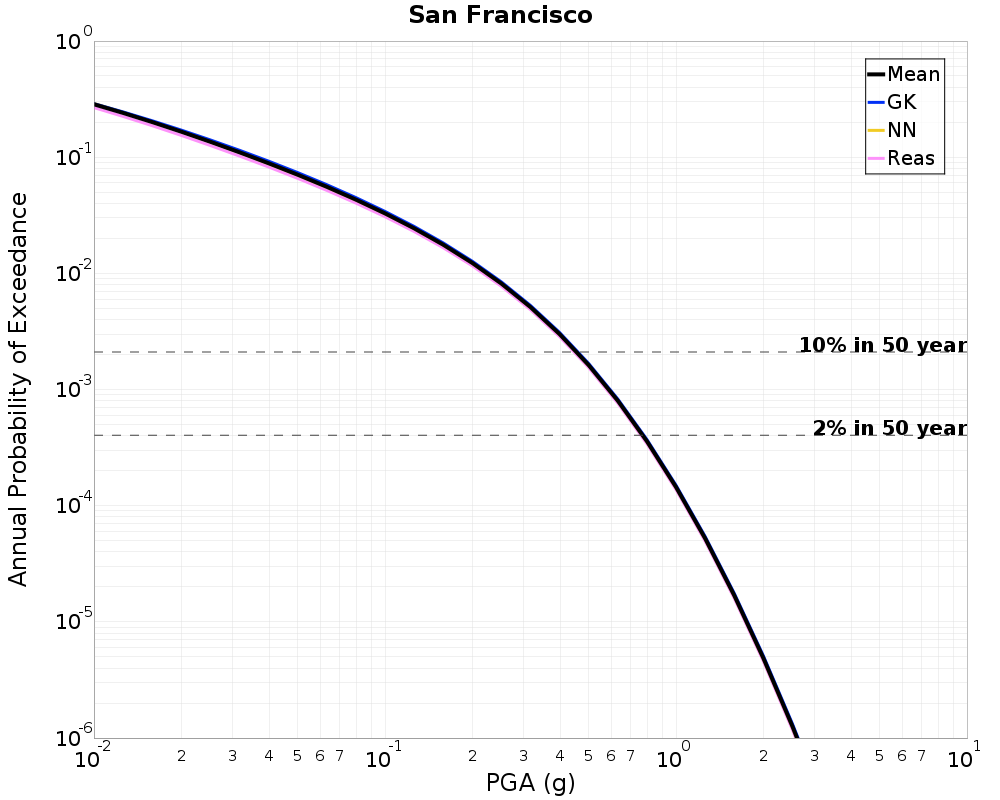

San Francisco, PGA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.76771605 (g) | 0.4544264 (g) |
| GK | 0.7752213 (g) | 0.45989397 (g) |
| NN | 0.76550204 (g) | 0.45301136 (g) |
| Reas | 0.7567844 (g) | 0.44607258 (g) |

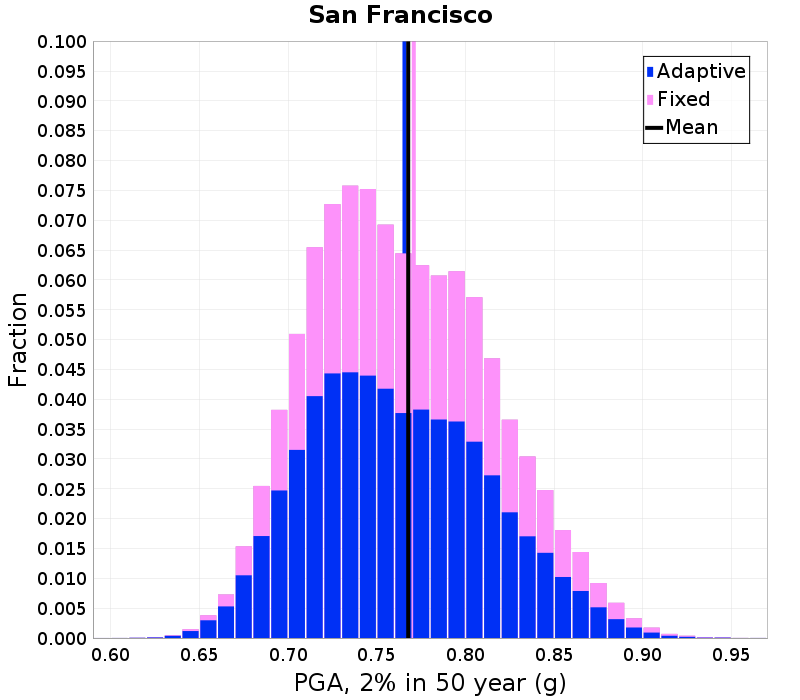

San Francisco, PGA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.76771605 (g) | 0.4544264 (g) |
| Adaptive | 0.7656063 (g) | 0.45313725 (g) |
| Fixed | 0.7708642 (g) | 0.45635396 (g) |

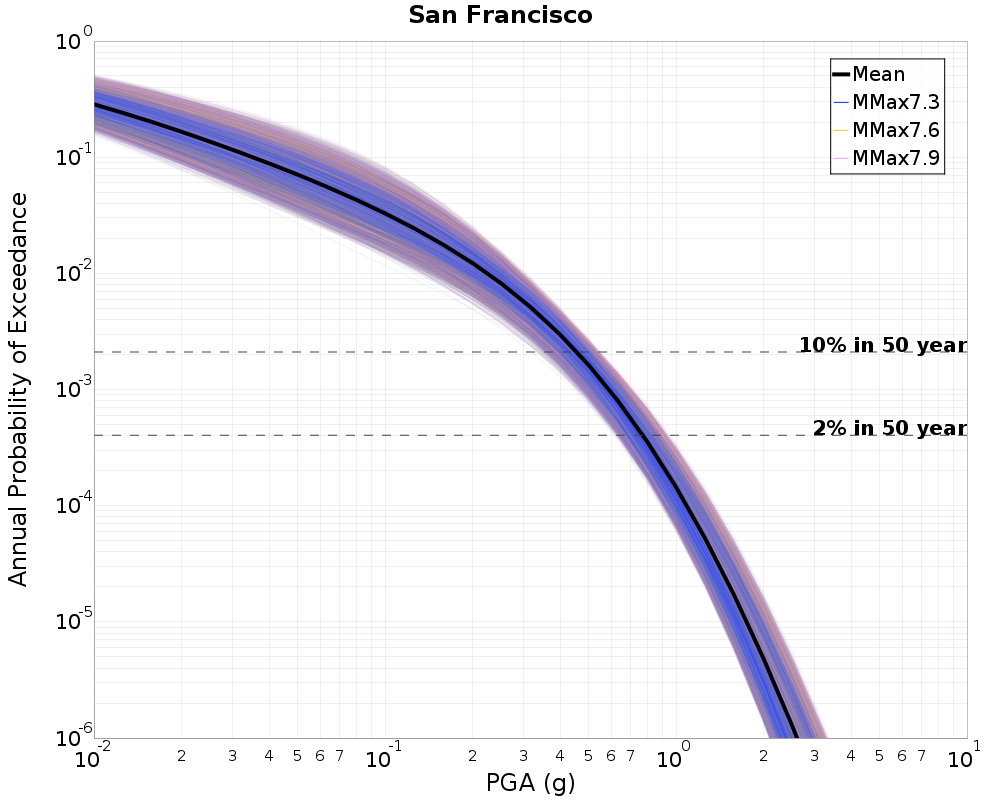

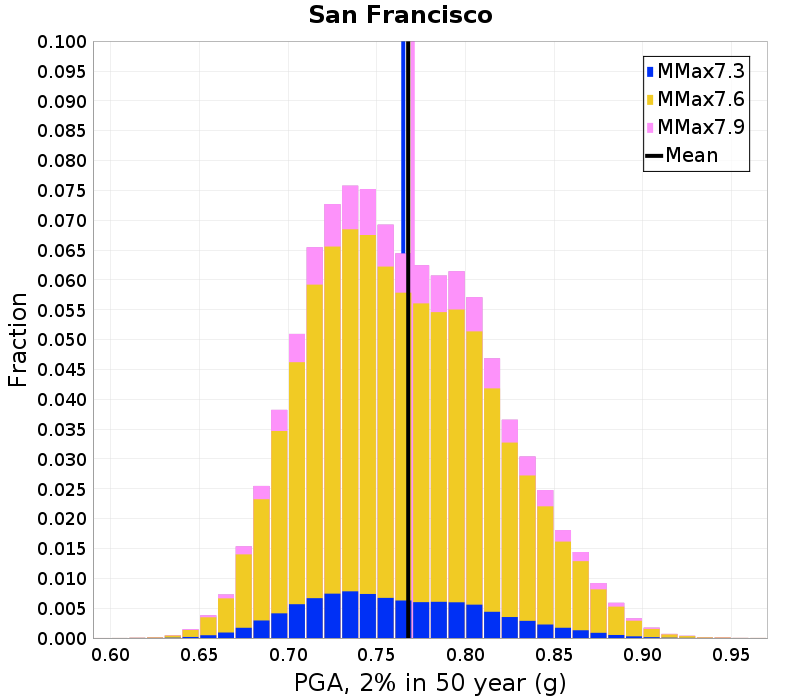

San Francisco, PGA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.76771605 (g) | 0.4544264 (g) |
| MMax7.3 | 0.76492316 (g) | 0.4528913 (g) |
| MMax7.6 | 0.7677425 (g) | 0.45443845 (g) |
| MMax7.9 | 0.77028596 (g) | 0.45586246 (g) |

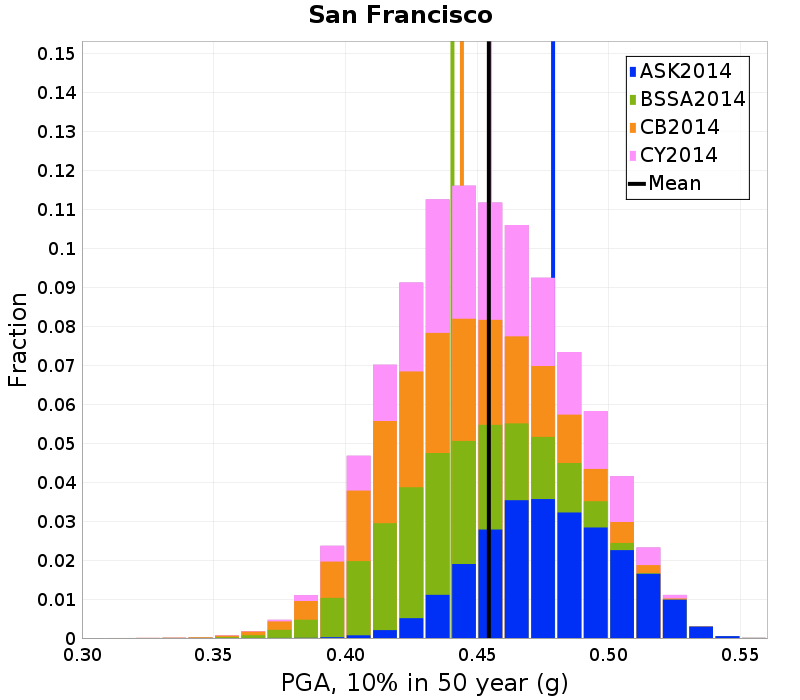

San Francisco, PGA, NGA-W2 GMM Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.76771605 (g) | 0.4544264 (g) |
| ASK2014 | 0.8231893 (g) | 0.4788056 (g) |
| BSSA2014 | 0.74047786 (g) | 0.44060463 (g) |
| CB2014 | 0.73478544 (g) | 0.44420177 (g) |
| CY2014 | 0.76739794 (g) | 0.45488533 (g) |
San Francisco, 0.2s SA

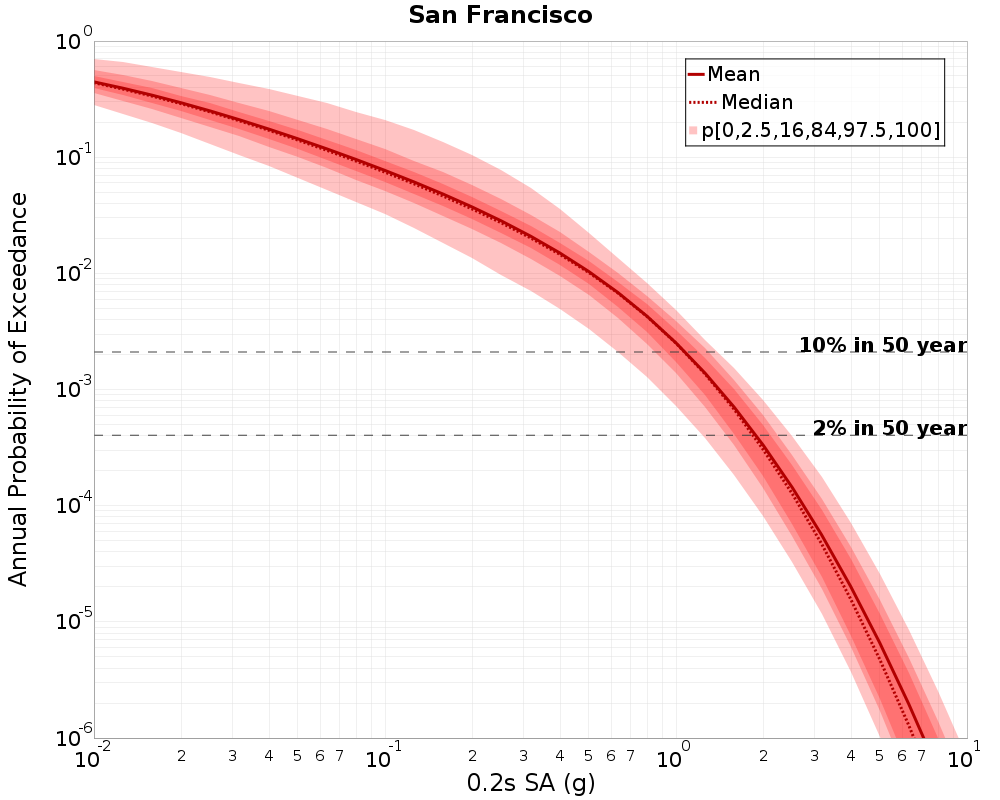

San Francisco, 0.2s SA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
| 2% in 50 year | 10% in 50 year |
|---|---|
| 1.8774607 (g) | 1.0711858 (g) |

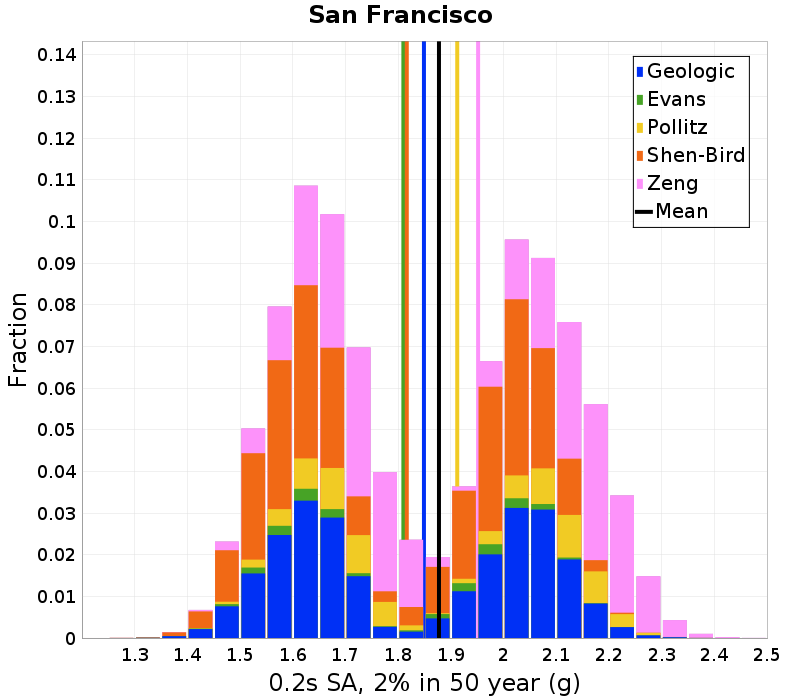

San Francisco, 0.2s SA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.8774607 (g) | 1.0711858 (g) |
| Geologic | 1.8489448 (g) | 1.0550623 (g) |
| Evans | 1.8099107 (g) | 1.0619401 (g) |
| Pollitz | 1.9121265 (g) | 1.1056641 (g) |
| Shen-Bird | 1.81636 (g) | 1.0286992 (g) |
| Zeng | 1.951741 (g) | 1.1164705 (g) |

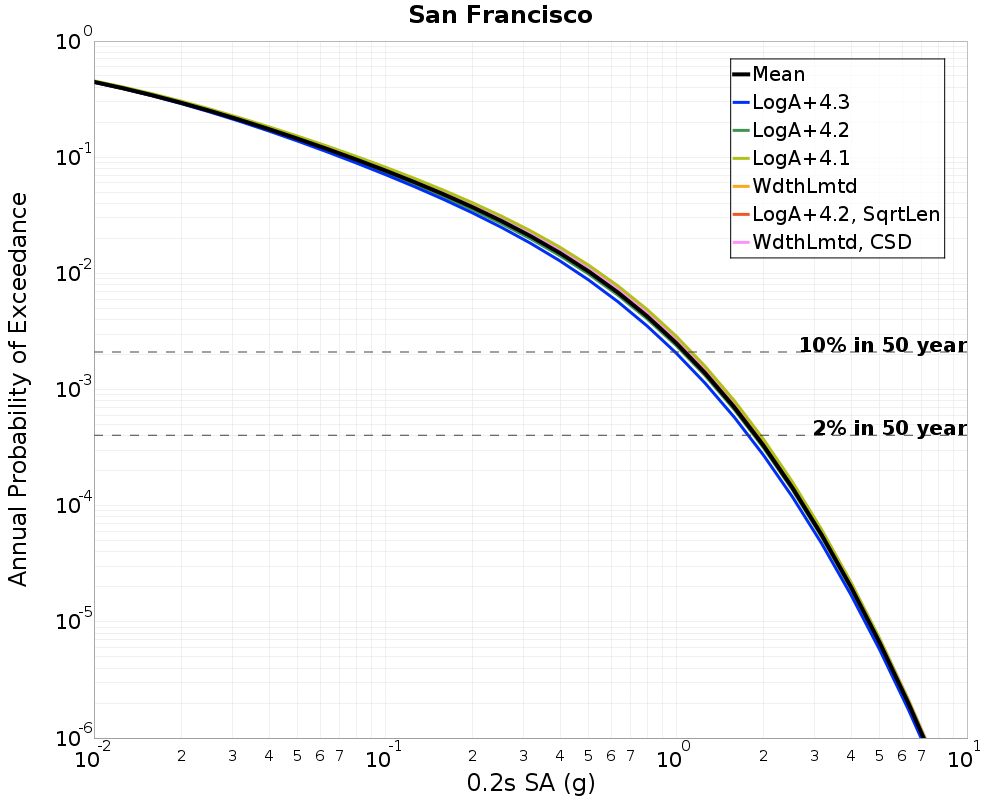

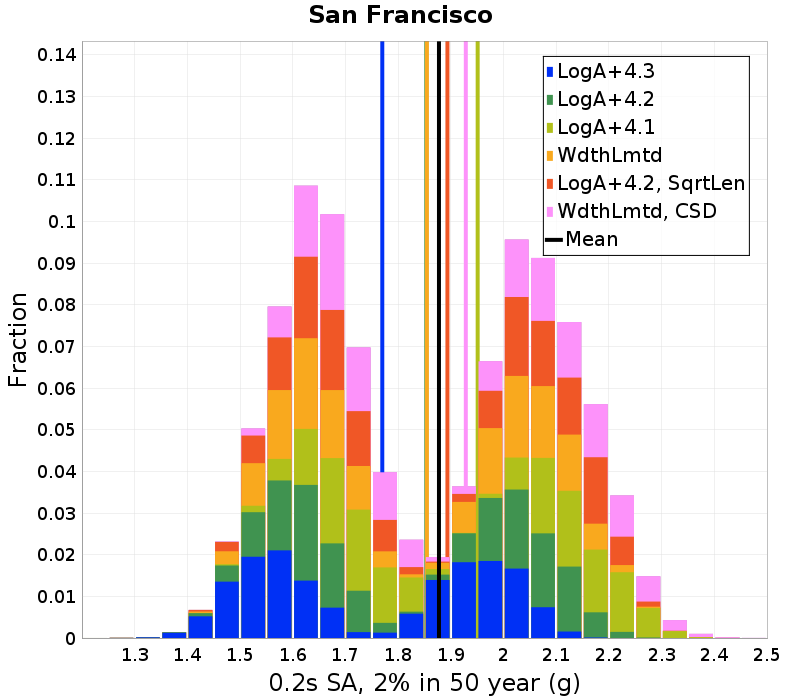

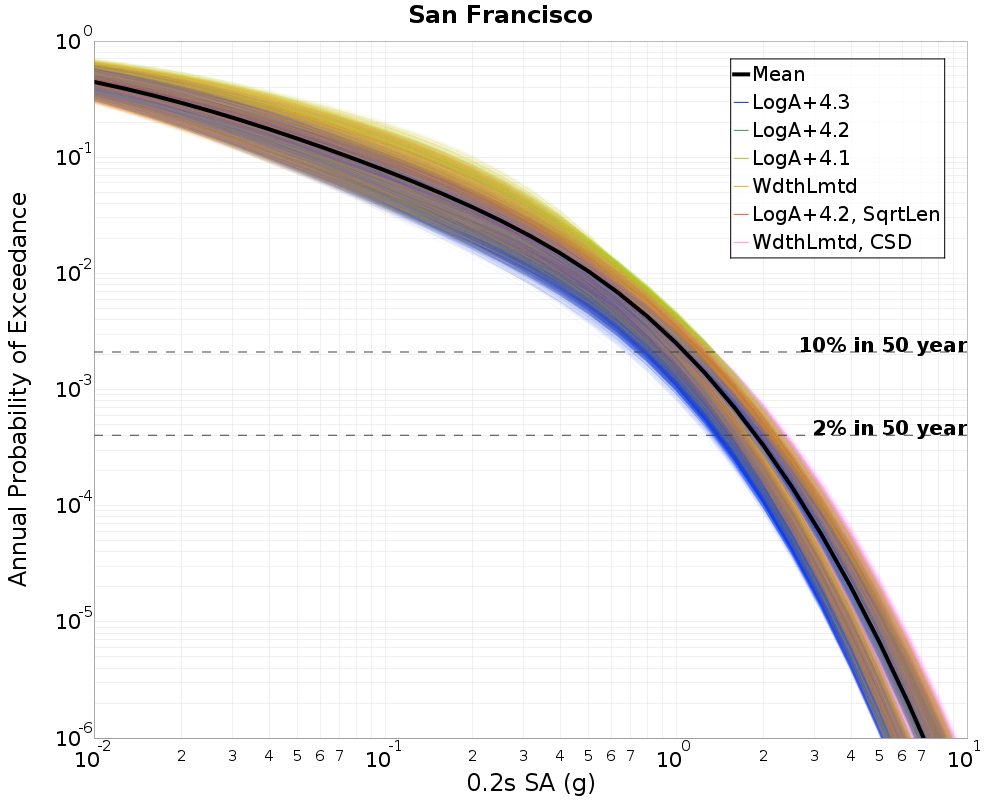

San Francisco, 0.2s SA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.8774607 (g) | 1.0711858 (g) |
| LogA+4.3 | 1.7698872 (g) | 0.9922514 (g) |
| LogA+4.2 | 1.853404 (g) | 1.0514488 (g) |
| LogA+4.1 | 1.9508933 (g) | 1.1291516 (g) |
| WdthLmtd | 1.8545191 (g) | 1.0571122 (g) |
| LogA+4.2, SqrtLen | 1.8935175 (g) | 1.0801817 (g) |
| WdthLmtd, CSD | 1.9284031 (g) | 1.1077429 (g) |

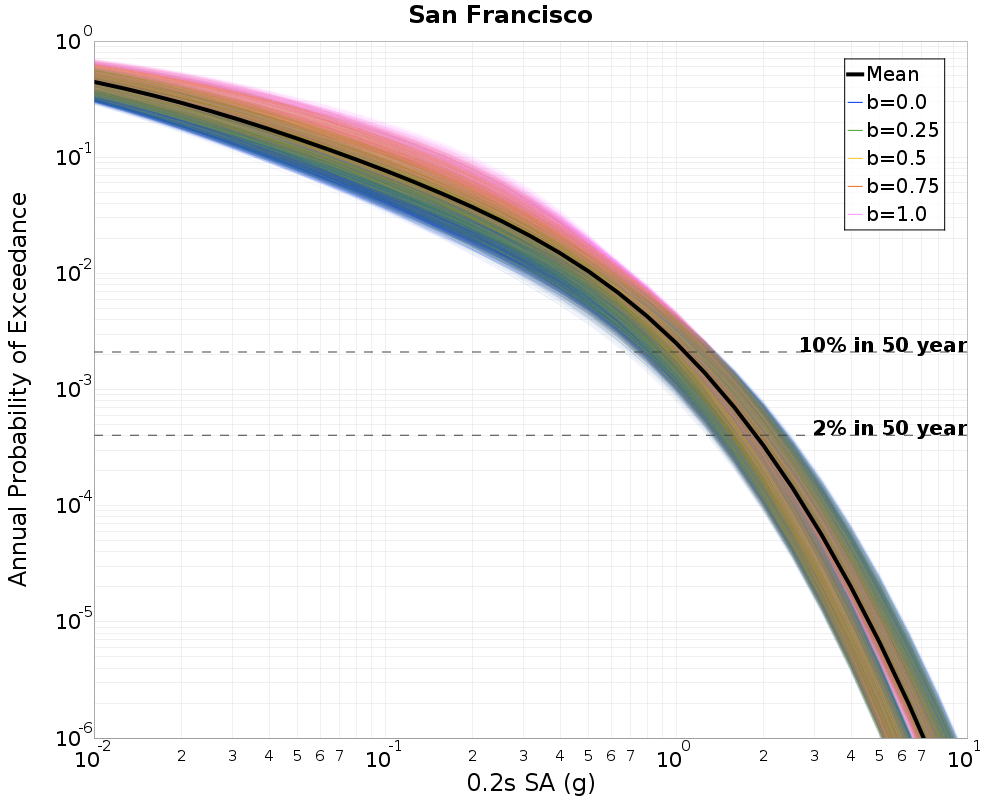

San Francisco, 0.2s SA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.8774607 (g) | 1.0711858 (g) |
| b=0.0 | 1.8767331 (g) | 1.0432945 (g) |
| b=0.25 | 1.87403 (g) | 1.0511379 (g) |
| b=0.5 | 1.8762264 (g) | 1.0654515 (g) |
| b=0.75 | 1.8780051 (g) | 1.0838449 (g) |
| b=1.0 | 1.8818729 (g) | 1.105971 (g) |

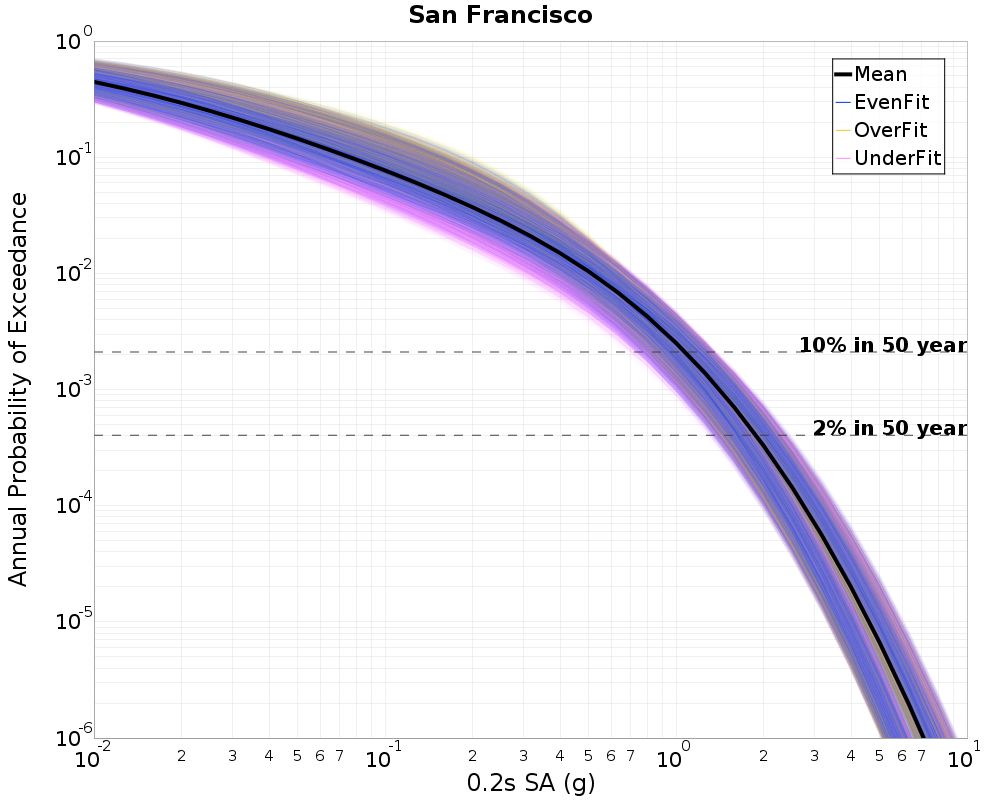

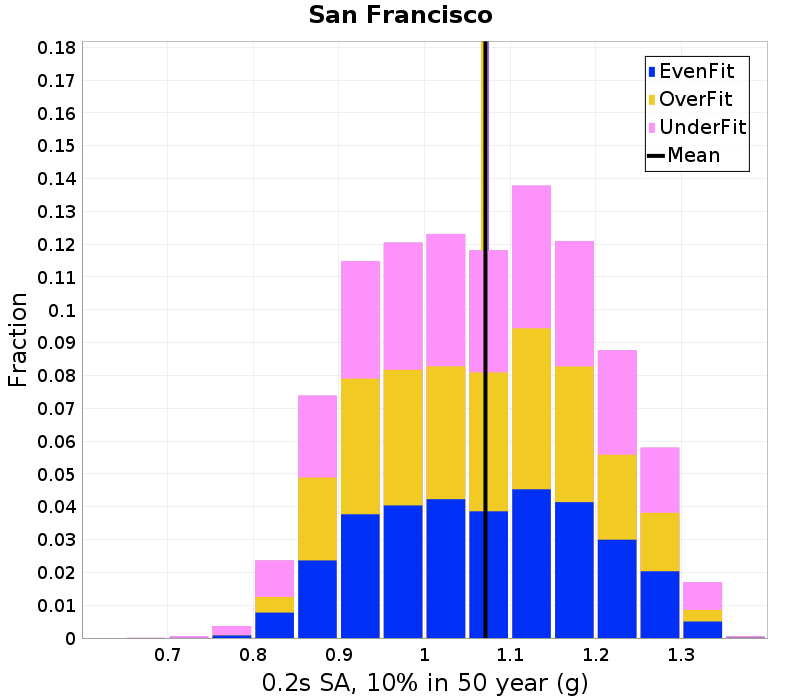

San Francisco, 0.2s SA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.8774607 (g) | 1.0711858 (g) |
| EvenFit | 1.8784132 (g) | 1.0728596 (g) |
| OverFit | 1.8666339 (g) | 1.068302 (g) |
| UnderFit | 1.8873222 (g) | 1.0724217 (g) |

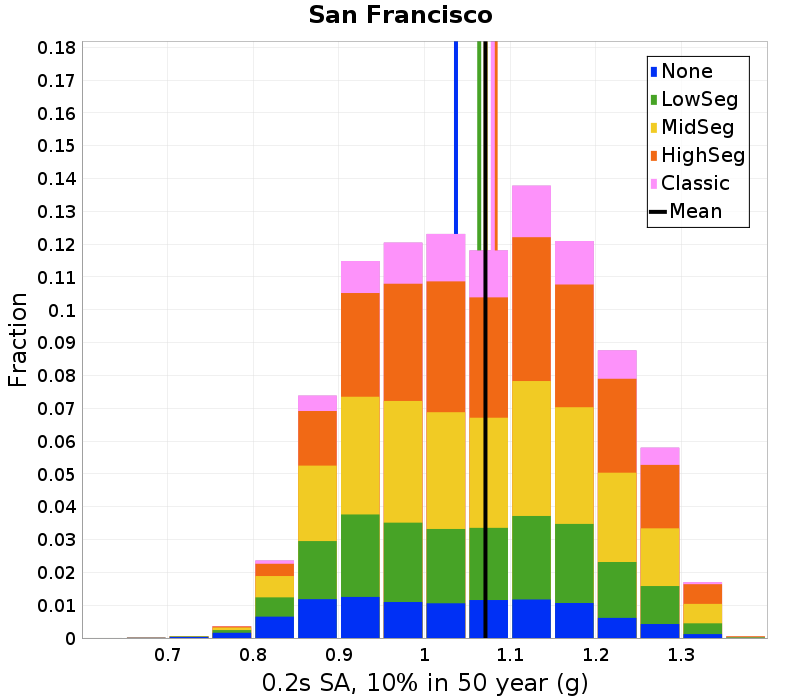

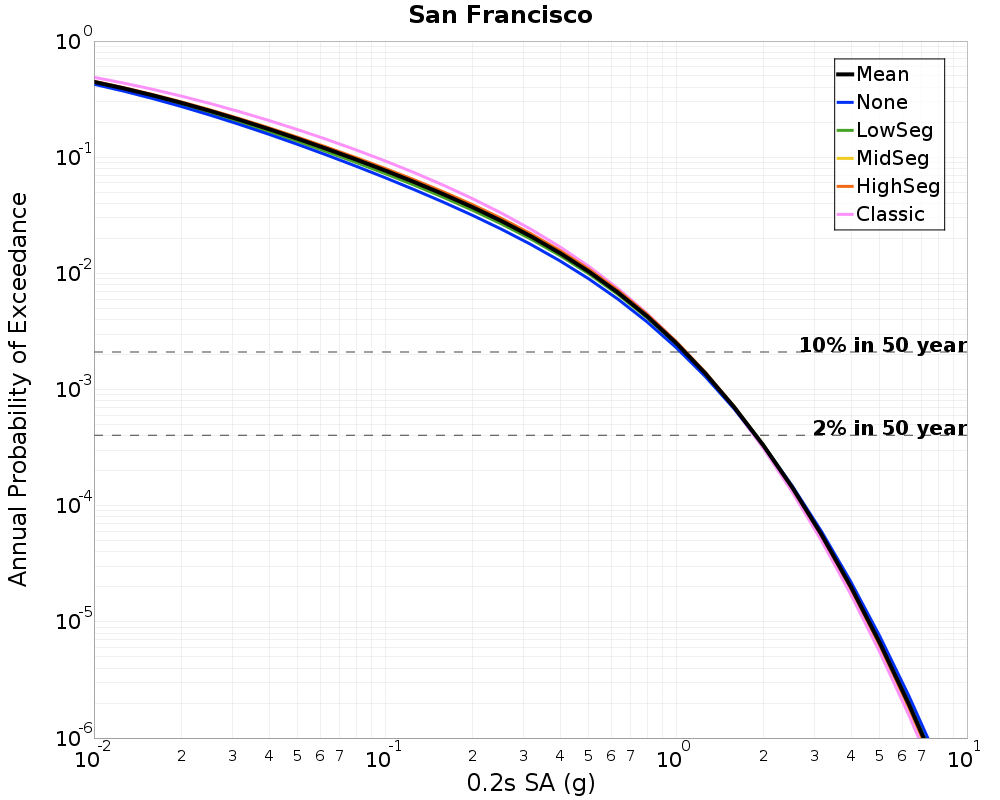

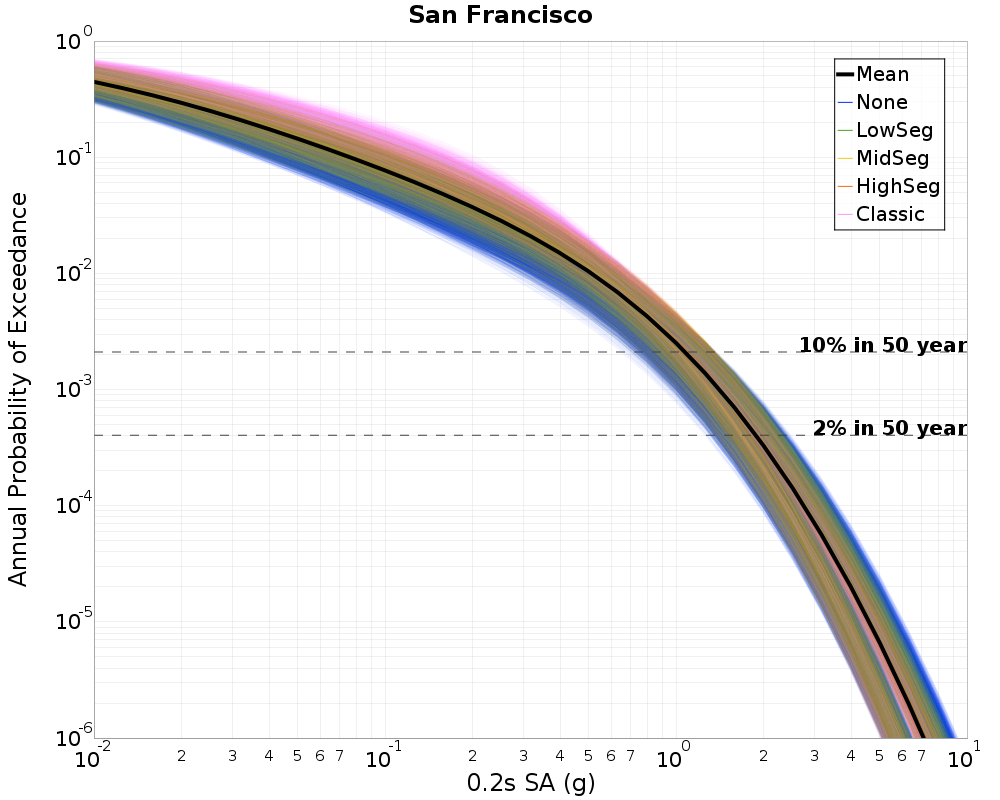

San Francisco, 0.2s SA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.8774607 (g) | 1.0711858 (g) |
| None | 1.8711412 (g) | 1.0367671 (g) |
| LowSeg | 1.8831992 (g) | 1.0639048 (g) |
| MidSeg | 1.88168 (g) | 1.0714089 (g) |
| HighSeg | 1.8806952 (g) | 1.0830936 (g) |
| Classic | 1.8501217 (g) | 1.0797827 (g) |

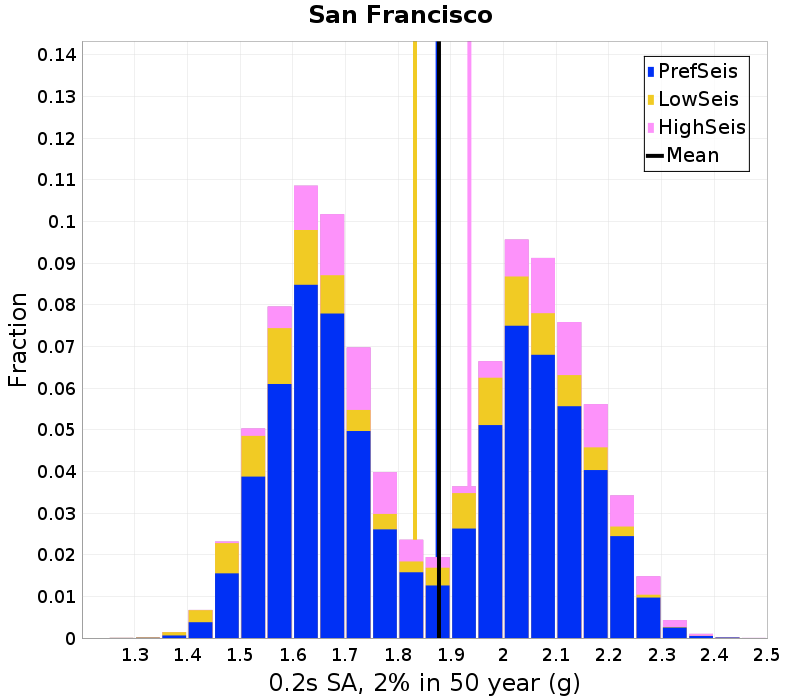

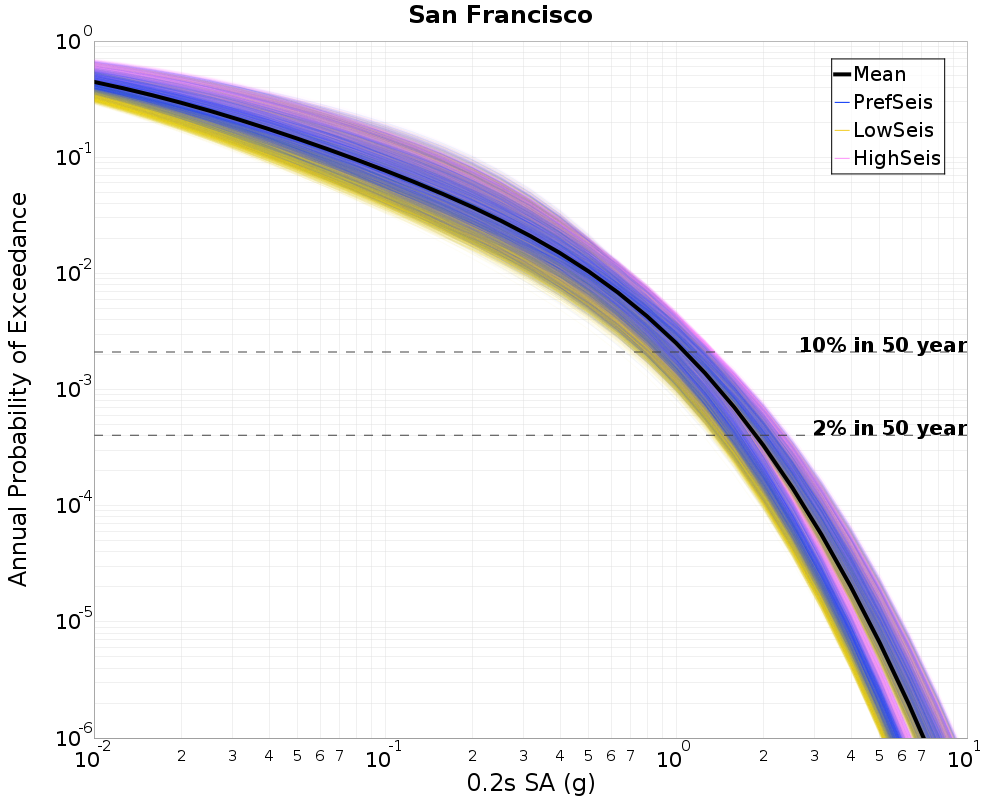

San Francisco, 0.2s SA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.8774607 (g) | 1.0711858 (g) |
| PrefSeis | 1.8748693 (g) | 1.069709 (g) |
| LowSeis | 1.8319743 (g) | 1.042528 (g) |
| HighSeis | 1.9351707 (g) | 1.1071085 (g) |

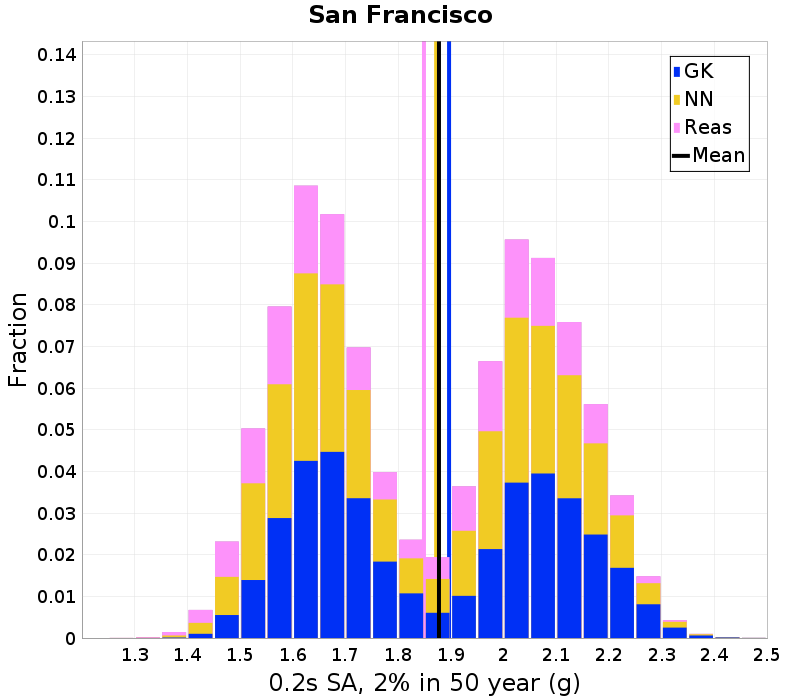

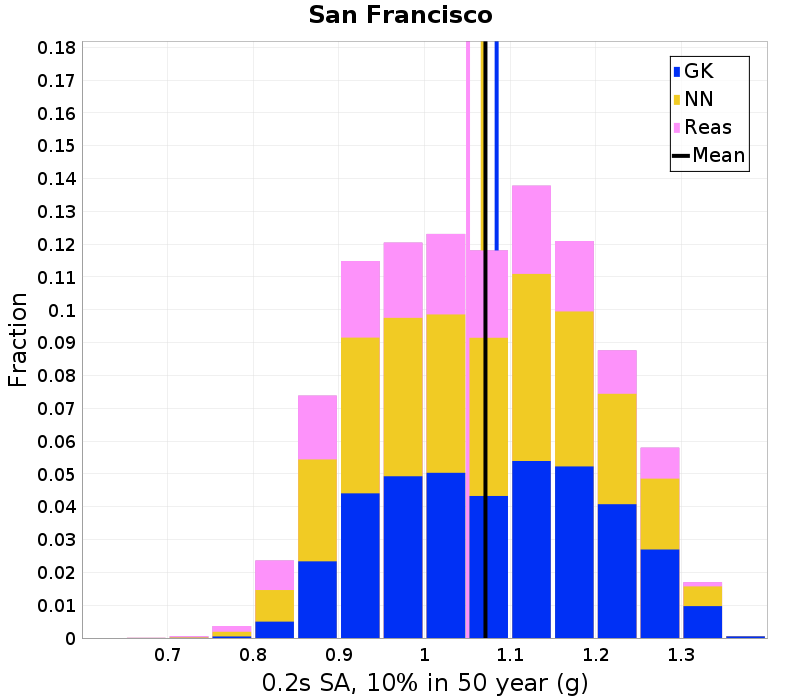

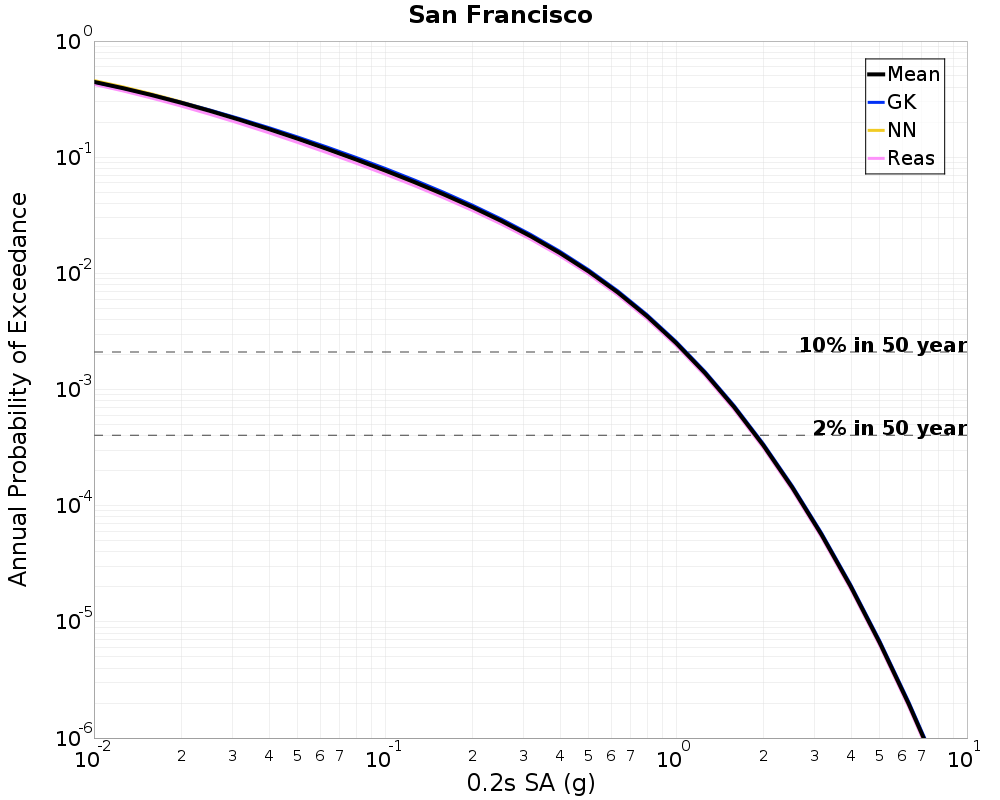

San Francisco, 0.2s SA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.8774607 (g) | 1.0711858 (g) |
| GK | 1.8966249 (g) | 1.0842576 (g) |
| NN | 1.8720932 (g) | 1.0680033 (g) |
| Reas | 1.8489841 (g) | 1.0508314 (g) |

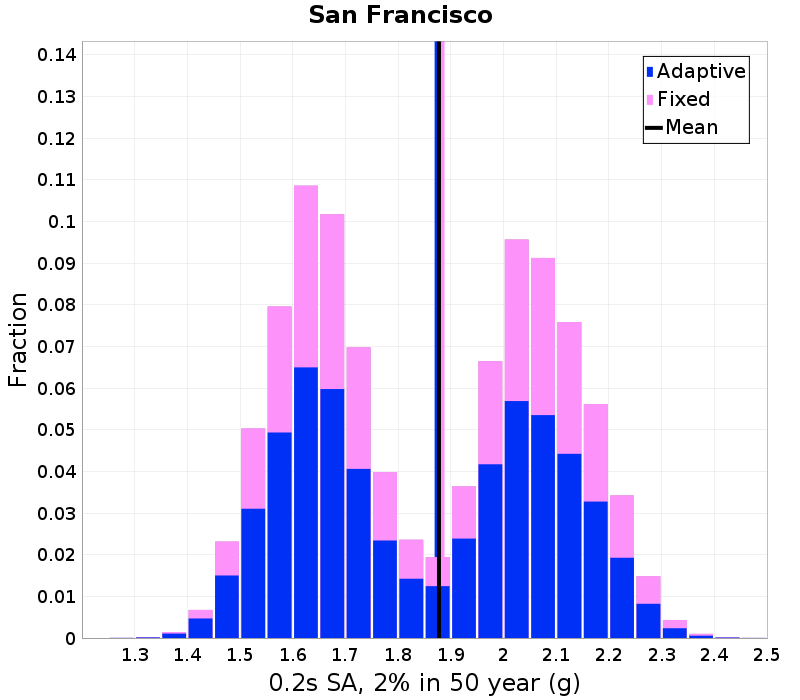

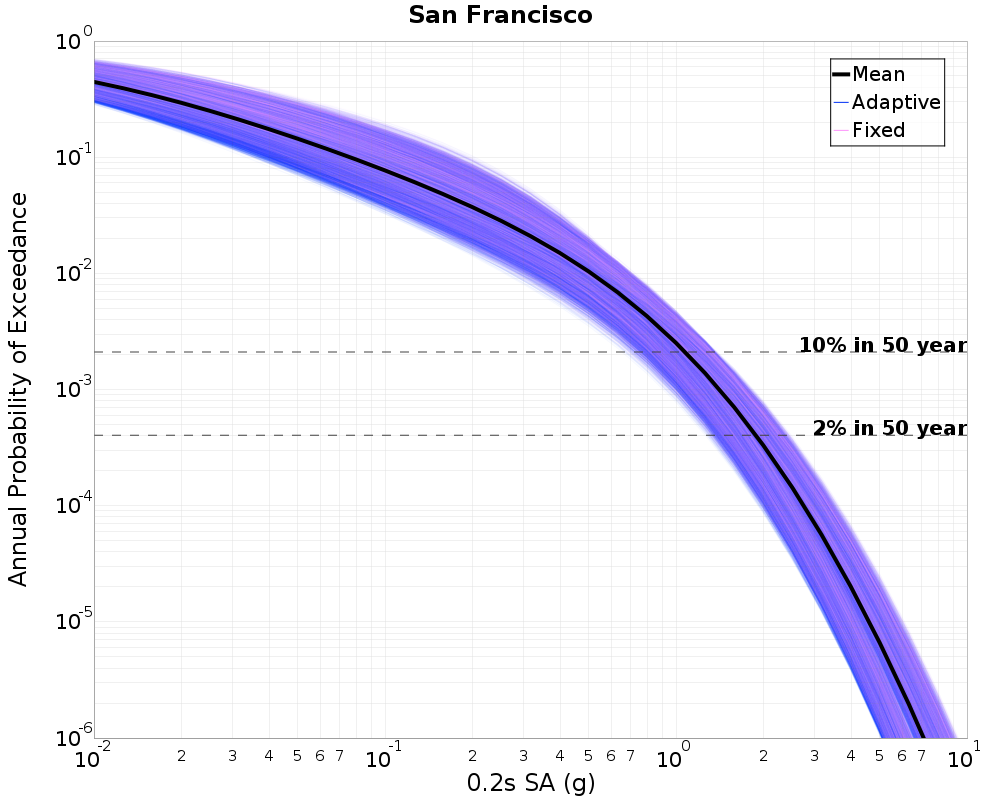

San Francisco, 0.2s SA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.8774607 (g) | 1.0711858 (g) |
| Adaptive | 1.8729726 (g) | 1.0687016 (g) |
| Fixed | 1.8841674 (g) | 1.0749034 (g) |

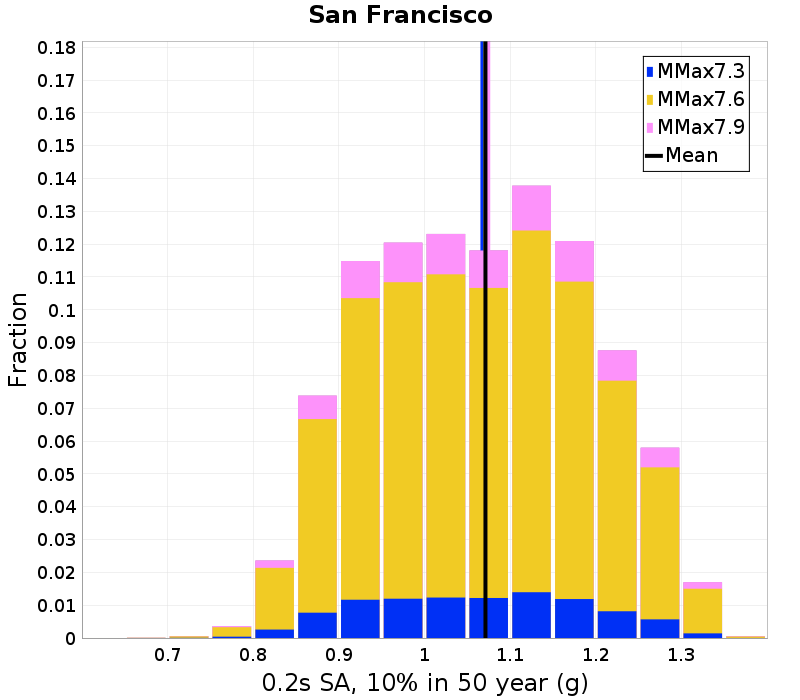

San Francisco, 0.2s SA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.8774607 (g) | 1.0711858 (g) |
| MMax7.3 | 1.8705 (g) | 1.0676346 (g) |
| MMax7.6 | 1.8775393 (g) | 1.0712209 (g) |
| MMax7.9 | 1.8837675 (g) | 1.0744511 (g) |

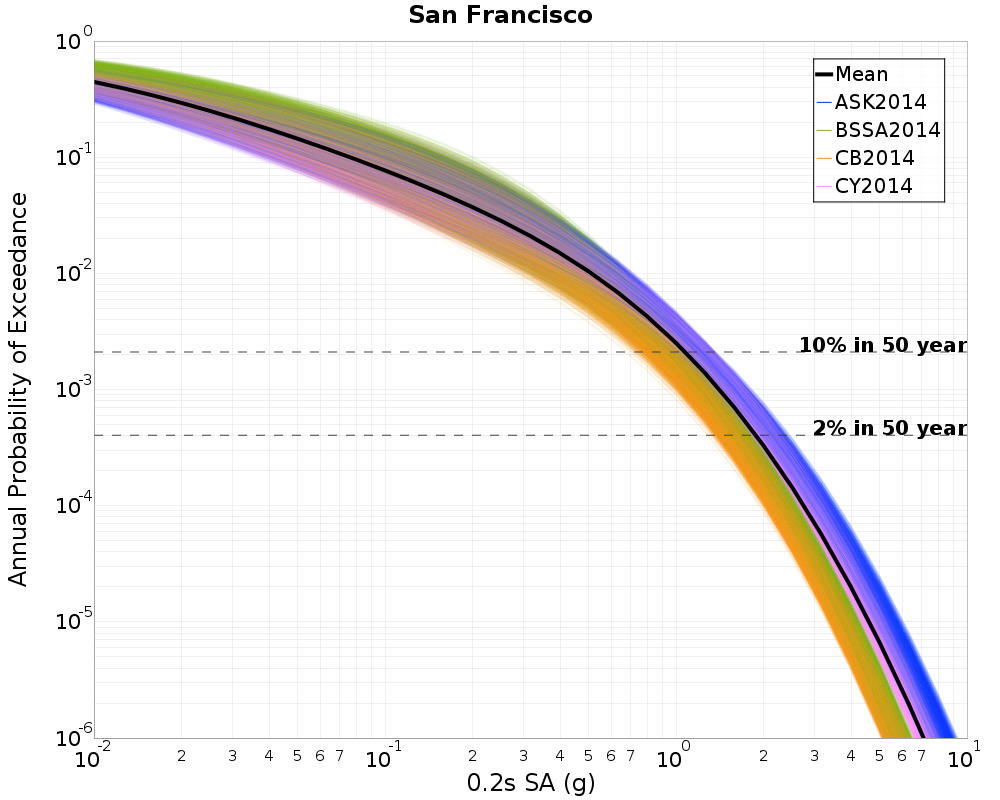

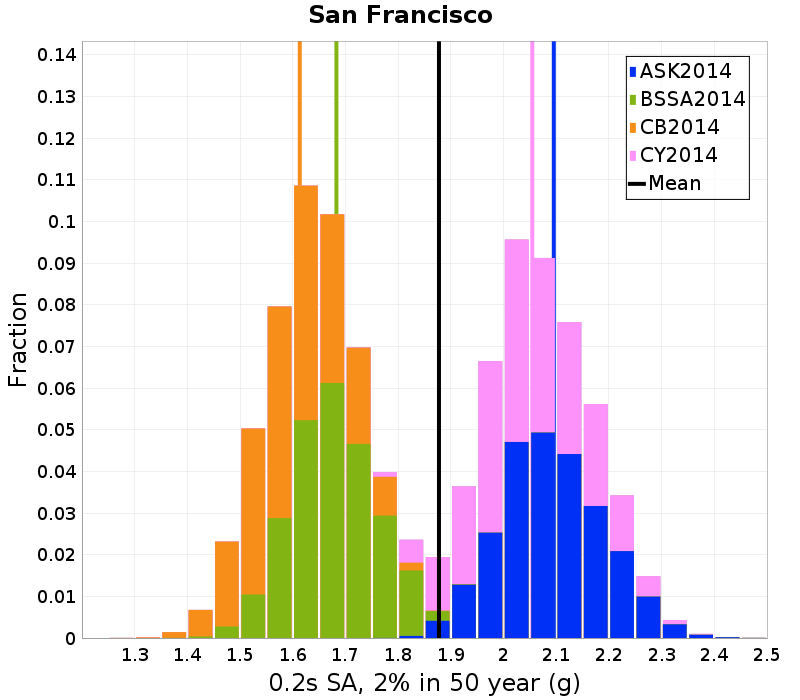

San Francisco, 0.2s SA, NGA-W2 GMM Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.8774607 (g) | 1.0711858 (g) |
| ASK2014 | 2.0953872 (g) | 1.1770538 (g) |
| BSSA2014 | 1.6828061 (g) | 1.0005746 (g) |
| CB2014 | 1.6132818 (g) | 0.94684976 (g) |
| CY2014 | 2.05455 (g) | 1.1617543 (g) |
San Francisco, 1.0s SA

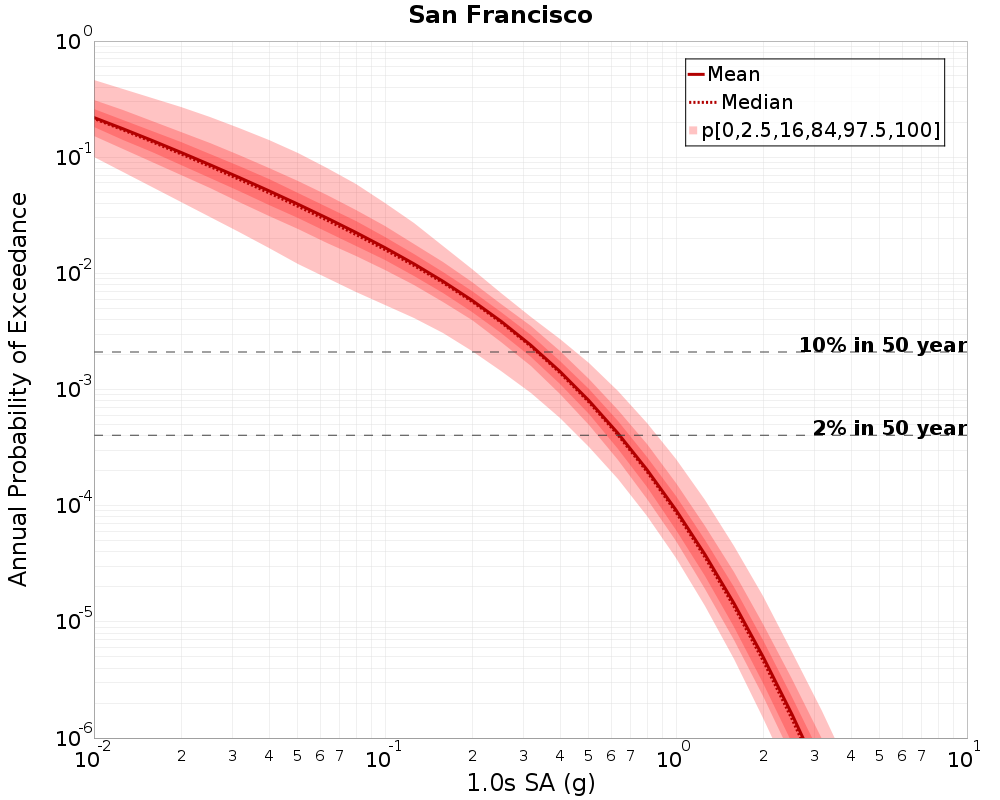

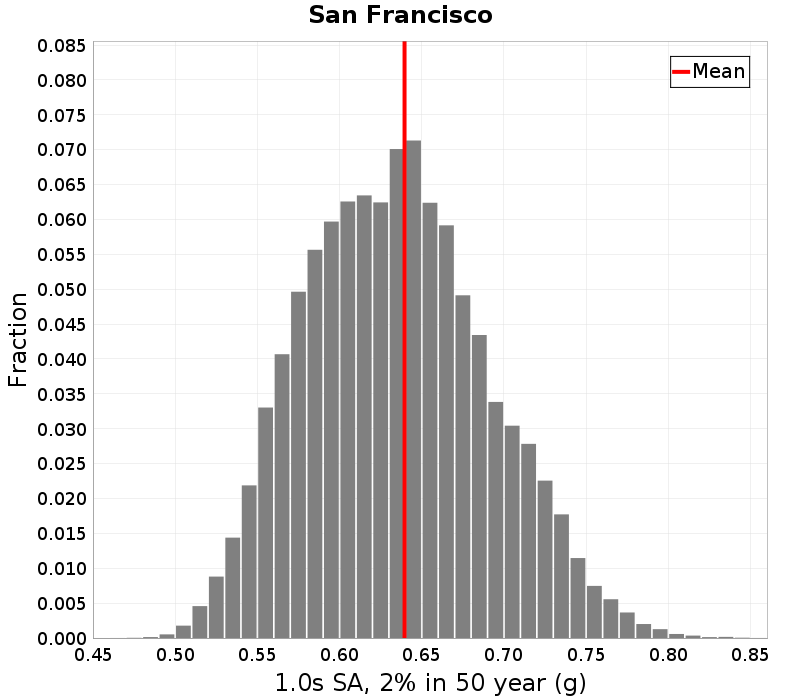

San Francisco, 1.0s SA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
| 2% in 50 year | 10% in 50 year |
|---|---|
| 0.63951635 (g) | 0.33640382 (g) |

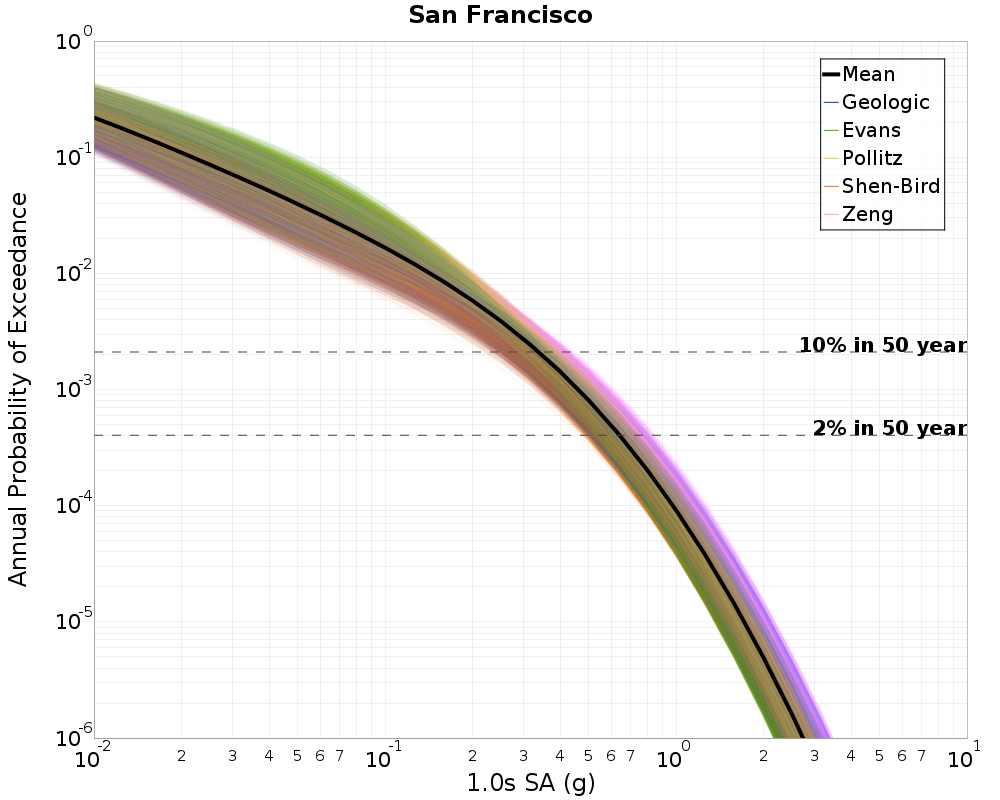

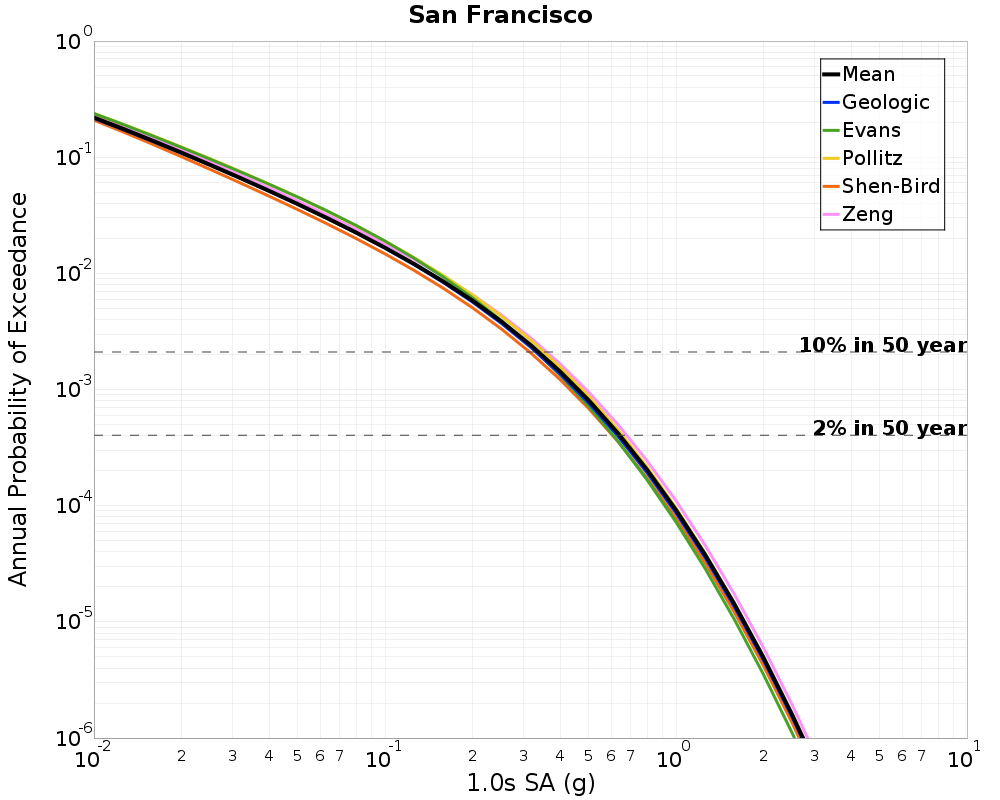

San Francisco, 1.0s SA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.63951635 (g) | 0.33640382 (g) |
| Geologic | 0.6274732 (g) | 0.32981348 (g) |
| Evans | 0.60698134 (g) | 0.3311286 (g) |
| Pollitz | 0.6531779 (g) | 0.35054967 (g) |
| Shen-Bird | 0.6043261 (g) | 0.3139619 (g) |
| Zeng | 0.6761408 (g) | 0.35948646 (g) |

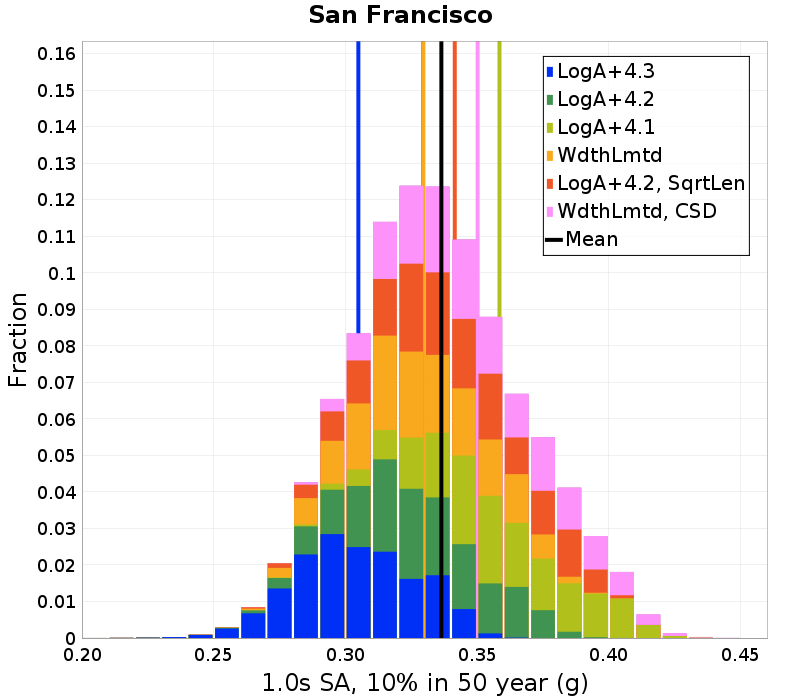

San Francisco, 1.0s SA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.63951635 (g) | 0.33640382 (g) |
| LogA+4.3 | 0.59601563 (g) | 0.3048946 (g) |
| LogA+4.2 | 0.6312284 (g) | 0.3294575 (g) |
| LogA+4.1 | 0.664256 (g) | 0.35845816 (g) |
| WdthLmtd | 0.62991786 (g) | 0.3295281 (g) |
| LogA+4.2, SqrtLen | 0.6477528 (g) | 0.34148818 (g) |
| WdthLmtd, CSD | 0.65869415 (g) | 0.35016513 (g) |

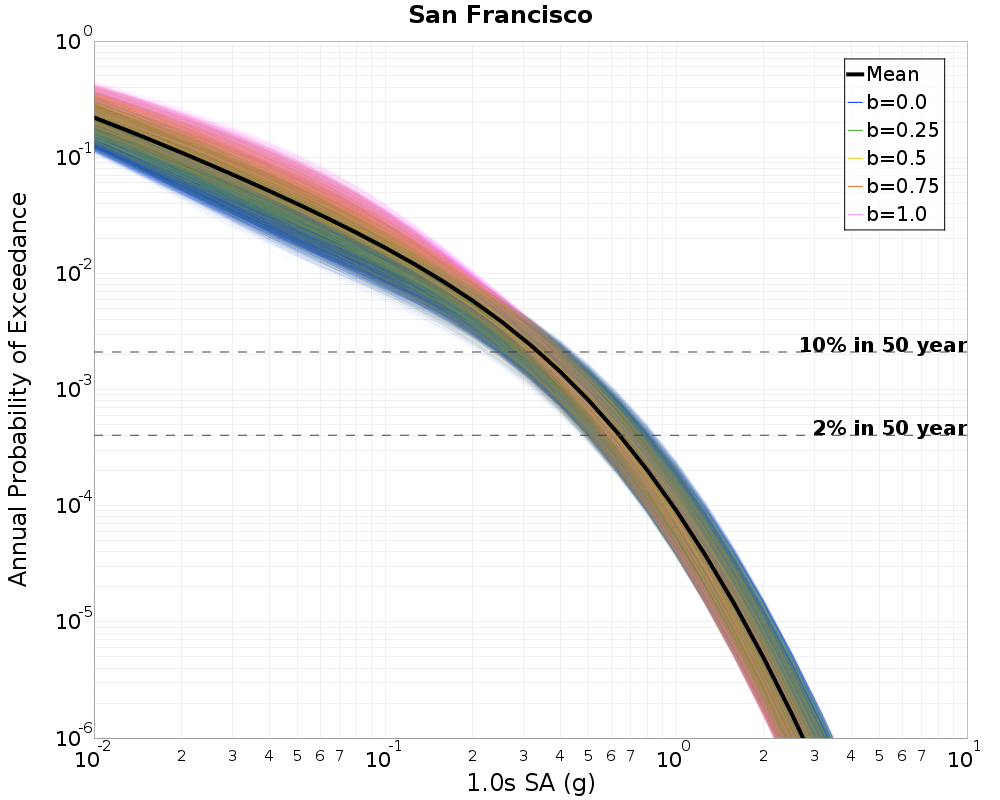

San Francisco, 1.0s SA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.63951635 (g) | 0.33640382 (g) |
| b=0.0 | 0.6475692 (g) | 0.3313945 (g) |
| b=0.25 | 0.6438701 (g) | 0.3326719 (g) |
| b=0.5 | 0.6405346 (g) | 0.33562413 (g) |
| b=0.75 | 0.6355648 (g) | 0.33881822 (g) |
| b=1.0 | 0.6303725 (g) | 0.3424352 (g) |

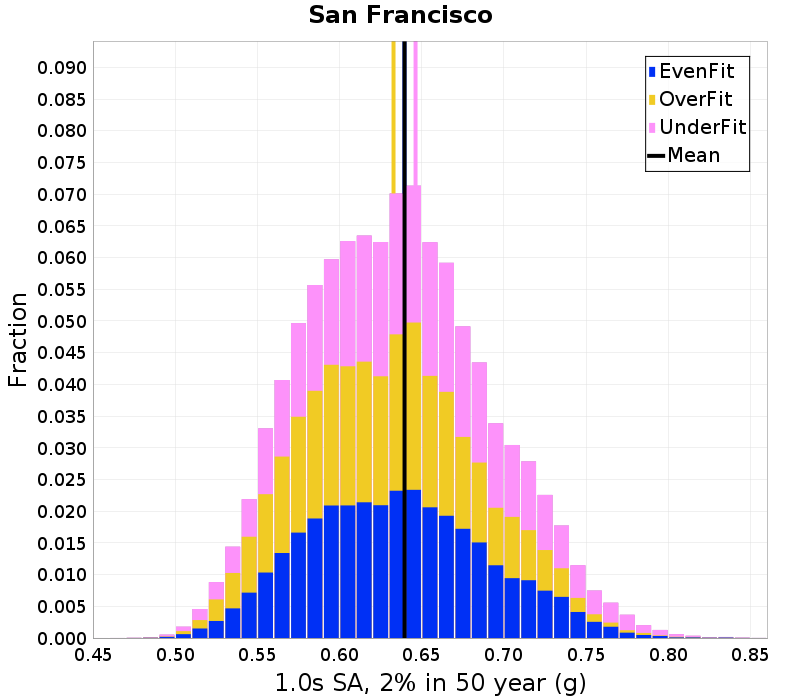

San Francisco, 1.0s SA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.63951635 (g) | 0.33640382 (g) |
| EvenFit | 0.639458 (g) | 0.3367843 (g) |
| OverFit | 0.6328133 (g) | 0.33375588 (g) |
| UnderFit | 0.6462123 (g) | 0.33871135 (g) |
San Francisco, 1.0s SA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.63951635 (g) | 0.33640382 (g) |
| None | 0.649403 (g) | 0.32763243 (g) |
| LowSeg | 0.64607763 (g) | 0.33566475 (g) |
| MidSeg | 0.64156777 (g) | 0.33712348 (g) |
| HighSeg | 0.63594145 (g) | 0.33888227 (g) |
| Classic | 0.6209182 (g) | 0.33611393 (g) |

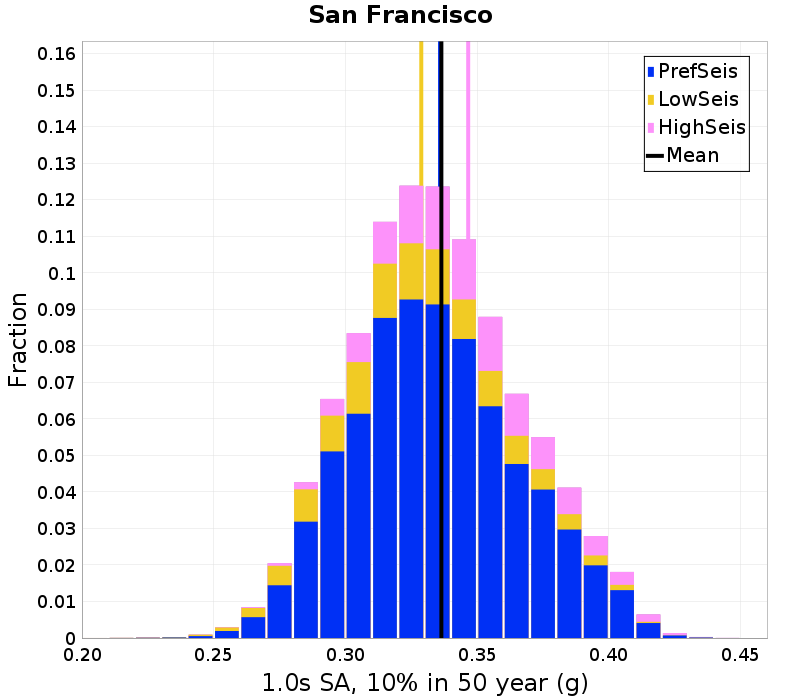

San Francisco, 1.0s SA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.63951635 (g) | 0.33640382 (g) |
| PrefSeis | 0.63876396 (g) | 0.3359026 (g) |
| LowSeis | 0.6286683 (g) | 0.32877764 (g) |
| HighSeis | 0.6539268 (g) | 0.3465852 (g) |

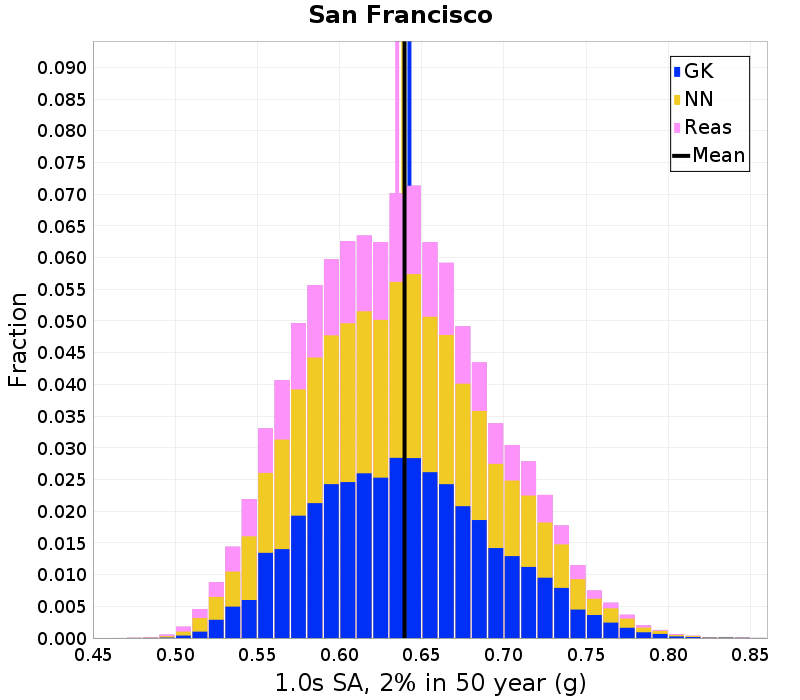

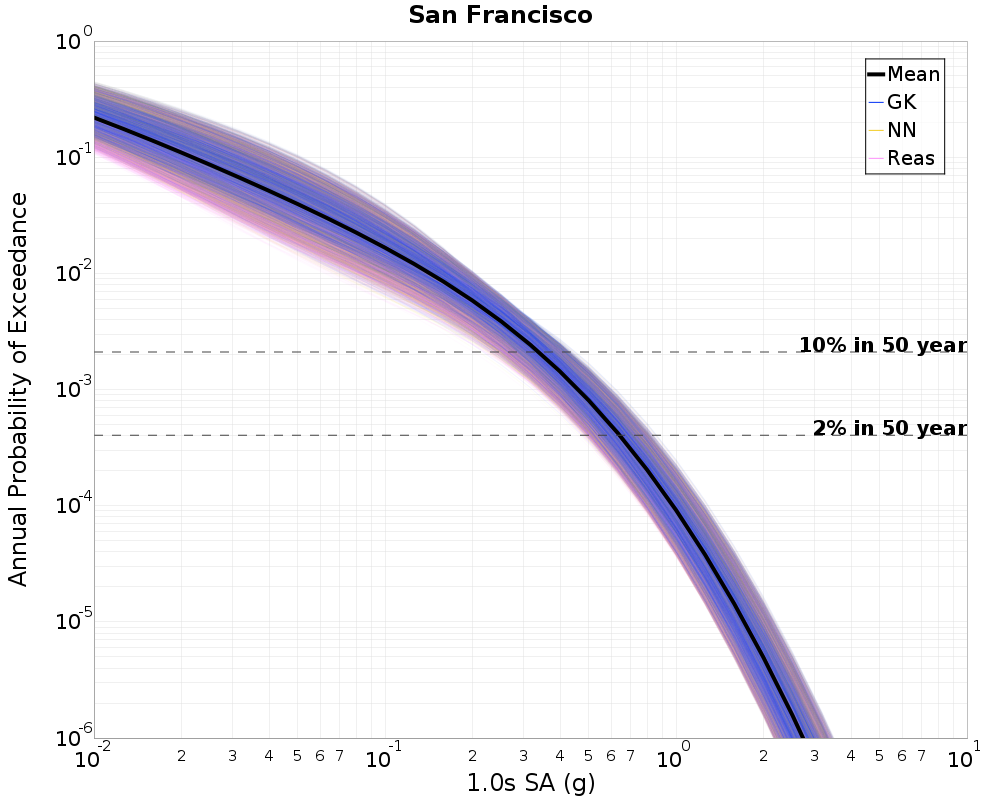

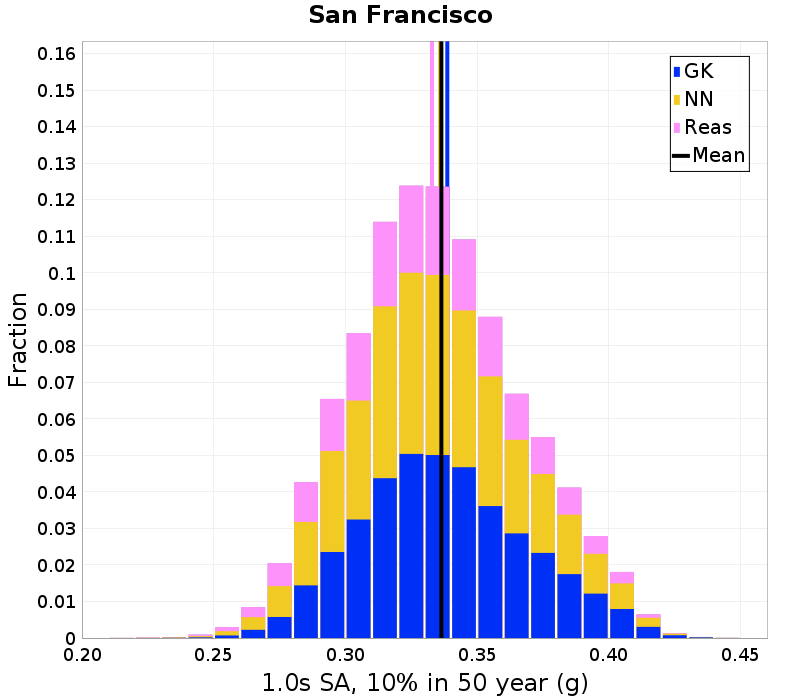

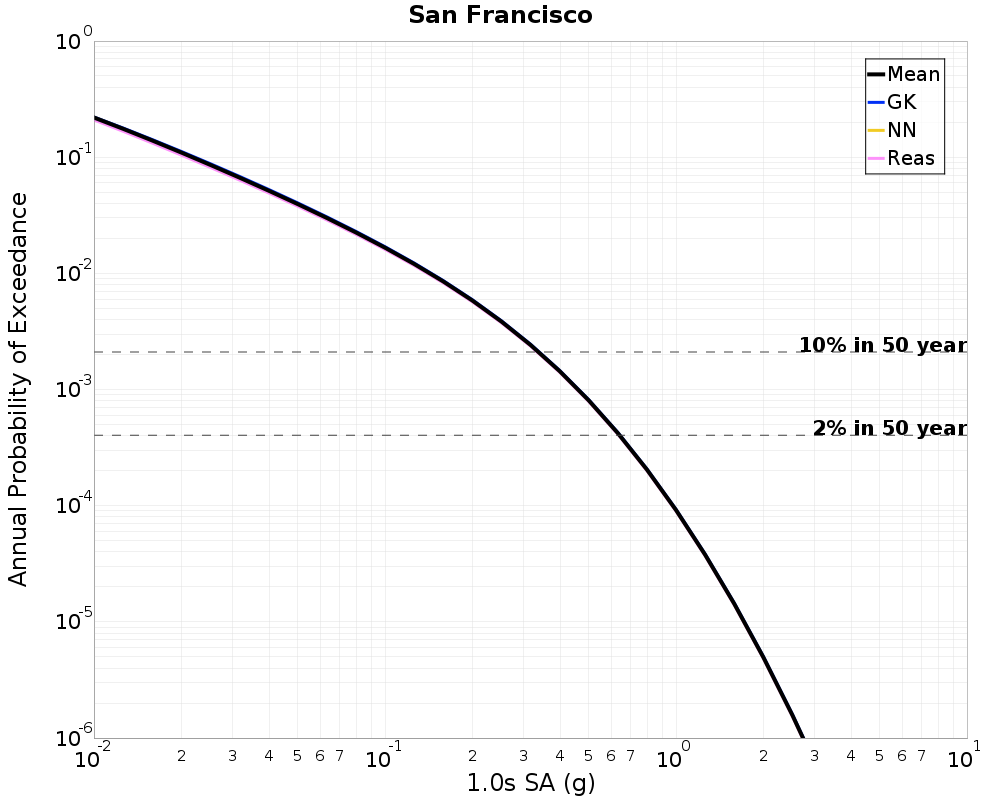

San Francisco, 1.0s SA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.63951635 (g) | 0.33640382 (g) |
| GK | 0.6424913 (g) | 0.3386597 (g) |
| NN | 0.6387619 (g) | 0.33590332 (g) |
| Reas | 0.6350108 (g) | 0.33284009 (g) |

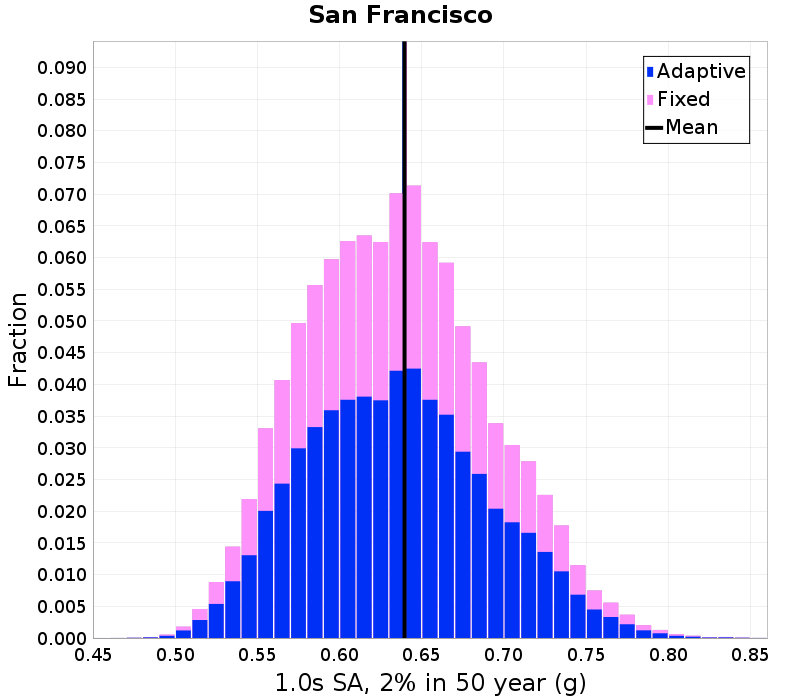

San Francisco, 1.0s SA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.63951635 (g) | 0.33640382 (g) |
| Adaptive | 0.6393299 (g) | 0.3361216 (g) |
| Fixed | 0.6397958 (g) | 0.3368254 (g) |

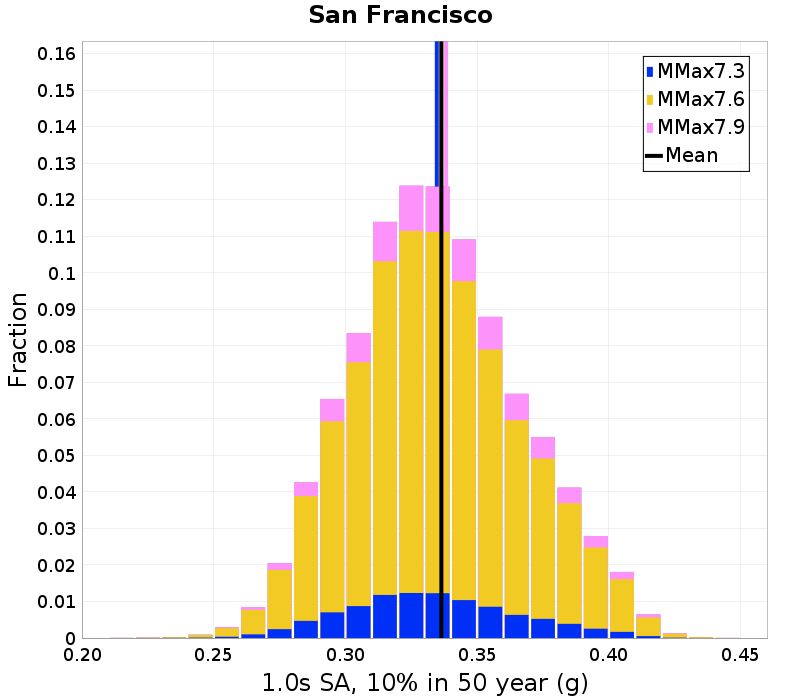

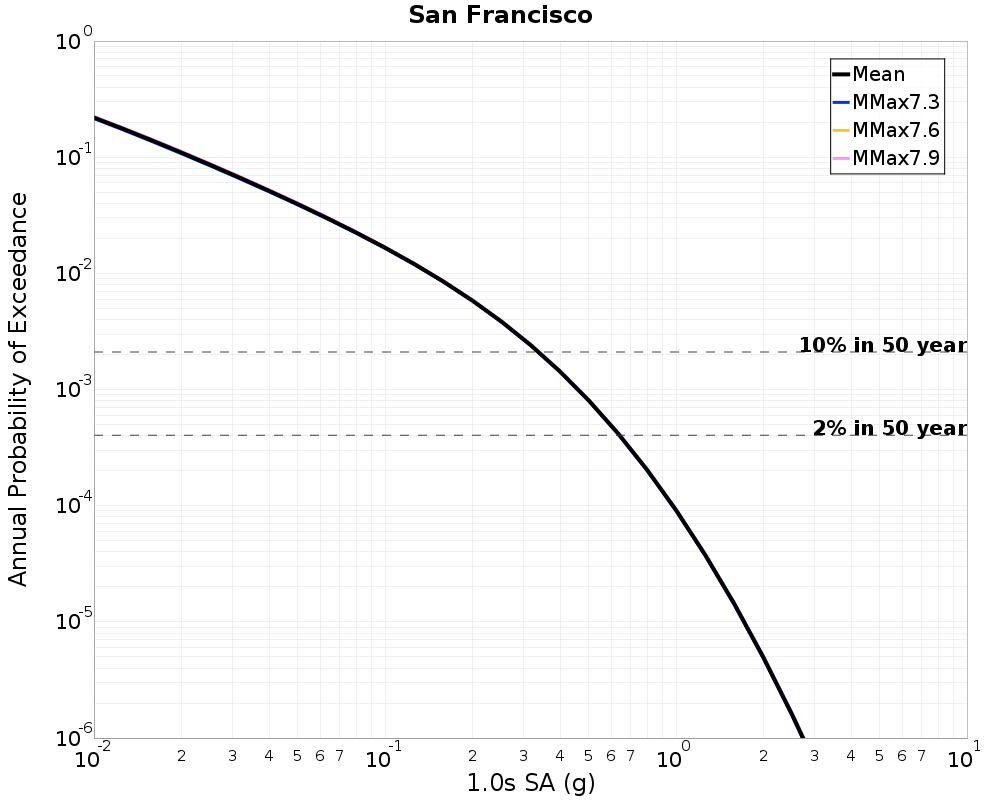

San Francisco, 1.0s SA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.63951635 (g) | 0.33640382 (g) |
| MMax7.3 | 0.6366342 (g) | 0.33466747 (g) |
| MMax7.6 | 0.63951224 (g) | 0.33639452 (g) |
| MMax7.9 | 0.64241445 (g) | 0.33820614 (g) |

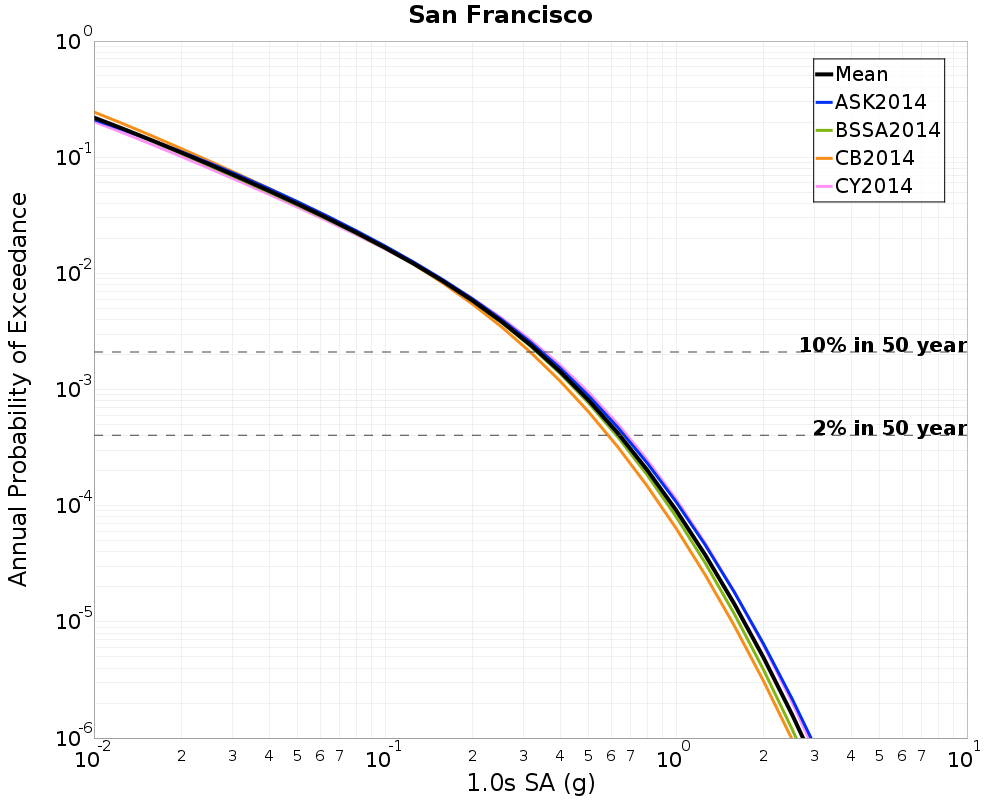

San Francisco, 1.0s SA, NGA-W2 GMM Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.63951635 (g) | 0.33640382 (g) |
| ASK2014 | 0.66373485 (g) | 0.34561607 (g) |
| BSSA2014 | 0.62387925 (g) | 0.3321077 (g) |
| CB2014 | 0.58408785 (g) | 0.31556487 (g) |
| CY2014 | 0.6782574 (g) | 0.3536033 (g) |
