Logic Tree Site Hazard Curves
Table Of Contents
Los Angeles
Los Angeles, PGA

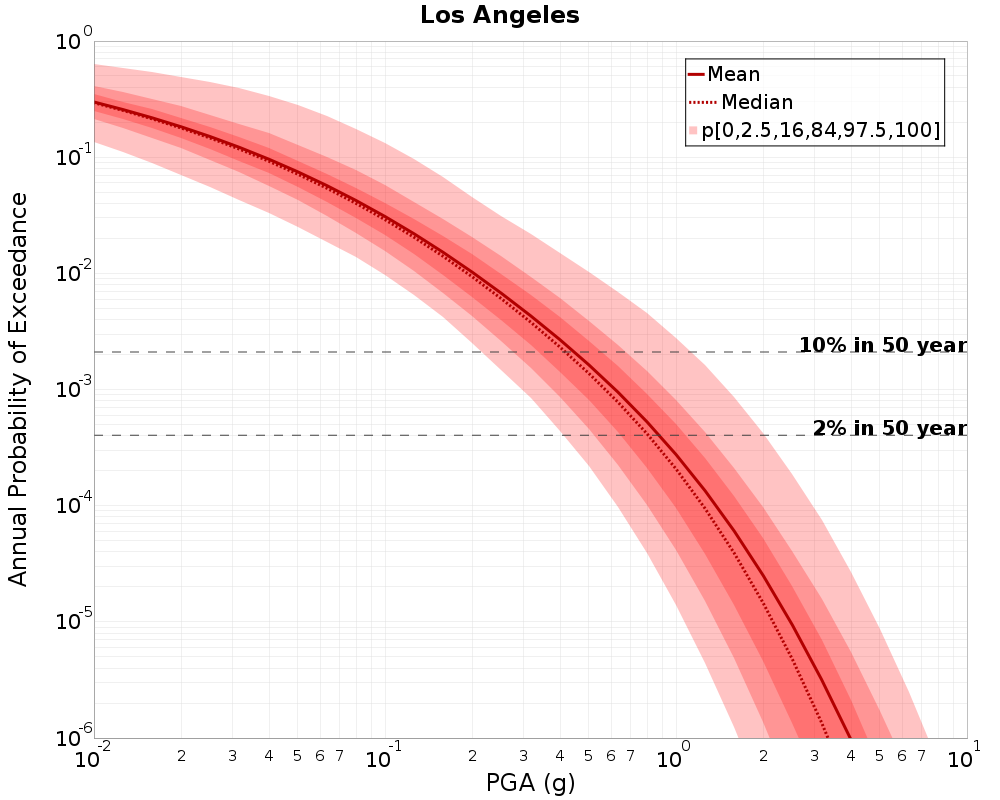

Los Angeles, PGA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
| 2% in 50 year | 10% in 50 year |
|---|---|
| 0.8733455 (g) | 0.44623333 (g) |

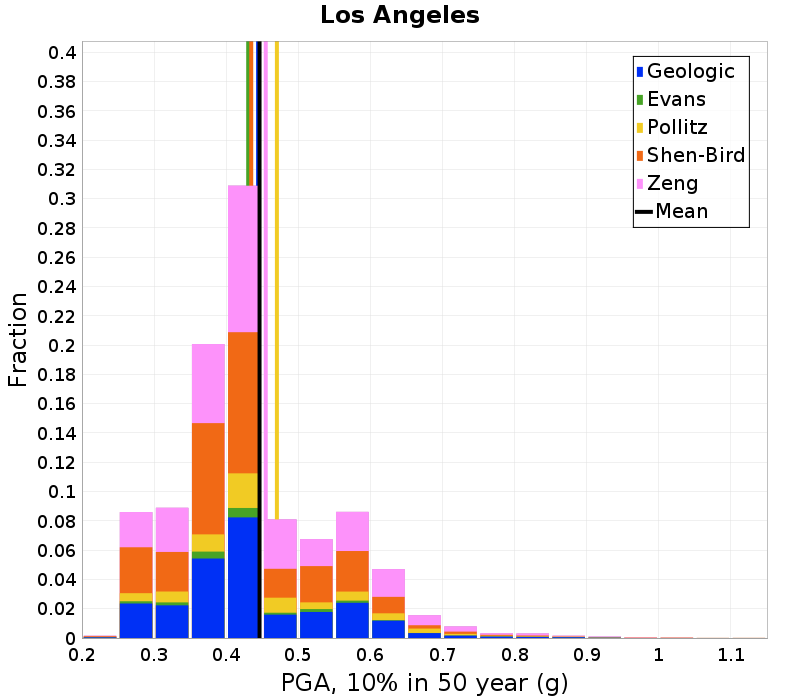

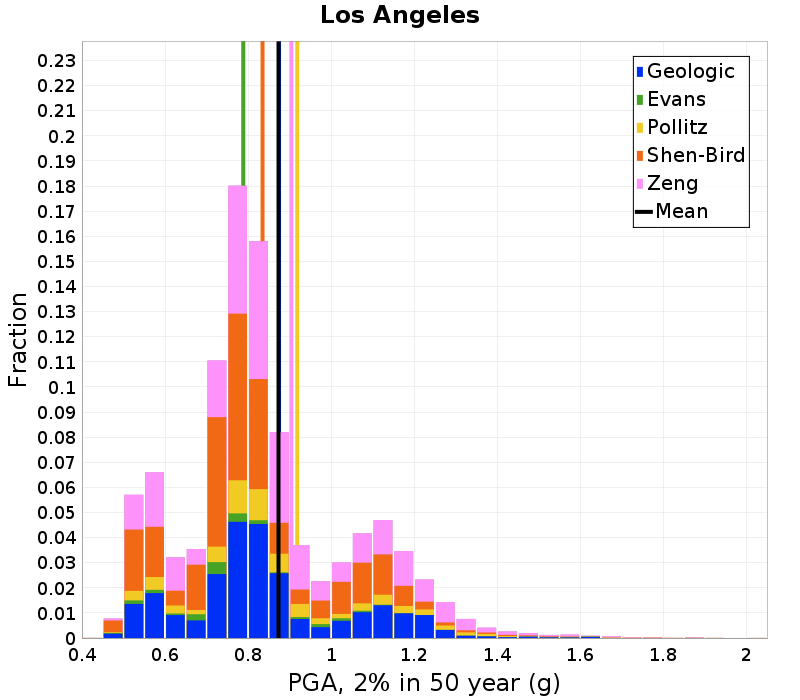

Los Angeles, PGA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8733455 (g) | 0.44623333 (g) |
| Geologic | 0.8746579 (g) | 0.44421726 (g) |
| Evans | 0.78849435 (g) | 0.43050098 (g) |
| Pollitz | 0.91852844 (g) | 0.47028992 (g) |
| Shen-Bird | 0.8348774 (g) | 0.4346883 (g) |
| Zeng | 0.9042988 (g) | 0.45483053 (g) |

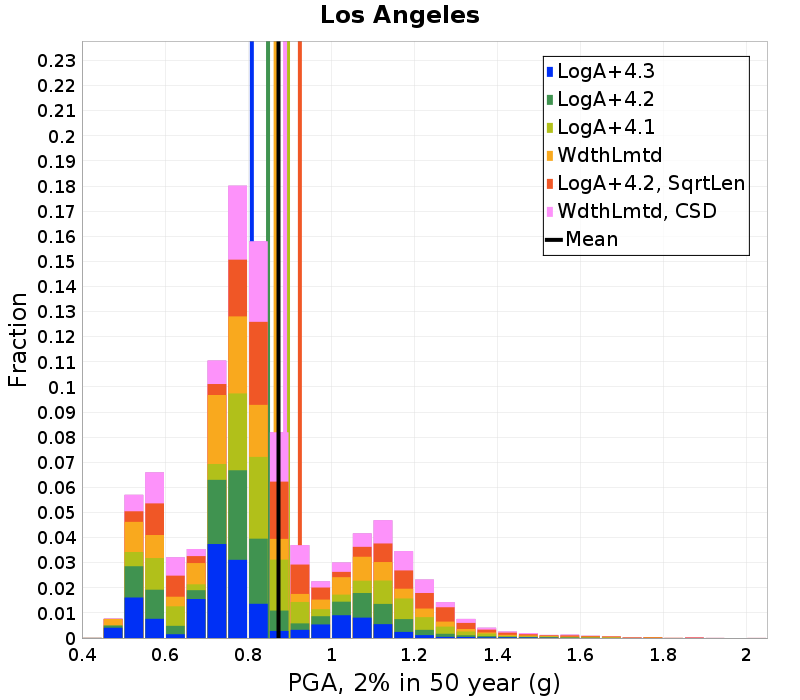

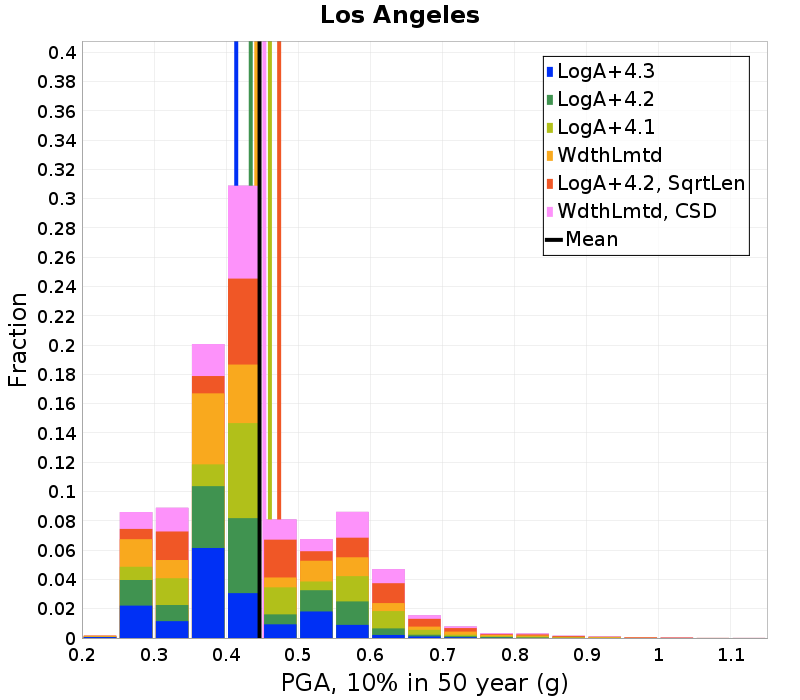

Los Angeles, PGA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8733455 (g) | 0.44623333 (g) |
| LogA+4.3 | 0.80911136 (g) | 0.41389626 (g) |
| LogA+4.2 | 0.84812456 (g) | 0.4340352 (g) |
| LogA+4.1 | 0.896233 (g) | 0.46061173 (g) |
| WdthLmtd | 0.86635417 (g) | 0.4416951 (g) |
| LogA+4.2, SqrtLen | 0.92481345 (g) | 0.47342214 (g) |
| WdthLmtd, CSD | 0.8891966 (g) | 0.45290837 (g) |

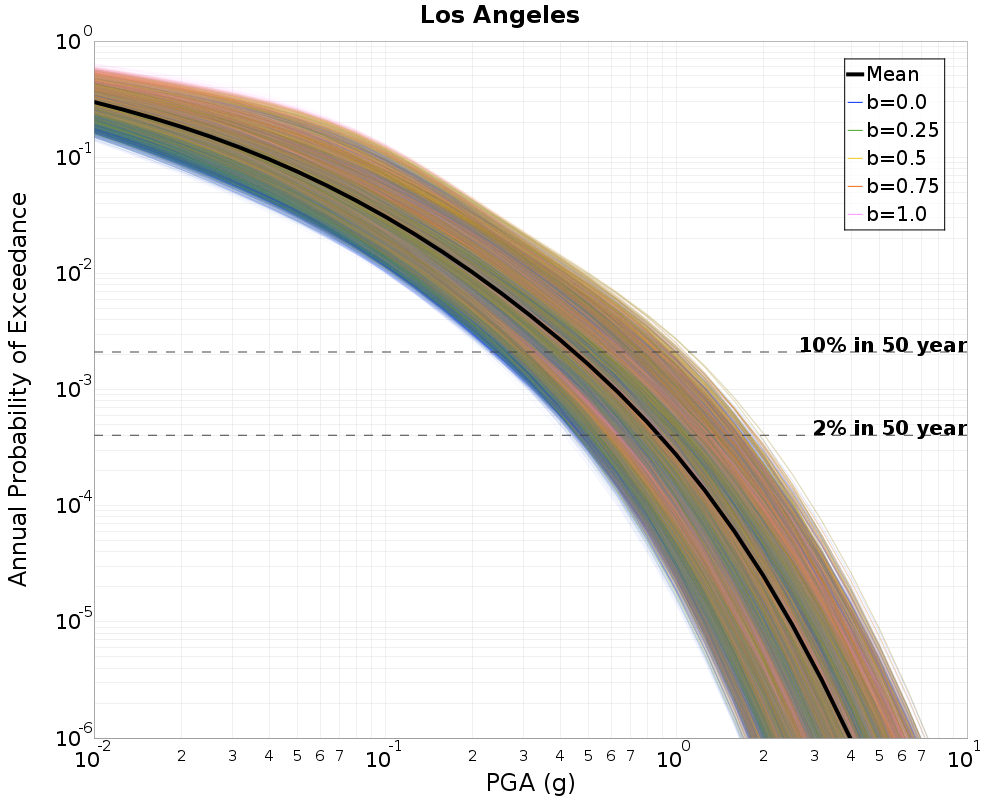

Los Angeles, PGA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8733455 (g) | 0.44623333 (g) |
| b=0.0 | 0.8392281 (g) | 0.42754227 (g) |
| b=0.25 | 0.8588491 (g) | 0.43872213 (g) |
| b=0.5 | 0.8740833 (g) | 0.44670942 (g) |
| b=0.75 | 0.8906919 (g) | 0.45546508 (g) |
| b=1.0 | 0.9018551 (g) | 0.4622681 (g) |
Los Angeles, PGA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8733455 (g) | 0.44623333 (g) |
| EvenFit | 0.8625642 (g) | 0.4422976 (g) |
| OverFit | 0.86142904 (g) | 0.44135496 (g) |
| UnderFit | 0.89575 (g) | 0.4551383 (g) |

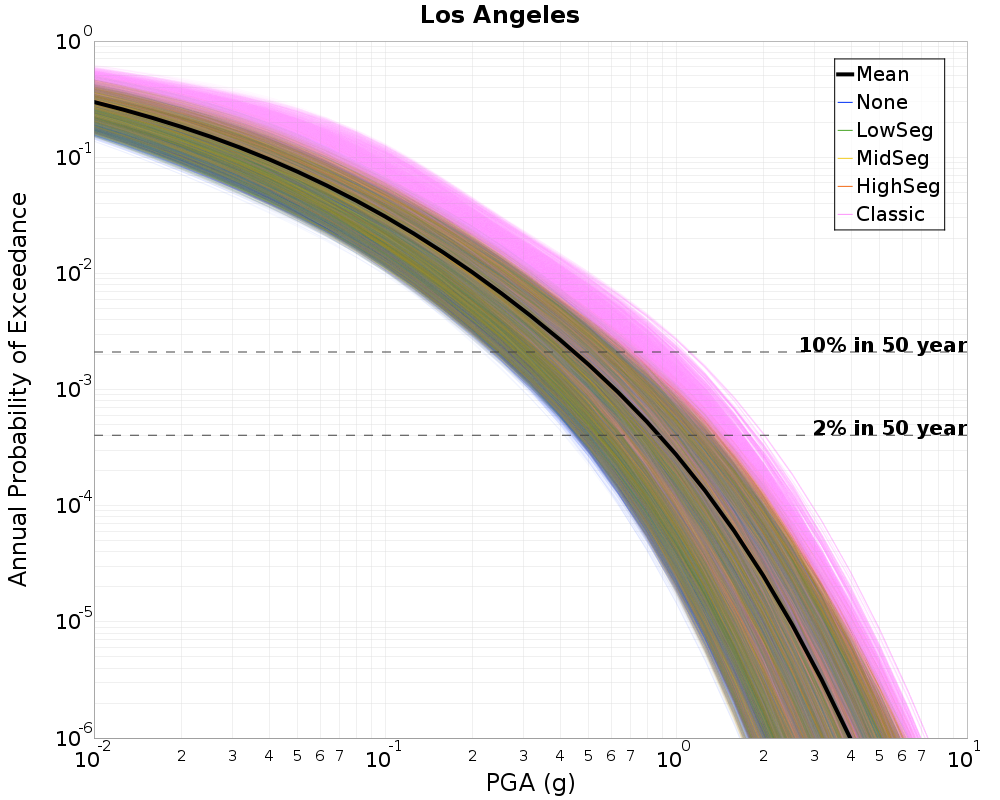

Los Angeles, PGA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8733455 (g) | 0.44623333 (g) |
| None | 0.8266717 (g) | 0.42305082 (g) |
| LowSeg | 0.836675 (g) | 0.42651173 (g) |
| MidSeg | 0.83856064 (g) | 0.42603365 (g) |
| HighSeg | 0.8499896 (g) | 0.42873913 (g) |
| Classic | 1.0903426 (g) | 0.59022146 (g) |

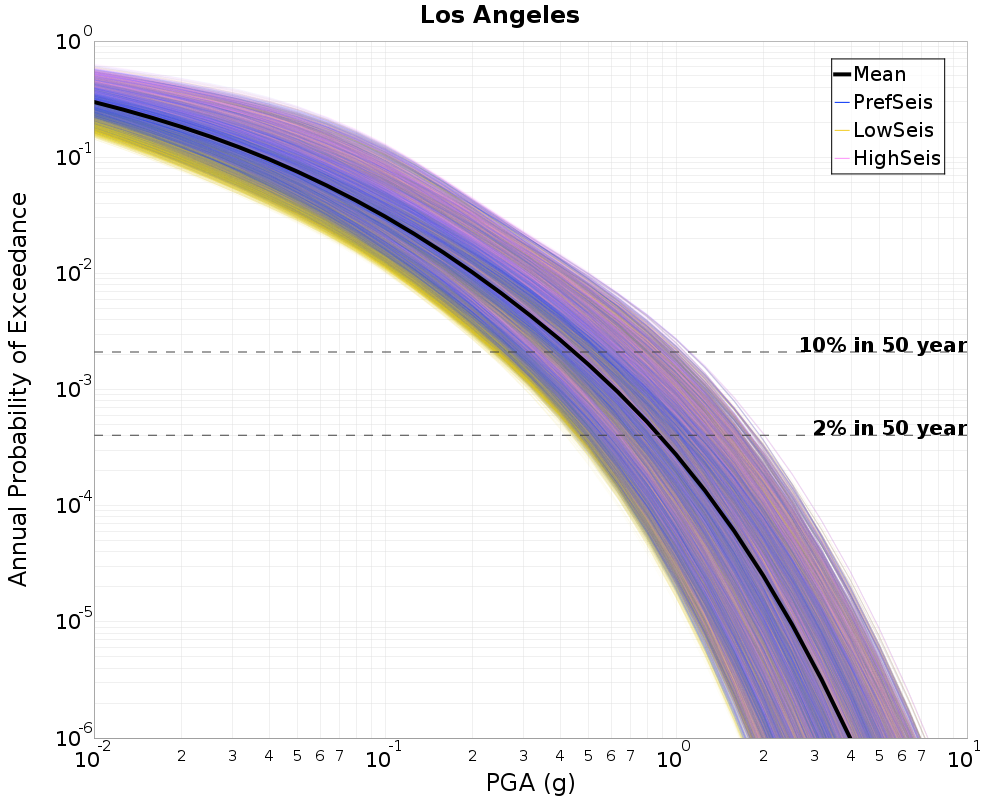

Los Angeles, PGA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8733455 (g) | 0.44623333 (g) |
| PrefSeis | 0.8728862 (g) | 0.445785 (g) |
| LowSeis | 0.85968566 (g) | 0.43149546 (g) |
| HighSeis | 0.88874066 (g) | 0.46233472 (g) |

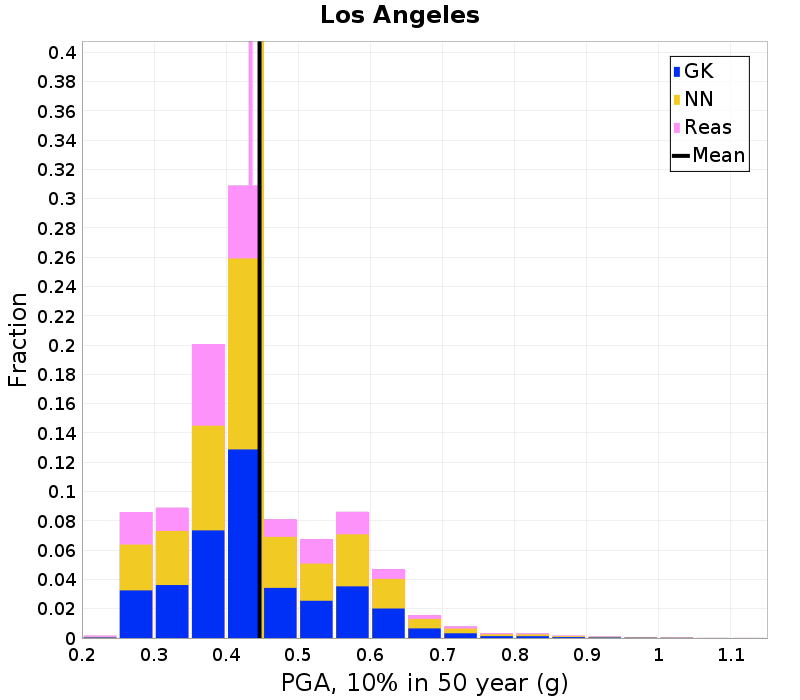

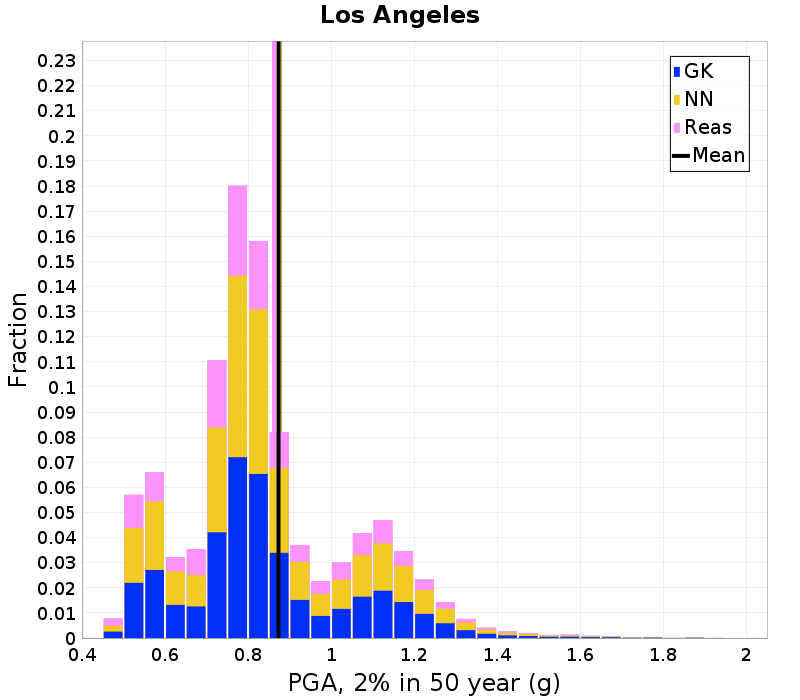

Los Angeles, PGA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8733455 (g) | 0.44623333 (g) |
| GK | 0.8760433 (g) | 0.44886792 (g) |
| NN | 0.8759403 (g) | 0.44959056 (g) |
| Reas | 0.86244357 (g) | 0.43373203 (g) |

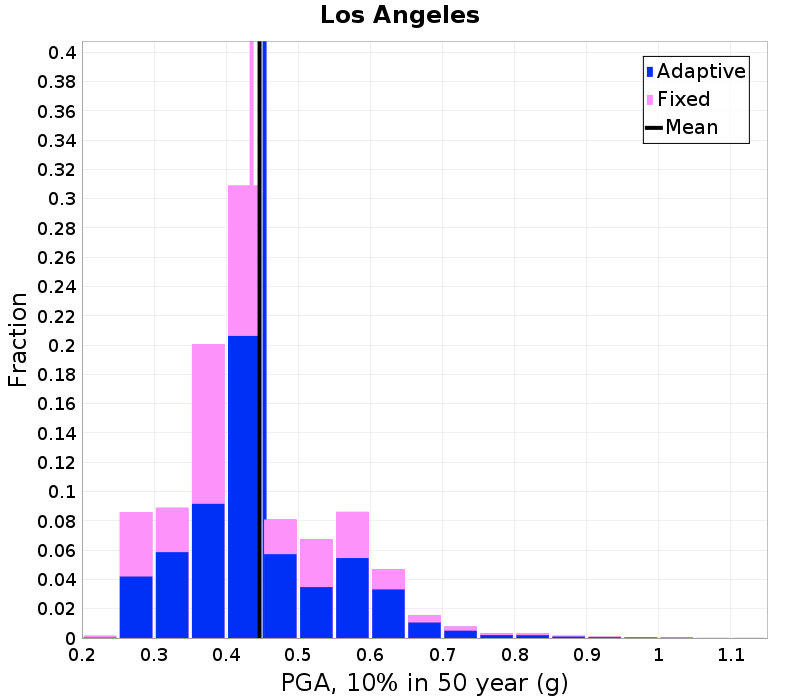

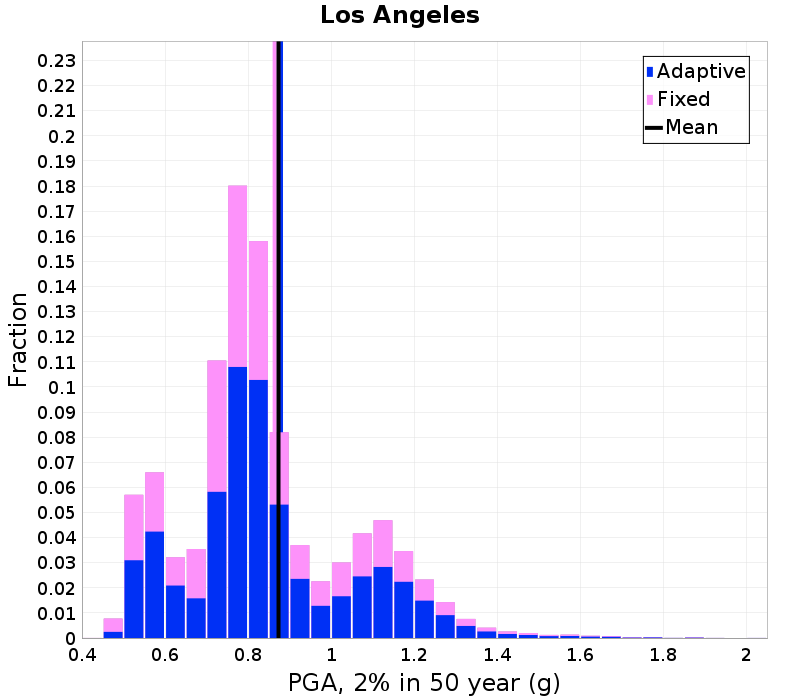

Los Angeles, PGA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8733455 (g) | 0.44623333 (g) |
| Adaptive | 0.87936354 (g) | 0.45321146 (g) |
| Fixed | 0.8640063 (g) | 0.43522328 (g) |

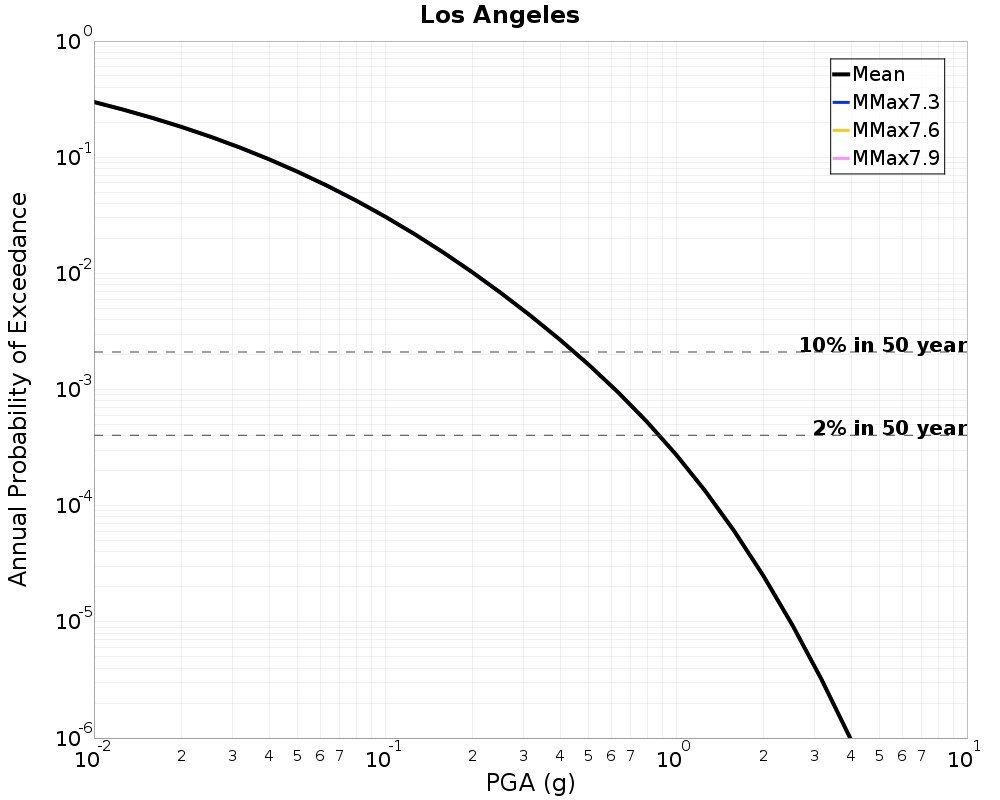

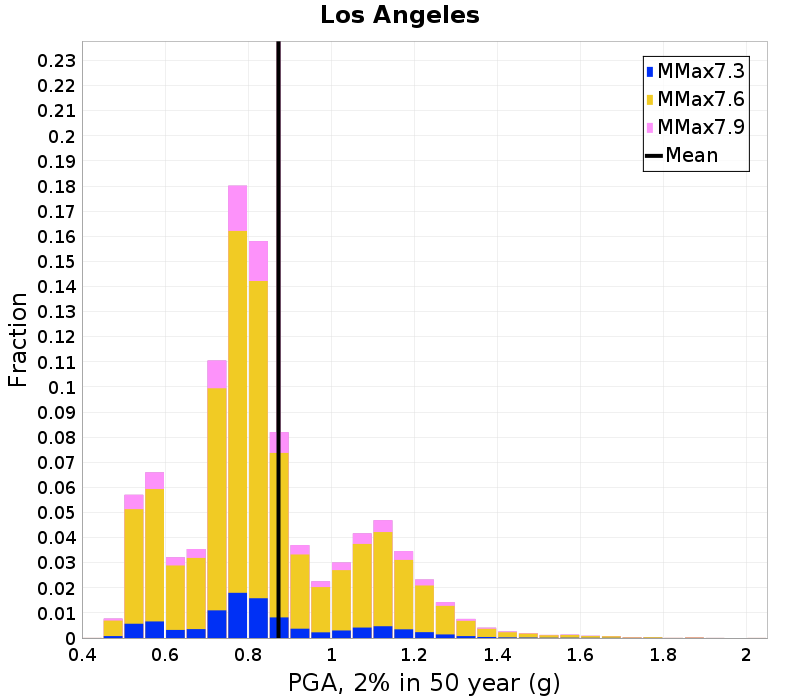

Los Angeles, PGA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8733455 (g) | 0.44623333 (g) |
| MMax7.3 | 0.87344044 (g) | 0.44615683 (g) |
| MMax7.6 | 0.8733172 (g) | 0.44619638 (g) |
| MMax7.9 | 0.8734766 (g) | 0.44660473 (g) |
Los Angeles, PGA, NGA-W2 GMM Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8733455 (g) | 0.44623333 (g) |
| ASK2014 | 0.9119864 (g) | 0.46646312 (g) |
| BSSA2014 | 0.8242598 (g) | 0.43204764 (g) |
| CB2014 | 0.89195883 (g) | 0.44375572 (g) |
| CY2014 | 0.86527723 (g) | 0.44244838 (g) |

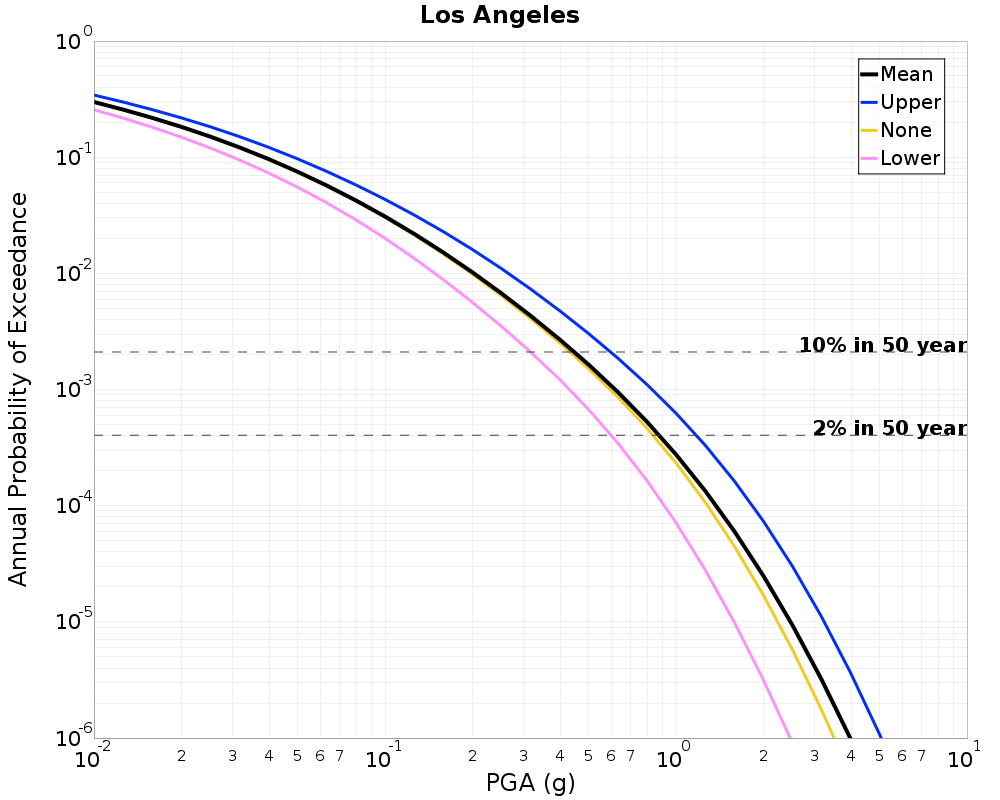

Los Angeles, PGA, NGA-W2 Additional Epistemic Uncertainty Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8733455 (g) | 0.44623333 (g) |
| Upper | 1.1720543 (g) | 0.59533423 (g) |
| None | 0.83250403 (g) | 0.4317979 (g) |
| Lower | 0.5981048 (g) | 0.31654435 (g) |
Los Angeles, 0.2s SA

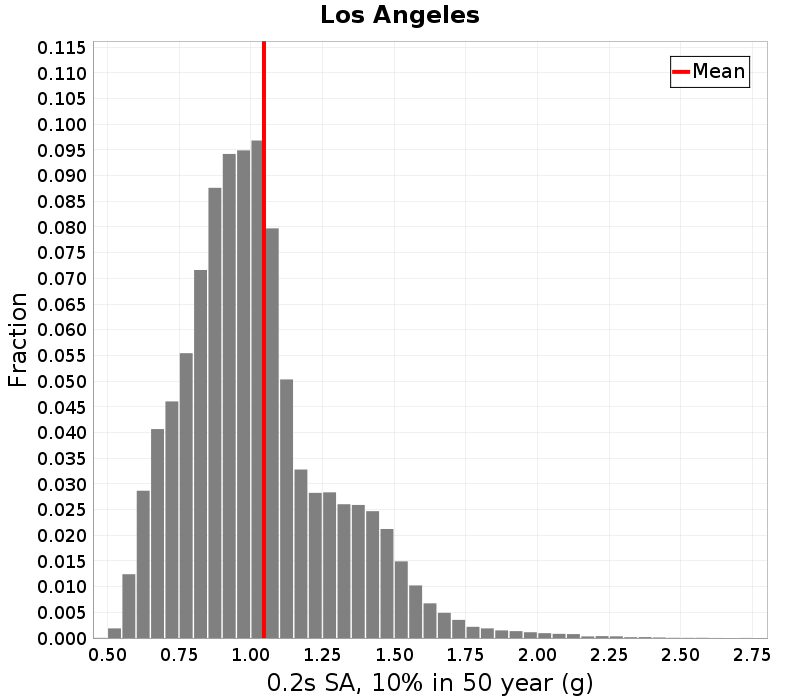

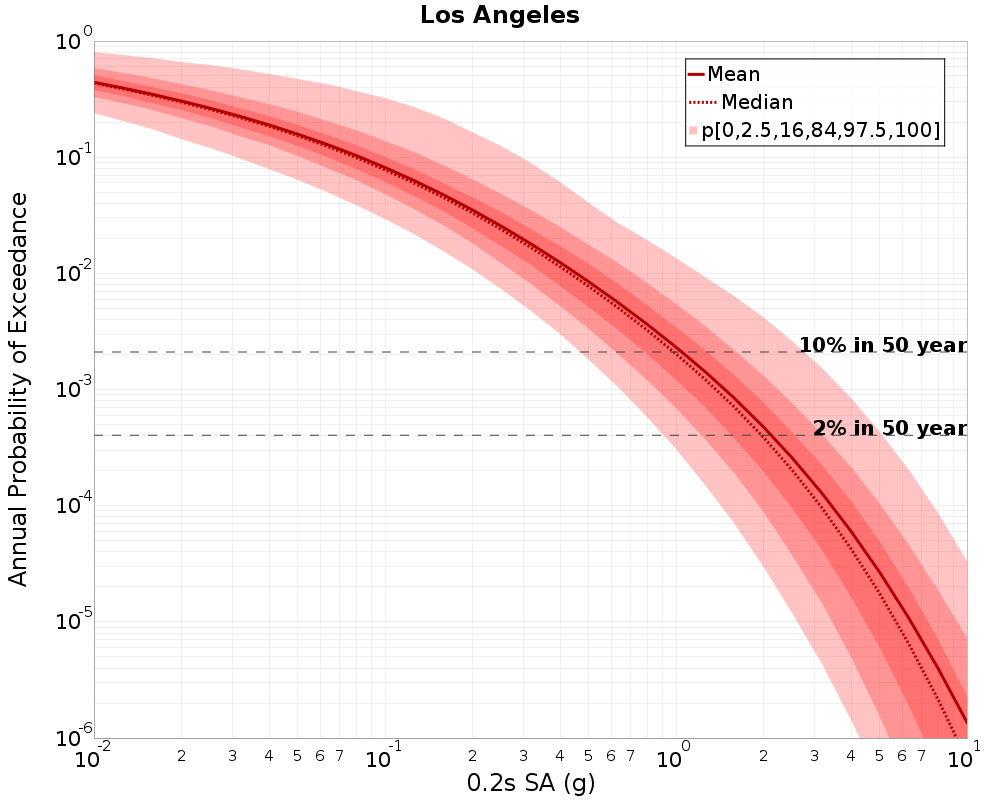

Los Angeles, 0.2s SA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
| 2% in 50 year | 10% in 50 year |
|---|---|
| 2.1230185 (g) | 1.0461432 (g) |

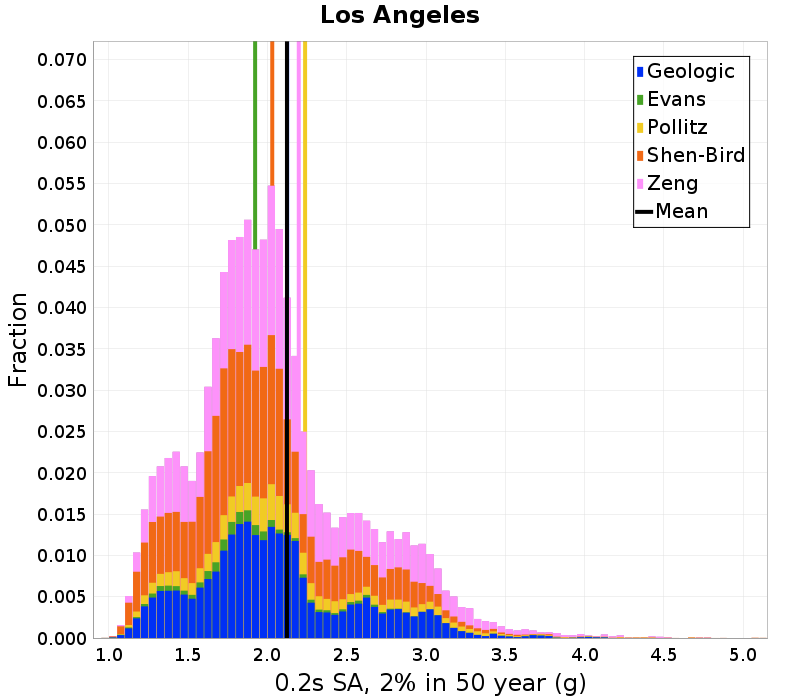

Los Angeles, 0.2s SA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 2.1230185 (g) | 1.0461432 (g) |
| Geologic | 2.124323 (g) | 1.0400475 (g) |
| Evans | 1.9222995 (g) | 1.0145291 (g) |
| Pollitz | 2.2374551 (g) | 1.1048381 (g) |
| Shen-Bird | 2.0302513 (g) | 1.0202086 (g) |
| Zeng | 2.1974716 (g) | 1.065358 (g) |

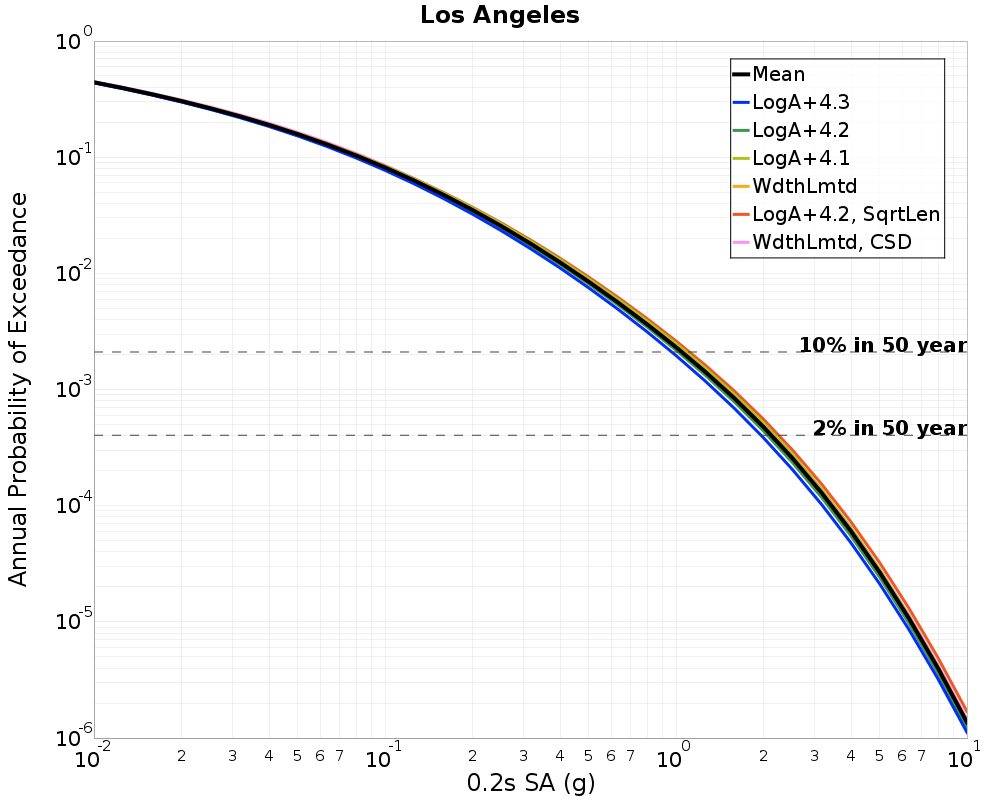

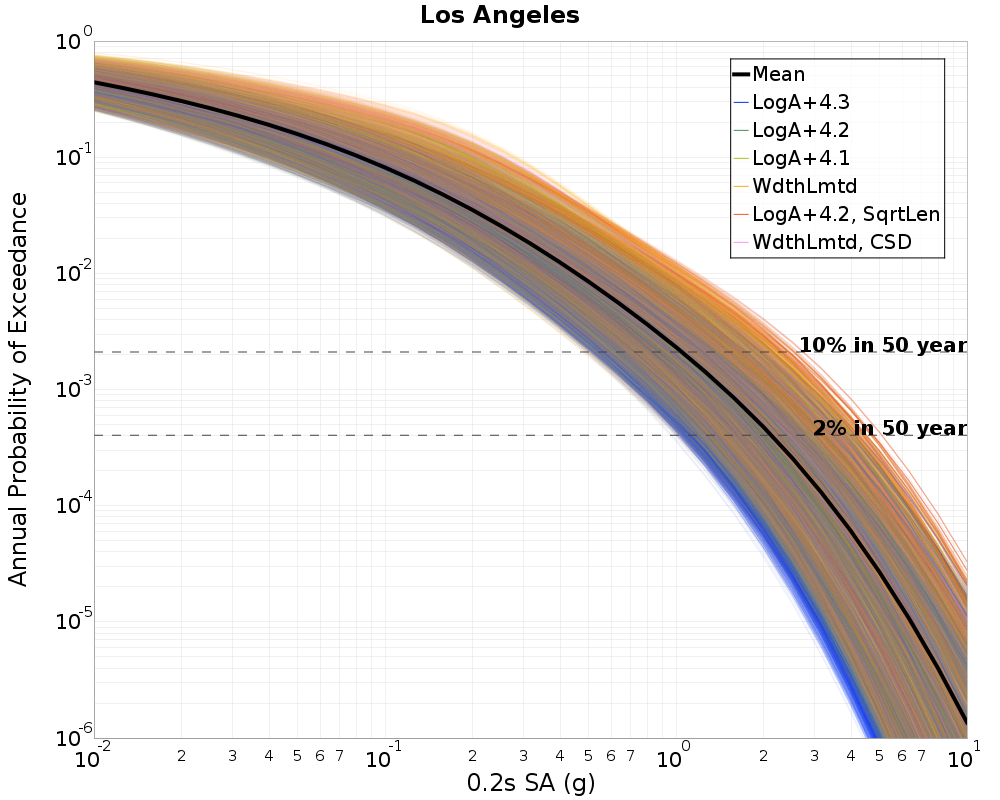

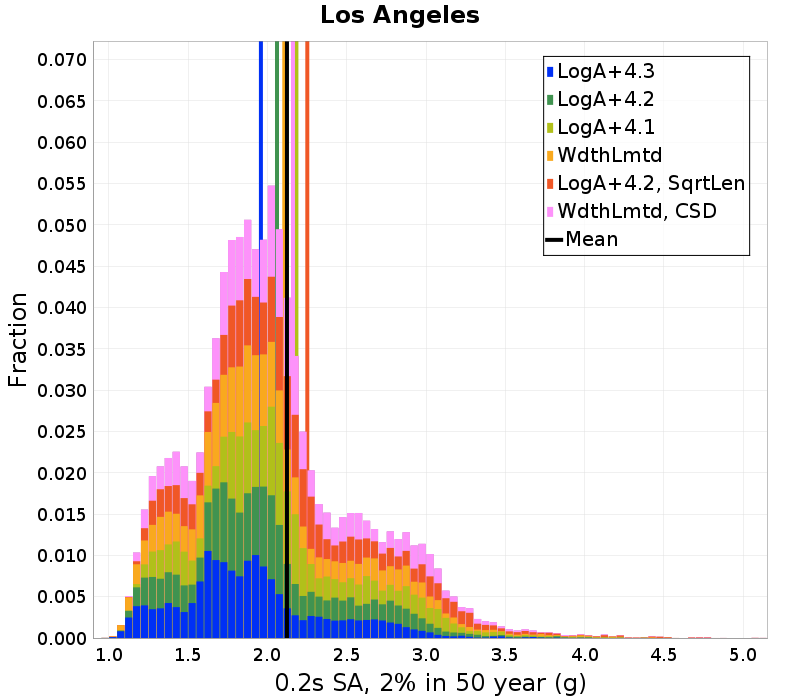

Los Angeles, 0.2s SA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 2.1230185 (g) | 1.0461432 (g) |
| LogA+4.3 | 1.9587483 (g) | 0.9661803 (g) |
| LogA+4.2 | 2.0602314 (g) | 1.0168658 (g) |
| LogA+4.1 | 2.1826952 (g) | 1.0817636 (g) |
| WdthLmtd | 2.1060848 (g) | 1.0358367 (g) |
| LogA+4.2, SqrtLen | 2.251281 (g) | 1.1108894 (g) |
| WdthLmtd, CSD | 2.160948 (g) | 1.061333 (g) |

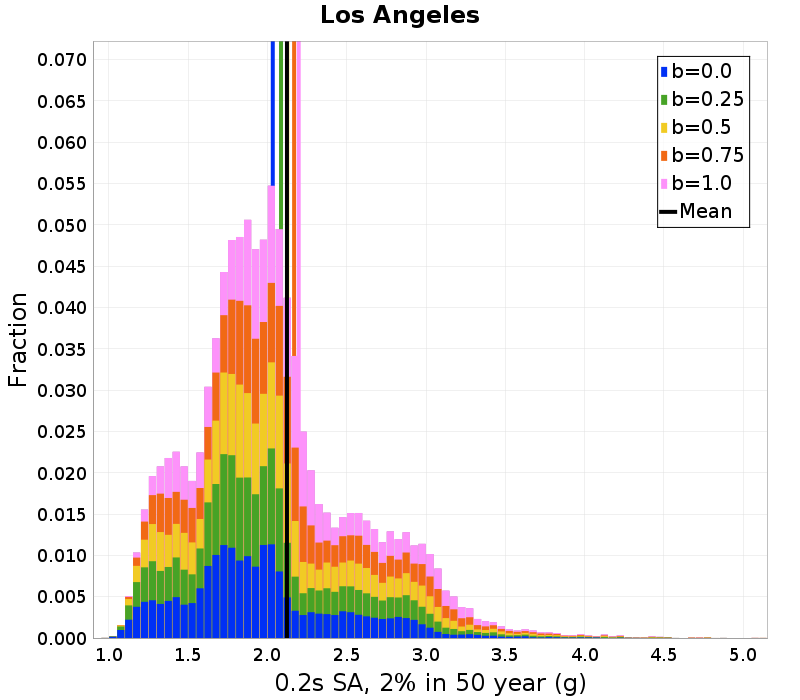

Los Angeles, 0.2s SA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 2.1230185 (g) | 1.0461432 (g) |
| b=0.0 | 2.0335774 (g) | 0.9983874 (g) |
| b=0.25 | 2.0856075 (g) | 1.026984 (g) |
| b=0.5 | 2.1251645 (g) | 1.0471573 (g) |
| b=0.75 | 2.1681697 (g) | 1.0694603 (g) |
| b=1.0 | 2.1971972 (g) | 1.0871968 (g) |

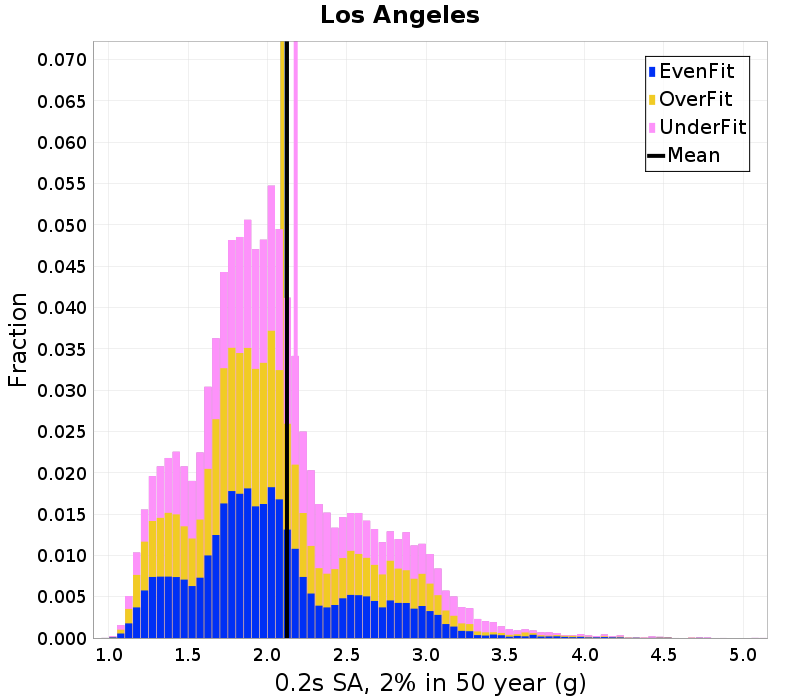

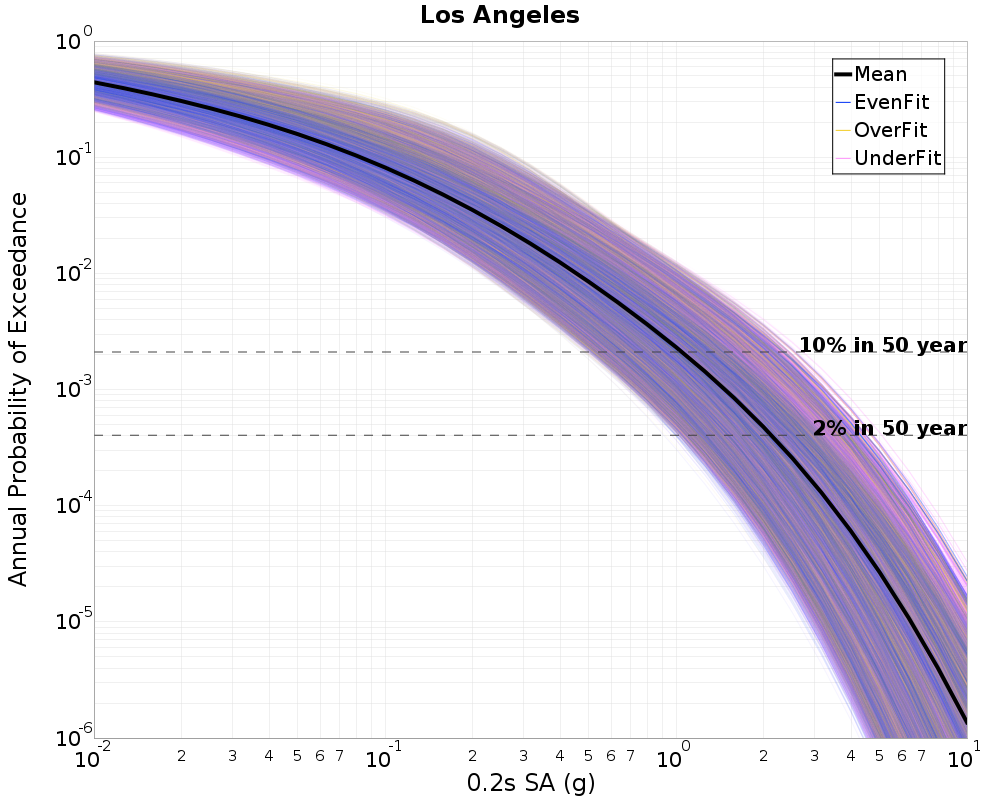

Los Angeles, 0.2s SA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 2.1230185 (g) | 1.0461432 (g) |
| EvenFit | 2.0961356 (g) | 1.0367565 (g) |
| OverFit | 2.0940764 (g) | 1.034989 (g) |
| UnderFit | 2.178197 (g) | 1.0669135 (g) |

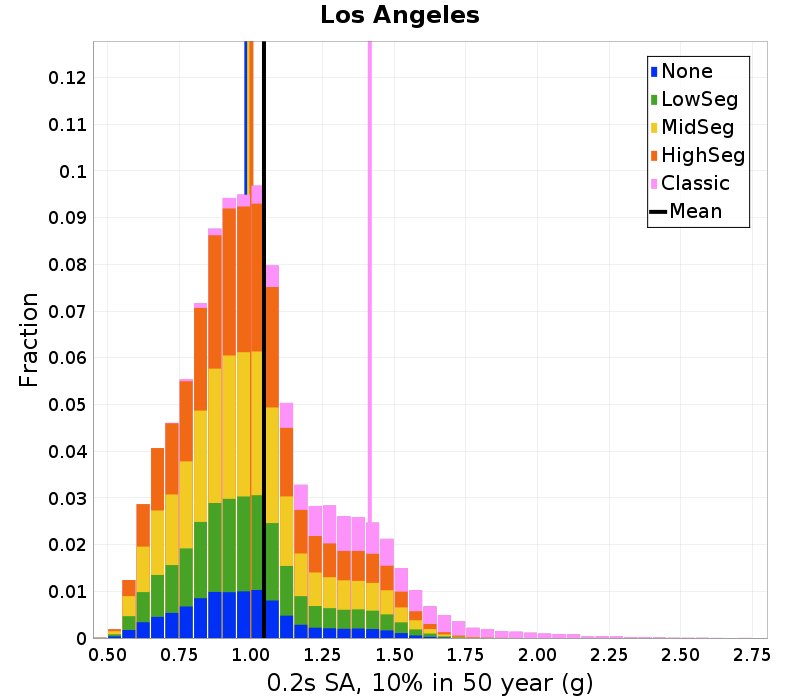

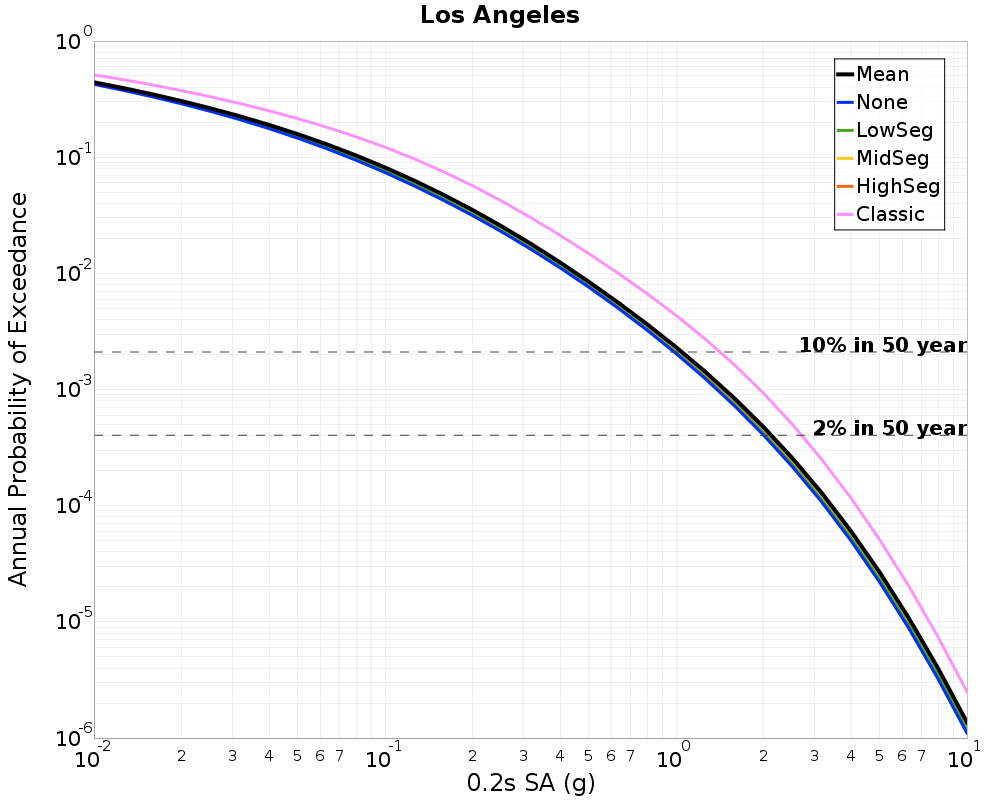

Los Angeles, 0.2s SA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 2.1230185 (g) | 1.0461432 (g) |
| None | 2.0005062 (g) | 0.9846937 (g) |
| LowSeg | 2.0268528 (g) | 0.9950252 (g) |
| MidSeg | 2.031939 (g) | 0.99456567 (g) |
| HighSeg | 2.0609362 (g) | 1.0023532 (g) |
| Classic | 2.6986732 (g) | 1.4150456 (g) |

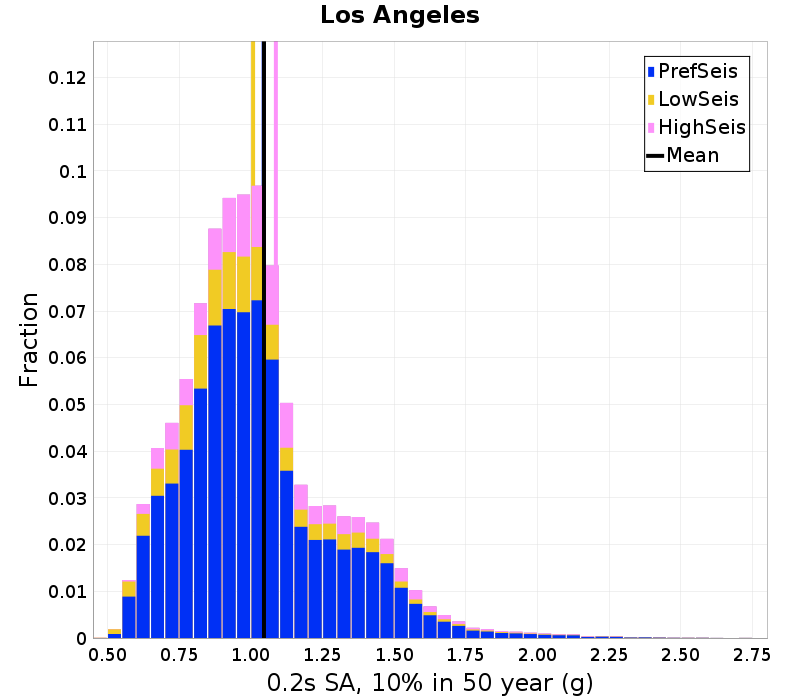

Los Angeles, 0.2s SA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 2.1230185 (g) | 1.0461432 (g) |
| PrefSeis | 2.12173 (g) | 1.0449635 (g) |
| LowSeis | 2.0853243 (g) | 1.008221 (g) |
| HighSeis | 2.1655426 (g) | 1.0876077 (g) |

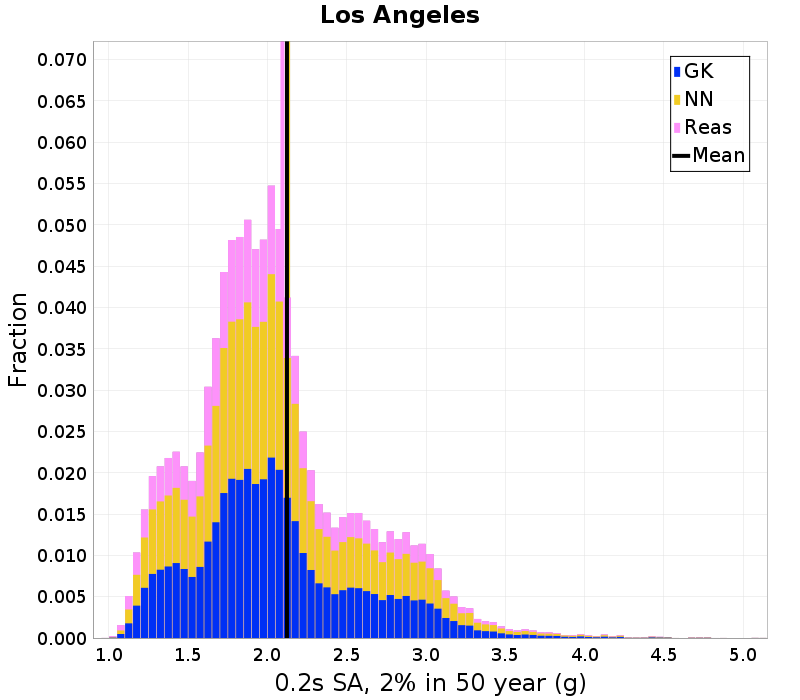

Los Angeles, 0.2s SA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 2.1230185 (g) | 1.0461432 (g) |
| GK | 2.1298103 (g) | 1.0521663 (g) |
| NN | 2.130146 (g) | 1.0547135 (g) |
| Reas | 2.094368 (g) | 1.0157269 (g) |

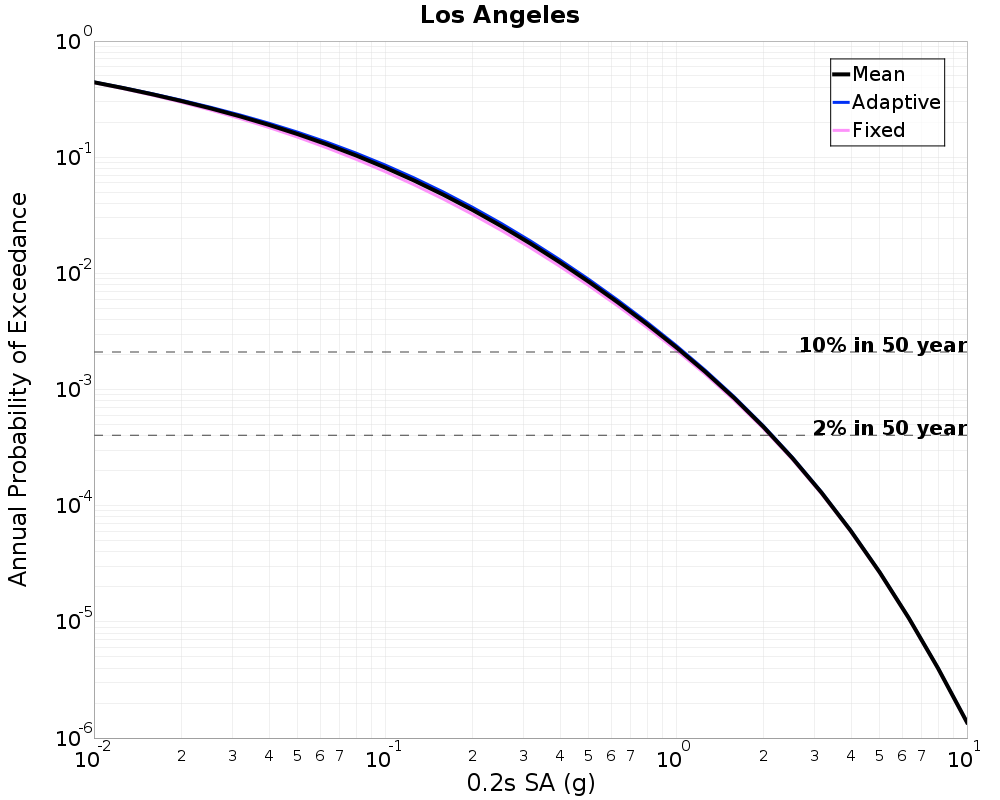

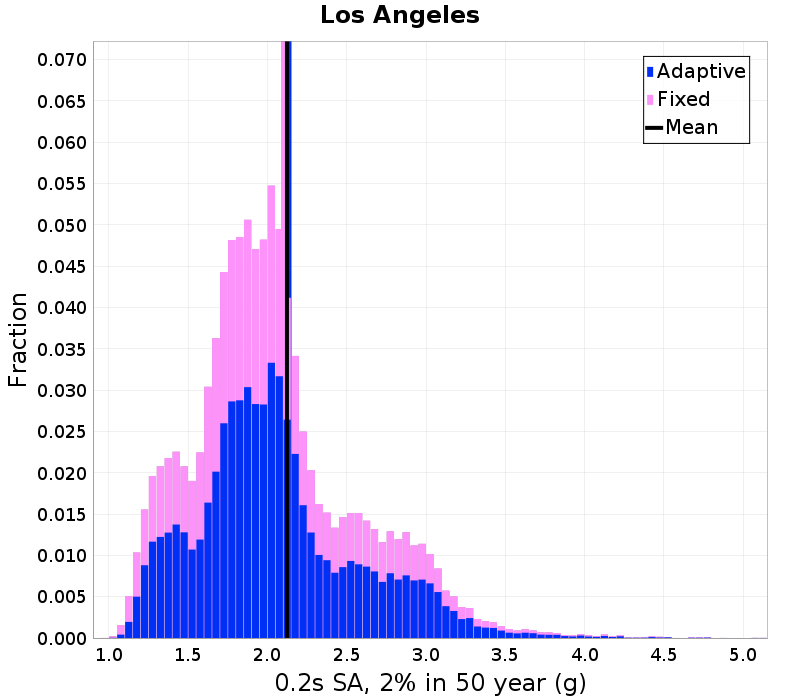

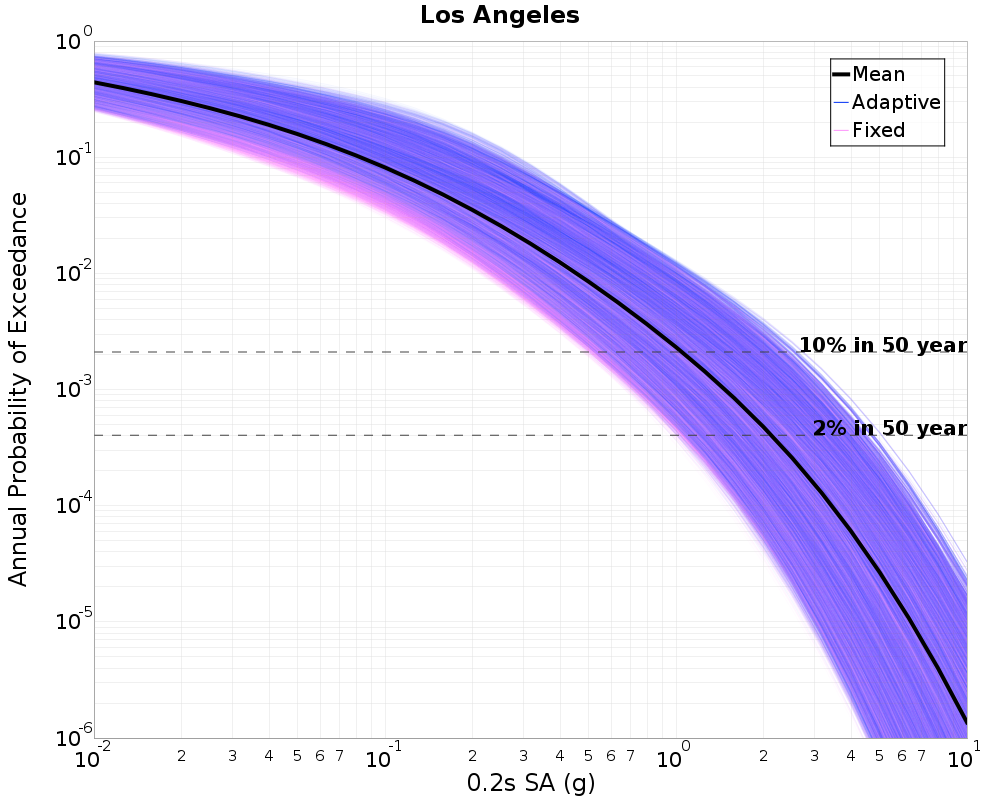

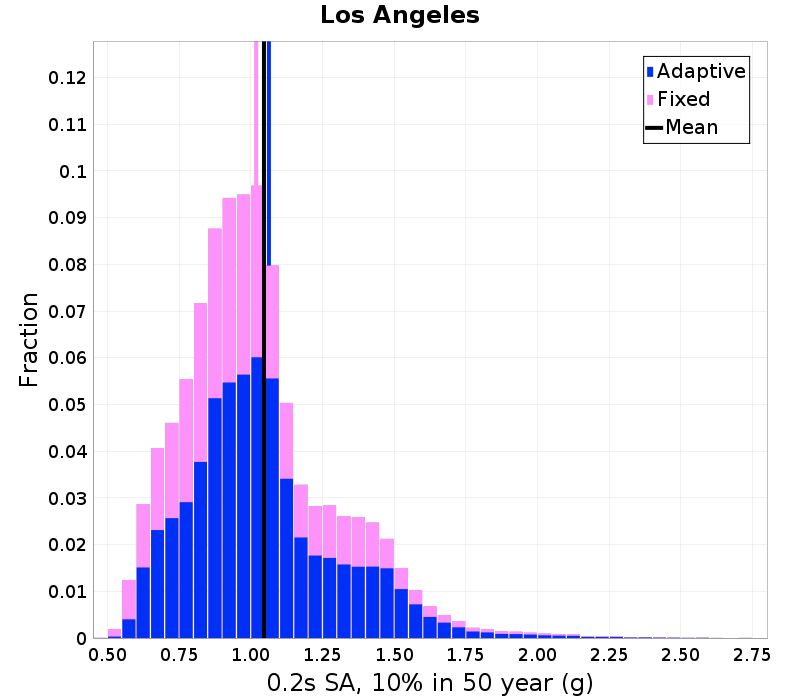

Los Angeles, 0.2s SA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 2.1230185 (g) | 1.0461432 (g) |
| Adaptive | 2.1390517 (g) | 1.0634153 (g) |
| Fixed | 2.098146 (g) | 1.0189085 (g) |

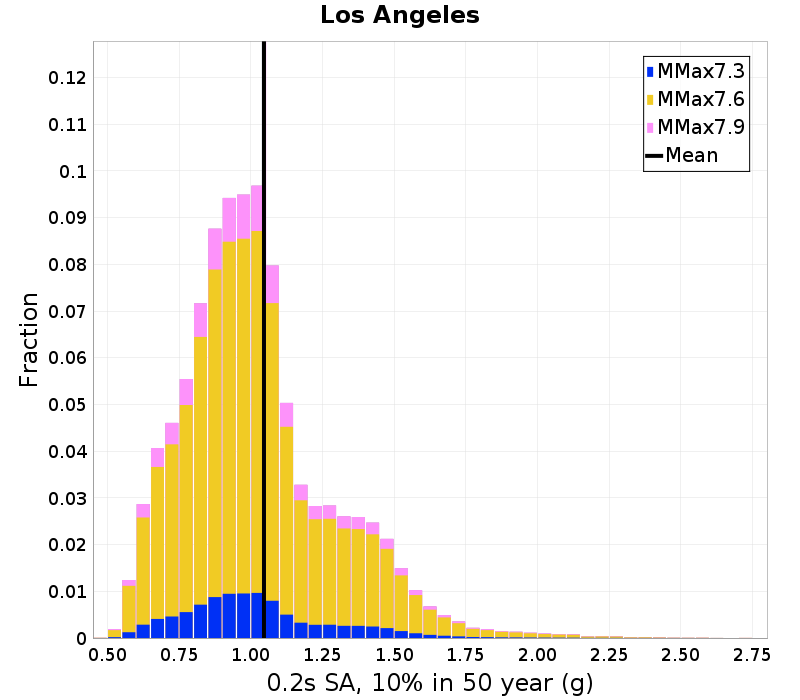

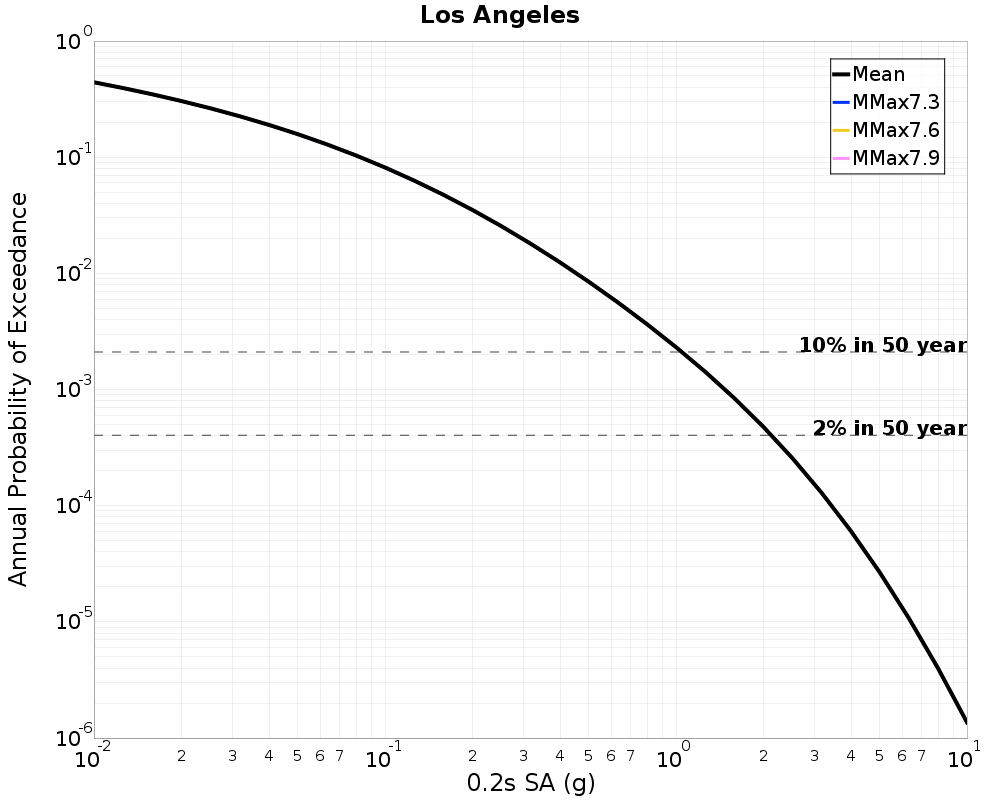

Los Angeles, 0.2s SA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 2.1230185 (g) | 1.0461432 (g) |
| MMax7.3 | 2.1232362 (g) | 1.0459814 (g) |
| MMax7.6 | 2.1229458 (g) | 1.0460609 (g) |
| MMax7.9 | 2.1233823 (g) | 1.0469612 (g) |

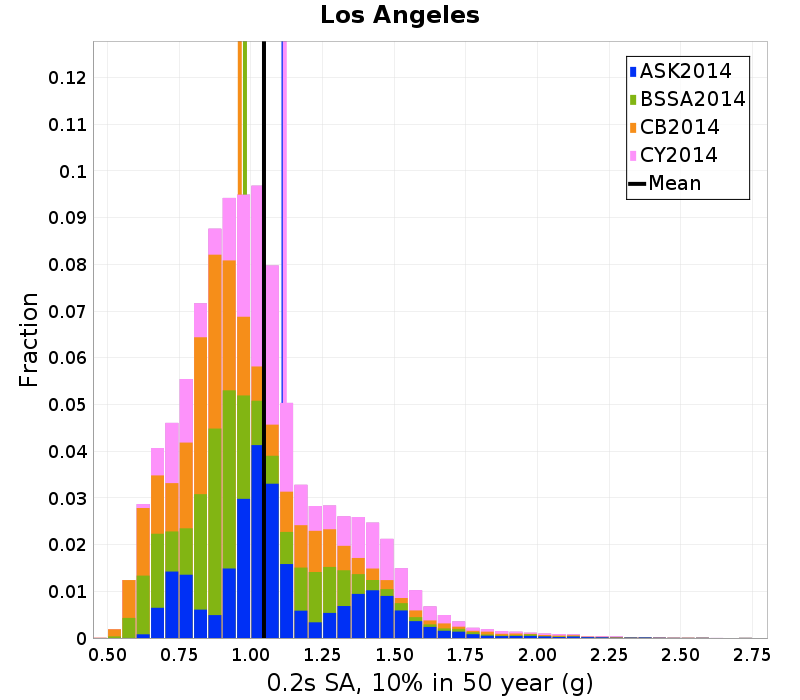

Los Angeles, 0.2s SA, NGA-W2 GMM Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 2.1230185 (g) | 1.0461432 (g) |
| ASK2014 | 2.2549243 (g) | 1.114212 (g) |
| BSSA2014 | 1.954268 (g) | 0.97980964 (g) |
| CB2014 | 2.0018008 (g) | 0.96179444 (g) |
| CY2014 | 2.2619245 (g) | 1.1186911 (g) |
Los Angeles, 0.2s SA, NGA-W2 Additional Epistemic Uncertainty Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 2.1230185 (g) | 1.0461432 (g) |
| Upper | 2.846068 (g) | 1.3915031 (g) |
| None | 2.0318596 (g) | 1.0156909 (g) |
| Lower | 1.4621269 (g) | 0.74562144 (g) |
Los Angeles, 1.0s SA

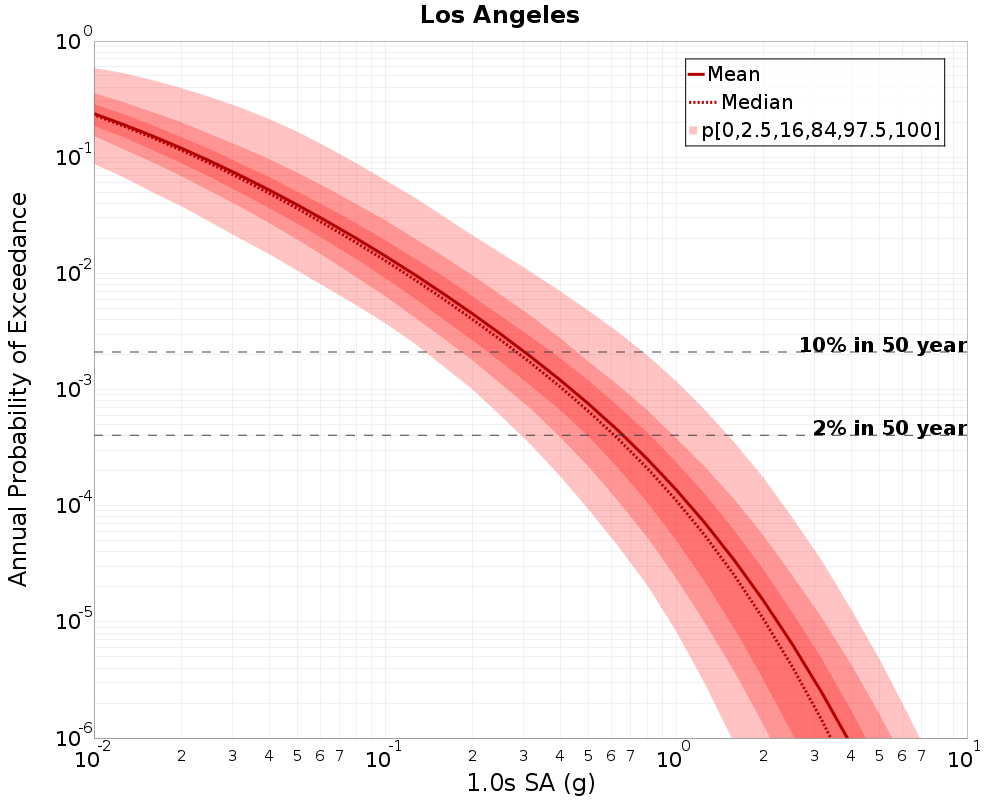

Los Angeles, 1.0s SA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
| 2% in 50 year | 10% in 50 year |
|---|---|
| 0.6568648 (g) | 0.30139613 (g) |

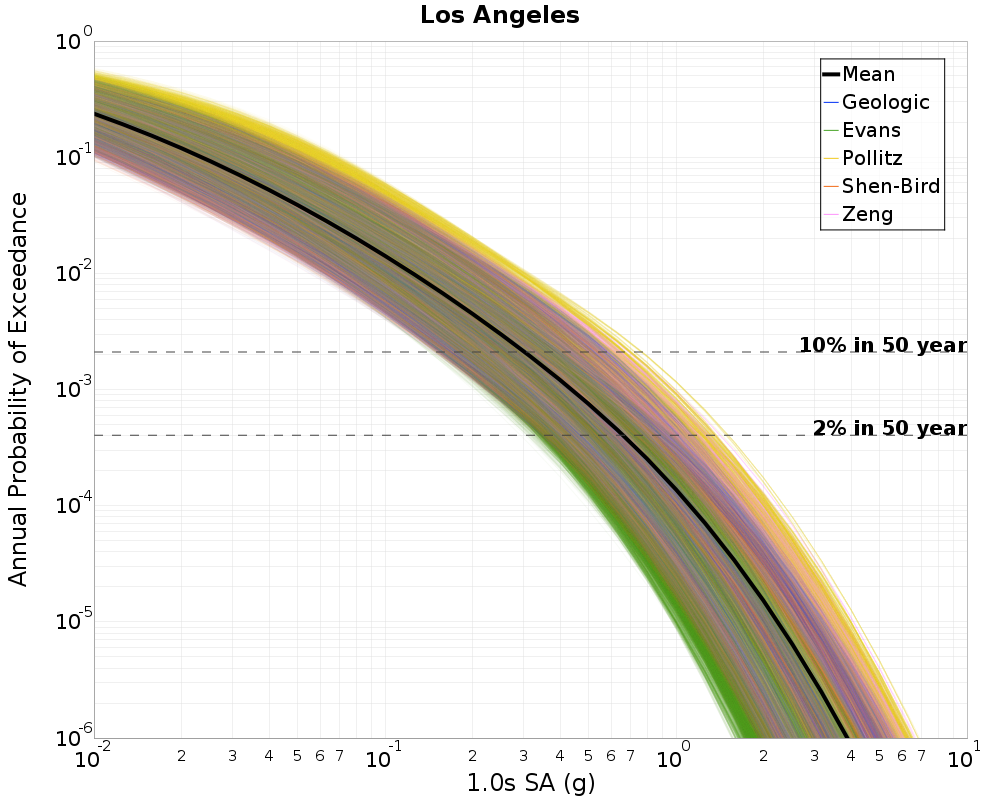

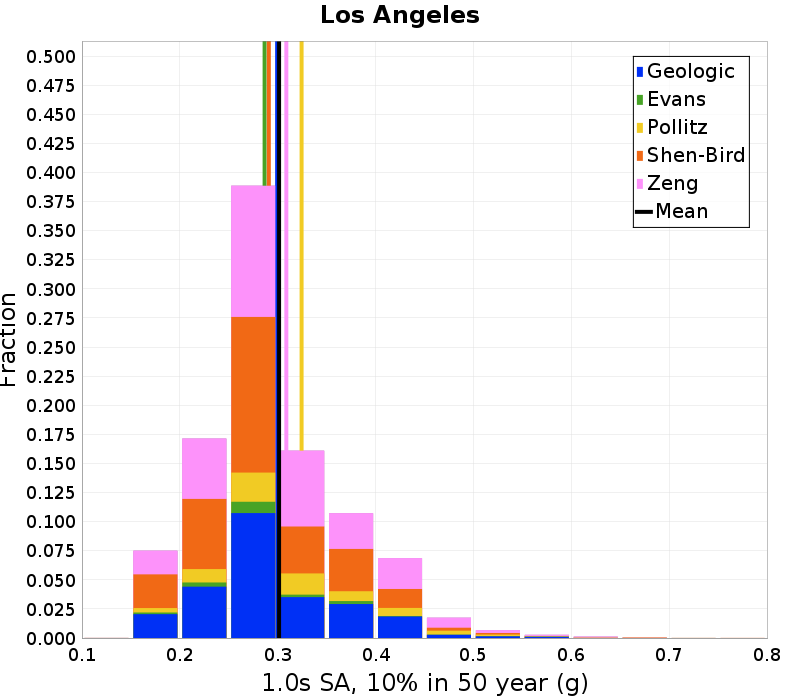

Los Angeles, 1.0s SA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6568648 (g) | 0.30139613 (g) |
| Geologic | 0.65503293 (g) | 0.29941386 (g) |
| Evans | 0.57064295 (g) | 0.28659344 (g) |
| Pollitz | 0.70561254 (g) | 0.32439333 (g) |
| Shen-Bird | 0.62303334 (g) | 0.29091373 (g) |
| Zeng | 0.6842118 (g) | 0.30881187 (g) |

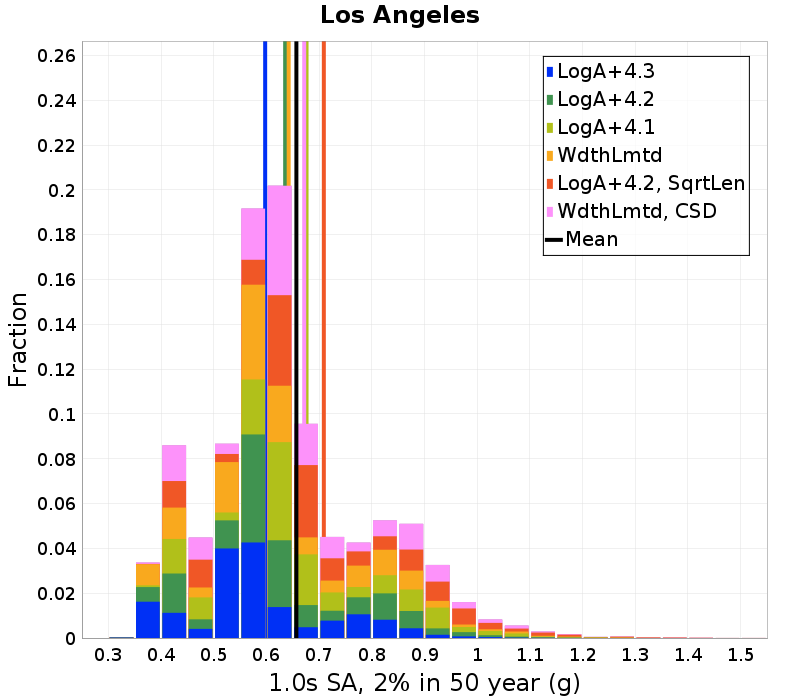

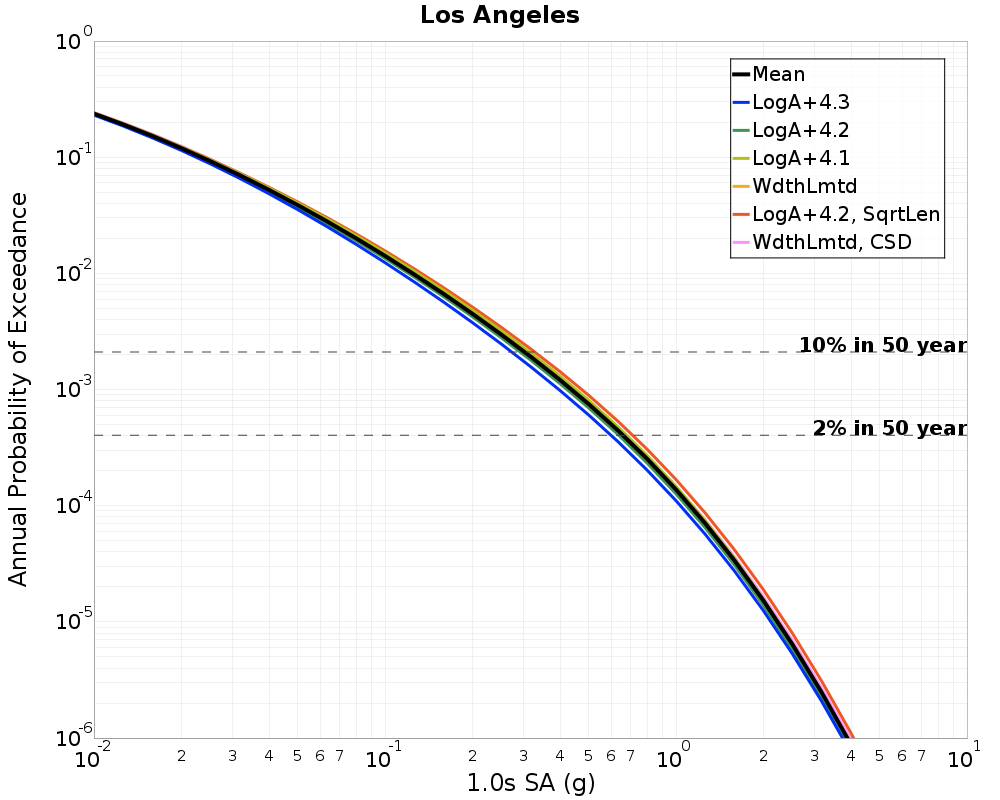

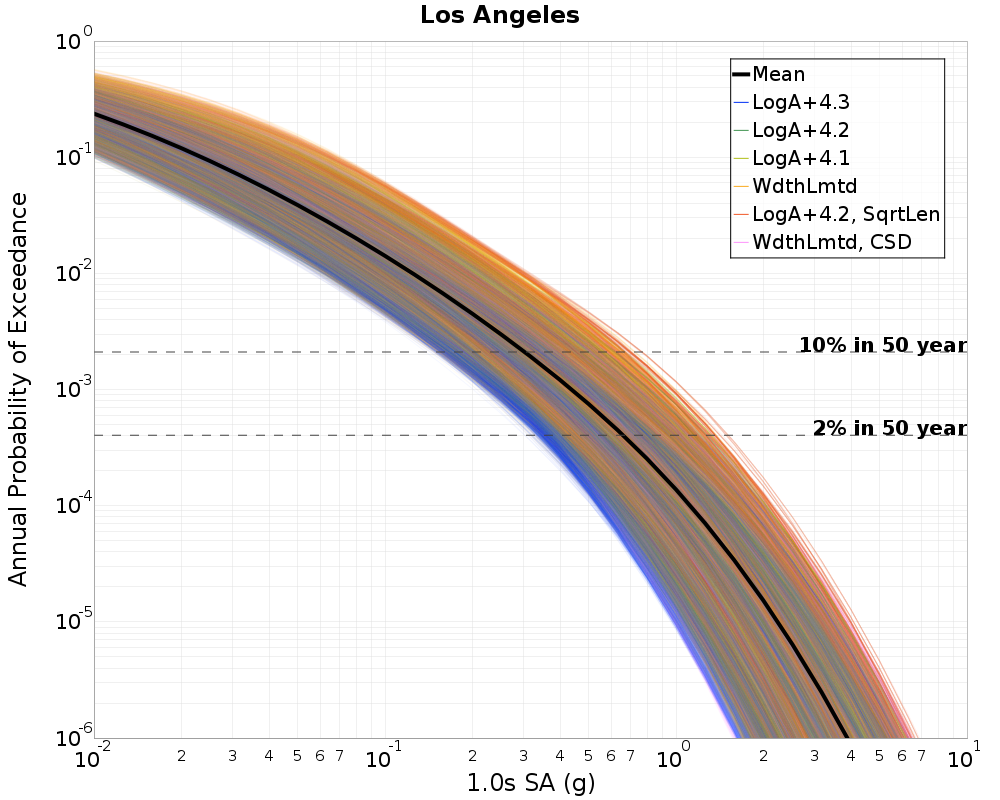

Los Angeles, 1.0s SA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6568648 (g) | 0.30139613 (g) |
| LogA+4.3 | 0.5976122 (g) | 0.27228355 (g) |
| LogA+4.2 | 0.63555706 (g) | 0.29091993 (g) |
| LogA+4.1 | 0.6761216 (g) | 0.31384048 (g) |
| WdthLmtd | 0.64224905 (g) | 0.2943009 (g) |
| LogA+4.2, SqrtLen | 0.7089547 (g) | 0.32667425 (g) |
| WdthLmtd, CSD | 0.67169005 (g) | 0.30855703 (g) |

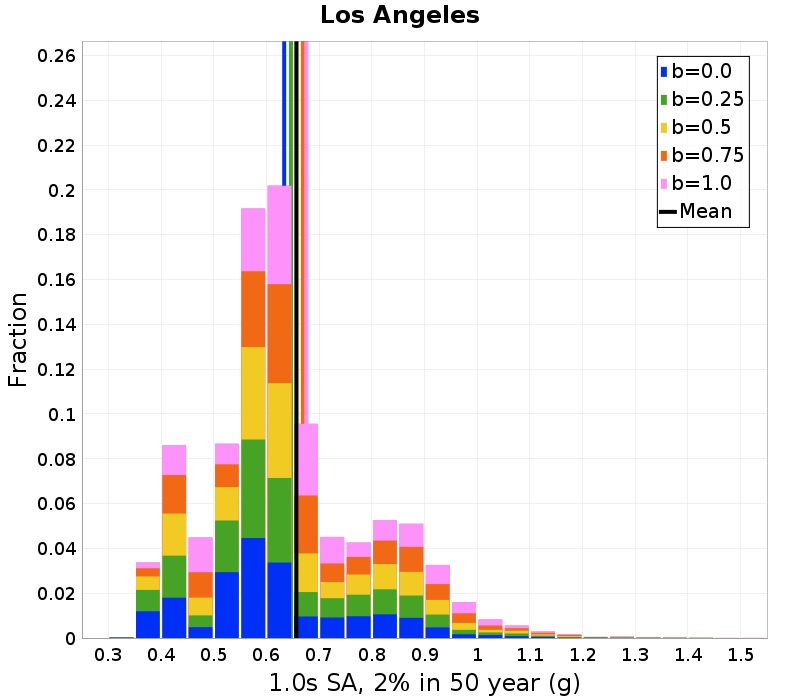

Los Angeles, 1.0s SA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6568648 (g) | 0.30139613 (g) |
| b=0.0 | 0.63370854 (g) | 0.286738 (g) |
| b=0.25 | 0.64649713 (g) | 0.29521504 (g) |
| b=0.5 | 0.6574643 (g) | 0.3017282 (g) |
| b=0.75 | 0.66911894 (g) | 0.3086685 (g) |
| b=1.0 | 0.67603886 (g) | 0.31378785 (g) |

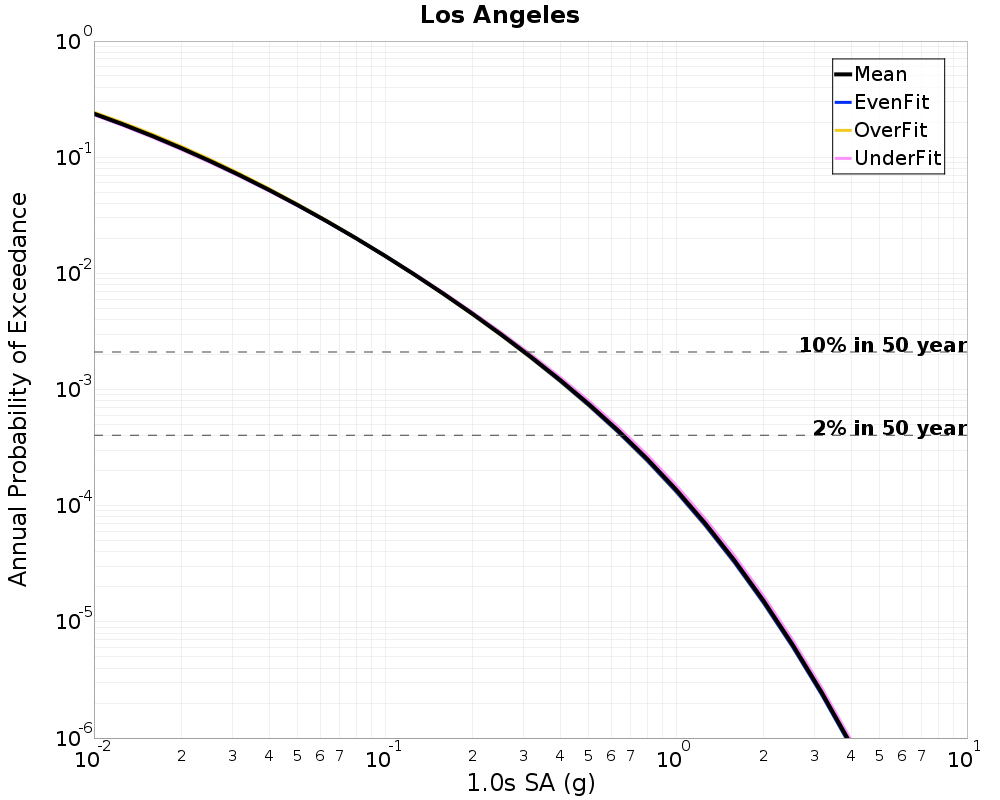

Los Angeles, 1.0s SA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6568648 (g) | 0.30139613 (g) |
| EvenFit | 0.64819604 (g) | 0.29860264 (g) |
| OverFit | 0.6450389 (g) | 0.29690492 (g) |
| UnderFit | 0.6770847 (g) | 0.308783 (g) |

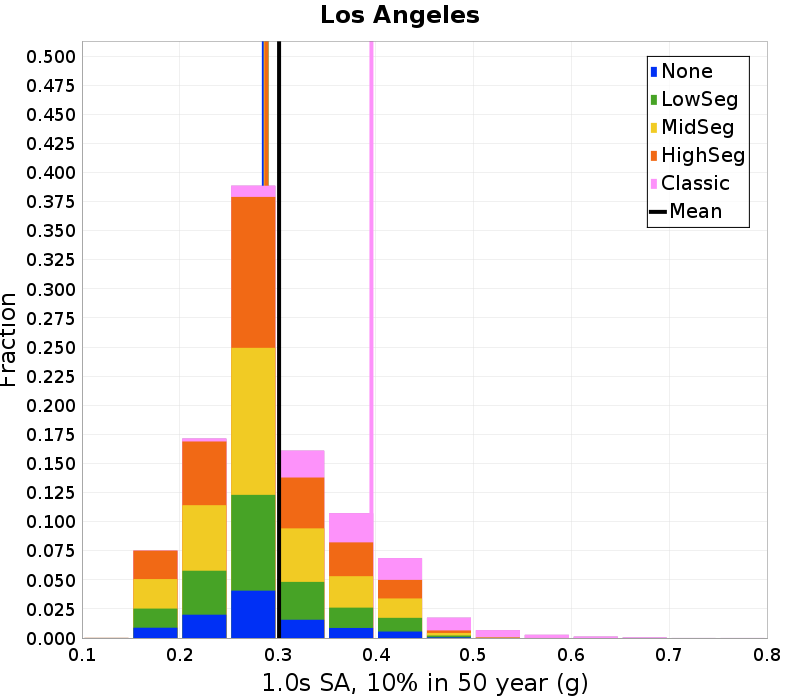

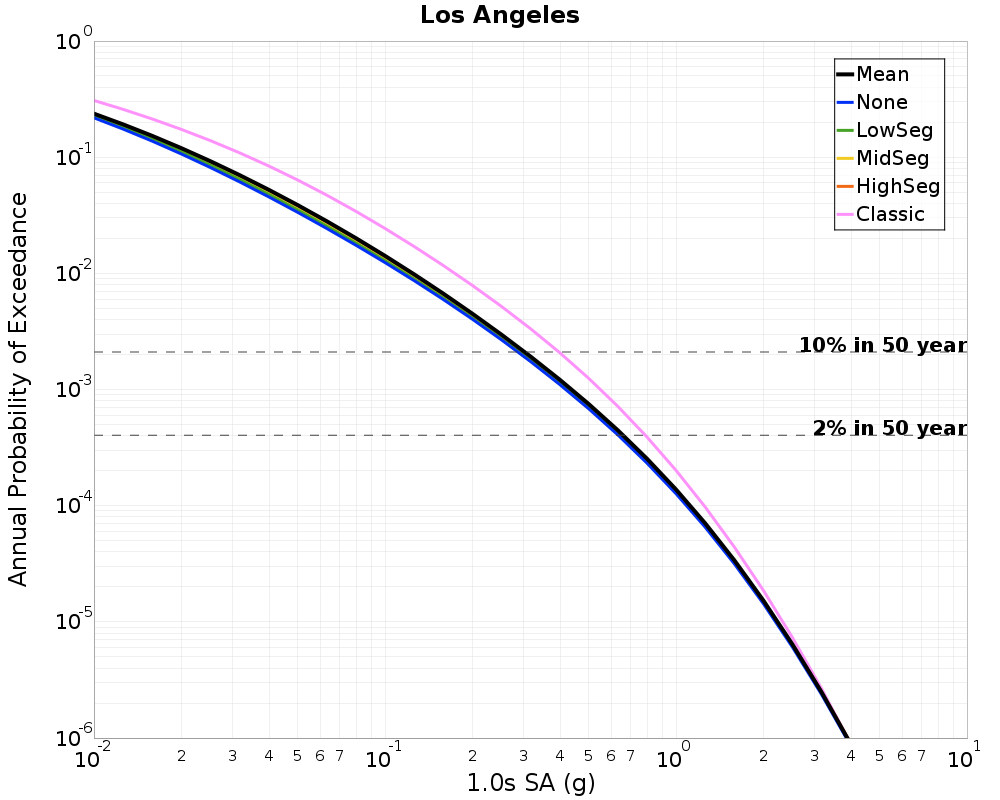

Los Angeles, 1.0s SA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6568648 (g) | 0.30139613 (g) |
| None | 0.6330391 (g) | 0.2858435 (g) |
| LowSeg | 0.63875973 (g) | 0.28861862 (g) |
| MidSeg | 0.63759375 (g) | 0.2877193 (g) |
| HighSeg | 0.6409192 (g) | 0.288461 (g) |
| Classic | 0.7843306 (g) | 0.39576492 (g) |

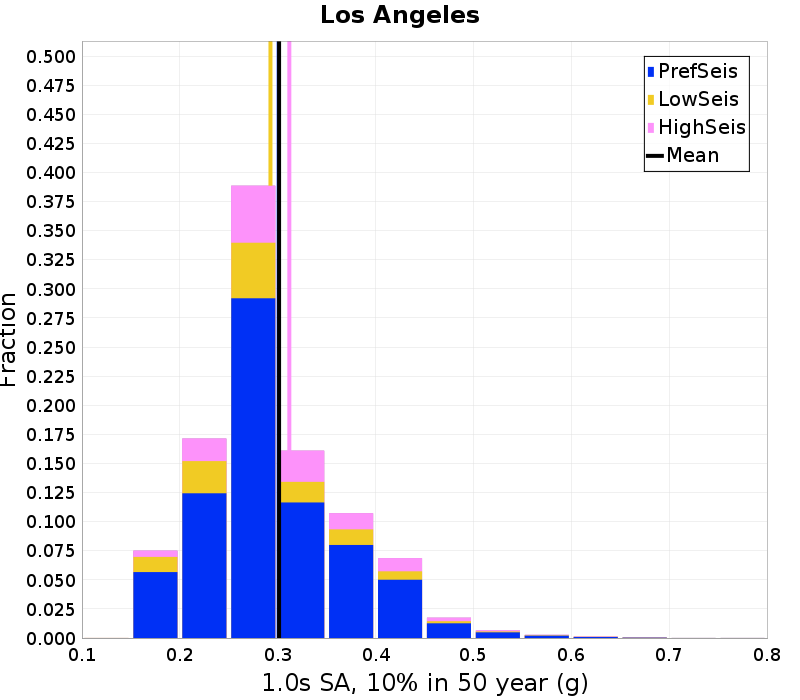

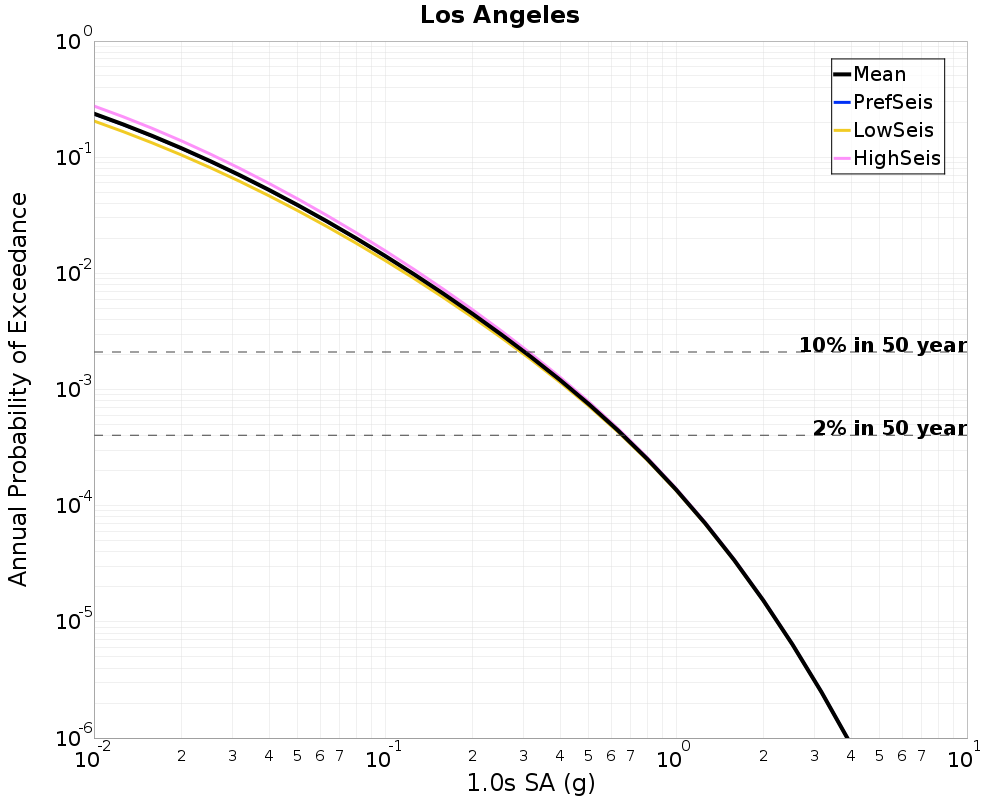

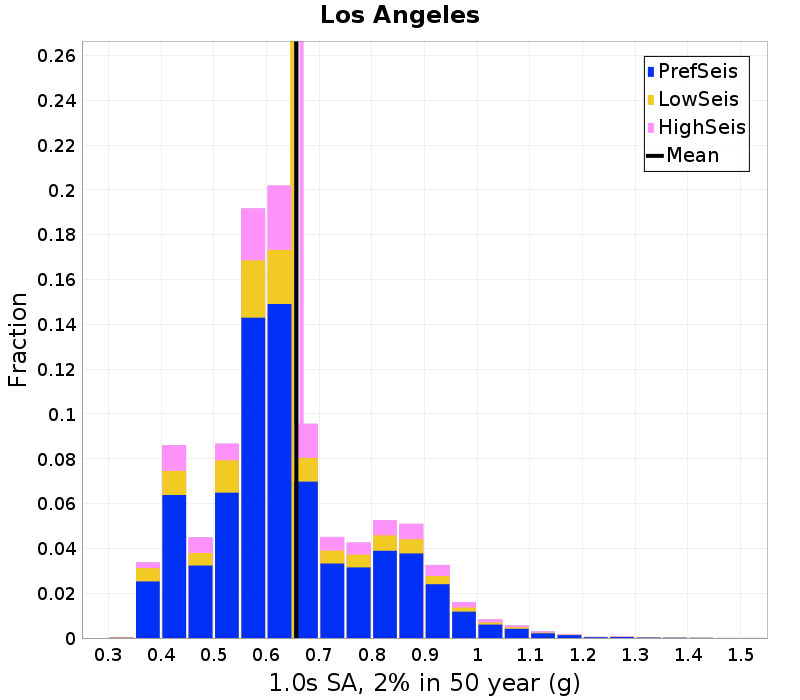

Los Angeles, 1.0s SA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6568648 (g) | 0.30139613 (g) |
| PrefSeis | 0.65646476 (g) | 0.30098847 (g) |
| LowSeis | 0.6488531 (g) | 0.29258546 (g) |
| HighSeis | 0.6667543 (g) | 0.3118706 (g) |

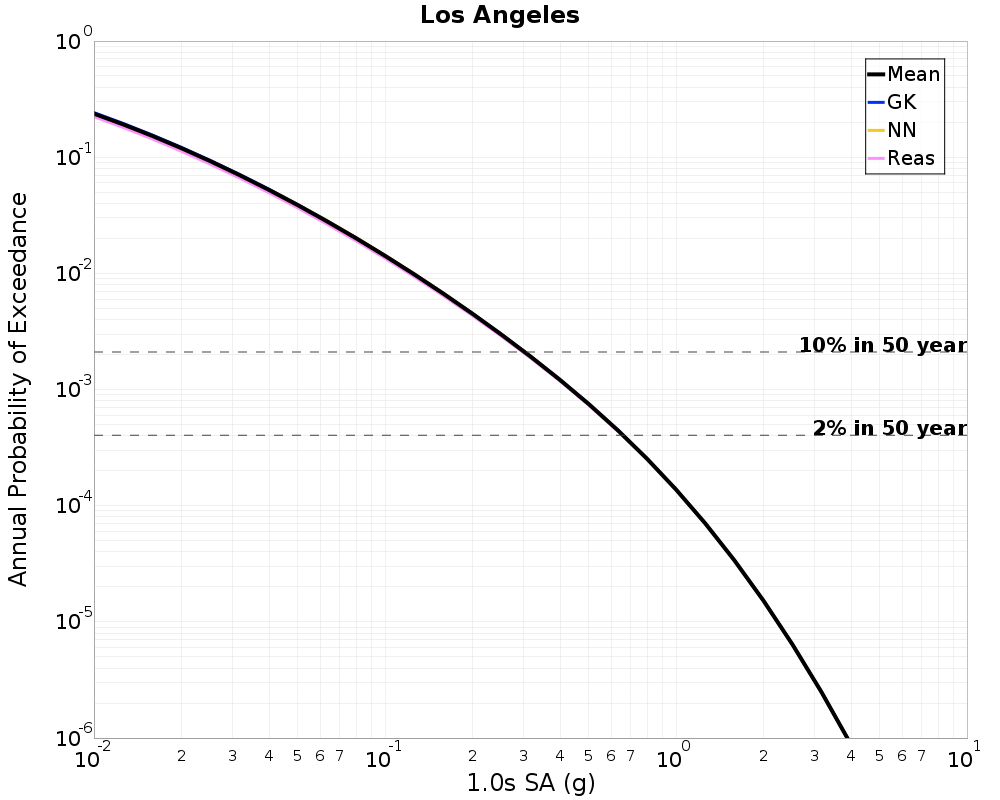

Los Angeles, 1.0s SA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6568648 (g) | 0.30139613 (g) |
| GK | 0.65772873 (g) | 0.30226848 (g) |
| NN | 0.6579334 (g) | 0.30277362 (g) |
| Reas | 0.6529503 (g) | 0.29679704 (g) |

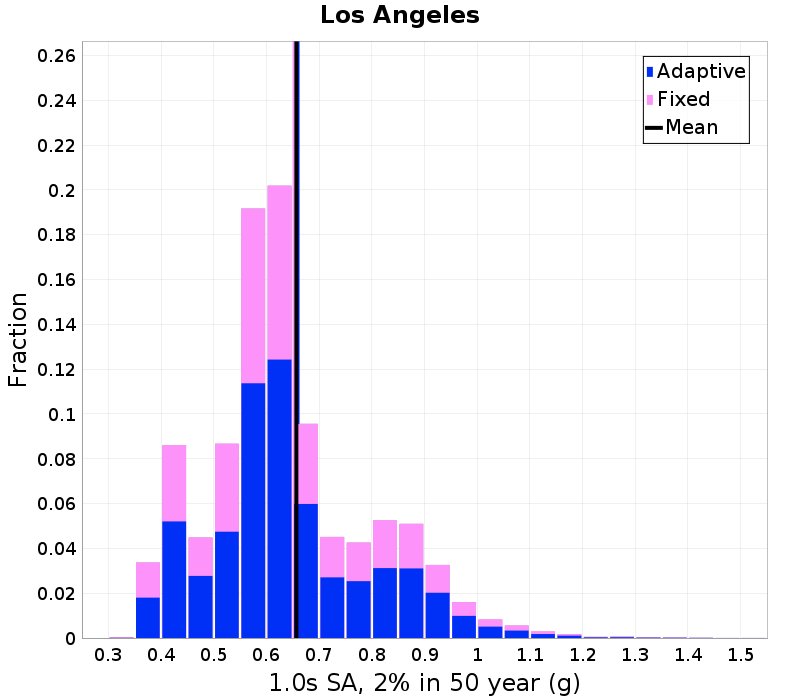

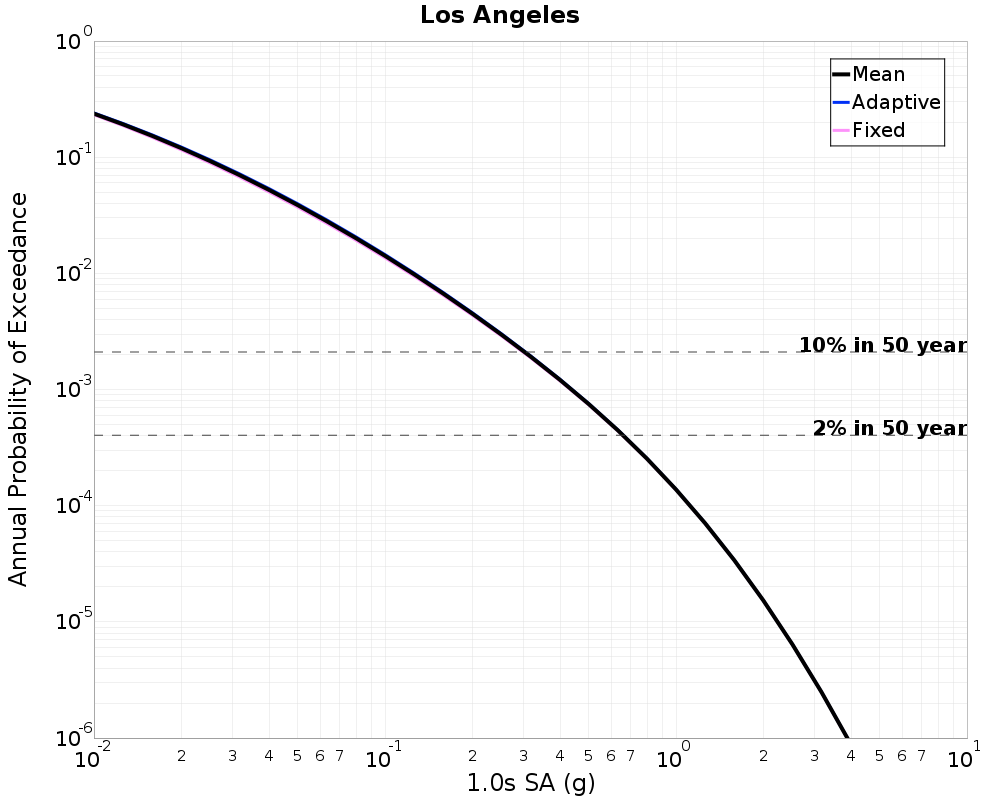

Los Angeles, 1.0s SA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6568648 (g) | 0.30139613 (g) |
| Adaptive | 0.65909237 (g) | 0.30392945 (g) |
| Fixed | 0.6534747 (g) | 0.29750666 (g) |

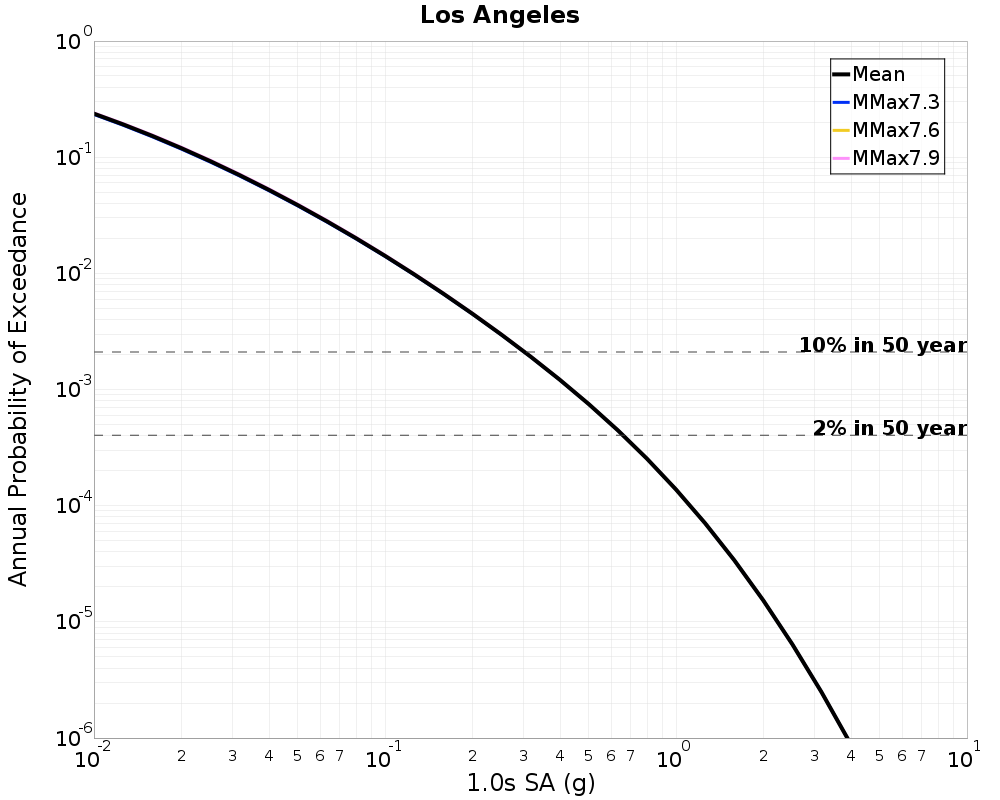

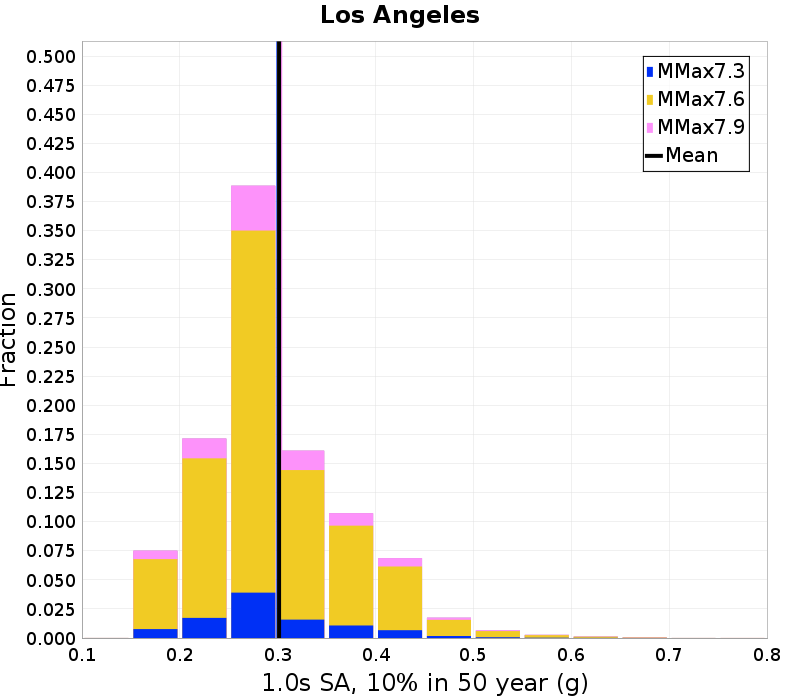

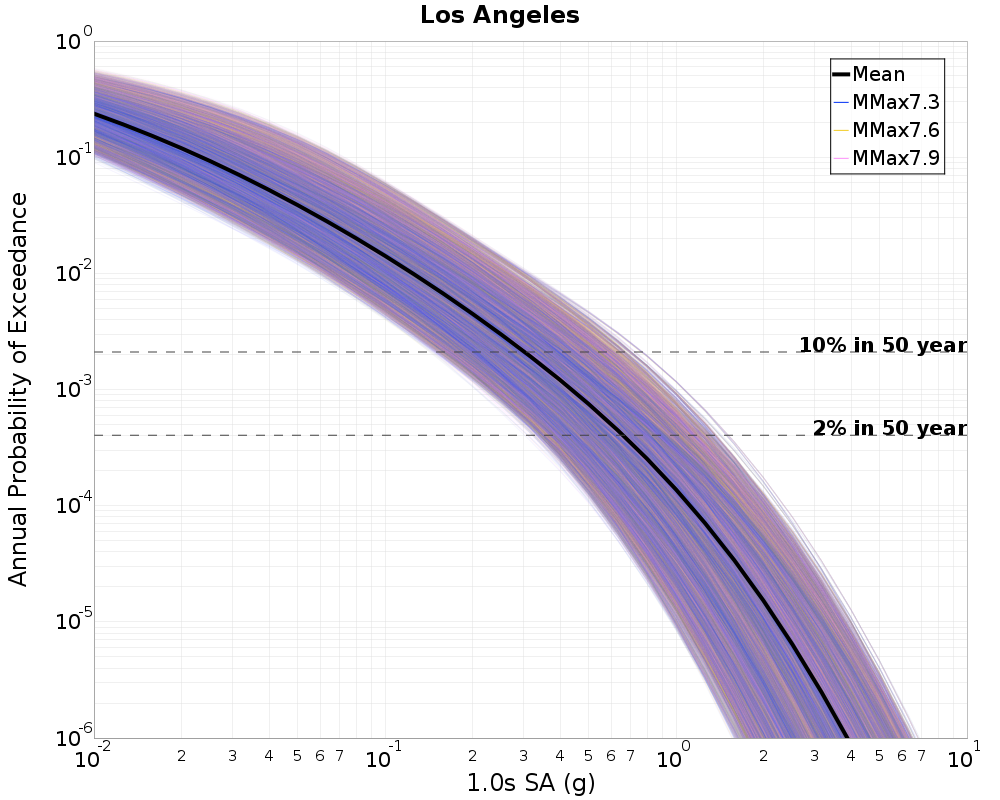

Los Angeles, 1.0s SA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6568648 (g) | 0.30139613 (g) |
| MMax7.3 | 0.65643746 (g) | 0.30065596 (g) |
| MMax7.6 | 0.65681905 (g) | 0.30133778 (g) |
| MMax7.9 | 0.65765584 (g) | 0.30259293 (g) |

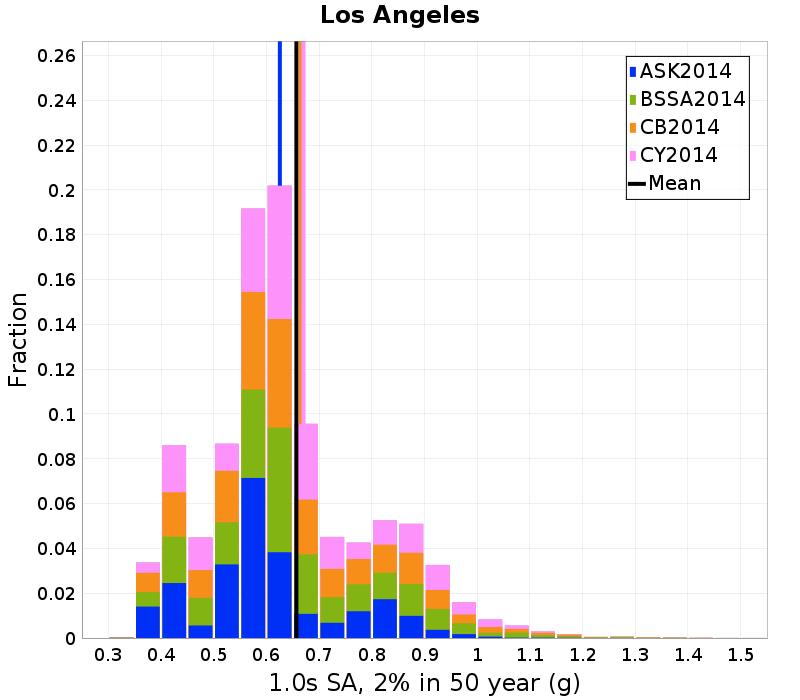

Los Angeles, 1.0s SA, NGA-W2 GMM Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6568648 (g) | 0.30139613 (g) |
| ASK2014 | 0.6254983 (g) | 0.3099425 (g) |
| BSSA2014 | 0.668894 (g) | 0.29103404 (g) |
| CB2014 | 0.66475004 (g) | 0.29619503 (g) |
| CY2014 | 0.67044044 (g) | 0.30677062 (g) |

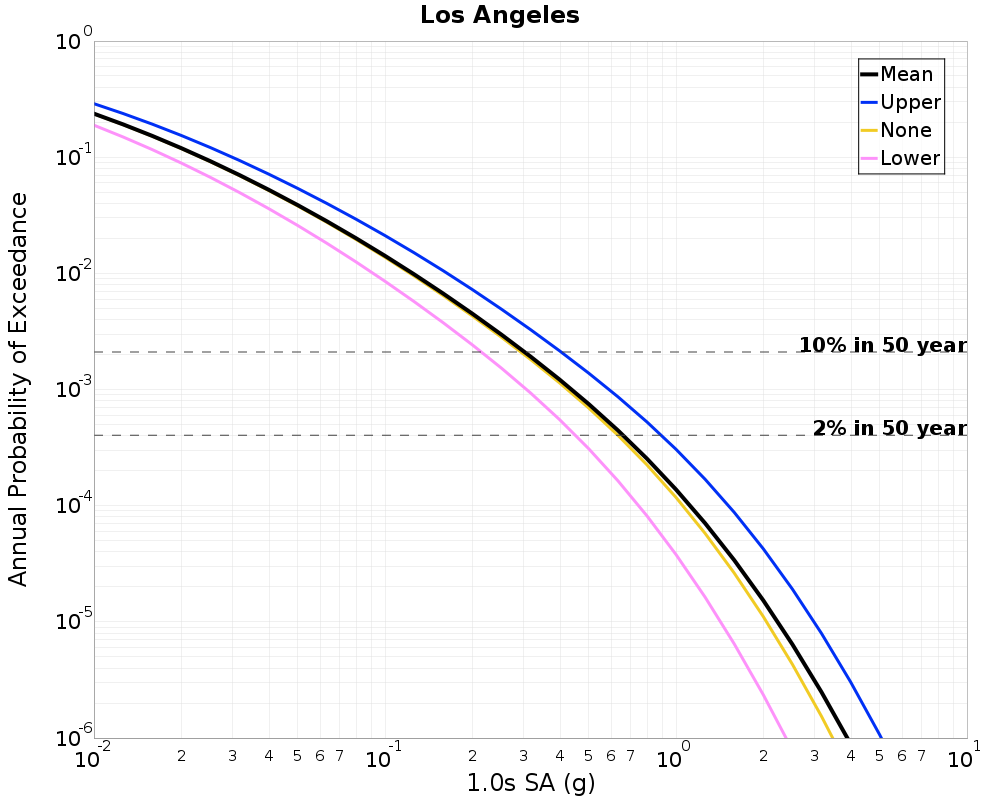

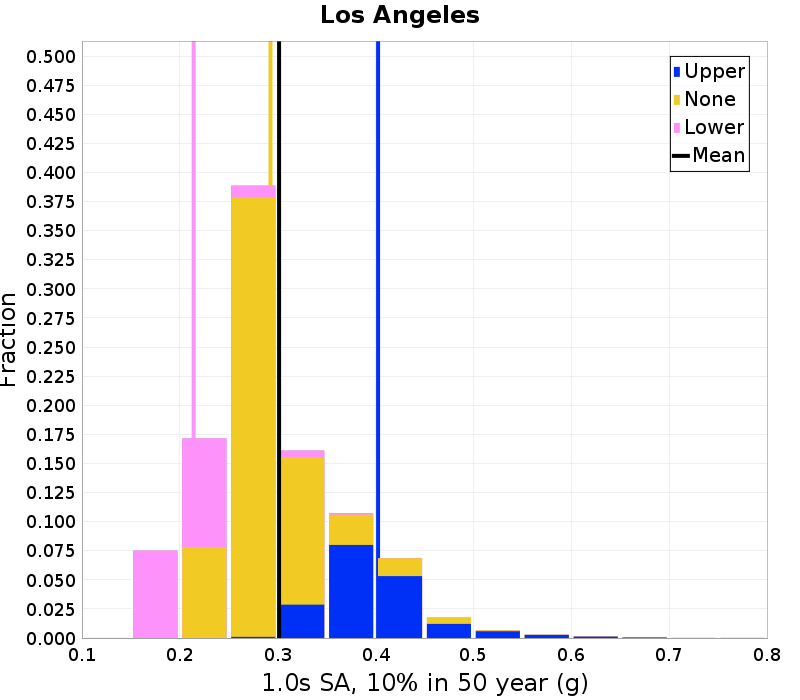

Los Angeles, 1.0s SA, NGA-W2 Additional Epistemic Uncertainty Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6568648 (g) | 0.30139613 (g) |
| Upper | 0.8885359 (g) | 0.4025756 (g) |
| None | 0.63131654 (g) | 0.29261544 (g) |
| Lower | 0.45048344 (g) | 0.21408775 (g) |
Salt Lake City
Salt Lake City, PGA
Salt Lake City, PGA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
| 2% in 50 year | 10% in 50 year |
|---|---|
| 0.6980993 (g) | 0.23228821 (g) |

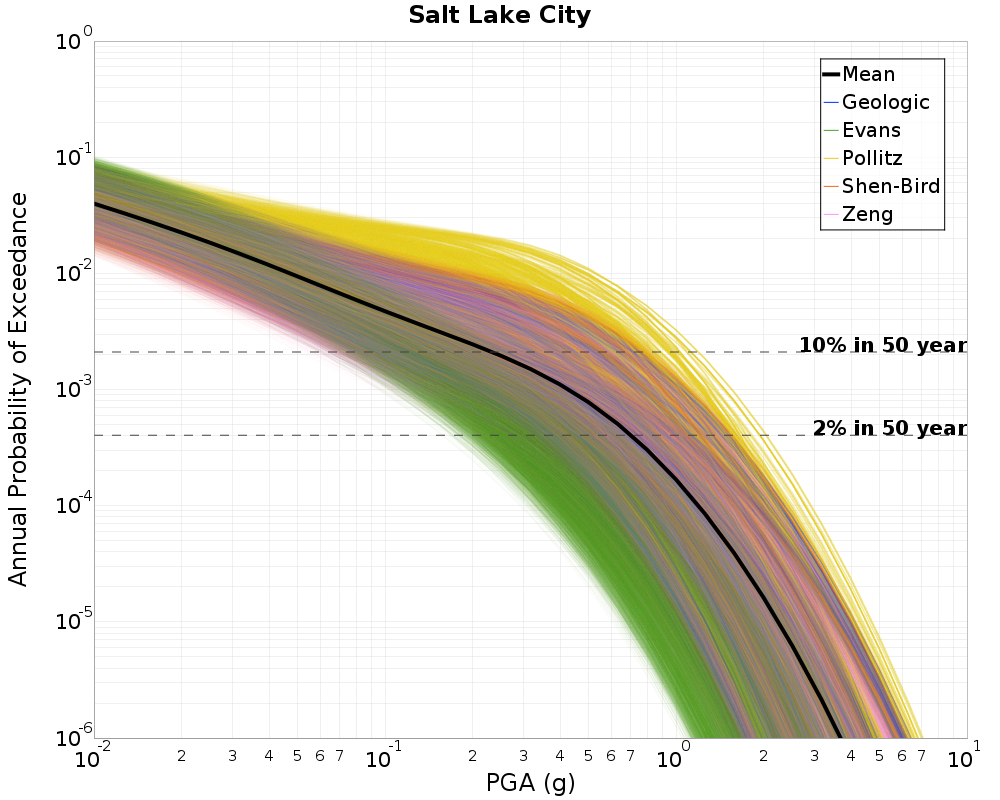

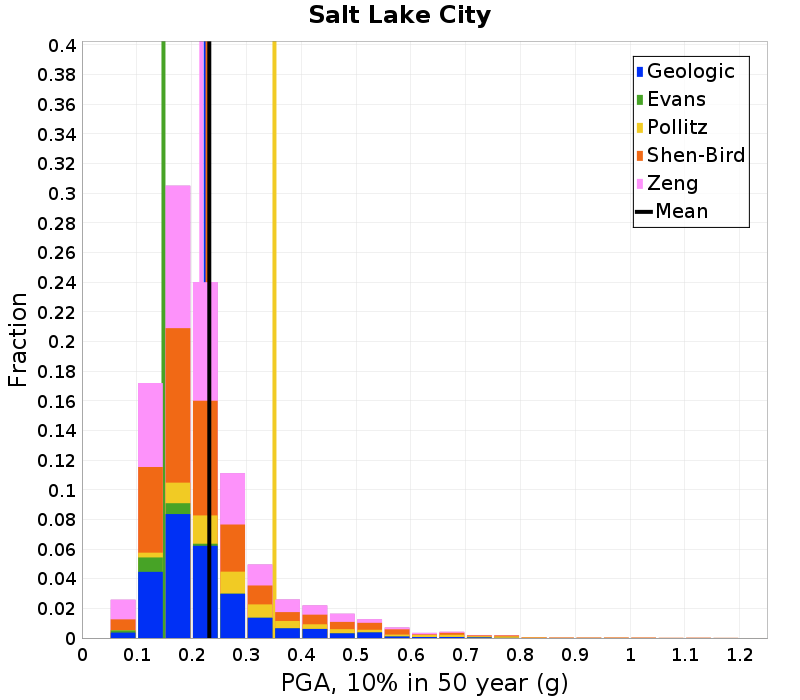

Salt Lake City, PGA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6980993 (g) | 0.23228821 (g) |
| Geologic | 0.69567645 (g) | 0.22556114 (g) |
| Evans | 0.3771707 (g) | 0.14865385 (g) |
| Pollitz | 0.8595501 (g) | 0.35120547 (g) |
| Shen-Bird | 0.69785285 (g) | 0.22905095 (g) |
| Zeng | 0.66423213 (g) | 0.21766596 (g) |

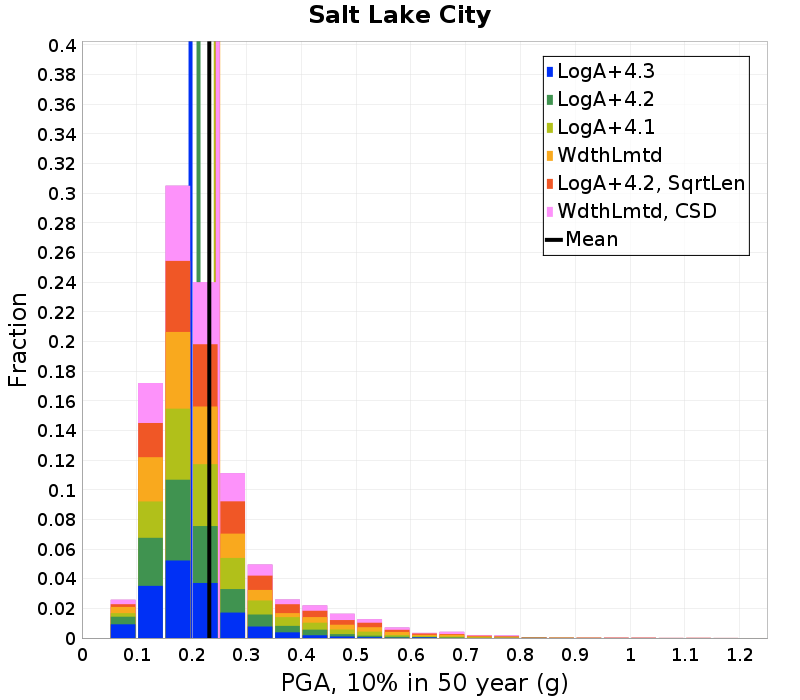

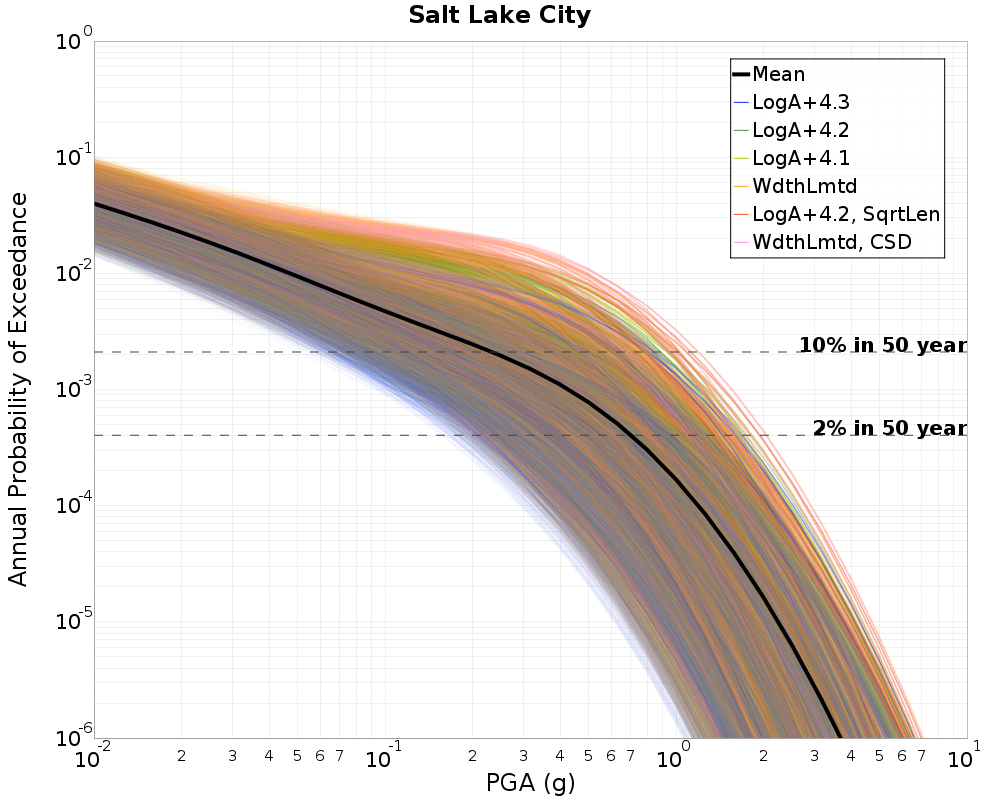

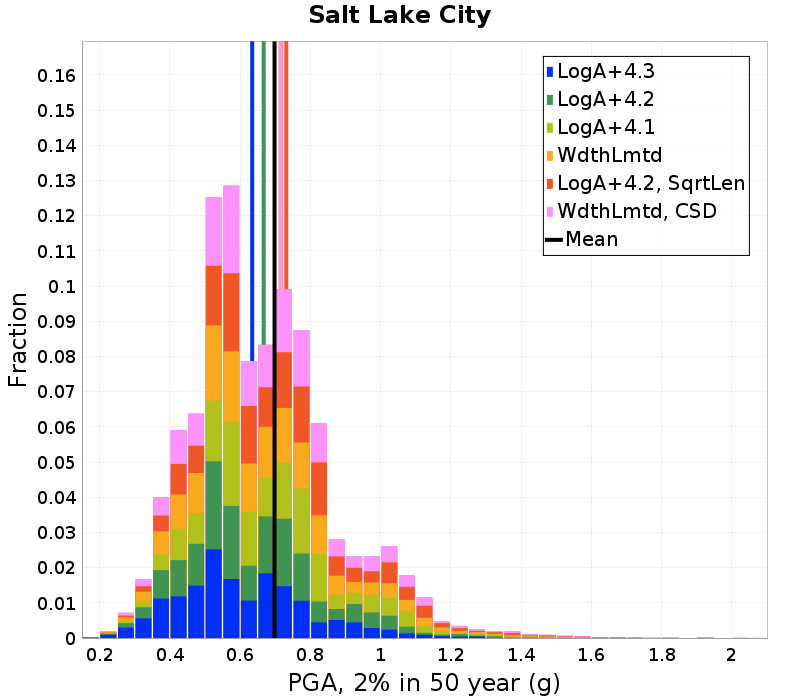

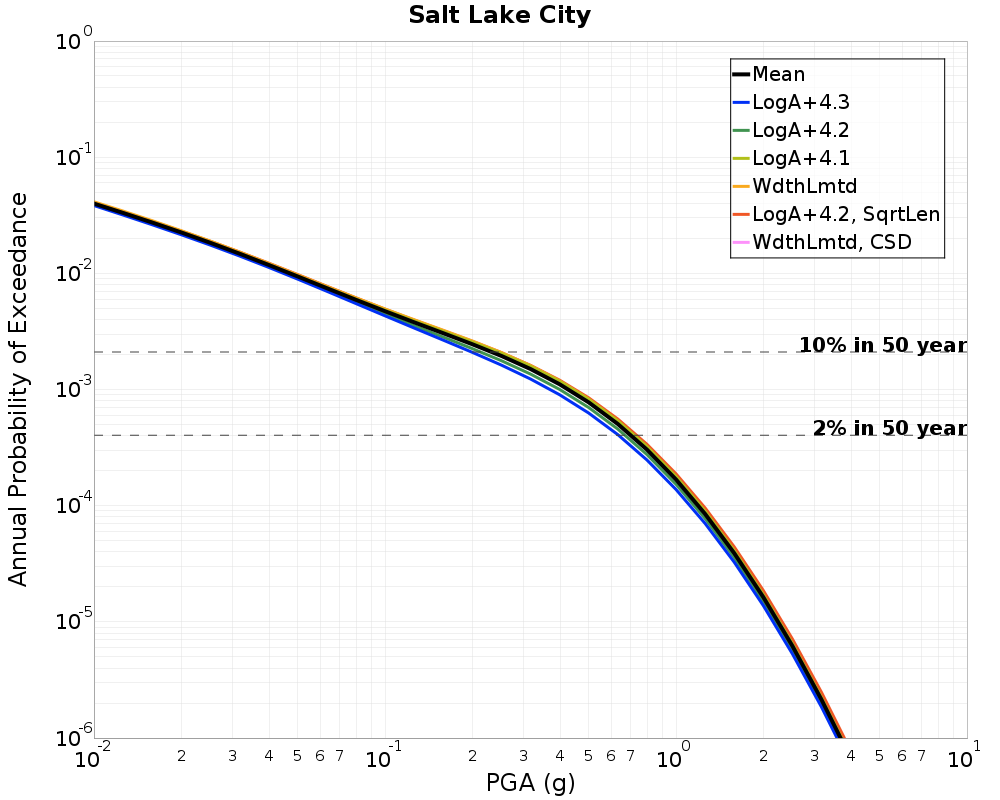

Salt Lake City, PGA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6980993 (g) | 0.23228821 (g) |
| LogA+4.3 | 0.6344772 (g) | 0.19805439 (g) |
| LogA+4.2 | 0.6672143 (g) | 0.21263689 (g) |
| LogA+4.1 | 0.71777976 (g) | 0.2440701 (g) |
| WdthLmtd | 0.7150409 (g) | 0.24856576 (g) |
| LogA+4.2, SqrtLen | 0.7315784 (g) | 0.24744375 (g) |
| WdthLmtd, CSD | 0.7157316 (g) | 0.2477927 (g) |

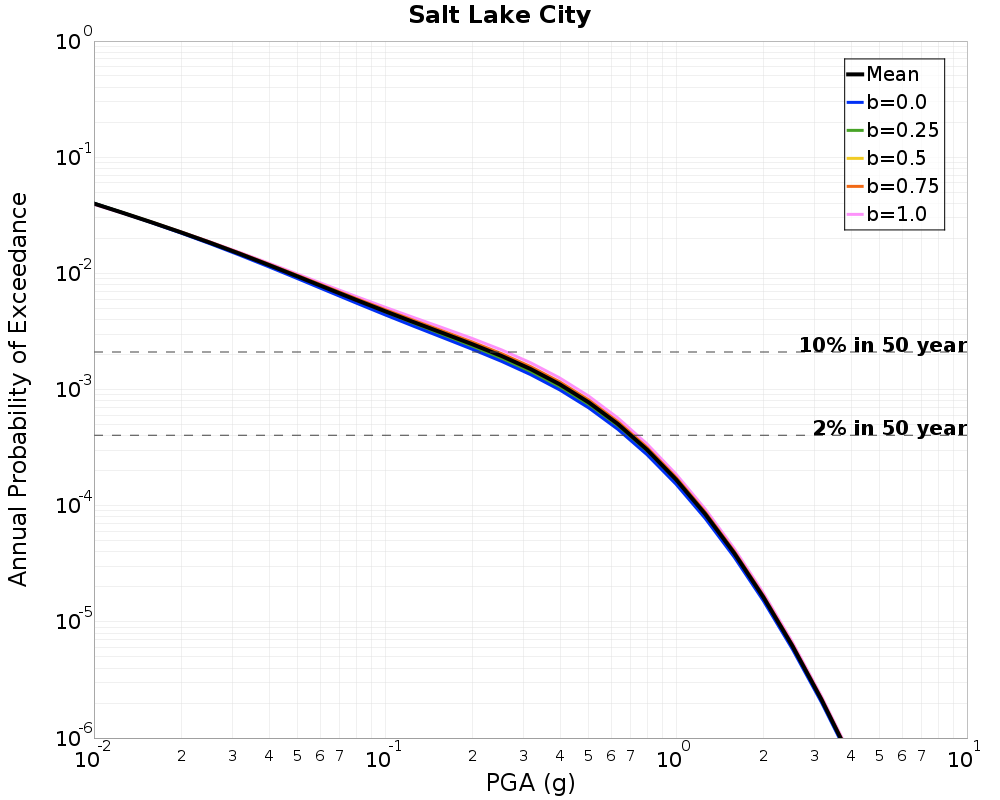

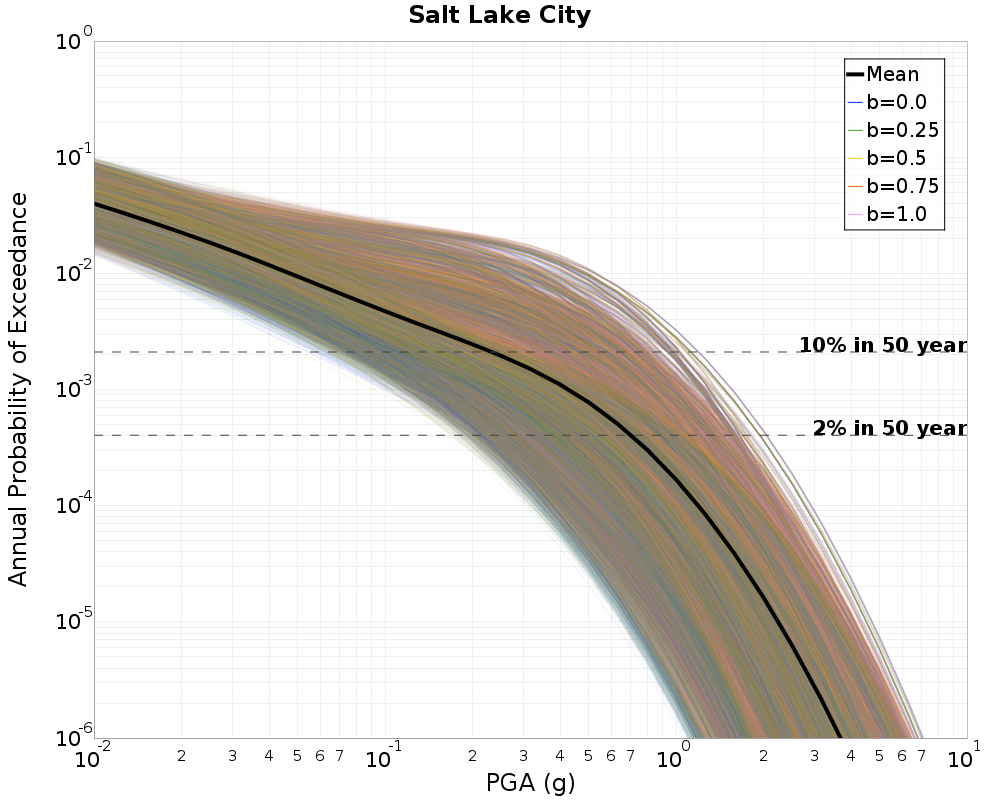

Salt Lake City, PGA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6980993 (g) | 0.23228821 (g) |
| b=0.0 | 0.66598475 (g) | 0.20993799 (g) |
| b=0.25 | 0.67876536 (g) | 0.21894227 (g) |
| b=0.5 | 0.69337755 (g) | 0.22898583 (g) |
| b=0.75 | 0.71288353 (g) | 0.24324813 (g) |
| b=1.0 | 0.73584574 (g) | 0.2609346 (g) |
Salt Lake City, PGA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6980993 (g) | 0.23228821 (g) |
| EvenFit | 0.703436 (g) | 0.2438824 (g) |
| OverFit | 0.7101392 (g) | 0.23834127 (g) |
| UnderFit | 0.68016285 (g) | 0.2139719 (g) |
Salt Lake City, PGA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6980993 (g) | 0.23228821 (g) |
| None | 0.6019378 (g) | 0.17009002 (g) |
| LowSeg | 0.6167568 (g) | 0.17557344 (g) |
| MidSeg | 0.64633006 (g) | 0.19167362 (g) |
| HighSeg | 0.6844098 (g) | 0.22508384 (g) |
| Classic | 0.95742005 (g) | 0.46609983 (g) |
Salt Lake City, PGA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6980993 (g) | 0.23228821 (g) |
| PrefSeis | 0.6979561 (g) | 0.23189752 (g) |
| LowSeis | 0.6952253 (g) | 0.22370268 (g) |
| HighSeis | 0.701731 (g) | 0.24222563 (g) |

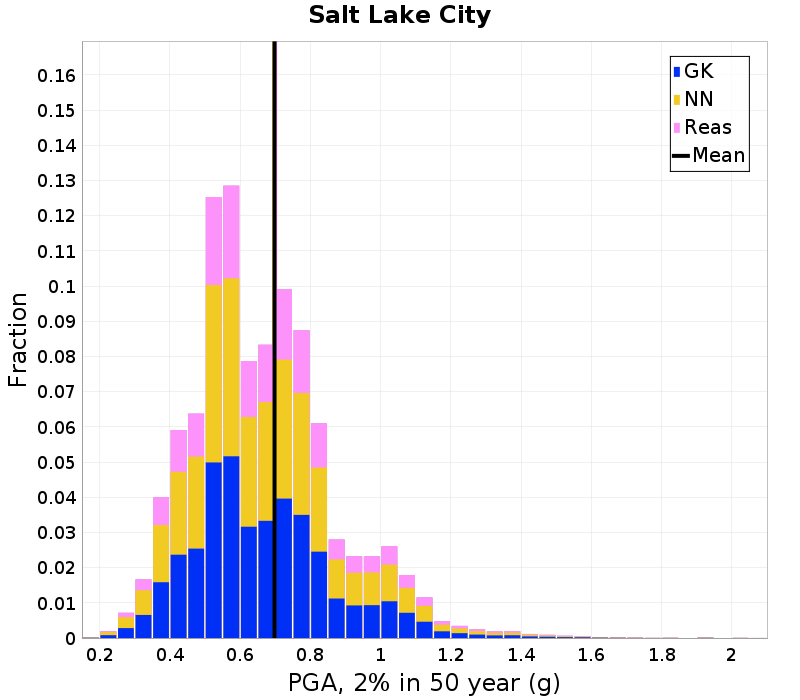

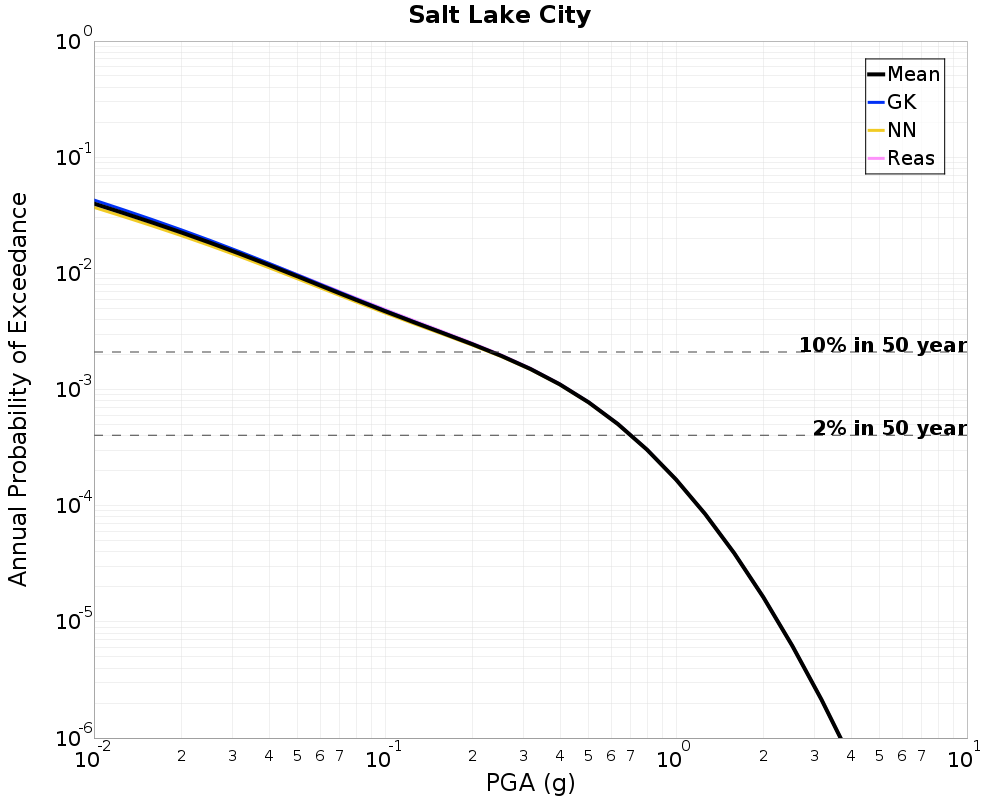

Salt Lake City, PGA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6980993 (g) | 0.23228821 (g) |
| GK | 0.69845253 (g) | 0.23359098 (g) |
| NN | 0.69688624 (g) | 0.22854653 (g) |
| Reas | 0.6998026 (g) | 0.23690179 (g) |
Salt Lake City, PGA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6980993 (g) | 0.23228821 (g) |
| Adaptive | 0.6945838 (g) | 0.22093849 (g) |
| Fixed | 0.703249 (g) | 0.24711946 (g) |

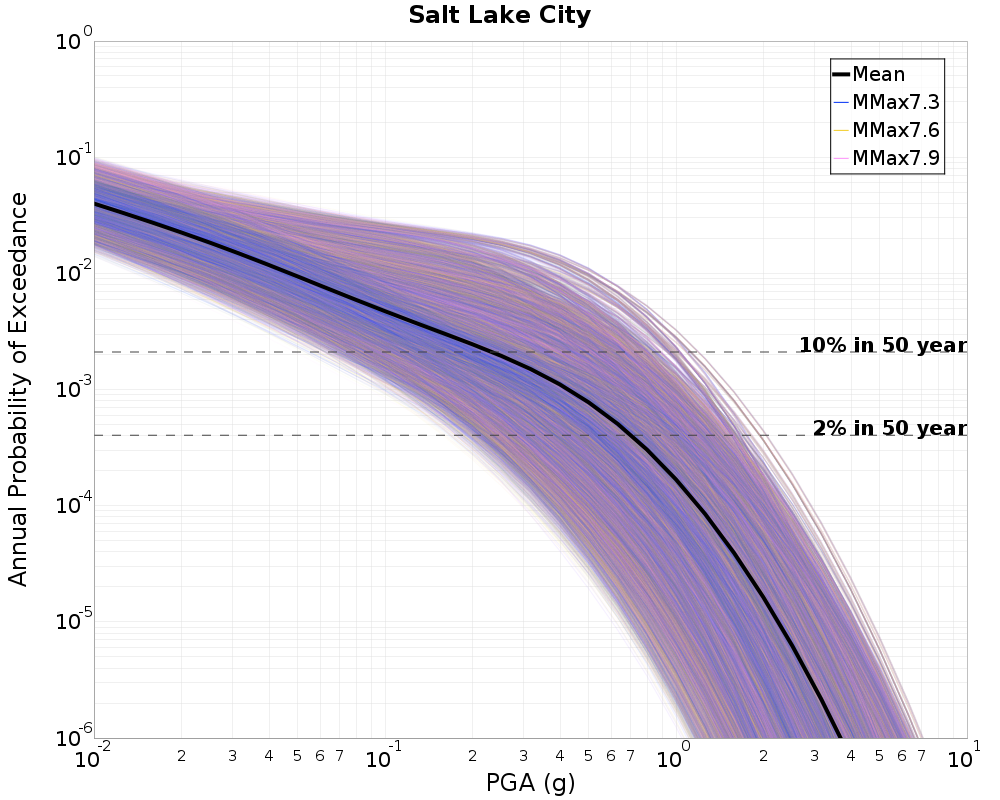

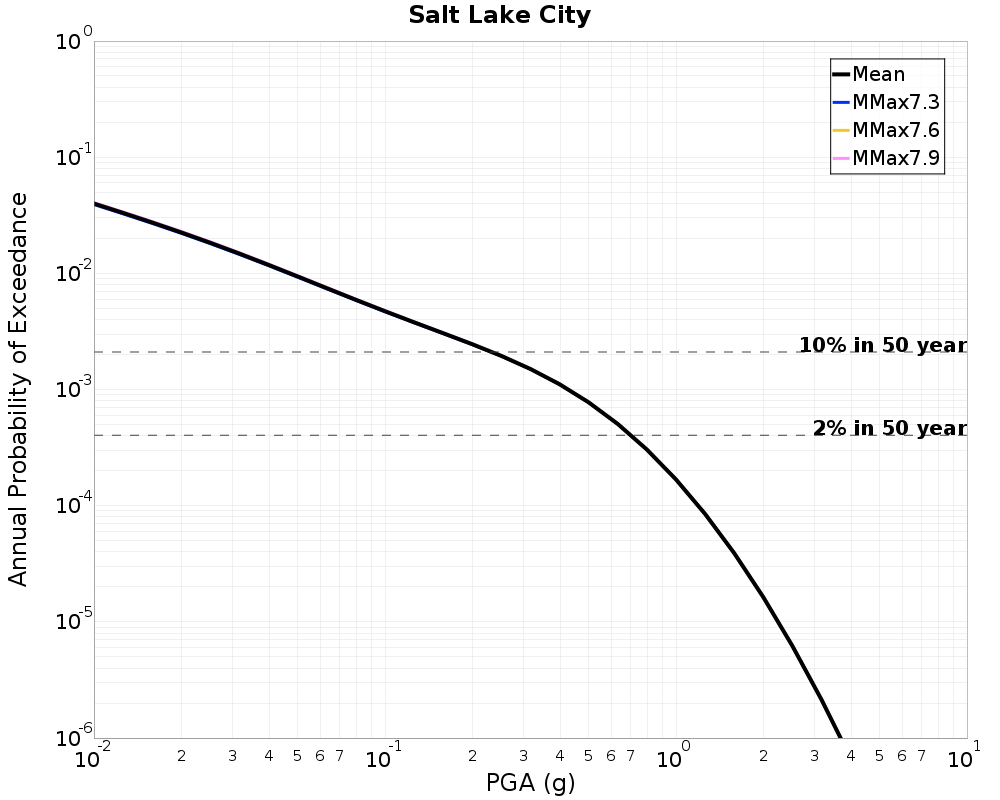

Salt Lake City, PGA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6980993 (g) | 0.23228821 (g) |
| MMax7.3 | 0.6976291 (g) | 0.23100963 (g) |
| MMax7.6 | 0.6980953 (g) | 0.23227118 (g) |
| MMax7.9 | 0.69860035 (g) | 0.23368567 (g) |

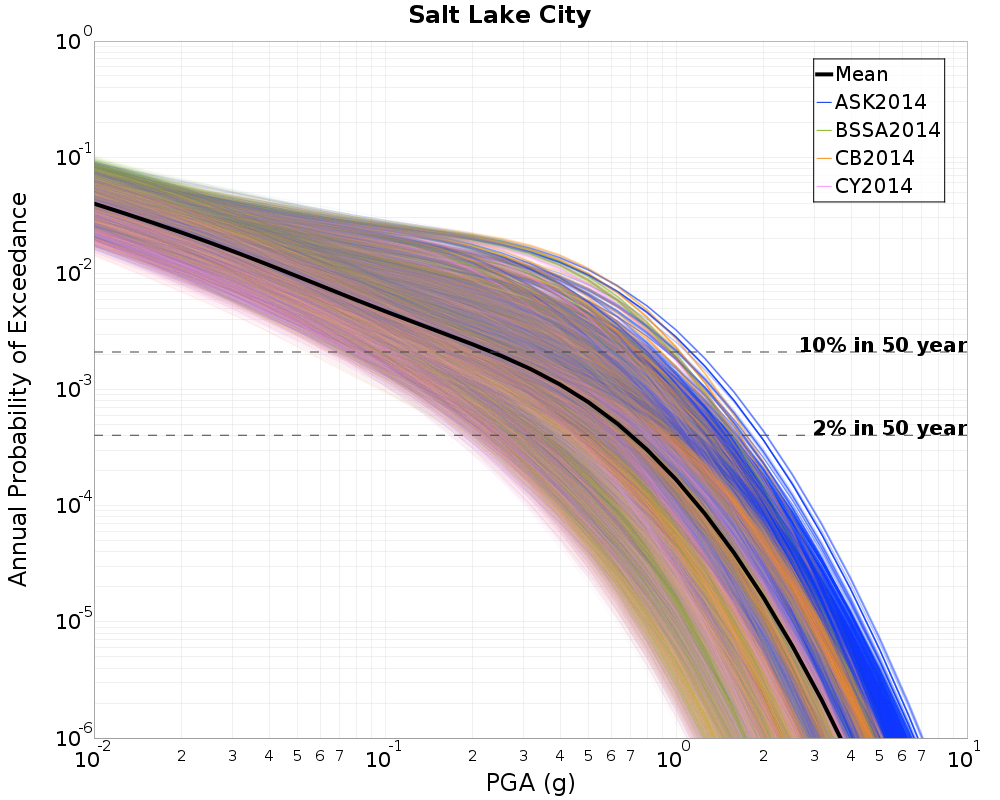

Salt Lake City, PGA, NGA-W2 GMM Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6980993 (g) | 0.23228821 (g) |
| ASK2014 | 0.8253255 (g) | 0.259033 (g) |
| BSSA2014 | 0.59067214 (g) | 0.2166121 (g) |
| CB2014 | 0.7567486 (g) | 0.24498421 (g) |
| CY2014 | 0.62904525 (g) | 0.21330802 (g) |

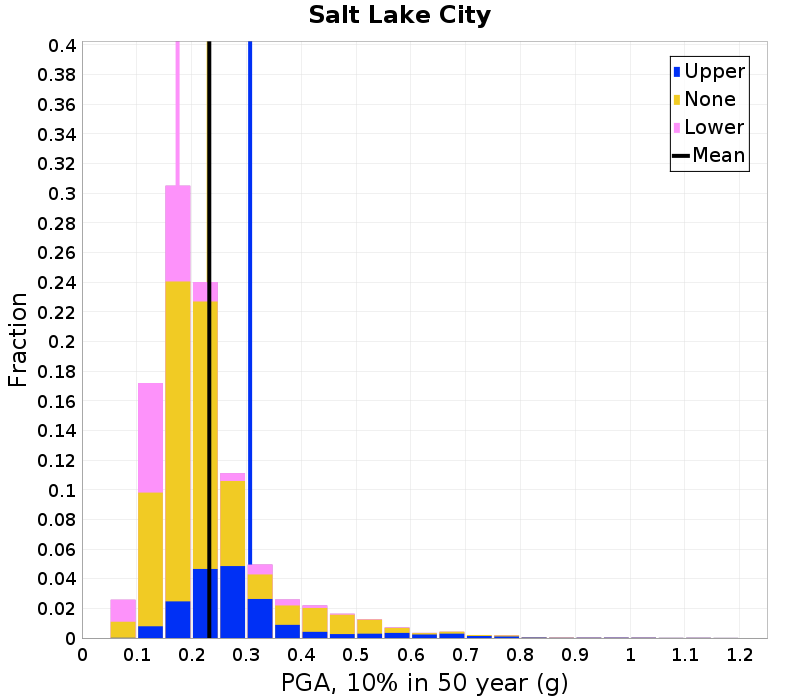

Salt Lake City, PGA, NGA-W2 Additional Epistemic Uncertainty Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6980993 (g) | 0.23228821 (g) |
| Upper | 0.9259928 (g) | 0.30680227 (g) |
| None | 0.6804813 (g) | 0.23108596 (g) |
| Lower | 0.5055859 (g) | 0.17443992 (g) |
Salt Lake City, 0.2s SA
Salt Lake City, 0.2s SA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
| 2% in 50 year | 10% in 50 year |
|---|---|
| 1.6686255 (g) | 0.531492 (g) |
Salt Lake City, 0.2s SA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.6686255 (g) | 0.531492 (g) |
| Geologic | 1.6607887 (g) | 0.5161358 (g) |
| Evans | 0.8900345 (g) | 0.33887246 (g) |
| Pollitz | 2.0795193 (g) | 0.81227267 (g) |
| Shen-Bird | 1.6678185 (g) | 0.52354485 (g) |
| Zeng | 1.5876299 (g) | 0.499703 (g) |

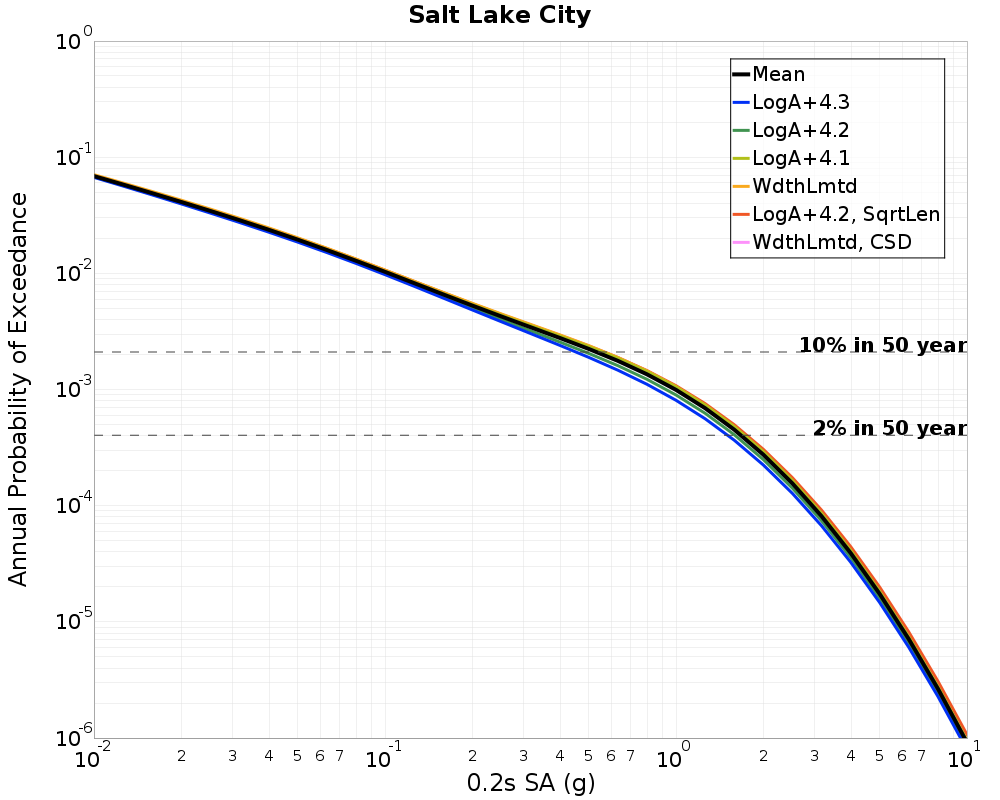

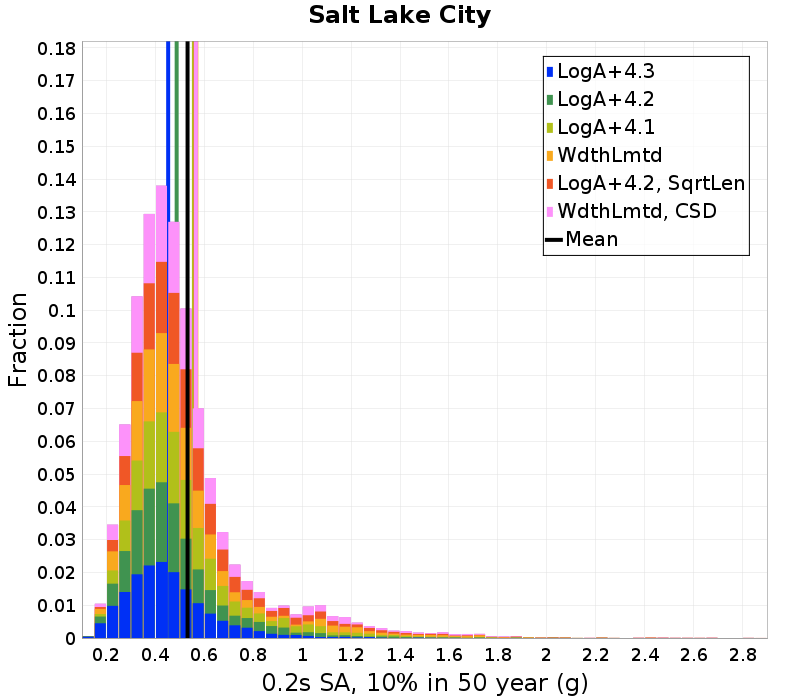

Salt Lake City, 0.2s SA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.6686255 (g) | 0.531492 (g) |
| LogA+4.3 | 1.5029379 (g) | 0.4521969 (g) |
| LogA+4.2 | 1.5932571 (g) | 0.48690048 (g) |
| LogA+4.1 | 1.717096 (g) | 0.5574113 (g) |
| WdthLmtd | 1.7103522 (g) | 0.56737924 (g) |
| LogA+4.2, SqrtLen | 1.749482 (g) | 0.5645308 (g) |
| WdthLmtd, CSD | 1.7119963 (g) | 0.5655612 (g) |
Salt Lake City, 0.2s SA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.6686255 (g) | 0.531492 (g) |
| b=0.0 | 1.5892482 (g) | 0.4800693 (g) |
| b=0.25 | 1.6208379 (g) | 0.50169206 (g) |
| b=0.5 | 1.6569791 (g) | 0.5242593 (g) |
| b=0.75 | 1.70519 (g) | 0.5558723 (g) |
| b=1.0 | 1.7620975 (g) | 0.59756404 (g) |

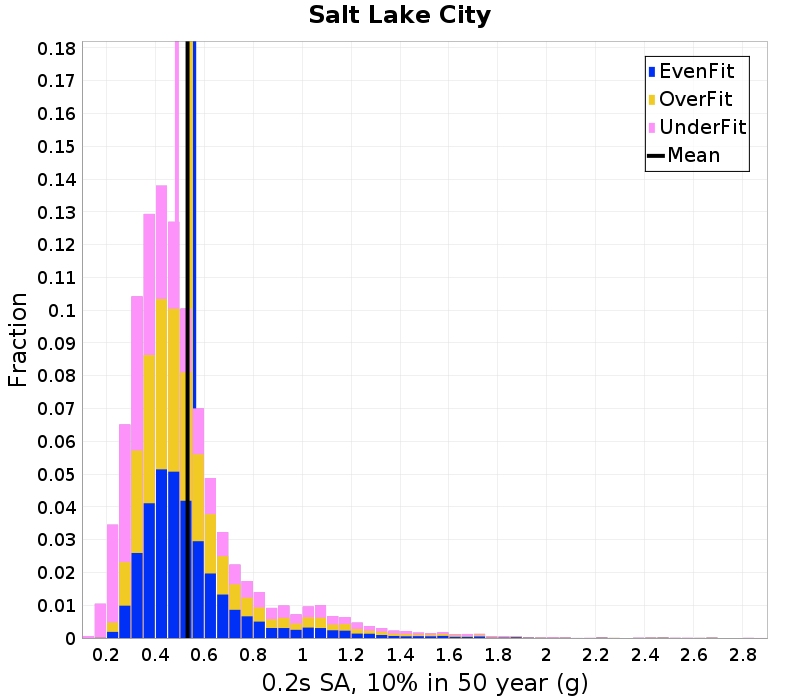

Salt Lake City, 0.2s SA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.6686255 (g) | 0.531492 (g) |
| EvenFit | 1.6838727 (g) | 0.55864424 (g) |
| OverFit | 1.6975824 (g) | 0.54533666 (g) |
| UnderFit | 1.622926 (g) | 0.48799342 (g) |

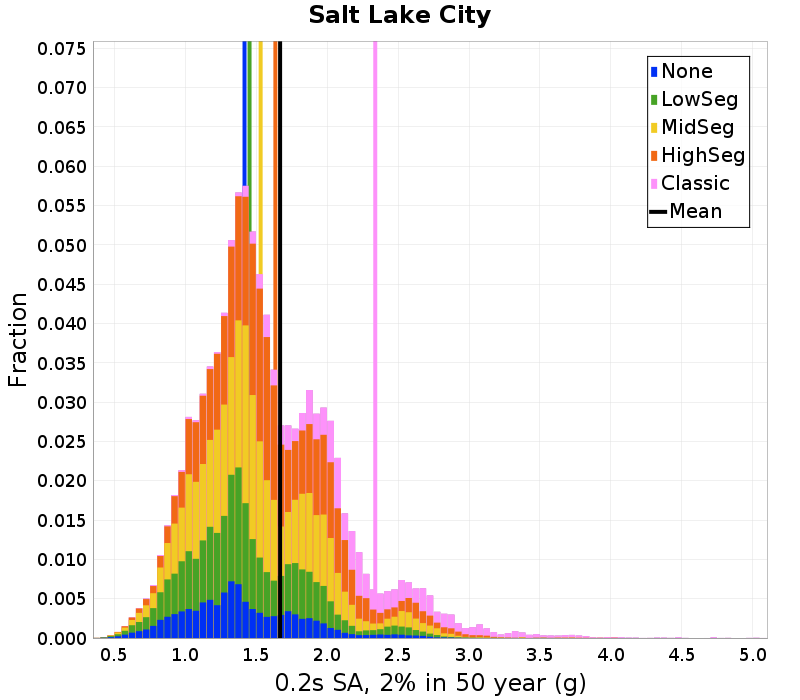

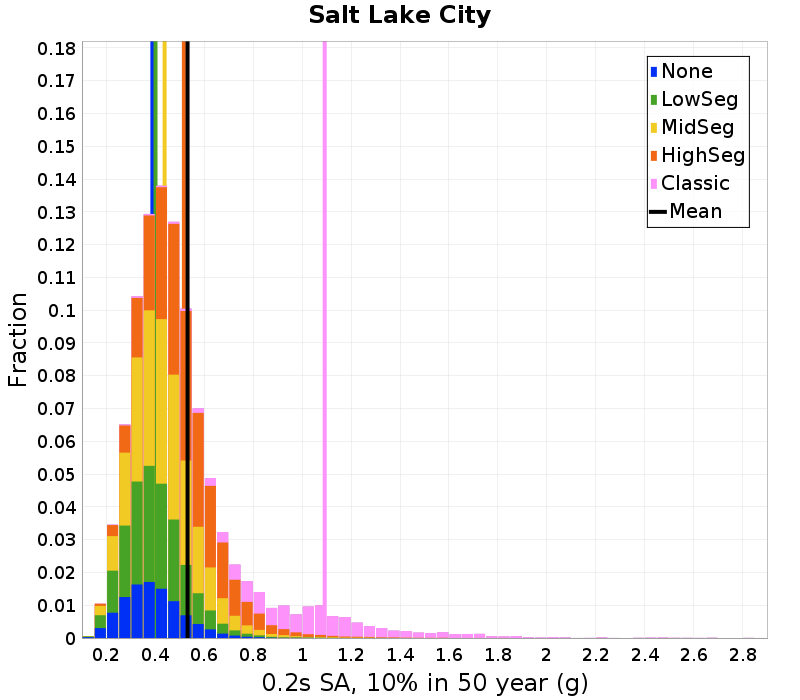

Salt Lake City, 0.2s SA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.6686255 (g) | 0.531492 (g) |
| None | 1.4178597 (g) | 0.38764092 (g) |
| LowSeg | 1.4532275 (g) | 0.4004938 (g) |
| MidSeg | 1.5314547 (g) | 0.43762752 (g) |
| HighSeg | 1.6352766 (g) | 0.51639223 (g) |
| Classic | 2.3391645 (g) | 1.0921226 (g) |

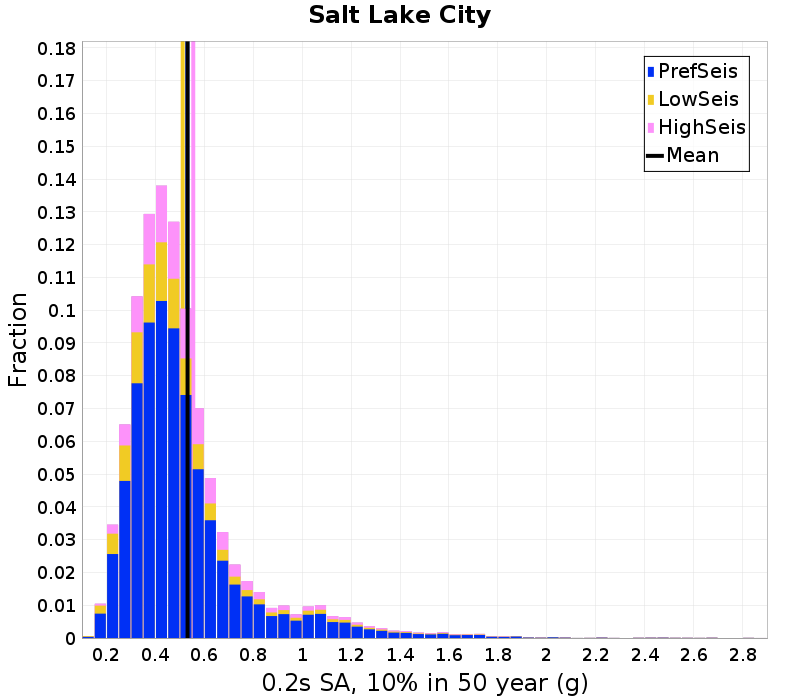

Salt Lake City, 0.2s SA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.6686255 (g) | 0.531492 (g) |
| PrefSeis | 1.6682376 (g) | 0.5305859 (g) |
| LowSeis | 1.6609074 (g) | 0.5115385 (g) |
| HighSeis | 1.6783954 (g) | 0.55478656 (g) |

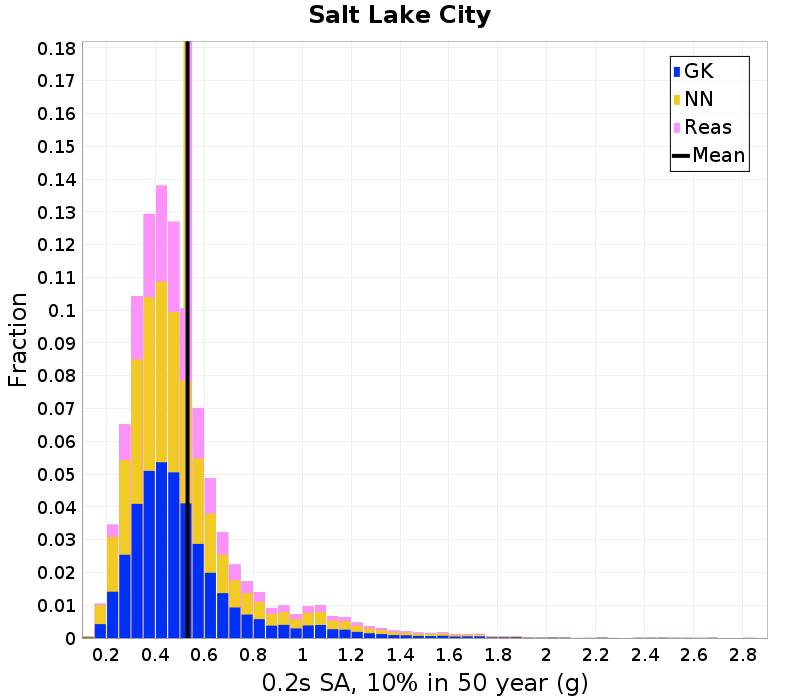

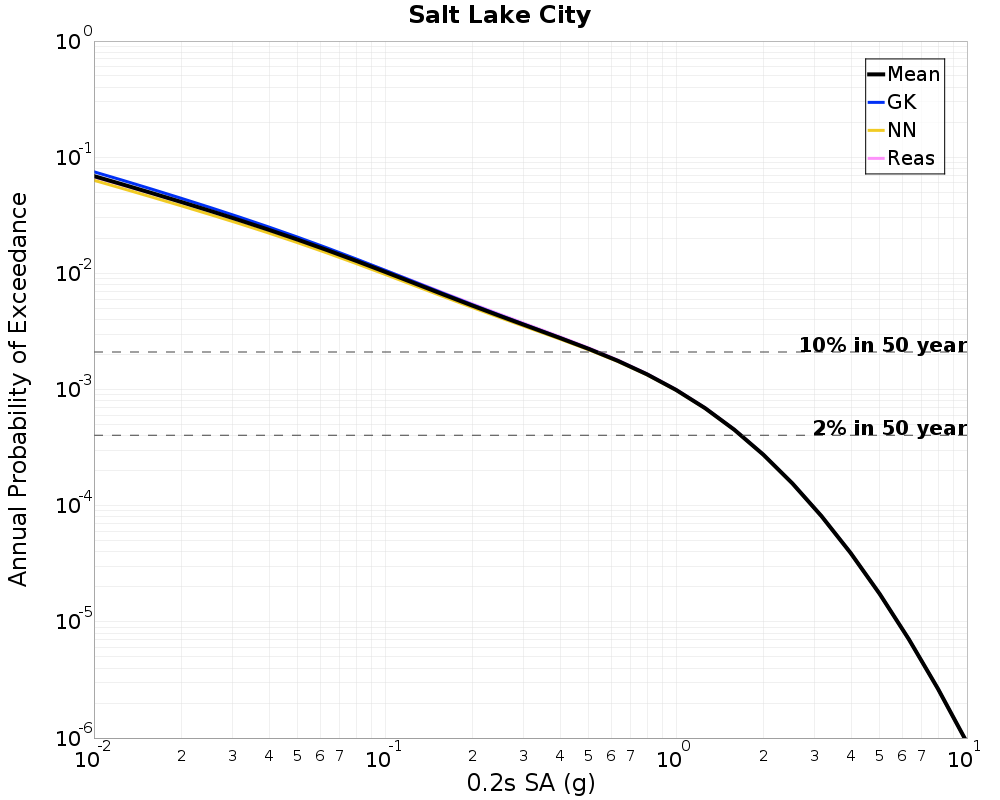

Salt Lake City, 0.2s SA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.6686255 (g) | 0.531492 (g) |
| GK | 1.6695443 (g) | 0.534514 (g) |
| NN | 1.6655242 (g) | 0.52306914 (g) |
| Reas | 1.6729498 (g) | 0.54177344 (g) |

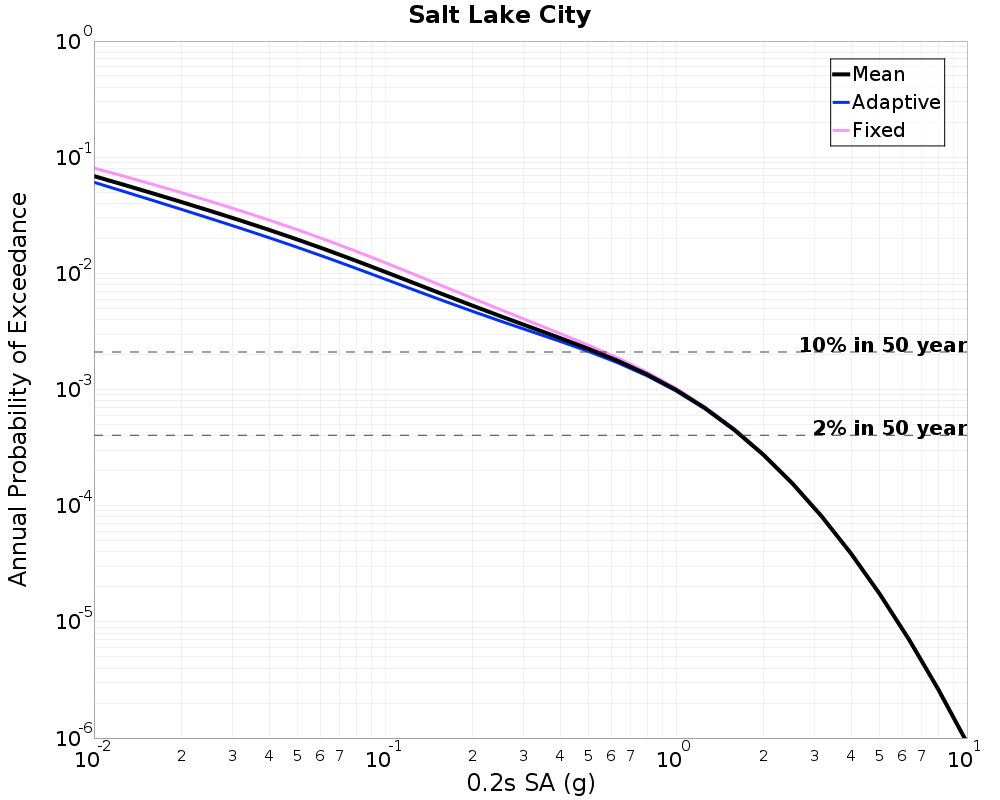

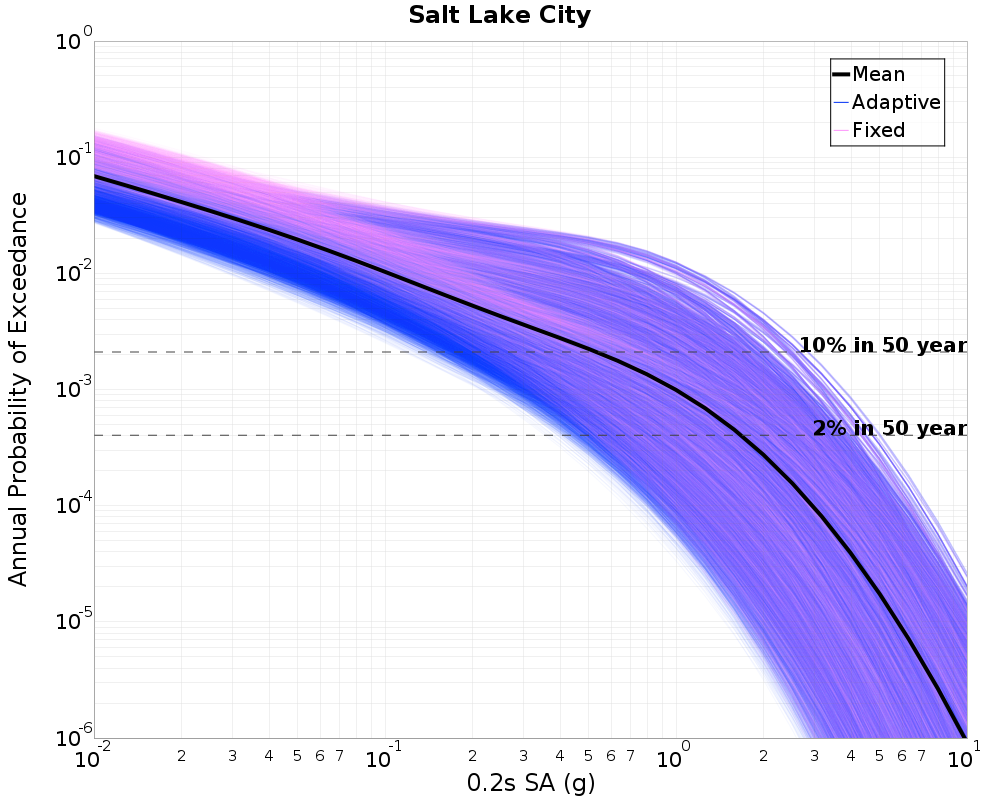

Salt Lake City, 0.2s SA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.6686255 (g) | 0.531492 (g) |
| Adaptive | 1.6596278 (g) | 0.50599927 (g) |
| Fixed | 1.6818173 (g) | 0.56535816 (g) |
Salt Lake City, 0.2s SA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.6686255 (g) | 0.531492 (g) |
| MMax7.3 | 1.6674213 (g) | 0.52880096 (g) |
| MMax7.6 | 1.6686194 (g) | 0.5314704 (g) |
| MMax7.9 | 1.6698753 (g) | 0.5343285 (g) |

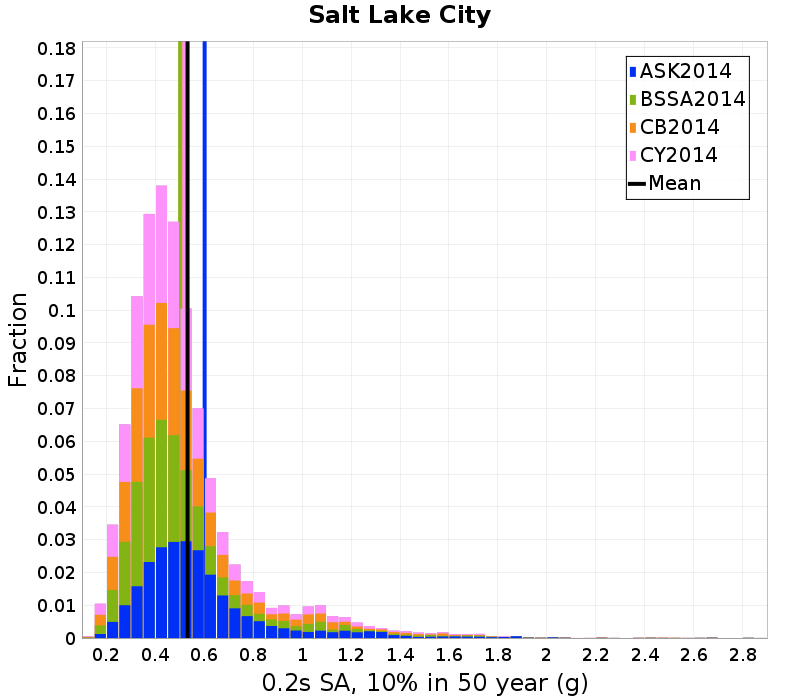

Salt Lake City, 0.2s SA, NGA-W2 GMM Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.6686255 (g) | 0.531492 (g) |
| ASK2014 | 2.0206976 (g) | 0.60124075 (g) |
| BSSA2014 | 1.4375867 (g) | 0.50112146 (g) |
| CB2014 | 1.6205797 (g) | 0.5145305 (g) |
| CY2014 | 1.6221964 (g) | 0.51834977 (g) |

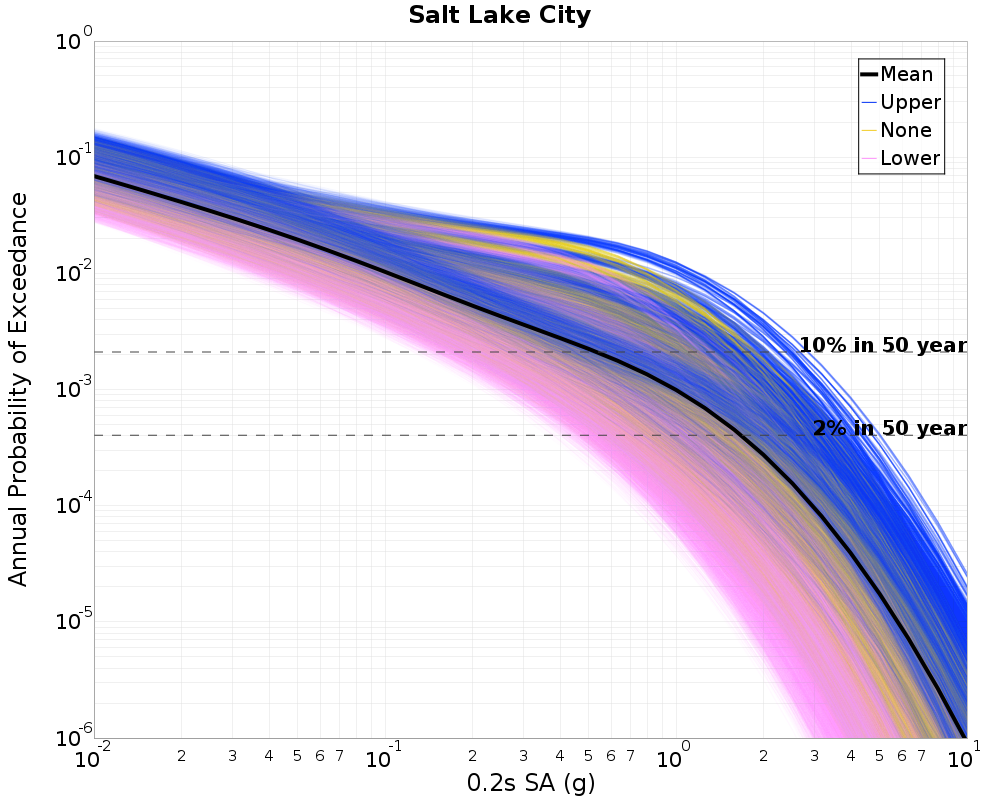

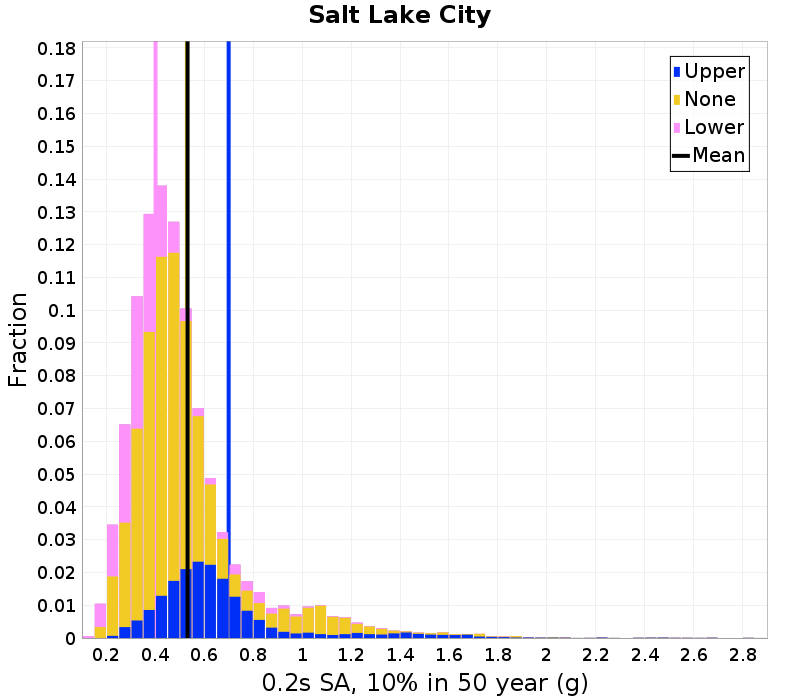

Salt Lake City, 0.2s SA, NGA-W2 Additional Epistemic Uncertainty Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.6686255 (g) | 0.531492 (g) |
| Upper | 2.209385 (g) | 0.6994641 (g) |
| None | 1.6301072 (g) | 0.52873 (g) |
| Lower | 1.2071874 (g) | 0.40063122 (g) |

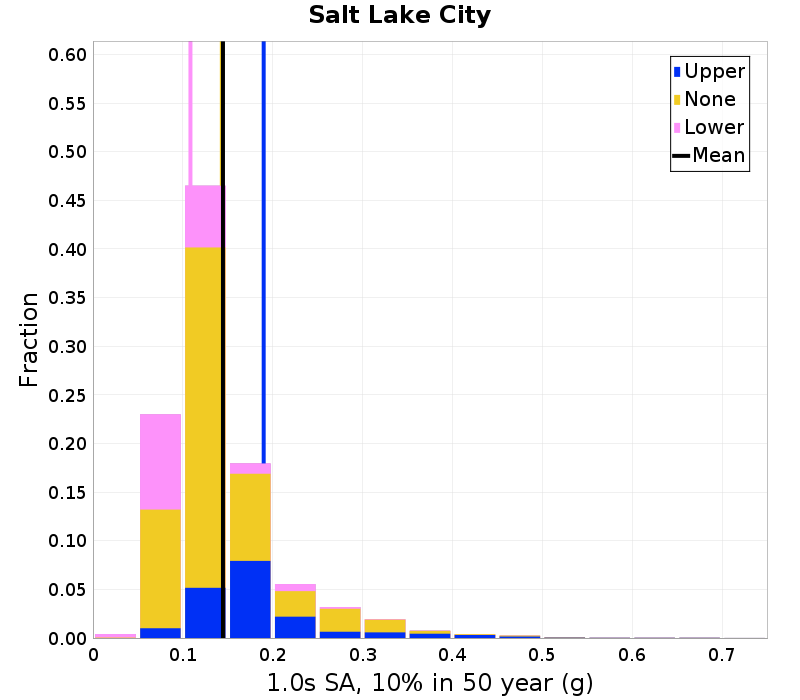

Salt Lake City, 1.0s SA

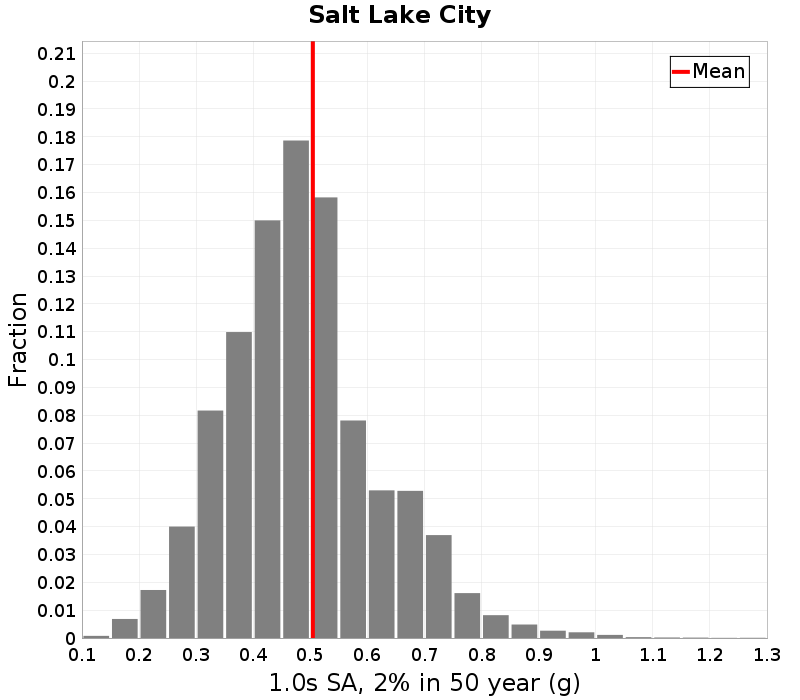

Salt Lake City, 1.0s SA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
| 2% in 50 year | 10% in 50 year |
|---|---|
| 0.5044405 (g) | 0.14462148 (g) |

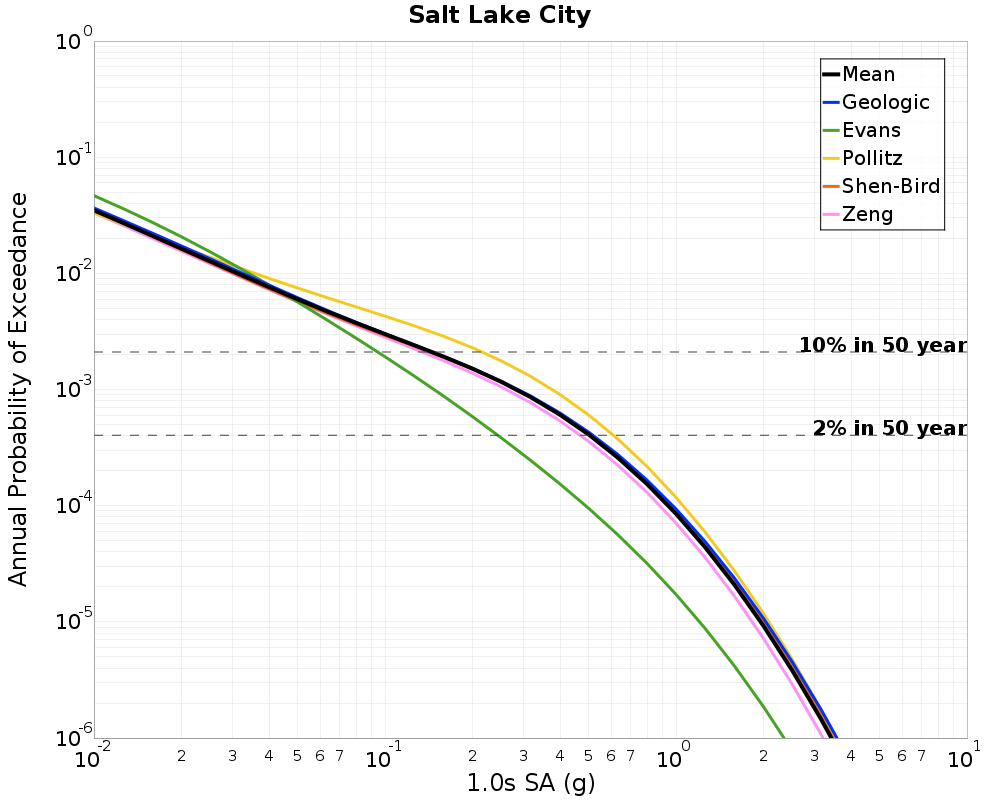

Salt Lake City, 1.0s SA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.5044405 (g) | 0.14462148 (g) |
| Geologic | 0.5172604 (g) | 0.14493448 (g) |
| Evans | 0.24399142 (g) | 0.09428599 (g) |
| Pollitz | 0.6085833 (g) | 0.214902 (g) |
| Shen-Bird | 0.50857604 (g) | 0.14198513 (g) |
| Zeng | 0.4680714 (g) | 0.13407531 (g) |

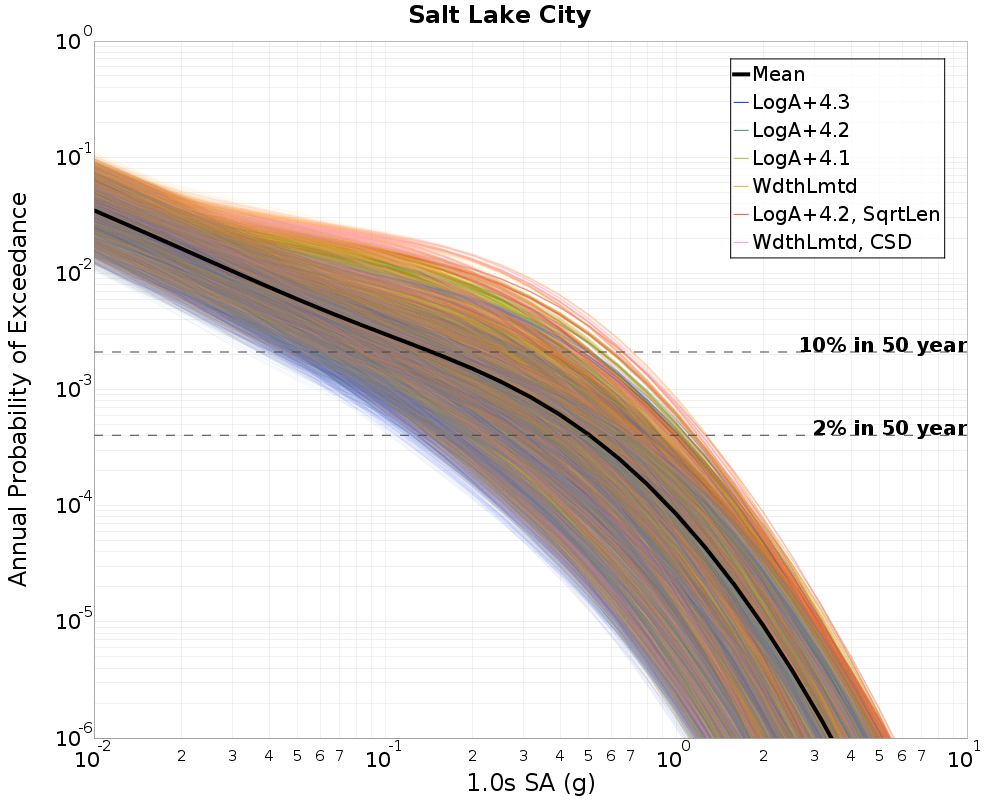

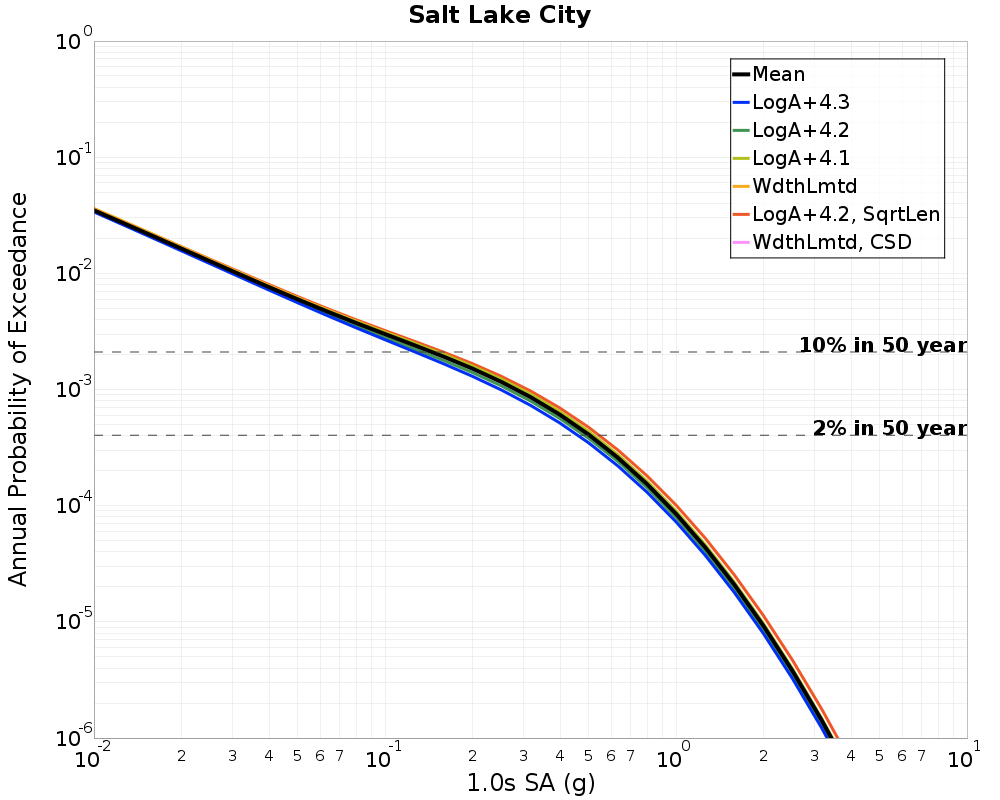

Salt Lake City, 1.0s SA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.5044405 (g) | 0.14462148 (g) |
| LogA+4.3 | 0.45902714 (g) | 0.12674183 (g) |
| LogA+4.2 | 0.483314 (g) | 0.13427371 (g) |
| LogA+4.1 | 0.52019083 (g) | 0.15141286 (g) |
| WdthLmtd | 0.50499326 (g) | 0.15014355 (g) |
| LogA+4.2, SqrtLen | 0.54307616 (g) | 0.15823054 (g) |
| WdthLmtd, CSD | 0.5056866 (g) | 0.14897142 (g) |
Salt Lake City, 1.0s SA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.5044405 (g) | 0.14462148 (g) |
| b=0.0 | 0.47974658 (g) | 0.13135454 (g) |
| b=0.25 | 0.4897281 (g) | 0.1365609 (g) |
| b=0.5 | 0.5016098 (g) | 0.14271344 (g) |
| b=0.75 | 0.51489073 (g) | 0.15120062 (g) |
| b=1.0 | 0.5297201 (g) | 0.1618848 (g) |

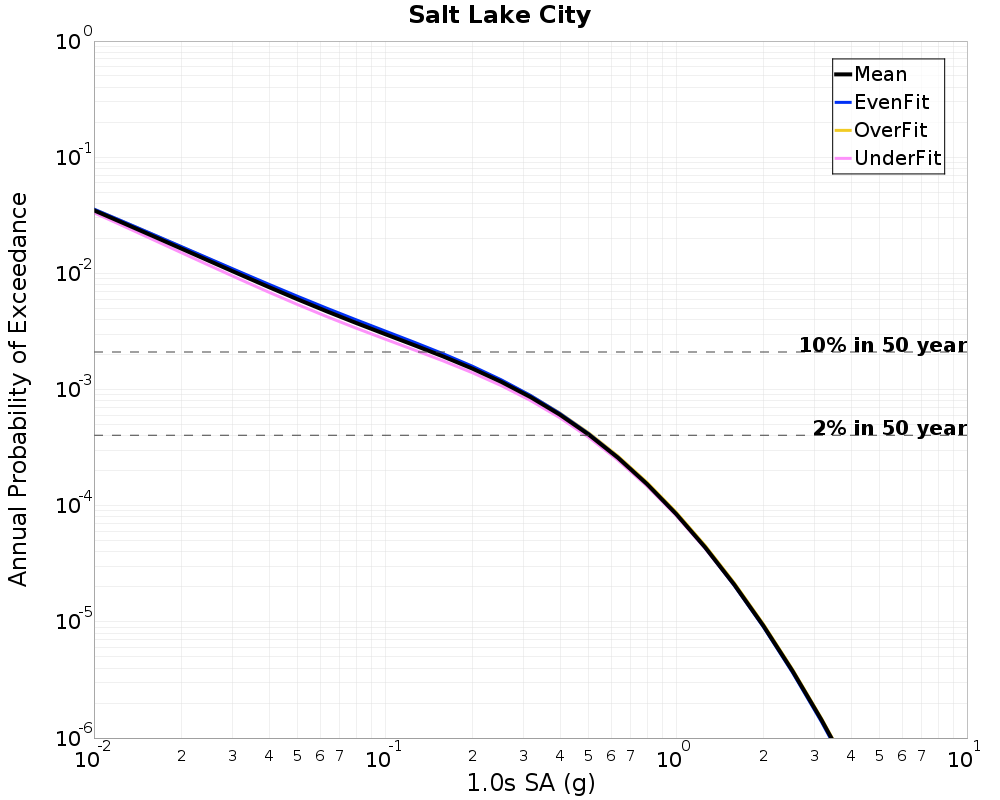

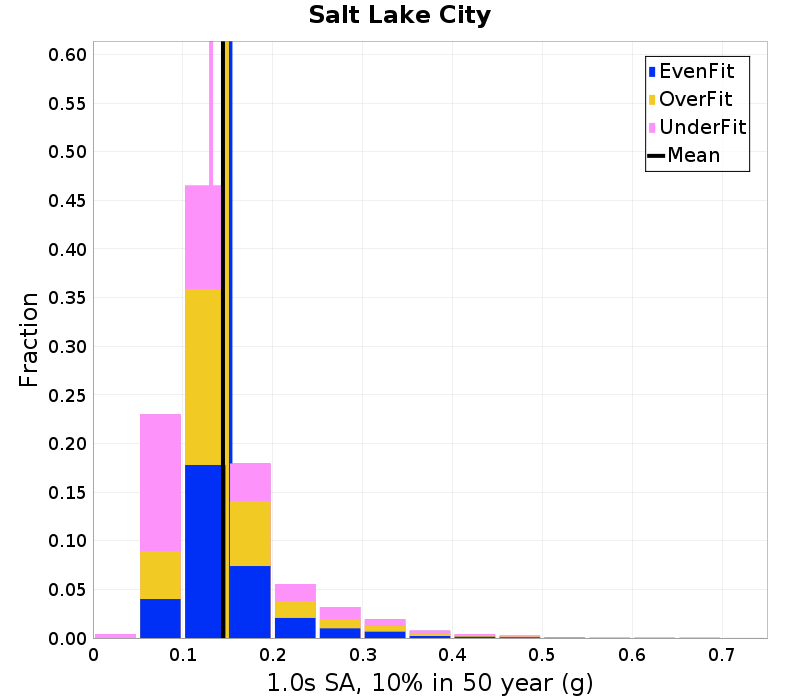

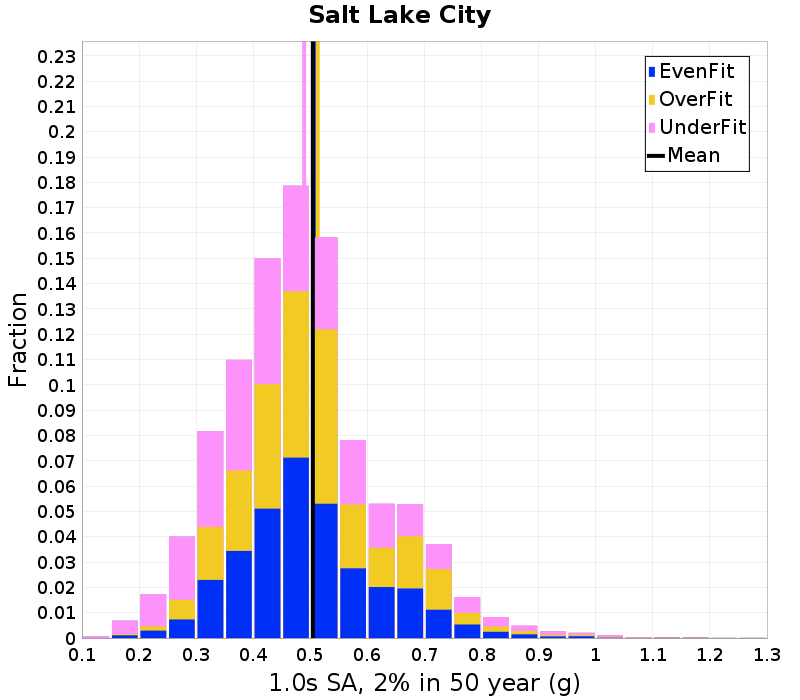

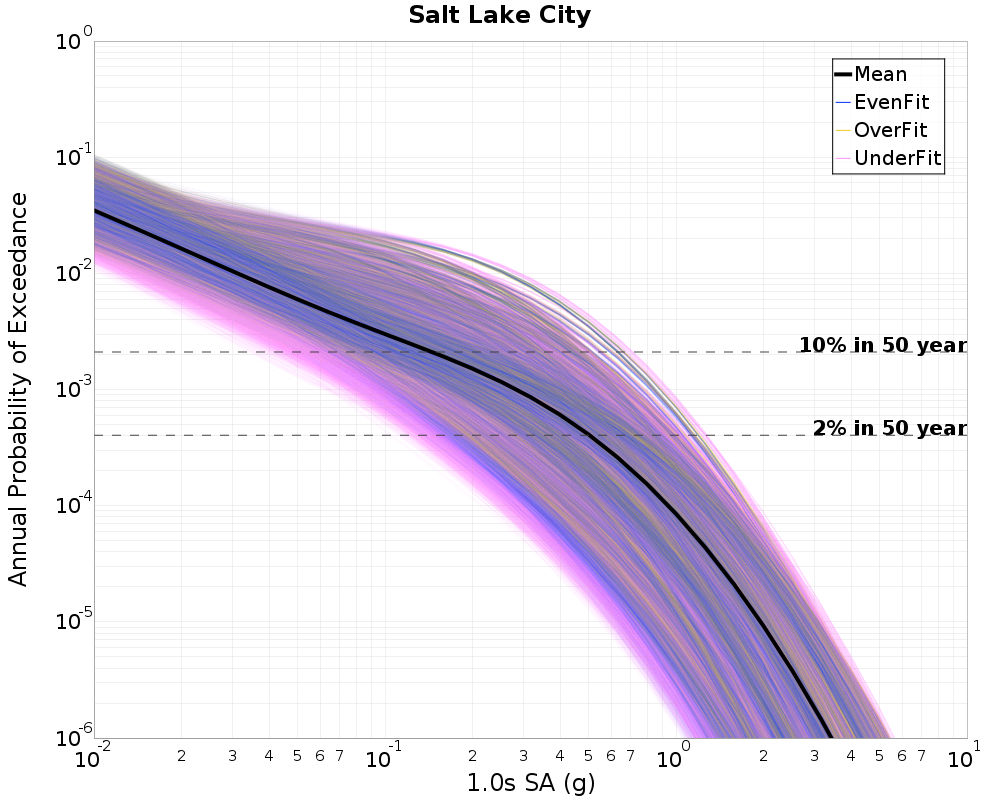

Salt Lake City, 1.0s SA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.5044405 (g) | 0.14462148 (g) |
| EvenFit | 0.5090087 (g) | 0.15292476 (g) |
| OverFit | 0.51301205 (g) | 0.1490332 (g) |
| UnderFit | 0.48920083 (g) | 0.13139828 (g) |

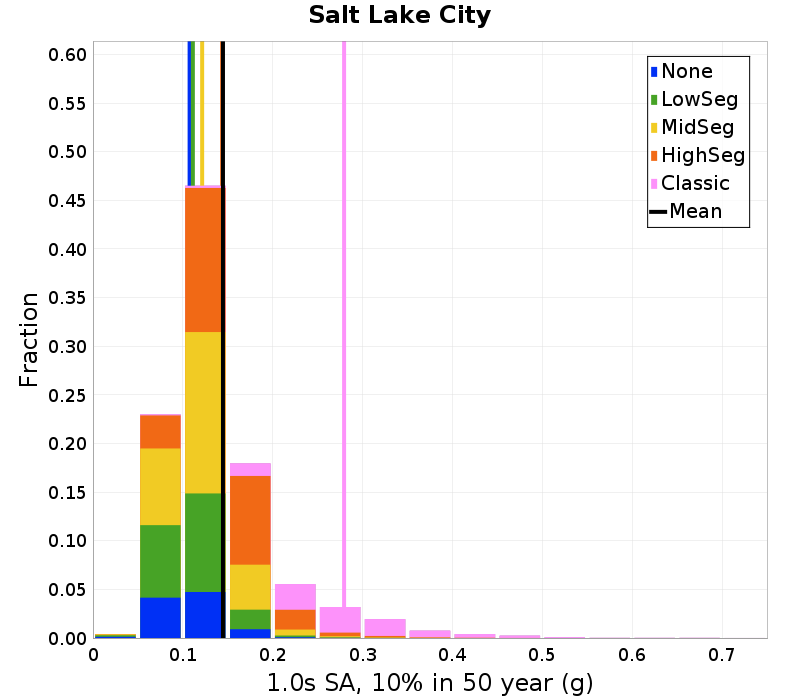

Salt Lake City, 1.0s SA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.5044405 (g) | 0.14462148 (g) |
| None | 0.44314283 (g) | 0.10749793 (g) |
| LowSeg | 0.4534779 (g) | 0.11110583 (g) |
| MidSeg | 0.47522095 (g) | 0.12146321 (g) |
| HighSeg | 0.50420386 (g) | 0.14371766 (g) |
| Classic | 0.6490829 (g) | 0.27941224 (g) |
Salt Lake City, 1.0s SA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.5044405 (g) | 0.14462148 (g) |
| PrefSeis | 0.50427943 (g) | 0.14423232 (g) |
| LowSeis | 0.5020757 (g) | 0.13823435 (g) |
| HighSeis | 0.50767297 (g) | 0.15243 (g) |
Salt Lake City, 1.0s SA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.5044405 (g) | 0.14462148 (g) |
| GK | 0.50464386 (g) | 0.1454247 (g) |
| NN | 0.5038789 (g) | 0.14298789 (g) |
| Reas | 0.505153 (g) | 0.14621015 (g) |

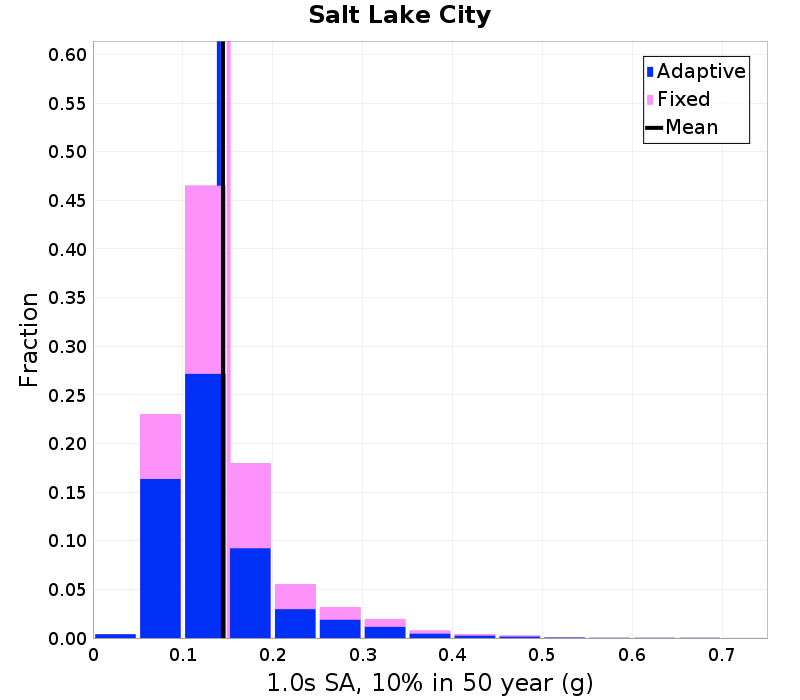

Salt Lake City, 1.0s SA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.5044405 (g) | 0.14462148 (g) |
| Adaptive | 0.5028426 (g) | 0.14006269 (g) |
| Fixed | 0.5068073 (g) | 0.15091495 (g) |

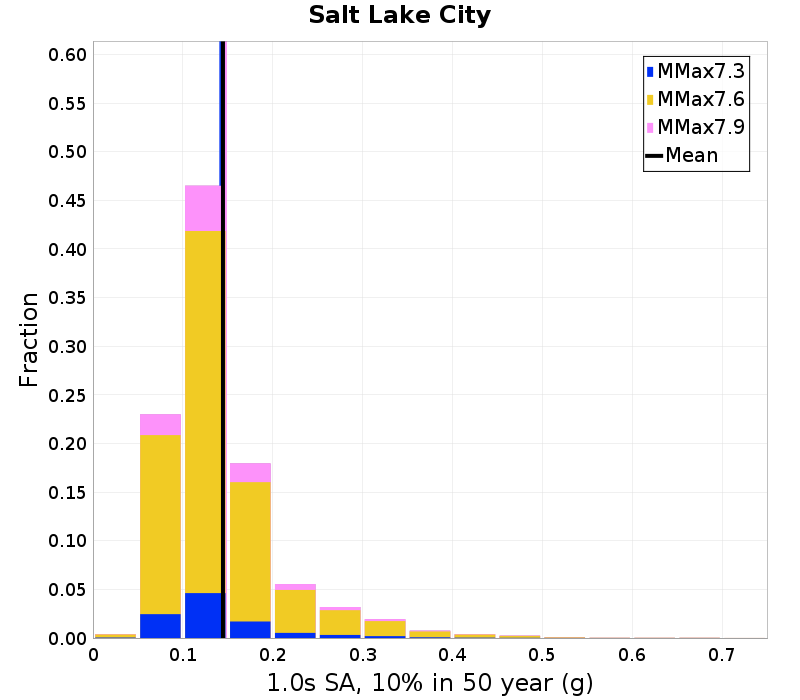

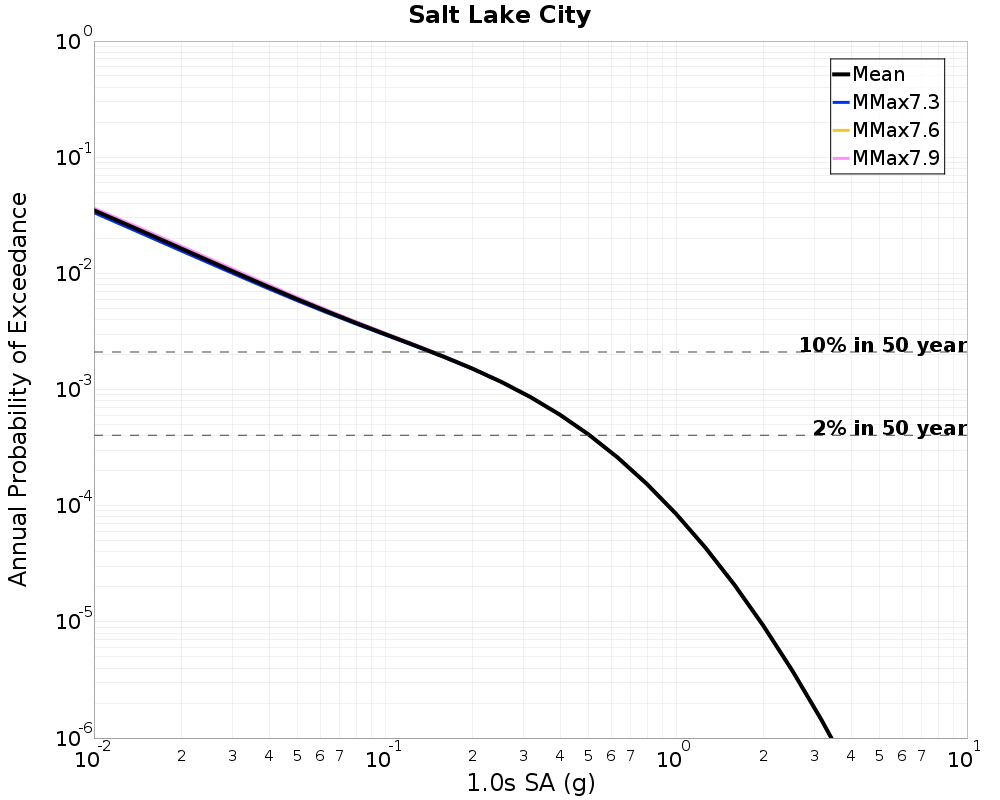

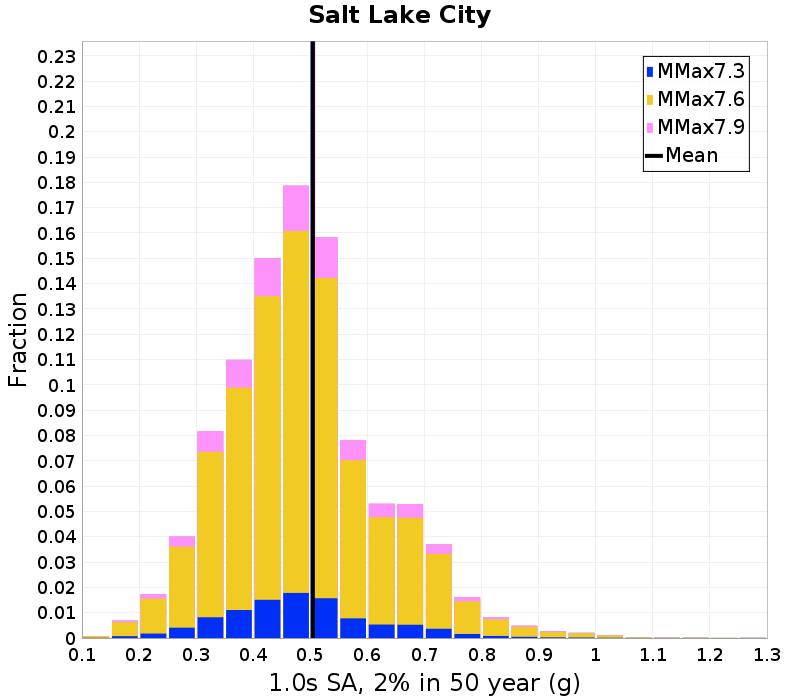

Salt Lake City, 1.0s SA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.5044405 (g) | 0.14462148 (g) |
| MMax7.3 | 0.5036811 (g) | 0.14283623 (g) |
| MMax7.6 | 0.5044224 (g) | 0.14456472 (g) |
| MMax7.9 | 0.5053403 (g) | 0.1467991 (g) |
Salt Lake City, 1.0s SA, NGA-W2 GMM Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.5044405 (g) | 0.14462148 (g) |
| ASK2014 | 0.48849723 (g) | 0.1452733 (g) |
| BSSA2014 | 0.4397813 (g) | 0.1334974 (g) |
| CB2014 | 0.54607195 (g) | 0.15459491 (g) |
| CY2014 | 0.538298 (g) | 0.14587244 (g) |

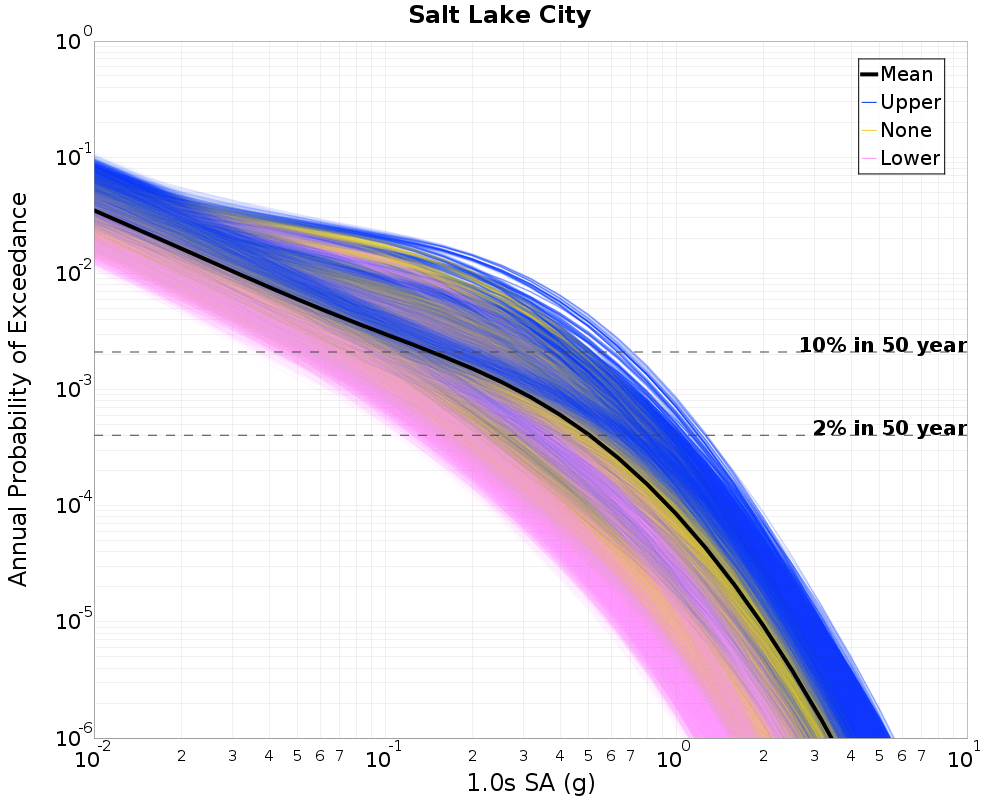

Salt Lake City, 1.0s SA, NGA-W2 Additional Epistemic Uncertainty Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.5044405 (g) | 0.14462148 (g) |
| Upper | 0.67084104 (g) | 0.18992937 (g) |
| None | 0.49377564 (g) | 0.14335234 (g) |
| Lower | 0.36359832 (g) | 0.10843214 (g) |
San Francisco
San Francisco, PGA
San Francisco, PGA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
| 2% in 50 year | 10% in 50 year |
|---|---|
| 0.81644696 (g) | 0.4713161 (g) |
San Francisco, PGA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.81644696 (g) | 0.4713161 (g) |
| Geologic | 0.80475897 (g) | 0.46387613 (g) |
| Evans | 0.7854164 (g) | 0.46399438 (g) |
| Pollitz | 0.8298257 (g) | 0.48640454 (g) |
| Shen-Bird | 0.7890092 (g) | 0.45018733 (g) |
| Zeng | 0.8484703 (g) | 0.49417135 (g) |

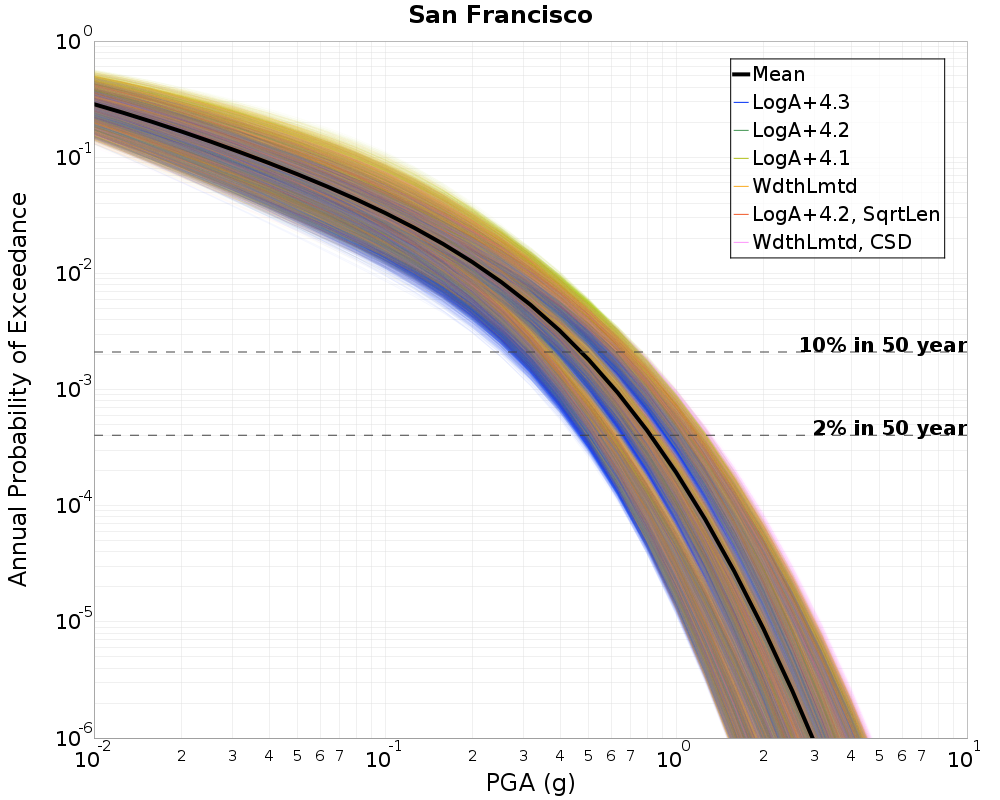

San Francisco, PGA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.81644696 (g) | 0.4713161 (g) |
| LogA+4.3 | 0.77150285 (g) | 0.43604952 (g) |
| LogA+4.2 | 0.8074835 (g) | 0.462949 (g) |
| LogA+4.1 | 0.8450471 (g) | 0.49777815 (g) |
| WdthLmtd | 0.8066927 (g) | 0.4640354 (g) |
| LogA+4.2, SqrtLen | 0.8236138 (g) | 0.47624958 (g) |
| WdthLmtd, CSD | 0.8360736 (g) | 0.4873572 (g) |
San Francisco, PGA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.81644696 (g) | 0.4713161 (g) |
| b=0.0 | 0.82022274 (g) | 0.462583 (g) |
| b=0.25 | 0.81784564 (g) | 0.4648521 (g) |
| b=0.5 | 0.8168832 (g) | 0.46965563 (g) |
| b=0.75 | 0.8148017 (g) | 0.47542956 (g) |
| b=1.0 | 0.81268096 (g) | 0.48218456 (g) |

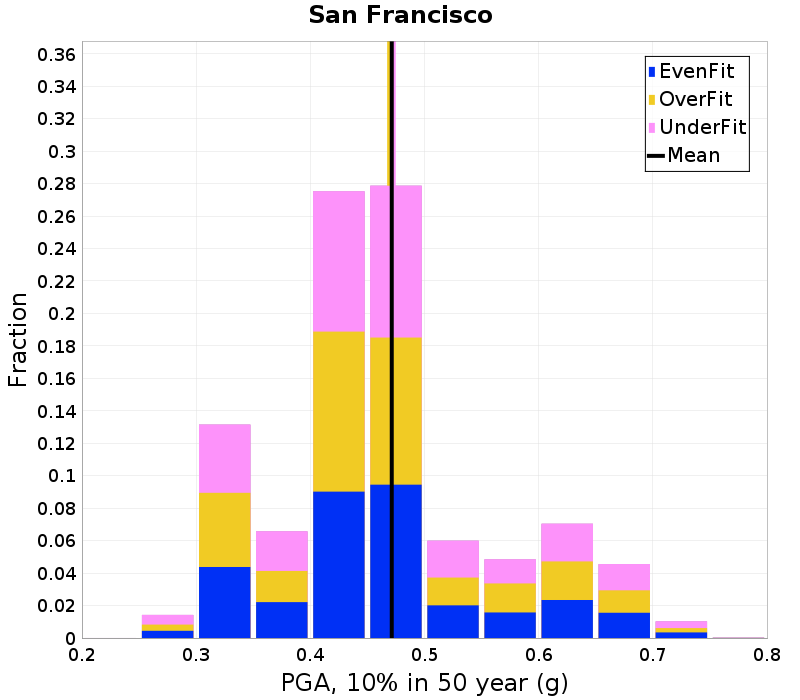

San Francisco, PGA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.81644696 (g) | 0.4713161 (g) |
| EvenFit | 0.8166727 (g) | 0.47188905 (g) |
| OverFit | 0.81129926 (g) | 0.46903947 (g) |
| UnderFit | 0.82132936 (g) | 0.4730482 (g) |

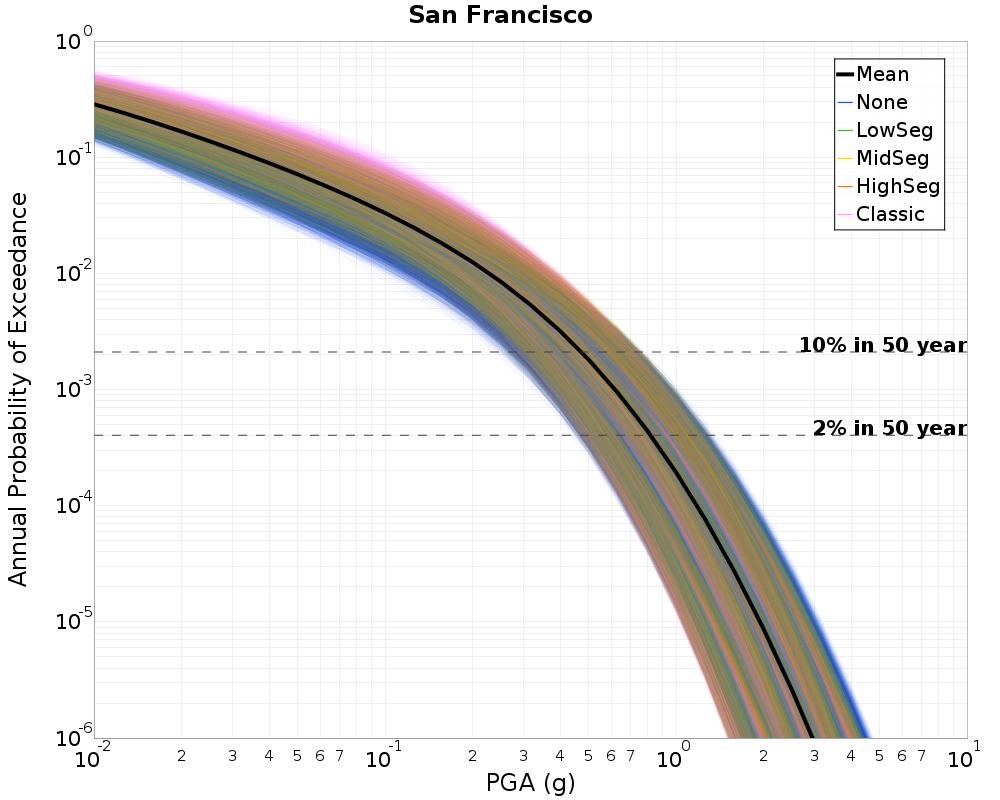

San Francisco, PGA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.81644696 (g) | 0.4713161 (g) |
| None | 0.8182406 (g) | 0.4586255 (g) |
| LowSeg | 0.8201424 (g) | 0.46920475 (g) |
| MidSeg | 0.8183763 (g) | 0.47185126 (g) |
| HighSeg | 0.81613106 (g) | 0.47558185 (g) |
| Classic | 0.802693 (g) | 0.47253776 (g) |
San Francisco, PGA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.81644696 (g) | 0.4713161 (g) |
| PrefSeis | 0.81547827 (g) | 0.47066808 (g) |
| LowSeis | 0.79973507 (g) | 0.45887187 (g) |
| HighSeis | 0.8377354 (g) | 0.486949 (g) |

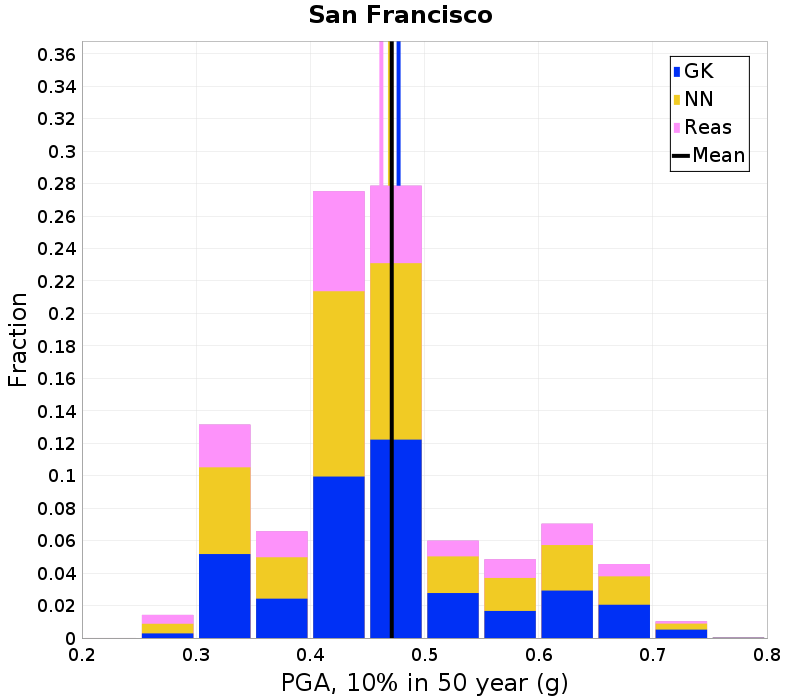

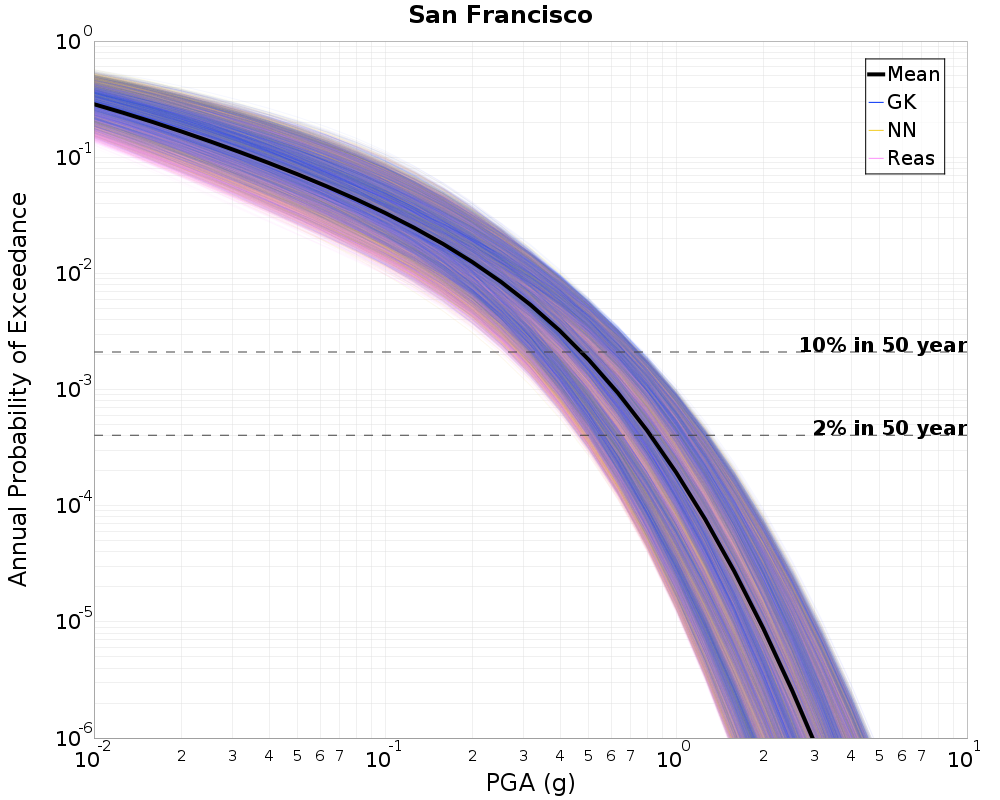

San Francisco, PGA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.81644696 (g) | 0.4713161 (g) |
| GK | 0.8238585 (g) | 0.47730517 (g) |
| NN | 0.81421137 (g) | 0.4697421 (g) |
| Reas | 0.8057478 (g) | 0.46221042 (g) |

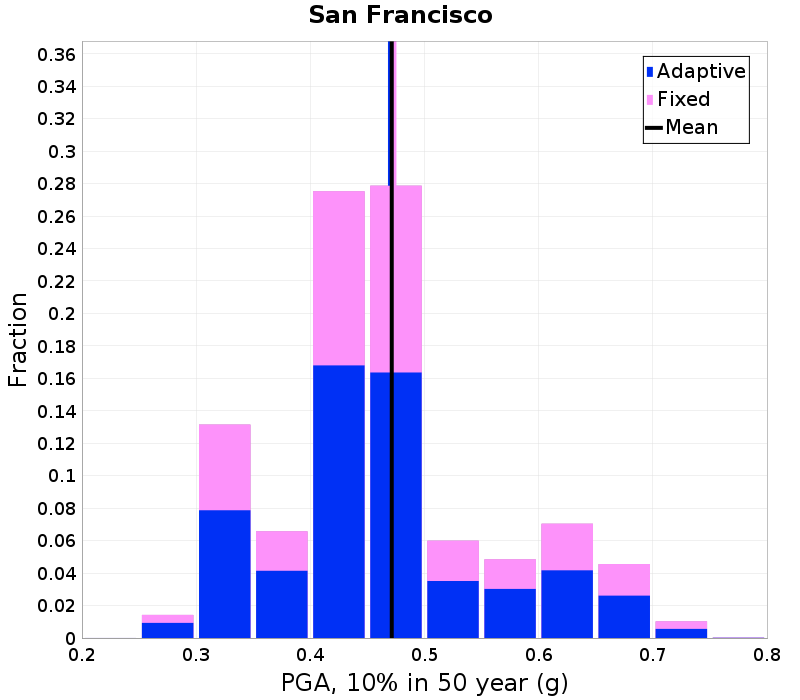

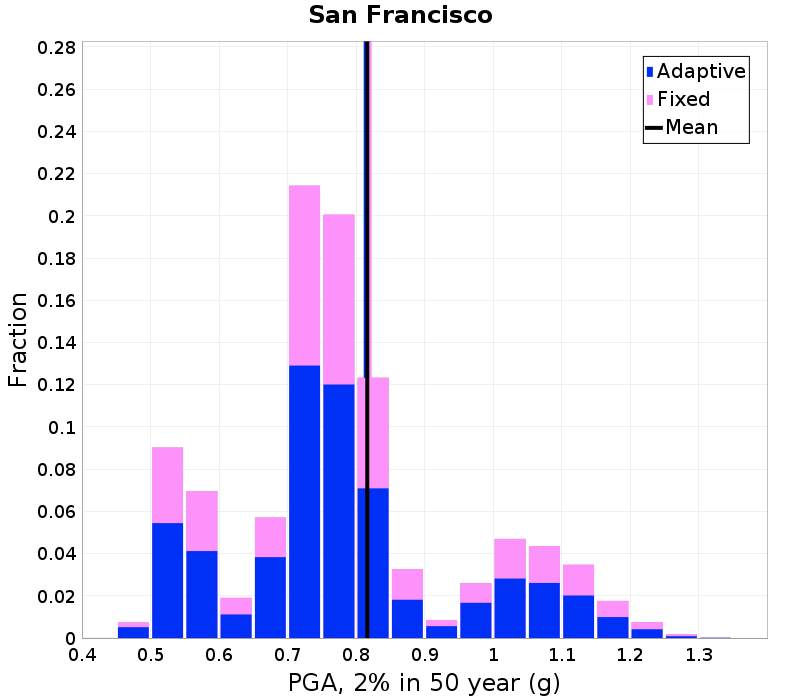

San Francisco, PGA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.81644696 (g) | 0.4713161 (g) |
| Adaptive | 0.81409705 (g) | 0.46975437 (g) |
| Fixed | 0.8199502 (g) | 0.47365186 (g) |

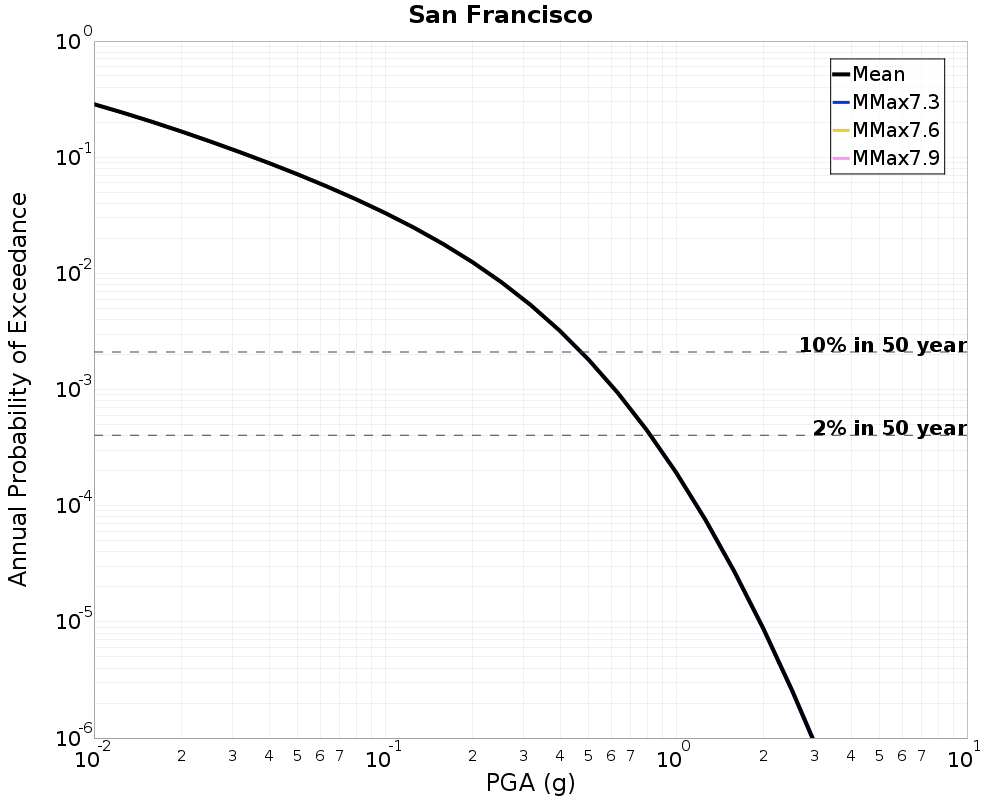

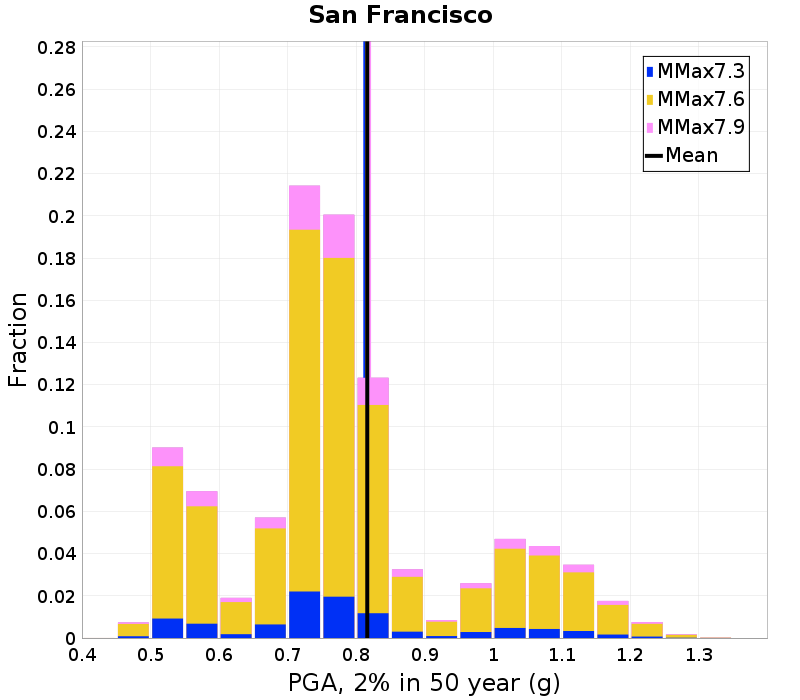

San Francisco, PGA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.81644696 (g) | 0.4713161 (g) |
| MMax7.3 | 0.8135591 (g) | 0.46961433 (g) |
| MMax7.6 | 0.81647664 (g) | 0.4713287 (g) |
| MMax7.9 | 0.81908643 (g) | 0.47291398 (g) |

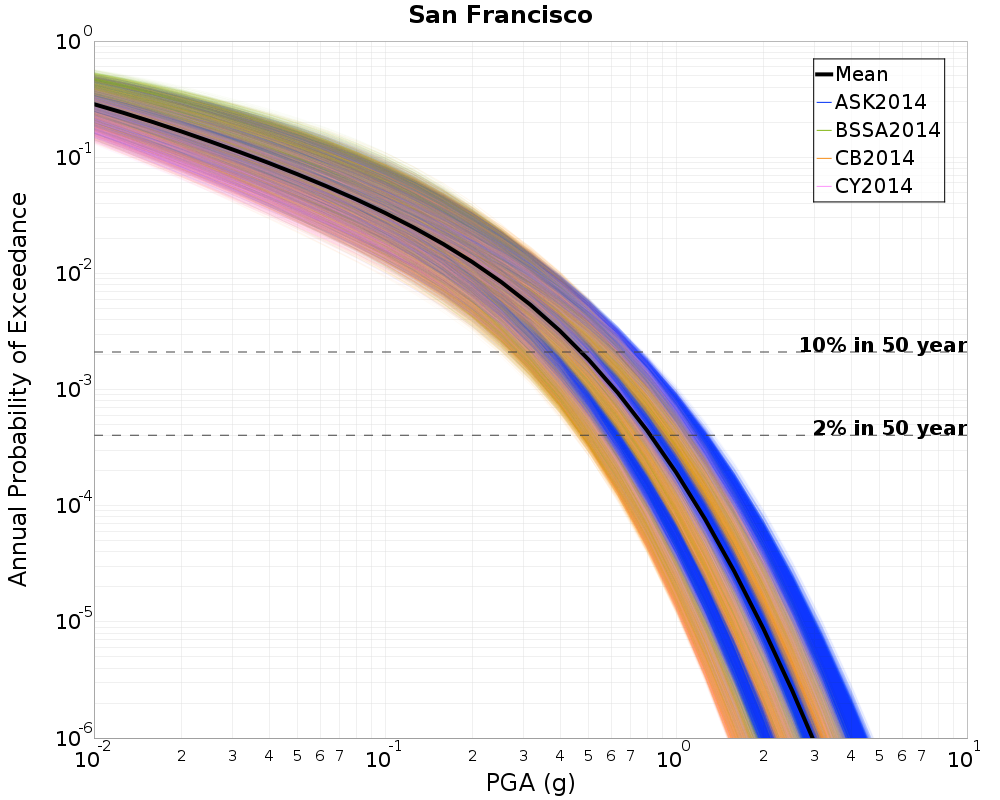

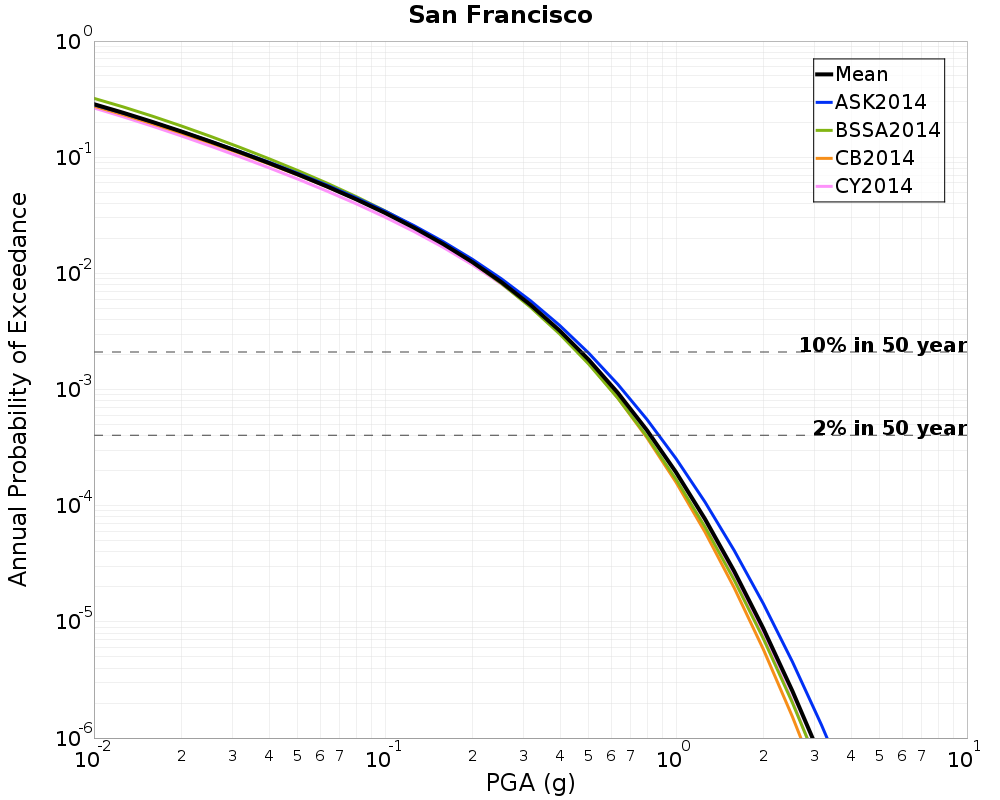

San Francisco, PGA, NGA-W2 GMM Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.81644696 (g) | 0.4713161 (g) |
| ASK2014 | 0.87199324 (g) | 0.49653903 (g) |
| BSSA2014 | 0.7889809 (g) | 0.45680797 (g) |
| CB2014 | 0.78336436 (g) | 0.4608304 (g) |
| CY2014 | 0.8184299 (g) | 0.4718499 (g) |

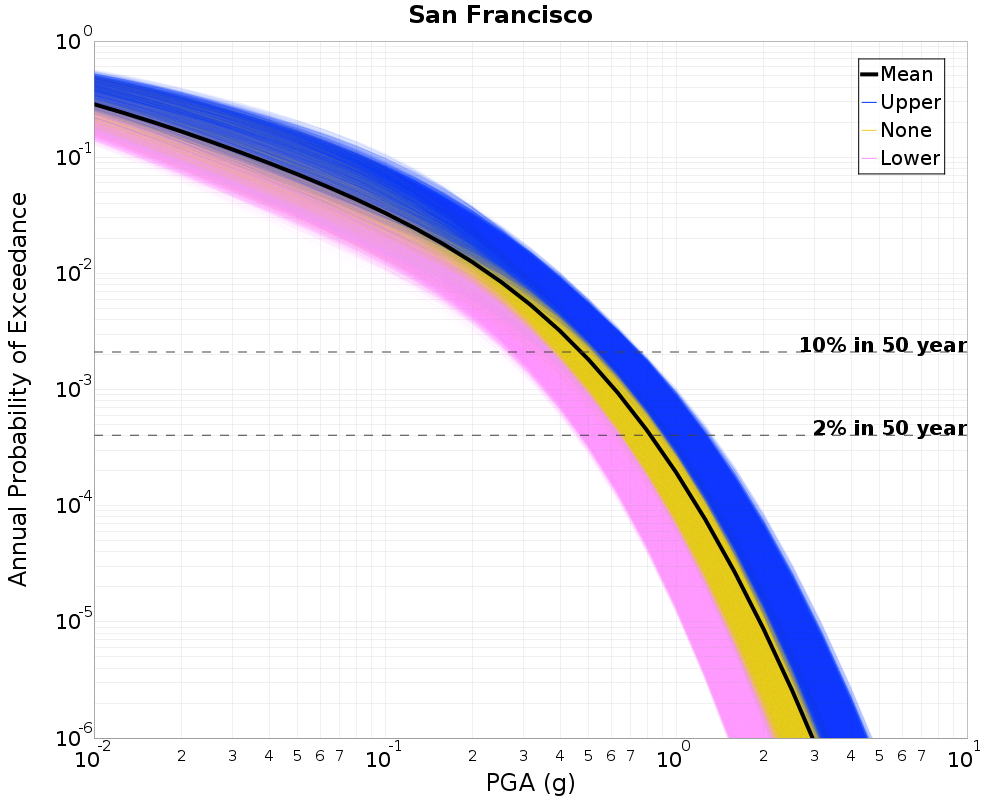

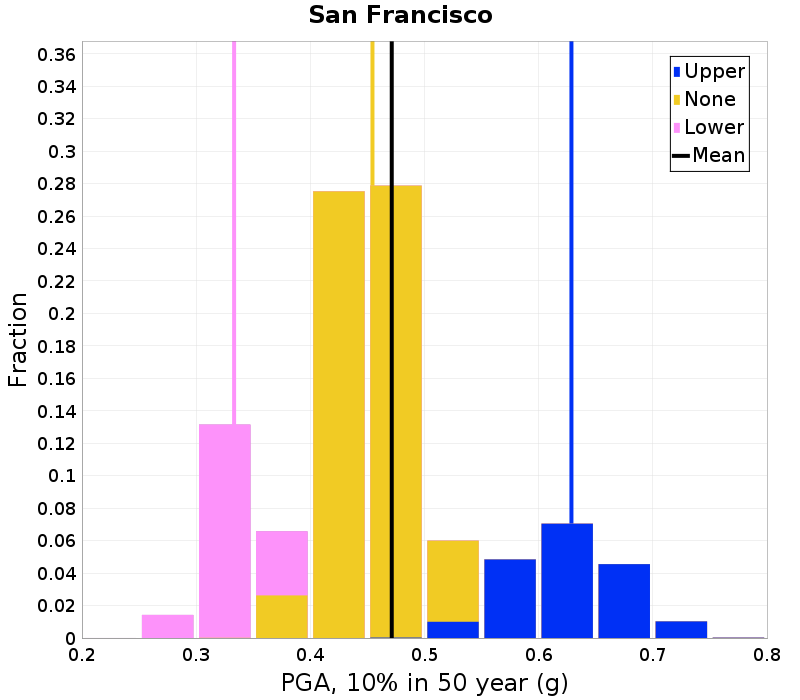

San Francisco, PGA, NGA-W2 Additional Epistemic Uncertainty Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.81644696 (g) | 0.4713161 (g) |
| Upper | 1.0737298 (g) | 0.62870276 (g) |
| None | 0.76771605 (g) | 0.4544264 (g) |
| Lower | 0.5530967 (g) | 0.33323908 (g) |
San Francisco, 0.2s SA

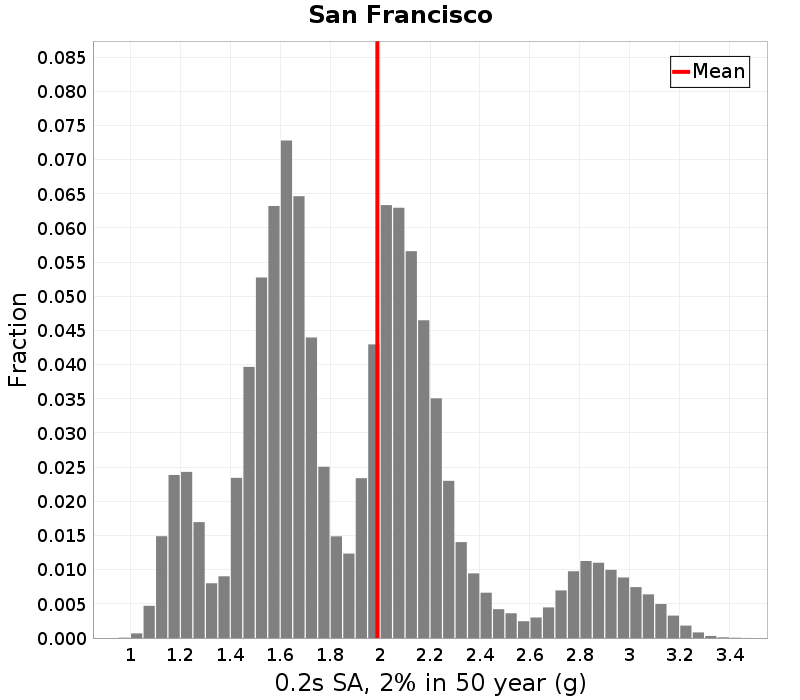

San Francisco, 0.2s SA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
| 2% in 50 year | 10% in 50 year |
|---|---|
| 1.9891521 (g) | 1.1068572 (g) |

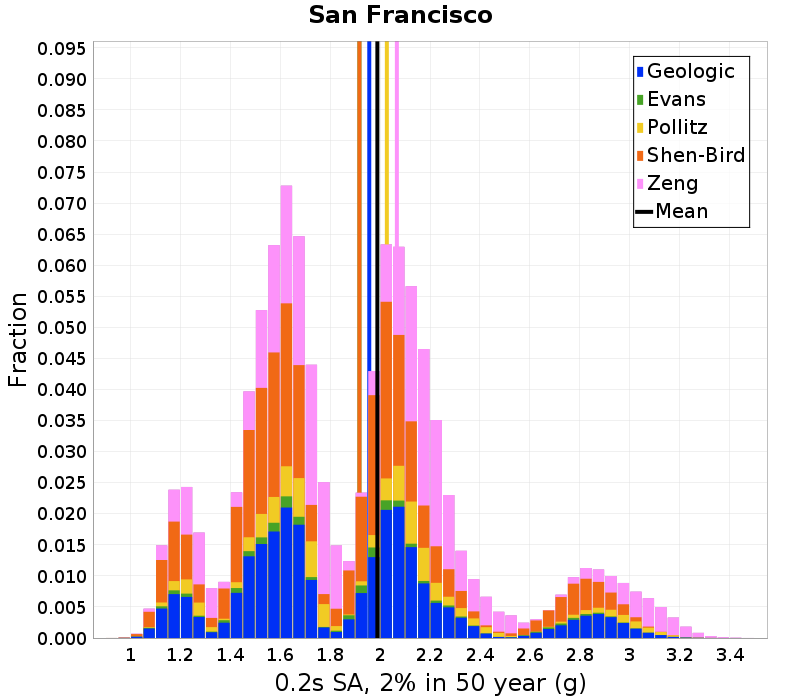

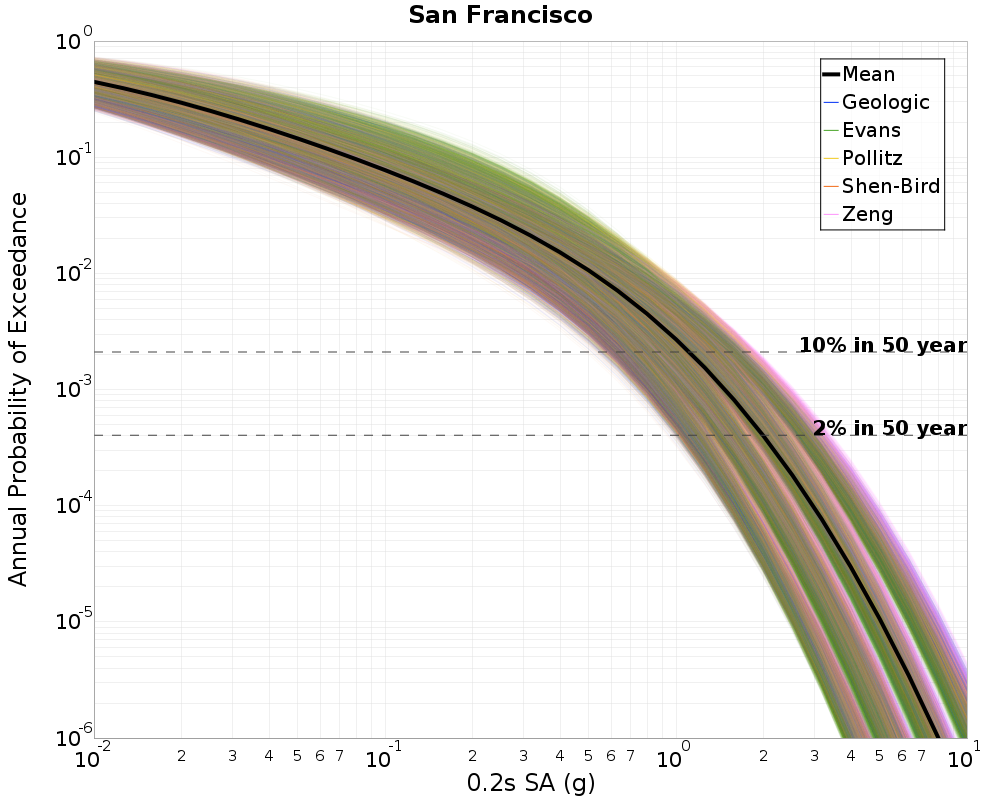

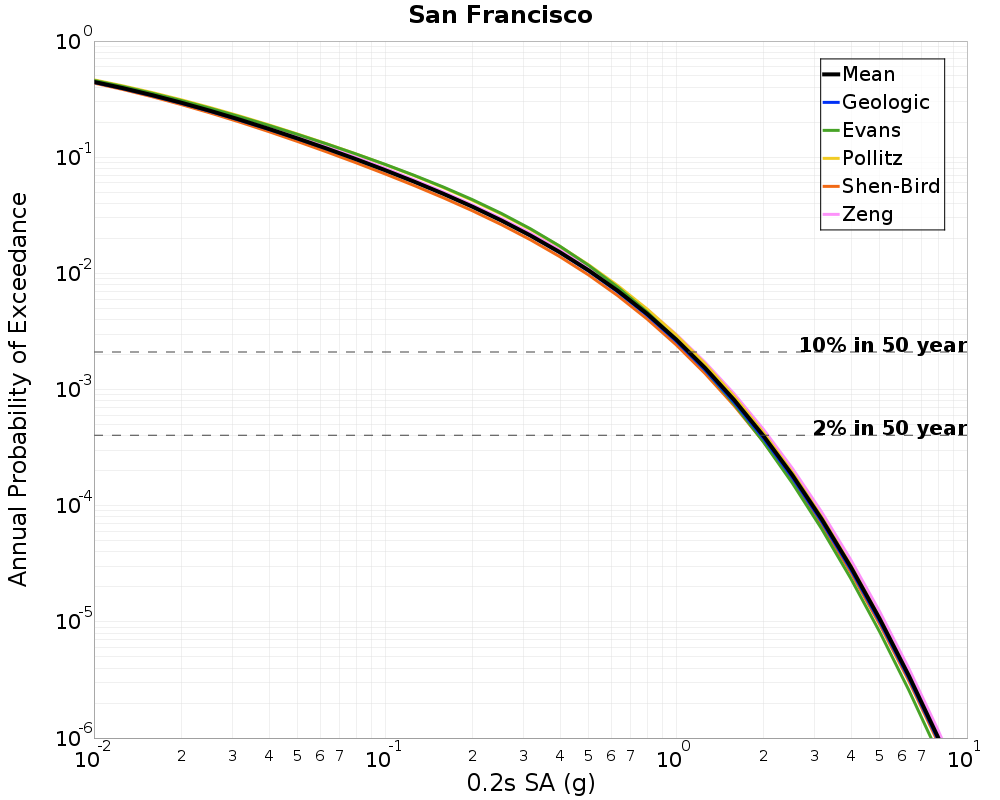

San Francisco, 0.2s SA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.9891521 (g) | 1.1068572 (g) |
| Geologic | 1.9567137 (g) | 1.0898333 (g) |
| Evans | 1.9172397 (g) | 1.0993264 (g) |
| Pollitz | 2.0271127 (g) | 1.1448586 (g) |
| Shen-Bird | 1.917237 (g) | 1.0598525 (g) |
| Zeng | 2.0672822 (g) | 1.1564815 (g) |

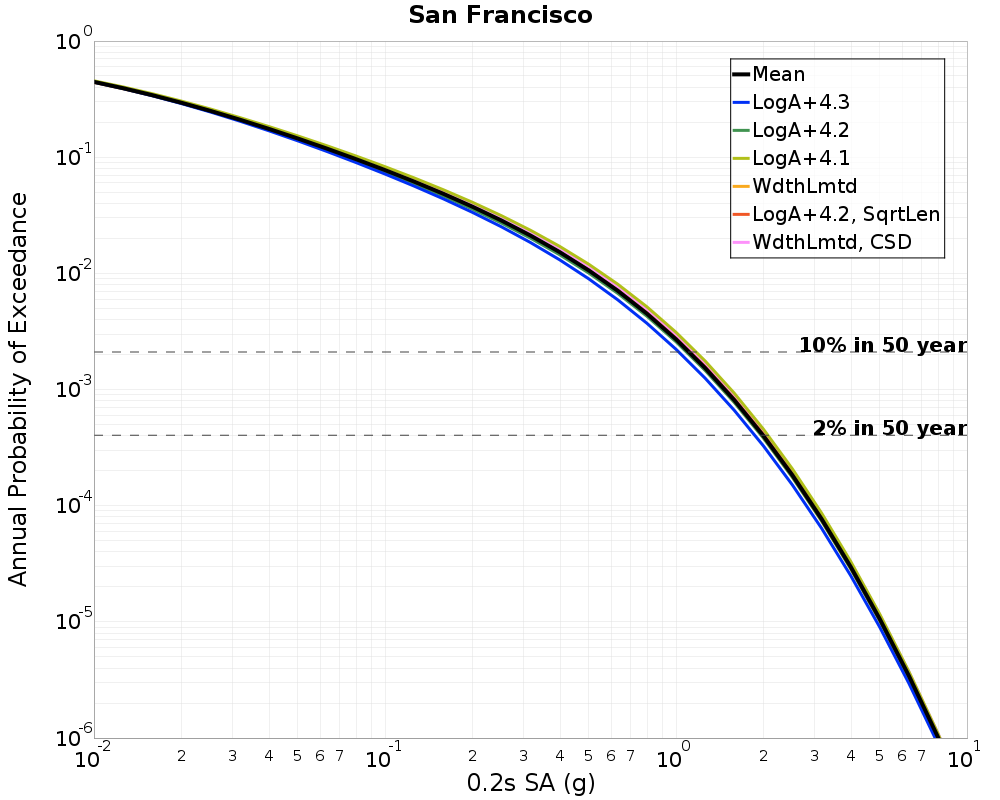

San Francisco, 0.2s SA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.9891521 (g) | 1.1068572 (g) |
| LogA+4.3 | 1.8636652 (g) | 1.0216156 (g) |
| LogA+4.2 | 1.9616814 (g) | 1.0854504 (g) |
| LogA+4.1 | 2.0681827 (g) | 1.1711745 (g) |
| WdthLmtd | 1.9627168 (g) | 1.0914778 (g) |
| LogA+4.2, SqrtLen | 2.0066206 (g) | 1.116786 (g) |
| WdthLmtd, CSD | 2.0417073 (g) | 1.1462783 (g) |

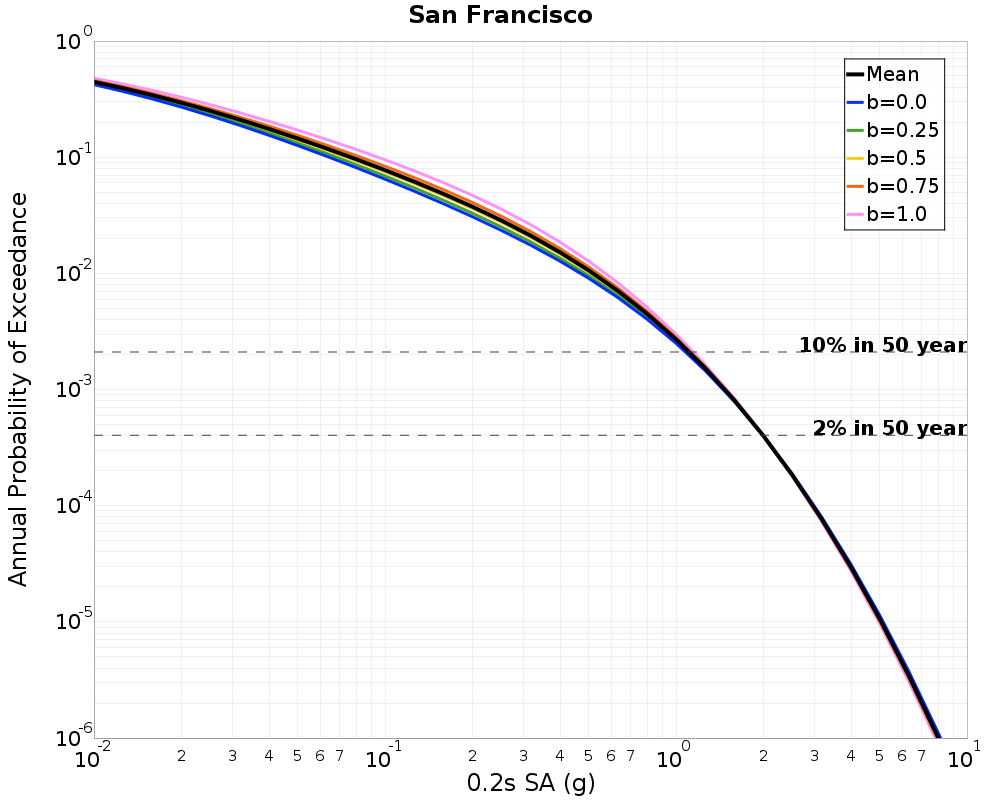

San Francisco, 0.2s SA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.9891521 (g) | 1.1068572 (g) |
| b=0.0 | 1.9886866 (g) | 1.0761279 (g) |
| b=0.25 | 1.9856709 (g) | 1.0848963 (g) |
| b=0.5 | 1.9884136 (g) | 1.1008077 (g) |
| b=0.75 | 1.9899315 (g) | 1.1208986 (g) |
| b=1.0 | 1.9927632 (g) | 1.1446145 (g) |

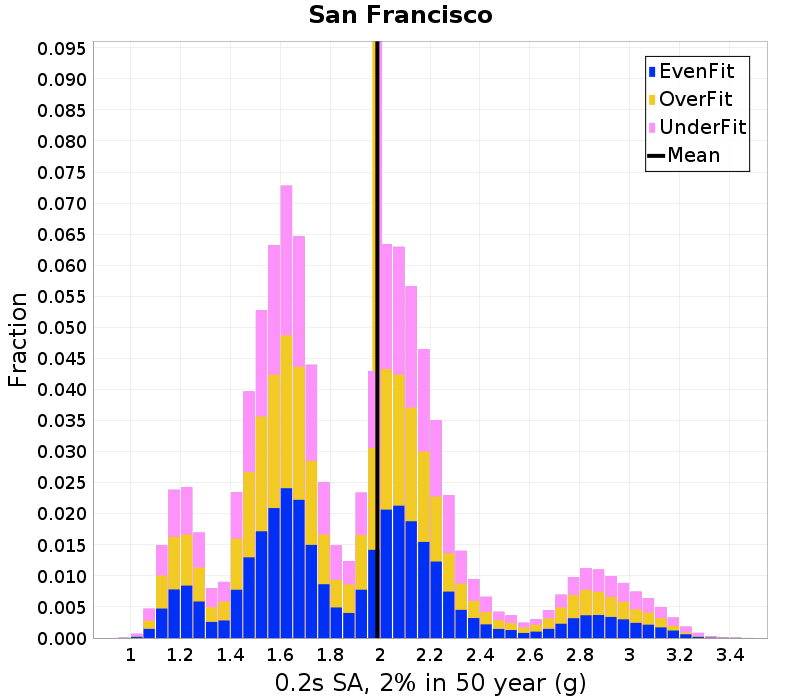

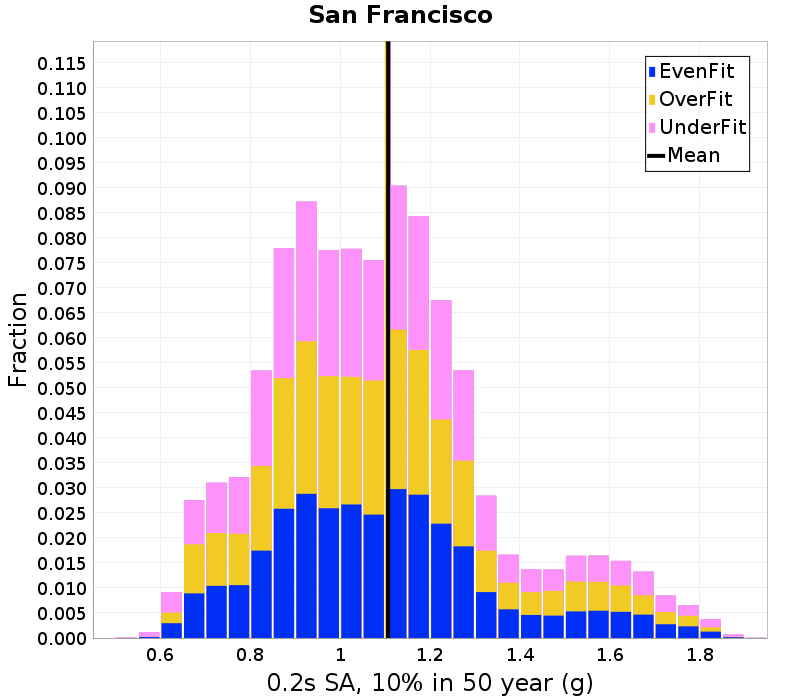

San Francisco, 0.2s SA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.9891521 (g) | 1.1068572 (g) |
| EvenFit | 1.990163 (g) | 1.1086642 (g) |
| OverFit | 1.9767098 (g) | 1.1036882 (g) |
| UnderFit | 2.000052 (g) | 1.108251 (g) |

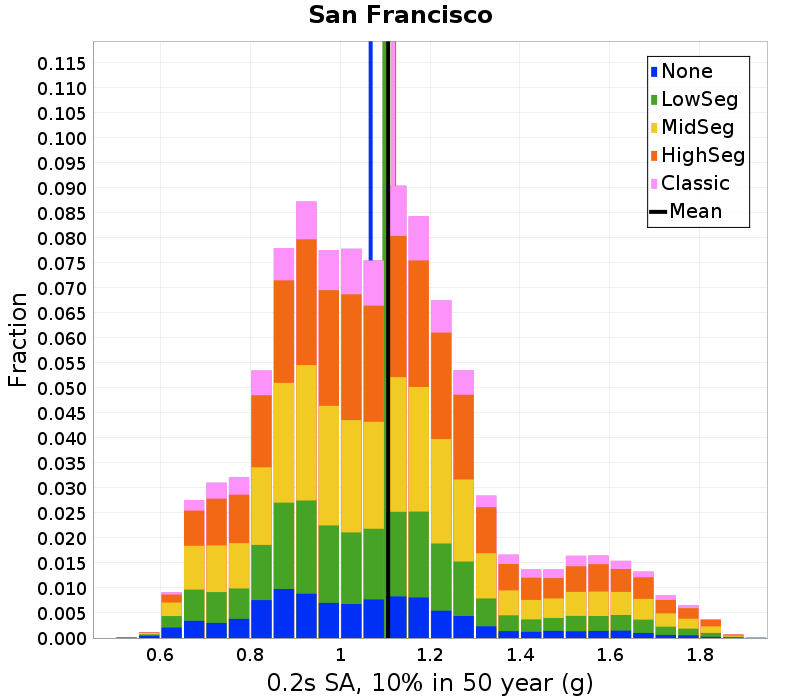

San Francisco, 0.2s SA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.9891521 (g) | 1.1068572 (g) |
| None | 1.9779543 (g) | 1.0679368 (g) |
| LowSeg | 1.9942807 (g) | 1.098424 (g) |
| MidSeg | 1.9940164 (g) | 1.1070744 (g) |
| HighSeg | 1.9938834 (g) | 1.120143 (g) |
| Classic | 1.9613667 (g) | 1.1176581 (g) |

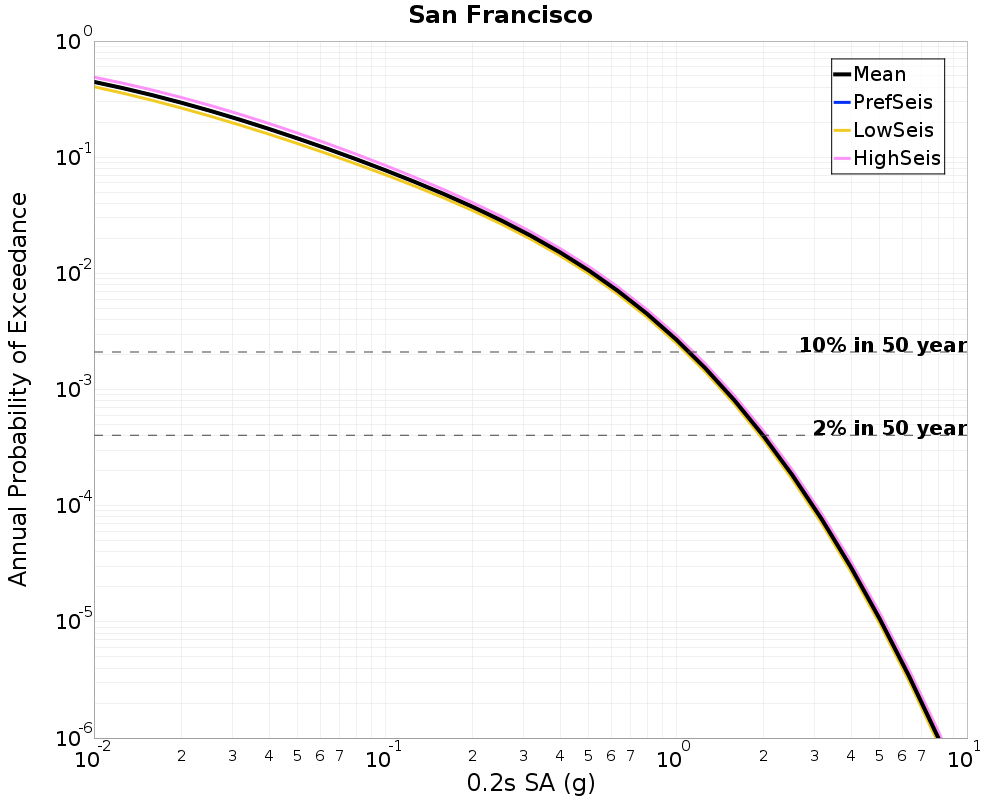

San Francisco, 0.2s SA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.9891521 (g) | 1.1068572 (g) |
| PrefSeis | 1.9863371 (g) | 1.1052803 (g) |
| LowSeis | 1.9400398 (g) | 1.0762064 (g) |
| HighSeis | 2.0460532 (g) | 1.1452526 (g) |

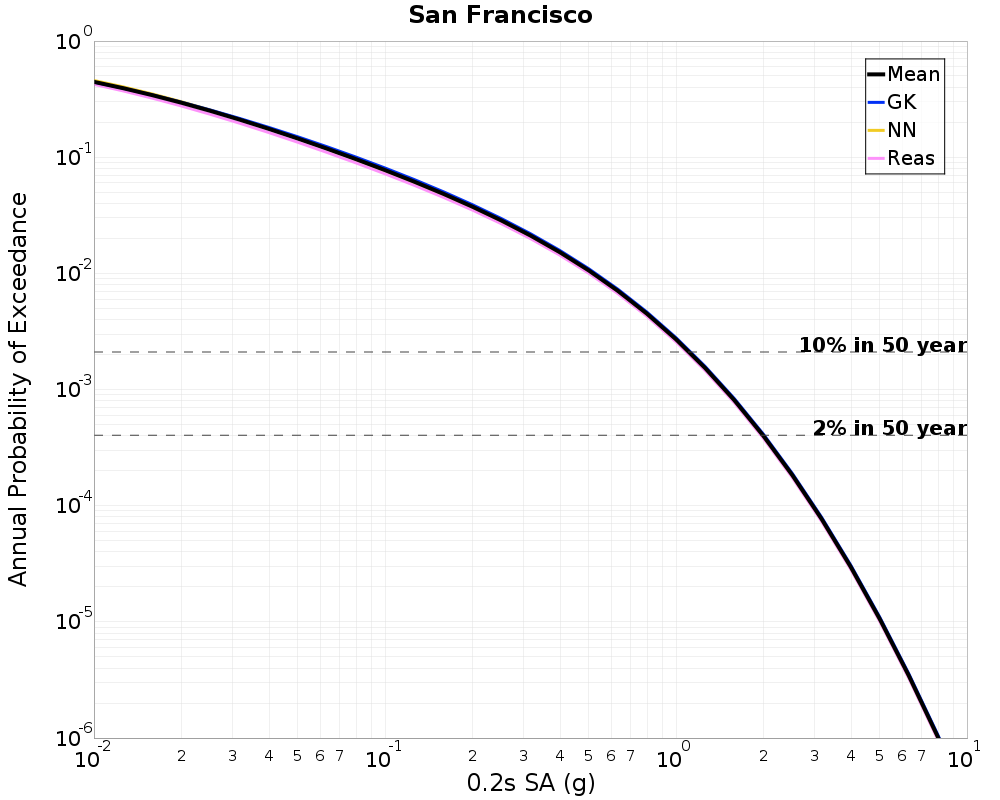

San Francisco, 0.2s SA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.9891521 (g) | 1.1068572 (g) |
| GK | 2.0086856 (g) | 1.1210095 (g) |
| NN | 1.9831522 (g) | 1.1033597 (g) |
| Reas | 1.9582188 (g) | 1.0849177 (g) |

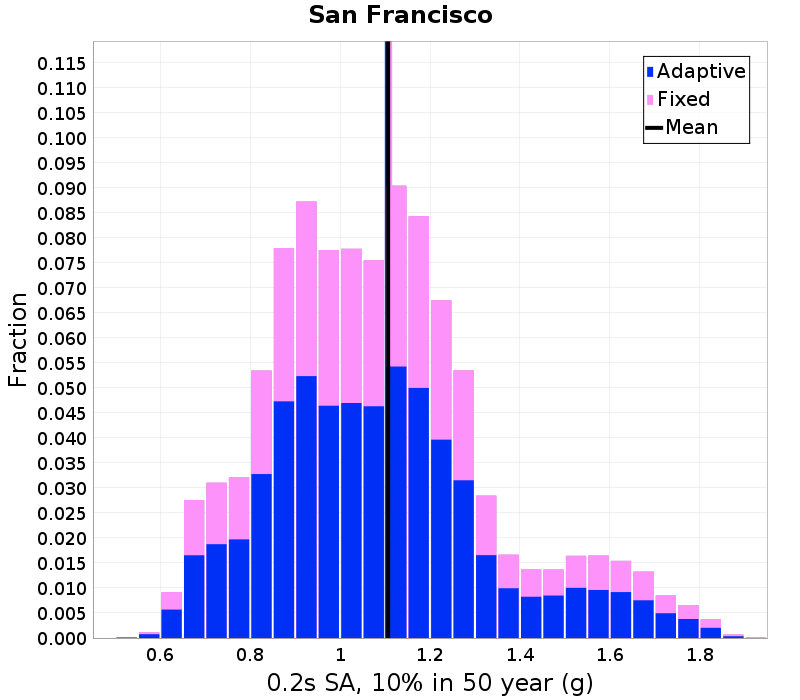

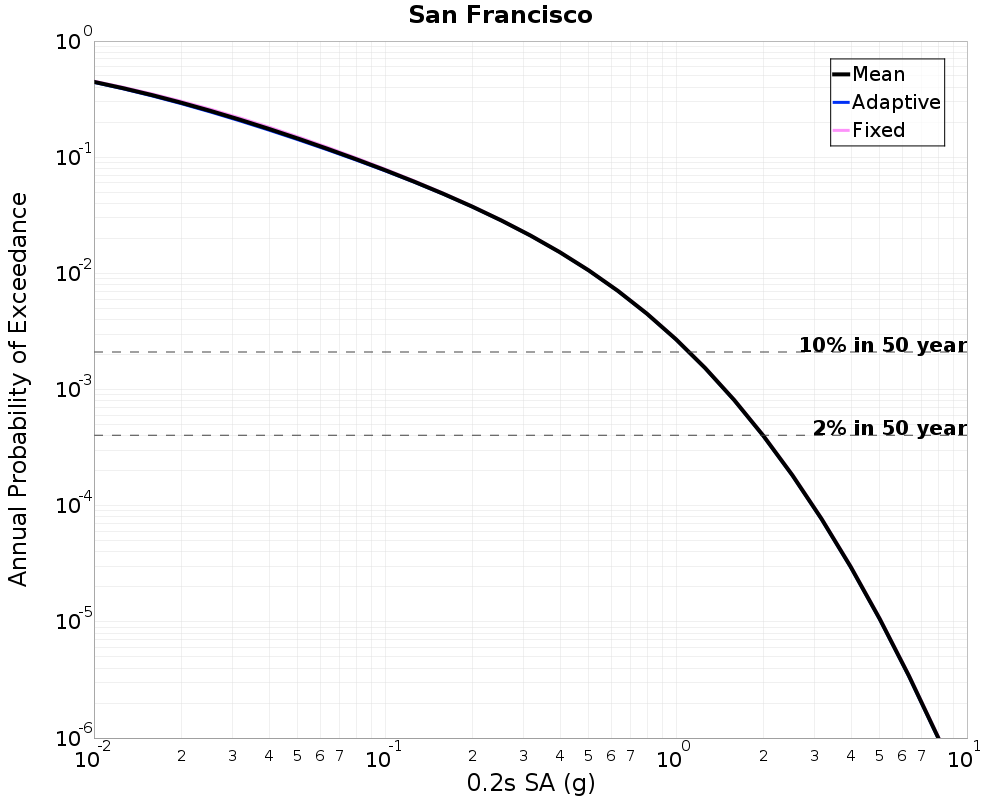

San Francisco, 0.2s SA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.9891521 (g) | 1.1068572 (g) |
| Adaptive | 1.9835978 (g) | 1.1038556 (g) |
| Fixed | 1.9972342 (g) | 1.1113493 (g) |

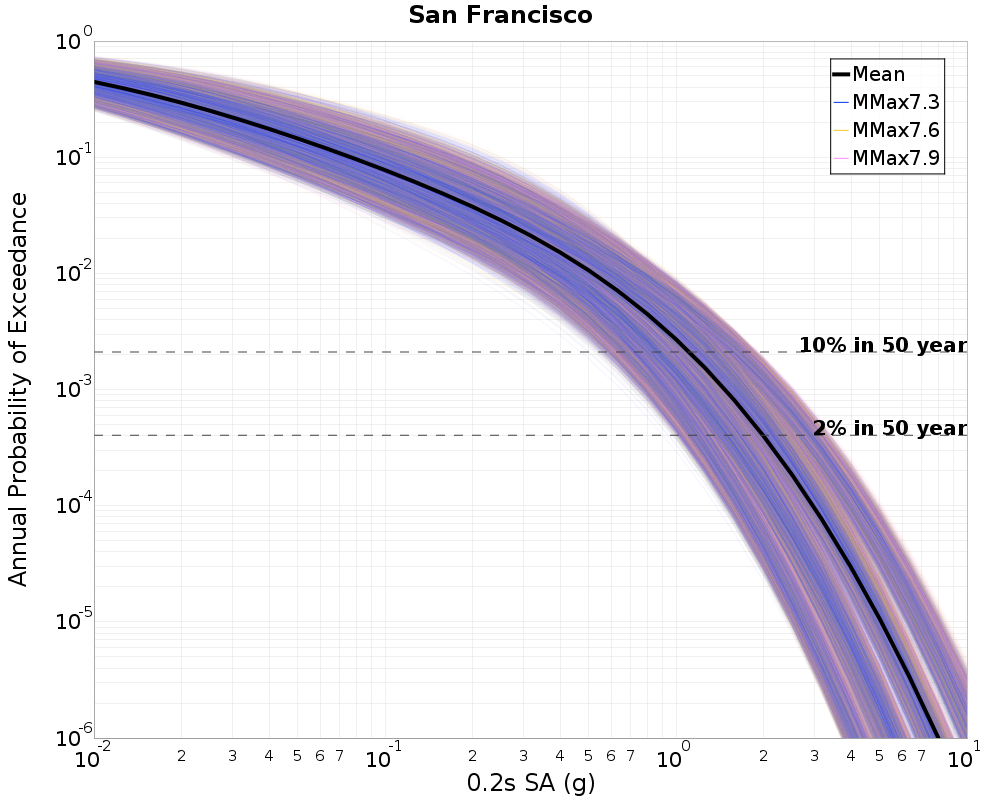

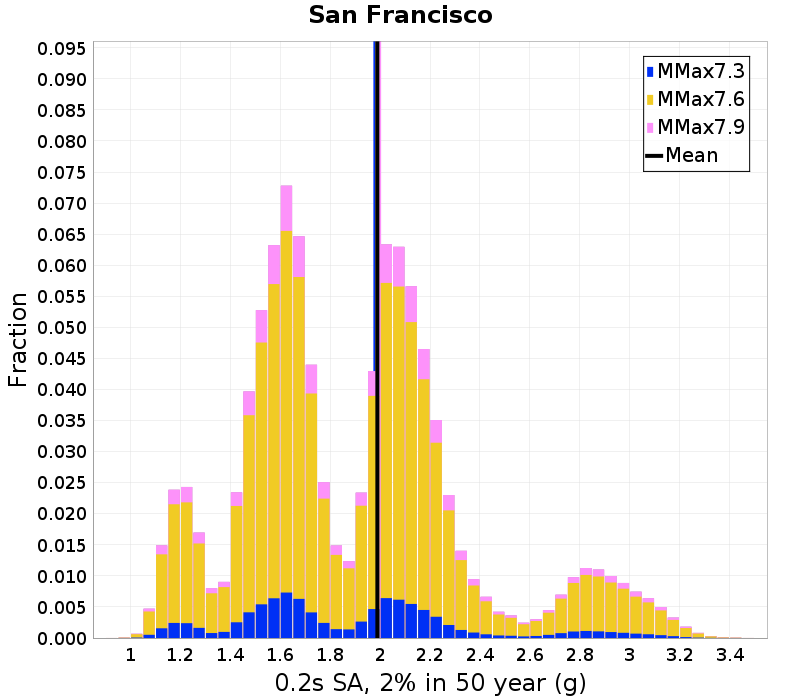

San Francisco, 0.2s SA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.9891521 (g) | 1.1068572 (g) |
| MMax7.3 | 1.9811763 (g) | 1.10296 (g) |
| MMax7.6 | 1.9892483 (g) | 1.1068945 (g) |
| MMax7.9 | 1.9962269 (g) | 1.1104504 (g) |
San Francisco, 0.2s SA, NGA-W2 GMM Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.9891521 (g) | 1.1068572 (g) |
| ASK2014 | 2.2141967 (g) | 1.2176605 (g) |
| BSSA2014 | 1.7806652 (g) | 1.0340548 (g) |
| CB2014 | 1.7008811 (g) | 0.98065794 (g) |
| CY2014 | 2.1726518 (g) | 1.2016295 (g) |

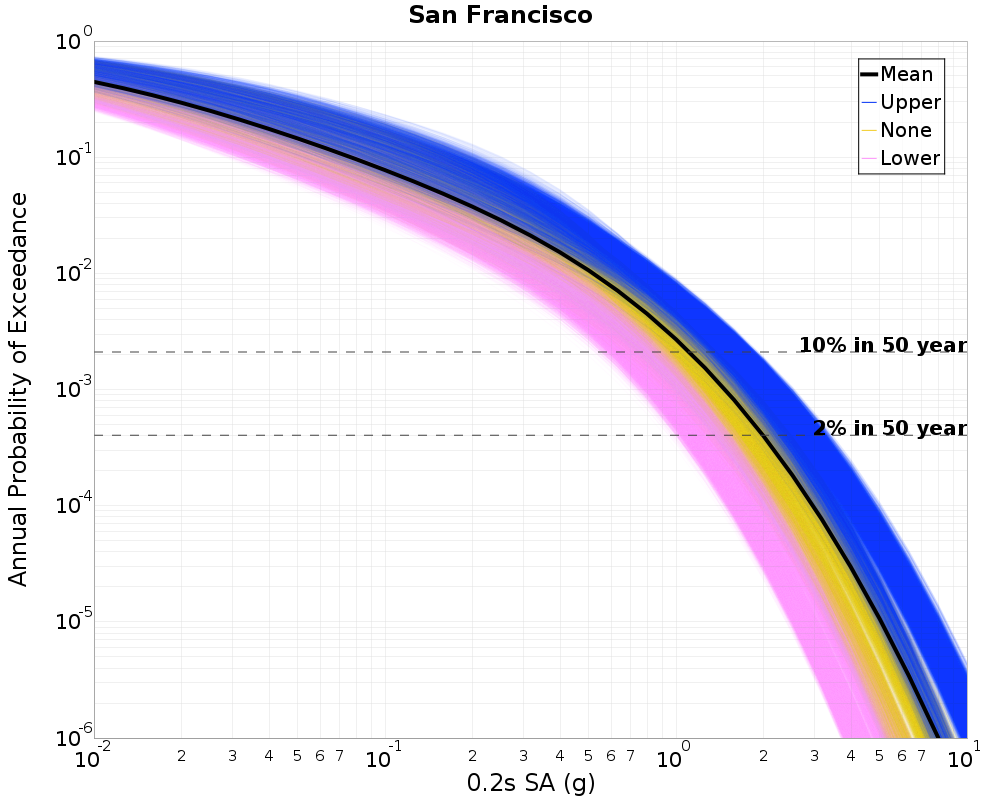

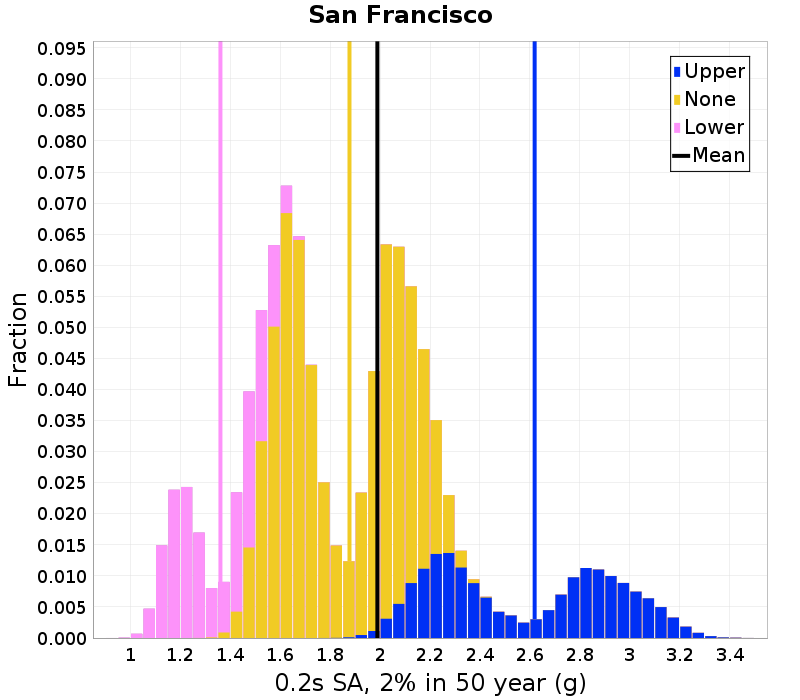

San Francisco, 0.2s SA, NGA-W2 Additional Epistemic Uncertainty Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 1.9891521 (g) | 1.1068572 (g) |
| Upper | 2.6192093 (g) | 1.4679579 (g) |
| None | 1.8774607 (g) | 1.0711858 (g) |
| Lower | 1.3604957 (g) | 0.7910124 (g) |
San Francisco, 1.0s SA

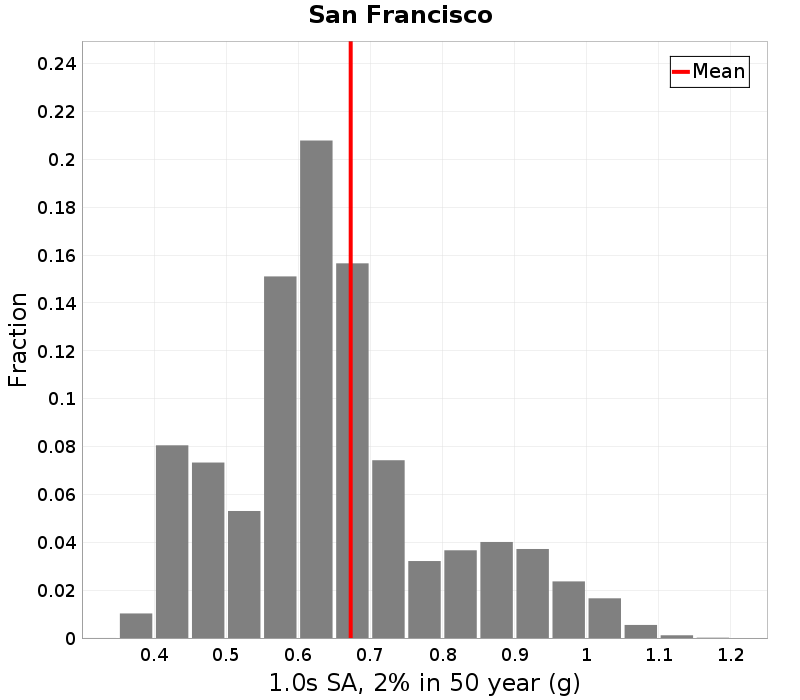

San Francisco, 1.0s SA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
| 2% in 50 year | 10% in 50 year |
|---|---|
| 0.6726491 (g) | 0.34640858 (g) |

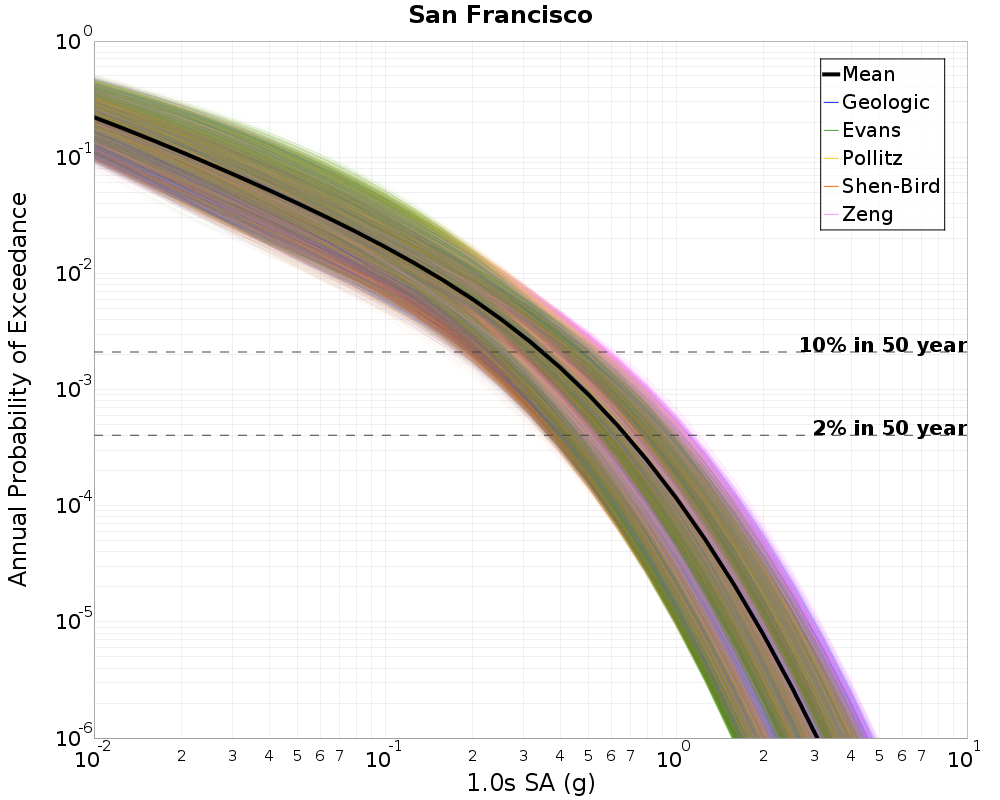

San Francisco, 1.0s SA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6726491 (g) | 0.34640858 (g) |
| Geologic | 0.6596399 (g) | 0.33953843 (g) |
| Evans | 0.6406607 (g) | 0.34165096 (g) |
| Pollitz | 0.68864155 (g) | 0.36175737 (g) |
| Shen-Bird | 0.63574 (g) | 0.3224326 (g) |
| Zeng | 0.7139481 (g) | 0.37121114 (g) |

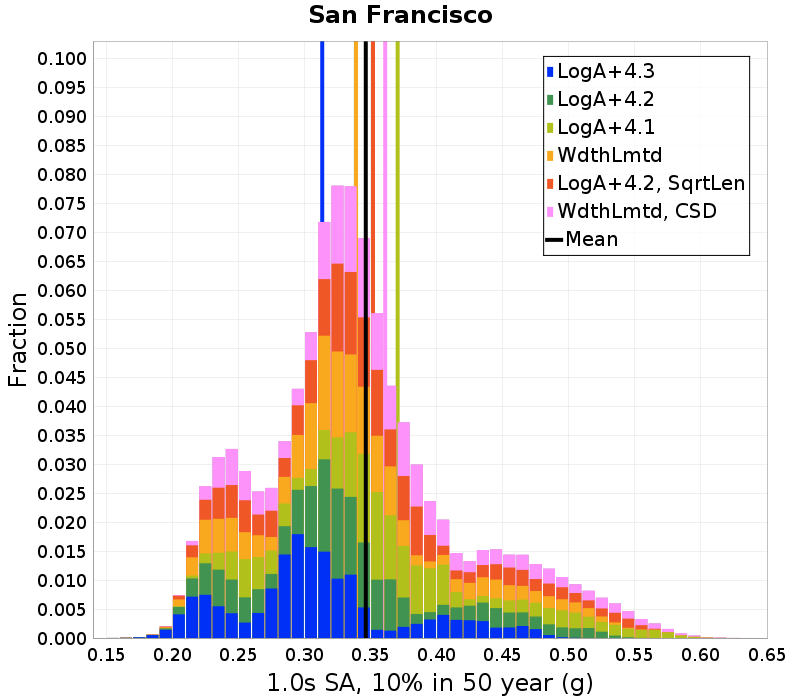

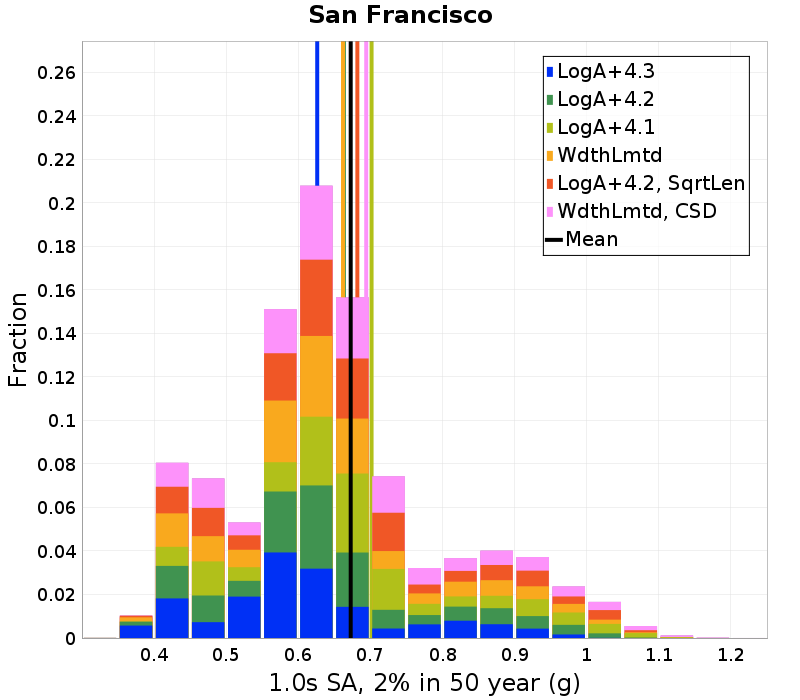

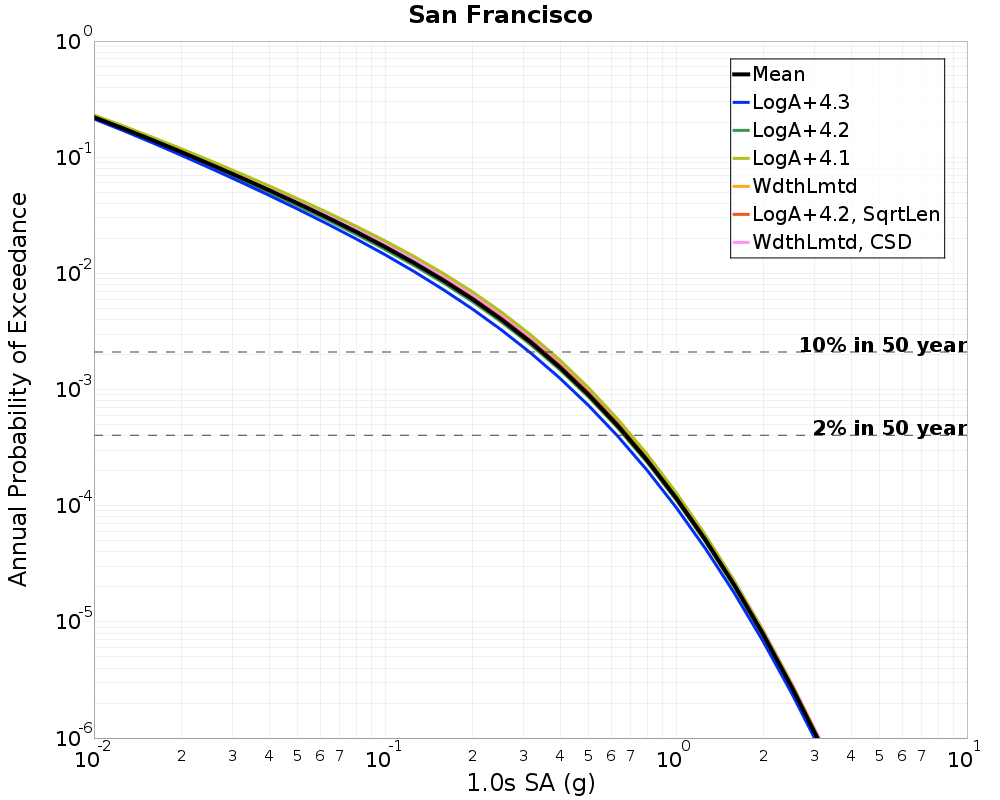

San Francisco, 1.0s SA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6726491 (g) | 0.34640858 (g) |
| LogA+4.3 | 0.626209 (g) | 0.31344888 (g) |
| LogA+4.2 | 0.66323537 (g) | 0.33894563 (g) |
| LogA+4.1 | 0.7015938 (g) | 0.3705154 (g) |
| WdthLmtd | 0.66199064 (g) | 0.3390345 (g) |
| LogA+4.2, SqrtLen | 0.68188685 (g) | 0.35187662 (g) |
| WdthLmtd, CSD | 0.694177 (g) | 0.3610975 (g) |

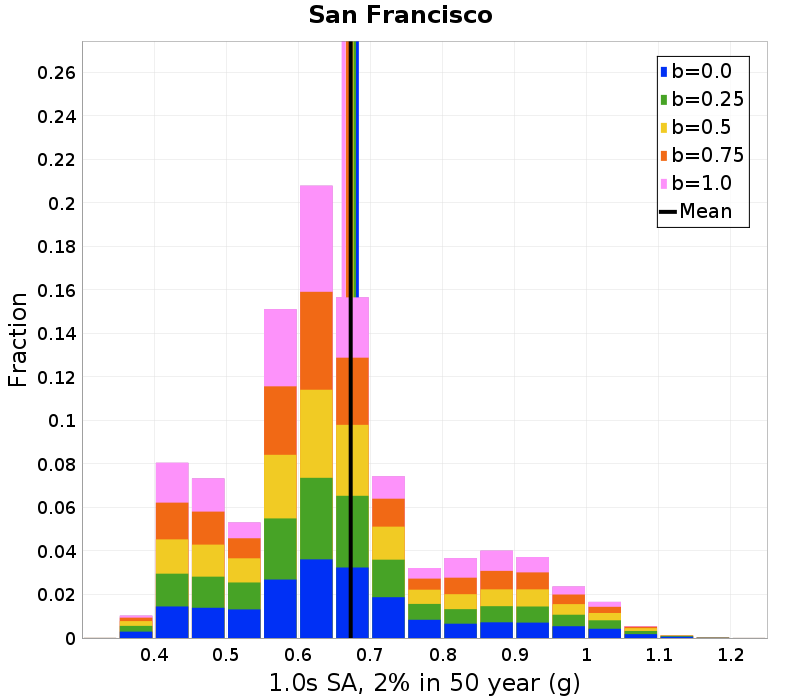

San Francisco, 1.0s SA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6726491 (g) | 0.34640858 (g) |
| b=0.0 | 0.68118185 (g) | 0.34064794 (g) |
| b=0.25 | 0.67725253 (g) | 0.34218776 (g) |
| b=0.5 | 0.67388016 (g) | 0.3455943 (g) |
| b=0.75 | 0.66855776 (g) | 0.3492065 (g) |
| b=1.0 | 0.6628198 (g) | 0.35314938 (g) |
San Francisco, 1.0s SA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6726491 (g) | 0.34640858 (g) |
| EvenFit | 0.6725728 (g) | 0.346823 (g) |
| OverFit | 0.6652069 (g) | 0.34359685 (g) |
| UnderFit | 0.68010193 (g) | 0.34885335 (g) |

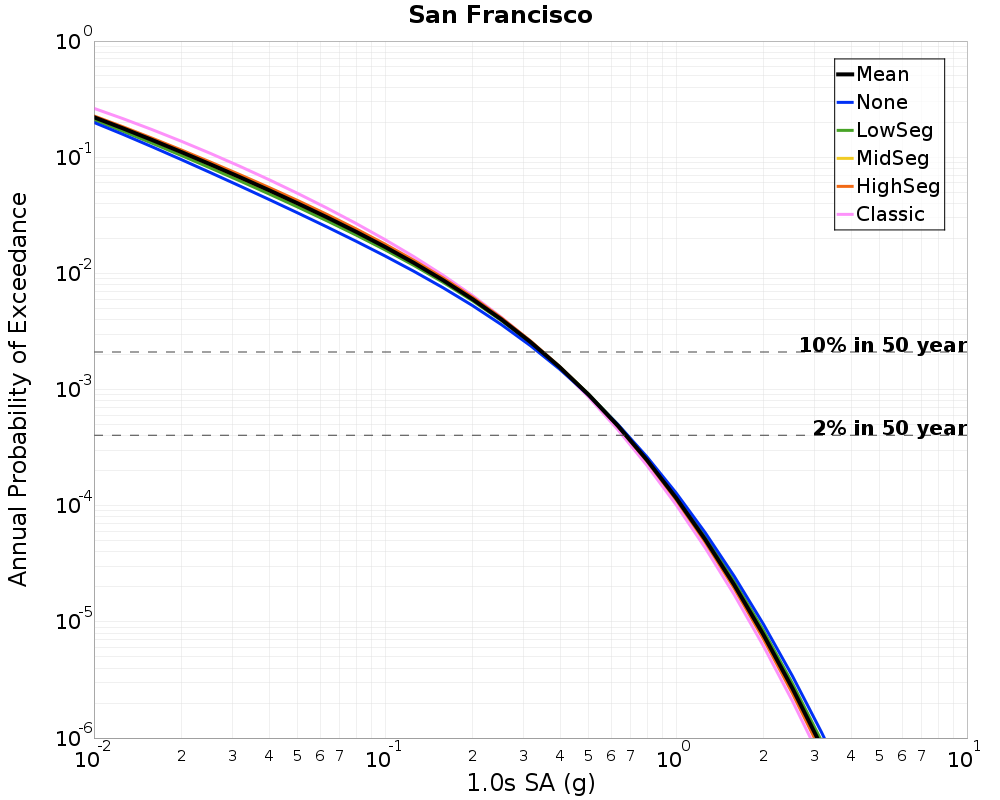

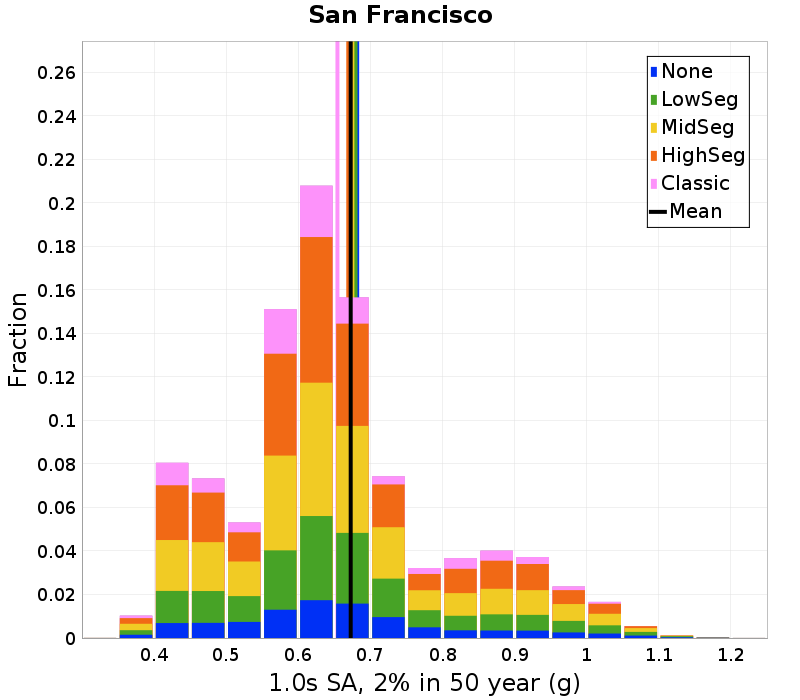

San Francisco, 1.0s SA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6726491 (g) | 0.34640858 (g) |
| None | 0.681629 (g) | 0.3362066 (g) |
| LowSeg | 0.679325 (g) | 0.34535277 (g) |
| MidSeg | 0.6749649 (g) | 0.34716147 (g) |
| HighSeg | 0.66928893 (g) | 0.34928527 (g) |
| Classic | 0.6542751 (g) | 0.3467079 (g) |

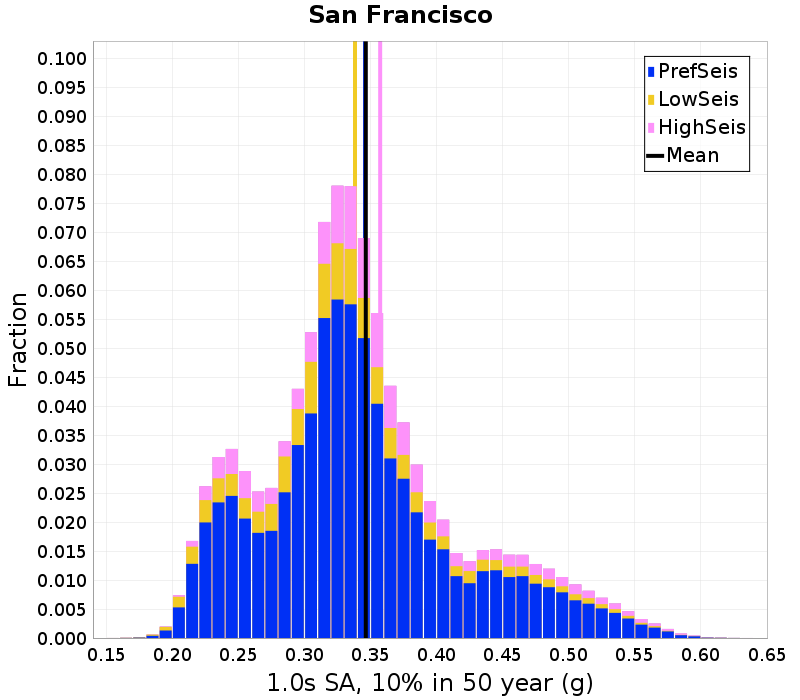

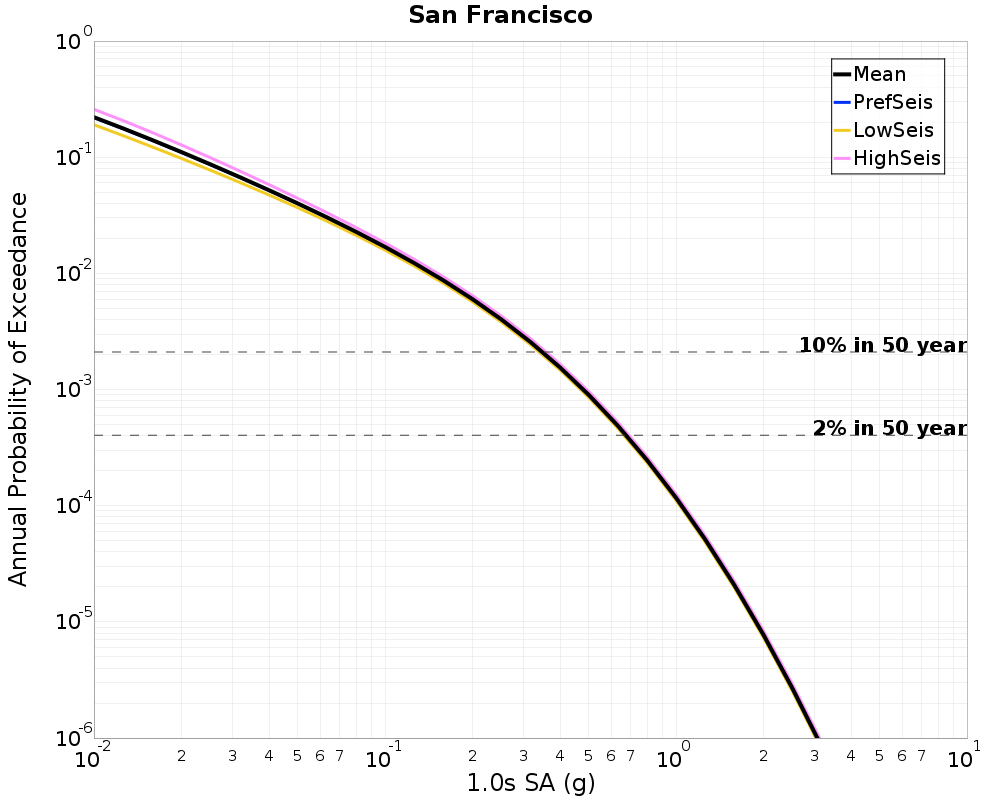

San Francisco, 1.0s SA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6726491 (g) | 0.34640858 (g) |
| PrefSeis | 0.6718269 (g) | 0.34587234 (g) |
| LowSeis | 0.66112196 (g) | 0.33824918 (g) |
| HighSeis | 0.688337 (g) | 0.35729632 (g) |

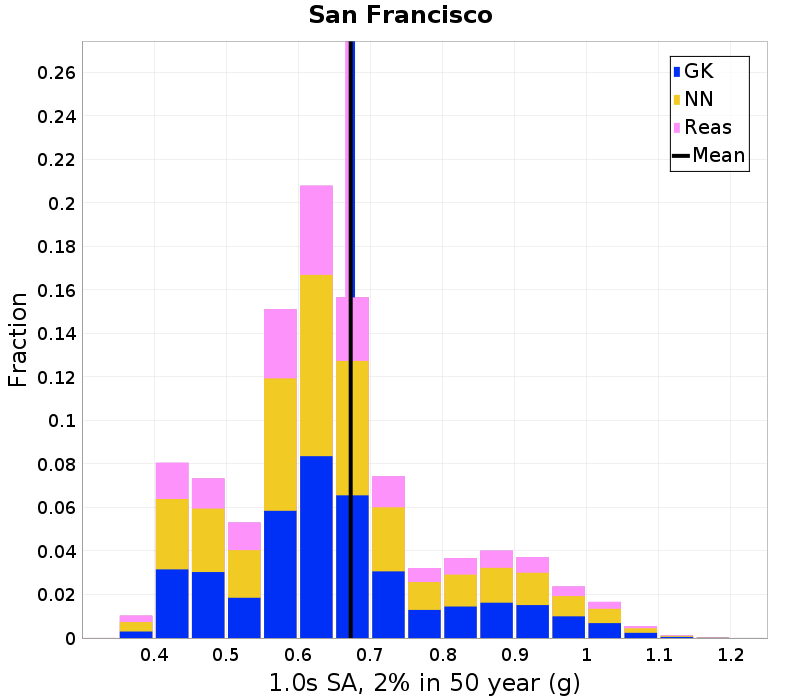

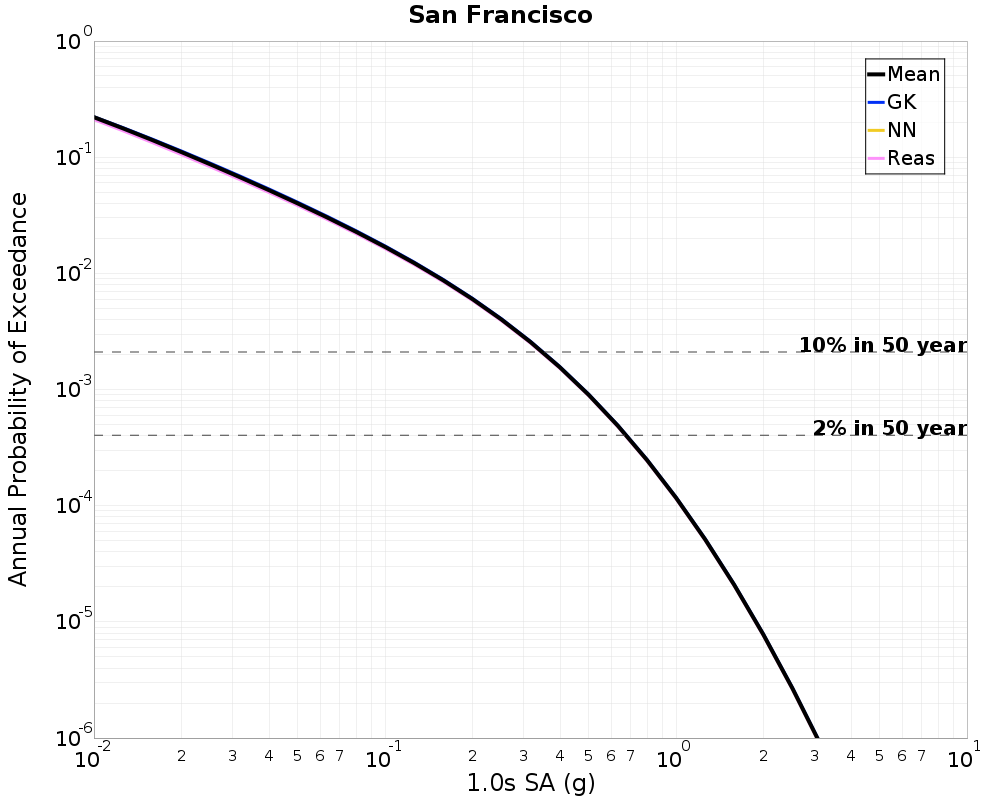

San Francisco, 1.0s SA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6726491 (g) | 0.34640858 (g) |
| GK | 0.67587256 (g) | 0.3488323 (g) |
| NN | 0.6718304 (g) | 0.3458673 (g) |
| Reas | 0.667769 (g) | 0.34258512 (g) |

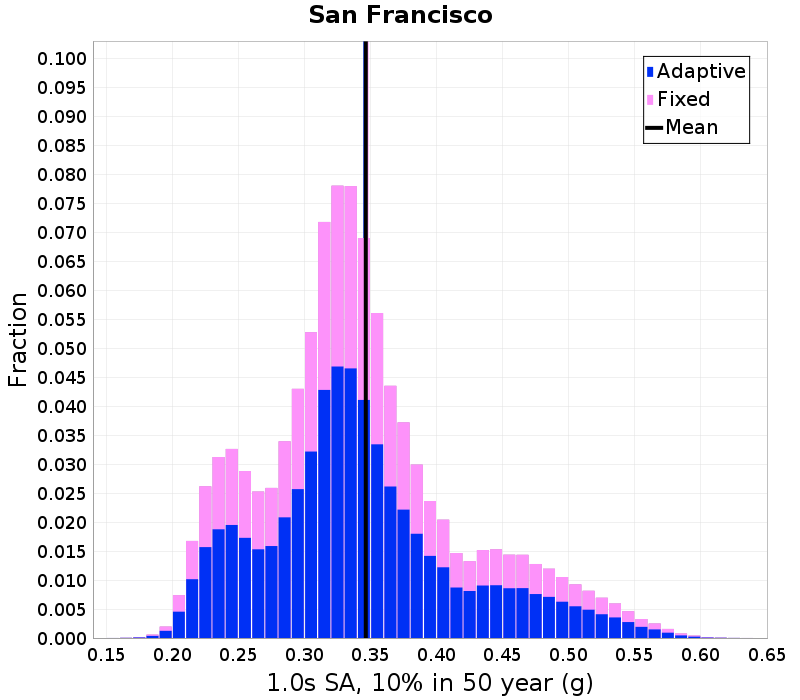

San Francisco, 1.0s SA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6726491 (g) | 0.34640858 (g) |
| Adaptive | 0.67238903 (g) | 0.34603935 (g) |
| Fixed | 0.67303854 (g) | 0.34695977 (g) |

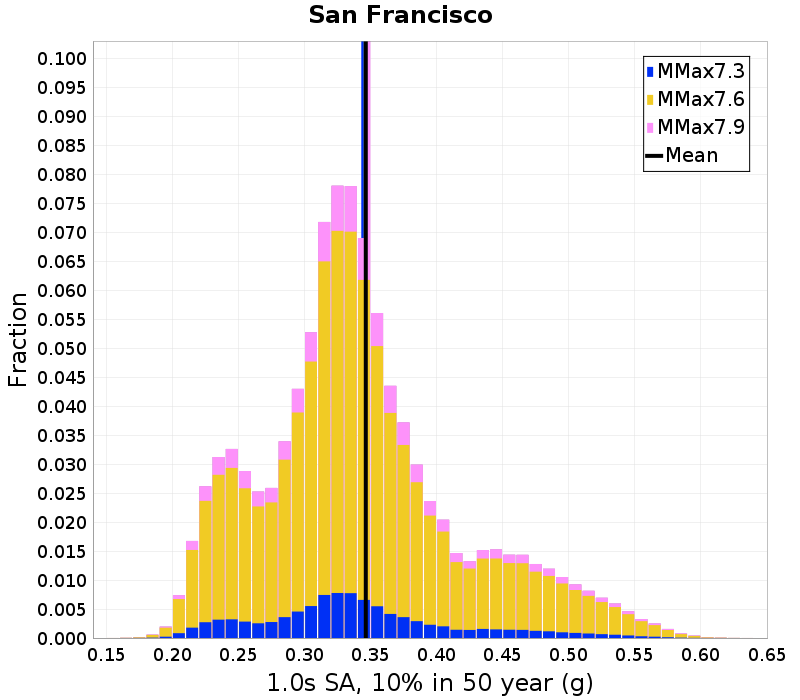

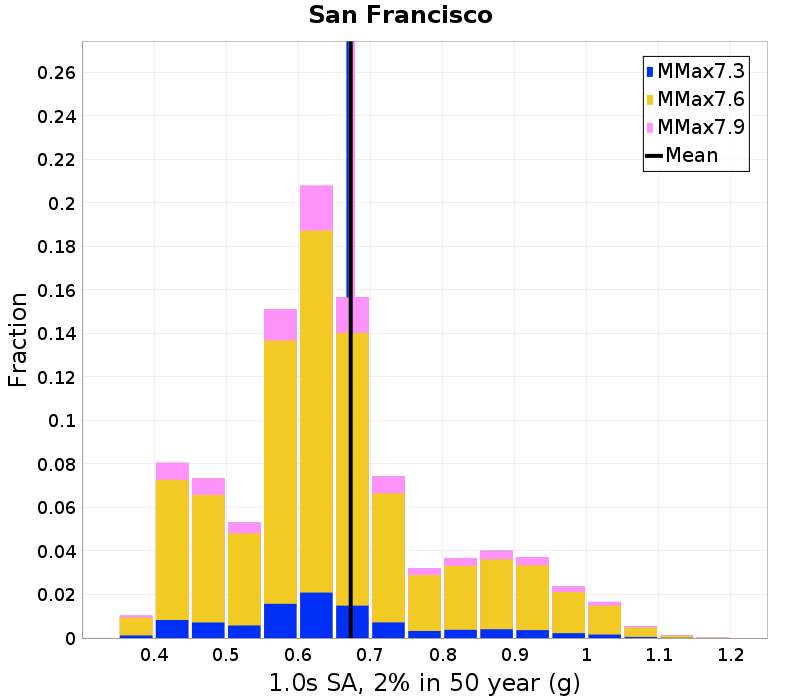

San Francisco, 1.0s SA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6726491 (g) | 0.34640858 (g) |
| MMax7.3 | 0.6693883 (g) | 0.34450838 (g) |
| MMax7.6 | 0.67264605 (g) | 0.3463969 (g) |
| MMax7.9 | 0.6759152 (g) | 0.3483926 (g) |

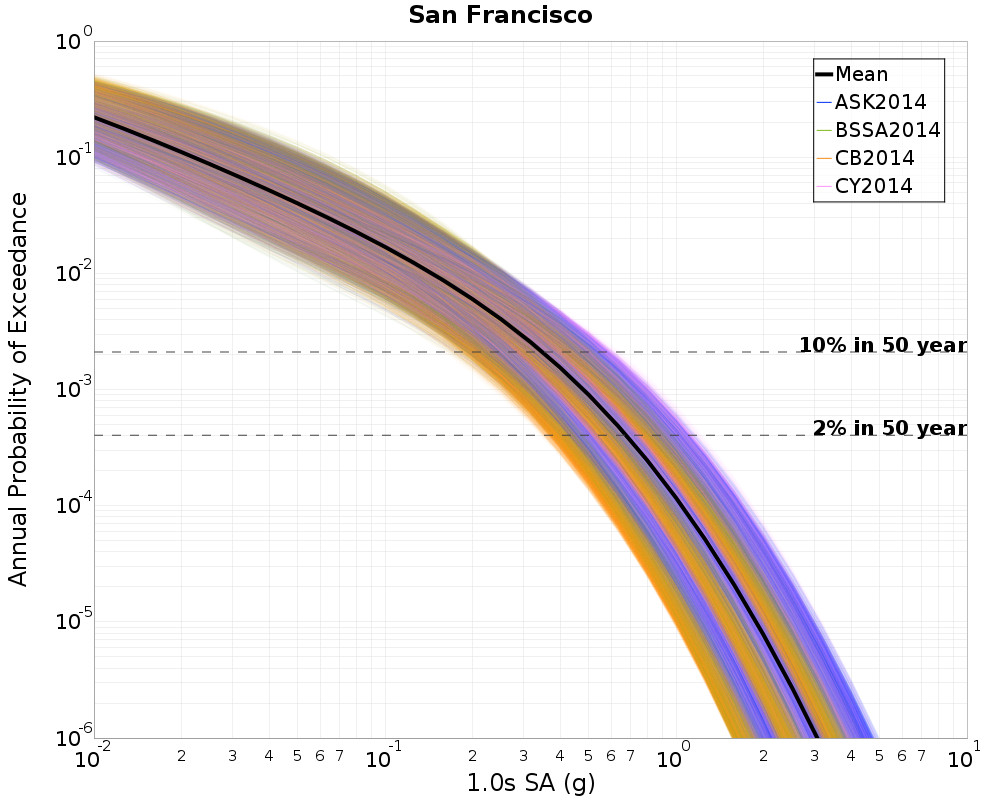

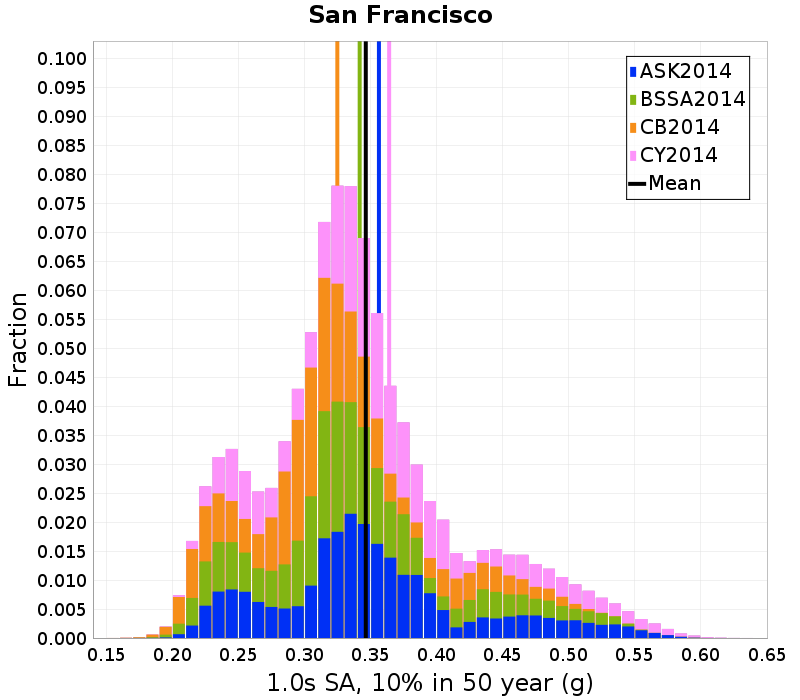

San Francisco, 1.0s SA, NGA-W2 GMM Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6726491 (g) | 0.34640858 (g) |
| ASK2014 | 0.6991879 (g) | 0.35635272 (g) |
| BSSA2014 | 0.656567 (g) | 0.3417813 (g) |
| CB2014 | 0.6156515 (g) | 0.3248781 (g) |
| CY2014 | 0.7150859 (g) | 0.3640933 (g) |

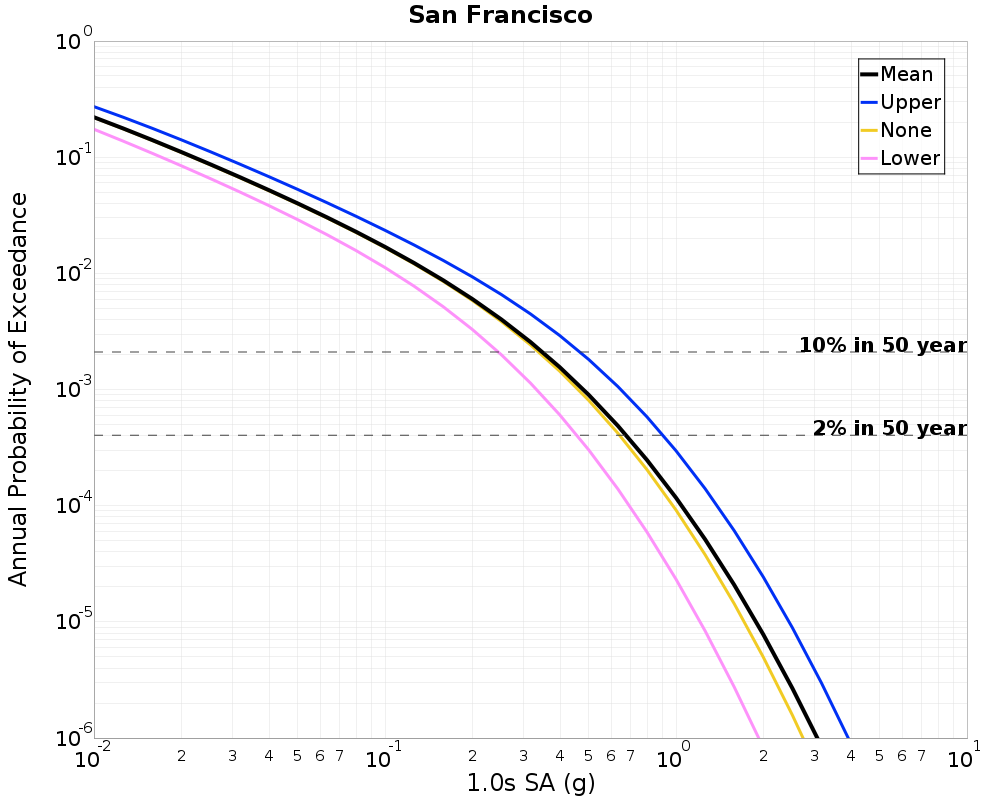

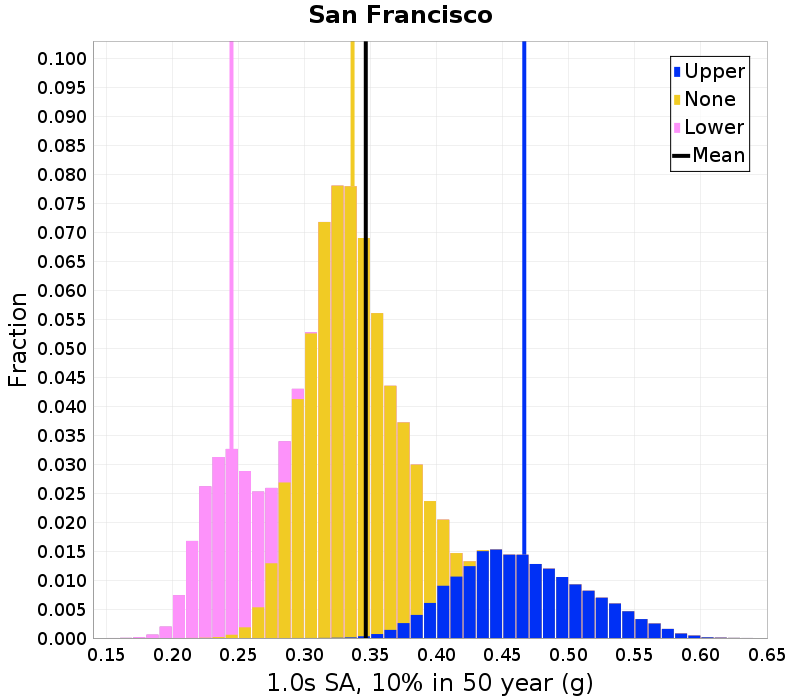

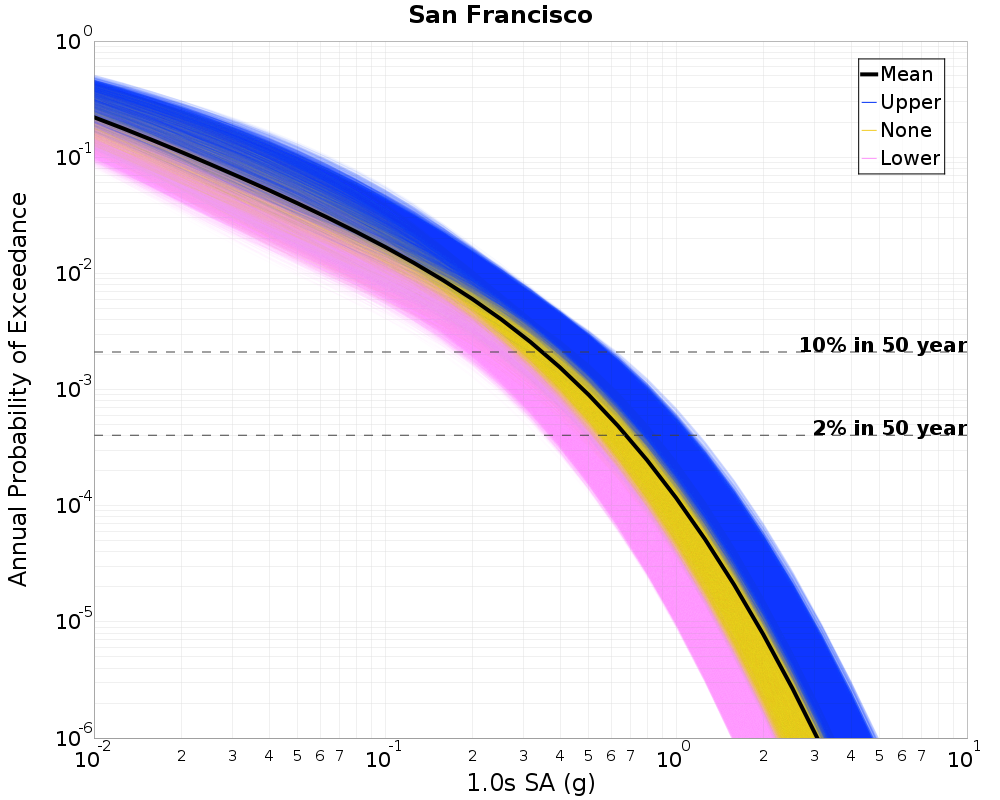

San Francisco, 1.0s SA, NGA-W2 Additional Epistemic Uncertainty Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6726491 (g) | 0.34640858 (g) |
| Upper | 0.9000769 (g) | 0.46633357 (g) |
| None | 0.63951635 (g) | 0.33640382 (g) |
| Lower | 0.45534417 (g) | 0.24478503 (g) |
