Reno Logic Tree Hazard Curves
Table Of Contents
- Reno, PGA
- Reno, PGA, Hazard Value Distributions
- Reno, PGA, Deformation Model Hazard
- Reno, PGA, Scaling Relationship Hazard
- Reno, PGA, Supra-Seismogenic b-value Hazard
- Reno, PGA, Paleoseismic Data Uncertainties Hazard
- Reno, PGA, Segmentation Model Hazard
- Reno, PGA, Regional Seismicity Rate Hazard
- Reno, PGA, Seismicity Declustering Algorithm Hazard
- Reno, PGA, Seismicity Smoothing Kernel Hazard
- Reno, PGA, Off Fault Mmax Hazard
- Reno, 1.0s SA
- Reno, 1.0s SA, Hazard Value Distributions
- Reno, 1.0s SA, Deformation Model Hazard
- Reno, 1.0s SA, Scaling Relationship Hazard
- Reno, 1.0s SA, Supra-Seismogenic b-value Hazard
- Reno, 1.0s SA, Paleoseismic Data Uncertainties Hazard
- Reno, 1.0s SA, Segmentation Model Hazard
- Reno, 1.0s SA, Regional Seismicity Rate Hazard
- Reno, 1.0s SA, Seismicity Declustering Algorithm Hazard
- Reno, 1.0s SA, Seismicity Smoothing Kernel Hazard
- Reno, 1.0s SA, Off Fault Mmax Hazard
Reno, PGA
Reno, PGA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Primary | 0.6975428 (g) | 0.3411958 (g) |
| Comparison | 0.7762279 (g) | 0.397952 (g) |

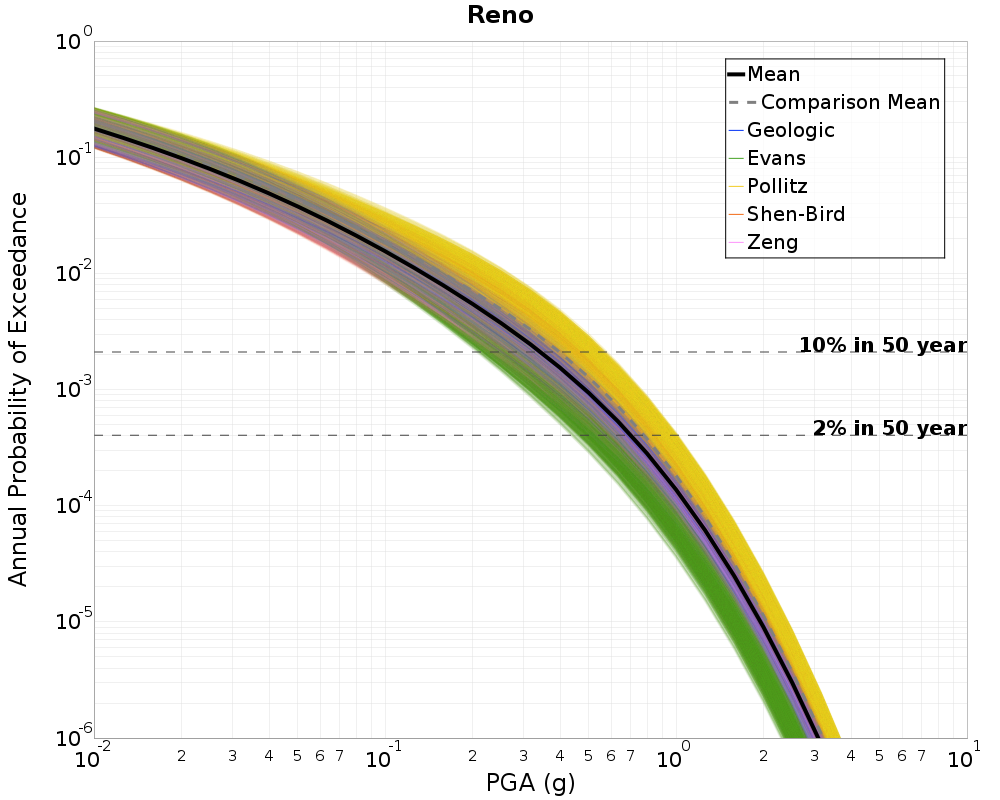

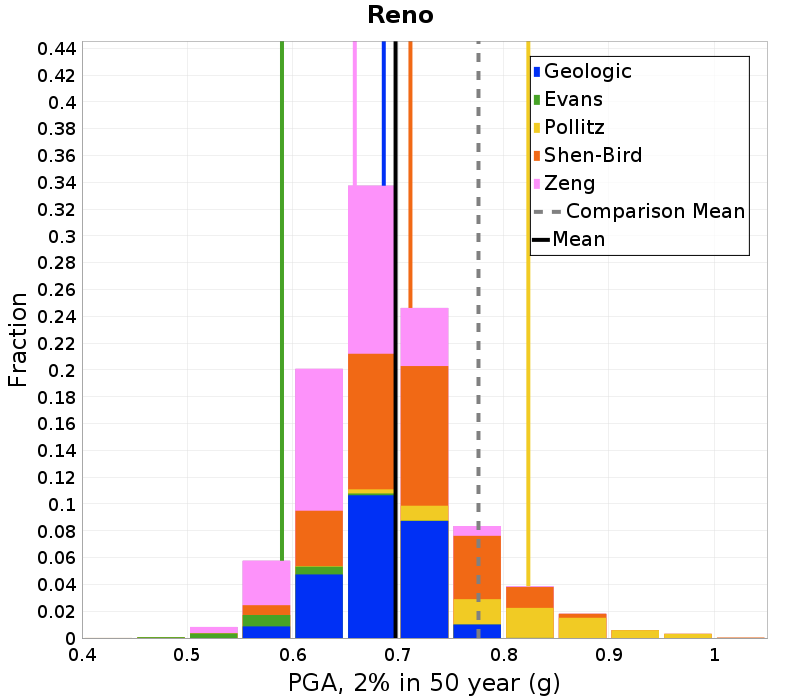

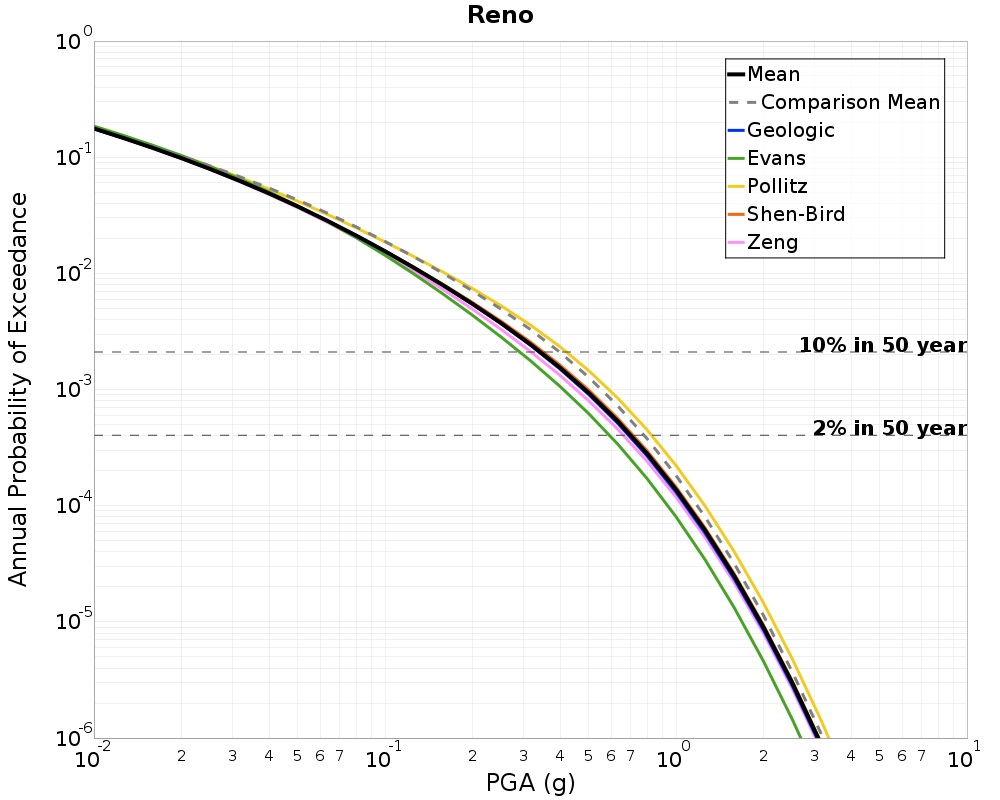

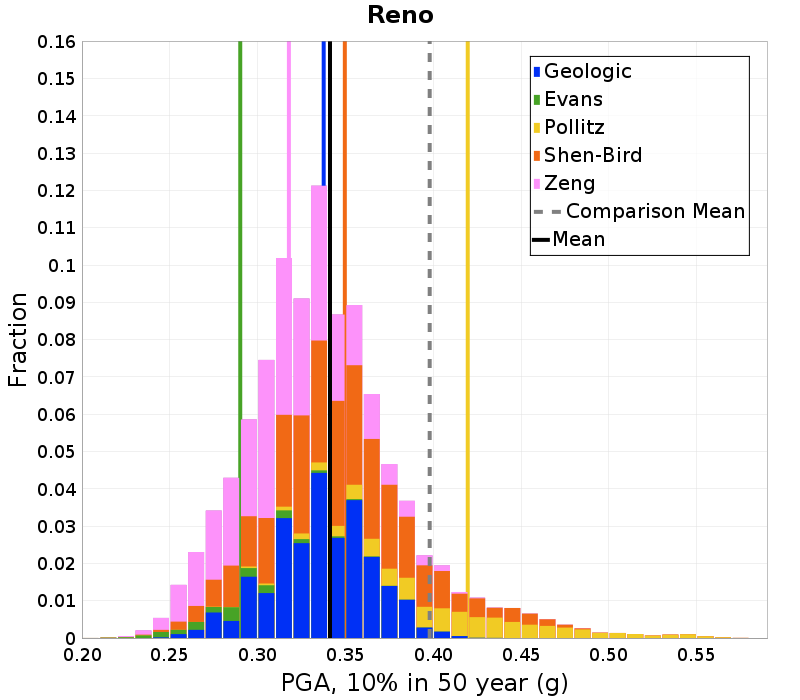

Reno, PGA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6975428 (g) | 0.3411958 (g) |
| Geologic | 0.68637085 (g) | 0.33760086 (g) |
| Evans | 0.58976555 (g) | 0.29010043 (g) |
| Pollitz | 0.8235309 (g) | 0.41961822 (g) |
| Shen-Bird | 0.711661 (g) | 0.3496372 (g) |
| Zeng | 0.658868 (g) | 0.31779823 (g) |

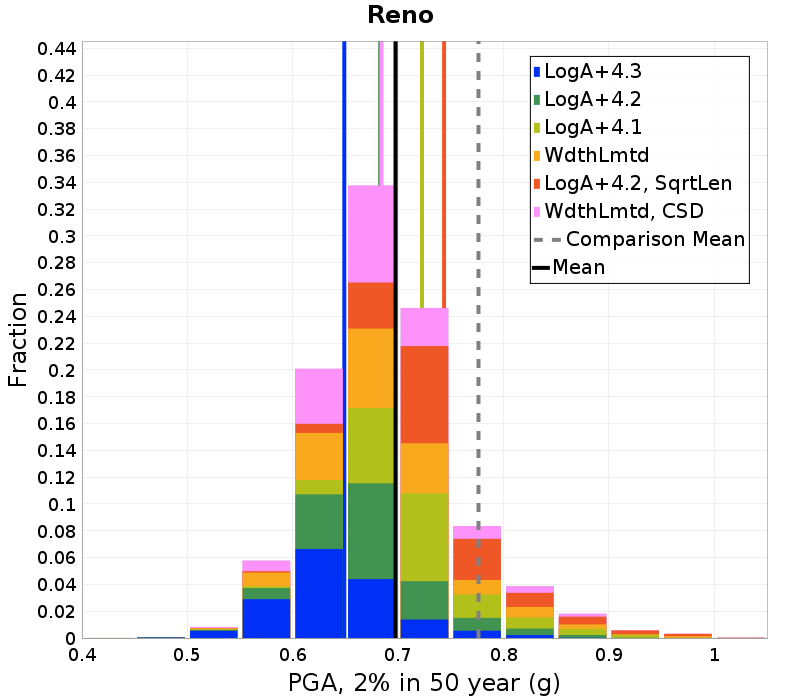

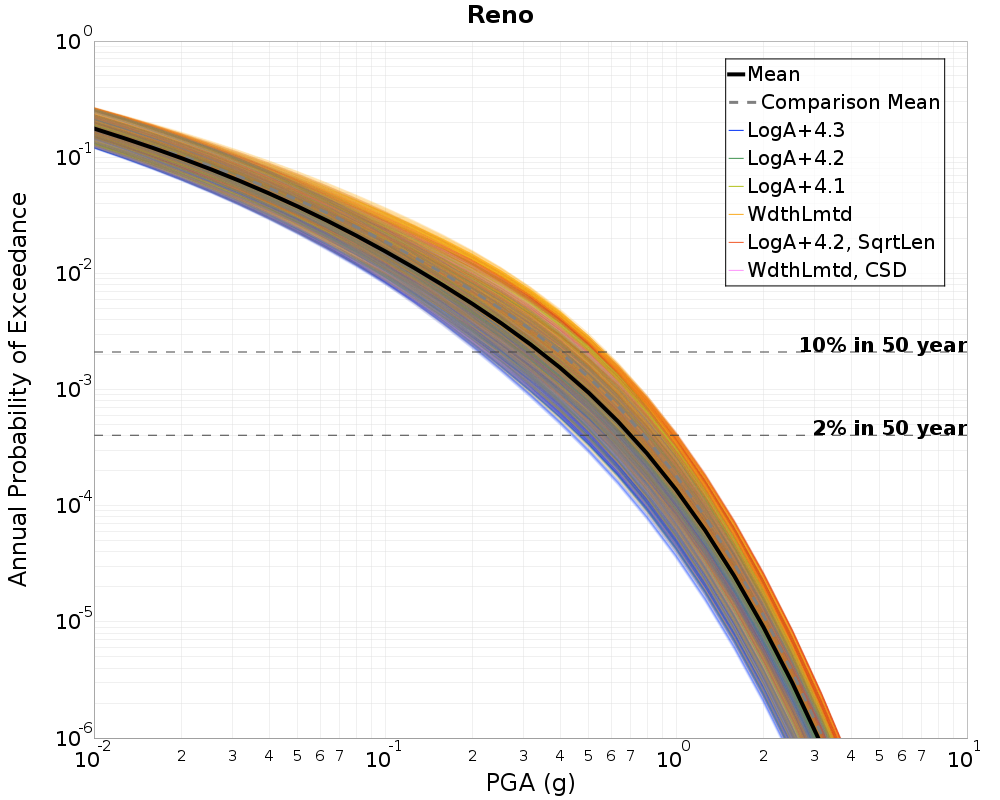

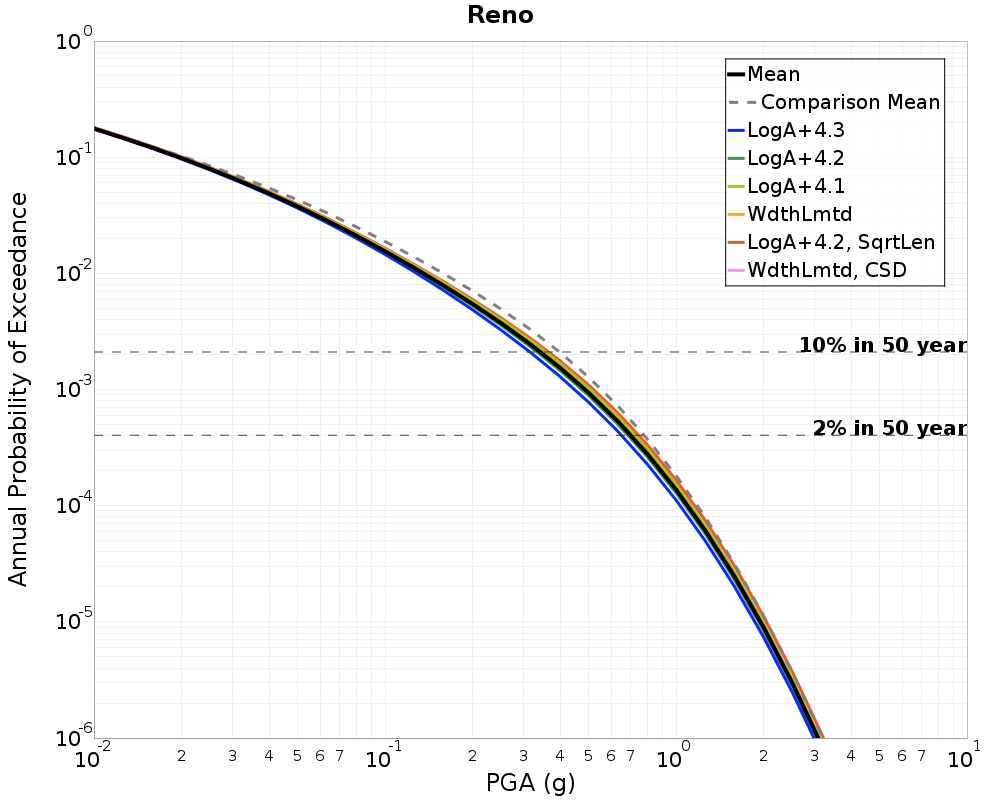

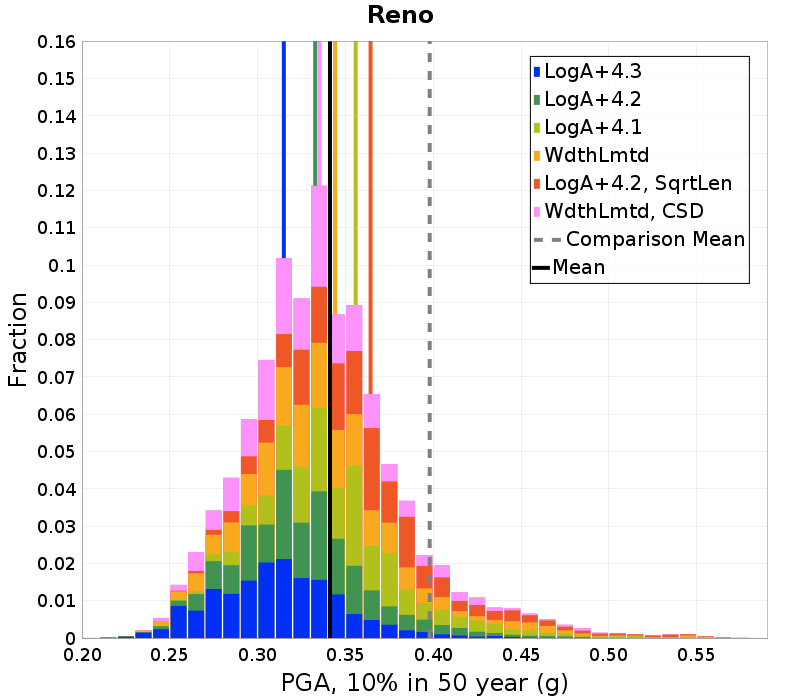

Reno, PGA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6975428 (g) | 0.3411958 (g) |
| LogA+4.3 | 0.64890313 (g) | 0.31490716 (g) |
| LogA+4.2 | 0.6829579 (g) | 0.33276242 (g) |
| LogA+4.1 | 0.72262734 (g) | 0.3558057 (g) |
| WdthLmtd | 0.69767314 (g) | 0.34408593 (g) |
| LogA+4.2, SqrtLen | 0.7435847 (g) | 0.3642964 (g) |
| WdthLmtd, CSD | 0.68422985 (g) | 0.3351882 (g) |

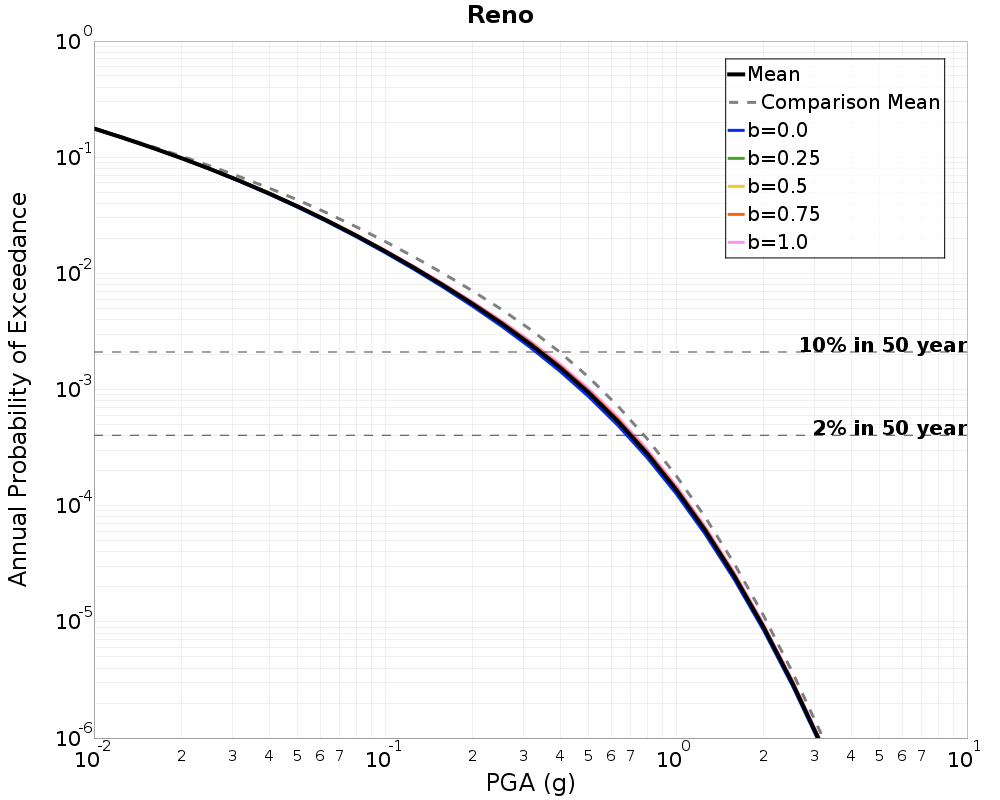

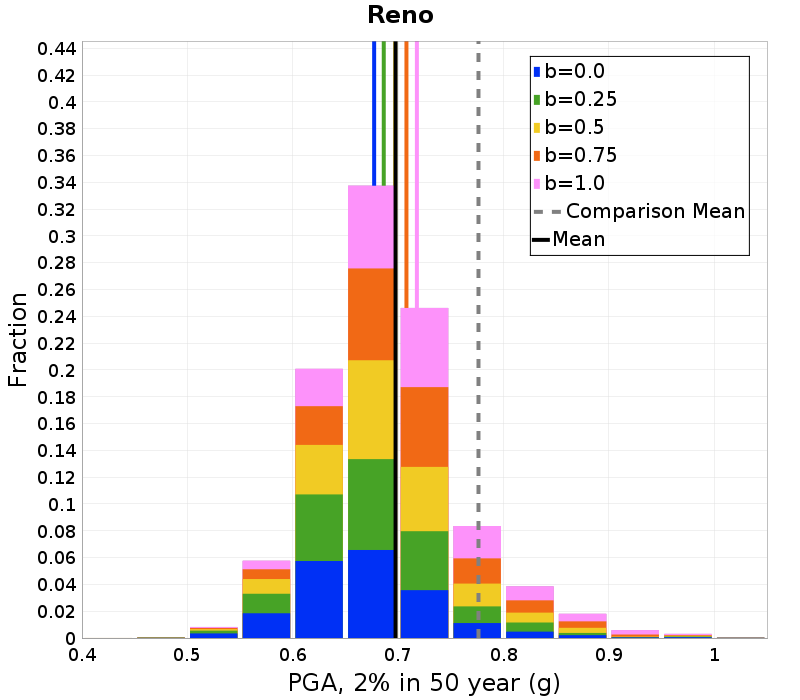

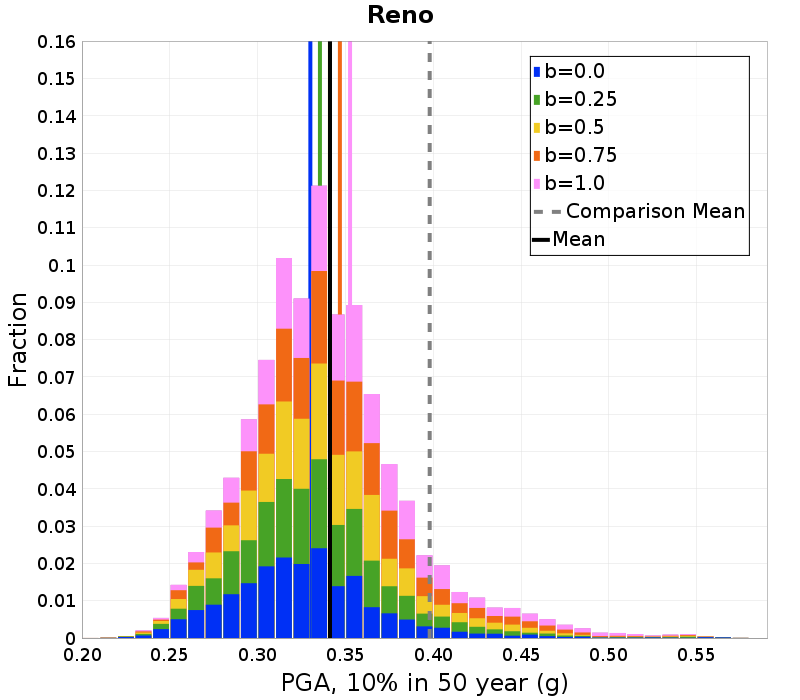

Reno, PGA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6975428 (g) | 0.3411958 (g) |
| b=0.0 | 0.6772194 (g) | 0.3300126 (g) |
| b=0.25 | 0.68633986 (g) | 0.33546552 (g) |
| b=0.5 | 0.6972106 (g) | 0.34113494 (g) |
| b=0.75 | 0.70786834 (g) | 0.34682822 (g) |
| b=1.0 | 0.7177789 (g) | 0.35261786 (g) |

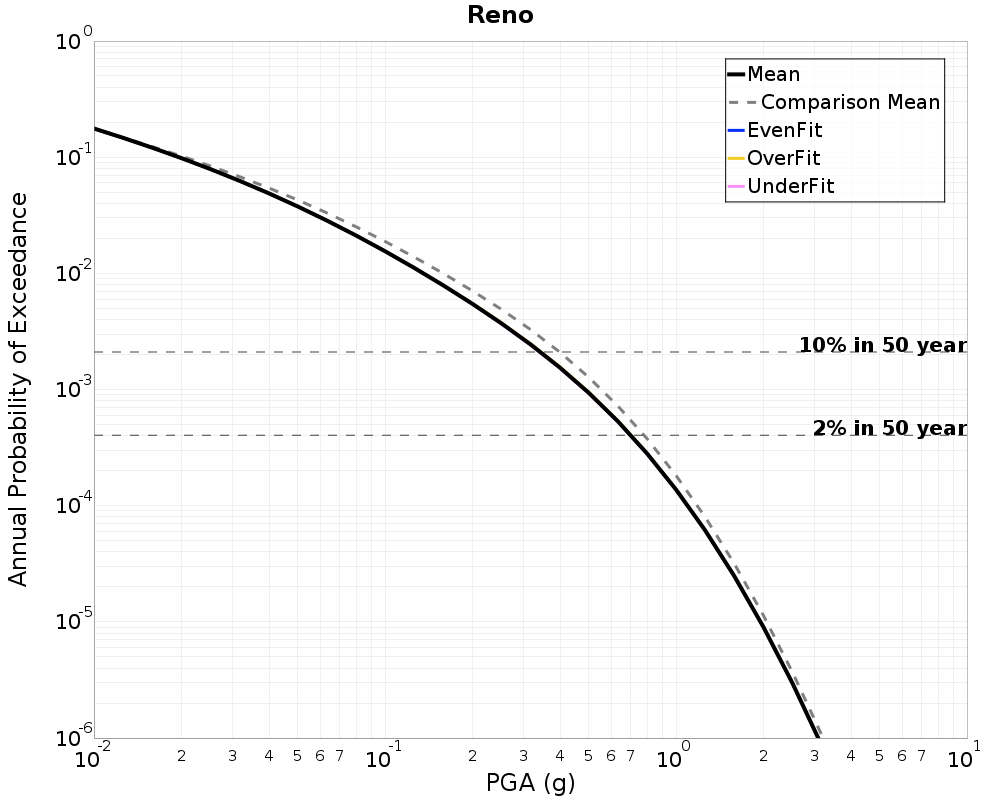

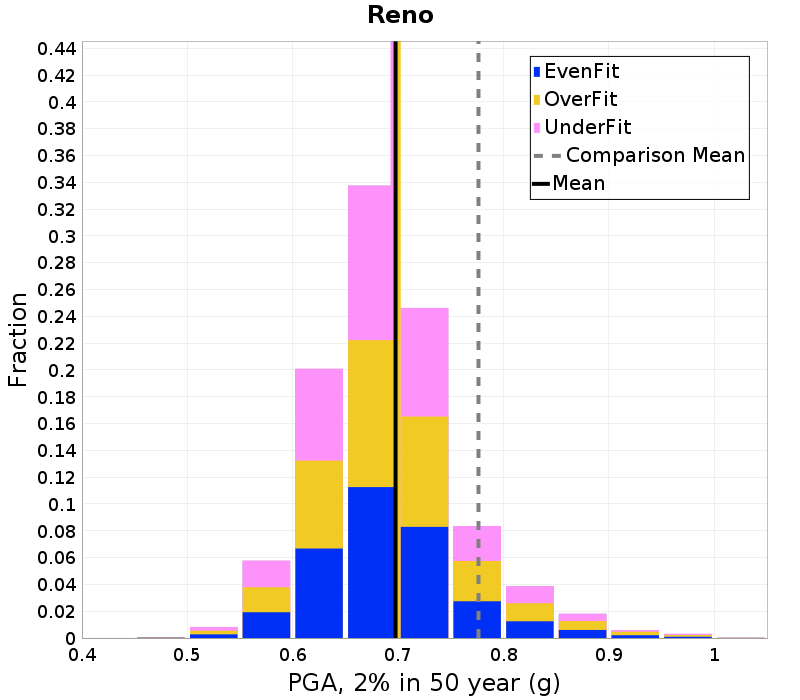

Reno, PGA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6975428 (g) | 0.3411958 (g) |
| EvenFit | 0.6974033 (g) | 0.3411021 (g) |
| OverFit | 0.70056105 (g) | 0.343458 (g) |
| UnderFit | 0.69462836 (g) | 0.33902055 (g) |

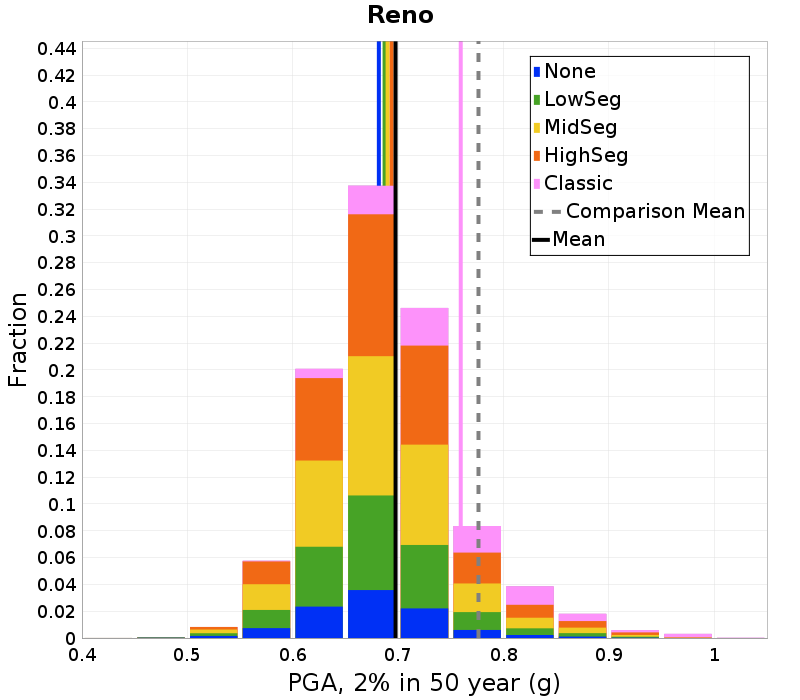

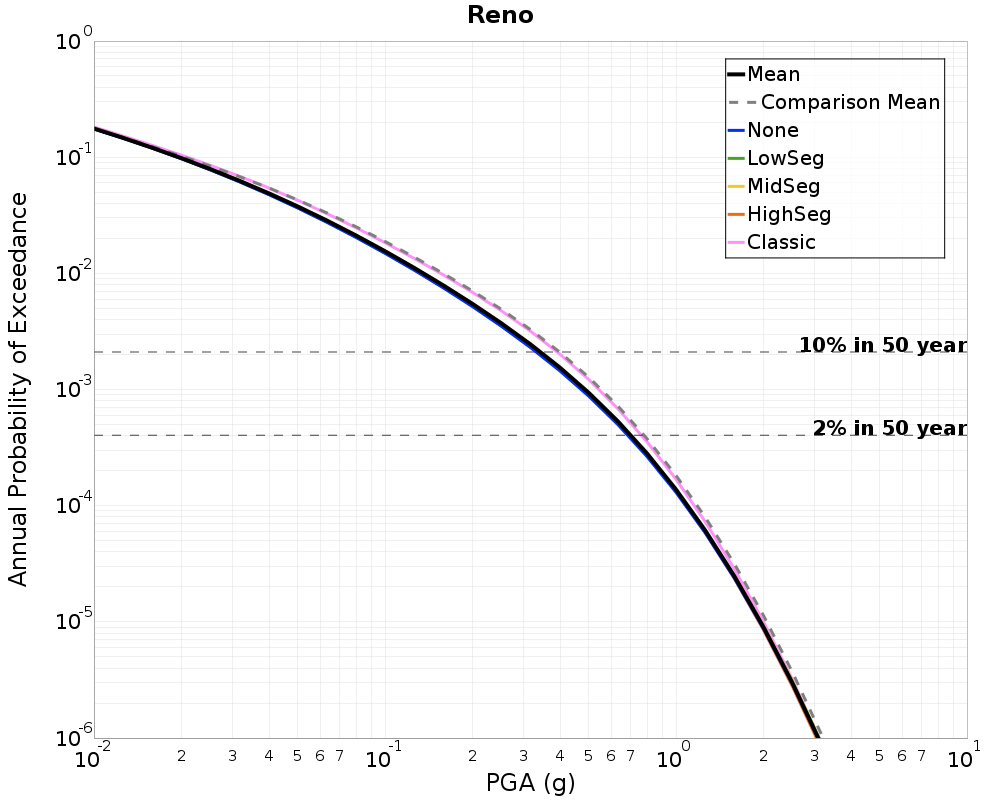

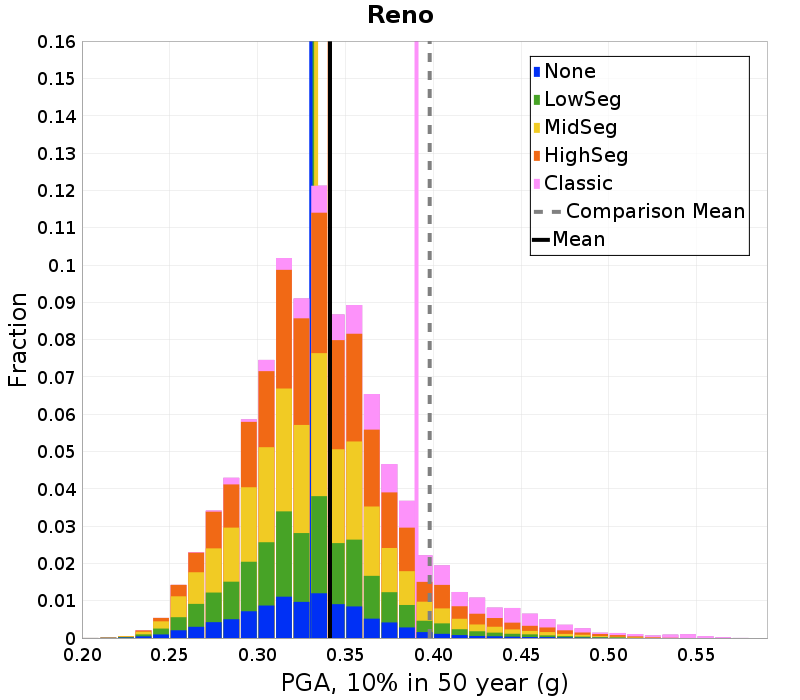

Reno, PGA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6975428 (g) | 0.3411958 (g) |
| None | 0.6816841 (g) | 0.3305211 (g) |
| LowSeg | 0.68711704 (g) | 0.33241355 (g) |
| MidSeg | 0.68996805 (g) | 0.33328584 (g) |
| HighSeg | 0.69382083 (g) | 0.34097433 (g) |
| Classic | 0.75938684 (g) | 0.39045414 (g) |

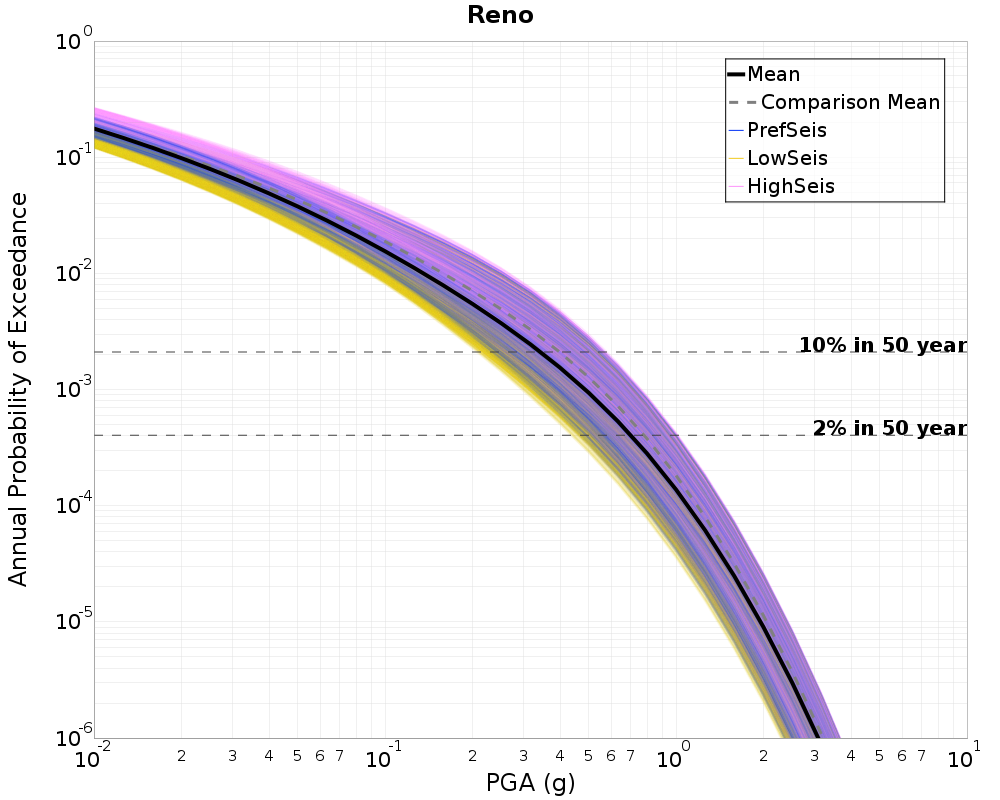

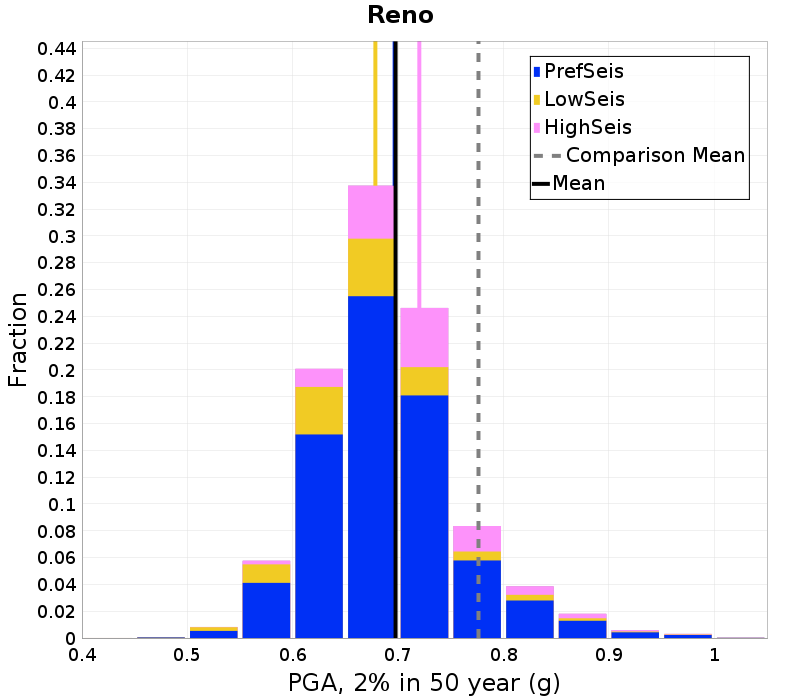

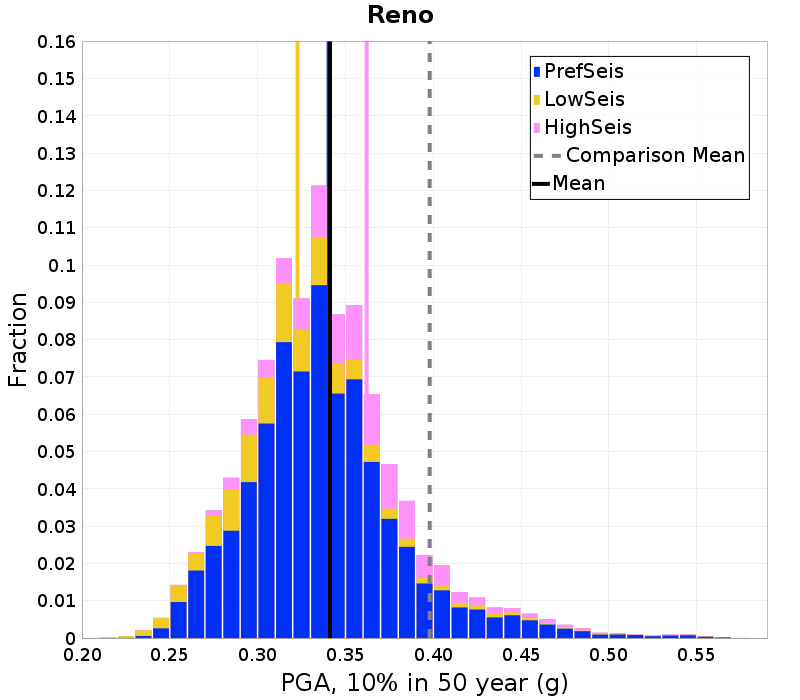

Reno, PGA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6975428 (g) | 0.3411958 (g) |
| PrefSeis | 0.6966521 (g) | 0.34041342 (g) |
| LowSeis | 0.67838204 (g) | 0.32270858 (g) |
| HighSeis | 0.72008276 (g) | 0.3620574 (g) |

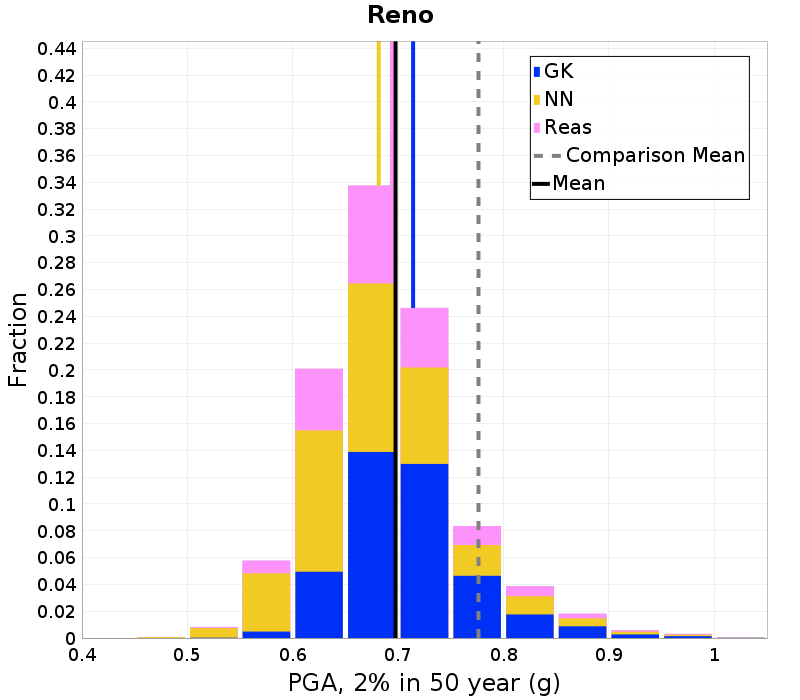

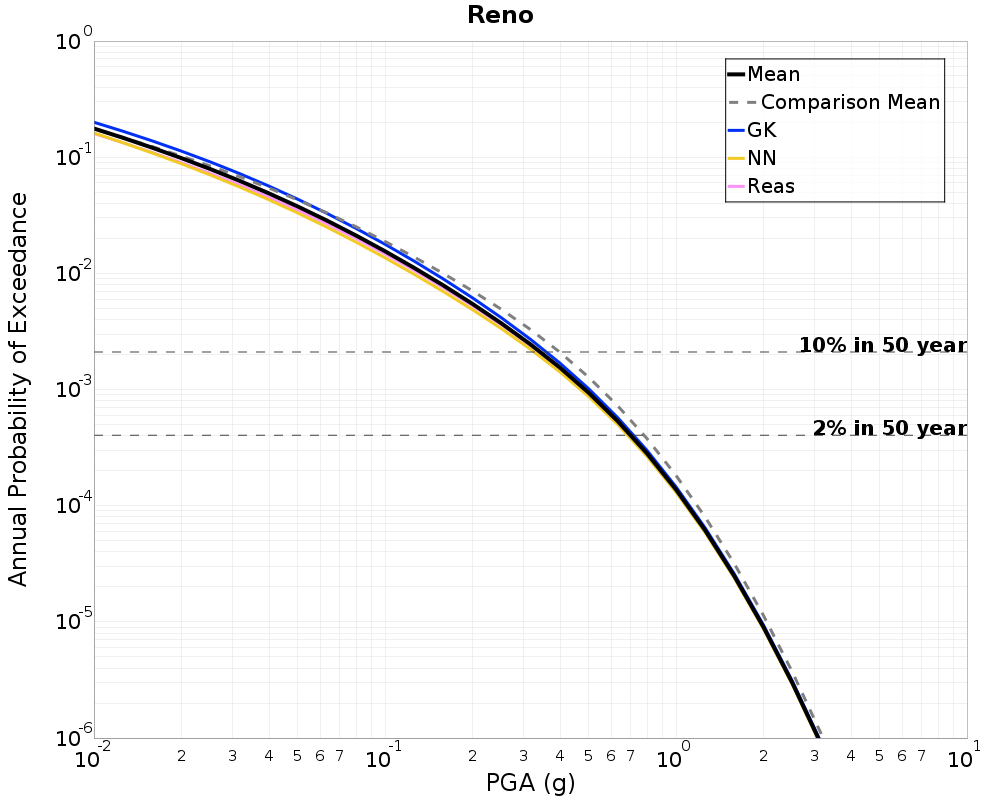

Reno, PGA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6975428 (g) | 0.3411958 (g) |
| GK | 0.71418864 (g) | 0.35786727 (g) |
| NN | 0.6815285 (g) | 0.3251358 (g) |
| Reas | 0.6940439 (g) | 0.3368447 (g) |

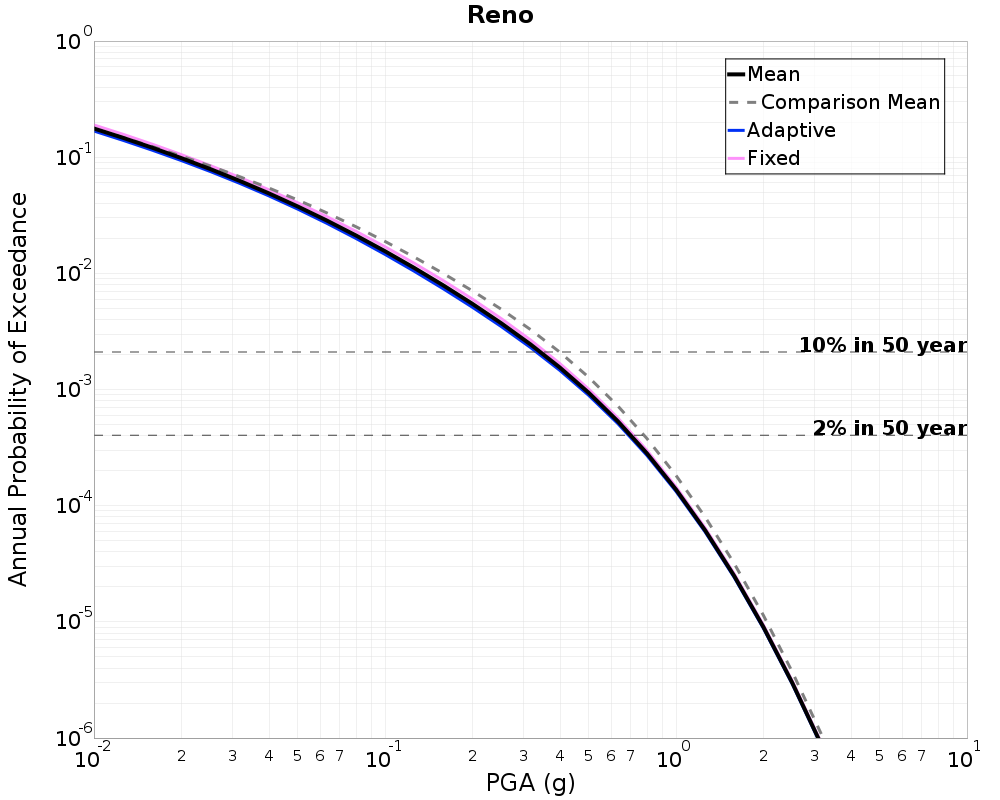

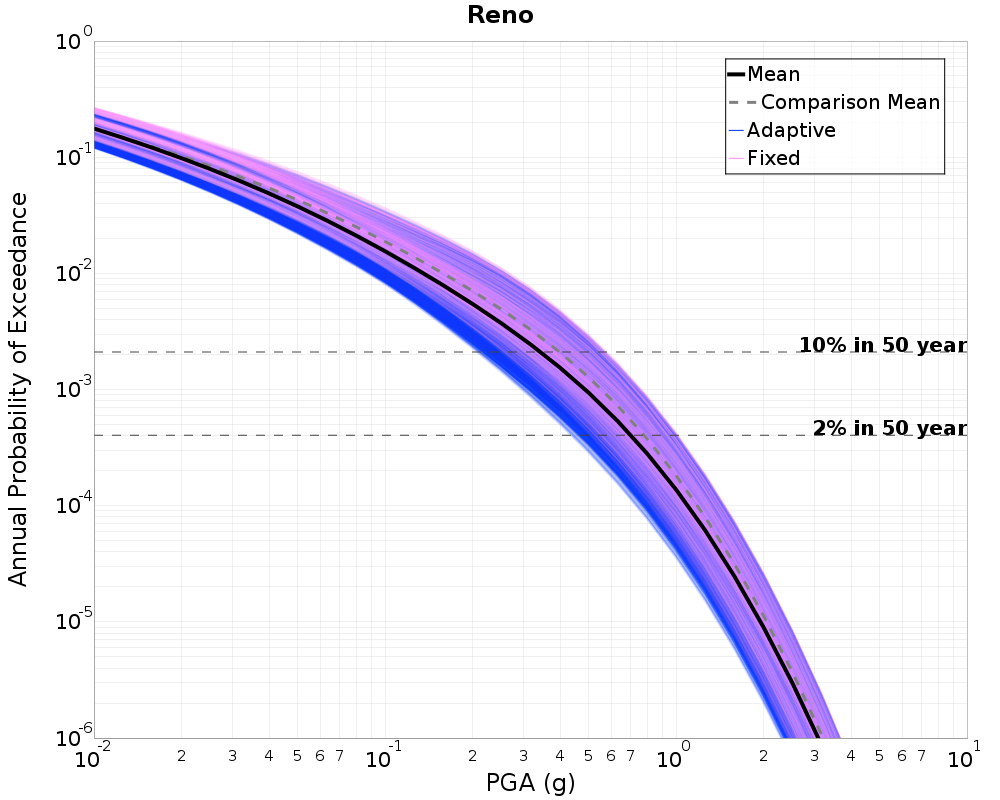

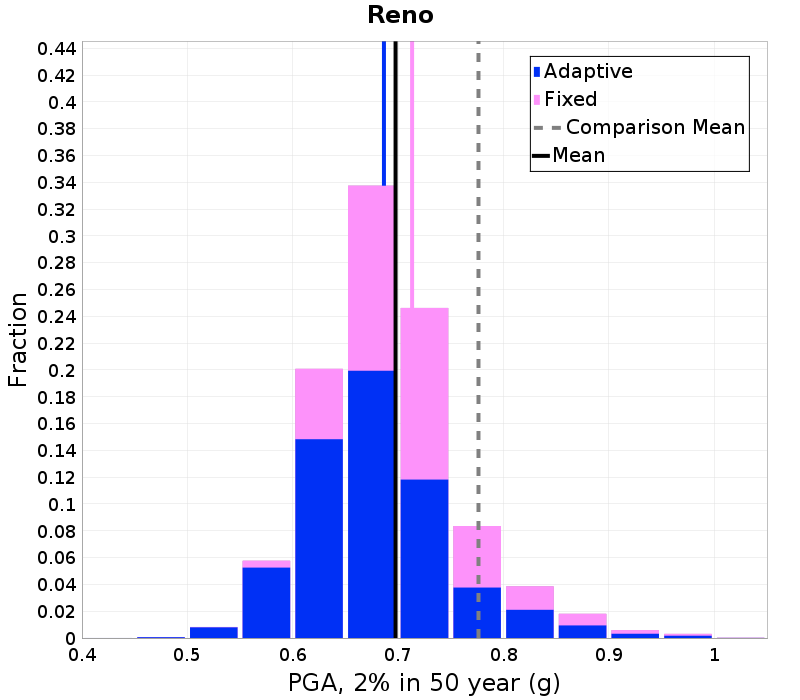

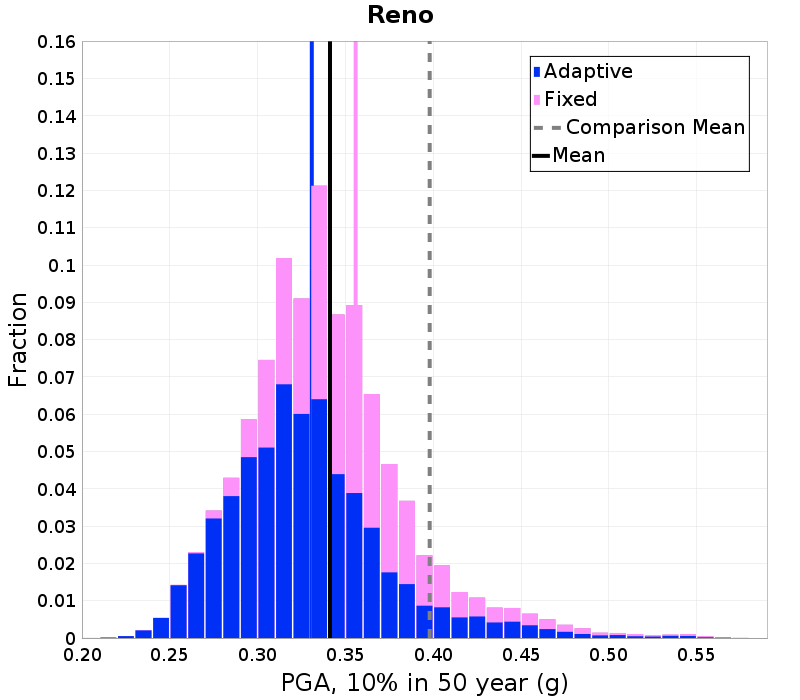

Reno, PGA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6975428 (g) | 0.3411958 (g) |
| Adaptive | 0.68651754 (g) | 0.33083585 (g) |
| Fixed | 0.71323013 (g) | 0.3558111 (g) |

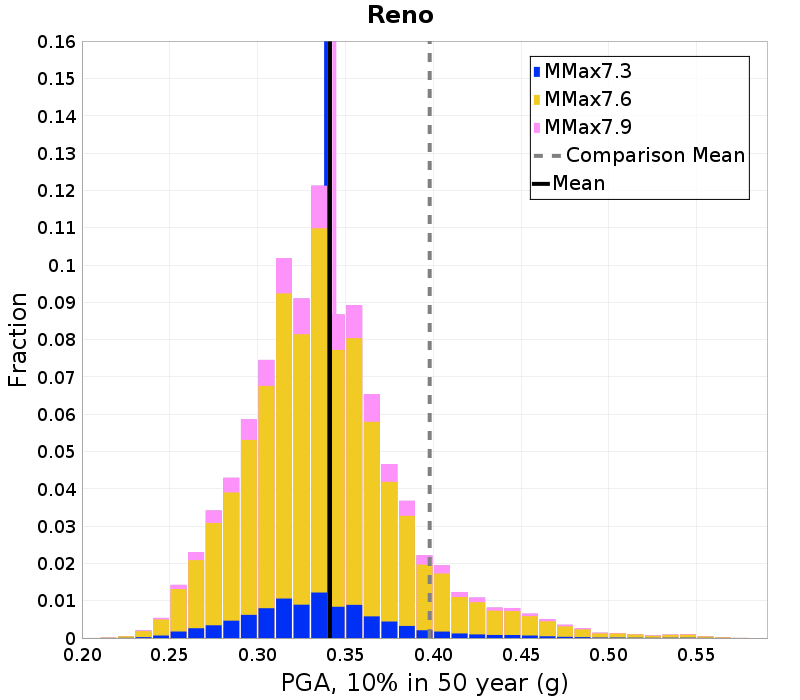

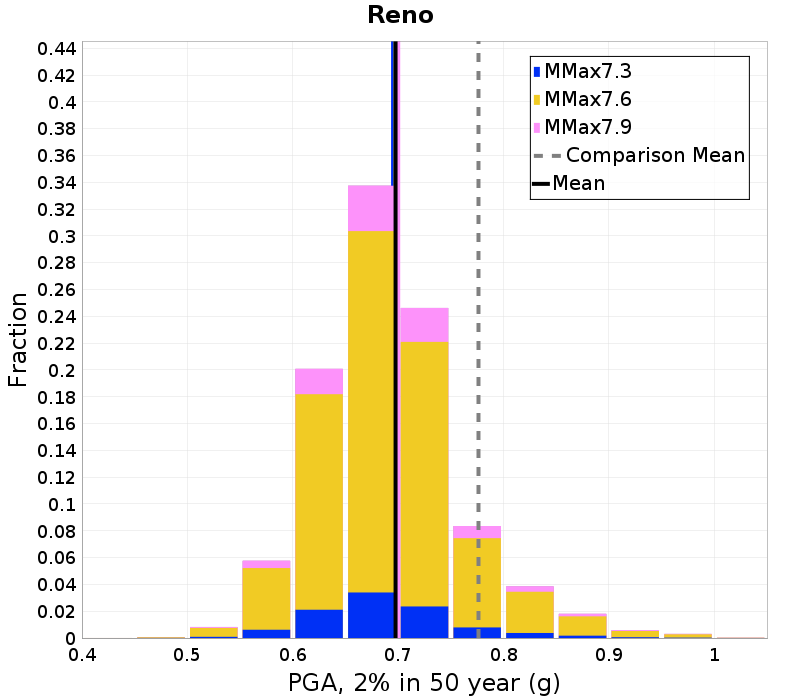

Reno, PGA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6975428 (g) | 0.3411958 (g) |
| MMax7.3 | 0.6951758 (g) | 0.33898902 (g) |
| MMax7.6 | 0.69751954 (g) | 0.34115982 (g) |
| MMax7.9 | 0.7000731 (g) | 0.3436606 (g) |
Reno, 1.0s SA
Reno, 1.0s SA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Primary | 0.4278574 (g) | 0.1911543 (g) |
| Comparison | 0.5005776 (g) | 0.23668604 (g) |

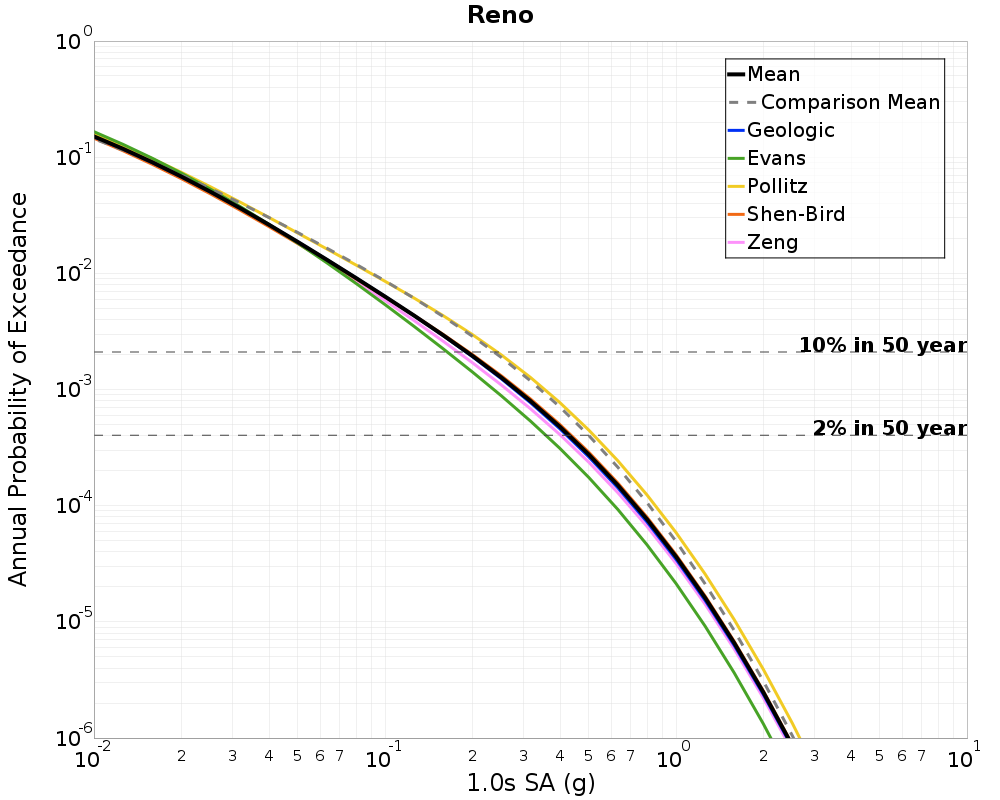

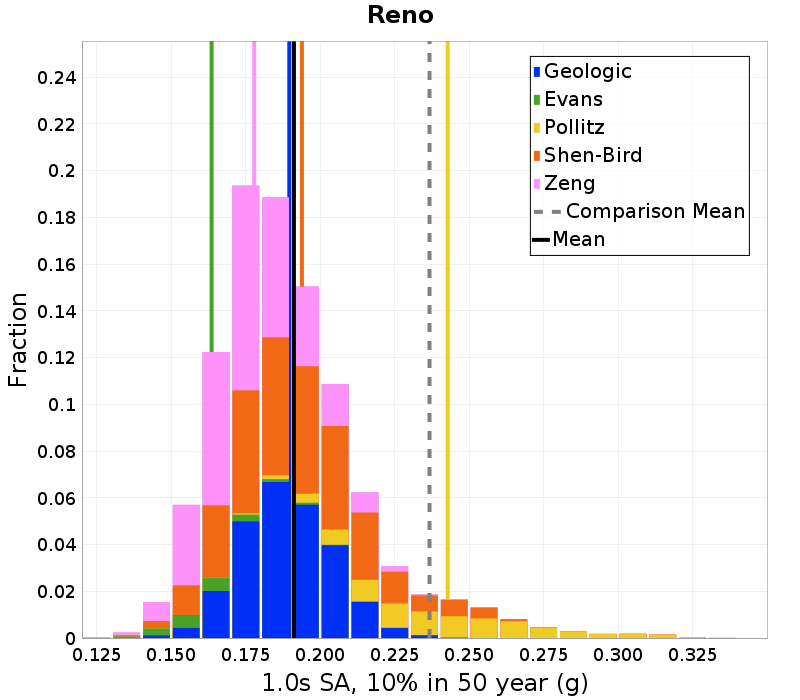

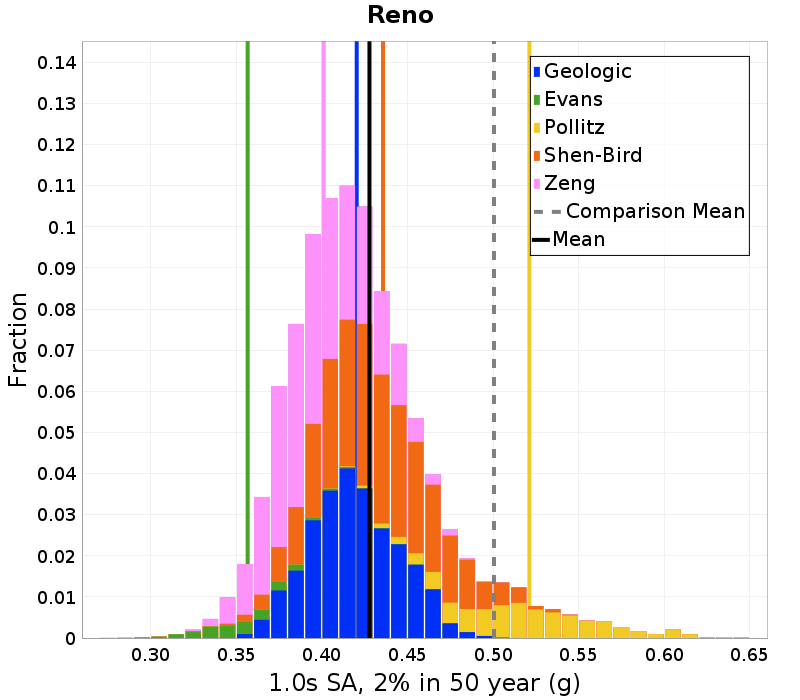

Reno, 1.0s SA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.4278574 (g) | 0.1911543 (g) |
| Geologic | 0.4204062 (g) | 0.18960008 (g) |
| Evans | 0.35673648 (g) | 0.1635167 (g) |
| Pollitz | 0.5212569 (g) | 0.2427857 (g) |
| Shen-Bird | 0.43578306 (g) | 0.19384304 (g) |
| Zeng | 0.40113476 (g) | 0.17782834 (g) |

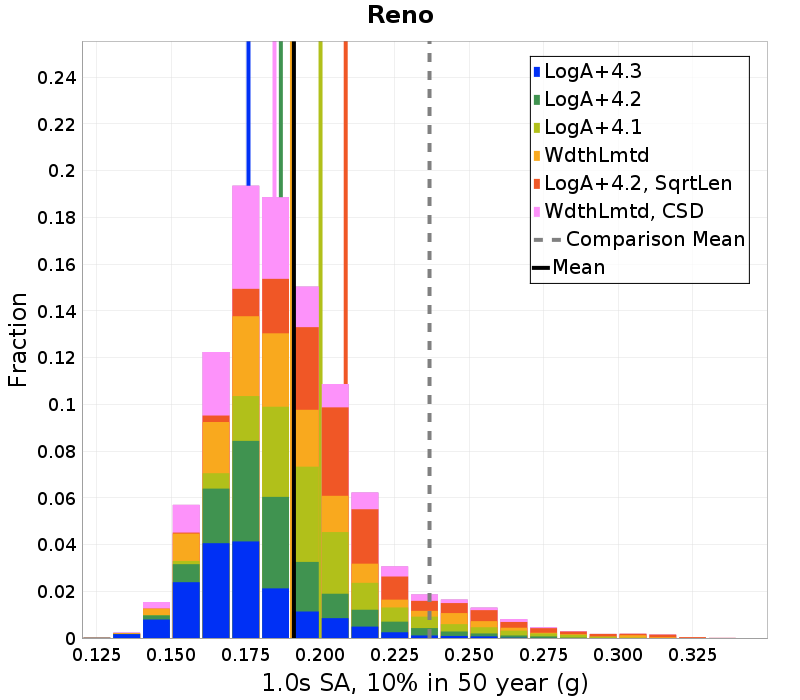

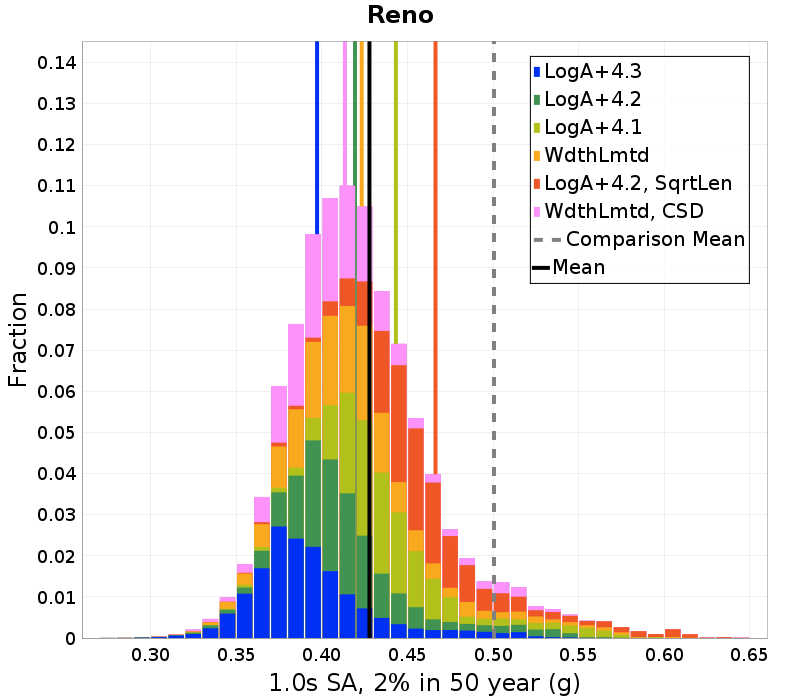

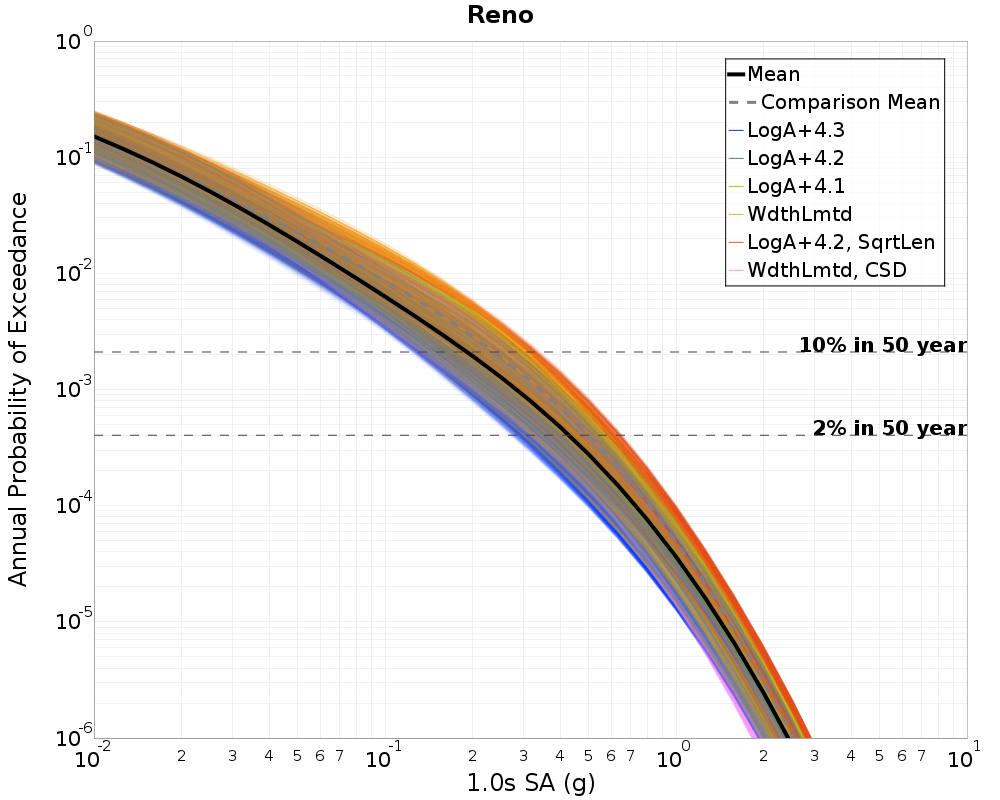

Reno, 1.0s SA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.4278574 (g) | 0.1911543 (g) |
| LogA+4.3 | 0.3972687 (g) | 0.17589955 (g) |
| LogA+4.2 | 0.41940132 (g) | 0.18676928 (g) |
| LogA+4.1 | 0.4433087 (g) | 0.20009246 (g) |
| WdthLmtd | 0.42332783 (g) | 0.19049464 (g) |
| LogA+4.2, SqrtLen | 0.46642643 (g) | 0.20854592 (g) |
| WdthLmtd, CSD | 0.41354743 (g) | 0.18463324 (g) |

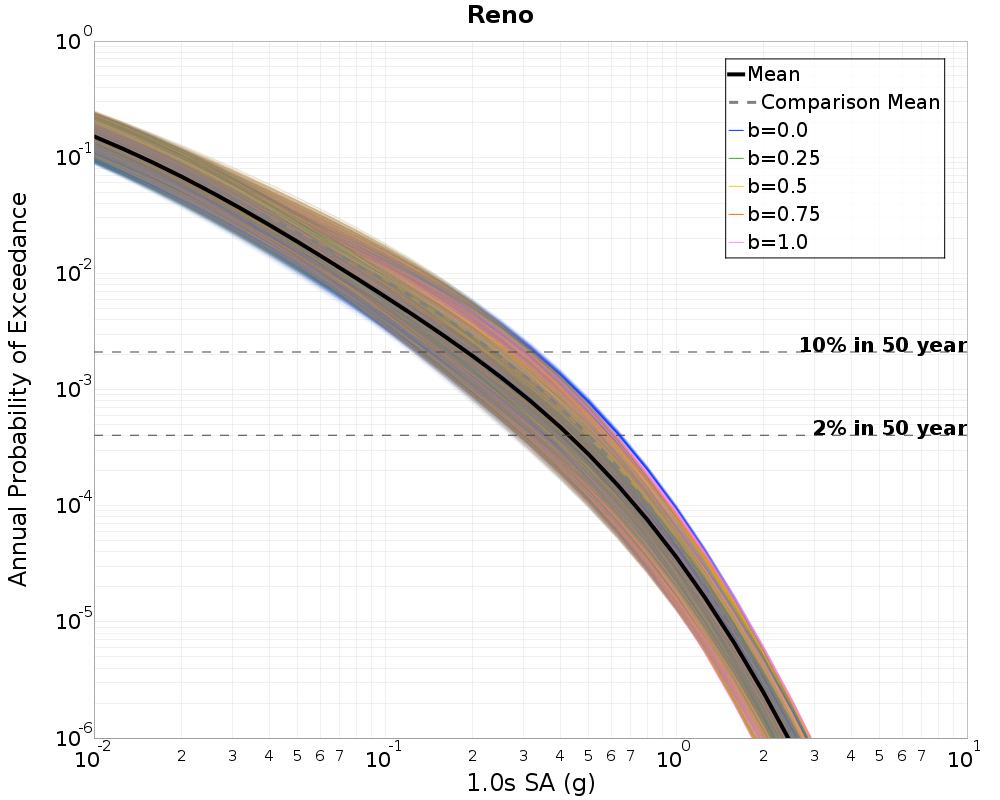

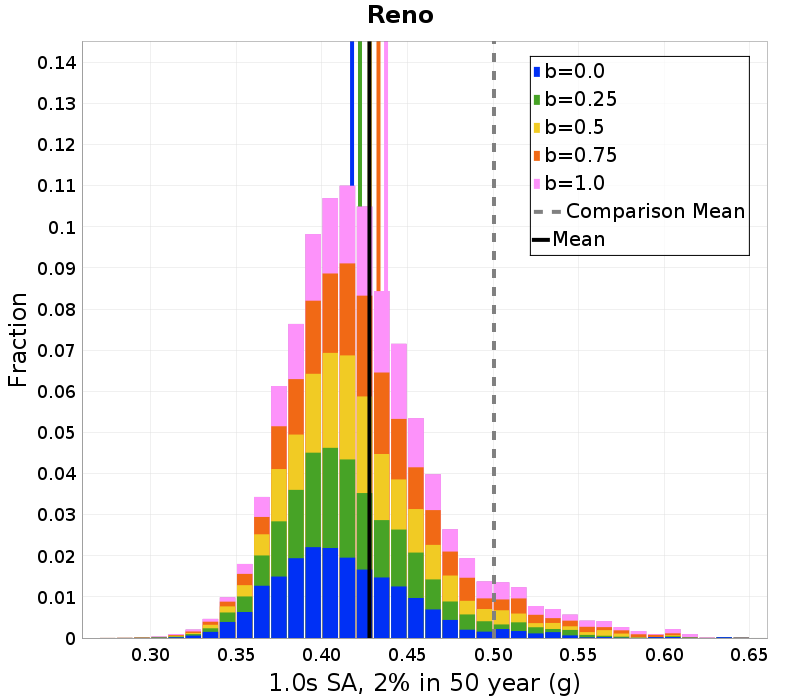

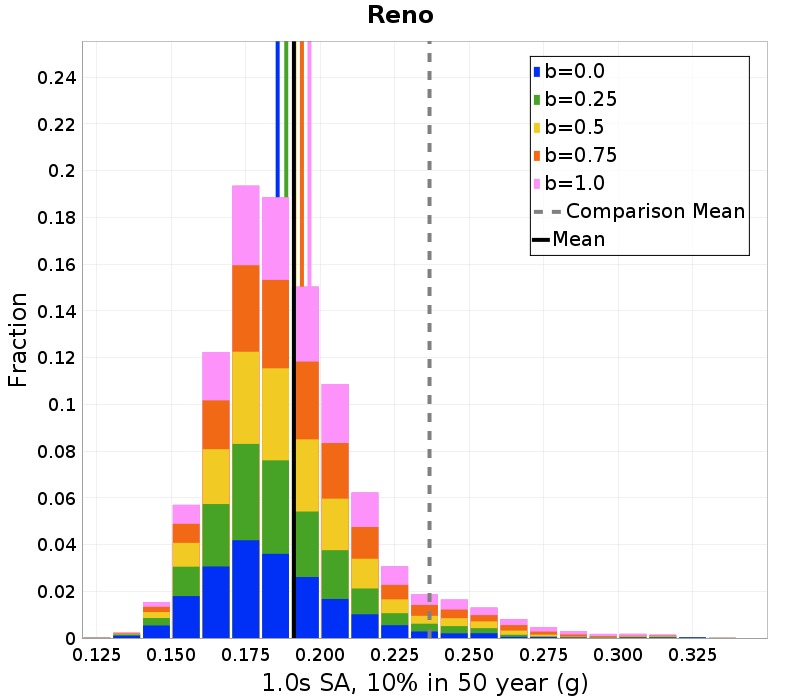

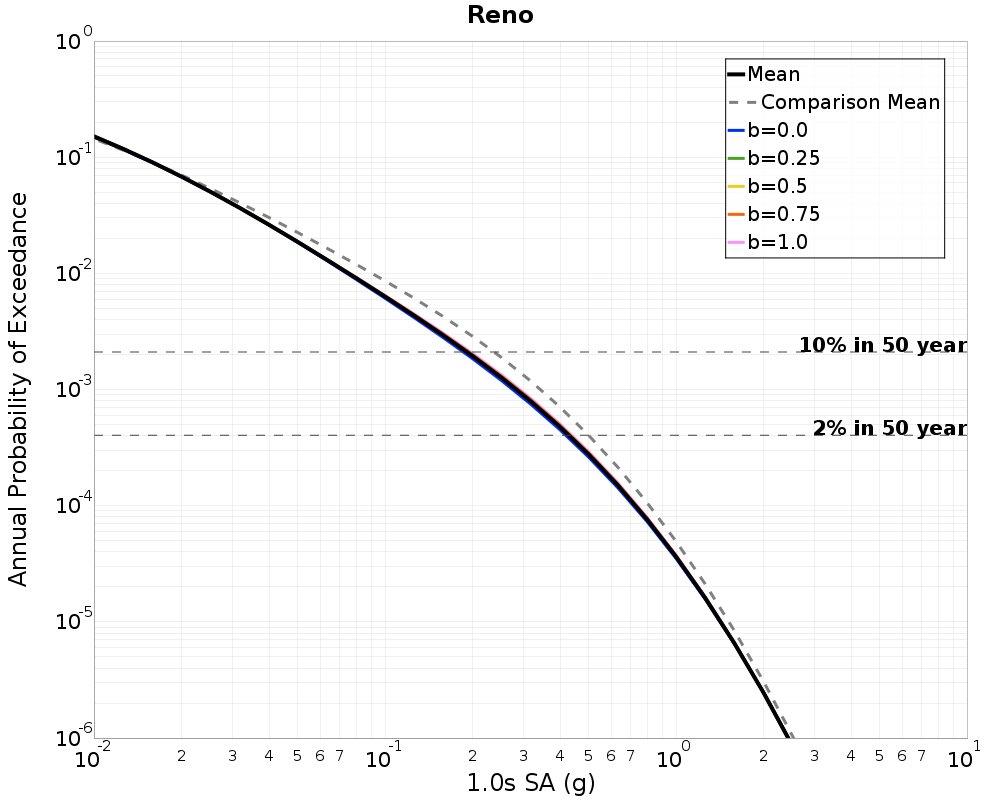

Reno, 1.0s SA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.4278574 (g) | 0.1911543 (g) |
| b=0.0 | 0.4176982 (g) | 0.1856922 (g) |
| b=0.25 | 0.42233738 (g) | 0.18858156 (g) |
| b=0.5 | 0.42802575 (g) | 0.19135855 (g) |
| b=0.75 | 0.433134 (g) | 0.19384366 (g) |
| b=1.0 | 0.4375465 (g) | 0.1963708 (g) |

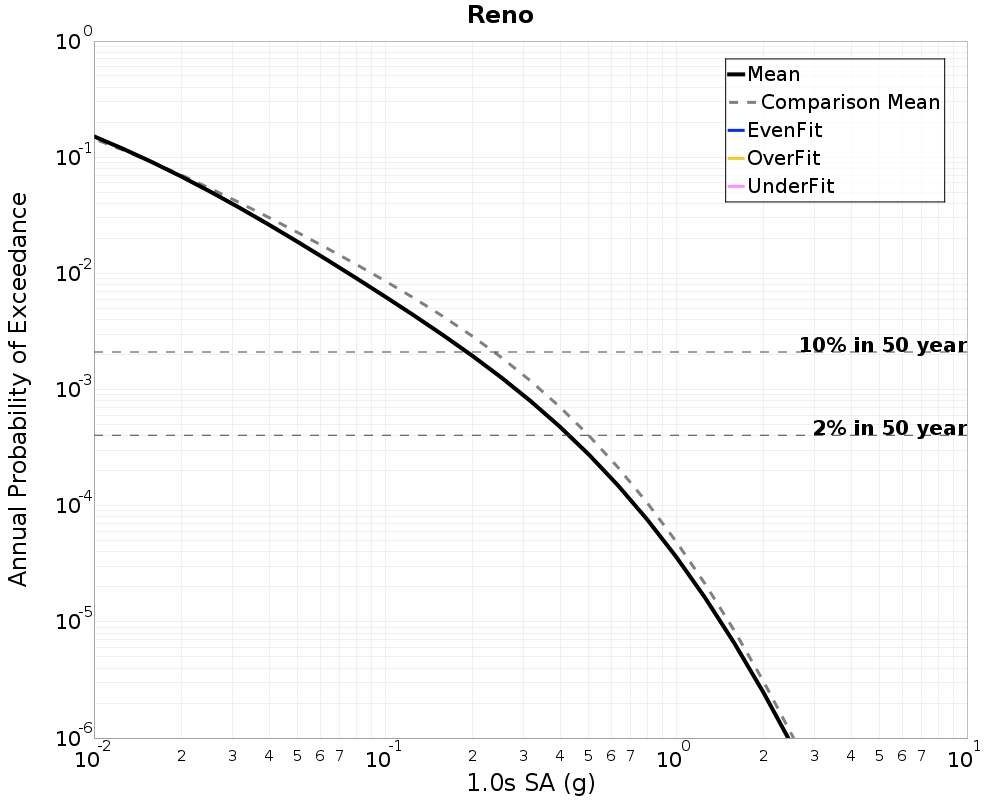

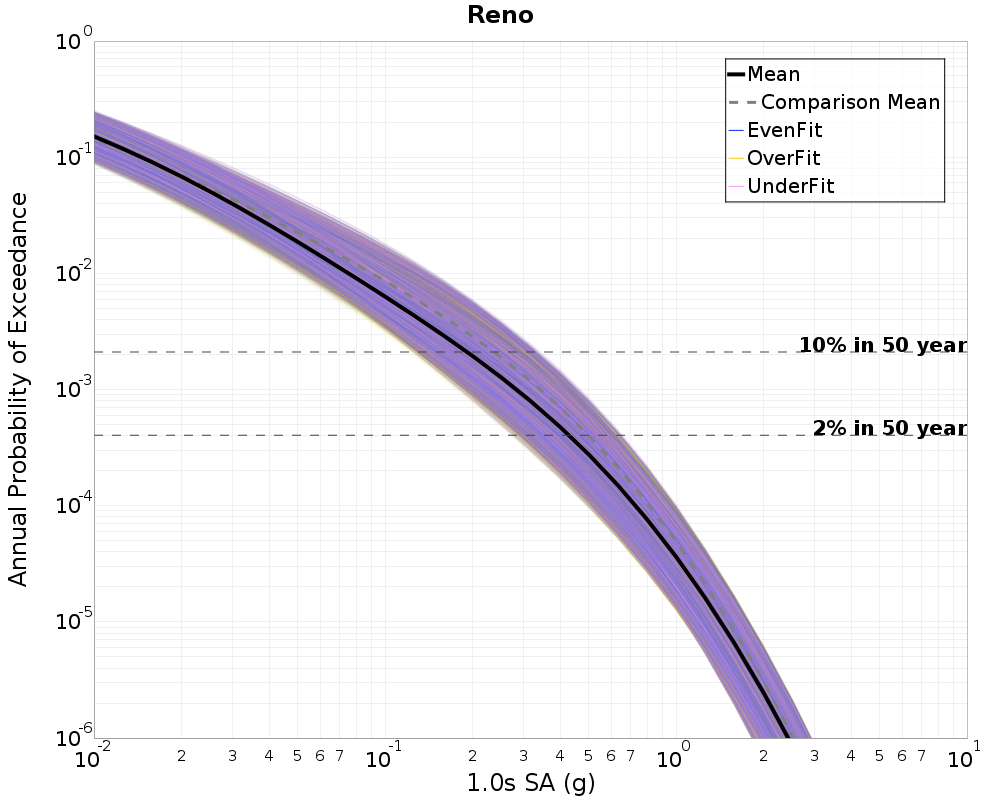

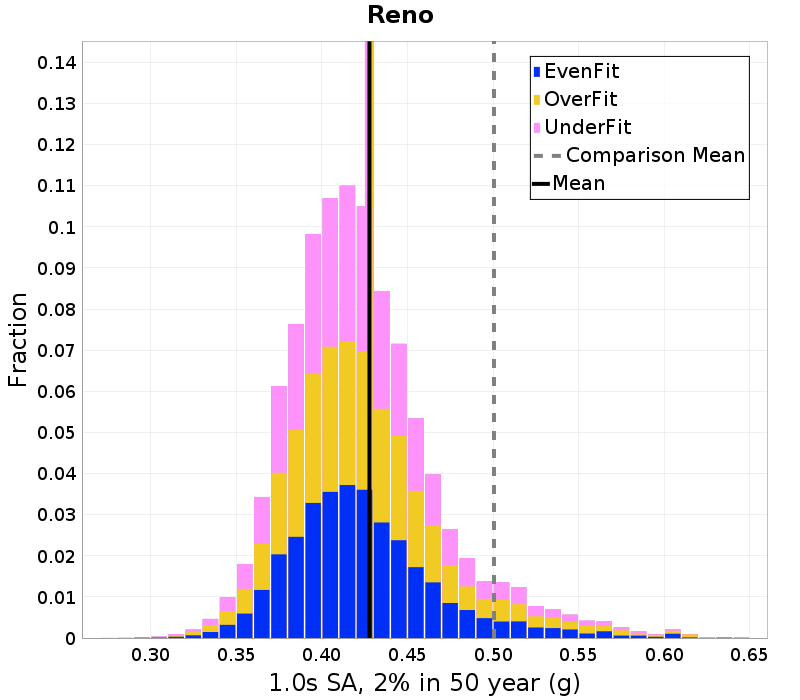

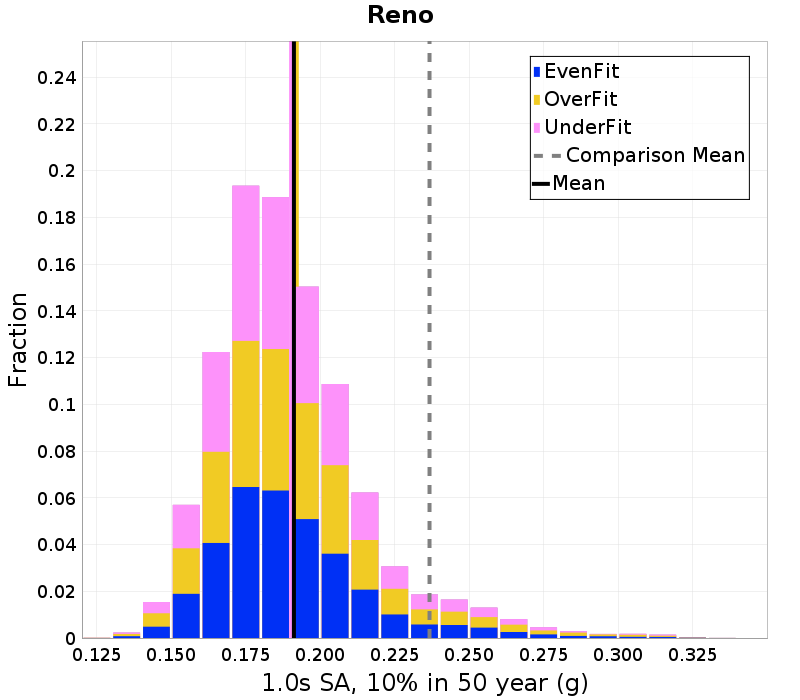

Reno, 1.0s SA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.4278574 (g) | 0.1911543 (g) |
| EvenFit | 0.42786148 (g) | 0.19114724 (g) |
| OverFit | 0.42937577 (g) | 0.19211698 (g) |
| UnderFit | 0.42631963 (g) | 0.19020303 (g) |

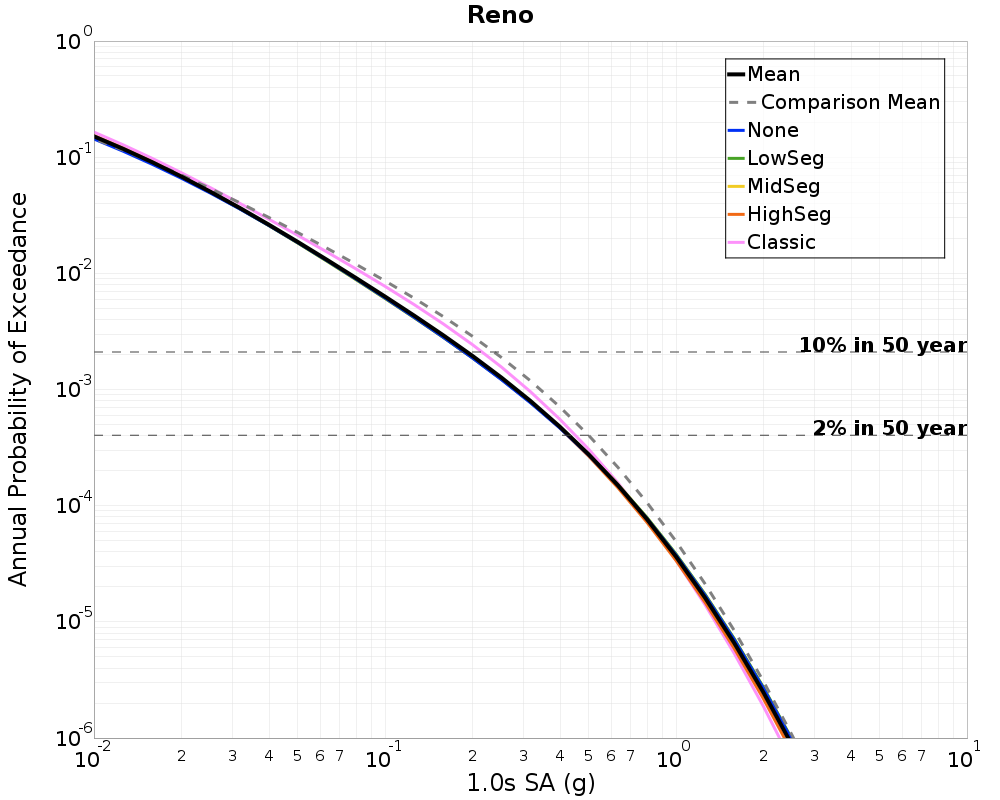

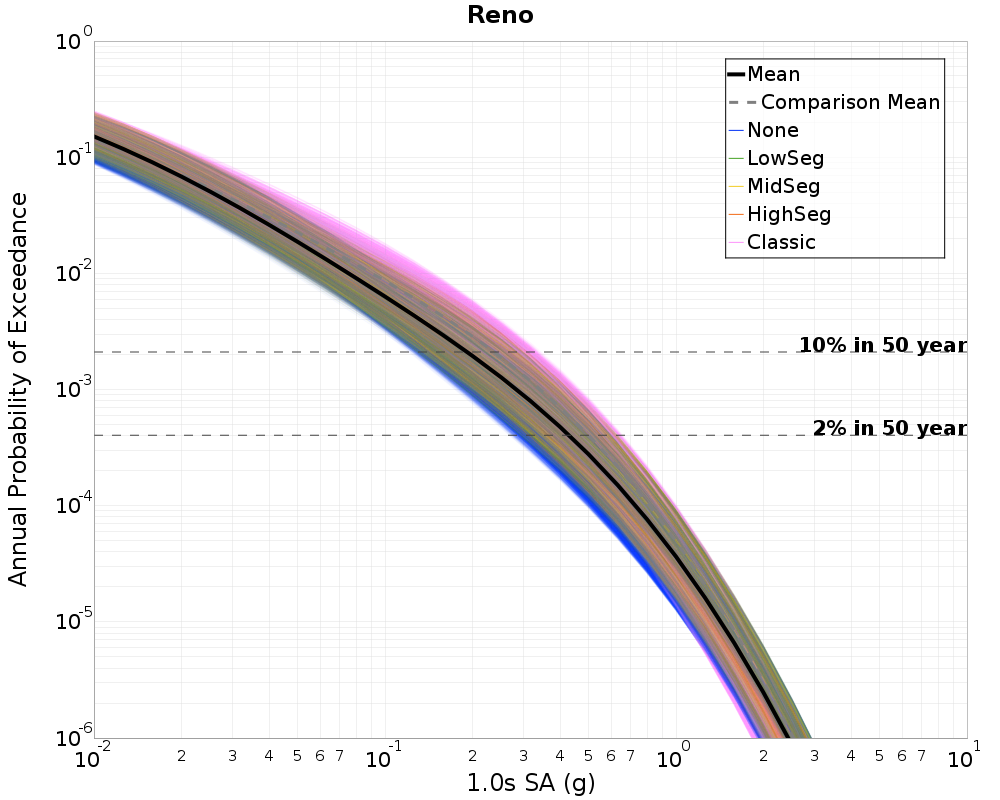

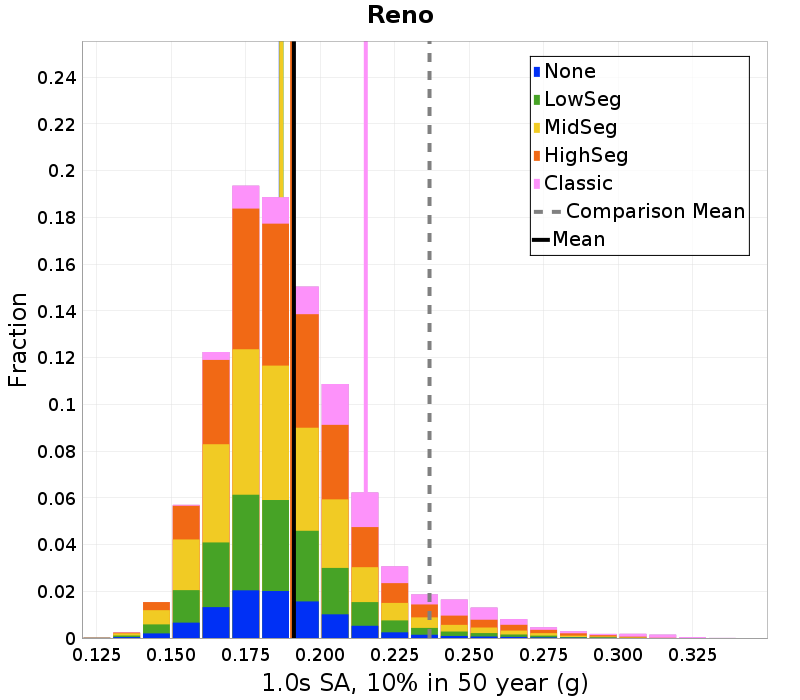

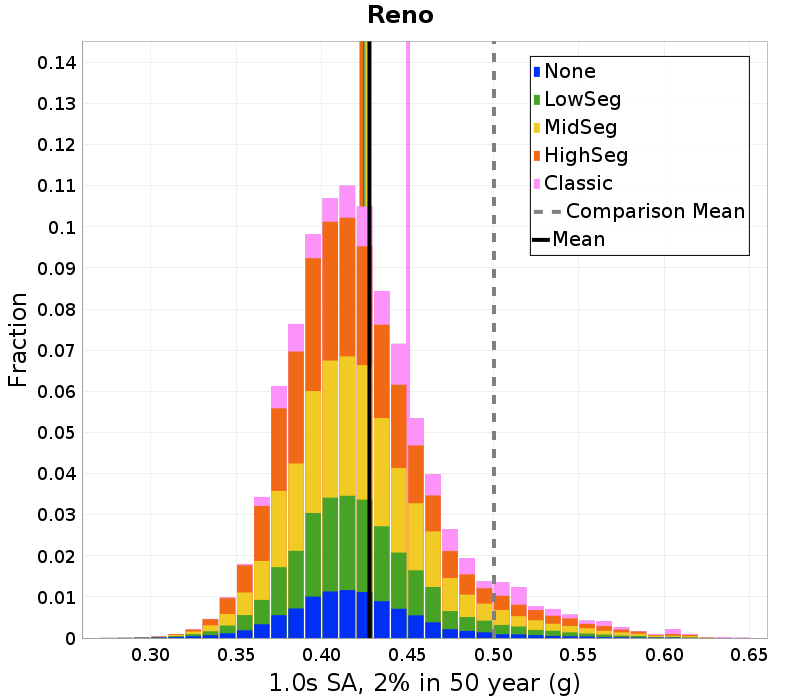

Reno, 1.0s SA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.4278574 (g) | 0.1911543 (g) |
| None | 0.42365935 (g) | 0.18674746 (g) |
| LowSeg | 0.42600492 (g) | 0.18697333 (g) |
| MidSeg | 0.42661834 (g) | 0.18689601 (g) |
| HighSeg | 0.4231733 (g) | 0.19054471 (g) |
| Classic | 0.45040682 (g) | 0.21528895 (g) |

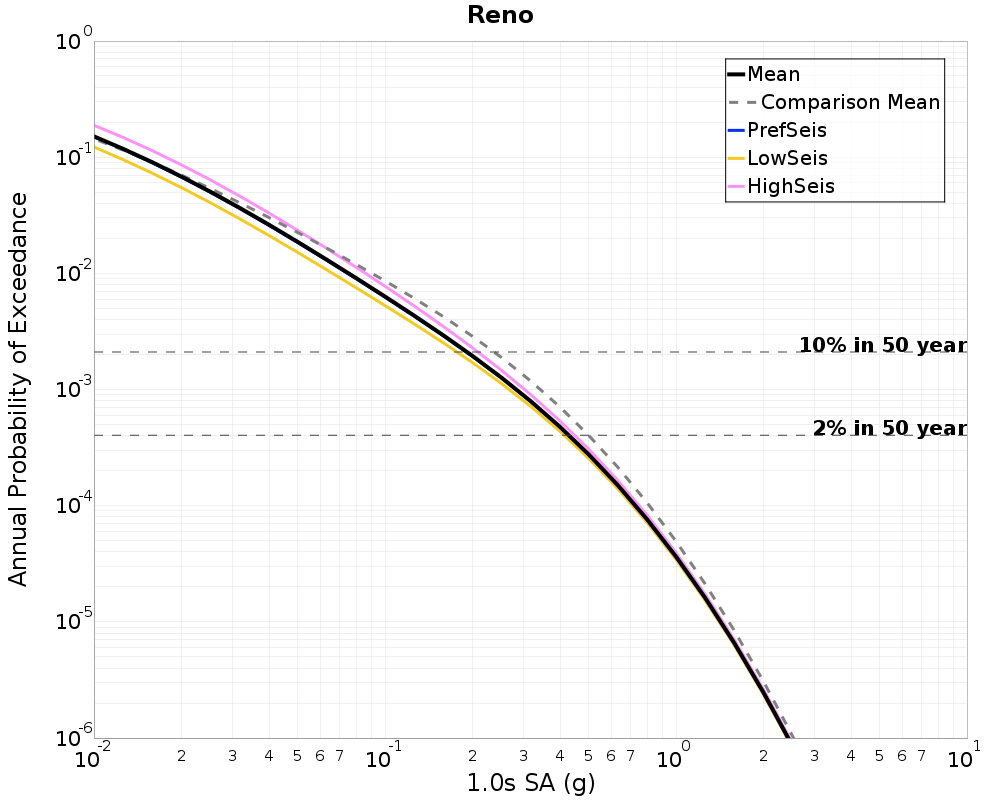

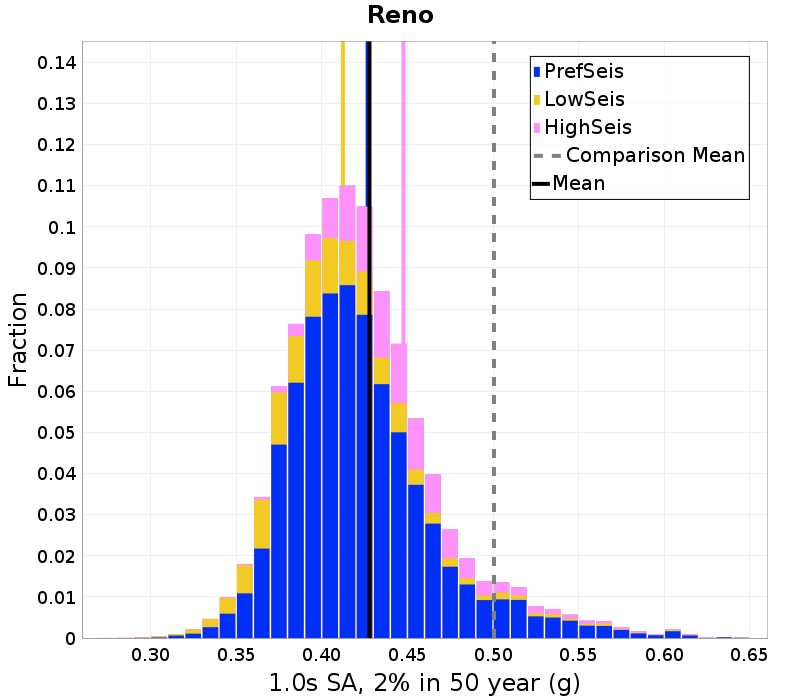

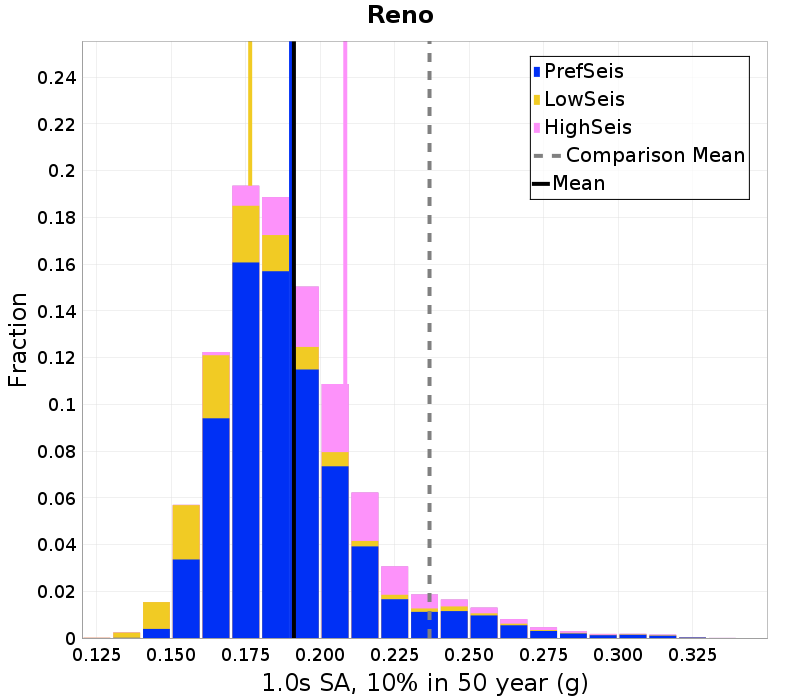

Reno, 1.0s SA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.4278574 (g) | 0.1911543 (g) |
| PrefSeis | 0.42676112 (g) | 0.1901943 (g) |
| LowSeis | 0.41236454 (g) | 0.17646945 (g) |
| HighSeis | 0.44774216 (g) | 0.2083947 (g) |

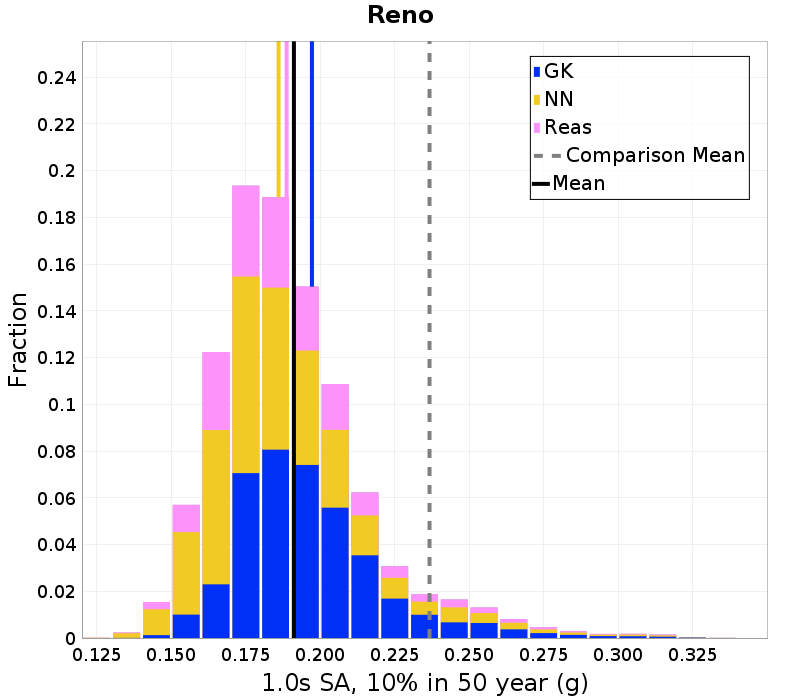

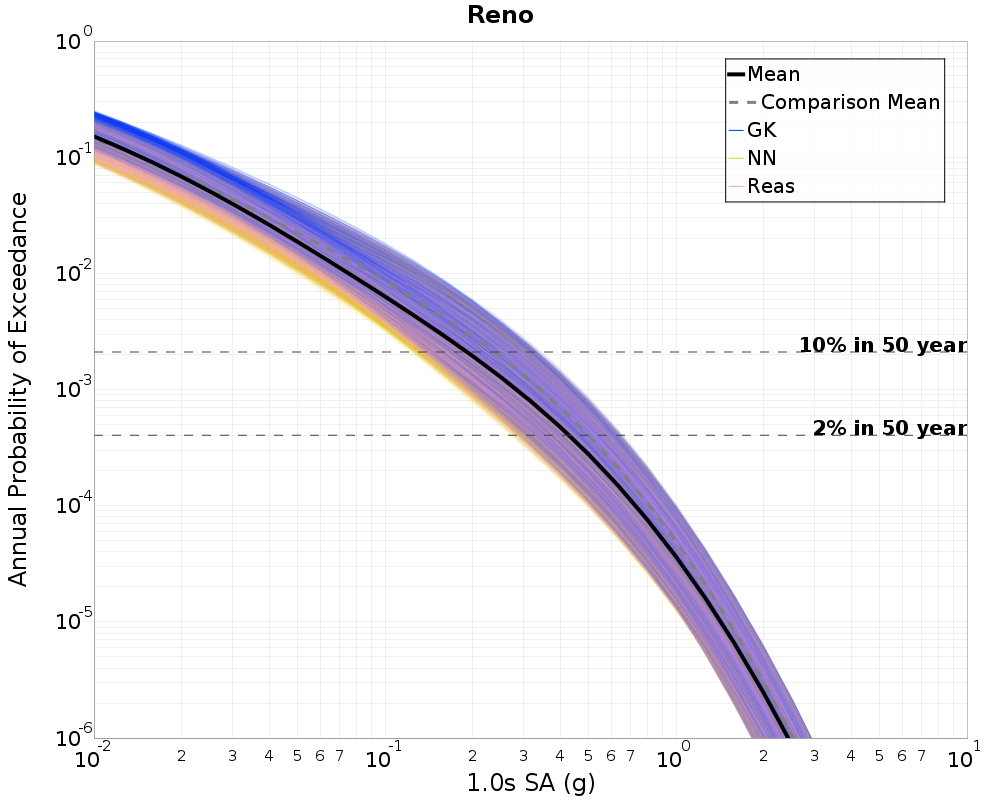

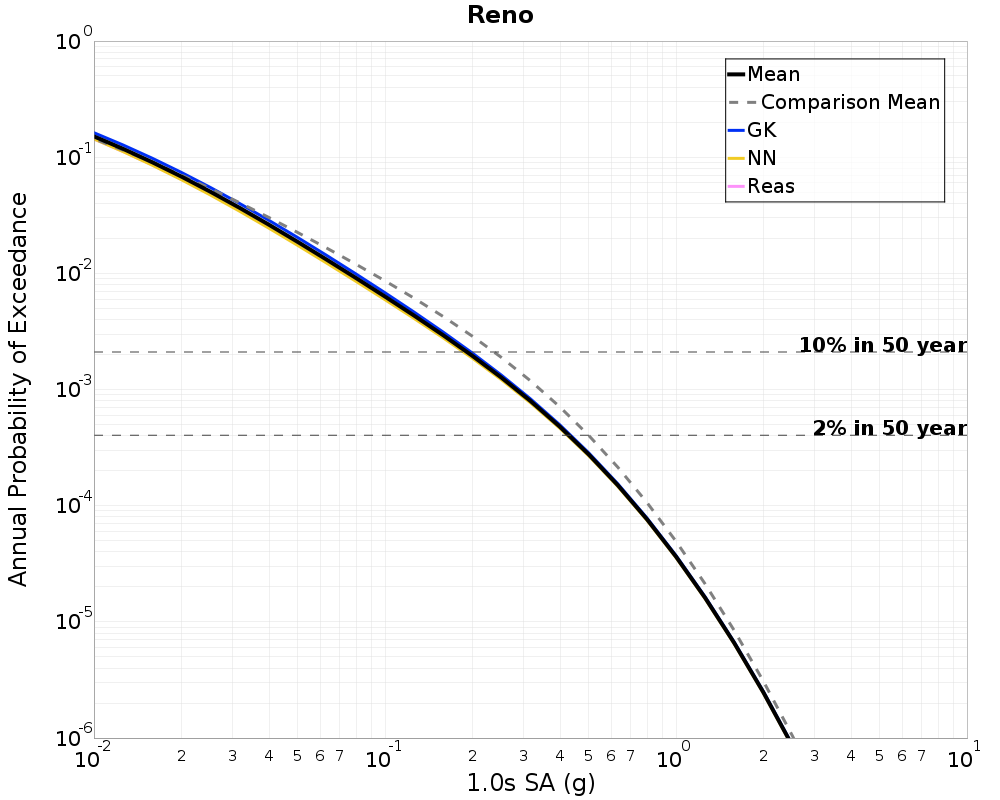

Reno, 1.0s SA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.4278574 (g) | 0.1911543 (g) |
| GK | 0.43404692 (g) | 0.19720909 (g) |
| NN | 0.42245343 (g) | 0.18599728 (g) |
| Reas | 0.4258655 (g) | 0.18871105 (g) |

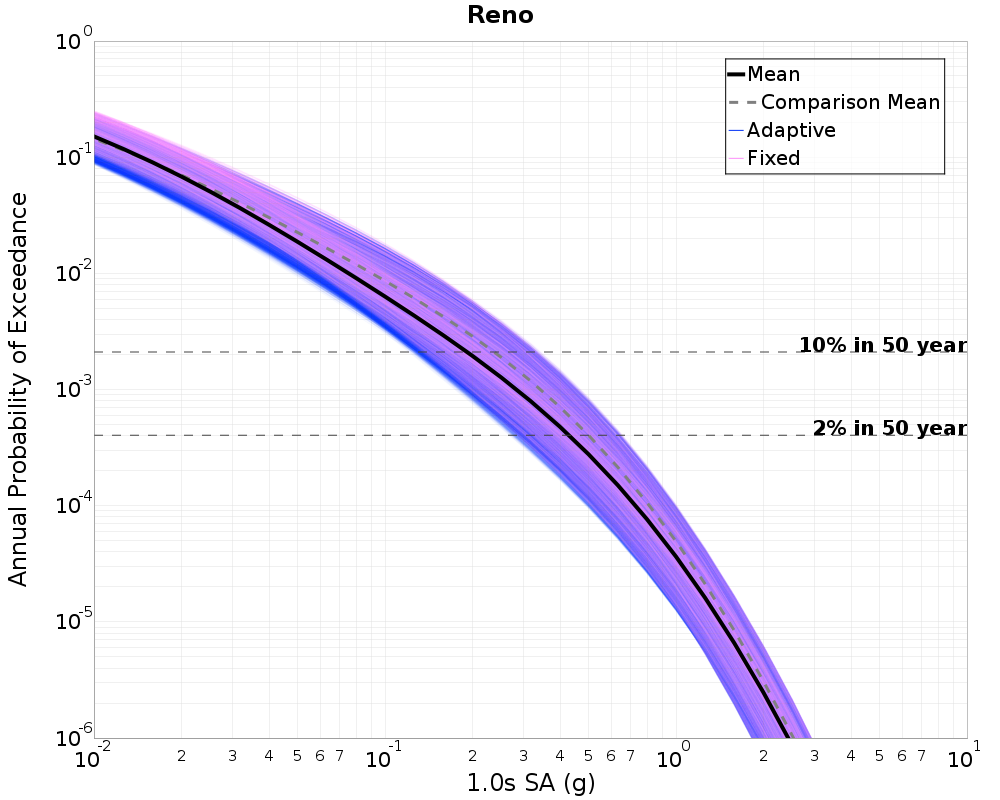

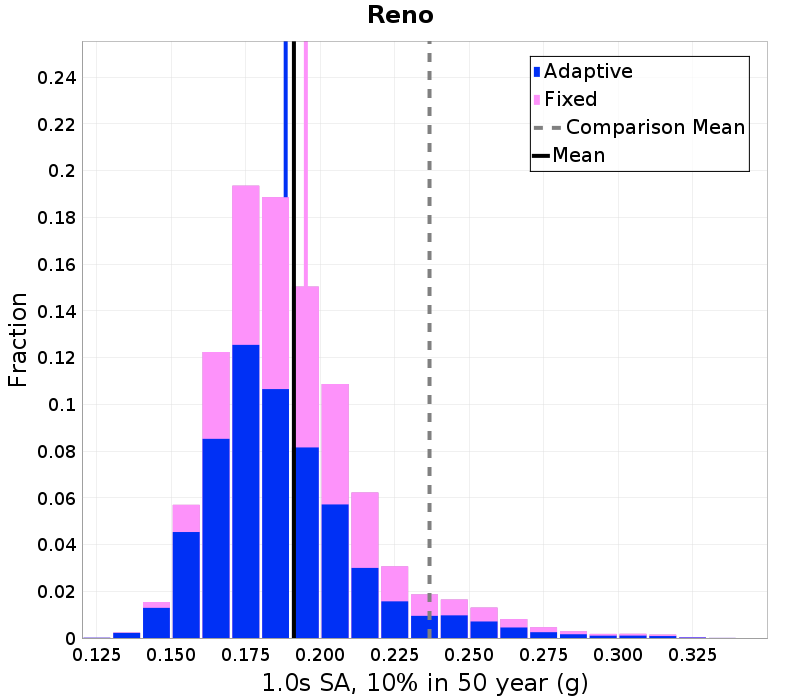

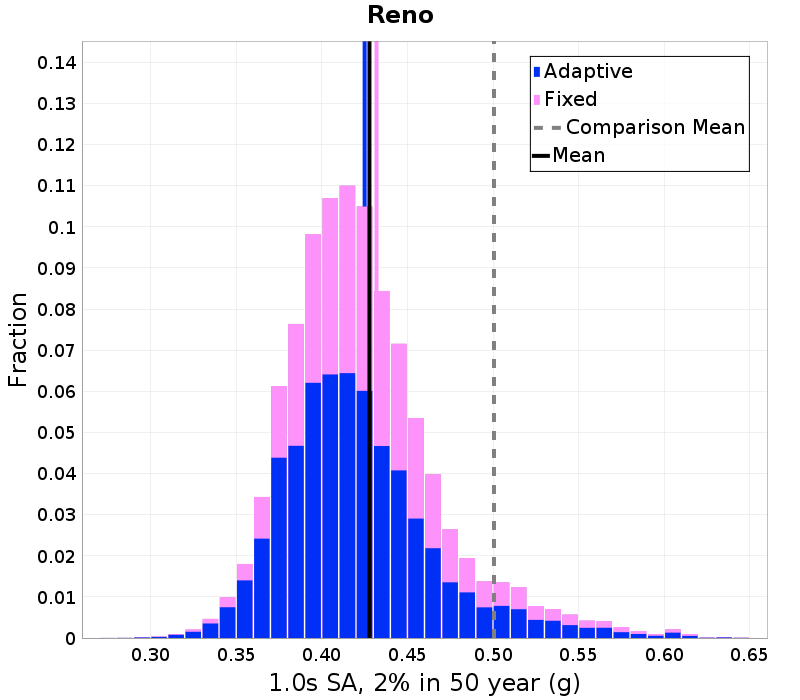

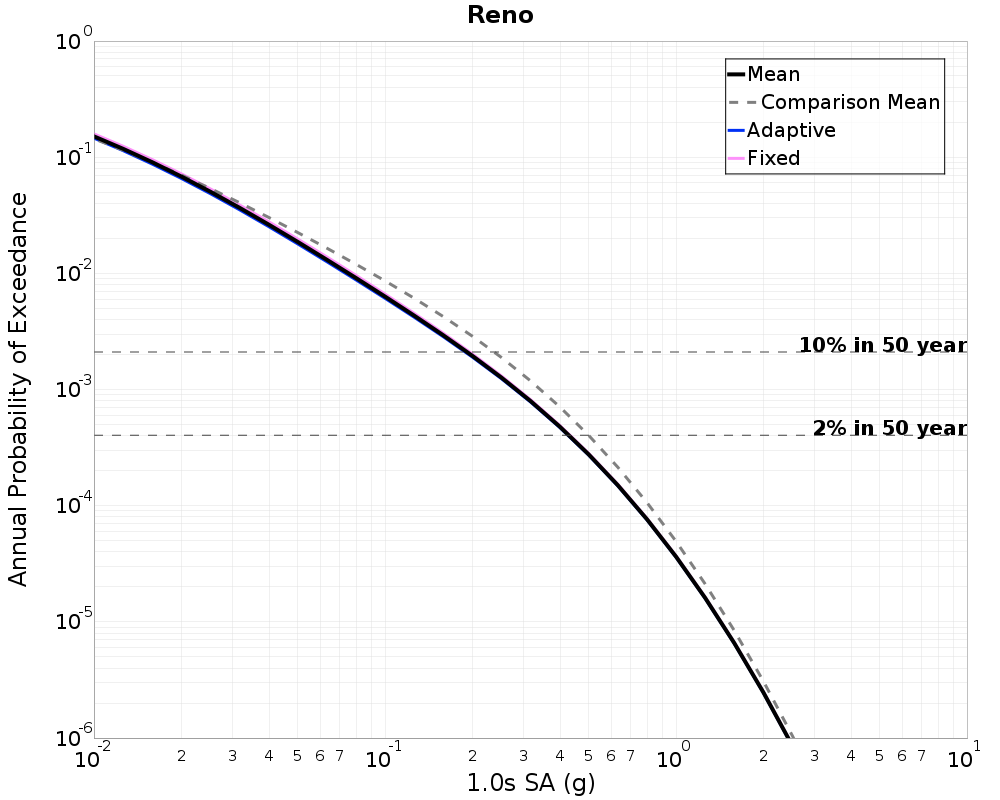

Reno, 1.0s SA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.4278574 (g) | 0.1911543 (g) |
| Adaptive | 0.42504326 (g) | 0.1883887 (g) |
| Fixed | 0.43199295 (g) | 0.19516505 (g) |

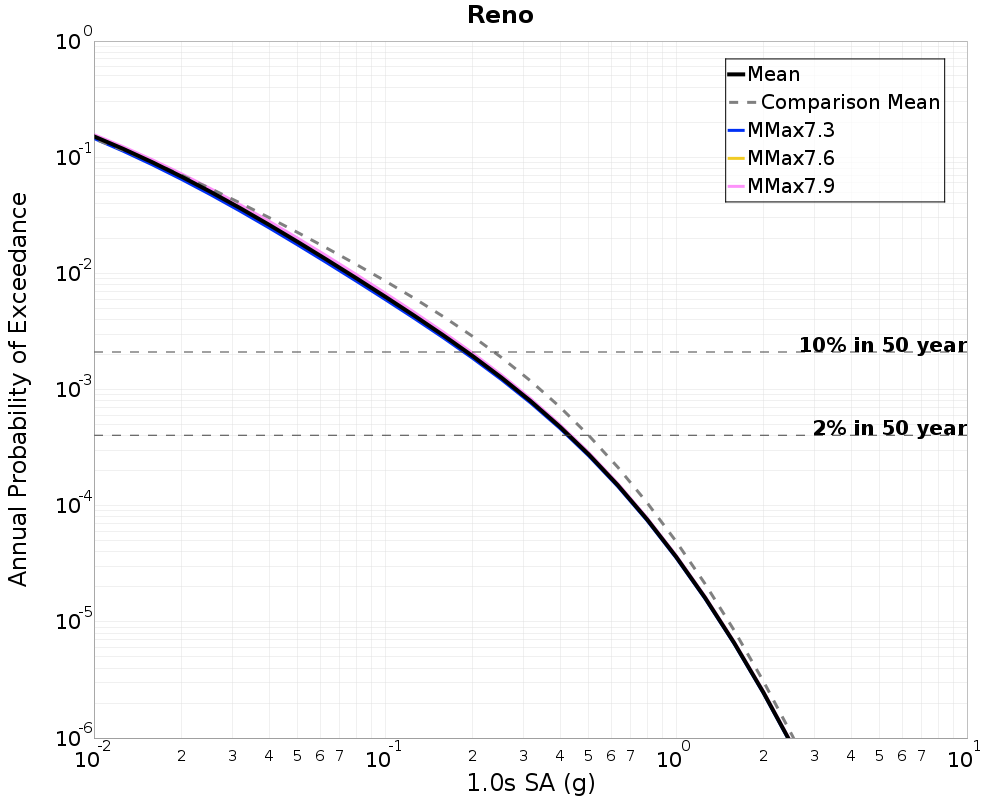

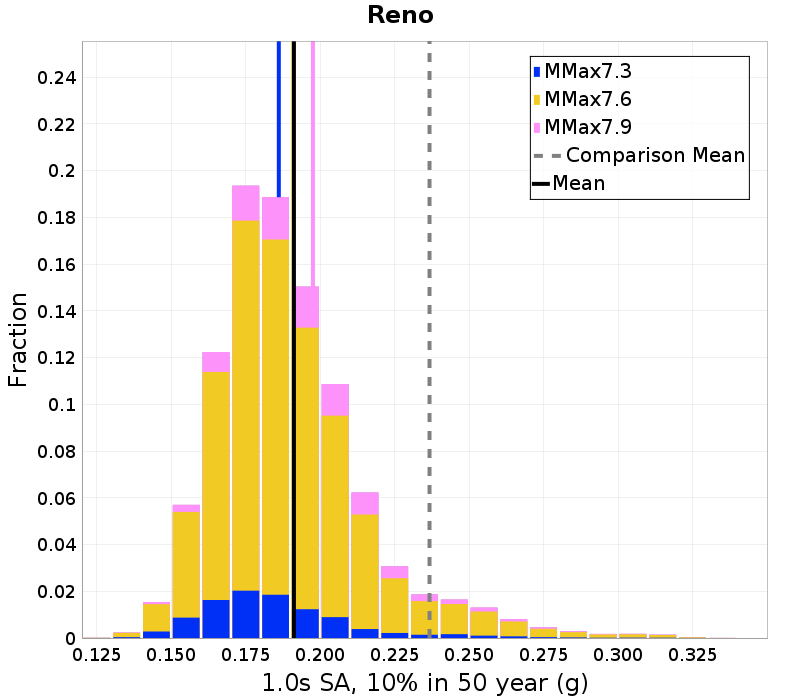

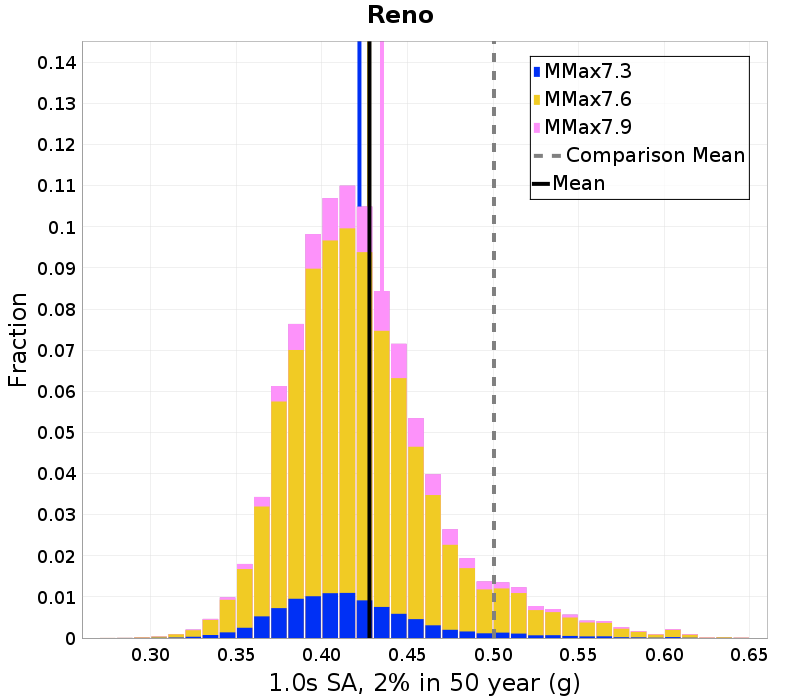

Reno, 1.0s SA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.4278574 (g) | 0.1911543 (g) |
| MMax7.3 | 0.4220094 (g) | 0.18608236 (g) |
| MMax7.6 | 0.42764342 (g) | 0.19095622 (g) |
| MMax7.9 | 0.43517593 (g) | 0.19754295 (g) |
