San Francisco Logic Tree Hazard Curves
Table Of Contents
- San Francisco, PGA
- San Francisco, PGA, Hazard Value Distributions
- San Francisco, PGA, Deformation Model Hazard
- San Francisco, PGA, Scaling Relationship Hazard
- San Francisco, PGA, Supra-Seismogenic b-value Hazard
- San Francisco, PGA, Paleoseismic Data Uncertainties Hazard
- San Francisco, PGA, Segmentation Model Hazard
- San Francisco, PGA, Regional Seismicity Rate Hazard
- San Francisco, PGA, Seismicity Declustering Algorithm Hazard
- San Francisco, PGA, Seismicity Smoothing Kernel Hazard
- San Francisco, PGA, Off Fault Mmax Hazard
- San Francisco, 1.0s SA
- San Francisco, 1.0s SA, Hazard Value Distributions
- San Francisco, 1.0s SA, Deformation Model Hazard
- San Francisco, 1.0s SA, Scaling Relationship Hazard
- San Francisco, 1.0s SA, Supra-Seismogenic b-value Hazard
- San Francisco, 1.0s SA, Paleoseismic Data Uncertainties Hazard
- San Francisco, 1.0s SA, Segmentation Model Hazard
- San Francisco, 1.0s SA, Regional Seismicity Rate Hazard
- San Francisco, 1.0s SA, Seismicity Declustering Algorithm Hazard
- San Francisco, 1.0s SA, Seismicity Smoothing Kernel Hazard
- San Francisco, 1.0s SA, Off Fault Mmax Hazard
San Francisco, PGA
| Primary | Comparison |
|---|---|
 |  |
San Francisco, PGA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
Comparison Distribution, 2% in 50 year | Comparison Distribution, 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Primary | 0.8233219 (g) | 0.4789313 (g) |
| Comparison | 0.776862 (g) | 0.4525596 (g) |

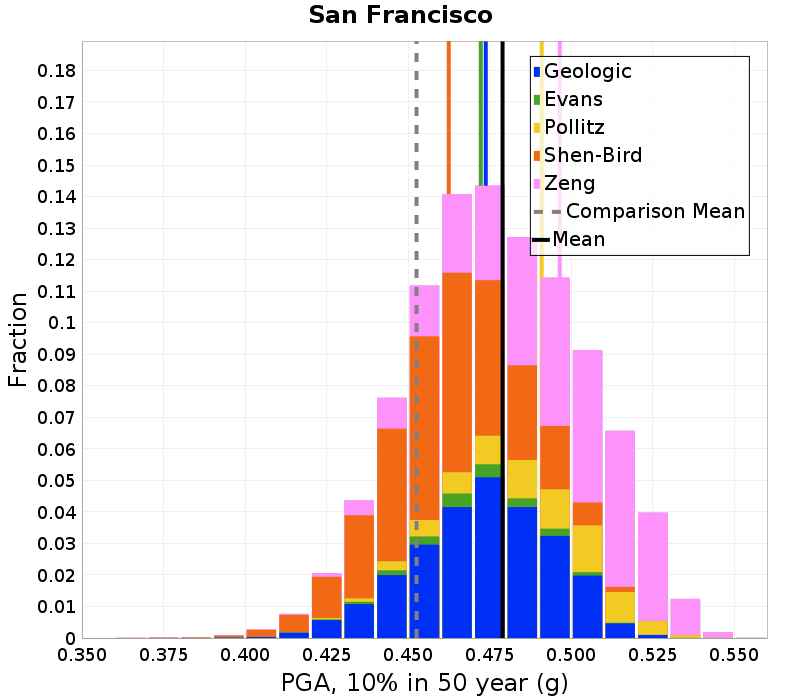

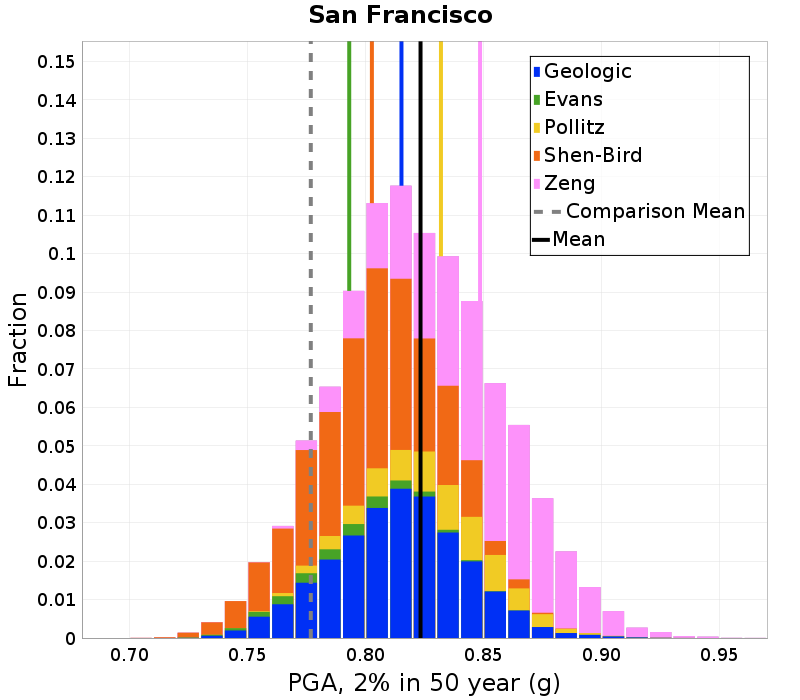

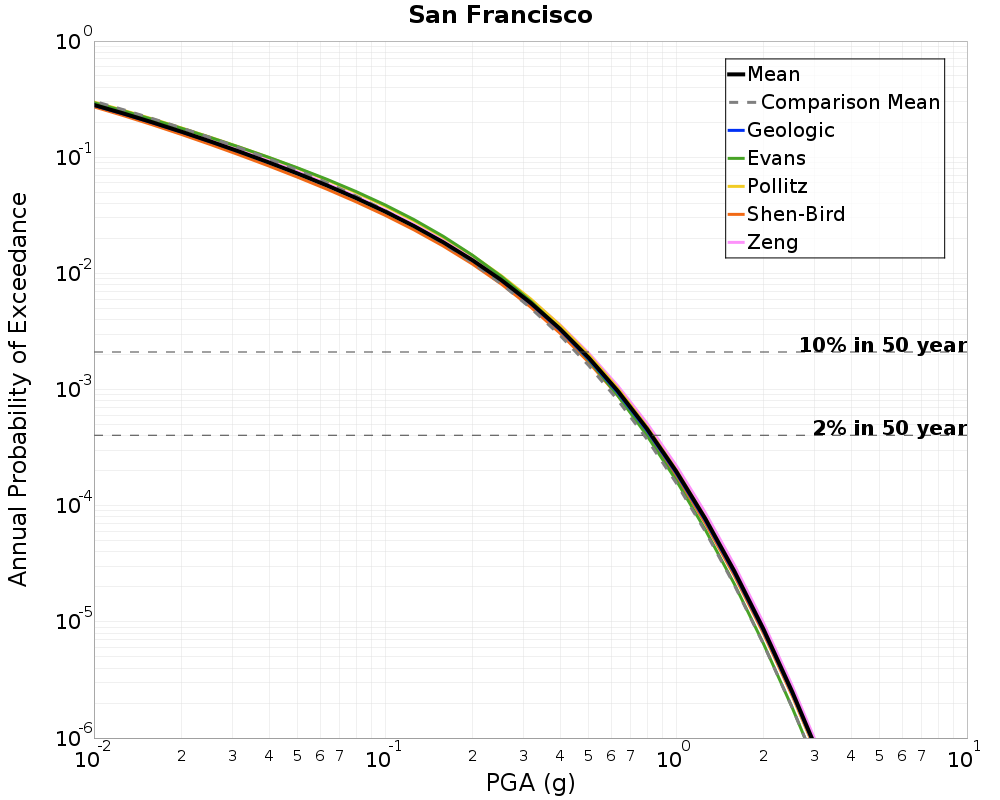

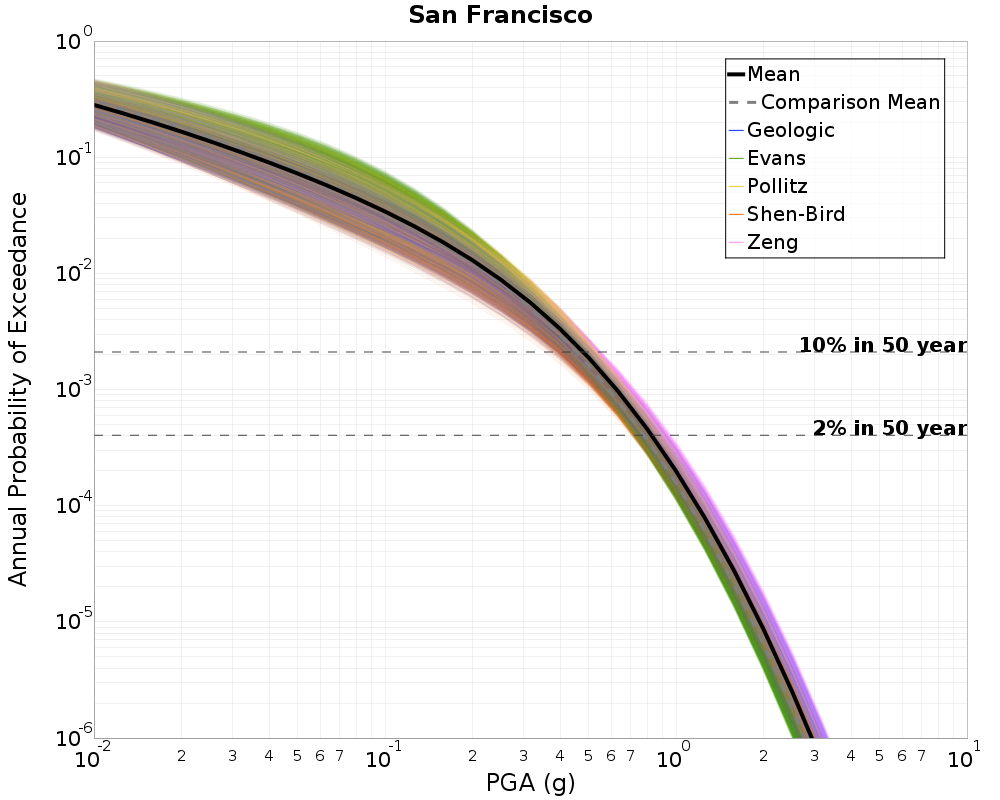

San Francisco, PGA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8233219 (g) | 0.4789313 (g) |
| Geologic | 0.815248 (g) | 0.47377902 (g) |
| Evans | 0.7931348 (g) | 0.47225285 (g) |
| Pollitz | 0.8319693 (g) | 0.49093732 (g) |
| Shen-Bird | 0.80272776 (g) | 0.46243256 (g) |
| Zeng | 0.8485231 (g) | 0.4964688 (g) |

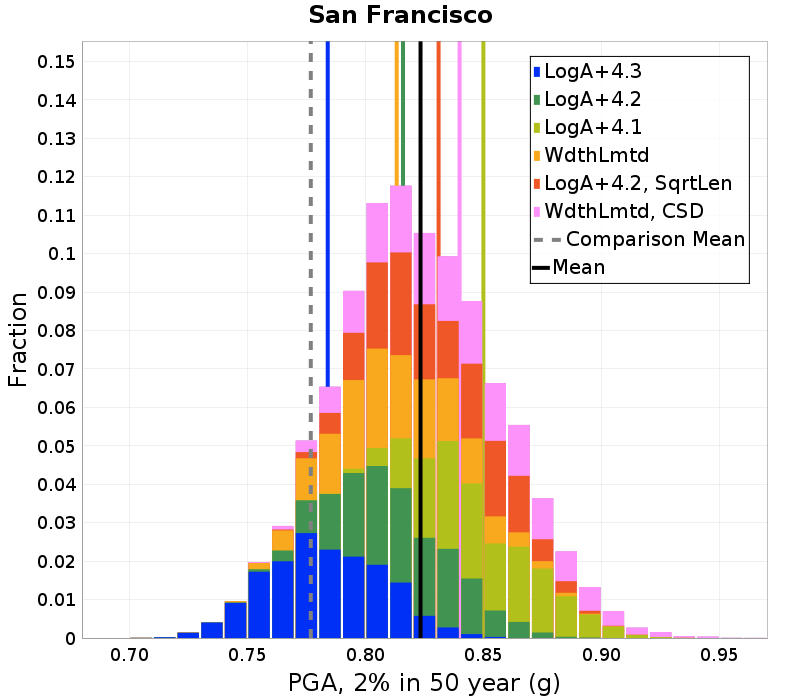

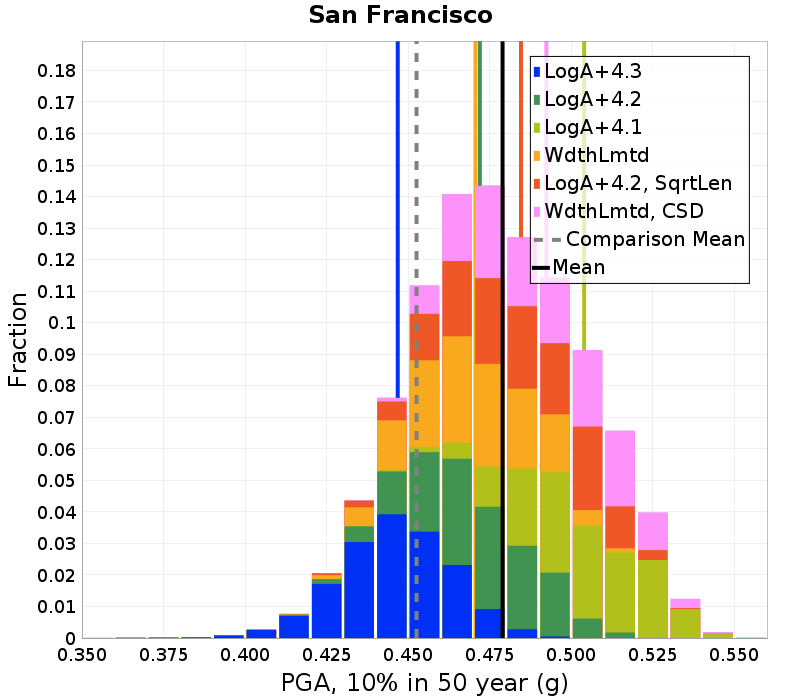

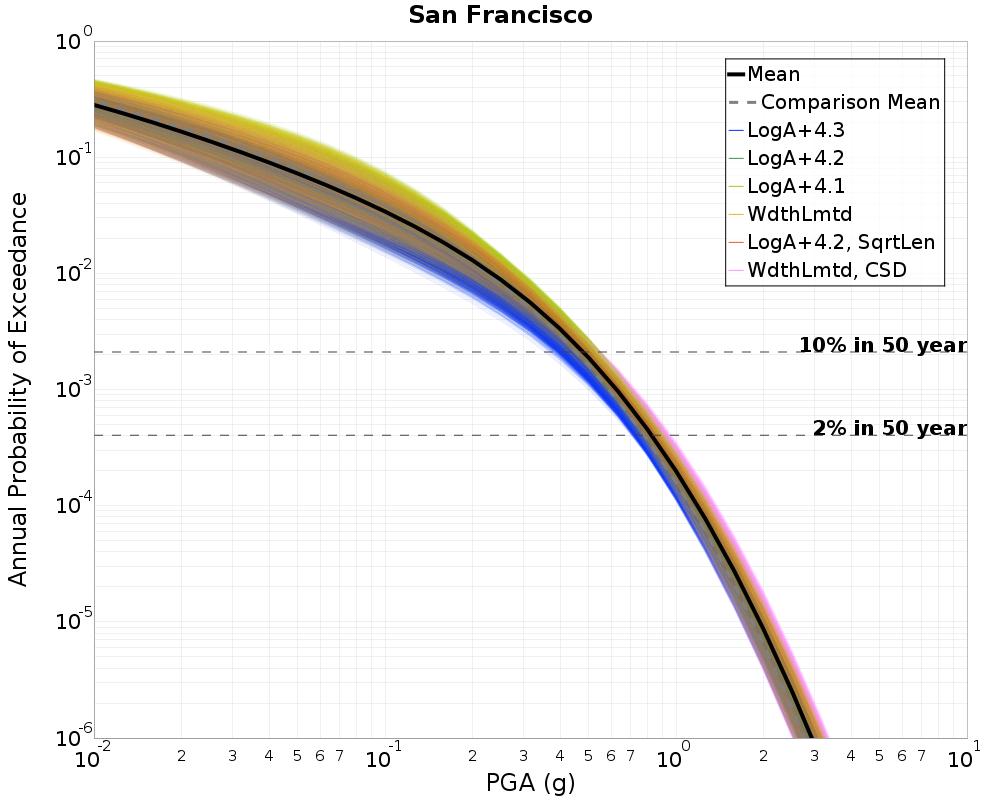

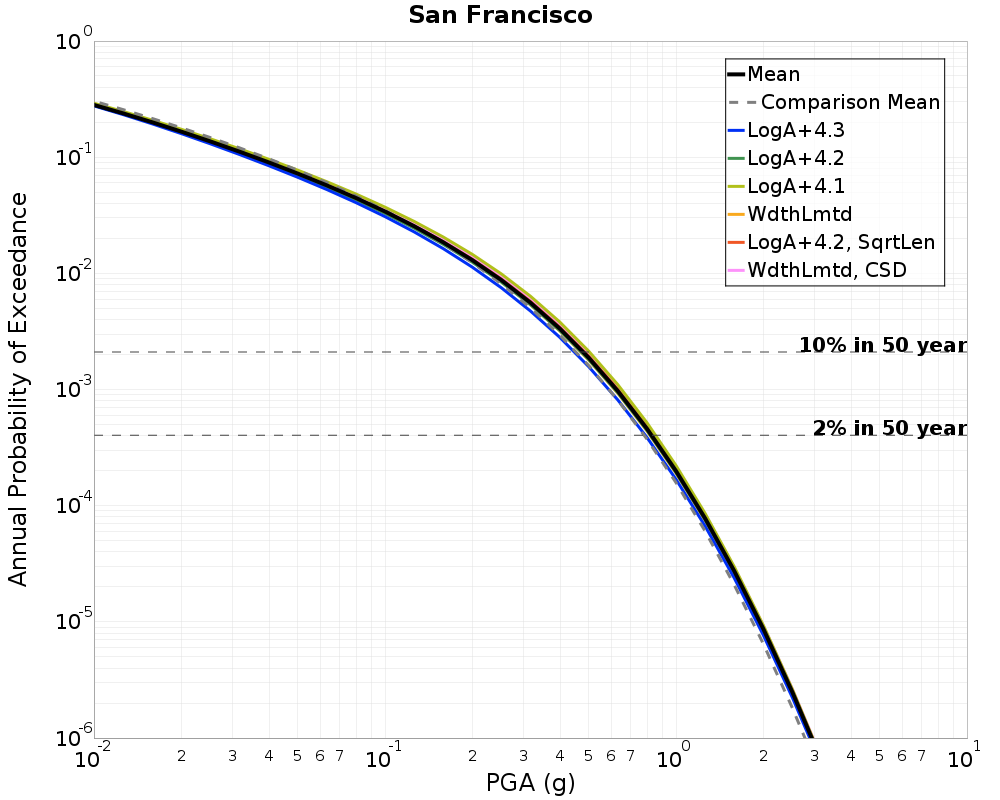

San Francisco, PGA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8233219 (g) | 0.4789313 (g) |
| LogA+4.3 | 0.7840357 (g) | 0.4467944 (g) |
| LogA+4.2 | 0.8159056 (g) | 0.47197267 (g) |
| LogA+4.1 | 0.8499286 (g) | 0.5039488 (g) |
| WdthLmtd | 0.8132354 (g) | 0.4706189 (g) |
| LogA+4.2, SqrtLen | 0.83096665 (g) | 0.48458248 (g) |
| WdthLmtd, CSD | 0.839851 (g) | 0.4923582 (g) |

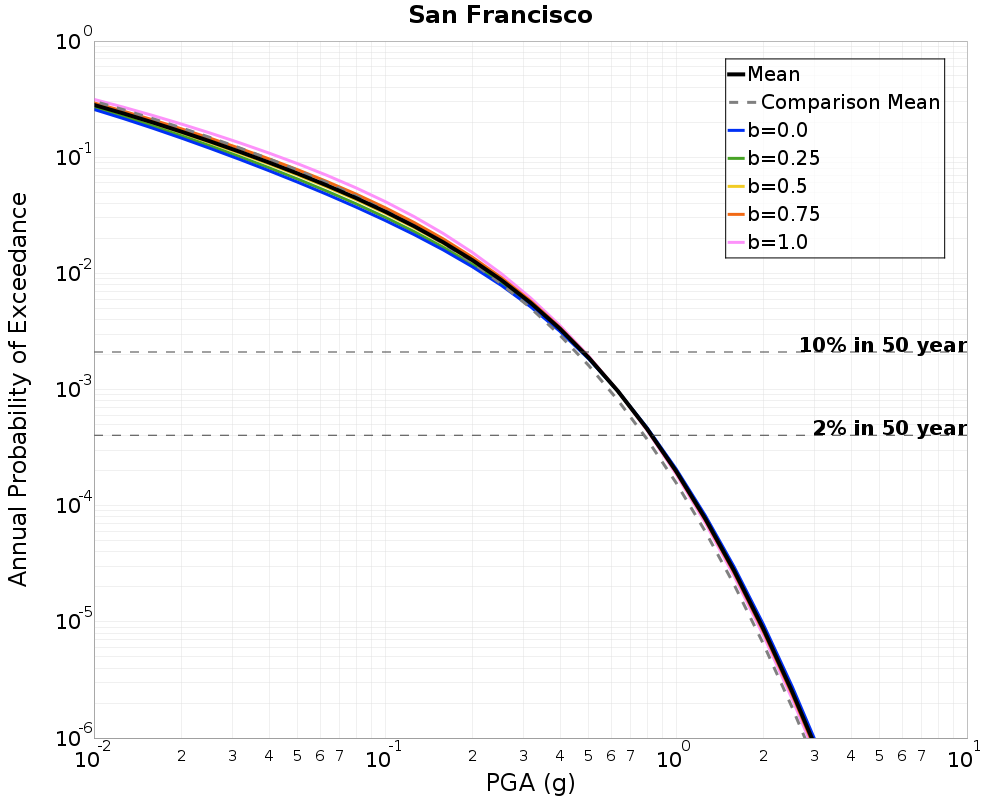

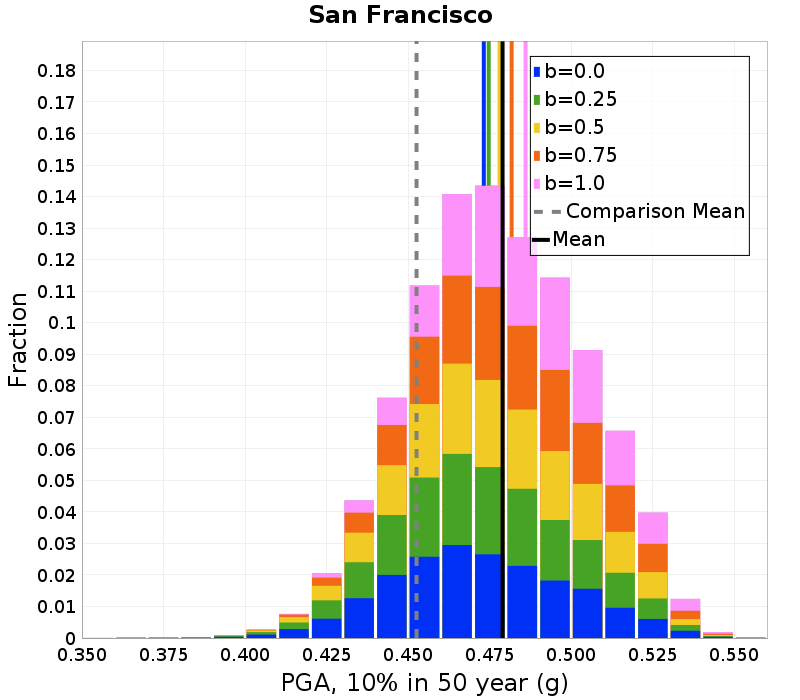

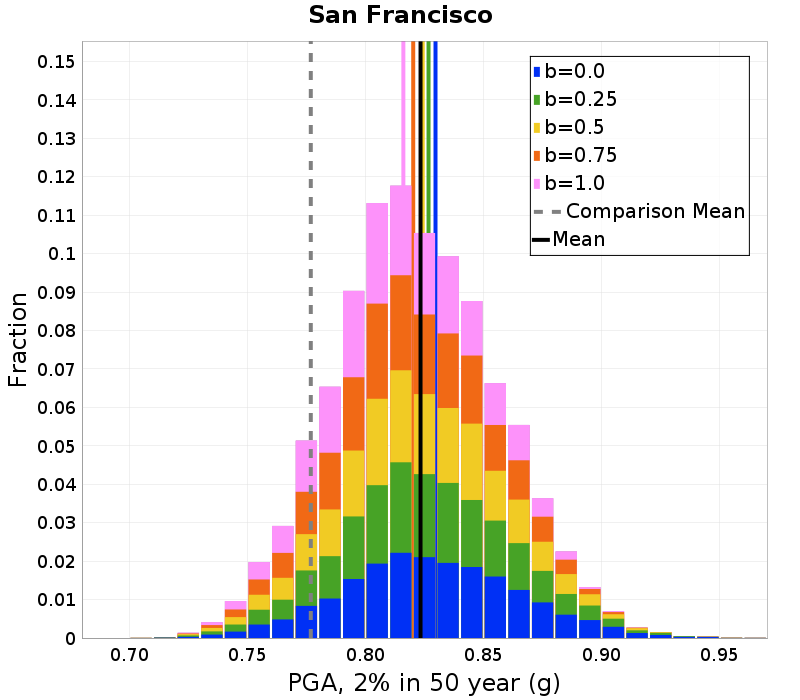

San Francisco, PGA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8233219 (g) | 0.4789313 (g) |
| b=0.0 | 0.8296604 (g) | 0.47318226 (g) |
| b=0.25 | 0.826708 (g) | 0.47468787 (g) |
| b=0.5 | 0.82424974 (g) | 0.4780069 (g) |
| b=0.75 | 0.8202244 (g) | 0.48171642 (g) |
| b=1.0 | 0.8160493 (g) | 0.4859929 (g) |

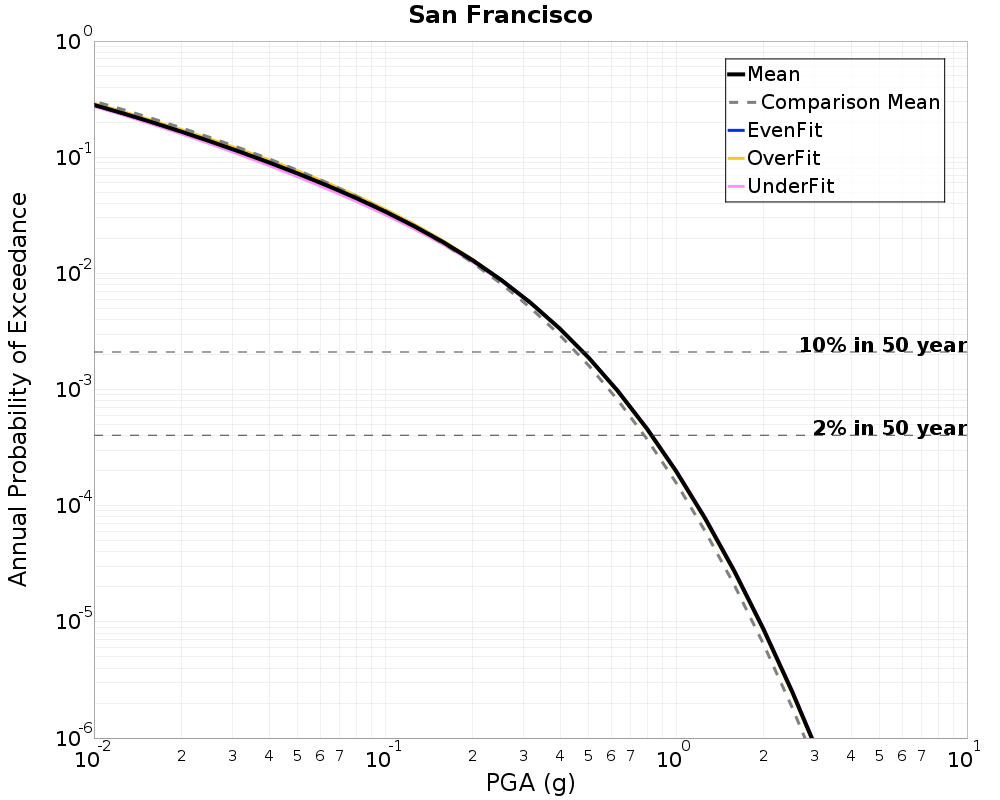

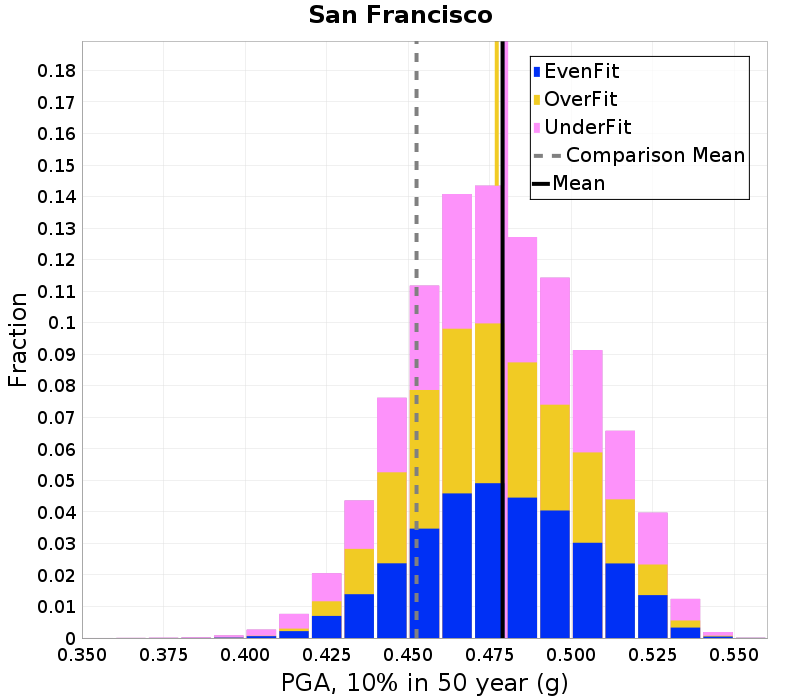

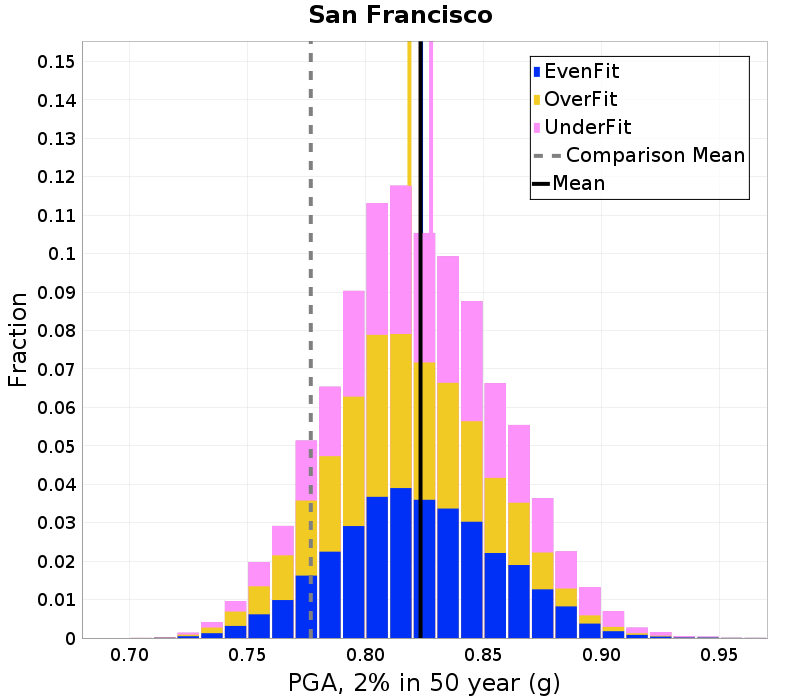

San Francisco, PGA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8233219 (g) | 0.4789313 (g) |
| EvenFit | 0.82353866 (g) | 0.47963193 (g) |
| OverFit | 0.8186158 (g) | 0.47715163 (g) |
| UnderFit | 0.8277858 (g) | 0.48003358 (g) |

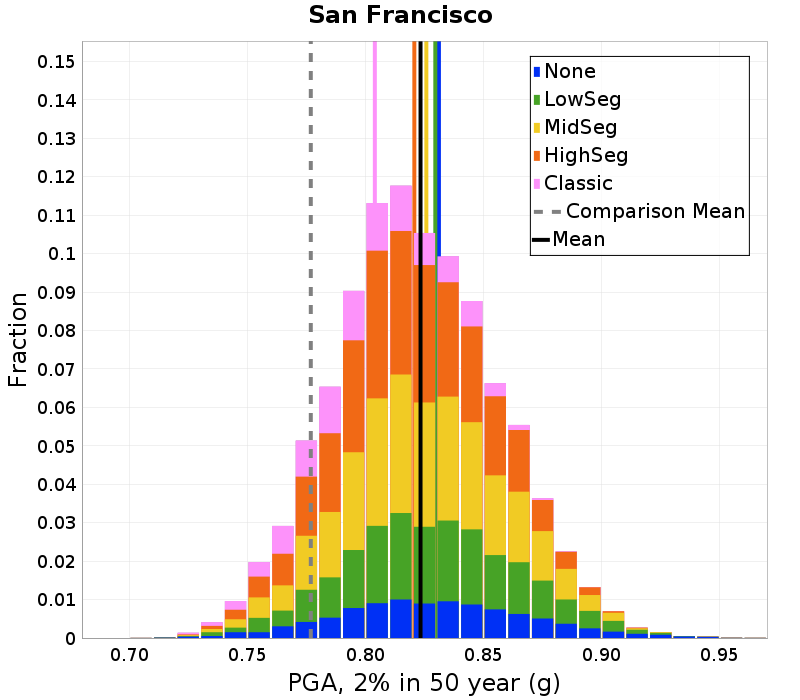

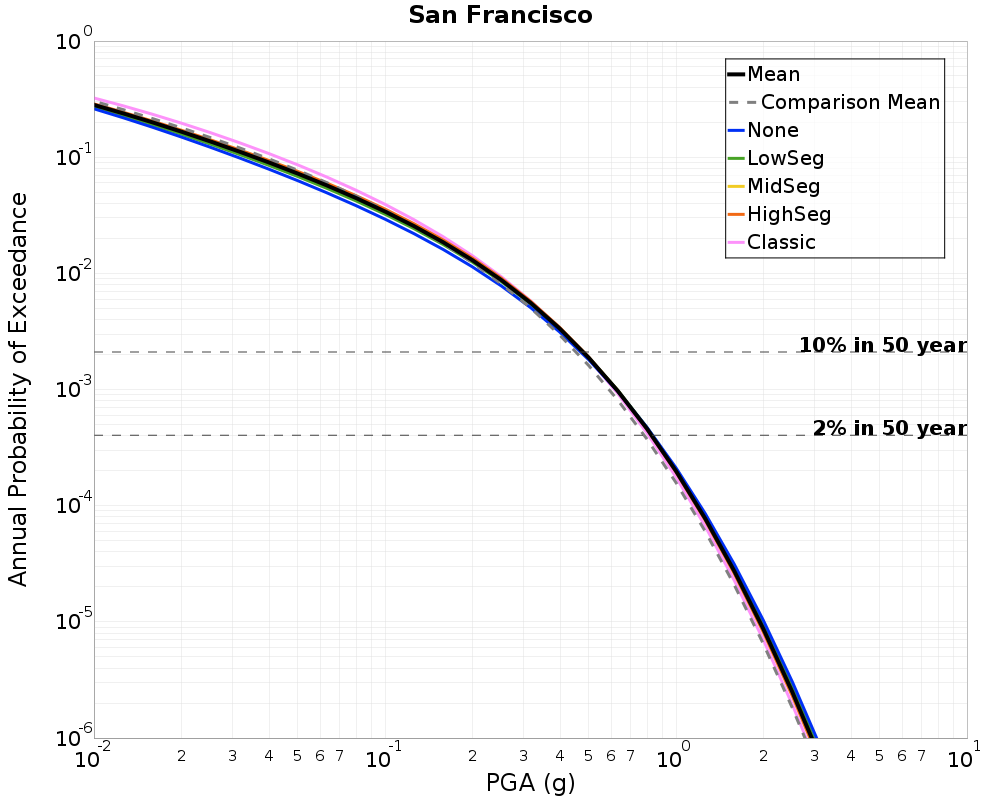

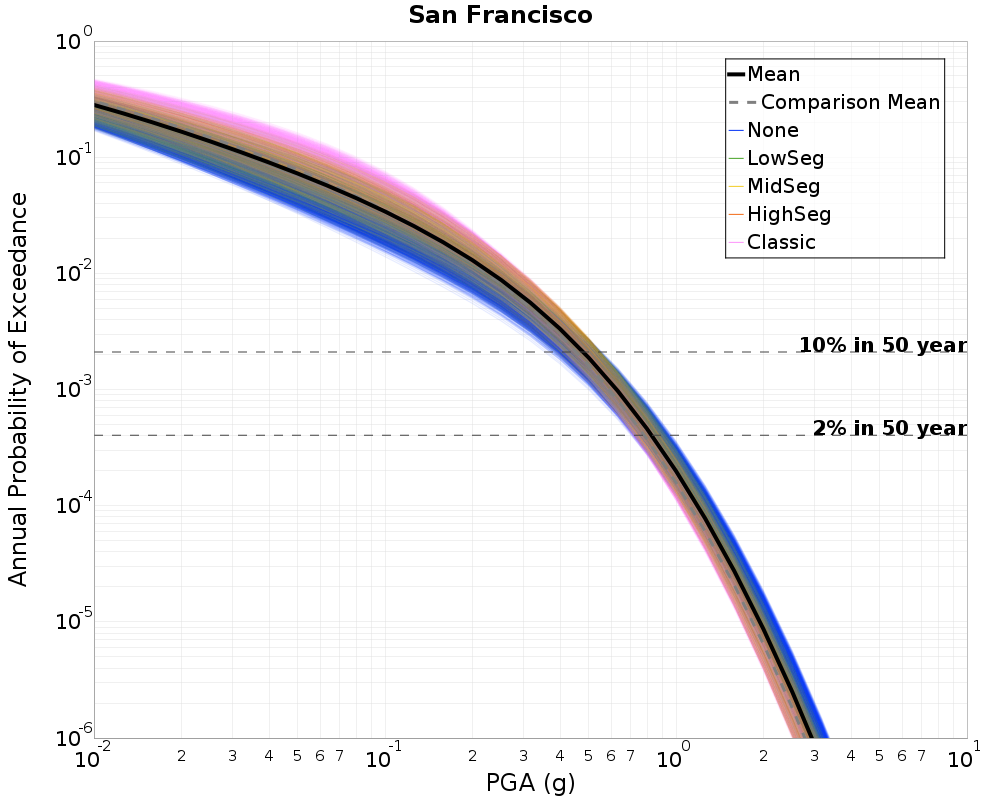

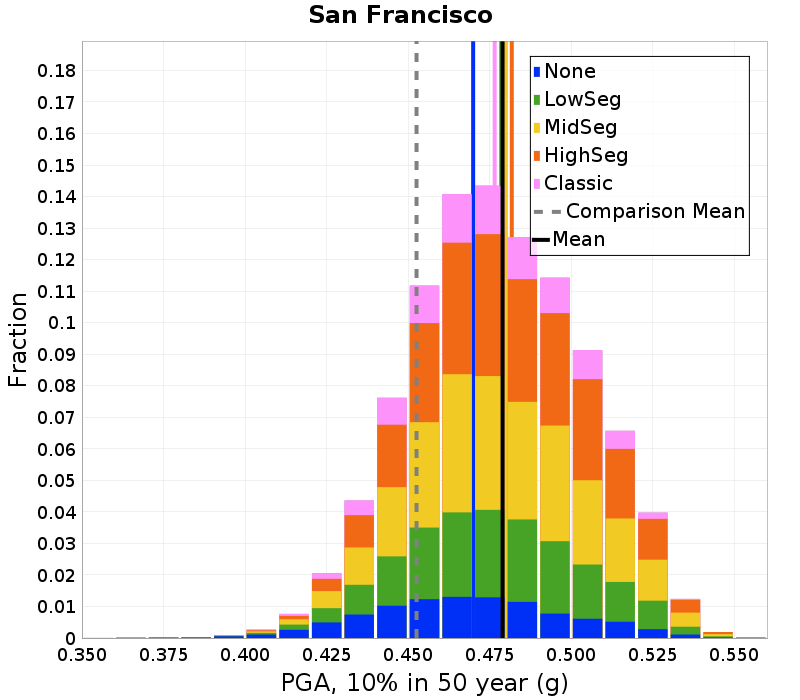

San Francisco, PGA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8233219 (g) | 0.4789313 (g) |
| None | 0.831102 (g) | 0.46991634 (g) |
| LowSeg | 0.82957906 (g) | 0.47851968 (g) |
| MidSeg | 0.8257843 (g) | 0.4799632 (g) |
| HighSeg | 0.8206976 (g) | 0.4817596 (g) |
| Classic | 0.80397785 (g) | 0.47651538 (g) |

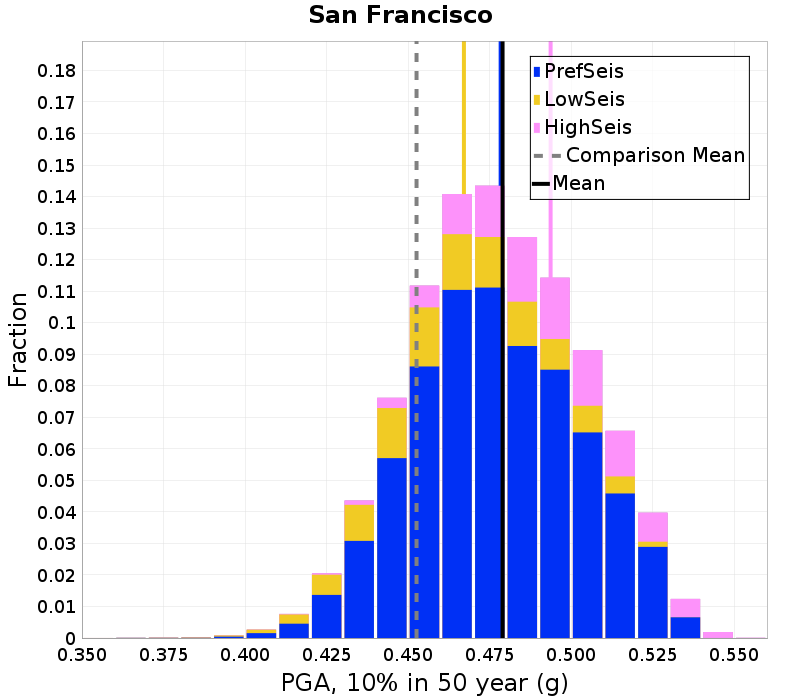

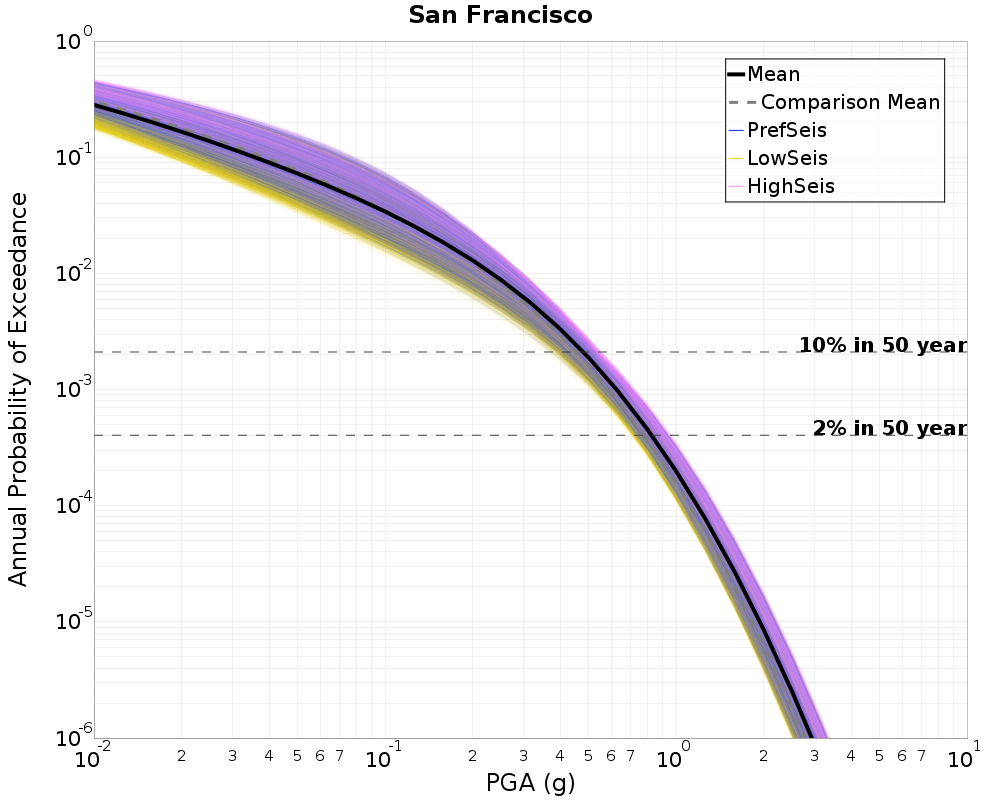

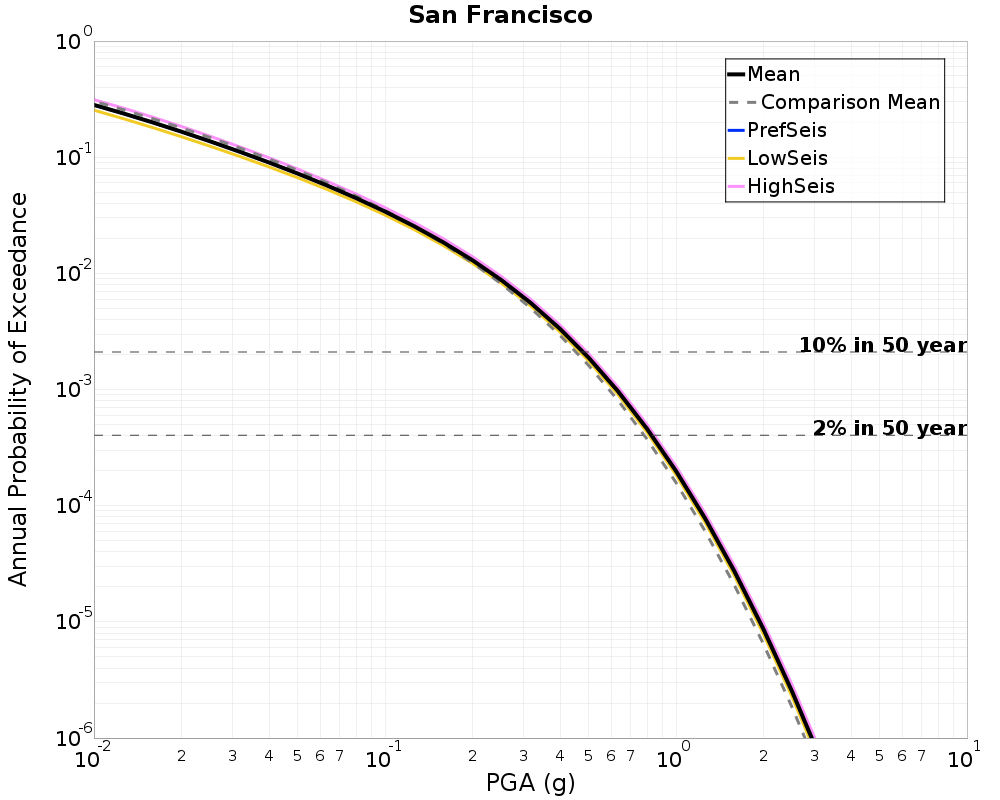

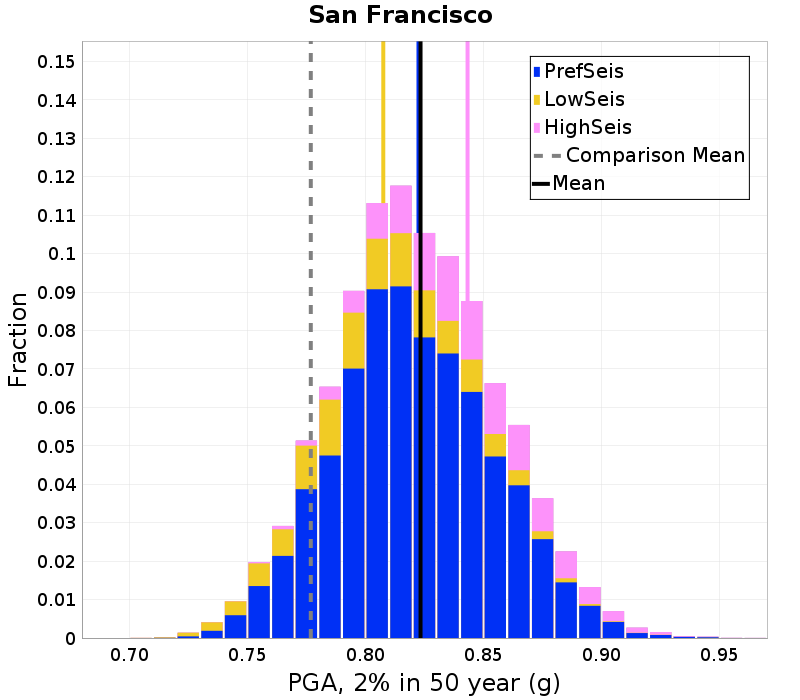

San Francisco, PGA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8233219 (g) | 0.4789313 (g) |
| PrefSeis | 0.8224539 (g) | 0.4783449 (g) |
| LowSeis | 0.8075515 (g) | 0.46708554 (g) |
| HighSeis | 0.84322983 (g) | 0.49366078 (g) |

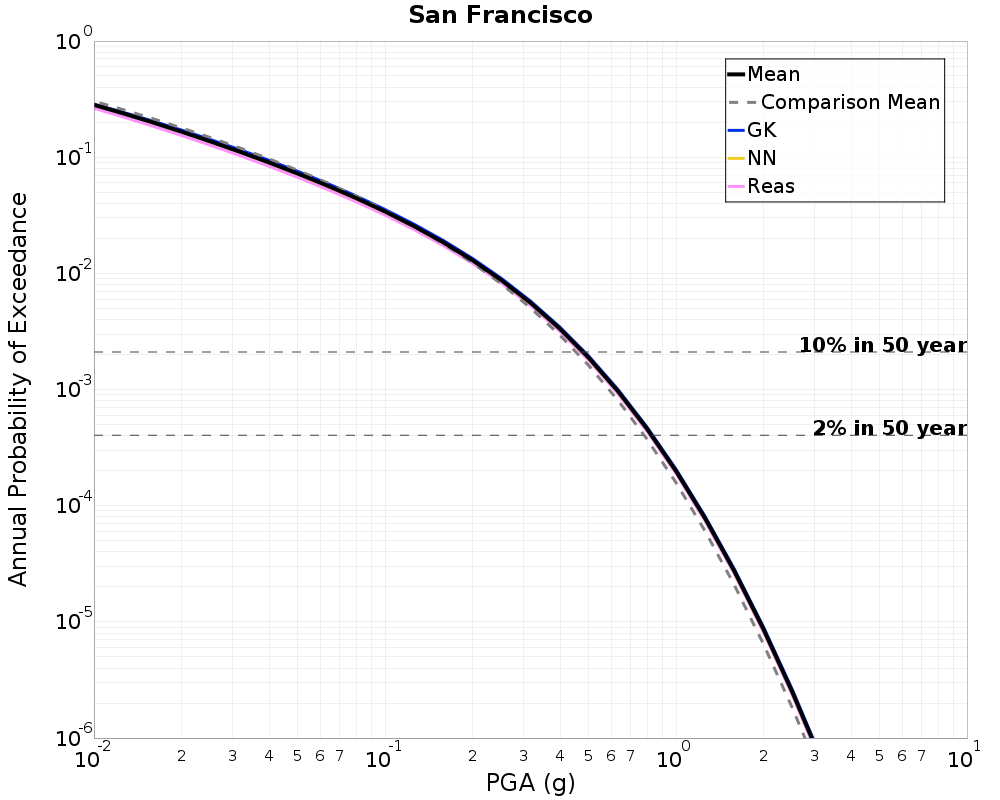

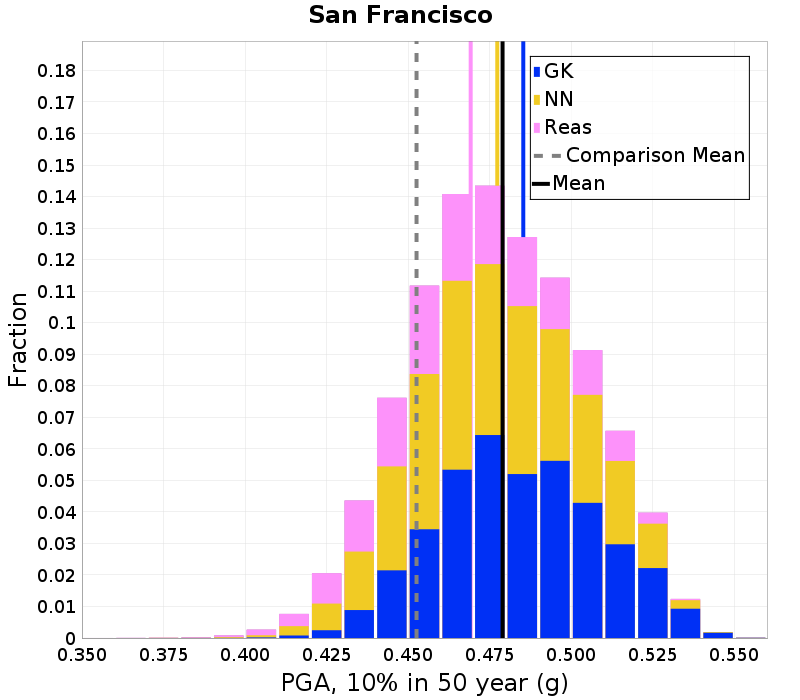

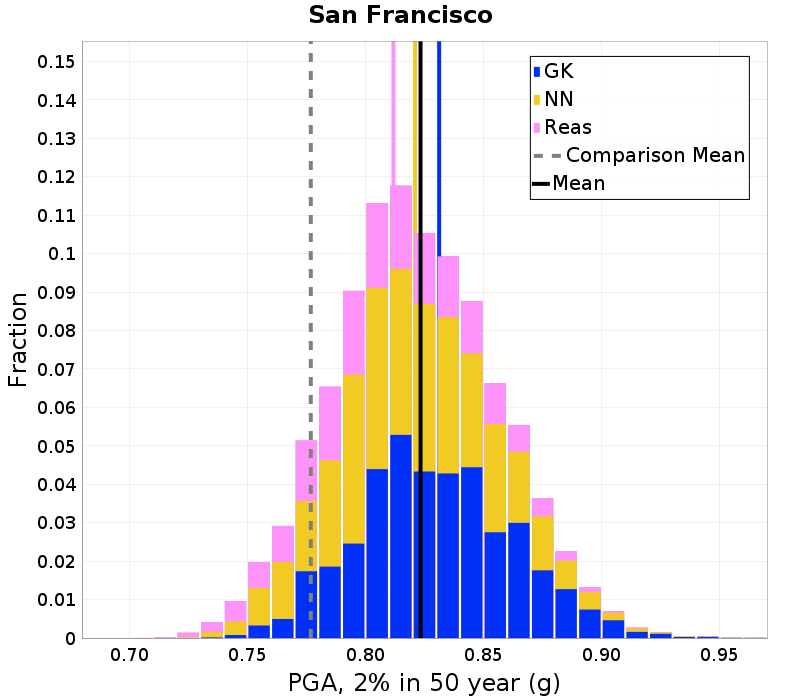

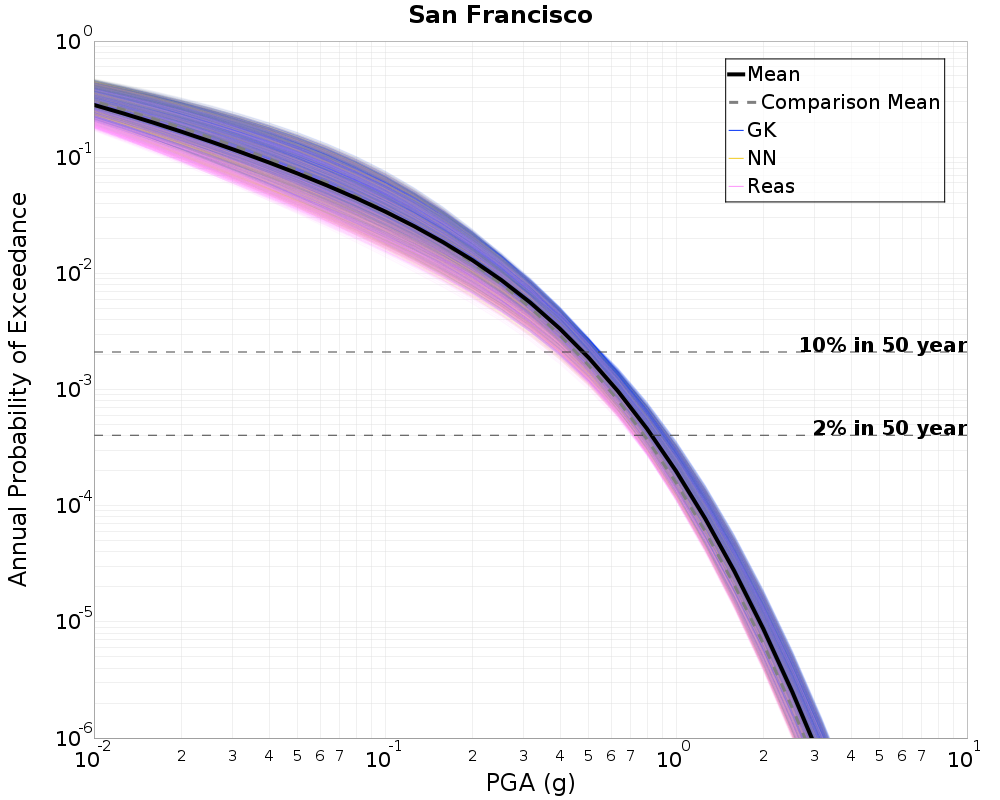

San Francisco, PGA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8233219 (g) | 0.4789313 (g) |
| GK | 0.8311935 (g) | 0.485285 (g) |
| NN | 0.82099646 (g) | 0.4773106 (g) |
| Reas | 0.81184745 (g) | 0.46915635 (g) |

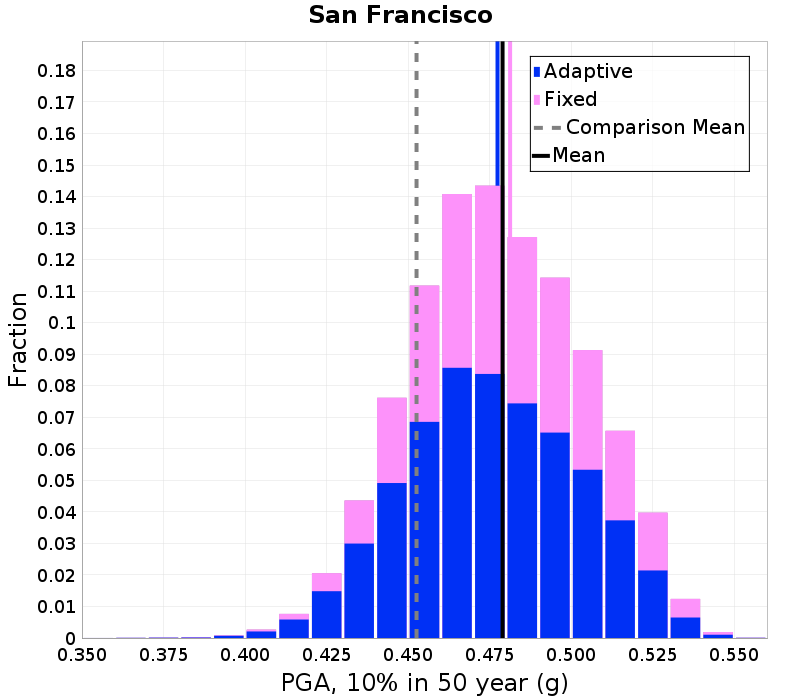

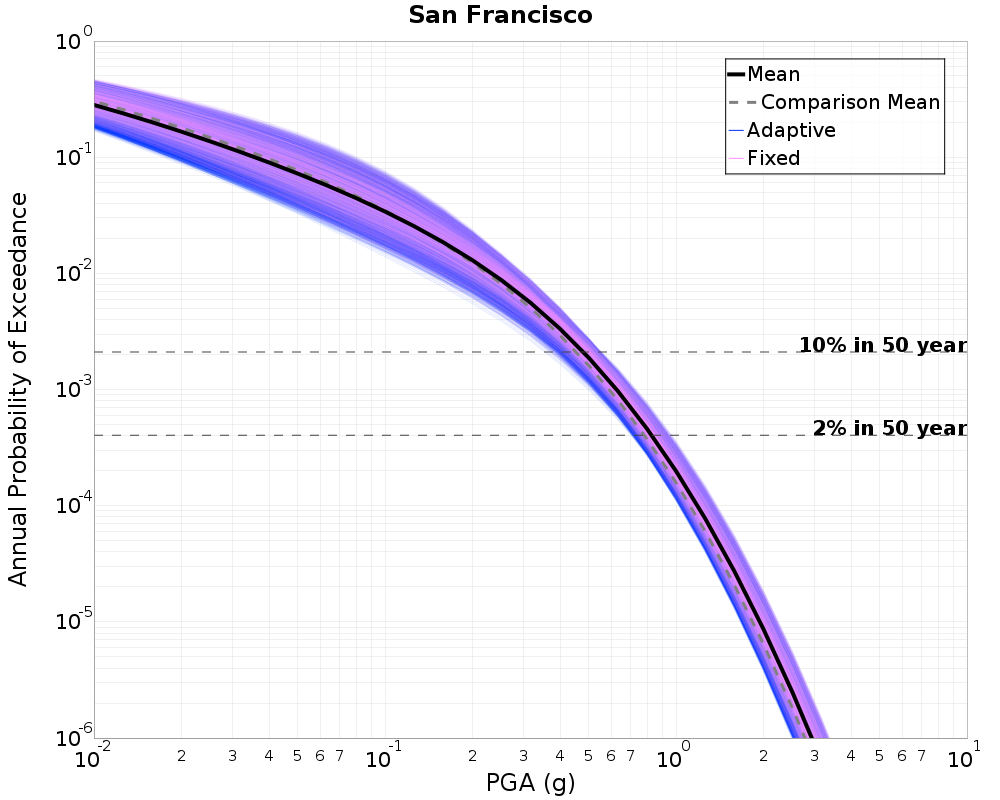

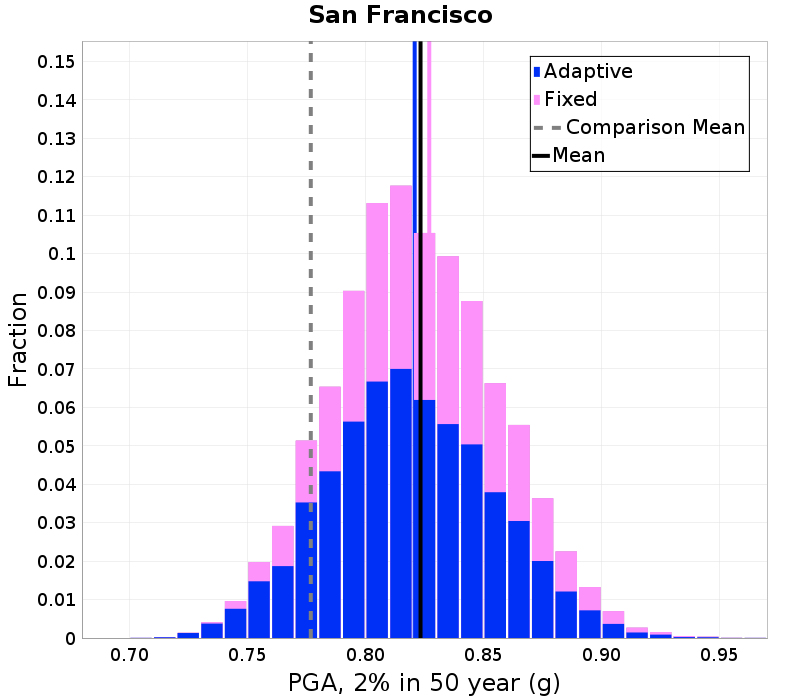

San Francisco, PGA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8233219 (g) | 0.4789313 (g) |
| Adaptive | 0.8208407 (g) | 0.477385 (g) |
| Fixed | 0.8270235 (g) | 0.48124668 (g) |

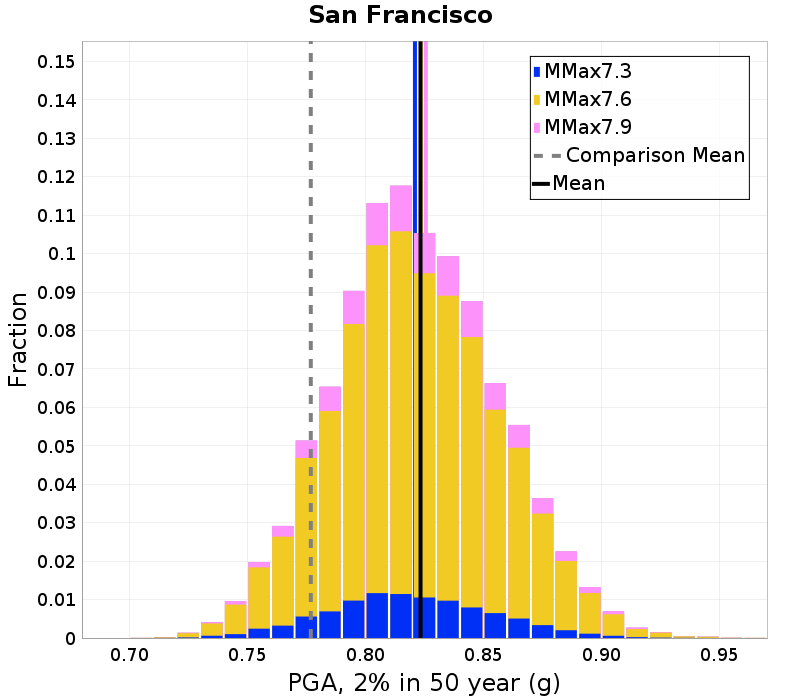

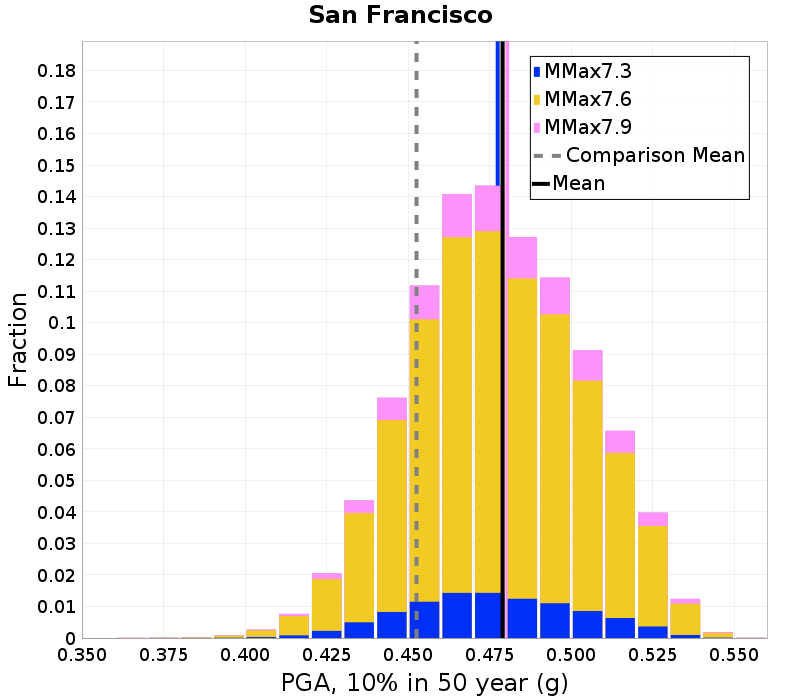

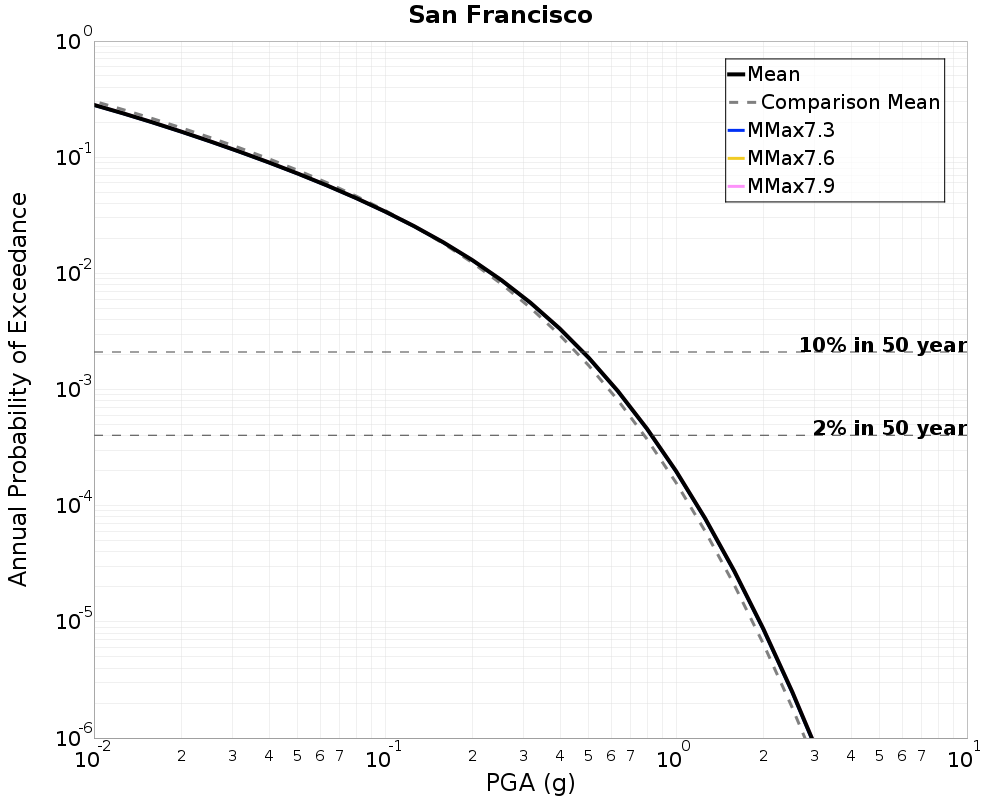

San Francisco, PGA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.8233219 (g) | 0.4789313 (g) |
| MMax7.3 | 0.8209538 (g) | 0.4774421 (g) |
| MMax7.6 | 0.8233365 (g) | 0.4789351 (g) |
| MMax7.9 | 0.82556385 (g) | 0.48038697 (g) |
San Francisco, 1.0s SA
| Primary | Comparison |
|---|---|
 |  |
San Francisco, 1.0s SA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
Comparison Distribution, 2% in 50 year | Comparison Distribution, 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Primary | 0.6638537 (g) | 0.3457005 (g) |
| Comparison | 0.6278147 (g) | 0.3236478 (g) |

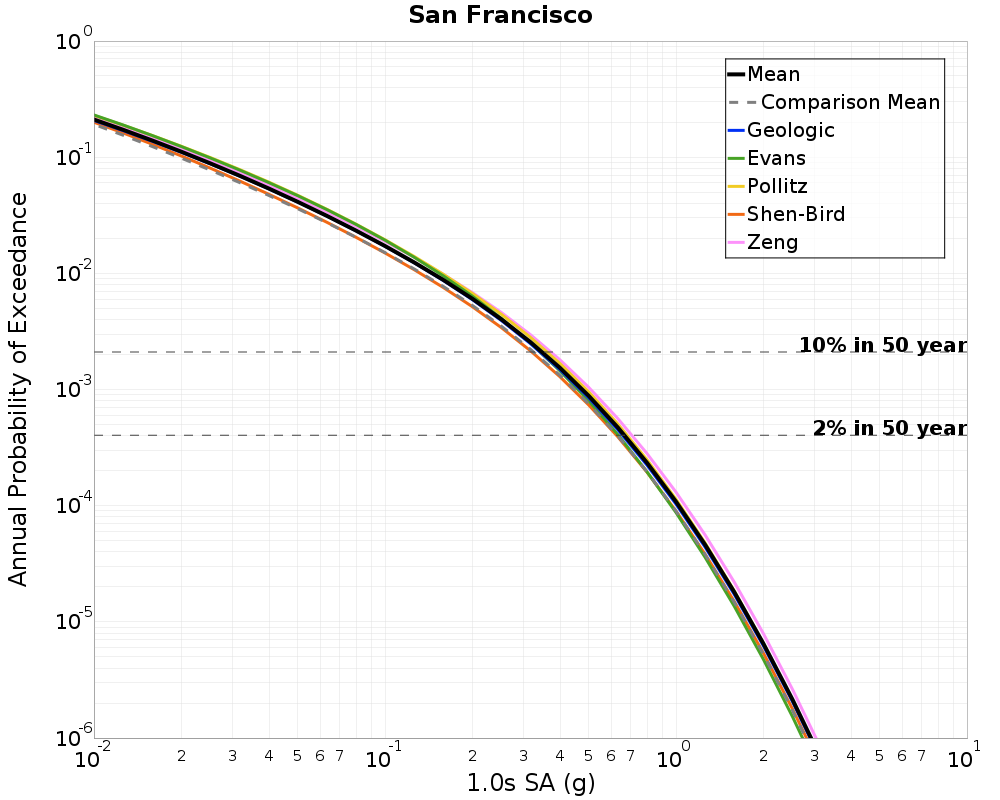

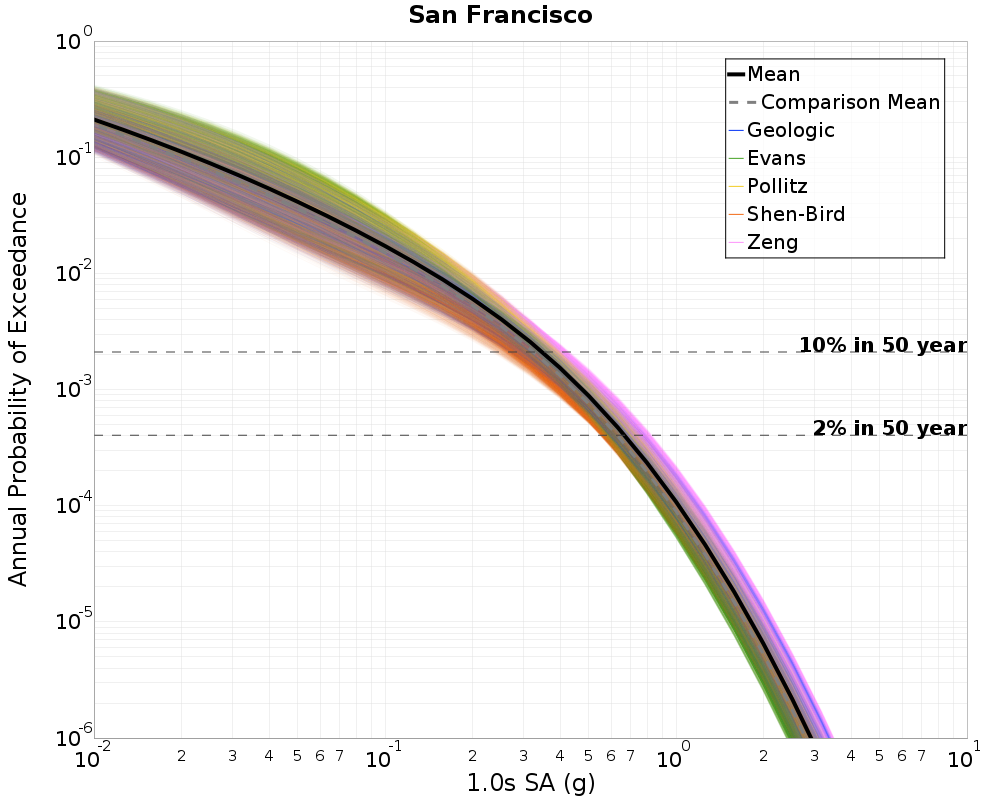

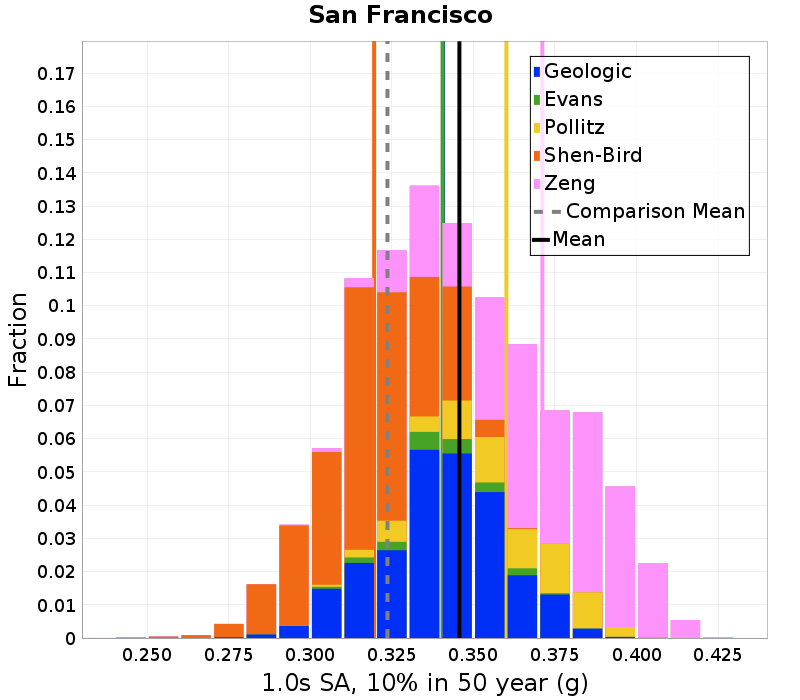

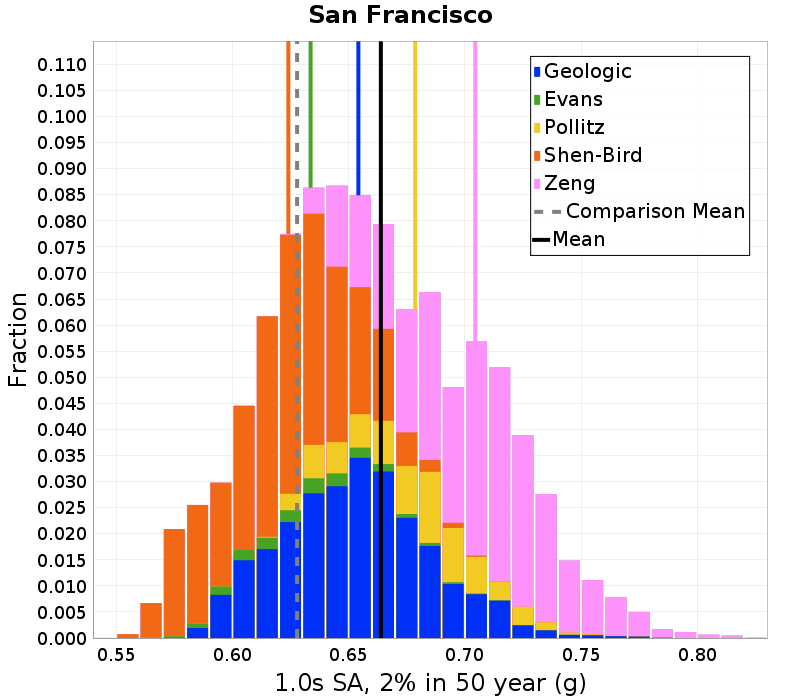

San Francisco, 1.0s SA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6638537 (g) | 0.3457005 (g) |
| Geologic | 0.6541804 (g) | 0.34070632 (g) |
| Evans | 0.6336234 (g) | 0.34053248 (g) |
| Pollitz | 0.678642 (g) | 0.36010015 (g) |
| Shen-Bird | 0.6240469 (g) | 0.31956115 (g) |
| Zeng | 0.70448 (g) | 0.37112248 (g) |

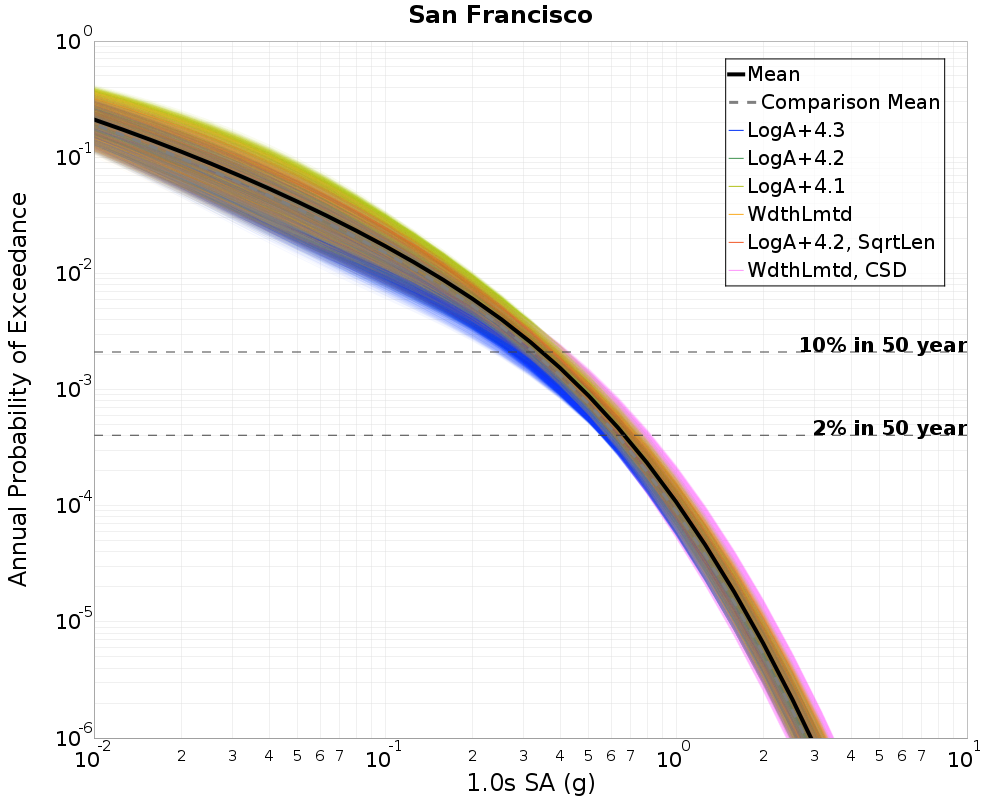

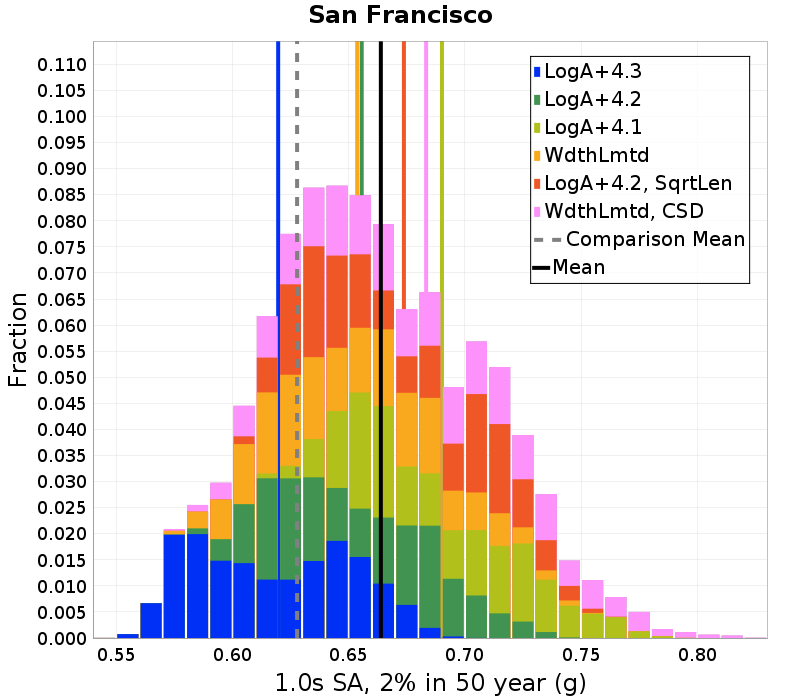

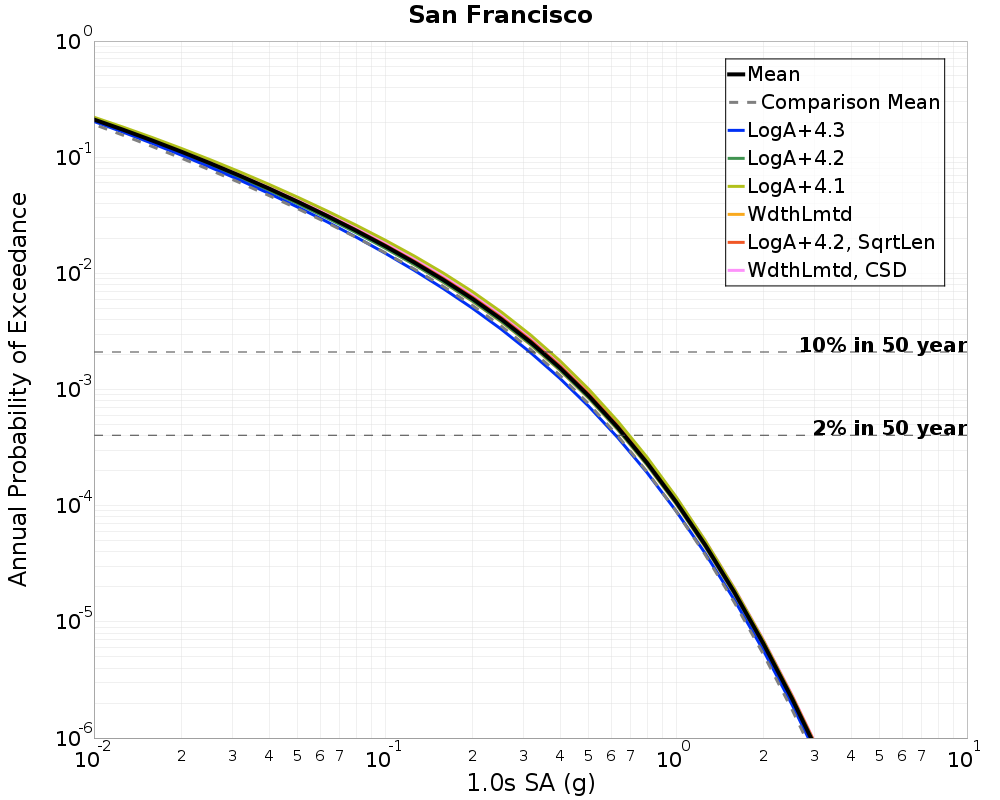

San Francisco, 1.0s SA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6638537 (g) | 0.3457005 (g) |
| LogA+4.3 | 0.6196728 (g) | 0.3143972 (g) |
| LogA+4.2 | 0.6556208 (g) | 0.33919302 (g) |
| LogA+4.1 | 0.6901435 (g) | 0.36864576 (g) |
| WdthLmtd | 0.6536683 (g) | 0.33772954 (g) |
| LogA+4.2, SqrtLen | 0.6737746 (g) | 0.35202086 (g) |
| WdthLmtd, CSD | 0.68333584 (g) | 0.35899267 (g) |

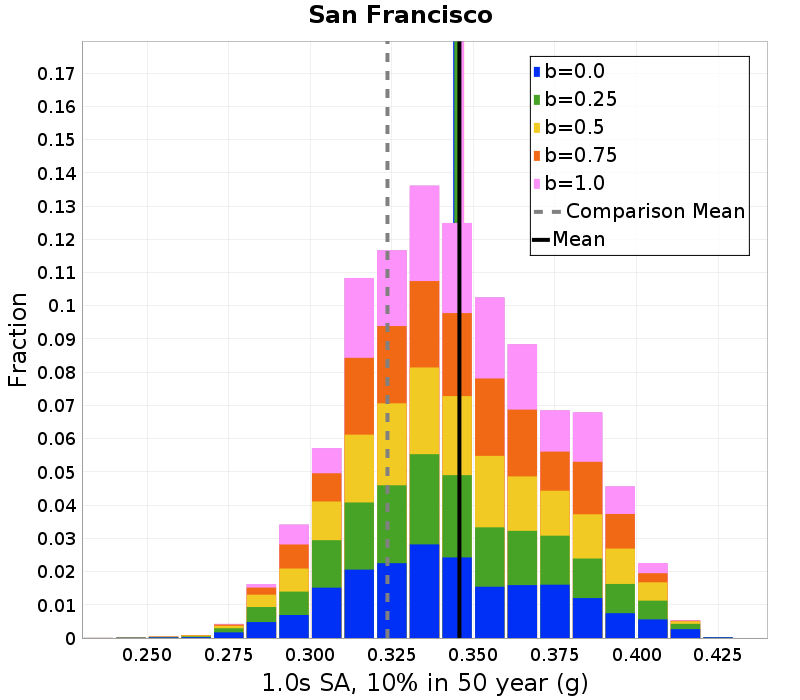

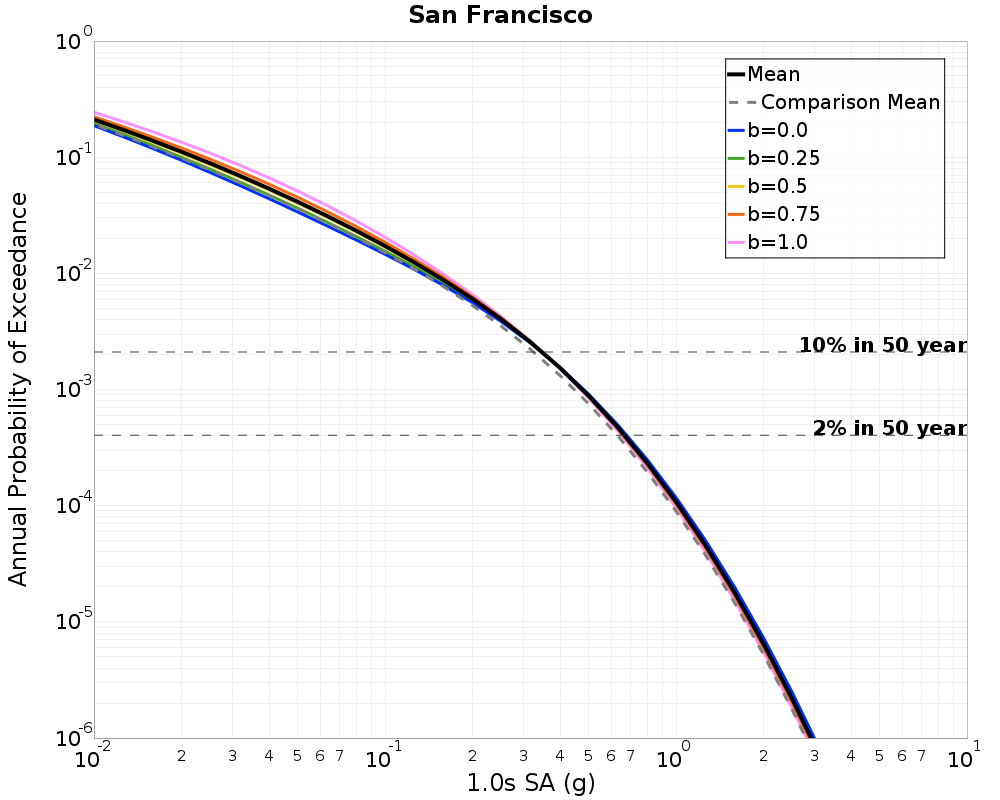

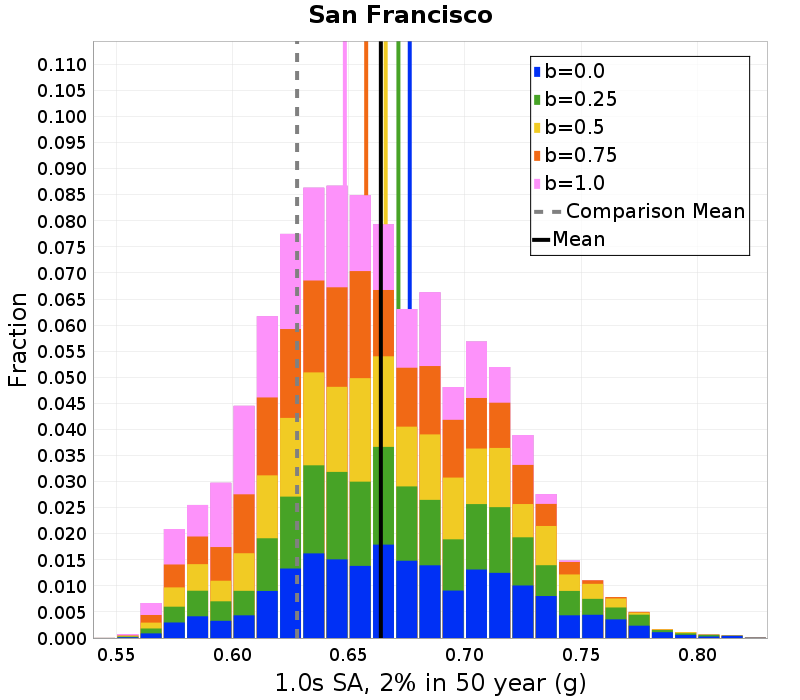

San Francisco, 1.0s SA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6638537 (g) | 0.3457005 (g) |
| b=0.0 | 0.6762815 (g) | 0.3443938 (g) |
| b=0.25 | 0.67140764 (g) | 0.3447584 (g) |
| b=0.5 | 0.66593295 (g) | 0.3461223 (g) |
| b=0.75 | 0.6575408 (g) | 0.34652793 (g) |
| b=1.0 | 0.64836633 (g) | 0.34648743 (g) |

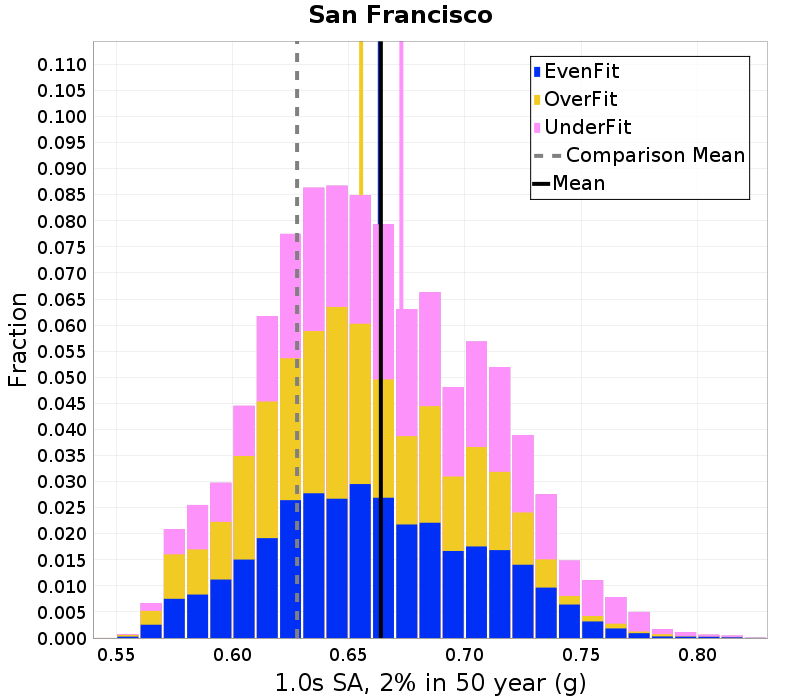

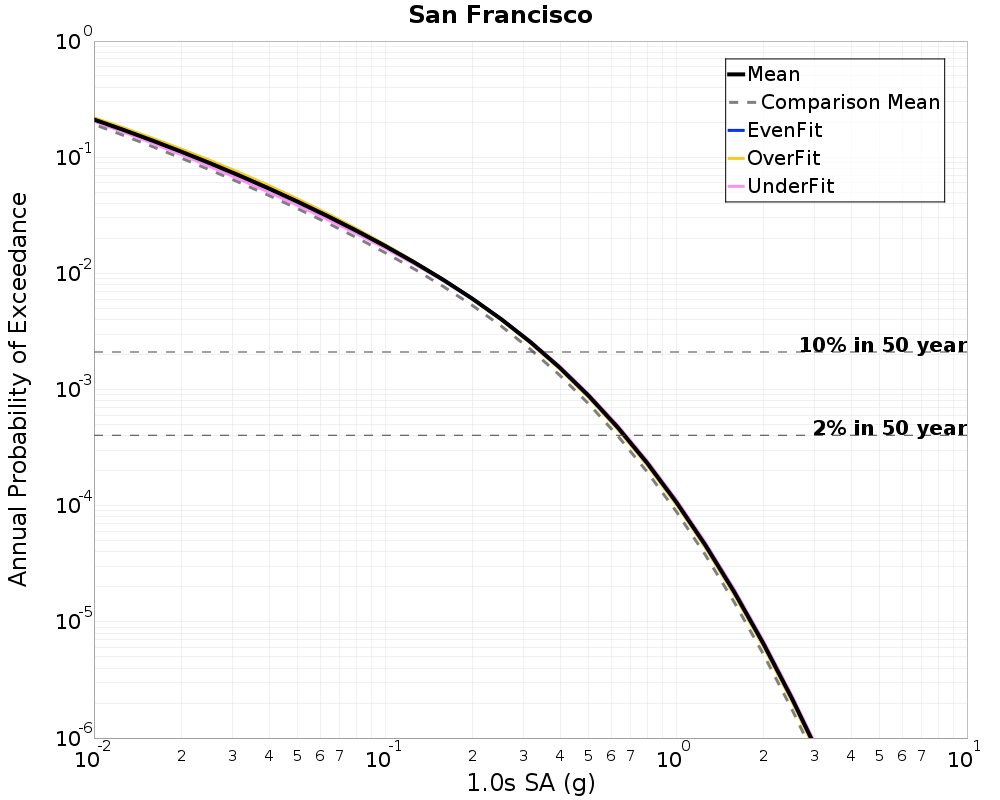

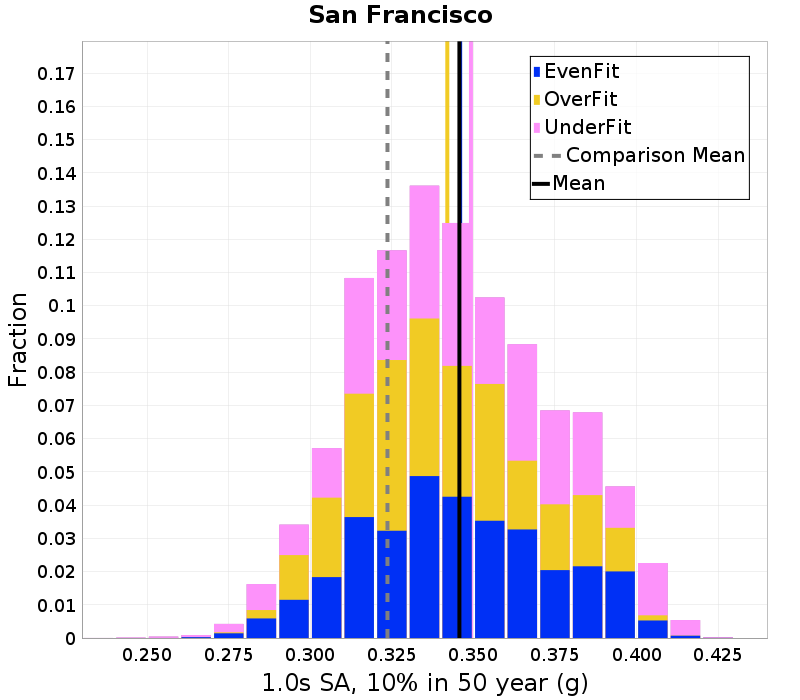

San Francisco, 1.0s SA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6638537 (g) | 0.3457005 (g) |
| EvenFit | 0.6633965 (g) | 0.34593123 (g) |
| OverFit | 0.6553662 (g) | 0.34198883 (g) |
| UnderFit | 0.67267704 (g) | 0.34923917 (g) |

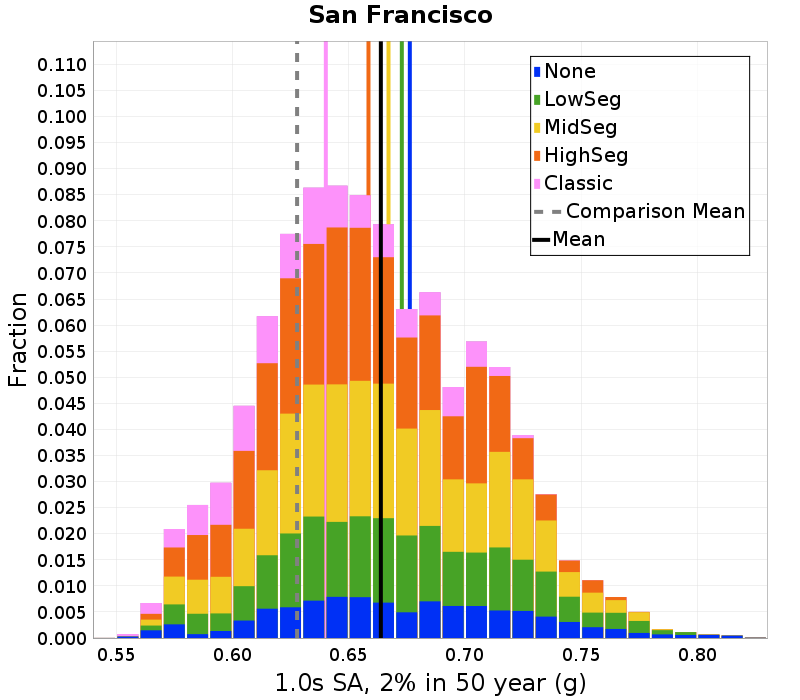

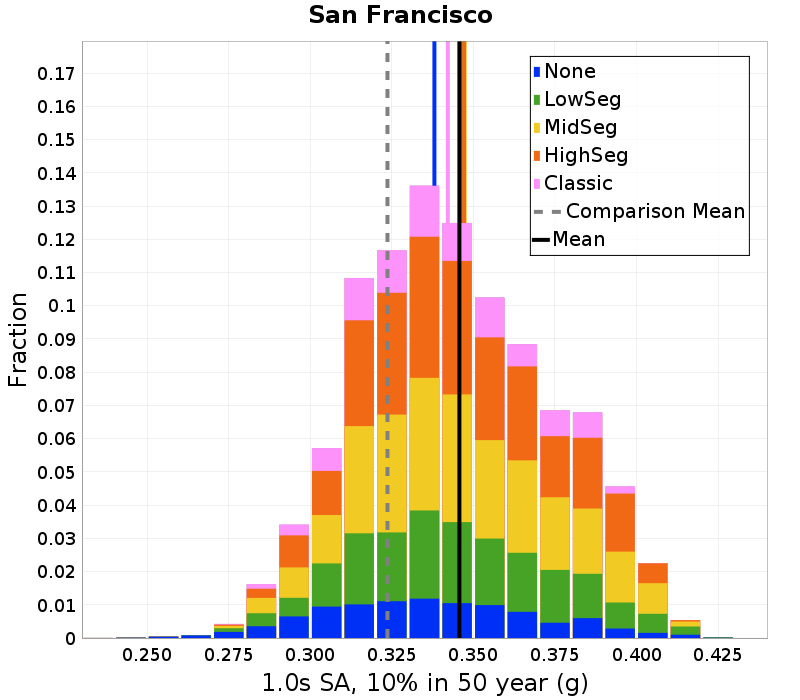

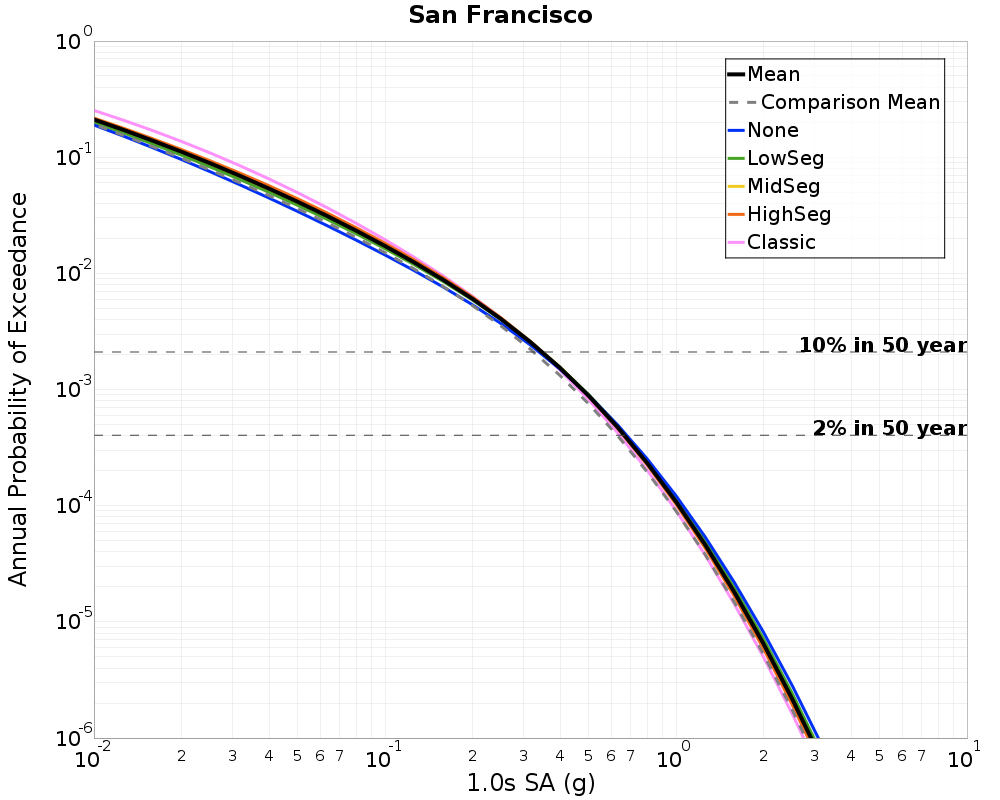

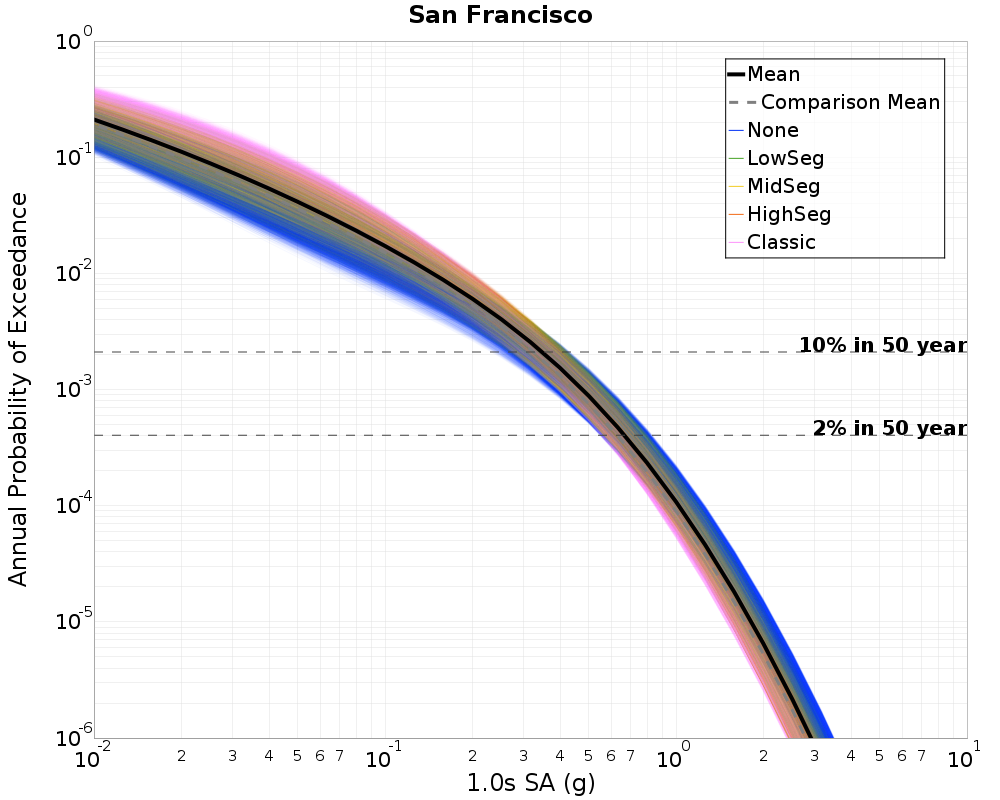

San Francisco, 1.0s SA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6638537 (g) | 0.3457005 (g) |
| None | 0.6763213 (g) | 0.33803773 (g) |
| LowSeg | 0.6728762 (g) | 0.34647584 (g) |
| MidSeg | 0.66714585 (g) | 0.34731147 (g) |
| HighSeg | 0.65852964 (g) | 0.3471426 (g) |
| Classic | 0.6401773 (g) | 0.3421506 (g) |

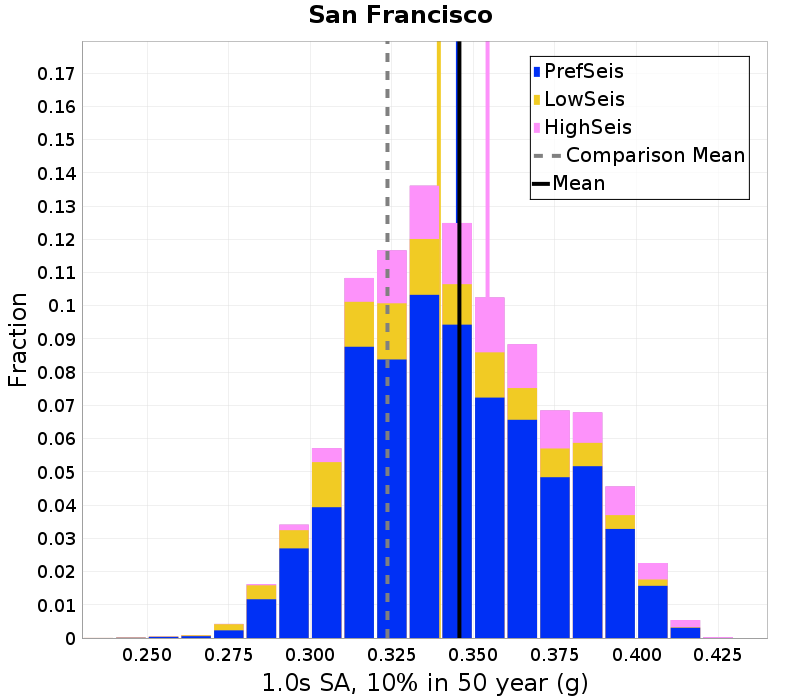

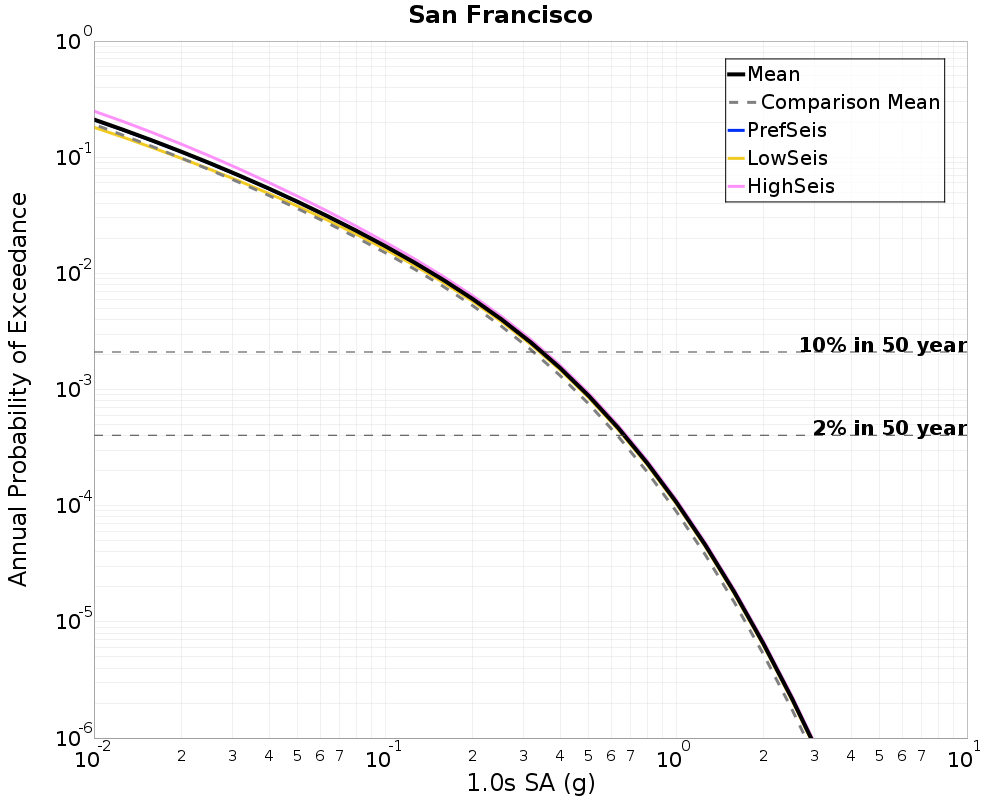

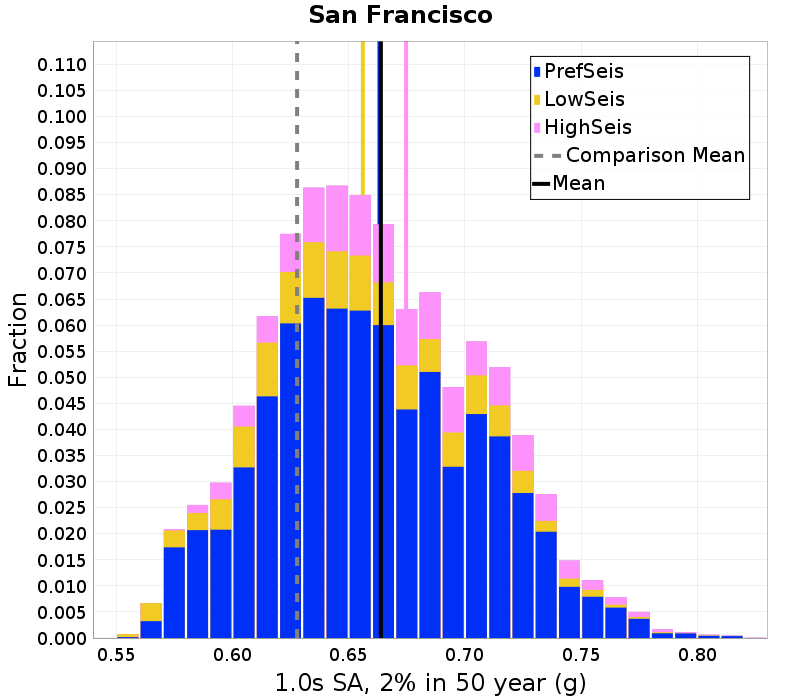

San Francisco, 1.0s SA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6638537 (g) | 0.3457005 (g) |
| PrefSeis | 0.66325563 (g) | 0.34524348 (g) |
| LowSeis | 0.6560969 (g) | 0.3393978 (g) |
| HighSeis | 0.67471504 (g) | 0.3543353 (g) |

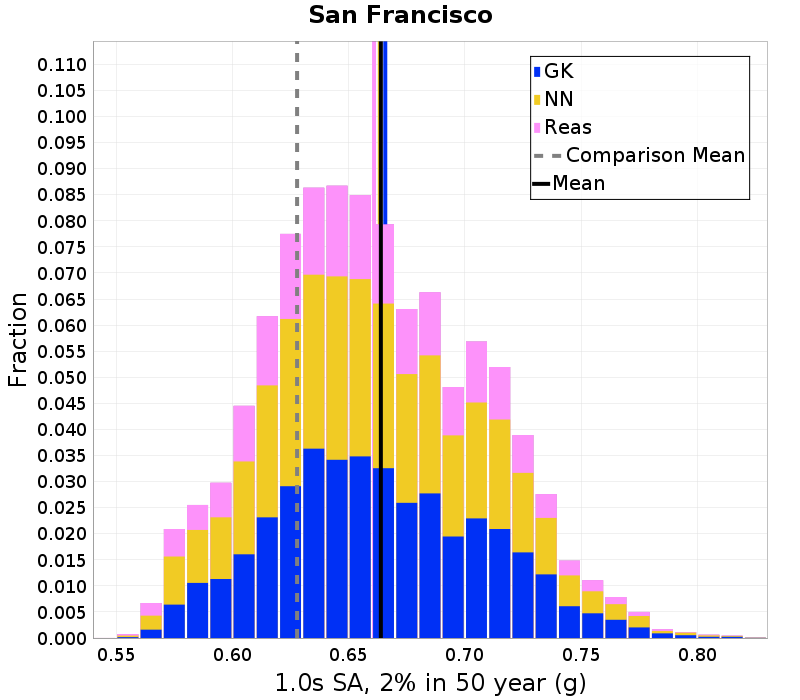

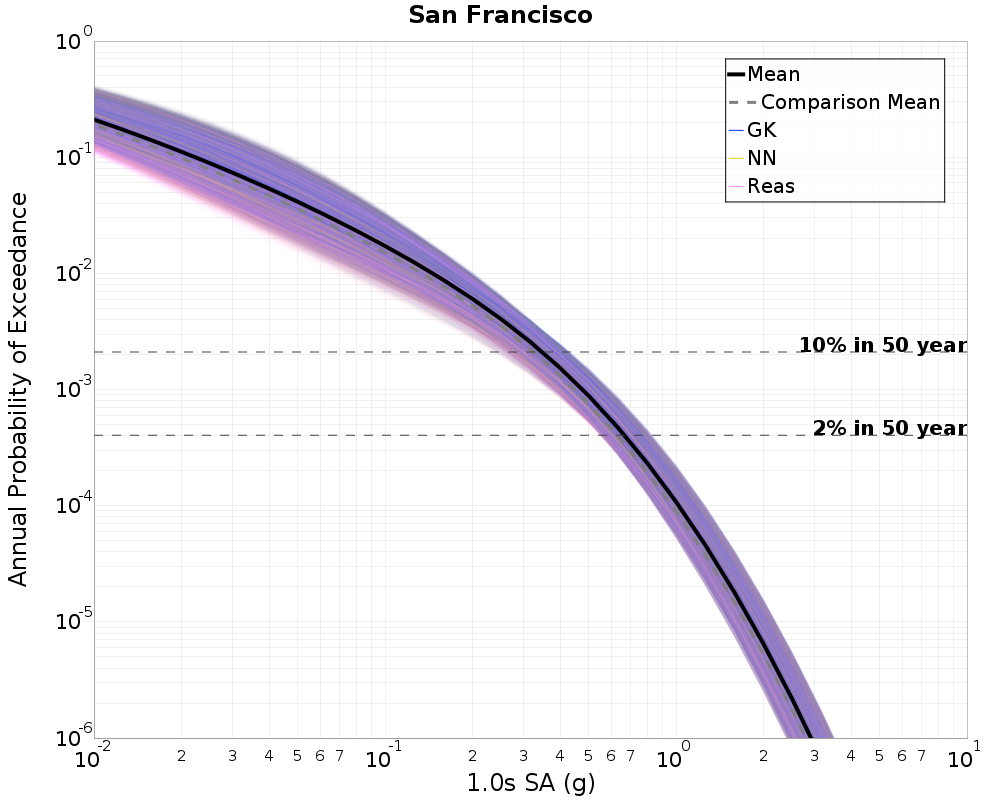

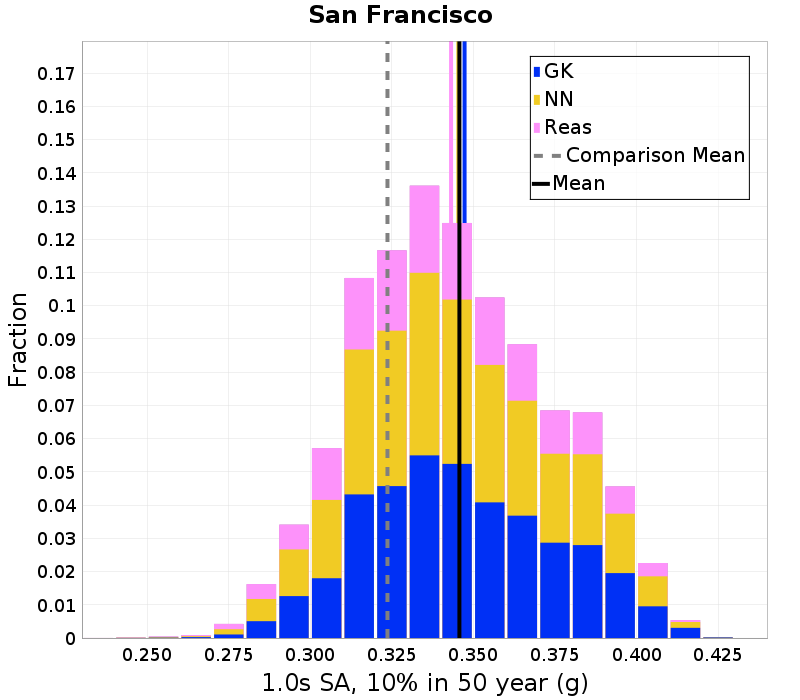

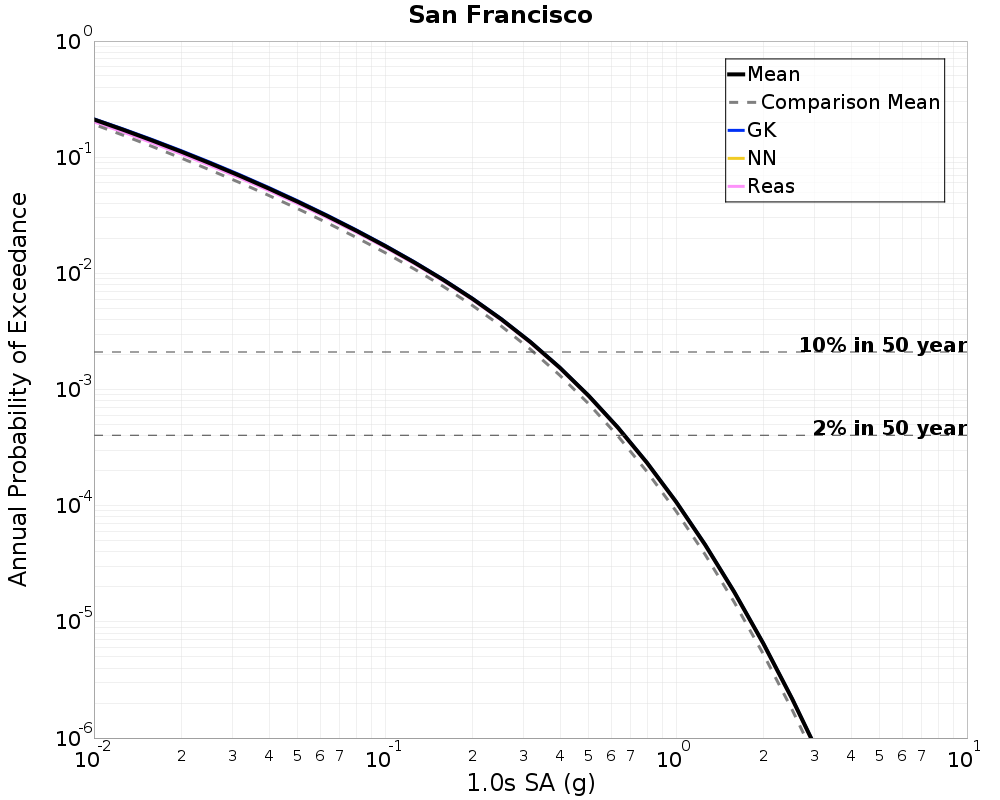

San Francisco, 1.0s SA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6638537 (g) | 0.3457005 (g) |
| GK | 0.6657584 (g) | 0.3472845 (g) |
| NN | 0.6634001 (g) | 0.34537742 (g) |
| Reas | 0.6609229 (g) | 0.3431478 (g) |

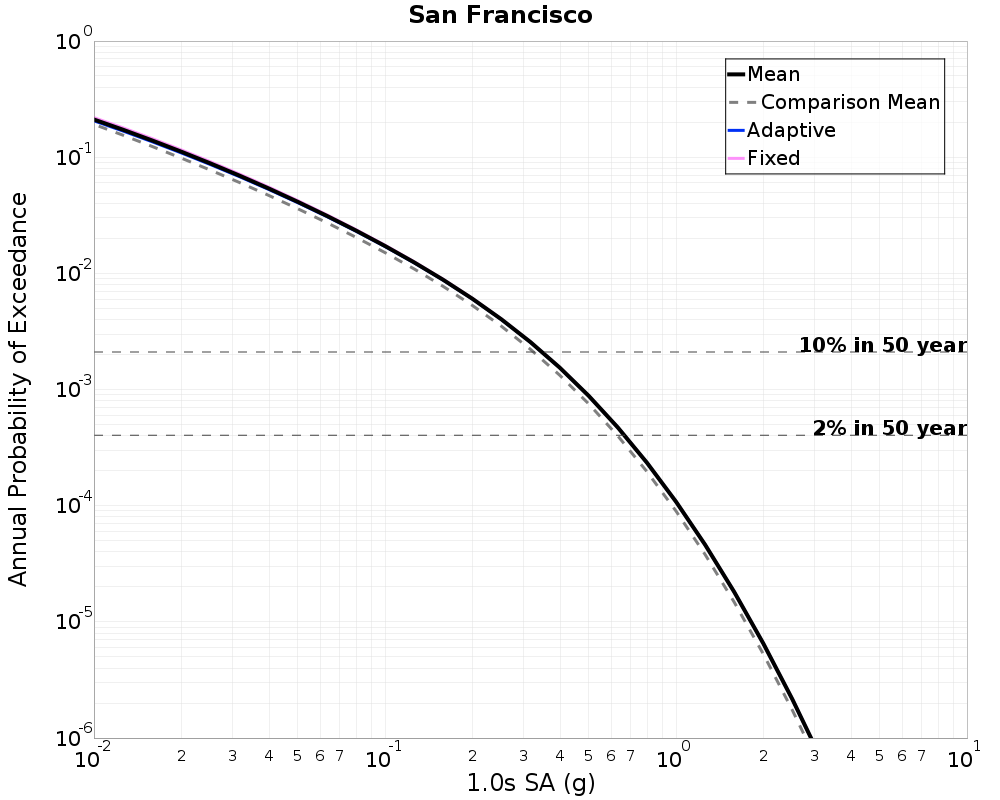

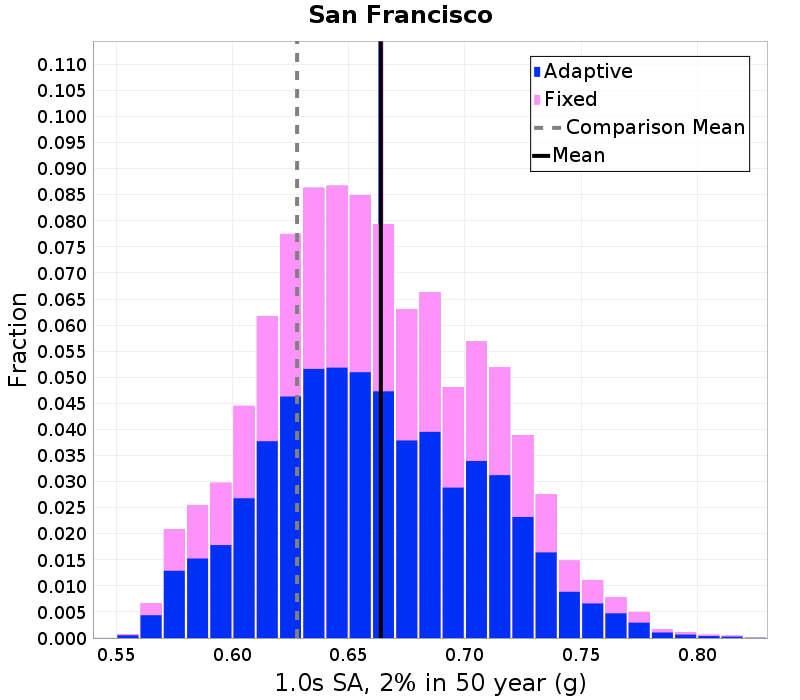

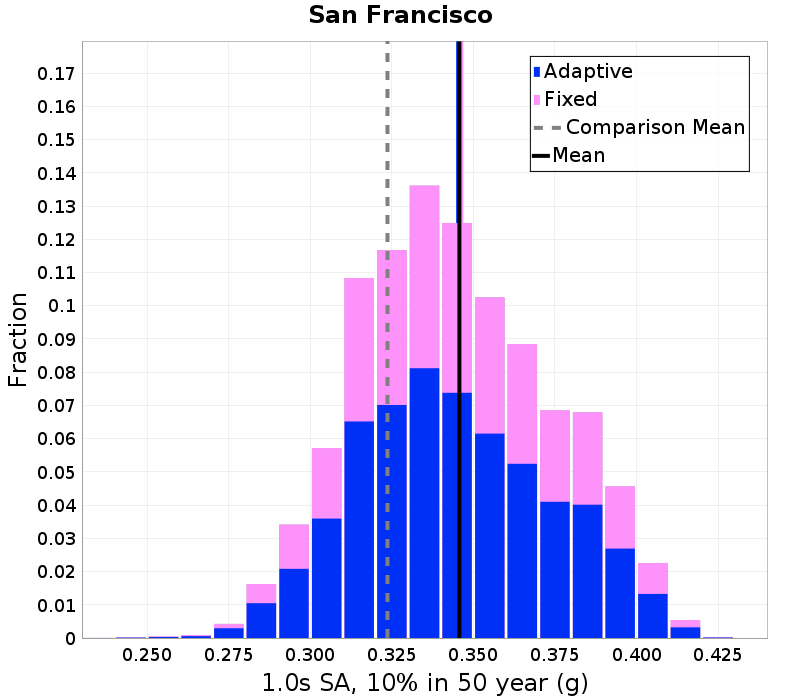

San Francisco, 1.0s SA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6638537 (g) | 0.3457005 (g) |
| Adaptive | 0.6636603 (g) | 0.34531185 (g) |
| Fixed | 0.6641434 (g) | 0.34628004 (g) |

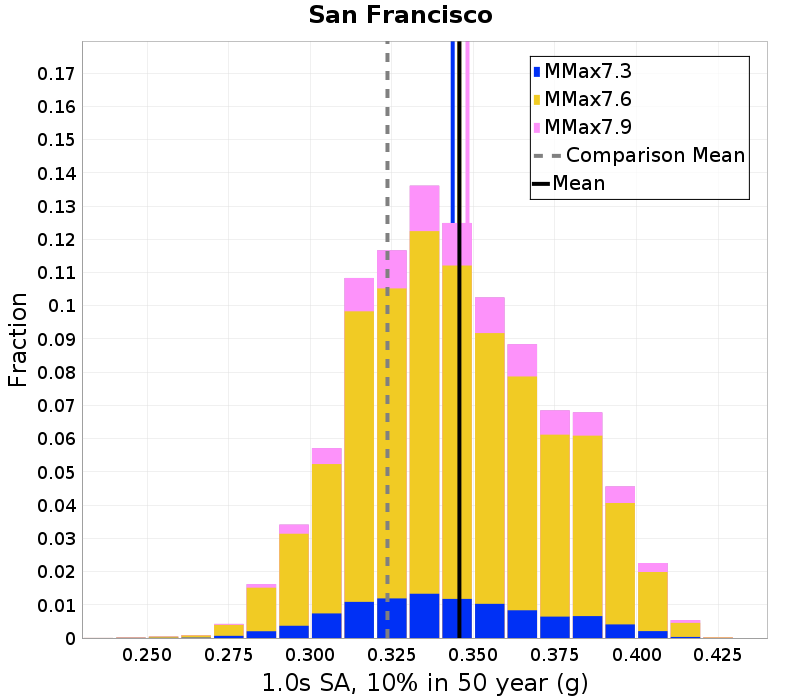

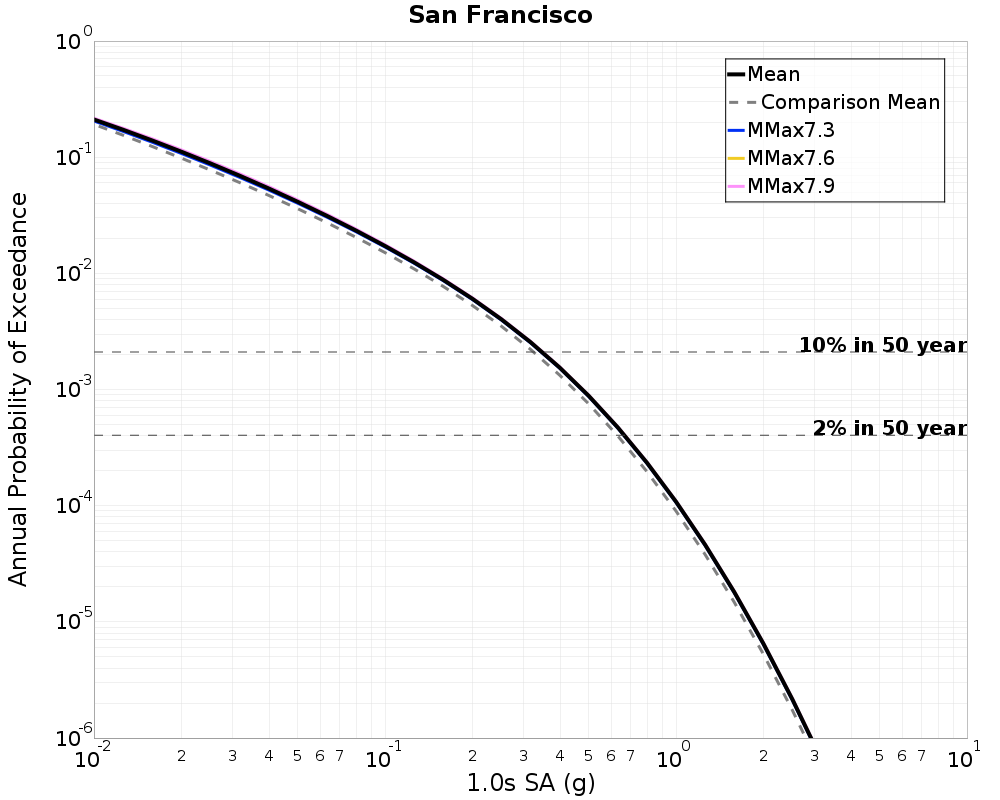

San Francisco, 1.0s SA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.6638537 (g) | 0.3457005 (g) |
| MMax7.3 | 0.6610526 (g) | 0.34364504 (g) |
| MMax7.6 | 0.66380626 (g) | 0.3456443 (g) |
| MMax7.9 | 0.66700864 (g) | 0.34818128 (g) |
