Tacoma Logic Tree Hazard Curves
Table Of Contents
- Tacoma, PGA
- Tacoma, PGA, Hazard Value Distributions
- Tacoma, PGA, Deformation Model Hazard
- Tacoma, PGA, Scaling Relationship Hazard
- Tacoma, PGA, Supra-Seismogenic b-value Hazard
- Tacoma, PGA, Paleoseismic Data Uncertainties Hazard
- Tacoma, PGA, Segmentation Model Hazard
- Tacoma, PGA, Regional Seismicity Rate Hazard
- Tacoma, PGA, Seismicity Declustering Algorithm Hazard
- Tacoma, PGA, Seismicity Smoothing Kernel Hazard
- Tacoma, PGA, Off Fault Mmax Hazard
- Tacoma, 1.0s SA
- Tacoma, 1.0s SA, Hazard Value Distributions
- Tacoma, 1.0s SA, Deformation Model Hazard
- Tacoma, 1.0s SA, Scaling Relationship Hazard
- Tacoma, 1.0s SA, Supra-Seismogenic b-value Hazard
- Tacoma, 1.0s SA, Paleoseismic Data Uncertainties Hazard
- Tacoma, 1.0s SA, Segmentation Model Hazard
- Tacoma, 1.0s SA, Regional Seismicity Rate Hazard
- Tacoma, 1.0s SA, Seismicity Declustering Algorithm Hazard
- Tacoma, 1.0s SA, Seismicity Smoothing Kernel Hazard
- Tacoma, 1.0s SA, Off Fault Mmax Hazard
Tacoma, PGA
Tacoma, PGA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Primary | 0.4686615 (g) | 0.23232149 (g) |
| Comparison | 0.37746495 (g) | 0.16998444 (g) |

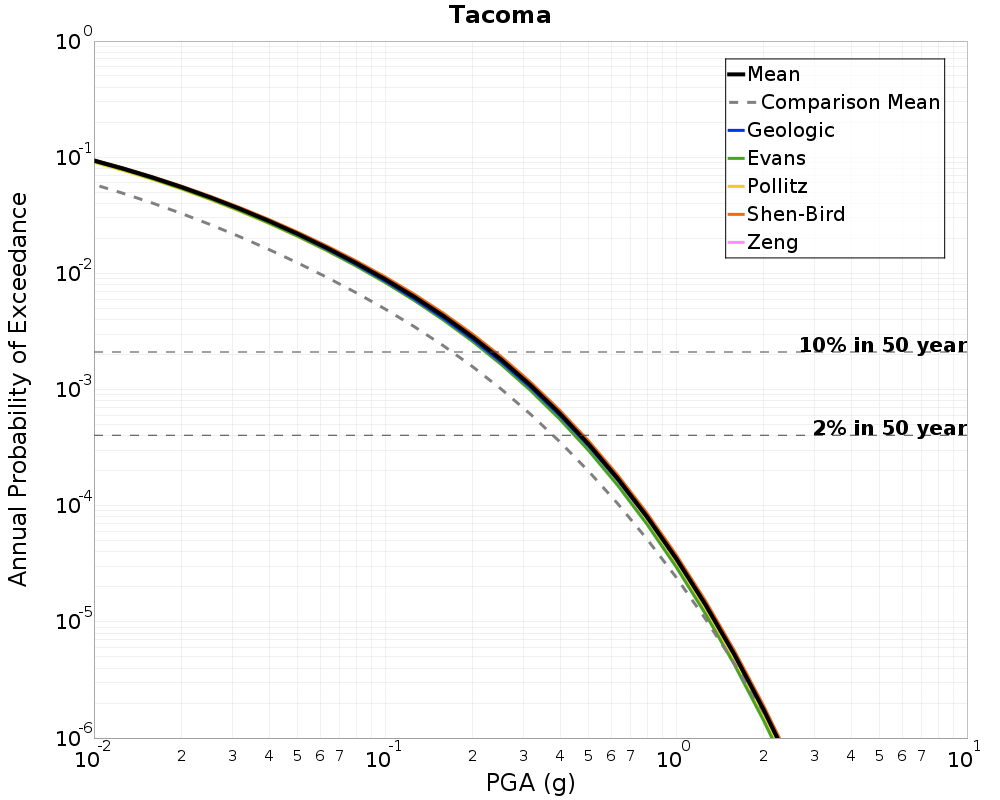

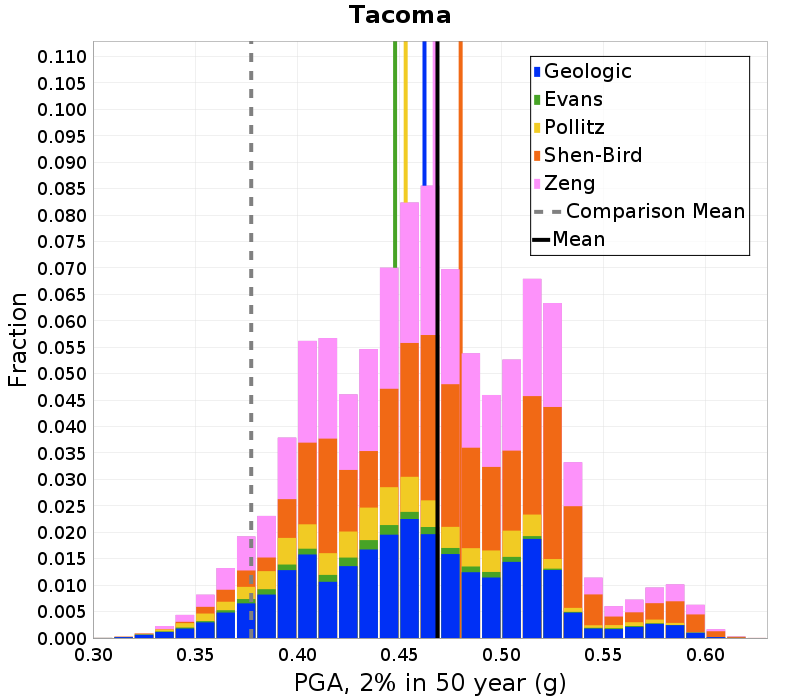

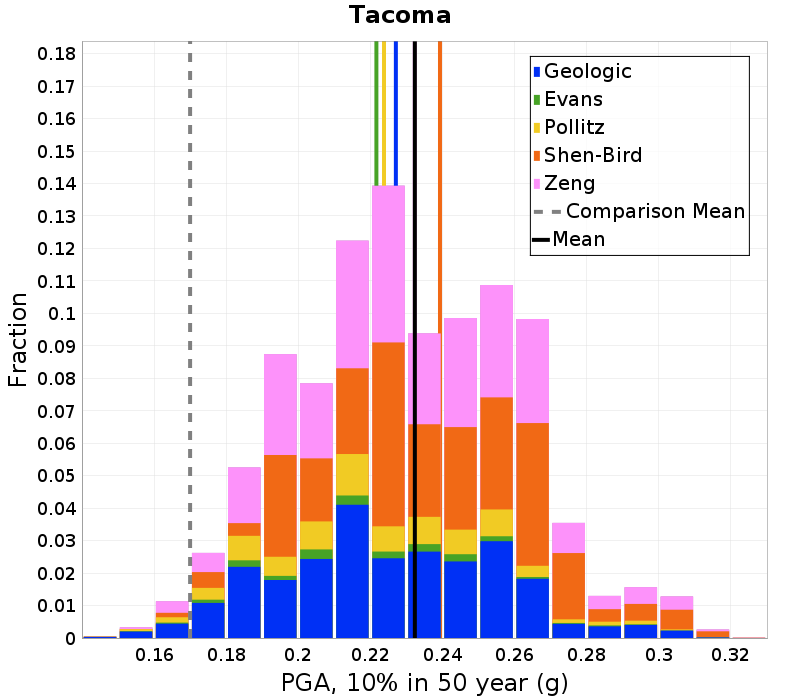

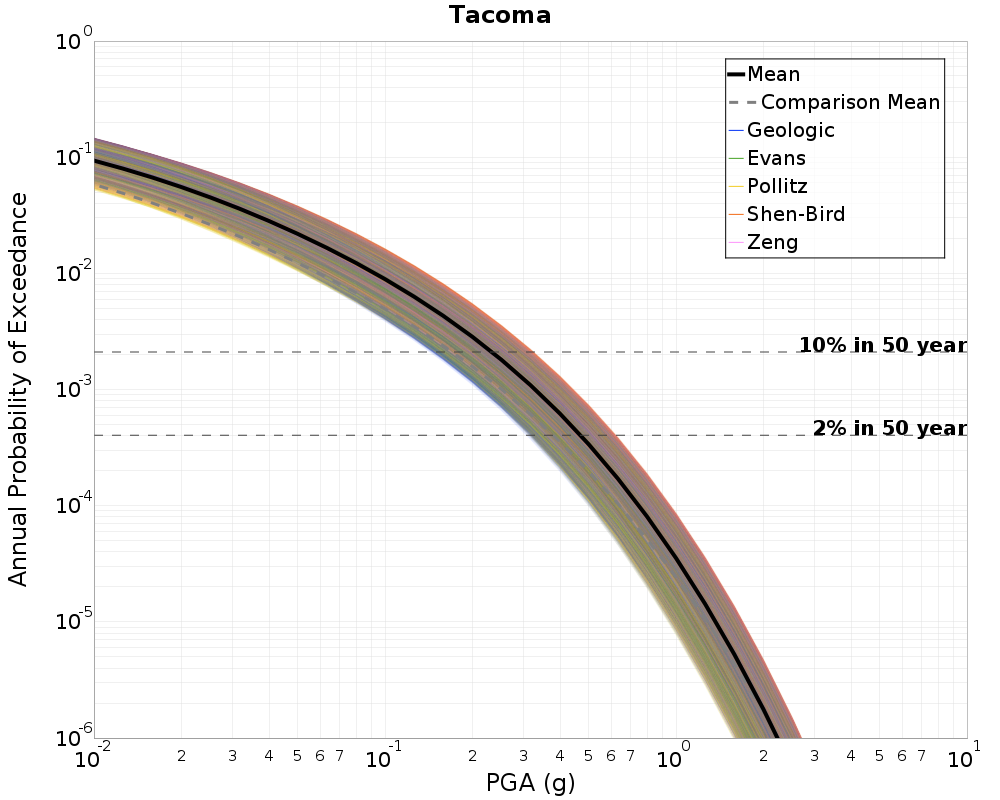

Tacoma, PGA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.4686615 (g) | 0.23232149 (g) |
| Geologic | 0.46229887 (g) | 0.22705741 (g) |
| Evans | 0.44790858 (g) | 0.22165667 (g) |
| Pollitz | 0.45309347 (g) | 0.22376841 (g) |
| Shen-Bird | 0.48000774 (g) | 0.23929459 (g) |
| Zeng | 0.46728727 (g) | 0.23228827 (g) |

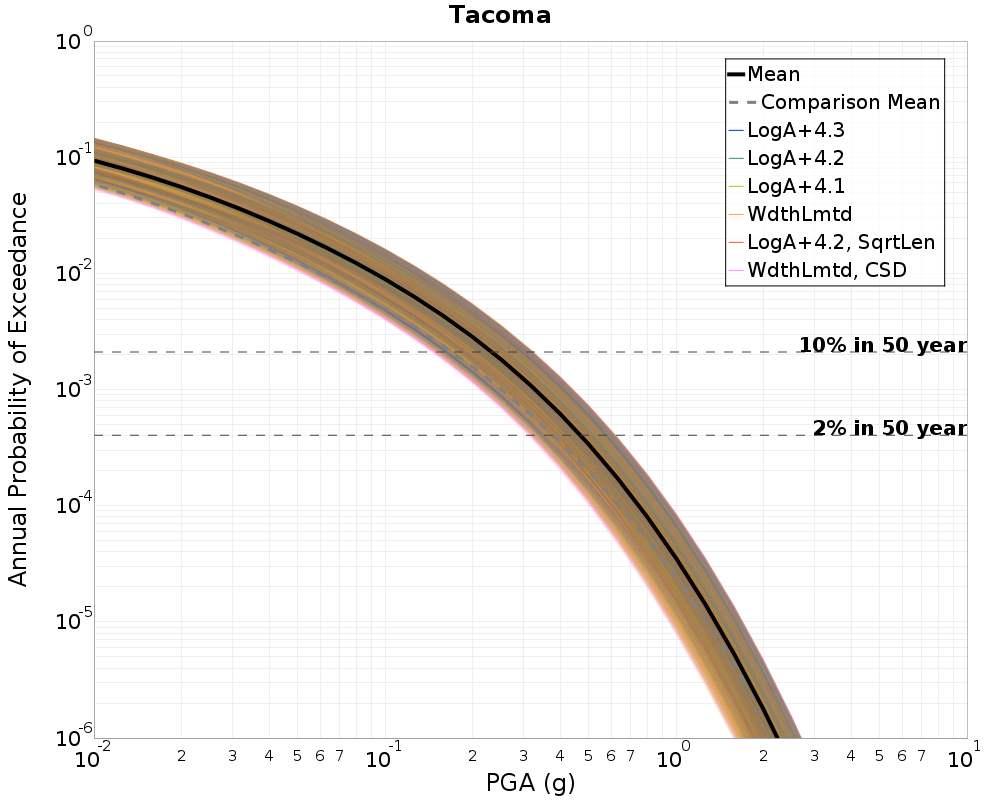

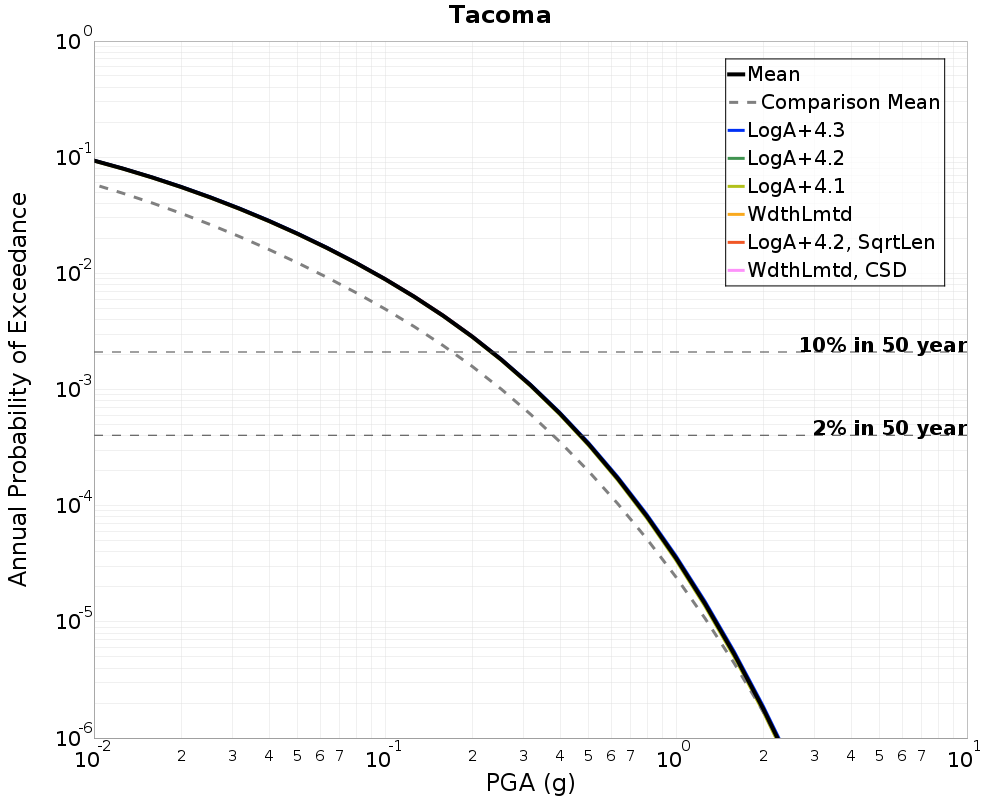

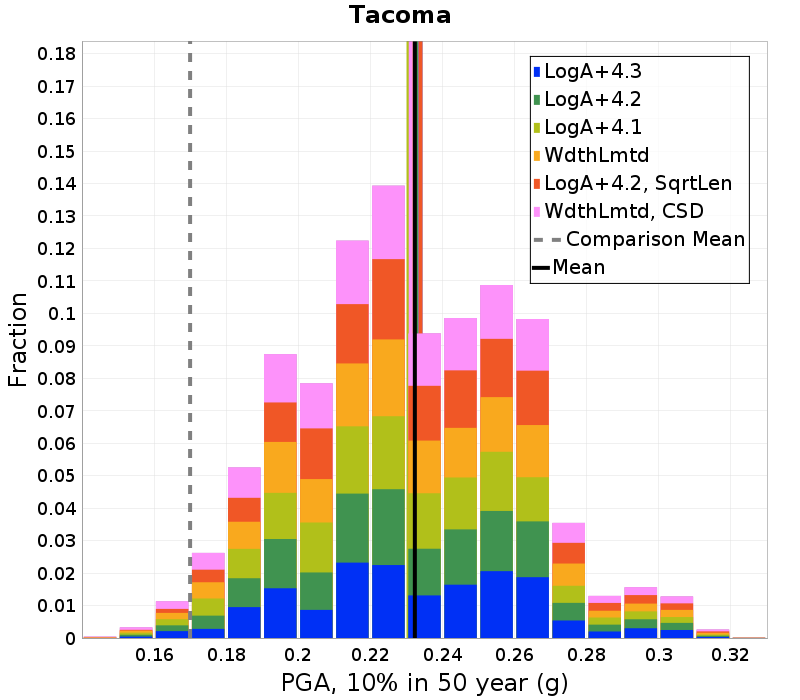

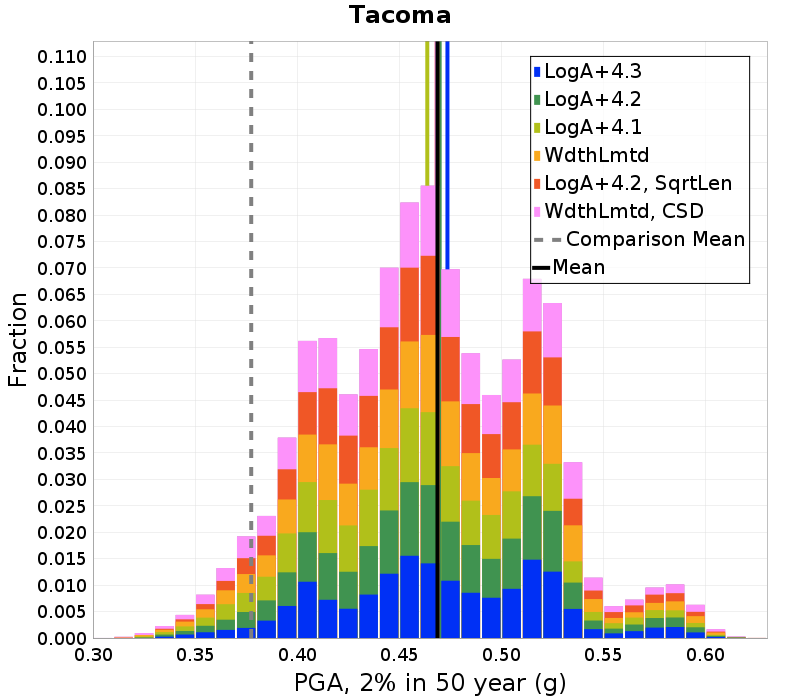

Tacoma, PGA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.4686615 (g) | 0.23232149 (g) |
| LogA+4.3 | 0.47354278 (g) | 0.2338517 (g) |
| LogA+4.2 | 0.46972445 (g) | 0.23263541 (g) |
| LogA+4.1 | 0.46366876 (g) | 0.23056376 (g) |
| WdthLmtd | 0.4682336 (g) | 0.23180193 (g) |
| LogA+4.2, SqrtLen | 0.46859106 (g) | 0.2338903 (g) |
| WdthLmtd, CSD | 0.46820572 (g) | 0.2311788 (g) |

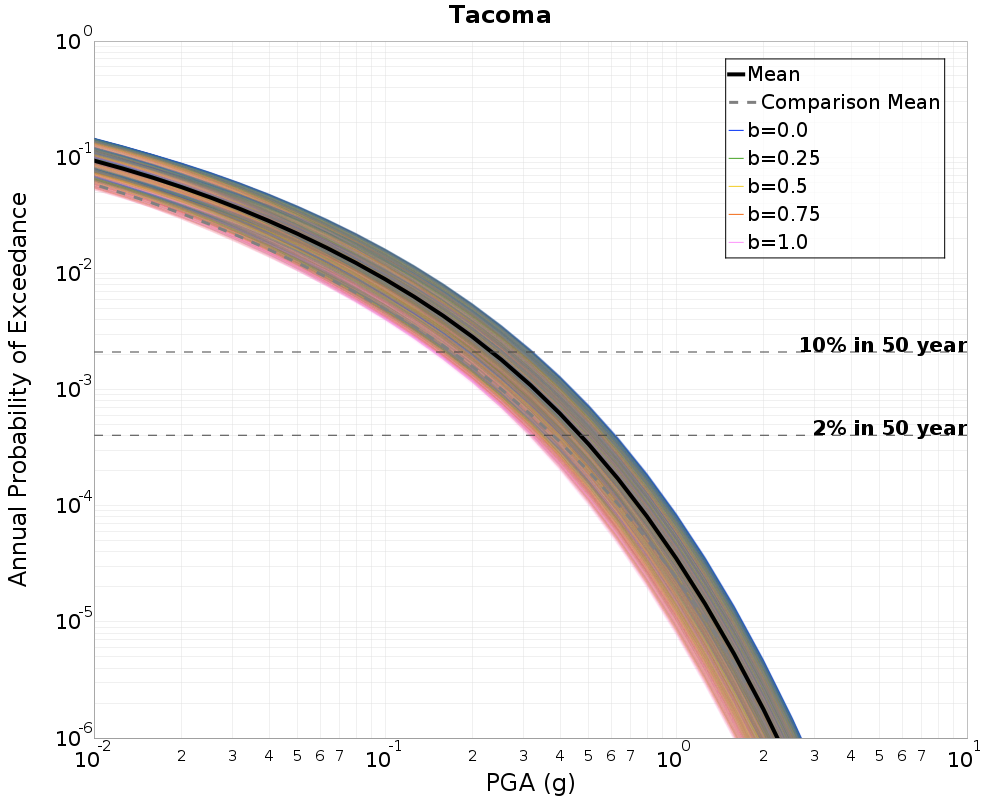

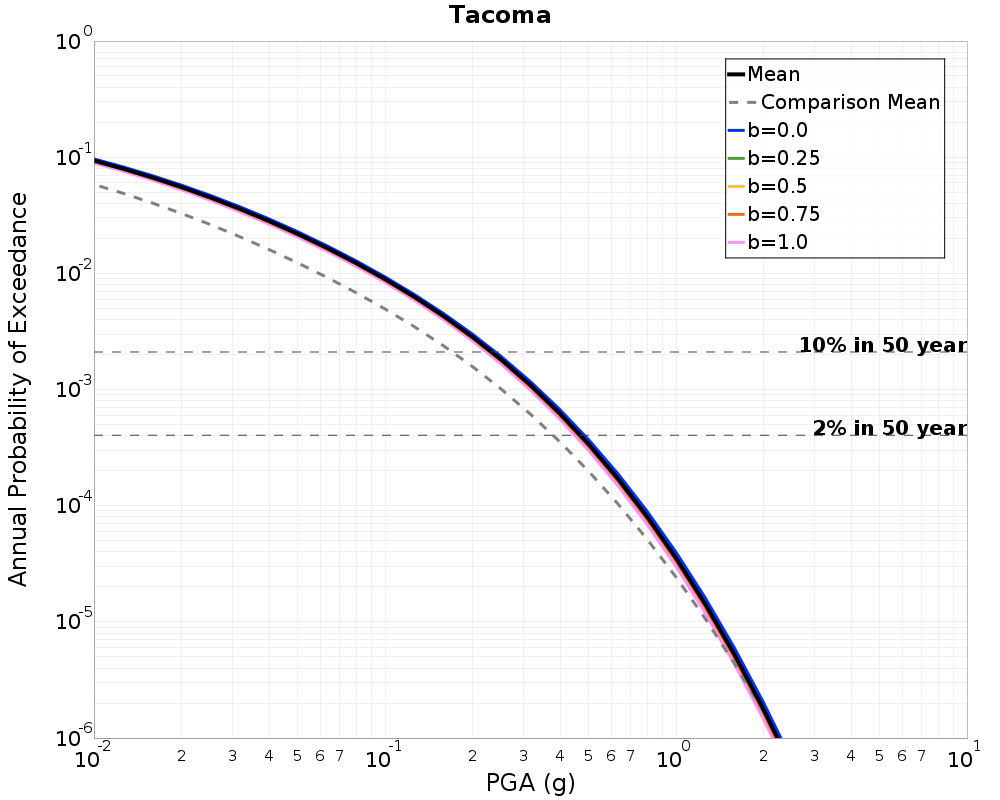

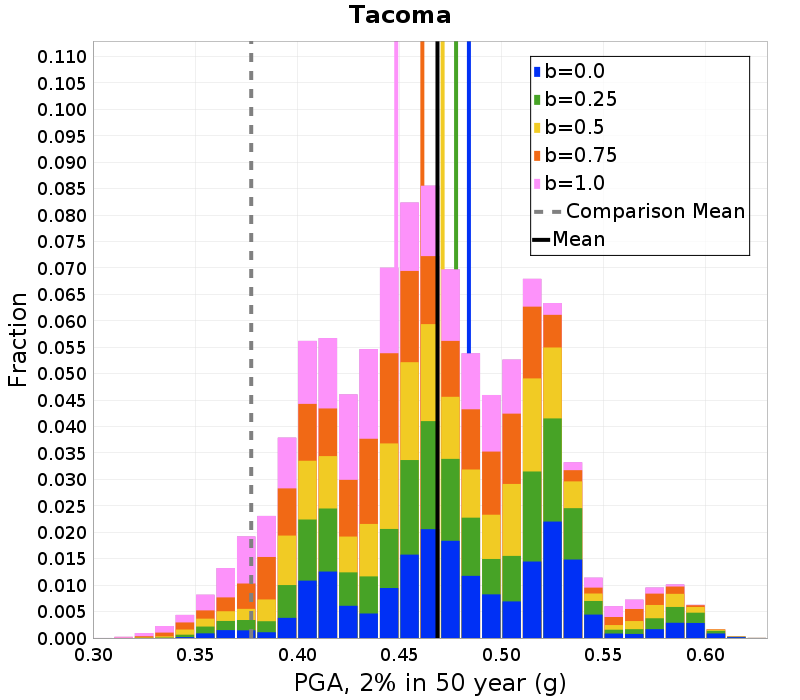

Tacoma, PGA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.4686615 (g) | 0.23232149 (g) |
| b=0.0 | 0.48405004 (g) | 0.23937617 (g) |
| b=0.25 | 0.47776812 (g) | 0.23670447 (g) |
| b=0.5 | 0.47117642 (g) | 0.2336837 (g) |
| b=0.75 | 0.46125403 (g) | 0.22898683 (g) |
| b=1.0 | 0.44846532 (g) | 0.22283156 (g) |

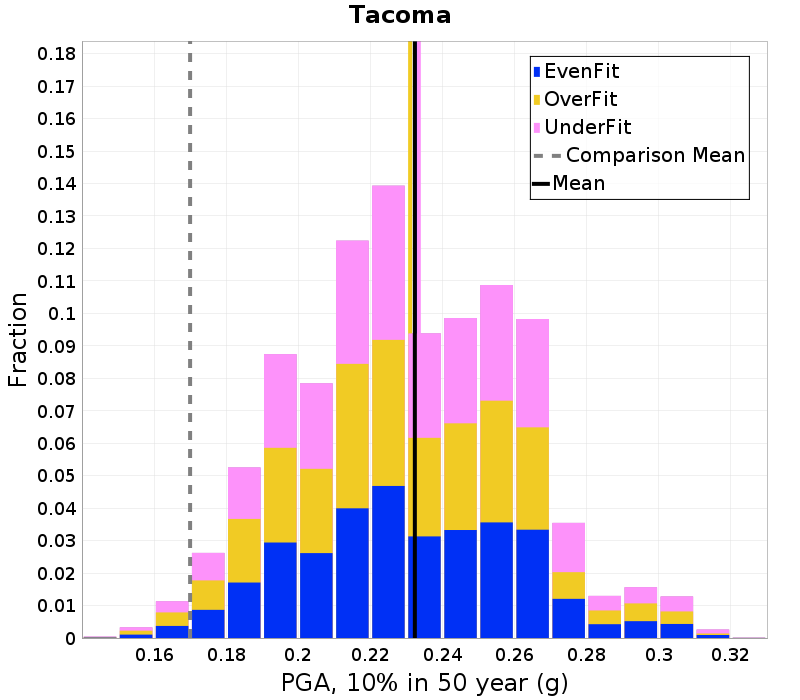

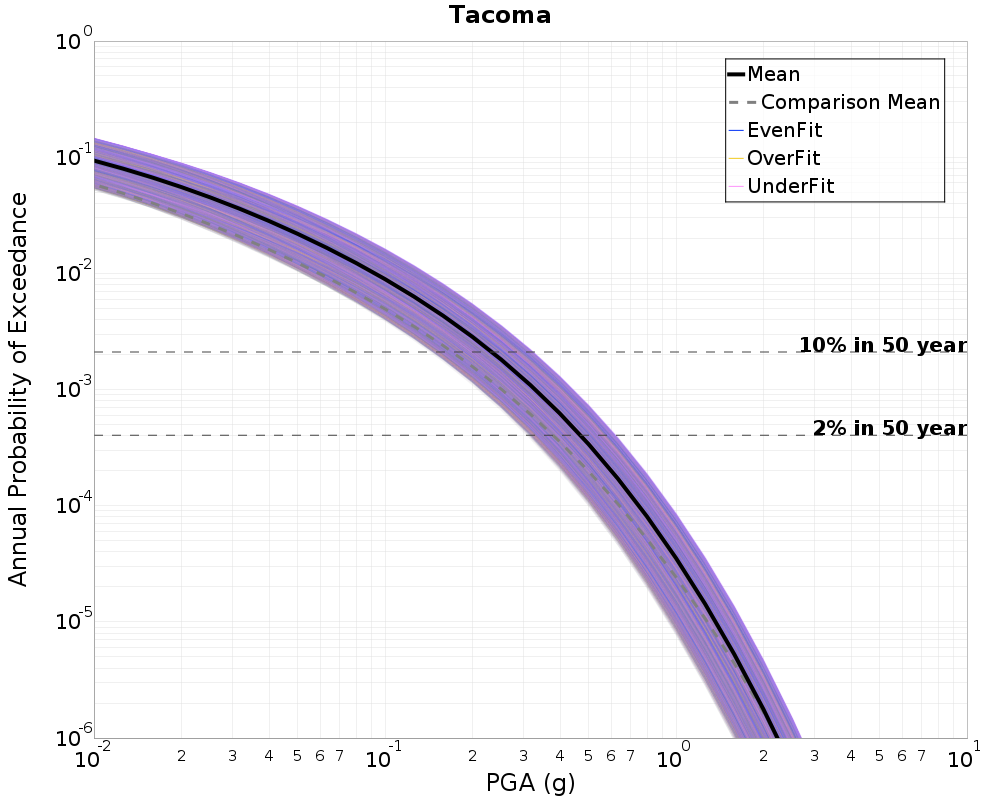

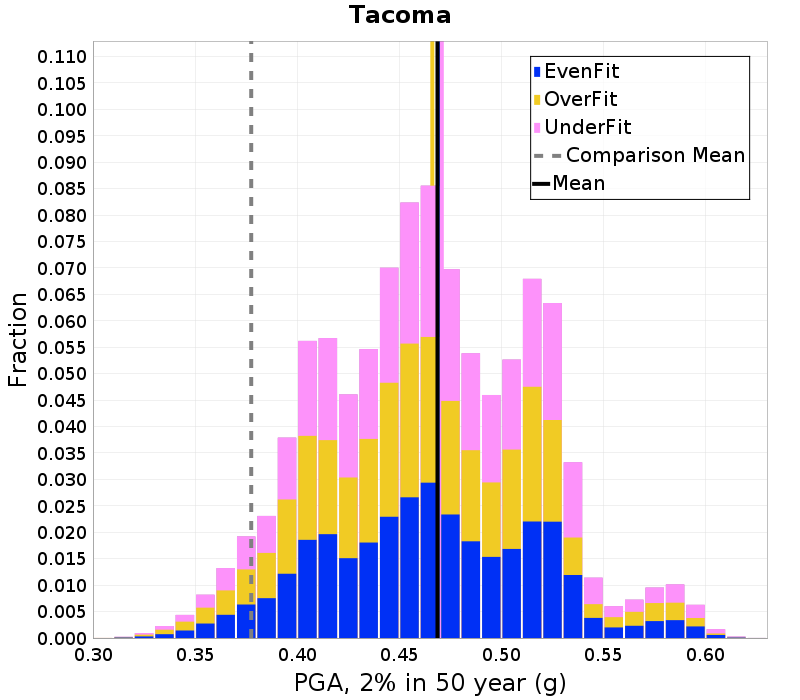

Tacoma, PGA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.4686615 (g) | 0.23232149 (g) |
| EvenFit | 0.469065 (g) | 0.23252359 (g) |
| OverFit | 0.4661284 (g) | 0.23100732 (g) |
| UnderFit | 0.47078004 (g) | 0.233431 (g) |

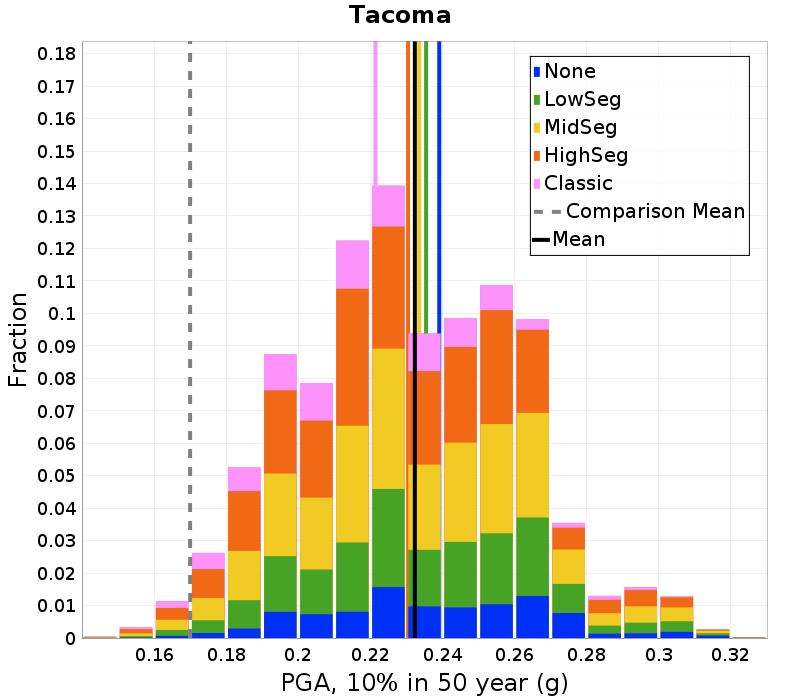

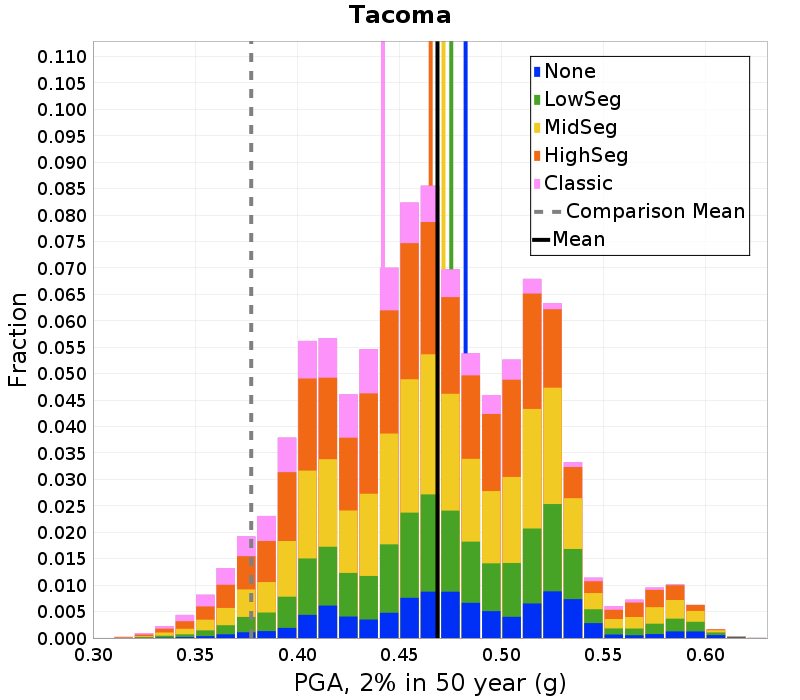

Tacoma, PGA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.4686615 (g) | 0.23232149 (g) |
| None | 0.48243722 (g) | 0.23909232 (g) |
| LowSeg | 0.4754124 (g) | 0.23543923 (g) |
| MidSeg | 0.47160214 (g) | 0.23352078 (g) |
| HighSeg | 0.4653265 (g) | 0.2304388 (g) |
| Classic | 0.4419815 (g) | 0.22139753 (g) |

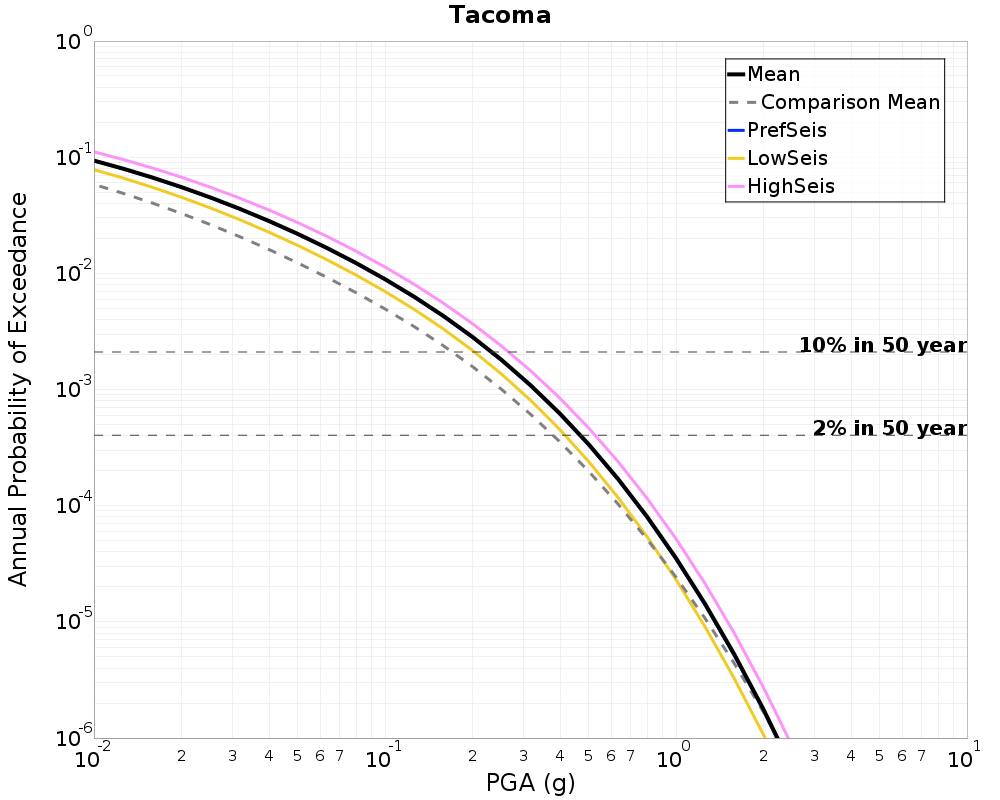

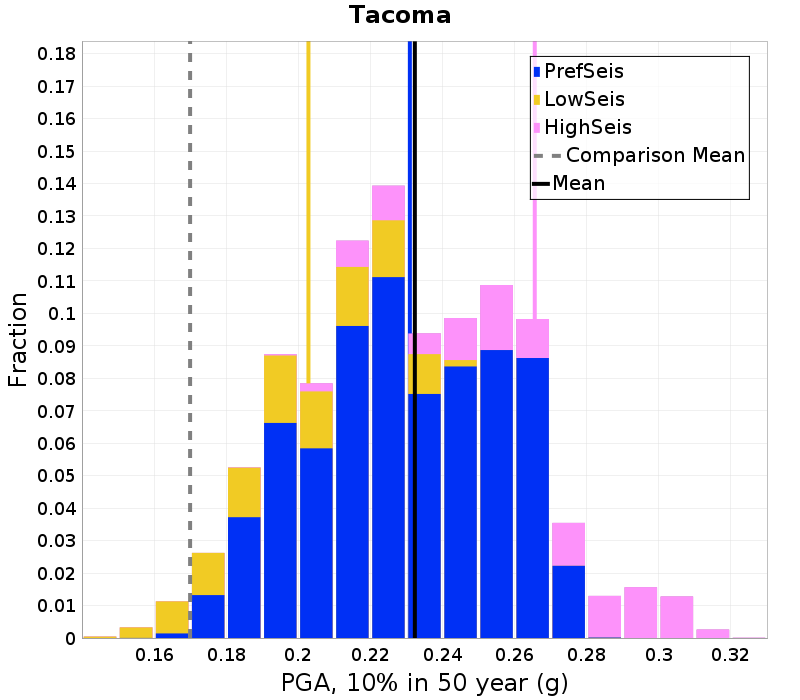

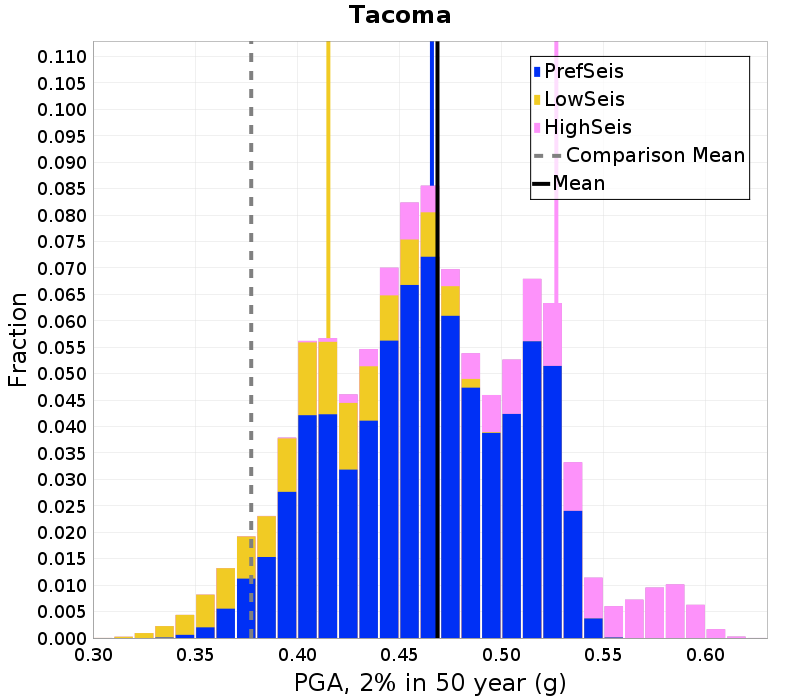

Tacoma, PGA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.4686615 (g) | 0.23232149 (g) |
| PrefSeis | 0.4659505 (g) | 0.2309376 (g) |
| LowSeis | 0.41523483 (g) | 0.20280832 (g) |
| HighSeis | 0.5268571 (g) | 0.26558334 (g) |

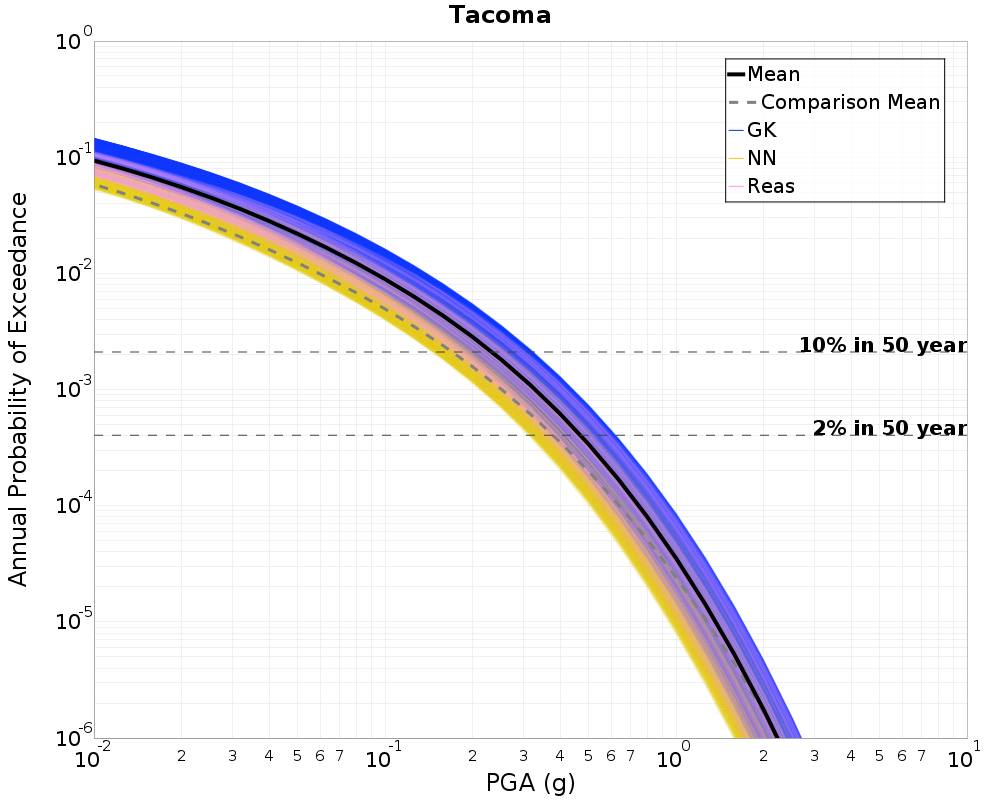

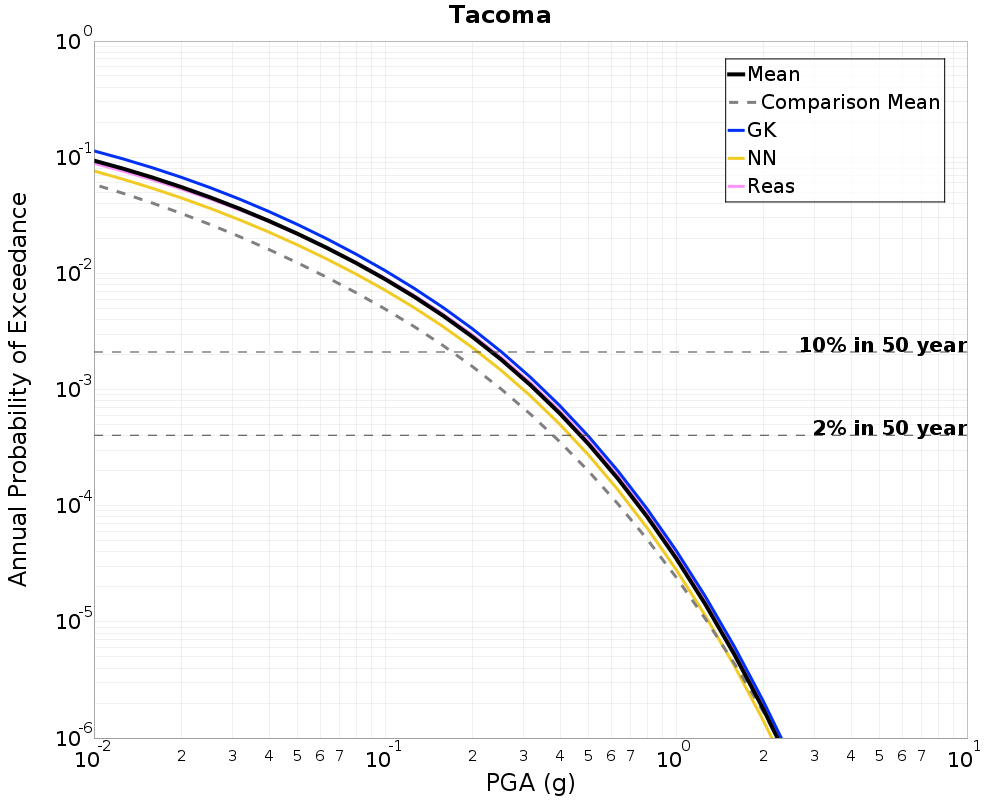

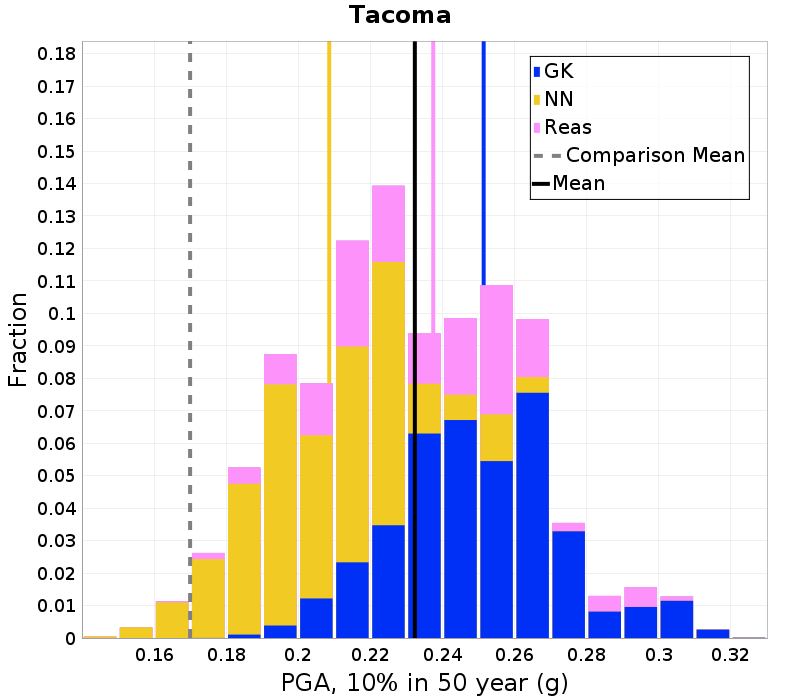

Tacoma, PGA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.4686615 (g) | 0.23232149 (g) |
| GK | 0.49648923 (g) | 0.25141 (g) |
| NN | 0.43224967 (g) | 0.20857397 (g) |
| Reas | 0.4784311 (g) | 0.23742098 (g) |

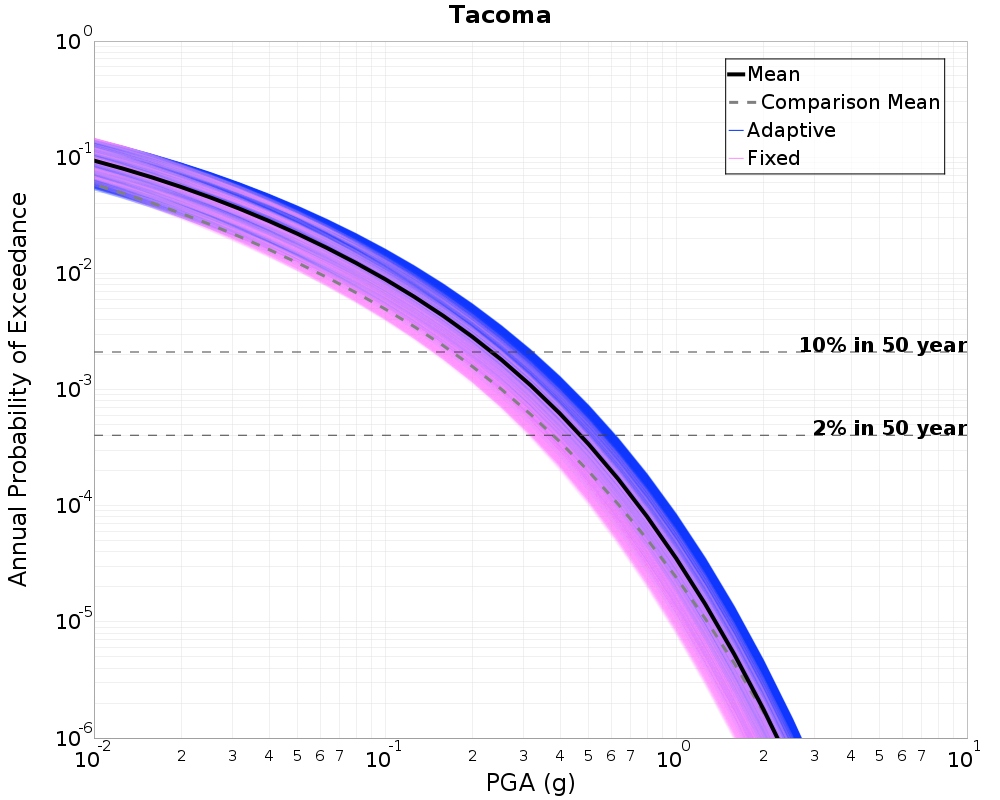

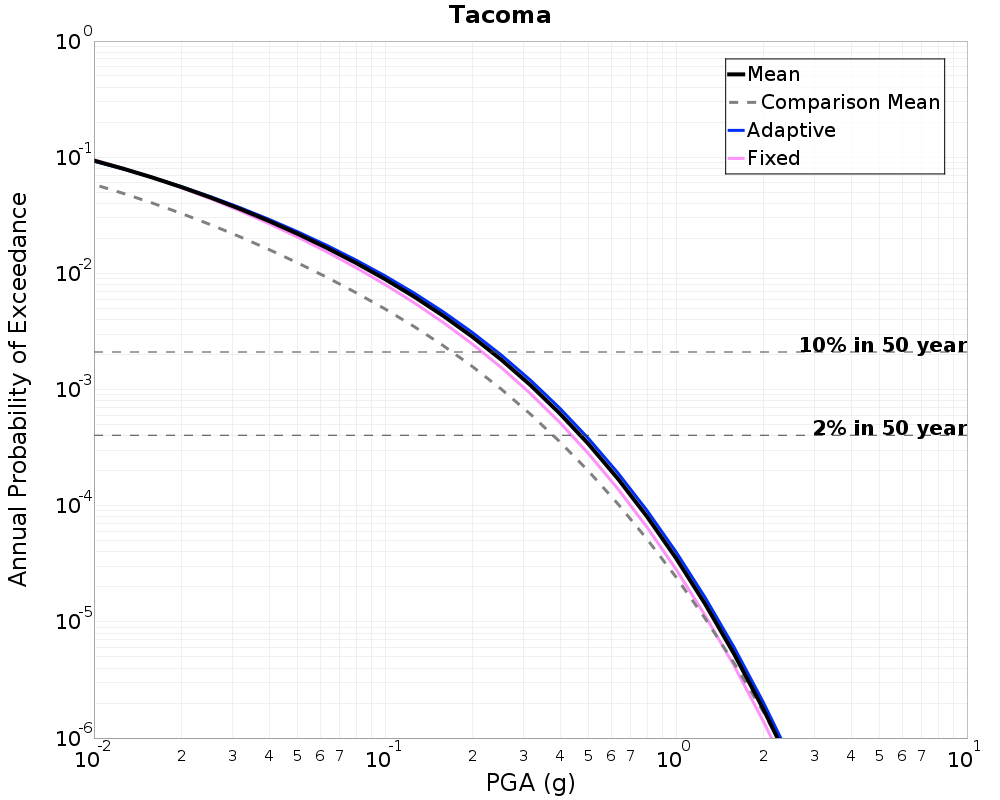

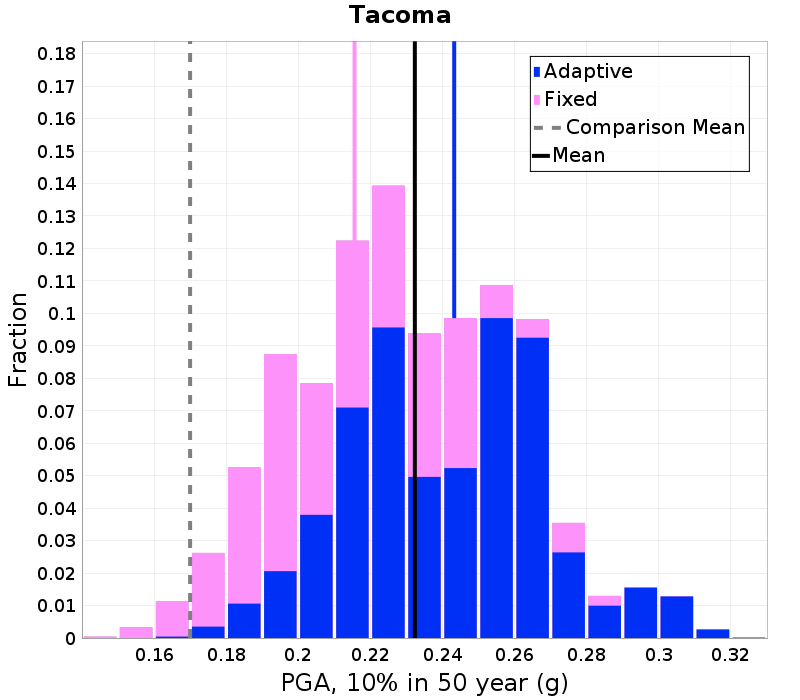

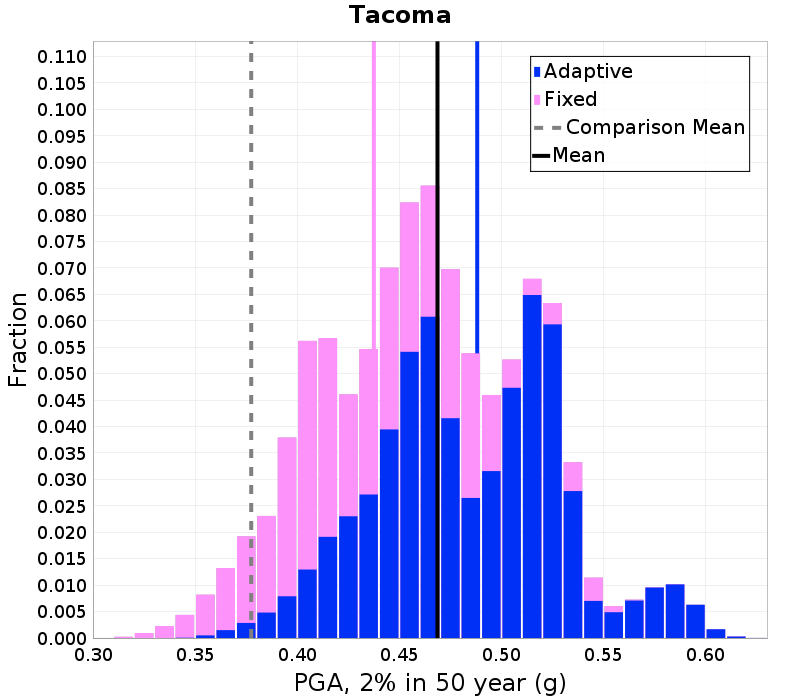

Tacoma, PGA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.4686615 (g) | 0.23232149 (g) |
| Adaptive | 0.48811892 (g) | 0.24323964 (g) |
| Fixed | 0.43752515 (g) | 0.21559685 (g) |

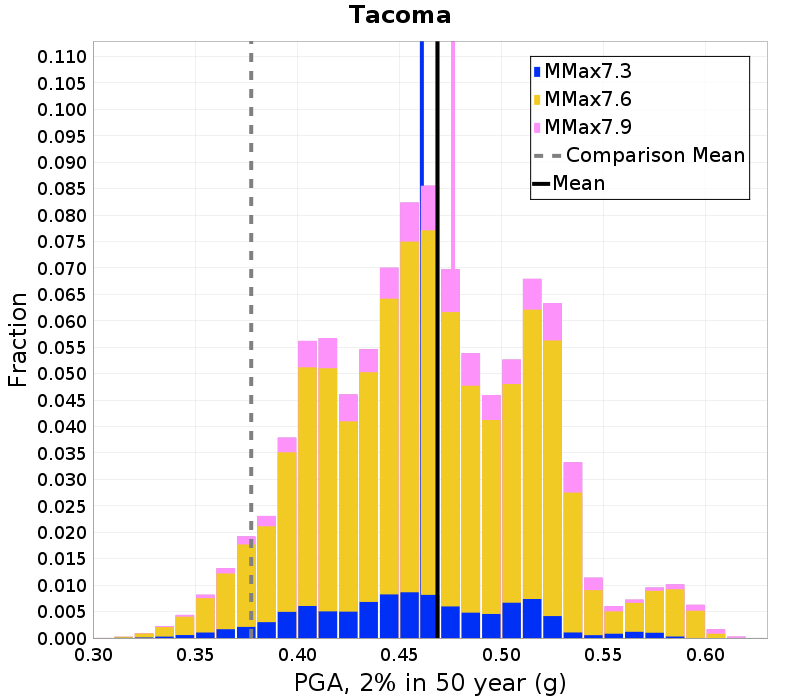

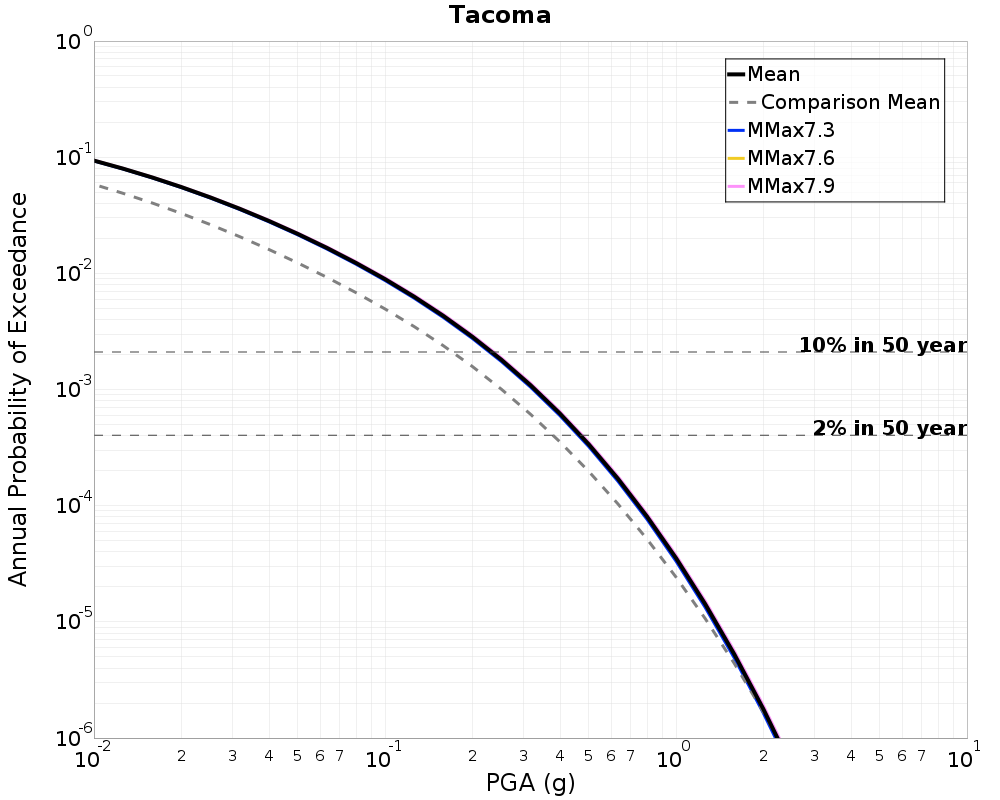

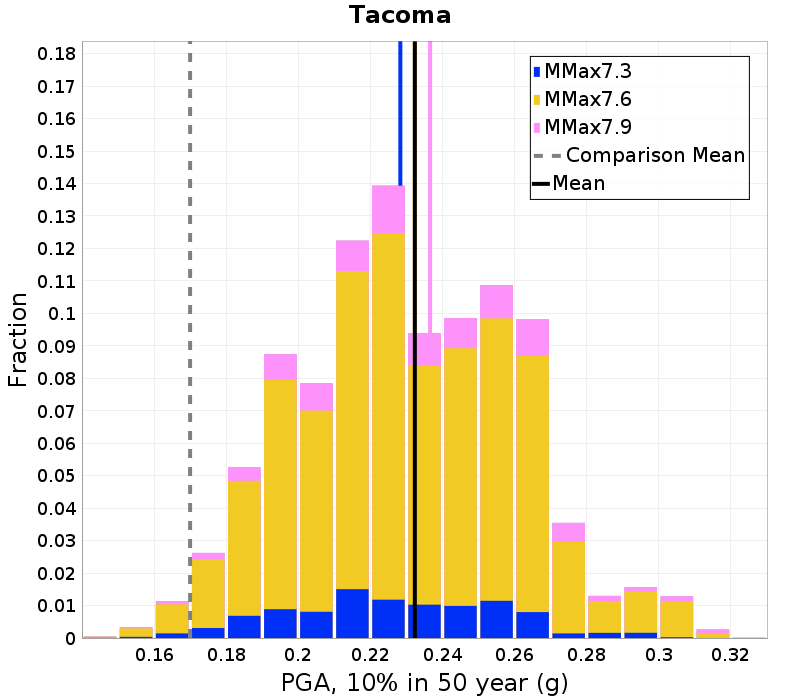

Tacoma, PGA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.4686615 (g) | 0.23232149 (g) |
| MMax7.3 | 0.4610192 (g) | 0.22829928 (g) |
| MMax7.6 | 0.46864936 (g) | 0.23229086 (g) |
| MMax7.9 | 0.47627616 (g) | 0.23655547 (g) |
Tacoma, 1.0s SA
Tacoma, 1.0s SA, Hazard Value Distributions
| 2% in 50 year | 10% in 50 year |
|---|---|
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Primary | 0.25020355 (g) | 0.113050155 (g) |
| Comparison | 0.21124594 (g) | 0.09021082 (g) |

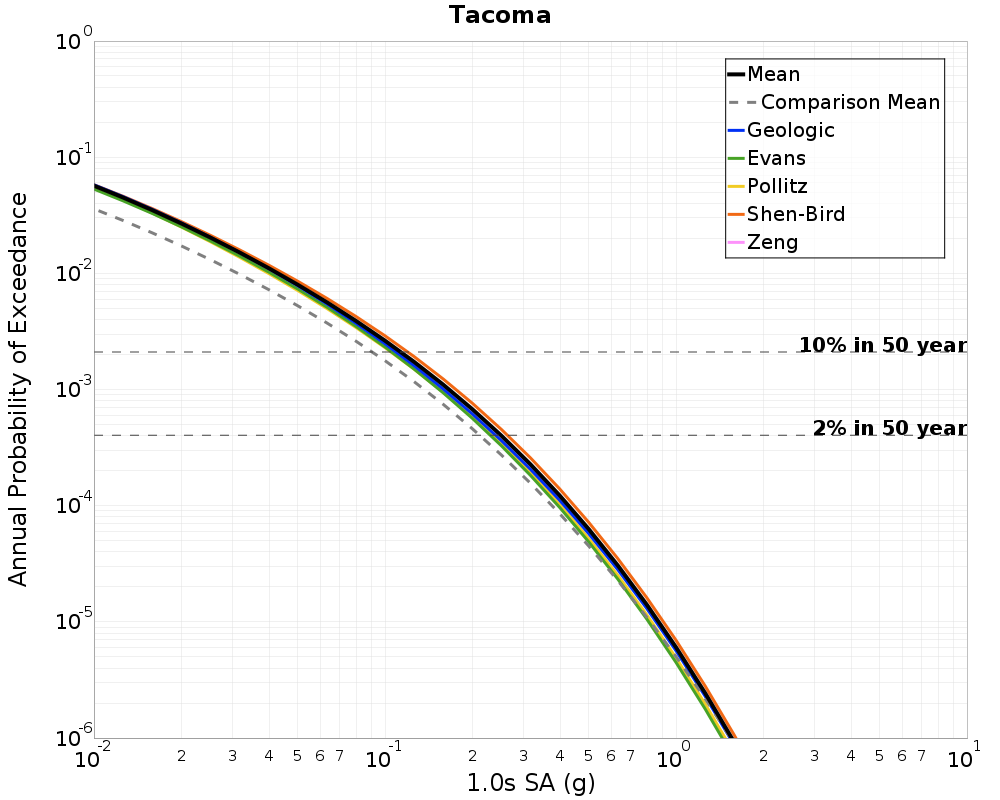

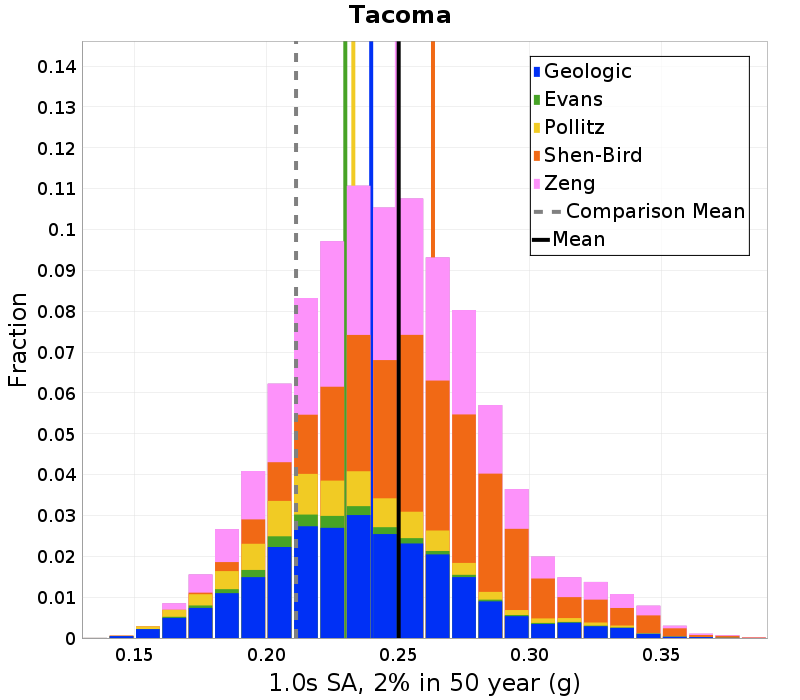

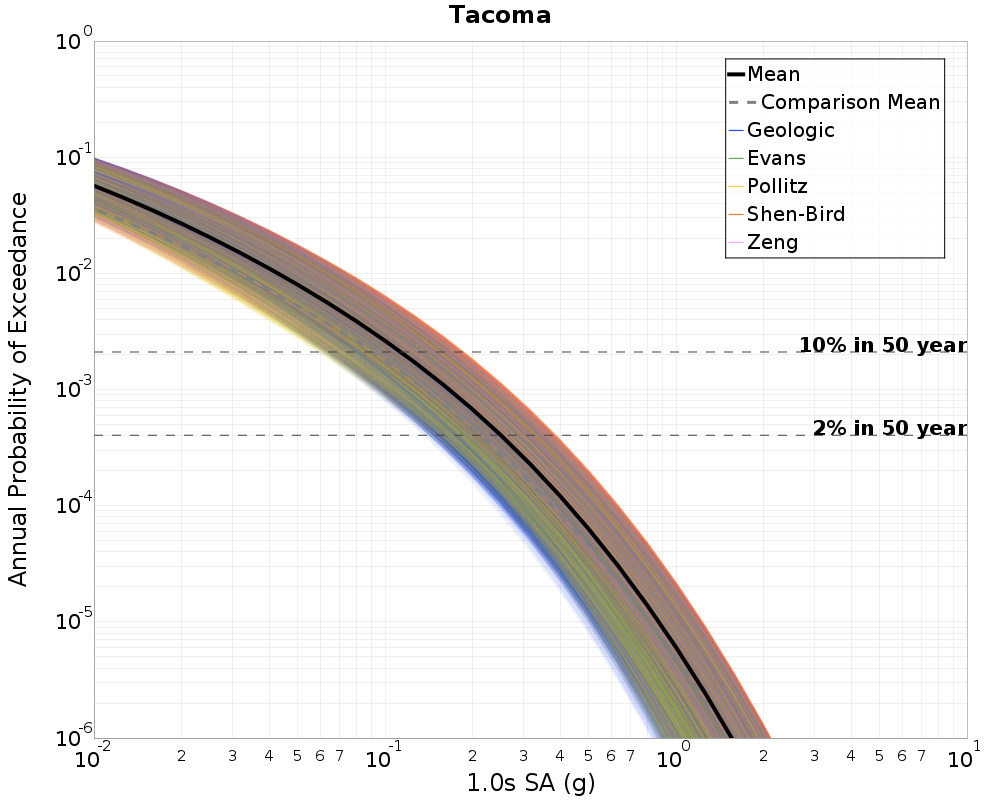

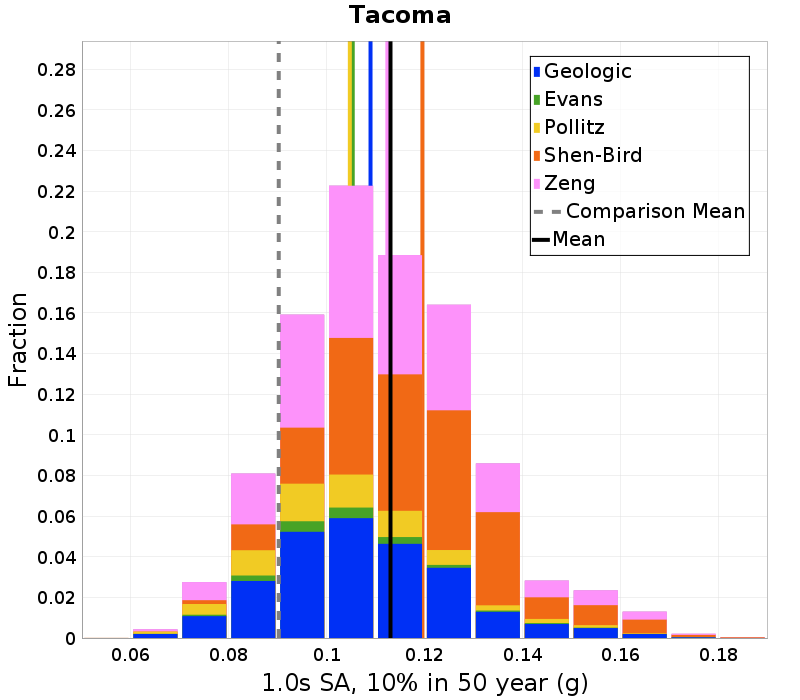

Tacoma, 1.0s SA, Deformation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.25020355 (g) | 0.113050155 (g) |
| Geologic | 0.23976398 (g) | 0.10896794 (g) |
| Evans | 0.22993706 (g) | 0.105332725 (g) |
| Pollitz | 0.23298496 (g) | 0.104739375 (g) |
| Shen-Bird | 0.26322177 (g) | 0.119570024 (g) |
| Zeng | 0.24950793 (g) | 0.11240516 (g) |

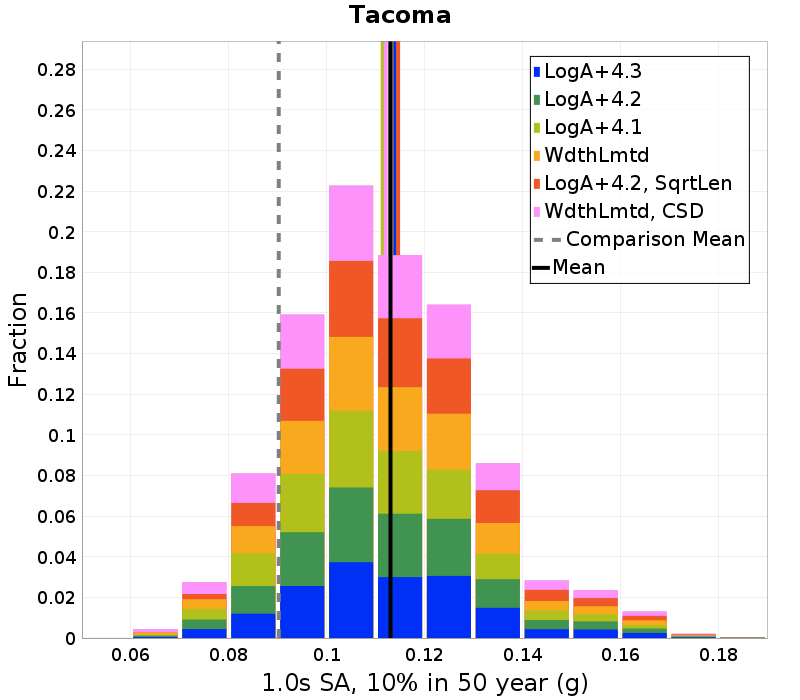

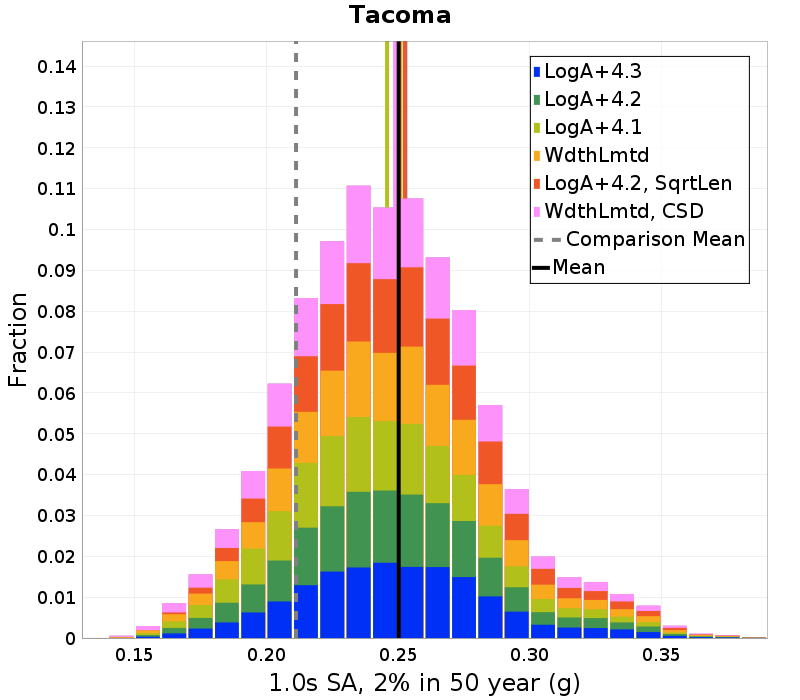

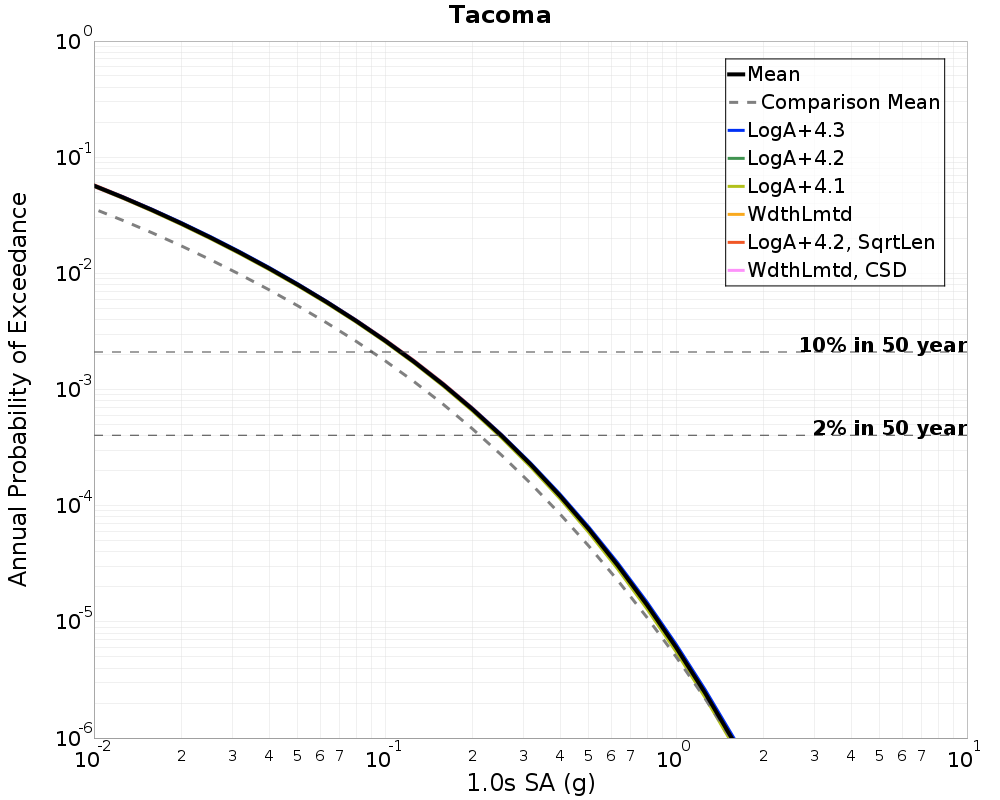

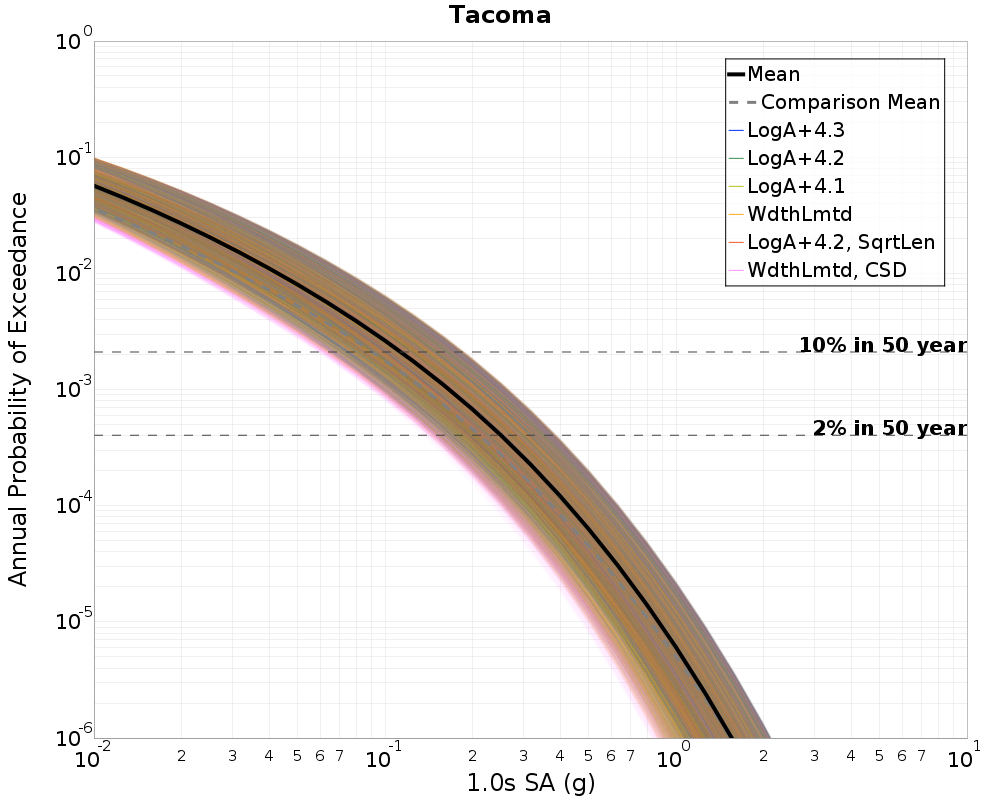

Tacoma, 1.0s SA, Scaling Relationship Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.25020355 (g) | 0.113050155 (g) |
| LogA+4.3 | 0.25268167 (g) | 0.11394316 (g) |
| LogA+4.2 | 0.25015432 (g) | 0.113001645 (g) |
| LogA+4.1 | 0.24579877 (g) | 0.11145893 (g) |
| WdthLmtd | 0.25085673 (g) | 0.11321879 (g) |
| LogA+4.2, SqrtLen | 0.25260934 (g) | 0.11460698 (g) |
| WdthLmtd, CSD | 0.24884096 (g) | 0.11206388 (g) |

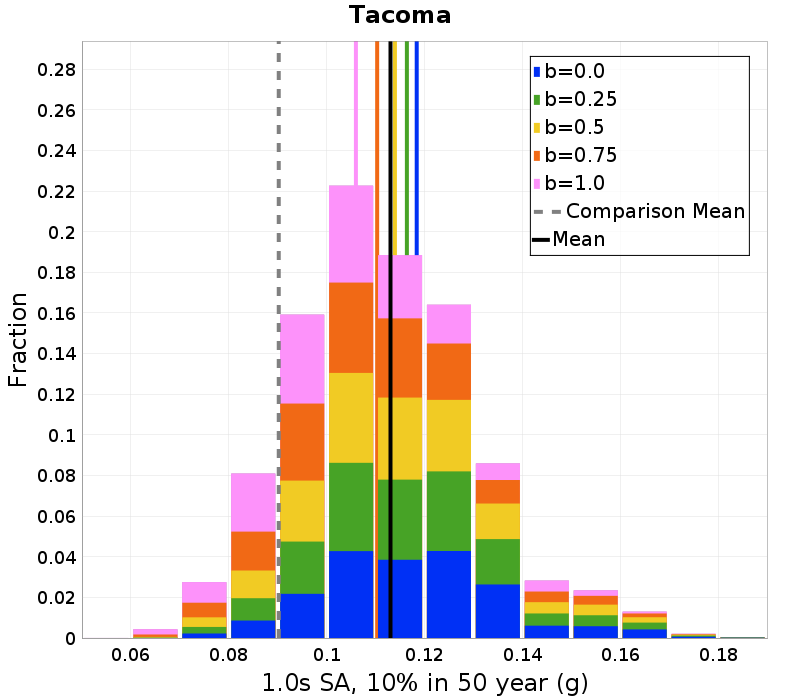

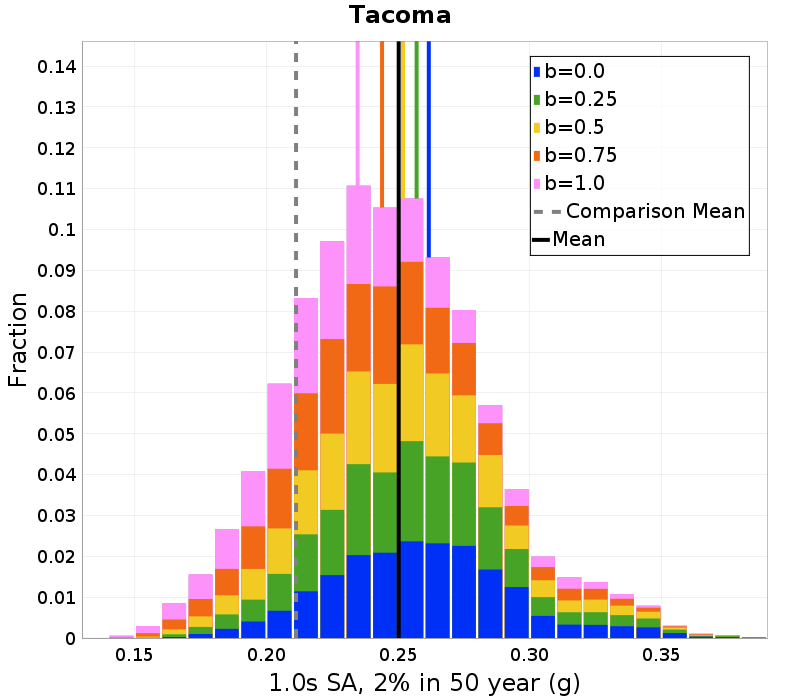

Tacoma, 1.0s SA, Supra-Seismogenic b-value Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.25020355 (g) | 0.113050155 (g) |
| b=0.0 | 0.26163796 (g) | 0.11840809 (g) |
| b=0.25 | 0.25700524 (g) | 0.11639829 (g) |
| b=0.5 | 0.2518393 (g) | 0.11395501 (g) |
| b=0.75 | 0.24389142 (g) | 0.11032355 (g) |
| b=1.0 | 0.23462543 (g) | 0.1059806 (g) |

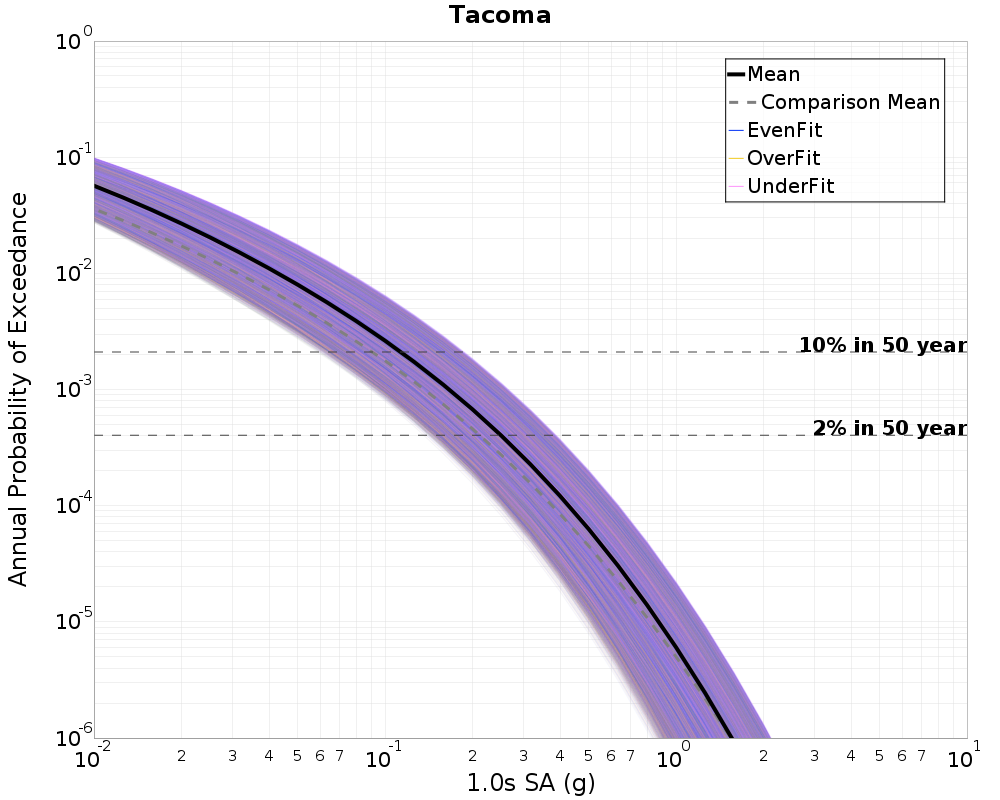

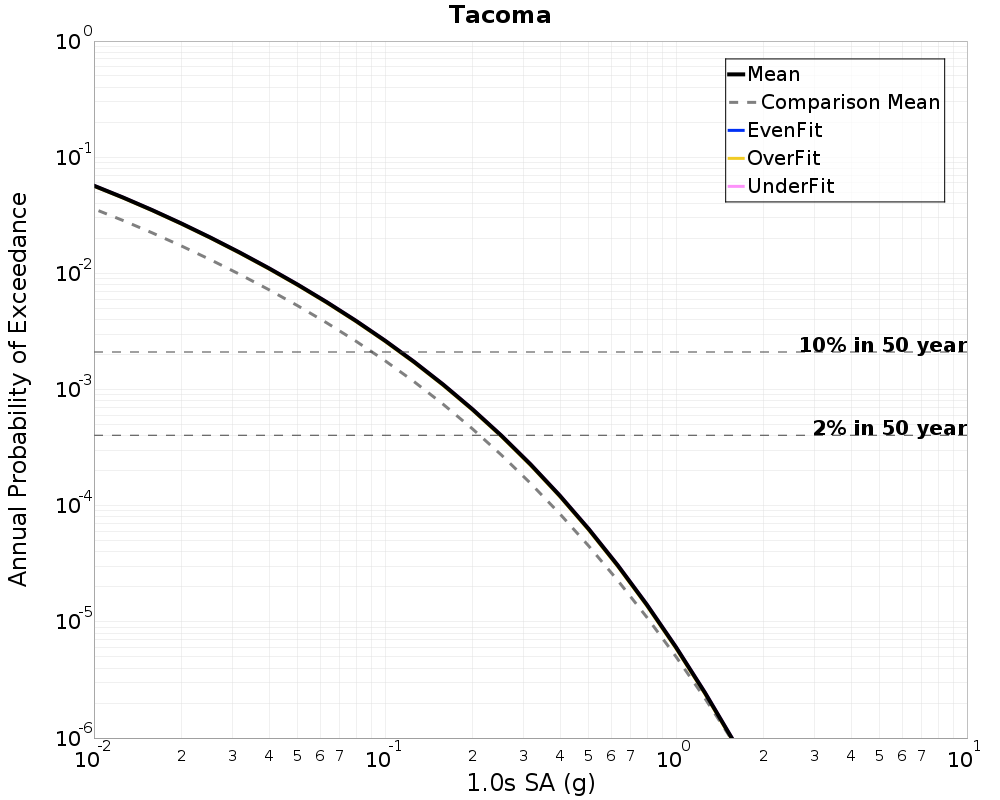

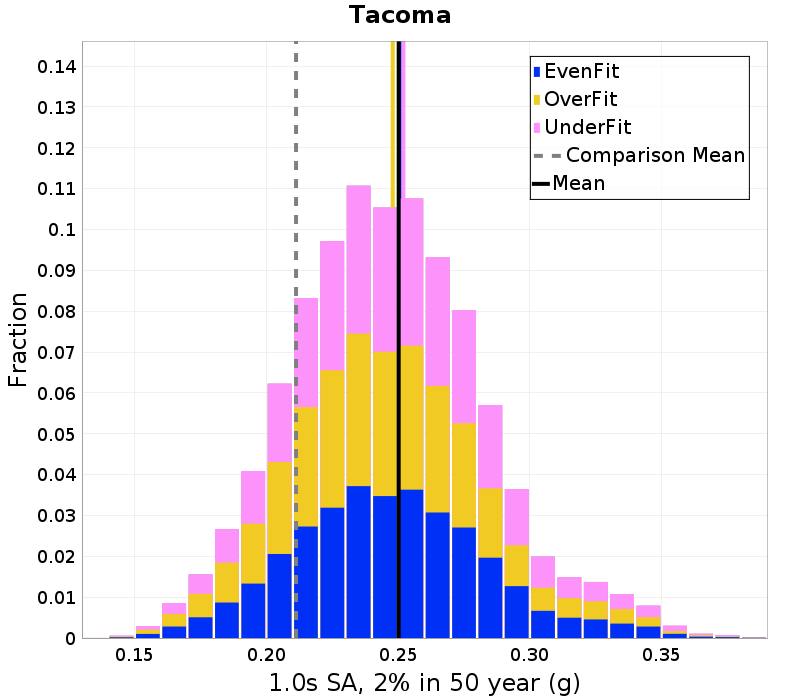

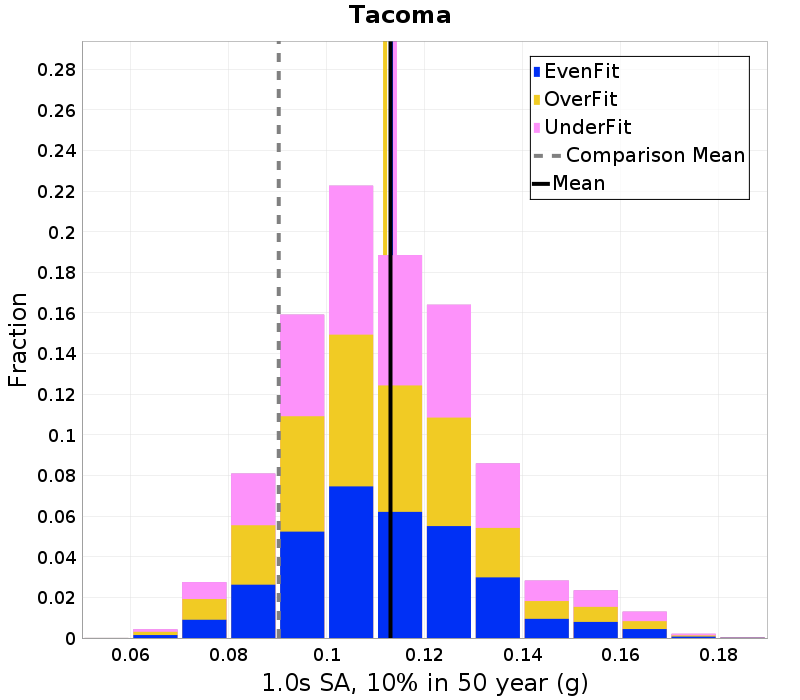

Tacoma, 1.0s SA, Paleoseismic Data Uncertainties Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.25020355 (g) | 0.113050155 (g) |
| EvenFit | 0.25060537 (g) | 0.113240905 (g) |
| OverFit | 0.24793953 (g) | 0.111938484 (g) |
| UnderFit | 0.25198466 (g) | 0.113966055 (g) |

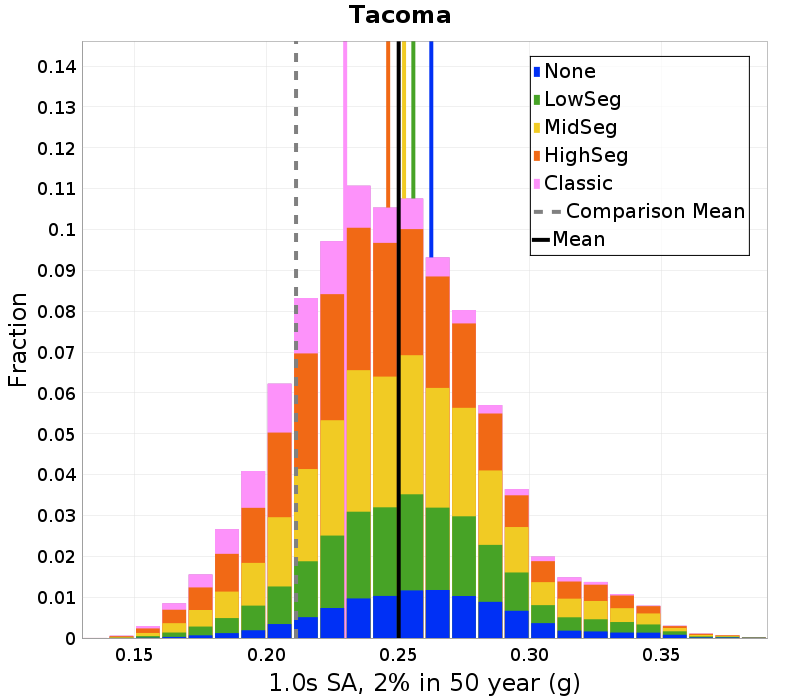

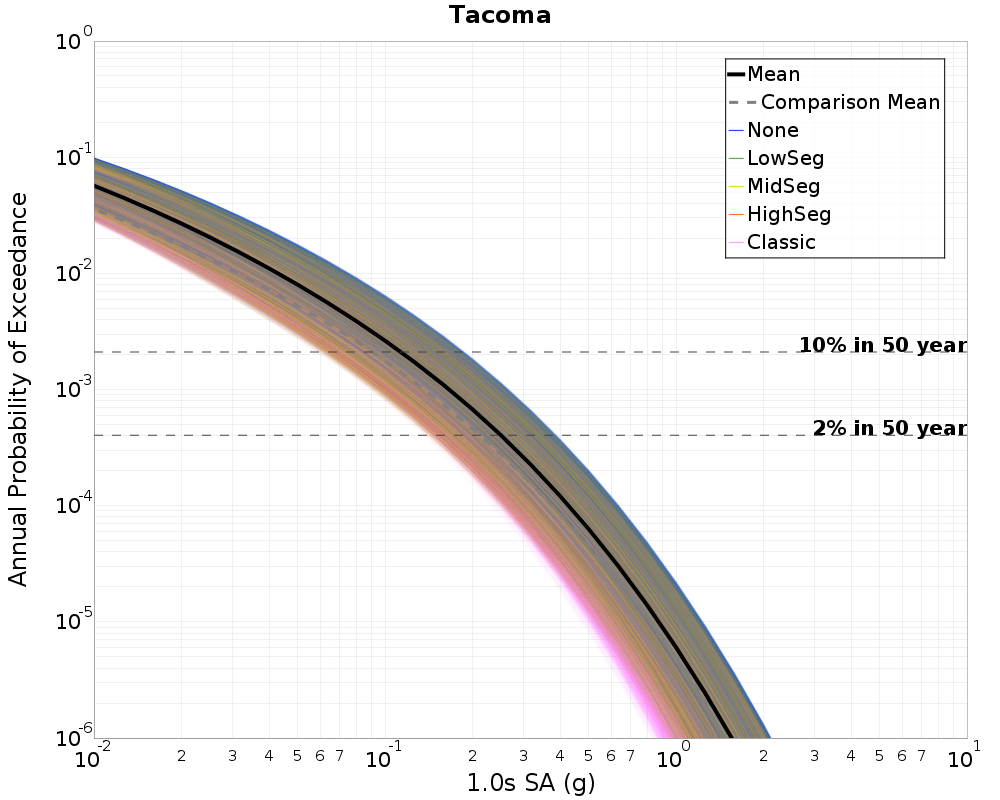

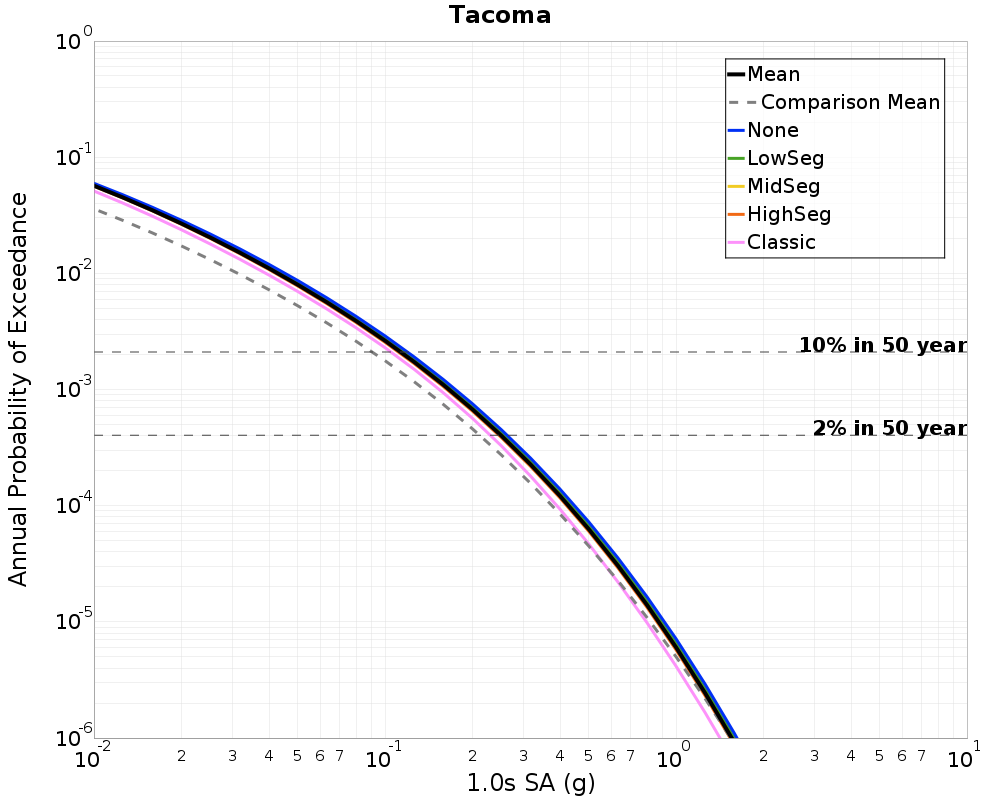

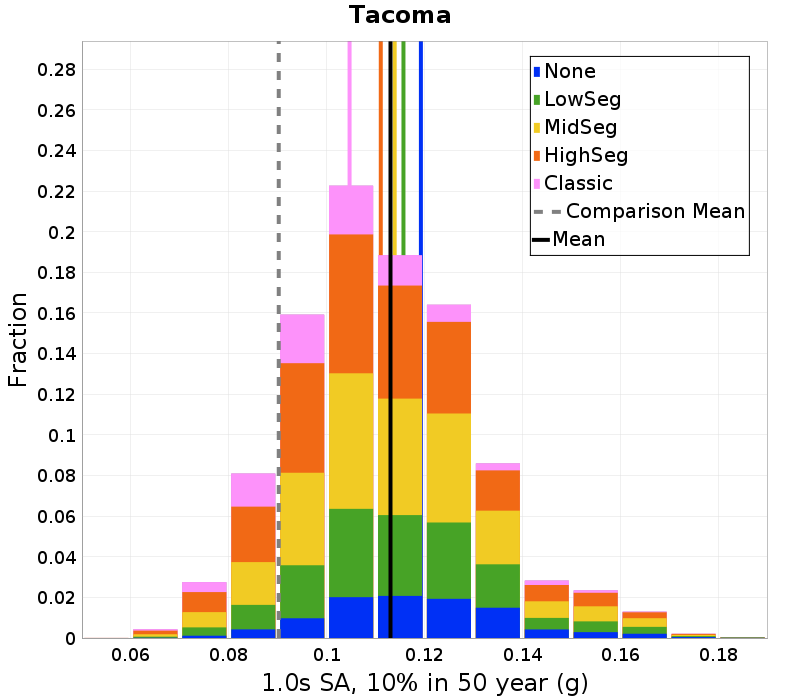

Tacoma, 1.0s SA, Segmentation Model Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.25020355 (g) | 0.113050155 (g) |
| None | 0.26258168 (g) | 0.119264044 (g) |
| LowSeg | 0.25576502 (g) | 0.1156998 (g) |
| MidSeg | 0.25224766 (g) | 0.11390632 (g) |
| HighSeg | 0.24621247 (g) | 0.11106423 (g) |
| Classic | 0.22988589 (g) | 0.10468476 (g) |

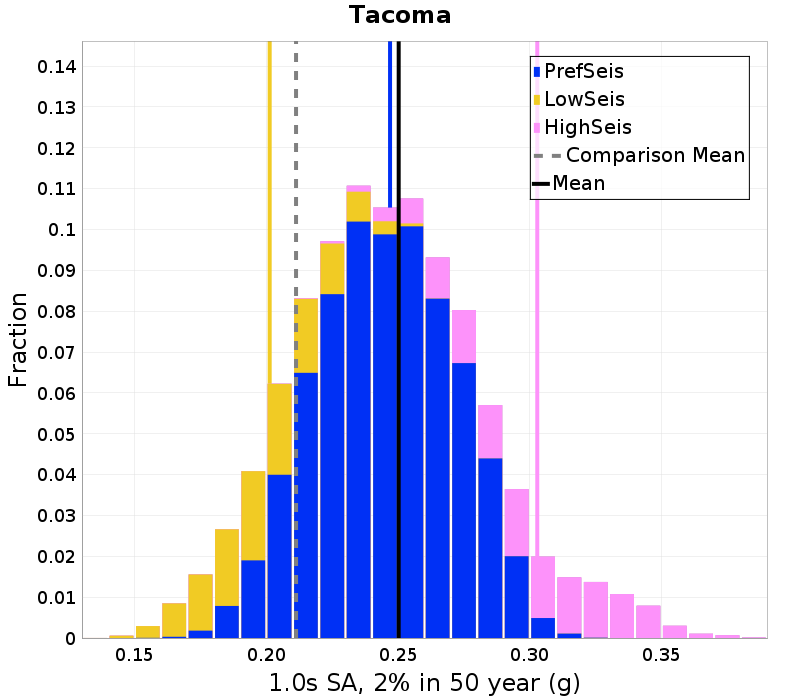

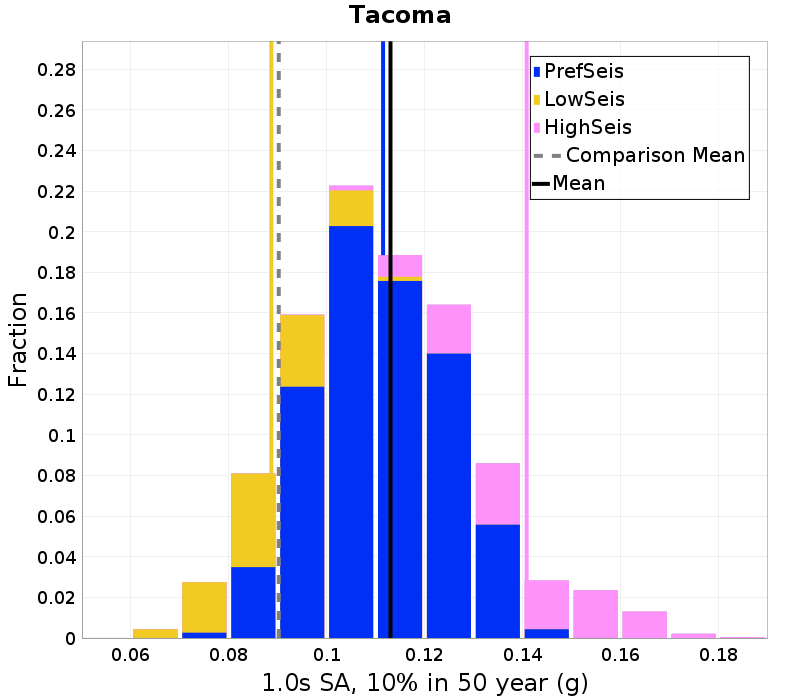

Tacoma, 1.0s SA, Regional Seismicity Rate Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.25020355 (g) | 0.113050155 (g) |
| PrefSeis | 0.24692547 (g) | 0.11153537 (g) |
| LowSeis | 0.20123735 (g) | 0.08870151 (g) |
| HighSeis | 0.30280355 (g) | 0.14087927 (g) |

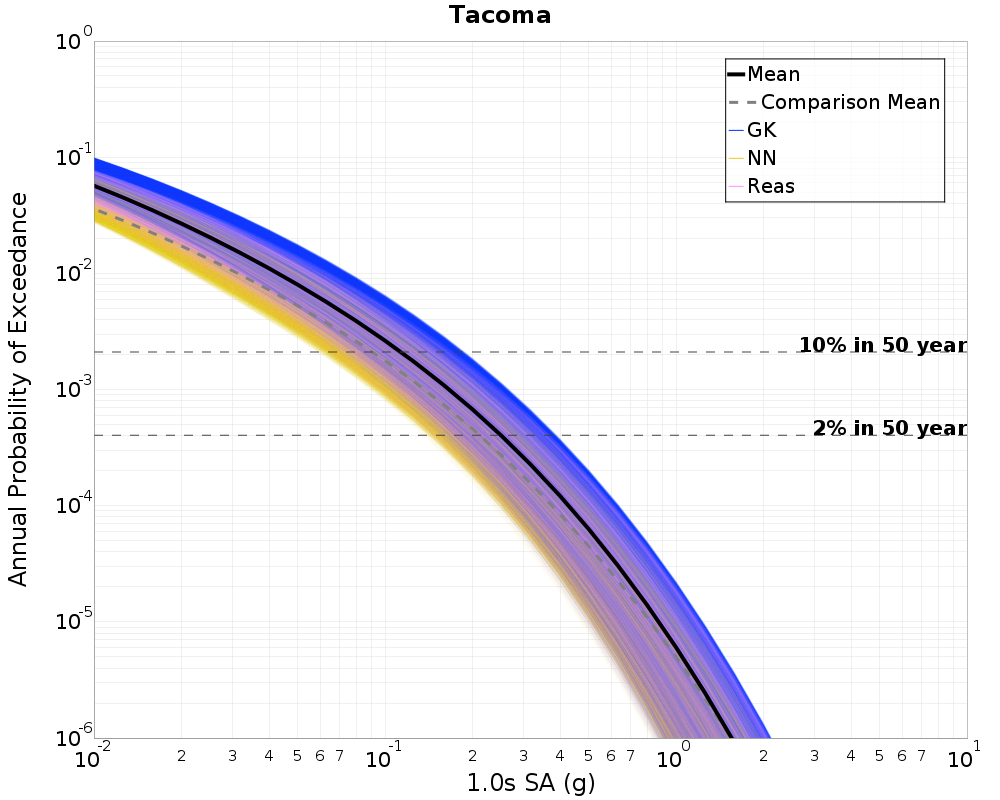

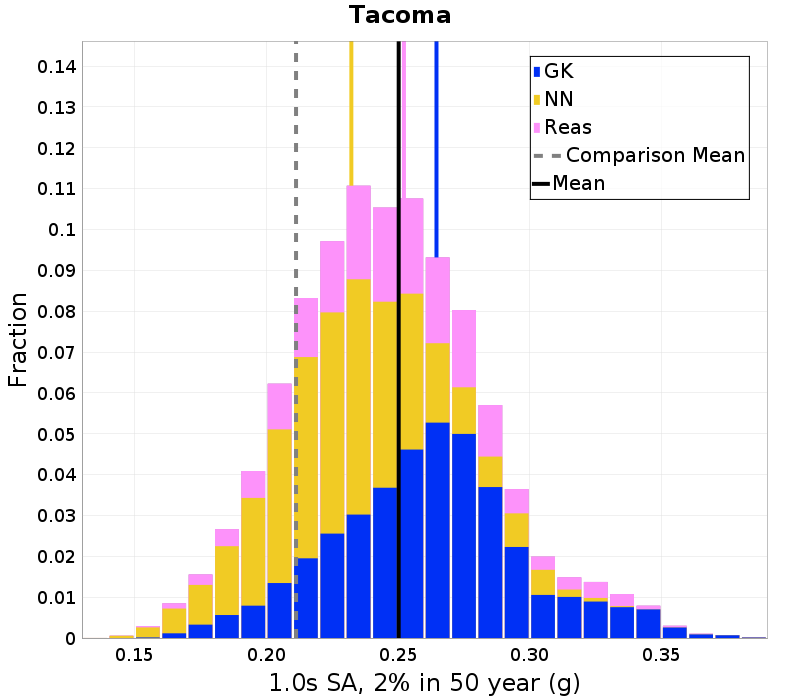

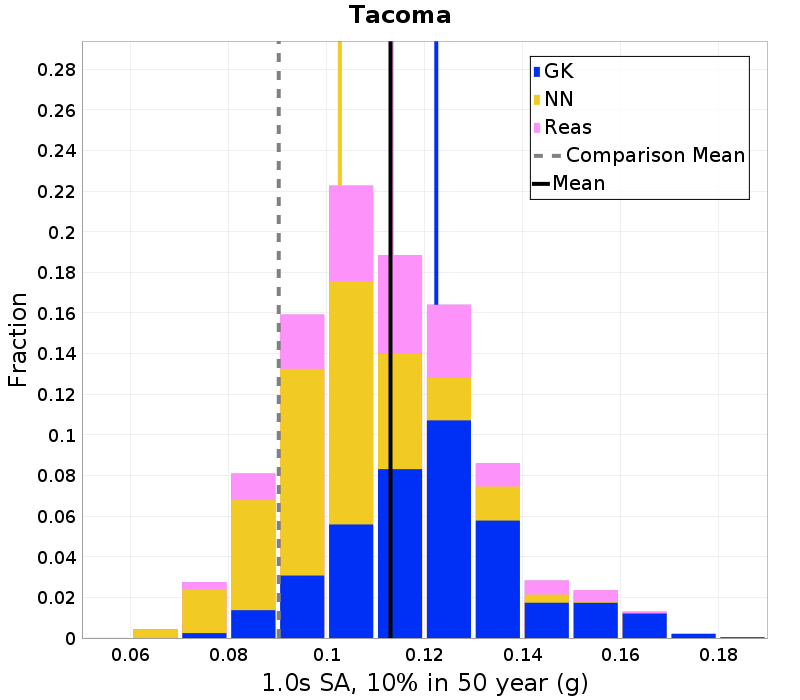

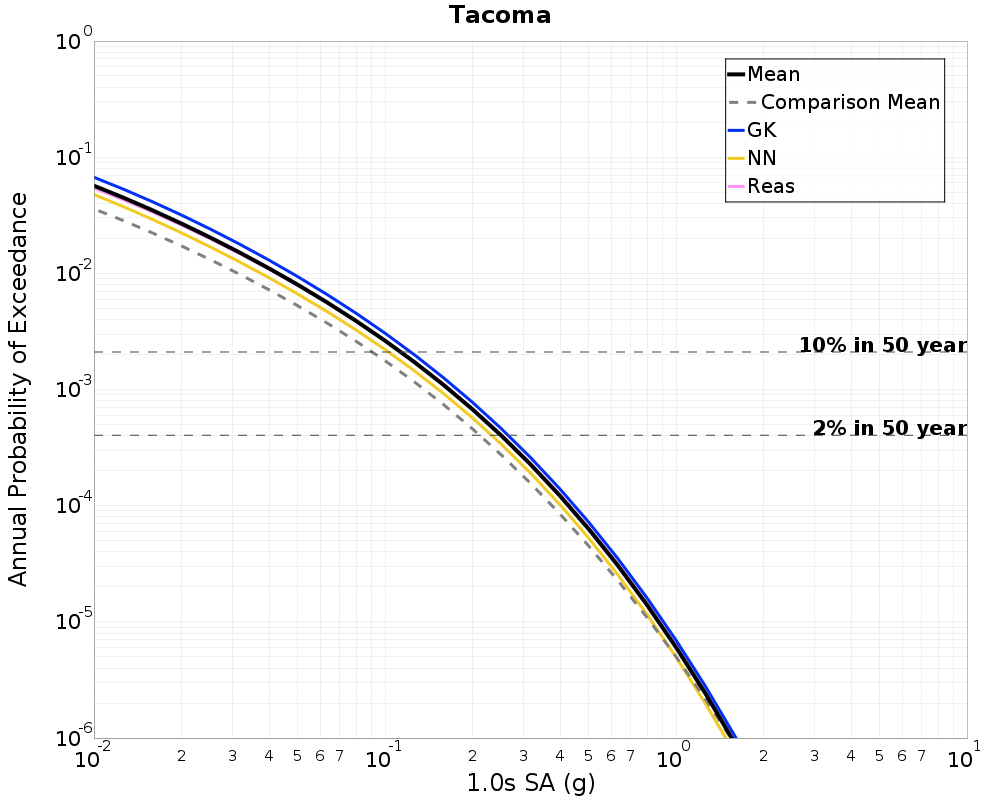

Tacoma, 1.0s SA, Seismicity Declustering Algorithm Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.25020355 (g) | 0.113050155 (g) |
| GK | 0.2645472 (g) | 0.122407705 (g) |
| NN | 0.23223785 (g) | 0.1026978 (g) |
| Reas | 0.25220013 (g) | 0.113310635 (g) |

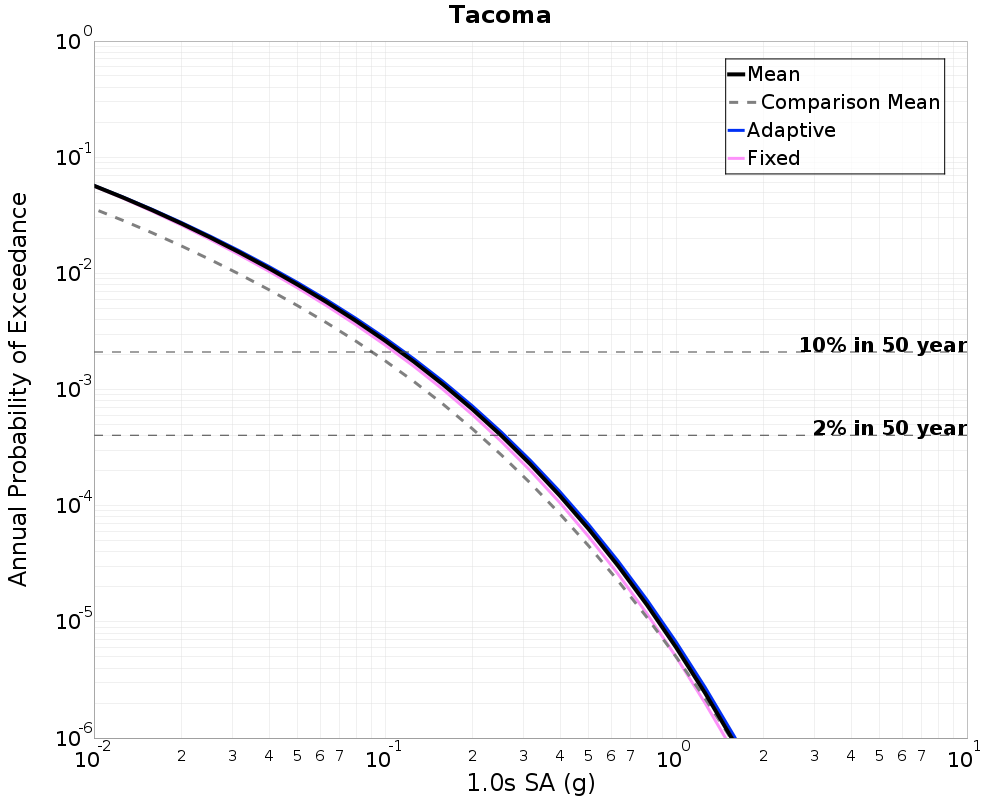

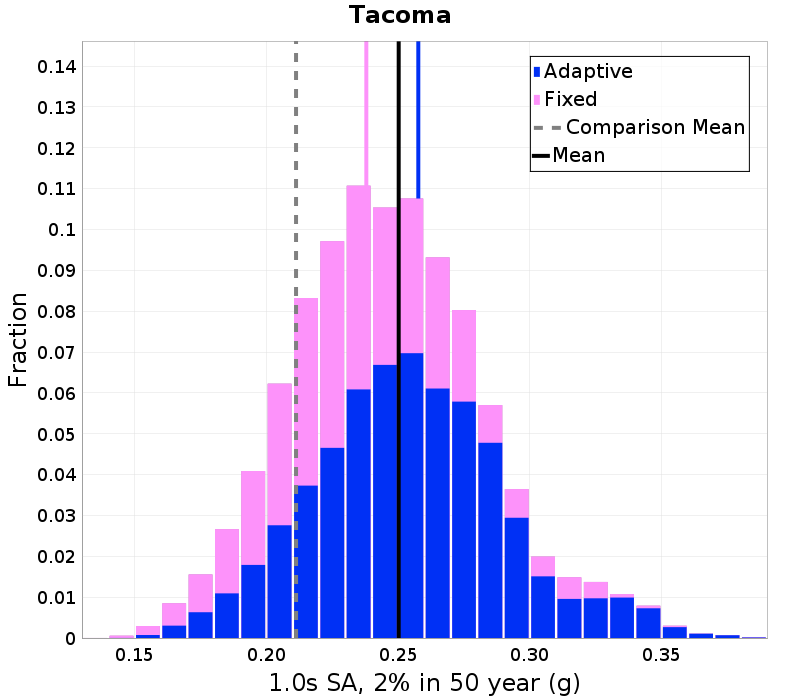

Tacoma, 1.0s SA, Seismicity Smoothing Kernel Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.25020355 (g) | 0.113050155 (g) |
| Adaptive | 0.25764793 (g) | 0.11656195 (g) |
| Fixed | 0.23791933 (g) | 0.107743755 (g) |

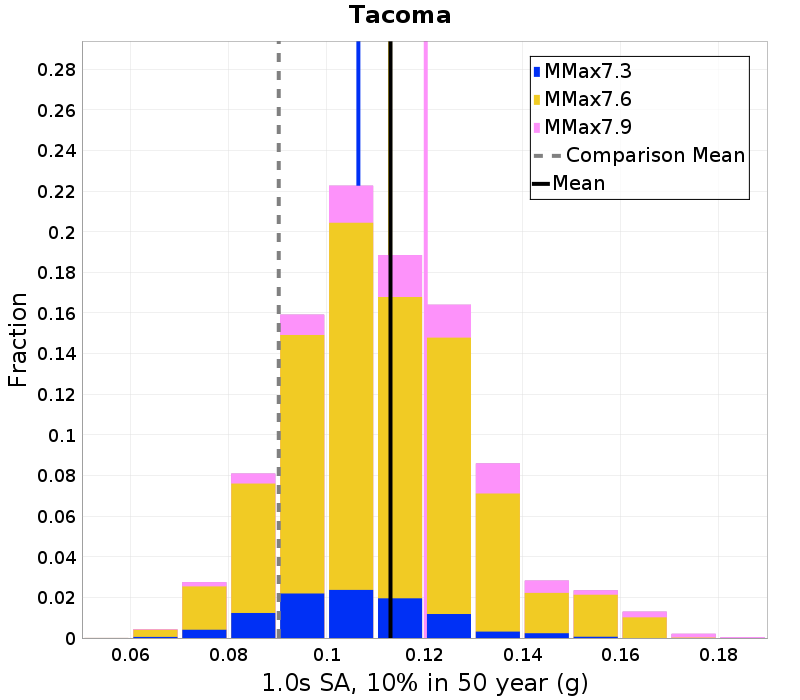

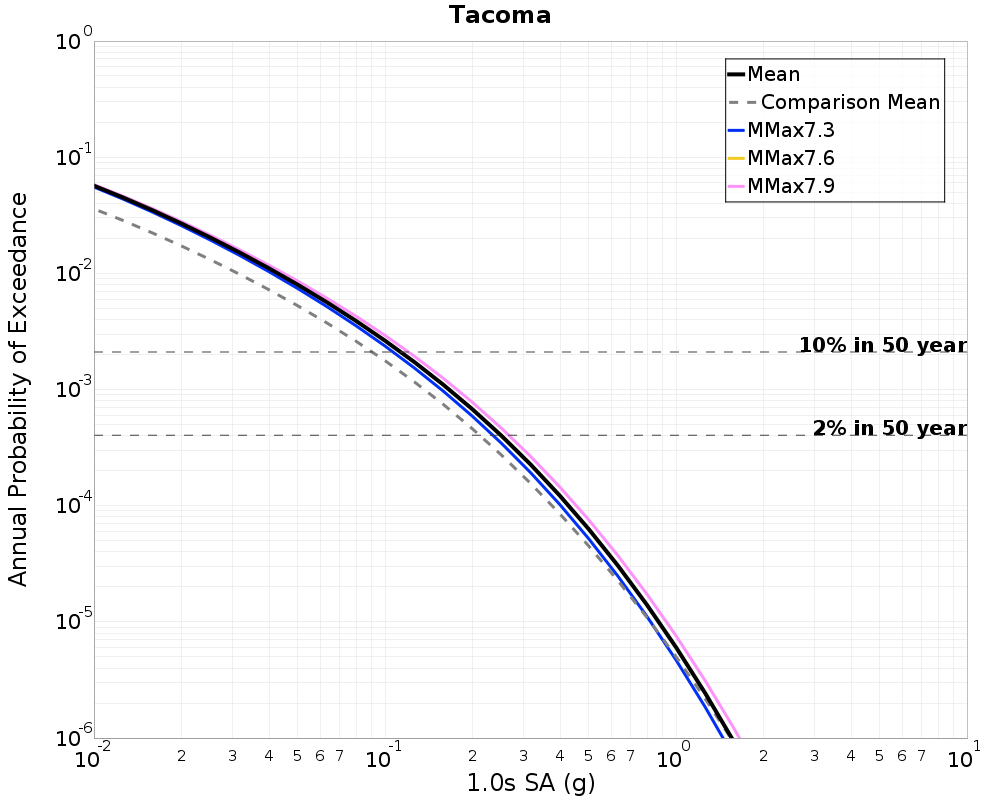

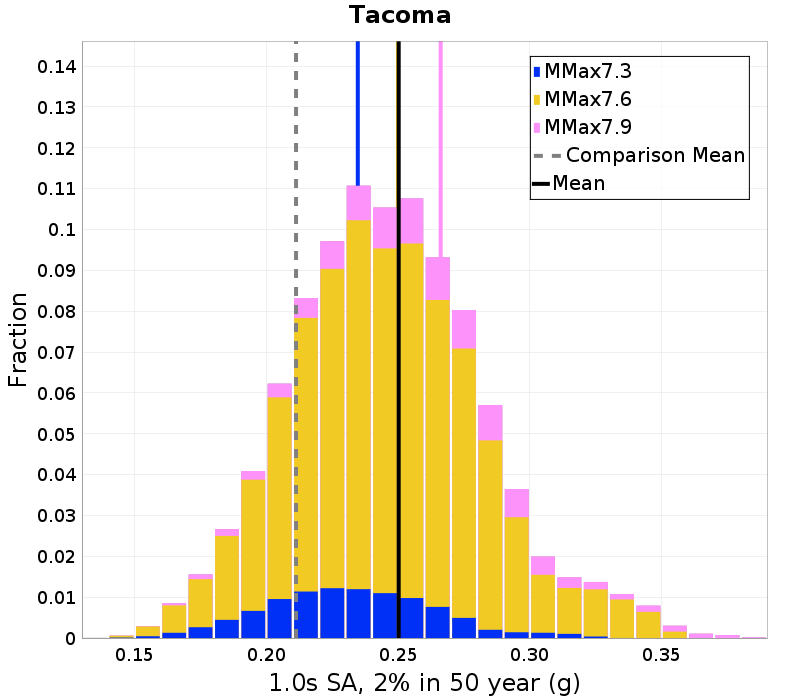

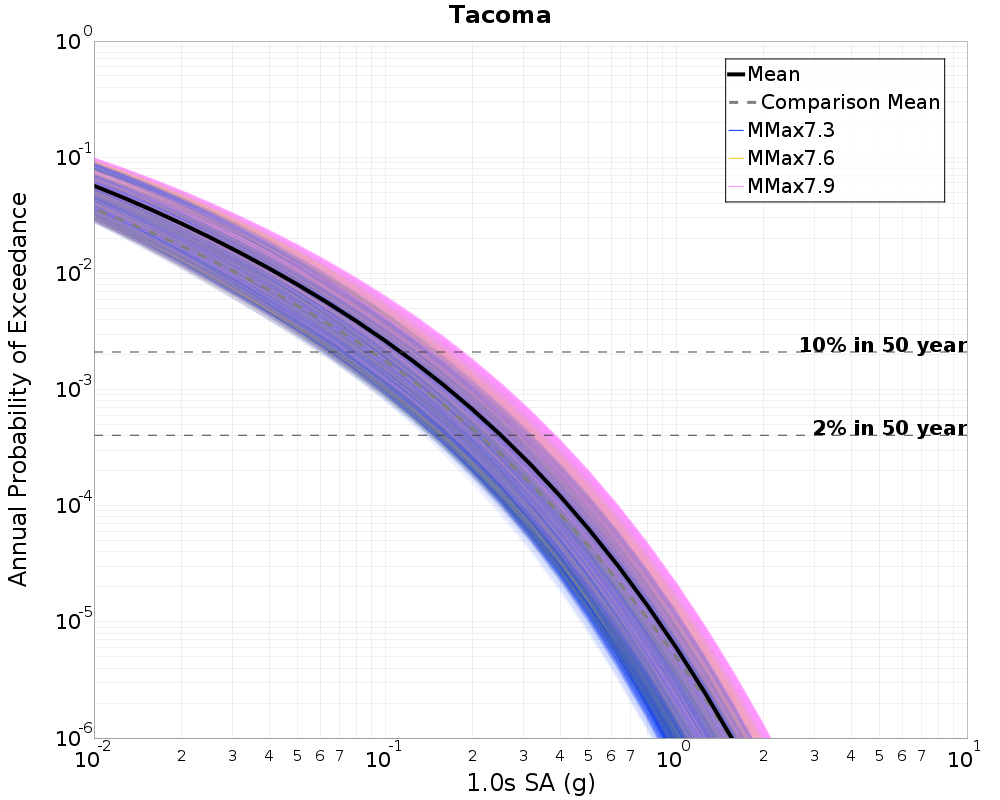

Tacoma, 1.0s SA, Off Fault Mmax Hazard
Individual Curves | Choice Mean Curves |
|---|---|
 |  |
2% in 50 year | 10% in 50 year |
 |  |
| 2% in 50 year | 10% in 50 year | |
|---|---|---|
| Full Model | 0.25020355 (g) | 0.113050155 (g) |
| MMax7.3 | 0.23468076 (g) | 0.106485106 (g) |
| MMax7.6 | 0.24990669 (g) | 0.11297182 (g) |
| MMax7.9 | 0.26614088 (g) | 0.12025702 (g) |
